AKAI
EIE Pro
[AI01]
Service Manual
v1.0
2011.12.06
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by Akai Professional. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of this
document is strictly prohibited. If you are not authorized, please contact Akai Professional and
destroy all copies of this document. You may contact Akai Professional at
[email protected].
Copyright Akai Professional
ATTENTION!
THIS DOCUMENT CONTAINS SENSITIVE
PROPRIETARY INFORMATION.
ALL RECIPIENTS MUST HAVE A CURRENT
NON-DISCLOSURE AGREEMENT ON FILE
WITH AKAI PROFESSIONAL.
DO NOT MAKE ILLEGAL
COPIES OF THIS DOCUMENT

Confidential Akai Service Manual
PREFACE
This document is intended to assist the service technician in the operation, maintenance and
repair of the Akai device. Together with the User Reference Manual, this document provides a
complete description of the functionality and serviceability of the Device. Any comments or
suggestions you may have pertaining to the document are welcome and encouraged.
READ THIS!
In addition to any purchase price that Akai may charge as consideration for Akai selling or
otherwise transferring this service manual (“Manual”) to you, if you are not a service and repair
facility (“Service Center”) authorized by Akai in writing to be an authorized Service Center, Akai
sells or transfers the Manual to you on the following terms and conditions:
Only Service Centers authorized by Akai in writing are authorized to perform service and repairs
covered by an Akai warranty (if any), and transfer of the Manual to you does not authorize you to
be an authorized Service Center. Therefore, if you perform, or if the Manual is used to
perform, any service or repairs on any Akai product or part thereof, any and all warranties
of Akai as to that product and any service contract with Akai for that product shall be
voided and shall no longer apply for such product, even if your services or repairs were
done in accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your
responsibility, and Akai shall have no liability for any such repairs or service work. All such
service or repairs are performed at the sole risk of the person performing the service or
repairs. You agree that all such work will be performed in a competent, professional and safe
manner at all times and to indemnify and fully hold Akai and its successors and assigns harmless
in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, Akai does not give you the right to copy the Manual,
and you agree not to copy the Manual without the written authorization of Akai. Akai has no
obligation to provide to you any correction of, or supplement to, the Manual, or any new or
superseding version thereof.
Akai shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in
its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts
supplied by Akai to you (i) to repair or be used in products manufactured for or by third parties or
(ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of Akai or the use
thereof on behalf of Akai or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of Akai.
All Trademarks are property of their respective companies.

Confidential Akai Service Manual
WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE
THIS PRODUCT TO WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the enclosed product which may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user
to the presence of important operating, maintenance and servicing
instructions in the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED
AKAI SERVICE CENTER WILL VOID THE AKAI WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO
COMPETE WITH ANY AKAI DISTRIBUTOR OR AUTHORIZED REPAIR
SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES OR TO BE
OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED AKAI
SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF THAT
ENTITY, AND AKAI SHALL HAVE NO LIABILITY TO THAT ENTITY OR TO
ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
CAUTION: The product under service may employ the use of a
replaceable fuse. Danger of fire or electrocution if fuse is incorrectly
replaced. Replace with only the same type or equivalent type
recommended by the equipment manufacturer.
Regarding the Internal Battery
CAUTION: The product under service may employ the use of a
internal battery. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer's instruction.

Confidential Akai Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions
before using this product. Use extra care to follow the warnings written on the product itself and in
the operating instructions. Keep the operating instructions and safety suggestions for reference in
the future.
1. Power Source. The product should only be connected to a power supply which is described
either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to
step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product's
AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any
openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or
other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate
ventilation. Improperly ventilating the product may cause overheating, which may damage the
product.
8. Mounting. The product should only be used with a rack which the manufacturer
recommends. The combination of the product and rack should be moved carefully. Quick
movements, excessive force or uneven surfaces may overturn the combination which may
damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain
situations including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.

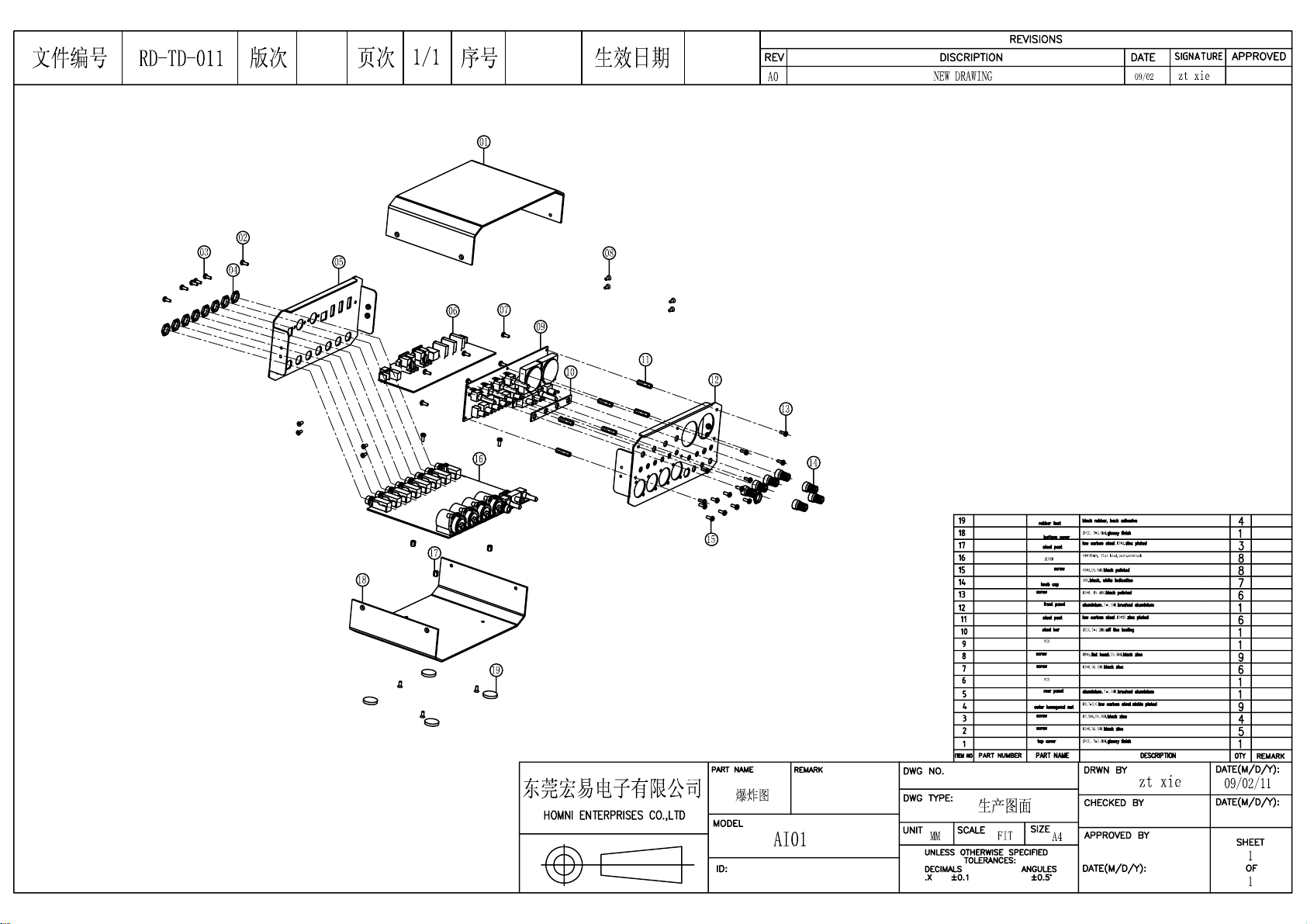

P/N Part Name Description Qty
DR001461 RoHS Simi-finished product:AI01 AI01 1
10160173 Front panel DN-MC7060,AI01,aT=1.5mm, brushed aluminium, 1
10110451 Rear panel DN-MC7060,AI01,aT=1.5mm, brushed aluminium, 1
10140551 Bottom cover DN-MC5198,AI01,SPCC,T=2.0mm,glossy black,V1.0 1
10520166 Iron sheet AI01,Iron sheet-1,SECC,T=1.5mm,素材,V1.0 1
10520175 Iron sheet AI01,Iron sheet-2,SECC,T=1.5mm,素材,V1.0 1
10520176 Iron sheet AI01,Iron sheet-3,SECC,T=1.5mm,素材,V1.0 1
10530039 Iron post DN-MB6039,M3*6mm,双通 3
10530065 Iron post DN-MB6061,low carbon steel,M3*20.5mm,双通,V1.0 6
20200041 Switch cap DN-PN1037,ABS,黑色,9.85*5.4*8.0mm,V1.0 1
20210125 Knob cap DN-PN2094,ABS,Φ13.5*21mm,外黑内白 7
70010729 Screw M3*7mm,平头内六角,螺头D5.5mm,公制机牙,镀镍,加硬 4
70010027 Screw AN-C10027,M3*5mm,十字圆头,螺头D5.5mm,公制机牙,镀镍,加硬,搏明 17
70010024 Screw M3*5mm,十字平头,螺头D6mm,公制机牙,黑锌,加硬 3
70010330 Screw M2.6*6mm,十字圆头,螺头D4.5mm,公制机牙,镀镍,加硬 4
70010585 Screw Φ3*10mm,十字圆头,螺头D5.5mm,自攻破尾牙,镀镍,加硬 8
20300088 Foot 黑色橡胶,T=3.0mm,单面备胶,LS-1803,瑞固 4
16080015 FCC connector cable AN-WA15,08P-0.5MM,L=100MM,华讯德 5
16080014 FCC connector cable AN-WA14,28P-0.5MM,L=100MM,华讯德 1
16080016 FCC connector cable AN-WA16,16P-0.5MM,L=100MM,华讯德 2
CR010136 RoHS Electronic Simi-finished product:AI01 FRON
T
AI01 FRONT组件 1
AI01 BOM

17010139 E/C 22uF/16V,±20%,-40/+85℃,Φ5*11mm,P=2mm,黑色,剪脚为4mm 2
17010193 E/C 100uF/35V,±20%,-40/+85℃,Φ6.3*11mm,P=2.5mm,黑色,剪脚为4mm 2
18040062 LED DIP,Φ4.8*3.2,R543-1(D)WW-D17,白光,白色雾状普亮,优力大 4
18040177 LED DIP,Φ4.8*3.2,R533SURC,红光,水透明高亮,优力大 4
12050024 Button switch AN-S524,MTS-202-A2T,2T2P,无牙,H=11.0,品源 2
12050025 Button switch AN-S525,MTS-102-A2T,1P2T,无牙,H=11.0,品源 6
12050026 Button switch AN-S526,MS-402-A2,牙纹尖针长柄,H=11.0,品源 1
15010455 V/R AN-V1158,RD902F-40B3-25FW-A10K-OOD,艾华 1
15010456 V/R AN-V1159,RD901F-40-25FW-C5K-OOD,艾华 4
60040004 VU meter AN-E0404,P-34SI-S0435,日精仪器 2
70010450 Screw Φ2*6mm,十字圆头,螺头3.5mm,自攻尖尾牙,黑锌,加硬 4
CR010137 RoHS Simi-finished product:AI01 FRONT SMD AI01 FRONT SMD组件 1
26020554 PCB AN-B20402,FRONT PCB,FR4双面板,190*195*1.6mm,绿色,1盎司,V301
B
1
11170692 SMD resistor 1/10W,0Ω,±1%,0603 4
11170483 SMD resistor 1/10W,1KΩ,±1%,0603,Brede 2
11170683 SMD resistor 1/10W,1.5KΩ,±1%,0603 2
11170522 SMD resistor 1/10W,5.9KΩ,±1%,0603 1
11171096 SMD resistor 1/10W,7.68KΩ,±1%,0603 2
11170536 SMD resistor 1/10W,10KΩ,±1%,0603 24
11171097 SMD resistor 1/10W,39.2KΩ,±1%,0603 2
11171098 SMD resistor 1/10W,66.5KΩ,±1%,0603 2
11170576 SMD resistor 1/10W,100KΩ,±1%,0603 5
11170583 SMD resistor 1/10W,200KΩ,±1%,0603 2
11170441 SMD resistor 1/10W,510KΩ,±5%,0603 2

11170141 SMD resistor 1/8W,150Ω,±1%,0805 4
11170156 SMD resistor 1/8W,330Ω,±1%,0805 4
50050019 SMD ceramic resistor 15PF,VDC50,±5%,NPO,0603,Brede 2
50050045 SMD ceramic resistor 101,VDC50,±5%,NPO,0603,Brede 2
50050074 SMD ceramic resistor 104,VDC50,±10%,X7R,0603,Brede 8
50050355 SMD ceramic resistor 1UF,VDC25,±10%,X7R,0603,Brede 4
50050343 SMD ceramic resistor 10UF,VDC6.3,±20%,X5R,0603,Brede 2
18010060 Common diode SOT23,BAT54S,Brede 2
14010079 NPN Audion MMBT4401LT1,SOT23,ONSEMI 2
14020068 PNP Audion MMBT4403LT1,SOT23,ONSEMI 6
14040241 IC MC33079DT,SOP14,ST 2
14040227 IC LM339DT,SOP14,ST 1
40240013 PCC connector AN-J2413,0.5S-1-08PB,立贴,华讯德 4
40240014 PCC connector AN-J2414,0.5S-1-16PB,立贴,华讯德 1
40240015 PCC connector AN-J2415,0.5S-1-28PB,立贴,华讯德 1
CR010138 RoHS Simi-finished product:AI01 MAIN AI01 MAIN组件 1
17010139 E/C 22uF/16V,±20%,-40/+85℃,Φ5*11mm,P=2mm,黑色,剪脚为4mm 22
17010179 E/C 47uF/63V,±20%,-40/+105℃,Φ6*10mm,P=2.5mm,黑色,剪脚为4mm 8
17010193 E/C 100uF/35V,±20%,-40/+85℃,Φ6.3*11mm,P=2.5mm,黑色,剪脚为4mm 2
17010247 E/C 470uF/16V,±20%,-40/+85℃,Φ8*12mm,P=3.5mm,黑色,剪脚为4mm 2
17010043 E/C 2200uF/6.3V,±20%,-40/105℃,Φ10*20mm,P=5mm,黑色,剪脚为4mm 4
40030031 6.35 jack AN-J0335,CK3-6.35-18,德星/正威(镀镍)9
40230004 Combined connector AN-J2304,CT/PJ-02-07EP 春生 4
15010457 V/R AN-V1160,RD902F-20-20F-B10K-OOD,艾华 2

12050027 Button switch AN-S527,MS-403-3-A4,无牙,H=11.0,品源 1
CR010139 RoHS Simi-finished product:AI01 MAIN SMD AI01 MAIN SMD组件 1
26020555 PCB AN-B20403,MAIN PCB,FR4双面板,190*128*1.6mm,绿色,1盎司,V402A 1
11170692 SMD resistor 1/10W,0Ω,±1%,0603 34
11171099 SMD resistor 1/10W,18.2Ω,±1%,0603 4
11170357 SMD resistor 1/10W,33Ω,5%,0603 2
11170892 SMD resistor 1/10W,100Ω,±1%,0603 12
11171061 SMD resistor 1/10W,470Ω,±1%,0603,Brede 6
11170483 SMD resistor 1/10W,1KΩ,±1%,0603,Brede 26
11170494 SMD resistor 1/10W,2KΩ,±1%,0603 8
11170496 SMD resistor 1/10W,2.21KΩ,±1%,0603 2
11170506 SMD resistor 1/10W,3.32KΩ,±1%,0603 8
11170507 SMD resistor 1/10W,3.48KΩ,±1%,0603 2
11170512 SMD resistor 1/10W,3.92KΩ,±1%,0603 8
11170513 SMD resistor 1/10W,4.02KΩ,±1%,0603 6
11170514 SMD resistor 1/10W,4.12KΩ,±1%,0603 4
11170518 SMD resistor 1/10W,4.99KΩ,±1%,0603 6
11170524 SMD resistor 1/10W,6.19KΩ,±1%,0603 8
11170830 SMD resistor 1/10W,6.81KΩ,±1%,0603,Brede 4
11170530 SMD resistor 1/10W,7.5KΩ,±1%,0603 16
11171100 SMD resistor 1/10W,9.53k,±1%,0603 8
11170536 SMD resistor 1/10W,10KΩ,±1%,0603 14
11170875 SMD resistor 1/10W,10.7KΩ,±1%,0603 4
11170543 SMD resistor 1/10W,15KΩ,±1%,0603 16

11170559 SMD resistor 1/10W,30.1KΩ,±1%,0603 2
11170564 SMD resistor 1/10W,47KΩ,±1%,0603 8
11170565 SMD resistor 1/10W,47.5KΩ,±1%,0603 12
11171101 SMD resistor 1/10W,48.7k ,±1%,0603 8
11170576 SMD resistor 1/10W,100KΩ,±1%,0603 12
11170156 SMD resistor 1/8W,330Ω,±1%,0805 4
18010075 Common diode AN-D10075,LL-34,1N4148,Brede.台晶 16
50050019 SMD ceramic resistor 15PF,VDC50,±5%,NPO,0603,Brede 14
50050036 SMD ceramic resistor 47PF,VDC50,±5%,NPO,0603,Brede 4
50050045 SMD ceramic resistor 101,VDC50,±5%,NPO,0603,Brede 24
50050158 SMD ceramic resistor 471,VDC50,±10%,X7R,0603,Brede 34
50050052 SMD ceramic resistor 102,VDC50,±10%,X7R,0603,Brede 6
50050074 SMD ceramic resistor 104,VDC50,±10%,X7R,0603,Brede 18
14010079 NPN Audion MMBT4401LT1,SOT23,ONSEMI 8
14020068 PNP Audion MMBT4403LT1,SOT23,ONSEMI 8
14020101 PNP Audion BC856B,SOT23,PHILIP 8
14010158 NPN Audion 2SD2114K，SOT23 6
14040241 IC MC33079DT,SOP14,ST 7
14040155 IC NJM4580M,DMP8,JRC 3
40240013 PCC connector AN-J2413,0.5S-1-08PB,立贴,华讯德 5
40240014 PCC connector AN-J2414,0.5S-1-16PB,立贴,华讯德 1
40240015 PCC connector AN-J2415,0.5S-1-28PB,立贴,华讯德 1
CR010140 RoHS Simi-finished product:AI01 TR AI01 TR组件 1
17010159 E/C 4.7uF/50V,±20%,-40/+85℃,Φ5*11mm,P=2mm,黑色,剪脚为4mm 4

17010103 E/C 10uF/25V,±20%,-40/+85℃,Φ5*11mm,P=2mm,黑色,剪脚为4mm 1
17010139 E/C 22uF/16V,±20%,-40/+85℃,Φ5*11mm,P=2mm,黑色,剪脚为4mm 8
17010168 E/C 47uF/16V,±20%,-40/+85℃,Φ5*11mm,P=2mm,黑色,剪脚为4mm 1
17010179 E/C 47uF/63V,±20%,-40/+105℃,Φ6*10mm,P=2.5mm,黑色,剪脚为4mm 4
17060019 Low ESR E/C 100uF/10V,±10%,-40/+105,Φ5*11mm,P=2mm,黑色,剪脚为4mm 4
17010193 E/C 100uF/35V,±20%,-40/+85℃,Φ6.3*11mm,P=2.5mm,黑色,剪脚为4mm 4
17010194 E/C 100uF/50V,±20%,-40/+85℃,Φ8*12mm,P=3.5mm,黑色,剪脚为4mm 3
17010287 E/C 1000uF/25V,±20%,-40/+85℃,Φ10*16mm,P=5mm,黑色,剪脚为4mm 1
40370283 Male jack AN-JP446,B302-XXSGF-117-H,松辉(2*5P,180度,P=2.54mm) 1
40060010 DC Jack AN-J0607,SCD480CCS011B00G,旭全 1
40430001 USB Jack AN-J4301,USB-109,镀镍,艺西欧,过盐雾24H 1
40430004 USB Jack AN-J4304,USB_A_108-EP,春生 3
40070009 S Terminal AN-J0709,SW-5-07,正威 2
12020035 Key switch AN-S234,SP70030F-0202-13F1-01-NN艾华 1
10250078 Bracket 瑞固,PCB-2(M3),U形2
CR010141 RoHSSimi-finished product:AI01 TR SMD AI01 TR SMD组件 1
26060047 PCB AN-B60039,TR PCB,FR4四层板,185*81.2*1.6mm,,绿色,1盎司,V401B 1
11170777 SMD resistor 1/10W,0Ω,±1%,0603,Brede 20
11171102 SMD resistor 1/10W,1Ω,±1%,0603,Brede 10
11170356 SMD resistor 1/10W,22Ω,±5%,0603 2
11170357 SMD resistor 1/10W,33Ω,5%,0603 1
11170358 SMD resistor 1/10W,39Ω,5%,0603 2
11170359 SMD resistor 1/10W,47Ω,±5%,0603 6
11170457 SMD resistor 1/10W,90.9Ω,±1%,0603 4

11170892 SMD resistor 1/10W,100Ω,±1%,0603 8
11170373 SMD resistor 1/10W,300Ω,±5%,0603 1
11170483 SMD resistor 1/10W,1KΩ,±1%,0603,Brede 1
11170497 SMD resistor 1/10W,2.43KΩ,±1%,0603 1
11170513 SMD resistor 1/10W,4.02KΩ,±1%,0603 4
11170517 SMD resistor 1/10W,4.7KΩ,±1%,0603 1
11171103 SMD resistor 1/10W,4.87KΩ,±1%,0603 8
11171104 SMD resistor 1/10W,6.49KΩ,±1%,0603 4
11170830 SMD resistor 1/10W,6.81KΩ,±1%,0603,Brede 1
11170536 SMD resistor 1/10W,10KΩ,±1%,0603 7
11170543 SMD resistor 1/10W,15KΩ,±1%,0603 1
11171105 SMD resistor 1/10W,31.6KΩ,±1%,0603 1
11170564 SMD resistor 1/10W,47KΩ,±1%,0603 3
11170576 SMD resistor 1/10W,100KΩ,±1%,0603 12
11170441 SMD resistor 1/10W,510KΩ,±5%,0603 2
11170444 SMD resistor 1/10W,1MΩ,±5%,0603 3
11170147 SMD resistor 1/8W,220Ω,±1%,0805 2
11170156 SMD resistor 1/8W,330Ω,±1%,0805 1
11170207 SMD resistor 1/8W,2KΩ,±1%,0805 1
11180016 SMD line resistor 4*100Ω,8P/4R,±5%,YC16(欣统)1
50050015 SMD ceramic resistor 10PF,VDC50,±5%,NPO,0603,Brede 1
50050021 SMD ceramic resistor 18PF,VDC50,±5%,NPO,0603,Brede 5
50050025 SMD ceramic resistor 22PF,VDC50,±5%,NPO,0603,Brede 2
50050031 SMD ceramic resistor 33PF,VDC50,±5%,NPO,0603,Brede 6

50050158 SMD ceramic resistor 471,VDC50,±10%,X7R,0603,Brede 4
50050191 SMD ceramic resistor 681,VDC50,±10%,X7R,0603,Brede 8
50050052 SMD ceramic resistor 102,VDC50,±10%,X7R,0603,Brede 2
50050121 SMD ceramic resistor 222,VDC50,±10%,X7R,0603,Brede 2
50050238 SMD ceramic resistor 272,VDC50,±10%,X7R,0603,Brede 4
50050063 SMD ceramic resistor 103,VDC50,±10%,X7R,0603,Brede 5
50050074 SMD ceramic resistor 104,VDC50,±10%,X7R,0603,Brede 48
50050355 SMD ceramic resistor 1UF,VDC25,±10%,X7R,0603,Brede 6
50050133 SMD ceramic resistor 2.2UF,VDC10,±10%,X7R,0805,Brede 3
50050380 SMD ceramic resistor 2.2UF,VDC10,±10%,X7R,0603,Brede 2
50050176 SMD ceramic resistor 4.7UF,VDC10,+80/-20%,Y5V,0805,Brede 3
50050274 SMD ceramic resistor 10uF,6.3V,±20%,X5R,0805,Brede 1
17070041 V-CHIPE/C 47uF/6.3V ±20%(SMD-B)Φ4*5.4,铝本色(EEE-HA0J470WR)Panasonic 2
18010075 Common diode AN-D10075,LL-34,1N4148,Brede.台晶 1
18010076 Common diode MMBD4148LT1,SOT23,DIODES,Brede,荃发 2
18010151 Common diode MBRS1100T3G,100V,1A,SMB,ON 2
18010136 Common diode B540C,SMC 1
18010060 Common diode SOT23,BAT54S,Brede 4
14010079 NPN Audion MMBT4401LT1,SOT23,ONSEMI 2
14020068 PNP Audion MMBT4403LT1,SOT23,ONSEMI 2
14060011 PFET FDD4685,TO-252,FAIRCHILD 1
18040040 LED 0603,KPT-1608SGC,今台,绿光,水清透明大角度高亮 1
25020023 SMD crystal resonance AN-0220,12MHZ,HC-49SMD-12.0000MHz,15PF，容泰 1
25020026 SMD crystal resonance AN-0223,HC-49S,SMD,30MHz,20PF,晶华 1

25020027 SMD crystal resonance AN-0224,HC-49S,SMD,22.5792MHz,20PF,晶华 1
25020028 SMD crystal resonance AN-0225,HC-49S,SMD,24.576 MHz,20PF,晶华 1
24040047 SMD inductor AN-I4038,CDH104R-330uH,线艺 2
24010030 SMD magnetic bead HCB2012KF-600T，60 OHMS@100MHZ,3A,0805,线艺 2
24040048 SMD inductor AN-I4039,WCM2012F2SF-900T04，0.4A 90OHMS@100MHz SMD,线
艺
5
40240014 PCC connector AN-J2414,0.5S-1-16PB,立贴,华讯德 2
40240013 PCC connector AN-J2413,0.5S-1-08PB,立贴,华讯德 1
60020006 O/C TLP181,SMD,TOSHIBA 1
14040850 IC FDC6306P,SOT-6,FAIRCHILD 2
14040857 IC USBLC6-2-SC6,ST 4
14040848 IC BA033FP,TO-252,ROHM 1
14040241 IC MC33079DT,SOP14,ST 2
14040595 IC CS4345-CZZ,24 BIT,192K TSSOP-10 CIRRUS LOGIC 2
14040854 IC TPS2560DRC,TI, 1
14040851 IC LM3578AM,M08A,NSC 2
14040503 IC AK5381ETP,TSSOP-16,AKM 2
14040104 IC SN74HC4040PWR,TSSOP16,TI 1
14040400 IC M74HC4053RM13TR,SOP16,ST 1
14040847 IC AT32UC3A364,LQFP_144,在线烧录 1
14070001 IC Programming AI01,AI01_EIEPRO_FW_3g 1
14040858 IC 74HCU04DT,TSS0P14 1
14040852 IC LP2975AI-5.0,SO8,NSC 1
14040853 IC SN74LVC1G17DCK,SC70-5,TI 1
14040855 IC TPS60403DBV,SOT23-5,TI 1

14040856 IC UPD720114-YEU-A,TQFP-48,NEC 1
GR000253 RoHS Option:AI01 AI01 1
13010075 Adapter AN-T10077,HK-AJ-060A300-GB,6V,3A,UK 1
13010076 Adapter AN-T10078,HK-AJ-060A300-EU,6V,3A,EU 1
13010077 Adapter AN-T10082,HK-AJ-060A300-US,6V,3A,UL 1
13010078 Adapter AN-T10080,0015/4050II,6V,3A,JP 1
13010079 Adapter AN-T10081,HK-AJ-060A300-AU,6V,3A,AU 1
22010636 Manual AI01,Japanese quickstart,V1.0 1
22010627 Manual AI01,english quickstart,V1.0 1
ER000362 RoHS Package:AI01 AI01 1
23150001 Paper corner 100%瓦楞纸,上盖,T=2.0mm,要求符合（ROHS）,V1.0 1
23150002 Paper corner 100%瓦楞纸,底盖,T=2.0mm,要求符合（ROHS）,V1.0 1
23090373 Gift box AI01,250g灰卡+CE双坑,T=3.5mm,322*215*132mm,ROHS,V1.0 1
23030986 Master carton AI01,A=B,660*415*240mm,T=6.0mm,单面接,打钉,V1.0 1
23010503 PE bag EPE(要求表面柔软),315*285mm,T=0.5mm,双面附膜,V1.0 1
23010295 PE bag PE,160*260*0.025mm,打孔 1
22050004 Desiccant 10克,硅胶,无纺布 1
22010624 Manual AKAI版,safety Manual,7-51-0226-L 1
90260002 Carton label AI01,铜版纸,白底黑字,43*12mm,一式一联,V1.0 1
90021043 S/N label AI01,白亮龙,白底黑字,64*13mm,一式五联,V1.0 5
16150008 USB cable AN-W1506,L=1800mm,UL2725 28# OD=3.5mm,慧晴 1
90200056 Label 铜版纸,BLACK&361C色印刷,Φ30mm,一式一联,V1.0 1
60200001 Disc AI01, V1.0 1
60200003 Disc AI01,ABLETON光碟,V1.0 1

10090369 Top cover DN-MC1124,AI01,SPCC,T=2.0mm,glossy black,V1.0 1
70010729 Screw M3*7mm,平头内六角,螺头D5.5mm,公制机牙,镀镍,加硬 4
23010009 PE bag PE,70*160*0.08mm 1

CB/KRH

9-79-0598-3

9-40-0598-3

AI01MN301A.sch

AKAI

AI01 Main PCB

C

1

4

OF

SHEET:

SIZE:

DATED:

DATED:

DRAWN:

RELEASED:

SCALE:

FILENAME:

PART NUMBER:

TITLE:

COMPANY:

A

B

D

C

A

B

C

D

6

5

4

3

2

1

ASSY NUMBER:

6/23/2011


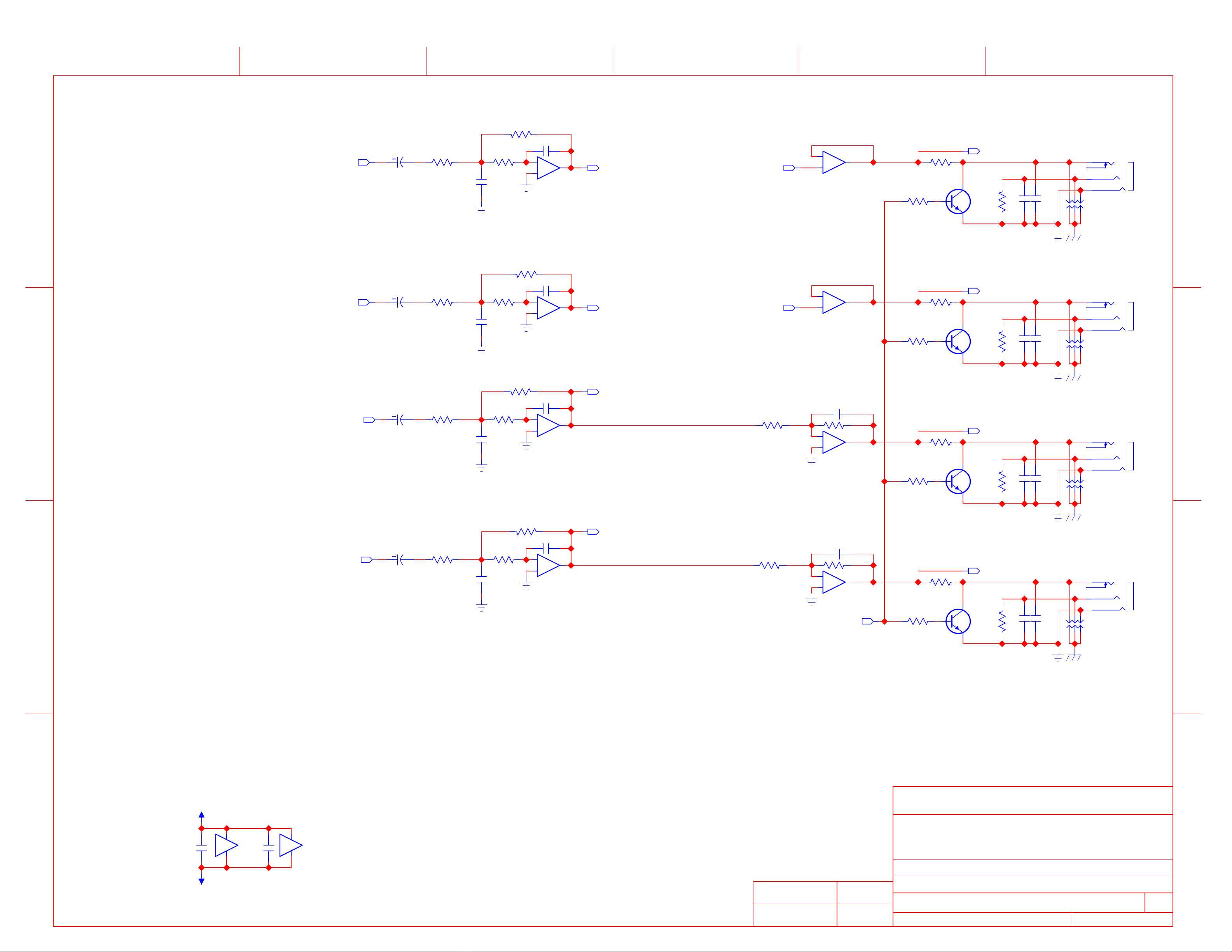

CH1 INSERT

CH1 INPUTS

CH2 INSERT

CH2 INPUTS

INVERTING INPUT

NON-INVERTING INPUT

INVERTING INPUT

NON-INVERTING INPUT

CH1 GAIN

CH2 GAIN

CH1 GUITAR INPUT ENABLE

CH2 GUITAR INPUT ENABLE

TO FP BOARD

TO FP BOARD

Q11

2N4403

Q10

2N4403

C96

100pF

C97

100pF

R62

3.92k 1%

R63

3.92k 1%

R67

6.19k 1%

R68

6.19k 1%

R60

2.00k 1%

R64

2.00k 1%

R61

330 ohm

R94

1.00k 1%

R93

1.00k 1%

R95

7.50k

R89

7.50k

R91

7.50k

R90

7.50k

10

+

9

-

8

U14-C

MC33079

12

+

13

-

14

U14-D

MC33079

+v

-v

4

11

U14-E

MC33079

C50

2200uF,6.3V

C94

470pF

C101

470pF

C85

470pF

C86

470pF

R43

15.0k 1%

R42

15.0k 1%

C33

47uF,63V

C32

47uF,63V

C100

470pF

C95

470pF

R70

100 ohm

R69

100k 1%

C61

0.1uF

C66

0.1uF

R92

3.32k 1%

C31

0.1uF

C34

0.1uF

SLEEVE

RING

TIP

1

2

3

4

J9

JY-6353-02-250

C35

22uF,16V

C36

22uF,16V

R65

48.7k 1%

R59

48.7k 1%

Q13

MBT4401

R74

47.5k 1%

Q12

MBT4401

R71

47.5k 1%

R72

1.00k 1%

R73

1.00k 1%

3

+

2

-

1

U14-A

MC33079

C106

15pF

C105

15pF

Q15

2N4403

Q14

2N4403

C102

100pF

C103

100pF

R78

3.92k 1%

R79

3.92k 1%

R85

6.19k 1%

R86

6.19k 1%

R76

2.00k 1%

R80

2.00k 1%

R77

330 ohm

R113

1.00k 1%

R112

1.00k 1%

R114

7.50k

R108

7.50k

R110

7.50k

R109

7.50k

10

+

9

-

8

U16-C

MC33079

12

+

13

-

14

U16-D

MC33079

C63

2200uF,6.3V

C93

470pF

C99

470pF

C83

470pF

C84

470pF

R41

15.0k 1%

R40

15.0k 1%

C23

47uF,63V

C22

47uF,63V

C92

470pF

C98

470pF

R66

100 ohm

R58

100k 1%

R111

3.32k 1%

C40

0.1uF

C42

0.1uF

SLEEVE

RING

TIP

1

2

3

4

J11

JY-6353-02-250

C43

22uF,16V

C44

22uF,16V

R81

48.7k 1%

R75

48.7k 1%

Q17

MBT4401

R97

47.5k 1%

Q16

MBT4401

R96

47.5k 1%

R100

1.00k 1%

R101

1.00k 1%

3

+

2

-

1

U16-A

MC33079

C118

15pF

C117

15pF

+v

-v

4

11

U16-E

MC33079

1

2

3

Q9

BC856

1

2

3

Q8

BC856

1

2

3

Q7

BC856

1

2

3

Q6

BC856

R53

47k

R52

47k

R51

47k

R50

47k

R47

15.0k 1%

R46

15.0k 1%

R45

15.0k 1%

R44

15.0k 1%

R39

100k 1%

R38

100k 1%

R37

100k 1%

R36

100k 1%

R87

18.2 ohm 1%

R102

18.2 ohm 1%

C104

47pF

C116

47pF

D8

1N4148

D5

1N4148

D7

1N4148

D6

1N4148

R56

100 ohm

R55

100 ohm

D4

1N4148

D3

1N4148

D10

1N4148

D9

1N4148

R57

100 ohm

R54

100 ohm

R167

0 ohm

R168

0 ohm

R169

0 ohm

R170

0 ohm

R171

0 ohm

R172

0 ohm

R173

0 ohm

R174

0 ohm

R175

0 ohm

R176

0 ohm

R177

0 ohm

R178

0 ohm

3

2

1

1

2

3

4

5

6

7

J12

NCJ6FI-V-0

3

2

1

1

2

3

4

5

6

7

J6

NCJ6FI-V-0

S30

S1

S2

S4

S6

S3

S7

S8

S9

S10

1

2

3

4

5

6

7

8

J4

1

2

3

4

5

6

7

8

J5

R24

10.0k 1%

R25

4.99K 1%

C16

100pF

R26

10.0k 1%

R27

4.99K 1%

C17

100pF

5

+

6

-

7

U14-B

MC33079

5

+

6

-

7

U16-B

MC33079

C39

22uF,16V

C65

22uF,16V

R34

0 ohm

R35

0 ohm

DNS

R48

0 ohm

R49

0 ohm

DNS

R14

6.81K 1%

R15

3.32k 1%

R107

6.81K 1%

R115

3.32k 1%

+50V_A

-5V

-5V

CH1_ADC

-5V

CH2_PEAK_INPUT

CH2_ADC

+50V_A

-5V

-5V

CH1_PEAK_INPUT

+5V

+5V

+5V

+5V

+5V

+5V

+5V

CH1-GAIN-HIGHSIDE

CH1-GAIN-LOWSIDE

CH2-GAIN-HIGHSIDE

CH2-GAIN-LOWSIDE

CH1_PEAK_INPUT

CH2_PEAK_INPUT

CHGND


6/23/2011

ASSY NUMBER:

1

2

3

4

5

6

D

C

B

A

C

D

B

A

COMPANY:

TITLE:

PART NUMBER:

FILENAME:

SCALE:

RELEASED:

DRAWN:

DATED:

DATED:

SIZE:

SHEET:

OF

4

2

C

AI01 Main PCB

AKAI

AI01MN301A.sch

CB/KRH

9-40-0598-3

9-79-0598-3


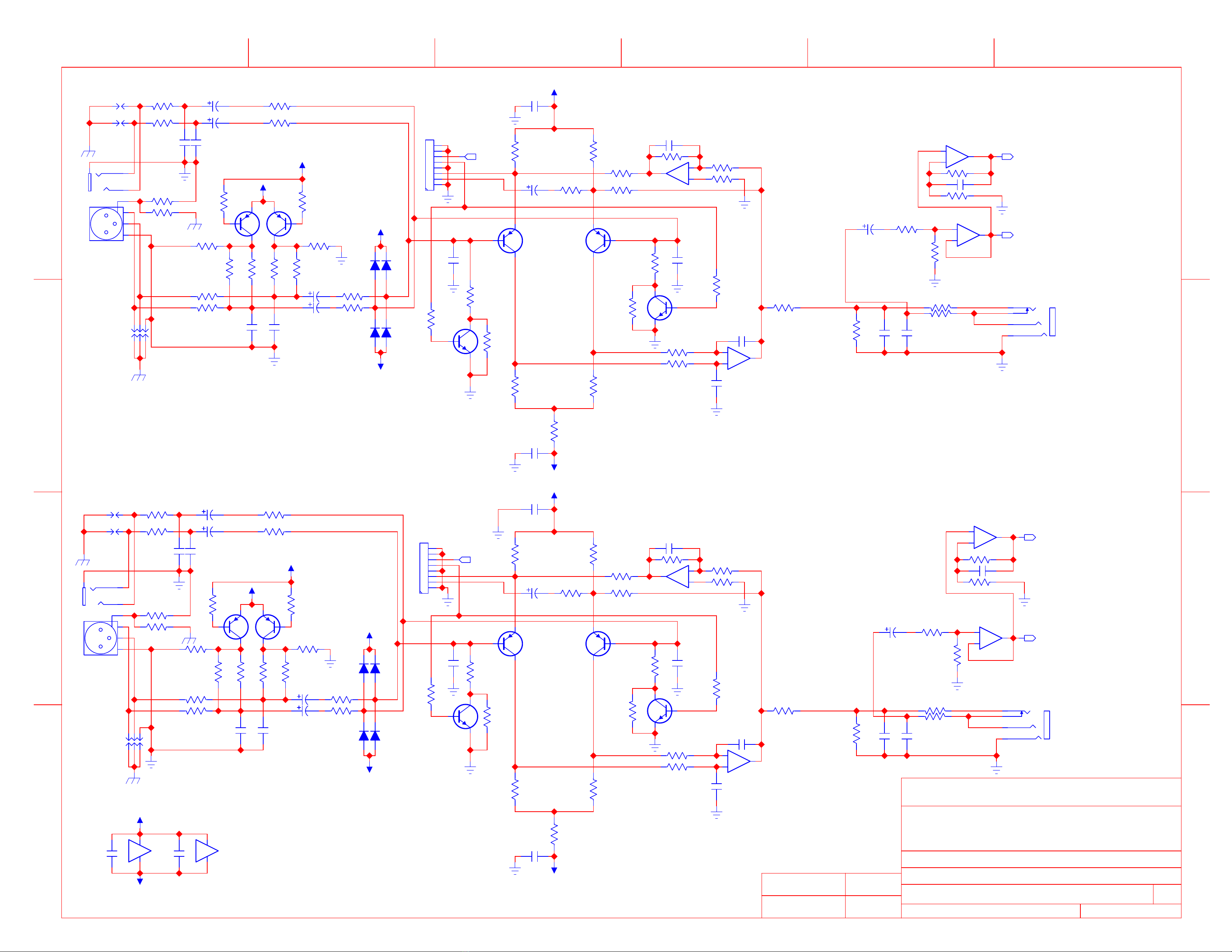

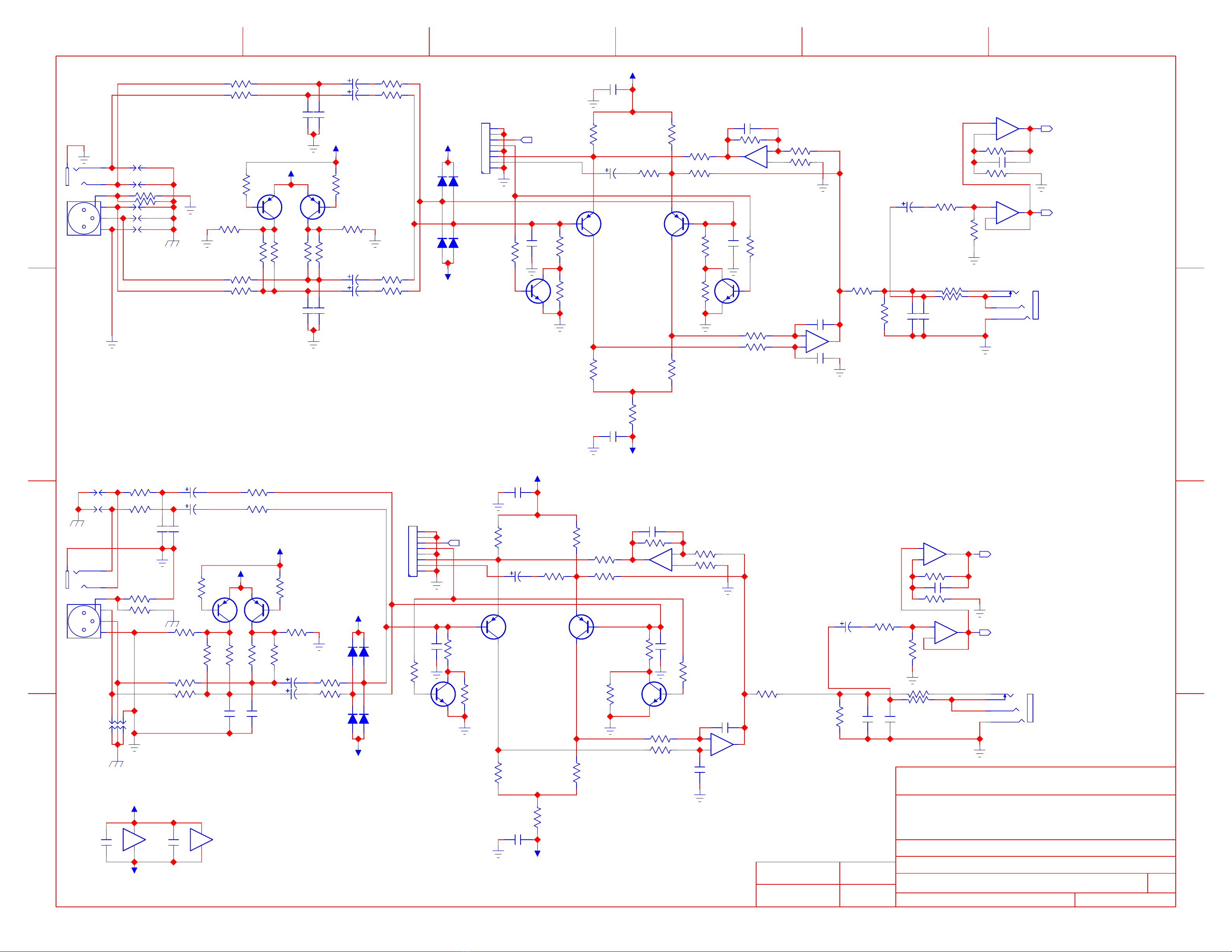

CH3 INSERT

CH3 INPUTS

XLR INPUT

CH4 INSERT

CH4 INPUTS

INVERTING INPUT

NON-INVERTING INPUT

INVERTING INPUT

NON-INVERTING INPUT

CH3 GAIN

CH4 GAIN

CH3 GUITAR INPUT ENABLE

CH4 GUITAR INPUT ENABLE

TO FP BOARD

TO FP BOARD

Q20

2N4403

Q21

2N4403

C171

100pF

C172

100pF

R221

3.92k 1%

R222

3.92k 1%

R225

2.00k 1%

R226

2.00k 1%

R227

330 ohm

R228

1.00k 1%

R229

1.00k 1%

R230

7.50k

R231

7.50k

R232

7.50k

R233

7.50k

10

+

9

-

8

U29-C

MC33079

12

+

13

-

14

U29-D

MC33079

-v

+v

4

11

U29-E

MC33079

C173

2200uF,6.3V

C174

470pF

C175

470pF

C176

470pF

C177

470pF

R234

15.0k 1%

R235

15.0k 1%

C178

47uF,63V

C179

47uF,63V

C181

470pF

C182

470pF

R236

100 ohm

R237

100k 1%

C184

0.1uF

C185

0.1uF

R241

3.32k 1%

C187

0.1uF

C188

0.1uF

SLEEVE

RING

TIP

1

2

3

4

J23

JY-6353-02-250

C189

22uF,16V

C190

22uF,16V

R242

48.7k 1%

R243

48.7k 1%

3

+

2

-

1

U29-A

MC33079

C191

15pF

C192

15pF

Q24

2N4403

Q25

2N4403

C193

100pF

C194

100pF

R249

3.92k 1%

R250

3.92k 1%

R253

2.00k 1%

R254

2.00k 1%

R255

330 ohm

R256

1.00k 1%

R257

1.00k 1%

R258

7.50k

R259

7.50k

R260

7.50k

R261

7.50k

10

+

9

-

8

U30-C

MC33079

12

+

13

-

14

U30-D

MC33079

C195

2200uF,6.3V

C196

470pF

C197

470pF

C198

470pF

C199

470pF

R262

15.0k 1%

R263

15.0k 1%

C200

47uF,63V

C201

47uF,63V

C203

470pF

C204

470pF

R264

100 ohm

R265

100k 1%

R269

3.32k 1%

C207

0.1uF

C208

0.1uF

SLEEVE

RING

TIP

1

2

3

4

J26

JY-6353-02-250

C209

22uF,16V

C210

22uF,16V

R270

48.7k 1%

R271

48.7k 1%

3

+

2

-

1

U30-A

MC33079

C211

15pF

C212

15pF

-v

+v

4

11

U30-E

MC33079

1

2

3

Q28

BC856

1

2

3

Q29

BC856

1

2

3

Q30

BC856

1

2

3

Q31

BC856

R277

47k

R278

47k

R279

47k

R280

47k

R281

15.0k 1%

R282

15.0k 1%

R283

15.0k 1%

R284

15.0k 1%

R285

100k 1%

R286

100k 1%

R287

100k 1%

R288

100k 1%

R289

18.2 ohm 1%

R290

18.2 ohm 1%

C213

47pF

C214

47pF

D17

1N4148

D18

1N4148

D19

1N4148

D20

1N4148

R291

100 ohm

R292

100 ohm

D21

1N4148

D22

1N4148

D23

1N4148

D24

1N4148

R293

100 ohm

R294

100 ohm

R299

0 ohm

R300

0 ohm

R301

0 ohm

R302

0 ohm

R303

0 ohm

R304

0 ohm

R305

0 ohm

R306

0 ohm

R307

0 ohm

R308

0 ohm

R309

0 ohm

R310

0 ohm

R131

6.19k 1%

Q22

MBT4401

R134

47.5k 1%

R135

1.00k 1%

R136

6.19k 1%

Q32

MBT4401

R137

47.5k 1%

R138

1.00k 1%

R141

6.19k 1%

Q33

MBT4401

R150

47.5k 1%

R151

1.00k 1%

R152

6.19k 1%

Q35

MBT4401

R153

47.5k 1%

R154

1.00k 1%

3

2

1

1

2

3

4

5

6

7

J7

NCJ6FI-V-0

3

2

1

1

2

3

4

5

6

7

J8

NCJ6FI-V-0

S11

S12

S13

S15

S16

S17

S18

S19

S20

S21

1

2

3

4

5

6

7

8

J10

1

2

3

4

5

6

7

8

J13

R28

10.0k 1%

R29

4.99K 1%

C18

100pF

R30

10.0k 1%

R31

4.99K 1%

C19

100pF

5

+

6

-

7

U29-B

MC33079

5

+

6

-

7

U30-B

MC33079

C180

22uF,16V

C202

22uF,16V

R82

0 ohm

R83

0 ohm

DNS

R84

0 ohm

R88

0 ohm

DNS

R116

6.81K 1%

R117

3.32k 1%

R118

6.81K 1%

R119

3.32k 1%

+50V_B

-5V

-5V

-5V

+50V_B

-5V

-5V

CH3_ADC

CH4_ADC

CH4_PEAK_INPUT

CH3_PEAK_INPUT

+5V

+5V

+5V

+5V

+5V

+5V

+5V

CH3-GAIN-HIGHSIDE

CH3-GAIN-LOWSIDE

CH4-GAIN-HIGHSIDE

CH4-GAIN-LOWSIDE

CH4_PEAK_INPUT

CH3_PEAK_INPUT


6/23/2011

ASSY NUMBER:

1

2

3

4

5

6

D

C

B

A

C

D

B

A

COMPANY:

TITLE:

PART NUMBER:

FILENAME:

SCALE:

RELEASED:

DRAWN:

DATED:

DATED:

SIZE:

SHEET:

OF

4

3

C

AI01 Main PCB

AKAI

AI01MN301A.sch

CB/KRH

9-40-0598-3

9-79-0598-3

DAC OUTPUT BUFFERS CH 3/4

Gain = +4.187dB = UB0's non-inverting gain

2nd order Butterworth, MFB type

-3dB Cutoff = 50kHz

DIRECT USB 3

NC

DIRECT USB 4

NC

DAC OUTPUT BUFFERS CH 1/2

Gain = +4.187dB = UB0's non-inverting gain

2nd order Butterworth, MFB type

-3dB Cutoff = 50kHz

DIRECT USB 1

NC

DIRECT USB 2

NC

C240

22uF,16V

R330

4.12k 1%

R331

10.7k 1%

C241

1000pF

R332

9.53k 1%

C242

100pF

R333

4.12k 1%

R334

10.7k 1%

C243

1000pF

R335

9.53k 1%

C244

100pF

C245

22uF,16V

C143

470pF

C144

470pF

R218

1.00k 1%

SLEEVE

RING

TIP

1

2

3

4

J31

JY-6314-01-340

C145

470pF

C146

470pF

R220

1.00k 1%

SLEEVE

RING

TIP

1

2

3

4

J32

JY-6314-01-340

Q18

2SD2114K

Q19

2SD2114K

C52

22uF,16V

R98

4.12k 1%

R103

10.7k 1%

C112

1000pF

R104

9.53k 1%

C114

100pF

R99

4.12k 1%

R106

10.7k 1%

C113

1000pF

R105

9.53k 1%

C115

100pF

C51

22uF,16V

C139

470pF

C140

470pF

R211

1.00k 1%

SLEEVE

RING

TIP

1

2

3

4

J18

JY-6314-01-340

C141

470pF

C142

470pF

R216

1.00k 1%

SLEEVE

RING

TIP

1

2

3

4

J19

JY-6314-01-340

Q23

2SD2114K

Q26

2SD2114K

3

+

2

-

1

U3-A

MC33079

12

+

13

-

14

U3-D

MC33079

10

+

9

-

8

U2-C

MC33079

12

+

13

-

14

U2-D

MC33079

5

+

6

-

7

U2-B

MC33079

-v

+v

4

11

U2-E

C1

0.1uF

R9

470 ohm

R10

470 ohm

R11

470 ohm

R12

470 ohm

S22

S23

S24

S25

S26

S27

S28

S29

S31

S32

S33

S34

C11

0.1uF

R13

1.00k 1%

R6

1.00k 1%

R2

1.00k 1%

R4

1.00k 1%

R5

9.53k 1%

R7

9.53k 1%

R32

9.53k 1%

R33

9.53k 1%

3

+

2

-

1

U2-A

MC33079

3

+

2

-

1

U5-A

NJM4580E

5

+

6

-

7

U5-B

NJM4580E

-v

+v

8

4

U5-C

C2

100pF

C4

100pF

-5V

MUTE_DRIVER

+5V

CH1_PEAK_OUTPUT

DAC1_DIRECT

DAC2_DIRECT

MASTER-GAIN-RIGHT-WIPER

MASTER-GAIN-LEFT-WIPER

DAC3_DIRECT

DAC4_DIRECT

CH1_DAC

CH2_DAC

CH3_DAC

CH4_DAC

CH2_PEAK_OUTPUT

CH3_PEAK_OUTPUT

CH4_PEAK_OUTPUT

CHGND2

CHGND2

CHGND2

CHGND2


9-79-0598-3

9-40-0598-3

6/23/2011

ASSY NUMBER:

1

2

3

4

5

6

D

C

B

A

C

D

B

A

COMPANY:

TITLE:

PART NUMBER:

FILENAME:

SCALE:

RELEASED:

DRAWN:

DATED:

DATED:

SIZE:

SHEET:

OF

4

4

C

AI01 Main PCB

AKAI

AI01MN301A.sch

CB/KRH

MONITOR

BALANCE

DIRECT/USB

MONO/STEREO

SELECT

HEADPHONE DRIVE

LEVEL

HEADPHONES

CHANNEL SUMMING FROM XLR/MICS

TO FP BOARD

TO TR BOARD

TO TR BOARD

C30

0.1uF

CW

4

5

6

P3-B

10KB

CW

1

2

3

P3-A

10KB

C41

22uF

C121

22uF

C127

22uF

C128

22uF

CW

4

5

6

P4-B

10KB

CW

1

2

3

P4-A

10KB

C150

22uF

C151

22uF

3

+

2

-

1

U22-A

MC33079

R358

10.0k 1%

R359

10.0k 1%

R360

4.99k 1%

12

+

13

-

14

U22-D

MC33079

R361

10.0k 1%

R362

10.0k 1%

R363

4.99k 1%

-v

+v

4

11

U22-E

MC33079

C122

100pF

R183

33 ohm

C123

470uF,10V

C124

470uF,10V

C125

470pF

C126

470pF

C129

0.1uF

R186

1.00k 1%

R187

1.00k 1%

SLEEVE

RING

TIP

1

2

3

4

J16

JY-6314-01-340

R180

2.21k 1%

R184

3.48k 1%

C21

100pF

R181

3.48k 1%

R185

2.21k 1%

R130

33 ohm

Q27

2SD2114K

Q34

2SD2114K

R160

470 ohm

5

+

6

-

7

U3-B

MC33079

10

+

9

-

8

U3-C

MC33079

R156

47.5k 1%

R157

47.5k 1%

C7

15pF

R158

47.5k 1%

R159

47.5k 1%

C8

15pF

R196

30.1k 1%

R197

10.0k 1%

R198

30.1k 1%

R199

10.0k 1%

R354

10.0k 1%

R355

10.0k 1%

C147

0.1uF

C221

15pF

C265

15pF

R8

470 ohm

S35

S36

S37

7

8

3

10

5

12

1

2

9

4

11

6

SW1

SSHP23-16K

G2

G4

C28

100uF,35V

C6

100uF,35V

C9

1000pF

C10

1000pF

1

2

3

4

5

6

7

8

J1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

J3

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

J2

C3

15pF

DNS

C5

15pF

DNS

R1

0 ohm

DNS

R3

0 ohm

DNS

3

+

2

-

1

U4-A

NJM4580E

5

+

6

-

7

U4-B

NJM4580E

-v

+v

8

4

U4-C

5

+

6

-

7

U22-B

MC33079

10

+

9

-

8

U22-C

MC33079

-v

+v

4

11

U3-E

C12

100pF

C13

100pF

-5V

DAC1_DIRECT

DAC2_DIRECT

+5V

ADC_SUM_CH1/3

ADC_SUM_CH2/4

MUTE_DRIVER

CH1_ADC

CH3_ADC

CH2_ADC

CH4_ADC

ADC_SUM_CH1/3

ADC_SUM_CH2/4

MASTER-GAIN-LEFT-TOP

MASTER-GAIN-RIGHT-TOP

DAC4_DIRECT

DAC3_DIRECT

DAC2_DIRECT

DAC1_DIRECT

CHGND

ADC_SUM_CH1/3

MON_L

MON_R

MON_L

MON_R

ADC_SUM_CH2/4

CH4_PEAK_OUTPUT

CH3_PEAK_OUTPUT

CH2_PEAK_OUTPUT

CH1_PEAK_OUTPUT

MASTER-GAIN-LEFT-TOP

MASTER-GAIN-LEFT-WIPER

MASTER-GAIN-RIGHT-TOP

MASTER-GAIN-RIGHT-WIPER

+50V_B

+50V_A

-5V

+5V

CH1_ADC

CH2_ADC

CH3_ADC

CH4_ADC

CH1_DAC

CH2_DAC

CH3_DAC

CH4_DAC

MUTE_DRIVER

