AKG PR 40 User manual
Bedienungshinweise . . . . . . . . . . . . . . . . . . . S. 2
Bitte vor Inbetriebnahme des Gerätes lesen!
User Instructions . . . . . . . . . . . . . . . . . . . . . p. 10
Please read the manual before using the equipment!
Mode d’emploi . . . . . . . . . . . . . . . . . . . . . . . p. 19
Veuillez lire cette notice avant d’utiliser le système!
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . . p. 27
Prima di utilizzare l’apparecchio, leggere il manuale!
Modo de empleo . . . . . . . . . . . . . . . . . . . . . p. 35
Antes de utilizar el equipo, sírvase leer el manual!
Instruções de uso . . . . . . . . . . . . . . . . . . . . p. 43
Favor leia este manual antes de usar o equipamen
to!
PR 40 portablereceiver
WMS40
microtools
AKG.WIRELESS WIRELESS
MICROPHONE
SYSTEM
Bedienungshinweise . . . . . . . . . . . . . . . . . . . S. 2
Bitte vor Inbetriebnahme des Gerätes lesen!
User Instructions . . . . . . . . . . . . . . . . . . . . . p. 10
Please read the manual before using the equipment!
Mode d’emploi . . . . . . . . . . . . . . . . . . . . . . . p. 19
Veuillez lire cette notice avant d’utiliser le système!
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . . p. 27
Prima di utilizzare l’apparecchio, leggere il manuale!
Modo de empleo . . . . . . . . . . . . . . . . . . . . . p. 35
Antes de utilizar el equipo, sírvase leer el manual!
Instruções de uso . . . . . . . . . . . . . . . . . . . . p. 43
Favor leia este manual antes de usar o equipamen
to!
PR 40 portablereceiver
WMS40
microtools
AKG.WIRELESS WIRELESS
MICROPHONE
SYSTEM
1 Safety and
Environment
1.1 Safety
1. Do not expose the equipment to
direct sunlight, excessive dust, moi-
sture, rain, mechanical vibrations, or
shock.
1.2 Environment
1. The AC adapter will draw a small
amount of current even when the
equipment is switched off. To save
energy, disconnect the AC adapter
from the power outlet if you will leave
the equipment unused for a long peri-
od of time.
2. When scrapping the equipment,
separate the case, circuit boards,
and cables, and dispose of all com-
ponents in accordance with local
waste disposal rules.
10
FCC Statement
This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Parts 74, 15,
and 90 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a resi-
dential installation. This equipment gene-
rates, uses, and can radiate radio fre-
quency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equip-
ment does cause harmful interference to
radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try
to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and the receiver.
• Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
Shielded cables and I/O cords must be
used for this equipment to comply with
the relevant FCC regulations.
Changes or modifications not expressly
approved in writing by AKG Acoustics
may void the user’s authority to operate
this equipment.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interfe-
rence received, including interference
that may cause undesired operation.
1 Safety and
Environment
1.1 Safety
1. Do not expose the equipment to
direct sunlight, excessive dust, moi-
sture, rain, mechanical vibrations, or
shock.
1.2 Environment
1. The AC adapter will draw a small
amount of current even when the
equipment is switched off. To save
energy, disconnect the AC adapter
from the power outlet if you will leave
the equipment unused for a long peri-
od of time.
2. When scrapping the equipment,
separate the case, circuit boards,
and cables, and dispose of all com-
ponents in accordance with local
waste disposal rules.
10
FCC Statement
This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Parts 74, 15,
and 90 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a resi-
dential installation. This equipment gene-
rates, uses, and can radiate radio fre-
quency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equip-
ment does cause harmful interference to
radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try
to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and the receiver.
• Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
Shielded cables and I/O cords must be
used for this equipment to comply with
the relevant FCC regulations.
Changes or modifications not expressly
approved in writing by AKG Acoustics
may void the user’s authority to operate
this equipment.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interfe-
rence received, including interference
that may cause undesired operation.
1 Safety and
Environment
1.1 Safety
1. Do not expose the equipment to
direct sunlight, excessive dust, moi-
sture, rain, mechanical vibrations, or
shock.
1.2 Environment
1. The AC adapter will draw a small
amount of current even when the
equipment is switched off. To save
energy, disconnect the AC adapter
from the power outlet if you will leave
the equipment unused for a long peri-
od of time.
2. When scrapping the equipment,
separate the case, circuit boards,
and cables, and dispose of all com-
ponents in accordance with local
waste disposal rules.
10
FCC Statement
This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Parts 74, 15,
and 90 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a resi-
dential installation. This equipment gene-
rates, uses, and can radiate radio fre-
quency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equip-
ment does cause harmful interference to
radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try
to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and the receiver.
• Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
Shielded cables and I/O cords must be
used for this equipment to comply with
the relevant FCC regulations.
Changes or modifications not expressly
approved in writing by AKG Acoustics
may void the user’s authority to operate
this equipment.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interfe-
rence received, including interference
that may cause undesired operation.
2 Description
2.1 Introduction
Thank you for purchasing an
AKG product. This Manual contains
important instructions for setting up and
operating your equipment. Please take a
few minutes to read the instructions
below carefully before operating the
equipment. Please keep the Manual for
future reference. Have fun and impress
your audience!
2.2 Unpacking
Check that the packaging
contains all of the com-
ponents listed above. Should
anything be missing, please
contact your AKG dealer.

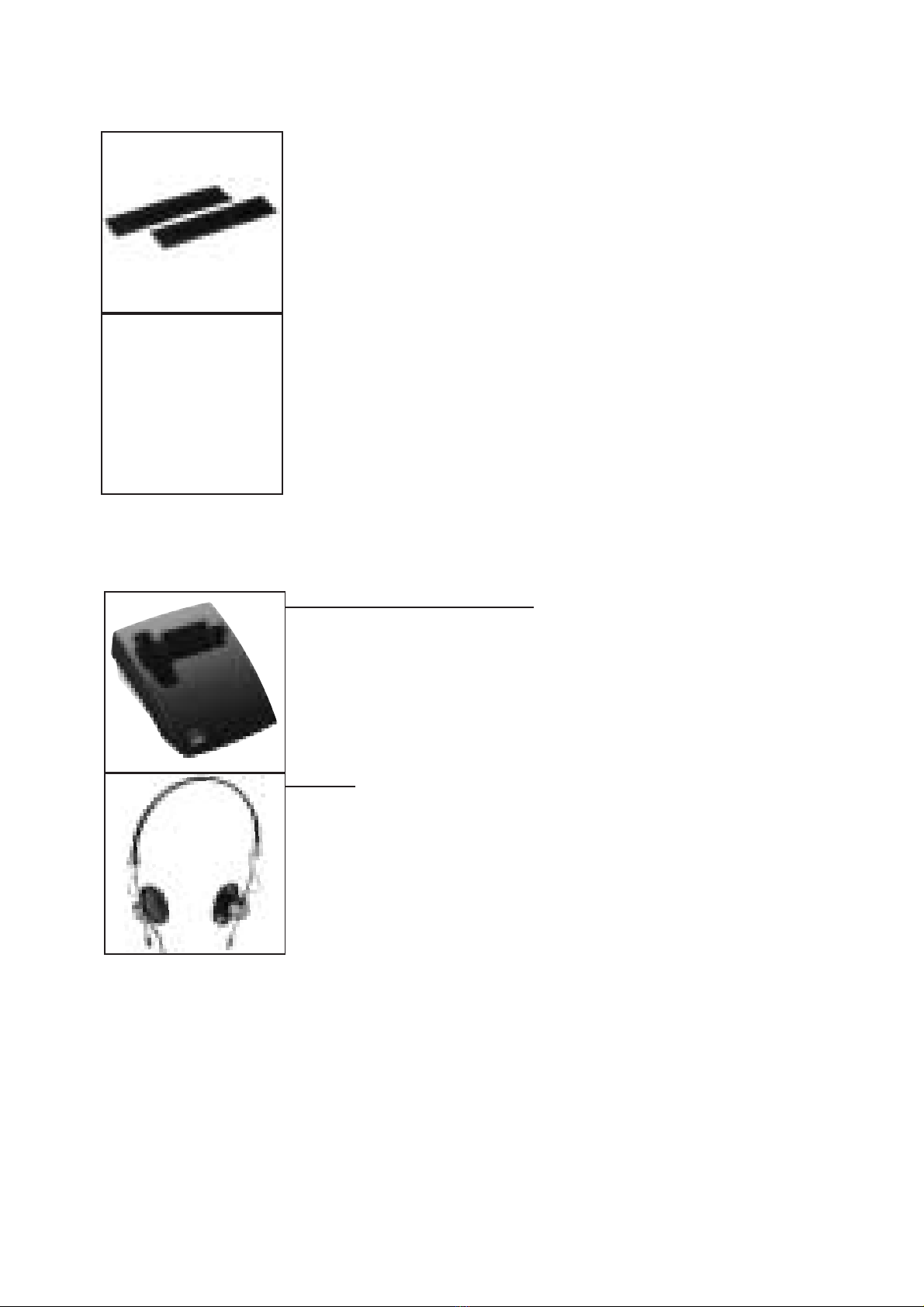

2.3 Optional Accessories
• CU 40 charger
• Custom versions of AKG
headphones with .1-in. jack
plug. (On request – K 10
shown.)
2.4 Description
The PR 40 is a portable diversity receiver
for use with all AKG WMS 40 Series
transmitters (HT 40, PT 40, GB 40, MP

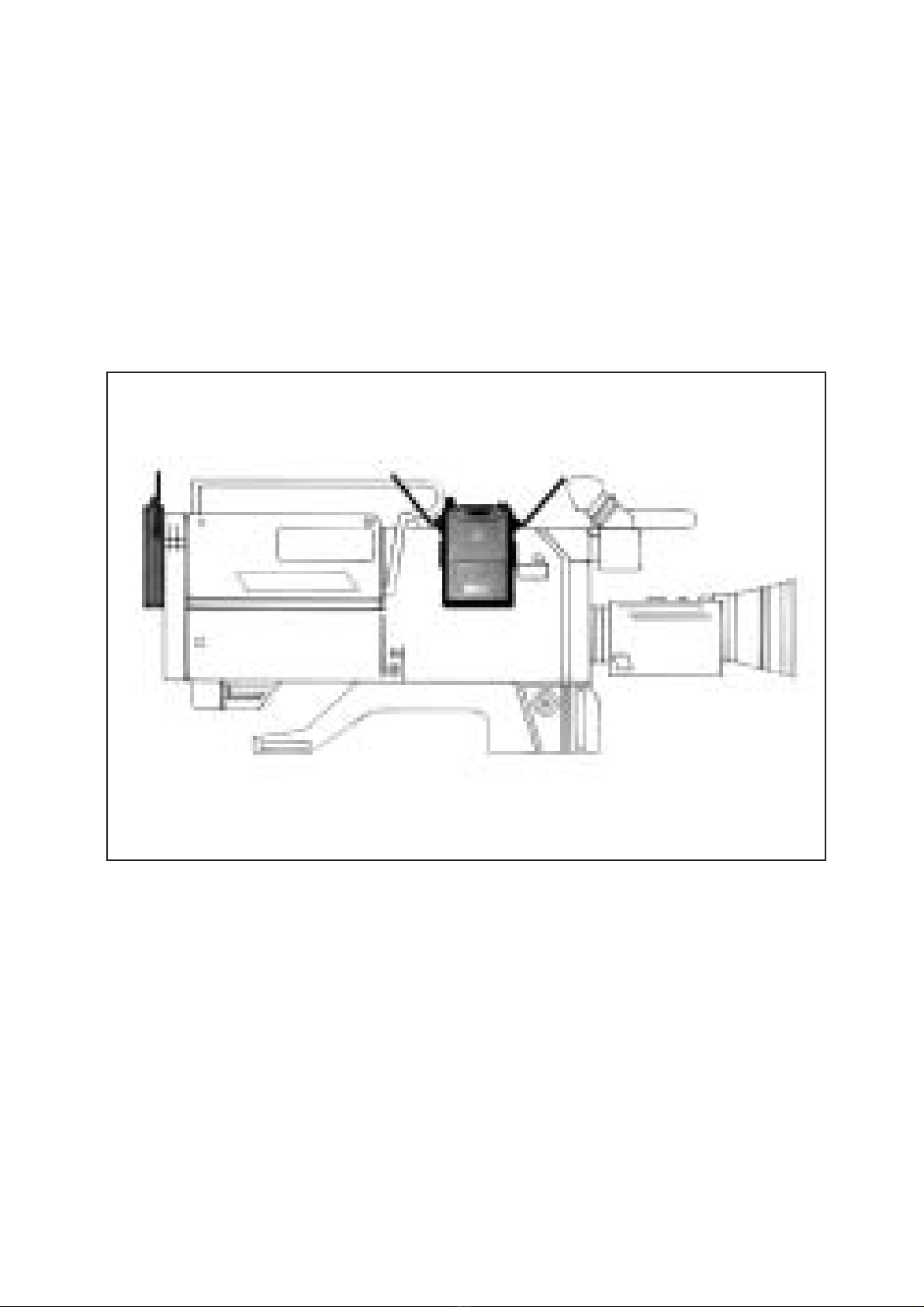

40, SO 40). The supplied Velcro strip
allows you to mount the receiver on a
mixer, pedalboard (to give effect-loving
guitarists more room to move), or a
video camera for ENG use.
Thanks to its compact dimensions and
convenient belt clip, the PR 40 is an
excellent receiver for tour guide and
small interpretation systems.
A preset squelch will mute the receiver if
the received signal is too weak so the
related noise or the self-noise of the
receiver will not become audible when
the transmitter is switched OFF.
The PR 40 operates on one fixed, quartz
stabilized frequency in the 710 MHz to
865 MHz UHF carrier frequency range
and uses two folding UHF antennas. The
color of the volume control indicates the
receiving frequency. The type plate on
the receiver rear panel provides detailed
frequency information.
11
PR 40
receiver
1 connecting
cable with
unterminated
leads
1 belt
clip
2 AAA
size 1.5 V
batteries
Velcro
strip
2 Description
2.1 Introduction
Thank you for purchasing an
AKG product. This Manual contains
important instructions for setting up and
operating your equipment. Please take a
few minutes to read the instructions
below carefully before operating the
equipment. Please keep the Manual for
future reference. Have fun and impress
your audience!
2.2 Unpacking
Check that the packaging
contains all of the com-
ponents listed above. Should
anything be missing, please
contact your AKG dealer.
2.3 Optional Accessories
• CU 40 charger
• Custom versions of AKG
headphones with .1-in. jack
plug. (On request – K 10
shown.)
2.4 Description
The PR 40 is a portable diversity receiver
for use with all AKG WMS 40 Series
transmitters (HT 40, PT 40, GB 40, MP
40, SO 40). The supplied Velcro strip
allows you to mount the receiver on a
mixer, pedalboard (to give effect-loving
guitarists more room to move), or a
video camera for ENG use.
Thanks to its compact dimensions and
convenient belt clip, the PR 40 is an
excellent receiver for tour guide and
small interpretation systems.
A preset squelch will mute the receiver if
the received signal is too weak so the
related noise or the self-noise of the
receiver will not become audible when
the transmitter is switched OFF.
The PR 40 operates on one fixed, quartz
stabilized frequency in the 710 MHz to
865 MHz UHF carrier frequency range
and uses two folding UHF antennas. The
color of the volume control indicates the
receiving frequency. The type plate on
the receiver rear panel provides detailed
frequency information.
11
PR 40
receiver
1 connecting
cable with
unterminated
leads
1 belt
clip
2 AAA
size 1.5 V
batteries
Velcro
strip
2 Description
2.1 Introduction
Thank you for purchasing an
AKG product. This Manual contains
important instructions for setting up and
operating your equipment. Please take a
few minutes to read the instructions
below carefully before operating the
equipment. Please keep the Manual for
future reference. Have fun and impress
your audience!
2.2 Unpacking
Check that the packaging
contains all of the com-
ponents listed above. Should
anything be missing, please
contact your AKG dealer.
2.3 Optional Accessories
• CU 40 charger
• Custom versions of AKG
headphones with .1-in. jack
plug. (On request – K 10
shown.)
2.4 Description
The PR 40 is a portable diversity receiver
for use with all AKG WMS 40 Series
transmitters (HT 40, PT 40, GB 40, MP
40, SO 40). The supplied Velcro strip
allows you to mount the receiver on a
mixer, pedalboard (to give effect-loving
guitarists more room to move), or a
video camera for ENG use.
Thanks to its compact dimensions and
convenient belt clip, the PR 40 is an
excellent receiver for tour guide and
small interpretation systems.
A preset squelch will mute the receiver if
the received signal is too weak so the
related noise or the self-noise of the
receiver will not become audible when
the transmitter is switched OFF.
The PR 40 operates on one fixed, quartz
stabilized frequency in the 710 MHz to
865 MHz UHF carrier frequency range
and uses two folding UHF antennas. The
color of the volume control indicates the
receiving frequency. The type plate on
the receiver rear panel provides detailed
frequency information.
11
PR 40
receiver
1 connecting
cable with
unterminated
leads
1 belt
clip
2 AAA
size 1.5 V
batteries
Velcro
strip
2.5 Controls
2.5.1 Top Panel (Fig. 1)
ON/OFF: On/off switch.
Output jack: This .1-in. TRS jack on
the receiver top panel provides a
fixed-level line output and an adjusta-
ble mono headphone output. The
volume control (3) lets you adjust the
volume level of the headphone out-
put.
The output jack is wired as follows:
Tip: line output (fixed level)
Ring: headphone output (adjustable)
Sleeve: ground
Important: To avoid overloading the
headphone amplifier, do not con-
nect headphones with an imped-
ance lower than 16 Ωto the head-
phone output.
Volume control: Sets the volume
level of the headphone output (2).
The color of the volume control knob
indicates the receiving frequency of
your receiver.
RF LED: Indicates the field strength
of the received signal:
LED lighting green: optimum field
strength.
LED lighting red: field strength is
zero (the transmitter is OFF or the
receiver has been set to a different
channel than the transmitter) or the
received signal is muted because the
squelch is engaged.
LED does not light: power to the
receiver is OFF, no batteries are in the
battery compartment, or the batteries
are dead.
AF LED: Indicates the received audio
level:
LED lighting green and flashing red
on peaks: optimum audio level.
12
Fig. 1: Top panel controls.
2.5 Controls
2.5.1 Top Panel (Fig. 1)
ON/OFF: On/off switch.
Output jack: This .1-in. TRS jack on
the receiver top panel provides a
fixed-level line output and an adjusta-
ble mono headphone output. The
volume control (3) lets you adjust the
volume level of the headphone out-
put.
The output jack is wired as follows:
Tip: line output (fixed level)
Ring: headphone output (adjustable)
Sleeve: ground
Important: To avoid overloading the
headphone amplifier, do not con-
nect headphones with an imped-
ance lower than 16 Ωto the head-
phone output.
Volume control: Sets the volume
level of the headphone output (2).
The color of the volume control knob
indicates the receiving frequency of
your receiver.
RF LED: Indicates the field strength
of the received signal:
LED lighting green: optimum field
strength.
LED lighting red: field strength is
zero (the transmitter is OFF or the
receiver has been set to a different
channel than the transmitter) or the
received signal is muted because the
squelch is engaged.
LED does not light: power to the
receiver is OFF, no batteries are in the
battery compartment, or the batteries
are dead.
AF LED: Indicates the received audio
level:
LED lighting green and flashing red
on peaks: optimum audio level.
12
Fig. 1: Top panel controls.
2.5 Controls
2.5.1 Top Panel (Fig. 1)
ON/OFF: On/off switch.
Output jack: This .1-in. TRS jack on
the receiver top panel provides a
fixed-level line output and an adjusta-
ble mono headphone output. The
volume control (3) lets you adjust the
volume level of the headphone out-
put.
The output jack is wired as follows:
Tip: line output (fixed level)
Ring: headphone output (adjustable)
Sleeve: ground
Important: To avoid overloading the
headphone amplifier, do not con-
nect headphones with an imped-
ance lower than 16 Ωto the head-
phone output.
Volume control: Sets the volume
level of the headphone output (2).
The color of the volume control knob
indicates the receiving frequency of
your receiver.
RF LED: Indicates the field strength
of the received signal:
LED lighting green: optimum field
strength.
LED lighting red: field strength is
zero (the transmitter is OFF or the
receiver has been set to a different
channel than the transmitter) or the
received signal is muted because the
squelch is engaged.
LED does not light: power to the
receiver is OFF, no batteries are in the
battery compartment, or the batteries
are dead.
AF LED: Indicates the received audio
level:
LED lighting green and flashing red
on peaks: optimum audio level.
12
Fig. 1: Top panel controls.
LED lighting red: audio section is
overloaded.
LED does not light: audio level is too
low.
BATT: Indicates battery status:
LED lights green: batteries are O.K.
LED does not illuminate on switch-
ing the power ON: no or dead batte-
ries in the battery compartment.
LED lights red: batteries will be dead
in about 60 minutes.
Antennas: Being a diversity receiver,
the PR 40 uses two antennas to
receive the transmitter signals at two
different spots. The diversity circuit
will automatically activate the anten-
na that provides the better signal.
Battery compartment: Accepts the
supplied 1.5 V dry batteries or
rechargeable batteries of the same
size (not supplied).
2.5.2 Rear Panel (Fig. 2)
Type plate with approval marks and
frequency information (frequencies,
frequency sets, color code).
Belt clip for fixing the receiver on
your belt.
2.5.3 Bottom Panel (Fig. 2)
Charging contacts for charging
rechargeable batteries inside the bat-
tery compartment using the optional
CU 40 charger.
13
Fig. 2: Bottom and rear panels.
LED lighting red: audio section is
overloaded.
LED does not light: audio level is too
low.
BATT: Indicates battery status:
LED lights green: batteries are O.K.
LED does not illuminate on switch-
ing the power ON: no or dead batte-
ries in the battery compartment.
LED lights red: batteries will be dead
in about 60 minutes.
Antennas: Being a diversity receiver,
the PR 40 uses two antennas to
receive the transmitter signals at two
different spots. The diversity circuit
will automatically activate the anten-
na that provides the better signal.
Battery compartment: Accepts the
supplied 1.5 V dry batteries or
rechargeable batteries of the same
size (not supplied).
2.5.2 Rear Panel (Fig. 2)
Type plate with approval marks and
frequency information (frequencies,
frequency sets, color code).
Belt clip for fixing the receiver on
your belt.
2.5.3 Bottom Panel (Fig. 2)
Charging contacts for charging
rechargeable batteries inside the bat-
tery compartment using the optional
CU 40 charger.
13
Fig. 2: Bottom and rear panels.
LED lighting red: audio section is
overloaded.
LED does not light: audio level is too
low.
BATT: Indicates battery status:
LED lights green: batteries are O.K.
LED does not illuminate on switch-
ing the power ON: no or dead batte-
ries in the battery compartment.
LED lights red: batteries will be dead
in about 60 minutes.
Antennas: Being a diversity receiver,
the PR 40 uses two antennas to
receive the transmitter signals at two
different spots. The diversity circuit
will automatically activate the anten-
na that provides the better signal.
Battery compartment: Accepts the
supplied 1.5 V dry batteries or
rechargeable batteries of the same
size (not supplied).
2.5.2 Rear Panel (Fig. 2)
Type plate with approval marks and
frequency information (frequencies,
frequency sets, color code).
Belt clip for fixing the receiver on
your belt.
2.5.3 Bottom Panel (Fig. 2)
Charging contacts for charging
rechargeable batteries inside the bat-
tery compartment using the optional
CU 40 charger.
13
Fig. 2: Bottom and rear panels.
3 Setting Up
3.1 Powering
To power the PR 40 portable
receiver you can use the supplied 1.5 V
AAA size dry batteries or 1.5 V AAA size
rechargeable batteries (not supplied).
3.2 Inserting/Replacing and Testing
Batteries (Fig. 3)
1. Depress the snap hook on the battery
compartment lid (1).
2. Pull the battery compartment lid (1)
down to remove it from the receiver.
Important: The foam pad on the inside
of the battery compartment lid (1)
holds the batteries in place. Do not
remove the foam pad. If you do, the
batteries will not be held in place
securely and may cause a rattling
noise.
3. If there are dead or defective batte-
ries inside the battery compartment,
remove the batteries.
4. Insert the supplied or new batteries
(2) into the battery compartment as
shown in fig. 3.
5. Set the ON/ OFF switch (3) to ON.
If the batteries are in good condition,
the BATT LED (4) will light green. If
the BATT LED (4) illuminates red, the
batteries will be dead within about 60
minutes. Replace the batteries with
new ones as soon as possible.
If the BATT LED (4) fails to illuminate
the batteries are dead. Insert new
batteries.
6. Slide the battery compartment lid (1)
onto the receiver against the direc-
tion of the arrow to the point that the
lid (1) will click shut.
14
Fig. 3: Inserting batteries.
3 Setting Up
3.1 Powering
To power the PR 40 portable
receiver you can use the supplied 1.5 V
AAA size dry batteries or 1.5 V AAA size
rechargeable batteries (not supplied).
3.2 Inserting/Replacing and Testing
Batteries (Fig. 3)
1. Depress the snap hook on the battery
compartment lid (1).
2. Pull the battery compartment lid (1)
down to remove it from the receiver.
Important: The foam pad on the inside
of the battery compartment lid (1)
holds the batteries in place. Do not
remove the foam pad. If you do, the
batteries will not be held in place
securely and may cause a rattling
noise.
3. If there are dead or defective batte-
ries inside the battery compartment,
remove the batteries.
4. Insert the supplied or new batteries
(2) into the battery compartment as
shown in fig. 3.
5. Set the ON/ OFF switch (3) to ON.
If the batteries are in good condition,
the BATT LED (4) will light green. If
the BATT LED (4) illuminates red, the
batteries will be dead within about 60
minutes. Replace the batteries with
new ones as soon as possible.
If the BATT LED (4) fails to illuminate
the batteries are dead. Insert new
batteries.
6. Slide the battery compartment lid (1)
onto the receiver against the direc-
tion of the arrow to the point that the
lid (1) will click shut.
14
Fig. 3: Inserting batteries.
3 Setting Up
3.1 Powering
To power the PR 40 portable
receiver you can use the supplied 1.5 V
AAA size dry batteries or 1.5 V AAA size
rechargeable batteries (not supplied).
3.2 Inserting/Replacing and Testing
Batteries (Fig. 3)
1. Depress the snap hook on the battery
compartment lid (1).
2. Pull the battery compartment lid (1)
down to remove it from the receiver.
Important: The foam pad on the inside
of the battery compartment lid (1)
holds the batteries in place. Do not
remove the foam pad. If you do, the
batteries will not be held in place
securely and may cause a rattling
noise.
3. If there are dead or defective batte-
ries inside the battery compartment,
remove the batteries.
4. Insert the supplied or new batteries
(2) into the battery compartment as
shown in fig. 3.
5. Set the ON/ OFF switch (3) to ON.
If the batteries are in good condition,
the BATT LED (4) will light green. If
the BATT LED (4) illuminates red, the
batteries will be dead within about 60
minutes. Replace the batteries with
new ones as soon as possible.
If the BATT LED (4) fails to illuminate
the batteries are dead. Insert new
batteries.
6. Slide the battery compartment lid (1)
onto the receiver against the direc-
tion of the arrow to the point that the
lid (1) will click shut.
14
Fig. 3: Inserting batteries.
3.3 Using Rechargeable Batteries
(Fig. 4)
Instead of dry batteries, you can also
use two 1.5 V rechargeable batteries to
power the receiver. We recommend
SANYO HR-4U (650 mAh) or Panasonic
Rechargeable PRO+ (550 mAh) NiMH
rechargeable batteries.
To charge the batteries, insert the receiv-
er (1) into the optional CU 40 charger (2)
as shown in fig. 4.
Important: Before placing the receiver
in the charger, switch the receiver
OFF and fold the antennas all the
way down, against the side panels
of the receiver. With the antennas
folded down, it will be easier to
center the receiver inside the char-
ging compartment and the charger
will be less prone to be knocked
over.
For details on charging batteries, refer to
the CU 40 charger manual.
4 Applications
4.1 Mounting the Receiver
on a Mixer, Pedalboard, or
Video Camera
1. Press the ends of the belt clip inward
as shown in fig. 5 and remove the
belt clip.
2. Cut two 2-inch lengths off the sup-
plied Velcro strip.
3. Remove the backing from one of the
15
Fig. 4: Using the optional CU 40 charger.
Fig. 5: Removing the belt clip.
3.3 Using Rechargeable Batteries
(Fig. 4)
Instead of dry batteries, you can also
use two 1.5 V rechargeable batteries to
power the receiver. We recommend
SANYO HR-4U (650 mAh) or Panasonic
Rechargeable PRO+ (550 mAh) NiMH
rechargeable batteries.
To charge the batteries, insert the receiv-
er (1) into the optional CU 40 charger (2)
as shown in fig. 4.
Important: Before placing the receiver
in the charger, switch the receiver
OFF and fold the antennas all the
way down, against the side panels
of the receiver. With the antennas
folded down, it will be easier to
center the receiver inside the char-
ging compartment and the charger
will be less prone to be knocked
over.
For details on charging batteries, refer to
the CU 40 charger manual.
4 Applications
4.1 Mounting the Receiver
on a Mixer, Pedalboard, or
Video Camera
1. Press the ends of the belt clip inward
as shown in fig. 5 and remove the
belt clip.
2. Cut two 2-inch lengths off the sup-
plied Velcro strip.
3. Remove the backing from one of the
15
Fig. 4: Using the optional CU 40 charger.
Fig. 5: Removing the belt clip.
3.3 Using Rechargeable Batteries
(Fig. 4)
Instead of dry batteries, you can also
use two 1.5 V rechargeable batteries to
power the receiver. We recommend
SANYO HR-4U (650 mAh) or Panasonic
Rechargeable PRO+ (550 mAh) NiMH
rechargeable batteries.
To charge the batteries, insert the receiv-
er (1) into the optional CU 40 charger (2)
as shown in fig. 4.
Important: Before placing the receiver
in the charger, switch the receiver
OFF and fold the antennas all the
way down, against the side panels
of the receiver. With the antennas
folded down, it will be easier to
center the receiver inside the char-
ging compartment and the charger
will be less prone to be knocked
over.
For details on charging batteries, refer to
the CU 40 charger manual.
4 Applications
4.1 Mounting the Receiver
on a Mixer, Pedalboard, or
Video Camera
1. Press the ends of the belt clip inward
as shown in fig. 5 and remove the
belt clip.
2. Cut two 2-inch lengths off the sup-
plied Velcro strip.
3. Remove the backing from one of the
15
Fig. 4: Using the optional CU 40 charger.
Fig. 5: Removing the belt clip.
strips and attach it to the receiver
rear panel.
4. Remove the backing from the other
strip and attach it to the mixer, pedal-
board, or camera.
To ensure perfect reception, position
the Velcro strip so that the antennas
on the receiver will protrude above
the mixer, pedalboard, or camera.
(Refer to fig. 6).
4.1.1 Audio Connection (Fig. 7)
The supplied connecting cable lets you
connect the line output on the receiver
to an audio input on a mixing console,
pedalboard, or video camera.
1. Check what connector type you will
need for your equipment and solder
the connector to the cable.
Cable pinout:
Red wire: line level
White wire: headphone signal
Shield: ground
Important: Please refer to the instruc-
tion manual of the equipment to
which you will connect the receiver
to check which wire you should
connect to which pin on the
connector.
2. If the selected input provides phan-
tom power, switch the phantom
power OFF.
Refer to the manual of your equip-
ment.
3. Plug the .1-in. jack plug (1) on the
connecting cable into the output jack
(2) on the receiver.
16
Fig. 6: Optimum antenna position.
Fig. 7: Audio connection
AB
,
Other manuals for PR 40
1
Table of contents
Other AKG Receiver manuals
