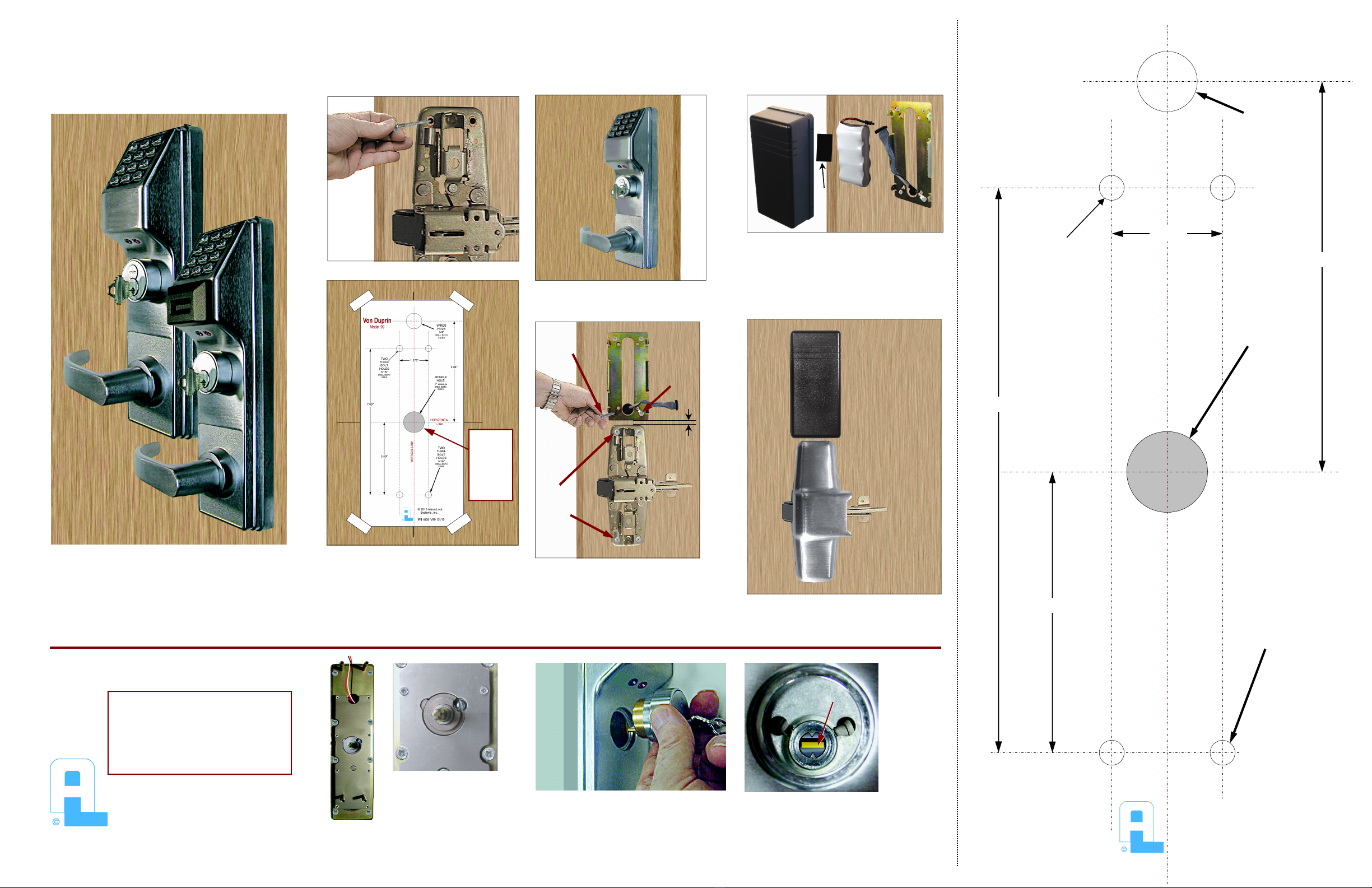

ET-PDLN
Networx Trilogy®Panic Exit Device Trim
INSTRUCTIONS & TEMPLATE
Von Duprin
Model 99
Rim Exit Device
To Change Cylinder
Alarm Lock Systems, Inc.
A division of the NAPCO Security Technologies, Inc.
345 Bayview Avenue, Amityville, NY 11701
Tel: (631) 789-4871 Fax: (631) 789-3383
www.alarmlock.com
Publicly traded on NASDAQ Symbol: NSSC
1. Existing Installation: Remove Exit device from door.
2. Existing Installation: Position Alarm Lock template on
horizontal & vertical lines of existing spindle hole.
New Installation: Locate and mark horizontal and vertical
lines indicated in Exit Device Instructions/Template. Line up
Alarm Lock template with horizontal and vertical lines and
tape on door.
Existing and New Installations: Mark all hole centers on
each side of door. Drill all holes from both sides of door to
avoid splintering.
3. Before positioning the Exterior assembly on door, feed
the ribbon cable and the green ground wire (with ring
connector) through the 3/4" wire hole.
4. Replace Exit Device, insert and fasten with 4 new mounting
screws (do not over-tighten). Before mounting the Battery
Box Mounting Plate, carefully pull wires from door through
center of Plate. Do not pinch or cut wires. Position the Plate
a minimum of 1/4" above Exit Device. Fasten the Battery
Box Mounting Plate with four #8 x 3/4" flat head combination
screws, using one of the screws to secure the green ground
wire ring connector to the Plate.
5. Connect the Battery Pack (batteries may be shrink wrapped
as shown or may be inside a housing) and place inside of
Battery Box Mounting Plate. Secure the Battery Pack inside
the Battery Box Cover with the hook and loop fastener
(provided). Position the Cover and fasten with four #6-32 x
5/16" screws.
6. Replace and fasten exit device & Battery Box covers.
Check lock for proper operation
before closing door.
A. Remove Cover plate. Rotate the
spindle either direction to expose
and remove cylinder screws. B. Remove old cylinder and insert new cylinder. C. Note: The tailpiece must be in the
horizontal position as shown in the
image above.
ETDLN
SERIES
ETPDLN
SERIES
3
6
A
B
TailPiece
IMPORTANT:
When replacing cylinder
be sure to use the
proper Cylinder Adapter
and Tailpiece.
Battery Pack
Battery Box
Mounting Plate
2
C
C
1
VERTICAL LINE
TWO
THRU-
BOLT
HOLES
5/16"
DRILL BOTH
SIDES SPINDLE
HOLE
1" MINIMUM
DRILL BOTH
SIDES
HORIZONTAL
LINE
WIRES
HOLE
3/4"
DRILL BOTH
SIDES
4.84"
7.00"
3.50"
TWO
THRU-
BOLT
HOLES
5/16"
DRILL BOTH
SIDES
1.375"
Von Duprin
Model 99
© 2010 Alarm Lock
Systems, Inc.
WI 1858A-V99 05/10
Note: The
spindle
hole must
be no less
than 1"
diameter
4
Four
mounting
screws
(provided)
Four #8 x 3/4" flat
Four #8 x 3/4" flat
Four #8 x 3/4" flat
head combination
head combination
head combination
screws
screws
screws
1/4"
min.
5
5
5
Hook and
Hook and
Hook and
loop
loop
loop
fastener
fastener
fastener
Battery
Box Cover
Secure Ring
Connector
to Plate
