Albalá Ingenieros EOP0002C01 User manual

EOP0002C01
QUAD 3G/HD/SD-SDI OPTICAL TO/FROM ELECTRICAL PORT
Version 1.0
Albalá Ingenieros, S.A.
Medea, 4 - 28037 Madrid - Spain
23 August 2016 - © Albalá Ingenieros S.A. - All rights reserved

EOP0002C01

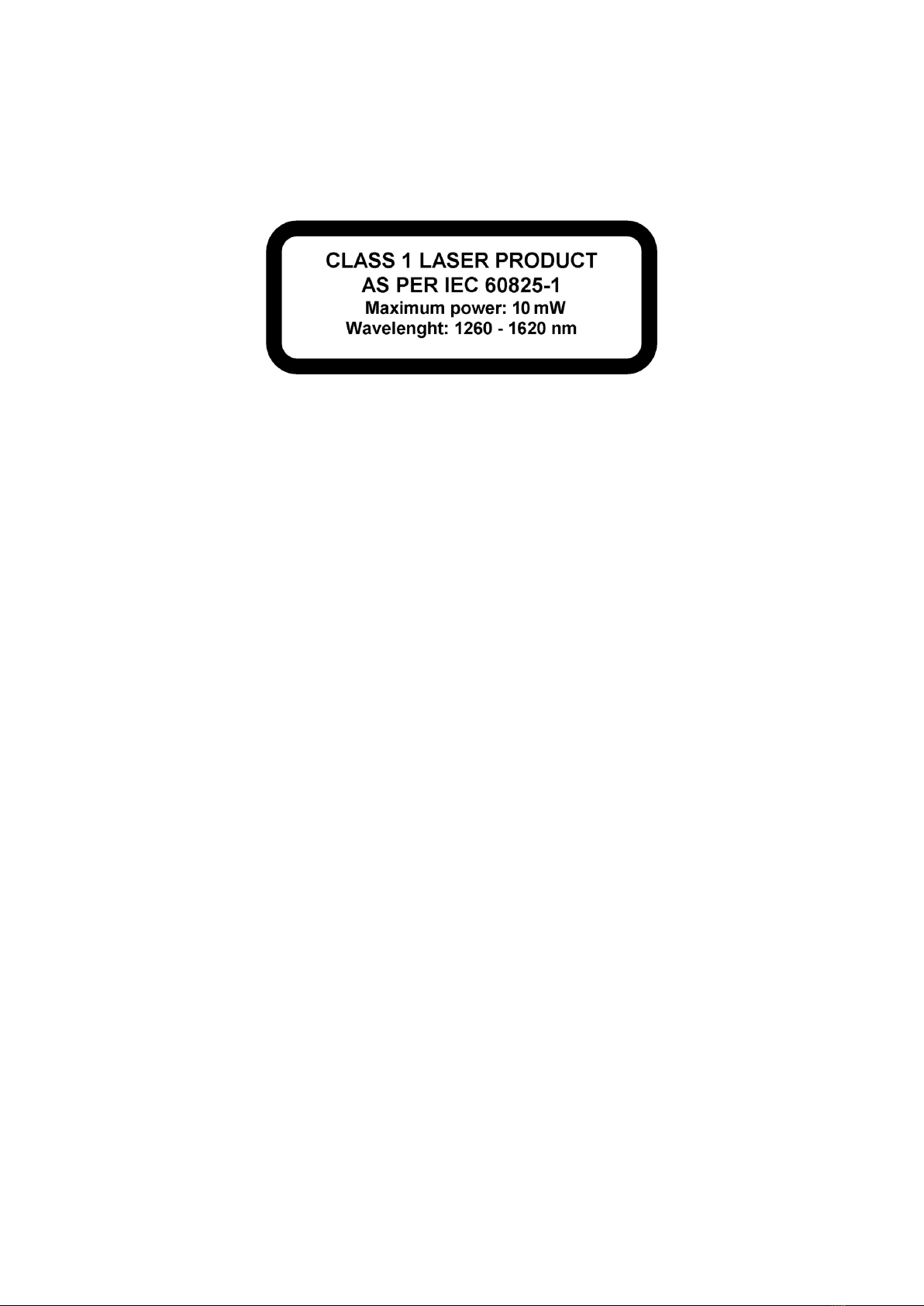

When the module incorporates any optional
SFP optic fiber transmitter provided by Albalá
Ingenieros, the EOP0002C01 is a CLASS 1 LASER
product as per the IEC 60825-1 standard. Please
read the safety instructions included in this
manual carefully before using this module.

EOP0002C01

EOP0002C01
QUAD 3G/HD/SD-SDI OPTICAL TO/FROM ELECTRICAL PORT
Version 1.0
1. DESCRIPTION ...................................................................................................................... 7
1.1. The EOP0002C01 ............................................................................................................................ 7
1.2. Features ............................................................................................................................................. 7
1.3. Block diagram .................................................................................................................................. 9
2. SPECIFICATIONS ............................................................................................................... 11
3. INSTALLATION .................................................................................................................. 13
3.1. Initial inspection .......................................................................................................................... 13
3.2. Safety instructions ...................................................................................................................... 13
3.3. Environmental considerations ................................................................................................ 14
3.4. Attachment .................................................................................................................................... 15
3.5. Installation of SFP modules ...................................................................................................... 15
3.6. Interconnection ............................................................................................................................ 15
3.6.1. Power supply connection ................................................................................................. 16
3.6.2. Electrical SDI video connections .................................................................................... 16
3.6.3. Optical SDI video connections ........................................................................................ 17
4. OPERATION ...................................................................................................................... 19
4.1. Upper panel description ............................................................................................................ 19
4.2. Functional description ............................................................................................................... 20
4.3. Module remote control and supervision ............................................................................. 21
5. GLOSSARY ........................................................................................................................ 23
6. REGULATIONS .................................................................................................................. 25
7. VERSIONS ......................................................................................................................... 27

EOP0002C01

Albalá Ingenieros | Manual EOP0002C01
1. DESCRIPTION
1.1. The EOP0002C01
The EOP0002C01 is a quad digital video signal converter for optical-to-electrical format
conversion and vice versa.
The EOP0002C01 operates with 270Mbit/s (SD-SDI and DVB-ASI), 1.5Gbit/s (HD-SDI)
and 3Gbit/s (3G-SDI) signals.
The EOP0002C01 consists of two sections, each of which has a cage for insertion of an
optical SFP module that can function as a dual transmitter or dual receiver. Each of the
two sections provides two BNC connectors that can function either as inputs or outputs,
depending upon how each section will be used.
If the SFP module inserted into one of the sections is a dual optical transmitter then the
BNC connectors are configured as inputs. If the SFP module inserted into one of the
sections is a dual receiver, then the BNC connectors are configured as outputs.
If no SFP module is inserted into Section B then its two BNC connectors are configured as
outputs that distribute the same signals present on the corresponding BNC connectors
of Section A.
The signal received is always re-synchronized for delivery to the outputs.
The SFP modules are sold separately and also function as dual transmitters or receivers.
Albalá Ingenieros sells the MSFPTP01 transmitter and the MSFPRP01 receiver, both of
which are 100% compatible with the EOP0002C01.
The EOP0002C01 has been designed to operate independently and hence does not
require installation in a rack. The unit features robust aluminum construction and
supports a wide range of operating temperatures.
The EOP0002C01 is powered by an external wall adapter supplied with the equipment.
The power supply connection has a security system that attaches the power cable to the
equipment case with a threaded connector, avoiding any mechanical stress on the cable
due to accidental disconnection.
The CrossConnect family from Albalá Ingenieros is a set of products for all kinds of signal
processing and distribution characterized by portability, mechanical robustness and low
power consumption. These properties make it perfectly suited to field deployment
needs, however the use of highly reliable components also make the CrossConnect
family suitable for both temporary and permanent fixed installations.
The EOP0002C01 is a member of the CrossConnect products family.
7

Albalá Ingenieros | Manual EOP0002C01
1.2. Features
•Quad electrical-to-optical and optical-to-electrical 3G/HD/SD-SDI and DVB-ASI signal
converter.
•The type of conversion performed in each section depends upon the SFP module
installed.
•The two BNC connectors of each section function as inputs or outputs depending upon
the SFP module installed in the corresponding cage.
• The EOP0002C01 can function as:
- An optical-to-electrical converter for four signals.
- An electrical-to-optical converter for four signals.
-An optical-to-electrical converter for two signals and an electrical-to-optical
converter for two signals
•If no SFP module is inserted into Section B then its two BNC connectors are configured
as outputs that distribute the same signals present on the corresponding BNC
connectors of Section A.
•SFP transmitter modules are available that send only one SDI signal for each optical
fiber, also available are SFP transmitter modules that can send various SDI signal
through one optical fiber using CWDM.
• The unit is supplied with a 110-240 VAC power adapter.
• Fanless design.
• Wide operating temperature range.
• Low power.
8

Albalá Ingenieros | Manual EOP0002C01

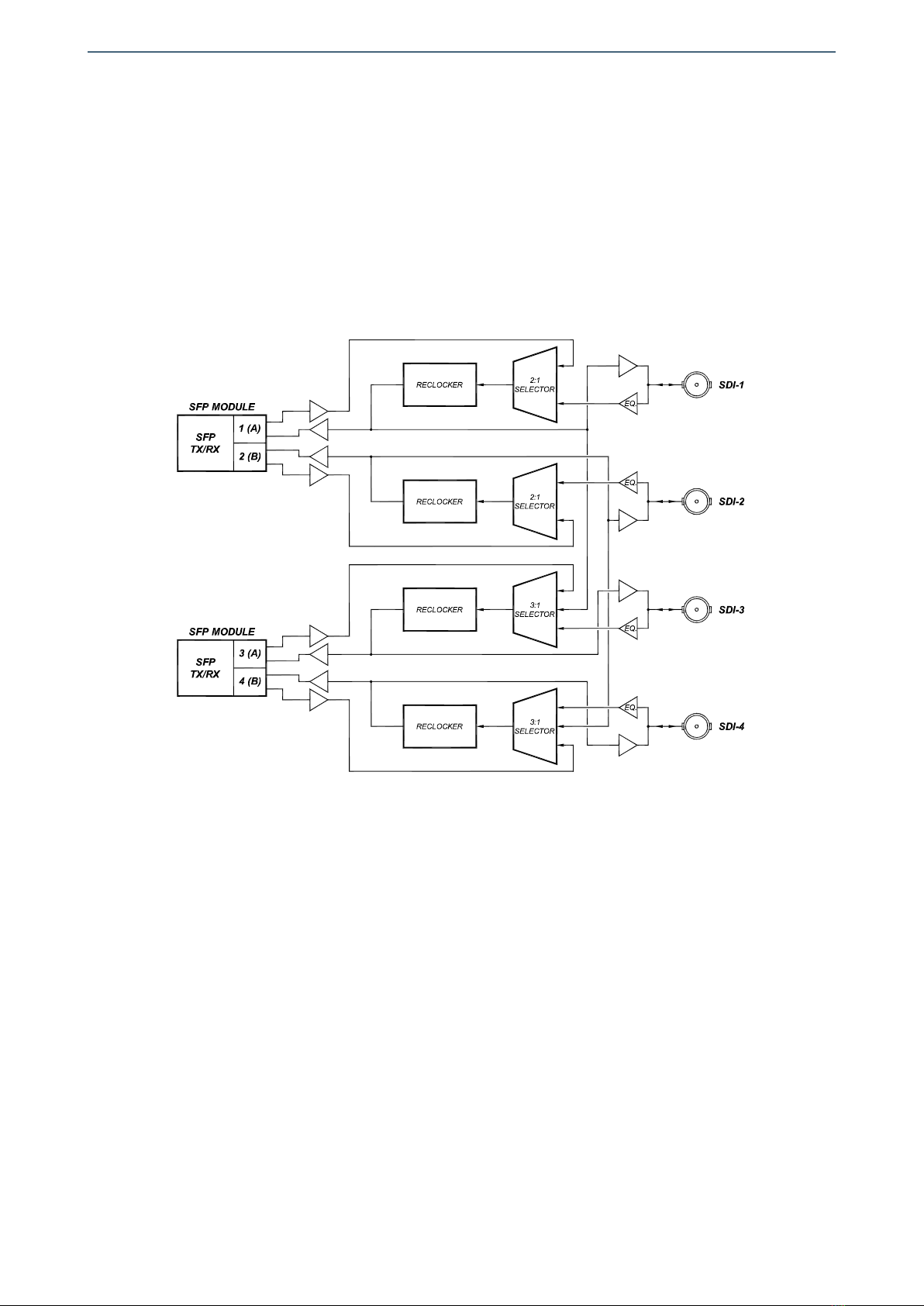

1.3. Block diagram
9

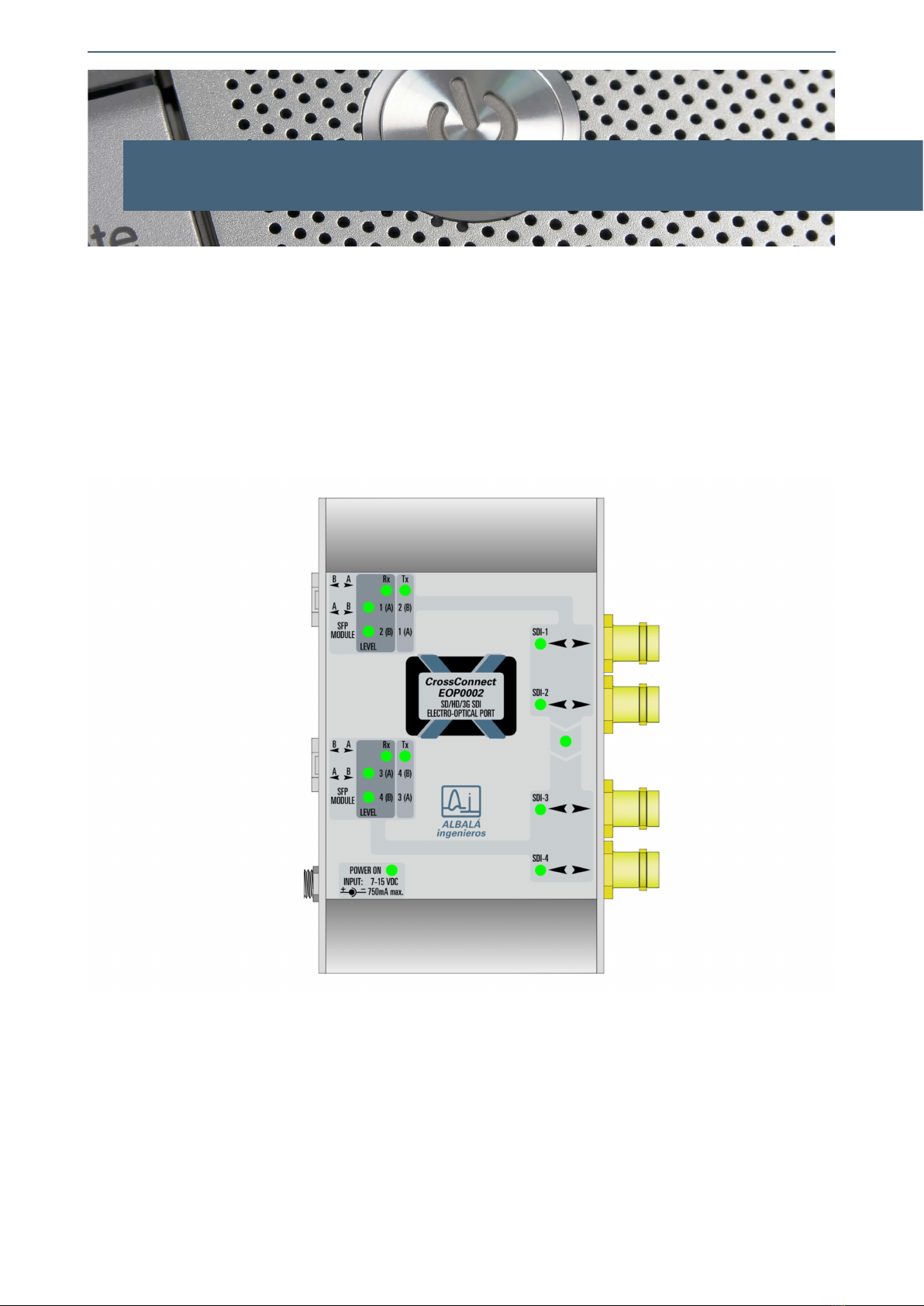

Albalá Ingenieros | Manual EOP0002C01
EOP0002C01
10

Albalá Ingenieros | Manual EOP0002C01
2. SPECIFICATIONS
SD/HD/3G-SDI digital video signal input
Connector BNC
Impedance 75Ω ± 1 %
Return loss:
Up to 3 GHz >10 dB
Up to 1.5 GHz >15 dB
Number of inputs 2 per section, 2 sections
Equalizable cable length:
Belden 1694A, SD 270Mbit/s >350 m
Belden 1694A, HD 1,5Gbit/s >180 m
Belden 1694A, HD 3Gbit/s >100 m
SD/HD/3G-SDI digital video optical signal input
Connector LC/PC with multimode or monomode
fiber
Number of inputs 2 per section, 2 sections
SD/HD/3G-SDI digital video signal output
Connector BNC
Impedance 75Ω ± 1 %
Return loss:
Up to 3 GHz >10 dB
Up to 1.5 GHz >15 dB
Number of outputs 2 per section, 2 sections
Amplitude 800mVpp ± 10 %
Rise and fall time (20 % - 80 %):
SD 270Mbit/s 640 ps typ.
HD 1.5Gbit/s 95 ps typ.
HD 3Gbit/s 95 ps typ.
SD/HD/3G-SDI digital video optical signal output
Connector LC/PC with monomode fiber
Number of outputs 2 per section, 2 sections
SD/HD/3G-SDI digital video signal
Signal formats According to SMPTE ST 424,
SMPTE ST 292-1, SMPTE ST 259
standards
Bit rates 270Mbit/s, 1.483Gbit/s,
1.485Gbit/s, 2.967Gbit/s
and 2.970Gbit/s
11

Albalá Ingenieros | Manual EOP0002C01
Power supply input
Connector 2.5mm locking DC power jack
Voltage range 7 .. 15VDC
Rated current 750 mA
General
Operating temperature range 0 .. 50 °C
Dimensions 134mm x 35mm x 112 mm
Approximate weight 340 g
12

Albalá Ingenieros | Manual EOP0002C01
3. INSTALLATION
THE EOP0002C01 MODULE CONTAINS ELECTRONIC DEVICES SENSITIVE TO
ELECTROSTATIC DISCHARGE. Always use antistatic bags clearly identified
with a high degree of shielding for storage and transportation.
The EOP0002C01 is a desktop unit and does not require installation in a rack or similar
housing. However, it has threaded fasteners for M4 screws at its base for attachment to
a panel or other surfaces if necessary.
3.1. Initial inspection
Verify that the package has been properly handled during transport. After opening the
package, check that the EOP0002C01 and wall power supply are inside.
You must notify your Albalá Ingenieros distributor or dealer of any damage or defects
observed.
3.2. Safety instructions
•The EOP0002C01 may contain an SFP fiber optic transmitter module with
laser diodes. These modules are CLASS 1 LASER products. Due to its features
this device is inherently safe. However, exercise CAUTION as there is
invisible laser radiation in the module's fiber optic connectors. Avoid
exposure to the beam. NEVER lift or remove the cover of the EOP0002C01's
optical connectors except to connect a fiber optic connection, and be sure
that the power is off when doing so. NEVER leave optical connections that
are carrying signals disconnected from the equipment. NEVER examine a
fiber optic connector with a microscope without being absolutely certain
that no optical signal is present, as this could cause serious damage to the
retina.
•The EOP0002C01 contains devices that are not commercially available,
therefore in case of failure Albalá Ingenieros'technical service is
recommended.
•The EOP0002C01 is a telecommunications infrastructure device and must
be installed and operated by technicians with appropriate training.
13

Albalá Ingenieros | Manual EOP0002C01
•The EOP0002C01 is powered by DC voltage. This voltage must be obtained
from the external power supply included with the equipment, or from
another supply that converts the mains voltage into a Safety Extra Low
Voltage (SELV) as per EN 60950-1.
•The equipment should never be powered by overhead power lines that may
be affected by electric or atmospheric discharges. Any power supply used
must be marked with the double insulation or reinforced insulation symbol.
•If the DC voltage is obtained from batteries, the installation must provide
current limiting in case of a short circuit conforming to established
engineering best practices. The power supply's negative output is connected
to the metal case.
•The EOP0002C01 is designed to be operated indoors and should not be used
outside. It should also not be used in explosive, corrosive or radioactive
environments or in applications that could endanger the lives of people or
animals.
•The equipment does not include protective grounding. The EOP0002C01
should never be connected to signals or power supplies that don't
guarantee isolation from hazardous voltages. Operation is independent of
grounding or lack of grounding of the power cables or video signals.
3.3. Environmental considerations
This symbol indicates that this equipment must be deposited at a collection
point for proper waste treatment once it has reached the end of its useful
life.
14

Albalá Ingenieros | Manual EOP0002C01
3.4. Attachment
The EOP0002C01 has four rubber feet for desktop operation. It also has threaded
fasteners to hold it in any position on any surface. These fasteners accept M4x0.7 screws
and penetrate 3mm into the device. Installation must be away from heat sources and
there should be no obstacles to airflow.
Position of the attachment points
3.5. Installation of SFP modules
The EOP0002C01 features receptacles to install optional SFP modules for signal
transmission or reception over optical fiber or other functions. To install or uninstall one
of these modules in the equipment, follow the instructions given below.
To install, insert the SFP module into the receptacle and slide it carefully until it clicks,
indicating that the module has reached its final position.
To uninstall, first remove any optical or electrical cables that are connected to the SFP
module. Then lift the metal ring located at the opening of the SFP module to disable the
module's retention mechanism and release it. Finally, pull module carefully out of its
receptacle.
There are different types of SFP modules. Make sure that module to be installed is
appropriate for the receptacle that will contain it.
15

Albalá Ingenieros | Manual EOP0002C01
3.6. Interconnection
The EOP0002C01 includes the following types of connections:
- Power supply.
- Electrical SDI video.
- Optical SDI video.
3.6.1. Power supply connection
The equipment is supplied with a suitable wall power supply. This power supply can
provide power to a single EOP0002C01. It is possible to connect several devices to the
same power supply as long as it is able to supply the necessary current. Read the
following information carefully before connecting the EOP0002C01 to a power supply
other than the one delivered with the equipment.
The EOP0002C01 power supply is connected via a 2.5mm jack and the voltage must
be between 5 and 15 VDC. The equipment contains an internal switched mode
regulator that allows this wide range of input voltages without reducing energy
efficiency. Power consumption depends on the voltage supplied.
The power supply's negative terminal is connected to the outer ring of the connector
and the metal case of the equipment, while the positive terminal is the connector's
center pole.
If the EOP0002C01 is powered by DC voltage from a vehicle, protection is required for
the common transients (cold crank, load dump, etc) as the equipment has no internal
protections for these events.
3.6.2. Electrical SDI video connections
The connectors labeled SDI-1,SDI-2,SDI-3 and SDI-4 are bi-directional and can operate
as inputs or outputs depending upon the SFP modules installed. SDI-1 and SDI-2
correspond to Section A and SDI-3 and SDI-4 correspond to Section B.
All electrical SDI video connections are BNC type. The following suggestions should be
kept in mind when wiring the electrical signals.
BNC connectors used on cables must be suitable for the high frequencies of digital
video signals: it is strongly recommended to use high quality connectors from well
known manufacturers.
All coaxial cable used must be Belden 1694A or similar. This type provides the greatest
lengths because it is used to calculate the equalizers in the EOP0002C01. Cables
carrying signal between the module and the devices should use single piece
construction, avoiding spliced sections with double BNC female or barrel connectors.
If it is necessary to split the cable into two sections the same type of wire should be
16

Albalá Ingenieros | Manual EOP0002C01
used in both sections.
The use of analog video coaxial cables RG-59 type or similar is not recommended for
digital video except for very short distances.
3.6.3. Optical SDI video connections
The inputs or outputs of the SFP module are labeled on the overlay with arrows over
the SFP MODULE tag. It is important to note that the arrangement of the connectors
corresponding to each section is crossed over between the input and the output to
facilitate interconnection
The SFP fiber optic module must be inserted into its housing as described previously
before interconnection.
Optical connections are performed in the SFP module, which is equipped with LC/PC
connectors. Connectors using single-mode fiber optics are usually blue. Connectors
for multimode fiber optics are usually gray.
Singlemode fiber must be used in fiber optic cabling. However, for standard definition
and short lengths multimode fiber can be employed. Before connecting any fiber
optics, the cap that protects the connectors must be removed. Unused fiber optic
connectors should always be covered by the protective cap.
All fiber optic cables have a minimum curvature radius that must be obeyed (consult
the specification of the cabling used) and should be run with enough strain relief to
absorb small, unintended pulling or mechanical stress.
Fiber optic connections are sensitive to dust and dirt. Any dust or dirt particles trapped
in the optical pathway act as attenuators of unknown value and in the worst case can
render the signal unusable. Care must be taken to ensure the cleanliness of and not to
dirty the connectors during insertion and removal of the fiber optic cables.
17

Albalá Ingenieros | Manual EOP0002C01
EOP0002C01
18

Albalá Ingenieros | Manual EOP0002C01
4. OPERATION
This section describes the significance of the EOP0002C01's indicators and equipment
operation when a signal is applied.
4.1. Upper panel description
The appearance of the upper panel and the elements it contains are shown in the
following illustration.
Upper panel of the EOP0002C01
The upper panel of the EOP0002C01 displays the signal path for the two sections of the
unit. Section A is on top, Section B is on the bottom. Each section includes six indicator
LEDs and there are two more indicator LEDs common to both sections.
19

Albalá Ingenieros | Manual EOP0002C01
The function of each indicator LED is described as follows.
POWER ON: Green. The ON/OFF LED lights up when the EOP0002C01 is connected to
electrical power.
SDI-1,
SDI-2,
SDI-3,
SDI-4: Green. These LEDs light up when the re-clocking circuit locks to the signal
being received. When the section operates as an electrical-to-optical
converter, the signal received by the re-clocker is the same signal coming
from the automatic equalizer of the corresponding electrical input. When
the section operates as an optical-to-electrical converter, the signal received
by the re-clocker comes from the SFP receiver module. If Section A does not
have an SFP module installed then the signal fed to the re-clockers comes
from the equalizers. If Section B does not have an SFP module installed then
the signal fed to its re-clockers comes from the re-clocking circuits of Section
A.
TRANF.: Green. This LED lights up when the signal being received by the re-clockers
of Section B is provided by the Section A re-clockers because no SFP module
is installed in Section B.
Tx 1 2,
Tx 3 4: Green. These LEDs light up when their corresponding section operates as an
electrical-to-optical converter.
Rx 1 2,
Rx 3 4: Green. These LEDs light up when their corresponding section operates as an
optical-to-electrical converter.
LEVEL 1,
LEVEL 2,
LEVEL 3,
LEVEL 4: The color of these LEDs provides information about the signal being
received. When they are green, the signal level is adequate, when they are
yellow the signal level is low but still sufficient to guarantee proper
operation. When they are red the signal is either not being received or the
level is too low to guarantee proper operation.
4.2. Functional description
The EOP0002C01 is a quad 3G/HD/SD-SDI and DVB-ASI digital video signal converter for
optical-to-electrical conversion and vice versa.
The EOP0002C01 consists of two sections, each of which has a cage for insertion of an
optical SFP module that can function as a dual transmitter or dual receiver. Each of the
two sections provides two BNC connectors that can function ether as inputs or outputs,
depending upon how each section will be used.
20
