Alcatel Onetouch Pixi 3 (7) 8057 User manual

1
Thank you for buying the ALCATEL ONETOUCH 8056/8057,
We hope you will enjoy your high-quality communication
experience.
You have purchased a product which uses open source (http://
opensource.org/) programs mtd, msdosfs, netfilter/iptables and
initrd in object code and other open source programs licensed
under the GNU General Public License and Apache License.
We will provide you with a complete copy of the corresponding
source codes upon request within a period of three years from
the distribution of the product by TCL Communication Ltd.
You may download the source codes from http://sourceforge.
net/projects/alcatel/files/. The provision of the source code is
free of charge from internet.
Quick Start Guide
English - CJB1CH1ALAAA

2
Table of contents
1 Your device................................................................3
1.1 Appearance ......................................................................... 3
1.2 Home screen ...................................................................... 5
1.3 Apps and widgets............................................................... 8
1.4 Basic operation................................................................... 9
2 Settings ....................................................................13
2.1 Device................................................................................. 13
2.2 Personal ............................................................................ 14
2.3 System ................................................................................ 15
Safety information .......................................................16
General information ....................................................26
Warranty ......................................................................28
This device meets applicable national SAR
limits of 1.6 W/kg. SAR values can be
found on page 24 of this user guide.When
carrying the device or using it while worn
on your body, either use an approved
accessory such as a holster or otherwise
maintain a distance of 0 mm from the body
to ensure compliance with RF exposure
requirements. Note that the product may
be transmitting even if you are not using it.
To prevent possible hearing damage, do not
listen at high volume levels for long periods.
Exercise caution when holding your device
near your ear while the loudspeaker is
in use.
The tablet contains magnets which
may interfere with other devices and
items (such as credit card, pacemakers,
defibrillators, etc.). Please maintain at least
15 cm of separation between your tablet
and the devices/items mentioned above.
www.sar-tick.com

3
1
Your device
1.1 Appearance
123
4
8 9
5
6
7

4
Note
Please charge before first use. Normally, the tablet will
power on and display the Home Screen when you press
and hold the Power key, but if the tablet is low on power,
a battery icon will appear indicating that you should charge
the device before use. Only use the charger recommended by TCL
Communication Ltd. and its affiliates.
This device cannot be charged using the USB connection on your
computer. Please plug in your charger before first use.
Number Function
1Earphone socket
2 Microphone
3micro-USB connector/Battery charge port
4Power key
5Volume Up/Down
6Front camera
7microSD Card
8Rear camera
9 Speaker
Inserting the microSD card
Be sure to insert your Micro SD card in the correct direction to
avoid damage. Please refer to the following instructions.
1 2
3 4

5
1.2 Home screen
Your device includes a Home screen with three pages, giving
you more space to add your favorite apps, folders and widgets,
all accessible with a single touch. To switch between screens,
slide your finger left or right.

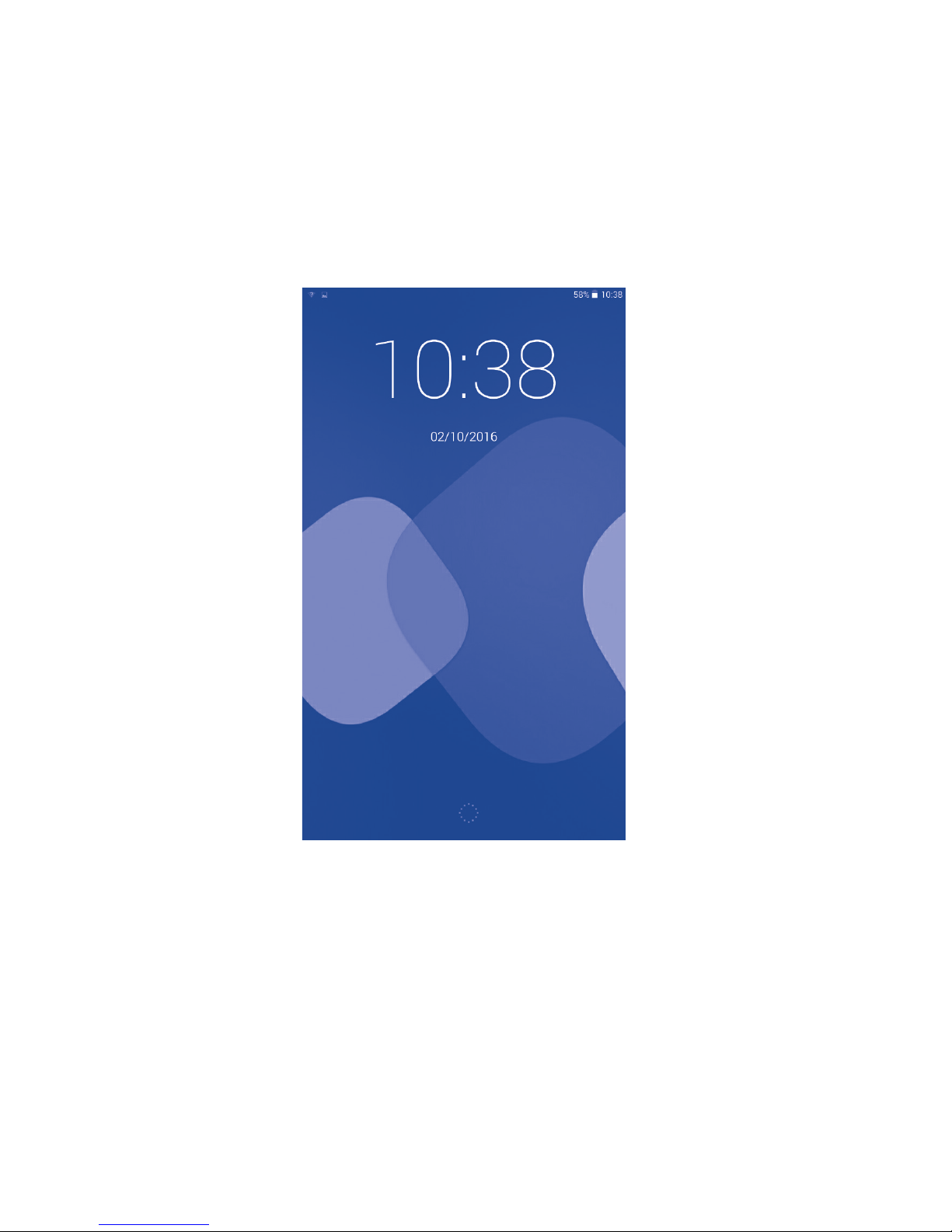

1.2.1 Lock/Unlock your screen
Once your device is powered on, it shows a locked screen
interface, which is set as default.
Press and slide the locked screen to the right to unlock, slide
left to access the camera directly.

6
Google Search
All Apps
Back
Status Bar
Voice Actions
Home
Recent apps
Name Description
Google
Search
Touch it to access the Google search
engine.
Voice
Actions
Use Voice Actions to watch a video, send
email, set alarm, get directions, etc.
All Apps Touch to show all apps list interface.
Back Go back to the previous menu or screen.
Home Return to the home screen.
Recent apps Touch to access Add widgets, Manage
applications,Wallpaper and Settings; touch
and hold to view recent apps.
1.2.2 Icons on your screen

7
Recent apps
Touch to switch to the
Quick setting panel
Touch to clear all event–based
notifications (other ongoing
notifications will remain)
Touch to switch to the
Notification panel
Touch to access Settings,
where you can set more
items
Touch and drag down the Status bar to open the Quick
setting panel or Notification panel. Touch and drag up to
close it.
Notification panel
When there are notifications, touch and drag down the Status
bar to open the Notification panel and read the detailed
information.
Quick setting panel
You can enable or disable functions or change modes by
touching the icons on the Quick setting panel.

8
1.3 Apps and widgets
1.3.1 Apps
The Applications (apps) list contains all pre-embedded and
newly installed apps. To access the apps list, touch the all apps
key on the Home screen.
1.3.2 Widgets
By touching and holding an empty area on the Home screen,
you can switch to widget interface mode.
1.3.3 Get more apps
Touch the Google Play Store icon to get more apps.
1.3.4 Create and manage shortcuts on the
desktop
When you touch and hold an icon on the All Apps menu or
when in widget interface mode, it will jump to the Home screen
automatically, from here you can drag it to your preferred
location. Overlapping icons together will build a folder.You can
name the folder by touching the tab under the icons.
1.3.5 Remove an app icon from desktop
Touch and hold the item to be removed to activate Move
mode, drag the item up to the top of the " " icon, and
release after the item turns red.
1.3.6 Uninstall apps
Press to enter all Apps, then touch and hold the Apps
icon you want to uninstall, drag it over the " " icon, which
appears at the top-left of the desktop.

9
1.4 Basic operation
1.4.1 Power on your device
Press and hold the Power key until the tablet powers on. It will
take a few seconds before the screen lights up.
1.4.2 Power off your device
•Press and hold the Power key for about 3 seconds until
the options appear, select "Power off " to power off your
device.
•Press and hold the Power key for about 10 seconds to
restart your device.
1.4.3 Stand-by mode
Press the Power key once to shut down the screen and to
enter stand-by mode.
Note: When unused, the product will enter stand-by mode
automatically. Press the Power key once to wake it up.
1.4.4 Restart
•Press and hold the Power key for about 3 seconds until
the options appear, select "Reboot" to restart your device.
•When your device is frozen, press and hold the Power key
for about 10 seconds to shut down your device. Then press
the Power key to restart.
1.4.5 Connecting to a computer via USB
After connecting your device to a computer via USB, you can
transfer files between your device and the computer.
Note: Files copied to your tablet are not available until
the USB data cable is disconnected from the PC
completely. Use a USB 2.0 version or higher to connect
the devices.

10
1.4.6 Change your wallpaper
You can change your wallpaper in two different ways: touch
Recent apps and select Wallpaper. A popup window named
Choose wallpaper will appear, offering a range of options. Slide
left and right to locate a desired image, touch Set wallpaper
to confirm. Alternatively follow these steps: Settings >
Display > Wallpaper.
1.4.7 Wi-Fi
To turn Wi-Fi on and connect to a wireless network:
•Touch the Wi-Fi icon on the Quick setting bar to turn Wi-Fi
on/off.
•Select Settings, touch the switch beside Wi-Fi to
turn Wi-Fi on/off.
•Select a Wi-Fi network to connect. If the network you
selected is secured, you are required to enter a password
or other credentials (You may need to contact the network
operator for details).When finished, touch Connect.
Tip: To extend the battery life, turn Wi-Fi off when you're not
using it.
1.4.8 Email
You can also set-up external POP3 or IMAP email accounts
on your device.
To access this function, touch the Application tab on the Home
screen, then select Email.
An email setup wizard will guide you through the steps to set
up an email account.
•Enter the email address and password of the account you
want to set up.
•Touch Next. If the account you entered is not provided by
your service provider in the device, you will be prompted
to go to the email account settings screen to enter settings
manually.Alternatively, you can touch Manual setup to directly
enter the incoming and outgoing settings for the email
account you are setting up.

11
•Enter the account name and display name in outgoing emails.
To create and send emails
Touch the icon while on the Inbox screen.
•Enter recipient(s) email address(es) in the To field.
•If necessary, touch +CC/BCC to add a copy or a blind copy
of the message.
•Enter the subject and the content of the message.
•Touch , and touch Attach file to add an attachment.
•Finally, touch to send .
•If you do not want to send the email right away, you can touch
and Save draft to save a copy.
1.4.9 Surf the web
Use the Browser application to surf the web easily and securely.
To access this function, touch the Application tab on the Home
screen, then touch Browser .
To go to a web page
On the Browser screen, touch the URL box at the top, enter
the address of the web page, then touch to confirm.
1.4.10 Zoom in/out
Draw your fingers apart/together to zoom in/out (Web
browser, Gallery etc..).

12
1.4.11 FM Radio
Listen to the FM Radio
•Touch to enter all apps and select FM Radio.
•Touch to select Search to search channels, then select an
available channel to listen to.
Note: Connect your headphones first to get better FM signal.
Exit FM Radio
Touch to exit FM radio.
Touch to search
the previous/
next channel.
Touch to display
all the channels
available.
Touch to
decrease/increase
0.1 MHz.

13
2
Settings
2.1 Device
2.1.1 Gestures
Your device can be configured in ALARM mode so that turning it
over will activate the snooze function, or you can mark a check
box to change music tracks when the device is shaken.
When the "Palm and tap" feature is enabled, you can set the
lock screen on or off.When on, covering the screen with your
palm will lock it and double clicking the sleeping screen will
wake it up.
2.1.2 Sound
You can set Volumes, screen lock sound, and Power on/
Shut down ringtone to your preference with the Volume up/
down key, or by touching Settings > Sound.
2.1.3 Display
Touch Settings > Display, to view the following:
•Wallpaper Set your wallpaper.
•Brightness Adjust your screen to a comfortable brightness.
•Sleep Set a time before the Screensaver begins.
•Daydream Select an animation effect to display while on
standby status.
•Font size Select a suitable font size for your tablet.
2.1.4 Lock settings
To protect your device and privacy, you can lock the screen by
creating a variety of patterns, a PIN or password etc.
2.1.5 Status bar
Select to activate the notification functions of the status bar.

14
2.1.6 Storage
Touch Settings > Storage to view the memory usage status.
2.1.7 Battery management
Touch Settings > Battery management to check the
battery power and its service status.
2.1.8 APPs
Touch Setting > APPs to check the APP status.
2.2 Personal
2.2.1 Security
Touch to set security settings.
2.2.2 Language & input
Touch Settings > Language & input to view or set system
language and input methods.
•Language Set the system language.
•Keyboard & input
methods
Check and select all of the input
methods installed in the tablet.
2.2.3 Backup & reset
You can back up settings and other data associated with one
or more of your Google Accounts. If you need to replace or
factory reset your device, you can restore your data for any
accounts that were previously backed up.
Touch Settings > Backup & reset
Tips: Please make sure that all of your important data has
been backed-up before you run factory data reset, as
this function will erase all user installed apps and data;
and ensure that the remaining battery charge is more
than 50%.

15
2.3 System
2.3.1 Date & time
Touch Settings > Date & time, to set date, time and format.
Note: When the Automatic option is deactivated, you can
manually set the date and time.
2.3.2 Regulatory & Safety
Touch to view Regulatory & Safety information, including
Product model, Manufacturer name, etc.
2.3.3 About tablet
Touch Settings > About tablet to check legal information,
tablet status and software version, etc.

16
Safety information
We recommend that you read this chapter carefully before
using your device. The manufacturer disclaims any liability for
damage, which may result as a consequence of improper use or
use contrary to the instructions contained here.
•TRAFFIC SAFETY
Given that studies show that using a device while driving a
vehicle constitutes a real risk, even when the hands-free kit is
used (car kit, headset...), drivers are requested to refrain from
using their device when the vehicle is not parked.
When driving, do not use your device or headphone to
listen to music. Using a headphone can be dangerous and
forbidden in some areas.When switched on, your device emits
electromagnetic waves that can interfere with the vehicle’s
electronic systems such as ABS anti-lock brakes or airbags. To
ensure that there is no problem:
- do not place your device on top of the dashboard or within
an airbag deployment area,
- check with your car dealer or the car manufacturer to make
sure that the dashboard is adequately shielded from device
RF energy.
•CONDITIONS OF USE
You are advised to switch off the device from time to time to
optimize its performance.
Switch the device off before boarding an aircraft.
Switch the device off when you are in healthcare facilities,
except in designated areas. As with many other types of
equipment now in regular use, these devices can interfere
with other electrical or electronic devices, or equipment using
radio frequencies.
Switch the device off when you are near gas or flammable
liquids. Strictly obey all signs and instructions posted in a fuel
depot, petrol station, or chemical plant, or in any potentially
explosive atmosphere.

17
When the device is switched on, it should be kept at least 15
cm from any medical device such as a pacemaker, a hearing
aid or insulin pump, etc. In particular when using the device,
you should hold it against the ear on the opposite side to the
device, if any.
To avoid hearing impairment, move the device away from your
ear while using the "hands-free" mode because the amplified
volume might cause hearing damage.
Do not let children use the device and/or play with the device
and accessories without supervision.
Please note that your device is a unibody device, the back cover
and battery are not removable. Do not attempt to disassemble
your device. If you disassemble your device the warranty
will not apply. Also, disassembling the device may damage the
battery, and may cause leakage of substances that could create
an allergic reaction.
Always handle your device with care and keep it in a clean and
dust-free place.
Do not allow your device to be exposed to adverse weather or
environmental conditions (moisture, humidity, rain, infiltration
of liquids, dust, sea air, etc.).The manufacturer's recommended
operating temperature range is 0°C to +45°C.
At over 45°C the legibility of the device’s display may be
impaired, though this is temporary and not serious.
Do not open, dismantle or attempt to repair your device
yourself.
Do not drop, throw or bend your device.
Do not use the device if the glass made screen is damaged,
cracked or broken to avoid any injury.
Do not paint it.
Use only battery chargers and accessories which are
recommended byTCL Communication Ltd. and its affiliates and
are compatible with your device model. TCL Communication
Ltd. and its affiliates disclaim any liability for damage caused by
the use of other chargers or accessories.

18
Remember to make back-up copies or keep a written record of
all important information stored in your device.
Some people may suffer epileptic seizures or blackouts when
playing video games. These seizures or blackouts may occur
even if a person never had a previous seizure or blackout. If you
have experienced seizures or blackouts, or if you have a family
history of such occurrences, please consult your doctor before
playing video games on your device.
Parents should monitor their children’s use of video games on
the device. All persons should discontinue use and consult a
doctor if any of the following symptoms occur: convulsion, eye
or muscle twitching, loss of awareness, involuntary movements,
or disorientation. To limit the likelihood of such symptoms,
please take the following safety precautions:
- Take a minimum of a 15-minute break hourly.
- Play in a room in which all lights are on.
- Play at the farthest distance possible from the screen.
- If your hands, wrists, or arms become tired or sore while
playing, stop and rest for several hours before playing again.
- If you continue to have sore hands, wrists, or arms during or
after playing, stop the game and see a doctor.
When you play games on your device, you may experience
occasional discomfort in your hands, arms, shoulders, neck,
or other parts of your body. Follow the instructions to avoid
problems such as tendinitis, carpal tunnel syndrome, or other
musculoskeletal disorders.

19
•PRIVACY
Please note that you must respect the laws and regulations
in force in your jurisdiction or other jurisdiction(s) where
you will use your device regarding taking photographs and
recording sounds with your device. Pursuant to such laws and
regulations, it may be strictly forbidden to take photographs
and/or to record the voices of other people or any of their
personal attributes, and duplicate or distribute them, as this
may be considered to be an invasion of privacy. It is the user's
sole responsibility to ensure that prior authorization be
obtained, if necessary, in order to record private or confidential
conversations or take a photograph of another person; the
manufacturer, the seller or vendor of your device (including
the operator) disclaim any liability which may result from the
improper use of the device.
Please note that by using the device some of your personal
data may be shared with the main device. It is under your
own responsibility to protect your own personal data and not
share it with any unauthorized devices or third party devices
connected to yours. For products with Wi-Fi features, only
connect to trusted Wi-Fi networks. Also, when using your
product as a hotspot (where available), use network security.
These precautions will help prevent unauthorized access to
your device. Your product can store personal information in
various locations including a SIM card, memory card, and built-
in memory. Be sure to remove or clear all personal information
before you recycle, return, or give away your product. Choose
your apps and updates carefully, and install from trusted sources
only. Some apps can impact your product’s performance and/or
have access to private information including account details, call
data, location details and network resources.

20
Note that any data shared with TCL Communication Ltd. is
stored in accordance with applicable data protection legislation.
For these purposes,TCL Communication Ltd. implements and
maintains appropriate technical and organizational measures
to protect all personal data, for example against unauthorized
or unlawful processing and accidental loss or destruction of
or damage to such personal data whereby the measures shall
provide a level of security that is appropriate having regard to
(i) the technical possibilities available,
(ii) the costs for implementing the measures,
(iii) the risks involved with the processing of the personal data,
and
(iv) the sensitivity of the personal data processed.
You can access, review, and edit your personal information at
any time by logging into your user account, visiting your user
profile, or by contacting us directly. Should you require us to
edit or delete your personal data, we may ask you to provide
us with evidence of your identity before we can act on your
request.
•BATTERY
Please note your tablet is a unibody device, the back cover and
battery are not removable. Observe the following precautions
for battery use:
- Do not attempt to open the back cover and replace the
inner rechargeable Li-polymer battery. Please contact the
dealer to replace it.
- Do not attempt to eject, replace, or open battery.
- Do not puncture the back cover of your device.
- Do not burn or dispose of your device in household garbage
or store it at temperature above 50°C.
- Dispose of used batteries according to the instructions
