GARDEN PREMIUM
CANTILEVER UMBRELLA
Assembly
Instructions

1
2
3
11
4
5
7
69
8
12 13
14 15 16 17
10
18 19 20 21 22 23
Dok./Rev.-Nr. 199159_20210429
v3

Contents
3
Contents
1Base lower bar 10 Pedal
2Base upper bar 11 Swivel unit
3Support pole 12 Base cover cap
4Support pole sleeve 13 Base cover
5Umbrella pole 14 Crank handle
6Tilt lever 15 Collapsible rod
7Umbrella handle 16 Protective cover
8Hook and loop fastener 17 Zip string
9Umbrella
Connecting elements supplied
18 Large bolt, 4× 20 Small bolt
19 Medium bolt, 4× 21 Washer, 8×
Tools supplied
22 Small hex key
22
23 Large hex key
23

Table of contents
4
Table of contents
Contents.................................................................................................................. 3
Connecting elements supplied ................................................................................ 3
Tools supplied .............................................................................................................. 3
General information .............................................................................................. 5
Reading and storing the assembly instructions.................................................... 5
Proper use.................................................................................................................... 5
Explanation of symbols ......................................................................................... 5
Safety...................................................................................................................... 6
Signal symbol/word definitions ...............................................................................6
Safety instructions......................................................................................................6
Product description ............................................................................................... 8
First use .................................................................................................................. 9
Checking the product and package contents........................................................9
Basic cleaning..............................................................................................................9
Selecting suitable base weights (not included) .................................................. 9
Assembly ...............................................................................................................10
Assembly steps ......................................................................................................... 10
Use .........................................................................................................................16
After use ................................................................................................................ 17
Cleaning and maintenance...................................................................................21
Cleaning the umbrella and protective cover.........................................................21
Cleaning the rest of the product..............................................................................21
Maintenance and care...............................................................................................21
Storage ...................................................................................................................... 22
Technical data ...................................................................................................... 22
Disposal ................................................................................................................ 23
Disposing of the packaging.....................................................................................23
Disposing of the product .........................................................................................23
Warranty Details................................................................................................... 24
Repair and Refurbished Goods or Parts Notice.................................................. 25

General information
5
IMPORTANT, RETAIN FOR FUTURE
REFERENCE: READ CAREFULLY
General information
Reading and storing the assembly instructions
These assembly instructions accompany this garden premium
cantilever umbrella (referred to only as the “product” below). They
contain important information about safety, use and care.
Before assembling and using the product, read the assembly
instructions carefully. This particularly applies to the safety instructions. Failure to
follow the instructions in these assembly instructions may result in serious injury or
damage to the product.
Hold onto the assembly instructions for future reference. If you pass the product on
to a third party be sure to pass the assembly instructions along with it.
Proper use
The product is exclusively designed for providing shade and protection from
direct sunlight. It is only intended for private use and not suitable for commercial
purposes.
Only use the product as described in these assembly instructions. Any other use is
considered improper and may result in damage to property or persons. The product
is not a children’s toy.
The manufacturer or vendor accepts no liability for damage caused by improper or
incorrect use.
Explanation of symbols
The following symbols are used in these assembly instructions, on the product or
on the packaging.
This symbol provides you with useful additional information on
assembly or use.
CAUTION: BULKY. Consider two person lift or mechanical aid.

Safety
6
CAUTION: HEAVY. 16.1 to 40 kg. Consider two person lift or
mechanical aid.
Safety
Signal symbol/word definitions
The following symbols and signal words are used in these assembly instructions.
WARNING!
This signal symbol/word designates a hazard
with moderate risk, which may result in death
or severe injury if not avoided.
NOTICE!
This signal word warns of possible damage to
property.
Safety instructions
WARNING!
Risk of choking and suffocation!
The product contains small parts and plastic wrappings which
may cause choking or suffocation.
− Keep children away during the assembly of the product. Bolts
and other small parts are included. They may cause choking if
swallowed or inhaled.
− Make sure that children do not play with the plastic wrapping.
They may get caught in it when playing and suffocate.
WARNING!
Risk of injury!
If you use the product improperly, it may result in personal injury.
− Make sure that the product is properly installed on solid, stable
and level ground. Do not install the product on a slope.

Safety
7
− Make sure children do not play with, climb or stand on the
product.
− Use base weights (not included) totalling a minimum of 120 kg
to prevent the product from tipping over.
− Make sure that the product is stable and inspect the product
before each use. The safety of the product can only be ensured
if it has been properly assembled and all connections have
been made securely.
NOTICE!
Risk of damage!
Improper handling of the product may result in damage to the
product.
− Place the product on an easily accessible, level, dry, heat-
resistant and sufficiently stable surface. Do not place the
product on the edge of the surface.
− Do not place the product near or against any open flames,
heaters, furnaces or other hot objects. Keep it away from fire.
− Fold the product down when not in use. If left outdoors for
extended periods of time, slip the protective cover over it.
− Close the umbrella, secure the product or store it in a sheltered
room during extreme weather conditions, e.g. in strong winds.
− Never attempt to clean the metal parts of the product by
immersing it in water and do not use a steam cleaner to clean
it. Otherwise the product could be damaged.
− Check the stability of all connections regularly and retighten
the bolts. Do not overtighten the bolts as this will add
unnecessary stress on the frame.
− Stop using the product if any of its parts exhibit cracks or
breaks or are deformed. Only replace damaged parts with
corresponding original spare parts.

Product description
8
Product description
The product is exclusively designed for providing shade and protection from
direct sunlight. Use base weights 24 (not included) totalling a minimum of 120 kg
to prevent the product from tipping over.
A
24
24 Base weight, 4× (not included)

First use
9
First use
Checking the product and package contents
NOTICE!
Risk of damage!
If you are not cautious when opening the packaging with a
sharp knife or other pointed object, you may quickly damage the
product.
− For this reason, be very careful when opening it.
1. Take the individual parts of the product out of the packaging.
2. Check to make sure that all parts are included (see the chapter “Contents”).
3. Check whether the individual parts of the product exhibit damages. If this is
the case, do not assemble or use the product. Contact the manufacturer via the
service address specified on the warranty card.
Basic cleaning
1. Remove the packaging material and all protective foils.
2. Clean all parts of the product before first use as described in the chapter
“Cleaning and maintenance”.
Selecting suitable base weights (not included)
Base weights 24 are required for the safe use of the product. They are not included
in the contents, but can be purchased separately. Four base weights totalling a
minimum of 120 kg are required. Follow the instructions included with the base
weights to assemble them to the product.
Take note of the below specifications when choosing suitable base weights for the
product:
• When open, the umbrella 9covers an area of approximately 3.4 m by 3 m.
• The height of the product is about 2.6 m.

Assembly
10
Assembly
WARNING!
Risk of injury!
If you use the product improperly, it may result in personal injury.
− Only use the product with sufficient weight on the base
(minimum 120 kg, not included). The product could tip over
and cause serious injury to bystanders.
NOTICE!
Risk of damage!
Improper handling of the product may result in damage to the
product.
− Assemble the product on a soft and clean surface. Place a
blanket under the product to avoid scratching or damaging
the surfaces.
− Carefully follow all instructions when assembling the product.
Assembly steps
Assemble the product following the instructions and illustrations below.
• At least two competent persons should assemble the product to
make assembly easier and avoid injury.
• Begin the assembly of the product close to the intended use location.
The product is heavy and may be difficult to move after assembly.
• The enclosed hex keys 22 / 23 are required for the assembly.
1 Separating the support pole sleeve from the support pole........................... 11
2 Setting up the swivel unit ............................................................................... 11
3 Assembling the support pole and other parts................................................12
4 Attaching the base cover and base weights...................................................13
5 Connecting the support pole sleeve to the support pole...............................13
6 Attaching the umbrella pole to the support pole...........................................14
7 Securing the umbrella pole .............................................................................14
8 Attaching the crank handle (1)........................................................................15
9 Attaching the crank handle (2) ............................................................................. 15

Assembly
11

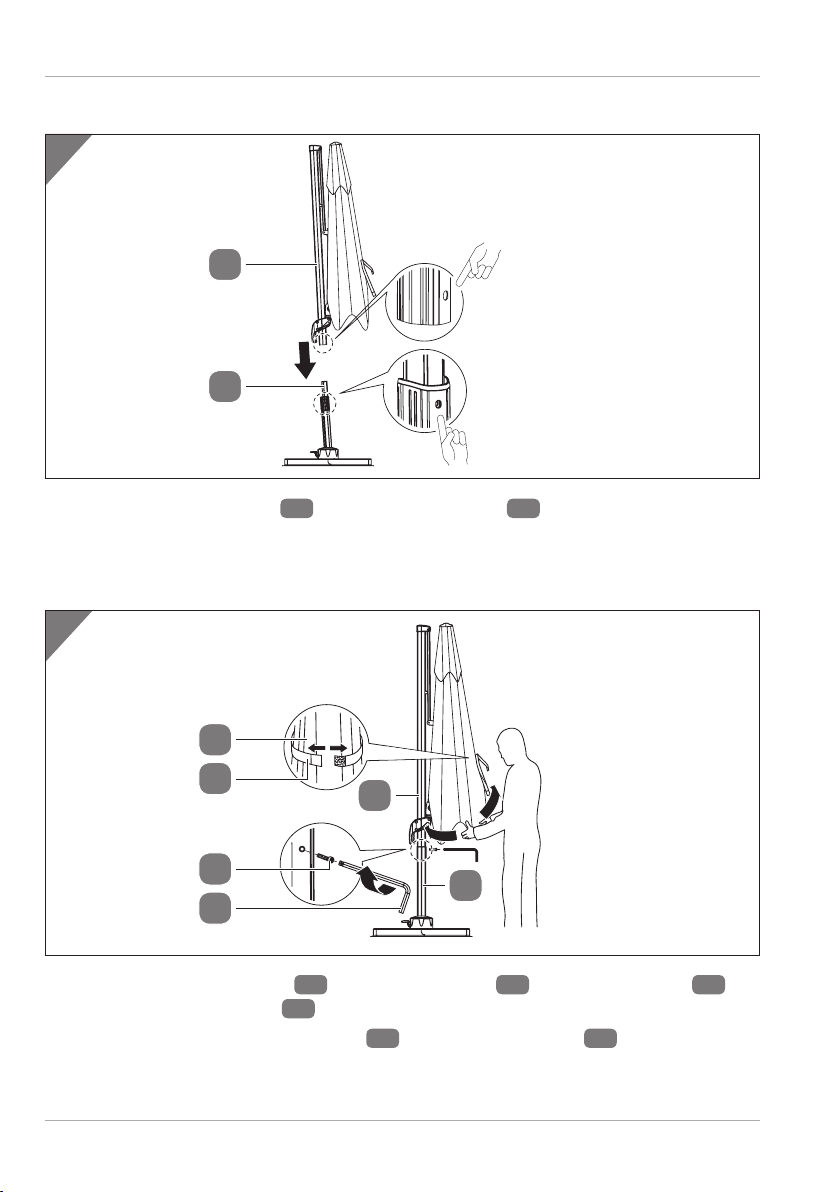

1 Separating the support pole sleeve from the
support pole
1
4
3
− Remove the support pole sleeve 4by lifting it out of the support pole 3.
2 Setting up the swivel unit
2
1
2
11 10
− Press the pedal 10 down and turn the top of the swivel unit 11 one position
to the left or to the right. This moves the top set and bottom set of bolt holes
apart and allows easy access to insert and tighten bolts.

Assembly
12
3 Assembling the support pole and other parts
3
2
1
11
23
3
21
19
18
21
1.
2.
3.
1. Join the base upper bar 2and the base lower bar 1together (see step 1 in
Fig. 3).
2. Attach the bottom of the swivel unit 11 to the top of the bars with 4 large
bolts 18 and 4 washers 21 using the large hex key 23 (see step 2 in Fig. 3).
3. Attach the support pole 3to the top of the swivel unit with 4 medium
bolts 19 and 4 washers using the large hex key (see step 3 in Fig. 3).

Assembly
13
4 Attaching the base cover and base weights
4
24
13
12 3
1
2
10
11
1.
2. 3.
1. Attach the base cover cap 12 to the base cover 13 by pushing the base cover
cap onto the base cover (see step 1 in Fig. 4).
2. Slide the assembled base cover down the support pole 3(see step 2 in Fig. 4).
Make sure the notch in the base cover is aligned with the pedal 10 . If necessary,
adjust the top of the swivel unit 11 . See “Setting up the swivel unit” for details.
3. Carefully place 4 base weights 24 (not included) onto the bars 1/ 2to
prevent the product from tipping over (see step 3 in Fig. 4)
5 Connecting the support pole sleeve to the
support pole
5
4
3
− Slide the support pole sleeve 4back onto the support pole 3. Make sure the
screw hole on the pole sleeve and on the support pole are aligned together.

Assembly
14
6 Attaching the umbrella pole to the support pole
6
5
3
− Slide the umbrella pole 5onto the support pole 3. Make sure the screw
hole on the umbrella pole and on the support pole are aligned.
7 Securing the umbrella pole
7
9
8
22
20 3
5
1.
2.
1. Attach the umbrella pole 5to the support pole 3with the small bolt 20
using the small hex key 22 (see step 1 in Fig. 7).
2. Undo the hook and loop fastener 8around the umbrella 9(see step 2 in
Fig. 7).

Assembly
15
8 Attaching the crank handle (1)
8
7
9
1.
2.
1. Pull the trigger on the umbrella handle 7to unlock the umbrella handle (see
step 1 in Fig. 8).
2. Slide the umbrella handle up a little to tilt the umbrella 9and reveal the side
of the umbrella handle (see step 2 in Fig. 8).
9 Attaching the crank handle (2)
9
1
2
3.
1. 2.
7
14
1. Align the hole in the crank handle 14 with the tab in the umbrella handle 7.
2. Push in to connect the handles together. Make sure the tab of the umbrella
handle fits into the hole in the crank handle (see step 1 and step 2 in Fig. 9).
Assembly is complete.
− To detach the crank handle, use a suitable tool to push the tab of the umbrella
handle in and pull the crank handle out (see step 3 in Fig. 9).

Use
16
Use
1 Opening and setting the height of the umbrella
10
1
2
1.
2.
14
7
9
1. Wind the crank handle 14 clockwise to fully extend the umbrella 9(see
step 1 in Fig. 10).
2. Pull the trigger to unlock the umbrella handle 7and slide it up to set the
umbrella at the desired height (see step 2 in Fig. 10).
2 Tilting the umbrella
11
1
2
3
9
6
1
2
3
45
1. Pull the tilt lever 6down to unlock the umbrella 9.
2. Rotate the umbrella left or right to the desired position (5 tilt positions in total).
3. Push the tilt lever 6up to lock the umbrella in place.

After use
17
3 Swivel the umbrella left or right
12
1
2
3
10
3
1. Step on the pedal 10 and push it down to unlock the support pole 3.
2. Rotate the support pole left or right to the desired position (16 swivel positions
in total).
3. Release the pedal to lock the support pole in place.
After use
1 Lowering the umbrella
13
1
2
7
9
− Pull the trigger on the umbrella handle 7and slide the handle down to lower
the umbrella 9.

After use
18
2 Closing the umbrella
14
14
9
− Wind the crank handle 14 anti-clockwise to close the umbrella 9.
3 Setting the umbrella to the upright position
15
1
2
7
9
− Pull the trigger to unlock the umbrella handle 7and slide the handle all the
way down to set the umbrella 9to the upright position.

After use
19

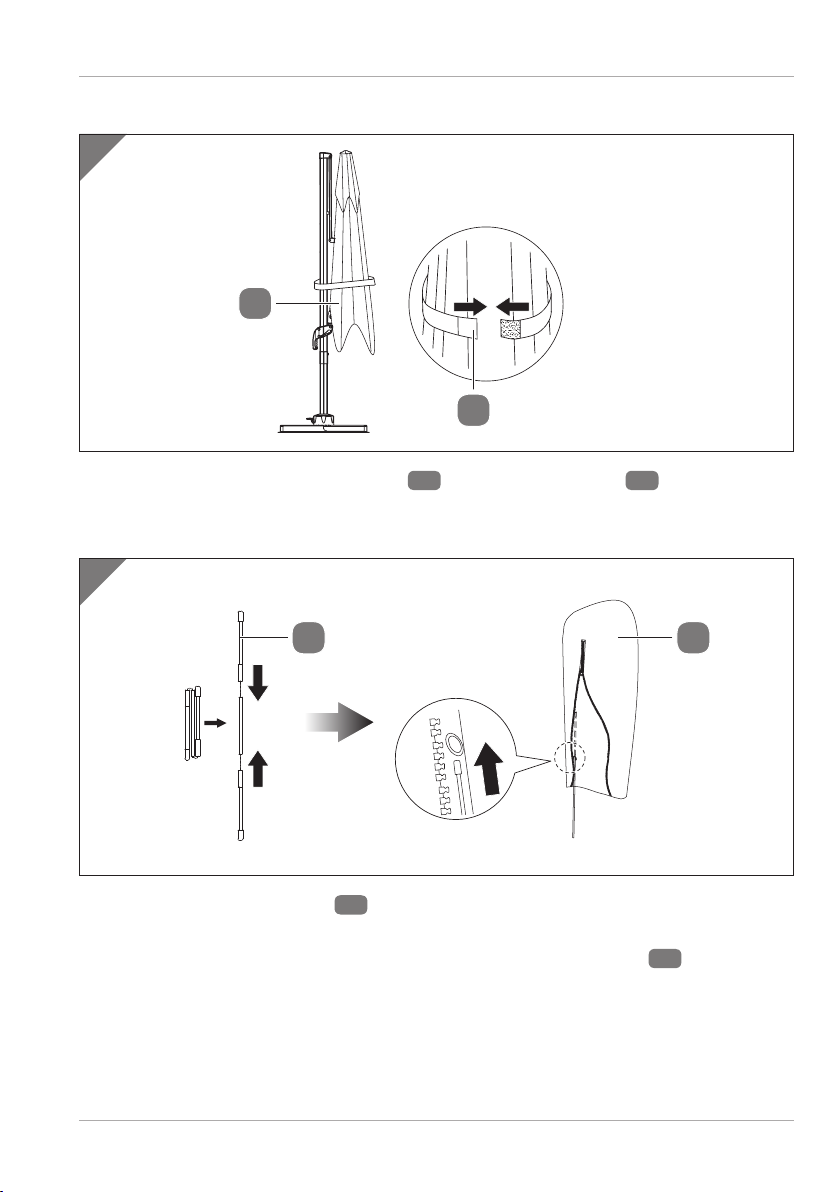

4 Fastening the loop and hook fastener
16
8
9
− Fasten the hook and loop fastener 8around the umbrella 9.
5 Using the collapsible rod
17
1.
2.
15 16
1. Unfold the collapsible rod 15 and slide the ends of each section into each
other to assemble the rod (see step 1 in Fig. 17).
2. Feed the assembled rod through the hole in the protective cover 16 and run the
rod to the top of the protective cover, so that it is held up by the rod (see step 2 in
Fig. 17).

After use
20
6 Placing the protective cover over the product
18
15
16
− Use the assembled collapsible rod 15 to place the protective cover 16 over the
product and wrap the product inside the protective cover.
7 Zipping up the protective cover
19
1.
2.
15
17
16
1. Remove the assembled collapsible rod 15 (see step 1 in Fig. 19).
2. Pull the zip string 17 down to zip up the protective cover 16 (see step 2 in
Fig. 19).
