Alesis Virtue AHP-1BK User manual
Confidential Alesis Service Manual
Alesis
Virtue AHP-1BK
[LQSW]
Service Manual
v1.1
2019-12-31
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by Alesis. If you are not the authorized, intended recipient,
you are hereby notified that any review, dissemination, distribution or duplication of this
document is strictly prohibited. If you are not authorized, please contact Alesis and destroy all
copies of this document. You may contact Alesis at support@alesis.com.
© Copyright Alesis
ATTENTION!
This document contains sensitive proprietary information.
All recipients must have a current non-disclosure agreement
on file with Alesis.
Do not make illegal copies of this document.
Confidential Alesis Service Manual
Preface
This document is intended to assist the service technician in the operation, maintenance and
repair of the Alesis device. Together with the User Reference Manual, this document provides a
complete description of the functionality and serviceability of the Device. Any comments or
suggestions you may have pertaining to the document are welcome and encouraged.
Read This!
In addition to any purchase price that Alesis may charge as consideration for Alesis selling or
otherwise transferring this service manual (“Manual”) to you, if you are not a service and repair
facility (“Service Center”) authorized by Alesis in writing to be an authorized Service Center,
Alesis sells or transfers the Manual to you on the following terms and conditions:
Only Service Centers authorized by Alesis in writing are authorized to perform service and
repairs covered by an Alesis warranty (if any), and transfer of the Manual to you does not
authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual
is used to perform, any service or repairs on any Alesis product or part thereof, any and all
warranties of Alesis as to that product and any service contract with Alesis for that
product shall be voided and shall no longer apply for such product, even if your services or
repairs were done in accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your
responsibility, and Alesis shall have no liability for any such repairs or service work. All such
service or repairs are performed at the sole risk of the person performing the service or
repairs. You agree that all such work will be performed in a competent, professional and safe
manner at all times and to indemnify and fully hold Alesis and its successors and assigns
harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, Alesis does not give you the right to copy the
Manual, and you agree not to copy the Manual without the written authorization of Alesis. Alesis
has no obligation to provide to you any correction of, or supplement to, the Manual, or any new
or superseding version thereof.
Alesis shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in
its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts
supplied by Alesis to you (i) to repair or be used in products manufactured for or by third parties
or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of Alesis or the
use thereof on behalf of Alesis or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of Alesis.
All Trademarks are property of their respective companies.
Confidential Alesis Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS
PRODUCT TO WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the
enclosed product which may be of sufficient magnitude to constitute a risk
of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user to the
presence of important operating, maintenance and servicing instructions in
the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ALESIS
SERVICE CENTER WILL VOID THE ALESIS WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO
COMPETE WITH ANY ALESIS DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE
CENTER IN THE PROVISION OF REPAIR SERVICES OR TO BE OR MAKE REPAIRS
AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ALESIS
SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY,
AND ALESIS SHALL HAVE NO LIABILITY TO THAT ENTITY OR TO ANY OTHER
PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a replaceable
fuse. Danger of fire or electrocution if fuse is incorrectly replaced. Replace
with only the same type or equivalent type recommended by the
equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a internal
battery. Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instruction.
Confidential Alesis Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions
before using this product. Use extra care to follow the warnings written on the product itself and
in the operating instructions. Keep the operating instructions and safety suggestions for
reference in the future.
1. Power Source. The product should only be connected to a power supply which is
described either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely
to step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the
product’s AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into
any openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators
or other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate ventilation.
Improperly ventilating the product may cause overheating, which may damage the product.
8. Mounting. The product should only be used with a rack which the manufacturer
recommends. The combination of the product and rack should be moved carefully. Quick
movements, excessive force or uneven surfaces may overturn the combination which may
damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain
situations including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.
1
DIGITAL PIANO
SERVICE MANUAL
LQSW
2
Contents
Panel descriptions -----------------------------------3
Rear panel--------------------------------------------5
Connection -------------------------------------------6

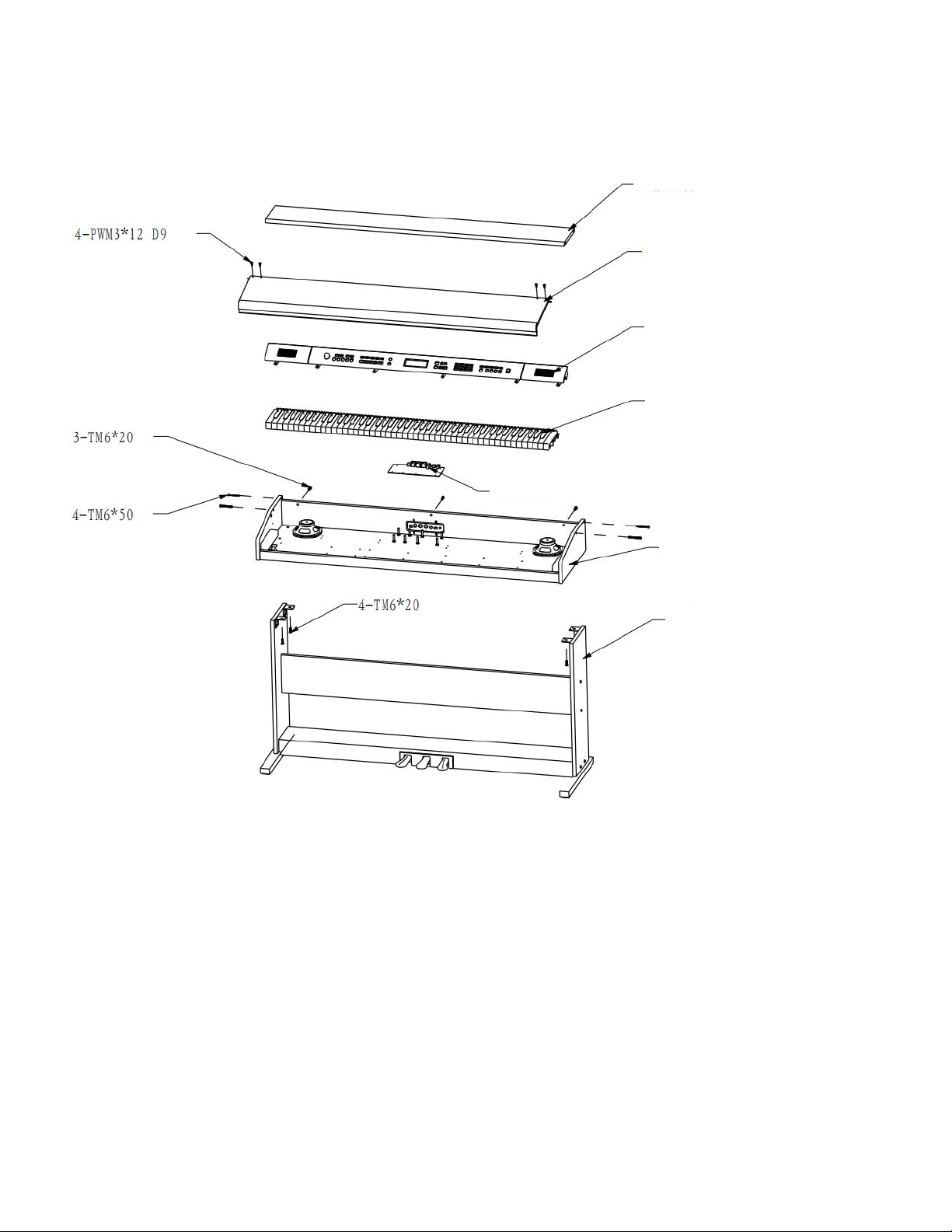

General Exploded Drawing ----------------------------7
Product schematic-------------------------------------8-10
PCB Boards--------------------------------------------11-13

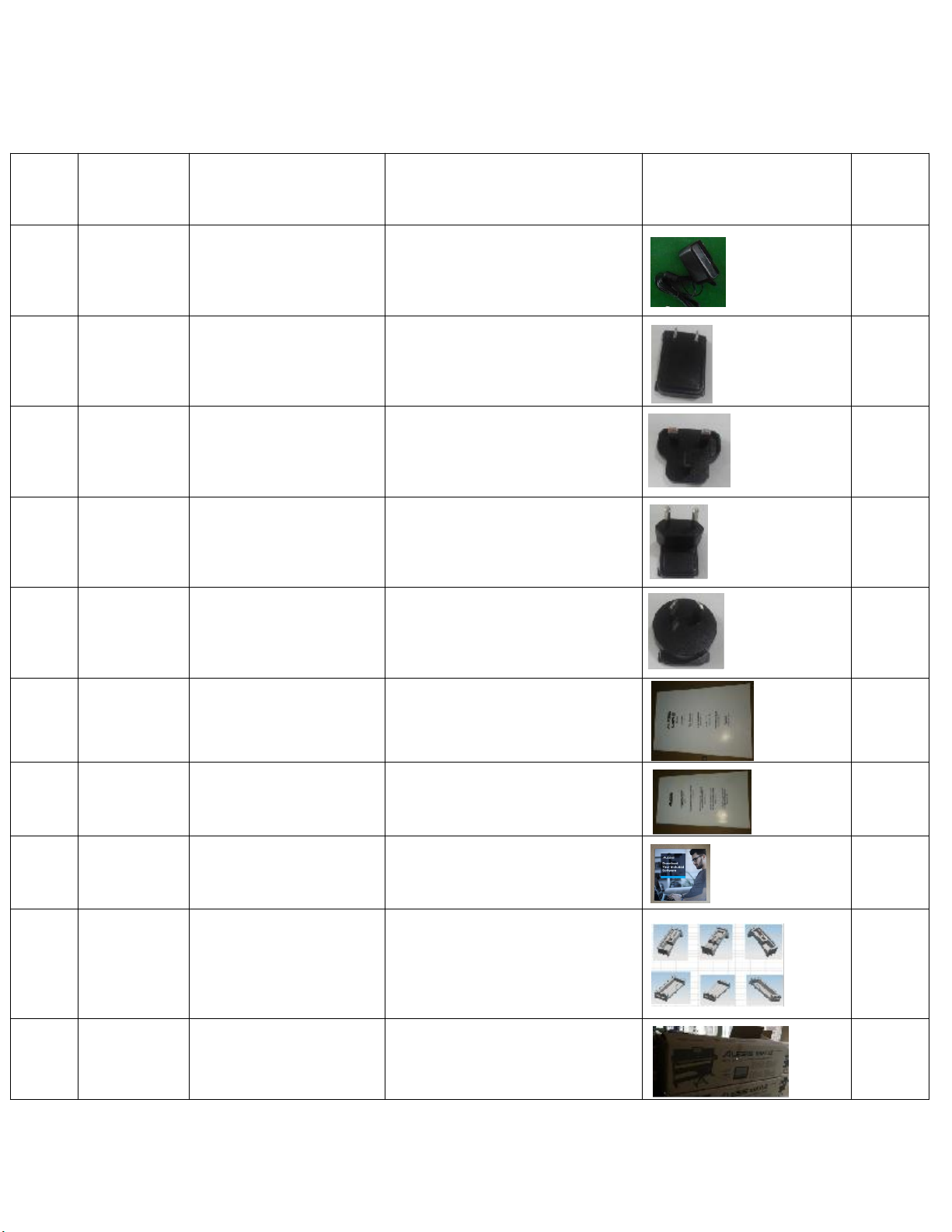

Spare Parts List -------------------------------------14-18
3
Panel Descriptions

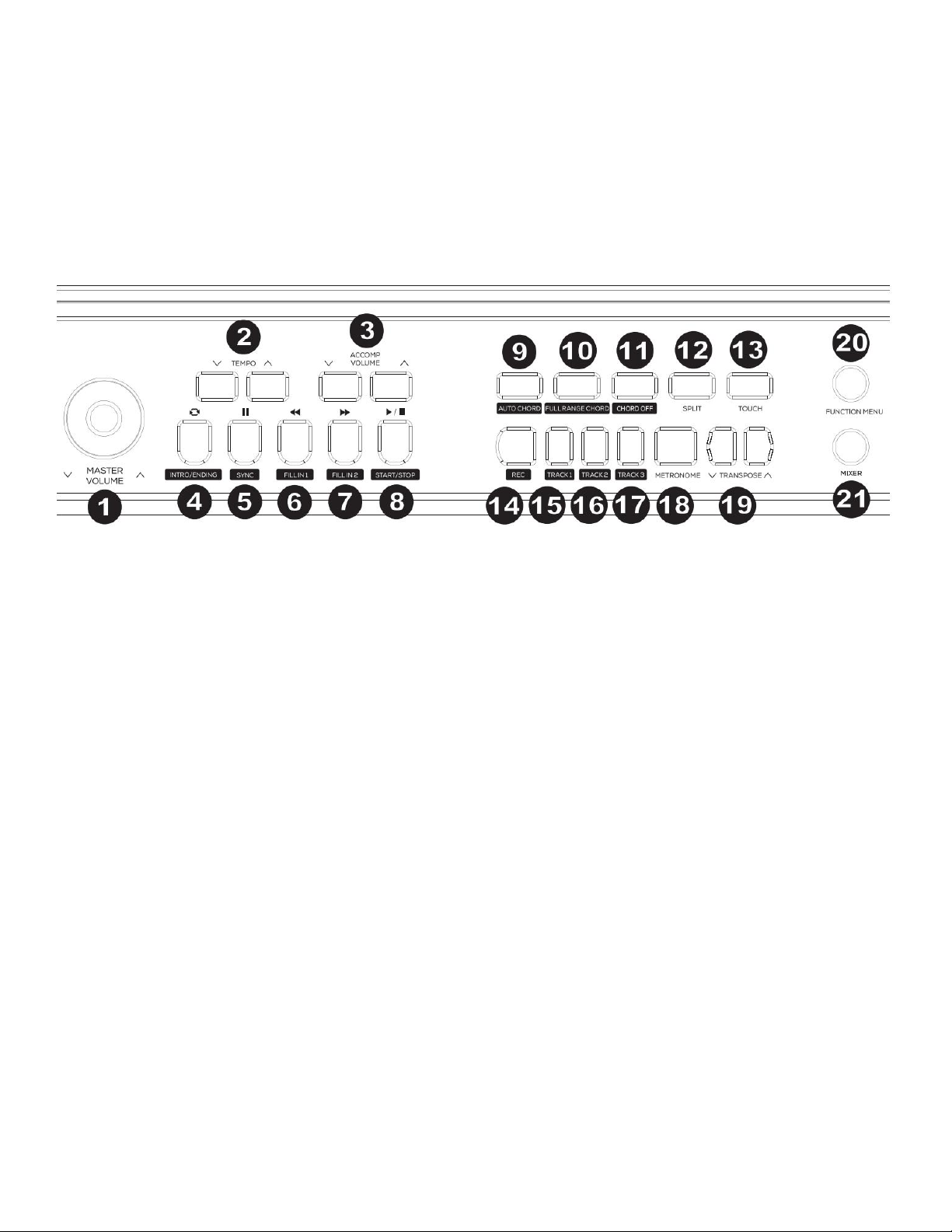

Left panel
1. Master Volume:Adjust this knob to change the master volume level.
2. Tempo:Press these buttons to adjust the tempo up or down for an accompaniment style, song, or metronome.See the section
Tempo for more details.
3. Accompaniment Volume: Press these buttons to change the accompaniment volume.
4. Intro/Ending :Press this button to play the intro/ending of the auto accompaniment.
When in Song mode, press this button to set the beginning and ending position of a song
Section loop. See the section Intro/Ending for more details.
5. Sync: When this button is pressed with the Auto Chord or Full Range Chord features enabled, the auto accompaniment style
Will start immediately once a chord is played.When in Song mode, press this button to pause a song. See the section Sync
for more details.
6. Fill In 1: Press this button to trigger a fill when playing along with a style. When in Song mode,press this button to rewind
through a song. See the section Fill In 1/ Fill In 2 and Accompaniment Pattern Variations for more details.
7. Fill In 2: Press this button to trigger a fill when playing along with a style. When in Song mode,press this button to rewind
through a song. See the section Fill In 1/ Fill In 2 and Accompaniment Pattern Variations for more details.
8. Start/Stop:Press this button to play or stop song playback or accompaniment style playback.
9. Auto Chord: Press this button to start the auto chord accompaniment for the left-hand chord area. See the section Chord
Accompaniment Features for more details.
10. Full Range Chord: Press this button to have the whole keyboard use an auto chord accompaniment.. See the section Chord
Accompaniment Features for more details.
11. Chord Off: Press this button to disable the auto chord or full range chord features.
12. Split: Press this button to turn the split function on/off. The split point for the keyboard can be set in the Function Menu.
See the section Split for more details.
13. Touch : Press this button to set the touch sensitivity level. See the section Touch Sensitivity for more details.
14. Record:Press this button to enter Record mode. See the section Song Recording for more details.
15. Track 1: Press this button to enable recording to track 1.
4
16. Track 2: Press this button to enable recording to track 2.
17. Track 3: Press this button to enable recording to track 3.
Right panel
18. Metronome: Press this button to turn the metronome on/off. See the section Metronome for more details.
19. Transpose: Press this button to adjust the transpose setting. See the section Transpose for more details.
20. Function Menu: Press this button to enter/exit the Function Menu and adjust parameters. See the section Function Menu for
more details.
21. Mixer: Press this button to adjust the mix of the sounds. See the section Mixer for more details.
22. Display: Shows all the parameters and values related to the currently selected operation and mode of the piano.
23. Piano Performance Mode: Press this button to quickly access an acoustic piano sound.
24. Style Mode: Press this button to enter Accompaniment Style mode.
25. Voice Mode: Press this button to enter Voice mode.
26. Song : Press this button to enter Song mode.
27. Lesson: Press this button to enter Lesson mode. See the section Lesson Mode for more details.
28. Octave -: Press this button to decrease the octave setting in Lesson mode.
29. Octave +: Press this button to increase the octave setting in Lesson mode.
30. Numbers/+/- Selectors: Press these buttons to select voices, accompaniment styles, songs, or to adjust menu parameters.
31. Layer:Press this buttons to turn Layer mode on/off.
32. Reverb: Press this button to turn the reverb effect on/off.
33. Chorus: Press this button to turn the chorus effect on/off.
34. Song /Volume :Press and release this button to switch to the previous MP3 song.
Press and hold this button to decrease the MP3 playback volume.
35. Song /Volume :Press and release this button to switch to the previous MP3 song.
Press and hold this button to decrease the MP3 playback volume.
36. Store :Hold this button and then press M1 or M2 to store the current user settings into memory. See the section Memory for
more details.
37. M1: Press this button to recall the first user settings preset stored in the currently selected memory bank.
38. M2: Press this button to recall the second user settings preset stored in the currently selected memory bank.
39. Bank: Press this button repeatedly to change between the first and second memory banks.
40. Play/Pause: Press this button to play /pause the MP3 song.
41. Power Switch: Press this button to turn the piano’s power on or off.
5

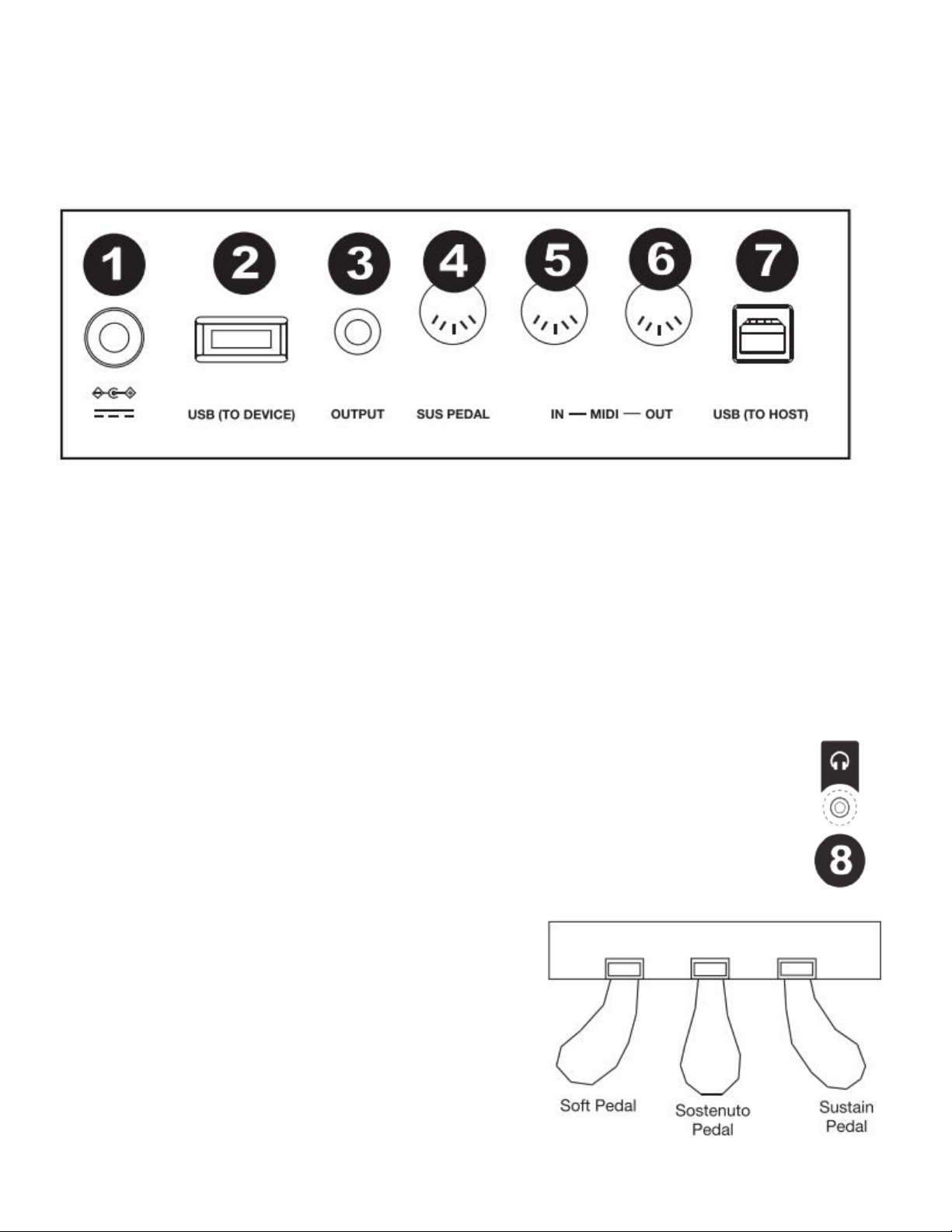

Rear Panel
1. Power Input: Connect the included power adapter here.
2. USB Device Port: Connect a USB flash drive here to play MP3 songs. Up to a 32 GB USB flash drive can be used.
Note: Do not disconnect the USB flash drive during MP3 playback. Doing this may cause damage to the USB flash drive or
the piano.
3. Aux Output: Use a 1/4”(6.35mm) stereo cable to connect external audio equipment such as an amplifier , mixer, or recorder.
4. Sustain Input: Connect the included sustain pedal here.
5. MIDI In: Connect this to the MIDI output of an external MIDI device (MIDI sequencer.keyboard controller, pad controller,
etc) using a standard MIDI cable.
6. MIDI Out: Connect this to the MIDI input of an external MIDI device (MIDI sequencer.keyboard controller, pad controller,
etc) using a standard MIDI cable.
7. USE MIDI Port: Allow for transfer of MIDI data to a computer.
Note: Do not set the USB driver to be input and output simultaneously when you are setting the software on
the computer. Otherwise, the sound will be overlapped when playing the keys.
8. Phones( Bottom Panel): Connect stereo headphones with a 1/4”(6.35 mm) stereo phone plug. The piano’s
internal speakers will be muted when headphones are connected.
Sustain Pedal
Virtue’s stand features three pedals that perform 3 different functions.
Soft Pedal: When this leftmost pedal is pressed,
the played notes will give a soft note(pianissimo)
Effect.
Sostenuto Pedal: When this center pedal is pressed,
It sustains only those notes that are being held down
When the pedal is pressed, allowing future notes played to
6
To power switch
To backlight
Be unaffected.
Sustain Pedal: When this rightmost pedal is pressed,
The played notes will give a sustain effect.
Connection
To earphone seat
To left speaker
To right speaker
To left keyboard cable
To right keyboard cable
To functional components
To LCD display
To volume board module
7
General Exploded Drawing
Clamshell assembly
assembly assembly
Cover board component
Panel components
Wooden case box
Keyboard components
Harp rack component
Motherboard Components
LQSW/LQSX
V01
ALESIS
3
REV:SIZE:CODE:
A
B
C
D
DRAWN:DATED:
DATED:
CHECKED:
QUALITY CONTROL:DATED:
DATED:RELEASED:
A
B
C
D
DRAWING NO:
1234
56
ECO NO:
LTR APPROVED: DATE:
REVISION RECORD
SHEET: 2
SCALE:
TITLE:
COMPANY:
A2s
RASCASCS0CS1
11RAM/ROMRAM/ROM
01RAM/ROMSDRAM
10RAM/ROMRAM/ROM
00SDRAMRAM/ROM
A2
CGM 2017-08-25
SDRAM 2M Bytes
(800:0000 - 8xx:xxxx)
DATA 1M Bytes
(400:0000-5FF:FFFF)
NO USE IO JACK
SYS-RESET
LCD_BL
CP LD J T A G P o r t
SPDIF Port
ROM 16~128M Bytes
(000:0000 - 3FF:FFFF)
AmaxGL01GS=A25
AmaxGL512P=A24
AmaxGL256P=A23
AmaxGL128P=A22
Address:Amax
USB-MIDI
1),VDD301SCTA: R21/C2 no weld
2),VDD301SNTA: R21 weld,C2 no weld
work with different chips:
C38
LC4032ZE
LC4032V
C39
R20
U6
CPLD SELECT
U6
C38
R20
C39
J8
J8
related GOUT internate only use
when set"function button" related GOUT internate setting LED, forcing the function of display
TO FUNCTION-KEY
EXMEM CONFIG
M-DEBUG
sustain_middle
soft
sost
sustain_full
*
!!!
keyboard
D9
bluetooth
choose
0
1
OFF
ON
D10
keyboard
choose
0
1
OFF
ON
D11 keyboard
setting
0
1
default
default
default
D12 keyboard
setting
0
1
OFF
ON
default
D13 keyboard
setting
0
1
OFF
ON
default
OFF
ON
NC
NC
NC
R19
22R
R22
10K
R230
10K
R3
10K
X1
12MHz
C11
22P
R2
1M
R103
OR L1
OR
1
VDD
2
D0 3
D1
4
VSS
5
6
D2
D3
7
VDD
8
D4 9
D5
10
VSS
11
D6 12
D7
13
VDD
14 DQML
15 WE
16 CAS
17 RAS
18 CS
19 BA
20 A10
21 A0
22 A1
23
24 A2
A3
25
VDD
26
VSS
27 A4
28 A5
29 A6
30 A7
31 A8
32 A9
NC
34 CKE
35 CLK
36 DQMH
3
33
7NC
38
VDD
39
D8 40
D9
41
VSS
42
D10 43
D11
44
VDD
45
D12
D13
VSS
46
48
D14 49
D15
74
VSS
U4
IC42S16100F-7TL
C28
104
C30
104
C31
104
C32
104
C33
104
25 A0
24 A1
23
22 A2
A3
21 A4
20 A5
19 A6
18 A7
8A8
7A9
6A10
5A11
4A12
A13
3
2A14
1A15
48 A16
17 A17
16
9A18
A19
28 NOE
11 NWE
26
NCS
12
NRST
WBN
29
D0 31
D1 33
35
D2
D3 38
D4 40
D5 42
D6 44
D7 30
D8 32
D9 34
D10 36
D11 39
D12
D13 41
43
D14 45
D15
VDD
15 RBN
10 NC1
13 NC2
14 NC3
27
VSS1 46
VSS2
U3
ADC
Regulator
Power
MPU_CS
MPU_RD
MPU_WR
MPU_DC
GPIO0_12
GPIO0_15
GPIO
I2S
MISC
Adress BUS
Data BUS
SCAN
8A00
9A01
10
11 A02
A03
12 A04
13 A05
16 A06
17 A07
18 A08
19 A09
20 A10
21 A11
22 A12
A13
23
24 A14
25 A15
26 A16
27 A17
28
29 A18
A19
30 A20
31
32 A21
A22
33 A23
34 A24
35 A25
36 A26
ROW0
ROW1
77
ROW2
105
SPI_CLK/DBUG_CLK 104
SPI_CS/DBUG_DATA 103
SPI_DOUT/DBUG_BUSY 102
SPI_DIN/DBUG_RW
DEBUG
78 KBDIO
42 WSDRAM
37 SDRAM_CLK
41 RAS
40 CAS
47
REST_IN
48
TEST_MODE
49
XIN
50
XOUT
57
USB_DP
56
USB_DM
140 D00
137 D01
136 D02
135 D03
134 D04
133 D05
132 D06
131 D07
130 D08
D09
129
128 D10
127 D11
126 D12
125 D13
124
123 D14
D15
81
82
GPIO0_00
GPIO0_01 83
GPIO0_02 84
GPIO0_03 85
GPIO0_04 86
GPIO0_05 87
GPIO0_06 88
GPIO0_07 89
GPIO0_08 90
GPIO0_09 91
GPIO0_10 92
GPIO0_11
45 ROW3
44
GPIO0_13/MIDI_OUT
43
GPIO0_14/MIDI_IN
109
SPI_CLK/GPIO2_10
108
SPI_CS/GPIO2_11 107
SPI_DIN/GPIO2_12
106
SPI_DOUT/GPIO2_13
46
GPIO2_14
141 /RD
142 /WR
6/CS0
7/CS1
I2S_WS 143
144
I2S_BIT_CLK
1
I2S_CLK
2
EXT_INT2/I2S_DIN2
3
4
5
62
DVDD12
139
DVDD12
93
ADC_IN3 94
ADC_IN2 95
96
ADC_IN1
ADC_IN0
97
ADC_VREF
98
ADC_RES
99
AVDD33
100
AGND33
53
AGND33
55 AGND33
54
DGND33
59
AGND33
51
AVDD33 52
DVDD33
58 AVDD33
61
AVDD33
60
NC/VREF
118 DGND33
80 DGND33
39 DGND33
15 DGND33
117 DVDD33
79 DVDD33
38 DVDD33
14 DVDD33
63
DGND12
138
DGND12
110 LM10
LM09
LM08
LM07
LM06
LM05
LM04
LM03
LM02
121 LM01
122 LM00
64 LB10
65 LB09
66 LB08
67 LB07
68
69
70
71
72
73 LB01
74 LB00
U1
A2S--P144-X2
D10 IN4148
D11 NC
D12 NC
D13NC
R42
10K
R41
2.2K
R43
10K
R40
10K
C72
104
2
1
3
Q2
LBC817
DNS
R21
L22
3
VIN
1VOUT
2
VSS
U7
PDD301SCTA
C227
10uF
R151
0R
1
2
3
4
6
5
7
8
AR31
22R
1
2
45
7
6
8
AR32
22R
1
2
3
45
6
7
8
AR33
22R
2
1
3
4 5
6
7
8
AR24
472
1
3
2
4 5
6
7
8
AR25
472
1
2
3
4 5
6
7
8
AR26
472
1
2
3
45
6
7
8
AR10
22R
1
2
3
45
6
7
8
AR29
22R
1
2
3
45
6
7
8
AR30
22R
1
2
3
4 5
6
7
8
AR21
472
1
2
3
4 5
6
7
8
AR22
472
3
4 5
6
7
8
AR2
1
32
472
C15
10uF
1
2
3
45
6
7
8
AR1
22R
1
2
3
45
6
7
8
AR2
22R
1
2
3
45
6
7
8
AR3
22R
1
2
3
45
7
8
AR4
R22
6
1
2
3
45
6
7
8
AR5
22R
1
2
3
45
6
7
8
AR6
22R
1
2
3
45
6
7
8
AR7
22R
C5
104
R5
DNS
R6 0R
R7 0R
1
2
3
45
6
7
875
76 AR8
22R
C6
104
1
2
3
45
6
7
8
AR18
22R
1
2
3
45
6
7
8
AR17
22R
1
2
3
45
7
6
8
AR16
22R
1
2
3
45
6
7
8
AR15
22R
C4
104
C41
104
R18
22R
R17
22R
R11
R10
R9
22R
R12 22R
C159
22P C61
NC
C62
NC
C63
NC
C64
NC
C69
NC
C70
NC
C71
NC
C65
NC
C66
NC
C67
NC
C68
NC
R113
NC
R114
NC
R115
NC
R116
NC
C160
NC
R16
0
C52
104
R61
220R
R62
220R
1
2
CN11
CON2P
NC
C7
104
C53
10uF
R290
TP1
1
2
A15
A14
A13
6A12
7A11
8A10
9A9
10 A8
11
12 13
WE
14
RESET
15
16
WP
17
RY/BY
18 A17
20 A7
21 A6
22 A5
23
24
25 A1
27 NC
NC
29
VIO
28
30 NC
2
3
6
1A0
32
CE
VSS
34
OE
35
D0
36
D8
37
D1
38
D9
39
40
D10
41
D2
D3
42
D11
43
VCC
44
D4
45
D12
46
D5
D13
48
D6
47
49
D14
50
D7
51
D15
5
33
2
VSS
53
BYTE
A16
55 A25
56 A24
U5
MX29GL256EHT2I
1VIN
3CE
2VSS
4
NC
5
VOUT
LC1463CB5ATR18
NC U6
C39
NC
C38
NC
J8
0R
R20
NC
C2
DNS
C3
104
C8
104 C16 104 C17 104 C18
104
C13
DSN
C14
DSN
C37
104
C12
1000P
C42
104
C21
102
C22
104
C2410P
C25
C26
C3510P
C4310P
C4410P
C4510P
C4610P
C8210P
C8310P
C8710P
C8810P
C8910P
C12010P
C12110P
C12210P
C11410P
C11510P
C11610P
C11710P
C11810P
C5810P
C5910P
C6010P
C7310P
C7410P
C7510P
C7610P
C7710P
C7810P
C7910P
C8010P
C8110P
C19
102
C20
104
R63 10R
R19922R
R20022R
R20122R
R20222R
C29
104
2
1
3
Q1
S8550
1
2
3
45
6
7
8AR35 22R
R4 22R
R72 22R
22R
R75
R73 22R
1
2
3
45
6
7
8
AR12
22R
1
2
3
45
6
7
8
AR13
22R
1
2
3
45
6
7
8
AR14
22R
C23
10uF
C110
104
IN4148
IN4148
IN4148
21
D15 D16 D17 D18
IN4148
R1
0
C54
103
C55
103
C56
103 6
INH
11
A
10
B
9
C
13
14
15
12
5
1
X5
2
X6
4
X7
3X
U9
MC74HC4051
R3810K
R39
DNS
C10
104
C48
104
C49
104
C50
104
C113
104
R44
NC
R56
NC
R64
NC
R65
NC
C136
NC
22R
22R R6
R8
9
2
R109
0R
R110
0R
R112
0R
R117
0R
R118
0R
R119
0R
R122
0R
R125
0R
1
2
3
4
CN4
NC
1
R1
0K
26
R198
100K
1M
R210
R211
1M
C167
104
1
2
3
CN7
BRILLIANCE
C169
104
R212
10K
C57
10P
C170
104
10K R28
R215
0
R26
10K
R217 DNS
R2190R
R218 DNS
R213 0
R216
10K
R37
10K
R220
DNS
R23
DNS
R221 0
1
2
3
CN3
104
C168
R24
1M
C97
103
C98
103
C99
103
C100
103
C297
103
1
2
3
4
5
6
7
8
CN1
NC
R214
NC
2
1
3
Q19
NC
2
1
3
Q21
NC
2
1
3
Q22
NC
2
1
3
Q23
NC
2
1
3
Q10
NC
2
1
3
Q11
N C
2
1
3
Q15
NC
2
1
3
Q20
NC
1
A0 2
A1 3
A2
E1 4
5
E2 6
E3
15 Y0
14 Y1
13 Y2
12 Y3
11 Y
Y
4
5
10
9Y6
7Y7
U33
74HC238
C9
104
1
A0 2
A1 3
A2
4
E1 5
E2 6
E3
15 Y0
14 Y1
13 Y2
12 Y3
11 Y4
10 Y5
9Y6
7Y7
U36
74HC238
R8
10K
1
2
3
4
6
5
7
8
CN41
NC
1TDI
2A5
3A6
4A7
5GND
6VCC
7A8
8A9
9A10
10 A11
11 TCK
12 VCC
13
GND
14
A12
15
A13
16
A14
17
A15
18
CLK1/I
19
CLK2/I
20
B0
21
B1
22
B2
23
B3
24
B4
25
TMS
26
B5
27
B6
28
B7
29
GND
30
VCC
31
B8
32
B9
33
B10
34
B11
35
TDO
36
VCC
37 GND
38 B12
39 B13
40 B14
41 B15
42 CLK3/I
43 CLK0/I
44 A0
45 A1
46 A2
47 A3
48 A4
U31
LC4032ZE
1
2
3
4
5
CN19
TP4
2
3
45
6
7AR11
10K
2
1
3
1
4
85
6
7
8
AR19
10K
18
4
2
3
6
7FB1
58
1
2
4
3
5
6
7 FB2
18
2
4
3 6
7 FB3
1
5
8
2
4
3
5
6
7 FB4
1
2
3
45
6
7
8
AR27
22R
R83
10K
R84
10K
R85
10K
R205
10K
R224
10K
4
3
2
1
5
6
7
8
AR28
10K
1 2
R240
30K
1 2
R2415.6 K
1
2
C165
104
D43
IN4148
MK7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
CN8
R14NC
2
1
3
45
6
7
8
AR40
22R
1
2
3
4
5
6
7
CN10
10
10P
10P
10P
C95
10P C96
10P C104
10P C105
10P C106
10P
10P
C107
10P
10P
10P C123
10P C124
10P C127
10P C131
D9 IN4148
R45
470
R47 10K
R58 10K
R59 10K
NC R79
C1
10uF
C40
10uF
1
2
3
4
5
6
7
8
14
15
CN2
14
15
CN5
1
2
4
3
5
6
7
8
9
10
CN6
1
2
CN9
R81 22R
R86 22R
R89 22R
R90 22R
1 2
C158
104
SYS_RESET
+3.3VD
+3.3VD
+3.3VD
A2_WA[00:26]
A2_WA00
A2_WA01
A2_WA02
A2_WA03
A2_WA04
A2_WA05
A2_WA06
A2_WA07
A2_WA08
A2_WA18
A2_WA20
A2_WD[00:15]
A2_WD00
A2_WD01
A2_WD02
A2_WD03
A2_WD04
A2_WD05
A2_WD06
A2_WD07
A2_WD08
A2_WD09
A2_WD10
A2_WD11
A2_WD12
A2_WD13
A2_WD14
A2_WD15
ROM_CS DATA_CS
+3.3VD
+3.3VD
A2_WA[00:26]
A2_WA00
A2_WA01
A2_WA02
A2_WA03
A2_WA04
A2_WA05
A2_WA06
A2_WA07
A2_WA08
A2_WA09
A2_WA10
A2_WA11
A2_WA12
A2_WA13
A2_WA14
A2_WA15
A2_WA16
A2_WA17
A2_WA18
A2_WA19
A2_WA20
A2_WA21
A2_WA22
A2_WA23
A2_WD[00:15]
A2_WD00
A2_WD01
A2_WD02
A2_WD03
A2_WD04
A2_WD05
A2_WD06
A2_WD07
A2_WD08
A2_WD09
A2_WD10
A2_WD11
A2_WD12
A2_WD13
A2_WD14
A2_WD15
SYS_RESET
A2_WA[00:26]
A2_WA00
A2_WA01
A2_WA02
A2_WA03
A2_WA04
A2_WA05
A2_WA06
A2_WA07
A2_WA08
A2_WA09
A2_WA10
A2_WA11
A2_WA12
A2_WA13
A2_WA14
A2_WA15
A2_WA16
A2_WA17
A2_WA18
A2_WA19
A2_WD[00:15]
A2_WD00
A2_WD01
A2_WD02
A2_WD03
A2_WD04
A2_WD05
A2_WD08
A2_WD11
A2_WD12
A2_WD13
A2_WD14
A2_WD15
SYS_RESET
+3.3VD
A2_BR10
A2_BR09
A2_BR08
A2_BR07
SYS_RESET
+5V
+3.3VD
SYS_RESET
+3.3VD
A2_BR[00:10]
A2_BR00
A2_BR01
A2_BR02
A2_BR03
A2_BR04
A2_BR05
A2_BR06
A
A
2
2
_
_
B
B
R
R
0
0
7
8
A2_BR09
A2_BR10
A2_MK[00:10]
A2_MK00
A2_MK01
A2_MK02
A2_MK03
A2_MK04
A2_MK05
A2_MK06
A2_MK07
A2_MK08
A2_MK09
A2_MK10
A 2 _ B R 0 0
A 2 _ B R 0 1
A2_BR02
A 2 _ B R 0 3
A2_BR04
A 2 _ B R 0 5
A 2 _ B R 0 6
A2_MK00
A2_MK01
A2_MK02
A2_MK03
A2_MK04
A2_MK10
A2_MK09
A2_MK08
A2_MK07
A2_MK06
A2_MK05
+3.3VD
A2_WA00
A2_WA01
A2_WA02
A2_WA03
A2_WA04
A2_WA05
A2_WA06
A2_WA07
A2_WA08
A2_WA09
A2_WA10
A2_WA11
A2_WA12
A2_WA13
A2_WA14
A2_WA15
A2_WA16
A2_WA17
A2_WA18
A2_WA19
A2_WA20
A2_WA21
A2_WA22
A2_WA23
A2_WA24
A2_WA25
A2_WA26
+3.3VD
+3.3VD
+3.3VD
A2_WD00
A2_WD01
A2_WD02
A2_WD03
A2_WD04
A2_WD05
A2_WD06
A2_WD07
A2_WD08
A2_WD09
A2_WD10
A2_WD11
A2_WD12
A2_WD13
A2_WD14
A2_WD15
+3.3VD
+3.3VD
+1.2V
+1.2V
+3.3VD
A2_UART_RX
A2_UART_TX
A2_POWER_CTRL
LCD_BUS
LCD_D0
LCD_D1
LCD_D2
LCD_D3
LCD_D4
LCD_D5
LCD_D6
LCD_D7
LCD_RS
LCD_RW
LCD_RS
LCD_RW
LCD_E
L C D _ D 0
LCD_D1
LCD_D3
LCD_D4
LCD_D5
LCD_D6
LCD_D7
+5V
CPLD_T[0:7]
DETECT_PHONE
A2_MK[00:10]
A2_WD[00:07]
VC1.8_3.3
LCD_E
A2_WA[00:26]
I2S_BUS
GOUT[8:11]
A2_BR00
A2_BR01
A2_BR02
A2_BR03
A2_BR04
A2_MK04
A2_MK03
A2_MK02
A2_MK01
A2_MK00
A2_BR[00:10]
A2_BR05
A2_BR06
A2_BR07
A2_BR08
A2_BR09
A2_BR10
A2_MK05
A2_MK06
A2_MK07
A2_MK08
A2_MK09
A2_MK10
A2_RD
A2_WR
I2C_BUS
A2_IIC_SDA
+3.3VD
A2_USB_DP
A2_USB_DM
ROM_CS
DATA_CS
A2_WA24
A2_WA25
+3.3VD
VC1.8_3.3
A2_MUTE_OUT
CPLD_T0
CPLD_T1
CPLD_T2
CPLD_T3
CPLD_T4
CPLD_T5
CPLD_T6
CPLD_T7
+3.3VD
A2_RD
A2_WR
A2_WA20
A2_WA21
SDRAM_WR
SDRAM_CAS
SDRAM_RAS
SDRAM_CLK
SDRAM_WR
DRAM_CAS
DRAM_RAS
GND
GNDGNDGND
GND
MX29LV160DBTI-70G FLASH ROM TSOP48 MacronixGND
GND
GNDGND
GND
GND
GNDGNDGND
GND
GND
GNDGND
GND
GND
GND
GND
GND
GND
GND
GNDGNDGNDGND
GND
GND
GND
GND
GND
GND
GND
GNDGNDGNDGND
GND
GND
A2_IIC_SCL
A2_IIS_DOUT
A2_IIS_DIN1
A2 IIS_LRCLK
A2_IIS_BCLK
A2_IIS_MCLK
ADC_GND
ADC_VDD
ADC_GND
ADC_VDD
GPIO02_13
CD4051_A
CD4051_B
CD4051_C
A2_POWER_DETECT
GND
AUX_MIC_IN_DECT
CD4051_C
CD4051_B
CD4051_A
MASTER_VOLUM PEDAL_SOST/SOFT
PEDAL_SUSTAIN_M/F
PEDAL_SOFT/ASSING
PEDAL_SUSTAIN_M/F
+3.3VD
BRILLIANCE
GND
A2_WD04
A2_WD00
A2_WD01
A2_WD02
A2_WD03
A2_WD05
A2_WD06
A2_WD07
+3.3VD
GND
VC1.8_3.3
C P L D _ T C K
CPLD_T0
CPLD_T1
CPLD_T2
CPLD_T3
C
C
P
P
L
L
D
D
_
_
T
T
4
5
CPLD_T6
CPLD_T7
A2_CS0
A2_WR
A2_RD
A2_RD
A2_WR
A2_CS0
GND
GND
CPLD_TDI
CPLD_TDO
+3.3VD
GND
+3.3VD
GND
GOUT12
GOUT13
GOUT14
GOUT15
GOUT8
GOUT9
GOUT10
GOUT11
VC1.8_3.3
+3.3VD
+3.3VD
CPLD_TMS
CPLD_TCK
GND
74238G[8:15]GOUT[8:15]
GOUT8
GOUT9
GOUT10
GOUT11
GOUT12
GOUT13
GOUT14
GOUT15
A2_WA[00:26]
A2_WA21
A2_WA22
A2_WA23
A2_WA24
A2_WA25
A2_WA26
GND
+3.3VD
+3.3VD
+3.3VD
BRILLIANCE
A2_ROW[0:2]
A2_ROW0
A2_ROW1
A2_ROW2
A2_ROW[0:2]
A2_ROW2
A2_ROW0
A2_ROW1
MC74HC4051(J,N,D) GND
+3.3VD
CPLD_ASSING
PEDAL_SOFT
PEDAL_SOST
PEDAL_SOST/SOFT
PEDAL_SOFT/ASSING
CPLD_ASSING
PEDAL_ASSING
GND
PEDAL_SUSTAIN_M
PEDAL_SUSTAIN_F
+3.3VD+3.3VD
MASTER_VOLUM
A2_WA00
A2_ROW2
A
A
2
2
_
_
R
R
O
O
W
W
1
0
74238G[8:15]
74238G[8:15]
7
74238G8
74238G9
74238G10
74238G11
74238G12
74238G13
74238G14
74238G15
GND
GND
SYS_RESET
74238G15
74238G8
74238G9
74238G10
74238G11
74238G12
74238G13
74238G14
74238G15
SDRAM_RAS
SDRAM_CAS
SDRAM_CLK
SDRAM_WR
PEDAL_SOST
PEDAL_ASSING
PEDAL_SUSTAIN_M
PEDAL_SOFT
PEDAL_SUSTAIN_F
GND
SDRAM_RAS
SDRAM_CAS
+3.3VD
CPLD_TMS
+3.3VD
+3.3VD
+3.3VD
A2_WA19
ERP_15V
+3.3VD
GND
LCD_VDD
LCD_D2
GND
LCD_VDD
LCD_D0
LCD_D1
LCD_D2
LCD_D3
LCD_D4
LCD_D5
LCD_D6
LCD_D7
LCD_E
LCD_RW
LCD_RS
CPLD_T6
CPLD_T7
A2_BR00
A2_BR01
A2_BR02
A2_BR03
A2_MK00
A2_MK01
A2_MK02
A2_BR04
A2_MK04
A2_MK03
A2_BR05
A2_BR06
A2_BR07
A2_BR08
A2_BR09
A2_BR10
A2_MK06
A2_MK05
A2_MK08
A2_MK07
A2_MK09
A2_MK10
DEBUG_DATA/SPI_CS
DEBUG_CLK/SPI_CLK
DEBUG_RW/SPI_DIN
DEBUG_BUSY/SPI_DOUT
GND
GOUT[8:15]
GOUT8
GOUT9
GOUT10
GOUT11
GOUT12
GOUT13
GOUT14
A2_BR[00:10]
A2_BR00
A2_BR01
A2_BR02
A2_BR03
A2_BR04
A2_BR05
A2_BR06
A2_BR07
A2_BR08
A2_BR09
GOUT8
GOUT9
GOUT10
GOUT11
GOUT12
GOUT13
GOUT14
A2_BR00
A2_BR01
A2_BR02
A2_BR03
A2_BR04
A2_BR05
A2_BR06
A2_BR07
A2_BR08
A2_BR09
GND
A2_BR06
I2S_DIN2
GPIO02_12
GPIO02_13
GPIO02_12
I2S_DIN2
+3.3VD
GND
GND
GND
GND
GND
VOLUME
GND GND
8
Product Schematic
10P
10P
22R
22R
weld
no weld
C2710P
3
DRAM_CLK
50
no weld
A2 WD06
A2 WD07
A2 WD09
A2 WD10
47
37
A2
A3
A4
5
4
19
54
3
A18
A19
A20
A21
A22
A23
CPLD_TDO
CPLD_TDI
IIC_SCL
IIC_SDA
GPI02_00
GPI02_03
GPI02_02
GPI02_01
LB02
LB03
LB04
LB05
LB06
120
119
116
115
114
113
112
111
3
C108
C109
C112
P
C94
C93
C90
C86
X4
X3
X2
X1
X0
OF
SPDIF1-2/I2S_DOUT2
EXT_INT1/I2S_DIN1
SPDIF1_2/I2S_DOUT1
MPU_DATA0
MPU_DATA1
MPU_DATA2
MPU_DATA3
MPU_DATA4
MPU_DATA5
MPU_DATA6
MPU_DATA7
74238G8
74238G9
74238G10
74238G11
74238G12
74238G13
74238G14
74238G15
CPLD_T5
CPLD_T4
CPLD_T3
CPLD_T2
CPLD_T1
CPLD_T0
13
12
11
10
9
13
12
11
10
9
8
7
6
5
4
3
2
1
A2_BR07
A2_BR08
A2_BR09
A2_BR10
101
2017-08-25
CGM
LQSW/LQSX
V01
ALESIS
D
3
REV:SIZE:CODE:
A
B
C
D
DRAWN:DATED:
DATED:CHECKED:
QUALITY CONTROL:DATED:
DATED:RELEASED:
COMPANY:
TITLE:
A
B
C
D
DRAWING NO:
123456
ECO NO:LTRAPPROVED:DATE:
REVISION RECORD
SHEET: 2
OFSCALE:
(FOR IO PREAMP POWER)
POWER SUPPLY FOR DIGITAL CIRCUIT
AUX OUT
HP_OUT
TO-HB-CN1
HOUT_L
HOUT_R
PHDT
AGND
HP_Filter
CH-L
CH-R
CH-L
CH-R
CH-L
CH-R
POWER SUPPLY FOR:
1. MEDEL-LCM
2. MP3-MODULE
3. U-DISK
15uH condunction with 4R speaker,22uH conduction with 8R speaker
VINL
VINR
POWER PART
ERP PART
NC
L SPK+
L SPK-
R SPK+
R SPK-
C224
104
C221
220uF
C223
100uF
C222
104
C119
47uF
C125
104
C126
104
C128
100uF
1
VREF
2
AGND
3
VCC
4VDD
5DGND
6SCKI
7LRCK
14
VINR
13
VINL
12 FMT
11 MD1
10 MD0
9DOUT
8BCK
U10
1
2
3
45
6
7
8
AR37
22R
C181
104
C182
10uF
C129
104
C13
10uF
C135
104
M1808
0ohm
C137
104 C14268P
R30 12k±1%
+
- 6
5
7U12-B
NJM4556AM DMP8
R31 12K C144
100uF
C147
68P
R8712k ±1%
- 2
+ 3
1U12-A
NJM4556AM DMP8
R88 12K C148
100uF
C154
10nF
NPO
C155
100n F
NPO
R33100
R34 100
R35100
C156
104
C157
10uF
1
OUT
2
GND
3IN
U13
7805A
1
OUT
2
GND
3IN
U15
KIA 78L08
L6
L7
L14
2
1
3
4
JK4
2
1
3
Q12
8050D
R74
2.4K
R111 R120
47K
± 1%
NC
D5
NC
NC
D6
D19
IN4148
2
1
3
Q13
8050D
R121
2.4K
D20
IN4148
NC
D25
NC
+
-
2
3
1
U17-A
NJM4556AM DMP8
R123
±1% 15K
C193
680P NPO
R124 15K
±1%
+
-
6
5
7
U17-B
NJM4556AM DMP8
R127
+1% 12K
R128
±1% 12K
+
C194
100uF
+
C195
100uF
C196
100uF
C197
100uF
C198
680P
NPO
R129
10
R130
10
R131
680
1%
R132
680
1%
C199
10uF
C200
104
L8 R133
±1% 4.7K
R134
4.7K
±1%
C201
104
C202
10uF
1
2
3
4
CN12
2
1
3
Q16
8050D
R135
2.4K
D21
IN4148
2
1
3
Q17
8050D
R136
2.4K
D29
IN4148
C294
680nF/100 V
C292
100N(S)
C290
100N(S)
R208
4R7
R206 4R7
C291
100N(S)
C289
100N(S)
C295
330P(S) R203
22R
R137
22R C203
330P(S)
L38
15uH
L39
15uH
L40
15uH
L41
15uH
C282
1U/50(S)
C283
1U/50(S)
C281
100N(S)
C284
100N(S)
C204
100N(S)
C205
1N(S)
C206
100N(S)
R140
2k2
1%
C207
4n7
C208
100N(S)
1
GND_SUB
2
SA
3
TESTMODE
4
VSS
5
VCC_REG
6
OUT2B
7
GND2
8
VCC2
OUT2A
OUT1B
VCC1
GND1
OUT1A
GND_REG
VDD
CONFIG
UT3B/DDX3B
9 10 11 12 13 14 15 16 17 18
OUT3A/DDX3A
19
EAPD/OUT4B
20
TWARN/OUT4A
21
VDD_DIG
22
VSS_DIG
23
POWRDN
24
PLL_VDD
25
PLL_FILTER
26
PLLGND
27
XTI
28
BICKI
29
LRCKI
30
SDI
31
RESET
32
INT_LINE
33
SDA
34
SCL
35
GND_DIG
36
VDD_DIG
U18
C209
100N(S)
C210
680P
R141
2.2 ohm
C211
10uF
C212 470PF
NPO
C214
NPO
150PF
C215 220PF
NPO
C216
100PF
NPO
R142
4.7K
±1%
R143
4.7K
±1%
R144 4.7K
±1%
R145
4.7K
±1%
R146
R147
4.7K
±1% ±1%
R149
20K ±1%
+
-
2
3
1
U20-A
NJM4556AM DMP8
20K ±1%R152
C217
10uF
C218
470PF
NPO
C21
150PF
NPO
220PF C220
NPO
L19
C225
100PF
NPO
R153
4.7K
±1%
R154
±
4.7K
1%
R155 4.7K
±1%
R156
±
4.7K
1%
R157
R158
±
4.7K
1%
R159
10K
±1%
R160
20K ±1%
+
-
6
5
7
U20-B
NJM4556AM DMP8
R161
20K ±1%
C226 220PF
NPO
20K ±1%R162
20K ±1%R163
C228 220PF
NPO
R164 20K±1%
R165 20K ±1%
C229
104
C233
10uF
R166 4R7
R167
2k2
JP1
C234
100N(S)
C236
104
1
2
3
45
6
7
8
AR39
22R
1
2
3
CN15
3P/2.54mm
TO-RIGHT-SPK
R70
1K
±
R71
1%
1K
±1%
L18
TP2
R168 0ohm
C237 NC
R138
10K
R139
10K
R150
10K
C111
47uF
C235
1000uF/25V
TP22
C285
680nF/100 V
C286
100N(S)
C287
100N(S)
R176 4R7
R204 4R7
C288
100N(S)
C293
100N(S)
3VIN
1
2
VOUT
4
GND VOUT
U8
LM1117CLTR33 6010109330
C132
2200U
S
G
D
Q5 AOD407
R102
10K
R601K
R104
220K
R67
4.7K
E
B
C
Q6
BC817
C134
0.1uF
R107
10K
R108
10K
R68
10K
E
B
C
Q7
BC817
R77
1K
C162
0.1uF
R100
10K
C138
0.1U
R101
10K
C139
10UF
J1
J2
J3
J4
1
2
SW
1
2
SWA
2
3
1
DJ1
D14
D_RB160L-40_S
RB160L-40TE25
12
34
L11
605000002 TC623-30UH*2-F-03 DIP
C140
104
R460R
R78
10K
D8
IN4148
1
2
3
T1
BAT54C
P4
L56
M1
M2
M3
M4
C34
470U/50V
L4
L15 4.7R
C145
104
C146
10uF
1
2
TO-LEFT-SPK
CN13
2P/2.54mm
1
BOOST
2VIN
3
SW
4
GND/PG
5
FB
6
OMP/PV
7EN
8SSC
U2-A
IC-AIC28693
C149
0.1uF/25V
R93
1K
R94
10K
L176.8UH
R96
24K
R97
4.999k
C151 104
C152
47p
R98
2.4K
D30
SS24
C143
220uF
C161
104
C153
104
+3.3VD
+9V
I2S_BUS
GND_ADCD
+3.3VD
A2_IIS_MCLK
A2_IIS_LRCLK
A2_IIS_BCLK
A2_IIS_DIN1
OP_VREF
OP_VREF
ERP_15V
VREF_ADC
+5VA
VREF_ADC
OP_VREF
MUTE_OUT
MUTE_OUT
+9V_HP
+9V
VREF_HP
MUTE_OUT
MUTE_OUT
VREF_HP
VREF_HP
DETECT_PHONE
+3.3VD
+3.3VD
ERP_15V
A2_IIC_SDA
A2_IIC_SCL
I2S_BUS
+3.3VD
+9V_OP1
+ 9V_
O
P
1
R
1
4
8
1
0
K
+9V +9V_OP1
GND
AMP_GND
AMP_GND
AMP_GND
+3.3VD
TP_INT
AMP_GND
GND
A2_IIS_DOUT
A2_IIS_LRCLK
A2_IIS_MCLK
A2_IIS_BCLK
GND
4B
4A
3A
3B
3A
3B
4A
4B
A2_IIS_MCLK
A2_IIS_LRCLK
A2_IIS_MCLK
A2_IIS_LRCLK
A2_IIS_BCLK
A2_IIS_DIN1
A2_IIS_DOUT
A2_IIS_LRCLK
A2_IIS_BCLK
A2_IIS_MCLK A2_IIS_MCLK
A2_IIS_BCLK
A2_IIS_LRCLK
A2_IIS_DOUT
GND
SYS_RESET
GND
AGND
AGND
AGND
GND
AGND AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGNDAGNDAGND
AGND
AGND
MP3-LOUT
MP3-ROUT
ERP_15V
A2_POWER_DETECT
A2_POWER_CTRL
+3.3VD
+15V
DC_GND
A2_MUTE_OUT MUTE_OUT
+3.3VD
AGND
AGND
+5VA
AGND
AGND
AGND
AGN CN
DAGND AGND
GND
+5V
GND
9
R76
47K
+1%
A2 IIS BCLK
A2 IIS DIN1
C150
10NF/50V
4.7K
+1%
4.7K
+1%
2017-08-25
LQSW/LQSX
CGM
ALESIS
DV01
3
REV:SIZE:CODE:
A
B
C
D
DRAWN:DATED:
DATED:CHECKED:
QUALITY CONTROL:DATED:
DATED:RELEASED:
COMPANY:
TITLE:
A
B
C
D
DRAWING NO:
123456
ECO NO:LTRAPPROVED:DATE:
REVISION RECORD
SHEET:
3
OFSCALE:
USB-MIDI
MIDI_IN
MIDI_OUT
DEBUG PORT
NC
SPI change to UART(MIDI)
MP3
500mA
NC
MIDI
three
pedal
three pedals
3USB_D+
4GND
2USB_D-
1VCC
5NC
6NC
USB1
C238
10uF
C240
104
R169
10K
C241
NC
NPO
C242
NC
NPO
L16
BLM18BD102SN1
LED1
RED
NC
D31
NC
D
NC
32D33
NC
C239
NC
R170NC
D34
NC
D35
NC
NC
D36
NC
NC
C245
104
C246
10uF
L20
L21
L23
L28
R171
68R
R172
68R
4
2
5
6
7
31
JK3
R91
4.7K
2
1
3
Q3
LBC817
2
1
3
Q4
S8550
R92
1K
R95
4.7k
R197
10K
1PD4
2PD5/UART_TX
3PD6/UART_RX
4NRST
5PA1/OSCIN
6PA2/OSCOUT
7VSS
8VCAP
9VDD
10 PA3/SPI_NSS
20
PD3 19
PD2 18
SWIM/PD1 17
SPI_MISO/PC7 16
SPI_MOSI/PC6 15
SPI_SCK/PC5 14
PC4 13
PC3 12
PB4 11
PB5
U11
STM8S003F3
1
2
3
4
CN16
C184
104
C185
10uF
R13
10K
C186
104
C187
105
C188
20pF
C189
20pF
X2
16MHz
1
2
3
4
8
7
6
5
AR20
22R
4
3
2
1
5
6
7
8
AR34
10K
4
3
2
1
5
6
7
8
AR36
10K
4
3
2
1
5
6
7
8
AR38
10K
1P01
2P00
3P35
4P02
5
USBDM
6
USBDP
7
8VCOM
DACVSS
16
P46 15
P25 14
P24 13
VSSIO 12
LDO5V 11
VDDIO 10
DACR 9
DACL
U19
AC1082
C36
105
C51
105
R1051K
R481K
C84106
C85 106
R49
NC
R50
NC
L870R
L88 0R
L89
FB35608
1
OUT
GND
2
3
OC
4EN
5IN
U22
NCP380LSN05AAT1G SOT23-5
C91
47uF
C92
10uF
C101
104
C102
104 3
USB_D+
4
GND
2
USB_D-
1
VCC
5
NC
6
NC
USB2
D7
1N5819
L46 0R
4
2
5
6
7
3 1
JK5
6
5
2
3
8
1
7
4
U23
6N139
R53
270
R54
150
C103
104
L12
L13
21
D1
IN4148
D28DNS D3
DNS
R57
4.7K
R36 0R
1
2
CN17
4
2
5
6
7
3 1
JK8
C133
105
R8022K
L2
L9
L10
GND
A2_USB_DP
A2_USB_DM
+3.3VD
GND
GND
GND
MIDI_OUT
GND GND
SWIM
+3.3VD
+3.3VD
DEBUG_CLK/SPI_CLK
DEBUG_DATA/SPI_CS
DEBUG_RW/SPI_DIN
DEBUG_BUSY/SPI_DOUT
+3.3VD
NRST
MIDI_IN
MIDI_OUT
LDO5V
USB-DM
USB-DP
DAC-L
DAC-R
USB-DP
USB-DM
+5V
MP3-LOUT
MP3-ROUT
DAC-L
DAC-R
+5V
MIDI_IN
+3.3VD
ADCKEY
PEDAL_SOFT
PEDAL_SOST
PEDAL_SUSTAIN_F
GND
VDDIO
VDDIO
ADCKEY
AGND
AGND
10
A
A
B
B
SMTP2200-CF-0
DC_IN
AUXOUT
PEDAL
MIDI-IN
MIDI-OUT
L
R
L+
L-
R+
R-
GND
GND
GND
TO POWER SW
TO HP

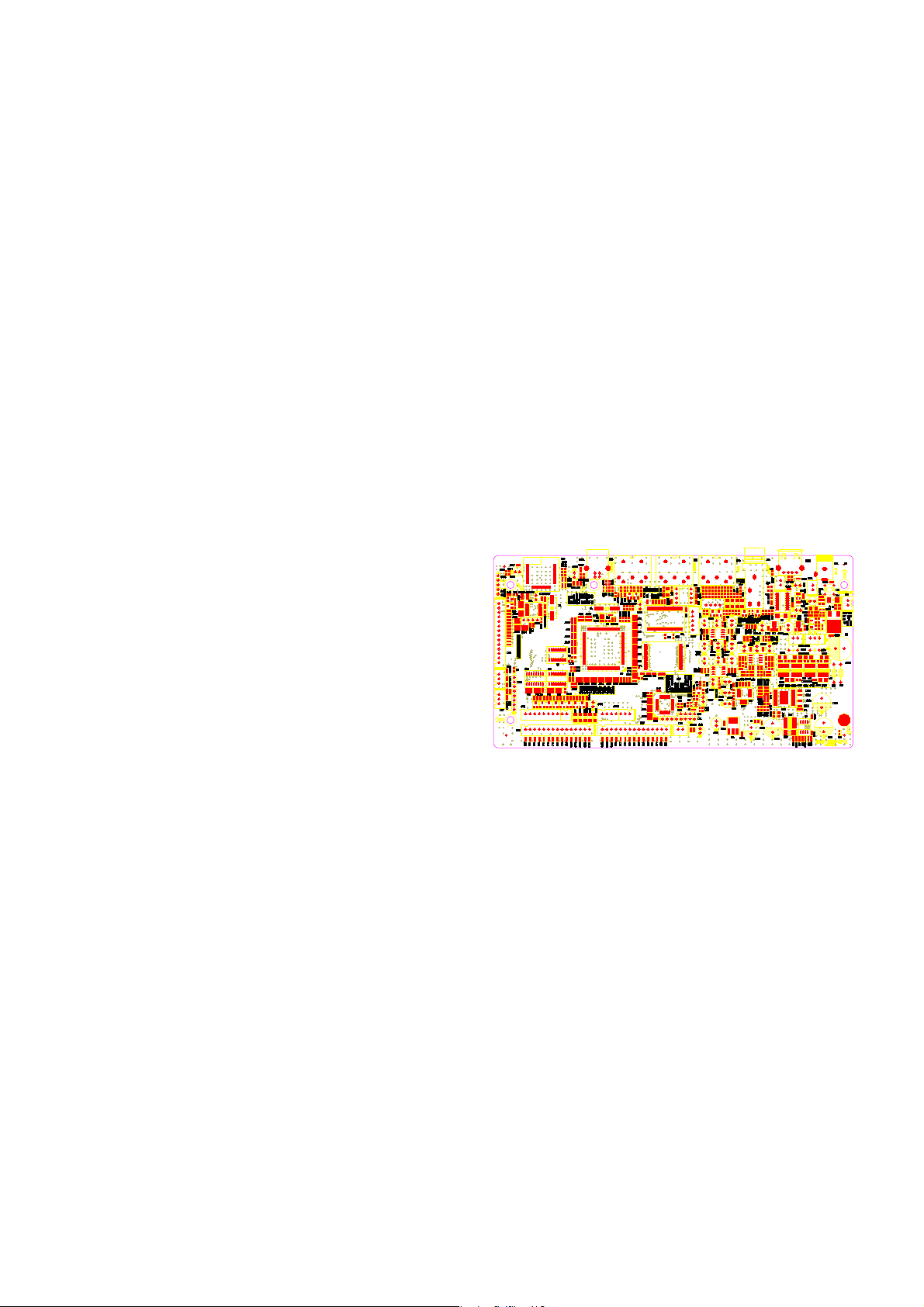

2017-09-06
R141
C204
C206
C208
C209
C229
C234
C293 C288 C289 C291
C286
C287 C290 C292
C281
C284
C210
C205
C207
R137
R203
C203C295
R140
R138
C285 C294
R204 R176R206 R208
AR37
AR39
C2
C154C155
C156
C181
C129
C140
C162
C212
C214
C215
C216
C218
C219
C220
C225
C228
D19
D20
D21
D29
DJ1
D14
Q16
Q17
Q3
Q13
Q12
JK5 JK4
R120
R74
R135
R136
R20
R111
R129
R131
R121
R132
R130
R142
R143
R144
R145
R146
R147
R148
R149
R152
R153
R154 R155
R156
R157
R158
R159
R160
R161
R162
R163
R164
R165
R33 R34
LB3 LB6
U18
R60
R68
R80
C142
C147
R30
R31
R87
R88
C198
C193
R134
R127R123
R128
R124
U13
U15
AR4
AR3
L89
TP1
TP2
R139
R150
C115
C114
C62
C89
D12
U10
R170
R167
AR1
AR10
AR12
AR13
AR14
AR15 AR16 AR17 AR18
AR2
AR20 AR29 AR30
AR31AR32
AR33
AR40
AR5
AR6
AR7
AR8
C11
C116
C117
C118
C120
C121
C122
C159
C35
C43
C44
C45
C46
C58
C59
C60
C61
C63
C64
C65
C66
C67
C68
C69
C70
C71
C73
C74
C75
C76
C77
C78
C79
C80
C81
C82
C83
C87
C88
D11
D13
D10
Q2
FB1
R171
R172
R197
U5
U7
C12
C125 C126
C13
C135
C137
C14
C200
C201
C222
C224
C239
C240
C245
C3
C42
C52
C7
C100
C136
C28
C29
C30
C31 C32
C33
C113
C9
C72
C21
U6
U4
C241
C242
Q1
L1
L10
L14
L18
L19
L20
L21
L22
L23
L28
L6 L7
FB2 FB3 FB4
C235
AR35
R133
C226
JK3
R168
Q23 Q22 Q21Q15
C168
C169
C170
U33
U31
U36
C297
C49
C97
C98
C99
Q19Q20 Q10Q11
U9
R95
U1
C237
J8
R1
R109
R110
R112
R113
R114
R115
R116
R117
R118
R119
R122
R125
R169
R212
R213R215
R216R217
R218R219
R22
R220
R221
R23
R230
R24
R26
R28
R3
R37
R38
R39
R40
R41
R42
R43
R44
R5
R56
R6
R61 R62
R64
R65
R7
R8
R103
R151
R2
R21
R70
R71
TP22
U20
C38
C39
CN1
R214
AR11
AR19
X1
R69
R82
R10R11
R12 R17
R18
R19
R199
R200
R201
R202
R4
R72
R73
R75
R9
AR28
R83
R84
R35
U8
AR34
AR38
C186
C84
C36
C51
C133
C138
C134
C187
C188
C85
C189
C91
CN15
CN19
CN6
CN8
SW
CN13
CN5
CN2
CN3
CN7
CN12
CN4
CN16
CN9
CN41
D8
JP1
U11
U22
JK8
L11
R63
R51
R52
R13
R402
R107
R108
R77
R104
R67
R50
R49
U23
X2
Q4
Q5
U19
AR36
Q6
Q7
L46
L87L88
L2
L9
C101
C102
C184
CN56
SWA
D9
J1
J2
J3
J4
C607
R412
R413 R414
CN17
CN10
R100
R101
R102
R105
R443
R444
R46
R48
R78
R15
R27
R59
R14
R45
R79
R91
R92
R36
USB2
U64
U12
U17
D7
LED1
T1
L56
M1
C132
C92
C34
C153
C161
L4
C223
C139
C194
C195
C185
C130
C182
C199
C202
C211 C217
C227
C233
C238
C246
C53
C111
C119
C160
C128
C144
C148
C196 C197
L12
L13
L16
C103
D1
R53
R54
R57
L38 L39 L40 L41
L8
R166
L15
C145
C146
C157
R403
C606
R81
R86
R89
R90
CN11
C150
C151
C152
D30
L17
R98
R93
R94
R96
R97
U2
C221 C143
USB1

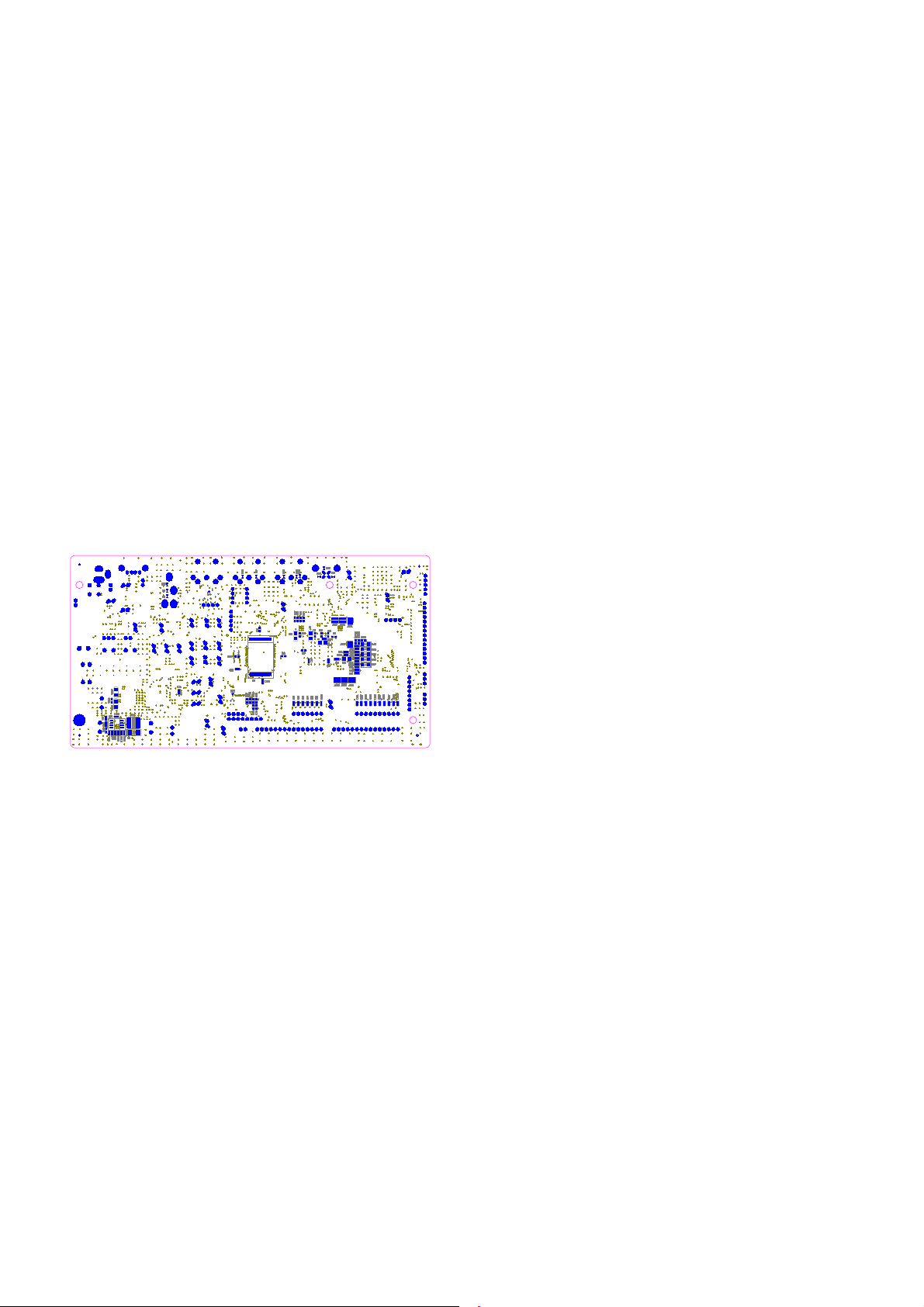

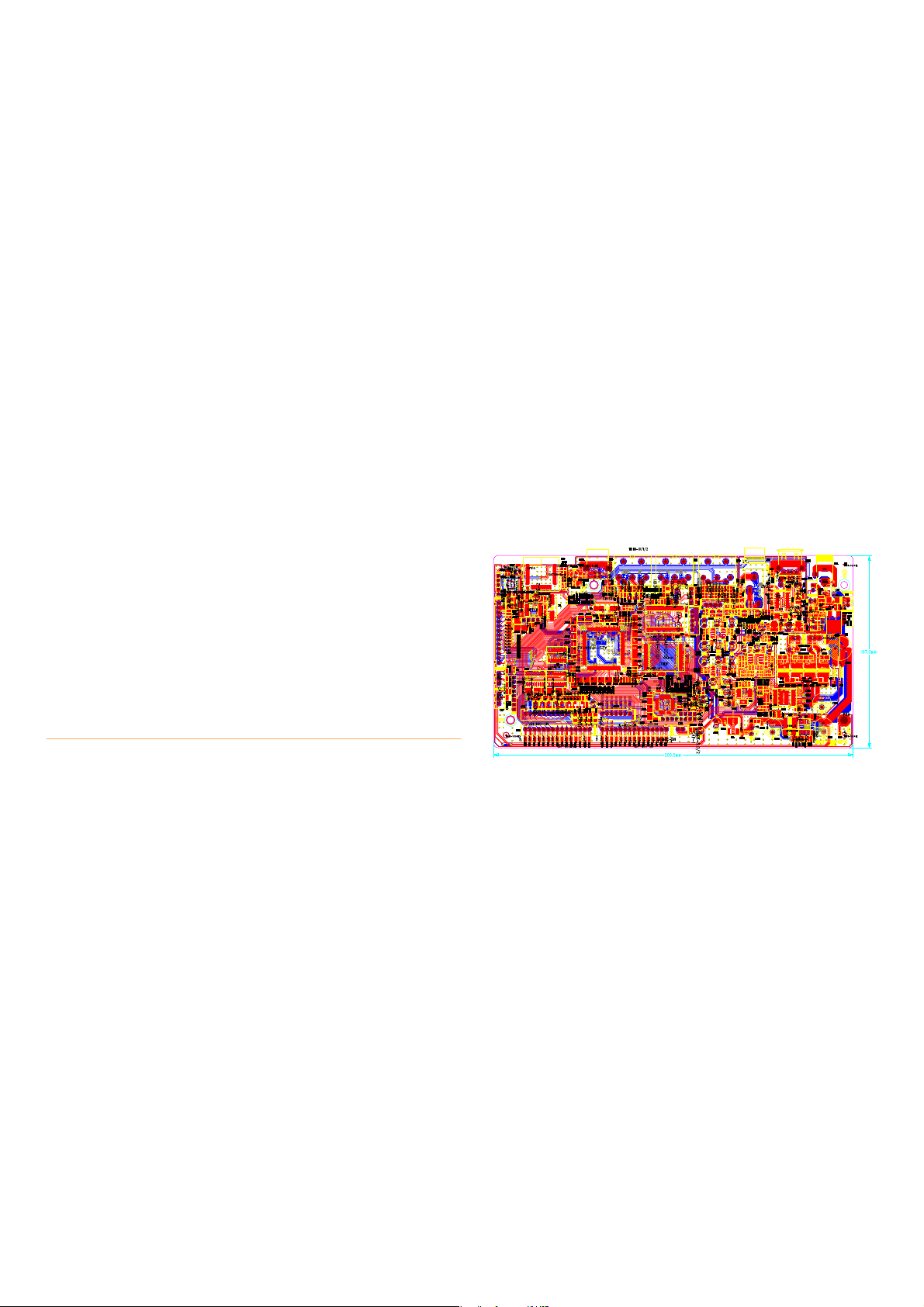

R141
R141x1
R141x2
C204
C204x1
C204x2
C206
C206x1
C206x2
C208
C208x1
C208x2
C209
C209x1
C209x2
C229
C229x1 C229x2
C234
C234x1
C234x2
C293
C293x1
C293x2
C288
C288x1
C288x2
C289
C289x1
C289x2
C291
C291x1
C291x2
C286
C286x1
C286x2
C287
C287x1
C287x2
C290
C290x1
C290x2
C292
C292x1
C292x2
C281
C281x1
C281x2
C284
C284x1
C284x2
C210
C210x1
C210x2
C205
C205x1
C205x2
C207
C207x1
C207x2
R137
R137x1
R137x2
R203
R203x1
R203x2
C203
C203x1
C203x2
C295
C295x1
C295x2
R140
R140x1
R140x2
R138
R138x1
R138x2
C285
C285x1
C285x2
C294
C294x1
C294x2
R204
R204x1
R204x2
R176
R176x1
R176x2
R206
R206x1
R206x2
R208
R208x1
R208x2
AR37
AR37x1
AR37x2
AR37x3
AR37x4 AR37x5
AR37x6
AR37x7
AR37x8
AR39
AR39x1
AR39x2AR39x3
AR39x4
AR39x5
AR39x6 AR39x7
AR39x8
C2
C2x1 C2x2
C154
C154x1C154x2
C155
C155x1C155x2
C156
C156x1 C156x2
C181
C181x1C181x2
C129
C129x1C129x2
C140
C140x1
C140x2
C162
C162x1C162x2
C212
C212x1C212x2
C214
C214x1
C214x2
C215
C215x1 C215x2
C216
C216x1C216x2
C218
C218x1C218x2
C219
C219x1
C219x2
C220
C220x1 C220x2
C225
C225x1C225x2
C228
C228x1C228x2
D19
D19xA D19xK
D20
D20xA D20xK
D21
D21xA D21xK
D29
D29xA D29xK
DJ1
DJ1x1
DJ1x2
DJ1x3
D14
D14x1
D14x2
Q16
Q16x1
Q16x2 Q16x3
Q17
Q17x1
Q17x2 Q17x3
Q3
Q3x1
Q3x2 Q3x3
Q13
Q13x1
Q13x2 Q13x3
Q12
Q12x1
Q12x2 Q12x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
R120
R120x1R120x2
R74
R74x1 R74x2
R135
R135x1 R135x2
R136
R136x1 R136x2
R20
R20x1 R20x2
R111
R111x1R111x2
R129
R129x1 R129x2
R131
R131x1 R131x2
R121
R121x1 R121x2
R132
R132x1 R132x2
R130
R130x1 R130x2
R142
R142x1
R142x2
R143
R143x1
R143x2
R144
R144x1
R144x2
R145
R145x1
R145x2
R146
R146x1 R146x2
R147
R147x1 R147x2
R148
R148x1R148x2
R149
R149x1 R149x2
R152
R152x1 R152x2
R153
R153x1
R153x2
R154
R154x1
R154x2
R155
R155x1
R155x2
R156
R156x1
R156x2
R157
R157x1 R157x2
R158
R158x1 R158x2
R159
R159x1R159x2
R160
R160x1 R160x2
R161
R161x1 R161x2
R162
R162x1R162x2
R163
R163x1R163x2
R164
R164x1 R164x2
R165
R165x1R165x2
R33
R33x1 R33x2
R34
R34x1 R34x2
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
U18
U18x1 U18x2 U18x3 U18x4 U18x5 U18x6 U18x7 U18x8 U18x9
U18x10 U18x11 U18x12 U18x13 U18x14 U18x15 U18x16 U18x17 U18x18
U18x19U18x20U18x21U18x22U18x23U18x24U18x25U18x26U18x27U18x28U18x29U18x30U18x31U18x32U18x33U18x34U18x35U18x36
U18x37
R60
R60x1
R60x2
R68
R68x1
R68x2
R80
R80x1 R80x2
C142
C142x1 C142x2
C147
C147x1 C147x2
R30
R30x1 R30x2
R31
R31x1R31x2
R87
R87x1 R87x2
R88
R88x1R88x2
C198
C198x1 C198x2
C193
C193x1 C193x2
R134
R134x1 R134x2
R127
R127x1 R127x2
R123
R123x1 R123x2
R128
R128x1 R128x2
R124
R124x1 R124x2
U13
U13x1
U13x2
U13x3
U15
U15x1
U15x2
U15x3
AR4
AR4x1
AR4x2 AR4x3
AR4x4
AR4x5
AR4x6AR4x7
AR4x8
AR3
AR3x1
AR3x2 AR3x3
AR3x4
AR3x5
AR3x6AR3x7
AR3x8
L89
L89x1
L89x2
TP1
TP1x1
TP2
TP2x1
R139
R139x1
R139x2
R150
R150x1
R150x2
C115
C115x1 C115x2
C114
C114x1 C114x2
C62
C62x1
C62x2
C89
C89x1 C89x2
D12
D12x1D12x2
U10
U10x1U10x2U10x3U10x4U10x5U10x6U10x7
U10x8 U10x9
U10x10 U10x11 U10x12 U10x13 U10x14
R170
R170x1 R170x2
R167
R167x1
R167x2
AR1
AR1x1
AR1x2 AR1x3
AR1x4
AR1x5
AR1x6AR1x7
AR1x8
AR10
AR10x1
AR10x2 AR10x3
AR10x4
AR10x5
AR10x6AR10x7
AR10x8
AR12
AR12x1
AR12x2 AR12x3
AR12x4
AR12x5
AR12x6AR12x7
AR12x8
AR13
AR13x1
AR13x2 AR13x3
AR13x4
AR13x5
AR13x6AR13x7
AR13x8
AR14
AR14x1
AR14x2 AR14x3
AR14x4
AR14x5
AR14x6AR14x7
AR14x8
AR15
AR15x1
AR15x2
AR15x3
AR15x4AR15x5
AR15x6
AR15x7
AR15x8
AR16
AR16x1
AR16x2
AR16x3
AR16x4AR16x5
AR16x6
AR16x7
AR16x8
AR17
AR17x1
AR17x2
AR17x3
AR17x4AR17x5
AR17x6
AR17x7
AR17x8
AR18
AR18x1
AR18x2
AR18x3
AR18x4AR18x5
AR18x6
AR18x7
AR18x8
AR2
AR2x1
AR2x2 AR2x3
AR2x4
AR2x5
AR2x6AR2x7
AR2x8
AR20
AR20x1
AR20x2
AR20x3
AR20x4AR20x5
AR20x6
AR20x7
AR20x8
AR29
AR29x1
AR29x2
AR29x3
AR29x4 AR29x5
AR29x6
AR29x7
AR29x8
AR30
AR30x1
AR30x2
AR30x3
AR30x4 AR30x5
AR30x6
AR30x7
AR30x8
AR31
AR31x1
AR31x2
AR31x3
AR31x4AR31x5
AR31x6
AR31x7
AR31x8
AR32
AR32x1
AR32x2
AR32x3
AR32x4AR32x5
AR32x6
AR32x7
AR32x8
AR33
AR33x1
AR33x2
AR33x3
AR33x4AR33x5
AR33x6
AR33x7
AR33x8
AR40
AR40x1
AR40x2
AR40x3
AR40x4 AR40x5
AR40x6
AR40x7
AR40x8
AR5
AR5x1
AR5x2 AR5x3
AR5x4
AR5x5
AR5x6AR5x7
AR5x8
AR6
AR6x1
AR6x2 AR6x3
AR6x4
AR6x5
AR6x6AR6x7
AR6x8
AR7
AR7x1
AR7x2 AR7x3
AR7x4
AR7x5
AR7x6AR7x7
AR7x8
AR8
AR8x1
AR8x2AR8x3
AR8x4
AR8x5
AR8x6 AR8x7
AR8x8
C11
C11x1
C11x2
C116
C116x1 C116x2
C117
C117x1 C117x2
C118
C118x1 C118x2
C120
C120x1 C120x2
C121
C121x1 C121x2
C122
C122x1 C122x2
C159
C159x1
C159x2
C35
C35x1 C35x2
C43
C43x1 C43x2
C44
C44x1 C44x2
C45
C45x1 C45x2
C46
C46x1 C46x2
C58
C58x1C58x2
C59
C59x1C59x2
C60
C60x1C60x2
C61
C61x1
C61x2
C63
C63x1
C63x2
C64
C64x1
C64x2
C65
C65x1
C65x2
C66
C66x1
C66x2
C67
C67x1
C67x2
C68
C68x1
C68x2
C69
C69x1
C69x2
C70
C70x1
C70x2
C71
C71x1
C71x2
C73
C73x1C73x2
C74
C74x1C74x2
C75
C75x1C75x2
C76
C76x1C76x2
C77
C77x1C77x2
C78
C78x1C78x2
C79
C79x1C79x2
C80
C80x1C80x2
C81
C81x1C81x2
C82
C82x1 C82x2
C83
C83x1 C83x2
C87
C87x1 C87x2
C88
C88x1 C88x2
D11
D11x1D11x2
D13
D13x1D13x2
D10
D10x1D10x2
Q2
Q2x1Q2x2
Q2x3
FB1
FB1x1
FB1x2
FB1x3
FB1x4 FB1x5
FB1x6
FB1x7
FB1x8
R171
R171x1R171x2
R172
R172x1 R172x2
R197
R197x1 R197x2
U5
U5x1
U5x2
U5x3U5x4U5x5U5x6U5x7U5x8U5x9
U5x10U5x11U5x12U5x13U5x14U5x15U5x16U5x17U5x18U5x19U5x20U5x21U5x22U5x23U5x24U5x25U5x26U5x27
U5x28
U5x29
U5x30 U5x31 U5x32 U5x33 U5x34 U5x35 U5x36 U5x37 U5x38 U5x39 U5x40 U5x41 U5x42 U5x43 U5x44 U5x45 U5x46 U5x47 U5x48 U5x49 U5x50 U5x51 U5x52 U5x53 U5x54 U5x55
U5x56
U7
U7x1
U7x2
U7x3
C12
C12x1 C12x2
C125
C125x1 C125x2
C126
C126x1 C126x2
C13
C13x1C13x2
C135
C135x1 C135x2
C137
C137x1C137x2
C14
C14x1C14x2
C200
C200x1 C200x2
C201
C201x1C201x2
C222
C222x1 C222x2
C224
C224x1 C224x2
C239
C239x1C239x2
C240
C240x1 C240x2
C245
C245x1 C245x2
C3
C3x1C3x2
C42
C42x1C42x2
C52
C52x1
C52x2
C7
C7x1C7x2
C100
C100x1 C100x2
C136
C136x1C136x2
C28
C28x1 C28x2
C29
C29x1C29x2
C30
C30x1 C30x2
C31
C31x1C31x2
C32
C32x1C32x2
C33
C33x1 C33x2
C113
C113x1C113x2
C9
C9x1C9x2
C72
C72x1
C72x2
C21
C21x1 C21x2
U6
U6x1 U6x2 U6x3
U6x4U6x5
U4
U4x1
U4x2
U4x3
U4x4
U4x5
U4x6
U4x7
U4x8
U4x9
U4x10
U4x11
U4x12
U4x13
U4x14
U4x15
U4x16
U4x17
U4x18
U4x19
U4x20
U4x21
U4x22
U4x23
U4x24
U4x25U4x26
U4x27
U4x28
U4x29
U4x30
U4x31
U4x32
U4x33
U4x34
U4x35
U4x36
U4x37
U4x38
U4x39
U4x40
U4x41
U4x42
U4x43
U4x44
U4x45
U4x46
U4x47
U4x48
U4x49
U4x50
C241
C241x1 C241x2
C242
C242x1 C242x2
Q1
Q1x1 Q1x2
Q1x3
L1
L1x1
L1x2
L10
L10x1 L10x2
L14
L14x1 L14x2
L18
L18x1 L18x2
L19
L19x1 L19x2
L20
L20x1 L20x2
L21
L21x1 L21x2
L22
L22x1L22x2
L23
L23x1 L23x2
L28
L28x1 L28x2
L6
L6x1L6x2
L7
L7x1L7x2
FB2
FB2x1
FB2x2
FB2x3
FB2x4 FB2x5
FB2x6
FB2x7
FB2x8
FB3
FB3x1
FB3x2
FB3x3
FB3x4 FB3x5
FB3x6
FB3x7
FB3x8
FB4
FB4x1
FB4x2
FB4x3
FB4x4 FB4x5
FB4x6
FB4x7
FB4x8
C235
C235x1C235x2
AR35
AR35x1
AR35x2 AR35x3
AR35x4
AR35x5
AR35x6AR35x7
AR35x8
R133
R133x1R133x2
C226
C226x1C226x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
R168
R168x1 R168x2
Q23
Q23x1
Q23x2 Q23x3
Q22
Q22x1
Q22x2 Q22x3
Q21
Q21x1
Q21x2 Q21x3
Q15
Q15x1
Q15x2 Q15x3
C168
C168x1C168x2
C169
C169x1C169x2
C170
C170x1
C170x2
U33
U33x1
U33x2
U33x3
U33x4
U33x5
U33x6
U33x7
U33x8U33x9
U33x10
U33x11
U33x12
U33x13
U33x14
U33x15
U33x16
U31
U31x1
U31x2
U31x3
U31x4
U31x5
U31x6
U31x7
U31x8
U31x9
U31x10
U31x11
U31x12
U31x13 U31x14 U31x15 U31x16 U31x17 U31x18 U31x19 U31x20 U31x21 U31x22 U31x23 U31x24
U31x25
U31x26
U31x27
U31x28
U31x29
U31x30
U31x31
U31x32
U31x33
U31x34
U31x35
U31x36
U31x37U31x38U31x39U31x40U31x41U31x42U31x43U31x44U31x45U31x46U31x47U31x48
U36
U36x1
U36x2
U36x3
U36x4
U36x5
U36x6
U36x7
U36x8U36x9
U36x10
U36x11
U36x12
U36x13
U36x14
U36x15
U36x16
C297
C297x1 C297x2
C49
C49x1
C49x2
C97
C97x1 C97x2
C98
C98x1 C98x2
C99
C99x1 C99x2
Q19
Q19x1
Q19x2 Q19x3
Q20
Q20x1
Q20x2 Q20x3
Q10
Q10x1
Q10x2 Q10x3
Q11
Q11x1
Q11x2 Q11x3
U9
U9x1
U9x2
U9x3
U9x4
U9x5
U9x6
U9x7
U9x8U9x9
U9x10
U9x11
U9x12
U9x13
U9x14
U9x15
U9x16
R95
R95x1R95x2
U1
U1x1 U1x2 U1x3 U1x4 U1x5 U1x6 U1x7 U1x8 U1x9
U1x10 U1x11 U1x12 U1x13 U1x14 U1x15 U1x16 U1x17 U1x18 U1x19 U1x20 U1x21 U1x22 U1x23 U1x24 U1x25 U1x26 U1x27 U1x28 U1x29 U1x30 U1x31 U1x32 U1x33 U1x34 U1x35 U1x36
U1x37
U1x38
U1x39
U1x40
U1x41
U1x42
U1x43
U1x44
U1x45
U1x46
U1x47
U1x48
U1x49
U1x50
U1x51
U1x52
U1x53
U1x54
U1x55
U1x56
U1x57
U1x58
U1x59
U1x60
U1x61
U1x62
U1x63
U1x64
U1x65
U1x66
U1x67
U1x68
U1x69
U1x70
U1x71
U1x72
U1x73U1x74U1x75U1x76U1x77U1x78U1x79U1x80U1x81U1x82U1x83U1x84U1x85U1x86U1x87U1x88U1x89U1x90U1x91U1x92U1x93U1x94U1x95U1x96U1x97U1x98U1x99
U1x100U1x101U1x102U1x103U1x104U1x105U1x106U1x107U1x108
U1x109
U1x110
U1x111
U1x112
U1x113
U1x114
U1x115
U1x116
U1x117
U1x118
U1x119
U1x120
U1x121
U1x122
U1x123
U1x124
U1x125
U1x126
U1x127
U1x128
U1x129
U1x130
U1x131
U1x132
U1x133
U1x134
U1x135
U1x136
U1x137
U1x138
U1x139
U1x140
U1x141
U1x142
U1x143
U1x144
C237
C237x1 C237x2
J8
J8x1
J8x2
R1
R1x1
R1x2
R109
R109x1 R109x2
R110
R110x1 R110x2
R112
R112x1 R112x2
R113
R113x1 R113x2
R114
R114x1 R114x2
R115
R115x1 R115x2
R116
R116x1 R116x2
R117
R117x1 R117x2
R118
R118x1 R118x2
R119
R119x1 R119x2
R122
R122x1 R122x2
R125
R125x1 R125x2
R169
R169x1R169x2
R212
R212x1 R212x2
R213
R213x1 R213x2
R215
R215x1 R215x2
R216
R216x1R216x2
R217
R217x1 R217x2
R218
R218x1 R218x2
R219
R219x1 R219x2
R22
R22x1 R22x2
R220
R220x1 R220x2
R221
R221x1 R221x2
R23
R23x1 R23x2
R230
R230x1 R230x2
R24
R24x1R24x2
R26
R26x1R26x2
R28
R28x1R28x2
R3
R3x1R3x2
R37
R37x1R37x2
R38
R38x1R38x2
R39
R39x1 R39x2
R40
R40x1 R40x2
R41
R41x1 R41x2
R42
R42x1
R42x2
R43
R43x1
R43x2
R44
R44x1 R44x2
R5
R5x1 R5x2
R56
R56x1 R56x2
R6
R6x1R6x2
R61
R61x1
R61x2
R62
R62x1
R62x2
R64
R64x1 R64x2
R65
R65x1 R65x2
R7
R7x1R7x2
R8
R8x1R8x2
R103
R103x1
R103x2
R151
R151x1 R151x2
R2
R2x1
R2x2
R21
R21x1 R21x2
R70
R70x1 R70x2
R71
R71x1 R71x2
TP22
TP22x1
U20
U20x1U20x2U20x3U20x4
U20x5 U20x6 U20x7 U20x8
C38
C38x1 C38x2
C39
C39x1 C39x2
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
R214
R214x1R214x2
AR11
AR11x1
AR11x2 AR11x3
AR11x4
AR11x5
AR11x6AR11x7
AR11x8
AR19
AR19x1
AR19x2 AR19x3
AR19x4
AR19x5
AR19x6AR19x7
AR19x8
X1
X1x1
X1x2
R69
R69x1
R69x2
R82
R82x1
R82x2
R10
R10x1R10x2
R11
R11x1R11x2
R12
R12x1 R12x2
R17
R17x1 R17x2
R18
R18x1 R18x2
R19
R19x1 R19x2
R199
R199x1R199x2
R200
R200x1R200x2
R201
R201x1R201x2
R202
R202x1R202x2
R4
R4x1 R4x2
R72
R72x1 R72x2
R73
R73x1
R73x2
R75
R75x1
R75x2
R9
R9x1
R9x2
AR28
AR28x1
AR28x2 AR28x3
AR28x4
AR28x5
AR28x6AR28x7
AR28x8
R83
R83x1
R83x2
R84
R84x1
R84x2
R35
R35x1 R35x2
U8
U8x1
U8x2
U8x3
U8x4
AR34
AR34x1
AR34x2
AR34x3
AR34x4AR34x5
AR34x6
AR34x7
AR34x8
AR38
AR38x1
AR38x2 AR38x3
AR38x4
AR38x5
AR38x6AR38x7
AR38x8
C186
C186x1 C186x2
C84
C84x1
C84x2
C36
C36x1C36x2
C51
C51x1 C51x2
C133
C133x1
C133x2
C138
C138x1
C138x2
C134
C134x1 C134x2
C187
C187x1C187x2
C188
C188x1 C188x2
C85
C85x1
C85x2
C189
C189x1C189x2
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
D8
D8x1
D8x2
JP1
JP1x1
JP1x2
U11
U11x1 U11x2 U11x3 U11x4 U11x5 U11x6 U11x7 U11x8 U11x9
U11x10
U11x11U11x12U11x13U11x14U11x15U11x16U11x17U11x18U11x19U11x20
U22
U22x1
U22x2
U22x3U22x4
U22x5
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
R63
R63x1
R63x2
R51
R51x1 R51x2
R52
R52x1 R52x2
R13
R13x1 R13x2
R402
R402x1 R402x2
R107
R107x1
R107x2
R108
R108x1
R108x2
R77
R77x1
R77x2
R104
R104x1 R104x2
R67
R67x1
R67x2
R50
R50x1 R50x2
R49
R49x1 R49x2
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
X2
X2x1X2x2
Q4
Q4x1
Q4x2 Q4x3
Q5
Q5xD
Q5xG
Q5xS
U19
U19x1 U19x2 U19x3 U19x4 U19x5 U19x6 U19x7 U19x8
U19x9
U19x10U19x11U19x12U19x13U19x14U19x15U19x16
AR36
AR36x1
AR36x2 AR36x3
AR36x4
AR36x5
AR36x6AR36x7
AR36x8
Q6
Q6xB
Q6xC
Q6xE
Q7
Q7xB
Q7xC
Q7xE
L46
L46x1L46x2
L87
L87x1L87x2
L88
L88x1L88x2
L2
L2x1 L2x2
L9
L9x1 L9x2
C101
C101x1
C101x2
C102
C102x1
C102x2
C184
C184x1C184x2
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
D9
D9x1D9x2
J1
J1x1
J1x2
J2
J2x1
J2x2
J3
J3x1J3x2
J4
J4x1J4x2
C607
C607x1
C607x2
R412
R412x1
R412x2
R413
R413x1R413x2
R414
R414x1R414x2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
R100
R100x1R100x2
R101
R101x1
R101x2
R102
R102x1
R102x2
R105
R105x1 R105x2
R443
R443x1
R443x2
R444
R444x1
R444x2
R46
R46x1 R46x2
R48
R48x1 R48x2
R78
R78x1 R78x2
R15
R15x1R15x2
R27
R27x1R27x2
R59
R59x1
R59x2
R14
R14x1R14x2
R45
R45x1R45x2
R79
R79x1 R79x2
R91
R91x1 R91x2
R92
R92x1 R92x2
R36
R36x1 R36x2
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
U64
U64x1U64x2U64x3U64x4U64x5U64x6U64x7U64x8U64x9
U64x10
U64x11
U64x12
U64x13
U64x14
U64x15
U64x16
U64x17
U64x18
U64x19
U64x20
U64x21 U64x22 U64x23 U64x24 U64x25 U64x26 U64x27 U64x28 U64x29 U64x30
U12
U12x1U12x2U12x3U12x4
U12x5 U12x6 U12x7 U12x8
U17
U17x1U17x2U17x3U17x4
U17x5 U17x6 U17x7 U17x8
D7
D7x1
D7x2
LED1
LED1x1 LED1x2
T1
T1x1T1x2
T1x3
L56
L56x1L56x2
M1
M1x1
M2
M2x1
M3
M3x1
M4
M4x1
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C153
C153x1 C153x2
C161
C161x1C161x2
L4
L4x1
L4x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
L12
L12x1L12x2
L13
L13x1L13x2
L16
L16x1L16x2
C103
C103x1 C103x2
D1
D1x1D1x2
R53
R53x1 R53x2
R54
R54x1 R54x2
R57
R57x1 R57x2
L38
L38x1 L38x2
L39
L39x1 L39x2
L40
L40x1 L40x2
L41
L41x1 L41x2
L8
L8x1 L8x2
R166
R166x1R166x2
L15
L15x1 L15x2
C145
C145x1C145x2
C146
C146x1
C146x2
C157
C157x1
C157x2
R403
R403x1 R403x2
C606
C606x1
C606x2
R81
R81x1
R81x2
R86
R86x1
R86x2
R89
R89x1R89x2
R90
R90x1R90x2
CN11
CN11x1
CN11x2
C150
C150x1C150x2
C151
C151x1 C151x2
C152
C152x1C152x2
D30
D30x1
D30x2
L17
L17x1
L17x2
R98
R98x1 R98x2
R93
R93x1R93x2
R94
R94x1 R94x2
R96
R96x1R96x2
R97
R97x1 R97x2
U2
U2x1
U2x2
U2x3
U2x4U2x5
U2x6
U2x7
U2x8
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
PCB BOARD
Top Line
11
C282 C283
D5
D3
D33
D34
D35
D36
D6
D25
D28
D32
D31
C105
C108
AR21
AR22
AR23
AR24 AR25 AR26
C112
C127
C104
C106
C107
C109
C123
C124
C24
C25
C26
C27
C86
C93
C94
C95
C96
D15
D16
D17
D18
C8
C110
C16
C17
C18
C20
C22
C236
C37
C4
C41
C5
C6
C90
C19
C54
C55
C56
C57
C167
C48
C10 C50
R126
R16
R198
R210
R211
R29
TP4
AR27
R205
R224
R85
R240
C165
D43
R241
U3
R47
C131
R58
MK7
C141
C163
C164
C47
D2
U34
L3
R106
R25
R32
R55
R66
R76
C15
C40
C23
C1
C149
C158
C282
C282x1C282x2
C283
C283x1 C283x2
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
D5
D5x1 D5x2
D3
D3x1D3x2
D33
D33x1
D33x2
D34
D34x1D34x2
D35
D35x1D35x2
D36
D36x1D36x2
D6
D6x1D6x2
D25
D25x1 D25x2
D28
D28x1D28x2
D32
D32x1
D32x2
D31
D31x1D31x2
C105
C105x1 C105x2
C108
C108x1 C108x2
AR21
AR21x1
AR21x2AR21x3
AR21x4
AR21x5
AR21x6 AR21x7
AR21x8
AR22
AR22x1
AR22x2
AR22x3
AR22x4 AR22x5
AR22x6
AR22x7
AR22x8
AR23
AR23x1
AR23x2
AR23x3
AR23x4 AR23x5
AR23x6
AR23x7
AR23x8
AR24
AR24x1
AR24x2
AR24x3
AR24x4AR24x5
AR24x6
AR24x7
AR24x8
AR25
AR25x1
AR25x2
AR25x3
AR25x4AR25x5
AR25x6
AR25x7
AR25x8
AR26
AR26x1
AR26x2
AR26x3
AR26x4AR26x5
AR26x6
AR26x7
AR26x8
C112
C112x1 C112x2
C127
C127x1 C127x2
C104
C104x1C104x2
C106
C106x1 C106x2
C107
C107x1 C107x2
C109
C109x1 C109x2
C123
C123x1 C123x2
C124
C124x1 C124x2
C24
C24x1 C24x2
C25
C25x1 C25x2
C26
C26x1 C26x2
C27
C27x1 C27x2
C86
C86x1C86x2
C93
C93x1C93x2
C94
C94x1C94x2
C95
C95x1C95x2
C96
C96x1C96x2
D15
D15x1
D15x2
D16
D16x1
D16x2
D17
D17x1
D17x2
D18
D18x1
D18x2
C8
C8x1C8x2
C110
C110x1
C110x2
C16
C16x1C16x2
C17
C17x1
C17x2
C18
C18x1 C18x2
C20
C20x1
C20x2
C22
C22x1C22x2
C236
C236x1 C236x2
C37
C37x1 C37x2
C4
C4x1
C4x2
C41
C41x1C41x2
C5
C5x1
C5x2
C6
C6x1 C6x2
C90
C90x1C90x2
C19
C19x1
C19x2
C54
C54x1
C54x2
C55
C55x1
C55x2
C56
C56x1
C56x2
C57
C57x1
C57x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
C167
C167x1
C167x2
C48
C48x1C48x2
C10
C10x1C10x2
C50
C50x1 C50x2
R126
R126x1
R126x2
R16
R16x1
R16x2
R198
R198x1
R198x2
R210
R210x1
R210x2
R211
R211x1
R211x2
R29
R29x1
R29x2
TP4
TP4x1
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
AR27
AR27x1
AR27x2AR27x3
AR27x4
AR27x5
AR27x6 AR27x7
AR27x8
R205
R205x1R205x2
R224
R224x1R224x2
R85
R85x1R85x2
R240
R240x1
R240x2
C165
C165x1
C165x2
D43
D43x1
D43x2
R241
R241x1
R241x2
U3
U3x1
U3x2
U3x3
U3x4
U3x5
U3x6
U3x7
U3x8
U3x9
U3x10
U3x11
U3x12
U3x13
U3x14
U3x15
U3x16
U3x17
U3x18
U3x19
U3x20
U3x21
U3x22
U3x23
U3x24 U3x25
U3x26
U3x27
U3x28
U3x29
U3x30
U3x31
U3x32
U3x33
U3x34
U3x35
U3x36
U3x37
U3x38
U3x39
U3x40
U3x41
U3x42
U3x43
U3x44
U3x45
U3x46
U3x47
U3x48
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
R47
R47x1
R47x2
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
C131
C131x1 C131x2
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
R58
R58x1
R58x2
MK7
MK7x1
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
M1
M1x1
M2
M2x1
M3
M3x1
M4
M4x1
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C141
C141x1C141x2
C163
C163x1C163x2
C164
C164x1C164x2
C47
C47x1C47x2
D2
D2x1
D2x2
U34
U34x1U34x2U34x3U34x4
U34x5 U34x6 U34x7 U34x8
L3
L3x1
L3x2
R106
R106x1R106x2
R25
R25x1 R25x2
R32
R32x1 R32x2
R55
R55x1R55x2
R66
R66x1 R66x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
R76
R76x1 R76x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C15
C15x1C15x2
C40
C40x1
C40x2
C23
C23x1
C23x2
C1
C1x1C1x2
C606
C606x1
C606x2
C149
C149x1
C149x2
C221
C221x1C221x2
C143
C143x1C143x2
C158
C158x1 C158x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
Bottom Line
12
A
A
B
B
SMTP2200-CF-0
DC_IN
AUXOUT
PEDAL
MIDI-IN
MIDI-OUT
L
R
L+
L-
R+
R-
GND
GND
GND
TO POWER SW
TO HP
2017-09-06
200.0mm
107.0mm
1
2
1
2
12 12
1
2
3
1 2 3
4 5
6 7
1
2
3
4
1
2
1
2
1
2
1
2
12
1
2
1
2
1
2
1
2
1
2
1
2
1 2
1
2
1 2
1 2
1
2
3
45
6
7
8
1
2
3
4 5
6
7
8
1
2
3
4 5
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1 2
1 2
12
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
12
12
12
12
12
1
2
1
2
1
2
1
2
12
12
12
12
1 2
12
12
1 2
1 2
12
12
12
1 2
12
1 2
12
12
12
12
1
2
123
4 5
6 7
12
12
12 1 2
12 12
12
1 2
1 2 1 2
1
12345678
1
2
3
45
6
7
8
12
12
12
12
1 2
1
2
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
12
123
1
2
3
4
5
12345678910
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
12
123456789101112131415123456789101112131415
1
2
3
1
2
3
1234
1234
1234
12
1
2
3
4
5
6
7
8
1 2 3
4 5
6 7
1
2
3
4
1 2
1
2
3
4 5
6
7
8
1 2
1
2
3
4
51
2
1
2
1234567
1 2
1
1
2
3
4
56 1
1
1
1
1
12
12
1
2
12
12
12
12
2
1
1
2
3
45
6
7
8
1
2
12
1 2
1 2
12
1 2
1
2
12
1
21
2
1
2
12
12
1
2
1
21
21
2
1
2
1
2
1
2
1
2
1
2
12
1
2
1
2
1
2
1
2
1
2
1
21
2
1 2
1
2
1
2
12
1 2
12
12
12
1 2
1
2
1
2
1 2
1 2
34 56
C282 C283
NC
D5
5V/0.15PF
D3
NC
D33
NC
D34
NC
D35
NC
D36
NC
D6
NC
D25
5V/0.15PF
D28
NC
D32
NC
D31
C105
10P
C108
10P
AR
AR21
AR
AR22
AR
AR23
AR
AR24
AR
AR25
AR
AR26
C112
CAP-1
C127
CAP-1
C104
CAP-1
C106
CAP-1
C107
CAP-1
C109
CAP-1
C123
CAP-1
C124
CAP-1
C24
CAP-1
C25
CAP-1
C26
CAP-1
C27
CAP-1
C86
CAP-1
C93
CAP-1
C94
CAP-1
C95
CAP-1
C96
CAP-1
DIODE_AI
D15
DIODE_AI
D16
DIODE_AI
D17
DIODE_AI
D18
104
C8
CAP-1
C110
104
C16
CAP-1
C17
CAP-1
C18
CAP-1
C20
CAP-1
C22
104
C236
CAP-1
C37
CAP-1
C4
CAP-1
C41
CAP-1
C5
CAP-1
C6
10P
C90
102
C19
CAP-1
C54
CAP-1
C55
CAP-1
C56
CAP-1
C57
C167
CAP-1
C48
CAP-1
C10
CAP-1
C50
CAP-1
RES-0603
R126
RES-0603
R16
RES-0603
R198
R210
RES-0603
R211
RES-0603 RES-0603
R29
TP-TH
TP4
AR
AR27
R205
RES
R224
RES
R85
RES
RES
R240
C165
CAP-CC05
DIODE_AI
D43
R241
RES
S29AL008J70TF102
U3
R47
RES-0603
C131
CAP-1
RES-0603
R58
TP1.0
MK7
C141
10nF/50V
C163
CAP-SMD
C164
CAP-SMD
C47
CAP-SMD-1
D2
DIODE_1
IC-TPS54331
U34
L3
INDUCTOR
R106
RES
R25
RES
R32
RES
R55
RES
R66
RES
R76
0ohm
10uF
C15
C40
CAPE-5.0/2
CAPE-5.0/2
C23
10uF
C1
C149
CAP_A
C158
CAP-1
1 2
1 2
12
12
12
1 2
1 2
12 1 2 12 1 2
1 2
12 12 1 2
12
12
1 2
1 2
1 2
1
2
1
2
12
1 2
1 2
12
12 12
1
2
1
2
1
2
1
2
1
2
3
4 5
6
7
8
1
2
3
4 5
6
7
8
1 2
12
12
1 2
12
12
1 2
12
12
12
1 2
12
12
1 2
1 2
12
12
K
A
K
A
K
A
K
A
1
2
3
1
2
1
23
1
23
1
23
1
23
1
23
1 2 3
4 5
6 7
1
2
3
4
12
1 2
1 2
1 2
1 2
12
1 2
1 2
1 2
1 2
1 2
12
12
12
12
1 2
1 2 12
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2 12
1 2
1 2
12
12
1 2
12
1 2
1 2
1
2
1
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1819
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
12
1 2
1 2
1 2
1 2
1 2
12
1 2
12
1 2
1 2
1 2
1 2 1 2
1 2 1 2
1
2
3
1
2
3
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
1
1
12
12
1 2
1 2
12
1 2
1
2
1
2
3
4
5
6
7 8
9
10
11
12
13
14
1 2
12
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
4 5
6
7
8
1
2
3
4 5
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
4 5
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1
2
3
4 5
6
7
8
12
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
1 2
1 2
1 2
1 2
1
2
1
2
1
2
1
23
1
2
3
4 5
6
7
8
12
1 2
1 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28 29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
1
2
3
1 2
1 2
1 2
12
1 2
12
12
1 2
12
1 2
1 2
12
1 2
1 2
12
12
1 2
12
1 2
12
1 2
12
1 2
12
12
1 2
12
12
1 2
1 2
1
2
34
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
2526
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1 2
1 2
1
2
3
1 2
1 2
1 2
1 2
1 2
1 2
1 2
12
1 2
1 2
12
12
1
2
3
4 5
6
7
8
1
2
3
4 5
6
7
8
1
2
3
4 5
6
7
8
1
2
1
2
3
45
6
7
8
12
12
1 2 3
4 5
6 7
1
2
1
23
1
23
1
23
1
23
12
12
12
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
1 2
1 2
1 2
1 2
1 2
1
23
1
23
1
23
1
23
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
1
2
12
12
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
12
1 2
1 2
1 2
12
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
12
12
12
12
12
12
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
12
1 2 1 2
1 2
1 2
12
12
1 2
1 2
1 2
1 2
1 2
1 2
1
1
2
3
4 5
6
7
8
1 2
1 2
12345678
12
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1 2
1 2
1 2
12
12
1 2
1 2
1 2
1 2
12
12
12
12
1 2
1 2
12
12
1 2
1
2
3
45
6
7
8
1 2
1 2
1 2
1
2
3
4
1
2
3
45
6
7
8
1
2
3
45
6
7
8
1 2
1
2
121 2
1 2
12
1 2
12
1 2
1
2
12
12
123
1
2
3
4
5
12345678910
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
12
123456789101112131415123456789101112131415
1
2
3
1
2
3
1 2 3 4
1 2 3 4
1234
12
1
2
3
4
5
6
7
8
1
2
1
2
1
2
3
4
5
6
7
8
9
1011
12
13
14
15
16
17
18
19
20
1
2
34
5
1 2 3
4 5
6 7
1
2
3
4
12
1 2
1 2
1 2
1
2
1212
12
1 2
12
1 2
1 2
1
2
3
4 5
6
7
8
12
1
23
G
D
S
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
1
2
3
45
6
7
8
B
E
C
B
E
C
12
12
12
1 2
1 2
12
12
12
1
2
3
4
5
1
2
1
2
1
2
1
2
1
2
1
2
12
12
12
12
1
2
1234567
12
1 2
1 2
1 2
12
12
1 2
1 2
1 2
12
12
12
12
12
1 2
1 2
1 2
1 2
1234 56
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4 5
6
7
8
1
2
3
4 5
6
7
8
1
2
1 2
1
23
12
1
1
1
1
1
12
12
1
2
1 2
12
1
2
1
2
12
1
2
1
2
1
2
12
12
1
2
1
21
2
1
2
1
2
1
2
1
2
1
2
1
2
12
1
2
1
2
1
2
1
2
1
2
1
2
1
2
12
12
12
1 2
1
2
1 2
1 2
1 2
1
2
1
2
1
2
1
2
1 2
12
1 2
12
1
2
1
2
1
2
12
12
12
12
12
1 2
12
1 2
12
1
21
2
1 2
12
1 2
12
1 2
1
2
3
45
6
7
8
1
2
1
2
1 2
34 56
R141
2.2 ohm
C204
104
C206
104
C208
104
C209
104
C229
104
C234
104
C293
104
C288
104
C289
100N
C291
104
C286
104
C287
104
C290
104
C292
104
C281
104
C284
104
C210
680P
C205
C207
4n7
R137
22R
R203
22R
C203C295
R140
2k2
R138
10K
680nF/100V
C285
680nF/100V
C294
R204
4R7
R176
4R7
R206
4R7
R208
4R7
22R
AR37
22R
AR39
C2
DNS
C154
10nF
C155
10nF
C156
104
C181
104
C129
104
C140
104
C162
0.1uF
C212
470PF
C214
150PF
C215
220PF
C216
100PF
C218
470PF
C219
150PF
C220
220PF
C225
100PF
C228
220PF
IN4148
D19
IN4148
D20
IN4148
D21
IN4148
D29
DJ1
D14
SS24?
Q16
8050D
Q17
8050D
Q3
LBC817
Q13
8050D
Q12
8050D
JK5 JK4
R120
47K
R74
2.4K
R135
2.4K
R136
2.4K
R20
NC
R111
47K
R129
10
R131
680
R121
2.4K
R132
680
R130
10
R142
4.7K
R143
4.7K
R144
4.7K
R145
4.7K
R146
4.7K
R147
4.7K
R148
10K
R149
20K
R152
20K
R153
4.7K
R154
4.7K
R155
4.7K
R156
4.7K
R157
4.7K
R158
4.7K
R159
10K
R160
20K
R161
20K
R162
20K
R163
20K
R164
20K
R165
20K
R33
100
R34
100
1uH 606020002 FB3506
LB3
1uH 606020002 FB3506
LB6
U18
STA369BWS
1K
R60
10K
R68
22K
R80
C142
68P
C147
68P
12k
R30
12K
R31
12k
R87
12K
R88
C198
680P
C193
680P
4.7K
R134
12K
R127
15K
R123
12K
R128
15K
R124
U13
KIA78L08
U15
22R
AR4
22R
AR3
FB35608
L89
TP1
TP2
10K
R139
10K
R150
10P
C115
10P
C114
C62
NC
C89
10P
D12
U10
PCM1808
NC
R170
R167
3K9(S)
AR
AR1
AR
AR10
AR
AR12
AR
AR13
AR
AR14
AR
AR15
AR
AR16
AR
AR17
AR
AR18
AR
AR2
AR
AR20
AR
AR29
AR
AR30
AR
AR31
AR
AR32
AR
AR33
AR
AR40
AR
AR5
AR
AR6
AR
AR7
AR
AR8
C11
CAP-1
C116
CAP-1
C117
CAP-1
C118
CAP-1
C120
CAP-1
C121
CAP-1
C122
CAP-1
C159
CAP-1
C35
CAP-1
C43
CAP-1
C44
CAP-1
C45
CAP-1
C46
CAP-1
C58
CAP-1
C59
CAP-1
C60
CAP-1
C61
CAP-1
C63
CAP-1
C64
CAP-1
C65
CAP-1
C66
CAP-1
C67
CAP-1
C68
CAP-1
C69
CAP-1
C70
CAP-1
C71
CAP-1
C73
CAP-1
C74
CAP-1
C75
CAP-1
C76
CAP-1
C77
CAP-1
C78
CAP-1
C79
CAP-1
C80
CAP-1
C81
CAP-1
C82
CAP-1
C83
CAP-1
C87
CAP-1
C88
CAP-1
DIODE_AI
D11
DIODE_AI
D13
DIODE_AI
D10
Q2
LBC817
MP-SBA-8P-4B
FB1
R171
RES-1/8W~
R172
RES-1/8W~
R197
RES-1/8W~
S29GL01GS
U5
U7
VDD301SCTA
CAP-1
C12
104
C125
CAP-1
C126
DSN
C13
104
C135
104
C137
DSN
C14
104
C200
104
C201
104
C222
104
C224
104
C239
104
C240
C245
104
CAP-1
C3
CAP-1
C42
CAP-1
C52
CAP-1
C7
CAP-1
C100
CAP-CC101
C136
CAP-CC101
C28
CAP-CC101
C29
CAP-CC101
C30
CAP-CC101
C31
CAP-CC101
C32
CAP-CC101
C33
CAP-CC101
C113
CAP-CC101
C9
CAP-CC101
C72
CAP-1
C21
LC1463CB5ATR18
U6
U4
HY57V161610FTP-7
CAP-CC05
C241
NC
C242
9014SMD
Q1
BEAD-0603/2
L1
L10
BLM18BD102SN1
L14
BLM18BD102SN1
L18
BLM18BD102SN1
L19
BLM18BD102SN1
BEAD-0603/2
L20
BEAD-0603/2
L21
BEAD-0603/2
L22
BEAD-0603/2
L23
BEAD-0603/2
L28
L6
BLM18BD102SN1
L7
BLM18BD102SN1
MP-SBA-8P-4B
FB2
MP-SBA-8P-4B
FB3
MP-SBA-8P-4B
FB4
680uF/25V
C235
AR
AR35
R133
4.7K
CHIPCAP
C226
JK3
MDIDI-OUT/2
0ohm
R168
Q23
LBC817
Q22
LBC817
Q21
LBC817
Q15
LBC817
C168
CAP-1
C169
CAP-1
C170
CAP-1
74HC238
U33
U31
LC4032V TQFP48
U36
74HC238
C297
CAP-1
C49
CAP-1
C97
CAP-1
C98
CAP-1
C99
CAP-1
Q19
LBC817
Q20
LBC817
Q10
LBC817
Q11
LBC817
U9
MC74HC4051
R95
RES-1/8W~
A2S--P144-X2
U1
CAP-1
C237
J8
JUMP
RES-0603
R1
R109
RES-0603
R110
RES-0603
R112
RES-0603
R113
NC
R114
NC
R115
NC
R116
RES-0603
R117
RES-0603
R118
RES-0603
R119
RES-0603
R122
RES-0603
R125
RES-0603
R169
10K
R212
RES-0603
R213
RES-0603
R215
RES-0603
R216
RES-0603
R217
RES-0603
R218
RES-0603
R219
RES-0603
R22
10K
R220
RES-0603
R221
RES-0603
R23
RES-0603
10K
R230
R24
RES-0603
R26
RES-0603
RES-0603
R28
RES-0603
R3
R37
RES-0603
RES-0603
R38
R39
RES-0603
RES-0603
R40
RES-0603
R41
RES-0603
R42
RES-0603
R43
R44
RES-0603
RES-0603
R5
R56
RES-0603
RES-0603
R6
RES-0603
R61
RES-0603
R62
R64
RES-0603
R65
NC
R7
0R
R8
10K
RES0603
R103
RES0603
R151
RES0603
R2
RES0603
R21
RES0603
R70
RES0603
R71
TP-TH
TP22
U20
CAP-CC101
C38
CAP-CC101
C39
CON8
CN1
NC
R214
AR
AR11
AR
AR19
CRYSTAL
X1
RES-0603
R69
RES-0603
R82
R10
RES-0603
R11
RES-0603
R12
RES-0603
22R
R17
22R
R18
22R
R19
R199
RES-0603
R200
RES-0603
R201
RES-0603
R202
RES-0603
RES-0603
R4
RES-0603
R72
RES-0603
R73
RES-0603
R75
R9
RES-0603
AR
AR28
R83
RES
R84
RES
R35
100
LM1117CLTR33 6010109330
U8
AR34
AR-1
AR38
10K
C186
104
C84
CAP
C36
CAP
C51
CAP
105
C133
0.1U
C138
C134
0.1uF
105
C187
20pF
C188
C85
106
C189
CAP0603
ECAP
C91
TO-RIGHT-SPK
CN15
CN19
CN5~
MS-CON-10P
CN6
CN8
CON14-V2.0
SW
2P/2.0_V
CN13
2P/2.54mm
CN5
MS-CON-15P
CN2
MS-CON-15P
CON3
CN3
CON3
CN7
CN2.54/4P
CN12
CN4
CON4-V2.0_
CN16
SIP4-N
CN9
MS-CON-2P
CN41
CON8-V2.0-
DIODE_AI
D8
NC
JP1
U11
STM8S003F3
U22
NCP380LSN05AAT1G SOT23-5
JK8
L11
RES-0603
R63
10K
R51
10K
R52
RES0805
R13
MP-SR-1608_0805
R402
10K
R107
10K
R108
R77
1K
220K
R104
4.7K
R67
R50
NC
R49
NC
6N138
U23
CRYSTAL
X2
Q4
9014SMD
Q5
A0D407-TO252
U19
AC1082
AR-1
AR36
Q6
BC817
Q7
BC817
BEAD(S)
L46
BEAD(S)
L87
BEAD(S)
L88
L2
BEAD-0603/2
L9
BEAD-0603/2
C101
C0402
C102
C0402
C184
CAP
CON-SIP-5P_2.54
CN56
SWA
CON2
DIODE_AI
D9
J1
JUMP
J2
JUMP
J3
JUMP
J4
JUMP
C607
MP-SCC-1608_0603
R412
MP-SR-1608_0603
R413
MP-SR-1608_0603
R414
MP-SR-1608_0603
CN17
MS-CON-2P
CN10
MS-CON-7P
R100
RES
R101
RES
R102
RES
R105
RES
R443
RES
R444
RES
R46
RES
R48
RES
R78
RES
RES-0603
R15
RES-0603
R27
RES-0603
R59
R14
RES-0603
R45
RES-0603
R79
RES-0603
R91
RES-0603
R92
RES-0603
R36
RES0805
USB2
USB-HOST
U64
WLT2541
U12
NJM4556AM DMP8
U17
NJM4556AM DMP8
D7
DIO1
LED1
NC
T1
BAT54C
LL-A
L56
MARK-SQUARE
M1
MARK-SQUARE
MARK-SQUARE
MARK-SQUARE
PDA
C132
ECAP
C92
470U/50V
C34
CAP-SMD
C153
C161
CAP-SMD
FB-1
L4
C223
100uF
CCEE
C139
C194
100uF
C195
100uF
CAPE-2
C185
C130
10uF
C182
10uF
10uF
C199
10uF
C202
10uF
C211
10uF
C217
C227
CAPE-5.0/2
10uF
C233
10uF
C238
C246
CAPE-5.0/2
C53
CAPE-5.0/2
C111
47uF
47uF
C119
NC
C160
CAPE-6.0
C128
C144
100uF
C148
100uF
C196
100uF
C197
100uF
BEAD(S)
L12
BEAD(S)
L13
L16
BLM18BD102SN1
C103
CAP
D1
DIODE_AI
R53
RES
R54
RES
R57
RES-AI
15uH
L38
15uH
L39
15uH
L40
15uH
L41
L8
BLM18BD102SN1
R166
4R7
L15
BEAD-0603/2
C145
CAP-CFR04R-A
CAPE-5.0/2
C146
10uF
C157
MP-SR-1608_0805
R403
MC-CAP
C606
RES-0603
R81
RES-0603
R86
RES-0603
R89
RES-0603
R90
CON2P
CN11
C150
CAP_A
C151
CAP_A
C152
CAP_A
D30
DIODE_AI
L17
INDUCTOR_E
R98
RES
R93
RES_A
R94
RES_A
R96
RES_A
R97
RES_A
U2
IC-TPS54331
CAPE-8.0
C221 C143
330UF
MP-ICON-USB_B4-H-16.5X12.1
USB1
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C282
C282x1C282x2
C283
C283x1 C283x2
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C105
C105x1 C105x2
C108
C108x1 C108x2
AR21
AR21x1
AR21x2AR21x3
AR21x4
AR21x5
AR21x6 AR21x7
AR21x8
AR22
AR22x1
AR22x2
AR22x3
AR22x4 AR22x5
AR22x6
AR22x7
AR22x8
AR23
AR23x1
AR23x2
AR23x3
AR23x4 AR23x5
AR23x6
AR23x7
AR23x8
AR24
AR24x1
AR24x2
AR24x3
AR24x4AR24x5
AR24x6
AR24x7
AR24x8
AR25
AR25x1
AR25x2
AR25x3
AR25x4AR25x5
AR25x6
AR25x7
AR25x8
AR26
AR26x1
AR26x2
AR26x3
AR26x4AR26x5
AR26x6
AR26x7
AR26x8
C112
C112x1 C112x2
C127
C127x1 C127x2
C104
C104x1C104x2
C106
C106x1 C106x2
C107
C107x1 C107x2
C109
C109x1 C109x2
C123
C123x1 C123x2
C124
C124x1 C124x2
C24
C24x1 C24x2
C25
C25x1 C25x2
C26
C26x1 C26x2
C27
C27x1 C27x2
C86
C86x1C86x2
C93
C93x1C93x2
C94
C94x1C94x2
C95
C95x1C95x2
C96
C96x1C96x2
D15
D15x1
D15x2
D16
D16x1
D16x2
D17
D17x1
D17x2
D18
D18x1
D18x2
C8
C8x1C8x2
C110
C110x1
C110x2
C16
C16x1C16x2
C17
C17x1
C17x2
C18
C18x1 C18x2
C20
C20x1
C20x2
C22
C22x1C22x2
C236
C236x1 C236x2
C37
C37x1 C37x2
C4
C4x1
C4x2
C41
C41x1C41x2
C5
C5x1
C5x2
C6
C6x1 C6x2
C90
C90x1C90x2
C19
C19x1
C19x2
C54
C54x1
C54x2
C55
C55x1
C55x2
C56
C56x1
C56x2
C57
C57x1
C57x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
C167
C167x1
C167x2
C48
C48x1C48x2
C10
C10x1C10x2
C50
C50x1 C50x2
R126
R126x1
R126x2
R16
R16x1
R16x2
R198
R198x1
R198x2
R210
R210x1
R210x2
R211
R211x1
R211x2
R29
R29x1
R29x2
TP4
TP4x1
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
AR27
AR27x1
AR27x2AR27x3
AR27x4
AR27x5
AR27x6 AR27x7
AR27x8
R205
R205x1R205x2
R224
R224x1R224x2
R85
R85x1R85x2
R240
R240x1
R240x2
C165
C165x1
C165x2
D43
D43x1
D43x2
R241
R241x1
R241x2
U3
U3x1
U3x2
U3x3
U3x4
U3x5
U3x6
U3x7
U3x8
U3x9
U3x10
U3x11
U3x12
U3x13
U3x14
U3x15
U3x16
U3x17
U3x18
U3x19
U3x20
U3x21
U3x22
U3x23
U3x24 U3x25
U3x26
U3x27
U3x28
U3x29
U3x30
U3x31
U3x32
U3x33
U3x34
U3x35
U3x36
U3x37
U3x38
U3x39
U3x40
U3x41
U3x42
U3x43
U3x44
U3x45
U3x46
U3x47
U3x48
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
R47
R47x1
R47x2
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
C131
C131x1 C131x2
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
R58
R58x1
R58x2
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C141
C141x1C141x2
C163
C163x1C163x2
C164
C164x1C164x2
C47
C47x1C47x2
D2
D2x1
D2x2
U34
U34x1U34x2U34x3U34x4
U34x5 U34x6 U34x7 U34x8
L3
L3x1
L3x2
R106
R106x1R106x2
R25
R25x1 R25x2
R32
R32x1 R32x2
R55
R55x1R55x2
R66
R66x1 R66x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
R76
R76x1 R76x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C15
C15x1C15x2
C40
C40x1
C40x2
C23
C23x1
C23x2
C1
C1x1C1x2
C606
C606x1
C606x2
C149
C149x1
C149x2
C221
C221x1C221x2
C143
C143x1C143x2
C158
C158x1 C158x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
U64
U64x1U64x2U64x3U64x4U64x5U64x6U64x7U64x8U64x9
U64x10
U64x21 U64x22 U64x23 U64x24 U64x25 U64x26 U64x27 U64x28 U64x29 U64x30
P4P4
R141
R141x1
R141x2
C204
C204x1
C204x2
C206
C206x1
C206x2
C208
C208x1
C208x2
C209
C209x1
C209x2
C229
C229x1 C229x2
C234
C234x1
C234x2
C293
C293x1
C293x2
C288
C288x1
C288x2
C289
C289x1
C289x2
C291
C291x1
C291x2
C286
C286x1
C286x2
C287
C287x1
C287x2
C290
C290x1
C290x2
C292
C292x1
C292x2
C281
C281x1
C281x2
C284
C284x1
C284x2
C210
C210x1
C210x2
C205
C205x1
C205x2
C207
C207x1
C207x2
R137
R137x1
R137x2
R203
R203x1
R203x2
C203
C203x1
C203x2
C295
C295x1
C295x2
R140
R140x1
R140x2
R138
R138x1
R138x2
C285
C285x1
C285x2
C294
C294x1
C294x2
R204
R204x1
R204x2
R176
R176x1
R176x2
R206
R206x1
R206x2
R208
R208x1
R208x2
AR37
AR37x1
AR37x2
AR37x3
AR37x4 AR37x5
AR37x6
AR37x7
AR37x8
AR39
AR39x1
AR39x2AR39x3
AR39x4
AR39x5
AR39x6 AR39x7
AR39x8
C2
C2x1 C2x2
C154
C154x1C154x2
C155
C155x1C155x2
C156
C156x1 C156x2
C181
C181x1C181x2
C129
C129x1C129x2
C140
C140x1
C140x2
C162
C162x1C162x2
C212
C212x1C212x2
C214
C214x1
C214x2
C215
C215x1 C215x2
C216
C216x1C216x2
C218
C218x1C218x2
C219
C219x1
C219x2
C220
C220x1 C220x2
C225
C225x1C225x2
C228
C228x1C228x2
D19
D19xA D19xK
D20
D20xA D20xK
D21
D21xA D21xK
D29
D29xA D29xK
DJ1
DJ1x1
DJ1x2
DJ1x3
D14
D14x1
D14x2
Q16
Q16x1
Q16x2 Q16x3
Q17
Q17x1
Q17x2 Q17x3
Q3
Q3x1
Q3x2 Q3x3
Q13
Q13x1
Q13x2 Q13x3
Q12
Q12x1
Q12x2 Q12x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
R120
R120x1R120x2
R74
R74x1 R74x2
R135
R135x1 R135x2
R136
R136x1 R136x2
R20
R20x1 R20x2
R111
R111x1R111x2
R129
R129x1 R129x2
R131
R131x1 R131x2
R121
R121x1 R121x2
R132
R132x1 R132x2
R130
R130x1 R130x2
R142
R142x1
R142x2
R143
R143x1
R143x2
R144
R144x1
R144x2
R145
R145x1
R145x2
R146
R146x1 R146x2
R147
R147x1 R147x2
R148
R148x1R148x2
R149
R149x1 R149x2
R152
R152x1 R152x2
R153
R153x1
R153x2
R154
R154x1
R154x2
R155
R155x1
R155x2
R156
R156x1
R156x2
R157
R157x1 R157x2
R158
R158x1 R158x2
R159
R159x1R159x2
R160
R160x1 R160x2
R161
R161x1 R161x2
R162
R162x1R162x2
R163
R163x1R163x2
R164
R164x1 R164x2
R165
R165x1R165x2
R33
R33x1 R33x2
R34
R34x1 R34x2
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
U18
U18x1 U18x2 U18x3 U18x4 U18x5 U18x6 U18x7 U18x8 U18x9
U18x10 U18x11 U18x12 U18x13 U18x14 U18x15 U18x16 U18x17 U18x18
U18x19U18x20U18x21U18x22U18x23U18x24U18x25U18x26U18x27U18x28U18x29U18x30U18x31U18x32U18x33U18x34U18x35U18x36
U18x37
R60
R60x1
R60x2
R68
R68x1
R68x2
R80
R80x1 R80x2
C142
C142x1 C142x2
C147
C147x1 C147x2
R30
R30x1 R30x2
R31
R31x1R31x2
R87
R87x1 R87x2
R88
R88x1R88x2
C198
C198x1 C198x2
C193
C193x1 C193x2
R134
R134x1 R134x2
R127
R127x1 R127x2
R123
R123x1 R123x2
R128
R128x1 R128x2
R124
R124x1 R124x2
U13
U13x1
U13x2
U13x3
U15
U15x1
U15x2
U15x3
AR4
AR4x1
AR4x2 AR4x3
AR4x4
AR4x5
AR4x6AR4x7
AR4x8
AR3
AR3x1
AR3x2 AR3x3
AR3x4
AR3x5
AR3x6AR3x7
AR3x8
L89
L89x1
L89x2
TP1
TP1x1
TP2
TP2x1
R139
R139x1
R139x2
R150
R150x1
R150x2
C115
C115x1 C115x2
C114
C114x1 C114x2
C62
C62x1
C62x2
C89
C89x1 C89x2
D12
D12x1D12x2
U10
U10x1U10x2U10x3U10x4U10x5U10x6U10x7
U10x8 U10x9
U10x10 U10x11 U10x12 U10x13 U10x14
R170
R170x1 R170x2
R167
R167x1
R167x2
AR1
AR1x1
AR1x2 AR1x3
AR1x4
AR1x5
AR1x6AR1x7
AR1x8
AR10
AR10x1
AR10x2 AR10x3
AR10x4
AR10x5
AR10x6AR10x7
AR10x8
AR12
AR12x1
AR12x2 AR12x3
AR12x4
AR12x5
AR12x6AR12x7
AR12x8
AR13
AR13x1
AR13x2 AR13x3
AR13x4
AR13x5
AR13x6AR13x7
AR13x8
AR14
AR14x1
AR14x2 AR14x3
AR14x4
AR14x5
AR14x6AR14x7
AR14x8
AR15
AR15x1
AR15x2
AR15x3
AR15x4AR15x5
AR15x6
AR15x7
AR15x8
AR16
AR16x1
AR16x2
AR16x3
AR16x4AR16x5
AR16x6
AR16x7
AR16x8
AR17
AR17x1
AR17x2
AR17x3
AR17x4AR17x5
AR17x6
AR17x7
AR17x8
AR18
AR18x1
AR18x2
AR18x3
AR18x4AR18x5
AR18x6
AR18x7
AR18x8
AR2
AR2x1
AR2x2 AR2x3
AR2x4
AR2x5
AR2x6AR2x7
AR2x8
AR20
AR20x1
AR20x2
AR20x3
AR20x4AR20x5
AR20x6
AR20x7
AR20x8
AR29
AR29x1
AR29x2
AR29x3
AR29x4 AR29x5
AR29x6
AR29x7
AR29x8
AR30
AR30x1
AR30x2
AR30x3
AR30x4 AR30x5
AR30x6
AR30x7
AR30x8
AR31
AR31x1
AR31x2
AR31x3
AR31x4AR31x5
AR31x6
AR31x7
AR31x8
AR32
AR32x1
AR32x2
AR32x3
AR32x4AR32x5
AR32x6
AR32x7
AR32x8
AR33
AR33x1
AR33x2
AR33x3
AR33x4AR33x5
AR33x6
AR33x7
AR33x8
AR40
AR40x1
AR40x2
AR40x3
AR40x4 AR40x5
AR40x6
AR40x7
AR40x8
AR5
AR5x1
AR5x2 AR5x3
AR5x4
AR5x5
AR5x6AR5x7
AR5x8
AR6
AR6x1
AR6x2 AR6x3
AR6x4
AR6x5
AR6x6AR6x7
AR6x8
AR7
AR7x1
AR7x2 AR7x3
AR7x4
AR7x5
AR7x6AR7x7
AR7x8
AR8
AR8x1
AR8x2AR8x3
AR8x4
AR8x5
AR8x6 AR8x7
AR8x8
C11
C11x1
C11x2
C116
C116x1 C116x2
C117
C117x1 C117x2
C118
C118x1 C118x2
C120
C120x1 C120x2
C121
C121x1 C121x2
C122
C122x1 C122x2
C159
C159x1
C159x2
C35
C35x1 C35x2
C43
C43x1 C43x2
C44
C44x1 C44x2
C45
C45x1 C45x2
C46
C46x1 C46x2
C58
C58x1C58x2
C59
C59x1C59x2
C60
C60x1C60x2
C61
C61x1
C61x2
C63
C63x1
C63x2
C64
C64x1
C64x2
C65
C65x1
C65x2
C66
C66x1
C66x2
C67
C67x1
C67x2
C68
C68x1
C68x2
C69
C69x1
C69x2
C70
C70x1
C70x2
C71
C71x1
C71x2
C73
C73x1C73x2
C74
C74x1C74x2
C75
C75x1C75x2
C76
C76x1C76x2
C77
C77x1C77x2
C78
C78x1C78x2
C79
C79x1C79x2
C80
C80x1C80x2
C81
C81x1C81x2
C82
C82x1 C82x2
C83
C83x1 C83x2
C87
C87x1 C87x2
C88
C88x1 C88x2
D11
D11x1D11x2
D13
D13x1D13x2
D10
D10x1D10x2
Q2
Q2x1Q2x2
Q2x3
FB1
FB1x1
FB1x2
FB1x3
FB1x4 FB1x5
FB1x6
FB1x7
FB1x8
R171
R171x1R171x2
R172
R172x1 R172x2
R197
R197x1 R197x2
U5
U5x1
U5x2
U5x3U5x4U5x5U5x6U5x7U5x8U5x9
U5x10U5x11U5x12U5x13U5x14U5x15U5x16U5x17U5x18U5x19U5x20U5x21U5x22U5x23U5x24U5x25U5x26U5x27
U5x28
U5x29
U5x30 U5x31 U5x32 U5x33 U5x34 U5x35 U5x36 U5x37 U5x38 U5x39 U5x40 U5x41 U5x42 U5x43 U5x44 U5x45 U5x46 U5x47 U5x48 U5x49 U5x50 U5x51 U5x52 U5x53 U5x54 U5x55
U5x56
U7
U7x1
U7x2
U7x3
C12
C12x1 C12x2
C125
C125x1 C125x2
C126
C126x1 C126x2
C13
C13x1C13x2
C135
C135x1 C135x2
C137
C137x1C137x2
C14
C14x1C14x2
C200
C200x1 C200x2
C201
C201x1C201x2
C222
C222x1 C222x2
C224
C224x1 C224x2
C239
C239x1C239x2
C240
C240x1 C240x2
C245
C245x1 C245x2
C3
C3x1C3x2
C42
C42x1C42x2
C52
C52x1
C52x2
C7
C7x1C7x2
C100
C100x1 C100x2
C136
C136x1C136x2
C28
C28x1 C28x2
C29
C29x1C29x2
C30
C30x1 C30x2
C31
C31x1C31x2
C32
C32x1C32x2
C33
C33x1 C33x2
C113
C113x1C113x2
C9
C9x1C9x2
C72
C72x1
C72x2
C21
C21x1 C21x2
U6
U6x1 U6x2 U6x3
U6x4U6x5
U4
U4x1
U4x2
U4x3
U4x4
U4x5
U4x6
U4x7
U4x8
U4x9
U4x10
U4x11
U4x12
U4x13
U4x14
U4x15
U4x16
U4x17
U4x18
U4x19
U4x20
U4x21
U4x22
U4x23
U4x24
U4x25U4x26
U4x27
U4x28
U4x29
U4x30
U4x31
U4x32
U4x33
U4x34
U4x35
U4x36
U4x37
U4x38
U4x39
U4x40
U4x41
U4x42
U4x43
U4x44
U4x45
U4x46
U4x47
U4x48
U4x49
U4x50
C241
C241x1 C241x2
C242
C242x1 C242x2
Q1
Q1x1 Q1x2
Q1x3
L1
L1x1
L1x2
L10
L10x1 L10x2
L14
L14x1 L14x2
L18
L18x1 L18x2
L19
L19x1 L19x2
L20
L20x1 L20x2
L21
L21x1 L21x2
L22
L22x1L22x2
L23
L23x1 L23x2
L28
L28x1 L28x2
L6
L6x1L6x2
L7
L7x1L7x2
FB2
FB2x1
FB2x2
FB2x3
FB2x4 FB2x5
FB2x6
FB2x7
FB2x8
FB3
FB3x1
FB3x2
FB3x3
FB3x4 FB3x5
FB3x6
FB3x7
FB3x8
FB4
FB4x1
FB4x2
FB4x3
FB4x4 FB4x5
FB4x6
FB4x7
FB4x8
C235
C235x1C235x2
AR35
AR35x1
AR35x2 AR35x3
AR35x4
AR35x5
AR35x6AR35x7
AR35x8
R133
R133x1R133x2
C226
C226x1C226x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
R168
R168x1 R168x2
Q23
Q23x1
Q23x2 Q23x3
Q22
Q22x1
Q22x2 Q22x3
Q21
Q21x1
Q21x2 Q21x3
Q15
Q15x1
Q15x2 Q15x3
C168
C168x1C168x2
C169
C169x1C169x2
C170
C170x1
C170x2
U33
U33x1
U33x2
U33x3
U33x4
U33x5
U33x6
U33x7
U33x8U33x9
U33x10
U33x11
U33x12
U33x13
U33x14
U33x15
U33x16
U31
U31x1
U31x2
U31x3
U31x4
U31x5
U31x6
U31x7
U31x8
U31x9
U31x10
U31x11
U31x12
U31x13 U31x14 U31x15 U31x16 U31x17 U31x18 U31x19 U31x20 U31x21 U31x22 U31x23 U31x24
U31x25
U31x26
U31x27
U31x28
U31x29
U31x30
U31x31
U31x32
U31x33
U31x34
U31x35
U31x36
U31x37U31x38U31x39U31x40U31x41U31x42U31x43U31x44U31x45U31x46U31x47U31x48
U36
U36x1
U36x2
U36x3
U36x4
U36x5
U36x6
U36x7
U36x8U36x9
U36x10
U36x11
U36x12
U36x13
U36x14
U36x15
U36x16
C297
C297x1 C297x2
C49
C49x1
C49x2
C97
C97x1 C97x2
C98
C98x1 C98x2
C99
C99x1 C99x2
Q19
Q19x1
Q19x2 Q19x3
Q20
Q20x1
Q20x2 Q20x3
Q10
Q10x1
Q10x2 Q10x3
Q11
Q11x1
Q11x2 Q11x3
U9
U9x1
U9x2
U9x3
U9x4
U9x5
U9x6
U9x7
U9x8U9x9
U9x10
U9x11
U9x12
U9x13
U9x14
U9x15
U9x16
R95
R95x1R95x2
U1
U1x1 U1x2 U1x3 U1x4 U1x5 U1x6 U1x7 U1x8 U1x9
U1x10 U1x11 U1x12 U1x13 U1x14 U1x15 U1x16 U1x17 U1x18 U1x19 U1x20 U1x21 U1x22 U1x23 U1x24 U1x25 U1x26 U1x27 U1x28 U1x29 U1x30 U1x31 U1x32 U1x33 U1x34 U1x35 U1x36
U1x37
U1x38
U1x39
U1x40
U1x41
U1x42
U1x43
U1x44
U1x45
U1x46
U1x47
U1x48
U1x49
U1x50
U1x51
U1x52
U1x53
U1x54
U1x55
U1x56
U1x57
U1x58
U1x59
U1x60
U1x61
U1x62
U1x63
U1x64
U1x65
U1x66
U1x67
U1x68
U1x69
U1x70
U1x71
U1x72
U1x73U1x74U1x75U1x76U1x77U1x78U1x79U1x80U1x81U1x82U1x83U1x84U1x85U1x86U1x87U1x88U1x89U1x90U1x91U1x92U1x93U1x94U1x95U1x96U1x97U1x98U1x99
U1x100U1x101U1x102U1x103U1x104U1x105U1x106U1x107U1x108
U1x109
U1x110
U1x111
U1x112
U1x113
U1x114
U1x115
U1x116
U1x117
U1x118
U1x119
U1x120
U1x121
U1x122
U1x123
U1x124
U1x125
U1x126
U1x127
U1x128
U1x129
U1x130
U1x131
U1x132
U1x133
U1x134
U1x135
U1x136
U1x137
U1x138
U1x139
U1x140
U1x141
U1x142
U1x143
U1x144
C237
C237x1 C237x2
J8
J8x1
J8x2
R1
R1x1
R1x2
R109
R109x1 R109x2
R110
R110x1 R110x2
R112
R112x1 R112x2
R113
R113x1 R113x2
R114
R114x1 R114x2
R115
R115x1 R115x2
R116
R116x1 R116x2
R117
R117x1 R117x2
R118
R118x1 R118x2
R119
R119x1 R119x2
R122
R122x1 R122x2
R125
R125x1 R125x2
R169
R169x1R169x2
R212
R212x1 R212x2
R213
R213x1 R213x2
R215
R215x1 R215x2
R216
R216x1R216x2
R217
R217x1 R217x2
R218
R218x1 R218x2
R219
R219x1 R219x2
R22
R22x1 R22x2
R220
R220x1 R220x2
R221
R221x1 R221x2
R23
R23x1 R23x2
R230
R230x1 R230x2
R24
R24x1R24x2
R26
R26x1R26x2
R28
R28x1R28x2
R3
R3x1R3x2
R37
R37x1R37x2
R38
R38x1R38x2
R39
R39x1 R39x2
R40
R40x1 R40x2
R41
R41x1 R41x2
R42
R42x1
R42x2
R43
R43x1
R43x2
R44
R44x1 R44x2
R5
R5x1 R5x2
R56
R56x1 R56x2
R6
R6x1R6x2
R61
R61x1
R61x2
R62
R62x1
R62x2
R64
R64x1 R64x2
R65
R65x1 R65x2
R7
R7x1R7x2
R8
R8x1R8x2
R103
R103x1
R103x2
R151
R151x1 R151x2
R2
R2x1
R2x2
R21
R21x1 R21x2
R70
R70x1 R70x2
R71
R71x1 R71x2
TP22
TP22x1
U20
U20x1U20x2U20x3U20x4
U20x5 U20x6 U20x7 U20x8
C38
C38x1 C38x2
C39
C39x1 C39x2
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
R214
R214x1R214x2
AR11
AR11x1
AR11x2 AR11x3
AR11x4
AR11x5
AR11x6AR11x7
AR11x8
AR19
AR19x1
AR19x2 AR19x3
AR19x4
AR19x5
AR19x6AR19x7
AR19x8
X1
X1x1
X1x2
R69
R69x1
R69x2
R82
R82x1
R82x2
R10
R10x1R10x2
R11
R11x1R11x2
R12
R12x1 R12x2
R17
R17x1 R17x2
R18
R18x1 R18x2
R19
R19x1 R19x2
R199
R199x1R199x2
R200
R200x1R200x2
R201
R201x1R201x2
R202
R202x1R202x2
R4
R4x1 R4x2
R72
R72x1 R72x2
R73
R73x1
R73x2
R75
R75x1
R75x2
R9
R9x1
R9x2
AR28
AR28x1
AR28x2 AR28x3
AR28x4
AR28x5
AR28x6AR28x7
AR28x8
R83
R83x1
R83x2
R84
R84x1
R84x2
R35
R35x1 R35x2
U8
U8x1
U8x2
U8x3
U8x4
AR34
AR34x1
AR34x2
AR34x3
AR34x4AR34x5
AR34x6
AR34x7
AR34x8
AR38
AR38x1
AR38x2 AR38x3
AR38x4
AR38x5
AR38x6AR38x7
AR38x8
C186
C186x1 C186x2
C84
C84x1
C84x2
C36
C36x1C36x2
C51
C51x1 C51x2
C133
C133x1
C133x2
C138
C138x1
C138x2
C134
C134x1 C134x2
C187
C187x1C187x2
C188
C188x1 C188x2
C85
C85x1
C85x2
C189
C189x1C189x2
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
D8
D8x1
D8x2
JP1
JP1x1
JP1x2
U11
U11x1 U11x2 U11x3 U11x4 U11x5 U11x6 U11x7 U11x8 U11x9
U11x10
U11x11U11x12U11x13U11x14U11x15U11x16U11x17U11x18U11x19U11x20
U22
U22x1
U22x2
U22x3U22x4
U22x5
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
R63
R63x1
R63x2
R51
R51x1 R51x2
R52
R52x1 R52x2
R13
R13x1 R13x2
R402
R402x1 R402x2
R107
R107x1
R107x2
R108
R108x1
R108x2
R77
R77x1
R77x2
R104
R104x1 R104x2
R67
R67x1
R67x2
R50
R50x1 R50x2
R49
R49x1 R49x2
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
X2
X2x1X2x2
Q4
Q4x1
Q4x2 Q4x3
Q5
Q5xD
Q5xG
Q5xS
U19
U19x1 U19x2 U19x3 U19x4 U19x5 U19x6 U19x7 U19x8
U19x9
U19x10U19x11U19x12U19x13U19x14U19x15U19x16
AR36
AR36x1
AR36x2 AR36x3
AR36x4
AR36x5
AR36x6AR36x7
AR36x8
Q6
Q6xB
Q6xC
Q6xE
Q7
Q7xB
Q7xC
Q7xE
L46
L46x1L46x2
L87
L87x1L87x2
L88
L88x1L88x2
L2
L2x1 L2x2
L9
L9x1 L9x2
C101
C101x1
C101x2
C102
C102x1
C102x2
C184
C184x1C184x2
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
D9
D9x1D9x2
J1
J1x1
J1x2
J2
J2x1
J2x2
J3
J3x1J3x2
J4
J4x1J4x2
C607
C607x1
C607x2
R412
R412x1
R412x2
R413
R413x1R413x2
R414
R414x1R414x2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
R100
R100x1R100x2
R101
R101x1
R101x2
R102
R102x1
R102x2
R105
R105x1 R105x2
R443
R443x1
R443x2
R444
R444x1
R444x2
R46
R46x1 R46x2
R48
R48x1 R48x2
R78
R78x1 R78x2
R15
R15x1R15x2
R27
R27x1R27x2
R59
R59x1
R59x2
R14
R14x1R14x2
R45
R45x1R45x2
R79
R79x1 R79x2
R91
R91x1 R91x2
R92
R92x1 R92x2
R36
R36x1 R36x2
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
U64
U64x1U64x2U64x3U64x4U64x5U64x6U64x7U64x8U64x9
U64x10
U64x11
U64x12
U64x13
U64x14
U64x15
U64x16
U64x17
U64x18
U64x19
U64x20
U64x21 U64x22 U64x23 U64x24 U64x25 U64x26 U64x27 U64x28 U64x29 U64x30
U12
U12x1U12x2U12x3U12x4
U12x5 U12x6 U12x7 U12x8
U17
U17x1U17x2U17x3U17x4
U17x5 U17x6 U17x7 U17x8
D7
D7x1
D7x2
LED1
LED1x1 LED1x2
T1
T1x1T1x2
T1x3
L56
L56x1L56x2
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C153
C153x1 C153x2
C161
C161x1C161x2
L4
L4x1
L4x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
L12
L12x1L12x2
L13
L13x1L13x2
L16
L16x1L16x2
C103
C103x1 C103x2
D1
D1x1D1x2
R53
R53x1 R53x2
R54
R54x1 R54x2
R57
R57x1 R57x2
L38
L38x1 L38x2
L39
L39x1 L39x2
L40
L40x1 L40x2
L41
L41x1 L41x2
L8
L8x1 L8x2
R166
R166x1R166x2
L15
L15x1 L15x2
C145
C145x1C145x2
C146
C146x1
C146x2
C157
C157x1
C157x2
R403
R403x1 R403x2
C606
C606x1
C606x2
R81
R81x1
R81x2
R86
R86x1
R86x2
R89
R89x1R89x2
R90
R90x1R90x2
C150
C150x1C150x2
C151
C151x1 C151x2
C152
C152x1C152x2
D30
D30x1
D30x2
L17
L17x1
L17x2
R98
R98x1 R98x2
R93
R93x1R93x2
R94
R94x1 R94x2
R96
R96x1R96x2
R97
R97x1 R97x2
U2
U2x1
U2x2
U2x3
U2x4U2x5
U2x6
U2x7
U2x8
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
Q5
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
U64
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C606
C606x1
C606x2
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
C282
C282x1C282x2
C283
C283x1 C283x2
C285
C285x1
C285x2
C294
C294x1
C294x2
DJ1
DJ1x1
DJ1x2
DJ1x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
D5
D5x1 D5x2
D3
D3x1D3x2
D33
D33x1
D33x2
D34
D34x1D34x2
D35
D35x1D35x2
D36
D36x1D36x2
D6
D6x1D6x2
D25
D25x1 D25x2
D28
D28x1D28x2
D32
D32x1
D32x2
D31
D31x1D31x2
C105
C105x1 C105x2
C108
C108x1 C108x2
AR21
AR21x1
AR21x2AR21x3
AR21x4
AR21x5
AR21x6 AR21x7
AR21x8
AR22
AR22x1
AR22x2
AR22x3
AR22x4 AR22x5
AR22x6
AR22x7
AR22x8
AR23
AR23x1
AR23x2
AR23x3
AR23x4 AR23x5
AR23x6
AR23x7
AR23x8
AR24
AR24x1
AR24x2
AR24x3
AR24x4AR24x5
AR24x6
AR24x7
AR24x8
AR25
AR25x1
AR25x2
AR25x3
AR25x4AR25x5
AR25x6
AR25x7
AR25x8
AR26
AR26x1
AR26x2
AR26x3
AR26x4AR26x5
AR26x6
AR26x7
AR26x8
C112
C112x1 C112x2
C127
C127x1 C127x2
C104
C104x1C104x2
C106
C106x1 C106x2
C107
C107x1 C107x2
C109
C109x1 C109x2
C123
C123x1 C123x2
C124
C124x1 C124x2
C24
C24x1 C24x2
C25
C25x1 C25x2
C26
C26x1 C26x2
C27
C27x1 C27x2
C86
C86x1C86x2
C93
C93x1C93x2
C94
C94x1C94x2
C95
C95x1C95x2
C96
C96x1C96x2
D15
D15x1
D15x2
D16
D16x1
D16x2
D17
D17x1
D17x2
D18
D18x1
D18x2
C8
C8x1C8x2
C110
C110x1
C110x2
C16
C16x1C16x2
C17
C17x1
C17x2
C18
C18x1 C18x2
C20
C20x1
C20x2
C22
C22x1C22x2
C236
C236x1 C236x2
C37
C37x1 C37x2
C4
C4x1
C4x2
C41
C41x1C41x2
C5
C5x1
C5x2
C6
C6x1 C6x2
C90
C90x1C90x2
C19
C19x1
C19x2
C54
C54x1
C54x2
C55
C55x1
C55x2
C56
C56x1
C56x2
C57
C57x1
C57x2
C235
C235x1C235x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
C167
C167x1
C167x2
C48
C48x1C48x2
C10
C10x1C10x2
C50
C50x1 C50x2
R126
R126x1
R126x2
R16
R16x1
R16x2
R198
R198x1
R198x2
R210
R210x1
R210x2
R211
R211x1
R211x2
R29
R29x1
R29x2
TP4
TP4x1
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
AR27
AR27x1
AR27x2AR27x3
AR27x4
AR27x5
AR27x6 AR27x7
AR27x8
R205
R205x1R205x2
R224
R224x1R224x2
R85
R85x1R85x2
R240
R240x1
R240x2
C165
C165x1
C165x2
D43
D43x1
D43x2
R241
R241x1
R241x2
U3
U3x1
U3x2
U3x3
U3x4
U3x5
U3x6
U3x7
U3x8
U3x9
U3x10
U3x11
U3x12
U3x13
U3x14
U3x15
U3x16
U3x17
U3x18
U3x19
U3x20
U3x21
U3x22
U3x23
U3x24 U3x25
U3x26
U3x27
U3x28
U3x29
U3x30
U3x31
U3x32
U3x33
U3x34
U3x35
U3x36
U3x37
U3x38
U3x39
U3x40
U3x41
U3x42
U3x43
U3x44
U3x45
U3x46
U3x47
U3x48
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
R47
R47x1
R47x2
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
C131
C131x1 C131x2
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
R58
R58x1
R58x2
MK7
MK7x1
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
M1
M1x1
M2
M2x1
M3
M3x1
M4
M4x1
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C141
C141x1C141x2
C163
C163x1C163x2
C164
C164x1C164x2
C47
C47x1C47x2
D2
D2x1
D2x2
U34
U34x1U34x2U34x3U34x4
U34x5 U34x6 U34x7 U34x8
L3
L3x1
L3x2
R106
R106x1R106x2
R25
R25x1 R25x2
R32
R32x1 R32x2
R55
R55x1R55x2
R66
R66x1 R66x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
R76
R76x1 R76x2
C146
C146x1
C146x2
C157
C157x1
C157x2
C15
C15x1C15x2
C40
C40x1
C40x2
C23
C23x1
C23x2
C1
C1x1C1x2
C606
C606x1
C606x2
C149
C149x1
C149x2
C221
C221x1C221x2
C143
C143x1C143x2
C158
C158x1 C158x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
R141
R141x1
R141x2
C204
C204x1
C204x2
C206
C206x1
C206x2
C208
C208x1
C208x2
C209
C209x1
C209x2
C229
C229x1 C229x2
C234
C234x1
C234x2
C293
C293x1
C293x2
C288
C288x1
C288x2
C289
C289x1
C289x2
C291
C291x1
C291x2
C286
C286x1
C286x2
C287
C287x1
C287x2
C290
C290x1
C290x2
C292
C292x1
C292x2
C281
C281x1
C281x2
C284
C284x1
C284x2
C210
C210x1
C210x2
C205
C205x1
C205x2
C207
C207x1
C207x2
R137
R137x1
R137x2
R203
R203x1
R203x2
C203
C203x1
C203x2
C295
C295x1
C295x2
R140
R140x1
R140x2
R138
R138x1
R138x2
C285
C285x1
C285x2
C294
C294x1
C294x2
R204
R204x1
R204x2
R176
R176x1
R176x2
R206
R206x1
R206x2
R208
R208x1
R208x2
AR37
AR37x1
AR37x2
AR37x3
AR37x4 AR37x5
AR37x6
AR37x7
AR37x8
AR39
AR39x1
AR39x2AR39x3
AR39x4
AR39x5
AR39x6 AR39x7
AR39x8
C2
C2x1 C2x2
C154
C154x1C154x2
C155
C155x1C155x2
C156
C156x1 C156x2
C181
C181x1C181x2
C129
C129x1C129x2
C140
C140x1
C140x2
C162
C162x1C162x2
C212
C212x1C212x2
C214
C214x1
C214x2
C215
C215x1 C215x2
C216
C216x1C216x2
C218
C218x1C218x2
C219
C219x1
C219x2
C220
C220x1 C220x2
C225
C225x1C225x2
C228
C228x1C228x2
D19
D19xA D19xK
D20
D20xA D20xK
D21
D21xA D21xK
D29
D29xA D29xK
DJ1
DJ1x1
DJ1x2
DJ1x3
D14
D14x1
D14x2
Q16
Q16x1
Q16x2 Q16x3
Q17
Q17x1
Q17x2 Q17x3
Q3
Q3x1
Q3x2 Q3x3
Q13
Q13x1
Q13x2 Q13x3
Q12
Q12x1
Q12x2 Q12x3
JK5
JK5x1
JK5x2
JK5x3
JK5x4
JK5x5
JK5x6
JK5x7
JK4
JK4x1
JK4x2
JK4x3 JK4x4
R120
R120x1R120x2
R74
R74x1 R74x2
R135
R135x1 R135x2
R136
R136x1 R136x2
R20
R20x1 R20x2
R111
R111x1R111x2
R129
R129x1 R129x2
R131
R131x1 R131x2
R121
R121x1 R121x2
R132
R132x1 R132x2
R130
R130x1 R130x2
R142
R142x1
R142x2
R143
R143x1
R143x2
R144
R144x1
R144x2
R145
R145x1
R145x2
R146
R146x1 R146x2
R147
R147x1 R147x2
R148
R148x1R148x2
R149
R149x1 R149x2
R152
R152x1 R152x2
R153
R153x1
R153x2
R154
R154x1
R154x2
R155
R155x1
R155x2
R156
R156x1
R156x2
R157
R157x1 R157x2
R158
R158x1 R158x2
R159
R159x1R159x2
R160
R160x1 R160x2
R161
R161x1 R161x2
R162
R162x1R162x2
R163
R163x1R163x2
R164
R164x1 R164x2
R165
R165x1R165x2
R33
R33x1 R33x2
R34
R34x1 R34x2
LB3
LB3x1LB3x2
LB6
LB6x1LB6x2
U18
U18x1 U18x2 U18x3 U18x4 U18x5 U18x6 U18x7 U18x8 U18x9
U18x10 U18x11 U18x12 U18x13 U18x14 U18x15 U18x16 U18x17 U18x18
U18x19U18x20U18x21U18x22U18x23U18x24U18x25U18x26U18x27U18x28U18x29U18x30U18x31U18x32U18x33U18x34U18x35U18x36
U18x37
R60
R60x1
R60x2
R68
R68x1
R68x2
R80
R80x1 R80x2
C142
C142x1 C142x2
C147
C147x1 C147x2
R30
R30x1 R30x2
R31
R31x1R31x2
R87
R87x1 R87x2
R88
R88x1R88x2
C198
C198x1 C198x2
C193
C193x1 C193x2
R134
R134x1 R134x2
R127
R127x1 R127x2
R123
R123x1 R123x2
R128
R128x1 R128x2
R124
R124x1 R124x2
U13
U13x1
U13x2
U13x3
U15
U15x1
U15x2
U15x3
AR4
AR4x1
AR4x2 AR4x3
AR4x4
AR4x5
AR4x6AR4x7
AR4x8
AR3
AR3x1
AR3x2 AR3x3
AR3x4
AR3x5
AR3x6AR3x7
AR3x8
L89
L89x1
L89x2
TP1
TP1x1
TP2
TP2x1
R139
R139x1
R139x2
R150
R150x1
R150x2
C115
C115x1 C115x2
C114
C114x1 C114x2
C62
C62x1
C62x2
C89
C89x1 C89x2
D12
D12x1D12x2
U10
U10x1U10x2U10x3U10x4U10x5U10x6U10x7
U10x8 U10x9
U10x10 U10x11 U10x12 U10x13 U10x14
R170
R170x1 R170x2
R167
R167x1
R167x2
AR1
AR1x1
AR1x2 AR1x3
AR1x4
AR1x5
AR1x6AR1x7
AR1x8
AR10
AR10x1
AR10x2 AR10x3
AR10x4
AR10x5
AR10x6AR10x7
AR10x8
AR12
AR12x1
AR12x2 AR12x3
AR12x4
AR12x5
AR12x6AR12x7
AR12x8
AR13
AR13x1
AR13x2 AR13x3
AR13x4
AR13x5
AR13x6AR13x7
AR13x8
AR14
AR14x1
AR14x2 AR14x3
AR14x4
AR14x5
AR14x6AR14x7
AR14x8
AR15
AR15x1
AR15x2
AR15x3
AR15x4AR15x5
AR15x6
AR15x7
AR15x8
AR16
AR16x1
AR16x2
AR16x3
AR16x4AR16x5
AR16x6
AR16x7
AR16x8
AR17
AR17x1
AR17x2
AR17x3
AR17x4AR17x5
AR17x6
AR17x7
AR17x8
AR18
AR18x1
AR18x2
AR18x3
AR18x4AR18x5
AR18x6
AR18x7
AR18x8
AR2
AR2x1
AR2x2 AR2x3
AR2x4
AR2x5
AR2x6AR2x7
AR2x8
AR20
AR20x1
AR20x2
AR20x3
AR20x4AR20x5
AR20x6
AR20x7
AR20x8
AR29
AR29x1
AR29x2
AR29x3
AR29x4 AR29x5
AR29x6
AR29x7
AR29x8
AR30
AR30x1
AR30x2
AR30x3
AR30x4 AR30x5
AR30x6
AR30x7
AR30x8
AR31
AR31x1
AR31x2
AR31x3
AR31x4AR31x5
AR31x6
AR31x7
AR31x8
AR32
AR32x1
AR32x2
AR32x3
AR32x4AR32x5
AR32x6
AR32x7
AR32x8
AR33
AR33x1
AR33x2
AR33x3
AR33x4AR33x5
AR33x6
AR33x7
AR33x8
AR40
AR40x1
AR40x2
AR40x3
AR40x4 AR40x5
AR40x6
AR40x7
AR40x8
AR5
AR5x1
AR5x2 AR5x3
AR5x4
AR5x5
AR5x6AR5x7
AR5x8
AR6
AR6x1
AR6x2 AR6x3
AR6x4
AR6x5
AR6x6AR6x7
AR6x8
AR7
AR7x1
AR7x2 AR7x3
AR7x4
AR7x5
AR7x6AR7x7
AR7x8
AR8
AR8x1
AR8x2AR8x3
AR8x4
AR8x5
AR8x6 AR8x7
AR8x8
C11
C11x1
C11x2
C116
C116x1 C116x2
C117
C117x1 C117x2
C118
C118x1 C118x2
C120
C120x1 C120x2
C121
C121x1 C121x2
C122
C122x1 C122x2
C159
C159x1
C159x2
C35
C35x1 C35x2
C43
C43x1 C43x2
C44
C44x1 C44x2
C45
C45x1 C45x2
C46
C46x1 C46x2
C58
C58x1C58x2
C59
C59x1C59x2
C60
C60x1C60x2
C61
C61x1
C61x2
C63
C63x1
C63x2
C64
C64x1
C64x2
C65
C65x1
C65x2
C66
C66x1
C66x2
C67
C67x1
C67x2
C68
C68x1
C68x2
C69
C69x1
C69x2
C70
C70x1
C70x2
C71
C71x1
C71x2
C73
C73x1C73x2
C74
C74x1C74x2
C75
C75x1C75x2
C76
C76x1C76x2
C77
C77x1C77x2
C78
C78x1C78x2
C79
C79x1C79x2
C80
C80x1C80x2
C81
C81x1C81x2
C82
C82x1 C82x2
C83
C83x1 C83x2
C87
C87x1 C87x2
C88
C88x1 C88x2
D11
D11x1D11x2
D13
D13x1D13x2
D10
D10x1D10x2
Q2
Q2x1Q2x2
Q2x3
FB1
FB1x1
FB1x2
FB1x3
FB1x4 FB1x5
FB1x6
FB1x7
FB1x8
R171
R171x1R171x2
R172
R172x1 R172x2
R197
R197x1 R197x2
U5
U5x1
U5x2
U5x3U5x4U5x5U5x6U5x7U5x8U5x9
U5x10U5x11U5x12U5x13U5x14U5x15U5x16U5x17U5x18U5x19U5x20U5x21U5x22U5x23U5x24U5x25U5x26U5x27
U5x28
U5x29
U5x30 U5x31 U5x32 U5x33 U5x34 U5x35 U5x36 U5x37 U5x38 U5x39 U5x40 U5x41 U5x42 U5x43 U5x44 U5x45 U5x46 U5x47 U5x48 U5x49 U5x50 U5x51 U5x52 U5x53 U5x54 U5x55
U5x56
U7
U7x1
U7x2
U7x3
C12
C12x1 C12x2
C125
C125x1 C125x2
C126
C126x1 C126x2
C13
C13x1C13x2
C135
C135x1 C135x2
C137
C137x1C137x2
C14
C14x1C14x2
C200
C200x1 C200x2
C201
C201x1C201x2
C222
C222x1 C222x2
C224
C224x1 C224x2
C239
C239x1C239x2
C240
C240x1 C240x2
C245
C245x1 C245x2
C3
C3x1C3x2
C42
C42x1C42x2
C52
C52x1
C52x2
C7
C7x1C7x2
C100
C100x1 C100x2
C136
C136x1C136x2
C28
C28x1 C28x2
C29
C29x1C29x2
C30
C30x1 C30x2
C31
C31x1C31x2
C32
C32x1C32x2
C33
C33x1 C33x2
C113
C113x1C113x2
C9
C9x1C9x2
C72
C72x1
C72x2
C21
C21x1 C21x2
U6
U6x1 U6x2 U6x3
U6x4U6x5
U4
U4x1
U4x2
U4x3
U4x4
U4x5
U4x6
U4x7
U4x8
U4x9
U4x10
U4x11
U4x12
U4x13
U4x14
U4x15
U4x16
U4x17
U4x18
U4x19
U4x20
U4x21
U4x22
U4x23
U4x24
U4x25U4x26
U4x27
U4x28
U4x29
U4x30
U4x31
U4x32
U4x33
U4x34
U4x35
U4x36
U4x37
U4x38
U4x39
U4x40
U4x41
U4x42
U4x43
U4x44
U4x45
U4x46
U4x47
U4x48
U4x49
U4x50
C241
C241x1 C241x2
C242
C242x1 C242x2
Q1
Q1x1 Q1x2
Q1x3
L1
L1x1
L1x2
L10
L10x1 L10x2
L14
L14x1 L14x2
L18
L18x1 L18x2
L19
L19x1 L19x2
L20
L20x1 L20x2
L21
L21x1 L21x2
L22
L22x1L22x2
L23
L23x1 L23x2
L28
L28x1 L28x2
L6
L6x1L6x2
L7
L7x1L7x2
FB2
FB2x1
FB2x2
FB2x3
FB2x4 FB2x5
FB2x6
FB2x7
FB2x8
FB3
FB3x1
FB3x2
FB3x3
FB3x4 FB3x5
FB3x6
FB3x7
FB3x8
FB4
FB4x1
FB4x2
FB4x3
FB4x4 FB4x5
FB4x6
FB4x7
FB4x8
C235
C235x1C235x2
AR35
AR35x1
AR35x2 AR35x3
AR35x4
AR35x5
AR35x6AR35x7
AR35x8
R133
R133x1R133x2
C226
C226x1C226x2
JK3
JK3x1
JK3x2
JK3x3
JK3x4
JK3x5
JK3x6
JK3x7
R168
R168x1 R168x2
Q23
Q23x1
Q23x2 Q23x3
Q22
Q22x1
Q22x2 Q22x3
Q21
Q21x1
Q21x2 Q21x3
Q15
Q15x1
Q15x2 Q15x3
C168
C168x1C168x2
C169
C169x1C169x2
C170
C170x1
C170x2
U33
U33x1
U33x2
U33x3
U33x4
U33x5
U33x6
U33x7
U33x8U33x9
U33x10
U33x11
U33x12
U33x13
U33x14
U33x15
U33x16
U31
U31x1
U31x2
U31x3
U31x4
U31x5
U31x6
U31x7
U31x8
U31x9
U31x10
U31x11
U31x12
U31x13 U31x14 U31x15 U31x16 U31x17 U31x18 U31x19 U31x20 U31x21 U31x22 U31x23 U31x24
U31x25
U31x26
U31x27
U31x28
U31x29
U31x30
U31x31
U31x32
U31x33
U31x34
U31x35
U31x36
U31x37U31x38U31x39U31x40U31x41U31x42U31x43U31x44U31x45U31x46U31x47U31x48
U36
U36x1
U36x2
U36x3
U36x4
U36x5
U36x6
U36x7
U36x8U36x9
U36x10
U36x11
U36x12
U36x13
U36x14
U36x15
U36x16
C297
C297x1 C297x2
C49
C49x1
C49x2
C97
C97x1 C97x2
C98
C98x1 C98x2
C99
C99x1 C99x2
Q19
Q19x1
Q19x2 Q19x3
Q20
Q20x1
Q20x2 Q20x3
Q10
Q10x1
Q10x2 Q10x3
Q11
Q11x1
Q11x2 Q11x3
U9
U9x1
U9x2
U9x3
U9x4
U9x5
U9x6
U9x7
U9x8U9x9
U9x10
U9x11
U9x12
U9x13
U9x14
U9x15
U9x16
R95
R95x1R95x2
U1
U1x1 U1x2 U1x3 U1x4 U1x5 U1x6 U1x7 U1x8 U1x9
U1x10 U1x11 U1x12 U1x13 U1x14 U1x15 U1x16 U1x17 U1x18 U1x19 U1x20 U1x21 U1x22 U1x23 U1x24 U1x25 U1x26 U1x27 U1x28 U1x29 U1x30 U1x31 U1x32 U1x33 U1x34 U1x35 U1x36
U1x37
U1x38
U1x39
U1x40
U1x41
U1x42
U1x43
U1x44
U1x45
U1x46
U1x47
U1x48
U1x49
U1x50
U1x51
U1x52
U1x53
U1x54
U1x55
U1x56
U1x57
U1x58
U1x59
U1x60
U1x61
U1x62
U1x63
U1x64
U1x65
U1x66
U1x67
U1x68
U1x69
U1x70
U1x71
U1x72
U1x73U1x74U1x75U1x76U1x77U1x78U1x79U1x80U1x81U1x82U1x83U1x84U1x85U1x86U1x87U1x88U1x89U1x90U1x91U1x92U1x93U1x94U1x95U1x96U1x97U1x98U1x99
U1x100U1x101U1x102U1x103U1x104U1x105U1x106U1x107U1x108
U1x109
U1x110
U1x111
U1x112
U1x113
U1x114
U1x115
U1x116
U1x117
U1x118
U1x119
U1x120
U1x121
U1x122
U1x123
U1x124
U1x125
U1x126
U1x127
U1x128
U1x129
U1x130
U1x131
U1x132
U1x133
U1x134
U1x135
U1x136
U1x137
U1x138
U1x139
U1x140
U1x141
U1x142
U1x143
U1x144
C237
C237x1 C237x2
J8
J8x1
J8x2
R1
R1x1
R1x2
R109
R109x1 R109x2
R110
R110x1 R110x2
R112
R112x1 R112x2
R113
R113x1 R113x2
R114
R114x1 R114x2
R115
R115x1 R115x2
R116
R116x1 R116x2
R117
R117x1 R117x2
R118
R118x1 R118x2
R119
R119x1 R119x2
R122
R122x1 R122x2
R125
R125x1 R125x2
R169
R169x1R169x2
R212
R212x1 R212x2
R213
R213x1 R213x2
R215
R215x1 R215x2
R216
R216x1R216x2
R217
R217x1 R217x2
R218
R218x1 R218x2
R219
R219x1 R219x2
R22
R22x1 R22x2
R220
R220x1 R220x2
R221
R221x1 R221x2
R23
R23x1 R23x2
R230
R230x1 R230x2
R24
R24x1R24x2
R26
R26x1R26x2
R28
R28x1R28x2
R3
R3x1R3x2
R37
R37x1R37x2
R38
R38x1R38x2
R39
R39x1 R39x2
R40
R40x1 R40x2
R41
R41x1 R41x2
R42
R42x1
R42x2
R43
R43x1
R43x2
R44
R44x1 R44x2
R5
R5x1 R5x2
R56
R56x1 R56x2
R6
R6x1R6x2
R61
R61x1
R61x2
R62
R62x1
R62x2
R64
R64x1 R64x2
R65
R65x1 R65x2
R7
R7x1R7x2
R8
R8x1R8x2
R103
R103x1
R103x2
R151
R151x1 R151x2
R2
R2x1
R2x2
R21
R21x1 R21x2
R70
R70x1 R70x2
R71
R71x1 R71x2
TP22
TP22x1
U20
U20x1U20x2U20x3U20x4
U20x5 U20x6 U20x7 U20x8
C38
C38x1 C38x2
C39
C39x1 C39x2
CN1
CN1x1
CN1x2
CN1x3
CN1x4
CN1x5
CN1x6
CN1x7
CN1x8
R214
R214x1R214x2
AR11
AR11x1
AR11x2 AR11x3
AR11x4
AR11x5
AR11x6AR11x7
AR11x8
AR19
AR19x1
AR19x2 AR19x3
AR19x4
AR19x5
AR19x6AR19x7
AR19x8
X1
X1x1
X1x2
R69
R69x1
R69x2
R82
R82x1
R82x2
R10
R10x1R10x2
R11
R11x1R11x2
R12
R12x1 R12x2
R17
R17x1 R17x2
R18
R18x1 R18x2
R19
R19x1 R19x2
R199
R199x1R199x2
R200
R200x1R200x2
R201
R201x1R201x2
R202
R202x1R202x2
R4
R4x1 R4x2
R72
R72x1 R72x2
R73
R73x1
R73x2
R75
R75x1
R75x2
R9
R9x1
R9x2
AR28
AR28x1
AR28x2 AR28x3
AR28x4
AR28x5
AR28x6AR28x7
AR28x8
R83
R83x1
R83x2
R84
R84x1
R84x2
R35
R35x1 R35x2
U8
U8x1
U8x2
U8x3
U8x4
AR34
AR34x1
AR34x2
AR34x3
AR34x4AR34x5
AR34x6
AR34x7
AR34x8
AR38
AR38x1
AR38x2 AR38x3
AR38x4
AR38x5
AR38x6AR38x7
AR38x8
C186
C186x1 C186x2
C84
C84x1
C84x2
C36
C36x1C36x2
C51
C51x1 C51x2
C133
C133x1
C133x2
C138
C138x1
C138x2
C134
C134x1 C134x2
C187
C187x1C187x2
C188
C188x1 C188x2
C85
C85x1
C85x2
C189
C189x1C189x2
C91
C91x1
C91x2
CN15
CN15x1
CN15x2
CN15x3
CN19
CN19x1CN19x2CN19x3CN19x4CN19x5
CN6
CN6x1
CN6x2
CN6x3
CN6x4
CN6x5
CN6x6
CN6x7
CN6x8
CN6x9
CN6x10
CN8
CN8x1CN8x2CN8x3CN8x4CN8x5CN8x6CN8x7CN8x8CN8x9
CN8x10CN8x11CN8x12CN8x13CN8x14
SW
SWx1 SWx2
CN13
CN13x1
CN13x2
CN5
CN5x1
CN5x2
CN5x3
CN5x4
CN5x5
CN5x6
CN5x7
CN5x8
CN5x9
CN5x10
CN5x11
CN5x12
CN5x13
CN5x14
CN5x15
CN2
CN2x1
CN2x2
CN2x3
CN2x4
CN2x5
CN2x6
CN2x7
CN2x8
CN2x9
CN2x10
CN2x11
CN2x12
CN2x13
CN2x14
CN2x15
CN3
CN3x1CN3x2CN3x3
CN7
CN7x1CN7x2CN7x3
CN12
CN12x1
CN12x2
CN12x3
CN12x4
CN4
CN4x1
CN4x2
CN4x3
CN4x4
CN16
CN16x1
CN16x2
CN16x3
CN16x4
CN9
CN9x1
CN9x2
CN41
CN41x1CN41x2CN41x3CN41x4CN41x5CN41x6CN41x7CN41x8
D8
D8x1
D8x2
JP1
JP1x1
JP1x2
U11
U11x1 U11x2 U11x3 U11x4 U11x5 U11x6 U11x7 U11x8 U11x9
U11x10
U11x11U11x12U11x13U11x14U11x15U11x16U11x17U11x18U11x19U11x20
U22
U22x1
U22x2
U22x3U22x4
U22x5
JK8
JK8x1
JK8x2
JK8x3
JK8x4
JK8x5
JK8x6
JK8x7
L11
L11x1L11x2
L11x3L11x4
R63
R63x1
R63x2
R51
R51x1 R51x2
R52
R52x1 R52x2
R13
R13x1 R13x2
R402
R402x1 R402x2
R107
R107x1
R107x2
R108
R108x1
R108x2
R77
R77x1
R77x2
R104
R104x1 R104x2
R67
R67x1
R67x2
R50
R50x1 R50x2
R49
R49x1 R49x2
U23
U23x1U23x2U23x3U23x4
U23x5 U23x6 U23x7 U23x8
X2
X2x1X2x2
Q4
Q4x1
Q4x2 Q4x3
Q5
Q5xD
Q5xG
Q5xS
U19
U19x1 U19x2 U19x3 U19x4 U19x5 U19x6 U19x7 U19x8
U19x9
U19x10U19x11U19x12U19x13U19x14U19x15U19x16
AR36
AR36x1
AR36x2 AR36x3
AR36x4
AR36x5
AR36x6AR36x7
AR36x8
Q6
Q6xB
Q6xC
Q6xE
Q7
Q7xB
Q7xC
Q7xE
L46
L46x1L46x2
L87
L87x1L87x2
L88
L88x1L88x2
L2
L2x1 L2x2
L9
L9x1 L9x2
C101
C101x1
C101x2
C102
C102x1
C102x2
C184
C184x1C184x2
CN56
CN56x1CN56x2CN56x3CN56x4CN56x5
SWA
SWAx1 SWAx2
D9
D9x1D9x2
J1
J1x1
J1x2
J2
J2x1
J2x2
J3
J3x1J3x2
J4
J4x1J4x2
C607
C607x1
C607x2
R412
R412x1
R412x2
R413
R413x1R413x2
R414
R414x1R414x2
CN17
CN17x1 CN17x2
CN10
CN10x1
CN10x2
CN10x3
CN10x4
CN10x5
CN10x6
CN10x7
R100
R100x1R100x2
R101
R101x1
R101x2
R102
R102x1
R102x2
R105
R105x1 R105x2
R443
R443x1
R443x2
R444
R444x1
R444x2
R46
R46x1 R46x2
R48
R48x1 R48x2
R78
R78x1 R78x2
R15
R15x1R15x2
R27
R27x1R27x2
R59
R59x1
R59x2
R14
R14x1R14x2
R45
R45x1R45x2
R79
R79x1 R79x2
R91
R91x1 R91x2
R92
R92x1 R92x2
R36
R36x1 R36x2
USB2
USB2x1
USB2x2
USB2x3
USB2x4
USB2x5
USB2x6
U64
U64x1U64x2U64x3U64x4U64x5U64x6U64x7U64x8U64x9
U64x10
U64x11
U64x12
U64x13
U64x14
U64x15
U64x16
U64x17
U64x18
U64x19
U64x20
U64x21 U64x22 U64x23 U64x24 U64x25 U64x26 U64x27 U64x28 U64x29 U64x30
U12
U12x1U12x2U12x3U12x4
U12x5 U12x6 U12x7 U12x8
U17
U17x1U17x2U17x3U17x4
U17x5 U17x6 U17x7 U17x8
D7
D7x1
D7x2
LED1
LED1x1 LED1x2
T1
T1x1T1x2
T1x3
L56
L56x1L56x2
M1
M1x1
M2
M2x1
M3
M3x1
M4
M4x1
P4
P4x1
C132
C132x1
C132x2
C92
C92x1
C92x2
C34
C34x1C34x2
C153
C153x1 C153x2
C161
C161x1C161x2
L4
L4x1
L4x2
C223
C223x1
C223x2
C139
C139x1
C139x2
C194
C194x1
C194x2
C195
C195x1
C195x2
C185
C185x1
C185x2
C130
C130x1
C130x2
C182
C182x1
C182x2
C199
C199x1
C199x2
C202
C202x1
C202x2
C211
C211x1
C211x2
C217
C217x1
C217x2
C227
C227x1
C227x2
C233
C233x1
C233x2
C238
C238x1
C238x2
C246
C246x1
C246x2
C53
C53x1
C53x2
C111
C111x1
C111x2
C119
C119x1
C119x2
C160
C160x1
C160x2
C128
C128x1
C128x2
C144
C144x1
C144x2
C148
C148x1
C148x2
C196
C196x1
C196x2
C197
C197x1
C197x2
L12
L12x1L12x2
L13
L13x1L13x2
L16
L16x1L16x2
C103
C103x1 C103x2
D1
D1x1D1x2
R53
R53x1 R53x2
R54
R54x1 R54x2
R57
R57x1 R57x2
L38
L38x1 L38x2
L39
L39x1 L39x2
L40
L40x1 L40x2
L41
L41x1 L41x2
L8
L8x1 L8x2
R166
R166x1R166x2
L15
L15x1 L15x2
C145
C145x1C145x2
C146
C146x1
C146x2
C157
C157x1
C157x2
R403
R403x1 R403x2
C606
C606x1
C606x2
R81
R81x1
R81x2
R86
R86x1
R86x2
R89
R89x1R89x2
R90
R90x1R90x2
CN11
CN11x1
CN11x2
C150
C150x1C150x2
C151
C151x1 C151x2
C152
C152x1C152x2
D30
D30x1
D30x2
L17
L17x1
L17x2
R98
R98x1 R98x2
R93
R93x1R93x2
R94
R94x1 R94x2
R96
R96x1R96x2
R97
R97x1 R97x2
U2
U2x1
U2x2
U2x3
U2x4U2x5
U2x6
U2x7
U2x8
C221
C221x1C221x2
C143
C143x1C143x2
USB1
USB1x1
USB1x2
USB1x3
USB1x4
USB1x5
USB1x6
Composite Board
13
14
Spare parts list of LQSW
Serial
number
P/N
Material Name
Desription
Qty
1
638020091
Adapter PSU
IN:100-240V 50/60HZ Out:DC12V
2000MA Spec:FJ-SW1202000N
1
2
638020070
Japan/USA pin
pin
1
3
638020069
UK pin
pin
1
4
638020068
EU pin
pin
1
5
638020077
SAA pin
pin
1
6
639000321
User manual
LQSW/LQSX
1
7
639000336
Safety and warranty manual
LQSW/LQSX
1
8
64800001301
Download card
LQSW/LQSX
1
9
6440000500
Foam
EPS LQSW/LQSX
1
10
649000338
Outer box
LQSW
SIZE:1450*600*325mm
1
15
11
1060001
Stool
Black，Size:300*400mm
1
12
211010007
Interface plastic
LQSW/LQSW
1
13
642010042
Damper sticker
LQSW
1
14
309070066
Damper
40D8-2.0N/M
1
15
102170007
Foot pedal assembly
LQSW/LQSX
1
16
101010038
Motherboard Components
LQSW/LQSX, Code: 001990020
1
17
101290006
Headphone assembly
Spec LQSW/LQSX
1
18
102030095
Panel assembly
Spec:LQSW
1
19
101010031
LCD Driver PCBA
LQSW/LQSX_LCD
1
20
629010027
Keyboard conductive rubber
LQSW/LQSX -12 pins
6
21
629010028
Keyboard conductive rubber
LQSW/LQSX -13 pins
1
22
629010029
Keyboard conductive rubber
LQSW/LQSX -3 pins
1
16
23
102060006
Keyboard assembly
Spec LQSW/LQSX
1
24
001990018
White key（10pcs/set)
Spec White ABS LQSW/LQSX
5.2
25
001990019
Black key（10pcs/set)
Spec Black ABS LQSW/LQSX
3.6
26
101030082
Left function PCBA
Spec:LQSW/LQSX AL-0
1
27
101030083
Right function PCBA
Spec:LQSW/LQSX AR-0
1
28
629010051
Functional conductive
rubber
Spec:LQSW/LQSX
1
29
10106002601
Switch module
Spec:LQSW/LQSX
1
30
101070023
Volume control module
Spec:LQSW/LQSX VOL
1
31
201020044
Plastic left panel
Spec:LQSW
1
32
201020045
Plastic right panel
Spec:LQSW
1
33
203030089
Plastic middle panel
Spec:LQSW
1
34
219010009
Plastic speaker net
Spec:LQSW/LQSX
2
This manual suits for next models
1
Table of contents
Other Alesis Musical Instrument manuals
Alesis
Alesis VIRTUE AHP-1 User manual
Alesis
Alesis Prestige User manual
Alesis
Alesis recital pro User manual
Alesis
Alesis Coda Pro User manual
Alesis
Alesis Coda Pro User manual
Alesis
Alesis Surge Ride Cymbal with Choke User manual
Alesis
Alesis AHB-1 User manual
Alesis
Alesis RECITAL 61 User manual
Alesis
Alesis DM7 Installation guide
Alesis
Alesis DG8 User manual
