alfen Eve Single Pro-line DE User manual

Eve Single Pro-line DE
–
Manual
Pro-line DE

2

3
MODEL WITH SOCKET/
MODELL MIT STECKDOSE
EVE SINGLE PRO-LINE DE
OUTSIDE
INSIDE/
INNENSEITE
BOTTOM/
UNTERSEITE
14
13
17
15
18
16
11
10a
10a
8
9
10b
11
11
10a
11
7
11
6
5
11
12
MODEL WITH CHARGING CABLE/
MODELL MIT LADEKABEL
1
3
2
1
3
2
4 4

4

ENGLISH
5
Step-by-step Eve Single
Pro-line DE installation and
commissioning
–
Congratulations on your purchase of an Alfen charging
station for electric vehicles!
To ensure safe installation, and full utilisation, of all advanced features of your charging
station, we recommend that you read this manual carefully and save it for future reference.
While we have done our utmost to provide you with a complete and comprehensive manual,
it may occasionally be subject to updates and content improvement. The latest version will
always be available for download at www.alfen.com.

6Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
DECLARATION OF CONFORMITY
Manufacturer information:
Alfen ICU B.V.
Herugweg 28
1332 AP Almere
The Netherlands
Declares that the charging station of the type Alfen Eve
Single Pro-line DE, to which this declaration applies,
complies with:
1) The provisions of the low voltage directive 2014/35/EU
2) The provisions of the EMC guideline 2014/30/EU
3) The following harmonised standards:
IEC 61851-1 ed. 3 (2017)- Electric vehicle conductive
charging system - General requirements, on national
level implemented under DIN-EN 61851-1.
4) Eichrecht certied by CSA Group Bayern GmbH (1948)
Module-B : DE MTP 19 B 004 M
Module-D : DE MTP 19 D 003 MI-003
• Mess- und Eichgesetzes vom 25.07.2013 (BGBl. I S.
2722), zuletzt geändert durch Artikel 1 des Gesetzes
vom 11.04.2016 (BGBl. I S. 718)
• Mess- und Eichverordnung vom 11.12.2014 (BGBl. I S.
2010), zuletzt geändert durch Artikel 10 der Verordnung
vom 30.04.2019 (BGBl. I S. 2034).
• REA-Dokument 6-A „Regeln und Erkenntnisse des
Regelermittlungsausschusses nach § 46 des Mess- und
Eichgesetzes für Messgeräte und Zusatzeinrichtungen im
Anwendungsbereich der E-Mobilität“ Stand: 16. März 2017.
• PTB-Anforderungen an elektronische und software-ge-
steuerte Messgeräte und Zusatzeinrichtungen für
Elektrizität, Gas, Wasser und Wärme [PTB-A 50.7] vom
April 2002.
All mentioned products are labelled with the CE mark.
Almere, The Netherlands, 3 februari 2020.
Ir. M. Roeleveld
CEO
1 Safety and usage instructions 7
1.1 Purpose and intended audience 7
1.2 General safety 7
1.3 Disclaimer 7
1.4 Copyright
2 Product 8
2.1 The charging station 8
2.2 User interface 9
2.2.1 Status indications on Eve Single Pro-line
DE models 9
2.2.2 Status indicator symbols 9
2.3 Operation 10
2.4 Eichrecht 11

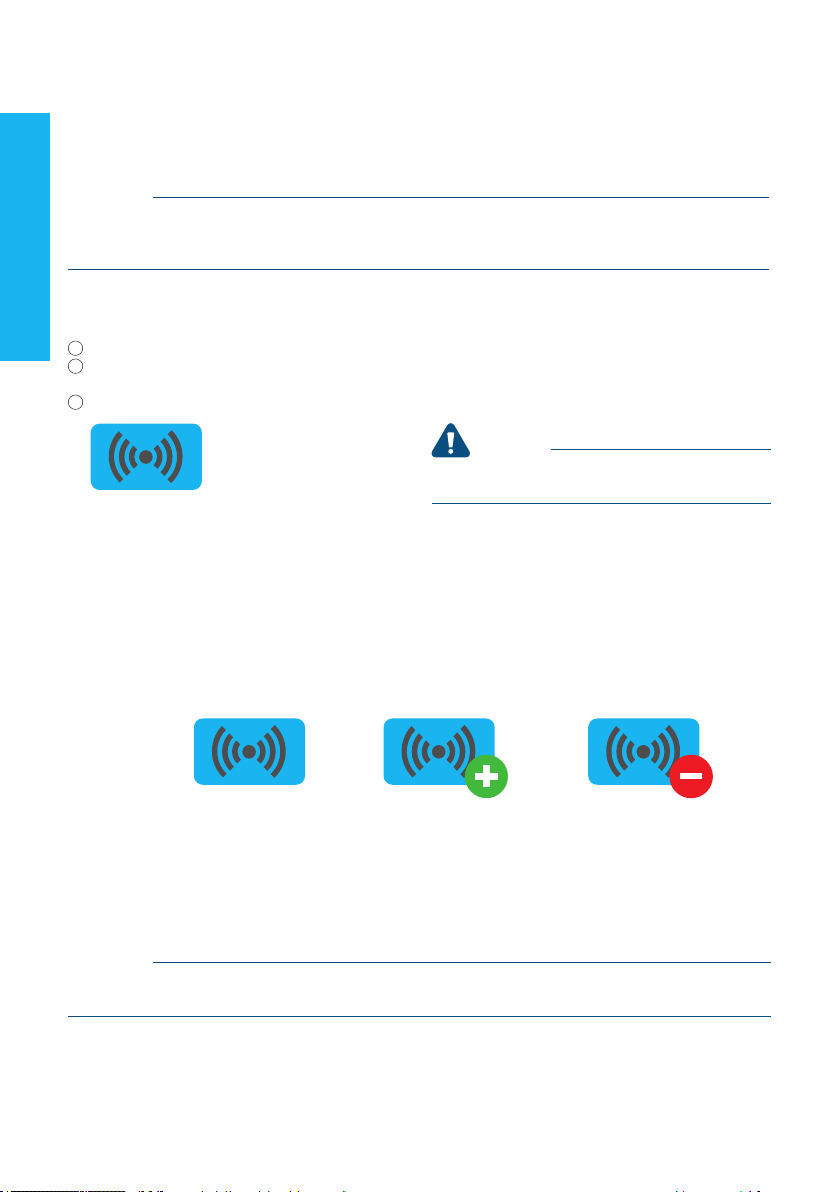

2.5 Access control for local authorisation
(RFID, only Pro-line models) 12
2.5.1 Installing the Master Key 12
2.5.2 Adding and removing passes in
the local database 12
2.5.3 Removing the Master Key 12
2.6 Technical specications 13
2.6.1 Eve Single Pro-line DE models 13
2.6.2 The Eve Single Pro-line DE overview 13
2.6.3 Eve Single Pro-line DE specications 13
2.6.4 Communication and protocols 13
2.6.5 Communications security 14
2.6.6 General product spacications 14
2.6.7 Available memory 15
2.6.8 Use conditions 15
2.6.9 Casing 16
2.6.10 Installation instructions 16
2.6.11 External protection according to
EV/ZE-Ready 17
2.7 Optional factory settings 17
2.8 Accessories 18
3 Assembly and connecting 19
3.1 Installing and connecting 19
3.2 Assembly and installation requirements 20
3.3 Mechanical installation 20
3.4 Electrical installation 22
4 Commissioning the charging station 23
4.1 Safety instructions before use 23
4.2 Commissioning Eve single Pro-line DE models 23
4.3 Conguring the charging station with
Service Installer (application) 23
4.3.1 Preparation 23
4.3.2 Using the Service Installer application 24
4.3.3 Changing language settings 24
4.4 Activate functionality with the
Service Installer application 24
5 Connectivity 25
5.1 Management systems 25
5.2 Setting up a connection 25
5.2.1 Wireless connection 25
5.2.2 UTP (Ethernet) connection 25
5.3 Register your ICU EZ account 26
5.4 Managing settings 26
5.5 Register your charging station to your
own management system 26
Appendices
Appendix A: Error codes and problem-solving 27
Appendix B: Default selections for optional
factory settings 29
Waste Electrical and electronic equipment (WEEE) 34
TABLE OF CONTENTS

7
Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
1. SAFETY AND USAGE INSTRUCTIONS
1.1 Purpose and intended audience
The Alfen Charging station (the “Product”) is intended
exclusively for charging electric vehicles and, when installed
correctly, may be used by untrained individuals.
Installation, commissioning and maintenance of this
Product may only be performed by a qualied electrician
(Alfen certied partner). It is essential that the qualied
technician has:
• Expertise on all relevant general and specic rules
regarding safety and incident prevention
• Comprehensive knowledge of applicable electrical
regulations.
• The ability to identify risks and avoid potential hazards.
• Received and read these installation and operation
instructions.
1.2 General safety
DANGER!
These safety instructions are important to ensure safe
operation. Failure to comply with them in accordance with
general electrical safety regulations could result in a risk of
electrical shock, re and/or life threatening injury.
Using this product is expressly prohibited in the following
situations:
• In the vicinity of explosive or highly ammable
substances.
• If the product is located in or close to water.
• If the product or its individual components are damaged.
• Usage by children or individuals not able to properly
assess the risks associated with using this product.
Alfen ICU B.V. (“Alfen”) shall not be liable in any way, for any
kind of damage, and all warranties on both the product and
accessories shall become void where:
• The Products have been subject to misuse, faulty
installation or maintenance; or
• The Products have been dissembled, modied or
repaired; or
• The manuals, use conditions and maintenance
instructions which are applicable for (parts) of the
Products or have been provided by Alfen are not
complied with; or
• The Products are used in the vicinity of explosive or
highly ammable substances or in or near to water; or
• In case of normal wear and tear; or
• There is a failure of the distribution network; or
• There is a force majeure situation, or the defect is
otherwise caused from the outside.
More extensive safety information is available in the
relevant sections of this document.
1.3 Disclaimer
This manual applies to the Product equipped with rmware
version 4.7.0 or higher.
This document has been subjected to rigorous technical
review before being published. It is revised at regular
intervals, and any modications and amendments are
included in the subsequent issues. The content of this
document has been compiled for information purposes only.
Although Alfen has made its best eorts to keep the
document as precise and up-to-date as possible, Alfen shall
not assume any liability for defects and damage which
results from the use of the information contained herein.
In no event will Alfen be liable for direct, indirect, special
or consequential damages (incl. loss of prots) resulting
from any errors or omissions in this manual. All obligations
of Alfen are stated in the relevant contractual agreements.
Alfen reserves the right to revise this document from time
to time.
Any deviation to the Products including, but not limited
to, customer-specic modications (like customisation
by placing stickers, SIM cards or the usage of dierent
colours), hereafter referred to as ‘Customisation’, can alter
the nal product experience, product appearance, product
quality and/or product lifespan. Alfen is not liable for any
damage to, or caused by, the product (including applied
Customisation) if this damage is caused by this applied
Customisation. Contact your dealer for more information on
Customisation versus the default product.
1.4 Copyright
Copyright © Alfen N.V. 2020. All rights reserved. The
disclosure, duplication, distribution and editing of this
document, or utilization and communication of the content
are not permitted, unless authorized in writing. All rights,
including rights created by patent grant or registration of a
utility model or a design, are reserved.

8Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT
2.1 The charging station

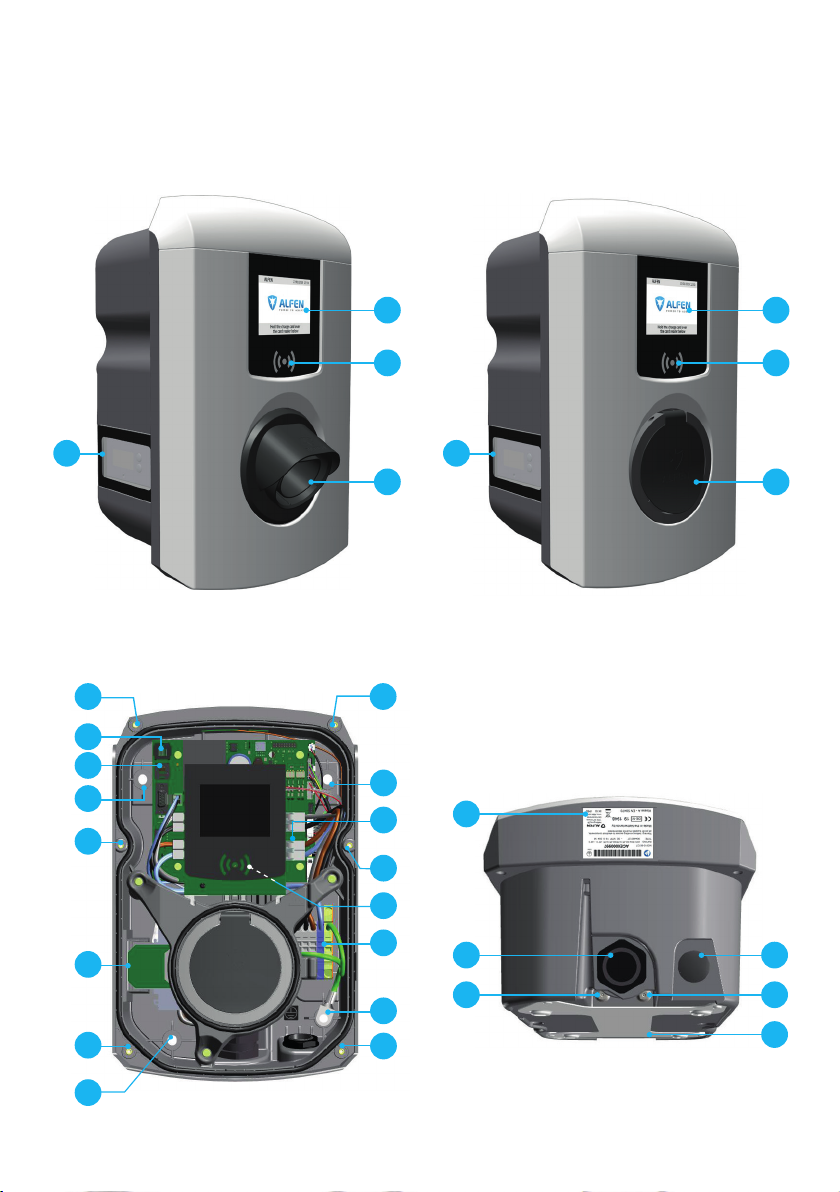

On page 3 of this manual, you will nd the images of the Eve Single Pro-line DE product line. In this chapter, you will nd
more information on the contents of these charging stations and how they can be used to charge your vehicle.
Identication label
The identication label 13 found on the bottom of the charging station species elements such as:
• Model, production date and serial number.
• Technical specication number.
• Article number and maximum charging current.
When contacting Alfen, always have your serial number available to facilitate quick support.
Eve Single Pro-line DE (page 3)
Outside
1Colour display
2RFID pass reader
3Type 2 socket or plug holder
Energy meter viewing window
Inside
5UTP (Ethernet) connector
6RJ11 connector
7SIM card holder
8Terminal block for the power cable
9Clamps for outbound charging cable (model without socket outlet)
10 a. Screws for wall-mounting frame
10 b. Screws for wall-mounting frame with earth connection
11 Screws for front cover
Eichrecht compliant electricity meter
Bottom
13 Identication label
14 Cable gland for the power cable
15 Cable gland for charging cable
16 Wall-mounting frame
17 Grommet for UTP cable/Ethernet cable
18 Grommet for P1 cable
4
12

9
Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT

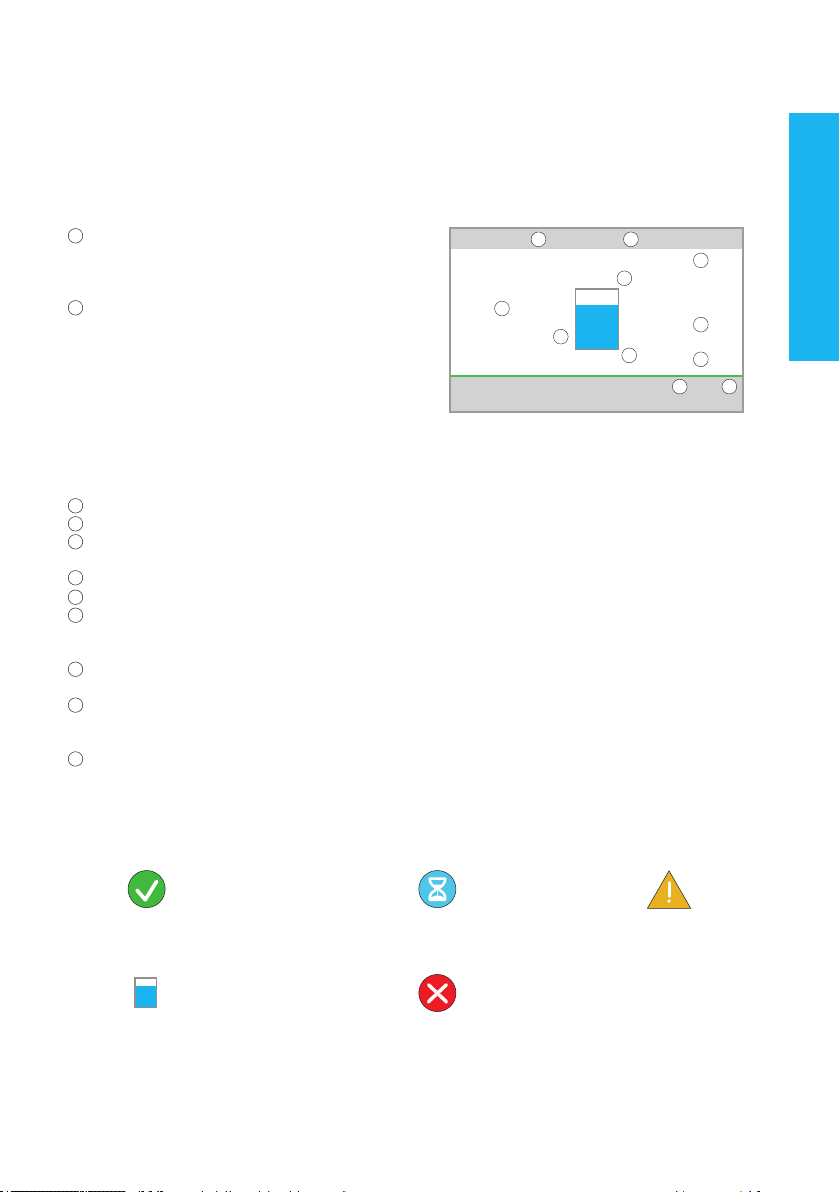

2.2.1 Status indications on Eve Single Pro-line DE
models
General information on charging station
1 The charging station ID: Identication is determined by
the reseller or operator of the central management
system. Use this ID to convey to a helpdesk for which
charging station you need support.
2 Date and time: these are set through a central
managemant system (automatically) or during
installation, using the Service Installer application.
If
the product does not have a current time, this eld is
hidden.
Status and information screen
Status and information screen: the charging station
informs the user of its current status and provides the user
with a response to the actions performed. The following
information is available:
3 Status information.
4 Maximum charging capacity of the outlet.
5 Current charging capacity to the connected
vehicle.
6 Status indicator (refer to paragraph 2.2.2).
7 Energy picked up during the current transaction.
8 Duration of the current transaction.
Instruction eld
9 During a charging session the public key is shown on
the display.
User instructions will be displayed in this location.
Where an error occurs, an error code and instruction will
be shown (see Appendix A for more information).
A full progress bar indicates the necessary steps are
completed and charging will start.
2.2 User interface
The Eve Single Pro-line DE has a colour display which informs the user on the progress of the charging by using status
indications.
Charge pass accepted,
cable connected Communicating with vehicle or charging complete
Error, notication with error
code
Charging transaction
active, with charging speed
indication
--kW
--kW
--.--kWh
--.--h
22/01/2019 12:30
Um Laden zu stoppen
Ladekabel abziehen
Fahrzeug wird geladen
22kW
01:23h
18.1kW
22.67kWh
21
3
4
6
5
7
89
ALFEN
Figure 1: Display of Eve Single Pro-line DE during charging with
type 2 Socket
Warning, notication with
error code
10
11
2.2.2 Status indicator symbols
11
akux Imzb fq2u rt7d qoly 7ipe 6ez4 ke2b nevf b3I3
10

10 Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT
--kW
--kW
--.--kWh
--.--h
Pro-line
Pro-line
21 3
21 3
2.3 Operation
Specic user actions are presented in a sequence that clearly shows the progress and corresponding status indications.
The rst steps can be conducted in any sequence. Upon detecting a charging cable or charge pass, all Eve Single Pro-line DE
products will show the green check mark symbol. The light blue (cyan) hourglass symbol will only be displayed if and when
a connection between the vehicle and charging station is established. During charging the status indicator will show the
charging transaction is active.
Operation Plug & Charge – Authorisation without a charge pass
Stop
Start
Pro-line
Pro-line
2 41 3
2 41 3
RFID - Charging station with user authorisation
Stop
Start
--kW
--kW
--.--kWh
--.--h

11
Eve Single Pro-line DE manual |Version 1.0 |February 2020
2. PRODUCT
ENGLISH
2.4 Eichrecht
The Eve Single Pro-line DE charging stations are Mess- and Eichrecht compliant. The charge stations are outtted with
measuring equipment to ensure the meter values can be veried and validated by the end user. According to the Eichrecht
law and regulation the operator must provide the correct value on the energy meter at the time of Invoicing.
In addition the charging station will show how much has been charged at the end of a charging session.
A digital signature protects the meter values according to the calibration law and regulations. With this digital signature,
the end user can check the correct kWh counter value on the Eichrecht compliant electricity meter. The Eichrecht compliant
energy meter is located on the side of the charging station.
Figure 2: The Eve Single Pro-line DE with the Eichrecht compliant electricity meter on the side
REMARK
For more information and operation of the Eichrecht feature please refer to the 'Eichrecht Benutzerhandbuch Anhang
Eichrecht-konforme EV-Ladelösung'-Addendum to this manual delivered with your product.
During a charging session the public key and the kWh value are shown on the measurement unit. The measurement unit is
illuminated making it readable at all time.
Figure 3: The Eichrecht compliant energy meter display with kWh value and public key
Eichrecht
compliant
energy
meter
Eichrecht
compliant
energy
meter

12 Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT
2.5.1. Installing the Master Key
A Master Key can be easily installed using the following steps:
1 Select an RFID pass like the included Alfen pass, that complies with the specications mentioned in paragraph 2.6.3.
2 Hold the RFID pass in front of the pass reader for 10 seconds. The charging station does not recognise the pass and
will give a warning rst. You can ignore this.
3 After 10 seconds, the RFID pass will be registered as the Master key. The following icon appears on the screen:
The charging station will only recognise one RFID pass as the Master Key.
2.5.2 Adding and removing passes in the local database
Once the Master Key is registered, it can be used to add or remove charging passes from the local database. For every pass
held in front of the charging station, the station will give a sound signal. Follow the on-screen instructions to manage
access control:
If you add or remove a charge pass accidently, immediately hold it in front of the pass reader to undo the action.
To close the database, hold the Master Key in front of the pass reader once more.
Hold the Master Key in front
of the pass reader
Hold the charge pass that you
want to add in front of the pass
reader
Hold the charge pass that you
want to remove in front of the
pass reader
Display
Supporting text
on display
Master Key held in front of
reader
Add or remove charge passes
Pass added Pass removed
NOTICE!
The Master Key cannot be used for charging. It is only used
for access control of the charging station.
REMARK
To prevent the local database from being 'open' to access control, the menu will close automatically if no card has been
detected or removed after 10 seconds. The symbol will disappear from the display.
2.5.3 Removing the Master Key
A Master Key can only be removed using the Service Installer application. If necessary, you can ask for help from one of our
technicians. This might, however, incur costs. Therefore, always keep the Master Key in a safe location. More information on
the use of the Service Installer application can be found in paragraph 4.3.2.
2.5 Access control for local authorisation (RFID)
To control local user access to an Alfen Eve Single Pro-line DE charging station, you need to install an RFID pass as the
'Master key'. With this Master Key, you can determine who can use your charging station.
REMARK
Your charging station must be congured correctly in order to accept Master Keys. For stand-alone charging stations this
functionality is automatically ON. If the charging station is delivered with a pre-programmed management system, this
functionality will be OFF.

13
Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2.6 Technical specications
2.6.2 The Eve Single Pro-line DE overview
Models
Pro-line DE
Eve Single Pro-line DE, 3 phase, display, type 2 socket 904460123 NG910-60123
Eve Single Pro-line DE, 3 phase, display,
charging cable (5 or 8 meter, see 'Accessories') 904460127 NG910-60127
3 phase •
RFID pass reader •
RGB LED -
Display •
Energy meter MID certied, encrypted data transport
Eichrecht support •
Max. 6mA DC detection •
Residual Current Breakers -
Short-circuit protection -
Mobile network communication •
Ethernet/LAN network connection •
2. PRODUCT
2.6.3 Eve Single Pro-line DE specications
Operation
Plug & Charge authorisation
RFID authorisation
Central system
Third-party apps
Display 3.5" TFT colour display, 320 x 240 pixels
RFID pass reader RFID (NFC) ISO/IEC 14443A/B, MiFare Classic 13.56 MHz, DESFire
Maximum length: 7 bytes
Mobile network possibilities GPRS
Energy meter MID certied & Eichrecht compliant
Status indication Integrated in the display
Access Locations with restricted access
Locations with non-restricted access
2.6.4 Communication and protocols
Controller Central unit for charging currents and communication
Vehicle communication Mode 3 in accordance with IEC 61851-1 ed. 3 (2017)
Internet/networking possibilities Mobile network communication, Ethernet/LAN
Communication protocol Central System OCPP 1.5 (JSON), OCPP 1.6 (JSON)
Supported RJ45 protocols OCPP
TCP/IP
Supported RJ11 protocols DSMR 4.0-4.2 and SMR5.0 (P1 port)
I/O for supporting external relay
Modbus (Master/slave) TCP/IP
2.6.1 Eve Single Pro-line DE models

14 Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT
2.6.5 Communications security
SIM card Mini SIM card
APN username and password
Central System authentication TLS 1.2 x509 2048/4096 bit root certicate
EVSE authentication HTTP Basic authentication, with or without TLS
Remote console access (SSH, telnet) Not supported
Diagnostic les Encryption: AES 128 bit
Firmware update les Encrypted and digitally signed
Encryption: SHA256 hash (pkcs1/PSS padding with 2048 RSA key)
Signature: RSA public key 2048 bit
EVSE Interal Flash AES 128 bit (erased when read)
Root certicate Installed in the factory, update through UpdateFirmwire le
For more information on the implementation of information security in Alfen Charging Equipment, you can contact
[email protected]om
2.6.6 General product specications
Number of outlets 1
Types of outlets Fixed cable
Type 2 socket, in accordance with IE62196-2
Supported power systems TN-C, TN-C-S, TT, IT grid
Nominal output voltage (+/- 10%) 400VAC (3x230VAC)
Maximum design current 32A per phase
Maximum design power 22kW
Connection clamps Cable gland, clamping range for 14-25.5mm cable thickness
Cable clamps on input lter block. Range:
• 10mm
2 per vein: solid (VD) wire
• Max. 6mm
2 per vein: stranded (VDS) wire with ferrules
Activation relay Integrated, simultaneous activation
Extra safety relay in series
Residual current protection Integrated 6mA DC leakage current detection
Response time: 1-5 seconds
Overcurrent protection Integrated in rmware; shut down at: 105% after 1,000 seconds;
110% after 100 seconds; 120% after 10 seconds; 150% after 2 seconds.
Available in- and outputs RJ45 (Ethernet/LAN)
RJ11 (active load balancing)
NOTICE!
Alfen Eve Single charge stations contain a 6mA DC detector that protects the earth leakage circuit breaker against DC leak-
age currents. The DC detector prevents type A earth leakage circuit breakers from becoming 'blind' to dangerous leakage
currents. The charging station will respond well in advance of any dangerous situation (6mA vs 30mA). Instead of jumping
the earth leakage circuit breakers, the charging station will stop the charging process in a controlled manner if leakage
currents are detected. After a time-out, and provided that the 6mA leakage current is no longer measured, the charging
process will be restarted. Three restarts are possible before the charging process is stopped permanently and an error code
is displayed. This function does not, nor will it ever, replace an earth leakage circuit breaker and cannot be tested as such
by the installer. If legislation and regulations require a type B earth leakage circuit breaker to be installed, regardless of the
presence of a 6mA DC detector, this can be installed without any problems.

15
Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT
2.6.8 User circumstances
2.6.7 Available memory
Operating temperature -25°C - 40°C
Relative atmospheric humidity 5 - 95 %
Electrical safety class I
Degree of protection (casing) IP55
IK protection (mechanical impact) IK10
Stand-by use Pro-line: approx. 3.9 – 4.1W
Environmental conditions • Indoor use
• Outdoor use
Electromechanical environmental
conditions
E2 according to the Measuring Instruments Directive (2014/32/EG)
Mechanical environmental conditions M1 according to the Measuring Instruments Directive (2014/32/EG)
Charge passes Local list: approx. 800 charge passes (via the Backend)
White list: approx. 1,200 charge passes (local)
Transaction database Approx. 1,500 transactions (of 4u with 15min Wh-metering values)
Logging for diagnostics Approx. 45,000 lines
NOTICE!
The operating temperature assumes the ambient temperature of a product delivered in the default casing colour 'RAL9016'.
Direct exposure to sunlight may have an adverse eect on the temperature range.
The ambient temperatures in the table above refer to a
product in its default casing, colour RAL9016. Other
(darker) colours may have an adverse eect on the product.
If the product is exposed to lower or higher temperatures,
continuous operation cannot be guaranteed.
If temperatures exceed the maximum values, the charging
station will automatically decrease the charging current
to decrease the internal temperature. This stabilises the
internal temperature and makes it less likely that a
transaction will be unexpectedly paused.
If the product is directly exposed to sunlight, the
automated temperature management may automatically
start below the maximum ambient temperature.
NOTICE!
Where products are exposed to the elements, the case can be subject to gradual aging of the material, which can result in
product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life
of the materials.

16 Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT
2.6.10 Installation instructions
Input: minimal
recommended cable
diameters (based on
assumed max. 50m
cable length)
3-phase 11kW charging, 16A per phase: 5 x 4 mm2.
3-phase 22kW charging, 32A per phase: 5 x 6 mm2.
Short-circuit protection With breaker circuits: With fuses:
3-phase 16A (11kW): 1 x 20A, 3P, type B or C 3-phase 16A (11kW): 3 x 20A gG
3-phase 32A (22kW): 1 x 40A, 3P, type B or C 3-phase 32A (22kW): 3 x 35A gG
Residual current
protection (possibly
i.c.w. circuit breakers)
Earth leakage circuit breakers: 30mA type A or B, 4P
11kW charging: minimum 20A
22kW charging: 40A
For specic EV/ZE Ready requirements, see paragraph 2.6.11 for detailed specications and
related requirements for the installation
Nominal input voltage • VL1-N: 230VAC (+/-10%)
• VL2-N: 230VAC (+/-10%)
• VL3-N: 230VAC (+/-10%)
• VL1-L2: 400VAC (+/-10%)
• VL1-L3: 400VAC (+/-10%)
• VL2-L3: 400VAC (+/-10%)
• VPE-N: ≈ 0VAC
Nominal frequency 50 Hz
Grounding TN system: PE cable
TT system: separately installed grounding electrode < 100 Ohm spreading resistance
IT system: connected to a shared reference (common earth) with other metal parts
Connection method Permanently connected
NOTICE!
Your installation must comply with the standards and regulations of the location (country) where it is installed. The tables
below are recommended and based on the proper practical functioning of the charging stations, provided all necessary
conditions are met.
Printing errors are expressly reserved
2.6.9 Casing
Type Wall-mounted unit
Mounting options Wall mounting or mounting post (accessory)
Material Polycarbonate, UV resistant and ame retardant
Colour RAL9016 (Trac White): front side
RAL 7043 (Trac Grey B): rear
Locking Torx T20 screws
Dimensions Eve Single Pro-line DE Socket (H x W x D)
Casing
Packaging
Dimensions Eve Single Pro-line DE Fixed (H x W x D)
Casing
Packaging
370 x 240 x 175mm
470 x 320 x 290mm
470 x 320 x 290mm
470 x 320 x 410mm
Weight
Casing
Total, incl. packaging
Approx. 4,5 kg
Approx. 5 kg

17
Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT
2.6.11 External protection according to EV/ZE-Ready
IEC 61000-4-16 or IEC 61543
Level 3 Level 4
Frequency range Cont. test Vrms (V) Current (mA) Cont. test Vrms (V) Current (mA)
1 kHz - 1.5 kHz 16.6 320
1,5 kHz - 15 kHz 1 - 10 6.6 - 66 3 - 30 2 - 200
15 kHz - 150 kHz 10 66 30 200
NOTICE!
An installation in accordance with the EV/ZE Ready standard requires a high immunity type Residual Current Breaker
(if a type A RCD is applied). The RCD must comply with Level 4 specications.
2.7 Optional factory settings
Description Options
Authorisation Plug & Charge
RFID*
Maximum charging current 16A
32A*
Smart Charge options
(see Appendix B)
O
Active load balancing*
Smart Charging Network*
Own logo in display O (Alfen logo)
On (your own logo)
Languages supported English, Dutch, German, French, Spanish, Portuguese, Italian, Norwegian,
Swedish, Finnish
User availability if temporarily
oine
Accept all RFID passes
Only valid passes in database
Not available
Action if plug is released on vehicle
side
Stop transactions and release the plug
Pause charging until cable plugged back in
Choice of management system Stand alone, ICU Connect*, other options*
Communication through * GPRS, UTP/LAN, Autodetect
* Settings may incur additional costs.
The default settings are always displayed rst.

18 Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
2. PRODUCT
2.8 Accessories
Mounting pole Art. 803873036-ICU
Post dimensions (H x W x D)
Base plate
Wall-mount dimensions (H x W x D)
1.180 x 60 x 120mm
300 x 200 mm
348 x 196 x 3mm
Material SAE 304 stainless steel,
Fine-structure powder coating
Colour RAL 7043 (Trac Grey B)
Packaging (H x W x D) 1.200 x 340 x 220 mm
Weight 12 kg
Mounting Pole 2x Eve Single Pro-line DE Art. 803873037-ICU
Pole dimensions (H x W x D) 1.180 x 340 x 220mm
Material SAE 304 stainless steel,
Fine-structure powder coating
Colour RAL 7043 (Trac Grey B)
Packaging (H x W x D) 1.200 x 340 x 220 mm
Weight 12 kg
Concrete base Art. 833829300-ICU
Dimensions (H x B x D) 570 x 350 x 220 mm
Weight 42 kg
Metal base Art. 803873065-ICU
Dimensions (H x B x D) 598 x 204 x 300
Weight 7.8 kg
Packaging (H x W x D) 50 x 295 x 620
Type 2 charging cable, 5m, 3 phase, up to 32A (22kW) Art. 203100304-ICU
Type 2 charging cable, 8m, 3 phase, up to 32A (22kW) Art. 203100305-ICU
Extra RFID card Art. 203120010-ICU

19
Eve Single Pro-line DE manual | Version 1.0 | February 2020
ENGLISH
3. ASSEMBLY AND CONNECTING

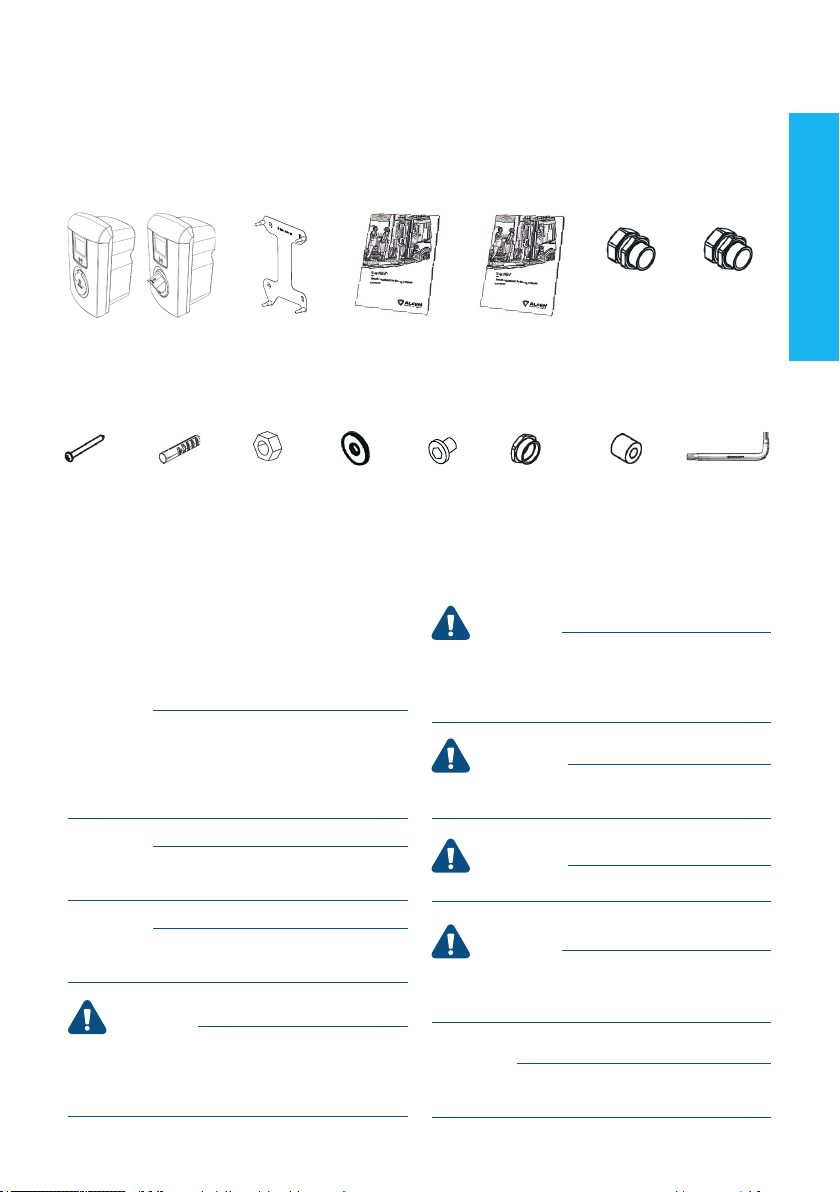

Package contents
1 x
Eve Single Pro-line DE
- With Socket
- With Fixed cable
Wall-mounting
frame
M25 x 1.5
(For model
with socket)
1 x
Contents of the charging station package: Alfen Eve Single Pro-line DETM,
installation manual, wall-mounting frame, installation supplies and RFID charge
passes (depending on options selected)
This manual
1 x 1 x
M8 washer Torx screw
M4 x 8mm
Reduction
 tting
M32 x 1.5
Filler washer for
the cable gland
Screw
5 x 50mm
4 x 4 x 6 x 1 x 1 x 1 x
Torx T20
wrench
Plug 4.5-5
8mm
4 x
Quick Installation
Guide
1 x
3.1 Installing and connecting
Carefully read these instructions prior to installing the
charging station. Alfen ICU B.V. is not liable for any
consequential damage caused by usage of this manual.
DANGER!
The charging station contains electric components that
may still contain electrical charge after being disconnect-
ed. Wait at least 10 seconds after disconnection before
commencing work.
DANGER!
The electric system must be entirely disconnected from
every power source prior to performing installation or
maintenance work!
WARNING
The adaptors or conversion adaptors are not allowed to be
used.
WARNING
Cord extension sets are not allowed to be used.
DANGER!
Hazard of fatal injury if installed incorrectly!
Non-compliance with the installation and environment
requirements may lead to hazardous situations while
working with electricity.
REMARK
The installation must be carried out by a quali ed
professional who has read this manual and works in
compliance with IEC 60364 standards. Neglecting this
may lead to severe injuries or hazardous situations while
working with electricity.
REMARK
This work may not be carried out during rain or if air
humidity exceeds 95%.
REMARK
A charging station must always be installed on a dedicated
power circuit.
REMARK
The conditions at the speci c location may in uence the
installation requirements.
M8 nut
4 x
M25 x 1.5
(For model with
 xed cable)
2 x

20 Eve Single Pro-line DE manual |Version 1.0 |February 2020
ENGLISH
3. ASSEMBLY AND CONNECTING
3.2 Assembly and installation requirements
See the table in paragraphs 2.6.10 and 2.6.11 for
the safety options and necessary cable diameters
for a proper connection.
Ensure that the following requirements for installing the
Eve Single Pro-line DE have been met:
• The cable trajectory from the main distribution panel to
the Eve Single Pro-line DE must be secured against
short-circuiting and overcurrent with:
- a B- or C-type circuit breaker (or other, in accordance
with local standards and regulations), or
- gG-type fuses (or other, in accordance with local
standards and regulations).
• The cable trajectory must be equipped with 30mA fault
current protection with a type A or B residual-current
device (RCD). The RCD must be capable of withstanding
the maximum current the charging station can process
(20A or 40A)
• The cable trajectory and the charging station are part of
a TN-S system; the equipment must be earthed at the
main distributor or with an earth pin (TT). In an energy
grid without neutral make sure that the station is
properly earthed, one of the phases is used as a neutral
and that the voltage-levels of par. 2.6.10 are complied
with.
• The cable trajectory must be installed in accordance
with the usual local professional standards.
REMARK
The installation and cables should be installed to match
the maximum charging current to the input of the charging
station. This should assume continuous load. The cable
diameters stated in this manual are indicative. The installer
is always responsible for choosing the right cable diameter
and complying with the relevant standards and legislation.
While selecting a location to install the Eve Single Pro-line
DE, the following criteria must be taken into account:
• Never install in a potentially explosive atmosphere.
• Never install in areas prone to ooding without imple-
menting compensatory measures.
• Always fully comply with local technical requirements
and safety regulations.
• An on-site connection is created that complies with the
specications in paragraphs 2.6.10 and 2.6.11.
• The installation site must have a levelled and solid
foundation.
• A temperature dierence within 24 hours < 35 °C.
• The recommended installation height is 80 - 120 cm
from the ground to the bottom of the casing.
• The charging port on the vehicle needs to be easy to
reach with the (attached) charging cable.
• Ensure that the charging station is placed at a location
where users can use their charging cable (approx. 5 -
8 metres) without placing any tension on the cable.
• Prevent other drivers from being able to drive over
the cable.
• Prevent pedestrians from tripping over cables.
3.3 Mechanical installation
Use the following tools and equipment to install the Eve
Single Pro-line DE:
• Spirit level;
• Impact drill with 8mm stone drill bit;
• Cross-head screwdriver (PZ2);
• Cross-head screwdriver (PH4);
• Wire stripper;
• Torx T20 wrench (included);
• 4x 5 x 50mm screw (included);
• 6x M4 x 8mm screw (included);
• 4x plugs 4.5 - 5mm (included);
• 4x M8 washer (included);
• 4x M8 nut (included)
Mounting post: Install the post with the concrete base
or metal base (accessory):
1. Dig a hole of approx. 50x50cm with a depth of 65cm.
2. Place the concrete or metal base in this hole.
3. Attach the post on the base with four threaded
bolts M10x25 mm and the corresponding rings (ref.
image on the cover or the base’s installation
manual).
4. Attach the mounting block with two screw bolts
M10x25 mm.
5. Attach the charging station on the post with two
screw threads M10x25 mm.
6. Attach the ground wire on the post with M4x12 mm
screws and an M4 washer.
7. Guide the ground wire through the concrete base
and the base to the charging station.
8. Rell the hole in which the base is placed and
level the surface.
9. Once completed, cover the area with a levelled
protection such as tiles.
REMARK
Protect Alfen products installed in public areas and car park
sites from mechanical impact and/or collisions which can
cause damage to the equipment.
