Alkamedi AML 3000 User manual

Or
AMS3HOAMS3
Operation Manual
000
KFDA.*
No2670By,KFDA RoHSU 189L$Q

'.,`",,' e'e CONTENTS DIGITAL WATER IONIZER
IMPORTANTSAFETYINSTRUCTIONS
PACKAGECONTENTS
APPEARANCEANDFUNCTIONS
INSTALLATION
OPERATION
FILTERREPLACEMENT
FILTERCOMPOSITION
pH VALUETEST
TROUBLESHOOTING
UNITSPECIFICATIONS
WARRANTYCARD
UNITCONVERSIONTABLES
3
7
8
10
13
18
21
22
23
25
26
27

SAFETY INSTRUCTIONS .:.',','
DIGITAL WATER IONIZER
B Make sure to read the following for your safety and protection:
^Warning symbol indicating potential fire damage or personal injury.
Caution symbol indicating safety precautions and damage to the unit"
Disclaimer:
AML 3000(S)Water ionizeris a water purification product.
AK Pleaseconsult with a physician before drinking alkalinewater.
Pleaseread instructionsto ensure proper usage ofthis product.
Before drinking alkalinewater, please consult a healthcare professionalor a medical doctor ifyou have disease.
Thisappliance must not be used by persons(including children) with reduced physical,sensory or mental
capabilities, or lack of experience and knowledge, unlessthey have been given supervision or instruction.
Children must be supervised notto playwith thisappliance.
Va(-"-) For Best Product Use:
As a precaution, always discard the water that is initially dispensed. Thiswill ensure the consistency of
the desired "strength" level selected.
Drink asmall amount of level 1alkaline water, and adjust the water level inaccordance with your
personal preference.
Only supply cold water and use sanitary drinkable water for the product.
Do not drink alkaline water ifyou haveachlorhydria, renal disease, hyperkalemia, etc.
Never drink acidic water from the product.
Select "PurifiedWater" option ifyou are taking medicine prescribed by an authorized medical
practitioner.
To ensure the maintenance of pH output, usethe reagent method every month mentioned in the "pH
Value Test" chapter.
Optimum drinking levels are based on the average distribution of the population's needs. The
manufacturer does not recommend drinking water over pH 10.
B
DIGITAL

SAFETYINSTRUCTIONS O IG ITA L WATE R IO N IZE R
^ If the unit is immersed in water, immediately pull out the power
MIEII plug and then take the unit out of the water.
^
^
^
Try to avoid an electric circuit overload of an outlet or electric
wiring. Connect the unit power plug to an AC power outlet.
> Ensuring that the unit is connected directly to a power supply outlet
will avoid a circuit overload and reduce risk factor.
Do not touch the plug with wet hands when you insert or remove it
from a power outlet.
For a stable fit, plug in the power cord completely.
> If the plug fitting is not stable, it may emit electric shocks or cause a
fire due to overheating.
> Do not use a damaged plug or an unstable power outlet.
If the supplied cord is damaged, it must be replaced by the
X?Il manufacturer or a service agent. Please contact the business who
MBfiI sold you the product and refer to the manufacturer's warranty.
Do not install the unit in below-freezing
fire hazards.
> Correct room temperature range: 10 ~ 35oC
Correct inflow water temperature: 5 ~ 30oC
AK temperature or near any ;'
-@
"O'
Do not install the unit in direct sunlight.
> Extreme environment exposure may cause the body of the exterior
unit to discolor and may cause the casing of the entire unit to
warp/twist. This may result in mechanical failure.
Always install the unit on a horizontally flat and sturdy surface.
\ a~j/ Do not place heavy items on the top of the unit. /

SAFETY INSTRUCTIONS .:',',','
DIGITAL WATER IONIZER
^Do not disassemble, repair, and/or modify.
> Personalsafety could be compromised.
> For repairs, please contact one of our authorized sales agents.
Use only sanitary and drinkable water (municipal water, etc.).
!
-_
\
h
|"0
( !") Before operating the unit, allow the unit to perform water input and output
for 2 ~ 3 minutes.
(s Never allow hot water input in the unit"
~ This may cause severe damage to its
m filter and electrolytic chamber.
^, Never spray the unit with water or clean the unit with water or other liquids.
> Recommended cleaning products are micro fiber or soft cloths.
A Do not clog, bend, twist, or kinkthe water input or output hoses.
n > Makesurethewaterhosesarenotconstrictedtoensureproperflowofthewaterinandout
oftheunit
-
"0

'.".,', :',' SAFETY INSTRUCTIONS DIG|ITAL WATER IONIZER
Do not put too much pressure onthe power cord when you remove the cord from the socket.
Keep the unit in a cool and dry condition
Keep the unit clean away from dusts, hot temperature, sunlight, salts, chemicals, etc,
Do not damage the shape or color of the unit.
Use asoft and dry washcloth when you clean the unit.
Keep the unit clean to ensure continually good service,
Bk Do not place pH test reagent / liquid near an open flame.
~IfIISIk > pH test reagent is flammable.
Do not use an aluminum (weak against alkaline), copper
(weak against acid), or other metallic container to store
ionized water.
> Glass or ceramic containers are recommended,
_ Do not drink ionized or purified water that has been stored
for longer than 3 days.
Fresh ionized water is the best.
Take good care when handling pH test reagent.
^ > Incase of accidentalconsumptionof thetest regent,force vomitingand immediatelyseekmedicaladvice,
BI> > In case of accidental exposure to eyes, rinseeye with clean water and seek medical assistance.
> In case of accidental exposure to skin, wash the stained area with clean water immediately.
> Keep pH test kit out of children's reach.

PACKEAGECQNTENS .:.',', '
DIGITAL WATER IONIZER
AML 3000
Unit Body AML 30005
Acidic Water Outlet Hose
&
Oneouch Check Valve
Fitting Safety Key Water Diveer
Source Water Inlet Hose
* Accessories are subject to change depending on the product specification.

TAG,,viIII,XIS APPEARANCEANDFUNCTIONS O I G ITAL WATE R fD N fZE R
1. Left Side Panel
2. Right Side Panel
3. LCD Screen (Function Indicator)
4. Touch Buttons
5. Operation Knob(Water Supply Control Valve)
O
O
O
O
- ' Dill
B' Dill
, ` 0III
m
6. Alkaline Water Outlet Dispenser
(AML 3000 : Swing Type, AML 30008 :
Flexible SUSTube Type)
7. Filter Connection Terminal
A filter cartridge must be connected to the
terminalwhen the filter is replaced.
8. Filter Compartment Cover
9. Base
10. Main Power Switch
11. Fuse Holder
12. Speaker
13. Water Inlet Port
Connect with Source Water Inlet Hose.
14. Acidic Water Outlet Port
15. AC Power Cord
@ @

APPEARANCEANDFUNCTIONS ',', '
D IG ITAL WATE R ID N IZE R
1. Filter LifeIndicator
Replace filterwhen icon flickers.
2. FilterAuthenticity Indicator
- Identifies authenticity of the filter,
~ Flickerswhen an authentic filter is not used,
3. Checkup Icon
Flickers when the unit requires maintenance.
4. Melody Icon
- Indicates the status of the melody function,
5. Ionization
- indicates the process of ionization.
6. WaterInlet Indicator
Rotateswhen water flows into the unit.
7. pH Level Indicator
- Indicates the selected pH level,
8. Acidic Water Choice Indicator
indicates the choice of acidic water.
g. Purified Water Choice Indicator
10.Alkaline Water Choice Indicator
- Indicates the choice of alkalinewater.
11. Water Inflow RateIndicator
Optimum flow rate:2,0 ~ 2,5 liter/minute.
12. Inlet Water Temperature Indicator
~ Optimumtemperaturerange:5 ~ 30QC,
13. FilterLifespan Icon
- Indicator bars decrease downward with use.
0
~ @
Z B C)If
ALKALINE
PURIFIED
ACIDIC
ionize Si If
,- -ml ,
v~.v
Level
Therm :SoC
Flow 2.Se/ min
oo
HH
H
0
H
0
0W
o
o
o
o
N
14. Alkaline Water Button
Pushthe button to choose alkaline water output.
15. Purified Water Button
-' Pushthe button to choose purified water output,
16. Acidic Water Button
- Push the button to choose acidic water output,
17.Melody Button
' The melody automatically plays when the acidic water is
selected. You can push the melody button to mute this sound,
18.Operation Knob
- To start / stop the unie's operation by opening / closing the
valve and to adjust water inflowrate.
ALKALINE WATER
PURIFIED WATER
ACIDICWATER
MELODY
O

INSTAIIATION DIGITAL WATER IONIZER
Alkaline Water
- comes out
_
Acidic Water __________
comes out
AML 3000
Main body
Main body
/ /
Acidic Watercomes out
AML 30005
Alkaline Water
comes out

INSTALLATION ',', '
DIGITAL WATER IONIZER
1. Select a sturdy flat surface with proximity to a power outlet.
2. Firmlyconnect the provided 1/4" hose to Water Inlet Port.
1) In the case of one-touch fitting apparatus, insert the Water Inlet Pork nozzle into the hose and fasten the safety
key after the connection,
2) Inthe case of two-touch fitting apparatus, make sure the nut is tightly screwed to ensure a tight fit.
Hose
Check Valve
(Caution:Flow Direction)
3. Connect the hose to Acidic Water Outlet Port and cut the other end of
the hose so that you have enough length to reach the sink. This
allows you to drain the acidic water or to connect to an acidic water
bucket. (You may use a hose holder.)
> If Acid Water Outlet Hose is steeped in a water receptacle or the hose is unnecessarily long, the
drainage of ionized water might be suspended. To avoid this, please have a shorter hose lengthto allow
naturaldrainage.
> Do not life the acidic water outlet hose up. Otherwise, this will hinder natural drainage and may cause
internaldamage or performance degradation.

'LlkvilIflfI,I,X,I INSTALLATION DIGITAL WATER IONIZER
Alkaline Water Outlet Dispenser swings outward from its location at the top of the unit.
The dispenser should be used as follows:
1.Horizontally swing the dispenser arm to
the front or from side to side.
2. The dispenser arm can be extended
horizontally for two additional stretches. 3. The Flexible SUS Tube dispenser can be bent
to the desired point.
AML 3000 AML3OOOS
B;GATEIT;LIDN|ZER

OPERATION ',', '
DI G ITAL WATE R IO N IZER
Firmly plug in the
AC power plug. Turn on Main Power Switch on the left
side of the bottom base.
> The unitwill beep and LCD screen will
display standby statas.
Fuse
Holder
Main Power Switch <Standby Status>
Slowly rotate Operation Knob
clocise so that the water inflow
into the unit.
The water inflow rate will appear on the screen.
Adjust if necessary.
>Thewater inflowrateis indicated in numericalvalue.
> The optimum inflow rate is 2.0 ~ 2.5 liter/minute.
> Use Operation Knob to adjust the water inflow rate.
> The screen backlight will vary according to the
chosen function and pH level.
>
RoWte Operation Knob counterloc se to OFF posHion.
The unit will return to sWndby.
>
mmt
El Eb
Alkaline Indication after water f|Owdirection is Changed
~-~->~-> 3-|q 3-q >0
<Indication of the changing water flow direction> <This is to indicate it's changing>
* Occasionally there is aticking sound from inside the unit after powering off.
This is a normalsound when the drain valve iperates,

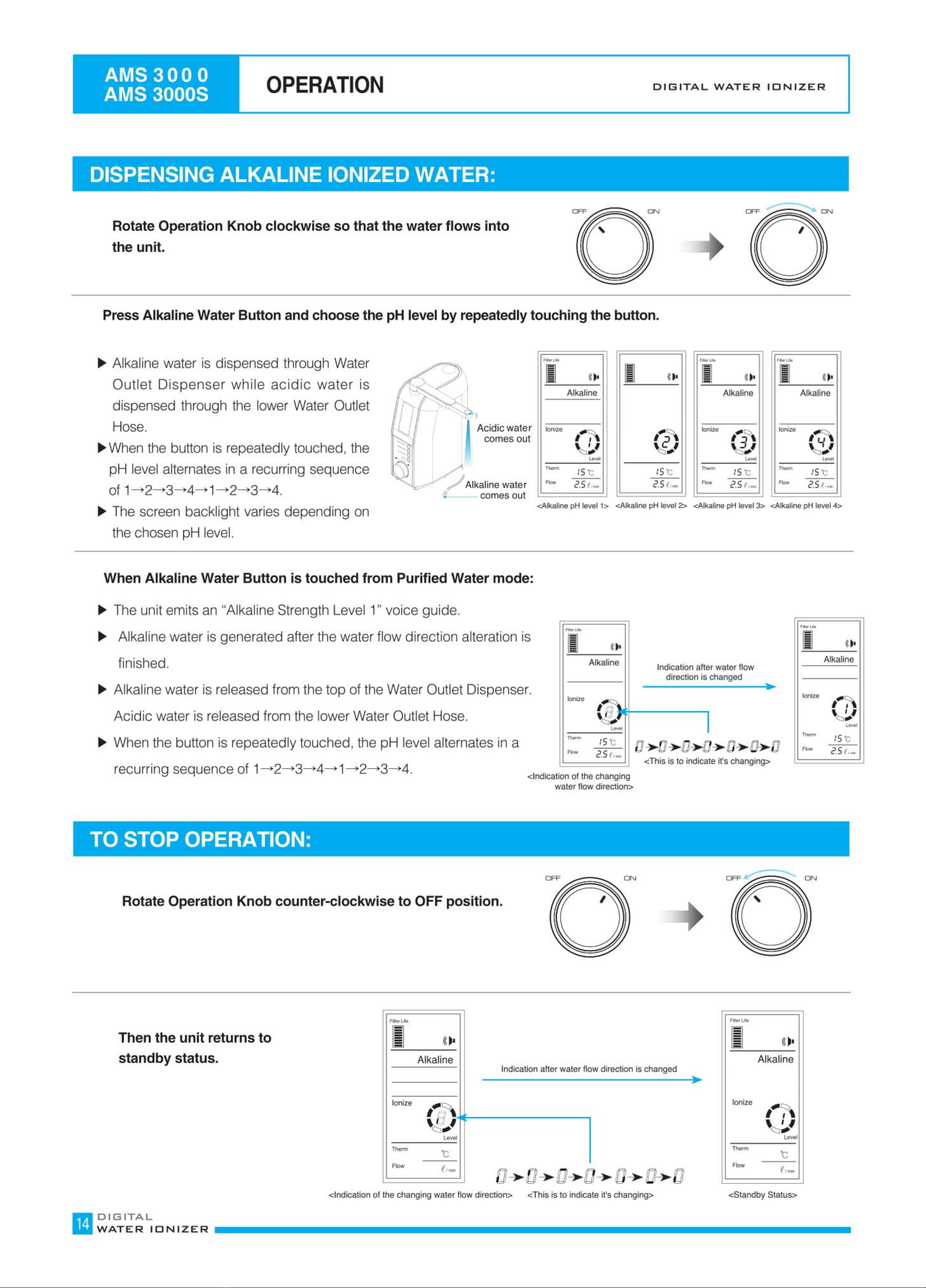

OPERATION OIG,TAL WATER IONIZER
Rotate Operation Knob clockwise so that the water flows into
the unit. >
Press Alkaline Water Button and chse the pH level by repealy touching the buHon.
> Alkaline water is dispensed through Water
Outlet Dispenser while acidic water is
dispensed through the lower Water Outlet
Hose.
>When the buon is repeatedly touched, the
pH levelalternates in a recurring sequence
of 1->23-4-1234.
> The screen backlight varies depending on
the chosen pH level.
Acid
-
When Alkaline Water Button is touched from Purified Water mode:
>
>
>
>
The unitemits an "Alkaline Strength Level 1" voice guide. ,._
Alkaline water is generated after the water flow direction alteration is
finished.
Alkaline water is released from the top of the Water Outlet Dispenser.
Acidic water is released from the lowerWater Outlet Hose.
When the button is repeatedly touched, the pH level alternates ina
recurring sequence of 123`.4134. <Indicati
water flow direction>
,u
I Cb_
Alkaline Indication af
diredion i r water flow Chane
___________
___________
Rotate Operation Knob counterlocise to OFF position. >
Then the unit returns to
standby status. w direction is changed
! -">
<Indication of the changing water flow direction> <is is to indicate Pt'schanging>

OPERATION '000o
DIGITAL WATER IONIZER
Rotate Operation Knob clockwise so that the water flows into
the unit.
> The alkaline water mode initiallyappears.
Press "Acidic Water" Button for the acidic water outlet mode.
>
When Acidic Water Button is touched during the purified
water mode:
>The unit emits an "Acidic Strength Level" voice guide and
melody.
> Acidic water is generated after the water flow direction
alteration operates (within 15seconds).
> Alkaline water is released from the lower Water Outlet
Hose. Acidic water is released from the top of Water
Outlet Dispenser,
> When the button is repeatedly touched, the pH level
alternates in a recurring sequence of 1-2-'1~->2.
|
>
newts Operation ob counterloc seto OFF salon.
The unit will return to standby
status.
Indication after water flow direction is changed ~
<Indication of the changing water flow <Standby Status>

TAG,,viIII,X,. OPERA ON D IG ,TAL WATER ION IZER
RoWte Operation Knob docise so that the water flows into
the unit.
lb The alkaline water mode initially appears.
Press "Purified Water" BuHon for the purified water olet mode.
b The unit emits a "Purified Water" voice notification.
> Purified water is dispensed from the top of Water Outlet Dispenser.
(NOTE: Nowater is dispensed from Water Outlet Hose.)
>
b The screen backlight color will be green to indicate purified water mode.
<Pu water choice indication:
Water flow direBon alteration operates>
f
PUr}hed water
comes out
y
<Water puHg operation status :
Water flow diredion alteration valve stoppe
JN
Rotate Operation Knob counterlocise to OFF position.
The unit will return to standby status.
>
PURIFIED indication sher water flow diredion is changed
I
<Indication of <Standby Sta

OPERATION ',', '
D IG ITAL WATER iO N IZE R
Press "Melody" Button to turn the melodysound on or off.
> Touch Melody Buttonto mute thesound and makethe icon disappear.
> Touching Melody Buttonagain will turn the sound back on and make the icon reappear on LCDscreen.
> The melody functionworks only in "Acidic Water" outlet mode.
> Evenifthe melody sound is off,the voice guide will stillwork.
Ritefe
IE| .."""'.
.~ .
|-__| ~Cpl .
., ...
ACIDIC
c S-If
,fjf ' ,
w.w
Level
Then /5
Flow 2.5I
Fineire
.~~~~
.- -.
|-__| ~Cpl )
., ..'
ACIDIC
'orlf;ze S- ,jjf
'j'f 'S
-.` Level
The,m /S
Flow 2 / '"1"
Icon disappears Icon appears
MELODY MELODY
Melody Voice Speaker Volume Adjustment:
> To adjust the sound volume, press "Melody" button and then "AlkalineWater" button (there are four sound settings).
Iff The melody and voice volume adjustment can only be made when the melody icon is present.
ALKALINEWATER
PURIFIEDWATER Pushing
ACIDICWATER ~ / +
MELODY
Pushing

's_,k,il.I,I,X,. FILTERREPLACEMENT D IG ITAL WATE R ID N IZ E R
Replace the filter when Filter Lifespan Indicator flickers.
> When the filter needs to be replaced, the filter
~ lifespan icon flickers and there is a guide,
B ^!Kalli ~ lease rePlace with a new filter"
Turn off the water inflow into the unit.
> Rotate Operation Knob counter-
clockwise to OFF position.
> Tum off Main Power Switch Note:
Do not continue to use the expired
fitter
__________________
The icon starts flickering when 3% 4
of the full filter life remains available-
OpenFilterCoveras shown below:
b[//
2. Pull FilterCover in the
direction of the arrow
(-) and disassemble it
from the unit body.
1.Push FilterCover lock in the , L
direction of the arrow (>). I
Disconnect Filter Connection Terminal, drag Filter Handle to the left, and remove the used filter
cartridge upward.
I
|Ilk
- Filter Handle
2. Drag Filter Handle
to the left. 3. Remove the used filter cartridge in the arrow direction

FILTERREPLACEMENT .:'.',', '
Insert a new authentic filter.
D IG ITAL WATE R IO N IZE R
1)Insert a new filter
cartridge. ~ 3) Connect Filter Top
Cable with Filter
Connection Terminal.
~
Water may leak from the filter connection points when O-ring is damaged or removed.
Carefully position O-rings correctly when a filter is replaced.
Turn off Main Power Switch and then allow water inflow into the unit for 2
~ 3 minutes while also turning on Operation Knob (repeat 2 or 3 times).
K After replacing a new filter,the initial outletwater may be darkly colored.
This color is caused by an outflow of activated carbon fines from the new
filter, The carbon fines are not harmful and should not appear after 2 ~3
minutes of running water through the unit.
Check that them is no water leakage after replacing the filter. Finer Life is automatically displayed when the
unit is turned on. (When you insert an used filter, its remaining life is displayed). Close Filter Compartment
Cover after replacing the filter.
H!
-
Close Filter
Compartment Cover
F~Uf.
m C)f
Alkaline
ionize /.tiff
flfQ ,
Level
Therm V
Flow I ] mi,f
Befo
Rep!

FILTERREPLACEMENT O IG IlTAL WATE R fD N fZ E R
Pleamonsider replacing the filter with a new one even if Filter Life Indicator is not indicating the empty filter
life ( ), if one of the following abnormal conditions occurs:
> Noticeable decrease in water outflow from the unit or astrange smell coming from the outlet water,
This could mean that the filter is clogged due to a higher than expected level of pollutants.
> When there is a noticeable change in water taste.
> When the unit has not been used for a substantial amount of time (i.e., 6 months). Idle filters with trapped
contaminants can cause bacterial growth. Ensure regular usage to prevent this from occurring.
* A filter lifespan can be changed according to the source water quality and unitoperation conditions.
Always use the manufacturer's authentic filters. The following conditions are the results of NOT using an
authentic filter:
> The unit's self-check function occurs before operation begins.
> The voice guide, "please insert an authentic filter" is repeated.
> Alkaline ionized water is not generated even ifwater comes out.
> FilterIcon and Checkup Icon will continue to flicker in recognition of the incorrect filter,
(Inthis case, please replace with an authentic filter and connect the filter cable to the terminal.)
> Warranty will become VOID due to the use's misuse or carelessness of the product. The manufacturer cannot
guarantee the unit's correct operation ifthe user chooses to usea non-authorized internal filter.
~ ... , , . ,
r IIIt;T I I;;Ul 1 IlI(;;KUl :
4 @
_l_______B th.
hIf /
w.w
Level
Therm IL5 oC
Flow E2et mll,,
Checkup Icon flickers
FilterConnection Terminal
ionization' mark disappears
