Alkamedi AMS 2200S User manual

DIGITAL
WATER IONIZER ,,,,,,
,

DIGITAL WATER IONIZER
IMPORTANTSAFETYINSTRUCTIONS
PACKAGECONTENTS

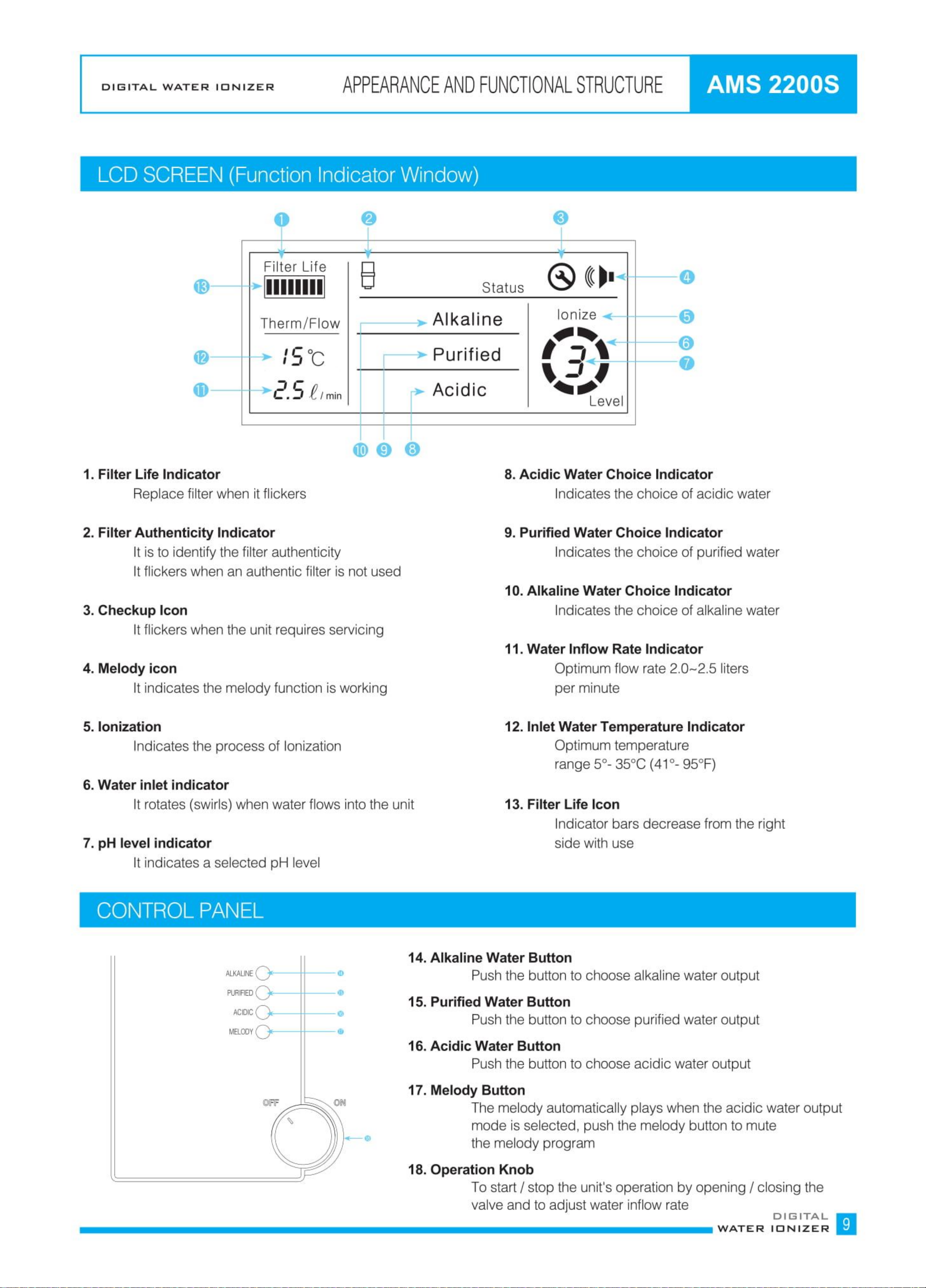

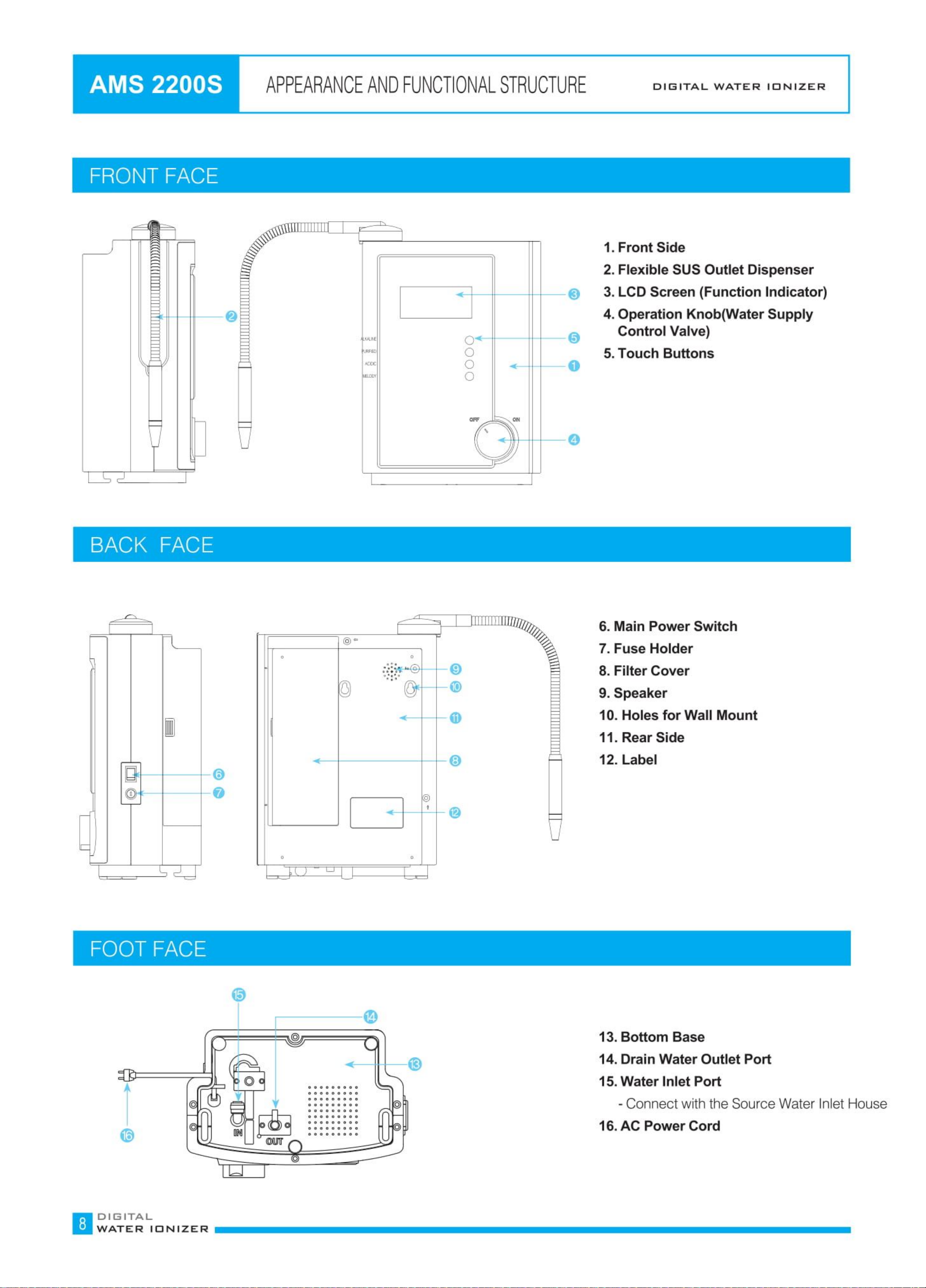

APPEARANCEANDFUNCTIONALSTRUCTURE
INSTALLATION
HOWTOOPERATE
FILTERREPLACEMENT
FILTERCOMPOSITION
pH VALUETEST ........
TROUBLESHOOTING
UNITSPECIFICATIONS
EXPLODEDVIEW
UNITCONVERSIONTABLES
WARRANTYCARD
3
7
8
10
15
20
23
24
25
27
28
30
31

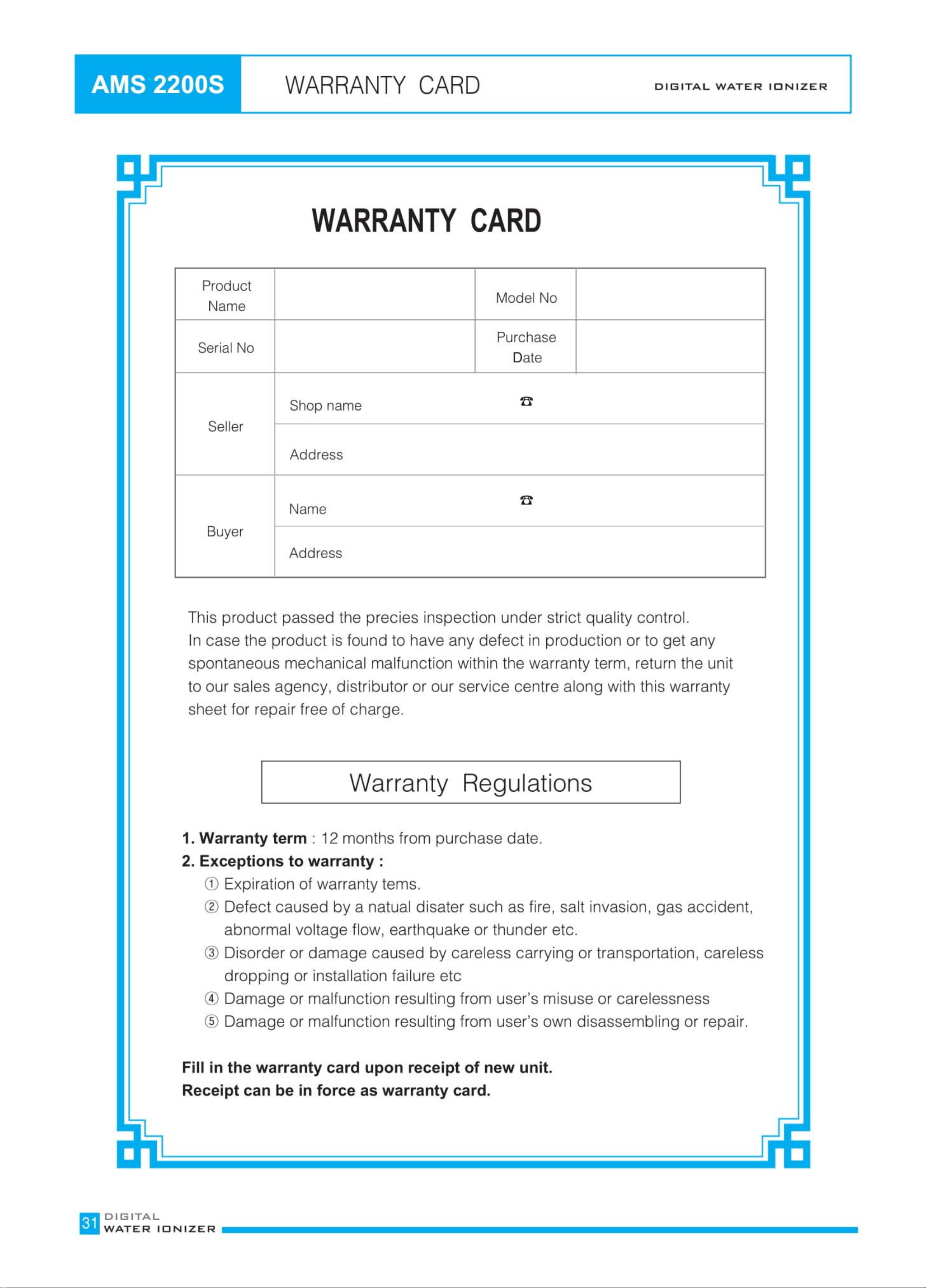

WARRANTYCARD
WARRANTYCARD
DIGITAL WATER IONIZER
Product
Name Model No
Serial No Purchase
Date
Seller Shop name 2
Address
Buyer
22
Name
Address
This product passed the precies inspection under strict quality control.
In case the product is found to have any defect in production or to get any
spontaneous mechanical malfunction within the warranty term, return the unit
to our sales agency, distributor or our service centre along with this warranty
sheet for repair free of charge.
Warranty Regulations
1. Warranty term : 12 months from purchase date.
2. Exceptions to warranty :
B Expiration of warranty terns.
@Defect caused by a natual disater such as fire, salt invasion, gas accident,
abnormal voltage flow, earthquake or thunder etc.
@ Disorder or damage caused by careless carrying or transportation, careless
dropping or installation failure etc
@Damage or malfunction resulting from user's misuse or carelessness
@Damage or malfunction resulting from user's own disassembling or repair.
Fill in the warranty card upon receipt of new unit.
Receipt can be in force as warranty card.

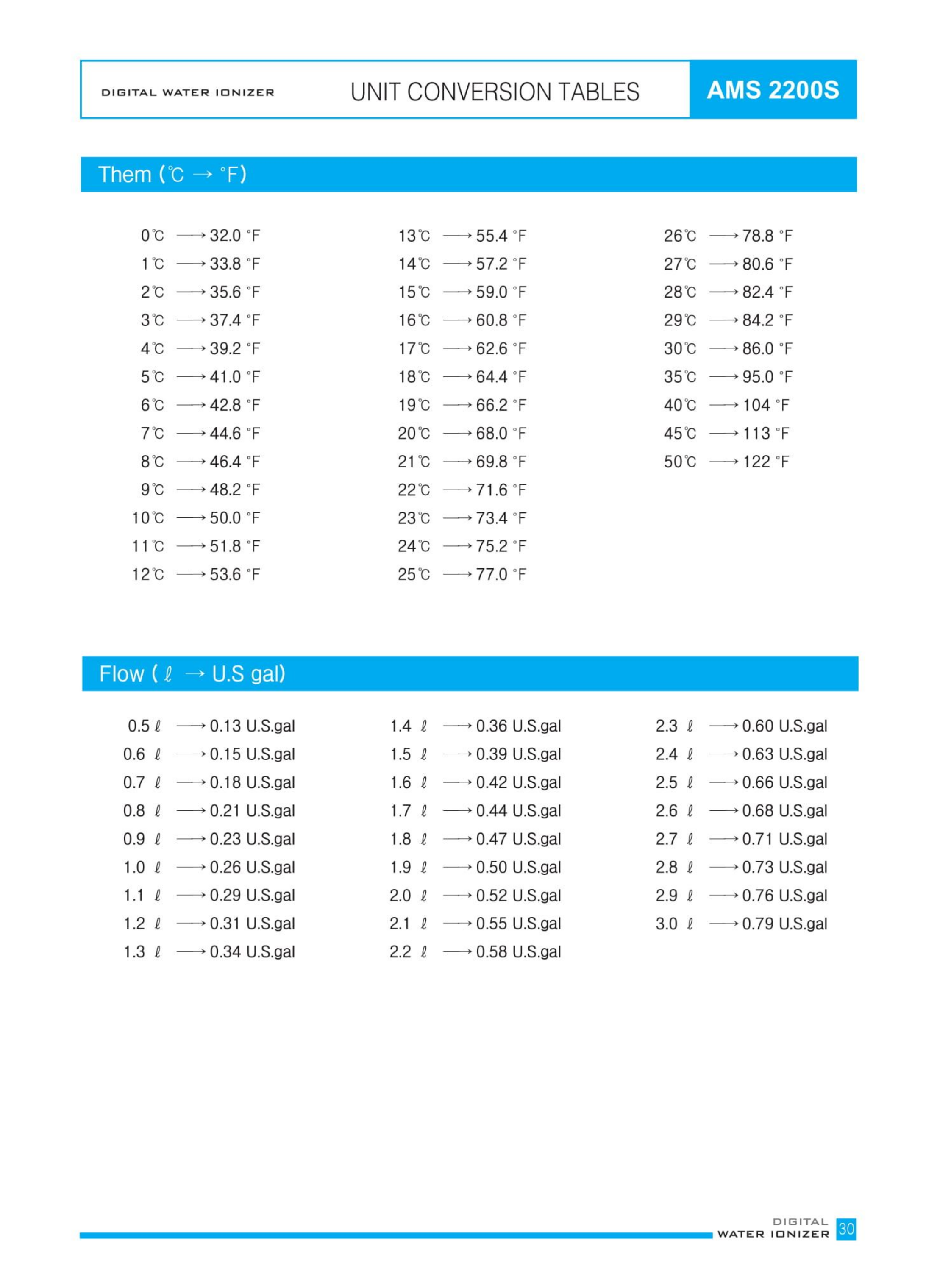

UNITCONVERSIONTABLES
DIGITAL WATER IONIZER
O
1'C
13'C
14
17'C
18
~ 59.0 'F
~ 60.8 'F
>62.6 'F
~ 64.4 'F
30'C
35
1O'C
11'C
-> 35.6 'F
-) 37.4 F
77.0 'F
~O.13 U.S.gal
~O.15 U.S.gal
0.18 U.S.gal
>0.21 U.S.gal
0.23 U.S.gal
-)0.26 U.S.gal
0.29 U.S.gal
0.31 U.S.gal
0.34 U.S.gal
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
U.S.gal
U.S.gal
U.S.gal
U.S.gal
U.S.gal
U.S.gal
U.S.gal
U.S.gal
U.S.gal
2.3 I -) 0.60 U.S.gal
2.4 I ~ 0.63 U.S.gal
2.5 I -) 0.66 U.S.gal
2.6 I ~ 0.68 U.S.gal
2.7 I -) 0.71 U.S.gal
2.8 I ~ 0.73 U.S.gal
2.9 I ~ 0.76 U.S.gal
3.0 I 0.79 U.S.gal
1.3 I

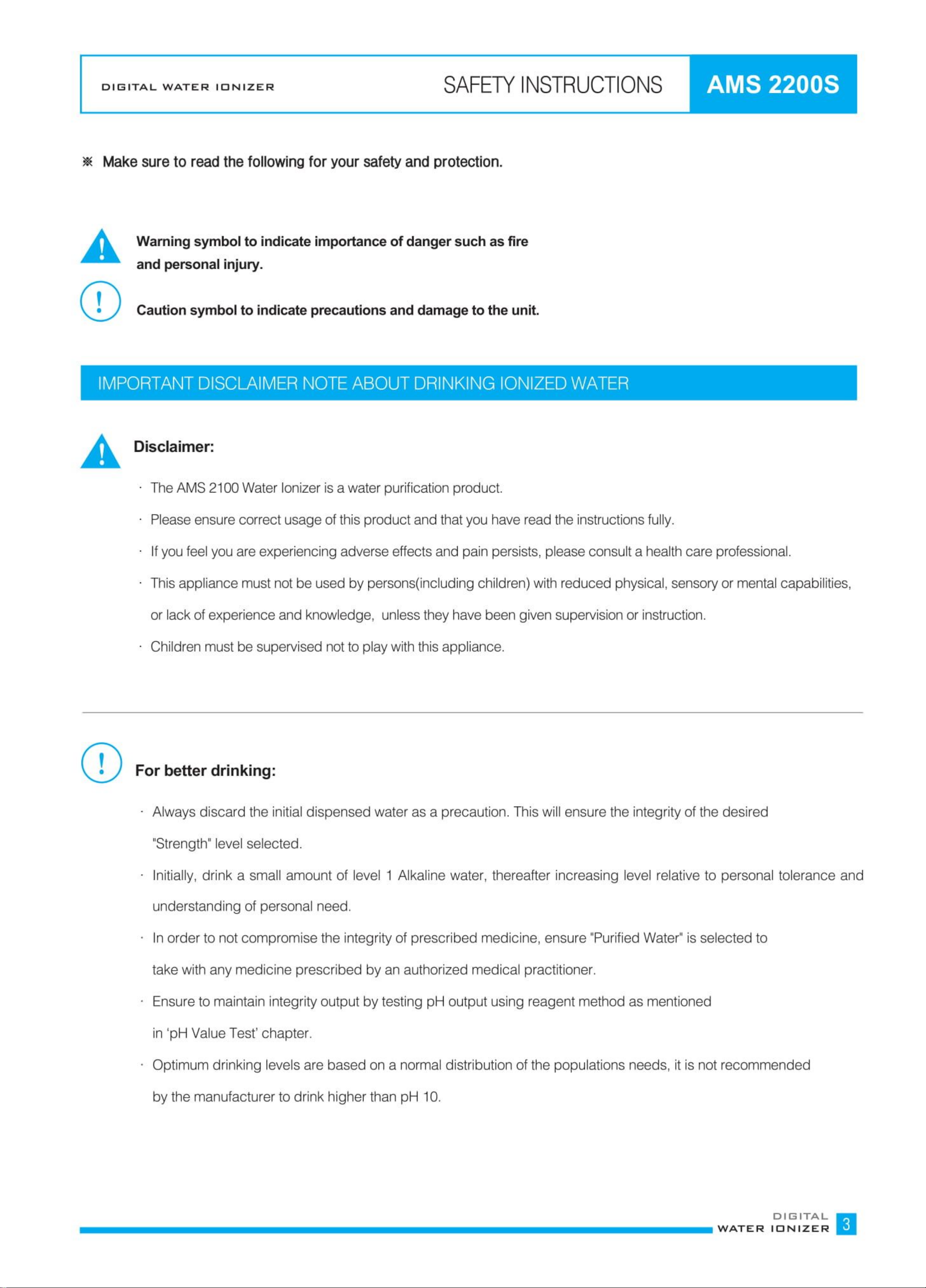

SAFETYINSTRUCTIONS NM
A
DIGITAL WATER IONIZER
* Makesureto readthefollowingfor your safetyand protection.
^ Warning symbol to indicate importance of danger such as fire
~ and personal injury.
~Caution symbolto indicate precautions and damage to the unit.
Disclaimer:
The AMS 2100Water ionizer is awater purification product.
Pleaseensure correct usage of this product and that you have read the instructionsfully.
Ifyoufeelyou are experiencing adverse effects and pain persists, please consulta healthcare professional.
Thisappliance mustnot be used by persons(including children) with reduced physical, sensoryor mentalcapabilities,
or lack of experience and knowledge, unlessthey have been given supervisionor instruction.
Children must be supervised notto playwith this appliance.
For better drinking:
Always discard the initial dispensed water as a precaution. This will ensure the integrity of the desired
"Strength"level selected.
Initially, drink a small amount of level 1 Alkaline water, thereafter increasing level relative to personal tolerance
understanding of personal need
Inorder to not compromise the integrityof prescribed medicine, ensure "PurifiedWater" isselected to
take with any medicine prescribed by an authorized medical practitioner.
Ensureto maintain integrity output by testing pH output using reagent method as mentioned
in pH Value Test' chapter.
Optimum drinking levels are based on a normal distribution of the populations needs, it is not recommended
by the manufacturer to drink higher than pH 10.
and
WATER t5lI'ZTALERI|EII

)IW SAFETYINSTRUCTIONS
ADIG,TAL WATER IONIZER

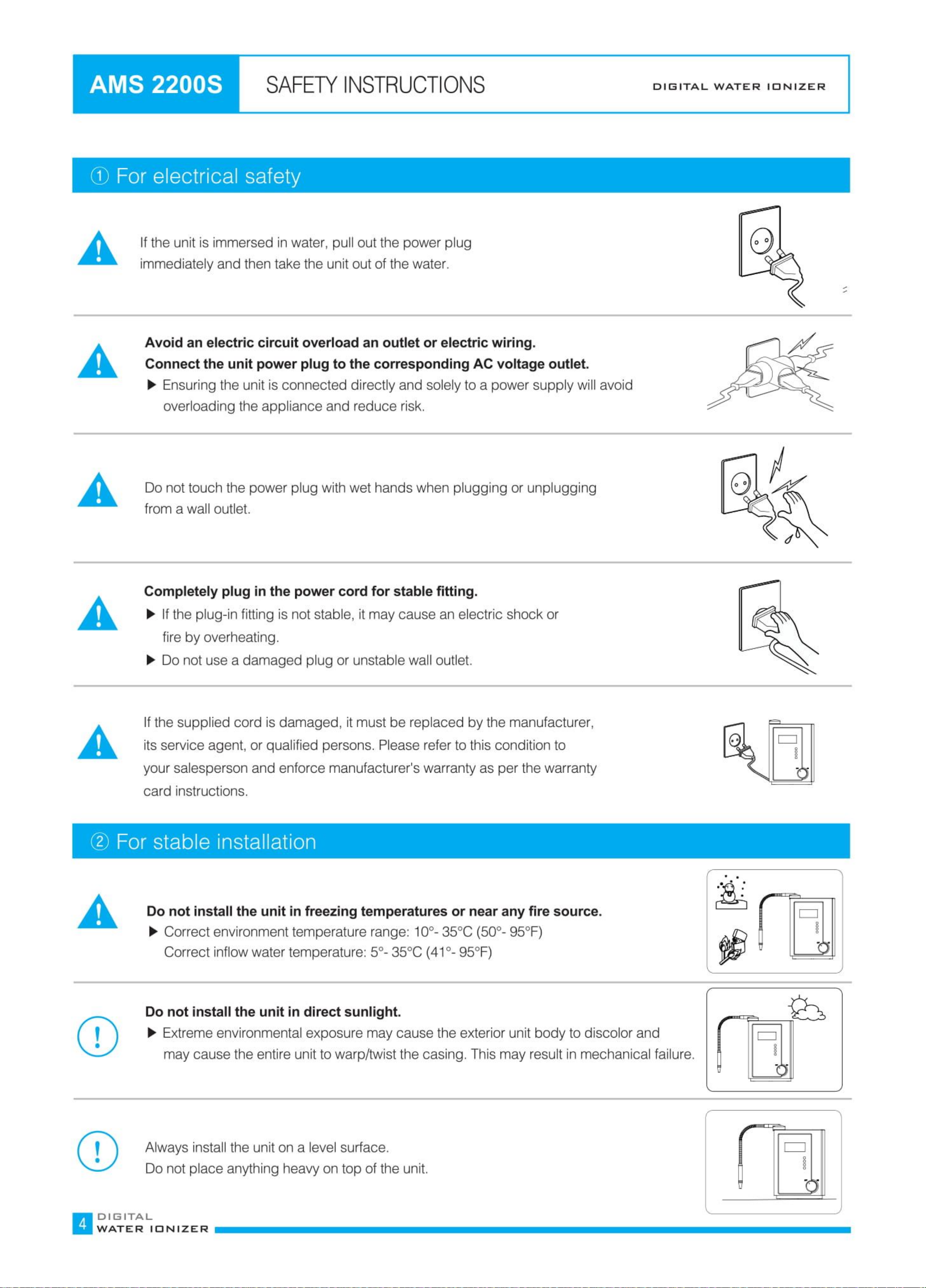

AK Ifthe unit is immersed inwater, pullout the power plug
m immediately and then take the unitout of the water. -
-
^Avoid an electric circuit overload an outlet or electric wiring.
Connect the unit power plug to the corresponding AC voltage outlet.
> Ensuring the unit is connected directly and solely to a power supply will avoid
overloading the appliance and reduce risk.
^ t,epowerplug withwet hands when plugging or unpugging
A Completely plug inthe power cord for stable fitting
A > Ifthe plug-in fitting is notstable, it may cause an electric shock or
fire by overheating.
> Do not usea damaged plug or unstable wall outlet.
^ If the supplied cord is damaged, itmust be replaced by the manufacturer,
IfBIfl itsservice agent, or qualified persons. Pleaserefer to this condition to
your salesperson and enforce manufacturer's warranty as per the warranty
card instructions.
A8kh Do not installthe unit in freezing temperatures or near any fire source.
> Correct environment temperature range: 10o-35oC (50o- 95oF)
Correct inflow water temperature: 5o- 35oC (41o- 95oF)
I..\ Do not install the unit in direct sunlight.
( ! ) > Extreme environmental exposure may cause the exterior unit body to discolor and
W may cause the entire unit to warp/twist the casing. This may result inmechanical failure.
( ! ) Always installthe uniton a level surface"
u Do not place anything heavy on top of the unit.
_________________
\
SS

III

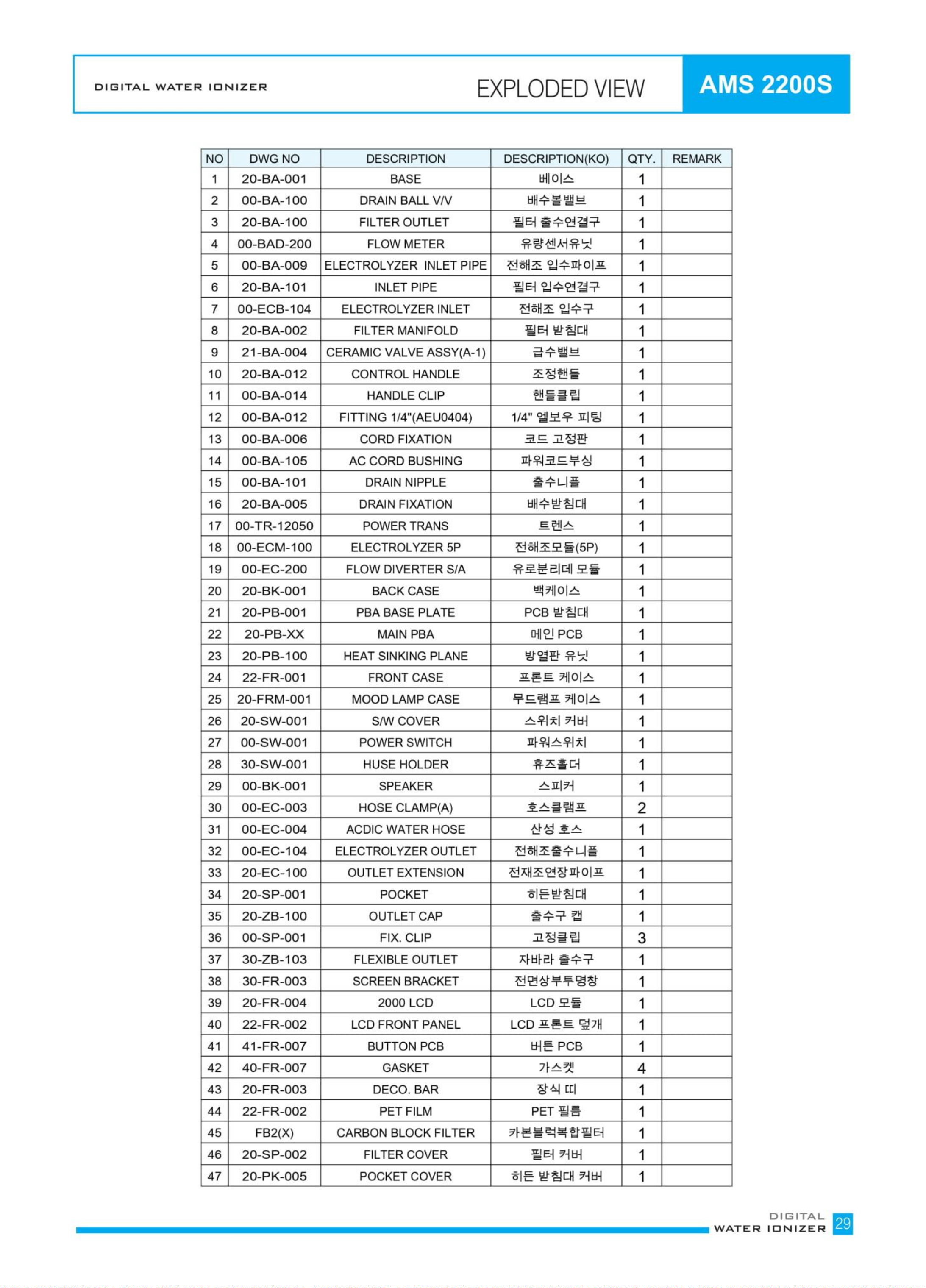

EXPLODEDVIEW A
DIGITAL WATER IONIZER
NO DWGNO DESCRIPTION DESCRIPTION(KO) QRERK
1 20-BA-001 BASE lo| 1
2 00-BA-100 DIN BALL VN 1
3 20-BA-100 FILTER OUTLET 1
4 00-BAD-200 FLOW METER 1
500-BA-009 ELECTROLYZER INLET PIPE 1
6 20-BA-101 INLETPIPE 1
700-ECB-104 ELECTROLYZERINLET 1
820-BA-002 FILTER MANIFOLD 1
921-BA-004 CERAMIC VALVE ASSY(A-1) 1
10 20-BA-012 CONTROLHANDLE 1
11 00-BA-014 HANDLE CLIP 1
12 00-BA-012 FITTING 1/4"(AEUO4O4) 1
13 00-BA-006 CORD FIXATION 1
14 00-BA-105 AC CORD BUSHING 1
15 00-BA-101 DRAIN NIPPLE 1
16 20-BA-005 D N FlTION 1
17 00-TR-12050 POWERTNS _^ 1
18 00-ECM-100 ELECTROLYZER5P 1
19 00-EC-200 FLOW DIVERTER S/A 1
20 20-BK-001 BACK CASE 1
21 20-PB-001 PBA BASE PTE PCB CH 1
22 20-PB- MAIN PBA | PCB 1
23 20-PB-100 HEAT SINKING PLANE 1
24 22-FR01 FRONT CASE 1
25 2O-FRM-001 MOOD PCASE 1
26 20-SW01 SCOVER 1
27 00-SW01 POWER SWITCH 1
28 30-SW-001 MUSE HOLDER 1
29 00-BK01 SPEAKER ^-I 1
30 00-EC-003 HOSE CLAMP(A) 2
31 00-EC04 ACDIC WATER HOSE 1
32 00-EC-104 ELECTROLYZEROUTLET 1
33 20-EC-100 OUTLETEXTENSION 1
20-SP-001 POCKET 1
35 20-ZB-100 OUTLET CAP 1
36 00-SP-001 FIX. CLIP 3
37 30-ZB-103 FLEXIBLEOUTLET 1
38 30-FR-003 SCREEN BCKET 1
39 20-FR04 2000 LCD LCD 1
40 22-FR-002 LCD FRONT PANEL 1
41 41-FR-007 BUTTON PCB -PCB 1
42 40-FR-007 GASKET 4
43 20-FR-003 DECO.BAR 1
22-FR02 PET FILM 1
45 FB2(X) CARBON BLOCK FILTER 1
46 20-SP-002 FILTER COVER 1
47 20-PK-005 POCKET COVER 1

EXPLODEDVIEW D IGITAL WATER ID N IZER
ES
11

SAFETYINSTRUCTIONS ,III
A
D IG ITAL WATE R IQ N I ZE R
AL Do not disassemble, repair, or modify inany situation.
m > Personalsafety could be compromised.
> For repair, please contact your authorized sales agent.
(\ ! ) Do not use anywater other than sanitary drinking water.
W (municipal water, etc,)
( ~,> Let the unit have water input and output for 2-3 minutes before
firstoperation of the unit after installation.
^ Never allow hot water input into the unit.
n This may cause severe damage to its interior, especially
the Biter and ionization chamber.
> Optimum input water temperature: 50- 35oC (41o- 95oF)
(
(
^
/
Never spray the unit with water, nor clean the unit with
water or other liquid.
> Cleaning with a micro fiber or soft cloth is recommendecI"

)IW SAFETYINSTRUCTIONS
&DIGITAL WATER IONIZER

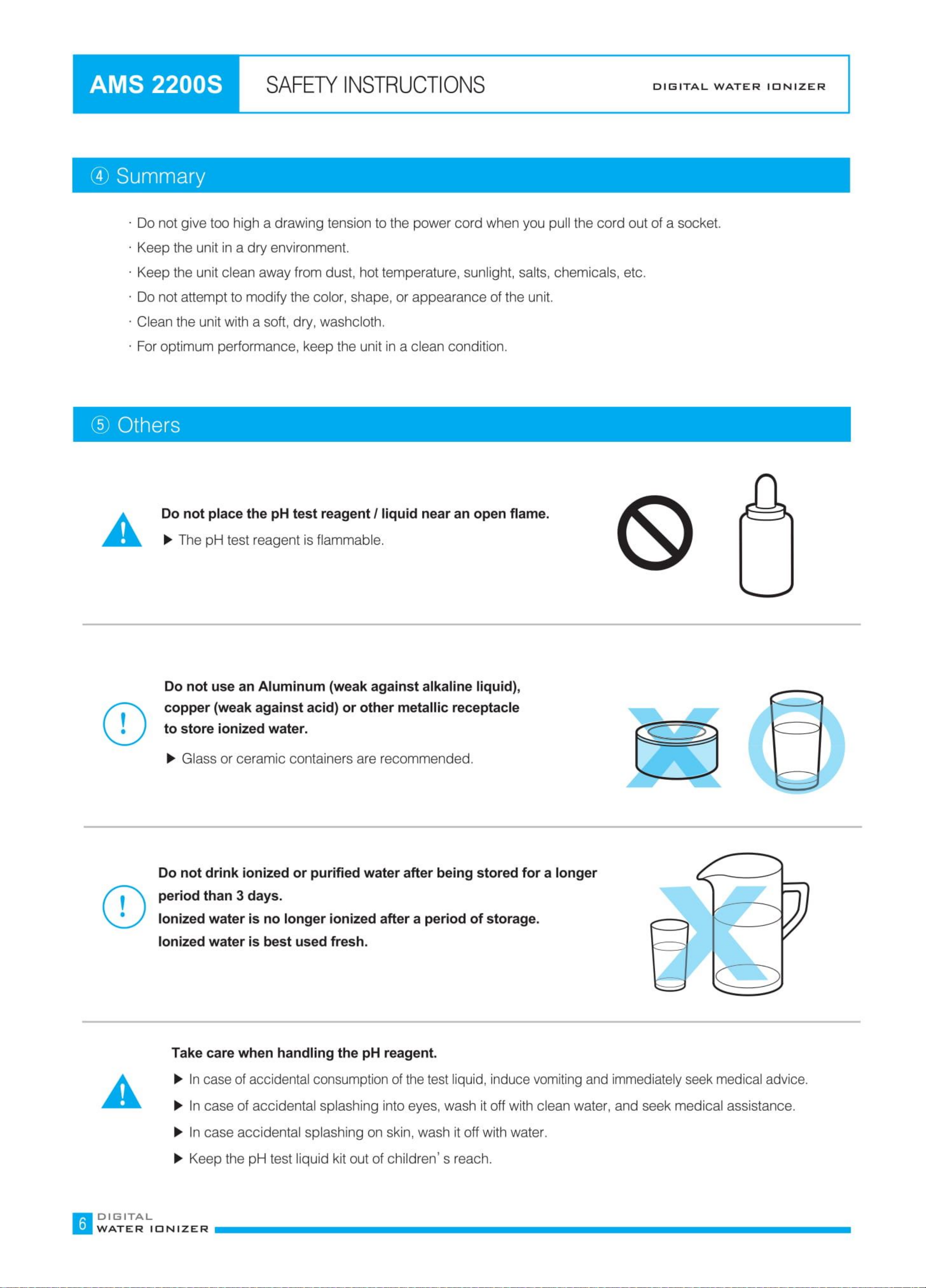

Do not give too high a drawing tension to the power cord when you pull the cord out of a socket.
Keep the unit in a dry environment,
Keep the unitclean away from dust, hot temperature, sunlight, salts, chemicals, etc.
Do not attempt to modify the color, shape, or appearance of the unit.
Clean the unitwith a soft, dry,washcloth,
Foroptimum performance, keep the unit in a clean condition.
A Do not place the pH test reagent / liquid near an open flame.
& > The pH test reagent is flammable.
Do not use an Aluminum (weak against alkaline liquid),
copper (weak against acid) or other metallic receptacle
to store ionized water.
1 > Glass or ceramic containers are recommended.
~ Do not drink ionized or purified water after being stored for a longer
( ! ~ period than 3 days.
Q ionized water is no longer ionized after a period of storage.
~ ionized water is best used fresh.
Take care when handling the pH reagent.
> Incase of accidentalconsumptionof the test liquid,inducevomiting and immediatelyseek medical advice.
> In case of accidental splashing intoeyes,wash it offwith clean water, and seek medical assistance.
> In case accidental splashing on skin,wash it off with water.
> Keep the pH test liquid kit out of children' s reach.
^

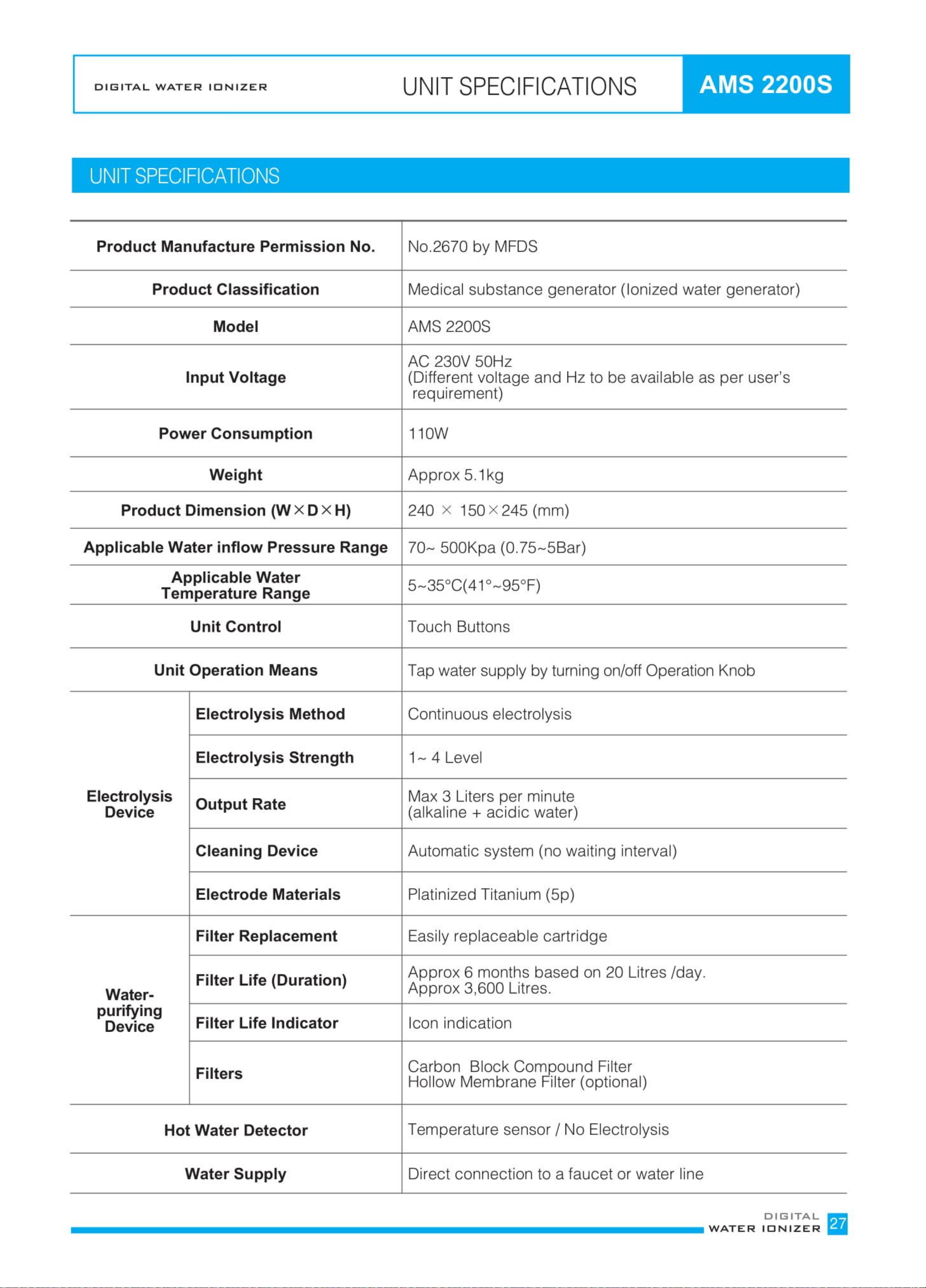

UNITSPECIFICATIONS
OIGITAL WATER IONIZER
Product Manufacture Permission No No.2670 by MFDS
Product Classification Medical substance generator (ionized water generator)
Model AMS 22005
Input Voltage AC 230V 5OHz (Different voltage and Hz to be available as per user's
requirement)
Power Consumption 1IOW
Weight Approx 5.Ikg
Product Dimension (W x D x H) 240 x 150x 245 (mm)
Applicable Water inflow Pressure Range 70~ 5OOKpa(0.75~5Bar)
Applicable Water
Temperature Range 5~35oC(41o~95oF)
Unit Control Touch Buttons
Unit Operation Means Tap water supply by turning on/off Operation Knob
Electrolysis
Device
Electrolysis Method Continuous electrolysis
Electrolysis Strength 1~ 4 Level
Output Rate Max 3 Liters per minute
(alkaline + acidic water)
Cleaning Device Automatic system (no waiting interval)
Electrode Materials Platinized Titanium (5p)
Water-
purifying
Device
Filter Replacement Easily replaceable cartridge
Filter Life (Duration) Approx 6 months based on 20 Litres /day
Approx 3,600 Litres.
Filter Life Indicator Icon indication
Filters Carbon Block Compound Filter
Hollow Membrane Filter (optional)
Hot Water Detector Temperature sensor / No Electrolysis
Water Supply Direct connection to a faucet or water line

III TROUBLESHOOTING
ADIGITAL WATER IONIZER
Strange smell from output water
Filter life (longevity) is expired.
Filter lifeis extremely shortened as
poor quality water is used. Filterreplacement is needed
Due to sudden change of source
water quality and excessive chlorine
contained in the source water.
Infinitesimal chlorine might be present
in output water.
Select pH level 1~2 i.e. lower pH
strength.
Ifstill serious, filterreplacement is
needed.
Milk-white materials precipitate
on the bottom of an ionized
water receptacle.
(alkaline and acidic water)
Itis extracted Calcium Carbonate
(CaCO3) after the CO3 in water is
bonded with Ca if a high content of
CO3 exists inthe water.
Itis totally harmless.
In this instance, select pH level 1~2,
i.elower pH strength.
At first no smell, but smell from
the output water in about 1 hour
after collecting ionized water.
The water-storage bottle or
receptacle is contaminated.
Contamination is added into the bottle
when collecting output water from the
unit.
Filteris seriously polluted.
Check cleanliness of a water'-storage
receptacle,
Ifodor persists after cleaning
receptacle, replace the filter and
select pH level 1~2, i.e, lower pH
strength.
Water leakage from Biter
compsment.
The filter is not fitted firmly on the filter
base.
Rubber O...ringis taken off.
Take out the filter, check the filter
compartment and re-.installthe filter
Check the condition of the O-ring
fitting.
No output of generated water
from the acidic output hose.
The output hose is kinked
Insuicient water inflow
intothe unit.
Straighten the kinked hoseor check
the hosecondition.
Increase the quantity of source water
inflow.

PACKEAGECONTENTS ?Ilk
A
D IG ITAL WATE R IO N IZE R
0
0
0
0
AMS 22005 Unit Body
Drain Water
Outlet Hose pH Test Reagent/
Test Tube /
Colorimeter Paper
One-"touch Drain water outlet
Fitting Safety Key hose holder
1/4"Source Water Inlet Hose Screws and holders Fuse Faucet Water Diverter
Water Outlet Dispenser Cover (AMS 2200 only)
* AMS 22008 will be equipped with the flex
steel hose with handle type dispenser
* Accessories are subject to change depending on the product specification.

'8~ APPEARANCEANDFUNCTIONALSTRUCTURE
&DIGITAL WATER IONIZER
)1. Front Side
2. Flexible SUS Outlet Dispenser
3. LCD Screen (Function Indicator)
4. Operation Knob(Water Supply
Control Valve)
5. Touch Buttons
O
O
O
"}
6. Main Power Switch
7. Fuse Holder
8. Filter Cover
g. Speaker
10. Holes for Wall Mount
11. Rear Side
12. Label
@- |
i-1
\Gt
13.Bottom Base
14.Drain Water Outlet Port
15.Water Inlet Port
- Connect with the Source Water Inlet House
16.AC Power Cord

TROUBLESHOOTING III
A
DIGITAL WATER IONIZER
Mainpowerlampdoes
notcomeon.
Insufficient water inflow.
A power cord is not properly
plugged in.
Increase water inflow.
Ensure that power cord is plugged in
correctly.
The fuse is blown.
The fuse is not inserted properly Replace the fuse
IonizedWaterLampdoesnottum
offevenafterturningthetapoff. Abnormality of PowerCircuit Board Immediately pull the plug out of the
power socket and then contact the
selling agent for service.
OnpHtestwith areagent,acidic
watercolorgetsyellow,but
alkalinewatercolor indicatespH
neutrality.
Noalkalinity color appearance can
be the result from a chemical reaction
with carbonic acid in the water.
*Alkalinity is in inverse
proportion to acidity, Therefore,
showing an acidic reaction means
that inversely alkalinewater is
generated from the unit.
Test pH value with level 4 water
(strong alkaline water),
Test pH value after having water
inflow intothe unit for the time being
Powersupplyis suddenlycutoff
dun.ngoperation.
Too high TDS. (total dissolved solids)
In case of well water or bore water
used.
It isthe apparatus' automatic function
to protect the unit mechanism from a
possible excessive electric current.
The unitwill automatically re-operate
after cooling off.
Reducedoutputofionizedwater
fromtheunit.
Filteris clogged.
Filter clogging may be caused
by sudden inflow of seriously
polluted source water, even if
a filter life is still effective.
Filter replacement is needed
Low inflow pressure
Take a hose away from the diverter
adaptor and make sure that diverter
valve is not clogged.
Check water inflow pressure.
The supply hose is kinked Staighten the kinked hose
Outputwatercomesout,but
alkalinewaterhastheneutralpH
(noionization).
Thevoiceguide,"pleasecheck
thefilterconnection"is given.
An authentically approved filter is not
used.
An authentically approved filter is
used, but the filter cable is not
connected to the terminal.
Replace with the authentically
approved fitter.
Connect the filter cable to the filter
cable terminal.
* WhatisTDS(TotalDissolvedSolids)?
Itmeansa totalquantityofsolidsdissolvedinwater,i.e.calcium,magnesium,ironandothermineralsolids

,III pHVALUETEST
ADIGITAL WATER IONIZER
Fill up to 2/3 of each provided test tube or a glass container with
alkaline ionized water, acidic ionized water and tap(city) water
respectively.
Alkaline Tap water
water ' Acidic
water
After putting up to five drops of pH test reagent into each tube,
shake the tube or container properly to mixwell.
pH reagent- Colorimetric
Determine each pH value by comparing the mixed solution color mixed solution analysis chart
with the colorimetric analysis chart provided.
*Obtainable pH value can be vary according to source water
quality~water inf!owpressure and water temperature~
> Do not drink any mixed with pH test liquid.
> Keep the pH test liquid bottle and colorimetric analysis paper out fo direct sunlight andstore in a dark
and cool place.
> Keep it away from children and flammables,
> In case the pH test liquid is splashed into eyes or mouth by mistake, flush well with clean water,
Pleasereferto safety instructions.

APPEARANCEANDFUNCTIONALSTRUCTURE
DIGITAL WATER IONIZER ?Ilk
A
2.5e,mm ,J ,
Acidic w.I.w Leve
@ @ @
1. Filter Life Indicator
Replace fitterwhen itflickers
2. FilterAuthenticity Indicator
Itis to identify the filter authenticity
Itflickers when an authentic filter is not used
3. Checkup Icon
Itflickers when the unit requires servicing
4. Melody icon
Itindicates the melody function is working
5. ionization
Indicates the process of ionization
6.Water inlet indicator
Itrotates (swirls) when water flows intothe unit
7. pH level indicator
Itindicates a selected pH level
O
O
O
o
8. Acidic Water Choice Indicator
Indicates the choice of acidic water
9. Purified Water Choice Indicator
Indicates the choice of purified water
10. Alkaline Water Choice Indicator
Indicates the choice of alkaline water
11.Water Inflow Rate Indicator
Optimum flow rate 2.0~2.5 liters
per minute
12. Inlet Water Temperature Indicator
Optimum temperature
range So- 35oC (41o- 95oF)
13. Filter Life Icon
Indicator bars decrease from the right
side with use
14. Alkaline Water Button
Push the button to choose alkaline water output
15. PurifiedWater Button
Push the button to choose purified water output
16. Acidic Water Button
Push the button to choose acidic water output
MELODY(
~ 17. Melody Button
m The melody automatically plays when the acidic water output
//( % ~\\ mode is selected, push the melody button to mute
~~ the melody program
18. Operation Knob
Tostart / stop the unit's operation by opening / closing the
valve and to adjust water inflow rate
WAT E R 151 I;A LE R~

DIGITAL WATER IONIZER
O
O
O
O
\
Mainbody
I
Alkaline water ____________
comes out
Drain Water ~
comes out
@ Vertically attach the provided installation guide paper on the intended
location of the wall after slightly pasting the guide paper with water.
@ Drill holes into the wall on the wall stud position as shown in the guide
paper and insert the screw holders.
Screw down the studs into the screw holders (Icm length of the studs
over the wall surface is needed).
@ Mount the unit on the wall, inserting the wall studs
into the backside holes of the unit.
(:5)
VI

FILTERCOMPOSITION
DIGITAL WATER IONIZER
Step 4: Block Core
Step 3: Carbon Block
Step 2: Sediment
>
>
>
>
Sediment
Filters the suspended substances, rust and sediments etc.
Carbon Block
Absorbs residual chlorine, chloroform, particulates, cyst, bacteria, THMs, VOCs, taste, odour and
other contaminants in the source water. This is composed of coconut shell based NSF certified
activated carbon and silver-impregnated carbon to enhance the anti-bacterial effects.
Block Core
PPSediment Filter with nominal 5 m pore size
Calcium
Adds calcium to increase the alkaline mineral content in water, thus facilitating the electrolysis
process and removing residual chlorine.

Pleaseconsider replacing the filterwith a new one even if the Filter Life
Indicator is not indicating the replacement timing ( ), in the event
of the following abnormal conditions.
> Noticeable decrease in water outflow from the unit or astrange smell from outlet water.
This could indicate that the filter is clogged due to a higher than expected level of pollutants.
> When there is a noticeable change in water.
> When the unit has not been used for a substantial amount of time (i.e. 6 months). Idle filters with
trapped contaminants can encourage bacterial growth, Ensure regular usage to prevent this situation,
* A filter life length can be changed according to the source water quality and unit operation condition.
Always use the producer's authenticallyapprovedfilterforthe unit.
> The unit hasthe function of self-check of the integrated system before any operation starts,
> Alkaline ionized water is not generated even if output water comes out,
> Warranty will VOID due to users misuse or carelessness. Themanufacturer can not guarantee the units correct
operation ifthe user chooses to usea non authorized internal filter.
Thefiltericonflickers ThedisorderIconflickers
"................''
,-
`
[]I[]
'lonlzation'markdisappears
. ' . ' , I
G
