Allen-Bradley 1492-IFM20F-F240-2 User manual

16 Point Fusible Output Interface Module
Modules d'interface à sortie avec fusible 16 points
16-Punkt-Ausgangsschnittstellenmodul, Schmelzsicherung
Moduli di interfaccia di uscita con fusibile a 16 punti
Módulos de interfaz de salida de fusible (16 puntos)
(Cat 1492-IFM20F-F240-2)
= Field-side Terminals
= Borne exterieure
= Feldseitiger Terminal
= Terminale lato-campo
= Terminal de campo
Adhesive Label Card. Provides terminal wiring identification.
Carte étiquette adhésive. Identifie le câblage des bornes.
Aufklebbare Etiketten zur Kennzeichnung der Klemmenverdrahtung.
Scheda etichette adesive. Fornisce l'identificazione del cablaggio dei terminali.
Tarjeta de etiquetas adhesivas. Proporciona identificación de cableado del terminal.
1
1
35 mm DIN Rail
199-DR1
199-DR4
1492-DR5
1492-DR6
1492-DR7
1492-EAJ35
Fuse Clips and Blown Fuse Indicators: See page 3 for fuse installation/removal.
Porte-fusibles et voyants de fusibles grillés: voir page 3 l'installation et le retrait des fusibles.
Sicherungshalterungen und Anzeige einer durchgebrannten Sicherung. Ein-und Ausbau der Sicherung siehe Seite 3.
Morsetti dei fusibili e indicatori dei fusibili bruciati: vedere il montaggio/smontaggio dei fusibili a pagina 3.
Sujetadores de fusibles e indicadores de fusible fundido: Vea la página 3 para obtener información sobre
la instalación/extracción de fusibles.
20
19
2
1
= Connector Pin
= Broche de connexion
= Steckerstift
= Pin del connettore
= Pasador de conector
Module Identification Area.
Identification du module.
Modulkennzeichnungsbereich
Area per l'identificazione del modulo
Area de identificación del módulo.
A1
B1
Lower = A
Upper = B
PN-28284
DIR 40063-382 (Version 05)
Printed in U.S.A.
WARNING
AVERTISSEMENT
WARNUNG
AVVERTENZA
ADVERTENCIA
To prevent electrical shock, disconnect from power source before installing or servicing.
FM Class 1, Div.2 requires device
installation in a tool-accessible enclosure compliant with ANSI/ISA S82.
Avant le montage et la mise en service, couper l'alimentation secteur pour éviter toutes décharges.
FM Classe 1, Div. 2
nécessite l'installation de l'équipement dans une armoire accessible aux interventions, conforme à ANSI/ISA S82.
Vor Installations- oder Servicearbeiten Strom-versorgung unterbrechen, um Elektroschocks zu vermeiden.
FM-Klasse 1,
Gruppe 2 erfordert die Installation des Gerätes in einem Gehäuse, das für Werkzeuge zugänglich ist und den
Anforderungen gemäß ANSI/ISA S82 entspricht.
Per prevenire infortuni, togliere tensione prima dell’installazione o manutenzione.
FM Classe 1, Divisione 2 richiede
l'installazione del dispositivo in un alloggiamento con capacità di accesso per strumenti conforme allo standard
ANSI/ISA S82.
Desconéctese de la corriente eléctrica, antes de la instalación o del servicio, a fin de impedir sacudidas eléctricas.
El requisito
de FM (Factory Mutual) Clase 1, Div. 2, establece que el dispositivo debe instalarse en un envolvente que permita la
introducción y uso de herramientas y cumpla con la norma ANSI/ISA S82.
(2)
Cable Matrix
Tableau des câbles
Kabelmatrix
Matrice dei cavi
Matriz de cables
Removal
Retrait
Entfernung
Smontaggio
Extracción
Installation
Montage
Installation
Montaggio
Instalación
1746-OA16
1746-OW16
1756-OA16
TC-ODA161
1771-OMD
1492-CABLEC
1492-CABLED
1492-CABLEX
1492-HWCABX
1492-CABLEF
1492-IFM20F-F240-2
I/O Module
Module E/S
E/A-Modul
Modulo I/O
Módulo de E/S
 Cables are available in 0.5m, 1.0m, 2.5m and 5.0m lengths (005=0.5m, 010=1.0m, 025 = 2.5m, 050=5.0m).
Custom length cables also available. Contact local Sales Office for more information.
Câbles disponibles en 0,5m, 1,0m, 2,5m et 5,0m de longueur (005=0,5m; 010=1,0m; 025=2,5m; 050=5,0m).
Câbles sur mesure à la demande. Contactez e bureau le plus proche.
Verfügbare Kabellängen 0,5m, 1,0m, 2,5m und 5,0m (005=0,5m; 010=1,0m; 025=2,5m; 050=5,0m).
Anwenderspezifizifische Längen stehen ebenfalls zur Verfügung. Kontaktieren Sie bitte Ihr lokales Vertriebsbüro
für weitere Informationen.
I cavi sono disponibili in lunghezze di 0,5m, 1,0m, 2,5m e 5,0m (005=0,5m; 010=1,0m; 025=2,5m; 050=5,0m).
Sono disponibili anche cavi su misura. Per ulteriori informazioni, contattare l’ufficio vendite locale.
Cables disponibles en longitudes de 0,5m, 1,0m, 2,5m, 5,0m (005=0,5m; 010=1,0m; 025=2,5m; 050=5,0m).
Hay disponibles cables de varias longitudes. Para más información comuníquese con la oficina de ventas.
Cable is limited for use within the control panel unless it is run through conduit.
Cable is ITC (Instrumentation Tray Cable) rated.
#22-#12 AWG
(0.2-4 mm2)
Cu only
Cu seulement
nur Cu
Solo Cu
Cu solamente
0.32 in
(8 mm)
2
1
1
1492-N90
3.5-4.5 lb-in
(0.38-0.50 Nm)
6
5
3
4
1
2
2
W
H
PN-28284
DIR 40063-382 (Version 05)

(3)
Pinout
Brochage
Anschlußbelegung
Disposizione dei piedini
Esquema de pins
Fuse Installation / Removal
Installation / retrait des fusibles
Ein- und Ausbau der Sicherung
Montaggio / smontaggio dei fusibili
Instalación / extracción de fusibles
2
3
4
5 x 20 mm
(max. 2.0A per output; 12A per module)
(2,0 A par sortie maximum; 12 A par module)
(max. 2,0 A je Ausgang; 12 A je Modul)
(max 2 A per uscita; 12 A per modulo)
(2.0 A máx. por salida; 12 A por módulo)
1
GOULD 34-015G
LITTELFUSE 097023
BUSSMAN FP-A3
1492-IFM20F-F240-2
1
2
3
18
19
20
B1
B2
B3
B18
B19
B20
A1
A2
A9
A10
A11
A12
A19
A20
Blown Fuse Indicator Circuit
Circuit du voyant de rupture de fusible
Anzeigeschaltung für durchgebrannte Sicherung
Indicatore dei fusibili bruciati
Circuito del indicador de fusible fundido
1
2
PN-28284
DIR 40063-382 (Version 05)
Specifications
Spécifications
SURGE SUPPRESSION follow the literature recommendations of the PLC module being used.
SUPPRESSION DES SURTENSIONS se trouve à la suite de la littérature qui contient les recommandations relatives au module PLC utilisé.
ÜBERSPANNUNGSSCHUTZ Bitte beachten Sie die Dokumentationsempfehlungen für das jeweils benutzte SPS-Modul.
Per la SOPPRESSIONE DEI PICCHI TEMPORANEI, seguire le istruzioni riportate nella documentazione in dotazione al Modulo PLC utilizzato.
SUPRESIÓN DE SOBRETENSIÓN, siga las recomendaciones indicadas en la documentación del módulo PLC respectivo.
Wiring
Câblage
Verdrahtung
Cablaggio
Cableado
Reference Publications: Refer to 1770-4.1 and appropriate PLC I/O module installation manual.
0.772 lb.
347 g.
5 - 95% 
Maximum Recurring Peak Voltage 
Tension de crele réurrente maximale
Maximale periodische Hochstspannung
Tensione massima di cresta ricorrente
Voltaje de cresta iterativo máximo
600 Vp
4.72 in. (120 mm) W
3.27 in. (83 mm) H
2.74 in (70.5 mm) D
cULus (File: E10314, Guide No. NRAG)
Suitable for use in Class 1 Div 2 Groups A,
B, C and D Hazardous and Non-Hazardous
Locations.
Temperature Code = T3C at 60°C 
CE: Compliant for all applicable directives
FM Class 1 Div 2 Groups A, B, C and D
Temperature Rating T3C = 60°C
(J.I. 3000590, all except relay modules)
< 1.5 mA
0° C - 60° C
Indicator Circuit Current
Courant circuit voyants
Strom, Anzeigeschaltkreis
Corrente circuito indicatori
Intensidad del circuito de
indicadores
Voltage
Tension
Spannung
Tensione
Voltaje
Catalog No.
Référence
Bestell-Nr.
N. Catalogo
Referencia
Technische Daten
Specifiche
Especificaciones
1492-IFM20F-F240-2
Dimensions
Dimensions
Abmessungen
Dimensioni
Dimensiones
Approx. Shipping Weight
Poids d'embarquement approximatif
Ungefähres Versandgewicht
Peso approssimativo del carico
Peso aproximado al momento de
embarque
Standards
Normes
Standards
Standard
Estándares
Catalog No.
Référence
Bestell-Nr.
N. Catalogo
Referencia
Operating Temperature Range
Plage températures de fonctionnement
Betriebstemperaturbereich
Limiti temperatura di funzionamento
Rango de temperatura de funcionamient
Current/Circuit
Courant/Circuit
Strom/Schaltkreis
Corrente/circuito
Intensidad/circuito
Current/Module
Courant/Module
Strom/Modul
Corrente/modulo
Intensidad/módulo
.5 Amps 4 Amps
1492-IFM20F-F240-2
168-264 VAC/DC
Operating Humidity
Humidité relative
Betriebsluftfeuchtigkeit
Umidità di esercizio
Humedad operativa
PN-28284
DIR 40063-382 (Version 05)
Printed in U.S.A.
For transients > 600 Vp use a UL recognized suppression device rated at 2.5 kV withstand.
Pour des transitoires > 600 Vp utilisez un dispositif de suppression certifié UL à 2,5 kV nominal de tenue.
Für Einschaltstöße > 600 Vp verwenden Sie einen UL anerkannten Entstörer, der bewertet wurde bei 2,5 kV standzuhalten.
Per transitori > 600 Vp usare dispositivo di soppressione riconosciuto da UL capace di sopportare 2,5 kV.
Para transitorios > 600 Vp use un dispositivo de supresión reconocido UL clasificado con 2,5 kV.
WARNING Explosion Hazard - substitution of components may impair suitability for Class I Division 2.
Explosion Hazard - Do Not Disconnect Equipment unless power has been switched off or the area is known to be Non-Hazardous.
 Non-condensing
Sans condensation
Nicht kondensierend
Senza condensa
sin condensación
Power, input and output (I/O) wiring must be in accordance with Class I Division 2 wiring methods - Artticle 501-10(B)(1) of the National Electrical Code.
Wiring diagrams are online at www.ab.com/e-tools/
Les schémas et sont disponibles en ligne à l’adresse www.ab.com/e-tools/
Die Schaltpläne finden und unter der Internet-Adresse www.ab.com/e-tools/
Gli schemi di cablaggio sono illustrati, oppure online all'indirizzo www.ab.com/e-tools/
Los diagramas de conexiones están en y se encuentran en-línea en www.ab.com/e-tools/
NOTICE
REMARQUE
HINWEIS
NOTA
AVISO

Other Allen-Bradley Controllers manuals

Allen-Bradley 1756-L5 Owner's manual

Allen-Bradley

Allen-Bradley 1756-L5 Owner's manual

Allen-Bradley PowerFlex 700S User manual

Allen-Bradley

Allen-Bradley PowerFlex 700S User manual

Allen-Bradley PowerFlex 700L User manual

Allen-Bradley

Allen-Bradley PowerFlex 700L User manual

Allen-Bradley micrologix 1500 User manual

Allen-Bradley

Allen-Bradley micrologix 1500 User manual

Allen-Bradley PowerFlex 4M User manual

Allen-Bradley

Allen-Bradley PowerFlex 4M User manual

Allen-Bradley Studio 5000 Logix Emulate User manual

Allen-Bradley

Allen-Bradley Studio 5000 Logix Emulate User manual

Allen-Bradley 1336 PLUS II User manual

Allen-Bradley

Allen-Bradley 1336 PLUS II User manual

Allen-Bradley 1305-RFB-5-A User manual

Allen-Bradley

Allen-Bradley 1305-RFB-5-A User manual

Allen-Bradley SLC 500 User manual

Allen-Bradley

Allen-Bradley SLC 500 User manual

Allen-Bradley SLC 500 1747-L20 User manual

Allen-Bradley

Allen-Bradley SLC 500 1747-L20 User manual

Allen-Bradley ControlNet PLC-5 User manual

Allen-Bradley

Allen-Bradley ControlNet PLC-5 User manual

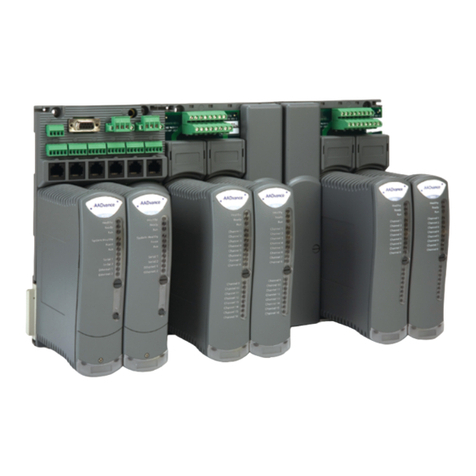

Allen-Bradley AADvance User manual

Allen-Bradley

Allen-Bradley AADvance User manual

Allen-Bradley powerflex 700 User manual

Allen-Bradley

Allen-Bradley powerflex 700 User manual

Allen-Bradley MicroLogix 1200 User manual

Allen-Bradley

Allen-Bradley MicroLogix 1200 User manual

Allen-Bradley 1756 GuardLogix User manual

Allen-Bradley

Allen-Bradley 1756 GuardLogix User manual

Allen-Bradley 161S-AA04NPU User manual

Allen-Bradley

Allen-Bradley 161S-AA04NPU User manual

Allen-Bradley PowerFlex 400 User manual

Allen-Bradley

Allen-Bradley PowerFlex 400 User manual

Allen-Bradley GuardPLC 1754 User manual

Allen-Bradley

Allen-Bradley GuardPLC 1754 User manual

Allen-Bradley Guard Master MSR22LM User manual

Allen-Bradley

Allen-Bradley Guard Master MSR22LM User manual

Allen-Bradley PowerFlex400 User manual

Allen-Bradley

Allen-Bradley PowerFlex400 User manual

Allen-Bradley PowerFlex User manual

Allen-Bradley

Allen-Bradley PowerFlex User manual

Allen-Bradley GuardPLC 1753 User manual

Allen-Bradley

Allen-Bradley GuardPLC 1753 User manual

Allen-Bradley 140G-M-F Series User manual

Allen-Bradley

Allen-Bradley 140G-M-F Series User manual

Allen-Bradley PowerFlex 755 IP00 User manual

Allen-Bradley

Allen-Bradley PowerFlex 755 IP00 User manual

Popular Controllers manuals by other brands

RTI KA11 reference guide

RTI

RTI KA11 reference guide

Paladon PNS Series Installation, commissioning and maintenance manual

Paladon

Paladon PNS Series Installation, commissioning and maintenance manual

Panasonic AW-RP50 quick start guide

Panasonic

Panasonic AW-RP50 quick start guide

Vector TLC3-FCR-T Engineering manual

Vector

Vector TLC3-FCR-T Engineering manual

Graco GLC 4400 instructions

Graco

Graco GLC 4400 instructions

Galletti CSW 186 manual

Galletti

Galletti CSW 186 manual

Endress+Hauser Liquiline CM442 operating instructions

Endress+Hauser

Endress+Hauser Liquiline CM442 operating instructions

Drehmo c-matic operating manual

Drehmo

Drehmo c-matic operating manual

Harman AMX Modero X Series instruction manual

Harman

Harman AMX Modero X Series instruction manual

World Uniqueen EN-508 manual

World Uniqueen

World Uniqueen EN-508 manual

Dynamatic 4000 instruction sheet

Dynamatic

Dynamatic 4000 instruction sheet

Mars Comfort-Aire Century KJR-120G1/TFBG-E-01 Installation and owner's manual

Mars

Mars Comfort-Aire Century KJR-120G1/TFBG-E-01 Installation and owner's manual

TRIAC 2R Series Installation & maintenance manual

TRIAC

TRIAC 2R Series Installation & maintenance manual

EUCHNER CMS Series operating instructions

EUCHNER

EUCHNER CMS Series operating instructions

Siemens Albatros 2 RVS13 Series user manual

Siemens

Siemens Albatros 2 RVS13 Series user manual

WIKA CPC8000 operating instructions

WIKA

WIKA CPC8000 operating instructions

Topcon T18 quick start guide

Topcon

Topcon T18 quick start guide

Balcrank 3330-142 Operation, installation, maintenance and repair guide

Balcrank

Balcrank 3330-142 Operation, installation, maintenance and repair guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
