Shaft Seal Kits
About Shaft Seals
A shaft seal is recommended if the motor shaft and end bell are exposed to significant amounts of
containments, such as oil, fluids, or fine dust. Use a shaft seal in these environments to prolong
the life of the motor. A shaft seal and Bulletin 2090 cables with environmentally sealed
connectors are required for an IP66 rating or greater.
See Kinetix Motion Accessories Specifications Technical Data, publication KNX-TD004, to
find Bulletin 2090 cables with environmentally sealed connectors for your motor.
Required Tools
Use these tools to install a shaft seal:
• Appropriately sized screw or bolt to grip and remove the worn shaft seal
• Rubber/wooden mallet or a metal hammer and wooden work piece
• Socket, pipe, or tubing (various sizes)
• Abrasive cloth to remove any nicks or burrs from the motor shaft
IMPORTANT The shaft seal is not required in applications where the motor shaft and end bell are free of oil,
fluids, or fine dust, and a lower IP rating is sufficient.
Shaft seals are subject to wear and require periodic inspection and replacement. Replacement
is recommended every 3 months, not to exceed 12 months, depending on use.
If you paint the motor, do not get paint on the shaft seal area or the shaft, as this can decrease
the life of the shaft seal.

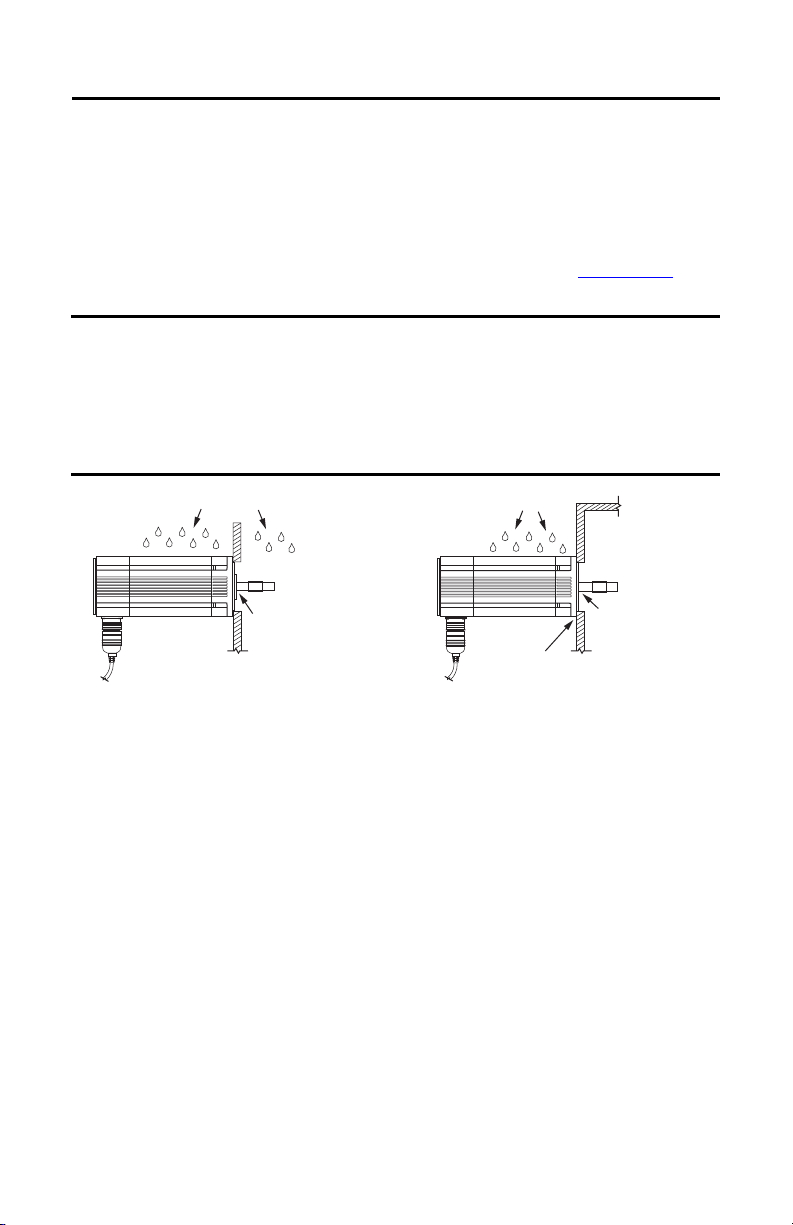

Oil, Fluids, and Fine Dust Oil, Fluids, and Fine Dust
Shaft Seal Installation
is Recommended
Shaft Seal Installation
is Not Recommended
Motor Shaft and
End Bell are Exposed
to Containments
Motor Shaft and
End Bell are Protected
From Containments
Oil, Fluids, and Fine Dust
Shaft Seal Installation
is Not Recommended

Rockwell Automation Publication 2090-IN012E-EN-P - February 2019 3
Shaft Seal Kits
Remove the Shaft Seal
The shaft seal can be safely removed by partially inserting an appropriately sized screw or bolt
into the face of the shaft seal. The head of the screw or bolt provides a convenient point to grasp
and remove the shaft seal.
Before installing the screw, create a pilot hole appropriate for the screw being used. Use masking
tape or a depth sleeve to establish a drilling depth limit of 4 mm (0.16 in.) from the tip of the drill
bit.
Follow these steps to remove the shaft seal.
1. Remove power to the motor before removing the shaft seal.
2. Drill a pilot hole in the face of the shaft seal less than the depth limit specified above.
Make sure the drill does not come in contact with the shaft seal bore.
3. Thread your screw or bolt into the pilot hole.
4. Lift the shaft seal from the motor by grasping the screw head and slightly rotating the
seal while pulling.
5. Inspect and clean the shaft and sealing surfaces as necessary.
Use an abrasive cloth to remove any nicks or burrs from the motor shaft.
ATTENTION: To avoid injury or damage to the equipment, remove power from the motor before
removing the shaft seal.
ATTENTION: Do not drill into the shaft seal deeper than 4 mm (0.16 in.).
Drilling and inserting a screw completely through the shaft seal can damage the motor bearings,
and require factory service to repair the motor.
IMPORTANT Cover the sharp edges of the keyway with tape to protect the shaft seal lip from
damage.

4Rockwell Automation Publication 2090-IN012E-EN-P - February 2019
Shaft Seal Kits
Replace the Shaft Seal
Follow these steps to replace the shaft seal.
1. Apply tape to the keyway opening so the edges do not damage the seal lip.
2. Lubricate the motor shaft and the inner lip of the shaft seal with lubricant that is
supplied in the kit.
3. Center the shaft seal on the mounting surface of the motor and slide the shaft seal evenly
onto the motor shaft.
See Shaft Seal Installation Clearances on page 5 for the correct installation clearance of
the shaft seal you are installing.
4. Press the shaft seal into the seal bore by applying one of the Shaft Seal Installation
Methods on page 6.
5. Visually inspect for irregularities in the shaft seal or an uneven alignment where the shaft
seal contacts the motor.
Verify that the outer and inner circumference of the shaft seal is fully seated into
position.
6. Verify that the shaft seal is installed to the correct installation clearance.
• If the shaft seal is installed too deep, it can become subject to excessive wear and
require frequent replacement.
• If the shaft seal is installed too shallow, it can reduce the effectiveness of the
protective seal.
IMPORTANT Shaft seals require a lubricant to reduce wear. The lubricant is supplied with the
shaft seal kits. Lubricate only the inner lip of the shaft seal. Do not lubricate the
motor bore or outside diameter of the seal.
VPH-SST-Fxxx Shaft Seal
Back View of Shaft Seal
(motor facing)
Inside of Shaft Seal Lip
Inside of Shaft Seal Lip
VPS-SST-xxxx Shaft Seal
MPS-SST-xxxx Shaft Seal

Rockwell Automation Publication 2090-IN012E-EN-P - February 2019 5
Shaft Seal Kits
Shaft Seal Installation Clearances
Motor Cat. No.
Shaft Seal Installation Clearance
Min, mm (in.) Nom, mm (in.) Max, mm (in.)
VPL-Axxx and VPL-Bxxx
Press the shaft seal so that the seal is flush or below the front surface of the motor.
VPC-Bxxx
VPF-Axxx and VPF-Bxxx
1.40 (0.055) 1.50 (0.060) 1.65 (0.065)
VPS-Bxxx
VPH-Axxx and VPH-Bxxx Press the shaft seal so that the seal is flush with the front surface of the motor.
MPL-A15xx and MPL-B15xx
1.50 (0.060) 2.00 (0.080) 3.00 (0.120)
MPL-A2xx and MPL-B2xx
All other MPL-A/Bxxx
Press the shaft seal so that the seal is flush or below the front surface of the motor.
MPM-Axxx and MPM-Bxxx
MPF-Axxx and MPF-Bxxx
1.40 (0.055) 1.50 (0.060) 1.65 (0.065)
MPS-Axxx and MPS-Bxxx
MDF-SBxxx 1.40 (0.055) 1.50 (0.060) 1.65 (0.065)
TL-Series Press the shaft seal so that the seal is flush or below the front surface of the motor.
Front Surface
of Motor
Shaft Seal Pressed
Flush with Front
Surface of Motor
Shaft Seal Pressed
Below Front
Surface of Motor
Front Surface
of Motor
Nom
Nom
Min
Max
Front Surface
of Motor
Shaft Seal
Shaft Seal on
Motor Shaft
Shaft Seal Pressed
Flush with Front
Surface of Motor
Shaft Seal on
Motor Shaft
Bulletin VPH
Shaft Seal
Example
Bulletin VPL, Other MPL,
MPM, and TL-Series
Shaft Seal Example
Bulletin VPS, VPF, MPL-A/B15xx,
MPL-A/B2xx, MPF, MPS, and
MDF Shaft Seal Example

6Rockwell Automation Publication 2090-IN012E-EN-P - February 2019
Shaft Seal Kits

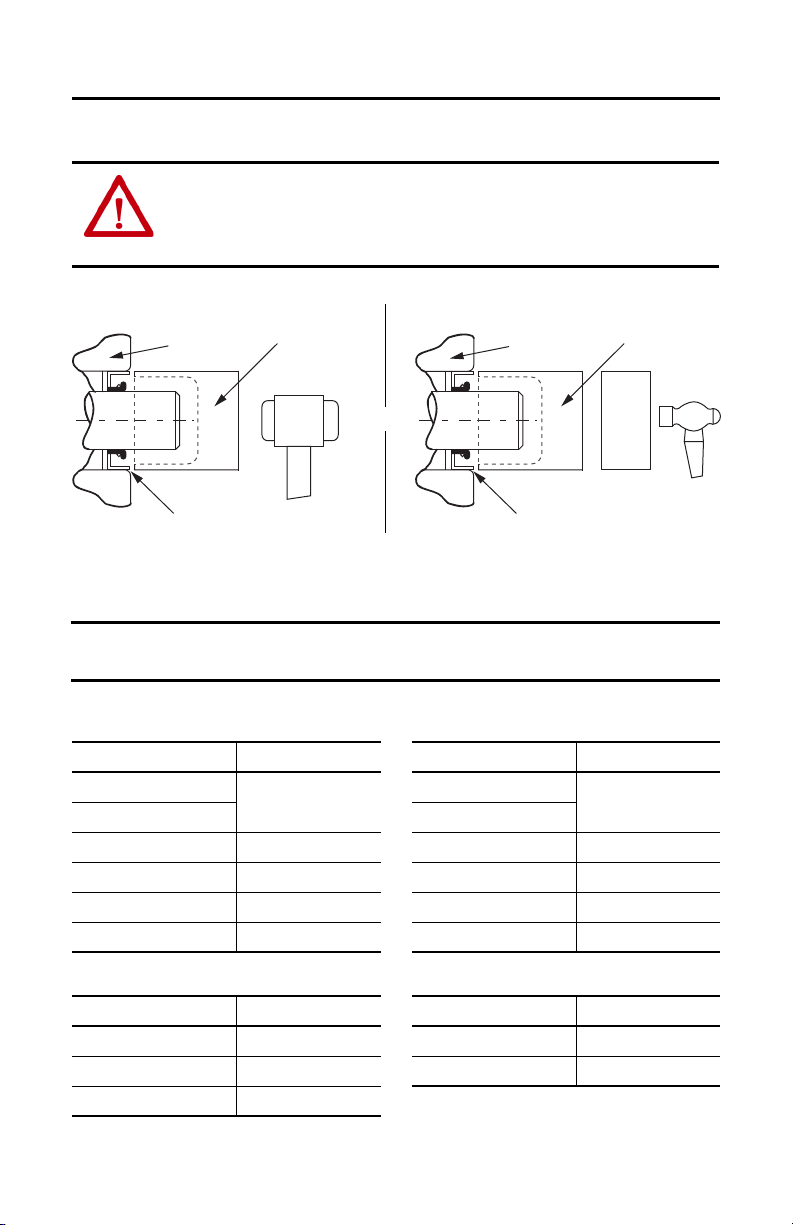

Shaft Seal Installation Methods
Shaft Seal Kit Catalog Numbers
ATTENTION: Do not hammer directly on the shaft seal. Gently tap the socket, pipe, or tubing
evenly around the outer edge of the shaft seal until the shaft seal is pressed into place. Make sure
the socket, pipe, or tubing you use does not contact the shaft seal lip. Permanent damage to the
shaft seal can occur.
IMPORTANT Third-party shaft seals are not approved for use with these motors. The use of third-party shaft
seals voids any implied or expressed warranties.
Kinetix VP Low Inertia Motors Kinetix VP Food Grade Motors
Motor Cat. No. Shaft Seal Kit Cat. No. Motor Cat. No. Shaft Seal Kit Cat. No.
VPL-A063xx and VPL-B063xx
VPL-SSN-F063075
VPF-A063xx and VPF-B063xx
VPF-SSN-F063075
VPL-A075xx and VPL-B075xx VPF-A075xx and VPF-B075xx
VPL-A100xx and VPL-B100xx MPL-SSN-A3B3 VPF-A100xx and VPF-B100xx MPF-SST-A3B3
VPL-A115xx and VPL-B115xx MPL-SSN-A4B4 VPF-A115xx and VPF-B115xx MPF-SST-A4B4
VPL-A130xx and VPL-B130xx MPL-SSN-A5B5 VPF-A130xx and VPF-B130xx MPF-SST-A45B45
VPL-B165xx MPL-SSN-F165 VPF-B165xx MPF-SST-F165
Kinetix VP Continuous Duty Motors Kinetix VP Stainless Steel Motors
Motor Cat. No. Shaft Seal Kit Cat. No. Motor Cat. No. Shaft Seal Kit Cat. No.
VPC-B165xx MPL-SSN-A6B6 VPS-B1304D MPS-SST-A45B45
VPC-B215xx VPL-SS-X256 VPS-B1653D MPS-SST-F165
VPC-B300xx VPC-SSN-F300
Socket, Pipe, or Tubing
(supplied by the customer)
Motor
Metal
Hammer
Shaft Seal
Wooden
Work
Piece
Rubber or
Wooden Mallet
Motor
Shaft Seal
Socket, Pipe, or Tubing
(supplied by the customer)
Or

Rockwell Automation Publication 2090-IN012E-EN-P - February 2019 7
Shaft Seal Kits
Kinetix VP Hygienic Servo Motors MP-Series Stainless Steel Motors
Motor Cat. No. Shaft Seal Kit Cat. No. Motor Cat. No. Shaft Seal Kit Cat. No.
VPH-A063xx and VPH-B063xx VPH-SST-F063 MPS-A3xx and MPS-B3xx MPS-SST-A3B3
VPH-A075xx and VPH-B075xx VPH-SST-F075 MPS-A45xx and MPS-B45xx MPS-SST-A45B45
VPH-A100xx and VPH-B100xx VPH-SST-F100 MPS-B5xx MPS-SST-F165
VPH-A115xx and VPH-B115xx VPH-SST-F115 MP-Series Medium Inertia Motors
VPH-A130xx and VPH-B130xx VPH-SST-F130 Motor Cat. No. Shaft Seal Kit Cat. No.
VPH-B165xx VPH-SST-F165 MPM-A115x, MPM-B115xx MPL-SSN-A4B4
MP-Series Low Inertia Motors MPM-A130xx, MPM-B130xx MPL-SSN-A5B5
Motor Cat. No. Shaft Seal Kit Cat. No. MPM-A165xx, MPM-B165xx MPL-SSN-F165
MPL-A15xx and MPL-B15xx
MPL-SSN-F63F75
MPM-A215xx, MPM-A215xx MPL-SSN-A6B6
MPL-A2xx and MPL-B2xx Kinetix 6000M Integrated Drive-Motor
MPL-A3xx and MPL-B3xx MPL-SSN-A3B3 Motor Cat. No. Shaft Seal Kit Cat. No.
MPL-A4xx and MPL-B4xx MPL-SSN-A4B4 MDF-SB1003 MPF-SST-A3B3
MPL-A45xx and MPL-B45xx MPL-SSN-A5B5 MDF-SB1153 MPF-SST-A4B4
MPL-A520 and MPL-B520
MPL-A540 and MPL-B540
MPL-A560 and MPL-B560
MPL-SSN-F165 MDF-SB1304 MPF-SST-A45B45
MPL-B580 MPL-SSN-F165-32MM TL-Series Low Inertia Motors
MPL-B6xx MPL-SSN-A6B6 Motor Cat. No. Shaft Seal Kit Cat. No.
MPL-B8xx MPL-SSN-A8B8 TLY-A1xx and TL-A1xx TL-SSN-1
MPL-B9xx MPL-SSN-A9B9 TLY-A2xx and TL-A2xx TL-SSN-2
MP-Series Food Grade Motors TLY-A25xx and TL-A25xx
TL-SSN-3
Motor Cat. No. Shaft Seal Kit Cat. No. TLY-A3xx
MPF-A3xx and MPF-B3xx MPF-SST-A3B3 TL-A4xx TL-SSN-4
MPF-A4xx and MPF-B4xx MPF-SST-A4B4
MPF-A45xx and MPF-B45xx MPF-SST-A45B45
MPF-A5xx and MPF-B5xx MPF-SST-F165

Allen-Bradley, Kinetix, MP-Series, Rockwell Automation, Rockwell Software, and TL-Series are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: [phone]
Rockwell Automation maintains current product environmental information on its website at
http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page.
Publication 2090-IN012E-EN-P - February 2019
Supersedes Publication 2090-IN012D-EN-P - July 2016 Copyright © 2019 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
*PN-522270*
PN-522270
Additional Resources
These documents contain additional information concerning related products from Rockwell
Automation.
You can view or download publications at http://www.rockwellautomation.com/global/
literature-library/overview.page.
Resource Description
Kinetix Rotary Motion Specifications Technical Data,
publication KNX-TD001
Product specifications for Kinetix VP (Bulletin VPL, VPC, VPF, VPS),
MP-Series™ (Bulletin MPL, MPM, MPF, MPS), Kinetix 6000M (Bulletin
MDF), and TL-Series™ rotary motors.
Kinetix Motion Accessories Specifications Technical
Data, publication KNX-TD004
Product specifications for Bulletin 2090 motor and interface cables, low-
profile connector kits, drive power components, and other servo drive
accessory items.
Kinetix Motion Control Selection Guide,
publication KNX-SG001
Overview of Kinetix servo drives, motors, actuators, and motion
accessories designed to help make initial decisions for the motion
control products best suited for your system requirements.
Industrial Automation Wiring and Grounding
Guidelines, publication 1770-4.1
Provides general guidelines for installing a Rockwell Automation
industrial system.
Product Certifications website, rok.auto/certifications Provides declarations of conformity, certificates, and other certification
details.
