Allen + Roth WSWS-WU1C User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number______________________ Purchase Date _______________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.
MODEL #WSWS-WU1C, #WSWS-WU1W
#WSWS-WU1P, #WSWS-WU1S
ITEM #0339207, #0339208, #0339209, #0339210
PREMIUM WOOD TOWER
Español p. 31
Français p. 16

2
TABLE OF CONTENTS
Safety Information ………………………………………………………..……...……………...…...
Preparation.…………………...………………………………………..…………………...….……..
Warranty …………………………………….……………………………………….……….………..
Hardware Contents ………………………….………………………………………………....…....
Package Contents………………………………………………………………………………….....
Replacement Parts List ……………………………………………………………………....……...
Troubleshooting …………….………………………………………………………………....……...
Care and Maintenance …………………………………….………………….………………...…...
Assembly Instructions ……...…………………….…………….……………………...…...…...…..
1. Screw cam bolt into the predrilled small holes on panel.
2. Insert cam lock into predrilled large hole on panel.
3. Make sure the arrow on the cam lock is pointed toward the cam bolt.
4. Connect both panels together, making sure cam bolt goes into predrilled hole on
the end of panel with cam lock.
5. Once cam bolt is connected inside cam lock, take Phillips screwdriver and tighten
cam lock clockwise.
CAM LOCK
PANEL
CAM BOLT
THREADED
INSERT PANEL
LOCKED POSITION
CAM LOCK SYSTEM OPERATION
DETAIL A DETAIL B
Cam Lock System Operation…………………………………………………………………..….... 2
3
4
5
5
6
13
13
14
14

3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
AHutch Panel Left 1
BHutch Panel Right 1
CHutch Panel Top 1
DHutch Panel Back 1
EFront Curved Stretcher 1
FFront Straight Stretcher 1
GAdjustable Shelf 2
PART DESCRIPTION QUANTITY
HBase Panel Left 1
IBase Panel Right 1
JBase Panel Top 1
KBase Panel Back 1
LBase Panel Bottom 1
MWall Hanging Cleat 2
NInstallation Template 1
C
H
B
E
D
F
G
A
I
K
J
L
M
N

4

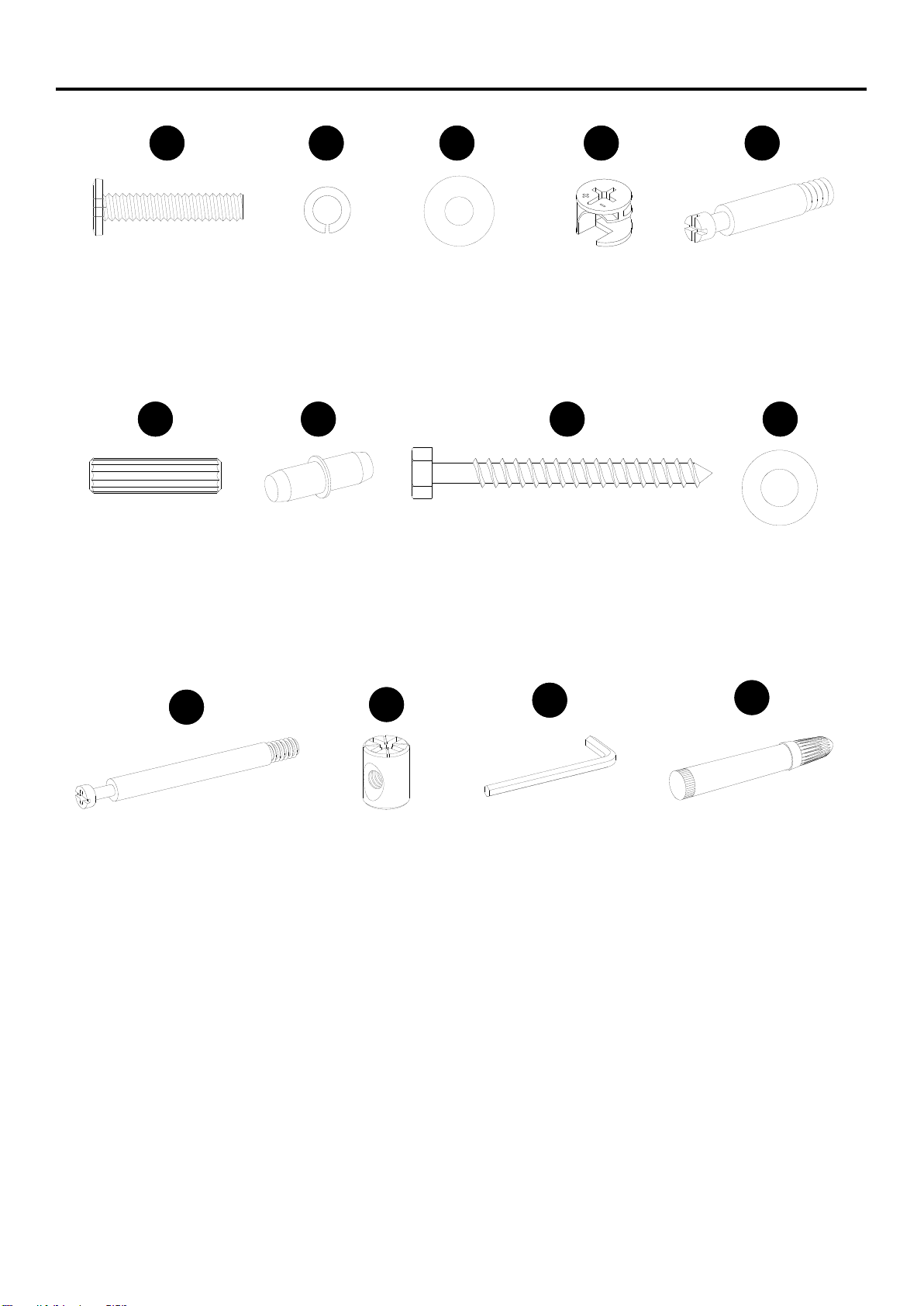

HARDWARE CONTENTS
LL
AA
I I
BB CC DD
FF
EE
M8 x 2-1/2 in.
Lag Bolt
Qty. 4
HH
GG
1/4 x 1-1/4 in.
Bolt
Qty. 12
Lock
Washer
Qty. 12
Flat
Washer
Qty. 12
Large
Cam Lock
Qty. 34
Large
Wood Dowel
Qty. 34
Large Flat
Washer
Qty. 4
Shelf Pin
Qty. 8
M4 Allen
Wrench
Qty. 1
Touch Up Pen(1)
MM
Touch-up Pen
Qty. 1
(not included for
Item #0339209)
JJ KK
Medium
Cam Bolt
Qty. 30
Barrel
Nut
Qty. 4
Large
Cam Bolt
Qty. 4

5

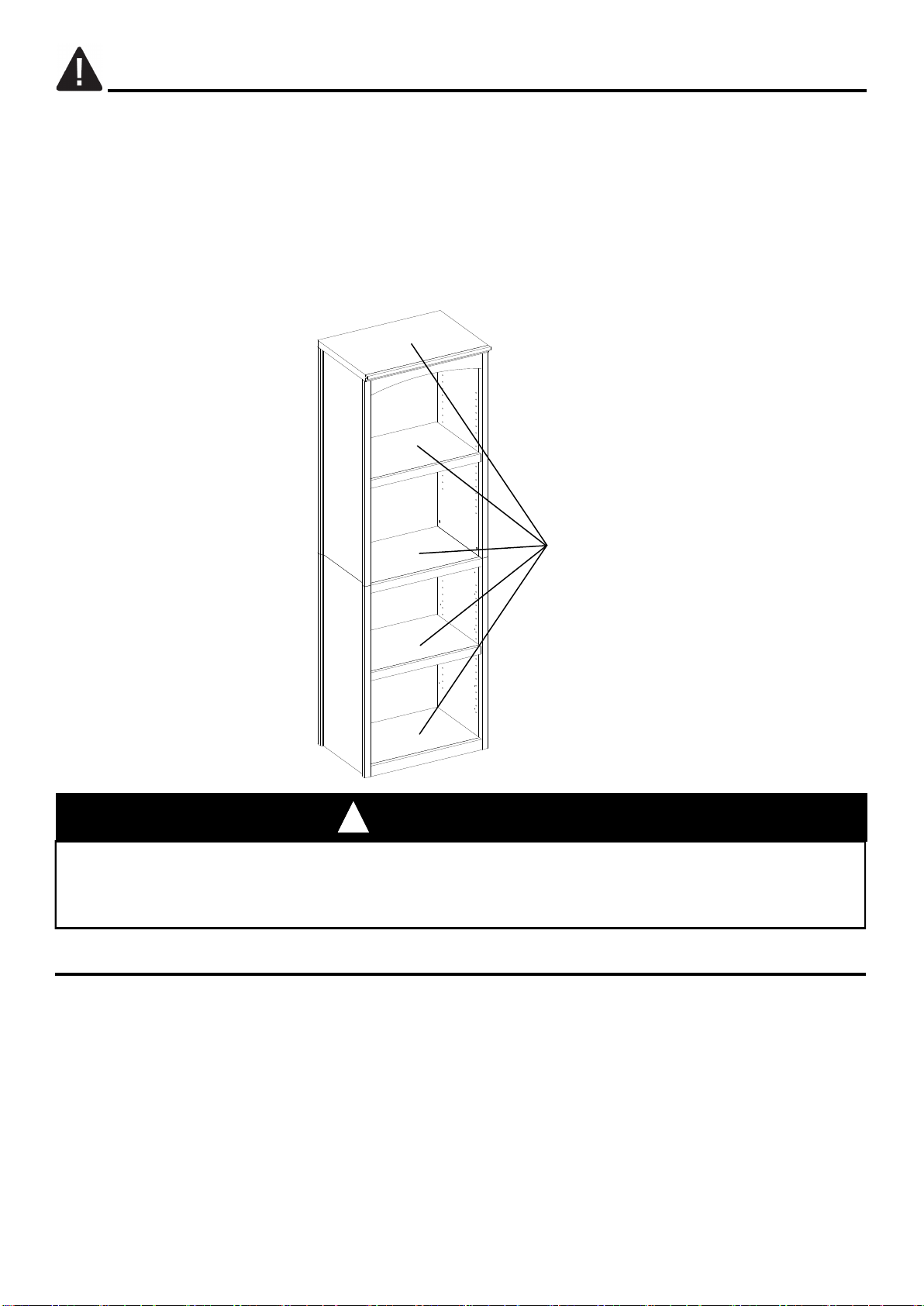

WARNING
!
MAXIMUM LOAD: 30 lbs. (13.6 kg)
SAFETY INFORMATION
Please read and understand this entire manual prior to assembling the product.
1. Do not allow children to climb or play in or around this product.
2. Use this unit for its intended purpose only. Do not use shelves as step ladder.
3. To avoid damage, assemble the product on a sturdy, level and protective surface.
4. Two or more persons must work together to install the unit onto the wall.
5. Make sure all bolts/screws are tightly fastened before the unit is used.
6. Check bolts/screws periodically and tighten them if necessary.
Tools Required for Assembly (not included): Phillips Screwdriver, Level, Power Drill, 3/16 in. Drill
Bit, 3/8 in. Drill Bit, 1/2 in. Socket Wrench, Stud Finder, Marking Pencil, Tape Measure, Step
Ladder, and Hammer.
PREPARATION
Before beginning assembly of this product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
THIS UNIT IS INTENDED FOR USE ONLY WITH THE MAXIMUM WEIGHTS INDICATED. USE
WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHTS INDICATED MAY RESULT IN
INSTABILITY CAUSING POSSIBLE INJURY. DISTRIBUTE WEIGHT EVENLY.

6
x 12

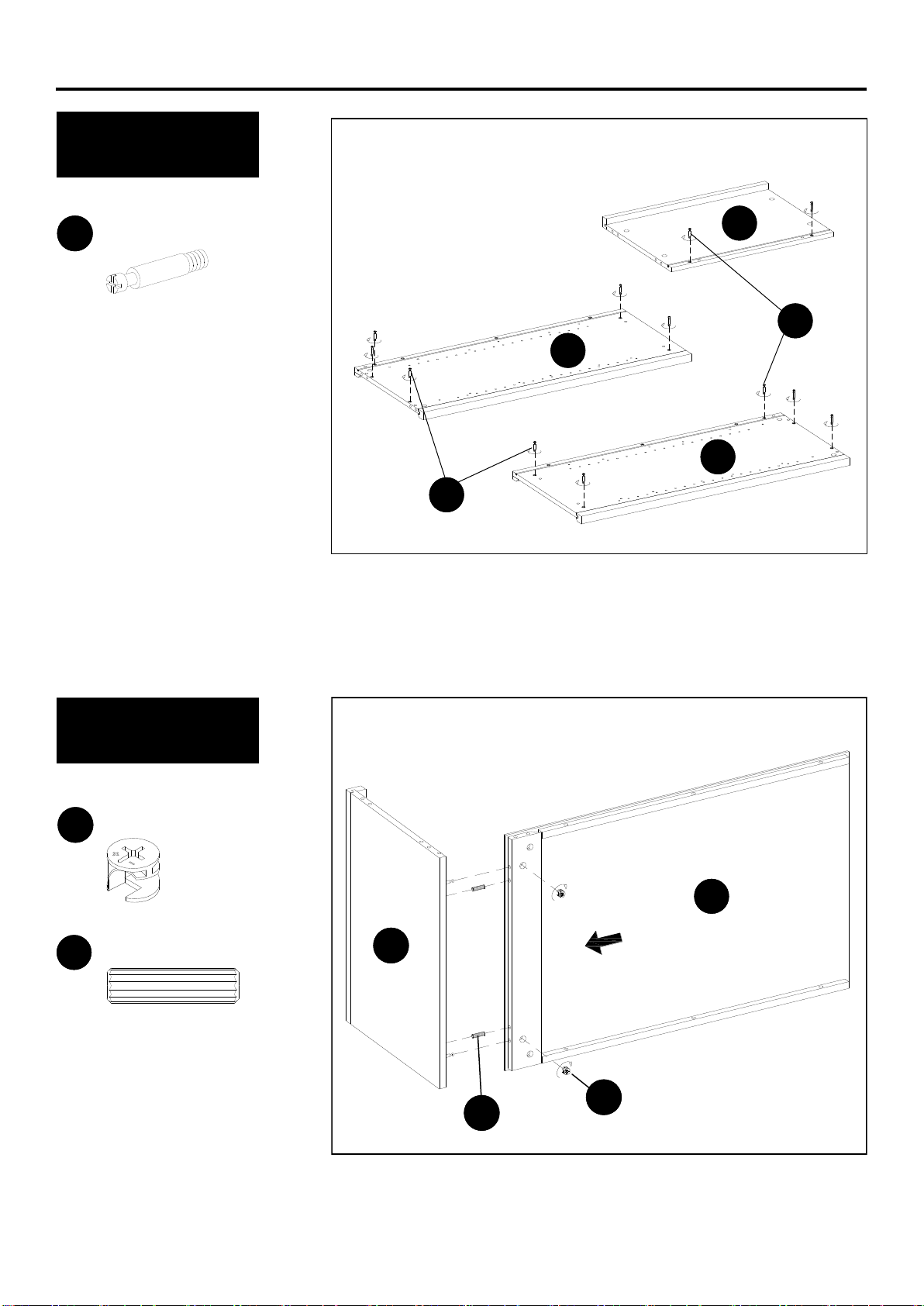

ASSEMBLY INSTRUCTIONS
Step 1
Base assembly
EE
x 2
Large Wood Dowel
x 2
Large Cam Lock
FF
DD
DD
K
FF
J
Step 2
Base assembly
Back Side
Medium Cam Bolt
H
EE
I
J
EE

7
Back Side
ASSEMBLY INSTRUCTIONS
J
DD
I
FF
J
K
Step 3
Base assembly
Step 4
Base assembly
K
x 3
Large Wood Dowel
x 2
Large Cam Lock
FF
DD
AA
DD
BB
CC
I
x 1
Large Cam Lock
DD
AA
BB
CC
1/4 x 1-1/4 in. Bolt
Lock Washer
Flat Washer
x 3
x 3
x 3

8
ASSEMBLY INSTRUCTIONS
DD
I
FF
J

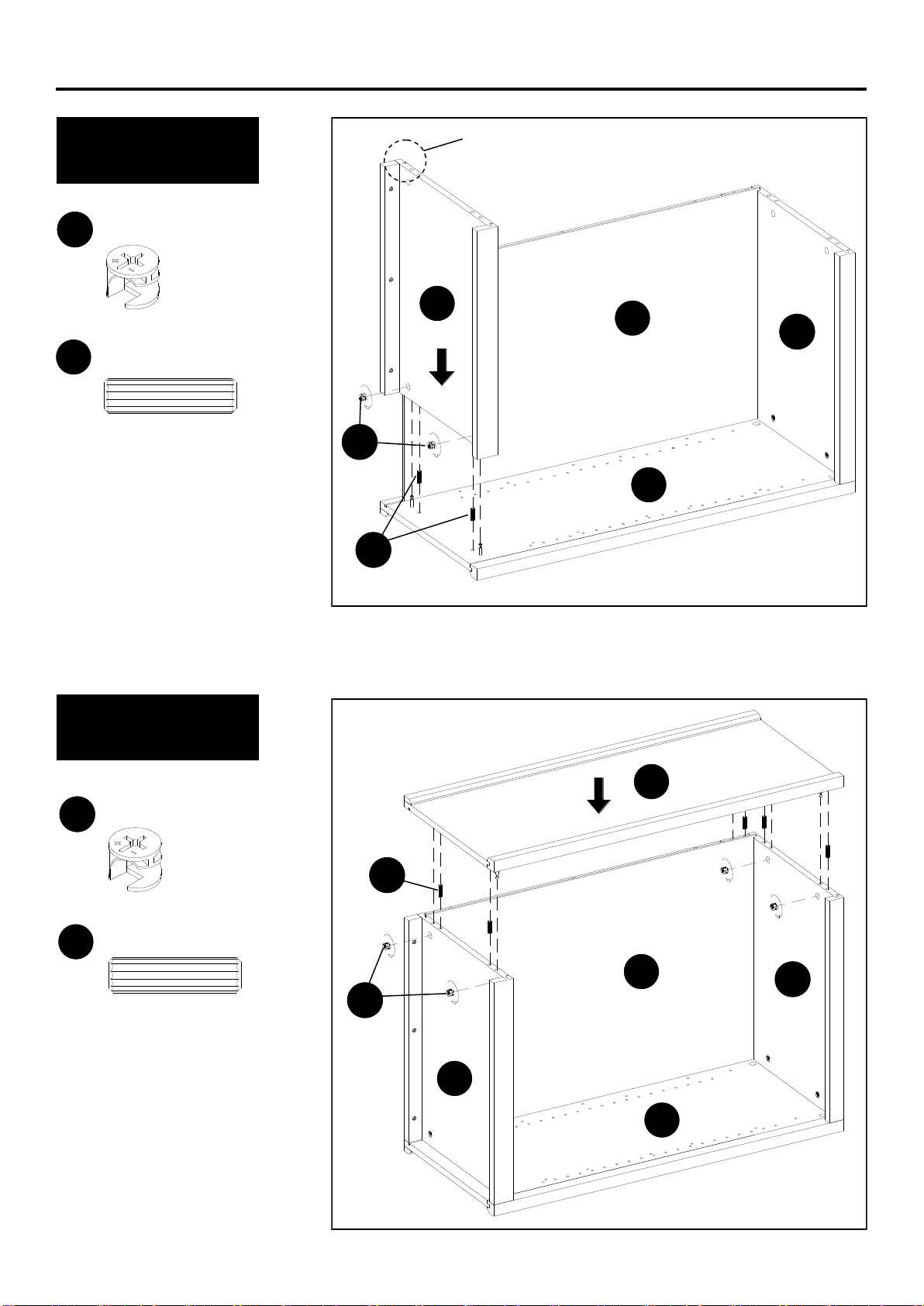

Step 5
Base assembly
Step 6
Base assembly
K
x 2
Large Wood Dowel
x 2
Large Cam Lock
FF
DD
L
x 5
Large Wood Dowel
x 4
Large Cam Lock
FF
DD
DD
I
FF
J
K
L
H
Fit base panel back (K) into base bottom
panel slot and lower into place.

9
ASSEMBLY INSTRUCTIONS

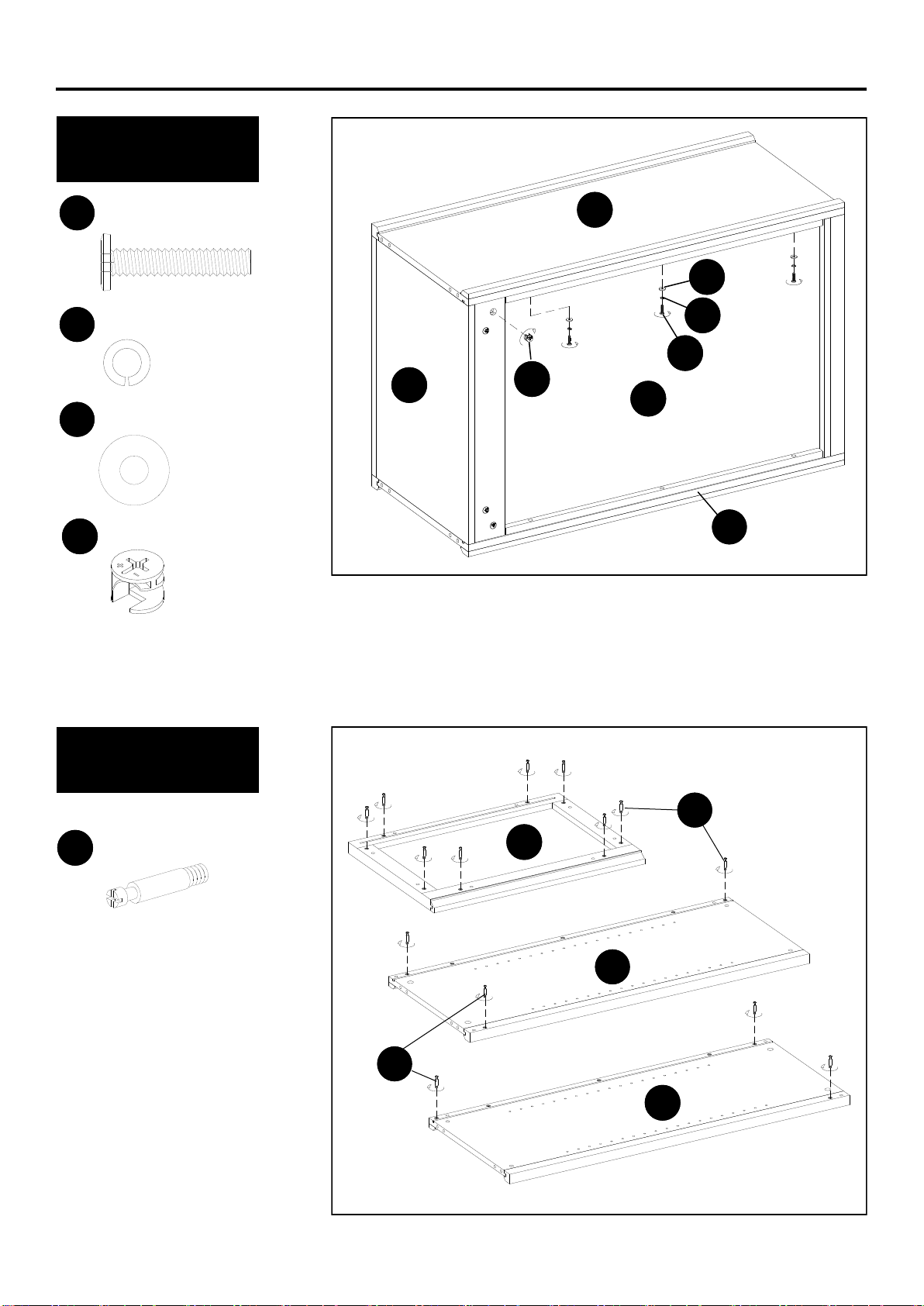

Step 7
Base assembly
x 1
Large Cam Lock
DD
AA
BB
CC
1/4 x 1-1/4 in. Bolt
Lock Washer
Flat Washer
x 3
x 3
x 3
Step 1
Hutch assembly
x 14
EE Medium Cam Bolt
J
K
AA
DD
BB
CC
I
Back Side
H
C
B
A
EE
EE

10
ASSEMBLY INSTRUCTIONS
Step 3
Hutch assembly
Step 2
Hutch assembly
x 6
Large Cam Lock
DD
AA
BB
CC
1/4 x 1-1/4 in. Bolt
Lock Washer
Flat Washer
x 6
x 6
x 6
Back Side
x 6
Large Wood Dowel
FF
DA
B
C
E
x 8
Large Cam Lock
DD
x 8
Large Wood Dowel
FF
FF
DD
FF
A
B
E
AA
DD
BB CC
F FF
FF
DD
Back Side
D
Choose front curved stretcher (E) or front straight stretcher (F) depending
on which fits your tower look and assemble per instructions below.

11
ASSEMBLY INSTRUCTIONS
Step 4
Hutch assembly
Step 5
Hutch assembly
x 4
Large Cam Lock
DD
x 4
Large Wood Dowel
FF
Hutch
Base
A
B
HI
J
DD
FF
FF
NOTE: Ask for help from
your friend for this step.
x 4
Large Cam Bolt
JJ
JJ
A
B
KK
x 4
Barrel Nut
JJ
KK

12
ASSEMBLY INSTRUCTIONS
I I Large Flat Washer
x 4
HH M8 x 2-1/2 in. Lag Bolt
x 4
Step 1
Wall Hanging installation
Step 2
Wall Hanging installation
M
M
M
NOTE: TWO OR MORE
PERSONS MUST WORK
TOGETHER TO INSTALL
THE UNIT ONTO THE
WALL.
16 in.
39-1/2 in.
HH
II
HH
I I
M
Beveled edge
facing up
Wooden Stud
M
Installing Hole
Installation
Template
Position the provided installation
template (N) on desired location
and carefully follow the directions
on template to mark the installing
holes. Make sure the bottom two
installing holes location are more
than 31-1/2 in. from the floor. Drill
holes 2-1/2 in. deep with a 3/16 in.
drill bit at the marked location. Minimum 31-1/2 in.

13
ASSEMBLY INSTRUCTIONS
Step 1
Adj. Shelf installation
GG Shelf Pin
x 8
G
GG
G
GG
 Periodically check to make certain all components are properly positioned, free from damage
and firmly connected.
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Never use water to clean your furniture as it may cause damage to the finish.
 Wipe clean using a damp cloth and a mild cleaner. Wipe dry with a clean cloth.
 In the event that your furniture is stained or otherwise damaged during use, it is recommended
that you call a professional to repair the furniture.
 Keep furniture away from direct sunlight as it may damage the finish.
 It is best to keep the furniture in a climate-controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood.
 Touch-up pen (MM) has been provided (except in item #0339209) to repair any small nicks or
scratches that may occur during assembly or shipping.
 If Item #0339209 is damaged and touch-up is required, please apply a quality wood polish to
the damaged surface. Polish not included with this item.
CARE AND MAINTENANCE
TROUBLESHOOTING
If you have any questions regarding the product, please call customer service at
1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Closet tower tilted The wall hanging cleats
are not level.
Reinstall the wall hanging cleats and ensure they
are level.
Closet tower can
not hang on the
wall
The mounting holes
location are not correct.
Reinstall wall hanging cleats; make sure the
space between two wall hanging cleats is 39-1/2
in. and the bottom two mounting holes location is
more than 31-1/2 in. from the floor.

14
This product (exclusive of shelves) is warranted to the original purchaser. If there is a failure in this
unit due to defects in materials or workmanship, the manufacturer will repair or replace this item at
our discretion without charge. Warranty is void if product has been assembled incorrectly,
misused, abused by overloading, altered in any way or damaged due to accident. This warranty is
not transferable and does not cover chipping, flaking, scratches, rust, dents, or other damages to
the surfaces of this product. Responsibility of the manufacturer is limited to repair or replacement
of this product. The manufacturer is not responsible for consequential, incidental, or other
damages or losses resulting from product failure.
This warranty is in lieu of all other expressed warranties. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation may not apply to you.
This warranty gives you specific legal rights and you may have other rights which vary from state
to state.
LIMITED LIFETIME WARRANTY
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
AHutch Panel Left *WSWS-WU1C/W/P/S-1-HPL
BHutch Panel Right *WSWS-WU1C/W/P/S-2-HPR
CHutch Panel Top *WSWS-WU1C/W/P/S-3-HPT
DHutch Panel Back *WSWS-WU1C/W/P/S-4-HPB
EFront Curved Stretcher *WSWS-WU1C/W/P/S-5-FCS
FFront Straight Stretcher *WSWS-WU1C/W/P/S-6-FCS
GAdjustable Shelf *WSWS-WU1C/W/P/S-7-AS
HBase Panel Left *WSWS-WU1C/W/P/S-8-BPL
IBase Panel Right *WSWS-WU1C/W/P/S-9-BPR
JBase Panel Top *WSWS-WU1C/W/P/S-10-BPT
KBase Panel Back *WSWS-WU1C/W/P/S-11-BPB
LBase Panel Bottom *WSWS-WU1C/W/P/S-12-BPB
MWall Hanging Cleat *WSWS-WU1C/W/P/S-13-WHC
NInstallation Template *WSWS-WU1C/W/P/S-26-IT
AA 1/4 x 1-1/4 in. Bolt *WSWS-WU1C/W/P/S-15-1-1/4B
BB Lock Washer *WSWS-WU1C/W/P/S-16-LW
CC Flat Washer *WSWS-WU1C/W/P/S-17-FW
DD Large Cam Lock *WSWS-WU1C/W/P/S-18-LCL
EE Medium Cam Bolt *WSWS-WU1C/W/P/S-19-MCB

15
C
H
B
E
D
F
G
A
I
K
J
L
M
N
AA
I I
BB CC DD FF
EE
HH
GG
Touch Up Pen(1)
PART DESCRIPTION PART #
FF Large Wood Dowel *WSWS-WU1C/W/P/S-20-LWD
GG Shelf Pin *WSWS-WU1C/W/P/S-21-SP
HH M8 x 2-1/2 in. Lag Bolt *WSWS-WU1C/W/P/S-22-2-1/2LB
II Large Flat Washer *WSWS-WU1C/W/P/S-23-LFW
JJ Large Cam Bolt *WSWS-WU1C/W/P/S-26-LCB
KK Barrel Nut *WSWS-WU1C/W/P/S-27-BN
LL M4 Allen Wrench *WSWS-WU1C/W/P/S-24-M4AW
MM Touch-up Pen *WSWS-WU1C/W/S-25-TUP
Complete Hardware *WSWS-WU1C/W/P/S-14-CH
JJ KK
LL MM
Printed in Vietnam

16
MODEL No WSWS-WU1C, WSWS-WU1W
WSWS-WU1P, WSWS-WU1S
ARTICLES No0339207, 0339208, 0339209, 0339210
TOUR EN BOIS HAUT
DE GAMME
JOINDRE VOTRE REÇU ICI
Numéro de série_____________________ Date d'achat _______________________
Question, problèmes, pièces manquantes ? Avant de retourner au détaillant,
communiquer avec notre service àla clientèle au 1-866-439-9800 entre 8 h 00 et 20 h 00,
Heure de l'Est, du lundi au vendredi.

17
TABLE DES MATIÈRES
Consignes de sécurité …………………………………………………..……...……………...…...
Préparation .…………………...………………………………………..…………………...………..
Garantie …………………………………….……………………………………….………….....….
Contenu de la quincaillerie ………………………….……………………………………………....
Contenu de la boîte ……………………………………………………………………………….....
Liste des pièces de remplacement …………………………………………………..……....…….
Diagnostic …………….…………………………………………………………………..…....…….
Soin et entretien ……………………………………….…….………………….………………...….
Directives de montage ……...…………………….…………….……………………...…...…..…..
1. Visser un boulon àcame dans le petit trou déjàpercésur le panneau.
2. Insérer la came dans le grand trou déjàpercésur le panneau.
3. S'assurer que la flèche sur la came soit orientée vers le boulon àcame.
4. Relier les deux panneaux en s'assurant que le boulon àcame s'insère dans le trou
déjàpercéàl'extrémitédu panneau avec la came.
5. Une fois le boulon à came en place, tourner la came dans le sens des aiguilles
d'une montre pour serrer avec un tournevis àpointe cruciforme.
CAME
PANNEAU
BOULON À CAME
DOUILLE
TARAUDÉE PANNEAU
POSITION BLOQUÉE
FONCTIONNEMENT DU SYSTÈME À CAME
DÉTAIL A DÉTAIL B
Fonctionnement du système àcame ………………………………………………………...….... 17
18
19
20
20
21
28
28
29
29

18
CONTENU DE LA BOÎTE
PIÈCE DESCRIPTION QTÉ
APanneau gauche de huche 1
BPanneau droit de huche 1
CPanneau supérieur de huche 1
DPanneau arrière de huche 1
EEntretoise avant courbée 1
FEntretoise avant droite 1
GTablette réglable 2
PIÈC DESCRIPTION QTÉ
HPanneau gauche de la base 1
IPanneau droit de la base 1
JPanneau supérieur de la base 1
KPanneau arrière de la base 1
LPanneau inférieur de la base 1
MTasseau de suspension 2
NGabarit d'installation 1
C
H
B
E
D
F
G
A
I
K
J
L
M
N

19
CONTENU DE LA QUINCAILLERIE
LL
AA
I I
BB CC DD
FF
EE
Tire-fond
M8 x 2 ½ po
Qté4
HH
GG
Boulon
¼ x 1 ¼ po
Qté12
Rondelle
frein
Qté12
Rondelle
plate
Qté12
Grande
came
Qté34
Grand goujon
de bois
Qté34
Grande
rondelle plate
Qté4
Taquet de
tablette
Qté 8
Cléhexagonale
M4
Qté1
Touch Up Pen(1)
MM
Crayon àretouche
Qté1
(non inclus pour
article no0339209)
JJ KK
Medium boulon
àcame
Qté30
Écrou
cylindrique
Qté4
Grand boulon
àcame
Qté4

20
CHARGE MAXIMALE : 13,6 KG (30 LB)
CONSIGNES DE SÉCURITÉ
Lire et comprendre le présent guide avant de procéder au montage.
1. Ne pas laisser les enfants grimper ni jouer sur ou autour de ce produit.
2. Utiliser cette unitépour l'usage viséseulement. Ne pas utiliser les tablettes pour grimper.
3. Pour éviter les dommages, assembler le produit sur une surface solide, de niveau et protégée.
4. Au moins deux personnes doivent travailler ensemble pour installer l'unitésur le mur.
5. S'assurer que tous les boulons et les vis soient serrés àfond avant d'utiliser l'unité.
6. Vérifier les boulons et les vis régulièrement et serrer, au besoin.
Outils requis pour le montage (non inclus) : tournevis àpointe cruciforme, niveau, perceuse,
mèche 4,8 mm (3/16 po), mèche 9,5 mm (3/8 po), cléàdouille 1,3 cm (½ po), détecteur de
montant, crayon, ruban àmesurer, échelle et marteau.
CETTE UNITÉ EST DESTINÉE À ÊTRE UTILISÉE UNIQUEMENT AVEC LES POIDS
MAXIMAUX INDIQUÉS. L'UTILISATION AVEC DES PRODUITS PLUS LOURDS QUE LES
POIDS MAXIMAUX INDIQUÉS PEUT RENDRE L'UNITÉ INSTABLE ET CAUSER DES
BLESSURES. RÉPARTIR LE POIDS ÉGALEMENT.
AVERTISSEMENT
!
PRÉPARATION
Avant de débuter l'installation du produit, s'assurer d'avoir toutes les pièces. Comparer les
pièces avec la liste des pièces et de la quincaillerie. En cas de pièce manquante ou
endommagée, ne pas tenter d'assembler, d'installer ni d'utiliser le produit. Communiquer
avec le service àla clientèle pour obtenir des pièces de remplacement.
Durée approximative du montage : 60 minutes
