Alliance Laundry Systems Drying Tumblers 175 Pound Capacity Operating instructions

Operation/Maintenance
Drying Tumblers
175 Pound Capacity
Part No. D0873
November 2007
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

i
Addendum A
Information in this manual is applicable to these models:
HD175
D0873

Page 1
IMPORTANTNOTICES—PLEASEREAD
For optimum efficiency and safety, we recommend that you read the manual before operating the equipment. Store this manual in a
file or binder and keep for future reference.
WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or
any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow thegas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
WARNING: In the event the user smells gas odor, instructions on what to do must be posted in a
prominent location. This information can be obtained from the local gas supplier.
WARNING: Wear safety shoes to prevent injuries.
WARNING: Purchaser must post the following notice in a prominent location:
FOR YOURSAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING: A clothes dryer produces combustible lint and should be exhausted outside the
building. The dryer and the area around the dryer should be kept free of lint.
WARNING: Be safe, before servicing machine, the main power should be shut off.

Page 2
WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similar texture materials.
Do not put into this dryer flammable items such as baby bed mattresses, throw rugs,undergarments
(brassieres, etc.) and other items which use rubber as padding or backing. Rubber easily oxidizes causing
excessive heat and possible fire. These items should be air dried.
WARNING: Synthetic solvent fumes from drycleaning machines create acids when drawn through the
dryer. These fumes cause rusting of painted parts, pitting of bright or plated parts, and completely
removes the zinc from galvanized parts, such as the tumbler basket. If drycleaning machines are in the
same area as the tumbler, the tumbler's make-up air must come from a source free of solvent fumes.
WARNING: Do not operate without guards in place.
WARNING: Check the lint trap often and clean as needed but at least a minimum of once per day.
WARNING: Alterations to equipment may not be carried out without consulting with the factory and
only by a qualified engineer or technician. Only Manufacturer parts may be used.
WARNING: Remove clothes from dryer as soon as it stops. This keeps wrinkles from setting in and
reduces the possibility of spontaneous combustion.
WARNING: Be safe - shut main electrical power and gas supply off externally before attempting
service.
WARNING: Never use drycleaning solvents, gasoline, kerosene, or other flammable liquids in the dryer.
FIREANDEXPLOSIONWILLOCCUR. NEVERPUTFABRICSTREATEDWITHTHESELIQUIDS
INTO THE DRYER. NEVER USE THESE LIQUIDS NEAR THE DRYER..
WARNING:Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking
oils may contribute to a chemical reaction that could cause a load to catch fire.
WARNING: Never let children play near or operate the dryer. Serious injury could occur if a child
should crawl inside and the dryer is turned on.
WARNING: Never tumble fiberglass materials in the dryer unless the labels say they are machine
dryable. Glass fibers break and can remain in the dryer. These fibers cause skin irritation if they
become mixed with other fabrics.
WARNING: Before operating gas ignition system - purge air from natural gas or propane gas lines
per manufacturer’s instructions.
WARNING: To reduce the risk of electric shock, disconnect this appliance from the power supply
before attempting any user maintenance other than cleaning the lint trap. Turning the controls to the
OFF position does not disconnect this appliance from the power supply.

Page 3
AVERTISSEMENT. Assurez-vous debien
suivre les instructions donnees dans cette
notice pour reduire au minimum le risque
d’incendie ou d’explosion ou pour eviter tuot
dommage materiel, toute blessure ou la mort.
__ Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
apparell.
__ QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DEGAZ:
•Ne pas tenter d’allumer d’apparell.
• Ne touchez a aucun interrupteur. Ne pas
vous servir des telephones se trouvant dans
le batiment ou vous vous trouvez.
• Evacuez la piece, le batiment ou la zone.
•Appelez immediatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
•Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incendies.
__ l’installation et l’entretien doivent etre assures
par un installateur ou un service d’entretien
qualifie ou par le fournisseur de gaz.
ATTENTION:L’ACHETEUR DOIT PLACER L’AVERTISSEMENT
SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE:
ATTENTION:L’ACHETEUR DOIT PLACER L’AVERTISSEMENT
SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE:
POUR VOTRE SECURITE
Ne pas entreposer ni utiliser d’ essence
ni d’autres vapeurs ou liquides
inflammablesdans le voisinage de cet
appareil ou de tout autre appareil.

Page 4
TABLE OF CONTENTS
PAGE
ImportantNotices..............................................................................................................1-3
TableofContents ................................................................................................................. 4
CustomerService.................................................................................................................5
Warnings,CautionaryNotesandSymbols..........................................................................6-7
RulesforSafeOperationofYourDryer .............................................................................8-9
TwoTimerModels.........................................................................................................10-12
ServiceSavers.................................................................................................................... 13
TroubleshootingCharts ..................................................................................................14-18
DirectSparkIgnitionOperation .....................................................................................19-20
GeneralMaintenance .......................................................................................................... 21
BasketAlignment................................................................................................................ 22
ShimmingtheBasketandSpiderAssembly ....................................................................23-24
AirSwitchAdjustment ........................................................................................................ 25
PulleyandBeltMaintenance ............................................................................................... 26
OverloadHeatersforOverloadRelays...........................................................................27-28
(C) CopyrightAlliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by
any means without the expressed written consent of the publisher.

Page 5
CUSTOMERSERVICE Ifliteratureorreplacementpartsarerequired,contactthesource
fromwhichthemachinewaspurchasedorcontactAlliance
LaundrySystemsat(920)748-3950forthenameandaddressof
thenearestauthorizedpartsdistributor.
Fortechnicalassistance,call(920)748-3121.

Page 6

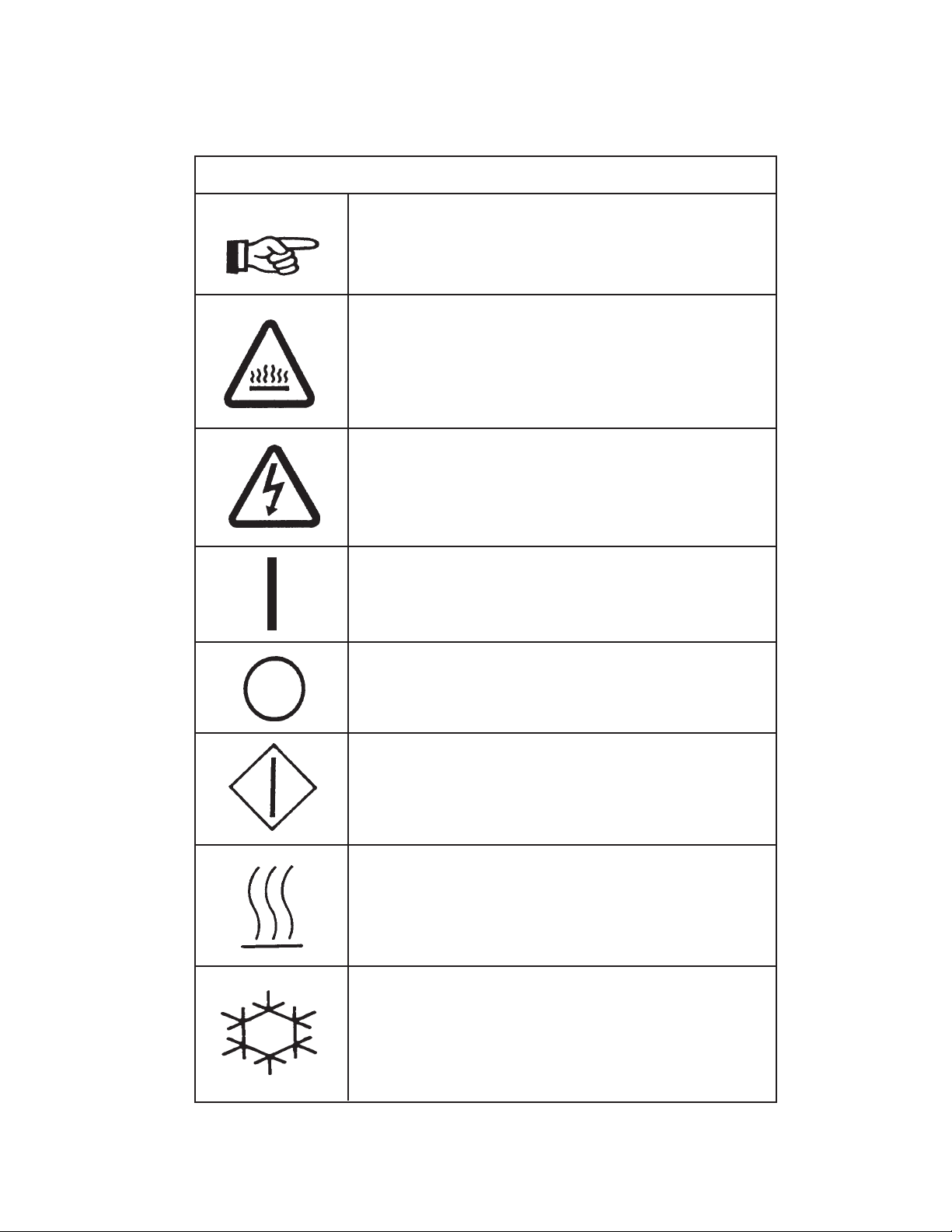

SYMBOLS
The following symbols are used in this manual and/or on the machine.
Symbol Description
NOTE!
Hot! Do Not Touch
Heib! NichtBeruhren
Hautetemperature! Nepas toucher
Caliente! no tocar
Heet! NietAanraken
dangerousvoltage
tensiondangereuse
Gafahrlicheelektrische Spannung
tension peligrosa
on
marche
Ein
conectado
off
arrêt
Aus
desconectado
start
demarrage
Start
arranque de un movimiento
emission of heat in general
êmission de chaleur en general
Warmeabgabeallgemein
emisión de calor
cooling
refroidissement
Kuhlen
enfriamiento

Page 7
SYMBOLS
The following symbols are used in this manual and/or on the machine.
Symbol Description
rotation in two directions
rotation dans les deux sens
Drehbewigungin zwei Richtungen
movimiento rotativo en los dos sentidos
direction of rotation
sens de mouvement continu de rotation
DrehbewegunginPfeilrichtung
movimiento giratorio o rotatorio
en el sentido de la flecha
End of Cycle
caution
attention
Achtung
atencion;precaucion

Page 8
Rules for Safe Operation of Your Dryer
RULES
1. Be sure your dryer is installed properly in accordance with
the recommended instructions.
2. CAUTION
Be safe - Shut main electrical power supply and gas supply
off externally before attempting service.
3. CAUTION
a. Never use dry cleaning solvents: gasoline,
kerosene, or other flammible liquids in the dryer.
FIREAND EXPLOSION WILLOCCUR!
b. Never put fabrics treated with these liquids into
the dryer.
c. Never use these liquids near the dryer.
d. Always keep the lint screen clean; a full lint screen
may be a fire hazard.
e. Never use heat to dry items that contain plastic,
foam, or sponge rubber, or rags coated with wax
or paint. The heat may damage the material or create
a fire hazard. Rubber easily oxidizes, causing excessive
heat and possible fire. Never dry the above items in
the dryer.
4. Never let children play near or operate the dryer.
Serious injury will occur if a child should crawl inside and
the dryer is turned on.
5. Never use the dryer door opening and top (or the lint
drawer) as a step stool.
6. Read and follow manufacturer's instructions on packages
of laundry and cleaning aids. Heed any warnings or
precautions.
7. Never tumble fiberglass materials in the dryer unless the
labels say they are machine dryable. Glass fibers break
and can remain in the dryer and could cause skin
irriatation if they become mixed into other fabrics.
8. Reference - Lighting and shutdown instructions and
wiring diagrams are located on the rear wall of the dryer
cabinet.
NOTE:
It is best to run a properly sized load of rags and/or old
towels through one or two cycles prior to drying in
service. This process will remove any films or residual
coatings left by the manufacturing processes.
RULES FOR SAFE
OPERATION OF YOUR
DRYER

Page 9
Rules for Safe Operation of Your Dryer
CAUTION
Synthetic solvent fumes from dry cleaning machines create acids
when drawn through the dryer. These acid fumes cause rusting of
painted parts, pitting of bright plated parts and completely
removes the zinc from galvanized metal parts, such as the tumbler
basket.
If the dry cleaning machines are in the same area as the
tumbler, then the tumbler make-up air must come from
a source free of solvent fumes.
ENERGYSAVINGTIPS
1. Install dryer so that you can use short, straight venting.
Turns, elbows and long vent tubing tend to increase drying
time. Longer dry time means the use of more energy and
higher operating costs.
2. Operate dryer using full-size loads. Very large loads use
extra energy. Very small loads waste energy.
3. Dry lightweight fabrics separately from heavy fabrics.
You'll use less energy and get more even drying results by
drying fabrics of similar weight together.
4. Clean the lint screen after each load. A clean lint screen
helps give faster, more economical drying.
5. Don't open the dryer door while drying. You let warm air
escape from the dryer into the room.
6. Unload your dryer as soon as it stops. This saves having to
re-start your dryer to remove wrinkles.
ELEVATIONSABOVE 2,000 FEET
Input ratings shown on the rating plate (serial tag) are for elevations up to
2,000 feet. For elevations above 2,000 feet, rating should be reduced at a
rate of 4% for each 1,000 feet above sea level.
ENERGY SAVING TIPS
ABOVE 2,000 FEET

Page 10

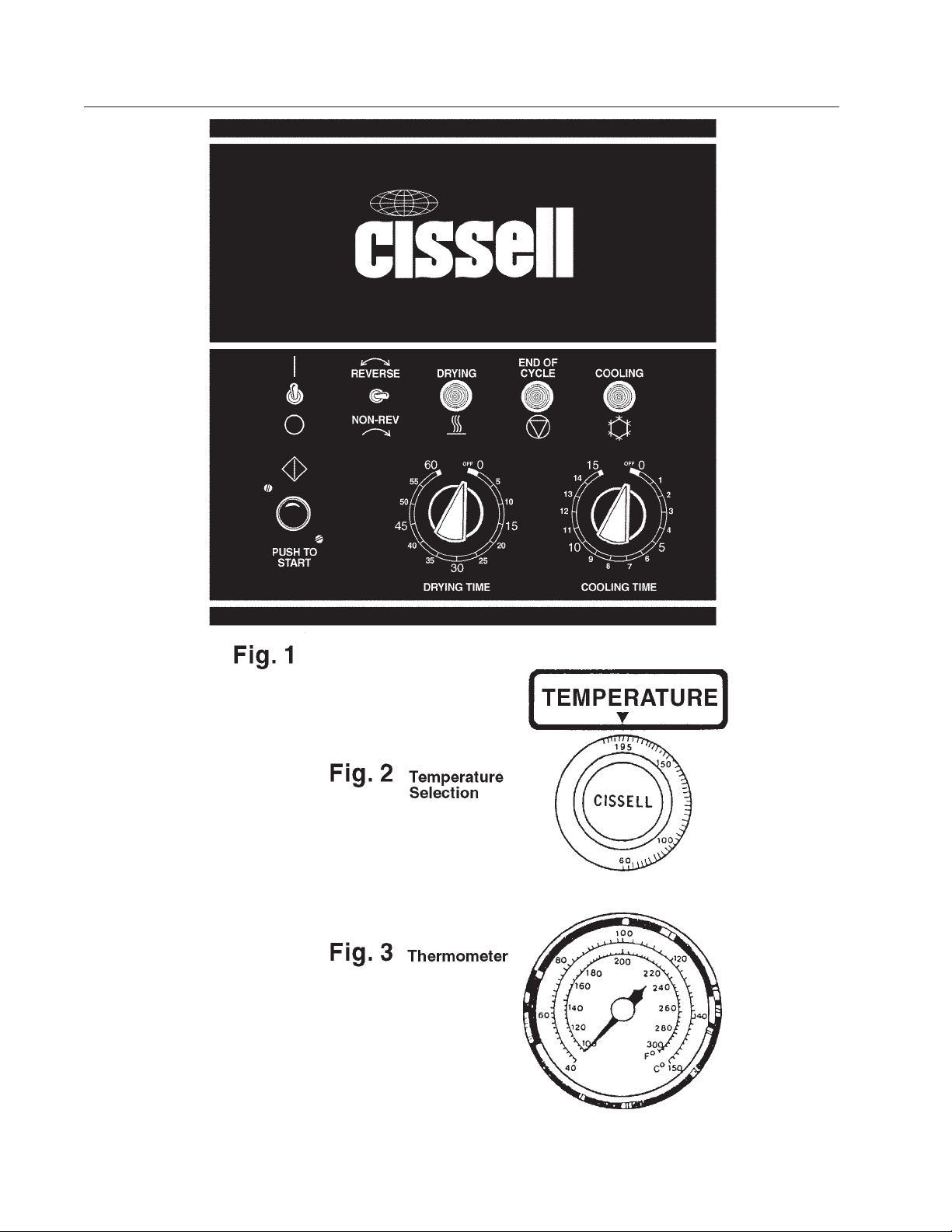

Two Timer Models—Figures 1, 2, and 3 (Illustrations)

Page 11
Operating Instructions - Two Timer Models
OPERATING
INSTRUCTIONS -
TWO TIMER
MODELS
1. After loading the dryer tumbler with water washed clothes load, proceed to
close the loading door. For better drying, do not load dryer with combina-
tion of garments that twist.
2. Turn the 60-minute drying timer to the desired drying time. The drying
cycle light will be on and indicate the drying. The light shuts off when
drying time is complete. (See figure 1)
3. Turn the 15-minute cooling cycle timer to the desired cool down time. (Note:
Dryer will not start unless some cooling time is selected!). After the
drying cycle is completed, then the cooling cycle time will automatically
operate. The cooling light will be on and indicate the cooling of the clothes
load. The light shuts off when cooling time is completed. (See figure 1 )
4. TemperatureSelector- Select temperature per type of load being dried in
the dryer. (See figure 2 )
HighHeat- Mixed and heavy fabrics, set dial to 195º F (91° C).
Normal - Cottons and linens, set dial to 170º F (77° C).
Permanent Press Heat - Poly knit synthetics, blends, lightweight fabrics,
set dial to 150º F (66° C).
Low Heat - Delicate, sheer fabrics, easy-to-dry, set dial to 135º F (58° C).
5. Thermometer - Use this with your temperature selection. Teach yourself
what temperature is too hot or too cold. (See figure 3 )
6. Turn switch to “start” position. (See figure 1 )
7. Close the dryer door, but the basket will not rotate until the PUSH-TO-
START BUTTON is pressed. Press in the PUSH-TO-STARTBUTTON
(approximately 2 seconds) until the dryer starts running and then release
button. (See figure 1)
What is happening to the drying operation:
a. The fan motor will operate.
b. The basket will rotate.
c. The heat source will be energized.
d. The heated air mix with the water washed clothes to evaporate the
moisture from the garments.
e. The thermostats will function to maintain a safe temperature through
out the drying cycle.
f. The heat will be shut off and the motor will continue to run to cool the
dry load to a desired handling temperature.
8. When the drying timer completes its time, then the cooling timer will be
energized and the cooling light will be “On”. When the cooling light will
stay “On” and the “End-of-Cycle” light will be “On”. The “End-of-Cycle”
light will go off when the “Start/Stop” switch is turned to “Off” or “O”. At
the end of the cool-down cycle, the clothes load is dry.
(Continuedonnextpage.)

Page 12
Operating Instructions - Two Timer Models (continued)
OPERATING
INSTRUCTIONS -
TWO TIMER
MODELS
9. To shut the dryer “Off”, move the “Start/Stop” switch to “Off” or “O”
position. This switch is a safety switch to immediately stop the dryer’s
operation.
Special Reversing Feature - Set the “Reversing/Non-Reversing” switch to
“Reversing”. See service manual for setting of time of each reversal.
Reversing of the basket is designed for loads that twist (example - bed
sheets and large mixed loads). “Non-Reversing” is for small or medium-size
items that don’t twist.

Page 13
Service Savers
To help you troubleshoot the dryer, we list below the most
common reasons for service calls and some answers to the
problems. Before you call service, please review the following
items:
DRYERWON'TSTART
1. Is the door completely closed?
2. Are the controls set to the “on” position?
3. Is there time on both timers?
4. Did you push the “pushtostart” button?
5. Has a fuse blown or a circuit breaker tripped?
6. Are the fuses tight?
7. Check for low voltage.
DRYERWON'THEAT
1. Is the dryer set for “cooling time” rather than
“drying time”?
2. Are the gas valve in the dryer and the gas shut off
valve on the main gas line turned on?
3. Check for low or intermittant gas pressure.
CLOTHESARENOTSATISFACTORILYDRY
1. Timed cycle - Did you allow enough heating time
before the cool-down part of the cycle?
2. Is the lint screen blocked?
3. Is the exhaust duct to the outside clean and not
blocked? (A blocked exhaust will cause slow
drying and other problems.)
4. (For Moisture Control models) Was the moisture
level setting incorrect? (Too high?)
GASDRYER IGNITION
Refer to the page on "Direct Spark Ignition Operation". Check to
seeif the manualgasvalve is open. Then reset thedryercontrols. All
panels,covers, and doors must be in placeandclosedbefore starting
thedryer. Theignitionmodule groundwire mustbesecurely
groundedto themachine (both sideson gasunit).
VERYIMPORTANT
When calling the factory for service, always refer to the
modelnumberandserial number.
TROUBLESHOOTING
DRYER WON’T START
DRYER WON’T HEAT
CLOTHES ARE NOT
SATISFACTORILY DRY
GAS DRYER
IGNITION

Page 14
Troubleshooting Chart
TROUBLE CAUSE REMEDY
Replace V-Belt.
Adjust belt tension.
Tighten set screw.
Removeload.
Refer to Installation Manual for proper leveling
procedures.
Accidental damage to the fan blade can change the
dynamic balance. Damaged fans should be replaced.
Adjust basket clearance.
Tighten set screws; make sure sheaves are in proper
alignment.
Adjust belt tension.
Occasionally screws, nails, etc., will hang in the basket
perforations and drag against the sweep sheets
surrounding the basket. Such foreign objects should
be removed immediately.
Check for correct control voltage - 24V.
Check power supply, check secondary voltage on
transformer and check wiring and wiring diagram.
May be broken or defective high voltage lead. Module
not receiving correct input to ignite. Refer to Direct
Spark Ignition section. Make sure ignition module
ground wire is securely grounded to the machine (both
sides).
Check continuity across unplugged valve. If defective,
replace coil assembly.
Turnmanualgasvalve“ON”.
V-Beltbroken
V-Beltloose
Motor Pulley loose
Basket overloaded
Not leveled
Fan out of balance
Basket rubbing
V-Beltsheaves
Belt
Foreign objects
Incorrect voltage
No voltage
Spark igniter not sparking
Defective gas valve
Gas turned off
Basket motor runs, but
basket will not revolve.
Dryer noisy or vibrating.
Dryer runs but no heat.
NOTE: This dryer has
two ignition systems,
valves, etc. Be sure to
check both systems.

Page 15
TROUBLE CAUSE REMEDY
Replace fuse.
Check continuity across contacts, opened & closed. If
defective, replace door switch.
Clean out lint compartment daily. Check back draft
damper for foreign objects, lint accumulation or other
causes that may prevent damper from opening. Check
duct work for lint build-up. Refer to Installation Manual
to ensure duct work and make-up air openings are
properly sized. Check exhaust outlet. If a screen has
been improperly installed on the outlet, it may be
clogged with lint or frozen over in Winter. Never install
a screen on the exhaust outlet. Vacuum within dryer
drops to .09 inches of water column, or less, for normal
operation of dryer, vacuum reading (in inches of water
column) should range between .15 and .3 inches.
Vacuum reading can be made with a vacuum U-gauge
by removing a sheet metal screw in the back panel or
right panel at front bottom corner and inserting the
rubber tube of the vacuum gauge into screw opening.
Refer to Air Switch Adjustment section.
Check continuity across contacts, opened and closed.
Ifdefective,replaceswitchwithpoweroff.Check
manifold pressure and adjust to pressure specified on
rating plate. If this pressure cannot be obtained, have
gas supplier check main pressure.
Dryer is orificed for type of gas specified on rating
plate. Check with gas supplier to determine specifica-
tions for gas being used. If different from rating plate,
contact factory to obtain proper orifices.
Turn power on.
Line fuse or heater circuit fuse
blown to unit
Defective door switch
Air switch not operating
Air switch out of adjustment
Air switch defective
Gas pressure too low
Improperorifice
Electric power to heating unit
turned off
Dryer runs, but no heat
(continued).
Troubleshooting Chart

Page 16
TROUBLE CAUSE REMEDY
Check continuity across thermostat. Limiting or
safety thermostats are normally closed. If open,
replace thermostat.
See above.
Close drawer.
Blow out.
Check rating plate for correct gas pressure.
Send to factory for correct orifices.
Clean exhaust.
Check with gas supplier for correct specifications of
gas used; must match rating plate.
Replace orifices -- check factory for correct size.
Replace orifices -- check factory for correct size.
Make-up air must be 4 to 6 times the exhaust area
of the dryer.
Remove lint.
Must be full open when dryer is in operation or
replace.
Adjust gas pressure as specified on rating plate.
Refer to Installation Manual for exhaust system
requirements. Check for and remove obstructions or
lintbuild-upfrom ductwork. Neveruse smaller size
exhaust duct. Always use larger size
exhaust duct.
When flame or heat is passed over, thermostat circuit
should open. Audible click will usually be heard. If
continuity remains, thermostat is defective. Replace
thermostat.
Defective thermostat
Defective safety overload thermo-
stat
Lintcompartment draweropen
Dirtin burner
Gas pressure too high
Orificetoolarge
Restricted or blocked exhaust
Incorrect or poor gas mixture
Incorrectmainburnerorifices
Incorrectmainburnerorifices
Inadequatemake-up air
Lintaccumulated
Exhaust duct dampers
Gas pressure too high
Partially restricted or
inadequately sized exhaust system
Defective thermostat
Dryer runs, but no heat
(continued).
Main burners
burning improperly.
Low gas flame or high
gas flame.
Dryer too hot.
Troubleshooting Chart

Page 17
TROUBLE CAUSE REMEDY
Check fuses on circuit breakers. Make sure main
control switch is ON.
Check power source: voltage, phase, and frequency
must be the same as specified on electrical rating
plate.
Turn timer clockwise to desired time setting.
Check wire connections in electrical box on rear of
dryer.
Check coils and contacts.
Check voltage at motor teminals. Voltage must be
within (plus or minus) 10% of voltage shown on
motor rating plate -- if not, check with local power
company for recommended corrective measures.
Check with local power company to insure that
wiring is adequately sized for load.
Check all electrical connections and tighten any
loose connections.
RefertoInstallationManualforrecommendedmake-
up air openings.
Clean lint accumulation on and around motors.
Motors should not be covered with or filled with
lint.
Close door.
Adjust switch by removing cover and bend actuator
lever to clear switch button 3/8” with cover in
place.
Check continuity across switch with power off, in
closed and open switch. If no continuity, replace
switch.
Push in contactor trip button. If motor starts, check
voltage going to pull-in solenoid. If present,
replace contactor. If not, problem is before motor
contactor.
Confirmtimerisworking.
Nopower
Incorrect power
Timeoff
Loose wiring connections
Defective starting relay
Low voltage
Inadequate wiring
Loose connections
Inadequate air
Poor housekeeping
Loading door open
Door switch out of adjustment
Defective door switch
Defective basket motor contactor
Reversingtimer
Motor will not start.
Motor tripping on
thermal overload.
Basketmotorwillnot
run.
Basket will not reverse.
Troubleshooting Chart
