Alliance Laundry Systems 70260301?8 User manual

Installation
www.comlaundry.com
NOTA: Para bajar una
copia de estas
instrucciones en
español, visite
www.comlaundry.com.
Part No. 70260301R8
January 2009
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Drying Tumblers
120 Pound Capacity
170 Pound Capacity
Refer to Page 5 for Model Identification
TMB126
8
TMB1268C

70260301 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation must conform with local codes or, in the absence of local codes, with:
In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/
NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”
In Canada, installation must comply with Standards CAN/CSA-B149.1 or Natural Gas and Propane
Installation Code and CSA C22.1, latest edition, Canadian Electric Code, Part I.
In Australia, installation must comply with the Australian Gas Association Installation Code for Gas
Burning Appliances and Equipment.
IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the
user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the
above safety information must be posted in a prominent location near the tumbler for customer use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
• Ne pas entreposer ou utiliser d’essence ou toutes autres vapeurs et liquides inflammables à
proximité de cette machine ou de tout autre appareil.
• QUE FAIRE EN CAS D’ODEUR DE GAZ :
– Ne pas mettre d’appareil en marche.
– Ne pas toucher aux interrupteurs électriques ; ne pas utiliser le téléphone des lieux.
– Évacuer la pièce, le bâtiment ou la zone de tous les occupants.
– Appeler immédiatement le fournisseur de gaz de la maison d’un voisin. Respecter les
instructions communiquées par le fournisseur.
– Si vous ne pouvez pas joindre le fournisseur de gaz, appeler le service d’incendie.
• L’installation et l’entretien doivent être effectués par un installateur, service d’entretien
qualifiés ou par le fournisseur de gaz.
W052R5QU
POUR VOTRE SÉCURITÉ, les informations de ce guide doivent être respectées afin de
réduire les risques d’incendie, d’explosion ou d’éviter les dommages matériels,
personnels ou blessures mortelles.
W033R3QU
MISE EN GARDE

270260301
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
The following information applies to the state of Massachusetts, USA.
●This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
●This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
●A "T-Handle" type gas shut-off valve must be installed in the gas supply line to this appliance.
●This appliance must not be installed in a bedroom or bathroom.
• Installation of unit must be performed by a qualified installer.
• Install tumbler according to manufacturer’s instructions and local codes.
• DO NOT install a tumbler with flexible plastic venting materials. If flexible metal (foil type)
duct is installed, it must be of a specific type identified by the appliance manufacturer as
suitable for use with tumbler. Refer to section on connecting exhaust system. Flexible
venting materials are known to collapse, be easily crushed, and trap lint. These conditions
will obstruct tumbler airflow and increase the risk of fire.
W752
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
W053
• L'unité doit être installée par un installateur qualifié.
• Installer la sécheuse conformément aux instructions du fabricant et aux codes locaux.
• NE PAS installer une sécheuse avec des matériaux d'aération souples en plastique. Si un
conduit d'aération souple en métal (de type feuille mince) est utilisé, il doit être d'un type
spécifiquement mentionné par le fabricant de l'appareil comme convenable pour utilisation
avec sécheuses. Se reporter à la section sur la façon de connecter le système d'évacuation.
Les matériaux d'aération souples risquent de s'affaisser, ils s'écrasent facilement, et les
fibres et les peluches s'y accumulent. Ces conditions obstruent l'écoulement de l'air et
augmentent les risques d'incendie.
W752QU
MISE EN GARDE
POUR VOTRE SÉCURITÉ
Ne pas entreposer ou utiliser d’essence ou toutes autres vapeurs et liquides inflammables à
proximité de cette unité ou de tout autre appareil.
W053R2QU

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
70260301 3
© Copyright 2009, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
Table of
Contents
Introduction......................................................................................... 5
Model Identification ............................................................................. 5
Customer Service.................................................................................. 5
Wiring Diagram Location..................................................................... 5
Serial Plate Location............................................................................. 6
Safety Information.............................................................................. 7
Important Safety Instructions ............................................................... 8
Specifications and Dimensions........................................................... 10

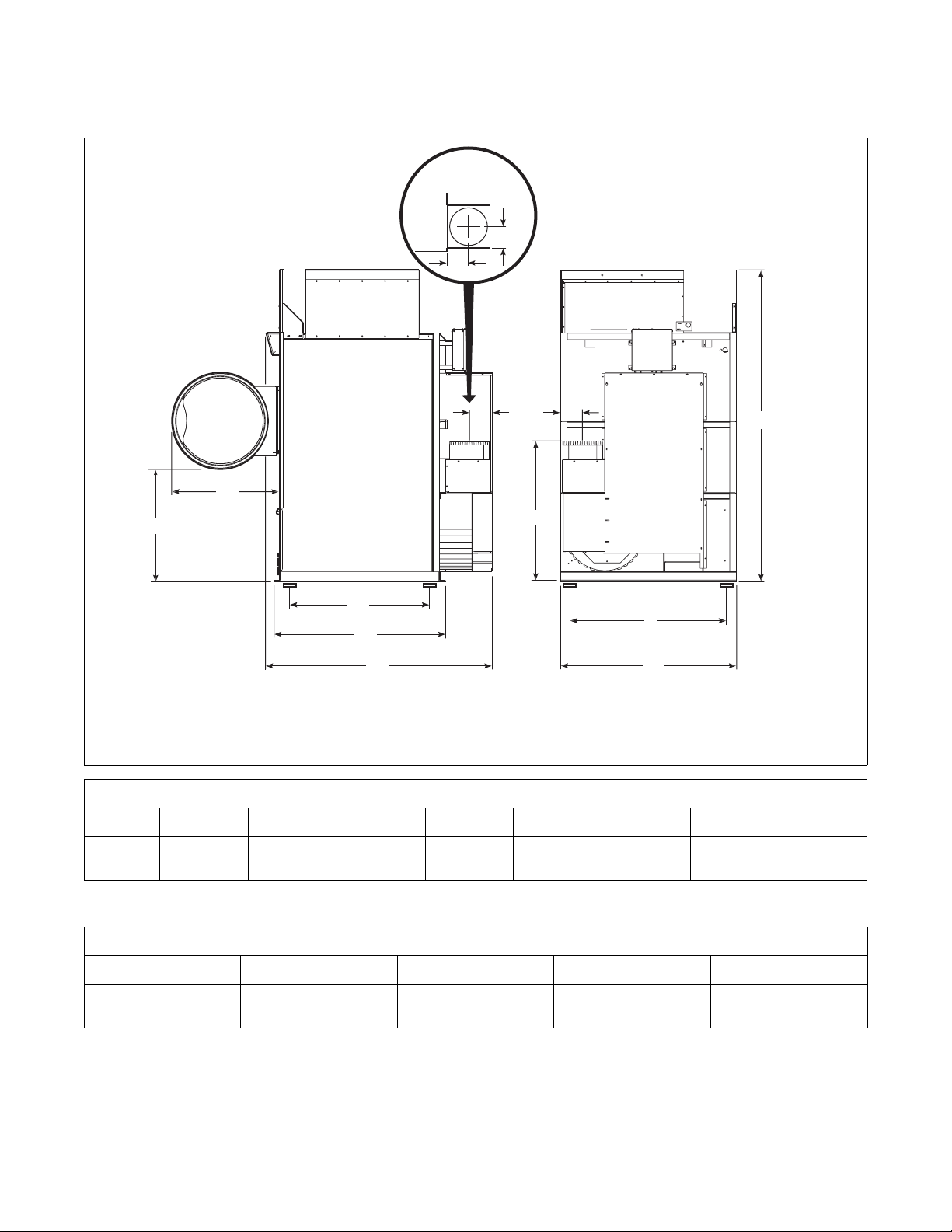

120 Pound Tumbler Dimensions and Exhaust Outlet Locations.......... 11

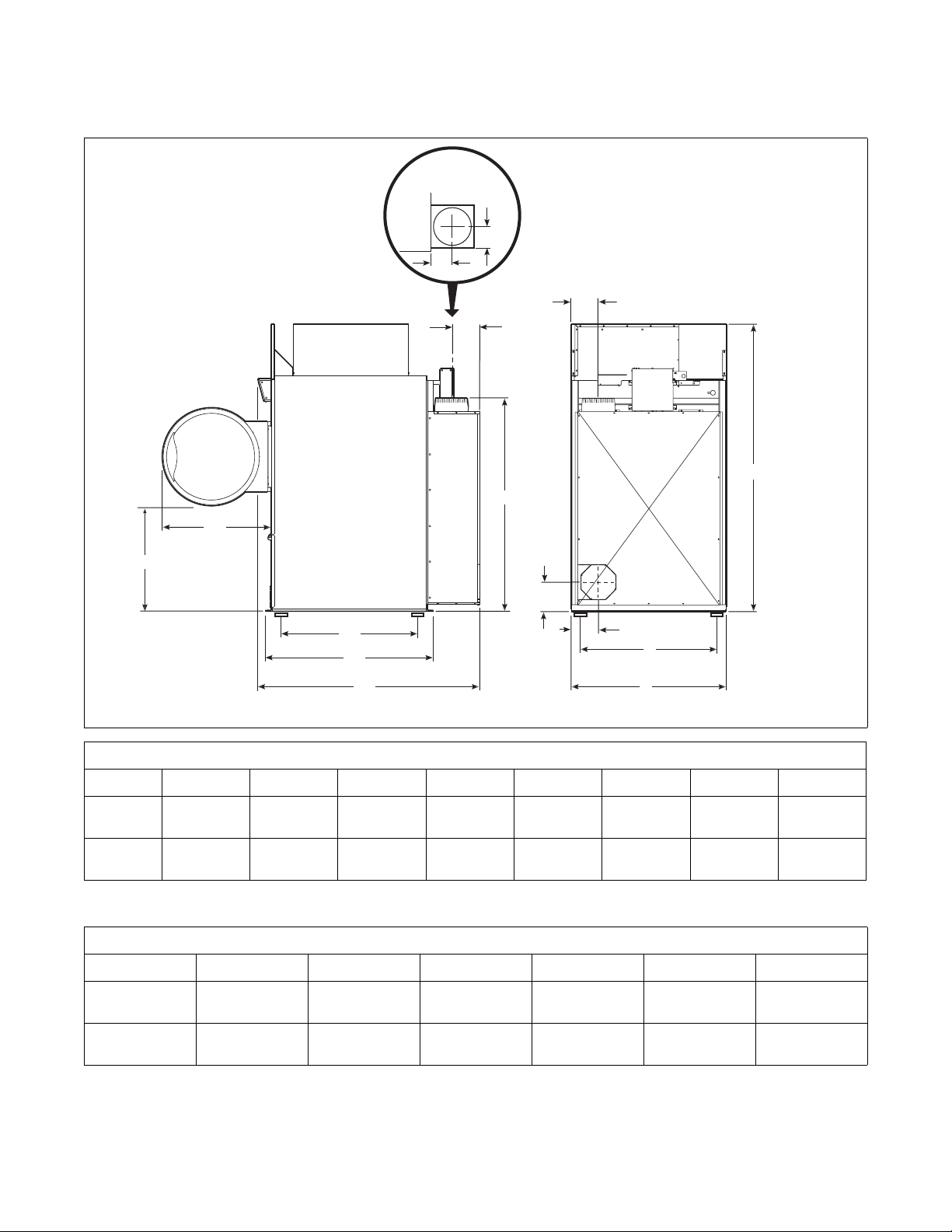

170 Pound Tumbler Dimensions and Exhaust Outlet Locations.......... 12

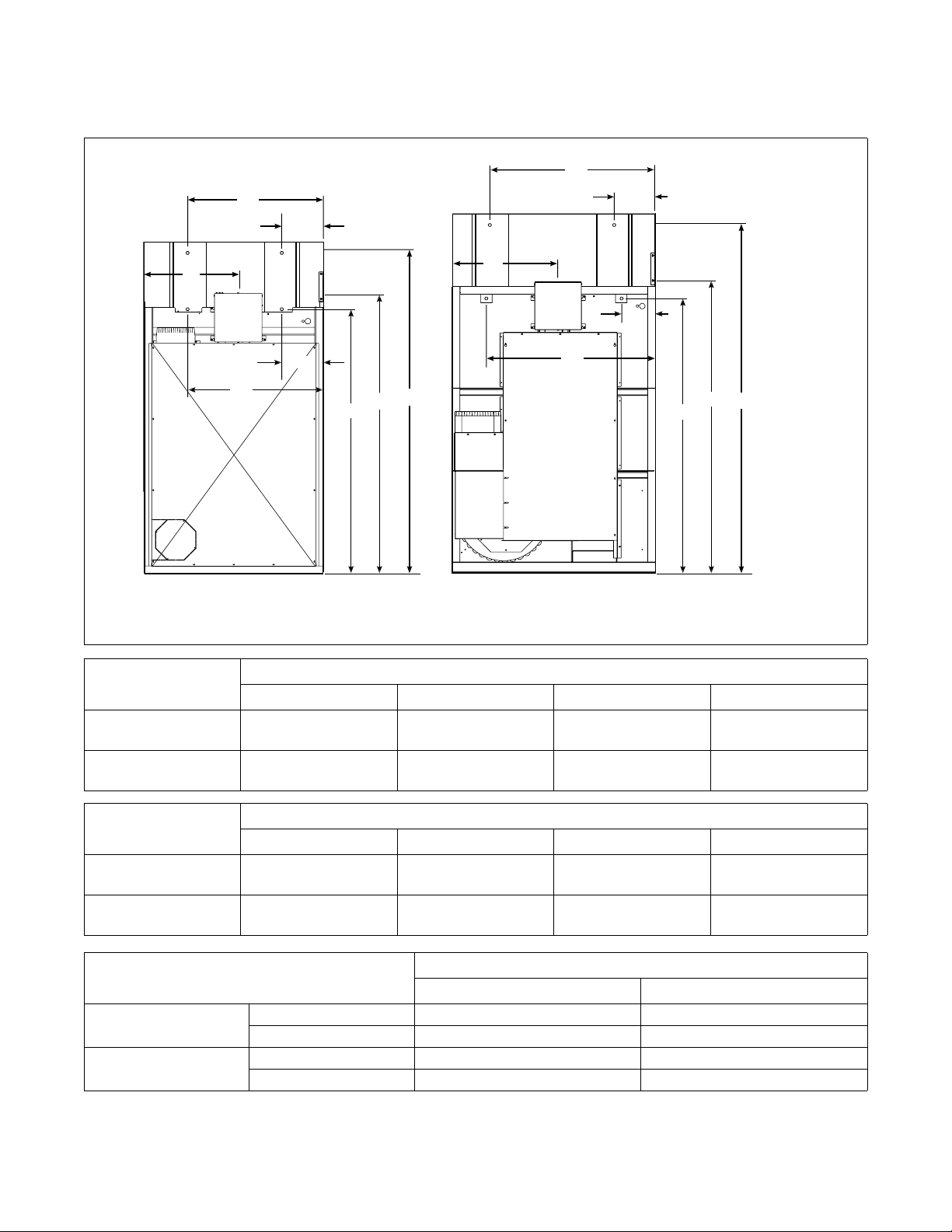

Electric and Gas Connection Locations for Gas Models...................... 13
Electric and Steam Connection Locations for Steam Models .............. 14
Installation........................................................................................... 15
Pre-Installation Inspection .................................................................... 15

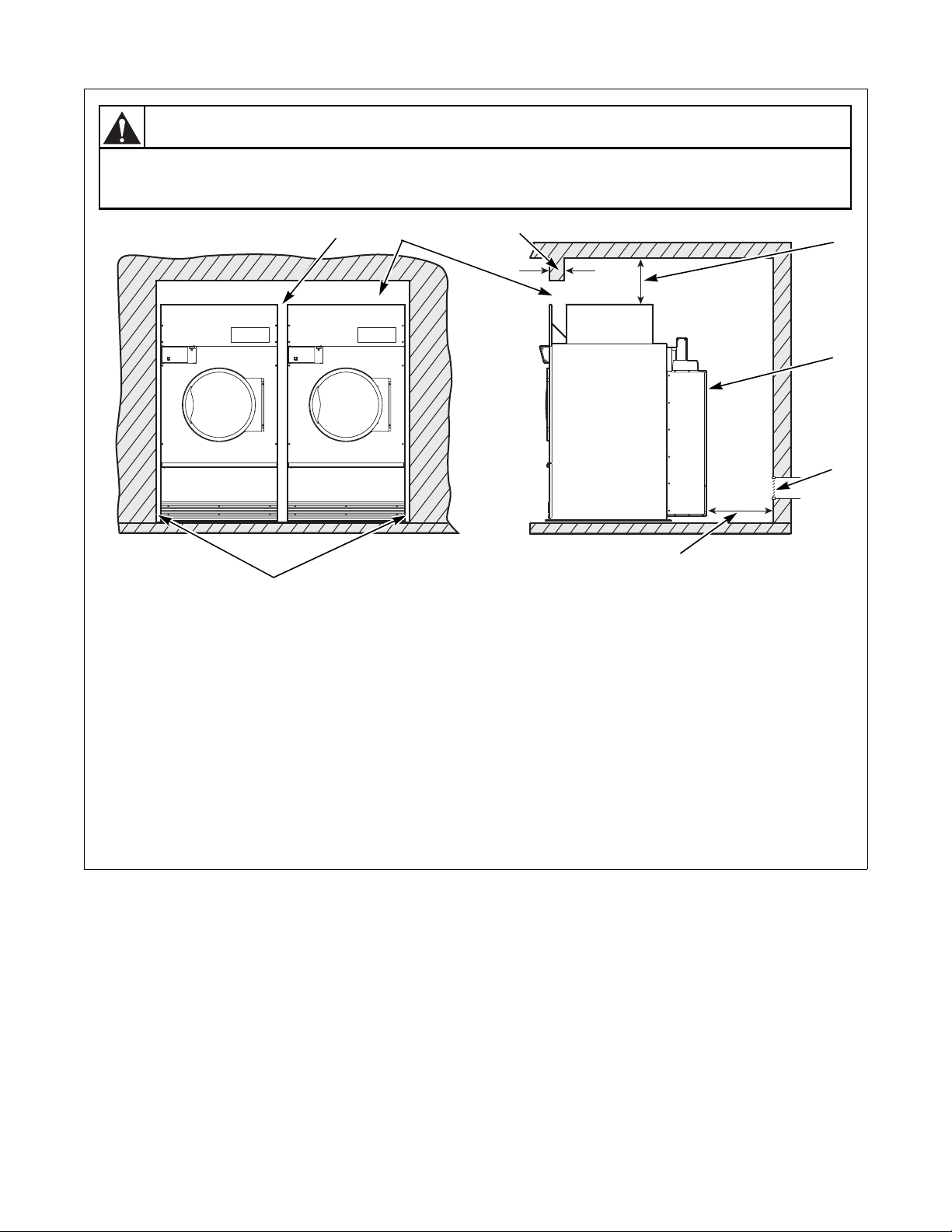

Location Requirements......................................................................... 15
Position and Level the Tumbler............................................................ 17
Before Placing Tumbler into Service ................................................... 17
Required for CE Models Only.............................................................. 18
Installing CE Gas Drying Tumblers ..................................................... 19
General Information......................................................................... 19
Basic Configuration ......................................................................... 21
Specific Conversion Procedures ...................................................... 22
Exhaust Requirements ....................................................................... 25
Layout ................................................................................................... 25
Make-Up Air......................................................................................... 25
Venting ................................................................................................. 25
Individual Venting ........................................................................... 27
Manifold Venting............................................................................. 27
Gas Requirements............................................................................... 31
Gas Supply Pipe Sizing and Looping ................................................... 33
High Altitude Orifice Sizing................................................................. 35
Electrical Requirements..................................................................... 36
Grounding Instructions ......................................................................... 36
For CE Models Only........................................................................ 36
Service/Ground Location...................................................................... 37
To Connect Electrical Service to the Tumbler................................. 38
Jumper Configuration Instructions ....................................................... 39
Ferrite Ring Installation........................................................................ 39
Electrical Requirements........................................................................ 40
Steam Requirements........................................................................... 41
Piping Recommendations ..................................................................... 41
Installing Steam Trap and Making Condensate Return
Connections........................................................................................ 42
Thermal Oil Prep .................................................................................. 42
120 Pound Tumblers............................................................................. 43
170 Pound Tumblers............................................................................. 44

470260301
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Adjustments......................................................................................... 45
Gas Burner Air Shutter ......................................................................... 45
Airflow Switch...................................................................................... 46
Loading Door Strike ............................................................................. 46
Loading Door Switch............................................................................ 46
Belt Drive.............................................................................................. 47
Removing Tumbler from Service...................................................... 48

5
70260301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
Model Identification
Information in this manual is applicable to these models.
Includes models with the following control suffixes:
RM – reversing OPL Micro
RQ – reversing dual digital timer
RT – reversing manual timer
Customer Service
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call [phone].
Wiring Diagram Location
The wiring diagram is located in the junction or
contactor box.
Models starting Serial No. 0309_____ or later will
have the wiring diagram part number in the lower
portion of the electrical data on the serial plate.
Gas Steam/Thermal Oil
120 Pound
AT120L
AT120N
DR120G2-BA120L
DR120G2-BA120N
DR120G2-BT120L
DR120G2-BT120N
DR120G2-BU120L
DR120G2-BU120N
CA120L
CA120N
CT120L
CT120N
CU120L
CU120N
HA120L
HA120N
HT120L
HT120N
HU120L
HU120N
IPD120G2-IT120L
IPD120G2-IT120N
SA120L
SA120N
ST120L
ST120N
SU120L
SU120N
UA120L
UA120N
UT120L
UT120N
UU120L
UU120N
WT120L
WT120N
XT120L
XT120N
XU120L
XU120N
YT120L
YT120N
AT120S
DR120S2-BT120S
DR120S2-BT120T
DR120S2-BU120S
DR120S2-BU120T
CT120S
CT120T
CU120S
CU120T
HT120S
HT120T
HU120S
HU120T
IPD120S2-IT120S
IPD120S2-IT120T
ST120S
ST120T
SU120S
SU120T
UT120S
UT120T
UU120S
UU120T
WT120S
WT120T
XT120S
XT120T
XU120S
XU120T
YT120S
YT120T
YU120S
YU120T
170 Pound
AT170L
AT170N
DR170G2-BA170L
DR170G2-BA170N
DR170G2-BT170L
DR170G2-BT170N
DR170G2-BU170L
DR170G2-BU170N
CA170L
CA170N
CT170L
CT170N
CU170L
CU170N
HA170L
HA170N
HT170L
HT170N
HU170L
HU170N
IPD170G2-IT170L
IPD170G2-IT170N
SA170L
SA170N
ST170L
ST170N
SU170L
SU170N
UA170L
UA170N
UT170L
UT170N
UU170L
UU170N
WT170L
WT170N
XT170L
XT170N
XU170L
XU170N
YT170L
YT170N
AT170S
DR170S2-BT170S
DR170S2-BT170T
DR170S2-BU170S
DR170S2-BU170T
CT170S
CT170T
CU170S
CU170T
HT170S
HT170T
HU170S
HU170T
IPD170S2-IT170S
IPD170S2-IT170T
ST170S
ST170T
SU170S
SU170T
UT170S
UT170T
UU170S
UU170T
WT170S
WT170T
XT170S
XT170T
XU170S
XU170T
YT170S
YT170T

Introduction
70260301
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

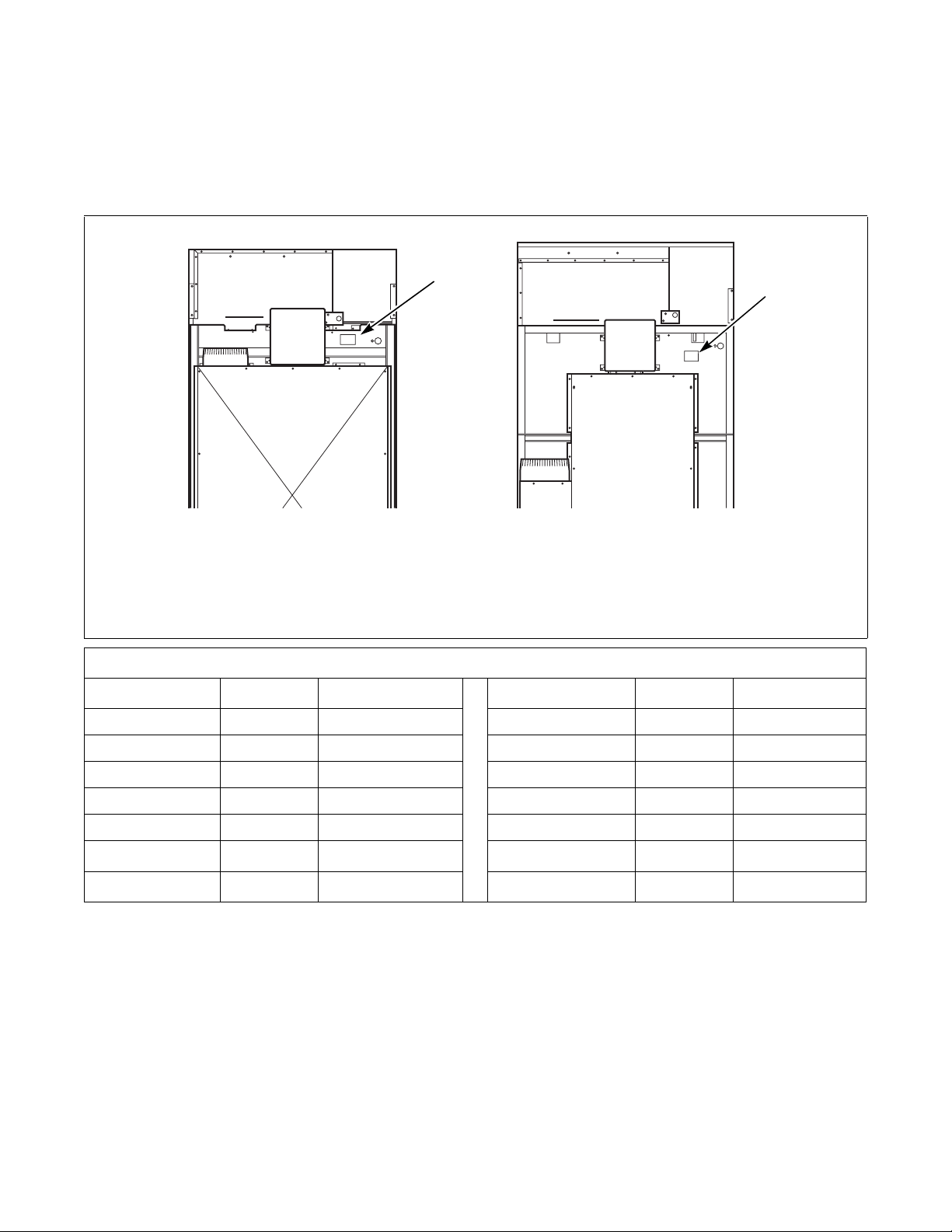

Serial Plate Location
When calling or writing for information about your
product, be sure to mention model and serial numbers.
Model and serial numbers are located on the serial
plate as shown.
TMB1298N
1 Serial Plate
Conversion Table
Multiply By To Obtain Multiply By To Obtain
Btu 0.252 kCal Pounds/sq. inch 0.06895 Bars
Btu 1055 Joules Pounds/sq. inch 0.070 kg/sq. cm
Inch 25.4 Millimeters Pounds (lbs.) 0.454 Kilograms
Inches W.C. 0.036 Pounds/sq. inch Boiler Horsepower 33,479 Btu/hr.
Inches W.C. 0.249 kPa Boiler Horsepower 34.5 lbs. steam/hr.
lb/inch2(psi) 6.895 kPa CFM 0.471 liters/second
ft328.32 Liters kW 3414 Btu/hr.
TMB1298N
120 POUND TUMBLER
11
170 POUND TUMBLER

7
70260301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
NOTE: The WARNINGS and IMPORTANT
instructions appearing in this manual are not
meant to cover all possible conditions and
situations that may occur. It must be understood
that common sense, caution and carefulness are
factors which CANNOT be built into this tumbler.
These factors MUST BE supplied by the person(s)
installing, maintaining or operating the tumbler.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.
DANGER – Indicates an imminently
hazardous situation that, if not avoided,
will cause severe personal injury or
death.
DANGER
WARNING – Indicates a hazardous
situation that, if not avoided, could cause
severe personal injury or death.
WARNING
CAUTION – Indicates a hazardous
situation that, if not avoided, may cause
minor or moderate personal injury or
property damage.
CAUTION
Failure to install, maintain, and/or operate
this machine according to manufacturer’s
instructions may result in conditions which
can produce serious injury, death and/or
property damage.
W051R1
WARNING

Safety Information
70260301
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Save These Instructions
Important Safety Instructions
1. Read all instructions before using the tumbler.
2. Refer to the Grounding Instructions for the
proper grounding of the tumbler.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children on or in the tumbler. This
appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
5. Before the tumbler is removed from service or
discarded, remove the door to the drying
compartment and the door to the lint
compartment.
6. Do not reach into the tumbler if the cylinder is
revolving.
7. Do not install or store the tumbler where it will
be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler,
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter daily.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the tumbler and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Tumbler will not operate with the loading door
open. DO NOT bypass the door safety switch to
permit the tumbler to operate with the door open.
The cylinder will stop rotating when the door is
opened. Do not use the tumbler if the cylinder
does not stop rotating when the door is opened or
starts rotating without pressing or turning the
START mechanism. Remove the tumbler from
use and call for service.
17. Tumbler will not operate with lint panel open.
DO NOT bypass lint panel safety switch to
permit tumbler to operate with the lint panel
open.
18. Do not put articles soiled with vegetable or
cooking oil in the tumbler, as these oils may not
be removed during washing. Due to the
remaining oil, the fabric may catch on fire by
itself.
19. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumbler.
20. Use the tumbler only for its intended purpose,
drying fabrics.
21. ALWAYS disconnect the electrical power to the
tumbler before servicing. Disconnect power by
shutting off appropriate breaker or fuse.
Hazardous Voltage. Can cause shock, burn
or cause death. Allow machine power to
remain off for two minutes prior to working
in and around AC inverter drive.
W359
WARNING

Safety Information
9
70260301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
22. Install this tumbler according to this Installation
Manual. All connections for electrical power,
grounding and gas supply must comply with
local codes and be made by licensed personnel
when required.
23. Remove laundry immediately after tumbler stops.
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
26. Always follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the tumbler with any guards and/or
panels removed.
28. DO NOT operate the tumbler if it is smoking,
grinding, has missing or broken parts.
29. DO NOT bypass any safety devices.
30. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
31. Solvent vapors from dry-cleaning machines
create acids when drawn through the heater of the
unit. These acids are corrosive to the tumbler as
well as to the laundry load being dried. Be sure
make-up air is free of solvent vapors.
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers.
W055
WARNING

70260301
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
Specifications 120 Pound 170 Pound
Noise level measured during operation
at operator position of 3.3 feet (1 meter)
in front of machine and 5.2 feet
(1.6 meters) from floor.
66 dBA 66 dBA
Cylinder Size:
Inches (mm)
44 x 41
(1118 x 1041)
50.75 x 42.5
(1289 x 1080)
Cylinder Capacity dry weight:
Pounds (kg)
120
(54.4)
170
(77.1)
Cylinder Motor Horsepower 0.75 0.75
Fan Motor Horsepower 13
Air Outlet Diameter:
Inches (mm)
10
(254)
12
(300)
Maximum Static Back Pressure:
W.C.I. (mbar)
0.3
(0.8)
0.3
(0.8)
Maximum Airflow:
C.F.M (L/sec.)
1600
(755)
2450
(1156)
Gas Models
Net Weight (approximate):
Pounds (kg)
1275
(580)
1575
(716)
Gas Connection 3/4 in. NPT 1 in. NPT
Gas Burner Rating:
Btu/hr (Mj/hr)
300,000
(316)
395,000
(421)
Steam Models
Net Weight (approximate):
Pounds (kg)
1375
(625)
1675
(761)
Steam Connection 3/4 in. NPT inlet
3/4 in. NPT outlet
3/4 in. NPT inlet
1 in. NPT outlet
Steam Coil Rating at 100 psig:
Boiler Horsepower (Btu/hr)
11.7
(405,000)
18.8
(648,000)

Specifications and Dimensions
11
70260301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
120 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
TMB2211N
TMB2211N
A
B
C
D
U
V
X
H
F
Z
Y
X
W
TOP VIEW OF
EXHAUST
DUCT
EG
Cabinet Dimensions
ModelsABCDEFGH
120L/N 31.38 in.
(797 mm)
32.5 in.
(826 mm)
48.91 in.
(1242 mm)
49.91 in.
(1268 mm)
67.92 in.
(1725 mm)
45.38 in.
(1153 mm)
46.38 in.
(1178 mm)
85.7 in.
(2177 mm)
120S 31.38 in.
(797 mm)
32.5 in.
(826 mm)
48.91 in.
(1242 mm)
49.91 in.
(1268 mm)
67.92 in.
(1725 mm)
45.38 in.
(1153 mm)
46.38 in.
(1178 mm)
83.5 in.
(2121 mm)
Exhaust Outlet Dimensions and Locations
Models U V W X Y Z
120L/N 63.45 in.
(1612 mm)
8.44 in.
(214 mm)
7.5 in.
(190 mm)
8.18 in.
(208 mm)
8.75 in.
(222 mm)
8.18 in.
(208 mm)
120S 60.7 in.
(1542 mm)
8.44 in.
(214 mm)
7.5 in.
(190 mm)
8.18 in.
(208 mm)
8.75 in.
(222 mm)
8.18 in.
(208 mm)

Specifications and Dimensions
70260301
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
170 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
TMB2212N
TMB2212N
A
B
C
D
WH
F
Y
X
V
Y
TOP VIEW OF
EXHAUST
DUCT
EG
Cabinet Dimensions
ModelsABCDEFGH
170L/N/S 33.86 in.
(860 mm)
32.5 in.
(826 mm)
50.75 in.
(1289 mm)
51.75 in.
(1314 mm)
68.85 in.
(1749 mm)
52.12 in.
(1324 mm)
53.12 in.
(1349 mm)
94 in.
(2388 mm)
Exhaust Outlet Dimensions and Locations
Models V W X Y
170L/N/S 42.38 in.
(1076 mm)
6.75 in.
(171 mm)
8.75 in.
(222 mm)
7 in.
(178 mm)

Specifications and Dimensions
13
70260301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Electric and Gas Connection
Locations for Gas Models
NOTE: These figures are approximate dimensions only.
TMB1301N
AC
C
A
BD
BD
120L/N 170L/N
Models Electrical Connection Gas Connection
ABCDDiameter
Non-CE
120L/N 27.63 in.
(702 mm)
72.24 in.
(1835 mm)
12.78 in.
(325 mm)
70.12 in.
(1781 mm)
3/4 in. NPT
170L/N 31.12 in.
(790 mm)
76.11 in.
(1933 mm)
14.5 in.
(368 mm)
77.38 in.
(1965 mm)
1 in. NPT
CE
120L/N 19.69 in.
(500 mm)
74.98 in.
(1904 mm)
12.78 in.
(325 mm)
70.12 in.
(1781 mm)
3/4 in. NPT
170L/N 23.18 in.
(589 mm)
78.85 in.
(2003 mm)
14.5 in.
(368 mm)
77.38 in.
(1965 mm)
1 in. NPT

Specifications and Dimensions
70260301
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Electric and Steam Connection
Locations for Steam Models
TMB1461N
A1
B1
120S 170S
A2
B2
DEF
A1
B1
B2
A2
DEF
CC
Models Steam Inlet
Diameter A1 A2 F
120S 3/4 in. NPT 35.875 in.
(911 mm)
13.375 in.
(340 mm)
82.75 in.
(2102 mm)
170S 3/4 in. NPT 37.625 in.
(956 mm)
15.25 in.
(387 mm)
88 in.
(2235 mm)
Models Steam Outlet
Diameter B1 B2 D
120S 3/4 in. NPT 34.625 in.
(879 mm)
13.125 in.
(333 mm)
68.5 in.
(1740 mm)
170S 1 in. NPT 44.625 in.
(1133 mm)
8.75 in.
(222 mm)
71.75 in.
(1822 mm)
Models Electrical Connection
CE
Non-CE 120S 27.63 in. (702 mm) 72.24 in. (1835 mm)
170S 31.12 in. (790 mm) 76.11 in. (1933 mm)
CE 120S 19.69 in. (500 mm) 74.98 in. (1904 mm)
170S 23.18 in. (589 mm) 78.85 in. (2003 mm)

15
70260301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
Pre-Installation Inspection
Upon delivery, visually inspect the crate, carton and
parts for any visible shipping damage. If the crate,
carton or cover is damaged or signs of possible
damage are evident, have the carrier note the condition
on the shipping papers before the shipping receipt is
signed, or advise the carrier of the condition as soon as
it is discovered.
Remove the crate and protective cover as soon as
possible and check the items listed on the packing list.
Advise the carrier of any damaged or missing articles
as soon as possible. A written claim should be filed
with the carrier immediately if articles are damaged
or missing.
IMPORTANT: Warranty is void unless tumbler is
installed according to instructions in this manual.
Installation should comply with minimum
specifications and requirements detailed in this
manual and applicable local gas fitting regulations,
municipal building codes, water supply regulations,
electrical wiring regulations, and any other
relevant statutory regulations. Due to varied
requirements, applicable local codes should be
thoroughly understood and all pre-installation
work arranged for accordingly.
IMPORTANT: Keep tumbler area clear and free
from combustible materials, gasoline and other
flammable vapors and liquids.
Location Requirements
The tumbler must be installed on a level floor. Floor
covering materials such as carpeting or tile must be
removed.
To assure compliance, consult local building code
requirements. The tumbler must not be installed or
stored in area where it will be exposed to water and/or
weather.
IMPORTANT: DO NOT block the airflow at the
rear of the tumbler with laundry or other articles.
Doing so would prevent adequate air supply to the
combustion chamber of the tumbler.
A typical tumbler enclosure is shown in Figure 1. Note
the minimum and maximum dimensions. Local codes
and ordinances must be complied with.
IMPORTANT: Install tumblers with sufficient
clearance for servicing and operation. Refer to
Figure 1.
Materials Required (Obtain locally)
All Models One disconnect switch or circuit
breaker.
Gas Models One gas shut-off valve for gas
service line to each tumbler.
Steam Models One steam shut-off valve for steam
service line to be connected upstream
of solenoid steam valve.
Two steam shut-off valves for each
condensate return line.
Flexible steam hoses with a 125 psig
(pounds per square inch gauge)
(8.79 kg/sq. cm) working pressure
for connecting steam coils. Refer to
Figure 17 and Figure 18 or sizing and
connection configurations.
Three steam traps for steam coil
outlet to condensate return line.
Optional – Three vacuum breakers
for condensate return lines.
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers.
W055
WARNING

Installation
70260301
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Figure 1
TMB2020N
NOTE: Shaded areas indicate adjacent structure.
1 0.5 in. (13 mm) recommended between machines for removal or installation.
2 Allow 2-4 in. (51-102 mm) opening at top of machine to aid in removal or installation. A removable trim piece may
be used to conceal the opening; zero clearance allowed for trim.
3 4 in. (102 mm) maximum header thickness
4 Minimum clearance permitted for remainder: Gas 4 in. (102 mm), Steam 12 in. (305 mm)
5Guard
6 Provision for Make-Up Air
7 24 in. (610 mm) minimum, 36 in. (914 mm) recommended for maintenance purposes
8 0.25 in. (6 mm) recommended for removal or installation purposes, zero clearance allowed
TMB2020N
4
1
5
6
7
3
WARNING
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible
construction must conform to the minimum clearances.
W056
8
2

Installation
17
70260301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Position and Level the Tumbler
The tumbler may be moved with or without the skid.
To remove the skid, unscrew the four shipping bolts,
and discard them.
To fit a 170 pound tumbler (with shipping skid)
through an 8 foot (2.43 meters) high door, you must
remove the front access panel. The upper 3 inches
(76 mm) of the stove must also be removed on
170 pound gas tumblers. Removing the entire gas or
steam heater assembly and the shipping skid, will
reduce the height of the 120 pound tumbler to 70
inches (1778 mm), and the 170 pound tumbler to
75 inches (1905 mm).
Level the tumbler to within 0.125 inch (3 mm) from
front-to-rear (level on cylinder rib), and side-to-side
(level on top panel). Shim under corners to level and
stabilize unit. Tumbler must not rock.
Before Placing Tumbler into Service
1. Remove or open all panels and check accessible
bolts, nuts, screws, terminals and fittings for
tightness.
2. Check V-belt tension and adjust if necessary.
Refer to appropriate paragraphs in Adjustments
Section.
3. Replace all panels and guards.
4. Turn on electrical supply to tumbler.
5. Open supply valve for gas or steam heated
tumblers.
6. After performing the previous checks, start
the tumbler by pressing START (hold for
approximately 3 seconds). Release the start
button and open the loading door. The cylinder
should stop rotating within 7 seconds after the
door is opened.
7. Gas tumblers: Start the tumbler and check the
burner flame. Adjust the gas inlet shutter as
required. Refer to Adjustments section.
IMPORTANT: The Electronic Ignition system will
attempt to light the gas by sparking for the “trial
for ignition” period. If gas does not ignite within
this period, the ignition control will go into a safety
lockout and the valve will no longer open until the
control is reset. Refer to Table 1. It may be
necessary to restart several times to bleed air out of
gas lines. To reset, open and close loading door,
then start.
If lockout condition persists, check that the manual
gas shut-off valve is in the open position and that
the gas service is properly connected. If condition
still persists, remove tumbler from service.
8. Load the cylinder with a full load of clean rags
and run to remove oil or dirt from cylinder.
Location Prepurge Time
(seconds)
Trial for
Ignition
(seconds)
Reset
Lockout
Condition
By:
Australia 18 5 Open loading
door
CE 18 10
Press reset
button on
control panel
All others 1-3 10 Open loading
door
Table 1

Installation
70260301
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Check the airflow switch operation by opening
the lint panel; be sure to remove shipping tape
from airflow switch prior to operation. Refer to
Figure 20. Temporarily tape down the lint panel
safety switch located behind the upper left corner
of the lint panel. The heating systems should shut
off when the lint panel is opened a maximum of
6 inches (152.4 mm). The airflow switch
operation may be affected by lack of make-up air
or an obstruction in the exhaust duct. These
should be checked; if there is a problem, contact
an authorized service person.
10. Wipe out the cylinder using an all-purpose
cleaner or detergent and water solution.
If tumbler does not meet any of the listed
requirements, remove tumbler from service. Refer to
Removing Tumbler from Service section.
Required for CE Models Only
Once machine is installed, please be sure to complete
the following items:
●Review and verify machine operation with
customer.
●Leave all literature and a signed Declaration of
Conformity with customer.
●Review machine warranty information with
customer.
●Apply warning sticker on front panel of machine,
in language appropriate to country of sale
(included in literature packet).
The tumbler must not be operated if the
airflow switch does not operate properly.
Faulty airflow switch operation may cause
an explosive gas mixture to collect in the
tumbler.
W072
WARNING
