Alliance Laundry Systems 39971R5 Guide

Installation/Operation
www.comlaundry.com
Automatic
Topload Washers
W001C
W001C
Part No. 39971R5
August 2011
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT39971
1
IMPORTANT: Read the complete INSTALLATION and OPERATION INSTRUCTIONS before using the
washer.
For your safety and to reduce the risk of fire or an explosion, do not store or use gasoline or
other flammable vapors and liquids in the vicinity of this or any other appliance.
W022
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2011, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
39971
2
Table of
Contents
Replacement Parts .............................................................................. 4
Safety Information.............................................................................. 5
Explanation of Safety Messages........................................................... 5
Important Safety Instructions ............................................................... 5
Installation........................................................................................... 7
Dimensions and Specifications............................................................. 7
Before You Start ................................................................................... 8
Tools ................................................................................................ 8
Installing the Washer ............................................................................ 8
Step 1: Remove the Shipping Brace and Shipping Plug.................. 8
Step 2: Wipe Out Inside of Washtub ............................................... 9

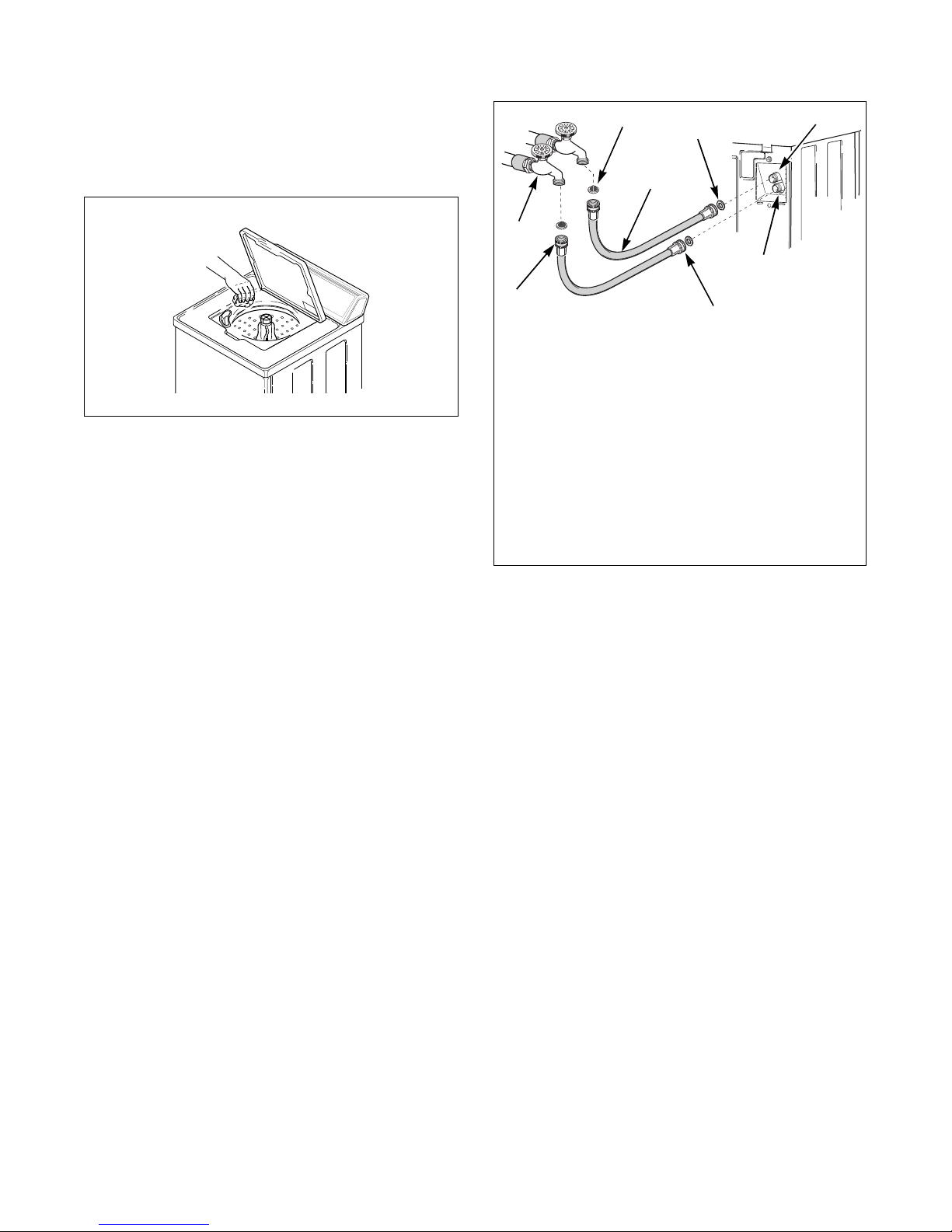

Step 3: Connect Fill Hoses............................................................... 9
Step 4: Connect Drain Hose to Drain Receptacle............................ 10

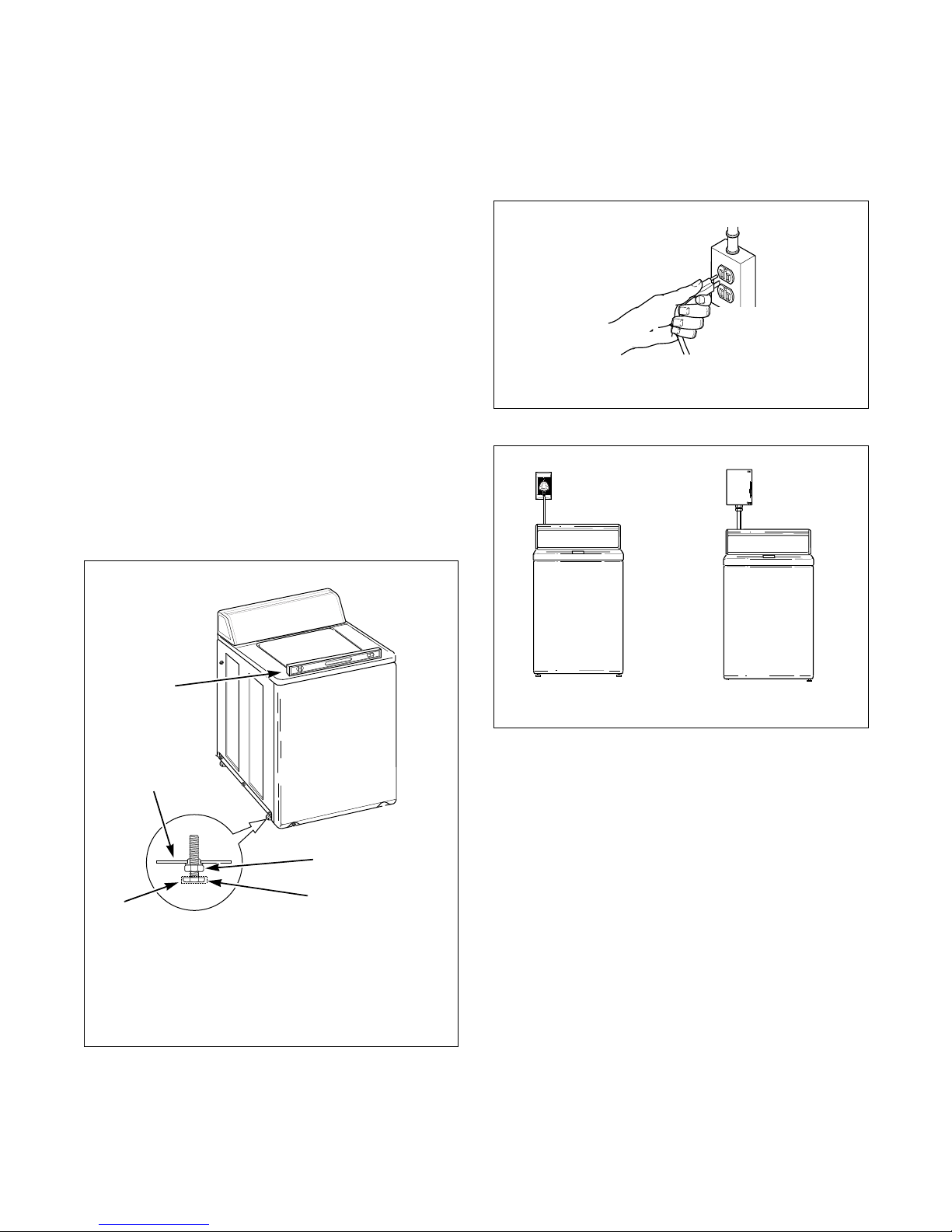

Step 5: Position and Level the Washer ............................................ 12
Step 6: Connect the Washer to Electrical Power ............................. 12

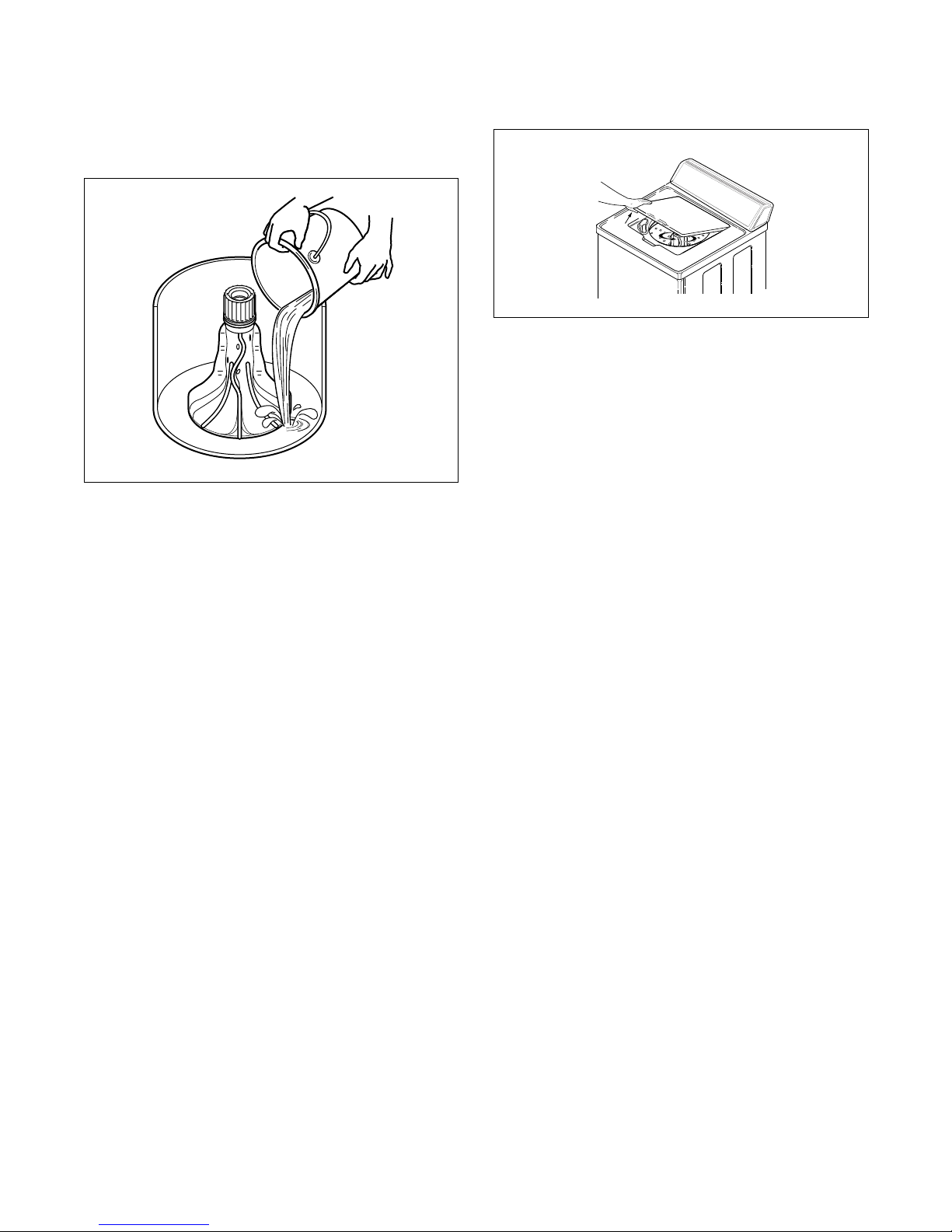

Step 7: Add Water to the Washer .................................................... 13
Step 8: Check Lid Switch ................................................................ 13
Electrical Requirements........................................................................ 14

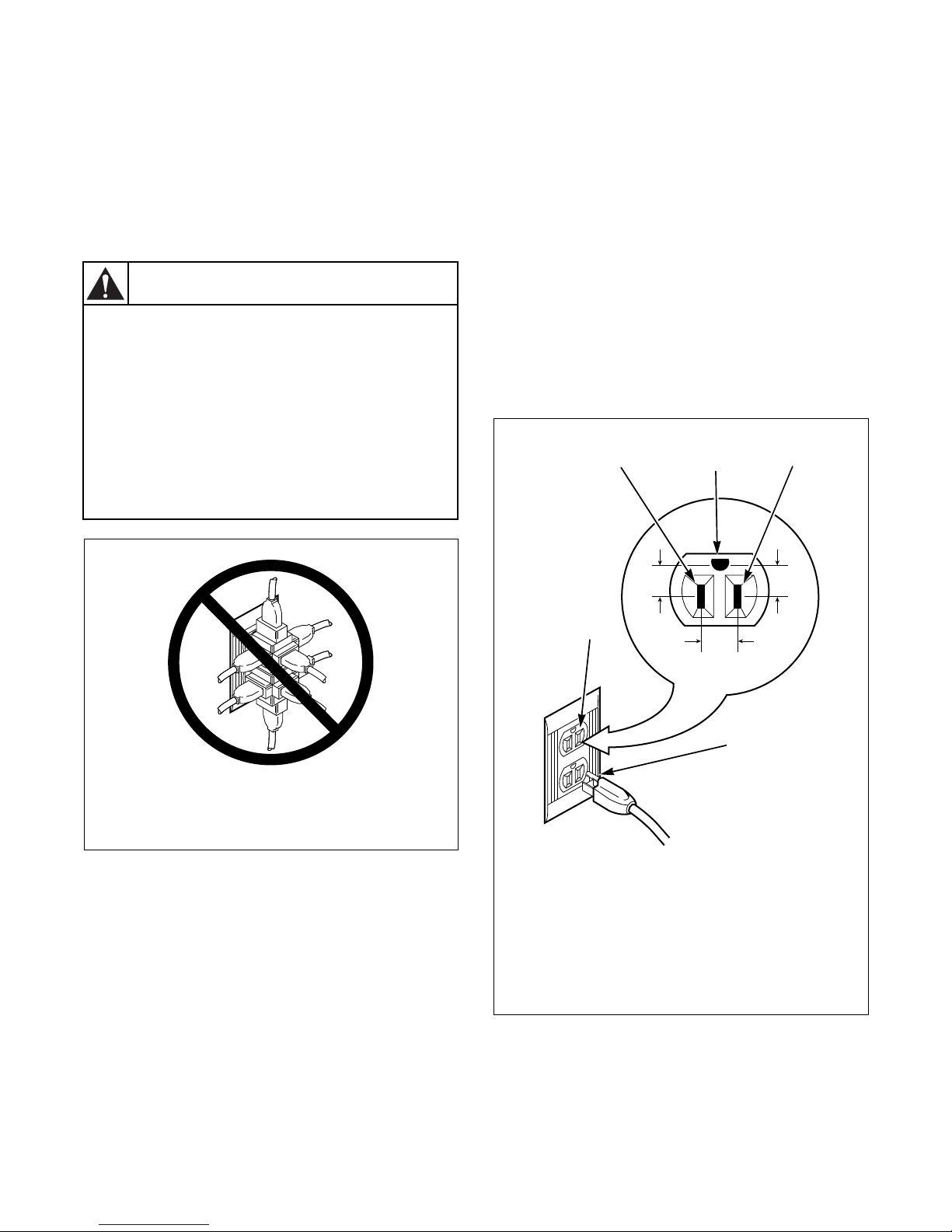

Earthing (Grounding) Instructions................................................... 15

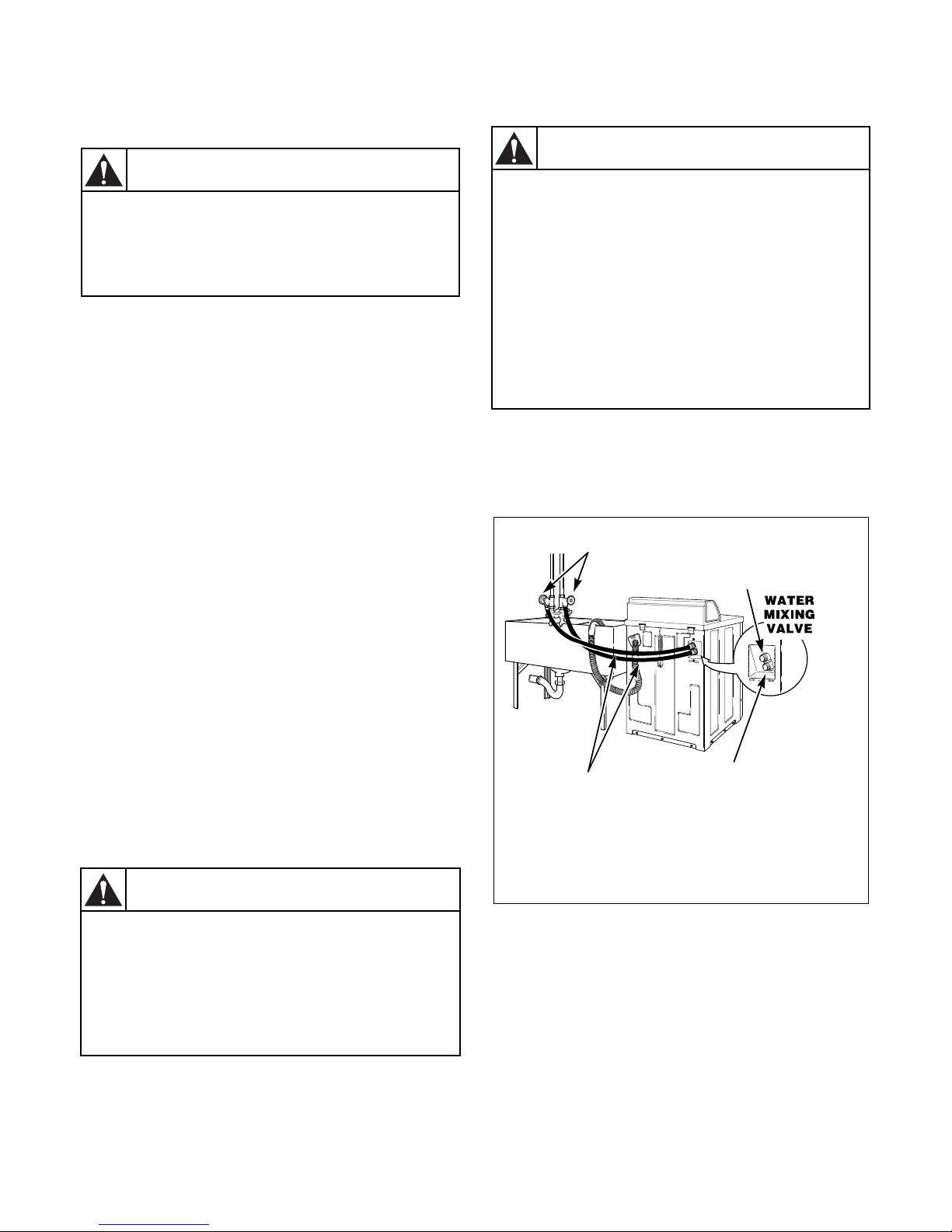

Water Supply Requirements................................................................. 15
Water Temperature .......................................................................... 16
Water Pressure ................................................................................. 16

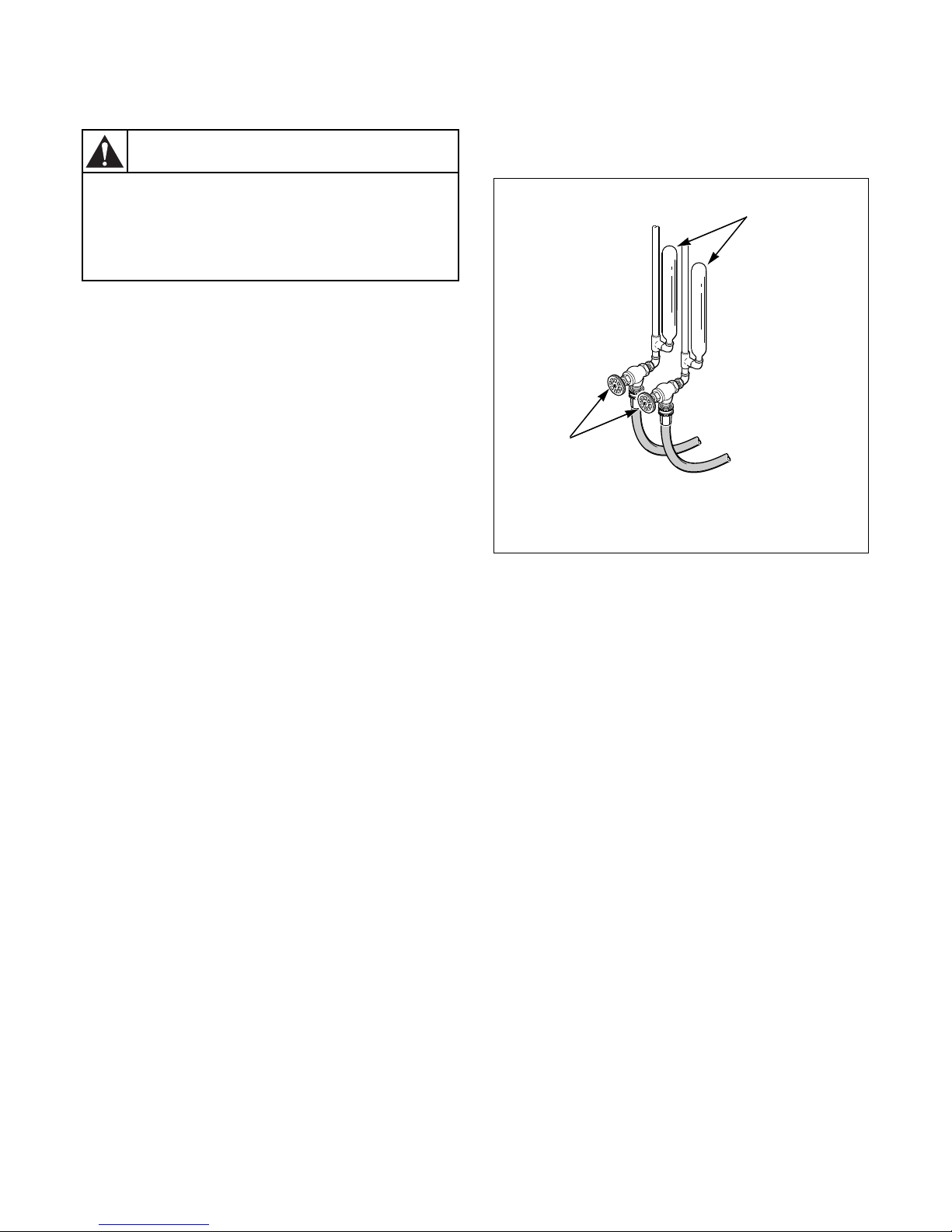

Risers................................................................................................ 16
Operation............................................................................................. 17
Loading the Washer.............................................................................. 17
Load Articles.................................................................................... 17
Load Sizes........................................................................................ 17
Water Level...................................................................................... 18
Determine Proper Cycle ....................................................................... 18
To Wash Clothes................................................................................... 19
Timer................................................................................................ 20
Soaking ............................................................................................ 20
Optional Features.................................................................................. 21
Bleach Dispenser ............................................................................. 21
Fabric Softener Dispenser................................................................ 21
Washing Temperature Guide ........................................................... 22

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
3
39971
Maintenance ........................................................................................ 23
User-Maintenance Instructions............................................................. 23
Cold Weather Care........................................................................... 23
Care of Your Washer ....................................................................... 23
Replacing Hoses............................................................................... 23
Vacations and Extended Non-Use ................................................... 23
Filter Screens ................................................................................... 23
Reinstallation of Shipping Materials ............................................... 23
Motor Overload Protector..................................................................... 23
Before You Call for Service ................................................................. 24
If Service Is Required ........................................................................... 25
Information for Handy Reference......................................................... 26

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
4
39971
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your washer, or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
5
39971
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the washer.
2. Install the washer according to the
INSTALLATION INSTRUCTIONS. Refer to the
EARTHING (GROUNDING) INSTRUCTIONS
in the INSTALLATION manual for the proper
earthing (grounding) of the washer.All
connections for water, drain, electrical power and
earthing (grounding) must comply with local
codes and be made by licensed personnel when
required. Do not do it yourself unless you know
how!
3. Do not install or store the washer where it will be
exposed to water and/or weather.
4. Do not add the following substances or textiles
containing traces of the following substances to
the wash water: gasoline, kerosene, waxes,
cooking oils, vegetable oils, machine oils, dry-
cleaning solvents, flammable chemicals, thinners
or other flammable or explosive substances.
These substances give off vapors that could
ignite, explode or cause the fabric to catch on fire
by itself.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. THE
GAS IS FLAMMABLE, DO NOT SMOKE OR
USE AN OPEN FLAME DURING THIS TIME.
6. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
39971
6
7. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This appliance
is not intended for use by persons (including
children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the use of
the appliance by a person responsible for their
safety. This is a safety rule for all appliances.
8. Do not reach into the washer if the washtub or
agitator is moving.
9. Never operate the washer with any guards, panels
and/or parts removed or broken. DO NOT tamper
with the controls or bypass any safety devices.
10. Use your washer only for its intended purpose,
washing clothes. Always follow the fabric care
instructions supplied by the garment
manufacturer.
11. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. To reduce the risk of poisoning or chemical
burns, keep them out of the reach of children at
all times (preferably in a locked cabinet). Heed
all warnings or precautions.
12. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
13. Lid MUST BE CLOSED any time the washer is
to agitate or spin. DO NOT bypass the lid switch
by permitting the washer to agitate or spin with
the lid open. A brake will stop the washtub
within seconds if the lid is opened during
spinning. If the washtub does not stop when the
lid is opened, remove the washer from use and
call the service person.
14. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
15. Keep your washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have your washer checked by a
qualified service person.
16. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out. ALWAYS disconnect the
washer from electrical supply before attempting
any service.
17. Disconnect the power cord by grasping the plug,
not the cord. If the supply cord is damaged, it
must be replaced by a special cord or assembly
available from the manufacturer or its service
agent.
18. Before the washer is removed from service or
discarded, remove the lid to the washing
compartment.
19. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING AND IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7
39971
Installation
Dimensions and Specifications
* With leveling legs turned into base.
TLW2075N
71.1 cm (28 in.)
*134.6 cm (53 in.)
1 cm
(.4 in.) 66 cm (26 in.)
65 cm (25.625 in.)
*73.7 cm (29 in.)
*109.2 cm (43 in.)
*91.4 cm (36 in.)
56.2 cm (22.13 in.)
*102.2 cm (40.25 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
39971
8
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 1
Installing the Washer
NOTE: If washer is delivered on a cold day (below
freezing), or is stored in an unheated room or area
during the cold months, do not attempt to operate
it until the washer has had a chance to warm up.
NOTE: Install dryer before washer. This allows for
attaching exhaust duct.
Step 1: Remove the Shipping Brace and
Shipping Plug
Remove the shipping brace from under the lid. The
plastic shipping plug will be released from the base of
the washer when removing the cardboard base from
the washer.
NOTE: Do not tilt washer to front or sides when
moving.
Save brace and plug and reinstall whenever washer is
moved.
Figure 2
D074I
1Wrench
2Screwdriver
3Pliers
4Level
D074I
123
4
TLW521N
1Shipping Brace
2Shipping Plug
1
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9
39971
Step 2: Wipe Out Inside of Washtub
Prior to first wash, use an all purpose cleaner, or a
detergent and water solution, and a damp cloth to
remove shipping dust from inside of washtub.
Figure 3
Step 3: Connect Fill Hoses
Refer to section on Water Supply Requirements
before connecting fill hoses.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve. (This is especially important when
installing your washer in a newly constructed or
renovated building.)
Insert rubber washers and filter screens (from
accessories bag) in water fill hose couplings (two
hoses supplied with washer). Connect fill hoses to
water supply faucets. Then connect the hoses to the
hot and cold valve connections at the rear of the
washer. Refer to Figure 4.
IMPORTANT: Thread hose couplings onto valve
connections finger tight, then turn 1/4 turn with
pliers. DO NOT cross thread or overtighten
couplings.
Figure 4
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
W371I
TLW1988N
1Filter Screen (Screen must be facing
outward)
2Fill Hose
3Rubber Washer (Plain)
4Cold Water Connection
5Hot Water Connection
6Install this end of hose to valve connections
at rear of washer.
7Install this end of hose to water supply
faucet.
8Faucet
HOT
COLD
C
H
2
13
4
5
6
7
8

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
39971
10
Step 4: Connect Drain Hose to Drain
Receptacle
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 3.2 cm (1-1/4 inch) outside
diameter drain hose.
Figure 5
Figure 6
Figure 7
Figure 8
W509I
1Shipping Retainer Clamp
2Standpipe Adapter
W510I
1Standpipe Adapter
2Tie-Down Strap
3Standpipe – 5.08 cm (2 in.) or 4 cm (1-1/2 in.)
Diameter
W509I
1
2
UNHOOK HOSE
1
2
3
30.489 cm
(12 in.)
91.44 cm
(36 in.)
RECOMMENDED
HEIGHT
NORMAL STANDPIPE
W511I
1Standpipe Adapter
2Drain Hose
3Standpipe (Standpipes higher than 122 cm
[4 feet] are not recommended)
4Tie-Down Strap
W512I
1562P3 Siphon Break Kit
2Standpipe
3Drain Hose
NOTE: No. 562P3 Siphon Break Kit is available (as
optional equipment at extra cost) through an
authorized dealer or parts distributor.
W511I
12
4
3
HIGH STANDPIPE
W512I
1
3
2
LOW STANDPIPE

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
11
39971
Figure 9
Figure 10
Figure 11
W513I
1Drain Hose
2Tie-Down Strap or Wire Tie
3Cabinet Top Hinge
W329I
1Tie-Down Strap (Tape if necessary)
2Standpipe Adapter
NOTE: End of drain hose must not be below height of
cabinet top or siphon break kit.
12
3
SINK INSTALLATION
1
2
IN-THE-WALL INSTALLATION
W515I
1Tie-Down Strap (Tape if necessary)
W515I
1
LAUNDRY TUB INSTALLATION

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
39971
12
Step 5: Position and Level the Washer
Position washer so it has sufficient clearance for
installation and servicing.
Place rubber feet on all four leveling legs.
Place washer in position on a clean, dry, and firm
floor. Do not install the washer on carpeting.
Loosen 7/8 inch locknuts and adjust the two front
leveling legs. Once adjusted, tilt the unit forward on
front legs and lower back down into position to set the
rear self-leveling legs.
Washer must not rock. After washer is at desired
height, tighten locknuts securely against bottom of
washer base. If these locknuts are not tight, washer
will not remain stationary during operation.
Improper installation or flexing of a weak floor will
cause excessive vibration.
Do not slide washer across floor once the leveling legs
have been extended, as legs and base could become
damaged.
Verify that washer does not rock.
Figure 12
Step 6: Connect the Washer to Electrical
Power
Refer to section on Electrical Requirements and
connect the washer to an electrical power source.
Figure 13
Figure 14
W179I
1Level
2Locknut
3Leveling Leg
4Rubber Foot
5Washer Base
1
5
2
3
4
D254I
TLW1937N W458I
D254I
WASHER MANUFACTURED WITH PLUG
W458IE1A
TLW1937N
WASHER MANUFACTURED WITHOUT PLUG

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
13
39971
Step 7: Add Water to the Washer
Prior to first use, add 0.95 liter (one quart) of water to
tub.
Figure 15
Step 8: Check Lid Switch
Figure 16
W391I
W391I
W376IE0C

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
39971
14
Electrical Requirements
NOTE: Refer to the washer nameplate for proper
voltage and Hertz the washer is designed to operate
on. Refer to Figure 30 for nameplate location.
NOTE: The wiring diagram is located in the
control hood.
Figure 17
120 Volt, 60 Hertz, with 3 Prong Grounding
(Earthing) Plug
The washer is designed to be operated on a separate
branch, polarized three-wire, effectively grounded
(earthed) 120 Volt, 60 Hertz, AC (alternating current),
circuit protected by a 15 ampere fuse, equivalent
fusetron or circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 18
for determining correct polarity of the wall receptacle.
Do not modify the plug provided with the washer – if
it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
Figure 18
D009I
To reduce the risk of fire, electric shock or
personal injury, all wiring and earthing
MUST conform with the latest edition of the
National Electrical Code, ANSI/NFPA 70, and
such local regulations as might apply. It is
the customer’s responsibility to have the
wiring, fuses and circuit breakers checked
by a qualified electrician to make sure your
home has adequate electrical power to
operate the washer.
W129
WARNING
D009I
DO NOT OVERLOAD CIRCUITS
DO NOT USE ADAPTER
DO NOT USE AN EXTENSION CORD
D090I
1L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
STANDARD 120 VOLT, 60 HERTZ, 3 WIRE
EFFECTIVELY GROUNDED CIRCUIT
123
4
5
120 ± 12
V.A.C.
120 ± 12
V.A.C.
0 V.A.C.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
15
39971
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT.
240 Volt/60 Hertz
The washer is designed to be operated on a separate
polarized three-wire, earthed 240 Volt, 60 Hertz,
single-phase electrical circuit protected by a
10 ampere fuse, equivalent fusetron or circuit breaker.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT WHEN THE WASHER IS
OPERATING.
220 Volt/60 Hertz
The washer is designed to be operated on a separate
polarized three-wire, earthed 220 Volt, 60 Hertz,
single phase electrical circuit protected by a
10 ampere fuse, equivalent fusetron or circuit breaker.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT WHEN THE WASHER IS
OPERATING.
Earthing (Grounding) Instructions
The washer must be earthed (grounded). In the event
of malfunction or breakdown, earthing will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The washer is equipped
with a cord having an equipment-earthing conductor.
The washer must be plugged or hardwired into an
appropriate power source that is properly installed and
earthed in accordance with all local codes and
ordinances.
Water Supply Requirements
NOTE: Water supply faucets must fit standard
19.1 mm (3/4 inch) female garden hose couplings.
DO NOT USE SLIP-ON OR CLAMP-ON
CONNECTIONS.
Figure 19
To reduce the risk of electric shock or fire,
DO NOT use an extension cord or an adapter
to connect the washer to the electrical power
source.
W031
WARNING
Improper connection of the equipment-
earthing conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is properly
earthed.
W032
WARNING
W516I
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Fill Hoses
Under certain conditions, hydrogen gas
may be produced in a hot water system that
has not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a
period and before using the washer, turn on
all hot water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas.
The gas is flammable. Do not smoke or use
an open flame during this time.
W029
WARNING
C
H
1
2
3
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
39971
16
Water Temperature
NOTE: Longer fill hoses are available (as optional
equipment at extra cost) if the hoses (supplied with
the washer) are not long enough for the
installation. Order hoses as follows:
No. 20617 Fill Hose 2.44 m (8 foot)
No. 20618 Fill Hose 3.05 m (10 foot)
Water Pressure
Pressure must be a minimum of 138 to a maximum of
827 kPa (20 to 120 pounds per square inch) static
pressure measured at the faucet.
Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops.
Figure 20
To prevent personal injury, avoid contact
with inlet water temperatures higher than
51° Celsius (125° Fahrenheit) and hot
surfaces.
W750
WARNING
W005I
1Risers (Air cushions)
2Water Supply Faucets
W005I
1
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
17
39971
Operation
Loading the Washer
Load Articles
Load items by the amount of space they take up, not
by their weight. Mix large and small items in a load to
get the best washing results.
Drop items loosely into the washtub. Overloading can
cause poor cleaning, excessive wrinkling, and tears.
Figure 21
Load Sizes
Mini
1-2 perm. press dress shirts
OR
2 pillow cases
OR
1 lightweight dress
Small
3-4 perm. press dress shirts
OR
1 twin sheet, 1 pillow case
OR
1-2 lightweight dresses
Medium
6-7 perm. press shirts
OR
2 twin sheets, 2 pillow cases
OR
8 standard bath towels,
6 wash cloths
Extra Large (OPTIONAL)
8-9 shirts and
5 pair polyester pants
OR
2 queen size sheets,
4 pillow cases, 2 nightgowns,
1 pair men’s pajamas
OR
1 queen size bedspread
Reset (OPTIONAL)
Use the RESET if agitation has started and more water
is needed for the load.
W280I
W280I

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
39971
18
Water Level
Figure 22
Figure 23
The water level in your washer should fit the size of
your wash load. Small loads will use lower water
levels.
IMPORTANT: If in doubt, always use a higher
water level. Most average loads will require a water
setting between Medium and Extra Large.
Determine Proper Cycle
Regular
Use for sturdy items, like play or work clothes, towels,
T-shirts, etc. The wash time selection will depend on
the type of fabric and the amount of soil. For the best
results when cleaning heavily soiled items, use a
longer wash time. Lightly soiled items require less
wash time.
There are three settings in the REGULAR cycle –
Extra Clean (Heavy), Normal and Light.
Permanent Press Cycle
Use for permanent press items and synthetics. The
wash time selection will depend upon the type of
fabric and amount of soil.
There are two settings in the PERMANENT PRESS
cycle – Normal and Light.
Handwash/Delicate
Wash delicate items usually washed by hand on this
cycle. A full tub of water is recommended (even for
small loads) to allow the delicate items to move freely
through the water.
On this cycle, the agitation during the wash portion of
the cycle is not constant. The wash will alternate
between a period of agitation and a period of pausing.
This continues until advancing to the spin portion of
the cycle.
There are two settings in the HANDWASH/
DELICATE cycle – Normal and Light.
W281I
W282I
W281I
RIGHT
W282I
WRONG
To reduce the risk of fire, electric shock,
serious injury or death to persons, read the
Safety Information section before operating
your washer.
W496
WARNING
