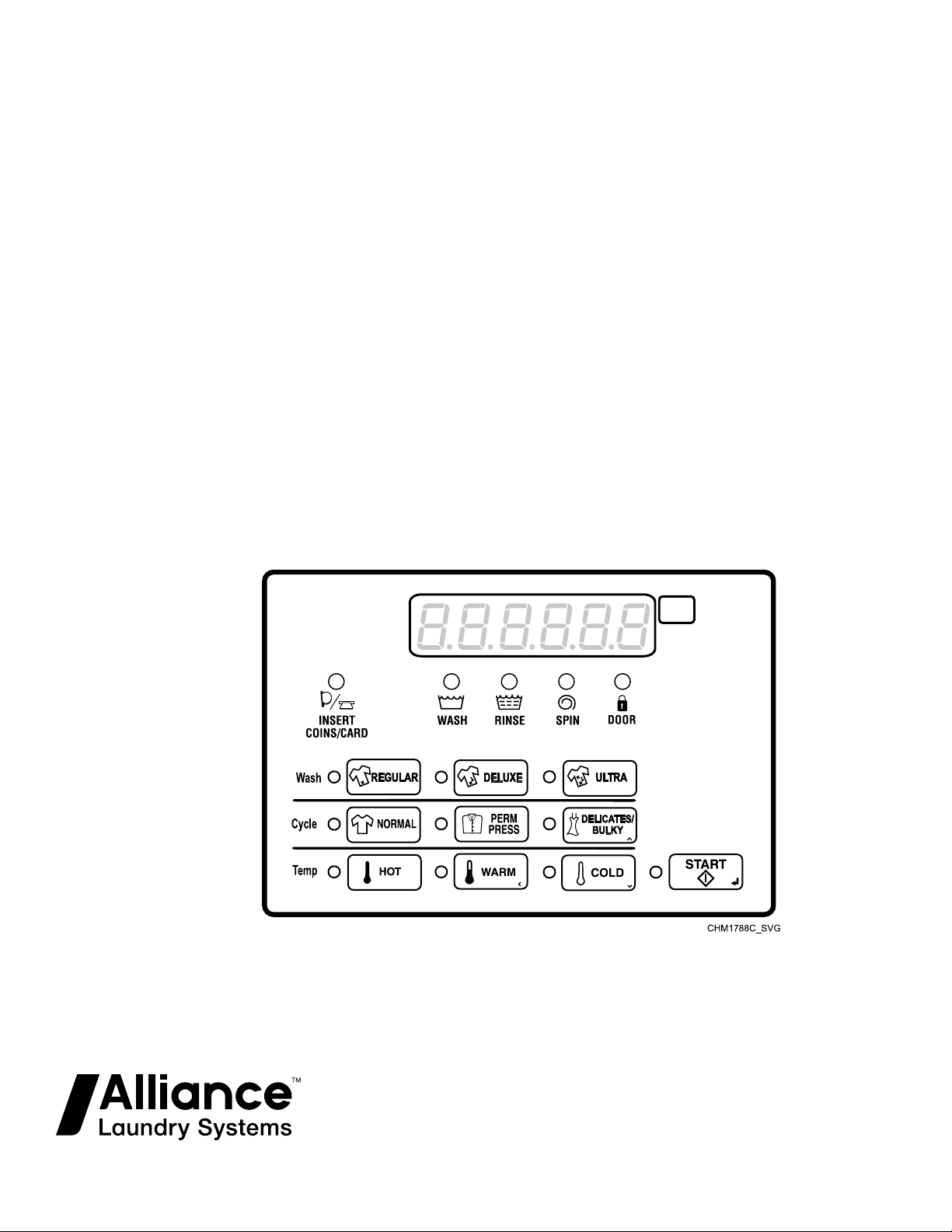

Alliance Laundry Systems DCG020ND User manual

Programming
Washer-Extractor
Refer to Page 11 for Model Numbers
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. F8615401ENR4
May 2019

WARNING
Machine installations must comply with minimum
specifications and requirements stated in the appli-
cable Installation Manual, any applicable municipal
building codes, water supply requirements, electrical
wiring regulations and any other relevant statutory
regulations. Due to varied requirements and applica-
ble local codes, this machine must be installed, ad-
justed, and serviced by qualified maintenance per-
sonnel familiar with applicable local codes and the
construction and operation of this type of machinery.
They must also be familiar with the potential hazards
involved. Failure to observe this warning may result
in personal injury, property damage, and/or equip-
ment damage, and will void the warranty.
W820
NOTE: The WARNINGS and IMPORTANT SAFETY IN-
STRUCTIONS appearing in this manual are not meant
to cover all possible conditions and situations that may
occur. Common sense, caution, and care must be exer-
cised when installing, maintaining, or operating the
machine.
Any problems or conditions not understood should be reported to
the dealer, distributor, service agent or the manufacturer.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. F8615401ENR4

Table of Contents
Introduction..........................................................................................10
Model Identification......................................................................................10

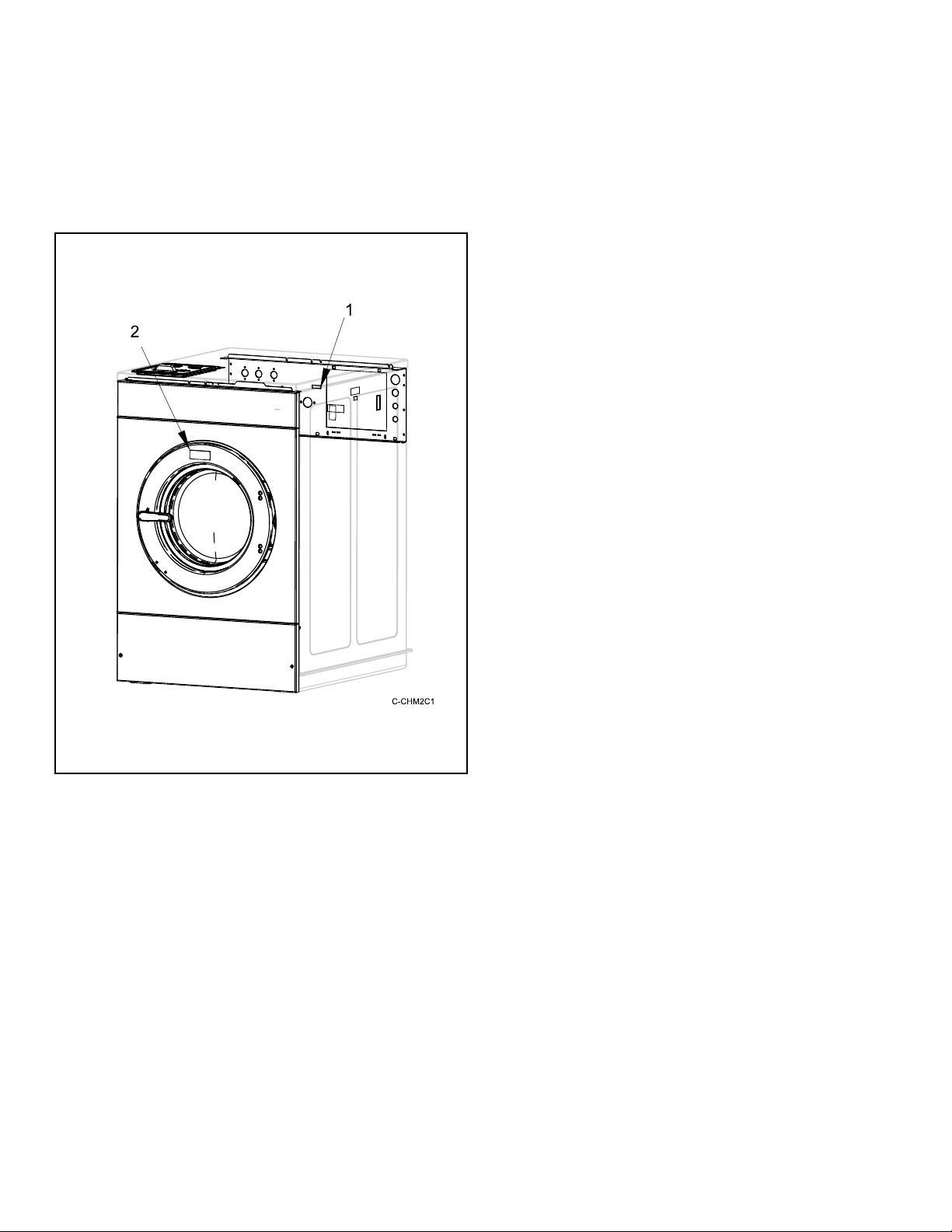

Serial Plate Location..................................................................................... 14
Replacement Parts ........................................................................................15
Customer Service..........................................................................................15
Preliminary Information.......................................................................16
About the Control......................................................................................... 16
Glossary of Terms.........................................................................................16
Communications...........................................................................................16
Infra-red Communications..........................................................................16
Network Communications..........................................................................16

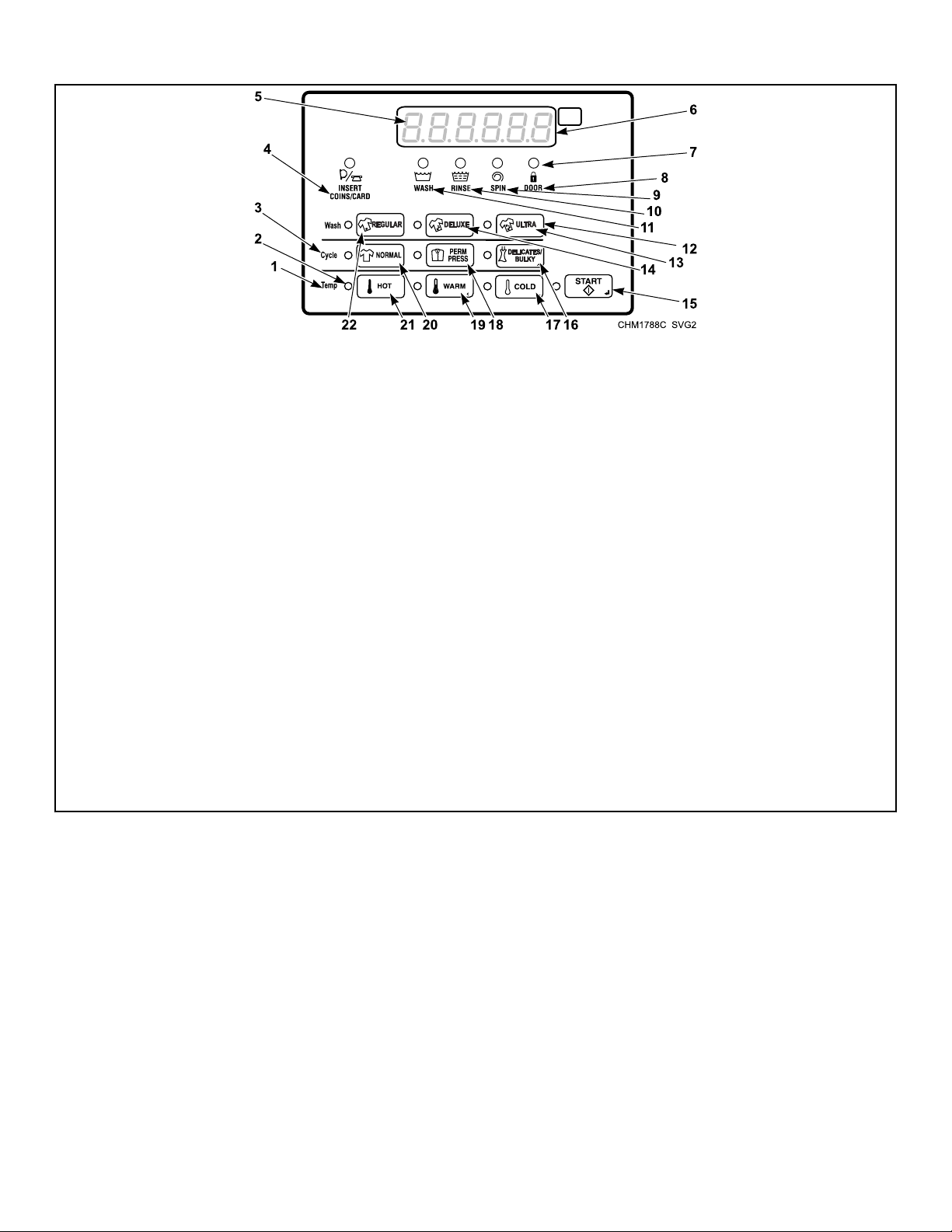

Control Identification........................................................................... 17
Select Cycle Keypads....................................................................................17
Select Wash Temp Keypads........................................................................... 17
Select Cycle Modifier Keypads...................................................................... 17
Display Identification............................................................................19
Light Emitting Diodes (LEDs)....................................................................... 19
CYCLE LED............................................................................................ 19
WASH TEMP LED................................................................................... 19
Regular LED.............................................................................................19
Deluxe LED..............................................................................................19
Ultra LED.................................................................................................19
Six 7-Segment Digits.................................................................................... 19
Heating/Cool Down Display Sequence (Heat Models)......................................19
Special Features....................................................................................20
Programming the Control.............................................................................. 20
Collecting Audit Information......................................................................... 20
Testing the Machine Using Diagnostic Functions............................................. 20
Rapid Advance Feature................................................................................. 20
Clearing the Vend Feature .............................................................................20
How to Clear Vend.................................................................................... 20
Coin Drop.................................................................................................... 20
Start Pulse Operation.....................................................................................20
Top Cover and Coin Vault Openings............................................................... 20
Break-In Alarm.............................................................................................20
Special Vend.................................................................................................20
© Copyright 2019, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. F8615401ENR4

Low Power/Auto-Shutdown Option................................................................21
Temperature Display..................................................................................... 21
Suds Removal Routine.................................................................................. 21
Power Fail Recovery..................................................................................... 21
Machine Operation...............................................................................22
Power Up.....................................................................................................22
System Check Mode..................................................................................... 22
Ready Mode.................................................................................................22
Partial Vend Mode........................................................................................ 22
Additional Vend Mode.................................................................................. 22
Start Mode................................................................................................... 22
Door Locking Mode......................................................................................22
Door Unlocking Mode...................................................................................22
End of Cycle Mode....................................................................................... 23
Run Mode.................................................................................................... 23
Signals.........................................................................................................23
Changing Cycles...........................................................................................23
Pause Mode..................................................................................................23
Closing Washer Door.................................................................................... 24
Auto-Flush Mode..........................................................................................24
Overflow Mode............................................................................................ 24
Lockout Mode.............................................................................................. 24
Shutdown Mode............................................................................................25
OPL Mode................................................................................................... 25
Drop-Off Mode.............................................................................................25
Out of Order Mode........................................................................................25
Network Node Number Display Mode............................................................ 25
Error Display Mode...................................................................................... 25
Communications Mode..................................................................................25
Opening the Top Cover......................................................................... 26
Entering the Manual Mode................................................................... 27
How to Enter Manual Programming Mode...................................................... 27
How to Exit Manual Mode.............................................................................27
Manual Mode Navigation.............................................................................. 27
Programming Control...........................................................................29
What Can Be Programmed?........................................................................... 29
Programmable Options Available................................................................... 29
Manual Programming Navigation...................................................................37
Vend Price #1 AtS 1 ..................................................................................... 46
Vend Price #2 AtS 2...................................................................................... 46
Vend Price #3 AtS 3...................................................................................... 46
Vend Price #4 AtS 4...................................................................................... 46
Vend Price #5 AtS 5 ..................................................................................... 46
Vend Price #6 AtS 6 ..................................................................................... 47
Vend Price #7 AtS 7...................................................................................... 47
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. F8615401ENR4

Vend Price #8 AtS 8...................................................................................... 47
Vend Price #9 AtS 9...................................................................................... 48
Cycle Modifyer Deluxe Vend Price Adder ACNP 1..........................................48
Cycle Modifyer Ultra Vend Price Adder ACNP 2.............................................49
Vend Price Decimal Point Ats dP....................................................................49
Coin #1 Value dEn 1..................................................................................... 49
Coin #2 Value dEn 2..................................................................................... 50
Start Pulse Value PLSE..................................................................................50
Start Pulse Mode PLSNod............................................................................. 51
Programmable Output Type AtyPE.................................................................51
Default Cycle dFtCyC .................................................................................. 52
Card Reader Display Control (If Equipped) CArd............................................ 52
Audio Signal AUdio......................................................................................54
How to Read Audio Signal Chart................................................................ 54
Network Node Number nodE ........................................................................ 55
Error Programming Error-..............................................................................56
Temperature Fahrenheit/Celsius (Heat Models) tP F C .....................................58
Hot Water Temperature (Heat Models) FL Hot ................................................59
Warm Water Temperature (Heat Models) FL HC .............................................59
Cold Water Temperature (Heat Models) FL CLd .............................................59
Cool Down Water Temperature (Heat Models) CooLdn ...................................60
Low Water Level FL Lo ............................................................................... 60
Medium Water Level FL NEd ....................................................................... 60
High Water Level FL Hi................................................................................ 60
Flush Out Drain Valves for Fill Steps (Models with Pump Drain) FLSH v..........60
Flush Out Time for Fill Steps (Models with Pump Drain) FLSH t......................61
Tub Fill Delay (If Equipped) tUbFLd..............................................................61
No Refill After Time norF t............................................................................62
Real-Time Clock Menu rtC-...........................................................................62
Daylight Savings Option Menu dLS-.............................................................. 62
Special Vend 1 Days of Week Enable SP1 1.................................................... 63
How to Read the Days Enable Value Table...................................................64
Special Vend 1 Start Minute SP1 2..............................................................69
Special Vend 1 Start Hour SP1 3.................................................................69
Special Vend 1 Start Date SP1 4..................................................................69
Special Vend 1 Start Month SP1 5...............................................................70
Special Vend 1 Start Year SP1 6 .................................................................70
Special Vend 1 Length in Hours SP1 7........................................................ 70
Special Vend 1 End Date SP1 8 ..................................................................70
Special Vend 1 End Month SP1 9 ...............................................................71
Special Vend 1 End Year SP1 10 ................................................................ 71
Special Vend 1 Price #1 SP1 11.................................................................. 71
Special Vend 1 Price #2 SP1 12.................................................................. 71
Special Vend 1 Price #3 SP1 13.................................................................. 72
Special Vend 1 Price #4 SP1 14.................................................................. 72
Special Vend 1 Price #5 SP1 15.................................................................. 72
Special Vend 1 Price #6 SP1 16.................................................................. 72
Special Vend 1 Price #7 SP1 17.................................................................. 73
Special Vend 1 Price #8 SP1 18 ................................................................. 73
Special Vend 1 Price #9 SP1 19.................................................................. 73
Special Vend 1 Wash Status Agitate Steps Added Minutes SP1 20................. 73
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. F8615401ENR4

Special Vend 1 Wash Status Agitate Steps Subtracted Minutes SP1 21........... 74
Special Vend 1 Cycle Modifier Default Value SP1 22 .................................. 74
Special Vend 1 Deluxe Vend Price SP1 23 .................................................. 74
Special Vend 1 Ultra Vend Price SP1 24 ..................................................... 75
Special Vend 1 Deluxe Options SP1 25........................................................75
Special Vend 1 Ultra Options SP1 26 ..........................................................75
Special Vend 1 Extract Speed Limit SP1 27 ....................................................75
Special Vend 2 Days of Week Enable SP2....................................................... 76
Special Vend 3 Days of Week Enable SP3....................................................... 76
Special Vend 4 Days of Week Enable SP4....................................................... 76
Cycle Modifier Programming Menu CNP-...................................................... 77
Default Cycle Modifier CNP 1 ...................................................................77
Cycle Modifier Deluxe Options CNP 2 .......................................................77
Cycle Modifier Ultra Options CNP 3...........................................................79
Cycle Modifier Deluxe Additional Wash Time CNP 4.................................. 81
Cycle Modifier Deluxe Additional Rinse Time CNP 5.................................. 81
Cycle Modifier Ultra Additional Wash Time CNP 6..................................... 82
Cycle Modifier Ultra Additional Rinse Time CNP 7..................................... 82
How to Enter Cycle Programming CyCLE-..................................................... 83
Cycle Programming CyCLE-......................................................................84
Hold Step Custom Messages Menu CNESS-..................................................102
Programmable Cycle Time Display Enable PCyCtd........................................103
No Cycle Time Display nCyCtd ...................................................................103
Number of Balance Attempts bAL At........................................................... 104
Cycle Pause Resume CyCPAU..................................................................... 104
Low Power/Auto Shutdown 1 Days Enable LPAS 1....................................... 105
Low Power/Auto Shutdown 2 Days Enable LPAS 2 ...................................... 105
Low Power/Auto Shutdown 3 Days Enable LPAS 3....................................... 106
Low Power/Auto Shutdown 4 Days Enable LPAS 4....................................... 106
Power Fail Reset PF rSt .............................................................................. 107
IR Access Enable irA En............................................................................. 107
Manual Rapid Advance Enable rAPdEn........................................................ 108
Manual Diagnostics Enable diAgEn..............................................................108
Factory Test Enable Ft En............................................................................ 109
Machine Configuration Parameters Menu MCP- ........................................... 109
Lucky Cycle Menu LUC-.............................................................................110
Heating Indicator Decimal Point Enable (Heat Models) Ht dP......................... 110
Temperature Display Enable (Heat Models) tP diS......................................... 111
Water Temperature Indicator tP ind............................................................... 111
Speed Units SUnitS..................................................................................... 112
Programmable Close Door Display PCdL .....................................................112
Programmable Push Start Display PPSt ........................................................ 113
Programmable Open Door Display PodL.......................................................113
Vend Price Display Override AtS do............................................................. 114
OPL Parameters oPL-.................................................................................. 114
OPL Mode Enable oPL 1..........................................................................115
OPL Delayed Start oPL 2......................................................................... 115
OPL Display Power Save oPL 3................................................................116
Drop Off Mode droP....................................................................................116
Out of Order oUt.........................................................................................117
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. F8615401ENR4

Collecting Audit Information.............................................................. 118
Entering the Audit Feature by Manual Mode..................................................118
Entering the Audit Feature with the Coin Vault Open......................................118
How to Read Audit Data.............................................................................. 118
How to Exit Audit Feature........................................................................... 118
Manual Reset...................................................................................... 119
How to Enter Manual Reset..........................................................................119
Machine Diagnostic Functions.............................................................120
How to Enter Diagnostic Testing Feature.......................................................120
How to Start Tests....................................................................................... 120
How to Exit Diagnostic Testing Feature........................................................ 120
Diagnostic (Testing) Mode – Quick Reference Chart...................................... 120
Diagnostics.................................................................................................122
Diagnostic Test Descriptions........................................................................ 124
Control Software Version # Test d 1.......................................................... 124
Input/Output Board Software Version Test d 2 ...........................................124
Drive Board Software Version Test d 3 ..................................................... 124
Drive Parameter Version Test d 4.............................................................. 124
Service Door Opening Test d 8..................................................................124
Coin Vault Opening Test d 9..................................................................... 124
Coin Drop #1 Input Test d 10....................................................................124
Coin Drop #2 Input Test d 11....................................................................124
Vend Header Present Status Test d 12........................................................ 125
Start Pulse Test d 13.................................................................................125
Door Switch Input Test d 15..................................................................... 125
Door Lock Input Test d 16........................................................................125
Show Fill Time Test d 17..........................................................................125
Show Drain Time Test d 18...................................................................... 125
Temperature Sensor Display Test (Heat Models) d 19 ................................ 125
12.5 VDC Voltage Test d 20..................................................................... 125
24 VDC Voltage Test d 21........................................................................ 125
Frame Balance Switch Input Test d 22....................................................... 125
External Output Test d 23......................................................................... 126
Water Purge Test d 24.............................................................................. 126
Water Leak Detection Test d 25.................................................................126
Water Level Test d 26.............................................................................. 126
DC Bus Voltage Test d 27.........................................................................126
AC Mains Voltage Test d 28..................................................................... 127
Machine Configuration #1 Display Test d 29..............................................127
Machine Configuration #2 Display Test d 30 .............................................130
Machine Configuration #3 Display Test d 31 .............................................130
Machine Configuration #4 Display Test d 32 .............................................140
Machine Configuration #5 Display Test d 33..............................................151
Low Level Pressure Switch Test (Heat Models) d 43...................................151
Factory Test Cycle................................................................................... 151
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. F8615401ENR4

Error Codes........................................................................................ 157
Manual Rapid Advance.......................................................................167
How to Enter Rapid Advance....................................................................... 167
How to Exit Rapid Advance Feature............................................................. 167
Default Cycles.....................................................................................168
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. F8615401ENR4

Introduction
Model Identification
Information in this manual is applicable to these models:
NOTE: Applies to SCT* models through April 2019.
Models
20 Pound [9 Kg] DCG020ND
DCJ020NC
DCJ020ND
DCJ020NE
DCJ020NF
DCJ020NH
DCJ020NL
DCJ020NQ
DCJ020NT
DCJ020NV
DCJ020NX
DCJ020NY
DCJ020WC
DCJ020WD
DCJ020WE
DCJ020WF
DCJ020WH
DCJ020WL
DCJ020WQ
DCJ020WT
DCJ020WV
DCJ020WX
DCJ020WY
SCA020NC
SCA020ND
SCA020NE
SCA020NF
SCA020NH
SCA020NL
SCA020NQ
SCA020NT
SCA020NV
SCA020NX
SCA020NY
SCA020WC
SCA020WD
SCA020WE
SCA020WF
SCA020WH
SCA020WL
SCA020WQ
SCA020WT
SCA020WV
SCA020WX
SCA020WY
SCH020NC
SCH020ND
SCH020NE
SCH020NF
SCH020NH
SCH020NL
SCH020NQ
SCH020NT
SCH020NV
SCH020NX
SCH020NY
SCH020WC
SCH020WD
SCH020WE
SCH020WF
SCH020WH
SCH020WL
SCH020WQ
SCH020WT
SCH020WV
SCH020WX
SCH020WY
SCK020NC
SCK020ND
SCK020NE
SCK020NF
SCK020NH
SCK020NL
SCK020NQ
SCK020NT
SCK020NV
SCK020NX
SCK020NY
SCK020WC
SCK020WD
SCK020WE
SCK020WF
SCK020WH
SCK020WL
SCK020WQ
SCK020WT
SCK020WV
SCK020WX
SCK020WY
SCL020NC
SCL020ND
SCL020NE
SCL020NF
SCL020NH
SCL020NL
SCL020NQ
SCL020NT
SCL020NV
SCL020NX
SCL020NY
SCL020WC
SCL020WD
SCL020WE
SCL020WF
SCL020WH
SCL020WL
SCL020WQ
SCL020WT
SCL020WV
SCL020WX
SCL020WY
SCT020NC
SCT020ND
SCT020NE
SCT020NF
SCT020NH
SCT020NL
SCT020NT
SCT020NQ
SCT020NV
SCT020NX
SCT020NY
SCT020WC
SCT020WD
SCT020WE
SCT020WF
SCT020WH
SCT020WL
SCT020WT
SCT020WQ
SCT020WV
SCT020WX
SCT020WY
SCZ020NC
SCZ020ND
SCZ020NE
SCZ020NF
SCZ020NH
SCZ020NL
SCZ020NQ
SCZ020NT
SCZ020NV
SCZ020NX
SCZ020NY
SCZ020WC
SCZ020WD
SCZ020WE
SCZ020WF
SCZ020WH
SCZ020WL
SCZ020WQ
SCZ020WT
SCZ020WV
SCZ020WX
SCZ020WY
Table continues...
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. F8615401ENR4

Models
30 Pound [13.6 Kg] DCG030ND
DCJ030NC
DCJ030ND
DCJ030NE
DCJ030NF
DCJ030NH
DCJ030NL
DCJ030NQ
DCJ030NT
DCJ030NV
DCJ030NX
DCJ030NY
DCJ030WC
DCJ030WD
DCJ030WE
DCJ030WF
DCJ030WH
DCJ030WL
DCJ030WQ
DCJ030WT
DCJ030WV
DCJ030WX
DCJ030WY
SCA030NC
SCA030ND
SCA030NE
SCA030NF
SCA030NH
SCA030NL
SCA030NQ
SCA030NT
SCA030NV
SCA030NX
SCA030NY
SCA030WC
SCA030WD
SCA030WE
SCA030WF
SCA030WH
SCA030WL
SCA030WQ
SCA030WT
SCA030WV
SCA030WX
SCA030WY
SCH030NC
SCH030ND
SCH030NE
SCH030NF
SCH030NH
SCH030NL
SCH030NQ
SCH030NT
SCH030NV
SCH030NX
SCH030NY
SCH030WC
SCH030WD
SCH030WE
SCH030WF
SCH030WH
SCH030WL
SCH030WQ
SCH030WT
SCH030WV
SCH030WX
SCH030WY
SCK030NC
SCK030ND
SCK030NE
SCK030NF
SCK030NH
SCK030NL
SCK030NQ
SCK030NT
SCK030NV
SCK030NX
SCK030NY
SCK030WC
SCK030WD
SCK030WE
SCK030WF
SCK030WH
SCK030WL
SCK030WQ
SCK030WT
SCK030WV
SCK030WX
SCK030WY
SCL030NC
SCL030ND
SCL030NE
SCL030NF
SCL030NH
SCL030NL
SCL030NQ
SCL030NT
SCL030NV
SCL030NX
SCL030NY
SCL030WC
SCL030WD
SCL030WE
SCL030WF
SCL030WH
SCL030WL
SCL030WQ
SCL030WT
SCL030WV
SCL030WX
SCL030WY
SCT030NC
SCT030ND
SCT030NE
SCT030NF
SCT030NH
SCT030NL
SCT030NT
SCT030NQ
SCT030NV
SCT030NX
SCT030NY
SCT030WC
SCT030WD
SCT030WE
SCT030WF
SCT030WH
SCT030WL
SCT030WT
SCT030WQ
SCT030WV
SCT030WX
SCT030WY
Table continues...
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. F8615401ENR4

Models
40 Pound [18.1 Kg] DCG040ND
DCJ040NC
DCJ040ND
DCJ040NE
DCJ040NF
DCJ040NH
DCJ040NL
DCJ040NQ
DCJ040NT
DCJ040NV
DCJ040NX
DCJ040NY
DCJ040WC
DCJ040WD
DCJ040WE
DCJ040WF
DCJ040WH
DCJ040WL
DCJ040WQ
DCJ040WT
DCJ040WV
DCJ040WX
DCJ040WY
SCA040NC
SCA040ND
SCA040NE
SCA040NF
SCA040NH
SCA040NL
SCA040NQ
SCA040NT
SCA040NV
SCA040NX
SCA040NY
SCA040WC
SCA040WD
SCA040WE
SCA040WF
SCA040WH
SCA040WL
SCA040WQ
SCA040WT
SCA040WV
SCA040WX
SCA040WY
SCH040NC
SCH040ND
SCH040NE
SCH040NF
SCH040NH
SCH040NL
SCH040NQ
SCH040NT
SCH040NV
SCH040NX
SCH040NY
SCH040WC
SCH040WD
SCH040WE
SCH040WF
SCH040WH
SCH040WL
SCH040WQ
SCH040WT
SCH040WV
SCH040WX
SCH040WY
SCK040NC
SCK040ND
SCK040NE
SCK040NF
SCK040NH
SCK040NL
SCK040NQ
SCK040NT
SCK040NV
SCK040NX
SCK040NY
SCK040WC
SCK040WD
SCK040WE
SCK040WF
SCK040WH
SCK040WL
SCK040WQ
SCK040WT
SCK040WV
SCK040WX
SCK040WY
SCL040NC
SCL040ND
SCL040NE
SCL040NF
SCL040NH
SCL040NL
SCL040NQ
SCL040NT
SCL040NV
SCL040NX
SCL040NY
SCL040WC
SCL040WD
SCL040WE
SCL040WF
SCL040WH
SCL040WL
SCL040WQ
SCL040WT
SCL040WV
SCL040WX
SCL040WY
SCT040NC
SCT040ND
SCT040NE
SCT040NF
SCT040NH
SCT040NL
SCT040NT
SCT040NQ
SCT040NV
SCT040NX
SCT040NY
SCT040WC
SCT040WD
SCT040WE
SCT040WF
SCT040WH
SCT040WL
SCT040WT
SCT040WQ
SCT040WV
SCT040WX
SCT040WY
Table continues...
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. F8615401ENR4

Models
60 Pound [27.2 Kg] DCG060ND
DCJ060NC
DCJ060ND
DCJ060NE
DCJ060NF
DCJ060NH
DCJ060NL
DCJ060NQ
DCJ060NT
DCJ060NV
DCJ060NX
DCJ060NY
DCJ060WC
DCJ060WD
DCJ060WE
DCJ060WF
DCJ060WH
DCJ060WL
DCJ060WQ
DCJ060WT
DCJ060WV
DCJ060WX
DCJ060WY
SCA060NC
SCA060ND
SCA060NE
SCA060NF
SCA060NH
SCA060NL
SCA060NQ
SCA060NT
SCA060NV
SCA060NX
SCA060NY
SCA060WC
SCA060WD
SCA060WE
SCA060WF
SCA060WH
SCA060WL
SCA060WQ
SCA060WT
SCA060WV
SCA060WX
SCA060WY
SCH060NC
SCH060ND
SCH060NE
SCH060NF
SCH060NH
SCH060NL
SCH060NQ
SCH060NT
SCH060NV
SCH060NX
SCH060NY
SCH060WC
SCH060WD
SCH060WE
SCH060WF
SCH060WH
SCH060WL
SCH060WQ
SCH060WT
SCH060WV
SCK060WQ
SCK060WT
SCK060WV
SCK060WX
SCK060WY
SCL060NC
SCL060ND
SCL060NE
SCL060NF
SCL060NH
SCL060NL
SCL060NQ
SCL060NT
SCL060NV
SCL060NX
SCL060NY
SCL060WC
SCL060WD
SCL060WE
SCL060WF
SCL060WH
SCL060WL
SCL060WQ
SCL060WT
SCL060WV
SCL060WX
SCH060WX
SCH060WY
SCK060NC
SCK060ND
SCK060NE
SCK060NF
SCK060NH
SCK060NL
SCK060NQ
SCK060NT
SCK060NV
SCK060NX
SCK060NY
SCK060WC
SCK060WD
SCK060WE
SCK060WF
SCK060WH
SCK060WL
SCL060WY
SCT060NC
SCT060ND
SCT060NE
SCT060NF
SCT060NH
SCT060NL
SCT060NT
SCT060NQ
SCT060NV
SCT060NX
SCT060NY
SCT060WC
SCT060WD
SCT060WE
SCT060WF
SCT060WH
SCT060WL
SCT060WT
SCT060WQ
SCT060WV
SCT060WX
SCT060WY
80 Pound [36.3 Kg] DCJ080NC
DCJ080ND
DCJ080NE
DCJ080NF
DCJ080NH
DCJ080NL
DCJ080NQ
DCJ080NT
DCJ080NV
DCJ080NX
DCJ080NY
DCJ080WC
DCJ080WD
DCJ080WE
DCJ080WF
DCJ080WH
DCJ080WL
DCJ080WQ
DCJ080WT
DCJ080WV
DCJ080WX
DCJ080WY
SCA080NC
SCA080ND
SCA080NE
SCA080NF
SCA080NH
SCA080NL
SCA080NQ
SCA080NT
SCA080NV
SCA080NX
SCA080NY
SCA080WC
SCA080WD
SCA080WE
SCA080WF
SCA080WH
SCA080WL
SCA080WQ
SCA080WT
SCA080WV
SCA080WX
SCA080WY
SCH080NC
SCH080ND
SCH080NE
SCH080NF
SCH080NH
SCH080NL
SCH080NQ
SCH080NT
SCH080NV
SCH080NX
SCH080NY
SCH080WC
SCH080WD
SCH080WE
SCH080WF
SCH080WH
SCH080WL
SCH080WQ
SCH080WT
SCH080WV
SCH080WX
SCH080WY
SCK080NC
SCK080ND
SCK080NE
SCK080NF
SCK080NH
SCK080NL
SCK080NQ
SCK080NT
SCK080NV
SCK080NX
SCK080NY
SCK080WC
SCK080WD
SCK080WE
SCK080WF
SCK080WH
SCK080WL
SCK080WQ
SCK080WT
SCK080WV
SCK080WX
SCK080WY
SCT080NC
SCT080ND
SCT080NE
SCT080NF
SCT080NH
SCT080NL
SCT080NT
SCT080NQ
SCT080NV
SCT080NX
SCT080NY
SCT080WC
SCT080WD
SCT080WE
SCT080WF
SCT080WH
SCT080WL
SCT080WT
SCT080WQ
SCT080WV
SCT080WX
SCT080WY
Table continues...
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. F8615401ENR4

Models
100 Pound [45.4
Kg]
DCJ100NC
DCJ100ND
DCJ100NE
DCJ100NF
DCJ100NH
DCJ100NL
DCJ100NQ
DCJ100NT
DCJ100NV
DCJ100NX
DCJ100NY
DCJ100WC
DCJ100WD
DCJ100WE
DCJ100WF
DCJ100WH
DCJ100WL
DCJ100WQ
DCJ100WT
DCJ100WV
DCJ100WX
DCJ100WY
SCA100NC
SCA100ND
SCA100NE
SCA100NF
SCA100NH
SCA100NL
SCA100NQ
SCA100NT
SCA100NV
SCA100NX
SCA100NY
SCA100WC
SCA100WD
SCA100WE
SCA100WF
SCA100WH
SCA100WL
SCA100WQ
SCA100WT
SCA100WV
SCA100WX
SCA100WY
SCH100NC
SCH100ND
SCH100NE
SCH100NF
SCH100NH
SCH100NL
SCH100NQ
SCH100NT
SCH100NV
SCH100NX
SCH100NY
SCH100WC
SCH100WD
SCH100WE
SCH100WF
SCH100WH
SCH100WL
SCH100WQ
SCH100WT
SCH100WV
SCH100WX
SCH100WY
SCK100NC
SCK100ND
SCK100NE
SCK100NF
SCK100NH
SCK100NL
SCK100NQ
SCK100NT
SCK100NV
SCK100NX
SCK100NY
SCK100WC
SCK100WD
SCK100WE
SCK100WF
SCK100WH
SCK100WL
SCK100WQ
SCK100WT
SCK100WV
SCK100WX
SCK100WY
SCT100NC
SCT100ND
SCT100NE
SCT100NF
SCT100NH
SCT100NL
SCT100NT
SCT100NQ
SCT100NV
SCT100NX
SCT100NY
SCT100WC
SCT100WD
SCT100WE
SCT100WF
SCT100WH
SCT100WL
SCT100WT
SCT100WQ
SCT100WV
SCT100WX
SCT100WY
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. F8615401ENR4

Serial Plate Location
The serial plate is located on the rear panel and inside the door of
the machine.
Always provide the machine’s serial number and model number
when ordering parts or when seeking technical assistance. Refer
to Figure 1 .
Model Example of Serial Plate Location
1. Serial Plate on Panel
2. Serial Plate on Door Frame
Figure 1
Replacement Parts
If literature or replacement parts are required, contact the source
from which the machine was purchased or contact Alliance Laun-
dry Systems at [phone] for the name and address of
the nearest authorized parts distributor.
Customer Service
For technical assistance, contact your local distributor or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
www.alliancelaundry.com
Phone: [phone] Ripon, Wisconsin
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. F8615401ENR4

Preliminary Information
About the Control
This control is an advanced, programmable computer that allows
the owner to control most machine features by pressing a se-
quence of keypads. Refer to Figure 2 .
The control allows the owner to program custom cycles, set vend
prices, retrieve audit information, run diagnostic tests, program
special vend features and other programmable features. Refer to
Programming the Control for a list of features. Machines shipped
from the factory have a default cycle and wash temperature set-
ting built in, however, the owner can change the default cycle, or
any cycle, as needs permit.
The default cycle is Normal Cold.
IMPORTANT: In the event of a power failure, the control
will not have to be reprogrammed. It is designed with a
memory system that will remember how it was pro-
grammed until the electrical power is restored.
IMPORTANT: It is extremely important that the machine
has a good ground connection and that all mechanical
and electrical connections to the control are made be-
fore applying power to or operating the machine.
Glossary of Terms
The following are a few terms and abbreviations to learn. These
are referred to throughout the instructions.
Display – This term refers to the window area of the control that
displays words and values.
LED (Light Emitting Diode) – This term refers to the lights next
to the keypads and status words of the control.
IrDA – Infra-red External Device
FEC – Front End Control
I/O Board – Input/Output Board
OPL – On Premises Laundry
Communications
The control may be programmed manually, by infra-red commu-
nication with an external device or by the network. A limited
number of features can be programmed by a card reader.
Serial Card Reader Communications (Card Models
Only)
The control will accept communication with a serial card reader
in order to perform vending transactions when a card is inserted
to pay for cycles. The card reader can also allow the owner to
program a limited number of features and collect audit informa-
tion.
For detailed information on serial card reader communications,
refer to instructions included with card reader.
Infra-red Communications
If enabled (refer to IR Access Enable irA En) an external device,
such as a PDA, allows the owner to program and retrieve infor-
mation from the control as well as start and stop various diagnos-
tic tests without using the keypad. An external device greatly ex-
pands the programming options available to the owner.
An external device is not required to program and operate the
machine. The operation of an external device and the advanced
features available are covered separately in the instructions in-
cluded with the external device software. Contact Alliance Laun-
dry Systems for a list of approved PDAs and other external devi-
ces.
How to Begin Communications with an External
Device
The control will switch the display to show -C- until the com-
munication is complete. If an error occurs that terminates com-
munication, the display will show EIXX (XX represents the error
code).
NOTE: The Infra-red Communications option must be
turned on.
Network Communications
The control will also accept communication with a network inter-
face board which allows the control to be linked to a personal
computer. This network link allows an owner to program, collect
data and run diagnostics on any machine.
For detailed information on network communications, refer to the
network instructions.
Preliminary Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. F8615401ENR4

Control Identification
Select Cycle Keypads
(Refer to Figure 2 )
Select Cycle keypads are used to select the specific machine cy-
cle. These keypads include Normal, Permanent Press, Delicates
Bulky, and allow the user to select a cycle other than the default
cycle ( Normal Cold). The Select Cycle keypads are not active af-
ter the first Fill Step of the cycle. The selected cycle is indicated
by the light (LED) on the keypad. Pressing the flashing START
(enter) keypad will confirm the selection and the cycle will begin.
When the card reader is used, pressing the START (enter) keypad
will start the cycle and deduct the vend price from the card.
Select Wash Temp Keypads
(Refer to Figure 2 )
Select Wash Temp keypads are used to select the temperature of
the water used for the wash fill. These keypads include Hot,
Warm, and Cold. These pads allow the user to select a water tem-
perature other than the default setting ( Cold).
Select Cycle Modifier Keypads
(Refer to Figure 2 )
The Cycle Modifier keypads are used to select cycle modifier op-
tions. The Regular option is the default and indicates no cycle
modifiers are active. The Deluxe and Ultra options can be pro-
grammed to offer extra features for an added vend price. Features
available include an added prewash, extra wash time, an added
extra rinse, extra rinse time and a warm rinse temperature.
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. F8615401ENR4

1. Select Temp keypads
2. LED Status Lights
3. Select Cycle keypads
4. Insert Coins/Card
5. Four 7-Segment Digits
6. Display
7. LED Light
8. Door
9. Spin
10. Rinse
11. Wash
12. Select Modifyer keypads
13. Ultra
14. Deluxe
15. START (enter)
16. Delicates Bulky
17. Cold
18. Permanent Press
19. Warm
20. Normal
21. Hot
22. Regular
Figure 2
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. F8615401ENR4

Display Identification
Light Emitting Diodes (LEDs)
Light Emitting Diodes (LEDs) are used to indicate the chosen cy-
cle, cycle status, if vend is needed and door lock information. See
below for information on each LED.
CYCLE LED
Cycle LED will remain lit the entire cycle.
WASH TEMP LED
Wash Temp LED will remain on until the end of the cycle or will
change to show the rinse temperature if programmed to do so.
WASH LED
Wash LED is lit at the beginning of the pre-wash and wash por-
tions of the cycle and will remain lit until the wash is complete.
RINSE LED
Rinse LED is lit at the beginning of a rinse portion of the cycle
and will remain lit until the rinse is complete.
SPIN LED
Spin LED is lit during the final spin portion of the cycle.
COINS/CARD LED
Coins/Card LED prompts the user for coins or a card to satisfy
the vend price. digits show the vend price remaining to be satis-
fied. The vend price displayed will decrease with each coin in-
serted. If new options are selected during the first Fill step of the
wash cycle and it requires additional vend, the Coins/Card light
will flash one (1) second on and one (1) second off, and the dis-
play will show the vend price remaining to be satisfied.
DOOR LED
Door LED will flash when the control is attempting to lock or un-
lock the door.
Regular LED
Regular LED is lit when the Option Regular modifier is selected.
Deluxe LED
Deluxe LED is lit when the Option Deluxe modifier is selected.
Ultra LED
Ultra LED is lit when the Option Ultra modifier is selected.
Six 7-Segment Digits
The 7-Segment Digits are used to display the time remaining in a
cycle, vend price, error messages and descriptive codes. During
diagnostic testing or manual programming of the control, these
digits will display descriptive codes and values (as described in
Entering the Manual Mode).
Heating/Cool Down Display Sequence
(Heat Models)
For models with heat, a series of dashes appear on the display to
indicate either heating or cool down during a wash cycle step.
When the machine is heating during an agitate step (refer to Pro-
gramming the Agitate Step Type) or a soak step (refer to Pro-
gramming the Soak Step Type), the cycle time pauses and the dis-
play shows dashes appearing from left to right. The ascending
dash sequence repeats until the water has reached the program-
med temperature. This display only shows durring the initial
heating process.
When the machine is in a cool down step (refer to Programming
the Cool Down Step Type), the cycle time pauses and the display
shows dashes disappearing from left to right. The descending
dash sequence repeats until the water has reached the program-
med temperature.
Display Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. F8615401ENR4

Special Features
Programming the Control
The control allows the owner to program the control with the use
of the keypad. Cycle and vend options may be programmed, audit
information may be viewed and diagnostic tests may be run by
pressing combinations of keypads.
For details on programming select cycle and vend options, refer
to Programming Control.
Collecting Audit Information
The control will store audit information in its memory that can be
retrieved by pressing various combinations of Select Cycle Key-
pads. The control will record coins entered, total machine cycles,
total start pulses and total rapid advance cycles.
For more information on the audit features, refer to Collecting
Audit Information.
NOTE: Additional audit information is retrievable with
an external device using Infra-red Communications, the
Card Reader Communications (Card Models) or the network.
Refer to the appropriate instruction manual.
Testing the Machine Using Diagnostic
Functions
Special diagnostic features built into the control allow the owner
to run specific diagnostic tests. By opening and closing the serv-
ice door and then pressing various sequences of Select Cycle Key-
pads, by external device (refer to Communications), or network,
the owner may perform diagnostic tests.
For detailed information on running diagnostic tests, refer to Ma-
chine Diagnostic Functions.
Rapid Advance Feature
If enabled (refer to Manual Rapid Advance Enable rAPdEn), this
feature allows the owner to manually advance through active cy-
cles or advance into a cycle from the Ready Mode without enter-
ing vend. This feature is useful when tests must be performed im-
mediately on a machine currently in an active cycle. In this case,
the owner can manually advance through the cycles to Ready
Mode. At this point, the owner can perform the required tests and
then return the machine to the point it was interrupted.
For detailed information on using the Rapid Advance feature, re-
fer to Rapid Advance Feature.
Clearing the Vend Feature
This feature allows the owner to return the control back to the
Ready Mode if the full vend price has not yet been satisfied,
while in Partial Vend Mode.
How to Clear Vend
1. Open the top cover. Refer to Opening the Top Cover.
2. While pressing and holding the Normal keypad with one
hand, press the Deluxe keypad with the other hand. The con-
trol will reset to the Ready Mode and clear out the current
vend that has been entered.
Coin Drop
The control will accept pulses from a single or dual coin drop to
satisfy vend price. Each coin drop will have the ability to satisfy
the vend.
Start Pulse Operation
The control will accept pulses from optional payment systems.
The machine can be programmed to receive a single start pulse or
multiple start pulses, or the Start Pulse Option can be turned off.
The Start Pulse Mode allows the machine to go from the Ready
Mode to the Start Mode after a single or multiple pulses are re-
ceived.
Top Cover and Coin Vault Openings
The control will capture the times and dates of the openings of
the Coin Vault and the Top Cover. The information is saved in
memory. An open top cover combined with various keypad
presses allows the control to enter manual modes of operation if
the Break-In Alarm is not on. These modes include Manual Pro-
gramming, Audit Collection and Diagnostics.
Break-In Alarm
This feature allows the owner to program the machine to signal a
network alarm, cause a machine alarm or shut down the machine
if the top cover or coin vault is opened without disabling the
alarm first. The date and time of the break-in is recorded. To
avoid the alarm during coin collections, the alarm must be turned
off or temporarily disabled by pressing the Permanent Press key-
pad.
The alarm is turned off by default. The alarm can be turned on by
programming the control with an external device or network.
Special Vend
This feature allows the owner to program the control to allow
programmable vend prices for specific hours and dates.
For details on programming Special Vend, refer to Programming
Control.
Special Features
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
20 Part No. F8615401ENR4
