Alliance Laundry Systems MB26 User manual

Installation/Operation/Maintenance
Washer-Extractors
Barrier Washers
Refer to Page 7 for Model Identification
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. D1612ENR3
June 2016

Table of Contents
REPLACEMENT PARTS...................................................................... 5
CUSTOMER SERVICE......................................................................... 6
MODEL IDENTIFICATION..................................................................7
WARNINGS AND LABELS................................................................... 8
SYMBOLS ON THE MACHINE (DEPENDING ON THE MACHINE
MODEL)........................................................................................... 10
Micro Control...............................................................................................11
OPERATING INSTRUCTIONS........................................................... 12
BEFORE WASHING.................................................................................... 12
PROGRAM SELECTION............................................................................. 14
WASH PROGRAMS OVERVIEW.................................................................14
ADD DETERGENTS....................................................................................14
START THE WASHER EXTRACTOR ..........................................................14
END OF WASH CYCLE...............................................................................15
HOW TO OPEN DOOR WHEN FAILURE OCCURS..................................... 15
FIRST SERVICE AT TECHNICAL PROBLEM.................................. 16
IMPORTANT SAFETY INSTRUCTIONS............................................21
SYMBOLS ON THE MACHINE...................................................................24
IMPORTANT INFORMATION BEFORE INSTALLATION............................ 24
TECHNICAL SPECIFICATION.......................................................... 25
WASHERS...................................................................................................25
DIMENSIONS AND PLACEMENT OF COMPONENTS OF THE WASHERS...
29
DIMENSIONS AND PLACEMENT OF COMPONENTS OF THE WASHER.. 31
INSTALLATION.................................................................................. 34
HANDLING, TRANSPORT AND STORAGE................................................34
SPACE REQUIREMENTS............................................................................34
MACHINE POSITIONING........................................................................... 35
INSTALLATION OF WEIGHING SYSTEM COMPONENTS.........................37
CONNECTIONS.......................................................................................... 42
PUTTING THE MACHINE INTO OPERATION............................................ 51
© Copyright 2016, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. D1612ENR3

MAINTENANCE................................................................................. 53
INTRODUCTION........................................................................................ 53
DAILY.........................................................................................................53
ONCE A MONTH OR AFTER 200 OPERATING HOURS..............................53
EVERY 3 MONTHS OR AFTER 500 OPERATION HOURS.......................... 53
EVERY 6 MONTHS, OR AFTER 1000 OPERATING HOURS........................54
SAFETY VIBRATION SWITCH...................................................................54
TIGHTENING MOMENTS...........................................................................55
LUBRICATION........................................................................................... 56
DRIVING MECHANISM............................................................................. 56
WATER AND STEAM FILTERS................................................................... 57
THRUST OF DOOR SEAL........................................................................... 58
ADJUSTMENT OF SPRING UNIT............................................................... 58
REPLACEMENT OF WASHER FUSES........................................................ 59
EARTH LEAKAGE TRIP (GROUND) OF THE LAUNDRY...........................59
TROUBLE SHOOTING AIDS............................................................. 60
DOOR BLOCKING......................................................................................60
ERROR INDICATION SHOWN ON DISPLAY..............................................60
LIST OF RECOMMENDED SPARE PARTS........................................61
PUTTING THE MACHINE OUT OF SERVICE.................................. 62
DISCONNECTING THE MACHINE.............................................................62
MACHINE DISPOSAL.................................................................................62
POSSIBILITY OF THE MACHINE DISPOSAL BY THE SPECIALIZED COM-
PANY...................................................................................................... 62
POSSIBILITY OF THE MACHINE DISPOSAL BY OWN POTENTIAL.........62
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. D1612ENR3

REPLACEMENT PARTS
If literature or replacement parts are required, contact the source
from which the machine was purchased or contact Alliance Laun-
dry Systems at [phone] for the name and address of the
nearest authorized parts distributor.
REPLACEMENT PARTS
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. D1612ENR3

CUSTOMER SERVICE
For technical assistance, contact your local distributor or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, Wisconsin 54971-0990
U.S.A.
www.alliancelaundry.com
Phone: [phone]
Ripon, Wisconsin
[phone]
Wevelgem, Belgium
CUSTOMER SERVICE
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. D1612ENR3

MODEL IDENTIFICATION
Information in this manual is applicable to these models:
MB26
MB33
MB44
MB66
LMA260_MICRO
LMA330_MICRO
LMA440_MICRO
LMA660_MICRO
MODEL IDENTIFICATION
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. D1612ENR3

WARNINGS AND LABELS
TO MINIMIZE THE RISK OF FIRE, INJURY BY ELEC-
TRIC SHOCK OR SERIOUS INJURIES TO PEOPLE OR
PROPERTY DAMAGE, PLEASE READ AND FOLLOW
THE FOLLOWING INSTRUCTIONS:
• If the machine is used for special applications follow the in-
structions and warning to avoid person injury.
• Do not put fabrics treated with flammable products in the
washer extractor. Such fabrics must first be washed by hand
and air dried.
• Store laundry aids, dry-cleaning solvents and disinfectants out
of the reach of children, preferably in a locked cabinet.
• Do not remove warning signs placed on the machine. Follow
instructions on signs and labels to avoid personal injuries.
• Do not use some means on the soap dispenser lid to hold it
open by filling or when the machine operates. The discharge
or splashing of hazardous liquid can cause serious scalding
and burning.
• The use of hypochlorite will cause corrosion which may cause
component failure under certain circumstances.
• The warranty of the machine cannot be accepted in case cor-
rosion was caused by chlorine and chlorine compounds im-
pact.
• The washer extractor is not designed for work which may cre-
ate an explosive atmosphere inside the machine and will not
be used for this purpose.
• In case of steam escaping anywhere in the machine, shut off
the main steam supply valve and call for maintenance.
• In case of danger turn off the main switch or other emergency
disconnection devices.
• Turn off the main water supply at the end of each operating
day.
• Only qualified service personnel can execute service on the
washer extractor.
• Follow all valid and basic safety rules and laws.
• It is obvious that it is impossible to mention each possible risk
in this manual. It is up to the user to proceed as careful as pos-
sible.
WARNING
DO NOT TOUCH THE DOORGLASS UNTIL CYCLE
HAS BEEN COMPLETED. DO NOT OPEN DOOR UN-
TIL CYLINDER REMAINS STOPPED AND WATER
HAS BEEN DRAINED FROM CYLINDER. DO NOT
PUT ARTICLES SOILED WITH EXPLOSIVE SOL-
VENTS AND/OR DANGEROUS CHEMICAL PROD-
UCTS IN THE MACHINE. THIS MACHINE SHOULD
NOT BE USED BY CHILDREN. DO NOT LET CHIL-
DREN PLAY IN, ON, OR AROUND THE MACHINE. BE-
FORE TURNING THE MACHINE “ON”, MAKE SURE
THAT THERE ARE NO PEOPLE OR ANIMALS
PRESENT IN OR AROUND THE MACHINE.
C005
WARNING
ALWAYS DISCONNECT THE WASHER FROM
THE ELECTRICAL SUPPLY BEFORE ATTEMPTING
ANY SERVICE. THE WASHER EXTRACTOR IS OUT
OF TENSION IF THE MAIN PLUG IS TAKEN OUT OR
WHEN THE MAIN SUPPLY IS DISCONNECTED.
WHEN THE MAIN SWITCH IS TURNED OFF THE IN-
LET TERMINALS OF THE MACHINE MAIN SWITCH
ARE STILL UNDER CURRENT!
C006
CAUTION
EXTREME HOT CONDITIONS CAN
ARISE IN THE SURROUNDING AIR. WATCH OUT
FOR VAPOR THAT ESCAPES FROM THE WASHER
EXTRACTOR VENTING!
C020
WARNINGS AND LABELS
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. D1612ENR3

CAUTION
DO NOT COVER THE WASHER EX-
TRACTOR VENTING. IT SERVES AS A VAPOR OUT-
LET TO PREVENT PRESSURE BUILDING IN THE
WASHER EXTRACTOR.
C021
WARNING
ORIGINAL OR IDENTICAL PARTS MUST BE USED
FOR REPLACEMENT IN THIS MACHINE. AFTER
SERVICING REPLACE AND SECURE ALL PANELS IN
THE ORIGINAL WAY. TAKE THESE MEASURES FOR
CONTINUED PROTECTION AGAINST ELECTRICAL
SHOCK, INJURY, FIRE AND/OR PROPERTY DAM-
AGE.
C007
WARNING
SAFETY LABELS APPEAR AT CRUCIAL LOCATIONS
ON THE MACHINE. FAILURE TO MAINTAIN LEGIBLE
SAFETY LABELS COULD RESULT IN INJURY TO
THE OPERATOR OR SERVICE TECHNICIAN.
C149
INSTRUCTIONS FOR MAINTENANCE, ADJUST-
MENT AND SAFETY OF PEOPLE
Some important information for the usage of the machine are not
(or only partly) mentioned in this “User’s manual”. Missing in-
formation is possible to find in “Installation and maintenance
manual” according to the following references.
1. Manipulation, transportation, storage
2. Putting the machine into service
3. Technical specification
4. Putting the machine out of service
5. Description of the safe work system when maintenance is per-
formed, adjustment, and when eliminating defects
6. Procedures on searching for defects, cleaning, maintenance
7. Heat risks
8. Description of qualities for ventilation
9. Loss of stability
10. Electric risks
11. Minimal water level
12. Sight holes
13. Water supply
WARNINGS AND LABELS
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. D1612ENR3

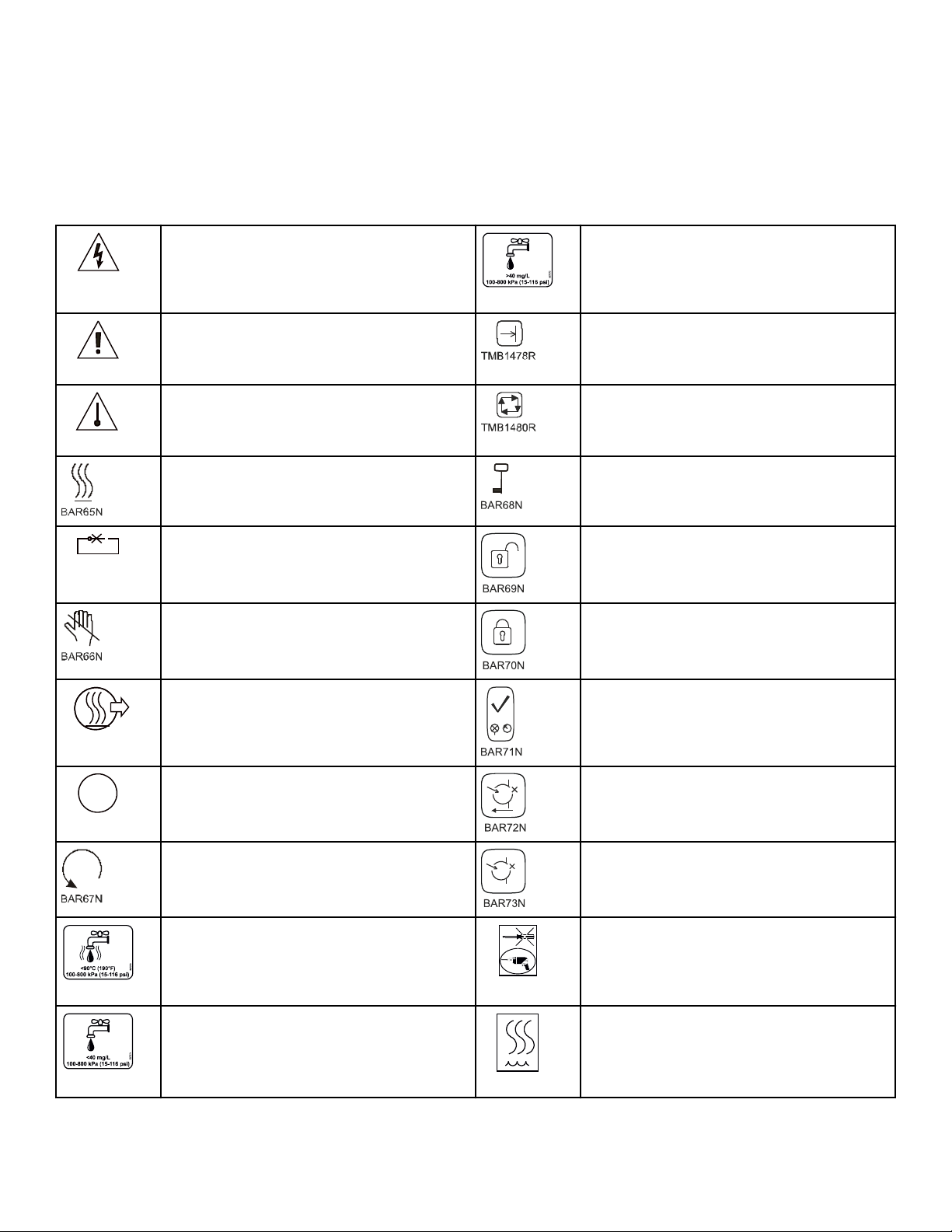

SYMBOLS ON THE MACHINE (DEPENDING ON
THE MACHINE MODEL)
CHM2439N_SVG
Caution, dangerous electrical tension, electrical
devices
CHM2448N_SVG
Hard cold water inlet (label is dark blue)
CHM2440N_SVG
Caution, other danger, read and follow written
instructions
The machine is switched over to programming
regime
CHM2441N_SVG
Caution - Increased temperature Machine in operation
Transfer of heat (in general) Press to unblock the door
CHM2442N_SVG
Do not close or cover Press to unblock the door
Do not put your hands on the marked area Door locking button
CHM2443N_SVG
Machine's hot air outlet Signal of machine running (and operating air
pressure)
CHM2444N_SVG
In case of emergency press the emergency but-
ton to stop the machine
Loading side activation button
Drum positioning button Loading signal
CHM2446N_SVG
Warm water inlet (label is red)
CHM2490N_SVG
Indicates that the holes Should be drilled not
punched
CHM2447N_SVG
Soft cold water inlet (label is light blue)
CHM2445N_SVG
Steam
SYMBOLS ON THE MACHINE (DEPENDING ON THE MACHINE MODEL)
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. D1612ENR3

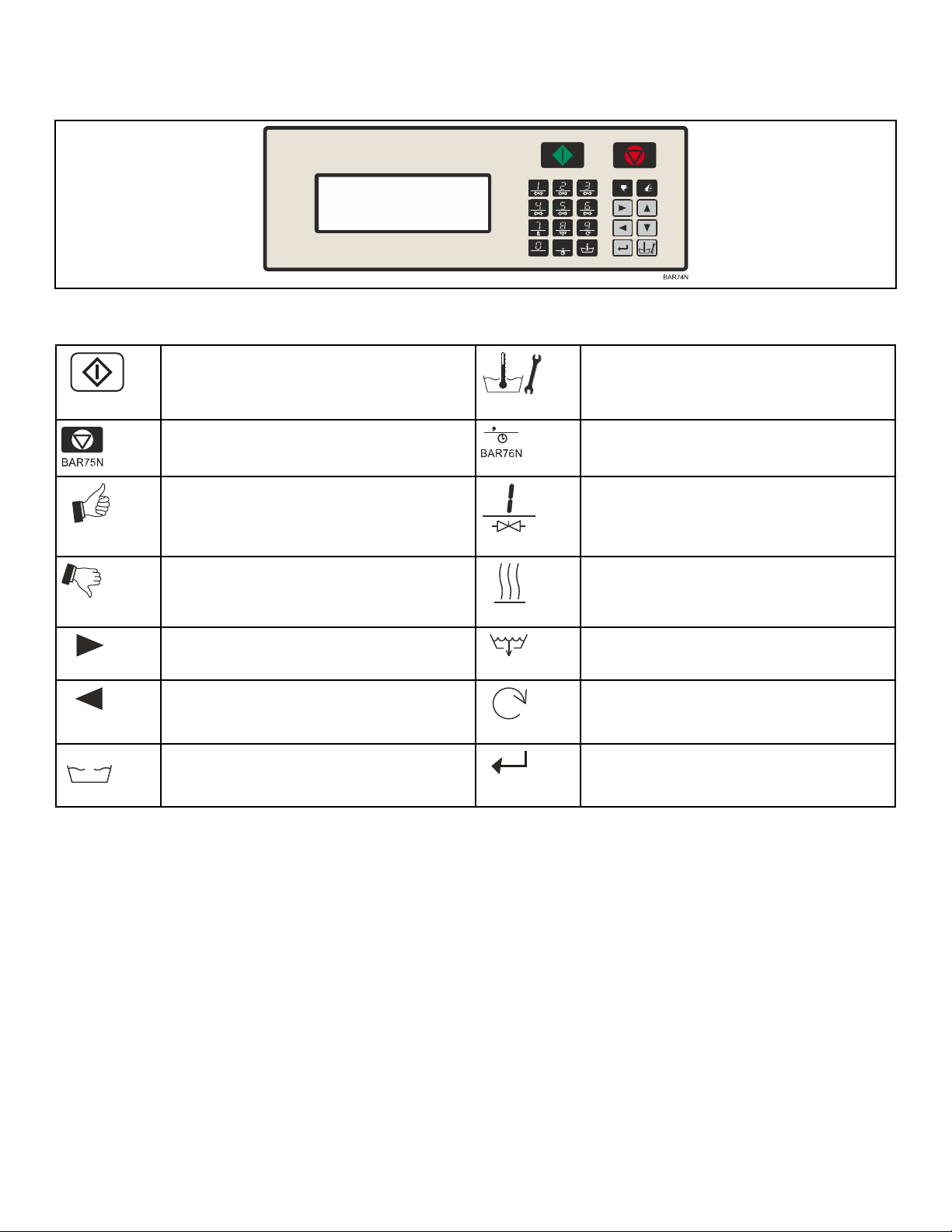

Micro Control
Figure 1
CFD1306R_SVG
START (advancing program)
CHM1638R
SERVIS (shows actual water temperature and
level, number of fulfilled cycles and actual
states)
STOP (interrupting program) TIME DELAY FINCTION Activation (delay
time will be started by pressing start)
CHM1633R
YES selection
CHM1644R
INLET VALVES Opening
CHM1634R
NO selection
CHM1645R
HEATING Activation
CHM1636R
INCREASING SEQUENCE TIME
CHM1646R
OPEN DRAIN VALVE
CHM1635R
DECREASING SEQUENCE TIME
CHM1647R
SPEED Adjustment
i
CHM1637R
INFO (overview available wash programs and
wash sequence functions)
CHM1642R
ENTER - Selection or Confirmation
SYMBOLS ON THE MACHINE (DEPENDING ON THE MACHINE MODEL)
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. D1612ENR3

OPERATING INSTRUCTIONS
BEFORE WASHING
Sort the linen according to temperature and instructions deter-
mined by fabric manufacturer. Verify that there are not any for-
eign objects between the linen (like nails, screws, needles, etc.),
to prevent washer-extractor and linen damage. Turn sleeves of
shirts, blouses, etc. inside out. To get a better washing result mix
the bigger and smaller pieces of linen and put them into the wash-
er separately.
NOTE:
VERSION WITH WEIGHING SYSTEM:
Tare (set zero weight) Weighing system every time be-
fore loading by pressing the 0-button.
Do not place any object on the machine! Do not place
any object next to the machine in physical contact with
the cabinet! Do not remove any panel or part of the ma-
chine!
1. Push the button of drum positioning. Turn the drum, so that
its door is opposite the outer door sight hole.
2. Push the button of door lock unblocking.
3. Pull door handle towards you and then upwards - in such a
way open glass door.
4. Opening of washing drum door:
Closed door - work-
ing position.
First phase of open-
ing the door. Press
safety pin spring.
Table continues...
Using both hands
force push both door
parts inside until the
latches on one door
part are released
from the openings on
the other door part.
WARNING
REDUCING PRESSURE ON BOTH DOOR PARTS
SLOW DOWN DOOR OPENING IN OUTSIDE DI-
RECTION. ALWAYS LEISURELY SLOW DOWN
HAND PRESSURE ON THE DOOR UNTIL THE
DOOR IS OPEN COMPLETELY. THAT WAY YOU
WILL AVOID THE DANGER OF POSSIBLE IN-
JURY!
C157
Opening the door,
while reducing the
hand pressure on the
door.
Opening the door,
while reducing the
hand pressure on the
door.
Table continues...
OPERATING INSTRUCTIONS
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. D1612ENR3

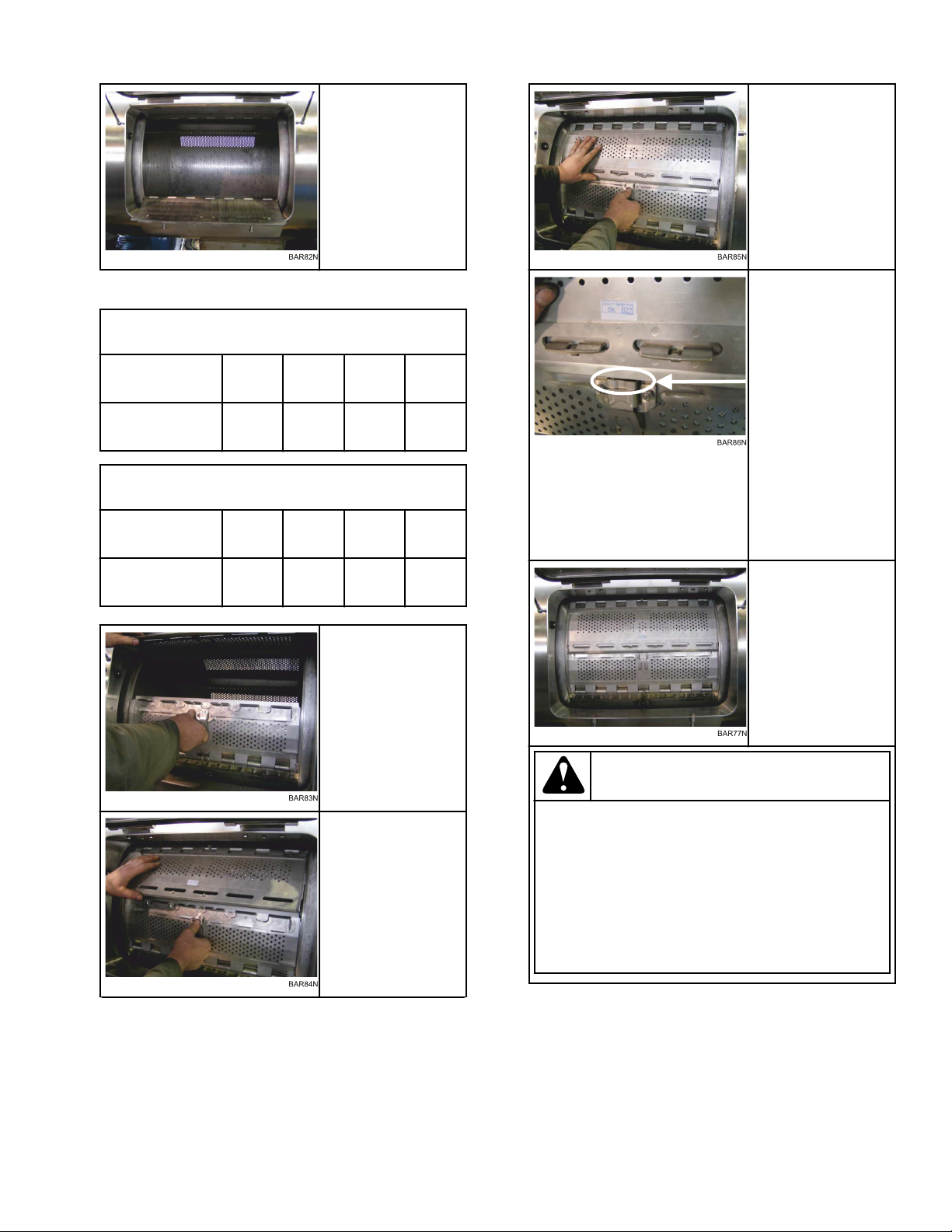

Open door.
5. Insert the laundry into the machine. Do not overload the ma-
chine.
RATE 1:10
MACHINE [kg /
L]
26 /
265
33 /
332
44 /
442
66 /
663
CAPACITY
[kg / lb]
26 / 57 33 / 73 44 / 97 66 /
145
RATE 1:11
MACHINE [kg /
L]
26 /
265
33 /
332
44 /
442
66 /
663
CAPACITY
[kg / lb]
24 / 53 30 / 66 40 / 88 60 /
132
Closing of washing drum door:
Close drum door us-
ing pressure on both
door parts inside, so
that lathes on one
door part will fit in
openings on the sec-
ond door part.
Table continues...
Check proper secur-
ing the door by the
safety pin spring, so
that it avoids pushing
the door inside the
washing drum. It
means that it is not
possible to open the
door again without
another push of the
safety pin spring.
There must be a gap
between the safety
pin spring and the
upper door edge.
Closed door - work-
ing position.
WARNING
MAKE SURE THAT THE DOOR IS CLOSED
PROPERLY. IT MEANS THAT IT IS NOT POS-
SIBLE TO OPEN THE DOOR AGAIN WITH-
OUT ANOTHER PUSH OF THE SAFETY PIN
SPRING. MAKE SURE THAT THERE IS A
GAP BETWEEN THE SAFETY PIN SPRING
AND THE UPPER DOOR EDGE.
C158
Before the washing programme is started the following mes-
sage will appear on the display: “Did you lock the inner
door?”. If you are sure the inner door are locked correctly
(please see the figure above) you confirm that by another
pushing of Start button. In case you are not sure of proper
locking - push Stop button and the programme will not be
started.
OPERATING INSTRUCTIONS
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. D1612ENR3

6. Pull door handle shut glass washer door and slide door handle
into engagement.
7. Choose a program according to the degree of dirtiness and
type of the laundry.
8. Fill the soap hoppers ( Figure 2 ).
Soap hopper
CHM1625R
A B C D E
Figure 2
Open the steam valve on the machine‘s supply for machine
equipped with steam heating. If the machine has been turned
off by the emergency stop, pull the emergency stop button
out. VERSION WITH WEIGHING SYSTEM: see addition
to Installation, maintenance and use'r manual, part number
D1603.
PROGRAM SELECTION
Choose one of the available wash programs, best corresponding
to the quality of linen and allowed wash temperature in the wash
load. Selection of the program determines temperature and time
for washing and rinsing.
NOTE: To change factory settings and/ or washing pro-
grams, and for other settings options refer to your ma-
chine's Programming manual.
WASH PROGRAMS OVERVIEW
Wash program 1: Hot wash 90°C
Wash program 2: Warm wash 60°C
Wash program 3: Coloured wash 40°C
Wash program 4: Bright coloured
wash
30°C
Wash program 5: Woollens 15°C
Wash program 6: Hot wash 90°C ECONOMY
level
Wash program 7: Warm wash 60°C ECONOMY
level
Wash program 8: Coloured wash 40°C ECONOMY
level
Wash program 9: Bright coloured
wash
30°C ECONOMY
level
Wash program 10: Hot wash 90°C SUPER ECON-
OMY level
Table 1 continues...
Wash program 11: Warm wash 60°C SUPER ECON-
OMY level
Wash program 12: Coloured wash 40°C SUPER ECON-
OMY level
Wash program 13: Bright coloured
wash
30°C SUPER ECON-
OMY level
Wash program 14: Extraction low speed
Wash program 15: Extraction high speed
Table 1
ADD DETERGENTS
Fill the soap dispenser located on the side of the mechine depend-
ing on the chosen program.
Soap hopper
CHM1625R
A B C D E
• Dispenser A: 1st Wash
• Dispenser B: 2nd Wash
• Dispenser D: Last Rinse
Figure 3
Add the detergents before the start of the wash cycle.
•For machines connected to liquid soap supply system:
Verify the liquid soap supply system is in operation and that there
is sufficient quantity of liquid soap.
NOTE: These instructions are only valid for standard
wash programs. For custom made programs, it is pos-
sible that other dispensers have been selected. Refer
to your Programming Manual.
NOTE: It is advisable to use only detergents with “re-
duced foaming” which can easily be found in retail
shops. The dosage of soap to use is generally men-
tioned on the packing. An overdose of detergent can
lead to poor wash results and “suds” overflow which
can damage the machine. When contaminated laundry
is washed, the effectiveness of germicide process de-
pends on the type of laundry, degree of dirtiness, type
of soap and structure of washing cycle. Take care that
the lid of the soap dispenser is closed when the ma-
chine starts.
START THE WASHER EXTRACTOR
MICRO CONTROL
OPERATING INSTRUCTIONS
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. D1612ENR3

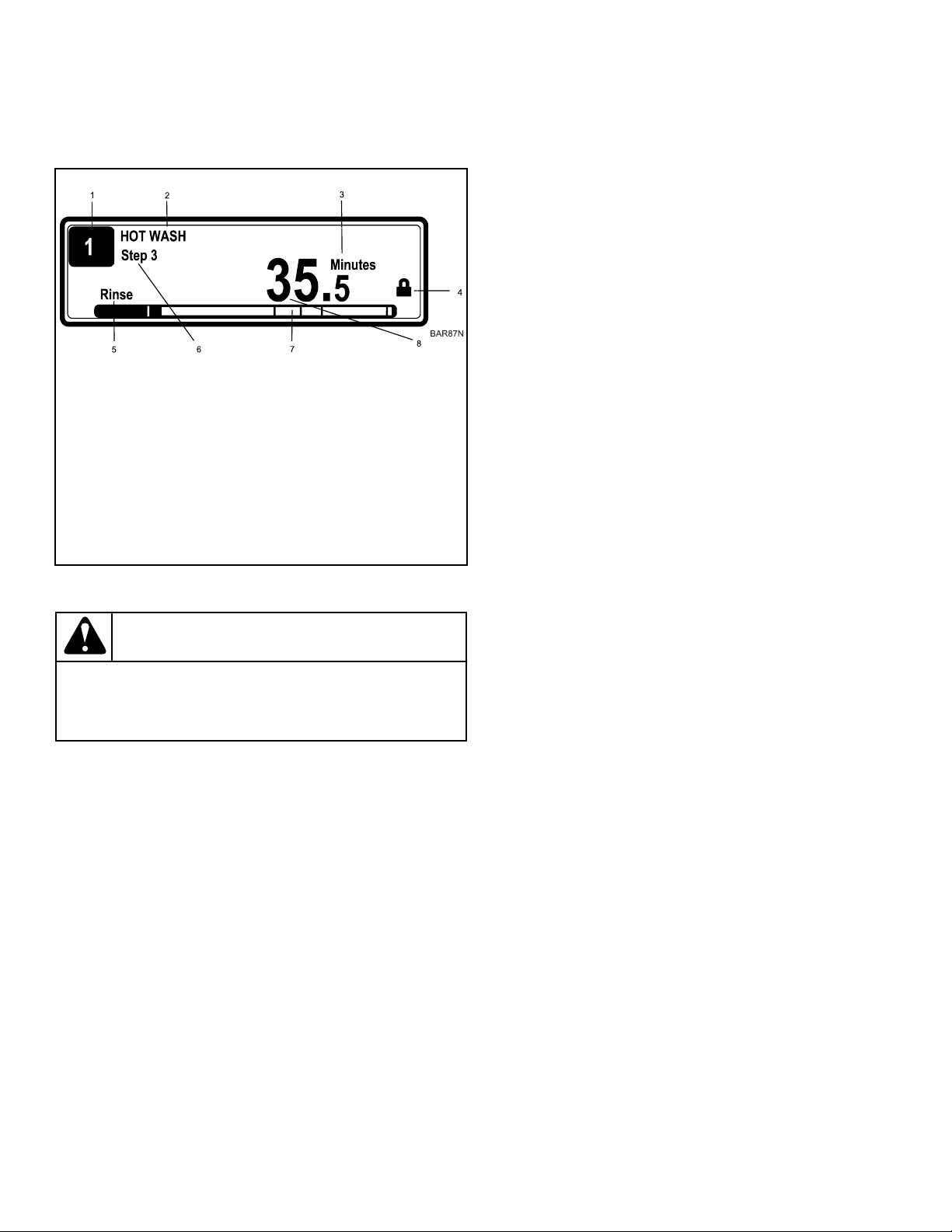

After selecting the desired wash program number, by pressing the
START button the wash cycle will be started. If there is no wash-
ing program available for the selected program number, INVA-
LID will be displayed.
1. Program Number
2. Wash Cycle Name
3. Units
4. Door State
5. Wash/Spin Sequence
6. Wash Cycle Step
7. Progression Bar
8. Remaining Time Wash Cycle
Figure 4
WARNING
THE PROGRAM CAN ONLY BE STARTED WHEN THE
KEY SWITCH IS IN RUN MODE.
C218
END OF WASH CYCLE
NOTE: WHEN THE POWER SUPPLY HAS BEEN CUT,
THE DOOR WILL BE AUTOMATICALLY BLOCKED
AGAINST OPENING. AFTER COOLING DOWN THE
WASHING BATH, THE DOOR CAN BE OPENED AC-
CORDING TO THE INSTALLATION AND MAINTENANCE
MANUAL "DOOR BLOCKING".
At the end of the wash cycle when the remaining program time
reaches “0”, PROGRAM END is displayed. When UNLOAD
appears on the display, the machine clean side is activated and the
linens are able to be unloaded.
HOW TO OPEN DOOR WHEN FAILURE
OCCURS
See Installation and maintenance manual.
OPERATING INSTRUCTIONS
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. D1612ENR3

FIRST SERVICE AT TECHNICAL PROBLEM
N°
Failure mes-
sage Failure Action Fault occurrence
E1 No Drain Co Drain failure Cooldown Full Stop + tumble Draining sequence Cooldown
E2 No Drain Drain failure Full Stop + tumble Draining sequence
E3 Tilt Fault Out of balance: Before spin Full stop + tumble Start spin
E4 Imbalance Out of balance: Normal spin Skip + continue After 10 x tilt
E5 Tilt High Sp Out of balance: high spin Full stop + safety time Greater than 500 or 750 RPM
E6 Door Coil Door switch failure Full stop + safety time Whole cycle
E7 Door Switch Door solenoid switch failure Full stop + safety time Whole cycle
E8 Door Start Door lock check at start failure Don’t start At start up
E9 Door Unload Door lock switch closed failure Don’t start End cycle
E10 Bimetal/Spring Bimetal/Spring Continue 2 min 30 sec after start cycle
E11 No Fill Fill failure Full stop + request for Con-
tinue
While filling
E12 Overfill Overfill failure Full stop + tumble While filling
E13 No Heating Heating failure Full stop + tumble While heating
E14 Heat Time Heating time failure Full stop + request for Con-
tinue
While heating
E15 Too Hot Too Hot Full stop + tumble While heating
E21 Overflow Overflow failure Full stop + tumble Wash step
E22 Flush fault Flush failure Full stop + tumble Flush step
E24 Level Sens Defective level sensor Continue + Don’t start Before start up
E25 Temp Sensor Defective temperature sensor Continue + Don’t start Before start up
E26 Mitsub code Undefined frequency inverter error
code
Full stop + tumble Whole cycle
E27 Comm fault Communication fault inverter Full stop + safety time Whole cycle
E28 THT time / E.OL THT Time out / E.OL Full stop + safety time At spin sequence
E29 OV3 time / E.OP OV3 Time out / E.OP Full stop + safety time At spin sequence
E31 Load Parr Initialization fault inverter Don’t start At initialization
E32 Verify Parr Verification fault inverter Don’t start At loading parameters
E33 Stall prev Stall prevention function active Continue At spin sequence
E35 Wrong Softw Wrong software version Don’t start New software version
Table continues...
FIRST SERVICE AT TECHNICAL PROBLEM
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. D1612ENR3

N°
Failure mes-
sage Failure Action Fault occurrence
E37 No Drain Sp Drain failure at the Spray Sequence Full stop + tumble Spray Sequence
E38 No Recycle The Tank with recycle water is emp-
ty
Warning at the End. Front
soap dispenser Mach. only
Wash step
E39 Out of Soap The Soap Supplies are running Out
of Soap
For Info only Wash step
E40 No Fill Rec Fill failure due to an empty water
recycle Tank
Full stop + Request for Con-
tinue
Top soap dispenser Mach.
only
Wash step
E41 Service Due Service Due Warning For Info Only
To erase failure message:
open the door
End cycle
E42 Connection No Network Connection For Info only Data Transfer Networking
E43 Voltage Par Wrong Voltage Range Selection Make correct selection Configuration menu
E44 Model type Wrong Inverter Model Type Make correct selection Configuration menu
E45 No Speed Sensor
Signal
No Speed pulses when drum turns. Continue + Warning At spin sequence
E46 Brake Closed Brake Stays Closed Full stop + safety time At spin sequence
E47 Brake Wear Out Friction blocks brake are wear-out Full stop + safety time Any time
E48 Brake Open Brake Stays Open Continue + Warning At spin sequence
E49 UnBalance
Switch At Wash
Air suspension without compressed
air
Full stop + safety time Wash action
E50 No Second Ac-
celeration Ramp
Missing wire bridge inverter /
wrong inverter parameters
Continue At spin sequence
E51 No Third Accel-
eration Ramp
Missing wire bridge inverter /
wrong inverter parameters
Continue At spin sequence
E52 Board Memory PCB-EEPRROM CRC failure Don't start At Power Up
E53 Board Data PCB-EEPROM Data out of range
failure
Don't start At Power Up
E57 Lock System Door Lock Switch stays closed
when the outer door is open.
Don't start At locking sequence (70
kg/154 lb/700 L, 90 kg/198
lb/900 L, 110 kg/243 lb/1100
L, 140 kg/309 lb/1400 L and
180 kg/397 lb/1800 L only)
E58 No Free Run Deceleration end of spin while
brake is closed.
Full stop + safety time At spin sequence
E59 Run Free Run Run Status inverter =1 while brake
is closed.
Full stop + safety time At spin sequence
Table continues...
FIRST SERVICE AT TECHNICAL PROBLEM
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. D1612ENR3

N°
Failure mes-
sage Failure Action Fault occurrence
E60 No reset Drive No detection motor speed signal at
wash
Full stop + safety time Wash Sequence
E61 Continue spin Motor doesn't stop spinning any-
more
Full stop + safety time Whole cycle
E62 Extended speed Motor spins too fast Full stop + safety time Whole cycle
E63-E67 Motor Drive Reset Motor Drive for E60, E61 &
E62
Reset Motor Drive Wash Sequence
E68 No Sign Spin No detection motor speed signal at
spin
Full stop + tumble Spin Sequence
E69 RS Unbalance Unbalance input should not be high
on R machines
Don't Start Full stop + tumble Start Spin sequence Whole
cycle
E70 RS7 Select RS7 selected in case of RS10 Don't Start Start Cycle
E71 RS10 Select RS10 selected in case of RS7 Don't Start Start Cycle
E72 KEB ST LOW No wire bridge terminals 16- 20 Don't Start Start Cycle
E73 KEB ST HIGH No KEB parameters loaded in inver-
ter
Full stop + safety time Start Cycle
E74 CFIStuck Inverter not switched off at end of
cycle.
For Info only End of cycle
E75 KEB code Undefined frequency inverter error
code
Full stop + tumble Whole cycle
E78 Lock Active At standby door lock is locked nev-
ertheless door is open.
Don't Start At Standby
E79 Lock Start After pressing Start door lock is
locked nevertheless door is open.
Don't Start At Start Cycle
E80 Time Out In-
put16
On Hold Signal Failure Soap Dis-
pensing System
Full stop + tumble. Whole cycle
E81 No Reheat Heating Failure Full stop + tumble. Wash Step
(Barrier Washers only)
E82 No Refill Refill failure Full stop + request for Con-
tinue
Wash Step
(Barrier Washers only)
E83 Cycle Fail No successful wash cycle termina-
tion
Info that the wash cycle has
to be repeated.
Abnormal Cycle Termination
(Barrier Washers only)
E84 No Store PC Communication failure with PC For Info only. End cycle
(Barrier Washers only)
E85 RTC Low Batt Real Time Clock, No Battery or bat-
tery low power
For Info only. For Info only.
(Barrier Washers only)
Table continues...
FIRST SERVICE AT TECHNICAL PROBLEM
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. D1612ENR3

N°
Failure mes-
sage Failure Action Fault occurrence
E86 No RTC Comm Real Time Clock is not available For Info only. End cycle
(Barrier Washers only)
E100 Weigh No
Comm
Communication fault weighing sys-
tem
Full Stop Tumble Before Start
(Barrier Washers)
Whole Cycle
(Barrier Washers) (Barrier
Washers & FS23-55 only)
E101 Weigh Low Weight machine is too low Don't Start Before Start
(Barrier Washers & FS23-55
only)
E102 Weigh High Weight machine is too high Don't Start Before Start
(Barrier Washers & FS23-55
only)
E103 Weigh Balance Weight is not balanced over 4 load
cell's.
Don't Start Before Start
(Barrier Washers & FS23-55
only)
E104 Weigh Overload Weight on individual load cell ex-
ceeds max.
Full Stop Tumble Whole Cycle
(Barrier Washers & FS23-55
only)
E105 Weigh Airbags No functional air pressure system Don't Start Before Start
(Barrier Washers 70 kg/154
lb/700 L, 90 kg/198 lb/900
L, 110 kg/243 lb/1100 L,
140 kg/309 lb/1400 L and
180 kg/397 lb/1800 L only)
E300-
E353
MITS ERR Specific Mitsubishi Inverter Alarm Full stop + safety time Whole cycle
E400-
E441
KEB ERR Specific KEB Inverter Alarm Full stop + safety time Whole cycle
E500-
E515
MEMORY ERR Memory Error Full stop + safety time Any time
E550 DAQ VERSION
ERR
Wrong DAQ Memory version For Info only While installing new software
E551 DAQ WRITE
ERR
Problem writing DAQ Memory For Info only Traceability function, whole
cycle
E552 DAQ FULL
ERR
DAQ Traceability Memory is Full For Info only Traceability function, whole
cycle
Table continues...
FIRST SERVICE AT TECHNICAL PROBLEM
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. D1612ENR3

N°
Failure mes-
sage Failure Action Fault occurrence
E553 STORE
DAQ>PC
DAQ Traceability Memory is al-
most Full
For Info only Traceability function, whole
cycle
E600-
E628
SOFTW ERR Software Error Full stop + safety time Any time
FIRST SERVICE AT TECHNICAL PROBLEM
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
20 Part No. D1612ENR3
