Installation Instructions
for Frontload Washers
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
www.speedqueen.com Part No. 804650ENR2
June 2016

Table of Contents
Washer Dimensions................................................................................ 4
Installation............................................................................................. 5
Before You Start............................................................................................. 5
Tools..........................................................................................................5
Parts Included............................................................................................. 5
Order of Installation Steps............................................................................5
Position Unit Near Installation Area................................................................. 5
Remove Shipping Materials.............................................................................5
Connect Fill Hoses..........................................................................................6
Water Supply Requirements......................................................................... 7
Connecting Hoses....................................................................................... 7
Connect Drain Hose to Drain Receptacle.......................................................... 7
Standpipe Installation.................................................................................. 8
Wall Installation.......................................................................................... 8
Laundry Tub Installation..............................................................................8
Position and Level the Washer......................................................................... 9
Wipe Out Inside of Wash Drum........................................................................9
Plug In the Washer..........................................................................................9
Electrical Requirements............................................................................... 9
Earth/Ground Instructions.......................................................................... 10
Check Installation......................................................................................... 11
Installer Checklist.................................................................................12
© Copyright 2016, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. 804650ENR2

Washer Dimensions
FLW2331N_SVG
J
I
H
G
F
E
D
C
B
A
Figure 1
A 24.06 in. [611 mm]
B 40.42 in. [1027 mm]
C 32 in. [813 mm]
D 39.61 in. [1006 mm]
E * 14.6 in. [371 mm]
F 26.875 in. [683 mm]
G 2.04 in. [52 mm]
H 27.73 in. [704 mm]
I (with door closed) 1.59 in. [40 mm]
J 13.1 in. [333 mm]
* For ADA compliance turn legs out from base 0.5 inches.
Washer Dimensions
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. 804650ENR2

Installation
Before You Start
Tools
For most installations, the basic tools you will need are:
9
/
1
6
"
FLW2376N_SVG
5
6
7
8
4
3
2
1
1. Safety Glasses
2. Wood Block
3. Wrench
4. Screwdriver
5. Pliers
6. Socket Wrench
7. Gloves
8. Level
Figure 2
NOTE: If the washer is delivered on a cold day (below
freezing), or is stored in an unheated room or area dur-
ing the cold months, do not attempt to operate it until
the washer has had a chance to warm up.
NOTE: Install dryer before washer. This allows room for
attaching exhaust duct.
NOTE: Some moisture in the wash drum is normal. Wa-
ter is used during testing at the manufacturer.
NOTE: This appliance is suitable for use in countries
having a warm, damp climate.
Parts Included
An accessories bag has been shipped inside your washer. It in-
cludes:
• Two fill hoses with washers and filter screens
• Four rubber feet
• Beaded strap
• Installation Instructions
• User’s Guide
• Warranty Bond
Order of Installation Steps
The proper order of steps must be followed to ensure correct in-
stallation. Refer to the list below when installing your unit.
1. Position washer near the installation area.
2. Remove the shipping materials.
3. Connect the fill hoses.
4. Connect the drain hose to the drain receptacle.
5. Position and level the washer.
6. Wipe out inside of the washer.
7. Supply injection models only: Connect external supplies to
washer.
8. Plug in the washer.
9. Check installation.
Position Unit Near Installation Area
Move unit so that it is within 4 feet [1.2 meters] of the desired
area of installation.
NOTE: For best performance and to minimize vibration
or movement, install washer on a solid, sturdy and lev-
el floor. Some floors may need to be reinforced, espe-
cially on a second floor or over a basement. Do not in-
stall the washer on carpeting, soft tile or other weakly
supported structures.
Remove Shipping Materials
1. Remove two screws at bottom of front access panel. Rotate
bottom of panel out and remove panel.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. 804650ENR2

FLW2378N_SVG
Figure 3
2. Remove two 9/16 inch bolts and washers holding shipping
brace to weight.
3. Remove two 9/16 inch bolts and washers holding shipping
brace to washer base and remove brace.
FLW2296N_SVG1
Figure 4
4. Go to rear of washer and pull label from rear shipping bolts.
5. Remove two 9/16 inch bolts. Unscrew each bolt while apply-
ing forward pressure just until bolt stops unthreading. Work
each bolt and spacer out by hand using a circular motion.
NOTE: Avoid backing bolts out completely or
spacers might fall into cabinet.
FLW2297N_SVG1
Figure 5
6. Insert two plugs included in accessories bag into rear shipping
bolt holes.
FLW2358N_SVG
Figure 6
7. Replace front access panel.
8. Save all shipping materials. They must be reinstalled any time
washer is moved more than four feet.
IMPORTANT: Do not lift or transport unit from front
or without shipping materials installed. Refer to the
User’s Guide for proper instructions on reinstalling
the shipping materials.
Connect Fill Hoses
WARNING
Under certain conditions, hydrogen gas may be pro-
duced in a hot water system that has not been used
for two weeks or more. HYDROGEN GAS IS EXPLO-
SIVE. If the hot water system has not been used for
such a period and before using the washer, turn on
all hot water faucets and let the water flow from each
for several minutes. This will release any accumulat-
ed hydrogen gas. The gas is flammable. Do not
smoke or use an open flame during this time.
W029
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. 804650ENR2

Water Supply Requirements
Water supply faucets must fit standard 3/4 inch [19 mm] female
garden hose couplings. DO NOT USE SLIP-ON OR CLAMP-
ON CONNECTIONS.
NOTE: Water supply faucets should be readily accessi-
ble to permit turning them off when washer is not being
used.
Recommended cold water temperature is 50° to 75° Fahrenheit
[10° to 24° Celsius]. Recommended maximum hot water temper-
ature is 125° Fahrenheit [51° Celsius]. Warm water is a mixture
of hot and cold water. Warm water temperature is dependent upon
the water temperature and the pressure of both the hot and cold
water supply lines.
WARNING
To prevent personal injury, avoid contact with inlet
water temperatures higher than 125° Fahrenheit [51°
Celsius] and hot surfaces.
W748
Maximum flow rate for all water temperatures is 2.5 gallons per
minute [9.46 liters per minute] ± 15%.
Water pressure must be a minimum of 20 to a maximum of 120
pounds per square inch [minimum of 138 to a maximum of 827
kPa] static pressure measured at the faucet.
NOTE: Water pressure under 20 pounds per square
inch [138 kPa] will cause an extended fill time in the
washer and may not properly flush out the detergent
dispenser.
Turn on the water supply faucets and flush the lines for approxi-
mately two minutes to remove any foreign materials that could
clog the screens in the water mixing valve. This is especially im-
portant when installing your washer in a newly constructed or
renovated building. Build-up may have occurred during construc-
tion.
Connecting Hoses
1. Remove the two plain rubber washers and two filter screens
from the accessories bag.
2. Install them into each end of the fill hoses as shown in Figure
7 . The screen must be facing outward.
3. Screw hose couplings with the filter screens onto the water
faucets until they are finger-tight. Use the red color-coded
hose for the hot water connection and the blue color-coded
hose for the cold water connection.
4. Then, using a pliers, screw approximately 1/4 turn.
5. Screw hose couplings from other end of hoses onto the water
mixing valve until they are finger-tight. Make sure the red
color-coded hose from the hot water faucet goes to the water
mixing valve marked “H” and the blue color-coded hose from
the cold faucet goes to the valve marked “C”. Refer to Figure
Figure 7 .
6. Then, using a pliers, screw approximately 1/4 turn.
IMPORTANT: DO NOT cross thread or overtighten
couplings. This will cause them to leak.
7. Turn water on and check for leaks.
8. If leaks are found, turn off the water, unscrew hoses and rein-
stall them until there are no leaks.
IMPORTANT: Turn off water supply whenever there
will be an extended period of non-use.
FLW2304N_SVG1
COLD
HOT
14
5
6
7
8
23
1. Filter Screen (Screen must be facing outward)
2. Fill Hose
3. Rubber Washer (Plain)
4. Cold Water Connection
5. Hot Water Connection
6. Install this end of hose to valve connections at rear of
washer.
7. Install this end of hose to water supply faucet.
8. Faucet
Figure 7
IMPORTANT:
Hoses and other natural rubber parts deteriorate after
extended use. Hoses may develop cracks, blisters or
material wear from the temperature and constant high
pressure they are subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be re-
placed immediately. All hoses should be replaced ev-
ery five years.
Connect Drain Hose to Drain Recepta-
cle
Remove the drain hose from its shipping position on the rear of
the washer by unhooking the hose from the retainer clamp and by
removing the shipping tape.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. 804650ENR2

Install the drain hose into the drain receptacle (standpipe, wall or
laundry tub) following the instructions below.
IMPORTANT: Drain receptacle must be capable of han-
dling a minimum of 1-1/4 inch [32 mm] outside diame-
ter drain hose.
Drain Flow Rate
Drain Height
Flow Rate
gallons per minute [lit-
ers per minute]
3 ft. [0.9 m] 8.6 [32.7]
5 ft. [1.5 m] 6.8 [25.9]
6 ft. [1.8 m] 6.0 [22.7]
7 ft. [2.1 m] 5.1 [19.5]
8 ft. [2.4 m] 4.0 [15.2]

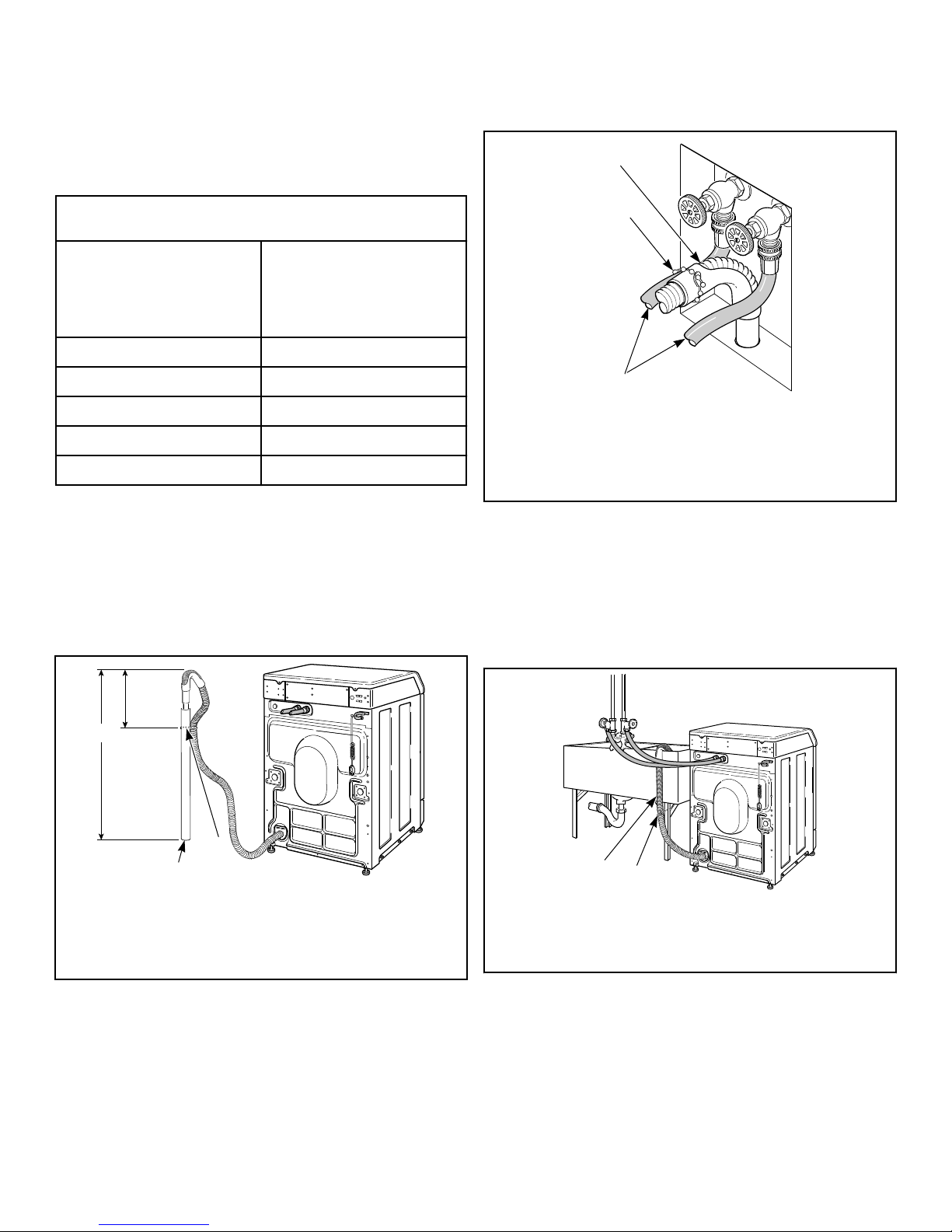

Standpipe Installation
1. Place the drain hose into the standpipe.
2. Remove the beaded tie-down strap from accessories bag and
place around standpipe and drain hose and tighten strap to
hold hose to standpipe. Refer to Figure 8 . This will prevent
the drain hose from dislodging from drain receptacle during
use.
FLW2314N_SVG
3
1
2
1. 24 to 36 in. [610 to 914 mm] Recommended Height
2. Beaded strap from accessory bag
3. Standpipe 2 in. [51 mm] or 1-1/2 in. [40 mm]
Figure 8
Wall Installation
For installations of this type, the drain hose MUST be secured to
one of the fill hoses using the beaded strap from accessories bag.
Refer to Figure 9 .
NOTE: End of drain hose must not be below 24 in. [610
mm].
H023i_SVG
1
3
2
1. Drain Hose
2. Beaded Strap (tape if necessary)
3. Fill Hoses
Figure 9
Laundry Tub Installation
For this type of installation, the drain hose MUST be secured to
the stationary tub to prevent hose from disloding during use. Re-
fer to Figure 10 . Use the beaded strap (supplied in accessories
bag) to secure hose.
FLW2315N_SVG
2
1
1. Drain Hose
2. Beaded Strap (tape if necessary)
Figure 10
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. 804650ENR2

Position and Level the Washer
WARNING
Washers elevated above floor level must be anch-
ored to that elevated surface, base or platform. The
material used to elevate the washer should also be
anchored to the floor to ensure that the washer will
not walk or that the washer can not be physically
pulled, tipped or slid from its installed position. Fail-
ure to do so may result in conditions which can pro-
duce serious injury, death and/or property damage.
W306
1. Position unit so it has sufficient clearance for installation and
servicing.
NOTE: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
2. Place unit in position on a solid, sturdy and level floor. Instal-
ling the unit on any type of carpeting, soft tile or other weakly
supported structures is not recommended.
3. Place a level on the raised portion of cabinet top and check if
the unit is level from side to side and front to back.
4. If unit is not level, tilt unit to access the front and rear level-
ing legs. For easier access to leveling legs, prop up unit with a
wooden block.
5. Loosen 7/8 in. locknut and adjust legs by screwing into or out
of unit base until the unit is level from side to side and front
to back (using a level). Unit should not rock.
NOTE: Leveling legs can also be adjusted from in-
side the unit using an adjustable wrench.
6. Tighten the locknuts securely against the unit base. If the
locknuts are not tight, unit will move out of position during
operation.
NOTE: DO NOT slide unit across floor if the leveling
legs have been extended. Legs and base could be-
come damaged.
7. Remove rubber feet from accessories bag and place on all
four leveling legs.
8. Verify that unit doesn’t rock.
FLW2312N_SVG
12
3
4
5
6
1. Leveling Leg
2. Washer Base
3. Level
4. Wood Block
5. Locknut
6. Rubber Foot
Figure 11
Wipe Out Inside of Wash Drum
Prior to first wash, use an all purpose cleaner or a detergent
and water solution and a damp cloth to remove shipping dust
from inside of the washer.
FLW2316N_SVG
Figure 12
Plug In the Washer
Electrical Requirements
120 Volt, 60 Hertz with 3-Prong Earth/Ground Plug
NOTE: The wiring diagram is located in the control cab-
inet.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. 804650ENR2

WARNING
To reduce the risk of fire, electric shock, serious in-
jury or death, all wiring and protective earth/ground
connections MUST conform with the latest edition of
the National Electrical Code, ANSI/NFPA No. 70, and
such local regulations as might apply. It is the cus-
tomer’s responsibility to have the wiring, fuses and
circuit breakers installed by a qualified electrician to
make sure adequate electrical power is available to
the washer.
W824
When plugging in the washer:
• DO NOT overload circuits.
• DO NOT use an extension cord.
• DO NOT use an adapter.
• DO NOT operate other appliances on the same circuit. Use
separately fused 15 Amp circuits.
The washer is designed to be operated on a separate branch, po-
larized, three-wire, effective earth/ground, 120 Volt, 60 Hertz,
AC (alternating current), circuit protected by a 15 ampere fuse,
equivalent fusetron or circuit breaker.
The three-prong earth/ground plug on the power cord should be
plugged directly into a polarized three-slot effective earth/ground
receptacle rated 110/120 Volts AC (alternating current) 15 Amps.
Refer to Figure 13 to determine correct polarity of the wall recep-
tacle.

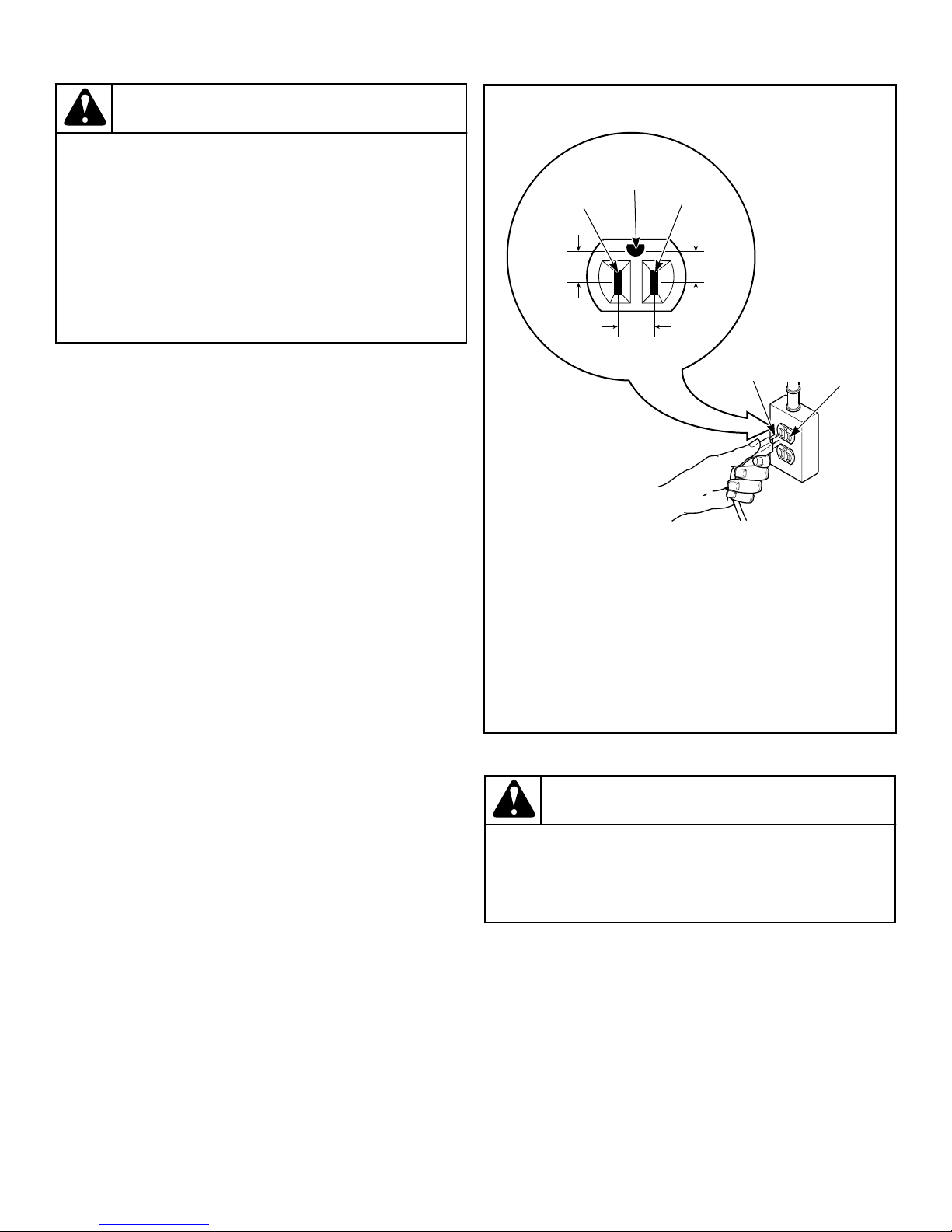

Standard 120 Volt, 60 Hertz 3-Wire Effective Earth/
Ground Circuit
DRY2022N_SVG
7
6
8
5
4
3
2
1
1. L1
2. Earth/Ground
3. Neutral Side
4. Round Earth/Ground Prong
5. Neutral
6. 0 V.A.C.
7. 120 ± 12 V.A.C.
8. 120 ± 12 V.A.C.
Figure 13
WARNING
To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to connect
the washer to the electric power source.
W082
Earth/Ground Instructions
This appliance must be properly connected to protective earth/
ground. In the event of malfunction or breakdown, the earth/
ground will reduce the risk of electric shock by providing a path
of least resistance for electric current.
The appliance is equipped with a cord having an equipment earth/
ground conductor and a three-prong earth/ground plug. The plug
must be plugged into an appropriate outlet that is properly instal-
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. 804650ENR2

led and connected to a protective earth/ground in accordance with
all local codes and ordinances.
WARNING
Improper connection of the equipment earth/ground
conductor can result in a risk of electric shock.
Check with a qualified electrician or service person if
you are in doubt as to whether the unit is properly
connected to a protective earth/ground.
W893
• DO NOT modify the plug provided with the unit – if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
• If the laundry room’s electrical supply does not meet the
above specifications and/or if you are not sure the laundry
room has an effective earth/ground, have a qualified electri-
cian or your local electrical utility company check it and cor-
rect any problems.
WARNING
This unit is equipped with a three-prong (earth/
ground) plug for your protection against shock haz-
ard and should be plugged directly into a protective
earth/ ground three-prong receptacle. Do not cut or
remove the earth/ground prong from this plug.
W823
Check Installation
1. Refer to Installer Checklist on the back cover of this manual
and make sure that unit is installed correctly.
2. Run washer with a test load to make sure it is operating prop-
erly and properly leveled.
a. Put about six pounds of laundry (four bath towels and
three jeans) into washer.
b. Close door.
c. Select Spin cycle and press Start.
d. When washer spins at high speed, verify that it is stable.
e. If it is not, after cycle is complete, refer to Position and
Level the Washer to readjust leveling legs.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. 804650ENR2

Installer Checklist
Fast Track for Installing the Washer
1 Position Washer Near Installation Area. 5 Position and Level the
Washer.
FLW2312N_SVG1
CHECK CHECK
2 Remove the Shipping
Materials and Install
Plugs.
FLW2359N_SVG
6 Wipe Out Inside of
Washer.
FLW2316N_SVG
CHECK CHECK
3 Connect Fill Hoses.
FLW2304N_SVG
COLD
HOT
7 Plug In the Washer.
D254I_SVG
CHECK CHECK
4 Connect Drain Hose to
Drain Receptacle.
FLW2314N_SVG1
CHECK
Refer to the manual for more detailed information
Installer Checklist
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. 804650ENR2
