Alliance Laundry Systems HCL020HDF User manual

Programming
www.comlaundry.com
Washer-Extractor
Refer to Page 4 for Model Numbers
CHM1775C
Part No. F8237701R4
April 2012
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

F8237701 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: The WARNING and IMPORTANT
instructions appearing in this manual are not meant
to cover all possible conditions and situations that
may occur. It must be understood that common
sense, caution, and carefulness are factors which
cannot be built into these washer-extractors. These
factors MUST BE supplied by the person(s)
installing, maintaining, or operating the washer-
extractor.
Always contact the distributor, service agent, or the
manufacturer about any problems or conditions you do
not understand.
Failure to install, maintain, and/or operate
this machine according to the
manufacturer's instructions may result in
conditions which can produce bodily injury
and/or property damage.
W030
WARNING

© Copyright 2012, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
2F8237701
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Model Identification ........................................................................... 4
Preliminary Information.................................................................... 5
About the Control ................................................................................. 5
Glossary of Terms................................................................................. 5
Power Failure Recovery ....................................................................... 5
Communications ................................................................................... 5
Control Identification......................................................................... 6
Select Cycle Pads.................................................................................. 6
Display Identification ......................................................................... 7
Light Emitting Diodes (LEDs) ............................................................. 7
Machine Operation............................................................................. 8
Start Up................................................................................................. 8
Ready Mode.......................................................................................... 8
Partial Vend Mode................................................................................ 8
Start Mode ............................................................................................ 8
Door Locking Mode ............................................................................. 8
Run Mode ............................................................................................. 8
End of Cycle Mode............................................................................... 8
Cycle Sequence..................................................................................... 8
Door Unlocking Mode.......................................................................... 8
Signals................................................................................................... 9
Changing Cycles................................................................................... 9
Special Features .................................................................................. 10
Programming Control ........................................................................... 10
Collecting Audit Information ............................................................... 10
Testing Machine and Control Functions............................................... 10
Rapid Advance Feature......................................................................... 10
Clearing the Vend Feature .................................................................... 10
Communications Mode......................................................................... 10
Coin Drop ............................................................................................. 10
Start Pulse Operation ............................................................................ 10
Top Cover and Coin Vault Openings ................................................... 10
OPL Mode ............................................................................................ 10
Opening the Top Cover ...................................................................... 11
Entering the Manual Mode................................................................ 12
How to Enter the Manual Mode ........................................................... 12
Programming Control ........................................................................ 13
What Can Be Programmed? ................................................................. 13
Programmable Options Available......................................................... 13
Programming Flowcharts...................................................................... 16
1. Cycle Vend Price “AtS”............................................................... 21
2. Coin #1 Value “dEn1” ................................................................. 22
3. Coin #2 Value “dEn2” ................................................................. 23
4. Start Pulse Value “PLSE”............................................................ 24
5. Start Pulse Mode “PLSn”............................................................. 25
6. Available Type “AtyP” ................................................................ 26
7. Default Cycle “dCYC” ................................................................ 27
8. OPL Mode Enable/Disable “oPL” ............................................... 28
9. Audio Signal “AUd” .................................................................... 29
10. Error Code Programming “Err-”.................................................. 31
11. Cycle Programming “CyC-” ........................................................ 33

F8237701 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
12. Supply/Compartment Dispenser Programming “SUPC”
(Design 1 Models Only)............................................................... 39
13. Number of Balance Retries “bALr”
(Variable Frequency Drives Only)............................................... 39
14. IR Access (On/Off) “IrA”............................................................ 40
15. Fahrenheit/Celsius “t FC” (Models with Heat)............................ 40
16. Hot Water Temperature “FH”...................................................... 41
17. Warm Water Temperature “FHC” ............................................... 41
18. Cold Water Temperature “FC” .................................................... 42
19. Cooldown Enable/Temperature “Codn” (Models with Heat)...... 43
20. Production Test Cycle (On/Off) “PtEn” ...................................... 44
21. Manual Rapid Advance (On/Off) “rAEn” ................................... 44
22. No Cycle Time Display “nCtd” ................................................... 45
23. Programmable Cycle Time Display “PCtd” ................................ 45
24. Slow Drain Detection Adjust Value “SdAd”............................... 46
25. Pause/Resume Mode (On/Off) “SPAU”...................................... 46
Collecting Audit Information ............................................................ 47
Manual Reset....................................................................................... 48
Testing Machine and
Electronic Control Functions............................................................. 49
Production Test Cycle........................................................................... 51
Error Codes......................................................................................... 54
Rapid Advance Feature...................................................................... 57
Clear Vend Feature ............................................................................ 58
Power Fail Recovery........................................................................... 59
Communications Mode ...................................................................... 60
Infra-red Communications.................................................................... 60
Default Cycles...................................................................................... 61

F8237701
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Model Identification
Information in this manual is applicable to these
machine models:
HCL020HDF HCN020HY2 HCN040HCF HCN060HYF HCU030HC2
HCL030HDF HCN020HYF HCN040HD2 HCN080HCF HCU030HX2
HCL040HC2 HCN030HC2 HCN040HY2 HCN080HCV HCU040HC2
HCL040HDF HCN030HCF HCN040HYF HCN080HDF HCU040HX2
HCL040HE2 HCN030HD2 HCN060HC2 HCN080HYF HCU060HC2
HCN020HC2 HCN030HY2 HCN060HCF HCN080HYV HCU060HX2
HCN020HCF HCN030HYF HCN060HDF HCU020HC2 HCU080HCF
HCN020HD2 HCN040HC2 HCN060HY2 HCU020HX2 HCU080HXF

5
F8237701 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Preliminary Information
About the Control
This control is an advanced, programmable computer
that lets the owner control most machine features by
pressing a sequence of keypads. Refer to Figure 1.
The control allows the owner to program custom
cycles, set vend prices, retrieve audit information, run
diagnostic tests, program special vend features and
other programmable features. Refer to Programming
Control for a list of features. Machines shipped from
the factory have a default cycle and wash temperature
setting of Delicate Warm built in. However, the owner
can change the default cycle, or any cycle, as needs
permit.
IMPORTANT: In the event of a power failure, the
control will not have to be reprogrammed. It is
designed with a memory system that will remember
how it was programmed until the electrical power
is restored.
IMPORTANT: It is extremely important that the
machine has a good ground connection and that all
mechanical and electrical connections to the control
are made before applying power to or operating the
machine.
Glossary of Terms
The following are a few terms and abbreviations to
learn. These are referred to throughout the instructions.
Display – This term refers to the window area of the
control that displays words and values.
LED (Light Emitting Diode) – This term refers to the
lights next to the keypads and status words of
the control.
Power Failure Recovery
If a cycle is in progress and the power fails, the cycle
status is saved in memory. When the power recovers,
the machine will resume into the previously active
cycle automatically without any user input if the
length of the power failure was less than two minutes.
If the length of the power failure is greater than two
minutes, the control will enter Start Mode and the user
must press START to resume the cycle.
Communications
The control may be programmed manually or by infra-
red communication with an external device.
Infra-red Communications
An external device, such as a PDA, allows the owner
to program the control without touching the keypad.
An external device greatly expands the programming
options available to the owner. However, it is not
required to program and operate the machine. The
operation of an external device and the advanced
features available are covered separately in the
instructions included with the external device
software. Contact Alliance Laundry Systems for a list
of approved PDAs and other external devices.

F8237701
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Control Identification
Select Cycle Pads
Refer to Figure 1.
Select Cycle pads are used to select the specific
washer cycle. These pads include Hot, Warm, Cold,
Heavy Hot, Delicate Warm, Delicate Cold, Quick Hot
and Quick Warm. These pads allow the user to select a
cycle other than the default cycle (Delicate Warm).
The Select Cycle keypads are not active after the first
fill step of the cycle.
The selected cycle is indicated by the light (LED) on
the pad. Pressing the flashing START pad will confirm
the selection and the cycle will begin. When the card
reader is used, pressing the START pad will start the
cycle and deduct the vend price from the card.

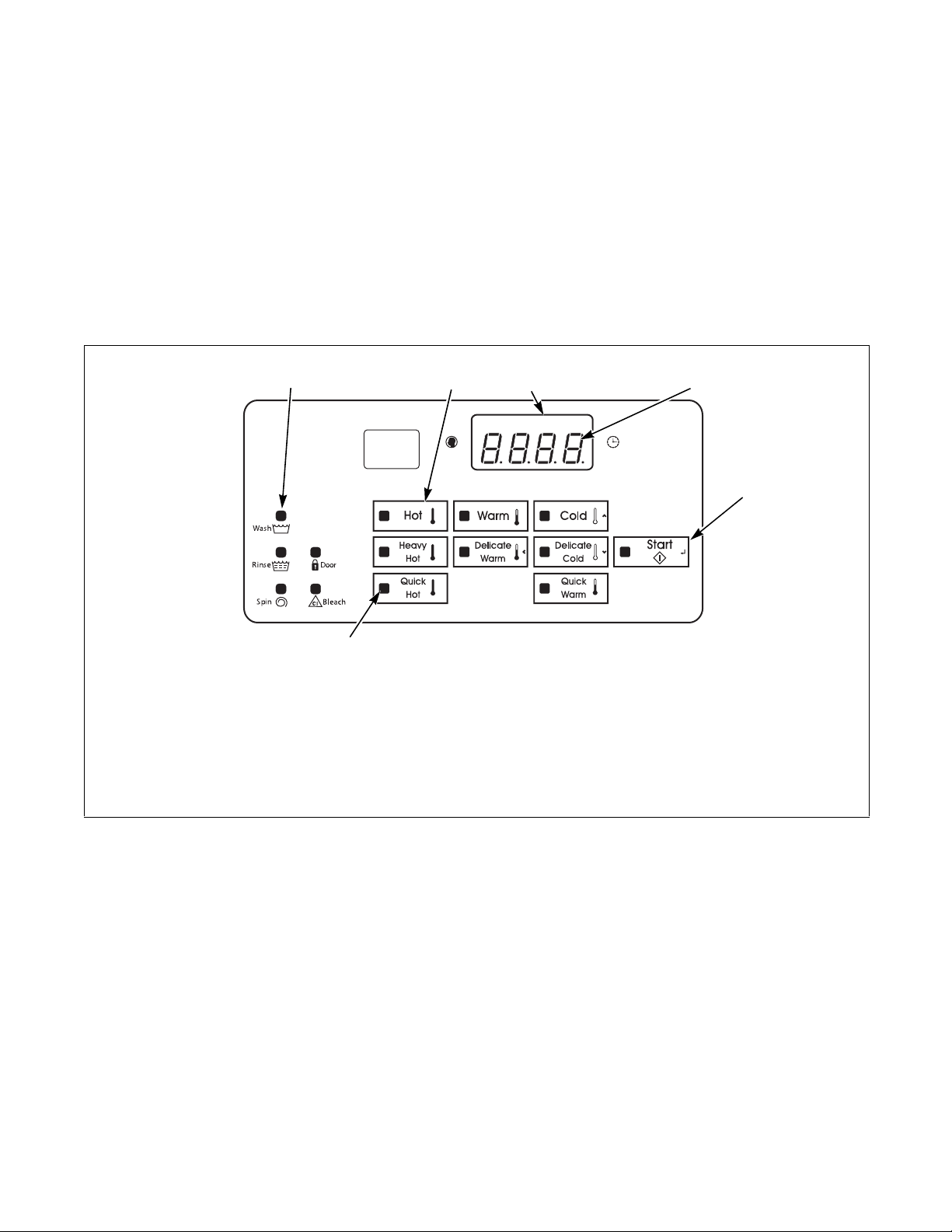

Figure 1
CHM1775C
1LED Status Lights
2Select Cycle Pads
3Display
4Four 7-Segment Digits
5START (enter) Pad
6LED Light
CHM1775C
124
5
3
6

7
F8237701 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Display Identification
Light Emitting Diodes (LEDs)
Refer to Figure 1.
Light Emitting Diodes (LEDs) are used to indicate the
chosen cycle, cycle status, if vend is needed, when the
bleach compartment is dispensing, and door lock
information. See below for information on each LED.
Cycle LED (Hot, Warm, Cold, Heavy Hot,
Delicate Warm, Delicate Cold, Quick Hot
and Quick Warm)
Cycle LED will remain lit the entire cycle.
Wash LED
Wash LED is lit at the beginning of a wash portion of
the cycle and will remain lit until the wash is
complete.
Rinse LED
Rinse LED is lit at the beginning of a rinse portion of
the cycle and will remain lit until the rinse is complete.
Spin LED
Spin LED is lit during the Final Spin portion of the
cycle.
Door LED
Door LED is lit whenever the door is locked. The door
can’t be opened when this LED is lit.
Bleach LED
Bleach LED is lit when bleach compartment is
dispensing for the first time in the cycle.
Four 7-Segment Digits
The 7-Segment Digits are used to display the time
remaining in a cycle, vend price, error messages and
descriptive codes. During diagnostic testing or manual
programming of the control, these digits will display
descriptive codes and values (as described in Entering
the Manual Mode).

F8237701
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Machine Operation
Start Up
When power is applied to the machine, the control will
display its software version as “S xx” (“xx” is the
version number) for one (1) second. If the control was
not powered down during a running cycle, it will enter
Ready Mode, Partial Vend Mode or Start Mode.
Ready Mode
In this mode of operation the control indicates the
current selected cycle by lighting the LEDs. The full
current vend price for the cycle appears in the display.
To start the cycle, the user must satisfy the vend price
and then press the START keypad.
The user will be able to select a different cycle by
pressing a cycle pad when the machine is in Ready
Mode.
Partial Vend Mode
The control enters this mode when part of the vend
price has been entered, but not enough vend is entered
to satisfy the vend price. The control will display the
remaining vend price needed to start the cycle.
The user will be able to select a different cycle by
pressing a cycle pad when the machine is in Partial
Vend Mode.
Start Mode
The control enters this mode when the full vend price
is satisfied, the vend price is zero, the control is in
OPL Mode or the correct Drop Off Mode key
sequence is entered. The START pad LED will flash
one (1) second on and one (1) second off. If Start
Mode is entered because the vend price is satisfied or
the control is in OPL Mode, the display will show
“PUSH” for one (1) second, “Strt” for one (1) second
and the current cycle time for one (1) second. If Start
Mode is entered because the vend price is zero, the
display will show “FREE”. When first entering Start
Mode, a signal will sound for one (1) second on and
one (1) second off for 10 seconds if Signal for Start is
enabled.
After pressing the START keypad, the door will lock
and the cycle will begin.
Door Locking Mode
The control enters this mode after the START (enter)
keypad is pressed in Start Mode. The control stays in
Door Locking Mode until it confirms the door is
closed and locked.
Run Mode
The control enters this mode when a cycle is running.
The time remaining appears in the display, the status
LED’s are lit and the loading door is locked.
End of Cycle Mode
When a cycle is complete, the control will display “00”
until the washer door is opened, a key is pressed, or a
coin/card is entered. The display will revert back to Ready
Mode if door is opened or keypad is pressed. If vend is
entered, the control will change to Partial Vend Mode or
Start Mode.
Cycle Sequence
Upon the start of a cycle, the control will display the
total cycle time. The appropriate LEDs will light while
the machine passes through different cycle steps. Any
coin entered after the cycle has been started will be
ignored, but added to the total coin counter.
Door Unlocking Mode
The control enters this mode after cycle has ended. The
control waits for confirmation that door is unlocked.
Once confirmation is received that door is unlocked,
control will enter End of Cycle Mode.

Machine Operation
9
F8237701 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Signals
There are five options when a signal can be used during
the washer operation. These five options are listed below:
1. End of Cycle Signal
By default, this signal is turned off. If turned on, the
signal sounds for three (3) seconds at the end of a
cycle.
2. Signal On Keypad Depression
By default, this signal is turned on and sounds for
a quarter of a second each time a keypad is pressed.
3. Signal On Coin Input/Card Insertion
By default, this signal is turned on and will sound
for a quarter of a second each time a coin or card
is entered.
4. Signal for Card Removal (Card Models Only)
By default, this signal is turned on and will sound
one (1) second on and one (1) second off when
the control is prompting for card removal.
5. Signal for Start
By default, this signal is turned on and will sound
one (1) second on and one (1) second off for 10
seconds after vend price has been satisfied.
NOTE: Refer to Programming Control to program
signal options.
Changing Cycles
Cycles can be changed anytime during the first Fill
step. After the first fill step, all key presses are
ignored.

F8237701
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Special Features
Programming Control
The control allows the machine owner to program the
control with the use of the keypad. Cycle and vend
options may be programmed, audit information may
be viewed and diagnostic tests may be run by pressing
combinations of the Select Cycle keypads.
For details on programming Select Cycle and vend
options, refer to Programming Control.
Collecting Audit Information
The control will store audit information in its memory
that can be retrieved by pressing various combinations
of Select Cycle keypads. The control will record coins
entered, total machine cycles, total start pulses and
total rapid advance cycles.
For more information on the audit features, refer to
Collecting Audit Information.
Testing Machine and Control
Functions
Special diagnostic features built into the control allow
the owner to run specific diagnostic tests. By opening
and closing the top cover and then pressing various
sequences of Select Cycle, Select Wash Temperature
and Soil keypads, the owner may retrieve or perform
the following tests:
•Balance Weight Test (Design 1 models only)
•Drive DC Bus Display Test (Design 2 models
only)
•Water Purge Test
•Water Leak Detection Test
•Drive Software Version Number (Design 2
models only)
•Drive Parameter Table Version Number (Design
2 models only)
•Drive Type (Design 2 models only)
For detailed information on running diagnostic tests,
refer to Testing Machine and Control Functions.
Rapid Advance Feature
This feature allows the user to quickly advance
through active cycles or advance into a cycle from
Ready Mode. This feature is useful when tests must be
performed immediately on a machine currently in an
active cycle. In this case, the user can quickly advance
through the cycles to the shake out step, then End of
Cycle Mode. At this point, the user can perform the
required tests and then return the machine to the point
it was interrupted.
For detailed information on using the Rapid Advance
feature, refer to Rapid Advance Feature.
Clearing the Vend Feature
This feature allows the user to return the control back
to Ready Mode if coins have been entered but the full
vend price has not yet been satisfied.
For more information on using the Clear Vend feature,
refer to Clear Vend Feature.
Communications Mode
This feature allows the control to communicate with
an external device. This allows the control to be
programmed without using the keypad.
For more detailed information on using the
Communications Mode feature, refer to
Communications Mode.
Coin Drop
The control will accept pulses from a single or dual
coin drop to satisfy vend price. Each coin drop will
have the ability to start a cycle.
Start Pulse Operation
The control will accept pulses from optional payment
systems. The machine can be programmed to receive a
single start pulse or multiple start pulses, or the Start
Pulse Option can be turned off. The Start Pulse Mode
allows the machine to go from Ready Mode to the
START Mode after a single pulse or multiple pulses
are received.
Top Cover and Coin Vault Openings
An open top cover combined with various keypad
presses allows the control to enter manual modes of
operation. These modes include Manual
Programming, Audit Collection and Diagnostics.
Refer to Opening the Top Cover.
OPL Mode
This feature allows the user to start a cycle without
satisfying the vend price.
For details on enabling OPL Mode, refer to
Programming Control.

11
F8237701 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Opening the Top Cover
To manually program the control, the top cover must
be opened. Opening and closing the top cover trips a
switch which allows access to various programming
options. Once opened, the top cover may either be left
open, and then closed after programming, or it may be
closed immediately.
The top cover is located on the top of the machine.
1. Unlock top cover.
2. Slide top cover forward slightly to move notches
away from the pegs on the front of cabinet.
3. Lift the top cover up. To completely remove, lift
top cover away from both top cover hinges. Refer
to Figure 2.
After opening, or opening and closing the top cover,
the operator has 4 minutes and 15 seconds to begin
programming. If the appropriate Select Cycle Pads
have not been pressed in that time, the control will not
accept operator programming. Should this happen,
opening and closing the top cover will once again trip
the switch which allows access to the programming
options.
Figure 2
CHM1357R
1Top Cover Lock 3Top Cover Hinge
2Top Cover 4Peg
CHM1357R
2
13
4

F8237701
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Entering the Manual Mode
For programming, testing, and retrieving information
from the control, it is often necessary to enter the
Manual Mode by following the six simple steps below.
How to Enter the Manual Mode
1. If accessing Diagnostic Tests, be sure the washer
is in the Ready Mode before continuing to step 2.
If the washer is in an active cycle, rapid advance
through the cycle. Refer to the Rapid Advance
Feature. If coins or a card has been entered, refer
to Clear Vend Feature.
2. Open the top cover. Refer to Opening the Top
Cover.
NOTE: The coin vault switch must be closed to
enter Manual Mode.
3. While pressing and holding the Heavy Hot
keypad with one hand, press the Hot keypad with
the other hand.
4. The display will show “rAPd”.
5. Press the Cold ( ) keypad or the Delicate Cold
( ) keypad to scroll through the options until the
desired option appears in the display.
6. Press the START (enter) keypad.
Manual Mode is broken into two groups: Manual
Programming and Manual Rapid Advance. Manual
Programming can only be turned on or off with an
external device. Refer to the appropriate instruction
manual. Manual Rapid Advance can be turned on and
off using an external device or by manual
programming (refer to option 21 of Programming
Control).
By default, all groups are turned “on”.
The manual features available in each group are as
follows (the menu displayed on the display in this
mode is in parentheses).
Manual Programming
Manual Programming (Prog)
Manual Read Audit (AUdt)
Manual Reset (rSEt)
Manual Rapid Advance
Rapid Advance (rAPd)
>
<

13
F8237701 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Programming Control
What Can Be Programmed?
This feature allows the owner to program cycle
information, standard vend pricing, special vends and
other features by using the keypads. The control must
have the Manual Programming Mode enabled, which
is the factory default. This mode can only be turned
“OFF” and “ON” by using an external device. Refer to
this section when programming the control.
This section offers a detailed description of all available
programmable options.
Each description includes instructions on when and
why the option might be used and, more importantly,
how to program the option.
For more advanced users, a quick reference list (refer
to Table 1) and programming flowcharts (refer to
Figure 3 through Figure 7) of the options available
through the programming mode are located on the
following pages.
NOTE: The letters and numbers in the Option
Display column of the Programmable Options List
are what will be shown in the display when that
option is selected.
Programmable Options Available
Option
Number
Option
Display Description Default Value
Value
Range
1“AtS” Cycle Vend Price 200 0 - 65535
2“dEn1” Coin #1 Value 25 1 - 65535
3“dEn2” Coin #2 Value 100 1 - 65535
4“PLSE” Start Pulse Value 25 1 - 65535
5“PLSn” Start Pulse Mode 128 oFF/128/192
6“AtyP” Available Type 00-3
7“dCYC” Default Cycle 5* 1 - 8*
8“oPL” OPL Mode Enable/Disable oFF on/oFF
9“AUd” Audio Signal 29* 0 - 31*
10 “Err-”Errors --
a. “CEr-” Coin Error Parameters --
1. “CEr1” Coin Error on on/oFF
2. “CEr2” Coin Error Penalty oFF on/oFF
3. “CEr3” Coin Drops Header Present Error on on/oFF
b. “EFL” Fill Errors on on/oFF
c. “Edr”DrainError on on/oFF
d. “EUb” Unbalance Error Display on on/oFF
e. “EoP” Open Thermister Error Display on on/oFF
f. “ESH” Shorted Thermistor Error Display on on/oFF
g. “EHt” Heat Error Display (Heater only) on on/oFF
h. “LEr-” Water Leak Detection Error --
1. “LEr1” Water Leak Detection During a Machine Cycle
(On/Off)
oFF on/oFF
2. “LEr3” Number of cycles between Leak Detection Test 0* 0-127*
*Refer to programming section for value definition.
**Refer to the Cycle Charts for default cycle setting information.
Table 1 (Continued)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Programming Control
F8237701
14
Table 1 (Continued)
Option
Number
Option
Display Description Default Value
Value
Range
i. “ESd” Slow Drain Detection oFF on/oFF
11 “CyC-” Cycle Programming Refer to Cycle Chart for default cycle information
a. “AgIt” Cycle Agitate --
1. “tyPE”AgitateType ** 1 - 2*
2. “ASPd” Agitate Speed (VFD only) ** Lo/rEg*
b. “Seg-” Cycle Segment Programming
1. “SgEn” Segment Enable/Disable ** on/oFF
c. “FILL” Fill Step --
1. “FLEn” Fill Step Enable/Disable ** on/oFF
2. “FLEU” Fill Level ** HI/nEd/Lo
3. “tEnP” Fill Temperature ** CoLd/UArn/Hot
d. “SUPL” Supply Step --
1. “SUEn” Supply Step Enable/Disable ** on/oFF
2. “dISP” Dispenser Options ** For Design 1 models, display will show
Cx (compartment-oriented) or Sx
(supply-oriented), depending on how
option 5 (Supply/Compartment
Dispenser Programming) is
programmed.
For Design 2 models, Compartment and
Supply dispensing is programmed
separately.
Press START keypad to access
options.
a. “C2” or
“S1”
Compartment #2/Supply #1
(Design 1 models)
** on/oFF
b. “C3” or
“S2”
Compartment #3/Supply #2
(Design 1 models)
** on/oFF
c. “C4” or
“S3”
Compartment #4/Supply #3
(Design 1 models)
** on/oFF
d. “S4” Supply #4 (Design 1 models) ** on/oFF
(1) “C2” Compartment #2 (Design 2 models) ** on/oFF
(2) “C3” Compartment #3 (Design 2 models) ** on/oFF
(3) “C4” Compartment #4 (Design 2 models) ** on/oFF
(4) “S1” Supply #1 (Design 2 models) ** on/oFF
(5) “S2” Supply #2 (Design 2 models) ** on/oFF
(6) “S3” Supply #3 (Design 2 models) ** on/oFF
(7) “S4” Supply #4 (Design 2 models) ** on/oFF
*Refer to programming section for value definition.
**Refer to the Cycle Charts for default cycle setting information.
Table 1 (Continued)

Programming Control
15
F8237701 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table 1 (Continued)
Option
Number
Option
Display Description Default Value
Value
Range
e. “SdUr” Supply Duration ** Press START keypad to access options
1. “SEC” Seconds ** 0 - 59
2. “nIn”Minutes ** 0 - 9
e. “AgSt”AgitateStep --
1. “AgEn” Agitate Step Enable/Disable ** on/oFF
2. “AdUr” Agitate Duration (in minutes) ** 1 - 30 for agitate types 1 or 2
3. “HEAt” Heat in Agitate (if heater is present) ** oFF/1/2**
f. “drAn” Drain Step on on/oFF
g. “SPIn” Extract Step --
1. “SPEn” Extract Step Enable/Disable ** on/oFF
2. “SSEC” Extract Seconds ** 0 - 59
3. “SnIn” Extract Minutes ** Intermediate Extract:
Min. Step Time = 30 seconds,
Max. Step Time = 3:59 minutes
Final Extract:
Min. Step Time = 30 seconds,
Max. Step Time = 9:59 minutes
4. “SSPd” Extract Speed (VFD only) ** 1 - 3* (Design 1)
1 - 6* (Design 2)
h. “Cnin”CycleTime 0* 0-255 minutes
12 “SUPC” Supply/Compartment Dispenser
Programming (Design 1 models only)
C
(Compartment)
C (Compartment)/
S (Supply Dispenser)
13 “bALr” Number of Balance Retries (VFD
only)
Design 1: 3
Design 2: 1
1 - 7
14 “IrA” IR Access (On/Off) on on/oFF
15 “tFC” Fahrenheit/Celsius FAHr
(Fahrenheit)
FAHr (Fahrenheit)/CEL (Celsius)
16 “FH” Hot Water Temperature 140°F (60°C) 35°F-194°F/2°C-90°C
17 “FHC” Warm Water Temperature 100°F (38°C) 35°F-194°F/2°C-90°C
18 “FC” Cold Water Temperature 35°F (2°C) 5°F-194°F/2°C-90°C
19 “Codn” Cooldown Enable/Temperature oFF oFF or 50°F-60°F/10°C-71°C
20 “PtEn” Production Test Cycle (On/Off) on on/oFF
21 “rAEn” Manual Rapid Advance (On/Off) on on/oFF
22 “nCtd” No Cycle Time Display oFF on/oFF
23 “PCtd” Programmable Cycle Time Display oFF on/oFF
24 “SdAd” Slow Drain Detection Adjust 0 0 - 255
25 “SPAU” Pause/Resume Mode oFF on/oFF
*Refer to programming section for value definition.
**Refer to the Cycle Charts for default cycle setting information.
Table 1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Programming Control
F8237701
16
Programming Flowcharts
Entering Manual Mode
Figure 3
CHM1318R
“Prog” - Program cycle information and
other features into the control. Refer to the
Manual Programming flowchart.
“AUdt” - Retrieve audit information for
machine.
1. Press START (enter) keypad.
2. Press Cold keypad or Delicate Cold
keypad to scroll through options.
“Coi1” - Total number of coins #1:
1. Press START (enter) once to read audit.
“rCyC” - Total number of
rapid advance cycles:
1. Press START (enter) once to read audit.
“CyC” - Total number of machine cycles:
1. Press START (enter) once to read audit.
“rSEt” - Reset the control’s programming data
to factory default.
1. Press START (enter) keypad.
“dIAg” - Run diagnostic tests on machine
operations.
1. Press START (enter) keypad. Refer to
Diagnostic Tests flowchart.
“Coi2” - Total number of coins #2:
1. Press START (enter) once to read audit.
“PLSE” - Total number of start pulses.
1. Press START (enter) once to read audit.
Enter Manual Mode.
1. Open top cover
2. Press and hold both Heavy Hot keypad
and Hot keypad.
“rAPd” - Quickly advance through active
cycles.
1. Press START (enter) keypad to begin Rapid
Advance cycle and advance through cycle
steps.

Programming Control
17
F8237701 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Manual Programming
Figure 4
CHM1319R
“Prog” Enter Program Mode
“AtS” - Set vend price for all cycles.
“dEn1” - Set value for the #1 coin entered.
“dEn2” - Set value for the #2 coin entered.
“AUd” - Program when the signal will sound.
“Err-” - Turn on/off certain errors in control.
“PLSE” - Program the value of the Start
Pulse.
“PLSn” - Program the Start Pulse Input for
one pulse or multiple pulses.
“E Fl” - Fill Error
“CEr-” - Coin Error Parameters
“E dr” - Drain Error
“E Ub” - Unbalance Error (VFD only)
“FILL” - Program fill step options
“LEr-” - Leak Detection
“E oP” - Open Thermistor Error
(Models with Heat)
“E SH” - Shorted Thermistor Error
(Models with Heat)
“LEr1” - Water Leak Detection During
a Machine Cycle
“LEr3” - Number of Cycles between
Leak Detection Test
“AtyP” - Program when control provides an
available output for card and central pay.
“dCYC” - Set the default cycle and
temperature.
“oPL” - Enable/disable OPL Mode in which
no vend price needs to satisfied to operate
machine.
“CyC-” - Program aspects for the various
steps in each type of cycle. There are (8)
cycles available for programming.
(continued)
“SEg1” - Program options for each
segment. There are (8) segments
available for programming
“SgEn” - Segment Enabled/Disabled:
“on” = Enabled
“oFF” = Disabled
“tyPE” - Agitation Type:
1 = Normal
2 = Gentle
“ASPd” - Agitation Speed (VFD only):
“Lo” = Reduced Speed
“rEg” = Normal Speed
“AgIt” - Program the cycles agitation
action and speed
(continued)
“CEr1” - Coin Error
“CEr2” - Coin Error Penalty
““FLEn” - Fill Step Enable/Disable:
“on” = Enabled
“oFF” = Disabled
“FLEU” - Fill Level:
“HI” = High Level
“nEd” = Medium Level
“Lo” = Low Level
“tEnP” - Fill Temperature:
“CoLd” = Cold
“UArn” = Warm
“Hot” = Hot
“E Sd” - Slow Drain Detection Error
“E Ht” - Heat Error (heater only)
“CEr3” - Coin Drops Header Present Error

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Programming Control
F8237701
18
Figure 5
CHM1391R
CHM1391R
(continued)
(continued) (continued)
“SUPL” - Program supply step options “dISP” Dispenser Options:
Press START (enter) to access options
“SdUr” Supply Duration:
Press START (enter) to access options
“AdUr” - Agitate Duration (min):
“1” - “30”
“AgSt” - Program agitate step options
“drAn” - Enable/disable drain step
“SPIn” - Program extract step options
“SUEn” - Supply Step Enable/Disable:
“on” = Enabled
“oFF”” = Disabled
“AgEn” - Agitate Step
Enabled/Disabled:
“on” = Enabled
“oFF” = Disabled
“SSEC” - Extract Seconds:
“0” - “59”
“SPEn” - Extract Step
Enabled/Disabled:
“on” = Enabled
“oFF” = Disabled
“SSPd” - Extract Speed
Design 1 - (VFD only):
F-speed models use speeds 1-3,
1 = Very Low Speed (80)
2 = Low Speed (80)
3 = Medium Speed (100)
“HEAt” - Heat in Agitate
(heat present only):
“oFF” = Disabled
“1” = To Target
“2” = Maintain
Drain Step:
“on” = Enabled
“oFF” = Disabled
“SEC” - Seconds:
“0” - “59”
“Cnin” - Cycle Time
“0” - “255”
“nIn” - Minutes:
“0” - “9”
“SnIn” - Extract Minutes:
“1” - “3” (Intermediate Step)
“1” - “9” (Final Step)
“SSPd” - Extract Speed
Design 2 - (VFD only):
F-speed models use speeds 1-3,
1 =Very Low Speed (27)
2 = Low Speed (80)
3 = Medium Speed (100)
4 = High Speed (125)
5 =Very High Speed (150)
6 = Ultra High Speed (200)
“S4” - Supply #4:
“on” = Enabled
“oFF” = Disabled
“C2” or “S1” -
Compartment #2/
Supply #1:
“on” = Enabled
“oFF” = Disabled
(Design 1 Models)
“C3” or “S2” -
Compartment #3/
Supply #1:
“on” = Enabled
“oFF” = Disabled
(Design 1 Models)
“C4” or “S3” -
Compartment #4/
Supply #3:
“on” = Enabled
“oFF” = Disabled
(Design 1 Models)
“C2” - Compartment #2
“on” = Enabled
“oFF” = Disabled
(Design 2 Models)
“C3” - Compartment #3
“on” = Enabled
“oFF” = Disabled
(Design 2 Models)
“C4” - Compartment #4
“on” = Enabled
“oFF” = Disabled
(Design 2 Models)
“S1” - Supply #1
“on” = Enabled
“oFF” = Disabled
(Design 2 Models)
“S2” - Supply #2
“on” = Enabled
“oFF” = Disabled
(Design 2 Models)
“S3” - Supply #3
“on” = Enabled
“oFF” = Disabled
(Design 2 Models)
