Replacement Parts
If replacement parts are required, contact the source
from which you purchased your washer, or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

801561
4© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

5
801561 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
Dimensions and Specifications
FLW2007N
FLW2007N
71.1 cm
(28 in.)
5.1 cm (2 in.)
44.8 cm
(17.5 in.)
93 cm (36.6 in.)
37.9 cm
(14.9 in.)
75.1 cm (29.6 in.)
79 cm (31.1 in.)
68.3 cm
(26.9 in.)
109.2 cm (43 in.)

Installation
801561
6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 1
Electrical
Refer to serial plate for specific electrical
requirements. For more detailed information refer to
section on Electrical Requirements.
Water
Washer needs two standard 19.1 mm (3/4 in.) water
supply faucets with a pressure between 138 and
827 kPa (20 to 120 pounds per square inch). For more
detailed information refer to section on Water Supply
Requirements.
Accessories Bag
An accessories bag has been shipped inside your
washer. It includes:
●Two inlet hoses with washers. Refer to step 2 of
Installation.
●Four rubber feet. Refer to step 4 of Installation.
●Beaded tie-down strap. Refer to step 3 of
Installation.
●Installation instructions.
●Operating instructions.
●Warranty bond.
●Bag for storing shipping materials.

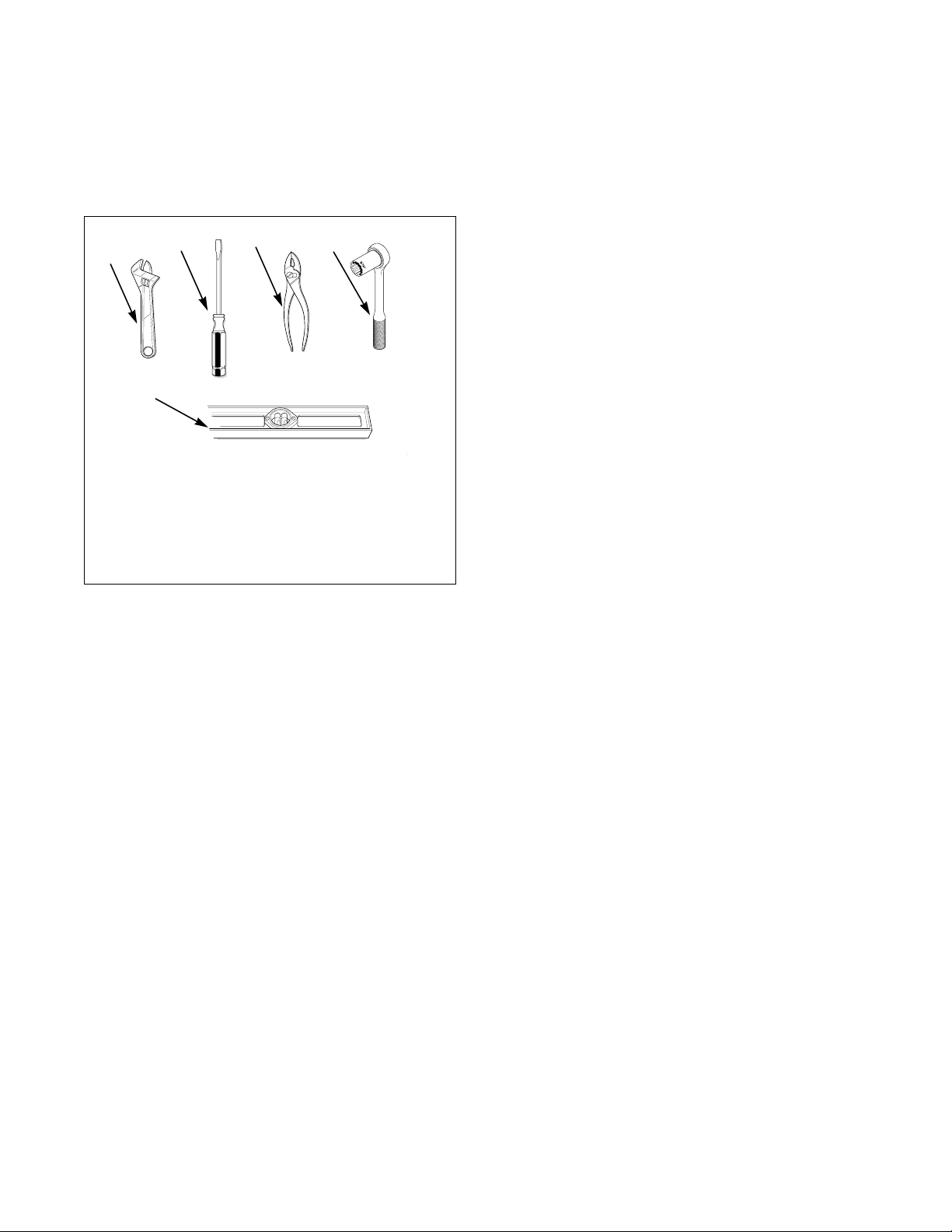

D820I
1Wrench
2Screwdriver
3Pliers
4Socket Wrench
5Level
1234
5

Installation
7
801561 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installing the Washer
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
Step 1: Position Washer Near Installation
Area
IMPORTANT: Install dryer before washer. This
allows room for attaching exhaust duct.
Move washer as close to the desired area of
installation as possible.
Figure 2
Step 2: Connect Water Inlet Hoses
NOTE: Refer to section on Water Supply
Requirements before connecting water inlet hoses.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
Remove the four plain rubber washers from accessories
bag, and install them according to Figure 3.
IMPORTANT: Thread hose couplings onto valve
connections finger-tight, then approximately
1/4 turn with pliers. DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.

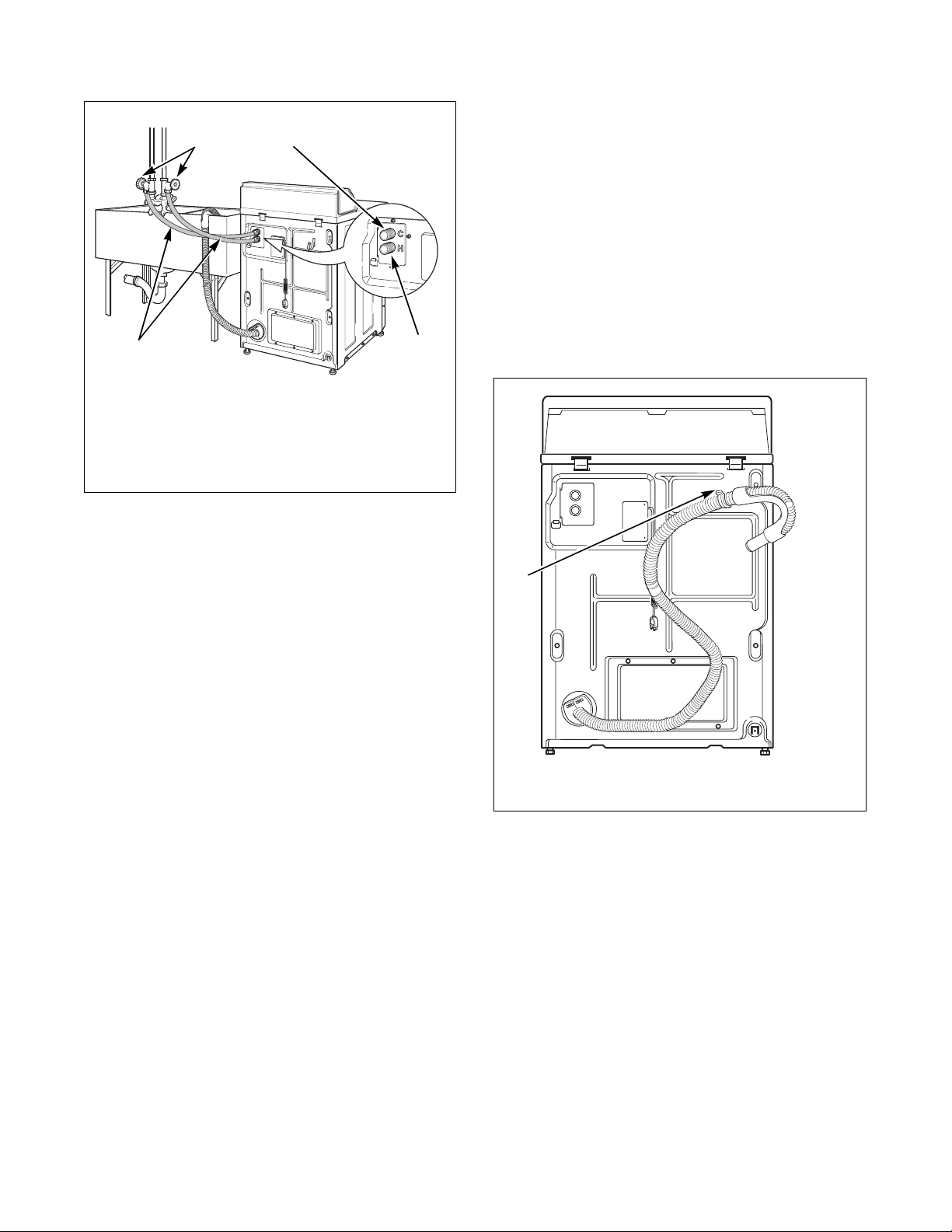

Figure 3
D772I
D772I
H091I
1Rubber Washer (Plain)
2Inlet Hose
H091I
1
2

Installation
801561
8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Figure 4
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a yearly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp and by removing shipping tape.
Find the instructions, on the following pages, that are
appropriate for your type of drain receptacle
(standpipe, sink, wall, or laundry tub). Follow these
instructions to properly install the drain hose.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 3.2 cm (1-1/4 inch) outside
diameter drain hose.
Figure 5
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.
FLW2008N
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Water Inlet Hoses
FLW2008N
12
3
WATER
MIXING
VALVE
4
FLW2009N
1Retainer Clamp
1

Installation
9
801561 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Figure 6
Sink Installation
For this type of installation, use the beaded tie-down
strap (supplied in accessories bag) or use a large wire
tie (available from your local hardware store), and
secure the drain hose to the cabinet top hinge (refer to
Figure 7). This will prevent the drain hose from
dislodging during use.
Figure 7
In-the-Wall Installation
For installations of this type, the drain hose MUST be
secured to one of the inlet hoses using the beaded tie-
down strap from accessories bag.
NOTE: End of drain hose must not be below 61 cm
(24 in.).
Figure 8

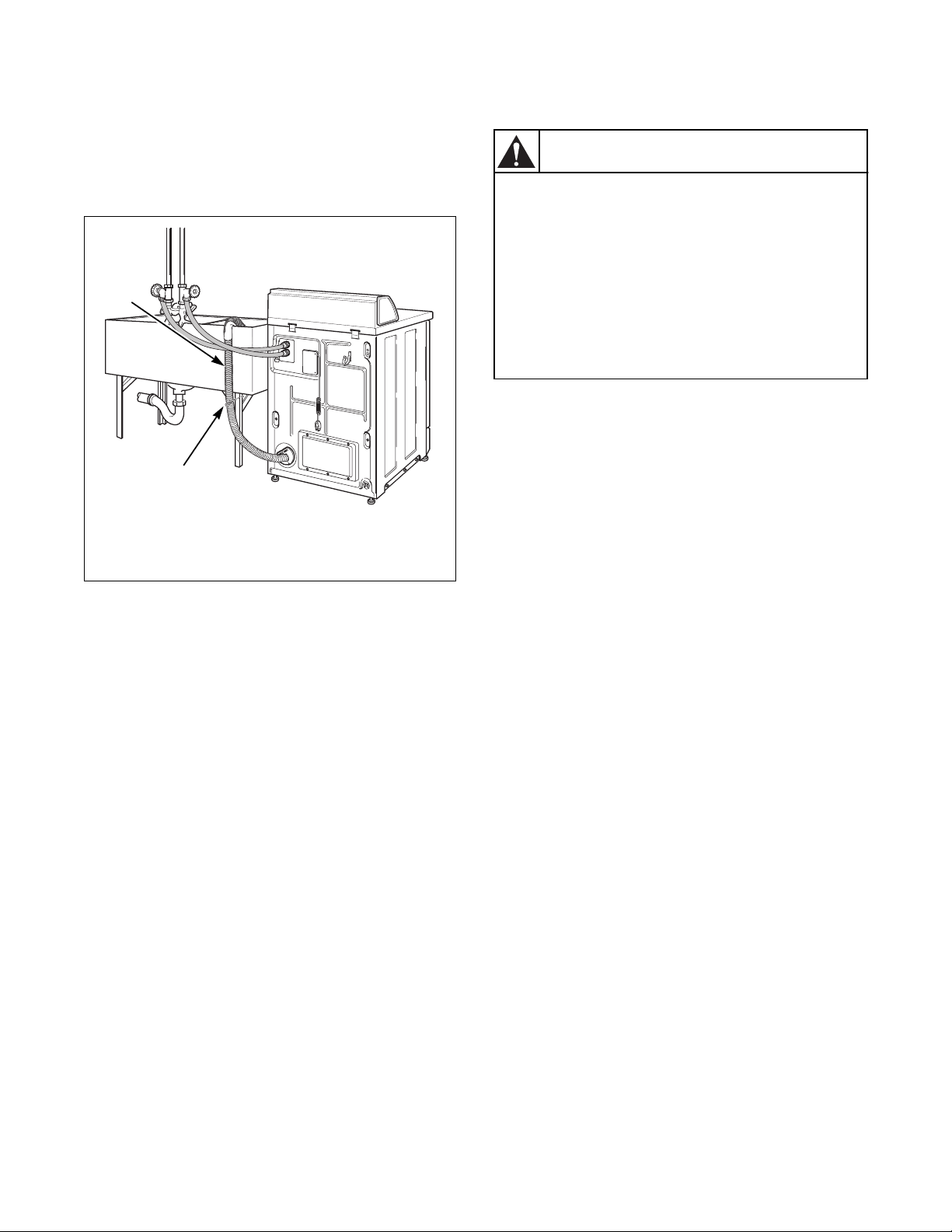

FLW2010N
161 to 91.44 cm (24 to 36 in.) Recommended
Height
2Standpipe –5.08 cm (2 in.) or 4 cm
(1-1/2 in.)
3Beaded Tie-Down Strap
FLW2011N
1Drain Hose
2Tie-Down Strap (Wire tie or tape if
necessary)
1
23
FLW2011N
1
2
H023I
1Drain Hose
2Tie-Down Strap (Tape if necessary)
3Inlet Hoses
2
3
1

Installation
801561
10 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Laundry Tub Installation
For this type of installation, the drain hose MUST be
secured to the stationary tub to prevent hose from
dislodging during use. Use the beaded tie-down strap
(supplied in accessories bag) to secure hose.
Figure 9
Step 4: Position and Level the Washer
Place washer in position on a clean, firm and
reasonably level floor. Installing the washer on any
type of carpeting is not recommended.
Loosen 7/8 in. locknut and adjust the front and rear
leveling legs until the washer is level from side to side
and front to back (using a level). Washer should not
rock.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 10.
Tighten the locknuts securely against the washer
base using the 7/8 in. wrench. If the locknuts are not
tight, washer will move out of position during operation.
FLW2012N
1Drain Hose
2Tie-Down Strap (Tape if necessary)
1
2
Washers elevated above floor level must be
anchored to that elevated surface, base or
platform. The material used to elevate the
washer should also be anchored to the floor
to ensure that the washer will not walk or
that the washer can not be physically
pulled, tipped or slid from its installed
position. Failure to do so may result in
conditions which can produce serious
injury, death and/or property damage.
W306
WARNING

Installation
11
801561 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
NOTE: DO NOT slide washer across floor if the
leveling legs have been extended, as legs and base
could become damaged.
NOTE: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
Remove rubber feet from accessories bag and place on
all four leveling legs.
Verify that unit does not rock.
Figure 10
Step 5: Remove the Shock Sleeves and
Shipping Brace
Remove front access panel by removing the two
screws.
Remove bolts and lockwashers from shipping brace
with 9/16 in. wrench and remove brace. Remove shock
sleeves by pulling on the yellow rope.
Remove label from front side of front access panel and
place on backside of front access panel.
NOTE: The shipping brace, bolts, lockwashers and
shock sleeves should be saved and MUST be
reinstalled whenever the unit is moved more than
four feet. Do not lift or transport unit from front or
without shipping materials installed.
Store the shipping materials in the bag provided in the
accessories bag. Save materials for use whenever the
unit is moved.
NOTE: The shipping materials MUST be reinstalled
whenever the unit is moved. Refer to Moving Unit
to a New Location section for proper instructions on
reinstalling the shipping materials.
Reinstall front access panel.
IMPORTANT: DO NOT tip washer more than
152.4 mm (6 inches) in any direction after shipping
brace has been removed. Shock absorbers may
separate and damage machine. For leveling
purposes, the washer may be tilted a maximum of
152.4 mm (6 inches) in any direction.
H381I
1Leveling Leg
2Washer Base
3Level
4Locknut
5Rubber Foot
1
4
5
2
3

Installation
801561
12 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Figure 11
Step 6: Wipe Out Inside of Washer Drum
Before using the washer for the first time, use an all-
purpose cleaner, or a detergent and water solution, and
a damp cloth to remove shipping dust from inside the
drum.
Figure 12
Step 7: Connect the Washer to Electrical
Power
Refer to section on Electrical Requirements and connect
the washer to an electrical power source.
Figure 13
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
4
3
H337I
W504SE3B

Installation
13
801561 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 8: Check Installation
Refer to Installer Checklist on the back cover and
make sure that unit is installed correctly.
Moving Unit to a New Location
To prevent damage while moving the unit, the
shipping materials MUST BE reinstalled.
Reinstallation of Shipping Materials
Disconnect washer from electrical supply.
Remove front access panel by removing two screws.
Place the shock sleeves on all four shock absorbers.
Refer to Figure 14.
Insert hooked end of shipping brace into the open slot
of the motor mount. Attach with bolts and lockwashers.
Refer to Figure 14.
Reinstall front access panel.
Figure 14
Refer to step 5 for proper procedures whenever the
unit is moved.
Electrical Requirements
NOTE: The wiring diagram is located behind the
control panel, inside the control hood.
Figure 15
NOTE: Refer to the washer nameplate for proper
voltage and Hertz the washer is designed to operate
on. Refer to Figure 16.
Figure 16
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
4
3
D009I
H129P
1Nameplate
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
earthing MUST abide with local electrical
codes. It is the customer’s responsibility to
have the wiring and fuses checked by a
qualified electrician to make sure the
laundry room has adequate electrical power
to operate the washer.
W246
WARNING
DO NOT OVERLOAD
CIRCUITS
DO NOT USE AN
ADAPTER
DO NOT USE AN
EXTENSION CORD
1

Installation
801561
14 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
240 Volt, 50 Hertz
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively earthed,
240 Volt, 50 Hertz, AC (alternating current) circuit
protected by a 10 Ampere fuse, equivalent fusetron or
circuit breaker.
Earthing Instructions
The washer must be earthed. In the event of
malfunction or breakdown, earthing will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The washer is equipped
with a cord having an equipment-earthing conductor.
The washer must be plugged or hardwired into an
appropriate power source that is properly installed and
earthed in accordance with all local codes and
ordinances.
NOTE: Have a qualified electrician check the
polarity of the power source.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT. DO NOT OVERLOAD
CIRCUITS!
Do not operate both a washer and gas dryer on the
same circuit. Use separately fused 10 Amp circuits.
120 Volt, 60 Hertz with 3-Prong Grounding
Plug
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively earthed, 120
Volt, 60 Hertz, AC (alternating current) circuit
protected by a 15 Ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong earthed plug on the power cord
should be plugged directly into a polarized three-slot
effectively earthed receptacle rated 110/120 Volts AC
(alternating current) 15 Amps. Refer to Figure 17 to
determine correct polarity of the wall receptacle.
Earthing Instructions
The washer must be earthed. In the event of
malfunction or breakdown, earthing will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The washer is equipped
with a cord having an equipment-earthing conductor
and a 3-prong earthing plug. The plug must be plugged
into an appropriate outlet that is properly installed and
earthed in accordance with all local codes and
ordinances.
DO NOT modify the plug provided with the washer –
if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the
qualified electrician should correct the problem.
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING
WARNING
Improper connection of the equipment-
earthing conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is properly
earthed.
W032
WARNING
Improper connection of the equipment-
earthing conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is properly
earthed.
W032
WARNING
This unit is equipped with a three-prong
(earthing) plug for your protection against
shock hazard and should be plugged
directly into a properly earthed three-prong
receptacle. Do not cut or remove the
earthing prong from this plug.
W477

Installation
15
801561 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Figure 17
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT. DO NOT OVERLOAD
CIRCUITS!
Do not operate both a washer and gas dryer on the
same circuit. Use separately fused 15 Amp circuits.
Water Supply Requirements
NOTE: Water supply faucets must fit standard
19.1 mm (3/4 in.) female garden hose couplings.
DO NOT USE SLIP-ON OR CLAMP-ON
CONNECTIONS.
NOTE: Water supply faucets should be readily
accessible to permit turning them off when washer
is not being used.
D799I
1L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
1
2
3
4
5
120 ± 12
V.A.C.
120 ± 12
V.A.C.
0
V.A.C.
STANDARD 120 VOLT, 60 HERTZ, 3-WIRE
EFFECTIVELY GROUNDED CIRCUIT
WARNING
To reduce the risk of electric shock or fire,
DO NOT use an extension cord or an
adapter to connect the washer to the
electrical power source.
W031
Under certain conditions, hydrogen gas may
be produced in a hot water system that has
not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a
period and before using the washer, turn on
all hot water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas. The
gas is flammable. Do not smoke or use an
open flame during this time.
W029
WARNING

Installation
801561
16 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Water Temperature
Cold:
Recommended cold water temperature is 16° to
27°Celsius (60°to 80°Fahrenheit).
Hot:
Recommended hot water temperature is 49°to
60°Celsius (120°to 140°Fahrenheit).
Warm:
Mixture of hot and cold water (warm water
temperature is dependent upon the water temperature
and the pressure of both the hot and cold water supply
lines).
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer inlet hoses are available (as
optional equipment at extra cost) if the hoses
(supplied with the washer) are not long enough for
the installation. Order hoses as follows:
No. 20617 Inlet Hose (2.44 m) (8 ft.)
No. 20618 Inlet Hose (3.05 m) (10 ft.)
Figure 18
Water Pressure
Pressure must be a minimum of 138 to a maximum of
827 kPa (20 to 120 pounds per square inch) static
pressure measured at the faucet.
NOTE: Water pressure under 138 kPa (20 pounds
per square inch) will cause an extended fill time in
the washer and may not properly flush out the
detergent dispenser.
Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (refer to Figure 19).
Figure 19
FLW2008N
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Water Inlet Hoses
FLW2008N
12
3
WATER
MIXING
VALVE
4
W005I
1Water Supply Faucets
2Risers (Air Cushions)
W005I
2
1

Installation
17
801561 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Information for Handy Reference
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Date Purchased
Model Number Serial Number
Dealer’s Name
Dealer’s Address Phone Number
Service Agency
Service Agency Address Phone Number
NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on
the nameplate.
