Table of Contents
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
F232178
1
Daily............................................................................................................................................................................2
Beginning of the Day............................................................................................................................................2
End of the Day ......................................................................................................................................................3
Weekly ........................................................................................................................................................................5
Monthly ......................................................................................................................................................................6
Quarterly..................................................................................................................................................................10
Care of Stainless Steel .............................................................................................................................................12
Daily Preventative Maintenance Checklist ...........................................................................................................13
Weekly Preventative Maintenance Checklist .......................................................................................................14
Monthly Preventative Maintenance Checklist .....................................................................................................15
Quarterly Preventative Maintenance Checklist ...................................................................................................16
IMPORTANT: Replace all panels that are removed to perform maintenance procedures. Do not operate the
washer-extractor with missing guards or with broken or missing parts. Do not bypass any safety devices.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2 F232178
Daily
IMPORTANT: The door lock should be checked daily to ensure proper operation. Also check that all safety
and instruction stickers are on the machine. Any missing or illegible safety and/or instruction stickers should
be replaced immediately.
Beginning of the Day

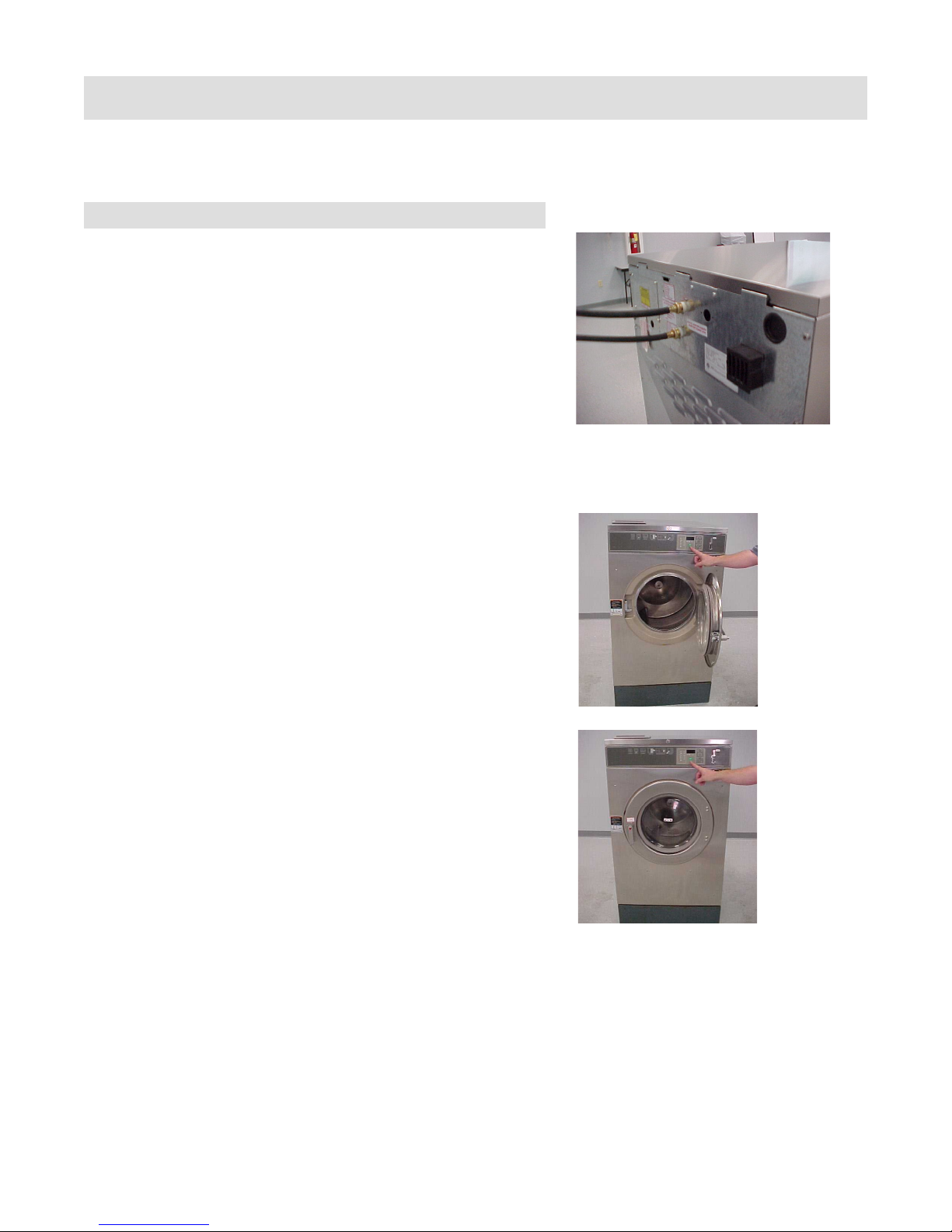

1. Inspect the water inlet valve hose connections on the back of the
machine for leaks.
2. Inspect the steam hose connections for leaks (where applicable).
3. Check the door interlock before starting operation:
a. Attempt to start the machine with the door open. The machine
should not start with the door open.
b. Close the door without locking it and attempt to start the
machine. The machine should not start with the door unlocked.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
F232178
3
Daily
c. Close and lock the door and start a cycle. Attempt to open the
door while the cycle is in progress. The door should not open.
If the door lock and interlock are not functioning properly,
disconnect power and call a service technician.
End of the Day

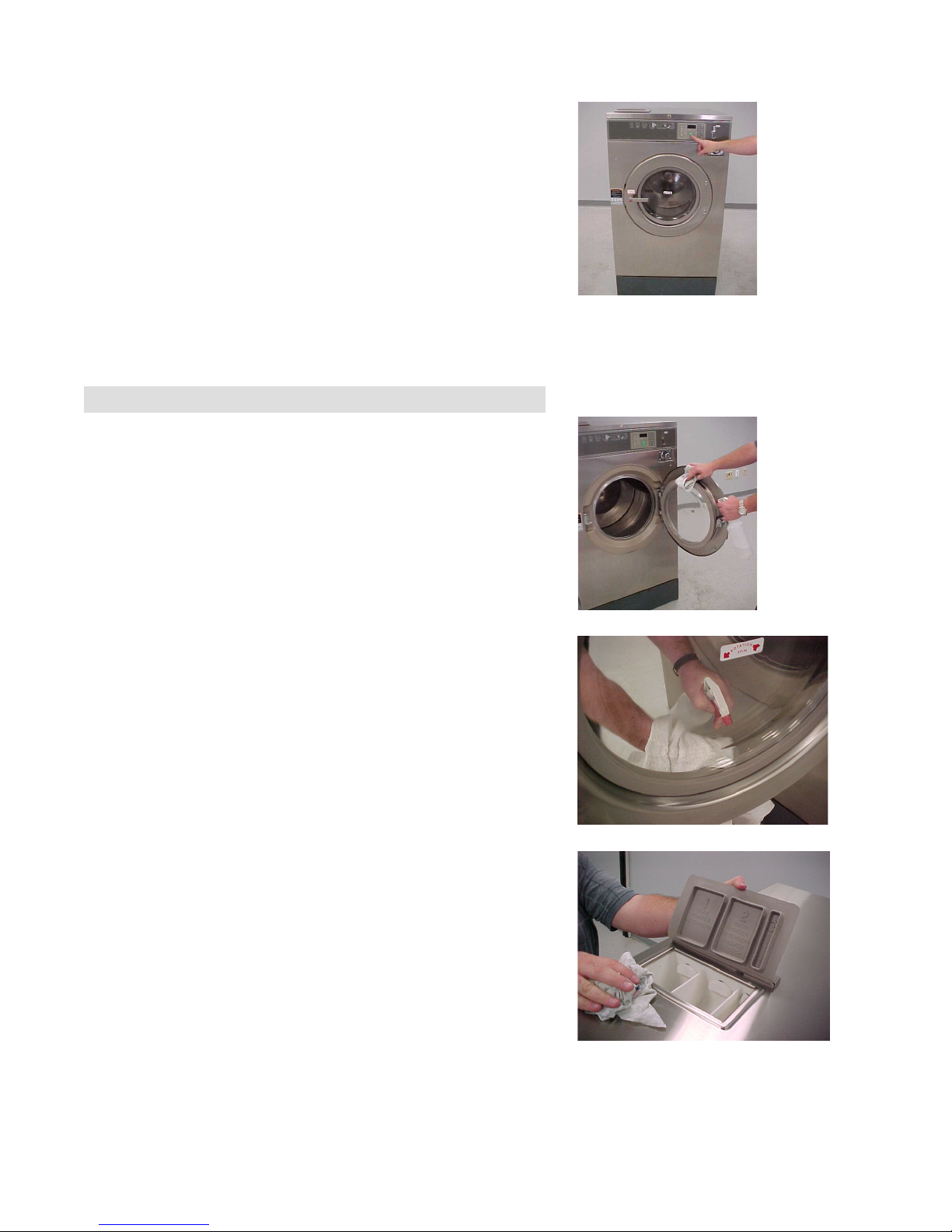

1. Clean the door gasket of residual detergent and all foreign matter.
2. Clean between the door gasket and the door glass with a damp
cloth.
3. Clean the automatic supply dispenser lid and general area. Flush
the dispenser with clean water.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
4 F232178
Daily
4. Clean the machine’s top, front and side panels with mild
detergent. Thoroughly rinse and dry all surfaces after cleaning
them.
5. Leave the loading door open at the end of each day to allow
moisture to evaporate.
NOTE: Unload the machine promptly after each completed
cycle to prevent moisture buildup. Leave the loading door open
after each completed cycle to allow moisture to evaporate.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
F232178
5
Weekly
1. For variable-speed models only, clean the AC drive box
filter(s) weekly or more frequently as needed:
NOTE: If the fan filter service indicator light is on, the fan filter
must be cleaned immediately to prevent possible damage. Press
the thermostat button to reset the indicator light.
NOTE: If filter indicator is ignored, repeated resets might
shorten life of drive. Clean filter regularly to avoid indication
prompt.
a. Open the top cover.
b. To remove the filter, grasp the filter handle and pull straight
up.
c. Wash the filter with warm water and allow it to air dry. As an
alternative, the filter may be vacuumed clean.
IMPORTANT: The control module cover and fan filter must be
in place for the fan to properly cool the AC drive. Failure to
observe this warning will void the warranty and could lead to
expensive AC drive repair.
2. Check the machine for leaks:
a. Start an unloaded cycle to fill the machine.
b. Verify that the door and door gasket do not leak.
c. Verify that the drain valve is operating and that the drain
system is free from obstruction. If water does not leak out
during the first wash segment, the drain valve is closed and
functioning properly.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
6 F232178
Monthly
NOTE: Disconnect power to the machine at its source before
performing the monthly maintenance procedures.
1. Use the following procedures to determine if the V-belt(s) require
replacement or adjustment. Call a qualified service technician in
either case.
a. Check the V-belt(s) for uneven wear and frayed edges.
b. For groove-pulley drive systems, verify alignment by placing
a straightedge across both pulley faces. The straightedge
should make contact with the pulleys in four places.
c. For flat-pulley drive systems, verify the allowable distance of
the belt from the edge of the pulley. Refer to the
Operation/Maintenance Manual for pulley alignment
specifications.
CHM4445
Motor
Motor
Pulley
Straightedge
Basket
Pulley

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
F232178
7
Monthly
d. For variable-speed models only, verify that the V-belts are
properly tensioned by applying a set force to the belt and
measuring the deflection to determine the belt tension. Belt
tension measurements should be taken as close to the center of the
belt span as possible. Refer to the Operation/Maintenance
Manual for belt tensioning specifications.
NOTE: Hoses and other natural rubber parts deteriorate after
extended use. Hoses may develop cracks, blisters or material wear
from the temperature and constant high pressure they are
subjected to.
2. Check all hoses for any visible signs of deterioration. Any hose
showing signs of deterioration listed above should be replaced
immediately.
NOTE: All hoses should be replaced every five years.
H039I
3. For 80-pound and 125-pound capacity models only, lubricate
the bearings and seals each month OR after every 200 hours of
operation.
a. Use a premium-grade lithium-based #2 grease. Never mix two
types of grease, such as petroleum and silicone.
b. Pump the grease gun slowly, permitting only the following
number of strokes:
 2 strokes for bearing grease fittings
 2 stroke for seal grease fittings
Do not pump the grease gun until grease comes out of the
bearing housing. This can result in over-lubrication and can
cause damage to the bearings and seals.
4. Remove the back panel and check the overflow hose and drain
hose for leaks.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
8 F232178
Monthly
5. Unlock the top cover and check the supply dispenser hoses and
hose connections.

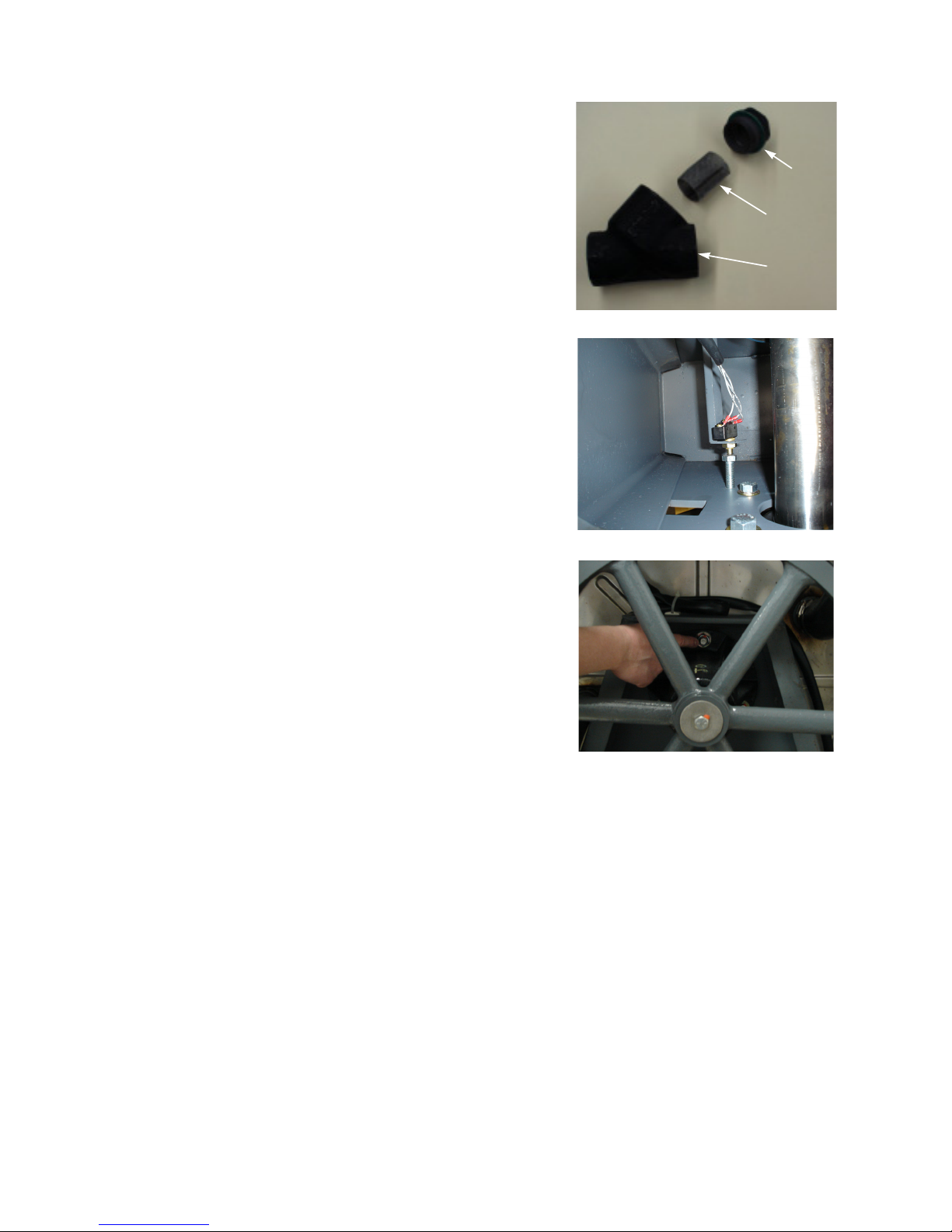

6. Use the following procedure to clean the inlet hose filter screens:
a. Turn the water off and, if necessary, allow the valve to cool.
b. Unscrew the inlet hose and remove the filter screen.
c. Clean the filter screen with soapy water and reinstall it.
Replace the filter screen if it is worn or damaged.
7. Tighten motor mounting bolt locknuts and bearing bolt locknuts.
Check for tightness of the motor spring and motor pulley. Also,
check to see that the pin is in place.
8. Clean the lint from the motor with compressed air.
9. Clean interior of machine, both basket and shell, by wiping with
a water-soaked sponge or cloth.
Pin
Motor Pulley
Motor Spring
