Alliance Laundry Systems SWTT21 Guide

Installation/Operation
www.comlaundry.com
Automatic
Washers
Metered and Nonmetered
W446I
Part No. 201932R4
September 2010
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
201932
1
IMPORTANT: Read the complete
INSTALLATION/OPERATION INSTRUCTIONS
before using the washer.
For your safety and to reduce the risk of
fire or an explosion, do not store or use
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
W022
WARNING

© Copyright 2010, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2
201932
Table of
Contents
Safety Information.............................................................................. 4
Explanation of Safety Messages........................................................... 4
Important Safety Instructions ............................................................... 4
Installation........................................................................................... 6
Dimensions and Specifications............................................................. 6
Before You Start ................................................................................... 7
Tools ................................................................................................ 7
Installing the Washer ............................................................................ 7
Step 1: Remove the Shipping Brace and Shipping Plug.................. 7
Step 2: Wipe Out Inside of Washtub ............................................... 8
Step 3: Connect Fill Hoses............................................................... 8
Step 4: Connect Drain Hose to Drain Receptacle............................ 10
Step 5: Position and Level the Washer ............................................ 11
Step 6: Plug In the Washer............................................................... 12
Step 7: Add Water to the Washer .................................................... 13
Step 8: Check Lid Switch ................................................................ 13
Step 9: Check Installation ................................................................ 13
Vending................................................................................................. 14
Meter Case ....................................................................................... 14
Slide Extension ................................................................................ 14
Models Prepped for Card Reader..................................................... 15
Additional Washer Security............................................................. 16
Operation............................................................................................. 17
Operation Instructions for Coin Slide Operated and
Nonmetered Washers ......................................................................... 17
Step 1: Add Detergent...................................................................... 17
Step 2: Load Laundry....................................................................... 17
Step 3: Close Lid.............................................................................. 17
Step 4: Set Wash Temperature and Fabric/Cycle Selector .............. 18
Step 5: Start Washer......................................................................... 19
Indicator Lights................................................................................ 19
Control Modes ................................................................................. 20
Rapid Advance................................................................................. 21
Setting Dipswitch............................................................................. 21
Operation Instructions for Electronic Display Control Washers.......... 22
Step 1: Add Detergent...................................................................... 22
Step 2: Load Laundry....................................................................... 22
Step 3: Close Lid.............................................................................. 22
Step 4: Choose Small Load, if Desired............................................ 23
Step 5: Set Fabric Selector............................................................... 23
Step 6: Set Wash Temperature......................................................... 23
Step 7: Insert Money........................................................................ 23
Indicator Lights................................................................................ 24
Operation Instructions for MDC Washers............................................ 25
Step 1: Add Detergent...................................................................... 25
Step 2: Load Laundry....................................................................... 25
Step 3: Close Lid.............................................................................. 25
Step 4: Choose Small Load, if Desired............................................ 26

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
201932
3
Step 5: Set Fabric Selector and Wash Temperature......................... 26
Step 6: Insert Money or Card........................................................... 26
Step 7: Start Washer......................................................................... 27
Indicator Lights................................................................................ 27
Operation Instructions for NetMaster Washers .................................... 28
Step 1: Add Detergent...................................................................... 28
Step 2: Load Laundry....................................................................... 28
Step 3: Close Lid.............................................................................. 28
Step 4: Choose Small Load, if Desired............................................ 29
Step 5: Set Fabric Selector............................................................... 29
Step 6: Set Wash Temperature......................................................... 29
Step 7: Insert Money or Card........................................................... 30
Step 8: Start Washer......................................................................... 30
Indicator Lights................................................................................ 30
Maintenance ........................................................................................ 31
User-Maintenance Instructions............................................................. 31
Cold Weather Care........................................................................... 31
Care of Your Washer ....................................................................... 31
Replacing Hoses............................................................................... 31
Filter Screens ................................................................................... 31
Reinstallation of Shipping Materials ............................................... 31
Motor Overload Protector..................................................................... 31
Troubleshooting .................................................................................. 32
Contact Information........................................................................... 34
Installer Checklist ............................................................... Back Cover

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 201932
4
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. THE
GAS IS FLAMMABLE, DO NOT SMOKE OR
USE AN OPEN FLAME DURING THIS TIME.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the lid to the washing
compartment.
8. Do not reach into the washer if the washtub or
agitator is moving.
9. Do not install or store the washer where it will be
exposed to water and/or weather.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
5
201932
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
13. Use your washer only for its intended purpose,
washing clothes.
14. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
16. To reduce the risk of fire, clothes which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
18. Keep your washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have your washer checked by a
qualified service person.
19. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
20. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
21. Lid MUST BE CLOSED any time the washer is
to agitate or spin. DO NOT bypass the lid switch
by permitting the washer to agitate or spin with
the lid open. A brake will stop the washtub
within seconds if the lid is opened during
spinning. If the washtub does not stop when the
lid is opened, remove the washer from use and
call the service person.
22. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. To reduce the risk of poisoning or chemical
burns, keep them out of the reach of children at
all times (preferably in a locked cabinet). Heed
all warnings or precautions.
23. Always follow the fabric care instructions
supplied by the garment manufacturer.
24. Never operate the washer with any guards and/or
panels removed.
25. DO NOT operate the washer with missing or
broken parts.
26. DO NOT bypass any safety devices.
27. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 201932
6
Installation
Dimensions and Specifications
TLW2051N
1Pilot Hole
C
H
TLW2051N
25.63 in. (65.1 cm)
30.5 in. (74.47 cm)
Standard Capacity Meter Case
43 in. (109.2 cm)
High Capacity Meter Case
43.875 in. (111.44 cm)
0.44 in.
(1.12 cm) 26 in. (66.04 cm)
28.75 in. (73.02 cm)
41.25 in. (104.78 cm)
36 in. (91.44 cm)
51 in. (129.54 cm)
1
28 in. (71.12 cm)
Coin Slide Models
40.38 in. (102.56 cm)
Electronic Control Models
38.19 in. (97 cm)
Coin Slide Models
21.56 in. (54.76 cm)
Electronic Control Models
22.44 in. (57 cm)
METERED MODELS
TLW2050N
C
H
TLW2050N
25.63 in. (65.1 cm)
30.5 in. (74.47 cm)
28 in. (71.12 cm)
0.44 in.
(1.12 cm) 26 in. (66.04 cm)
NONMETERED MODELS
41.25 in. (104.78 cm)
36 in. (91.44 cm)
51 in. (129.54 cm)
28.75 in. (73.02 cm)
40.38 in. (102.56 cm)
21.56 in. (54.76 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
7
201932
Before You Start

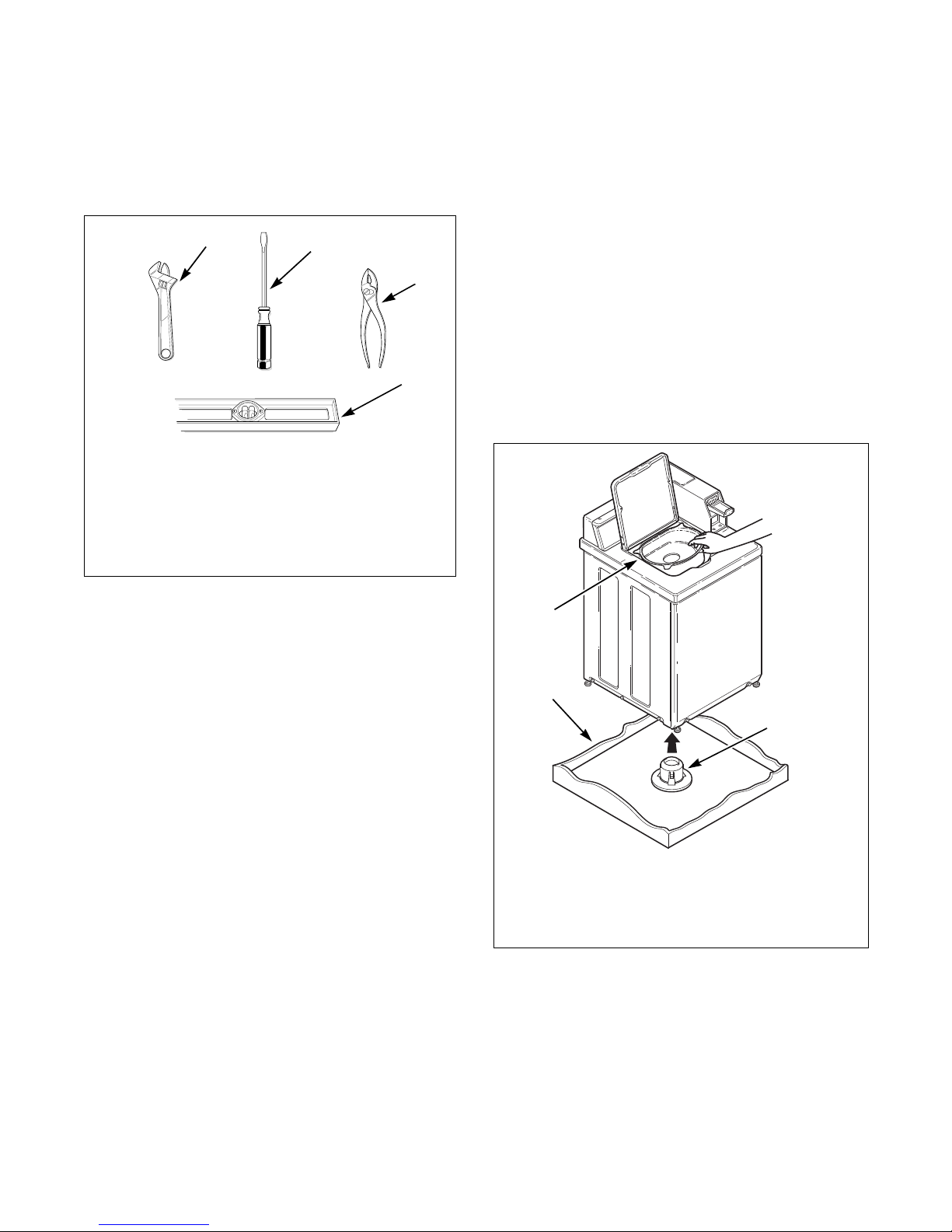

Tools
For most installations, the basic tools you will need
are:
Figure 1
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
IMPORTANT: Install dryer before washer. This
allows room for attaching exhaust duct.
Installing the Washer
Step 1: Remove the Shipping Brace and
Shipping Plug
Remove the shipping brace from under the lid.
The shipping plug will be released from the base of the
washer when removing the cardboard base from the
washer. Refer to Figure 2.
The shipping brace and plug should be saved and must
be reinstalled whenever washer is moved or
transported to a new location. This will prevent
damage to washer components.
Do not tilt washer to front or sides when moving.
Refer to User-Maintenance section for instructions on
reinstalling shipping brace and shipping plug.
Figure 2
D074I
1Wrench
2Screwdriver
3Pliers
4Level
D074I
12
4
3
TLW2052N
1Shipping Brace
2Shipping Plug
3Cardboard Base
TLW2052N
1
2
3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
201932
8

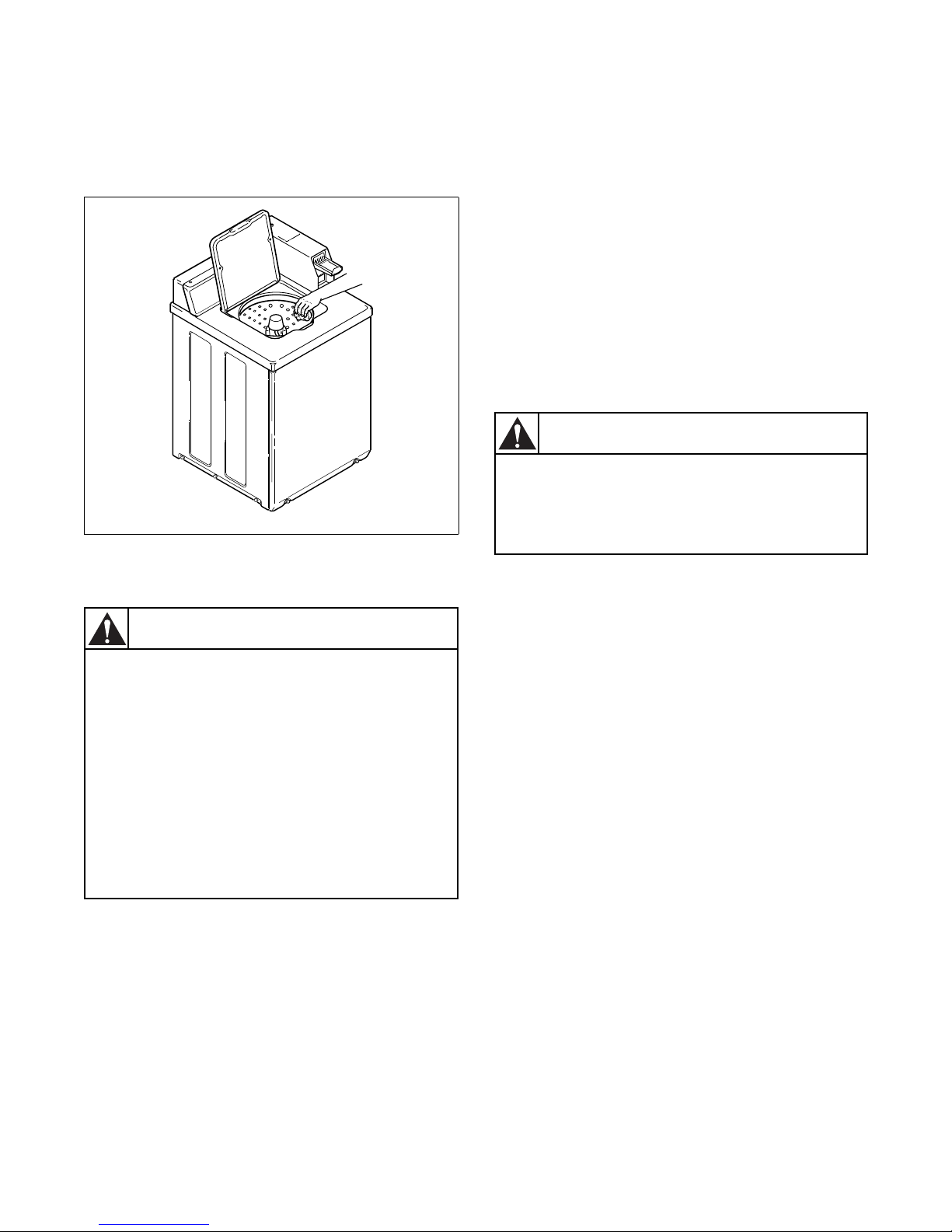

Step 2: Wipe Out Inside of Washtub
Prior to first wash, use an all purpose cleaner or a
detergent and water solution and a damp cloth to
remove shipping dust from inside of washtub.
Figure 3
Step 3: Connect Fill Hoses
Water Supply Requirements
Water supply faucets must fit standard 3/4 inch
(19.1 mm) female garden hose couplings. DO NOT
USE SLIP-ON OR CLAMP-ON CONNECTIONS.
NOTE: Water supply faucets should be readily
accessible to permit turning them off when washer
is not being used.
Recommended cold water temperature is 50° to 75°
Fahrenheit (10° to 24° Celsius). Recommended
maximum hot water temperature is 125° Fahrenheit
(51° Celsius). Warm water is a mixture of hot and cold
water. Warm water temperature is dependent upon the
water temperature and the pressure of both the hot and
cold water supply lines.
Pressure must be a minimum of 20 to a maximum of
120 pounds per square inch (138 to 827 kPa) static
pressure measured at the faucet.
NOTE: Water pressure under 20 pounds per
square inch (138 kPa) will cause an extended fill
time in the washer.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve. (This is especially important when
installing your washer in a newly constructed or
renovated building.)
W396I
W396I
Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used
for such a period and before using the
washer, turn on all hot water faucets and
let the water flow from each for several
minutes. This will release any
accumulated hydrogen gas. The gas is
flammable. Do not smoke or use an open
flame during this time.
W029
WARNING
To prevent personal injury, avoid contact
with inlet water temperatures higher than
125°Fahrenheit (51°Celsius) and hot
surfaces.
W748
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9
201932

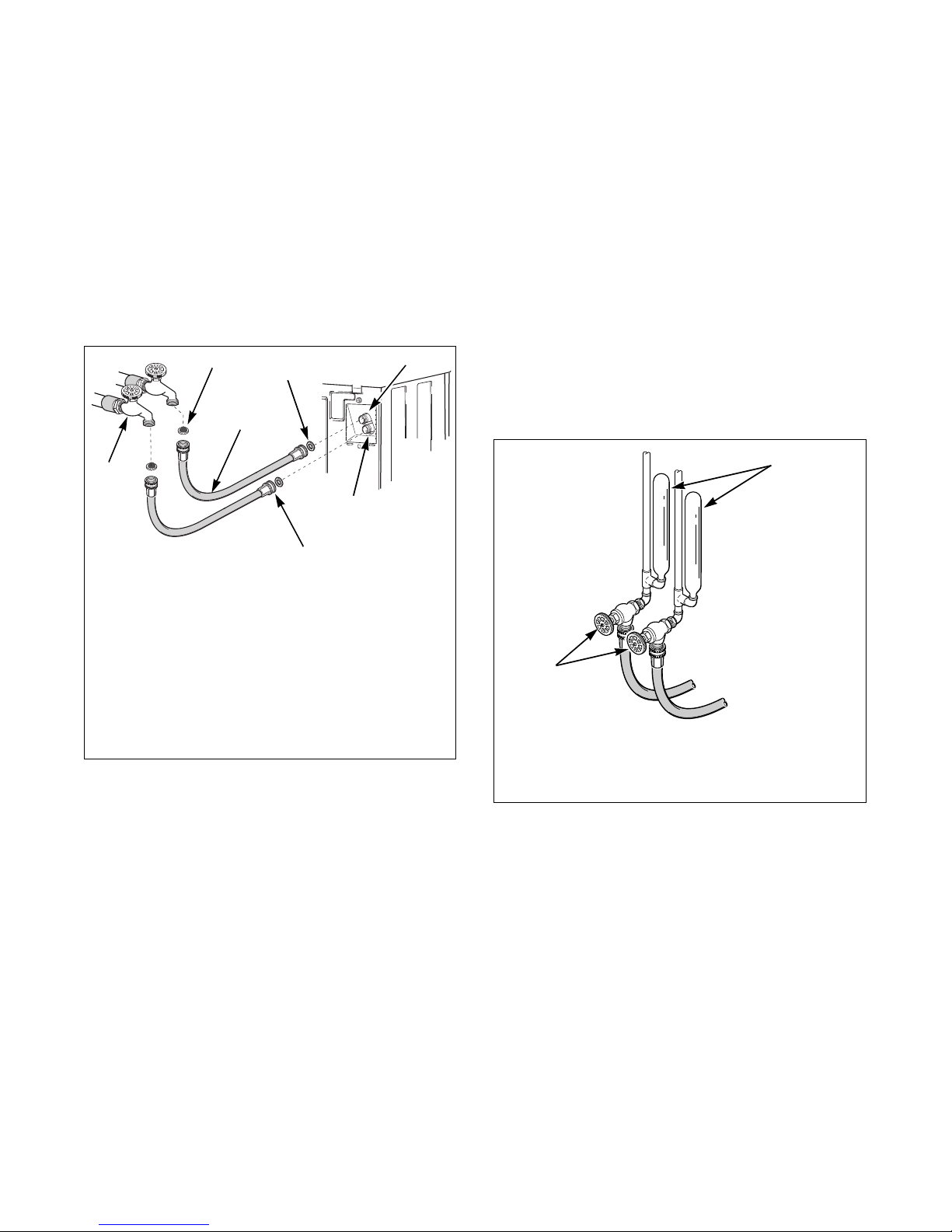

Connecting Hoses
Insert rubber washers and filter screens (from
accessories bag) in water fill hose couplings (two
hoses supplied with washer). Connect fill hoses to
water supply faucets. Then connect the hoses to the
hot and cold valve connections at the rear of the
washer. Refer to Figure 4. Thread hose couplings onto
valve connections finger tight. Then turn 1/4 turn with
pliers.
IMPORTANT: DO NOT cross thread or
overtighten couplings.
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer fill hoses are available (as optional
equipment at extra cost) if the hoses (supplied with
the washer) are not long enough for the
installation. Order hoses as follows:
No. 20617 Fill Hose (8 feet) (2.44 m)
No. 20618 Fill Hose (10 feet) (3.05 m)
Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets. Refer to Figure 5.
Figure 5
TLW1988N
1Filter Screen (Screen must be facing
outward)
2Fill Hose
3Rubber Washer (Plain)
4Cold Water Connection
5Hot Water Connection
6Hose Coupling
7Faucet
Figure 4
TLW1988N
HOT
COLD
C
H
2
13
4
5
6
7
W005I
1Risers (Air cushions)
2Water Supply Faucets
W005I
2
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
201932
10
Step 4: Connect Drain Hose to Drain
Receptacle
Drain Facilities
IMPORTANT: The drain hose installation is a very
important factor in the washer installation. If care
is not taken when the drain hose is installed, a
siphoning action can be started which will cause
water to be siphoned from the washer during the
cycle.
End of drain hose should never be in water as
siphoning action can be started that will cause
water to be siphoned back into the washer.
The curved end of drain hose MUST be installed
even with or above the height of the cabinet top of
the washer to prevent siphoning. Refer to Figure 6.
The standpipe or drain receptacle must be capable of
handling a minimum of 1-1/2 inches (3.8 cm) outside
diameter drain hose. The drain hose should fit loose
within the standpipe (it should not be snug fit). Never
install the drain hose into a “sealed” drain system as
air cannot escape and will restrict the water from being
drained from the washer. A sealed drain system may
also allow water to be pumped back into the washer
during agitation. Both of these conditions may result
in flooding of the washer.
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp.
If necessary, follow the instructions for your type of
drain receptacle (high standpipe or low standpipe) to
properly install the drain hose.
High Standpipe Installation
NOTE: No. 562P3 Siphon Break Kit and No. 25863
Hose Coupling are not required for this type of
installation.
Figure 7
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/2 inch (3.8 cm) outside
diameter drain hose.
W294I
1Drain Hose
2Standpipe
Figure 6
W294I
2
1
RECOMMENDED
STANDPIPE
HEIGHT
36 inches
MINIMUM
(91.44 cm)
W296I
1Drain Hose
2Cut Drain Hose off at This End to Fit the
Washer Installation
3Standpipe
{
W296I
3
1
MAXIMUM
STANDPIPE
HEIGHT NOT TO
EXCEED 5 feet
(1.5 m)
2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
11
201932

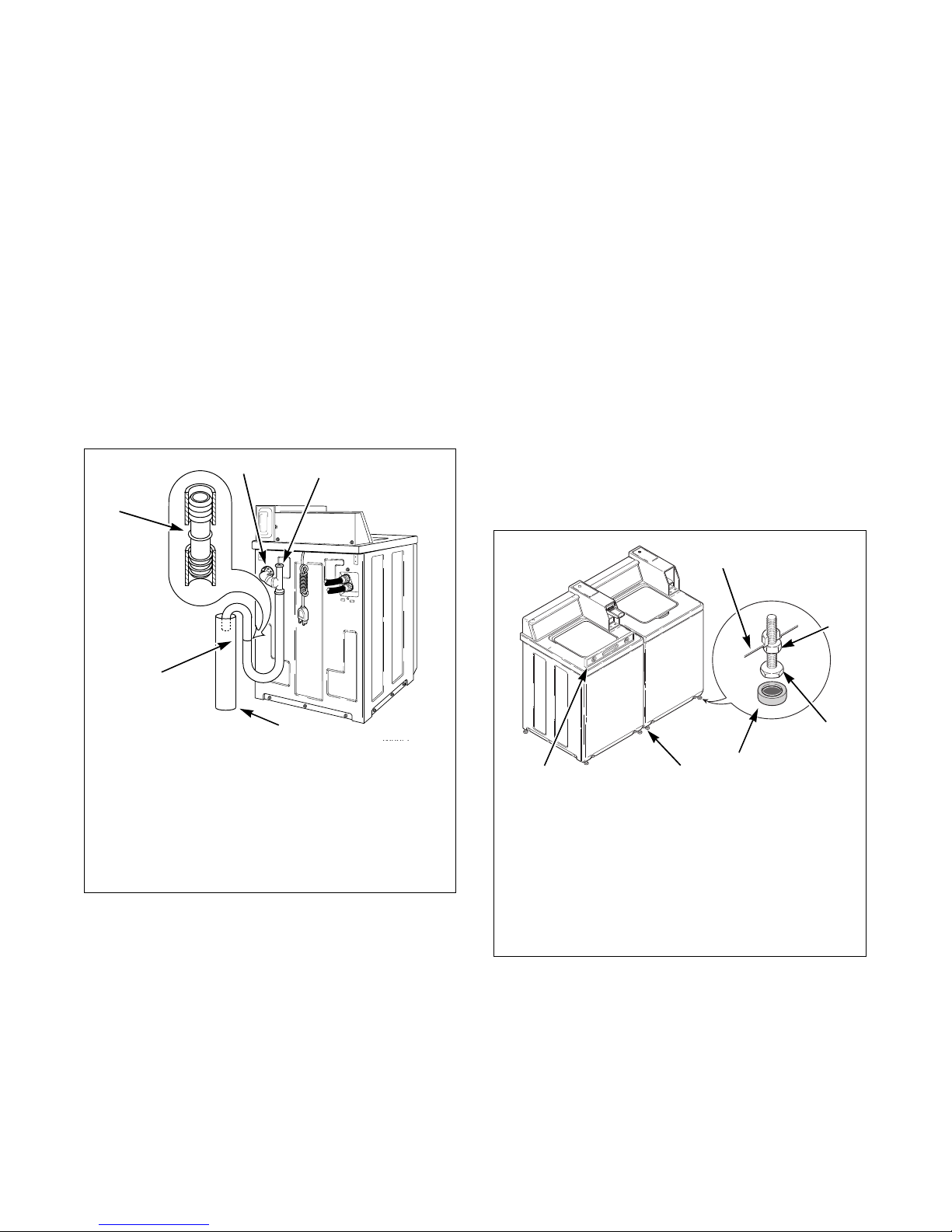

Low Standpipe Installation
If the drain facility is lower than the cabinet top, a
siphon break kit, Part No. 562P3, must be installed in
the drain hose to prevent siphoning action and drain
hose MUST be cut to fit the washer installation. Refer
to Figure 8. Use one No. 25863 Hose Coupling to
splice hose. The No. 562P3 Siphon Break Kit and No.
25863 Hose Coupling are available as optional
equipment at extra cost through an authorized dealer
or parts distributor. Installation instructions are
supplied with the kit.
OPTIONAL: Raise the standpipe to the recommended
height of 36 inches (91.44 cm).
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/2 inch (3.8 cm) outside
diameter drain hose.
Figure 8
Step 5: Position and Level the Washer
Position washer so it has sufficient clearance for
installation and servicing.
Place washer in position on a clean, dry, and
reasonably firm floor. Installing the washer on any
type of carpeting is not recommended.
Place rubber cups on all four leveling legs.
Place a level on the cabinet top and check if the
washer is level from side to side and front to back.
If washer is not level, tilt washer back to access the
front leveling legs. Loosen the locknuts and adjust legs
by screwing into or out of washer base.
Once adjusted, tilt the washer forward on front legs
and lower back down into position to set the rear self-
leveling legs.
Washer must not rock. After washer is at desired
height, tighten locknuts securely against bottom of
washer base. If these locknuts are not tight, washer
will not remain stationary during operation.
Improper installation or flexing of weak floor will
cause excessive vibration.
Do not slide washer across floor once the leveling legs
have been extended, as legs and base could become
damaged.
NOTE: For areas with uneven floors, a No. 566P3
Adjustable Rear Leg Extension Kit is available as
optional equipment at extra cost.
Verify that unit does not rock.
Figure 9
W295I
1Drain Hose Elbow
2562P3 Siphon Break Kit
3Standpipe
4Cut Hose in This Area and Install No. 25863
Hose Coupling
525863 Hose Coupling
W295I
{
2
1
5
4
3
TLW2053N
1Washer Base
2Locknut
3Leveling Leg
4Rubber Cup
51/2 inch (12.7 mm) Clearance Between
Washers
6Level
TLW2100N
1
3
2
54
6

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
201932
12
Step 6: Plug In the Washer
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding Plug)
NOTE: The wiring diagram is located in the
control hood.
When plugging in the washer:
DO NOT overload circuits.
DO NOT use an extension cord.
DO NOT use an adapter.
DO NOT operate other appliances on the same
circuit. Use separately fused 15 Amp circuits.
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current), circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 10
to determine correct polarity of the wall receptacle.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring, fuses and circuit breakers
installed by a qualified electrician to make
sure adequate electrical power is
available to the washer.
W518
WARNING
DRY2022N
1 L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral

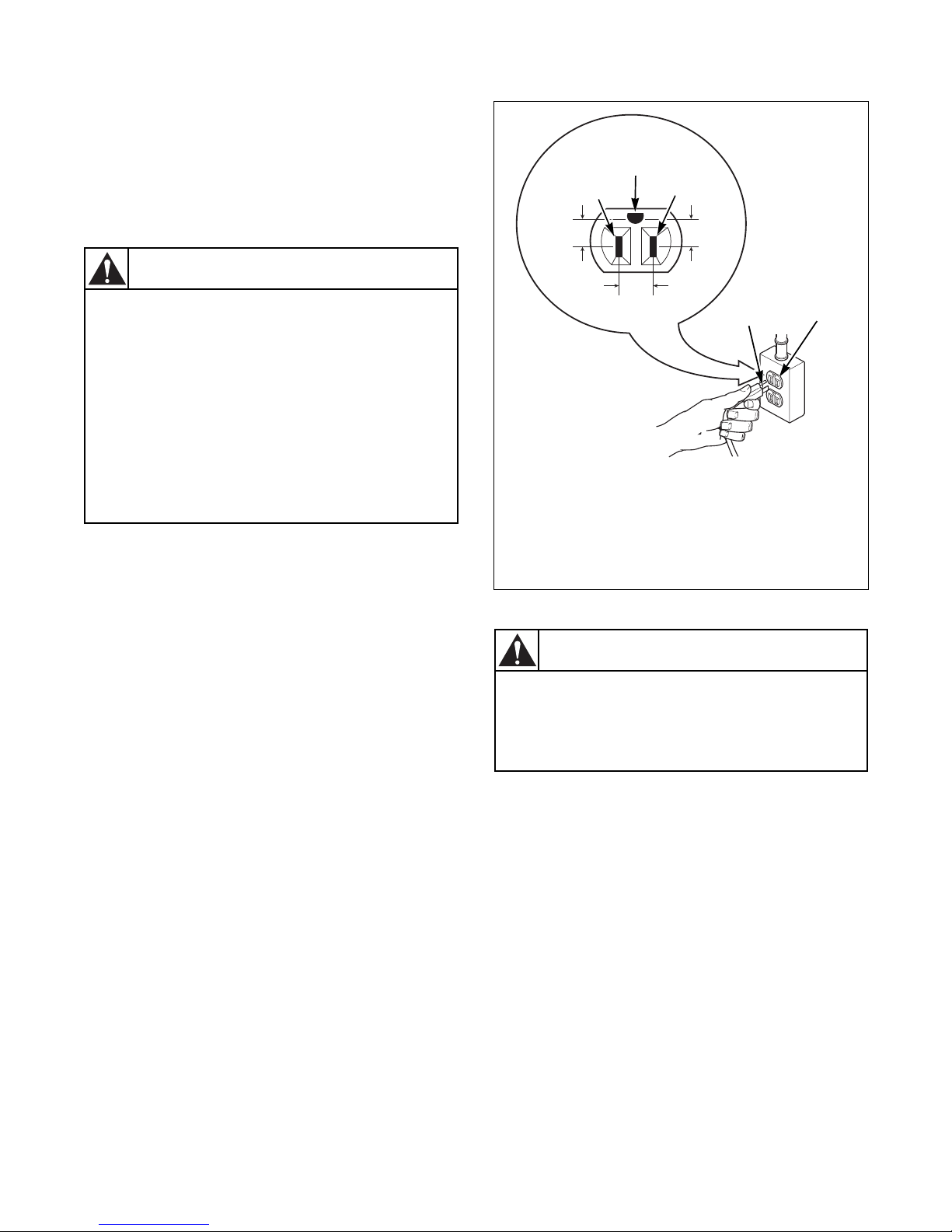

Figure 10
1
2
3
45
Standard 120 Volt, 60 Hertz
3-Wire Effectively
Grounded Circuit
0 V.A.C.
120±12
V.A.C.
120±12
V.A.C.
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
13
201932
Grounding Instructions
The washer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
The washer is equipped with a cord having an
equipment-grounding conductor and a three-prong
grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
DO NOT modify the plug provided with the
washer – if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
If the laundry room’s electrical supply does not
meet the above specifications and/or if you are
not sure the laundry room has an effective
ground, have a qualified electrician or your local
electrical utility company check it and correct
any problems.
Step 7: Add Water to the Washer
To prevent damage to pump, do not run washer before
adding at least one quart water to the tub. If the washer
is run before any water is added, the pump seal may
overheat, causing the pump to leak. Once installed, the
water retained in the drain system from the previous
cycle will provide sufficient cooling to prevent pump
seal damage.
NOTE: The agitator should not be removed except
for service. The washtub is designed to be self-
cleaning.
Figure 11
Step 8: Check Lid Switch
Washer should stop filling, agitating and spinning
when lid is opened.
Figure 12
Step 9: Check Installation
Refer to Installer Checklist on the back cover of this
manual and make sure that washer is installed
correctly.
Run washer through one complete cycle to make sure
it is operating properly.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is
properly grounded.
W327
WARNING
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W299
WARNING
TLW2056N
TLW1974N
TLW2056N
TLW1974N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
201932
14
Vending
Meter Case
The factory mounted coin meter case does not include
the service door lock, coin slide, coin drawer, coin
drawer lock or keys. These parts must be ordered (at
extra cost) according to the purchaser’s requirements
direct from the manufacturer of your choice.
NOTE: On models with standard capacity meter
case and high capacity meter case models starting
with Serial Nos. beginning 1010, you have the
option of using a screw type lock or a 1/4 turn lock
on the meter case service door. If you choose to use
a screw lock, then the special bracket (located
inside the meter case) must be used. DO NOT use
the special bracket if a 1/4 turn lock is used. High
capacity meter case models with Serial Nos.
beginning 0910 through 1010 use 1/4 turn lock only.
Coin Drawer Security (Models with Standard
Capacity Meter Case and High Capacity Meter
Case models starting with Serial Nos. beginning
1010 Only) – For additional security, drill out the two
pilot holes on each side of the front of the meter case
to 1/4 or 5/16 inch (6.4 or 7.9 mm) holes and install a
bicycle lock through these holes.
NOTE: An 8 in. (20.32 cm) coin drawer is required
for coin operated electronic control models with
standard capacity meter case and high capacity
meter case models starting with Serial Nos.
beginning 1010. High capacity meter case models
with Serial Nos. beginning 0910 through 1010
require a 7.21 in. (18.31 cm) coin drawer.
Slide Extension
(Coin Slide Models with Standard Capacity Meter
Case and High Capacity Meter Case models
starting with Serial Nos. beginning 1010 Only)
NOTE: High capacity meter case models with
Serial Nos. beginning 0910 through 1010 require a
coin slide with a switch installed on it.
1. Remove slide extension parts from parts
accessories bag included in unit.
2. If installing a Greenwald coin slide, position
extension lever (to be installed on extension
bracket) with arm that has one star facing down.
Refer to Figure 13.
3. If installing a Monarch or ESD coin slide,
position lever with arm that has two stars facing
down. Refer to Figure 13.
4. Install extension lever with rounded corner facing
away from extension bracket using bolt, one or
two flat washers (shims) (use number of washers
included in kit) and nut. Refer to Figure 14. Make
sure washers are flat against bracket.
5. Torque nut between 2 and 2.26 Nm (18 and 20
inch-pounds), or tighten nut firmly.
6. Install extension spring in bracket hole and hole in
upper arm of lever. Refer to Figure 14.
7. Bend loops closed after installation.
8. Check to make sure the lever swings freely.
TLW2088N

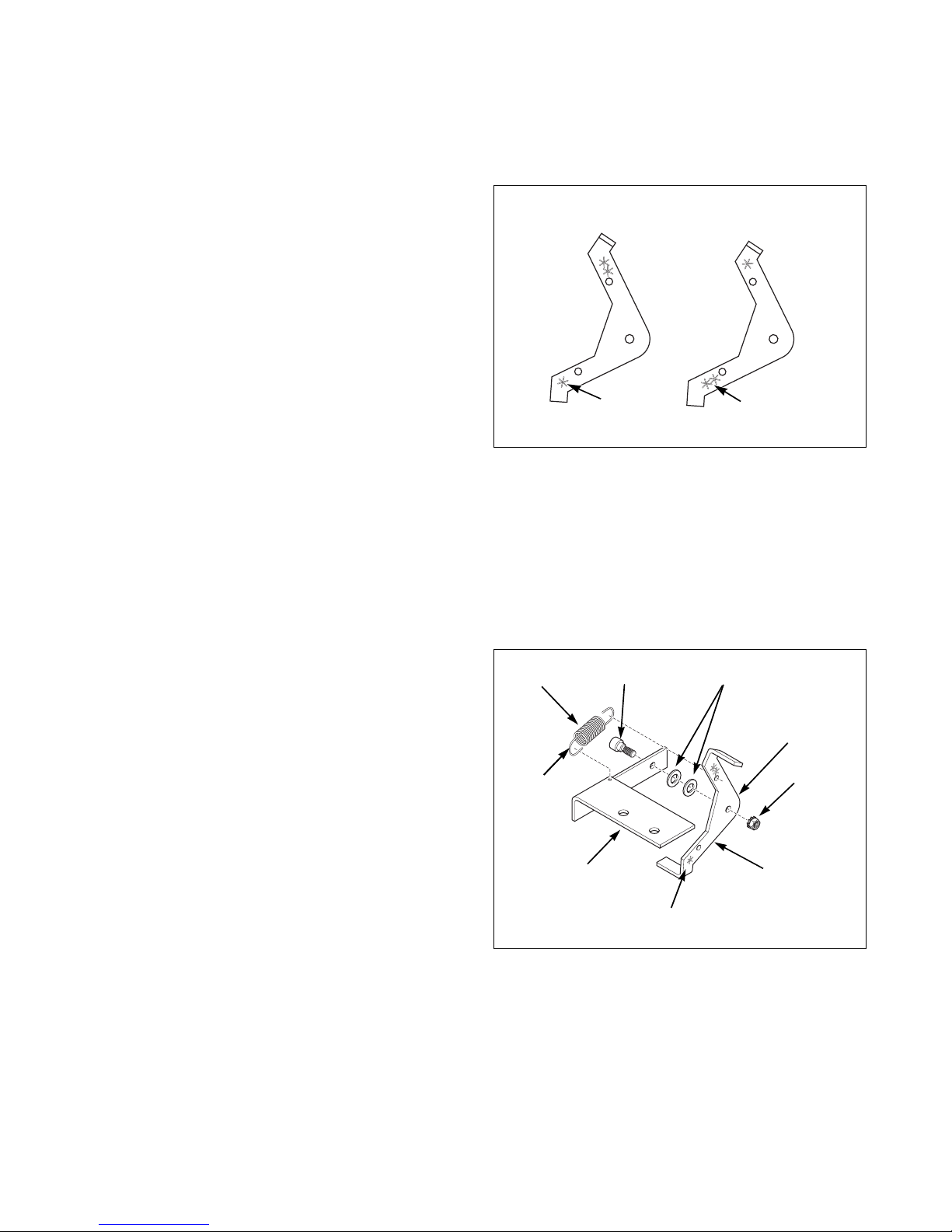

Figure 13
TLW2089N
Figure 14
Greenwald
Coin Slide
Monarch or
ESD Coin Slide
One Star Two Stars
TLW2089N
Extension Bracket
Spring Bolt One or Two
Flat Washers (Shims)
Nut
Extension Lever
Star(s) Facing Down
Loops
Rounded Corner

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
15
201932
Installing Extension Onto Coin Slide:
Option 1
1. Install slide extension onto top of coin slide using
two remaining screws and lockwashers. Refer to
Figure 15.
2. Insert coins and partially extend coin slide.
3. Insert coin slide on its side through meter case
opening. Then rotate 90 degrees to its proper
orientation.
4. Return coin slide and hook slide pins onto meter
case.
5. Continue coin slide installation according to
manufacturer’s instructions.
NOTE: During coin slide installation, make sure
activation lever is up and off the switch. Refer to
Figure 16.
6. Check to make sure coin slide is operating
properly by inserting coins and starting a cycle.
The IN USE light will turn on, or flash if it is
already on, to indicate proper operation.
Installing Extension Onto Coin Slide:
Option 2
1. Install coin slide according to manufacturer’s
instructions.
2. Insert coins into coin slide and slowly push slide
in. Stop before coins fall into coin box. This will
allow installing extension through meter case
service door opening.
3. Install slide extension onto top of coin slide using
two screws and lockwashers. Refer to Figure 15.
NOTE: Make sure extension lever is above switch
activation lever.
4. Check to make sure coin slide is operating
properly by inserting coins and starting a cycle.
The IN USE light will turn on, or flash if it is
already on, to indicate proper operation.
Models Prepped for Card Reader
The machine is shipped from the factory with the
Electronic Control Diagnostic Harness Assembly
unplugged. To avoid unauthorized manual
programming or vending, perform the following steps.
1. Open control panel. Refer to Figure 17.
2. Locate diagnostic harness on electronic control.
3. Plug connectors for “white/black” wire and “red/
blue” wire together.
Figure 17

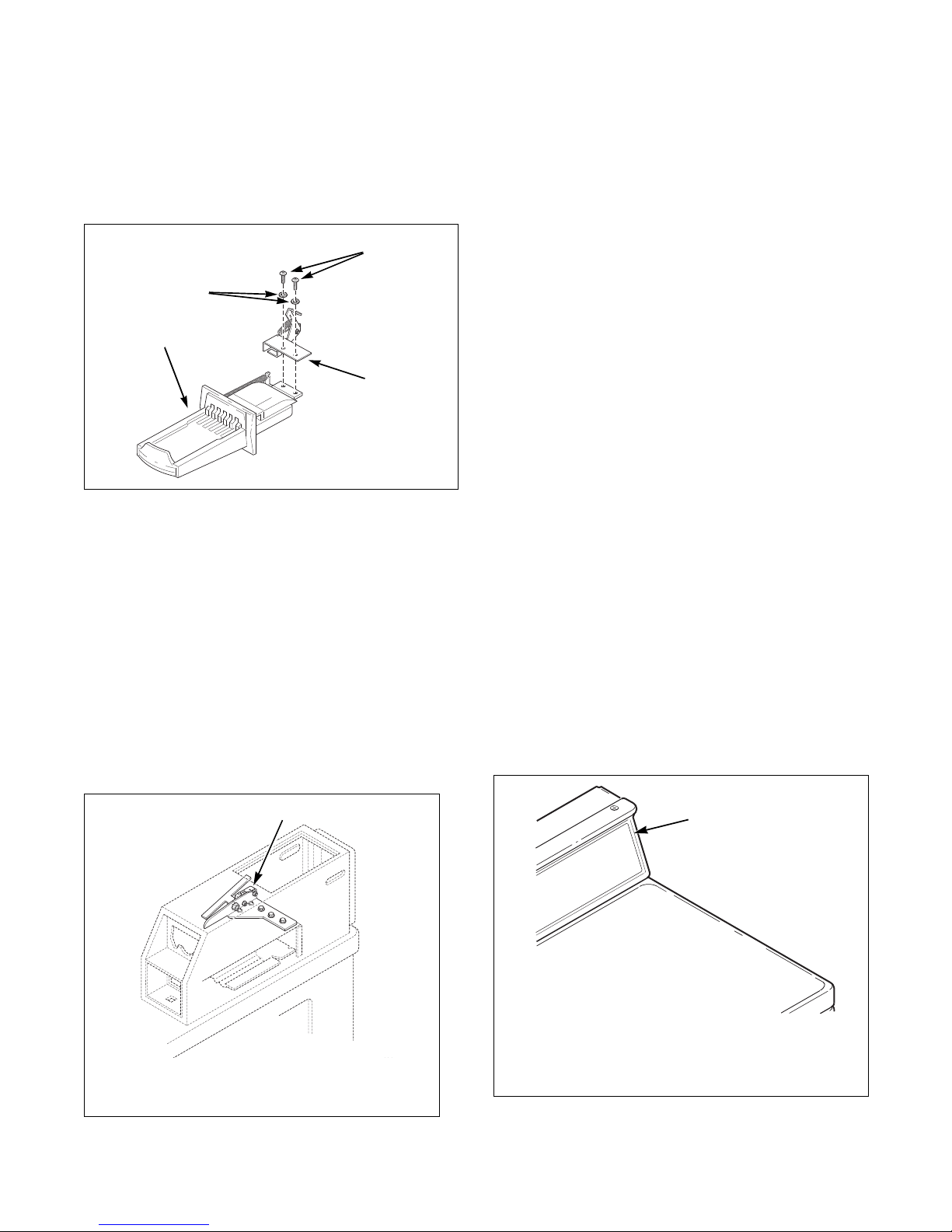

Figure 15
TLW2090N
1Lever Off Switch
Figure 16
Coin Slide
Slide
Extension
Attaching
Screws
Lockwashers
TLW1564K
TLW2090N
1
FLW6R
1Control Panel
FLW6R
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
201932
16

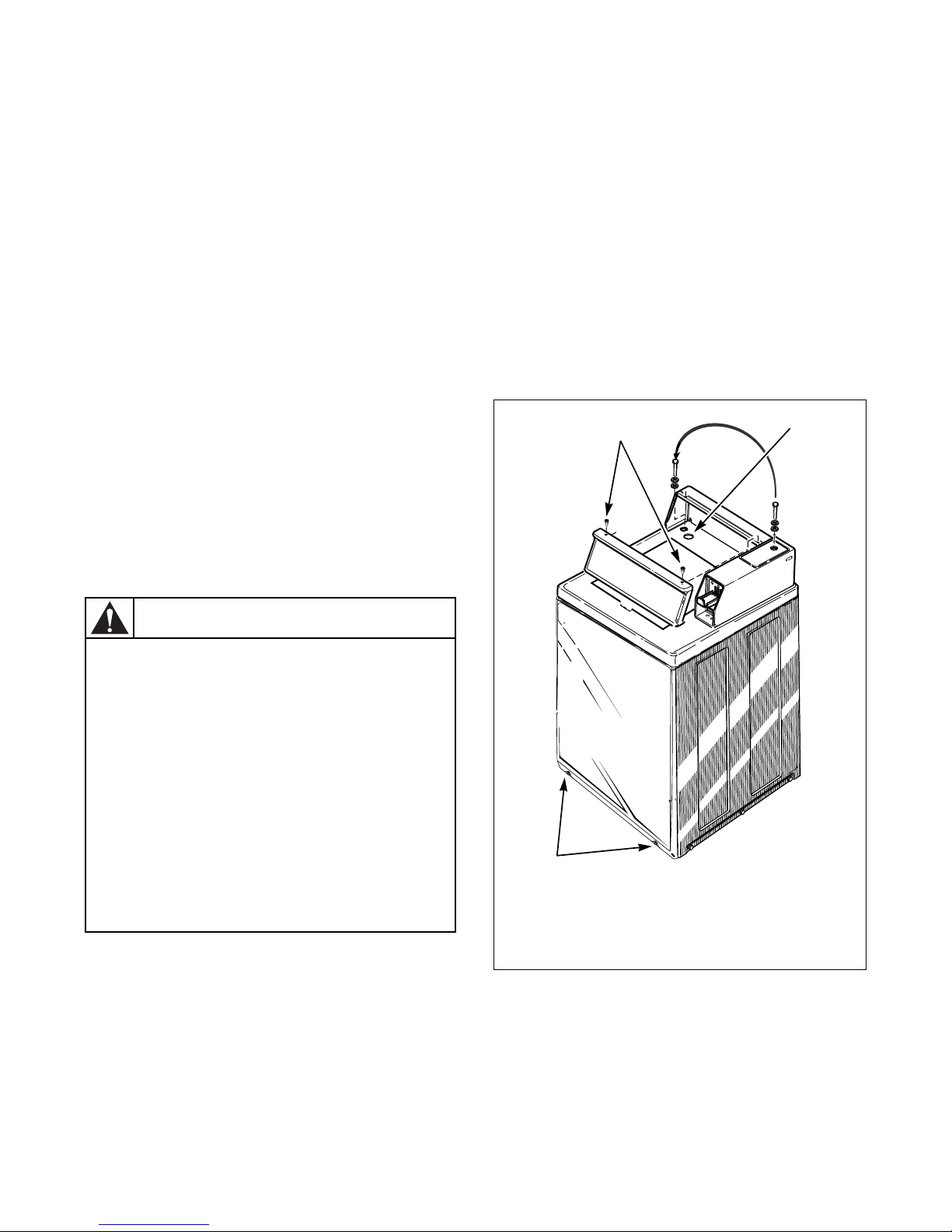

Additional Washer Security
(Coin Models Only)
Located on the service door of the washer is a flat
Phillips head screw. During shipment, this screw is
used to attach the service door to the meter case. For
additional security, this screw can be reinstalled inside
the control hood of your washer. Refer to instructions
below for installation.
Tamper-resistant screws also can be installed for
additional security. Tamper-resistant screws, bits and
bit holder are available as optional equipment at extra
cost. Part numbers are:
Bit (No. 8 screws) Part No. 281P4
Bit (No. 12 screws) Part No. 282P4
Bit Holder (3/8 drive) Part No. 24161
Control panel tamper-resistant screw Part No.
35528
Front panel tamper-resistant screw Part No.
35527
The following list is the procedure required to install
the Phillips head screw and tamper-resistant screws:
1. Remove the Phillips head screw from service
door (refer to Figure 18).
2. Remove two screws holding control panel to
control hood.
3. Tilt control panel forward and lay on a protective
pad to prevent scratching of cabinet top.
4. Insert Phillips head screw down through double
“D” hole in left rear corner of cabinet top (inside
control hood) until it engages retainer nut located
on left rear corner gusset of cabinet.
5. Finger tighten screw.
IMPORTANT: Do not use a power driver to tighten
screw. Torque of a power driver could over-tighten
screw causing damage to cabinet assembly.
6. Secure control panel to control hood using two
No. 8 tamper-resistant screws, Part No. 35528.
7. Remove two screws holding front panel to base
of washer and install two No. 12 tamper-resistant
screws, Part No. 35527.
Figure 18
To reduce the risk of electric shock, fire,
explosion, serious injury or death:
• Disconnect electric power to the washer
before servicing.
• Never start the washer with any guards/
panels removed.
• Whenever ground wires are removed
during servicing, these ground wires
must be reconnected to ensure that the
washer is properly grounded.
W003
WARNING
Any disassembly requiring the use of tools
must be performed by a suitably qualified
service person.
W299
W276I
135528 No. 8 Screws
2Double “D” Hole
335527 No. 12 Screws
W276I
2
1
3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
17
201932
Operation
Operation Instructions for Coin
Slide Operated and Nonmetered
Washers
IMPORTANT: Prior to first wash, use an all-
purpose cleaner or a detergent and water solution
and a damp cloth to remove shipping dust from
inside of washtub.
IMPORTANT: Remove all sharp objects from
laundry to avoid tears and rips to items during
normal machine operation.
Step 1: Add Detergent
Pour measured amount of detergent into washtub.
Refer to package directions.
NEVER POUR UNDILUTED BLEACH DIRECTLY
ON LAUNDRY. Follow package directions when
using bleach.
If desired, fabric softener may be added to rinse water
when RINSE light comes on.
Figure 19
Step 2: Load Laundry
Load dry clothes loosely into washtub – DO NOT
overload!
When washing large items such as shag rugs and
bedspreads, add several small items to balance wash
load.
Figure 20
Step 3: Close Lid
Washer will not operate with lid open.
Figure 21
W395I
W392I
W394I

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
201932
18
Step 4: Set Wash Temperature and Fabric/
Cycle Selector
One Speed Washers
NOTE: Wash temperature and cycle settings may
be changed any time before first wash fill is
complete.
Setting Wash Temperature/Cycle
Set at either *HOT/NORMAL, *WARM/PERM
PRESS, *COLD/SPECIAL, or HOT/NORMAL,
WARM/PERM PRESS, COLD/SPECIAL.
Settings with asterisk (*) are Energy Saving Cycles.
Figure 22
Two Speed Washers
NOTE: Wash temperature and fabric selector
settings may be changed any time before first wash
fill is complete.
Setting Wash Temperature
Set at HOT (COLD rinse), WARM (COLD rinse) or
COLD (COLD rinse).
Figure 23
Setting Fabric Selector
Set Regular loads at *NORMAL, *PERM PRESS,
NORMAL or PERM PRESS. Set Delicate loads at
*DELICATE or DELICATE.
Settings with asterisk (*) are Energy Saving Cycles.
Figure 24
TLW2045N
HOT
NORMAL
HOT
NORMAL
COLD
SPECIAL
WARM
PERM PRESS
WARM PERM PRESS
COLD
SPECIAL
ONE SPEED
WASHERS
TLW2046N
TLW2083N
TWO SPEED
WASHERS
WARM
HOT COLD
WASH TEMPERATURE
FABRIC SELECTOR
NORMAL
NORMAL
PERM PRESS
PERM PRESS
DELICATE
DELICATE
TLW2083N
TWO SPEED
WASHERS
