Washer-Extractors
Cabinet Hardmount Operating Instructions
Part No. F232145R7EN
December 2007
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
F232145 (EN) 1
Installation/Operation Supplement
Table of
Contents
Safety Information.............................................................................. 2
Important Safety Instructions ............................................................... 2
Specifications and Dimensions........................................................... 4
Gap Setting for Vibration Switch
(Variable-Speed and Fixed-Speed Models) ....................................... 7
Dimensional Clearances ....................................................................... 15
Dimensions ........................................................................................... 16
18, 20, 25, 27, 30, 35, 40, 50, 60 and 80 Models............................. 16
125 Model ........................................................................................ 18
Electrical Specifications ....................................................................... 19
Operation............................................................................................. 24
Instructions for EDC Control................................................................ 26
Instructions for Mechanical Timer ....................................................... 28
Instructions for S, P and V Series Microcomputers ............................. 30
Instructions for B Series Microcomputer ............................................. 32
Instructions for A Series Microcomputer ............................................. 34
Disposal of Unit ................................................................................... 36

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232145 (EN)
2
Installation/Operation Supplement
Safety Information
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in the
INSTALLATION Manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils,
dry-cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable; do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
3
F232145 (EN)
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer,
or attempt any servicing unless specifically
recommended in the user-maintenance instructions
or in published user-repair instructions that the
user understands and has the skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing clothes.
14. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the Installation
Instructions. All connections for water, drain,
electrical power and grounding must comply
with local codes and be made by licensed
personnel when required.
16. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc., or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
18. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
19. Replace worn power cords and/or loose plugs.
20. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
21. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT
bypass the loading door switch by permitting the
washer to operate with the loading door open.
22. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
23. Always follow the fabric care instructions
supplied by the textile manufacturer.
24. Never operate the washer with any guards
and/or panels removed.
25. DO NOT operate the washer with missing or
broken parts.
26. DO NOT bypass any safety devices.
27. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232145 (EN)
4
Installation/Operation Supplement
Specifications and Dimensions
2 Speed Models
Specification 18, 20 25 27, 30 35 40 50
Overall Dimensions
Overall width, in. (mm) 26
(660)
26
(660)
29
(737)
30-1/8
(765)
30-5/8
(778)
34-1/16
(865)
Overall height, in. (mm) 42-7/8
(1089)
45
(1143)
45-7/8
(1165)
47-1/4
(1200)
47-7/8
(1216)
50-13/16
(1291)
Overall depth, in. (mm) 29-13/16
(757)
33-7/8
(860)
34-13/16
(884)
38-1/2
(978)
40-3/16
(1021)
41-13/16
(1087)
Weight and Shipping Information
Net weight, lbs. (kg) 390
(177)
435
(198)
498
(226)
650
(295)
706
(321)
820
(373)
Domestic shipping weight, lbs.
(kg)
428
(194)
470
(214)
545
(245)
680
(309)
744
(338)
875
(398)
Domestic shipping volume, ft3
(m3)
28
(0.8)
33
(0.9)
35
(1.0)
39
(1.09)
42.6
(1.19)
53
(1.5)
Export shipping weight lbs., (kg) 480
(218)
530
(241)
588
(267)
760
(345)
846
(385)
1020
(464)
Export shipping volume, ft3(m3) 30.1
(0.86)
36.7
(1.03)
39.6
(1.11)
47.1
(1.32)
54.1
(1.51)
58.7
(1.67)
Wash Cylinder Information
Cylinder diameter,
in. (mm)
21
(533)
21
(533)
24
(610)
26-1/4
(667)
26-1/4
(667)
30
(762)
Cylinder depth, in. (mm) 13-3/4
(349)
18-3/4
(476)
16
(406)
18-3/8
(467)
20-1/4
(514)
20
(508)
Cylinder volume, ft3(l) 2.76
(78.1)
3.76
(106.5)
4.19
(118.6)
5.76
(163.1)
6.34
(180)
8.18
(231.6)
Perforation size, in. (mm) 0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
Perforation open area, % 17 17 23 17 17.5 18
Table 1 (Continued)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
5
F232145 (EN)
T
Table 1 (Continued)
2 Speed Models (Continued)
Specification 18, 20 25 27, 30 35 40 50
Door Opening Information
Door opening diameter,
in. (mm)
12
(305)
12
(305)
14-11/32
(364)
14-11/32
(364)
16-1/4
(413)
16-1/4
(413)
Height of door bottom above floor,
in. (mm)
14-3/8
(365)
14-3/8
(365)
14
(356)
16
(406)
14-1/2
(368)
13-1/2
(343)
Power Consumption
Average power used per cycle,
kW-hr
0.20 0.25 0.25 0.30 0.34 0.42
Average HVAC load, Btu/hr 425 400 400 510 510 700
Drive Train Information
Number of motors in drive train 1 1 1 1 1 1
Wash/reverse power, HP (kW) 0.18
(0.13)
0.25
(0.19)
0.25
(0.19)
0.40
(0.30)
0.40
(0.30)
0.55
(0.41)
High extract power, HP (kW) 1.0
(0.746)
1.4
(1.04)
1.4
(1.04)
1.8
(1.3)
1.8
(1.3)
2.7
(2.01)
Cylinder Speeds
Wash/reverse speed, RPM 53 55 47 47 47 44
High extract speed, RPM 525 540 480 470 470 450
Centrifugal Force Data
Wash/reverse centrifugal force, Gs 0.85 0.90 0.75 0.82 0.82 0.825
High extract centrifugal force, Gs 82.1 86.8 78.4 82.3 82.3 86.3
Table 1 (Continued)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
F232145 (EN)
6
Table 1 (Continued)
2 Speed Models (Continued)
Specification 18, 20 25 27, 30 35 40 50 60
Balance Detection
Vibration switch installed N/A N/A N/A N/A N/A N/A N/A
Direct Steam Heating (Optional)
Steam inlet connection size,
in. (mm)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
Numberofsteaminlets 1111111
Steam required to raise
bath water temperature
10°F (6°C)
LOW 1.05 (0.75) 1.4 (1.01) 1.44 (1.03) 2.06 (1.48) 2.09 (1.51) 2.76 (1.99) 2.76 (1.99)
HIGH 1.4 (1.01) 1.59 (1.15) 1.91 (1.37) 2.69 (1.94) 2.84 (2.04) 3.59 (2.59) 3.59 (2.59)
Average steam use per cycle,
bhp (kg)
0.71
(11.1)
0.87
(13.6)
0.97
(15.2)
1.4
(21.6)
1.43
(22.4)
1.84
(28.9)
1.84
(28.9)
Electrical Heating (Optional)
Total electrical heating capacity,
kW
7.8 7.8 7.8 15.6 15.6 23.4 23.4
Electrical heatingelements 3336399
Electrical heat element size, kW 2.6 2.6 2.6 2.6 5.2 2.6 2.6

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
7
F232145 (EN)
Gap Setting for Vibration Switch
(Variable-Speed and Fixed-Speed
Models)
After the machine has been properly installed, the
vibration switch gap must be measured before
conducting the Control Function Test. Locate the gap
found between the vibration switch and the machine
structure. Refer to Figures 1, 2, 3, 4and 5. To check
the gap setting of the switch, proceed as follows:
1. Remove the front panel on 18-50 models.
Remove the rear panel on 60-80 models. Remove
the top cover on the 125 model. The switch can
be seen inside the bottom right corner of the A-
frame, mounted on a bracket. Refer to Figures 1,
2, 3, 4and 5.
2. Measure the gap distance when the switch is in
both the open and closed positions. The
specifications should be at the minimum switch
gap setting when the switch is open and at the
maximum switch gap setting when the switch is
closed. If these distances are not correct, adjust
the balance switch to these specifications.
NOTE: The standard position of the switch is open,
or non-tripped.
3. Tighten nuts on switch extension after adjusting
the gap. Measure the gap distance to verify
accurate setting.
18, 20 27, 30 35 40 50 60 80 125
Switch gap
setting*
0.015-
0.025 in.
(0.38-
0.64 mm)
0.025-
0.035 in.
(0.64-
0.89 mm)
0.030-
0.040 in.
(0.76-
1.02 mm)
0.020-
0.030 in.
(0.51-
0.64 mm)
0.025-
0.035 in.
(0.64-
0.89 mm)
0.013-
0.015 in.
(0.20-
0.25 mm)
0.009-
0.011 in.
(0.23-
0.28 mm)
0.006-
0.008 in.
(0.15-
0.20 mm)
* Gap setting should be made with “GO-NO-GO” type feeler gauge. Lower value must not trip switch. Upper value must trip switch.
Table 2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
F232145 (EN)
8
Variable-Speed and Fixed-Speed Models
Specification 20 30 35 40 50 60 80 125
Overall Dimensions
Overall width, in. (mm) 26
(660)
29
(737)
30-1/8
(765)
30-5/8
(778)
34-1/16
(865)
34-1/16
(865)
41-1/2
(1054)
48
(1219)
Overall height, in. (mm) 42-7/8
(1089)
45-7/8
(1165)
47-1/4
(1200)
47-7/8
(1216)
50-13/16
(1291)
50-13/16
(1291)
56
(1422)
70-1/2
(1791)
Overall depth, in. (mm) 29-13/16
(757)
34-13/16
(884)
38-1/2
(978)
40-3/16
(1021)
42-13/16
(1087)
42-13/16
(1087)
51-5/8
(1311)
56-3/4
(1441)
Weight and Shipping Information
Net weight, lbs. (kg) 386
(175)
498
(226)
621
(282)
706
(321)
767
(348)
773
(350)
1406
(633)
2346
(1066)
Domestic shipping weight, lbs. (kg) 424
(191)
545
(245)
670
(301)
744
(338)
818
(371)
824
(373)
1456
(655)
2421
(1098)
Domestic shipping volume, ft3(m3)28
(0.8)
35
(1.0)
39
(1.09)
42.6
(1.19)
53
(1.5)
53
(1.5)
97
(2.7)
153
(4.3)
Export shipping weight, lbs. (kg) 476
(215)
588
(267)
731
(332)
846
(385)
967
(439)
1020
(463)
1506
(678)
2701
(1225)
Export shipping volume, ft3(m3) 30.1
(0.86)
39.6
(1.11)
47.1
(1.32)
54.1
(1.51)
58.7
(1.67)
58.7
(1.67)
109.5
(3.1)
173
(4.8)
Wash Cylinder Information
Cylinder diameter, in. (mm) 21
(533)
24
(610)
26-1/4
(667)
26-1/4
(667)
30
(762)
30
(762)
36
(914)
42
(1060)
Cylinder depth, in. (mm) 13-3/4
(349)
16
(406)
18-3/8
(467)
20-1/4
(514)
20
(508)
22
(559)
22
(559)
24
(609)
Cylinder volume, ft3(l) 2.76
(78.1)
4.19
(118)
5.76
(163.1)
6.34
(180)
8.18
(232)
9.00
(255)
12.96
(367)
19.24
(545)
Perforation size, in. (mm) 0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
Perforation open area, % 17 23 17 17.5 18 18 27 17
Door Opening Information
Door opening size, in. (mm) 12
(305)
14-11/32
(364)
14-11/32
(364)
16-1/4
(413)
16-1/4
(413)
16-1/4
(413)
18-1/2
(470)
20
(508)
Height of door bottom above floor, in. (mm) 14-3/8
(365)
14
(356)
16
(406)
14-1/2
(368)
13-1/2
(343)
13-1/2
(343)
17-3/4
(451)
29
(737)
Power Consumption
Average power used per cycle, kW-hr 0.05 0.07 0.20 0.34 0.37 0.21 0.40 0.60
Average HVAC load, Btu/hr 400 450 510 510 750 750 950 1200
Table 3 (Continued)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
9
F232145 (EN)
Table 3 (Continued)
Drive Train Information
Numberofmotorsindrivetrain 11111111
Drive motor power, HP (kW) 2
(1.5)
2
(1.5)
2
(1.5)
2
(1.5)
2
(1.5)
3
(2.2)
5
(3.7)
7.5
(5.6)
Cylinder Speeds
Gentlewash/reversespeed,RPM 2927262624242227
Wash/reversespeed,RPM 5248464743434037
Distributionspeed,RPM 8286737368776362
Low extract speed, RPM 366 343 328 328 307 307 280 260
Medium extract speed, RPM
(Not available on Electronic Control models.)
534 500 478 478 447 447 408 380
High extract speed, RPM 685 641 613 614 573 574 524 485
Centrifugal Force Data
Gentle wash centrifugal force, Gs 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.43
Wash/reverse centrifugal force, Gs 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Distribution centrifugal force, Gs 2 2 2 2 2 2 2 2
Low extract centrifugal force, Gs 40 40 40 40 40 40 40 40
Medium extract centrifugal force, Gs 85 85 85 85 85 85 85 85
High extract centrifugal force, Gs 140 140 140 140 140 140 140 140
Balance Detection
Vibration switch installed* Standard Standard Standard Standard Standard Standard Standard Standard
Direct Steam Heating (Optional)
Steam inlet connection size,
in. (mm)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
3/4
(19)
Numberofsteaminlets 11111111
Steam required to raise bath water
temperature 10°F (6°C), lbs. (kg)
LOW 0.62
(0.28)
0.92
(0.42)
2.1
(1.51)
2.09
(1.51)
2.8
(2.0)
3.6
(1.63)
4.1
(2.93)
6.8
(4.9)
HIGH 0.88
(0.4)
1.31
(0.6)
2.69
(1.96)
2.84
(2.04)
3.6
(2.59)
5.5
(2.49)
6.0
(4.34)
8.9
(6.4)
Average steam use per cycle, bhp (kg) 0.54
(8.3)
0.73
(11.3)
1.4
(21.6)
1.43
(22.4)
1.8
(28.9)
2.32
(36.4)
2.93
(45.9)
4.5
(71)
Electrical Heating (Optional)
Total electrical heating capacity, kW 7.8 7.8 15.6 15.6 23.4 23.4 31.2 N/A
Electrical heating elements 3 3 6 3 9 9 12 N/A
Electrical heat element size, kW 2.6 2.6 2.6 5.2 2.6 2.6 2.6 N/A
* Refer to Gap Setting for Vibration Switch (Variable-Speed and Fixed-Speed Models) section for specifications.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
F232145 (EN)
10

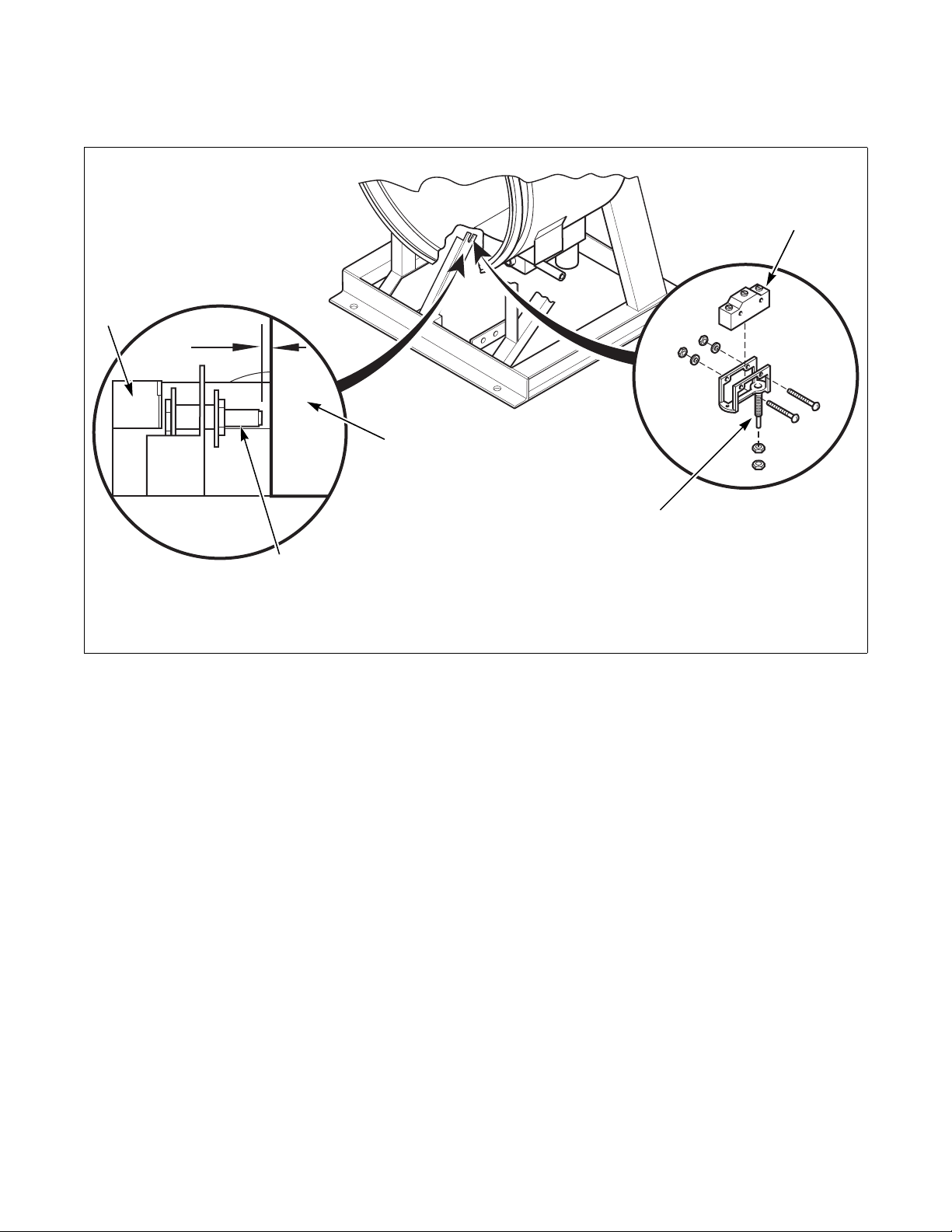

For 18, 20, 25, 27, 30 and 35 Pound
Capacity Machines
Figure 1
CHM1995N
1Sump 3Vibration Switch
2Gap Distance 4Switch Extension
CHM1995N
1
2
3
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
11
F232145 (EN)
For 40 and 50 Pound Capacity Variable-Speed
and Fixed-Speed Machines
Figure 2
CHM2000N
1Sump 3Vibration Switch
2Gap Distance 4Switch Extension
1
2
3
4
3
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
F232145 (EN)
12
For 60 Pound Capacity Variable-Speed and
Fixed-Speed Machines
Figure 3
CHM1999N
1Lower Bracket 4Balance Bolt
2Upper Bracket 5Lock Nut
3Vibration Switch 6Gap Distance
CHM1999N
6
2
2
4
3
5
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
13
F232145 (EN)
For 80 Pound Capacity Machines
Figure 4
CHM1998N
1Switch Extension 3Vibration Switch
2Gap Distance
CAB1998N
1
2
3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
F232145 (EN)
14
For 125 Pound Capacity Machines
Figure 5
CHM1993N
1Vibration Switch 3Switch Extension
2Gap Distance
1
2
3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
15
F232145 (EN)
Dimensional Clearances
U158M
Figure 6
U158M
AB
C
D
E
F
FRONT
Machine Capacity Dimensional Clearances
Dimensions 18, 20 25 27, 30 35 40 50 60 80 125
A2in.
(50 mm)
2in.
(50 mm)
2in.
(50 mm)
2in.
(50 mm)
2 in.
(50 mm)
2in.
(50 mm)
2 in.
(50 mm)
2in.
(50 mm)
24 in.
(600 mm)
B26 in.
(660 mm)
26 in.
(660 mm)
29 in.
(737 mm)
30-1/8 in.
(765 mm)
30-5/8 in.
(778 mm)
34-1/16 in.
(865 mm)
34-1/16 in.
(865 mm)
41-1/2 in.
(1054 mm)
48 in.
(1219 mm)
C1in.
(25 mm)
1in.
(25 mm)
1in.
(25 mm)
1in.
(25 mm)
1 in.
(25 mm)
1in.
(25 mm)
1in.
(25 mm)
1in.*
(25 mm)
12 in.
(300 mm)
D16-3/8 in.
(416 mm)
16-3/8 in.
(416 mm)
19-1/4 in.
(490 mm)
19-1/4 in.
(490 mm)
22 in.
(560 mm)
22 in.
(560 mm)
22 in.
(560 mm)
25 in.
(635 mm)
26-1/4 in.
(667 mm)
E25-5/8 in.
(650 mm)
29-7/16 in.
(705 mm)
30-1/2 in.
(775 mm)
34 in.
(864 mm)
36 in.
(914 mm)
37-1/2 in.
(953 mm)
38-3/4 in.
(984 mm)
51-5/8 in.
(1311 mm)
56-3/4 in.
(1441 mm)
F12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
18 in.
(457 mm)
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
24 in.
(610 mm)
24 in.
(610 mm)
*For 80 pound models intended for standard mounting, clearance should be 6 in. (150 mm).
Table 4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
F232145 (EN)
16
Dimensions
18, 20, 25, 27, 30, 35, 40, 50, 60 and
80 Models
CHM2019N
1Supply Dispenser 5Hot Water Inlet
2Input Power Block 6Extra Inlet Valve
3External Chemical Supply Signal Terminal Strip
(OPL only)
7External Chemical Supply Inlet (OPL only)
8Vacuum Breaker
4Cold Water Inlet 9Drain Outlet
Figure 7
CHM2019N
1234
6
5
7
8
9
A
B
C
D
F
E
G
HL
M
K
N
O
P
J
I
R
Q
S

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
17
F232145 (EN)
Machine Capacity Dimensions
Dimensions 18, 20 25 27, 30 35 40 50 60 80
A22-15/16 in.
(583 mm)
23 in.
(584 mm)
24 in.
(610 mm)
26 in.
(660 mm)
25-3/4 in.
(654 mm)
26-3/8 in.
(670 mm)
26-3/8 in.
(670 mm)
30-5/8 in.
(777 mm)
B17-1/4 in.
(438 mm)
17-1/4 in.
(438 mm)
17 in.
(432 mm)
19 in.
(483 mm)
18 in.
(457 mm)
18-1/4 in.
(464 mm)
18-1/4 in.
(464 mm)
21-5/8 in.
(549 mm)
C14-3/8 in.
(365 mm)
14-3/8 in.
(365 mm)
14 in.
(356 mm)
16 in.
(406 mm)
14-1/2 in.
(368 mm)
13-1/2 in.
(343 mm)
15 in.
(381 mm)
17-3/4 in.
(451 mm)
D26 in.
(660 mm)
26 in.
(660 mm)
29 in.
(737 mm)
30-1/8 in.
(765 mm)
30-5/8 in.
(778 mm)
34-1/16 in.
(865 mm)
34-1/16 in.
(865 mm)
41-1/2 in.
(1054 mm)
E25-5/8 in.
(650 mm)
30 in.
(762 mm)
30-5/8 in.
(775 mm)
34 in.
(864 mm)
36 in.
(914 mm)
37-3/4 in.
(959 mm)
38-3/4 in.
(984 mm)
48 in.
(1219 mm)
F29-13/16 in.
(757 mm)
34-3/16 in.
(868 mm)
34-13/16 in.
(884 mm)
38-1/8 in.
(968 mm)
40-3/16 in.
(1021 mm)
41-13/16 in.
(1062 mm)
42-13/16 in.
(1087 mm)
51 in.
(1295 mm)
G0001-1/8in.
(29 mm)
1/2 in.
(13 mm)
1/2 in.
(13 mm)
1/2 in.
(13 mm)
1/2 in.
(13 mm)
H42 in.
(1062 mm)
45 in.
(1143 mm)
45 in.
(1143 mm)
47 in.
(1194 mm)
47 in.
(1194 mm)
49-15/16 in.
(1268 mm)
49-15/16 in.
(1268 mm)
56 in.
(1422 mm)
I12-1/2 in.
(318 mm)
12-1/2 in.
(318 mm)
15-1/4 in.
(387 mm)
14-1/4 in.
(362 mm)
15-7/16 in.
(392 mm)
20-3/4 in.
(527 mm)
20-3/4 in.
(527 mm)
22-1/4 in.
(572 mm)
J11-1/2 in.
(292 mm)
11-1/2 in.
(292 mm)
14-3/4 in.
(375 mm)
10-13/16 in.
(275 mm)
14-7/16 in.
(367 mm)
19-3/4 in.
(502 mm)
19-3/4 in.
(502 mm)
14-7/16 in.
(378 mm)
K3-1/2 in.
(89 mm)
3-1/2 in.
(89 mm)
3-3/4 in.
(95 mm)
2-3/4 in.
(70 mm)
3-13/16 in.
(97 mm)
3-1/2 in.
(89 mm)
3-1/2 in.
(89 mm)
3-7/16 in.
(87 mm)
L34-1/2 in.
(876 mm)
37-1/2 in.
(952 mm)
37-11/16 in.
(957 mm)
40-1/8 in.
(1020 mm)
39 in.
(990 mm)
41-1/2 in.
(1054 mm)
41-1/2 in.
(1054 mm)
44-1/2 in.
(1130 mm)
M5-3/4 in.
(146 mm)
5-3/4 in.
(146 mm)
5-7/8 in.
(149 mm)
7-5/16 in.
(186 mm)
5-1/2 in.
(140 mm)
6-7/16 in.
(163 mm)
6-7/16 in.
(163 mm)
6-3/8 in.
(162 mm)
N4-1/2 in.
(114 mm)
4-1/2 in.
(114 mm)
4in.
(102 mm)
4-3/4 in.
(121 mm)
4-3/4 in.
(121 mm)
5in.
(127 mm)
5in.
(127 mm)
5-3/4 in.
(146 mm)
O2in.
(51 mm)
2in.
(51 mm)
2in.
(51 mm)
2in.
(51 mm)
3 in.
(76 mm)
3in.
(76 mm)
3in.
(76 mm)
3in.
(76 mm)
P36-3/16 in.
(919 mm)
39-3/16 in.
(995 mm)
38-15/16 in.
(989 mm)
41-15/16 in.
(1064 mm)
42-1/8 in.
(1070 mm)
43-3/16 in.
(1097 mm)
43-3/8 in.
(1102 mm)
42-3/4 in.
(1086 mm)
Q38-1/2 in.
(978 m)
41-1/2 in.
(1054 mm)
41 in.
(1041 mm)
41-15/16 in.
(1064 mm)
43-3/16 in.
(1097 mm)
45-1/2 in.
(1156 mm)
45-1/2 in.
(1156 mm)
50 in.
(1270 mm)
R1-3/16 in.
(30 mm)
1-3/16 in.
(30 mm)
1-3/16 in.
(30 mm)
1-3/16 in.
(30 mm)
1-3/16 in.
(30 mm)
1-3/16 in.
(30 mm)
1-3/16 in.
(30 mm)
1-3/16 in.
(30 mm)
S3 in.
(76 mm)
3 in.
(76 mm)
3 in.
(76 mm)
3 in.
(76 mm)
3 in.
(76 mm)
3 in.
(76 mm)
3 in.
(76 mm)
3 in.
(76 mm)
Tabl e 5

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
F232145 (EN)
18
125 Model
B023I
1Dry Chemical Dispenser (Optional) 5Liquid Chemical Inlet
2Cold Water Inlet 6Steam Inlet (Optional)
3Extra Water Inlet (Optional) 7Drain Outlet
4Hot Water Inlet
Figure 8
I
B023I
H
P
5
7
3
1
2
6
J
A
B
C
DEFGQ
4
R
S
T
KL
NO
M
Machine Capacity Dimensions
A1016 mm (40 in.)K1041 mm (41 in.)
B768 mm (30.12 in.)L978 mm (38.5 in.)
C737 mm (29 in.)M851 mm (33.5 in.)
D203 mm (8 in.)N756 mm (29.75 in.)
E1219 mm (48 in.)O610 mm (24 in.)
F1283 mm (50.5 in.)P330 mm (13 in.)
G1422 mm (56.75 in.)Q124 mm (4.88 in.)
H25 mm (1 in.)R1622 mm (63.88 in.)
I1791 mm (70.5 in.)S1648 mm (64.88 in.)
J1130 mm (44.5 in.)T1692 mm (66.63 in.)
Tabl e 6
