Alliance Laundry Systems UW35PV Series User manual

Programming
www.comlaundry.com
Washer-Extractor
Pocket Hardmount
Vari a b le - S pee d
WE-6 Control
MC010J
Part No. F232210
August 2004
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2004, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
F232210 1
Table of
Contents
Introduction......................................................................................... 3
Model Identification ............................................................................. 3
Nameplate Location.............................................................................. 3
Customer Service.................................................................................. 3
Introduction........................................................................................... 5
LED Display .................................................................................... 5
Simulator.......................................................................................... 5
Safety Information.............................................................................. 7
Explanation of Safety Messages........................................................... 7
Important Safety Instructions ............................................................... 7
Programming ...................................................................................... 9
Keypad Identification ........................................................................... 9
Entering Program Mode ....................................................................... 9
Setup Mode........................................................................................... 10
To Enter Setup Mode ....................................................................... 11
Programming Tutorial .......................................................................... 14
Programming Hints............................................................................... 17
Test Cycle ............................................................................................. 17
Wet Clean Testing............................................................................ 18
Manual Mode Control Feature.............................................................. 18
Auxiliary Connections ..................................................................... 19
Balance Timing Sequence for Information on
Preprogrammed Cycles ...................................................................... 19
Cycle Programming .............................................................................. 20
Displaying a Cycle in Memory ........................................................ 20
Editing a Cycle................................................................................. 21
Erasing a Cycle in Memory ............................................................. 22
Programming a Wet Clean Cycle .................................................... 22
Step Programming ................................................................................ 22
Programming a Fill without Spray................................................... 22
Programming a Fill Temperature..................................................... 22
Programming a Supply Step – Models with 8 Supplies .................. 24
Programming Heat ........................................................................... 27
Programming a Wash Step............................................................... 27
Programming a Wash 5 Thermal Cool-down .................................. 28
Programming No Reversing ............................................................ 29
Programming a Soak Step................................................................ 29
Programming a Drain Step............................................................... 30
Programming a Flush Step............................................................... 30
Programming a Reuse Drain Step with Third Party Water
Reuse System ................................................................................. 30
Programming a Fill through Auxiliary Fill Valve with
Third Party Water Reuse System ................................................... 31
Programming a Spin Step ................................................................ 31
Spins................................................................................................. 32
Stop Routine..................................................................................... 32
Programming a Spray Rinse Step .................................................... 32
Auxiliary .......................................................................................... 33

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
2F232210
Balance Detection................................................................................. 34
Balance Switch Detection ................................................................ 34
Simulator Operation and Program Transfer ......................................... 35
Simulator Operation......................................................................... 35
Transferring All Cycles from Computer to Simulator..................... 37
Transferring One Cycle from Computer to Simulator..................... 37
Transferring All Cycles from Simulator to Computer..................... 37
Transferring One Cycle from Simulator to Computer..................... 38
Preprogrammed Cycles......................................................................... 38
Cycle Categories .............................................................................. 39
Standard Supply Legend .................................................................. 39
Standard Cycle Charts...................................................................... 40

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 3
F232210
Introduction
Model Identification
Information in this manual is applicable to these
models:
* This manual applies to models with U5, U6, U7 or U8 in the
8th and 9th, or 9th and 10th positions in the model number
(e.g., UW60PVXU80001).

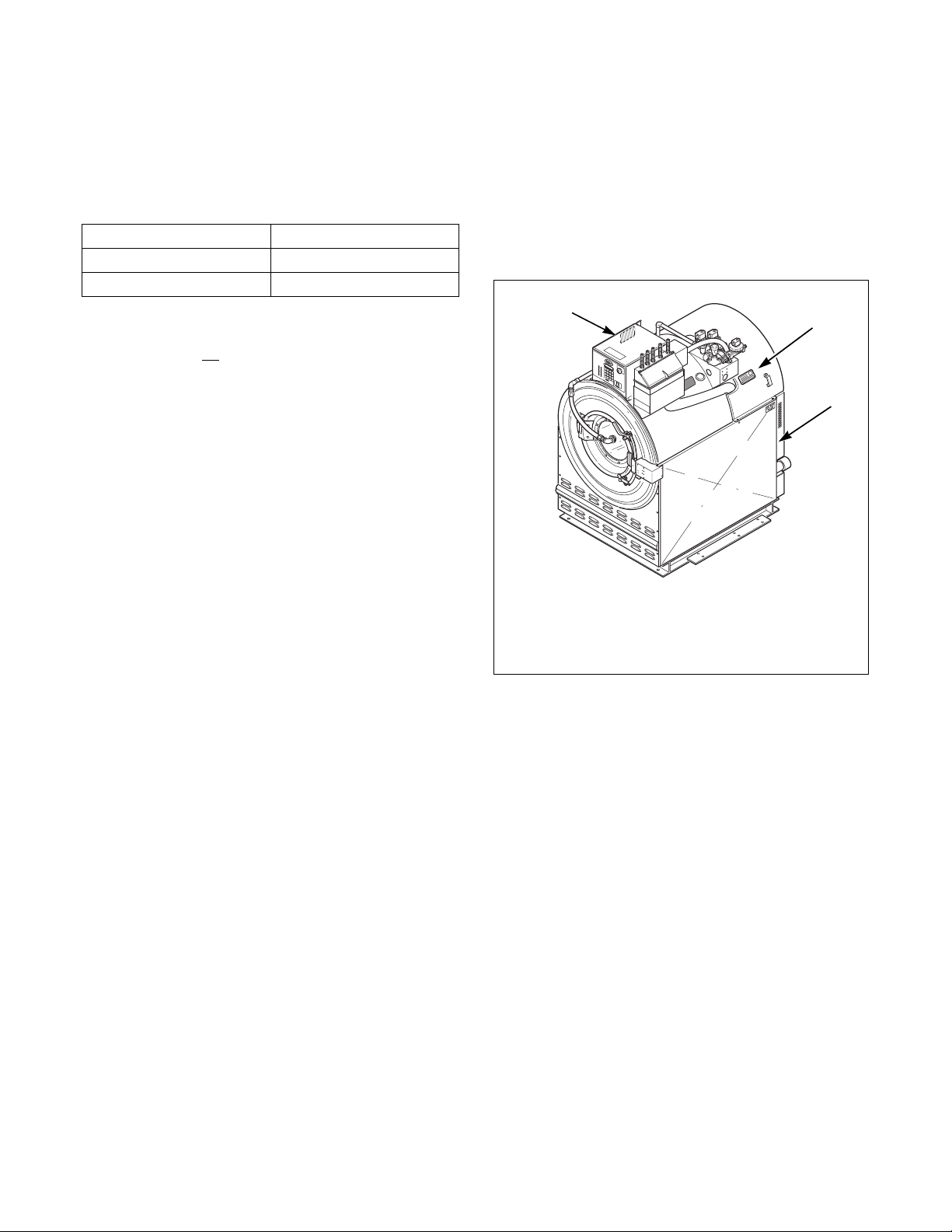

Nameplate Location
The nameplate is located above supply valve box,
below inverter exhaust fan and at top of module.
Always provide the machine’s serial number and
model number when ordering parts or when seeking
technical assistance. Refer to Figure 1.
Figure 1
Customer Service
For technical assistance, contact your local distributor
or call:
[phone]
Ripon, Wisconsin
A record of each washer-extractor is on file with the
manufacturer. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assitance. Refer to Figure 1.
UW35PV* UW100PV*
UW60PV* UW125PV*
UW80PV*
PHM586N
1Near Supply Valves
2Below Inverter Exhaust Fan
3Top of Module
PHM586N
¨
P
U
S
H
1
2
3

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Introduction
F232210
4

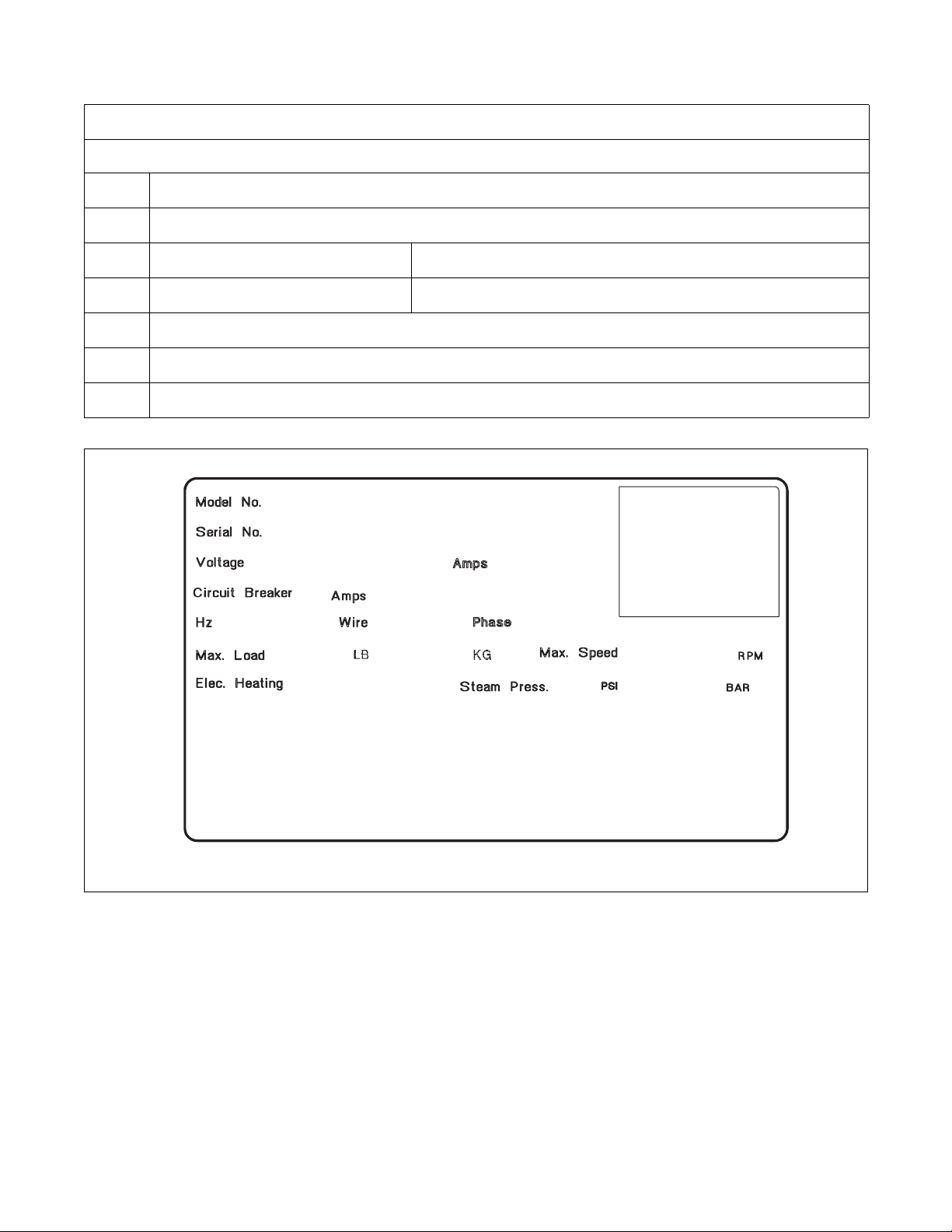

Figure 2
Model Number Familiarization Guide
Sample Model Number: UW60PVXU80001
UW Model Number Prefix
60 Washer-Extractor Capacity (pounds dry weight of laundry)
PType of Electrical Control P = WE-6 Control
VWasher-Extractor Speed Capabilities V = 7 Speeds
XElectrical Characteristics
U8 Design Series
0001 Option Identification (varies from machine to machine)
PHM533R
PHM533R
UW60PVXU80001
00000000000
200 –240
50 –60 2/3 1/3
20
60 27 813
N/A N/A 0.0
14
ETL Listed
Conforms To ANSI/UL Std. 1206, 3rd Ed
Certified To CAN/CSA Std. C22.2 No.53-1968
Drawings:
EXAMPLE OF NAMEPLATE

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Introduction
5
F232210
Introduction
The WE-6 control is a field-programmable solid-state
control capable of storing and running up to 39
preprogrammed ready-to-use cycles. A detailed
description of these cycles can be found in the
Standard Cycle Charts section.
Never turn the power off while the control mode
switch is in the PROGRAM position. Such action will
disorder portions of the programmed data,
necessitating reprogramming of some or all of the
existing cycles. Always return the mode switch to
RUN position before turning the power off.
Never leave the mode switch key inserted in the switch
lock where it may be accessible to unauthorized
personnel not familiar with programming procedures.
The control in this washer-extractor is continuously on
the alert for problems within the machine. When the
control detects a problem, it immediately flashes a
letter or number or both on the display. It may activate
the signal buzzer as well.
LED Display
The WE-6 control has a six-digit LED display.
References to display indications pertain to the first
four digits of the display reading left to right. The last
two digits on the right side of the display will indicate
either the last cycle used or the current cycle in
progress. Refer to Figure 3.
Figure 3
Table 2 lists the various displays and what they mean.
Simulator
A simulator, available at extra cost, is an optional
accessory that allows the user to preprogram cycles for
all WE-6 control washer-extractors in a facility. The
information is preprogrammed into the simulator, the
simulator is connected to the washer-extractor needing
updates a, and the preprogrammed information is
downloaded into the WE-6 control on the washer-
extractor.
MC007A
1Function Being Executed
2Step Number
3Cycle Number
1
2
3

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT F232210
6

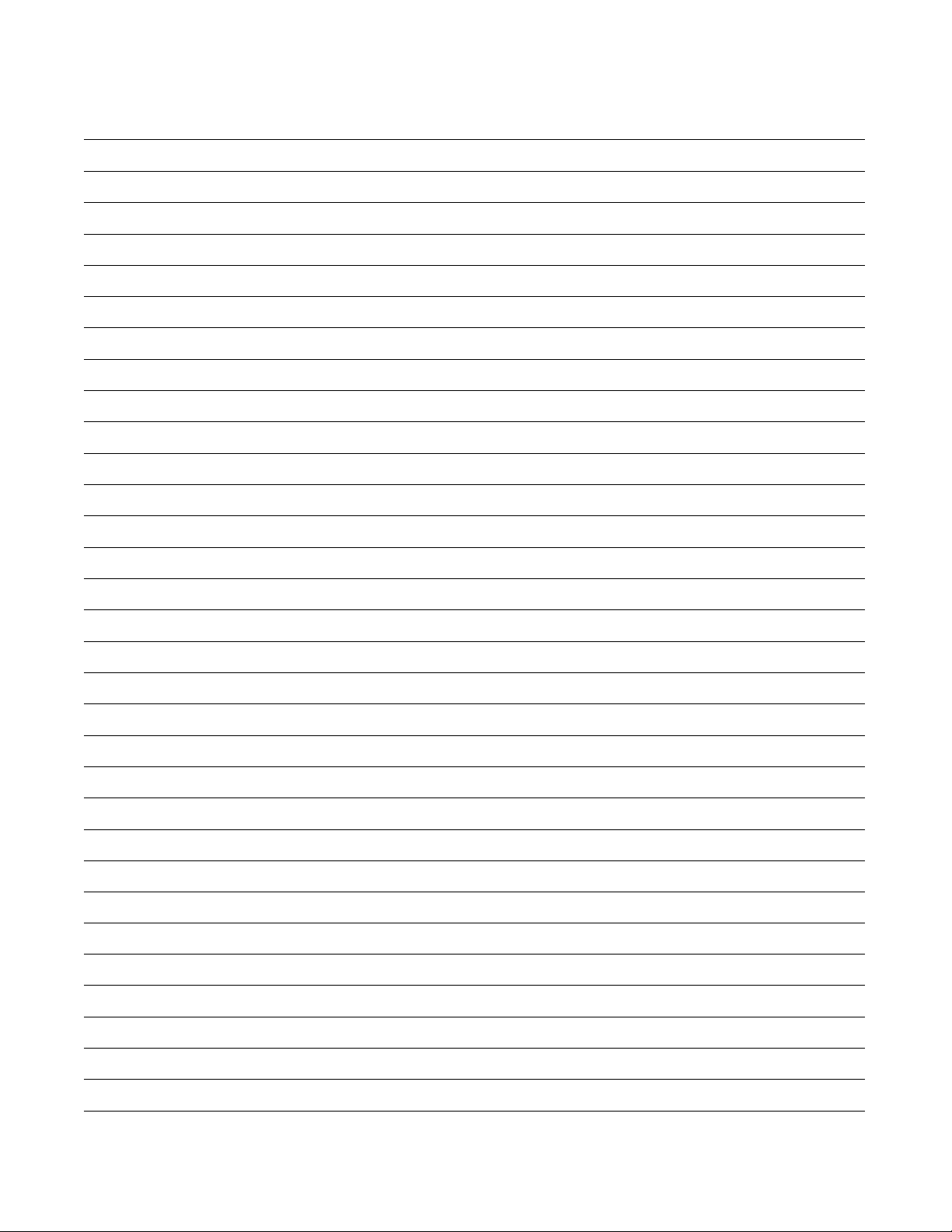

Notes

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 7
F232210
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,”“WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Safety Information
F232210
8
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing textiles.
14. Never wash machine parts or automotive parts in
the machine. This could result in serious damage
to the basket.
15. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
16. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
17. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc., or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
18. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
20. Replace worn power cords and/or loose plugs.
21. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
22. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
24. Always follow the fabric care instructions
supplied by the textile manufacturer.
25. Never operate the washer with any guards and/or
panels removed.
26. DO NOT operate the washer with missing or
broken parts.
27. DO NOT bypass any safety devices.
28. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 9
F232210
Programming
Keypad Identification
Figure 4
All sixteen keypads are used in Program Mode.
Specific functions are printed in red on keypads.
Keypad 1–6 and Auxiliary/No Reverse keypad are
dual function keypads in Program Mode. In each
instance (with exception of Warm/High keypad), when
a keypad is first pressed in a programming step, the
word printed at top of keypad applies. In most
instances, the next time same keypad is pressed or if
another keypad has already been pressed in
programming a step, the word printed on bottom of
keypad applies.
Entering Program Mode
NOTE: Machines are factory programmed with
basic cycles to make the units operational without
programming at installation.
1. Locate key-operated programming switch on left
side of control module, viewed from front.
2. Insert key and turn switch to PROGRAM
position.
3. Display will read “CY00.”
MC010J

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
F232210
10
Setup Mode
NOTE: Enter Setup Mode while in Program Mode.
Refer to Entering Program Mode section.
In Setup Mode, prompting the WE-6 allows the
following options:
•Displaying sump temperature in Centigrade or
Fahrenheit (FAr or CEN).
•Recognizing and controlling one or two
independent drains. (Two independent drains will
apply only for special applications.)
•Enabling or disabling Advance keypad in Run
Mode.
•Enabling or disabling Manual Mode.
•Enabling or disabling wet clean functions (affects
Auxiliary 1 and 2 outputs).
•Selecting balancing routine (active if inverter
balance detection is utilized).
•Selecting machine model.
•Reading or resetting cycle count.
NOTE: Machine comes from manufacturer with
WE-6 control set up for use with machine in which
it is installed. If control needs to be reset, refer to To
Enter Setup Mode.
IMPORTANT: WE-6 control must be configured
for washer-extractor in which it is installed. Failure
to set up control for proper machine may cause
control to malfunction and void warranty.
IMPORTANT: Once WE-6 control has been
through model Setup Mode one time, it will store
machine model configuration information in
control memory and never display “SETUP”again.
It is very important that WE-6 control PC board,
or the socketed chips in this PC board are NEVER
removed from one washer and installed in another
washer without first updating and verifying model
configuration as described in instruction. Warranty
will be void if not set up properly.
IMPORTANT: DO NOT install an earlier version
WE-6 control board. THIS WILL CREATE
HAZARDOUS CONDITIONS FOR OPERATOR
AND VOID WARRANTY. Contact Alliance
Laundry Systems for additional details and
information regarding free replacement of old
control boards.
IMPORTANT: WE-6 door lock circuit MUST NOT
allow entry into door until basket has come to a
complete stop.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
11
F232210
To Enter Setup Mode
1. Enter Program Mode. Refer to Entering
Program Mode section.
2. Press Auxiliary keypad, 2 keypad, and 9 keypad
in that order. Display shows either “CEN”(for
degrees shown in Centigrade) or “FAr”(for
degrees shown in Fahrenheit).
3. Press Enter keypad.
4. Display shows either “1DRAIN”or “2DRAIN.”
The normal prompt for most applications is
“1DRAIN.”“2DRAIN”is used only for special
applications. Consult manufacturer for full
details. To choose alternate feature, press 0
keypad.
NOTE: Enabling second drain via Auxiliary 2
output precludes control of recirculation pump and
is not necessary for Premium Wet Clean Module.
5. Press Enter keypad.
6. When desired drain is displayed display shows
“ADV”or “NO ADV.”The prompt “NO ADV”
will disable Advance keypad in Run Mode,
thereby preventing operator from advancing
control through steps of cycle before completion.
In addition, it will not be possible to advance to
any step before starting a cycle if “NO ADV”is
selected. Press 0 keypad to select enable or
disabling the Advance feature.
7. Press Enter keypad. Display will read either
“MANUAL”or “NO MAN.”If “MANUAL”is
displayed, Manual Mode will be enabled during
normal operation. If “NO MAN”is displayed,
Manual Mode will be disabled when a cycle is
run, even if Manual operation keypad sequence is
entered. To select enabling or disabling the
alternate feature, press 0 keypad.
8. Press Enter keypad. When desired Manual Mode
option is displayed, display will read “WET CL”
or “NO WCL.”If “WET CL”is displayed, wet
clean functions are enabled. If “NO WCL”is
displayed, press 0 keypad, wet clean functions
are disabled.
9. Press Enter keypad. When desired Wet Clean
option is displayed, display will read “S BAL”
(short balance timing sequence) or “L BAL”
(long balance timing sequence). Refer to Table 1
for appropriate sequence.
NOTE: This setting will have no effect if machine is
not equipped with an AC Inverter drive balance
detection system.
NOTE: Design series can be found on serial decal of
machine. Example: UW60PVQU80001. Refer to
Nameplate Location section.
Model Display
UW50PVT,
UW55PVT,
UW60PVT
L BAL
Design 5 models 60 lbs. or less S BAL
Design 5 models greater than 60 lbs. L BAL
Design 6 or greater model L BAL
Ta bl e 1

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
F232210
12
Programming Keypad
Keypad Red
Keypads Description
1Cold
Low
Cold is pressed when step requires cold water.
Low is pressed for low-level fill.
2
Hot
Med./Fill
Hot is pressed when step requires hot water.
Med./Fill is pressed to select medium water level.
Fill is pressed in Manual Mode to operate fill valves.
3Warm
High
Warm is pressed when step requires warm water.
High is pressed for high-level fill.
Erase Cycle Erase Cycle Erase Cycle and a two-digit cycle code number are pressed to erase a cycle from
memory.
4
Wash
Flush
Wash is pressed when step is a wash or dilution rinse. Then keypad 1,2,3,4,5,6, or 7is
pressed to choose type of agitation.
Flush is pressed to keep drain open when water is added to machine. A temperature
selection keypad (Hot,Cold,Warm) must be pressed before Flush keypad. When Flush
is programmed, water is added through door spray nozzle only; basket rotates in low
speed forward only.
5
Heat
Rinse
Heat is pressed when auxiliary heat is needed. This must be followed by a specific
temperature selection, such as 165°F. Temperature must be entered; then a time assigned
to reach that temperature must be entered.
Rinse is pressed when a spin-spray rinse (not available on UW125 models) is desired.
Before Rinse keypad is pressed, a temperature keypad must be pressed: Hot, Cold, or
Warm. Drain will remain open, and basket will rotate at medium-spin speed (high speed
on two-speed only machines). Water is added through door spray nozzle only.
6
Supply
Over
Supply is pressed when soap, bleach, or other chemicals are desired. Keypad 1,2, 3, 4, or
5must be pressed to indicate specific supply dispenser being used. Combinations of these
supplies can be programmed. Refer to Programming a Supply Step.
Over is pressed when an overflow of water is desired. Drain is closed and water is added,
using fill valves only, without regard to level. Water flows out overflow connection for
time assigned to step.
Add Cycle Add Cycle Add Cycle is pressed to begin process of programming a new cycle into memory.
Tabl e 2

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
13
F232210
7Soak Soak is used when no agitation is desired. This follows a fill and/or supply step. Time
must be assigned in hours and minutes. (Wash 3 also provides no agitation.)
8Medium
Speed
Medium Speed is pressed when a medium spin only is desired for washing delicate items
not suited for high speed spin or when an intermediate spin is desired.
9High Speed High Speed is pressed when a fast spin is desired. Pressing High Speed keypad once will
activate the H1 spin; twice, the H2 spin; and three times, H3 spin.
Edit Cycle
Add Step
Edit Cycle
Add Step
Edit Cycle is pressed followed by a two-digit cycle code number to display steps of a
preprogrammed cycle. Cycle may be altered during edit cycle procedure by deleting,
changing, or adding steps.
Add Step is pressed to add a step to an existing cycle during edit cycle procedure.
Clear (black
on red
background)
Clear (black
on red
background)
Clear is pressed when an error has been made in programming a step. Instead of pressing
Enter as step is completed, press Clear to eliminate incorrect information. (Clear should
never be pressed when displaying a cycle unless a particular step is to be eliminated or
changed. Refer to Displaying a Cycle in Memory.)
0
Drain Drain is pressed after a wash, dilution rinse, or soak step is programmed in order to
remove water from machine. A time must be assigned that will allow machine to reach
empty. If control has been prompted for two drains, press 1keypad or 2keypad for
desired drain valve. Refer to Prompting WE-6 section in Operation Manual. There are
always three possible selections for drain step. These are selected after Drain keypad is
pressed. Press 1keypad for drain 1 (main drain), 2keypad for a drain to reuse tank A, and
3keypad for a drain to reuse tank B. For special applications utilizing “2DRAIN,”contact
manufacturer.
Auxiliary
No Reverse
Auxiliary
No Reverse
Auxiliary is pressed to activate buzzer or other auxiliary output. NOTE: Auxiliary 4 is
used to activate recovery fill valve for machines equipped with water reuse system.
No Reverse is used to rotate basket in one direction only during a step and should be
pressed just before pressing Enter keypad.
Enter Enter Enter is pressed to enter programming information into control’s memory.
Programming Keypad (Continued)
Keypad Red
Keypads Description
Table 2 (Continued)

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
F232210
14
Programming Tutorial
The following procedure guides the programmer
through a complete cycle and allows hands-on
experience for programming cycles. The complete
cycle is listed at the end of this section.
1. Enter Program Mode. Refer to Entering
Program Mode section.
2. Press Add Cycle keypad. Display will read
“ACYC00.”
3. A two-digit number from 01 to 39 must be
entered. Refer to Standard Cycle Charts section.
NOTE: Cycle number 01 is recommended because
standard program versions use this short cycle for
performing a chemical supply setup.
4. If using cycle number 01, press 0 keypad, then
1 keypad, then Enter keypad. Display will read
“CYC01.”
a. If display alternately flashes “EXISTS”and
“EDIT?,”press Clear/Stop keypad. Display
will read “CYC01.”
b. Erase existing cycle by pressing Erase Cycle
keypad. Display will read “ECYC01.”Press
0 keypad, then 1 keypad, then Enter keypad.
Display will read “WA I T ”briefly and then
“CYC01.”
c. Press Add Cycle keypad. Display will read
“ACYC01.”Press 0 keypad, then 1 keypad,
then Enter keypad. Display will show “0101.”
(“01”means step 1 and “01”means cycle
number.)
5. Enter desired water temperature and fill level. For
this tutorial, step 1 will be Hot Fill and Low
Level.
a. Press Hot keypad (2) and then Low keypad
(1). Display will read “HL0101.”
b. Press Enter keypad. Display will read
“M---S.”
c. Enter desired fill time. (4 minutes is
recommended.) Press 4 keypad. Display will
read “4M-00S”. (“4M”means 4 minutes and
“00S”means 0 seconds.)
6. Press Enter keypad. Display will read “0201,”
indicating that control is ready for step 2 of
cycle 01.
7. For this tutorial, step 2 in cycle will be an
addition of a supply step.
a. To add supply No. 1, press Supply keypad (6)
and then 1 keypad. Display will read
“S10201.”
b. Press Enter keypad and display will read
“M---S.”
c. Enter desired time in minutes and seconds for
supply valve to be turned on (thirty seconds is
the recommended time).
Press 0 keypad for minutes, and display will
read “0M-00S.”
Press 3 keypad and then 0 keypad. Display
will read “0M-30S,”indicating a supply time
of thirty seconds.
8. Press Enter keypad. Display will change to read
“0301,”indicating control is ready for step 3 of
cycle 01.
9. If no other supply is required, the next step is to
choose type of wash desired and assign it a time.
Refer to Programming a Wash Step section for
available wash types. For this tutorial choose a
wash with standard reversing action (Wash 1) and
a time of six minutes.
a. Press Wash keypad (4) and then 1 keypad.
Display will read “W10301.”
b. Press Enter keypad. Display will read
“M---S.”
c. Enter desired wash time (6 minutes is
recommended). Press 6 keypad. Display will
read “6M-00S,”indicating a wash step of six
minutes.
10. Press Enter keypad. Display will read “0401,”
indicating that control is ready for step 4 of
cycle 01.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
15
F232210
11. For this tutorial, step 4 will be a drain step.
a. Press Drain keypad (0). (A drain step usually
follows a wash step). Display will read
“D-0401.”
This program allows a choice among drains 1,
a, or b. (NOTE: 1 is sewer, “a”is Tank a and
“b”is Tank b.) For this application, press 1
keypad. Display will read “D10401.”
b. Press Enter keypad. Display will read
“M---S.”
c. Enter maximum time desired for control to
allow machine to drain to empty. (One minute
is recommended.) Press 1 keypad. Display
will change to “1M-00S,”indicating a drain
step of one minute.
NOTE: The manufacturer does not recommend
more than one minute for a drain step. If machine
does not drain in amount of time programmed,
“EMTY”alarm will be displayed. Refer to Error
Recovery Routine in Operation Manual.
12. Press Enter keypad. Display will now read
“0501,”indicating that control is ready for step 5
of cycle 01.
13. For this tutorial, step 5 in cycles will be a warm
rinse.
a. Press Warm keypad (3) and then Rinse keypad
(5). Display will read “WR0501.”
b. Press Enter keypad. Display will read
“M---S.”
c. Enter rinse time in minutes and seconds. A
spray rinse lasting 2-1/2 minutes is
recommended.
Press 2 keypad. Display will read “2M-00S.”
Press 3 keypad and 0 keypad. Display will
read “2M-30S,”indicating a spray rinse of
2 minutes and 30 seconds.
14. Press Enter keypad. Display will read “0601,”
indicating that control is ready for step 6 of
cycle 01.
15. For this tutorial, step 6 in cycle will be a warm
fill and high level for a dilution rinse.
NOTE: Rinse key controls a spin-spray rinse. A
dilution rinse is the same as a wash step without the
addition of detergents. Refer to Programming a
Wash Step section.
a. Press Warm keypad (3) twice to turn on two
hot and two cold water valves to reduce fill
time. Display will read “W-0601.”Press High
keypad (3 keypad). Display will read
“WH0601.”
b. Press Enter keypad. Display will read
“M---S.”
c. Enter desired time for control to allow
machine to fill to high level (five minutes is
recommended). Press 5 keypad. Display will
read “5M-00S”indicating a dilution rinse of
5 minutes.
NOTE: If machine does not fill high level in amount
of time programmed, “FILL”alarm will be
displayed. Refer to Error Recovery Routine in
Operation Manual.
16. Press Enter keypad. Display will read “0701.”
17. For this tutorial, step 7 in cycle will be an add
sour.
a. Press Supply keypad (6) and 3 keypad (3 is
for supply 3 location). Display will read
“S30701.”
b. Press Enter keypad. Display will read
“M---S.”
c. Enter length of time for supply to be activated
(thirty seconds is recommended).
Press 0 keypad for minutes; press 3 keypad
and then 0 keypad for seconds. Display will
read “0M-30S”indicating an add sour step of
0 minutes and 30 seconds.
18. Press Enter keypad. Display will read “0801,”
indicating that control is ready for step 8.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
F232210
16
19. For this tutorial, step 8 will be an agitation action
for dilution rinse.
a. Press Wash keypad (4) and 1 keypad to
program an action with normal reversing.
Refer to Programming a Wash Step section.
Display will read “W10801.”
b. Press Enter keypad. Display will read
“M---S.”
c. Enter time for dilution rinse (three minutes is
recommended).
Press 3 keypad. Display will read “3M-00S,”
indicating an agitation action dilution rinse of
3 minutes.
20. Press Enter keypad. Display will read “0901,”
indicating that control is ready for step 9.
21. For this tutorial, step 9 in cycle 9 will be a
dilution rinse water drain.
a. Press Drain keypad. Display will read
“D-0901.”Press 1 keypad for draining to
sewer. Display will read “D10901.”
b. Press Enter keypad. Display will read
“M---S.”
c. Enter length of time control will allow
machine to drain (one minute is
recommended).
Press 1 keypad. Display reads “1M-00S,”
indicating a drain step of one minute.
22. Press Enter keypad. Display will read “1001,”
indicating that control is ready for step 10 of
cycle 01.
23. For this tutorial, step 10 in cycle will be an
extract step.
a. Press Medium Speed keypad (8). Display will
read “MS1001,”indicating a medium-speed
spin.
b. Press Enter keypad. Display will read
“M---S.”
c. Enter length of time for medium-speed spin
(one minute is recommended).
Press 1 keypad. Display will read “1M-00S,”
indicating 1 minute and 0 seconds.
24. Press Enter keypad. Display flashes “SDLY”
(slow-down delay) for one second.
Display will read “0M-00S,”allowing
programmer to enter time for a slow-down delay.
NOTE: Do not program a slow-down delay time if
the slow-down delay is followed by a spin (all
consecutive spins are skipped when a slow-down
delay is programmed).
For no slow-down delay, press Enter keypad.
25. For this tutorial, step 11 in cycle will be a spin
step.
a. Press High Speed keypad (9) once. Display
will read “H11101.”
NOTE: Pressing High Speed keypad repeatedly
when programming a high speed step will cause
control display to proceed from “H1”to “H2,”and
then to “H3,”maximum-speed spin. After “H3”
appears and High Speed keypad is pressed again,
“H1”will reappear.
b. Press Enter keypad. Display will read
“M---S.”
c. Enter a length of time for high speed spin (six
minutes is recommended). Press 6 keypad.
Display will read “6M-00S.”
NOTE: High Speed spin is not preceded
automatically by medium-speed spin as with
nonvariable-speed UW rigid-mount models.
Medium-speed spin only or high speed spin 1, 2, or
3 may be programmed.
26. Press Enter keypad. Display will flash “SDLY”
(slow-down delay) for one second. (“SDLY”also
displays during the entire actual delay time.)
Display will read “0M-00S,”prompting
programmer to enter a time for slow-down delay.
Display will read “1201.”

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
17
F232210
NOTE: For machines with a software ID Code of
HRWC10 or earlier, a slow-down delay of 60
seconds minimum must be programmed after each
medium-speed, spray-rinse or high speed 1 or a
delay of 99 seconds must be programmed after
each high speed spin 2 or high speed 3.
For machines with software code HRWC12 or
later, no slow-down is required.
NOTE: For machines with a software ID Code of
HRWC12 or later, if application requires that
water fill valves remain off while basket is coasting
to a stop, enter desired delay time (Example:
60 seconds). Press Enter keypad.
27. The previous step ends tutorial. Cycle 01,
consisting of 11 steps, has been programmed.
To end cycle, turn Program Mode switch located
on left side of control module to RUN position
and remove key. Display will read “NEXT.”
Programmer can select Cycle 01 and press Enter
keypad to run cycle as it is set up; or a cycle of
the programmer’s own design can be
programmed.
NOTE: Cycle 01 can be reprogrammed as machine
came from factory. Refer to Standard Cycle Charts
section or it can remain as set up in tutorial.
Programming Hints
Refer to Standard Cycle Charts section.
NOTE: The control can only be programmed step
by step.
When entering timed portion of a step (such as a fill),
use a time that is reasonable for local installation. If
water pressure is low or if water lines are small,
increase time allowed. Drain needs to empty the
machine in less than one minute.
NOTE: Drain times of more than one minute are
not recommended.
Except for soak, heat, and cool-down (Wash 5) steps,
which are timed in hours and minutes, the maximum
time per step is 9 minutes and 99 seconds. If more time
is needed, add more steps to total complete time
desired. For example, if a 15-minute wash is desired,
program a wash step for 9 minutes and 00 seconds,
immediately followed by another wash step for 6
minutes and 00 seconds.
When a fill or addition of supplies without agitation is
desired, first program a Wash 3 step for 0 minutes and
01 seconds. Program fill or supply step as desired.
When control advances to next step, it will remain in
Wash Mode as programmed in previous step unless
instructed to do otherwise.
Test Cycle
Cycle number 39 is a test cycle used to analyze
washer-extractor functions.
Step 01 in cycle number 39 is a cold fill to low level.
This step is designed to give not quite enough time to
complete a fill, causing the display to read “FILL.”
Press the Start keypad to continue the fill, and the test
cycle will proceed.
Step 02 in the test cycle is a drain step. Again, the time
allotted is shorter than it would be in a normal cycle.
The display will read “EMTY.”To proceed, press the
Start keypad.
The steps in the test cycle are relatively short with the
exception of steps 3, 21, 25, 27, 28, and 29. These can
be shortened by pressing the Advance keypad to go on
to the next step.
The operator may skip to any next step in the cycle
with the exception of a drain step: Drain steps must be
allowed to complete. To skip forward in the test cycle,
press the Advance keypad.
NOTE: The Advance feature may be disabled.
Tutoria l Cy cle
Step Description Min:sec
1 Hot Fill to Low Level 4:00
2 Supply 1 0:30
3Wash1 6:00
4 Drain 1 1:00
5 Warm Spray Rinse 2:30
6 Warm/Warm Fill to High Level 5:00
7 Supply 3 0:30
8Wash1 3:00
9 Drain 1 1:00
10 Medium Speed Spin 1:00
11 High Speed Spin No. 1
SDLY
Stop Routine
6:00
0:60
Tabl e 3

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Programming
F232210
18
Wet Clean Testing
Wet clean processing outputs are tested through the
energizing of the Auxiliary 1 output in step 18 and
Auxiliary 2 output in step 19. Steps 30 through 41 are
designed to test water reuse processing, if this option
is installed. If it is not, the outputs associated with
each step will be energized, and the cycle will
conclude normally.
NOTE: Prompts for “1DRAIN”and “WET CL”
must be selected when prompting the WE-6
microcomputer in order for steps 18 and 19 to
work properly for wet clean processing.
Manual Mode Control Feature
Manual control is available only while a
preprogrammed cycle is in progress, and if Manual
Mode is prompted in the WE-6 programming. With
the exception of motor speeds, the reuse tank B drain
and tank A and B fill valves, and the door unlock
output, the WE-6 computer outputs can be operated
manually from the keypad. (In order to ensure proper
sequencing, all motor speeds are always controlled by
the computer.)
NOTE: When the Manual Mode control feature is
activated, the operator must supply on/off
commands for the controllable outputs. If an
output is on, it will remain on until turned off by
the operator or until the assigned time for the
Manual Mode expires. This can be as long as 9
minutes and 99 seconds.
In normal operation, when the Program Mode switch
is in the RUN position, only the operations printed in
black on the keys are accessible to the operator.
During the Manual Mode, normal cycle timing is
suspended. When the Manual Mode is entered, the
operations printed in red on the keys and mentioned in
the following discussion are activated.
Entering the Manual Mode during a fill operation is
not recommended. This bypasses the water-level
switch inputs, and the water must be turned off
manually by the operator.
The following procedure must be accomplished within
three seconds in order to enter the Manual Mode:
1. Press the Manual key.
2. Then press three number keys to assign a time in
minutes and seconds to the Manual Mode. For
example, press key 2, key 3, and key 0 to enter
the Manual Mode for 2 minutes and 30 seconds.
3. Then press the Add Step key.
