Alliance Laundry Systems 802734R6 Guide

Installation/Operation
www.comlaundry.com
Frontload Washers
Metered Commercial
FLW1526C
Part No. 802734R6
September 2012
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

802734 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense, caution, and
carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by the
person(s) installing, maintaining, or operating the washer.
Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not
understand.
Failure to install, maintain, and/or operate this machine according to the manufacturer's
instructions may result in conditions which can produce bodily injury and/or property
damage.
W030
WARNING

© Copyright 2012, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
802734
2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Safety Information.............................................................................. 4
Explanation of Safety Messages........................................................... 4
Important Safety Instructions ............................................................... 4
Installation........................................................................................... 6
Dimensions and Specifications............................................................. 6
Before You Start ................................................................................... 7
Tools ................................................................................................ 7
Installing the Washer ............................................................................ 8

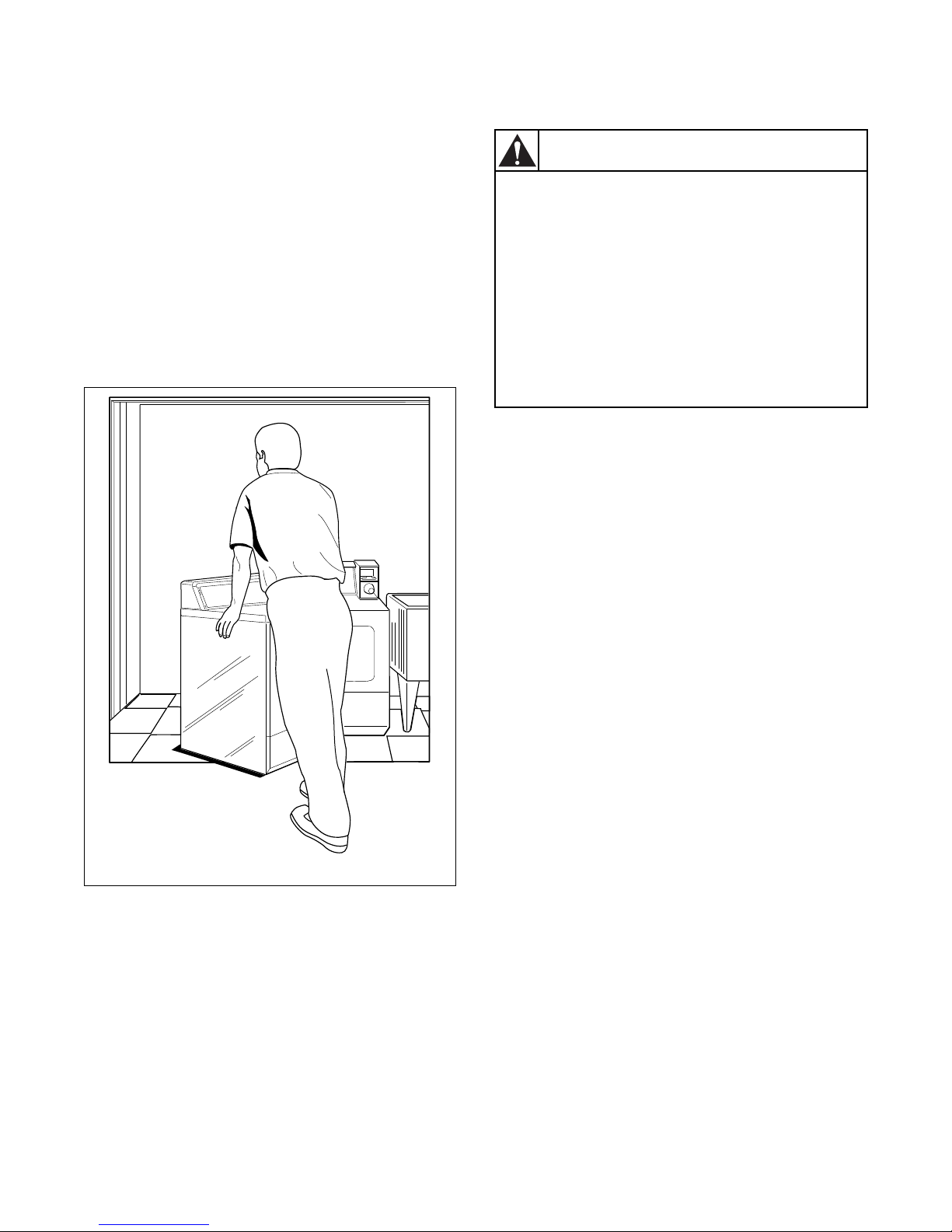

Step 1: Position Washer Near Installation Area .............................. 8

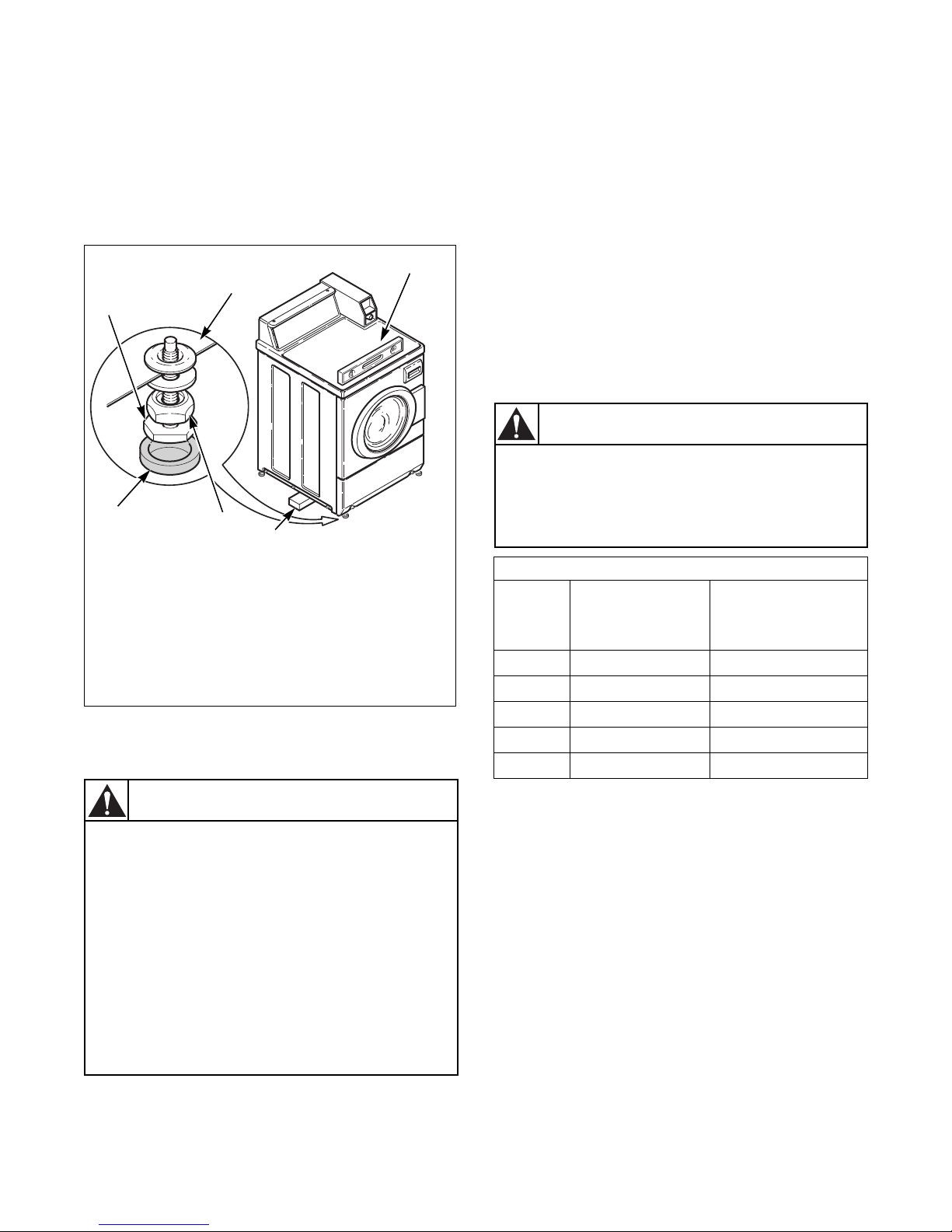

Step 2: Position and Level the Washer ............................................ 8

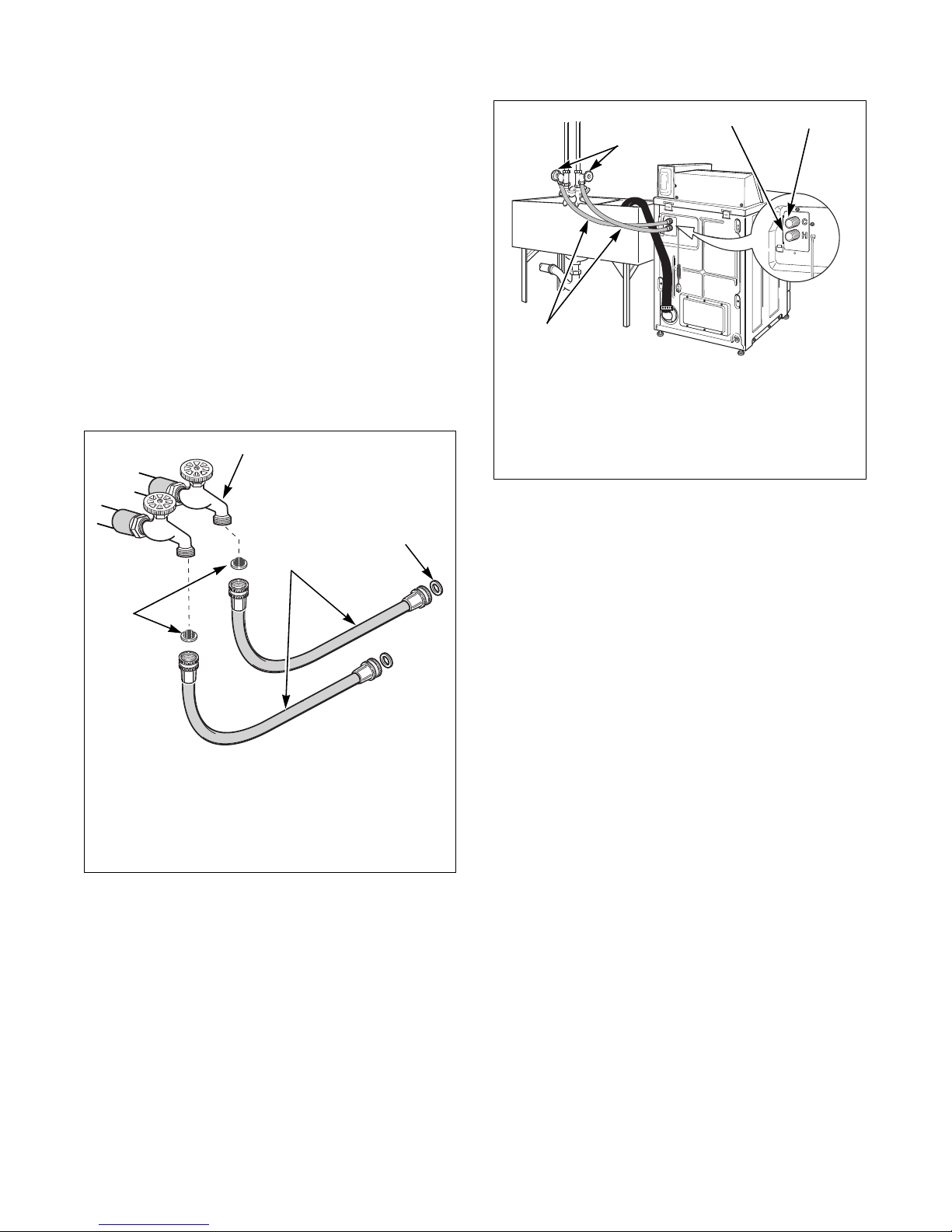

Step 3: Connect Fill Hoses............................................................... 9
Step 4: (Non-Gravity Drain Models Only)
Connect Drain Hose to Drain Receptacle....................................... 11
Step 5: (Gravity Drain Models Only)
Connect Drain Outlet to Drain System........................................... 12
Step 6: Remove the Shock Sleeves and Shipping Brace ................. 13
Step 7: Wipe Out Inside of Wash Drum .......................................... 14

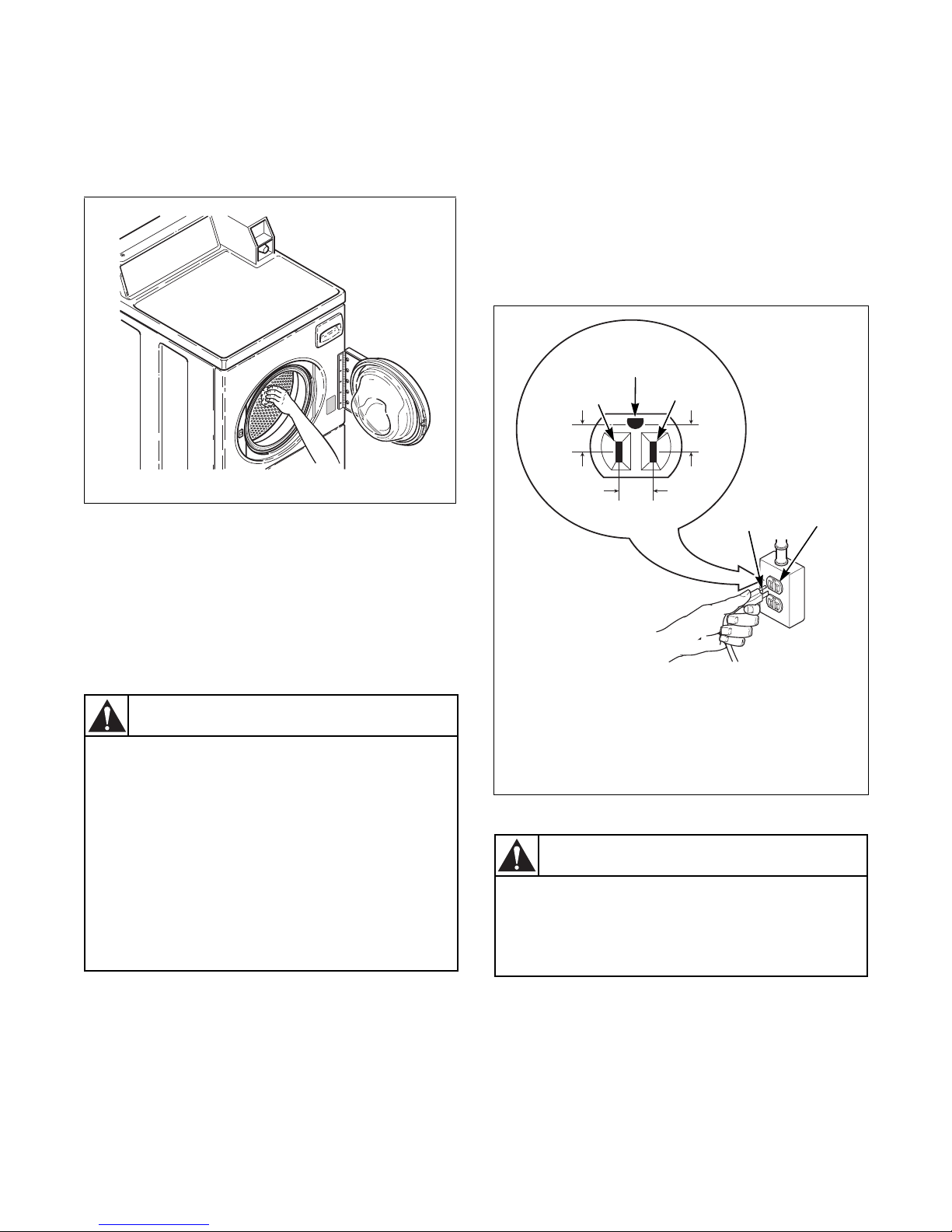

Step 8: Plug In the Washer............................................................... 14
Step 9: Check Installation ................................................................ 15
Vending................................................................................................. 16
Meter Case ....................................................................................... 16

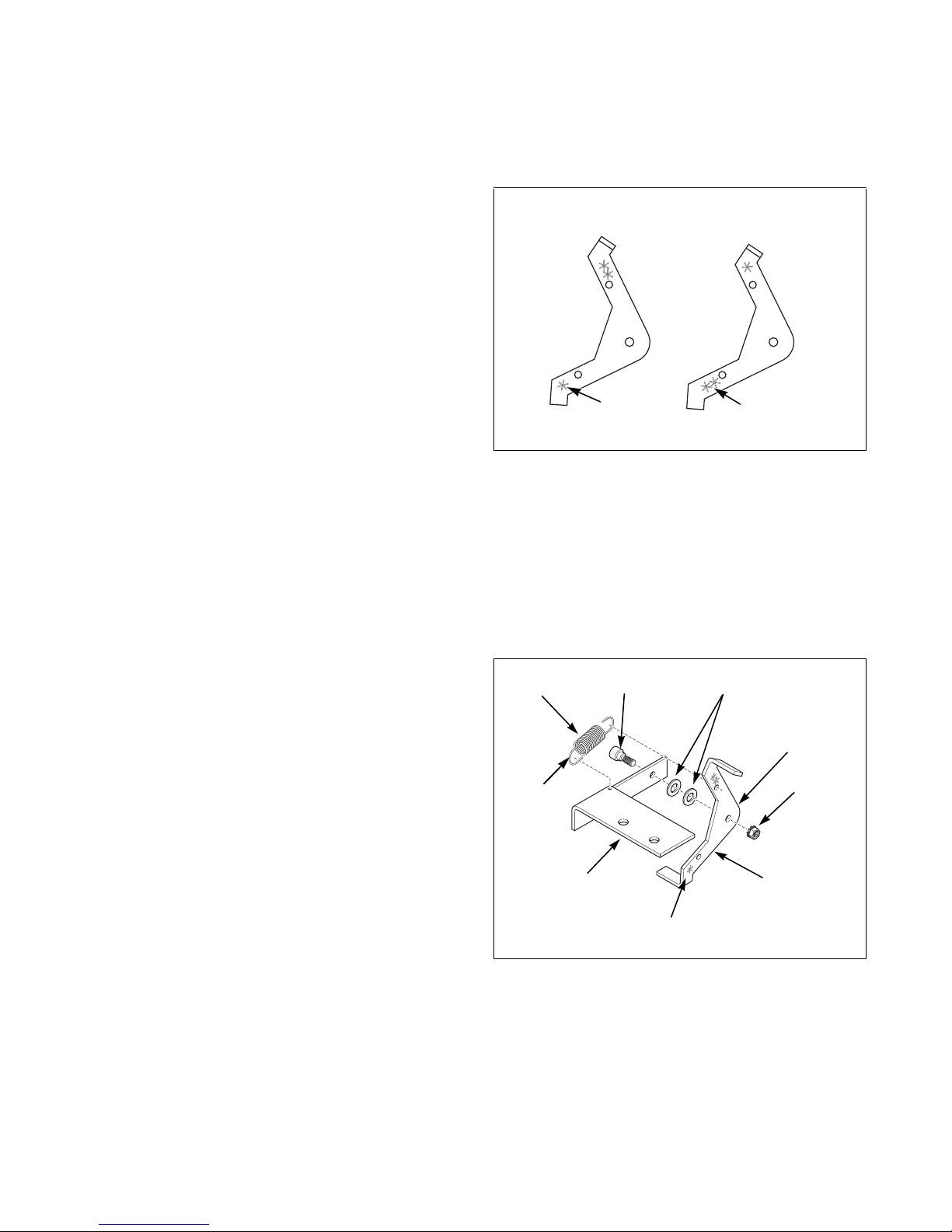

Slide Extension Assembly – Models through Serial No. 1211........ 16
Slide Extension Assembly – Models Starting Serial No. 1211 ....... 17
Models Prepped for Card Reader..................................................... 19
Operation............................................................................................. 20
Operation Instructions for Coin Slide Operated Washers .................... 20
Step 1: Load Laundry....................................................................... 20
Step 2: Close Loading Door............................................................. 20
Step 3: Add Laundry Supplies ......................................................... 21
Step 4: Set Fabric Selector............................................................... 21
Step 5: Set WASH/RINSE Temperatures........................................ 21
Step 6: Insert Money........................................................................ 21
Indicator Lights................................................................................ 22
Rapid Advance................................................................................. 22
Operation Instructions for MDC Washers............................................ 23
Step 1: Load Laundry....................................................................... 23
Step 2: Close Loading Door............................................................. 23
Step 3: Add Laundry Supplies ......................................................... 24
Step 4: Set Fabric Selector and Wash Temperature......................... 24
Step 5: Insert Coin(s) or Card .......................................................... 25
Step 6: Start Washer......................................................................... 25
Indicator Lights................................................................................ 26
Operation Instructions for NetMaster Washers .................................... 27
Step 1: Load Laundry....................................................................... 27
Step 2: Close Loading Door............................................................. 27
Step 3: Add Laundry Supplies ......................................................... 27
Step 4: Set Fabric Selector............................................................... 28
Step 5: Set Wash Temperature......................................................... 28

3
802734 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 6: Insert Coin(s) or Card .......................................................... 28
Step 7: Start Washer......................................................................... 29
Indicator Lights................................................................................ 29
Maintenance ........................................................................................ 30
User-Maintenance Instructions............................................................. 30
Lubrication....................................................................................... 30
Cold Weather Care........................................................................... 30
Care of Your Washer ....................................................................... 30
Cleaning Glass Sealing Area ........................................................... 30
Replacing Hoses............................................................................... 30
Filter Screens ................................................................................... 30
Vacations and Extended Non-Use ................................................... 30
Reinstallation of Shipping Materials ............................................... 31
Cleaning Foreign Object Trap ......................................................... 31
Troubleshooting .................................................................................. 32
Contact Information........................................................................... 34
Installer Checklist................................................................ Back Cover

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802734
4
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the washer.
2. Install the washer according to the
INSTALLATION INSTRUCTIONS. Refer to the
GROUNDING INSTRUCTIONS in the
INSTALLATION manual for the proper
grounding of the washer. All connections for
water, drain, electrical power and grounding must
comply with local codes and be made by licensed
personnel when required. Do not do it yourself
unless you know how!
3. Do not install or store the washer where it will be
exposed to water and/or weather.
4. Do not add the following substances or textiles
containing traces of the following substances to
the wash water: gasoline, kerosene, waxes,
cooking oils, vegetable oils, machine oils, dry-
cleaning solvents, flammable chemicals, thinners
or other flammable or explosive substances.
These substances give off vapors that could
ignite, explode or cause the fabric to catch on fire
by itself.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. THE
GAS IS FLAMMABLE, DO NOT SMOKE OR
USE AN OPEN FLAME DURING THIS TIME.
6. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
5
802734
7. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This appliance
is not intended for use by persons (including
children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the use of
the appliance by a person responsible for their
safety. This is a safety rule for all appliances.
8. Do not reach into the washer if the washtub is
moving.
9. Never operate the washer with any guards, panels
and/or parts removed or broken. DO NOT tamper
with the controls or bypass any safety devices.
10. DO NOT operate individual units if they have
been separated from a stack unit.
11. Use your washer only for its intended purpose,
washing clothes. Always follow the fabric care
instructions supplied by the garment
manufacturer.
12. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. To reduce the risk of poisoning or chemical
burns, keep them out of the reach of children at
all times (preferably in a locked cabinet). Heed
all warnings or precautions.
13. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
14. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
15. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
16. Keep your washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have your washer checked by a
qualified service person.
17. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out. ALWAYS disconnect the
washer from electrical supply before attempting
any service.
18. Disconnect the power cord by grasping the plug,
not the cord. If the supply cord is damaged, it
must be replaced by a special cord or assembly
available from the manufacturer or its service
agent.
19. Before the washer is removed from service or
discarded, remove the lid or door to the washing
compartment.
20. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802734
6
Installation
Dimensions and Specifications
FLW2201N
FLW2201N
Standard Capacity Meter Case
43 in. (109.2 cm)
High Capacity Meter Case
43.875 in. (111.44 cm)
28 in. (71.1 cm)
24 in.
(61.0 cm)
26.875 in. (68.3 cm)
13.1 in.
(33.3 cm)
31.1 in. (79 cm)
2 in.
(5.1 cm)
36 in. (91.44 cm)
14.6 in.
(37.08 cm)
MODELS EQUIPPED WITH DRAIN HOSE
Coin Slide Models 40.19 in. (102.08 cm)
Electronic Control Models 38.19 in. (97 cm)
Coin Slide Models
21.56 in. (54.76 cm)
Electronic Control Models
22.06 in. (56.03 cm)
29.6 in. (75.1 cm)
1.5 in.
(3.8 cm)
FLW2202N
11.5 in. (3.81 cm) Inside Diameter
1.86 in. (4.72 cm) Outside Diameter
28 in. (71.1 cm)
24 in.
(61.0 cm)
26.875 in. (68.3 cm)
13.1 in.
(33.3 cm)
31.1 in. (79 cm)
4.1 in.
(10.41cm)
36 in. (91.44 cm)
14.6 in.
(37.08 cm)
MODELS WITH GRAVITY DRAIN
Coin Slide Models 40.19 in. (102.08 cm)
Electronic Control Models 38.19 in. (97 cm)
Coin Slide Models
21.56 in. (54.76 cm)
Electronic Control Models
22.06 in. (56.03 cm)
29.6 in. (75.1 cm)
4.2 in.
(10.67cm)
1
1.5 in.
(3.8 cm)
Standard Capacity Meter Case 43 in. (109.2 cm)
High Capacity Meter Case 43.875 in. (111.44 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
7
802734
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 1
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
NOTE: Install dryer before washer. This allows
room for attaching exhaust duct.
NOTE: Some moisture in the wash drum is normal.
Water is used during testing at the manufacturer.
D074I
1Wrench
2Screwdriver
3Pliers
4Socket Wrench
5Level
123
5
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
802734
8
Installing the Washer
Step 1: Position Washer Near Installation
Area
Move washer so that it is within 4 feet (1.2 meters) of
the desired area of installation.
NOTE: For best performance and to minimize
vibration or movement, install washer on a solid,
sturdy and level floor. Some floors may need to be
reinforced, especially on a second floor or over a
basement. Do not install the washer on carpeting,
soft tile, a platform or other weakly supported
structures.
Figure 2
Step 2: Position and Level the Washer
Position washer so it has sufficient clearance for
installation and servicing.
NOTE: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
Place washer in position on a solid, sturdy and level
floor. Installing the washer on any type of carpeting,
soft tile, a platform or other weakly supported
structures is not recommended.
Place a level on the cabinet top and check if the
washer is level from side to side and front to back.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 3.
If washer is not level, tilt washer to access the front
and rear leveling legs. For easier access to leveling
legs, prop up washer with a wooden block. Refer to
Figure 3. Loosen 7/8 in. locknut and adjust legs until
the washer is level from side to side and front to back
(using a level). Washer should not rock.
Tighten the locknuts securely against the washer
base using the 7/8 in. wrench. If the locknuts are not
tight, washer will move out of position during
operation.
H135I
H135I
Washers elevated above floor level must
be anchored to that elevated surface,
base or platform. The material used to
elevate the washer should also be
anchored to the floor to ensure that the
washer will not walk or that the washer
can not be physically pulled, tipped or
slid from its installed position. Failure to
do so may result in conditions which can
produce serious injury, death and/or
property damage.
W306
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9
802734
NOTE: DO NOT slide washer across floor if the
leveling legs have been extended, as legs and base
could become damaged.
Remove rubber feet from accessories bag and place on
all four leveling legs.
Verify that unit doesn’t rock.
Figure 3
Step 3: Connect Fill Hoses
Water Supply
Water supply faucets must fit standard 3/4 inch
(19.1 mm) female garden hose couplings. DO NOT
USE SLIP-ON OR CLAMP-ON CONNECTIONS.
Water supply faucets should be readily accessible to
permit turning them off when washer is not being
used.
Recommended cold water temperature is 60° to 80°
Fahrenheit (16° to 27° Celsius). Recommended
maximum hot water temperature is 125° Fahrenheit
(51° Celsius). Warm water is a mixture of hot and cold
water. Warm water temperature is dependent upon
water temperature and pressure of both the hot and
cold water supply lines.
Water pressure must be a minimum of 20 to a
maximum of 120 pounds per square inch (138 to 827
kPa) static pressure measured at the faucet.
NOTE: Water pressure under 20 pounds per
square inch (138 kPa) will cause an extended fill
time in the washer and may not properly flush out
the detergent dispenser.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
FLW2125N
1Leveling Leg
2Washer Base
3Level
4Wood Block
5Locknut
6Rubber Foot
FLW2125N
2
1
3
5
6
4
Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used
for such a period and before using the
washer, turn on all hot water faucets and
let the water flow from each for several
minutes. This will release any
accumulated hydrogen gas. The gas is
flammable. Do not smoke or use an open
flame during this time.
W029
WARNING
Mixing Valve Flow Rates
Pressure
(psi)
HOT
liters per minute
(gallons per
minute)
COLD
liters per minute
(gallons per
minute)
20 6 (1.6) 9.4 (2.5)
40 8.2 (2.2) 13 (3.4)
60 9.9 (2.6) 14.5 (3.8)
100 9.6 (2.5) 15.9 (4.2)
120 9.8 (2.6) 15.9 (4.2)
To prevent personal injury, avoid contact
with inlet water temperatures higher than
125°Fahrenheit (51°Celsius) and hot
surfaces.
W748
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
802734
10
Connecting Hoses
Insert each filter screen into the end of each fill hose
that will connect to the water supply faucet. The screen
must be facing outward. Refer to Figure 4.
Insert each plain rubber washer into the other end of
each fill hose that will connect to the water mixing
valve at the rear of the washer. Refer to Figure 4.
Thread hose couplings onto valve connections finger-
tight, then approximately 1/4 turn with pliers.
IMPORTANT: DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
Figure 4
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Figure 5
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer fill hoses are available (as optional
equipment at extra cost) if the hoses supplied with
the washer are not long enough for the installation.
Order hoses as follows:
No. 20617 Fill Hose (8 feet) (2.44 m)
No. 20618 Fill Hose (10 feet) (3.05 m)
TLW1976N
1Faucet
2Fill Hoses
3Plain Rubber Washer
4Filter Screens
HOT
COLD
2
1
3
4
FLW1977N
1Water Supply Faucets
2Hot Water Connection
3Cold Water Connection
4Fill Hoses
2
1
3
4
WATER
MIXING
VALVE

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
11
802734
Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (refer to
Figure 6).
Figure 6
Step 4: (Non-Gravity Drain Models Only)
Connect Drain Hose to Drain Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-3/8 inch (3.5 cm) outside
diameter drain hose.
Figure 7
W005I
1Risers (Air Cushions)
2Water Supply Faucets
W005I
2
1
FLW1978N
1Shipping Tape
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
802734
12
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. Refer to
Figure 8. This will prevent the drain hose from
dislodging from drain receptacle during use.
Figure 8
Step 5: (Gravity Drain Models Only)
Connect Drain Outlet to Drain System
Remove drain fitting (four inches long) and hose
clamp from accessories bag. Insert drain fitting into
drain outlet hose. Clamp hose and fitting.
Connect the drain fitting to a vented drain system
using a flexible connection (obtain locally). Inside
diameter of fitting is 1.53 in. (3.89 cm) and outside
diameter is 1.66 in. (4.22 cm). The drain system must
be vented to prevent an air lock or siphoning.
IMPORTANT: Increasing the drain hose length,
installing elbows, or causing bends will decrease
drain flow rates and increase drain times,
impairing machine performance.
Figure 9
FLW1979N
1Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm)
Drain Flow Rate
Drain Height
Flow Rate
liters per minute
(gallons per minute)
0.9 m (3 ft.) 31 (8.19)
1.5 m (5 ft.) 27.5 (7.27)
1.8 m (6 ft.) 23.9 (6.31)
2.1 m (7 ft.) 18.5 (4.89)
2.4 m (8 ft.) 10.6 (2.79)
FLW1979N
1
24 TO 36 in.
(61 TO 91.44 cm)
RECOMMENDED
HEIGHT
FLW1980N
1Drain Trough
2Drain Outlet Hose
FLW1980N
2
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
13
802734
Step 6: Remove the Shock Sleeves and
Shipping Brace
1. Remove panel.
Figure 10
2. Remove brace. Five bolts secure brace to
machine. For easier removal, remove in order
shown.
Figure 11
3. Remove shock sleeves.
Figure 12
4. Replace panel.
Figure 13
Figure 14
IMPORTANT: The shipping brace, bolts,
lockwashers and shock sleeves should be saved and
MUST be reinstalled whenever the unit is moved
more than four feet. Do not lift or transport unit
from front or without shipping materials installed.
Refer to the User’s Guide for proper instructions
on reinstalling the shipping materials.
IMPORTANT: DO NOT tip washer more than
6 inches (152.4 mm) in any direction after shipping
brace has been removed. Shock absorbers may
separate and damage to washer may result. For
leveling purposes, the washer may be tilted a
maximum of 6 inches (152.4 mm) in any direction.
FLW2269N
FLW2270N
FLW2271N
FLW2269N
1
5
2
3
4
FLW2271N
FLW2272N
FLW2268N
FLW2272N
FLW2268N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
802734
14
Step 7: Wipe Out Inside of Wash Drum
Before using washer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside wash drum.
Figure 15
Step 8: Plug In the Washer
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding Plug)
NOTE: The wiring diagram is located in the
control hood.
When plugging in the washer:
•DO NOT overload circuits.
•DO NOT use an extension cord.
•DO NOT use an adapter.
•DO NOT operate other appliances on the same
circuit. Use separately fused 15 Amp circuits.
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current), circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 16
to determine correct polarity of the wall receptacle.
FLW2126N
FLW2126N
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring, fuses and circuit breakers
installed by a qualified electrician to make
sure adequate electrical power is
available to the washer.
W518
WARNING
DRY2022N
1 L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
Figure 16
1
2
3
45
Standard 120 Volt, 60 Hertz
3-Wire Effectively
Grounded Circuit
0 V.A.C.
120±12
V.A.C.
120±12
V.A.C .
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
15
802734
Grounding Instructions
The washer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
The washer is equipped with a cord having an
equipment-grounding conductor and a three-prong
grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
DO NOT modify the plug provided with the washer –
if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that in Figure 16, the
qualified electrician should correct the problem.
Step 9: Check Installation
Refer to Installer Checklist on the back cover of this
manual and make sure that washer is installed
correctly.
Run washer with a test load to make sure it is
operating properly and properly leveled.
a. Put about six pounds of laundry (four bath
towels and three jeans) into washer.
b. Close door.
c. Rapid advance to spin portion of cycle.
d. When washer spins at high speed, verify that
it is stable.
e. If it is not, after cycle is complete, refer to
Step 2 and readjust leveling legs.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is
properly grounded.
W327
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
802734
16
Vending
Meter Case
The factory mounted coin meter case does not include
the service door lock, coin slide, coin drawer, coin
drawer lock or keys. These parts must be ordered (at
extra cost) according to the purchaser’s requirements
direct from the manufacturer of your choice.
NOTE: On models with standard capacity meter
case and high capacity meter case models starting
with Serial Nos. beginning 1010, you have the
option of using a screw type lock or a 1/4 turn lock
on the meter case service door. If you choose to use
a screw lock, then the special bracket (located
inside the meter case) must be used. DO NOT use
the special bracket if a 1/4 turn lock is used. High
capacity meter case models with Serial Nos.
beginning 0910 through 1010 use 1/4 turn lock only.
Coin Drawer Security (Models with standard
capacity meter case and high capacity meter case
models starting with Serial Nos. beginning 1010
only) – For additional security, drill out the two pilot
holes on each side of the front of the meter case to 1/4
or 5/16 inch (6.4 or 7.9 mm) holes and install a bicycle
lock through these holes.
NOTE: An 8 in. (20.32 cm) coin drawer is required
for coin operated electronic control models with
standard capacity meter case and high capacity
meter case models starting with Serial Nos.
beginning 1010. High capacity meter case models
with Serial Nos. beginning 0910 through 1010
require a 7.21 in. (18.31 cm) coin drawer.
Slide Extension Assembly – Models
through Serial No. 1211
(Coin Slide Models with standard capacity meter
case and high capacity meter case models starting
with Serial Nos. beginning 1010 only)
NOTE: High capacity meter case models with
Serial Nos. beginning 0910 through 1010 require a
coin slide with a switch installed on it.
1. Remove slide extension parts from parts
accessories bag included in unit.
2. If installing a Greenwald coin slide, position
extension lever (to be installed on extension
bracket) with arm that has one star facing down.
Refer to Figure 17.
3. If installing a Monarch or ESD coin slide,
position lever with arm that has two stars facing
down. Refer to Figure 17.
4. Install extension lever with rounded corner
facing away from extension bracket using bolt,
one or two flat washers (shims) (use number of
washers included in kit) and nut. Refer to Figure
18. Make sure washers are flat against bracket.
5. Torque nut between 2 and 2.26 Nm (18 and 20
inch-pounds), or tighten nut firmly.
6. Install extension spring in bracket hole and hole
in upper arm of lever. Refer to Figure 18.
7. Bend loops closed after installation.
8. Check to make sure the lever swings freely.
TLW2088N
Figure 17
TLW2089N
Figure 18
Greenwald
Coin Slide
Monarch or
ESD Coin Slide
One Star Two Stars
TLW2089N
Extension Bracket
Spring Bolt One or Two
Flat Washers (Shims)
Nut
Extension Lever
Star(s) Facing Down
Loops
Rounded Corner

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
17
802734
Installing Extension Onto Coin Slide:
Option 1
1. Install slide extension onto top of coin slide using
two remaining screws and lockwashers. Refer to
Figure 19.
2. Insert coins and partially extend coin slide.
3. Insert coin slide on its side through meter case
opening. Then rotate 90 degrees to its proper
orientation.
4. Return coin slide and hook slide pins onto meter
case.
5. Continue coin slide installation according to
manufacturer’s instructions.
NOTE: During coin slide installation, make sure
activation lever is up and off the switch. Refer to
Figure 20.
6. Check to make sure coin slide is operating
properly by inserting coins and starting a cycle.
The IN USE light will turn on, or flash if it is
already on, to indicate proper operation.
Installing Extension Onto Coin Slide:
Option 2
1. Install coin slide according to manufacturer’s
instructions.
2. Insert coins into coin slide and slowly push slide
in. Stop before coins fall into coin box. This will
allow installing extension through meter case
service door opening.
3. Install slide extension onto top of coin slide using
two screws and lockwashers. Refer to Figure 19.
NOTE: Make sure extension lever is above switch
activation lever.
4. Check to make sure coin slide is operating
properly by inserting coins and starting a cycle.
The IN USE light will turn on, or flash if it is
already on, to indicate proper operation.
Slide Extension Assembly – Models
Starting Serial No. 1211
1. Remove slide extension parts from parts
accessories bag included in unit.
2. Install extension lever with arm that has one star
facing down. Refer to Figure 21.
NOTE: If more switch down-force is required,
install lever with arm that has two stars facing
down to provide additional switch travel.
Figure 19
TLW2090N
1Lever Off Switch
Figure 20
Coin Slide
Slide
Extension
Attaching
Screws
Lockwashers
TLW1564K
TLW2090N
1
Figure 21
One Star
TLW2088N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
802734
18
3. Install extension lever with rounded corner
facing away from extension bracket using bolt,
washer and nut. Refer to Figure 22.
4. Install extension bracket and lever assembly onto
coin slide bracket using two screws and locknuts.
Refer to Figure 23.
IMPORTANT: Install coin slide bracket with side
marked "A" facing up and toward extension
bracket and lever assembly. Refer to Figure 23.
5. Install coin slide extension assembly onto top of
coin slide using two remaining screws and
lockwashers. Refer to Figure 24.
6. Before installing coin slide and extension, make
sure ground wire is tucked under control shield to
provide clearance for coin slide. Refer to
Figure 25.
Figure 22
Figure 23
TLW1580K
Extension
Bracket
Bolt Washer
Extension
Lever
Nut
Rounded
Corner
TLW1580K
Coin Slide Bracket -
Letter "A"
Extension Bracket and
Lever Assembly
TLW2155N
Figure 24
TLW2157N
Figure 25
Coin Slide Extension
Assembly
TLW2156N
Ground Wire Placement
