Datasheet | Network Interface Cards

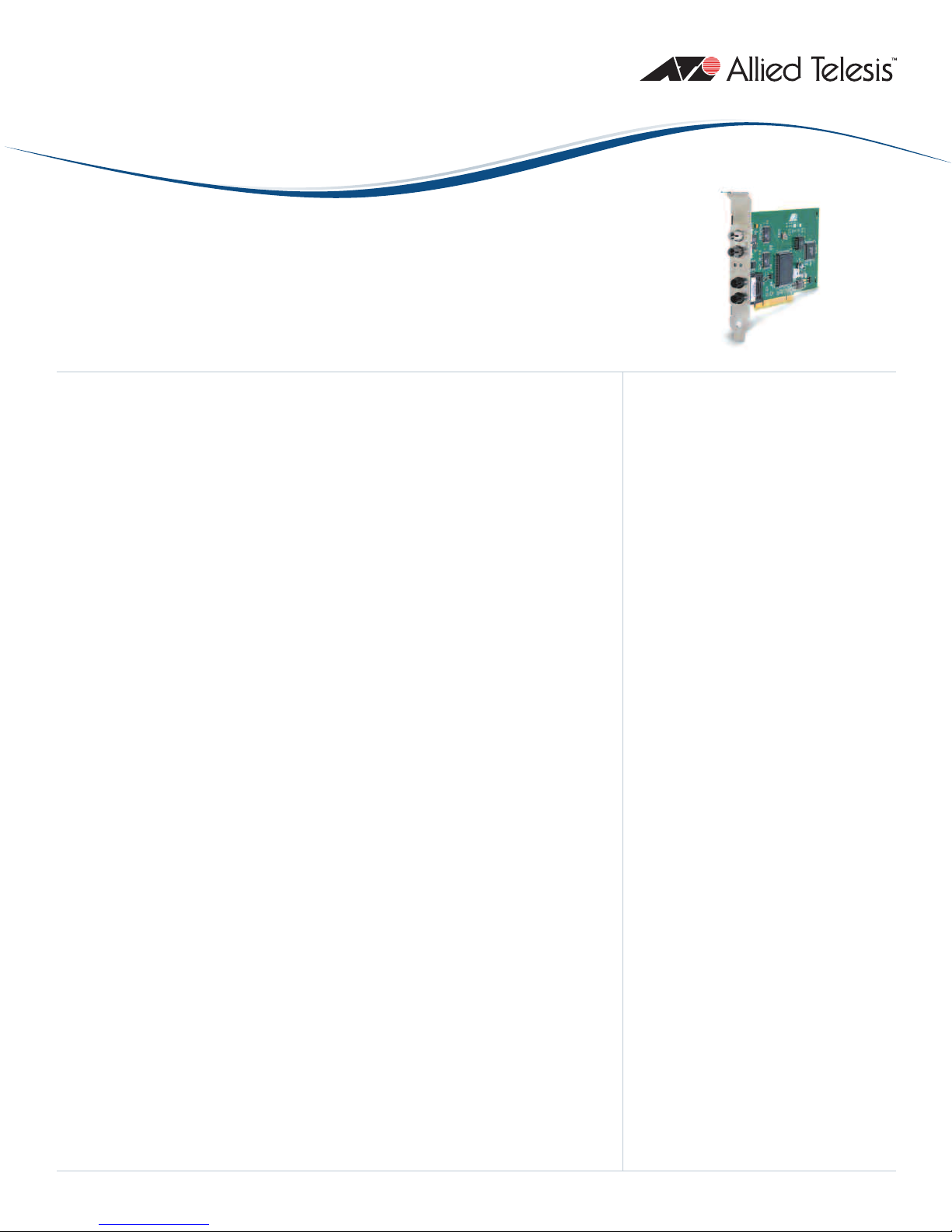

AT-2746FX
PCI 32-bit Fast Ethernet Fiber Network Interface Card
A
T-2746FX
100Mbps Fast Ethernet dual fiber 10FL
and 100FX interface card
Choice and Flexibility
Allied Telesis’ AT-2746FX is the answer for those
fiber interface cards that supportWake-on-LAN
(WoL) for either PCI 2.1 or PCI 2.2 systems but
not both. Allied Telesis’ NICs support WoL
through the PCI 2.2 bus and support PCI 2.1
WoL via external cables. Resistant to signal
degradation, snooping, and interference, the
AT-2746FX is the ideal solution for networks
requiring protection from electrical interference
and hackers.The small footprint—together with
the low-profile option of the AT-2746FX—make
these products a perfect choice for PCs
equipped with small desktop solutions.
Advanced Manageability
Allied Telesis’ AT-2746FX features a full-line of
card assistant software:
•AT-Setup reduces Window Driver installation to
amouse click.This Windows program guides
users through driver installation, updates, and
problem corrections.
•AT-Stat is an advanced Windows application
that reports network conditions and
performance such as hardware resources,
network statistics, and configuration.
•The VLAN protocol driver allows network
administrators to configure their VLAN network
fabric at the PC instead of the switch, enabling
transparent movement of systems between
switches.
•TCP/IP checksum off-loading improves CPU
use by verifying TCP/IP traffic checksums at the
interface card rather than at the host processor,
improving overall system performance for
slower PCs.
•Packet prioritization enables Windows
applications with Class of Service capabilities to
prioritizeout-bound packet streams to these
NICs, a useful feature for video streaming and
VoIP where interruptions are unacceptable.
•The AT-2746FX’s onboard Managed Boot
Agent (MBA) provides a wide set of industry-
standard boot protocols, including PXE,
NetWare NCP/IPX, IBM’s RPL, traditional
DHCP, and BOOTP, supporting both BBS (BIOS
Boot Specification) and non-BBS compliant PCs.
It also includes an extensive set of utilities for
boot ROM configuration, as well as access to
pre-OS and network boot image files.
•Offering a wide range of connector choices—
ST or SC—these cards meet the requirements
of most fiber installations.
Key Features
Management Software
•VLAN support
•Link aggregation
•Failover
Advance Properties
•PCI 2.2 compliant
•Wake-on-LAN (WoL)
•Secured transmissions
•Advanced installation utility
•Advanced diagnostics
•Remote boot (PXE 2.1)
•TCP/IP checksum off-loading
•Priority queuing
•Driver support for popular operating systems
including Sun Solaris
•Available with SC or ST fiber connections
•Compliant with the
Trade Agreement Act
•Microsoft certified drivers
•RoHS compliant
•IPv6
•Also can be used in PCI-x bus

USA Headquarters |19800 North Creek Parkway |Suite 200 |Bothell |WA 98011 |USA |T: [phone] |F: [phone]
European Headquarters |Via Motta 24 |6830 Chiasso |Switzerland |T: +41 91 69769.00 |F: +41 91 69769.11
Asia-Pacific Headquarters |11 Tai Seng Link |Singapore |534182 |T: [phone] |F: [phone]
www.alliedtelesis.com
©2007 AlliedTelesis Inc. All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-000250 Rev. B
AT-2746FX |32-bit PCI Fast Ethernet Fiber Network Interface Card
Specifications
Management Features
WMI
ACPI 2.0/wOI
PXE 2.1 Boot ROM
Bus Type
PCI 2.2
Ethernet Standards
IEEE 802.1p Quality of Service
IEEE 802.1Q VLANs
IEEE 802.2 LLC
IEEE 802.3ac MAC
IEEE 802.3 10 Ethernet
IEEE 802.3u Fast Ethernet
Drivers
Supported
Vista
Vista 64-bit
Windows XP
Windows XP 64-bit
Windows 2003
Windows 2003 64-bit
Windows 2000
NDIS2
NetWare 6.x
Linux 2.4
Linux 2.6
Available
Windows NT 4
Solaris x86
Solaris Sparc 32-bit
Solaris Sparc 64-bit
NetWare 5.x
Compliance
RoHS
UL
FCC/EN55022 Class B
TUV
EN55024
CE
C-TICK
VCCI
Connectors
SC
ST
MT-RJ
RJ-45
100FX
Optical receive sensitivity (max) -31dBm
Transmit optical power (min/max) -19/-14dBm
10FL
Optical receive sensitivity (max) -34.4dBm
Transmit optical power (min/max) -18.8/-13.8dBm
Environmental Specifications
Operating temperature 0°C to 50°C
Storage temperature -25°C to 70°C
Relative humidity 5% to 90% non-condensing
Power
Power consumption 5 Watts (max)
Signaling voltage 3.3/5V
Status Indicators
10 ON 10Mbps link up
Green Full-duplex mode
Yellow Half-duplex mode
Blink Activity
OFF 10Mbps link down
100 ON 100Mbps link up
Green Full-duplex mode
Yellow Half-duplex mode
Blink Activity
OFF 100Mbps link down
Physical Characteristics
Dimensions 17.5cm x 8.4cm
(W x H) (6.9”) x (3.3”)
Network Type
10FL, 100FX
Network Controller
AMD AM79C976
Ordering Information
AT-2746FX/AA/AA-xxx
100Mbps Fast Ethernet dual fiber and copper interface
card
Where AA = ST or SC
Where xxx = 001 for single pack
020 for 20-pack
901 for single pack,
compliant with Trade Agreements Act
920 for 20-pack,
compliant with Trade Agreements Act
Ships with standard bracket attached to interface card.
