Maxi-Heat® 1MBTU Parts Catalog
i
TABLE OF CONTENTS
1.0 AXLE/FENDERS/TONGUE
Axle and Wheels ..............................................................................................(1.1)
Left Fender with Step Plate ............................................................................(1.2)
Right Fender ...................................................................................................(1.3)
Tongue Group ..................................................................................................(1.4)
Electric Brake Breakaway Kit ..........................................................................(1.5)
Tail Lights and Side Marker Lights ................................................................(1.6)
2.0 TRAILER BASE PARTS
Lift Bow Assembly Group ...............................................................................(2.1)
Interior Divider Panels ....................................................................................(2.2)
Rear Lower Panel ...........................................................................................(2.3)
Right and Left Side Corner Panels .................................................................(2.4)
Single Fuel Tank Right Side Burner Panels ..................................................(2.5)
Triple Fuel Tank Right Side Burner Panels ...................................................(2.6)
Right Side Burner Doors ..............................................................................(2.7)
Left Side Heater Exhaust Panels ...................................................................(2.8)
Left Side Heater Exhaust Doors ....................................................................(2.9)
Front Lower Panels and Door (Duct Box) ................................................(2.10)
Front and Rear Door Mounts with Manual Canister ................................(2.11)
Front and Rear Doors .................................................................................(2.12)
Front and Rear Quarter Panels ..................................................................(2.13)
Roof Panels ..................................................................................................(2.14)
3.0 CONTROL BOX AND GENERATOR GROUP
Control Box Install Group ...............................................................................(3.1)
Control Box Door ............................................................................................(3.2)
Control Panel Single Fuel Gauge ...................................................................(3.3)
Control Panel Triple Fuel Gauge ....................................................................(3.4)
Remote Thermostat Kit and Panel .................................................................(3.5)
Control Box Rear Panel w/ AC Distribution Blocks .......................................(3.6)

©2021 Briggs & Stratton
MAXI-HEAT 1MBTU
®
ii
4.0 ENGINE AND FUEL TANK PARTS
Fluid Containment Group ...............................................................................(4.1)
Single Fuel Tank Group .................................................................................(4.2)
Triple Fuel Tank Group ..................................................................................(4.3)
Fuel Sender ....................................................................................................(4.4)
Battery Cables ................................................................................................(4.5)
Battery Disconnect and Cables .....................................................................(4.6)
Oil Drain Line ..................................................................................................(4.7)
Radiator Coolant Reservoir ...........................................................................(4.8)
3.0 CONTROL BOX AND GENERATOR GROUP (CONTINUED)
DC Distribution Blocks Control Box Install Group ..........................................(3.7)
DC Distribution Terminal Blocks ......................................................................(3.8)
Deep Sea Control Panel Harness Install Group ............................................(3.9)
Deep Sea Control Panel Fuse Box ..............................................................(3.10)
Heater Electronic Control Unit Install Group .............................................(3.11)
Emergency Stop ...........................................................................................(3.12)
8kW Marathon Generator .............................................................................(3.13)
8kW Marathon Generator Cord Install Group .............................................(3.14)
5.0 CAT C1.1 ENGINE GROUP
CAT C1.1 Engine Assembly Group ...............................................................(5.1)
CAT C1.1 Fuel Lines ......................................................................................(5.2)
CAT C1.1 Oil Evacuation Kit ..........................................................................(5.3)
6.0 KUBOTA D1105 ENGINE GROUP
Kubota D1105 Engine Assembly Group .........................................................(6.1)
Kubota D1105 Fuel Lines ...............................................................................(6.2)
Kubota D1105 Evacuation Kit .........................................................................(6.3)
TABLE OF CONTENTS

Maxi-Heat® 1MBTU Parts Catalog
iii
TABLE OF CONTENTS
7.0 MCS MH500 iQ-R HEATER GROUP
MCS MH500 iQ-R Heater Install Group ........................................................(7.1)
MCS MH500 iQ-R Heater Assembly Group ..................................................(7.2)
MCS MH500 iQ-R Burner Assembly Group ..................................................(7.3)
MCS MH500 iQ-R Heater Fuel Separator .....................................................(7.4)
MCS MH500 iQ-R Heater Fuel Lines Single Tank ........................................(7.5)
MCS MH500 iQ-R Heater Fuel Lines Triple Tank .........................................(7.6)
MCS MH500 iQ-R Heater Chimney ...............................................................(7.7)
MCS MH500 iQ-R Heater Exhaust Shrouds ..................................................(7.8)
MCS MH500 iQ-R Heater End Cones and Ducting .......................................(7.9)
MCS MH500 iQ-R Heater Air Inlet Shrouds .................................................(7.10)
MCS MH500 iQ-R Heater Air Recirculation Connections .............................(7.11)
Adjustable Air Recirculation Connection Assembly Group ..........................(7.12)
8.0 DECAL GROUP
Door Branding Decals ....................................................................................(8.1)
Left Side Decals .............................................................................................(8.2)
Left Side Rear Quarter Panel English/French Decals ..................................(8.3)
Left Side Rear Quarter Panel Wordless Decals ...........................................(8.4)
Right Side English/French Decals .................................................................(8.5)
Right Side Wordless Decals ..........................................................................(8.6)
Engine Compartment English/French Decals ................................................(8.7)
Engine Compartment Wordless Decals .........................................................(8.8)
Tongue Decals ................................................................................................(8.9)

©2021 Briggs & Stratton
MAXI-HEAT 1MBTU
®
PAGE LEFT BLANK
INTENTIONALLY
iv

SN 36-000001 and UP
Maxi-Heat® 1MBTU Parts Catalog
1.1
1.1 - Axle and Wheels
117437_A
2
3
4
1
2

©2021 Briggs & Stratton
SN 36-000001 and UP
MAXI-HEAT 1MBTU
®
1.1
1.1 - Axle and Wheels
Item Part No. Part Description Qty.
1 830007 AXLE ELECTRIC BRAKE 6000 LBS. 70-7/8”/56” 1
2 117120 SINGLE AXLE SUSPENSION KIT 1
3 108296 16” TIRE WHEEL 2
4 032048 1/2-20 LUG NUT PL 12
NS - Not Shown * * * - Contact Allmand for more information.

SN 36-000001 and UP
Maxi-Heat® 1MBTU Parts Catalog
1.2

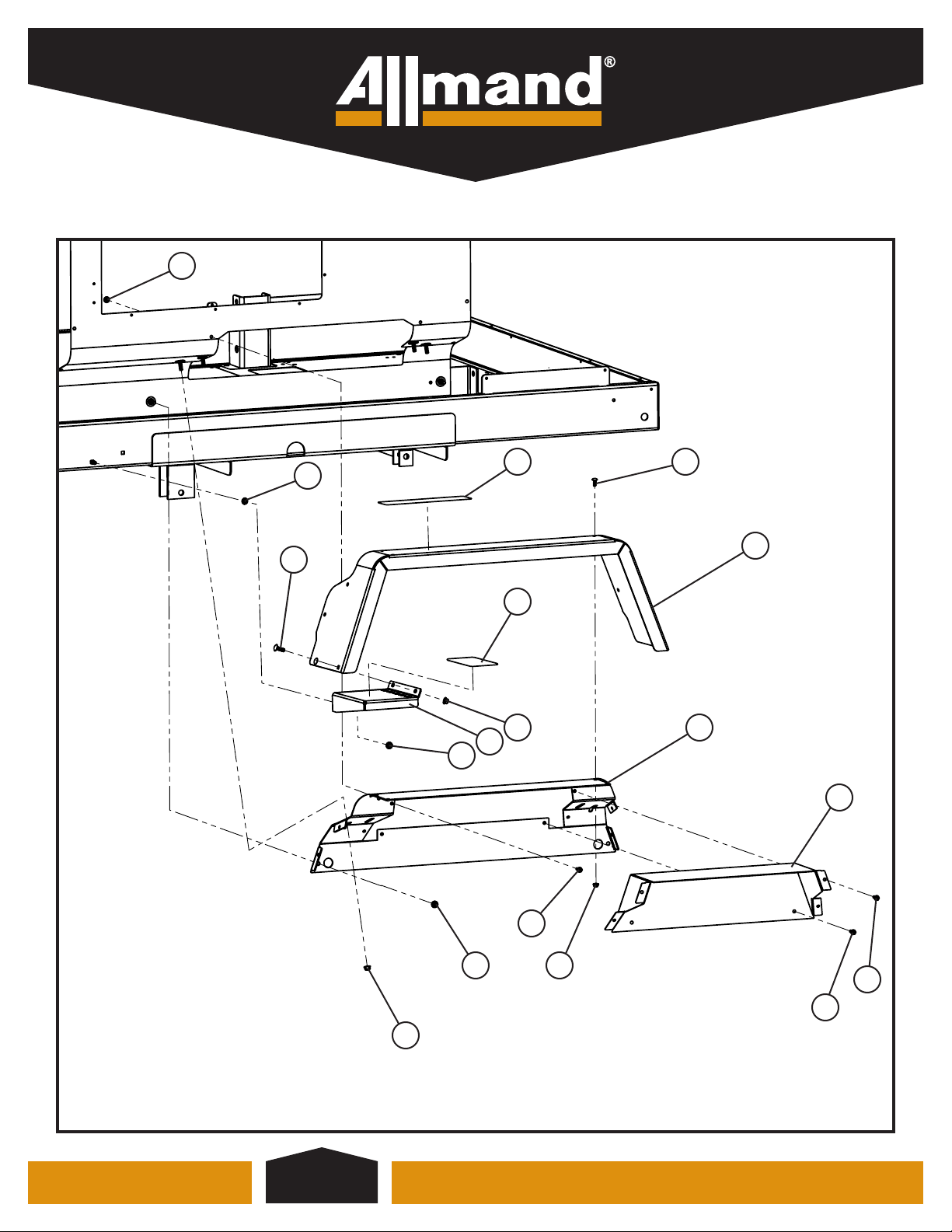

1.2 - Left Fender with Step Plate
120147_A
5
6
12
3
3
4
1
1
10
1
1
9
11
2
7
4
4
8

©2021 Briggs & Stratton
SN 36-000001 and UP
MAXI-HEAT 1MBTU
®
1.2
1.2 - Left Fender with Step Plate
Item Part No. Part Description Qty.
1 057008 5/16-18 HEX NYLOCK FLANGE NUT 10
2 119944P WELDMENT HEATER FENDER INNER 1
3 057000 1/4-20 HEX SERRATED FLANGE NUT 10
4 041070 1/4-20 x 3/4 SL-HEX WASHER HEAD MACHINE SCREW 8
5 053006 1/4-20 x 3/4 CARRIAGE BOLT 8
6 120269P WELDMENT HEATER FENDER TOP 1
7 119948P PANEL FENDER INSIDE 1
8 045217 5/16 PUSH NUT 2
9 053020 5/16-18 x 1 CARRIAGE BOLT 4
10 119947P PLATE STEP HEATER STEEL FENDER 1
11 062006 4 x 15 ANTI-SKID TAPE DIE CUT PEAL AND STICK 1
12 118435 3 1/2 x 7 1/2 ANTI-SKID TAPE DIE CUT PEAL AND STICK 1
NS - Not Shown * * * - Contact Allmand for more information.

SN 36-000001 and UP
Maxi-Heat® 1MBTU Parts Catalog
1.3
1.3 - Right Fender
120147_A
5
6
3
1
1
2
7
4
4

©2021 Briggs & Stratton
SN 36-000001 and UP
MAXI-HEAT 1MBTU
®
1.3
1.3 - Right Fender
Item Part No. Part Description Qty.
1 057008 5/16-18 HEX NYLOCK FLANGE NUT 6
2 119944P WELDMENT HEATER FENDER INNER 1
3 057000 1/4-20 HEX SERRATED FLANGE NUT 8
4 041070 1/4-20 x 3/4 SL-HEX WASHER HEAD MACHINE SCREW 6
5 053006 1/4-20 x 3/4 CARRIAGE BOLT 8
6 120269P WELDMENT HEATER FENDER TOP 1
7 119948P PANEL FENDER INSIDE 1
NS - Not Shown * * * - Contact Allmand for more information.

SN 36-000001 and UP
Maxi-Heat® 1MBTU Parts Catalog
1.4

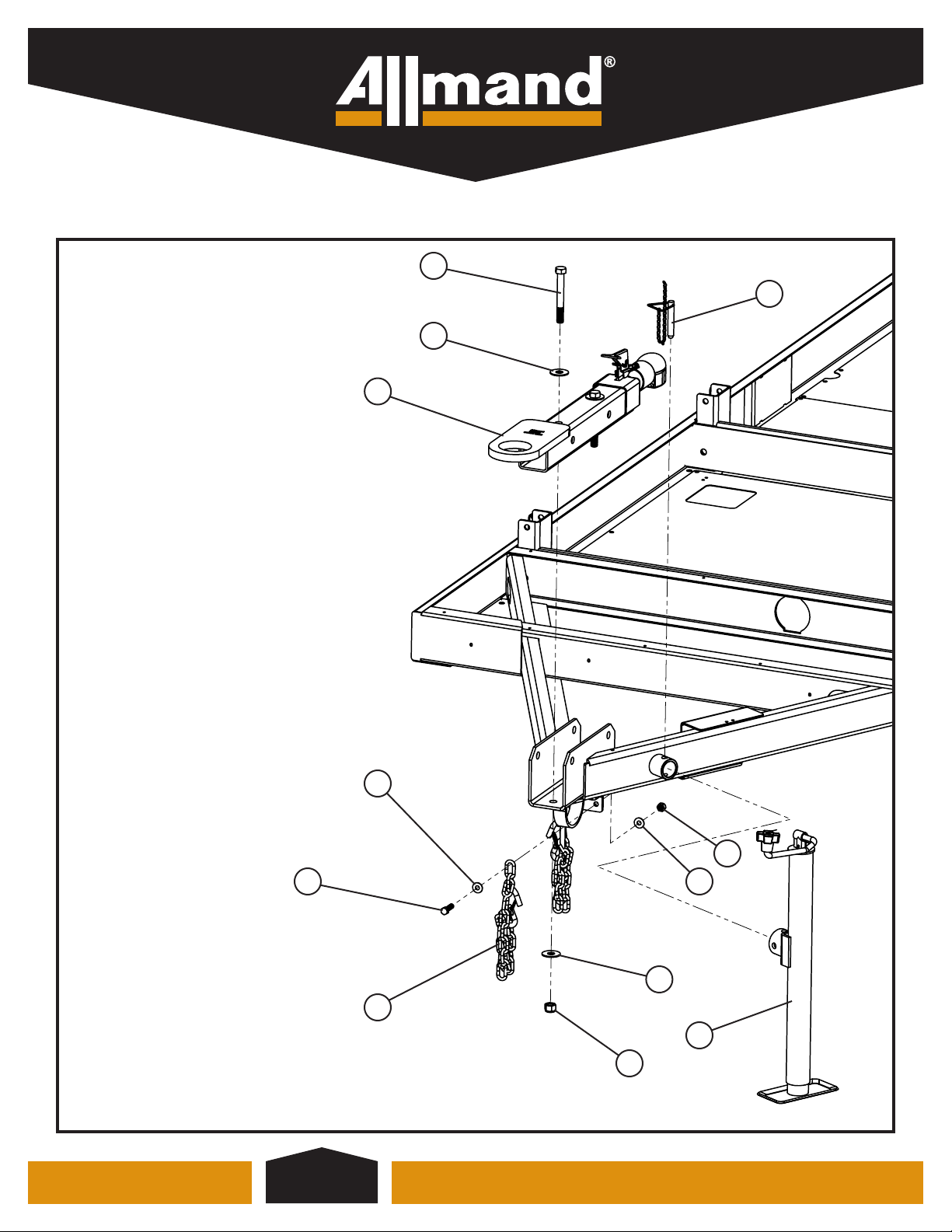

1.4 - Tongue Group
120251_A
117438_A
3
5
4
9
2
8
4
6
7
2
1
7

©2021 Briggs & Stratton
SN 36-000001 and UP
MAXI-HEAT 1MBTU
®
1.4
1.4 - Tongue Group
Item Part No. Part Description Qty.
1 044053 5/8-11 NYLOCK HEX NUT PL 2
2 047030 5/8 FLAT WASHER PL 4
3 046255 5/8-11 x 5 HEX HEAD CS GR5 PL 2
4 047015 3/8 FLAT WASHER PL 4
5 046160 7/16-14 x 1 1/2 HEX HEAD CS GR5 PL 2
6 044043 7/16-14 NYLOCK HEX NUT PL 2
7 108727 TOP CRANK TUBE JACK 1
8 049038 SAFETY CHAIN SINGLE CLASS IV 2
9330016P HITCH COMBO 2” BULLDOG 1
102693P HITCH COMBO 2-5/16” BULLDOG 1
NS - Not Shown * * * - Contact Allmand for more information.

SN 36-000001 and UP
Maxi-Heat® 1MBTU Parts Catalog
1.5
1.5 - Electric Brake Breakaway Kit
119719_A
1
3
1
2
4
5 3

©2021 Briggs & Stratton
SN 36-000001 and UP
MAXI-HEAT 1MBTU
®
1.5
1.5 - Electric Brake Breakaway Kit
Item Part No. Part Description Qty.
1 056017 1/4-20 x 1 HEX SERRATED FLANGE BOLT 5
2 057000 1/4-20 HEX SERRATED FLANGE NUT 4
3 117901 BREAKAWAY KIT ASSEMBLY MAXI-HEAT 1
4 106578 BREAKAWAY KIT ELECTRIC BRAKES 1
5 113065 BREAKAWAY SWITCH AND LANYARD ASSEMBLY 1
NS 105207 4-WAY RECEPTACLE 1
NS 105847 4-WAY RECEPTACLE WEDGELOCK 1
NS 119752 SCHEMATIC TRAILER BREAKAWAY WIRE HARNESS MAXI-HEAT 1
NS - Not Shown * * * - Contact Allmand for more information.

SN 36-000001 and UP
Maxi-Heat® 1MBTU Parts Catalog
1.6
1.6 - Tail Lights and Side Marker Lights
119723_A
13
11
12
9
5
1
2
4
7
10
3
8
8
6
13
FRONT FRAME DETAIL
REAR FRAME DETAIL

©2021 Briggs & Stratton
SN 36-000001 and UP
MAXI-HEAT 1MBTU
®
1.6
1.6 - Tail Lights and Side Marker Lights
Item Part No. Part Description Qty.
1 102825 GROMMET 6.50 OVAL LAMP 2
2 102721 LED TAIL LIGHT LAMP 2
3 115116 LICENSE PLATE LIGHT LED 1
4 106211 MARKER LIGHT RED BULLET LED 2
5 106212 MARKER LIGHT AMBER BULLET LED 2
6 711028 7/8 RUBBER GROMMET 3
7 105408 GROMMET NUT DOUBLE SPLIT SQUARE HEAD 2
8 100917 GROMMET 3” ID 2
9 041070 1/4-20 x 3/4 SL-HEX WASHER HEAD MACHINE SCREW 5
10 041040 #10-24 x 1 1/2 PH-ROUND HEAD MACHINE SCREW 2
11 044016 #10-24 KEPS HEX NUT 2
12 022137 PUSH BUTTON ZIP TIE MOUNT 4
13 116368 TAIL LIGHT HARNESS 1M HEATER 1
NS 022128 CUSHION CLAMP 1
NS 310212 #10 CUSH CLAMP 1/4 HOLE 2
NS 119751 SCHEMATIC TAIL LIGHT HARNESS MAXI-HEAT 1
NS - Not Shown * * * - Contact Allmand for more information.

SN 36-000001 and UP
Maxi-Heat® 1MBTU Parts Catalog
2.1

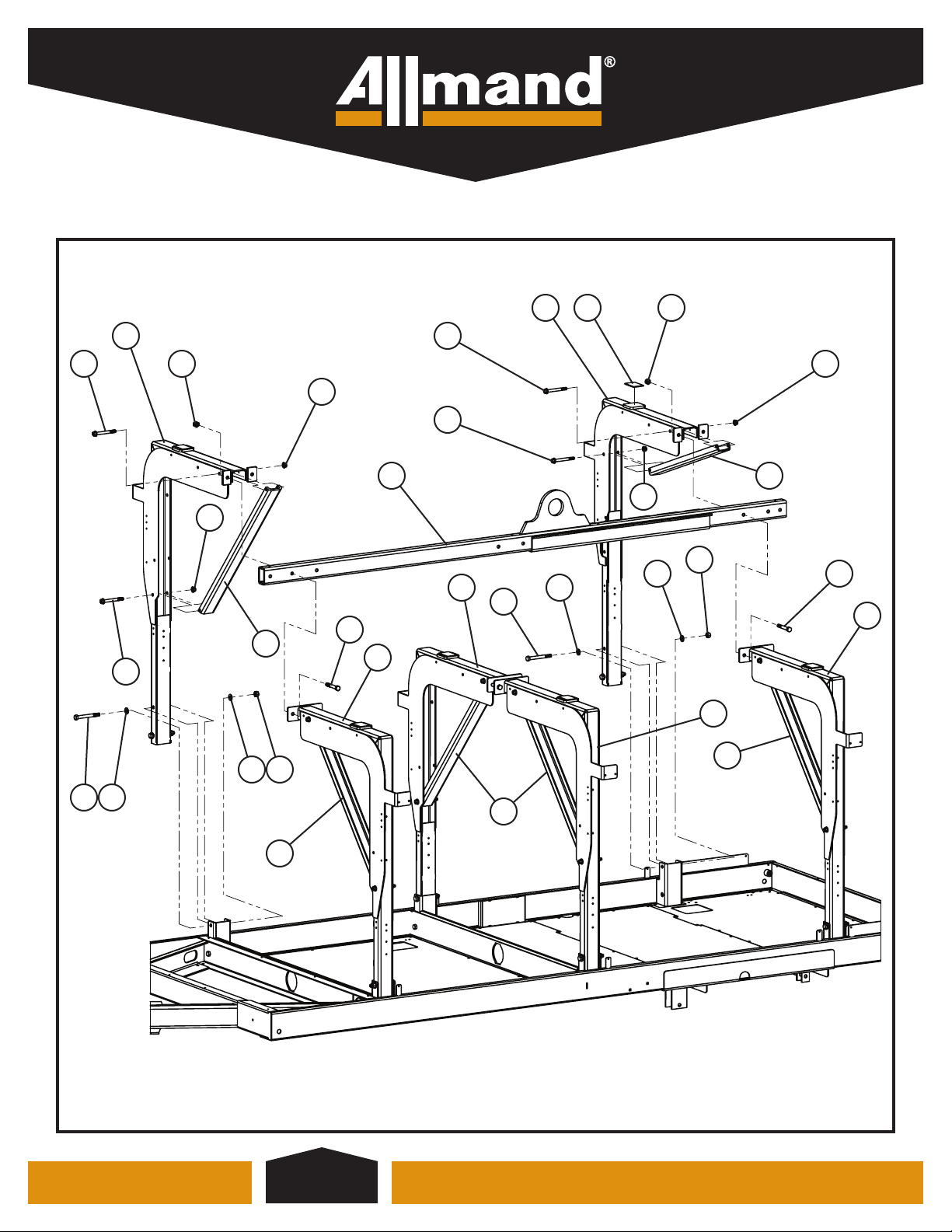

2.1 - Lift Bow Assembly Group
120033_A
5
5
6
5
13
6
12
2
3
4
11
10
11
14
10
9
2
7
10
34
1 4
9
6
5 3
6
11
11
38

©2021 Briggs & Stratton
SN 36-000001 and UP
MAXI-HEAT 1MBTU
®
2.1
2.1 - Lift Bow Assembly Group
Item Part No. Part Description Qty.
1 046225 1/2-13 x 4 1/2 HEX HEAD BOLT 12
2 046215 1/2-13 x 3 1/2 HEX HEAD BOLT 6
3 044048 1/2-13 NYLOCK HEX NUT 14
4 047025 1/2 FLAT WASHER 16
5 056028 7/16-14 x 4 HEX FLANGE SCREW 12
6 057011 7/16-14 HEX NYLOCK FLANGE NUT 12
7 117217P WELDMENT LIFT BAR LONG 1
8 120095P WELDMENT HEATER LIFT BOW RIGHT REAR 1
9 117838P WELDMENT HEATER LIFT BOW WITH GUSSET RIGHT 2
10 117843P WELDMENT HEATER LIFT BOW WITH GUSSET LEFT 3
11 117842P CHANNEL LONG GUSSET LIFT BOW 5
12 120091P CHANNEL SHORT GUSSET LIFT BOW 1
13 030010 RUBBER SEAL 1/8 x 2 x 3 6
NS - Not Shown * * * - Contact Allmand for more information.

SN 36-000001 and UP
Maxi-Heat® 1MBTU Parts Catalog
2.2
2.2 - Interior Divider Panels
120102_A
1
1
8
1
5
1
13
2
1
4
6
1
REAR INTERIOR
PANEL
MIDDLE INTERIOR
PANEL
FRONT INTERIOR
PANELS
7
1
