KEENAN bale handler

Operator’s manual supplement

All models

Revision A01 March 2022 EN

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 1

CONTENTS

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 2

SECTION CONTENTS PAGE

Part I –Service and maintenance of the bale handler attachment

1 Introduction 3

1.1 Purpose of this manual 3

1.2 Maintenance checklist 3

1.3 Maintenance for bale handler models 3

2 Operating KEENAN MechFiber models with bale handler 5

2.1 Loading and mixing 5

2.2 Operating the KEENAN MechFiber diet feeder with bale handler 6

2.3 Specific instructions for bale handler models 7

3 Troubleshooting 8

3.1 Bale handler troubleshooting 8

Part II –Parts list

4 Bale handler parts 9

4.1 Series I bale handler 10

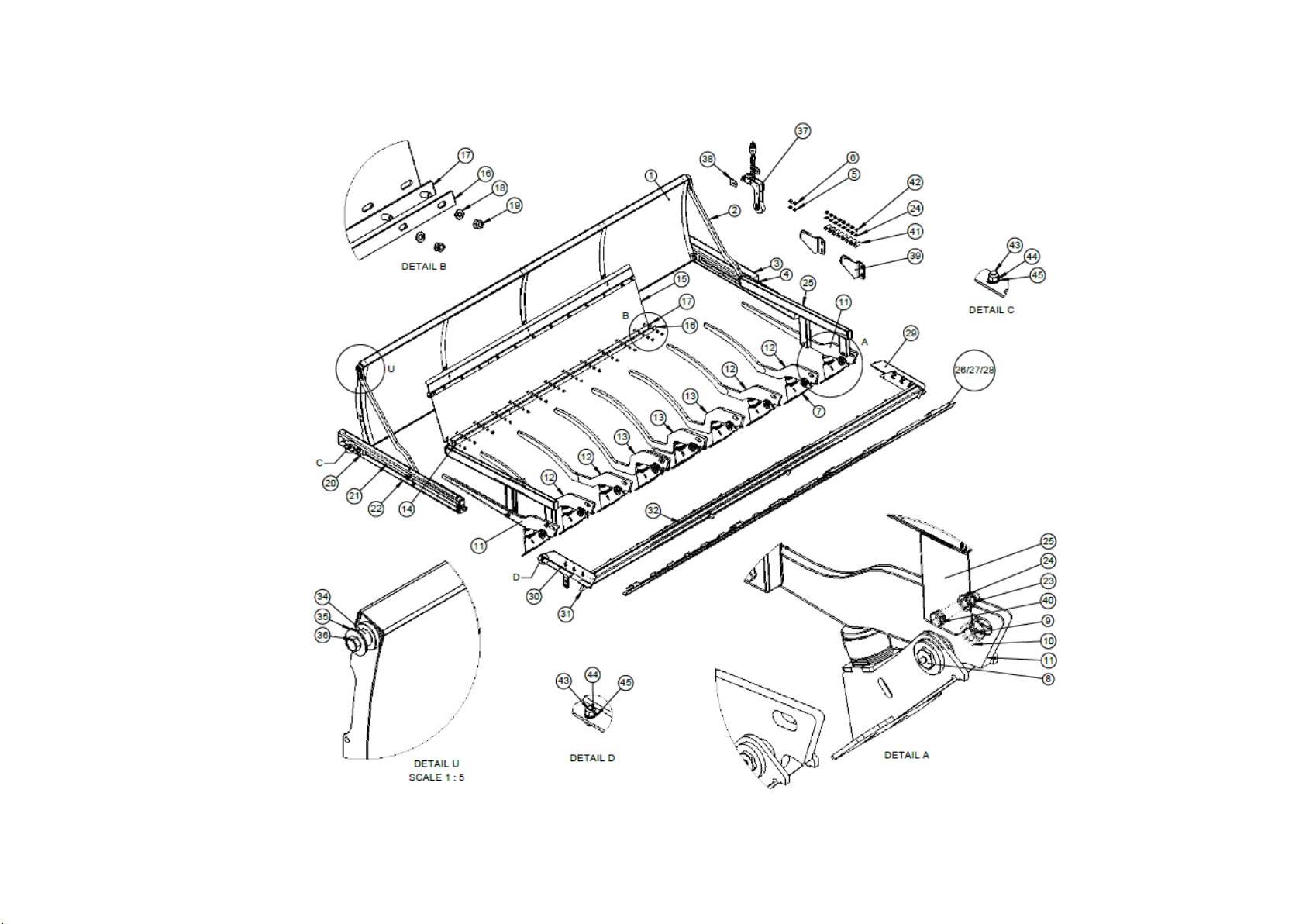

4.2 Series III bale handler 13

4.3 Series I and III bale handler tine and tine bracket assemblies 16

4.4 Series I and III bale handler creel kicker assembly 17

4.5 Series I and III bale handler kicker plate assembly 18

Contents KEENAN bale handler operator’s manual supplement

The bale handler operator’s manual presents information on maintenance, specification and spare

parts to maintain and safely operate the bale handler attachment on KEENAN MechFiber diet feeders.

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 3

Part I – Service and maintenance bale handler

attachment

1 Introduction

1.1 Purpose of this manual

This manual has been designed to present the general information you need to operate and

maintain the KEENAN bale handler attachment. Further information on general service and

maintenance for the KEENAN diet feeders are in the general and model-specific operator

manuals, which should also be referred to before operating or maintaining the machine.

WARNING:

Prior to carrying out any maintenance on the machine, always ensure the

tractor engine is stopped and disconnect the P.T.O. and hydraulic hoses from

the tractor. Observe safety precautions at all times when working on the

machine. Read Section 4 in the general machine information manual on

“Safety”before attempting to work on the machine.

1.2 Maintenance checklist

Monthly

Bale handler:

1. Grease each tine pivot point and check the tines for looseness.

Excessive lateral movement is a sign of worn tine bushes.

2. Check tine buffers for cracks, splits or degradation.

3. Check the condition of the hydraulic hoses.

4. Check the condition of the creel kicker mechanism and rubber

wheel.

5. Check the tine-to-top knife clearance is at the recommended

235 mm +/- 10 mm.

Table 1: Maintenance checklist

1.3 Maintenance for bale handler models

There is a grease point fitted at the pivot point of each bale handler tine on the auger chamber

side of the machine. The grease point is fitted to the head of each M24 tine bolt. The following

maintenance points should be checked monthly:

1. Apply grease to each of the tine bolt grease points individually.

2. The M24 tine bolt lock nuts should be checked for tightness; they should be tight enough

to prevent the tine from having any side movement but allow it to fall under its own

weight when let drop.

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 4

3. The rubber buffer should also be checked for wear or signs of damage that may affect its

shock absorption. The optimum tine-to-top knife gap is 235 mm ± 10 mm (see figure 2)

but may vary depending on the application and design of the tine fitted. Please consult

your local service partner for settings.

4. Check that the operation of the creel, both up and down, is smooth and unobstructed.

5. Check that the creel rubber is in place, undamaged and lowering and raising with the

creel.

Note: The creel rubber is fitted to prevent material from sitting on the top knife of the

machine, preventing a build-up of material from getting under the creel and damaging it

as it is lowered. To prevent damage to this rubber, do not drop material on it from a height

when loading material onto bale handler arms.

Figure 1: Bale handler grease points

Figure 2: Bale handler tine-to-top knife setting

Bale handler attachment

Grease point at each tine

Add or remove shims as required

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 5

2 Operating KEENAN MechFiber models with bale

handler

2.1 Loading and mixing

Load ingredients in the sequence recommended by your InTouch physical nutritionist, or as

suggested in Section 2.2

For bale handler models, wait until the bale has been taken in entirely before adding further

bales. As a general rule, the material should tumble freely when mixing. If not, the machine is

overloaded and will not achieve the desired mix quality. Mixing is carried out by a centrally

mounted rotor fitted with six angled paddles revolving at 6–8 RPM. Each paddle imparts a

shearing action, sweeping the feed ingredients onto the strategically placed knives to produce

a consistent and thorough mix with all types of materials, including baled silage, hay or straw,

roots and liquids.

Do not load a complete 6x4 round bale onto the machine as it may potentially be unstable,

possibly falling off and causing injury. These should be first broken up and then loaded onto the

machine in sections. Alternatively, the bale may be held in place by the loader until sufficiently

chopped down, one-third to halfway, to allow it safely complete chopping on the top of the

machine. If in doubt, consult your local KEENAN representative for the recommended safe

operation of the machine to suit your particular application.

Note: The unique tumbling action of the machine is what carries out the mixing. If the machine

is overloaded or loaded in an incorrect order, or insufficient time is allowed for proper chopping,

this tumbling action will not take place correctly. In addition to reducing mix quality, it increases

the horsepower requirements and reduces the life of the machine.

Figure 3: Correct loading side

CAUTION:

For bale handler models, do not load a complete 6x4 round bale or more than one 5x4

or 4x4 round bale onto the machine at any one time. Overloading the machine may

seriously affect the safe operation and life of the machine and invalidate the warranty.

CAUTION:

Overloading will seriously affect machine performance and life and will invalidate your

warranty.

Load from

left side only

Load long fibres slowly on paddles

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 6

2.2 Operating the KEENAN MechFiber diet feeder with bale handler

Table 2: Loading the KEENAN MechFiber diet feeder with bale handler

LOADING THE KEENAN MECHFIBER DIET FEEDER WITH BALE HANDLER

GENERAL

• Park on level ground.

• Ensure the variable feed control door (VFC) is closed.

• Do not start PTO when VFC-door is open.

LOADING AND MIXING SEQUENCE

• Set paddles running at 6–8 RPM for all bale types. Note: When chopping straw, higher

revolutions can be used.

• Load round bales to the centre of the unit, with the flat end towards the top knife.

• Allow a minimum of 2 minutes for the previous bale to chop down before adding another.

CAUTION: Do not load more than one bale at a time.

• Stop PTO before moving to feed-out area.

• Mixing time will depend on chop length required.

Below is a guide to the correct loading order. Consult your local InTouch centre or

nutritionist for best loading order for your ingredients.

Order Feed ingredients Paddle RPM Tractor engine speed

1st

Straw, hay

All at 6–8 RPM

1,400–1,600 RPM

2nd

Water, liquid feeds

3rd

Minerals, concentrates, protein

meals, pulps, cereal grains

4th

Grass silage

5th

Maize silage

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 7

2.3 Specific instructions for bale handler models

1. The creel should be raised before loading bales.

2. Round bales should always be loaded in the centre of

the machine to allow for the maximum agitation of the paddles.

3. The bale should be gently lowered in the centre of the machine onto the tines. The bale handler

will then begin its cutting action, with the tines/rings working in conjunction with the top knife,

body blades and six paddles to evenly chop the bale material in a timely manner. The bale should

be chopped evenly throughout this process, which will keep large lumps of the bale from entering

the mixer at any time. This will result in a better mix quality and more even chopping action.

4. After the bale has been fully chopped and enters the machine, the next bale can be added to the

mix in the same manner.

5. The standard chopping times for different materials of round 4x4 (120 cm) bales are as follows:

Bale:

Time:

Straw

6–8 minutes (140 kg)

Hay

4–6 minutes (300 kg)

Wet silage (up to 20% DM)

2–4 minutes (700 kg

Dry silage (20–30% DM)

4–5 minutes (500 kg)

Very dry silage (over 35%)

4–6 minutes (400 kg)

Table 3: Bale intake times

Note: Heavy bales must be loaded gently onto the bale handler, not

dropped from a height, as doing so can result in damage.

6. These times are dependent on the bale being loaded in the correct

position and on using the correct loading method, as described

above. These times may vary slightly depending on the tightness of

the bale and the behaviour of the bale as it is chopped.

7. When loading large square bales, load the bales so the sections lie

across the tines, as this will prevent the sections from falling through

the gap in the tines (see diagram to the right: sections of large square

bale loaded perpendicular to the tines). The easiest way to do this is

to load the bale in two halves on the loader (one half on each side of

the bucket, if wide enough) and flick the sections out onto the tines.

By doing so, the sections will remain on the tines and rings longer and

get a better chop against the top knife. If loaded incorrectly, the

sections will fall through the tines and will not get chopped, putting

additional stress on the chopping mechanism.

8. To successfully operate the bale handler, the bale should remain on

top of the tines long enough to allow the pre-chopping to take place against the serrated top

knife. This will ensure that further chopping within the mixing chamber is reduced, and

though it may take longer for the bale to be taken in, during this time, the material that has

already been cut from the bale will be processed within the chamber.

Incorrect

Correct

Figure 5

Figure 4

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 8

3 Troubleshooting

3.1 Bale handler troubleshooting

ITEM

PROBLEM

SOLUTION

1

Bale goes in too

quickly

If the bale goes into the machine too quickly, it may place an

unnecessary load on the tractor and driveline, as well as

slowing overall mixing time as the body blades are not as

efficient at chopping long fibrous material as the top knife.

Check tine buffers and tine-to-top knife gap.

2

Blockage at top

knife

On bale handler models, check tine height settings. Ensure all

feed materials are free from foreign objects before loading

them into the machine. In the unlikely event of a large blockage

occurring that prevents the machine from restarting using the

tractor, it may be necessary to enter the mixing chamber to

manually clear the blockage. Refer to the safety section of the

main manual before attempting to enter the mixing chamber.

Table 4: Bale handler troubleshooting

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 9

Part II –Parts list

Figure 6: Bale handler general parts

Reference

Description

1

T-bar

2

Creel

3

Tine

4

Load bumper

5

Tine bracket

Table 5: Bale handler general parts list

List of abbreviations used:

P/N: Part number OD: Outer diameter

Qty. and #: Quantity N/: Not applicable

ID: Inner diameter c/w: Complete with

1

2

3

4

5

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 10

4 Bale handler parts

4.1 Series I bale handler

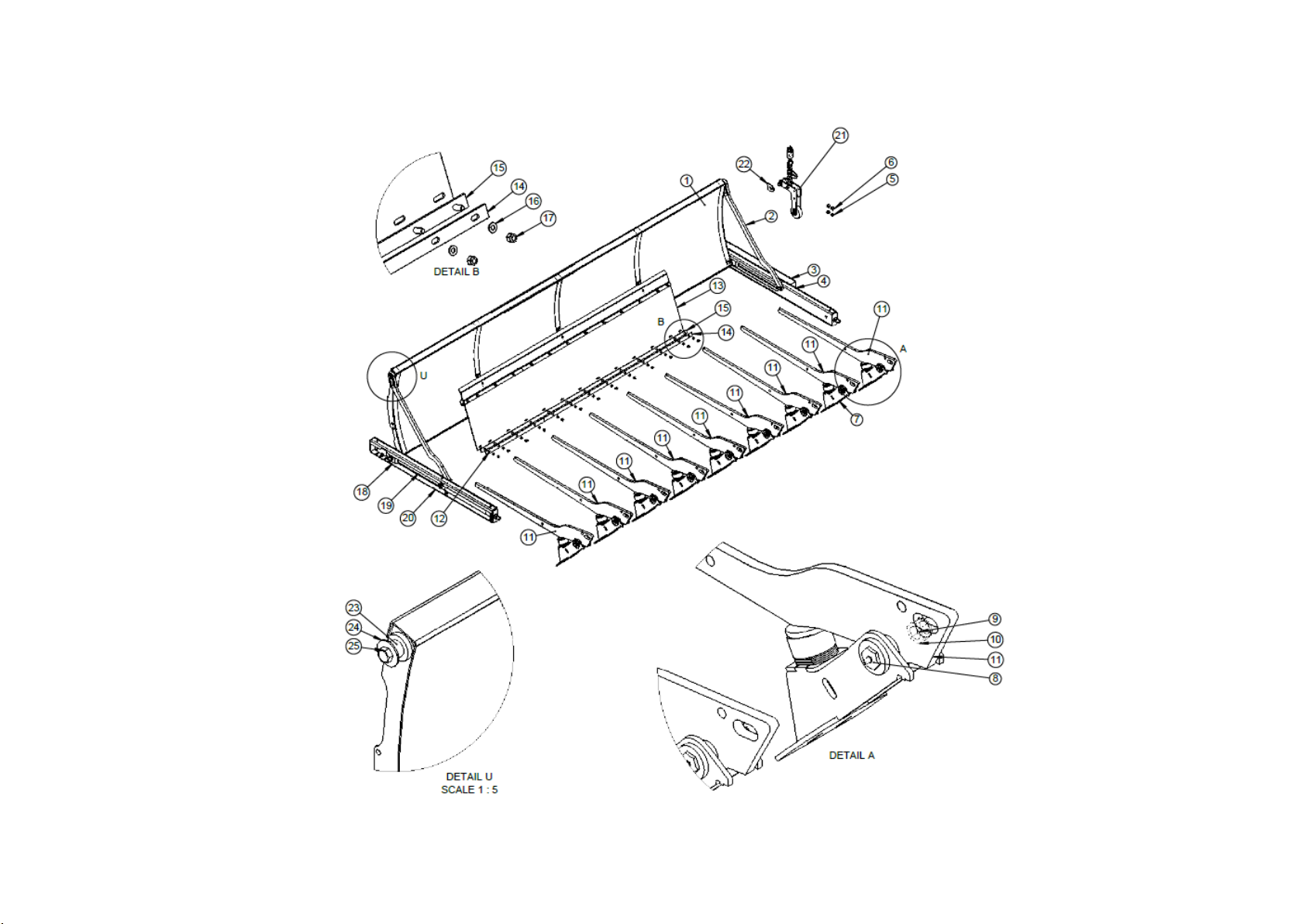

Figure 6: Series I bale handler complete assembly

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 11

Model

MF270

MF300

MF320

MF345

MF350

MF365

MF370

MF380

MF400

Parts

Item

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

Description:

1

FP100-

045-0002

1

FP160-

045-0177

1

FP160-

045-0177

1

FP160-

045-0177

1

FP160-

045-0177

1

FP200-

045-0223

1

FP200-

045-0223

1

FP200-

045-0223

1

FP200-

045-0223

1

Bale handler creel curved plate

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

Bale handler creel guide arm

3

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

Creel end cover plate

4

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

Bale handler end creel assembly

(rear)

5

700733

2

700733

2

700733

2

700733

2

700733

2

700733

2

700733

2

700733

2

700733

2

M20 washer

6

700305

2

700305

2

700305

2

700305

2

700305

2

700305

2

700305

2

700305

2

700305

2

M20 locknut

7

FP140-

045-0096

8

FP140-

045-0096

9

FP140-

045-0096

9

FP200-

045-0143

9

FP200-

045-0143

9

FP200-

045-0143

1

FP200-

045-0143

1

FP200-

045-0143

1

FP200-

045-0143

11

Bale handler tine bracket

8

FP140-

045-0111

8

FP140-

045-0111

9

FP140-

045-0111

9

FP140-

045-0111

9

FP140-

045-0111

9

FP140-

045-0111

1

FP140-

045-0111

1

FP140-

045-0111

1

FP140-

045-0111

11

M24 x 150 mm bolt with grease

fitting (701127) fitted

9

700318

8

700318

9

700318

9

700318

9

700318

9

700318

1

700318

1

700318

1

700318

11

M24 locknut

10

700316

8

700316

9

700316

9

700316

9

700316

9

700316

1

700316

1

700316

1

700316

11

M24 washer

11

FP140-

045-0113

8

FP140-

045-0113

9

FP140-

045-0113

9

FP200-

045-0154

9

FP200-

045-0154

9

FP200-

045-0154

1

FP200-

045-0154

1

FP200-

045-0154

1

FP200-

045-0154

11

Straight tine

12

FP140-

045-0004

1

FP140-

045-0004

1

FP140-

045-0004

1

FP140-

045-0004

2

FP140-

045-0004

2

Retainer strip, 5 mm, for rubber

apron (675 mm long)

13

FP140-

045-0003

1

FP140-

045-0003

1

FP140-

045-0003

1

FP140-

045-0003

1

FP140-

045-0003

1

FP200-

045-0003

1

FP200-

045-0003

1

FP200-

045-0003

1

FP200-

045-0003

1

Rubber apron

14

FP200-

045-0004

1

FP200-

045-0004

1

FP200-

045-0004

1

FP200-

045-0004

2

FP200-

045-0004

2

FP200-

045-0004

4

FP200-

045-0004

4

FP200-

045-0004

4

FP200-

045-0004

4

Retainer strip, 5 mm, for rubber

apron (1725 mm long)

15

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP200-

045-0005

1

FP200-

045-0005

1

FP200-

045-0005

1

FP200-

045-0005

1

Apron rail and stud assembly

16

700729

1

3

700729

1

3

700729

1

3

700729

1

3

700729

13

700729

1

3

700729

1

3

700729

1

3

700729

13

M10 washer

17

700241

1

3

700241

1

3

700241

1

3

700241

1

3

700241

13

700241

1

3

700241

1

3

700241

1

3

700241

13

M10 locknut

18

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

Bale handler nylon guidewheel

19

704040

2

704040

2

704040

2

704040

2

704040

2

704040

2

704040

2

704040

2

704040

2

End creel ram assembly

20

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

Bale handler end creel assembly

(front)

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 12

Item

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

Description:

21

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

Creel kicker

22

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

Creel kicker mounting bracket

23

706857

2

706857

2

706857

2

706857

2

706857

2

706857

2

706857

2

706857

2

706857

2

Creel guide arm bush

24

702342

2

702342

2

702342

2

702342

2

702342

2

702342

2

702342

2

702342

2

702342

2

Creel guide arm retaining washer

25

700269

2

700269

2

700269

2

700269

2

700269

2

700269

2

700269

2

700269

2

700269

2

M16 x 110 bolt

Table 6: Series 1 bale handler complete parts list

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 13

4.2 Series III bale handler

Figure 8: Series III bale handler complete assembly.

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 14

Model

MF270

MF300

MF320

MF345

MF350

MF365

MF370

MF380

MF400

Parts

Item

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

Description:

1

FP100-

045-0002

1

FP160-

045-0177

1

FP160-

045-0177

1

FP160-

045-0177

1

FP160-

045-0177

1

FP200-

045-0223

1

FP200-

045-0223

1

FP200-

045-0223

1

FP200-045-

0223

1

Bale handler creel curved plate

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-

045-0234

2

FP200-045-

0234

2

bale handler Creel Guide Arm

3

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-

045-0088

1

FP160-045-

0088

1

Creel end cover plate

4

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-

045-0003

1

FP160-045-

0003

1

bale handler end creel assembly

(rear)

5

700733

2

700733

2

700733

2

700733

2

700733

2

700733

2

700733

2

700733

2

700733

2

M20 washer

6

700305

2

700305

2

700305

2

700305

2

700305

2

700305

2

700305

2

700305

2

700305

2

M20 locknut

7

FP140-

045-0096

8

FP140-

045-0096

9

FP140-

045-0096

9

FP200-

045-0143

9

FP200-

045-0143

9

FP200-

045-0143

1

FP200-

045-0143

1

FP200-

045-0143

1

FP200-045-

0143

1

Bale handler tine bracket

8

FP140-

045-0111

8

FP140-

045-0111

9

FP140-

045-0111

9

FP140-

045-0111

9

FP140-

045-0111

9

FP140-

045-0111

1

FP140-

045-0111

1

FP140-

045-0111

1

FP140-045-

0111

1

M24 x 150 mm bolt with grease

fitting (701127) fitted

9

700318

8

700318

9

700318

9

700318

9

700318

9

700318

1

700318

1

700318

1

700318

1

M24 locknut

10

700316

8

700316

9

700316

9

700316

9

700316

9

700316

1

700316

1

700316

1

700316

1

M24 washer

11

FP140-

045-0098

2

FP140-

045-0098

2

FP140-

045-0098

2

FP200-

045-0156

2

FP200-

045-0156

2

FP200-

045-0156

2

FP200-

045-0156

2

FP200-

045-0156

2

FP200-045-

0156

2

Straight tine

12

FP140-

045-0118

4

FP140-

045-0118

4

FP140-

045-0118

4

FP200-

045-0158

4

FP200-

045-0158

4

FP200-

045-0158

6

FP200-

045-0158

6

FP200-

045-0158

6

FP200-045-

0158

6

Dropped tine

13

FP140-

045-0115

3

FP140-

045-0115

3

FP140-

045-0115

3

FP200-

045-0162

3

FP200-

045-0162

3

FP200-

045-0162

3

FP200-

045-0162

3

FP200-

045-0162

3

FP200-045-

0162

3

Extra dropped tine

14

FP140-

045-0004

1

FP140-

045-0004

1

FP140-

045-0004

1

FP140-

045-0004

2

FP140-

045-0004

2

Retainer strip, 5 mm, for rubber

apron (675 mm long)

15

FP140-

045-0003

1

FP140-

045-0003

1

FP140-

045-0003

1

FP140-

045-0003

1

FP140-

045-0003

1

FP200-

045-0003

1

FP200-

045-0003

1

FP200-

045-0003

1

FP200-045-

0003

1

Rubber apron

16

FP200-

045-0004

1

FP200-

045-0004

1

FP200-

045-0004

1

FP200-

045-0004

2

FP200-

045-0004

2

FP200-

045-0004

4

FP200-

045-0004

4

FP200-

045-0004

4

FP200-045-

0004

4

Retainer strip, 5 mm, for rubber

apron (1725 mm long)

17

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP140-

045-0005

1

FP140-045-

0005

1

Apron rail and stud assembly

18

700729

1

3

700729

1

3

700729

1

3

700729

1

3

700729

13

700729

1

3

700729

1

3

700729

1

3

700729

1

3

M10 washer

19

700241

1

3

700241

1

3

700241

1

3

700241

1

3

700241

13

700241

1

3

700241

1

3

700241

1

3

700241

1

3

M10 locknut

20

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-

045-010

2

FP280-045-

010

2

Bale handler nylon guide wheel

KEENAN Bale Handler Operator’s Manual Supplement Rev A01 March 2022 15

Item

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

P/N:

#

Description:

21

704040

2

704040

2

704040

2

704040

2

704040

2

704040

2

704040

2

704040

2

704040

2

End creel ram assembly

22

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-

045-0002

1

FP160-045-

0002

1

Bale handler end creel assembly

(front)

23

700283

2

700283

2

700283

2

700283

2

700283

2

700283

2

700283

2

700283

2

700283

2

M16 locknut

24

700732

8

700732

8

700732

8

700732

8

700732

8

700732

8

700732

8

700732

8

700732

8

M16 washer

25

EF1045-

65

2

EF1045-

65

2

EF1045-

65

2

EF1745-

65

2

EF1745-65

2

EF1745-

65

2

EF1745-

65

2

EF1745-

65

2

EF1745-65

2

T- bar

26

FP100-

006-0082

1

FP300-

006-0092

1

FP300-

006-0092

1

FP160-

006-0140

1

FP160-

006-0140

1

Load bumper rubber seat plate

27

FP200-

006-0144

1

FP200-

006-0144

1

FP200-

006-0144

1

FP200-006-

0144

1

Load bumper rubber front seat plate

28

FP200-

006-0145

1

FP200-

006-0145

1

FP200-

006-0145

1

FP200-006-

0145

1

Load bumper rubber rear seat plate

29

FP140-

050-0001

1

FP300-

050-0003

1

FP140-

050-0001

1

FP100-

050-002

1

FP100-

050-002

1

FP100-

050-002

1

FP100-

050-002

1

FP280-

050-0001

1

FP280-050-

0001

1

Load bumper bracket front

30

FP100-

050-0001

1

FP300-

050-0004

1

FP100-

050-0001

1

FP100-

050-001

1

FP100-

050-001

1

FP100-

050-001

1

FP100-

050-001

1

FP280-

050-0002

1

FP280-050-

0002

1

Load bumper bracket rear

31

FP100-

050-006

1

FP300-

050-0002

1

FP140-

050-006

1

FP140-

050-006

1

FP140-

050-006

1

FP200-

050-006

1

FP200-

050-006

1

FP200-

050-006

1

FP200-050-

006

1

Load bumper frame

32

FP100-

050-0009

1

FP140-

050-0008

1

FP140-

050-0008

1

FP160-

050-0003

1

FP160-

050-0003

1

FP200-

050-0008

1

FP200-

050-0008

1

FP200-

050-0008

1

FP200-050-

0008

1

Load bumper rubber

33

FP100-

050-005

1

FP140-

050-005

1

FP140-

050-005

1

FP140-

050-005

1

FP140-

050-005

1

FP200-

050-005

1

FP200-

050-005

1

FP200-

050-005

1

FP200-050-

005

1

Load bumper rubber retainer

34

706857

2

706857

2

706857

2

706857

2

706857

2

706857

2

706857

2

706857

2

706857

2

Creel guide arm bush

35

702342

2

702342

2

702342

2

702342

2

702342

2

702342

2

702342

2

702342

2

702342

2

Creel guide arm retaining washer

36

700269

2

700269

2

700269

2

700269

2

700269

2

700269

2

700269

2

700269

2

700269

2

M16 x 110 bolt

37

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-

045-0180

1

FP160-045-

0180

1

Creel kicker

38

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-

045-0094

2

FP160-045-

0094

2

Creel kicker mounting bracket

39

FP140-

006-0065

2

FP300-

006-0093

2

FP140-

006-0065

2

FP160-

006-0139

2

FP160-

006-0139

2

FP160-

006-0139

2

FP160-

006-0139

2

FP280-

006-0198

2

FP280-006-

0198

2

Load bumper brace plate

40

700281

2

700281

2

700281

2

700281

2

700281

2

700281

2

700281

2

700281

2

700281

2

M16 x 90 bolt

41

700275

8

700275

8

700275

8

700275

8

700275

8

700275

8

700275

8

700275

8

700275

8

M16 x 50 bolt

42

700739

8

700739

8

700739

8

700739

8

700739

8

700739

8

700739

8

700739

8

700739

8

M16 spring washer

43

700247

4

700247

4

700247

4

700247

4

700247

4

700247

4

700247

4

700247

4

700247

4

M12 x 30 bolt

44

700266

4

700266

4

700266

4

700266

4

700266

4

700266

4

700266

4

700266

4

700266

4

M12 locknut

45

700730

8

700730

8

700730

8

700730

8

700730

8

700730

8

700730

8

700730

8

700730

8

M12 flat washer

Table 7: Series III bale handler complete parts list

KEENAN bale handler Operator’s Manual Supplement Rev A01 March 2022 16

4.3 Series I and III bale handler tine and tine bracket assemblies

Figure 9: Tine complete assembly

Table 8: Tine assembly complete parts list

Item:

P/N:

Qty:

Description:

MF270/300/320

MF345/350/365/370/380/400

1

See bale handler parts

list for specific tine

reference

See bale handler parts list for

specific tine reference

9/11

Bale handler tine

assembly

2

705947

18/22

Delrin bush

3

706876

9/11

Rubber buffer 75 mm OD

4

701129

9/11

1/8 bsp grease point

5

FP140-045-0111

9/11

M24 x 150 mm modified

bolt

6

FP140-045-0096

FP200-045-0143

9/11

Bale handler tine bracket

7

700316

9/11

M24 flat washer

8

700318

9/11

M24 locknut

9

FP140-045-0019

9/11

Spacer plate 3 mm

10*

700247

9/11

M12 x 30 mm bolt

KEENAN bale handler Operator’s Manual Supplement Rev A01 March 2022 17

4.4 Series I and III bale handler creel kicker assembly

Figure 10: Creel kicker complete assembly

Table 9: Creel kicker complete parts list

Item:

P/N:

Qty:

Description:

1

FP160-045-0071

1

Bale handler creel kicker arm assembly 1

2

FP160-045-0136

1

Bale handler creel kicker spring kit

3

FP100-006-0021

1

Feed-out tray mechanical adjuster roller pivot bush

4

700262

2

M12 x 75 bolt

5

700730

4

M12 washer

6

700266

2

M12 locknut

7

706859

1

Rubber guide wheel

8

700283

1

M16 locknut

9

700732

2

M16 washer

10

700268

1

M16 x 100 mm bolt

KEENAN bale handler Operator’s Manual Supplement Rev A01 March 2022 18

4.5 Series I and III bale handler kicker plate assembly

Figure 11: Creel kicker plate assembly

Table 10: Creel kicker plate parts list

Item:

P/N:

Qty:

Description:

MF300/320/345/350

MF365/370/380/400

1

FP160-045-0179

FP200-045-0224

1

Creel kicker plate

2

706806

6/8

Igus bush

3

706807

3/4

Steel bush

KEENAN bale handler Operator’s Manual Supplement Rev A01 March 2022 19

Alltech KEENAN I Series User manual

Popular Farm Equipment manuals by other brands
