alphainnoTec HSV 9M1/3 User manual

UK
83059300eUK – Translation of the original operating manual
Operating Manual
Hydraulic Station
Accessories for
heat pumps

2Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
Table of contents
1 About this operating manual .........................3
1.1 Validity..............................................................3
1.2 Reference documents ...................................3
1.3 Symbols and markings..................................3
1.4 Contact ............................................................4
2 Safety .......................................................................4
2.1 Intended use ...................................................4
 ................................4
2.3 Personal protective equipment ....................4
2.4 Residual risks .................................................4
2.5 Avoid damage to property ............................4
3 Operation and care............................................5
3.1 Energy and environmentally conscious
operation..........................................................5
3.2 Maintenance ...................................................5
4 Scope of supply...................................................6
4.1 Accessories.....................................................6
4.2 Components of the device............................6
5 Transport, installation and assembly.........7

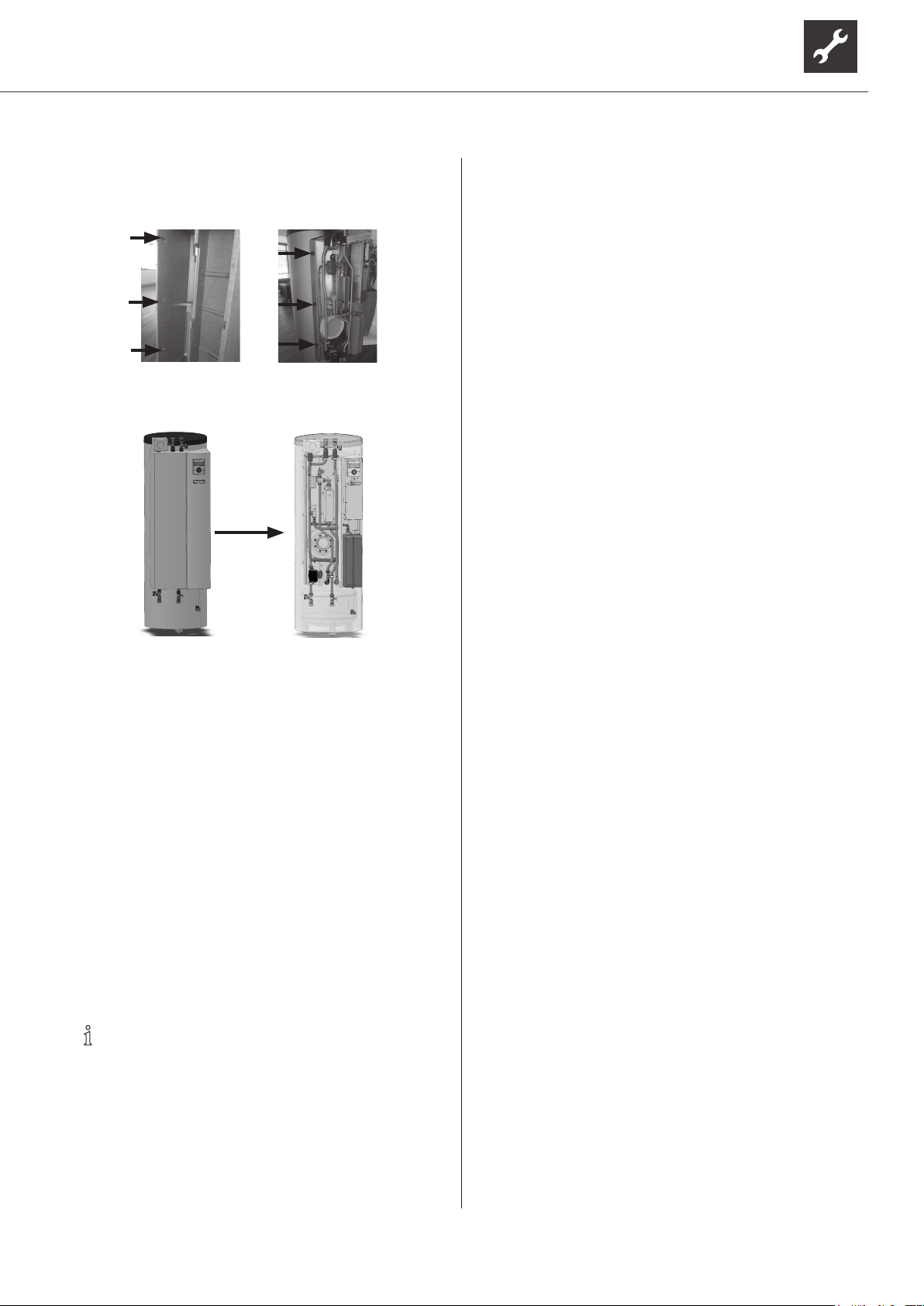

5.1 Unpacking and transport ..............................7
5.2 Making transport easier ................................7

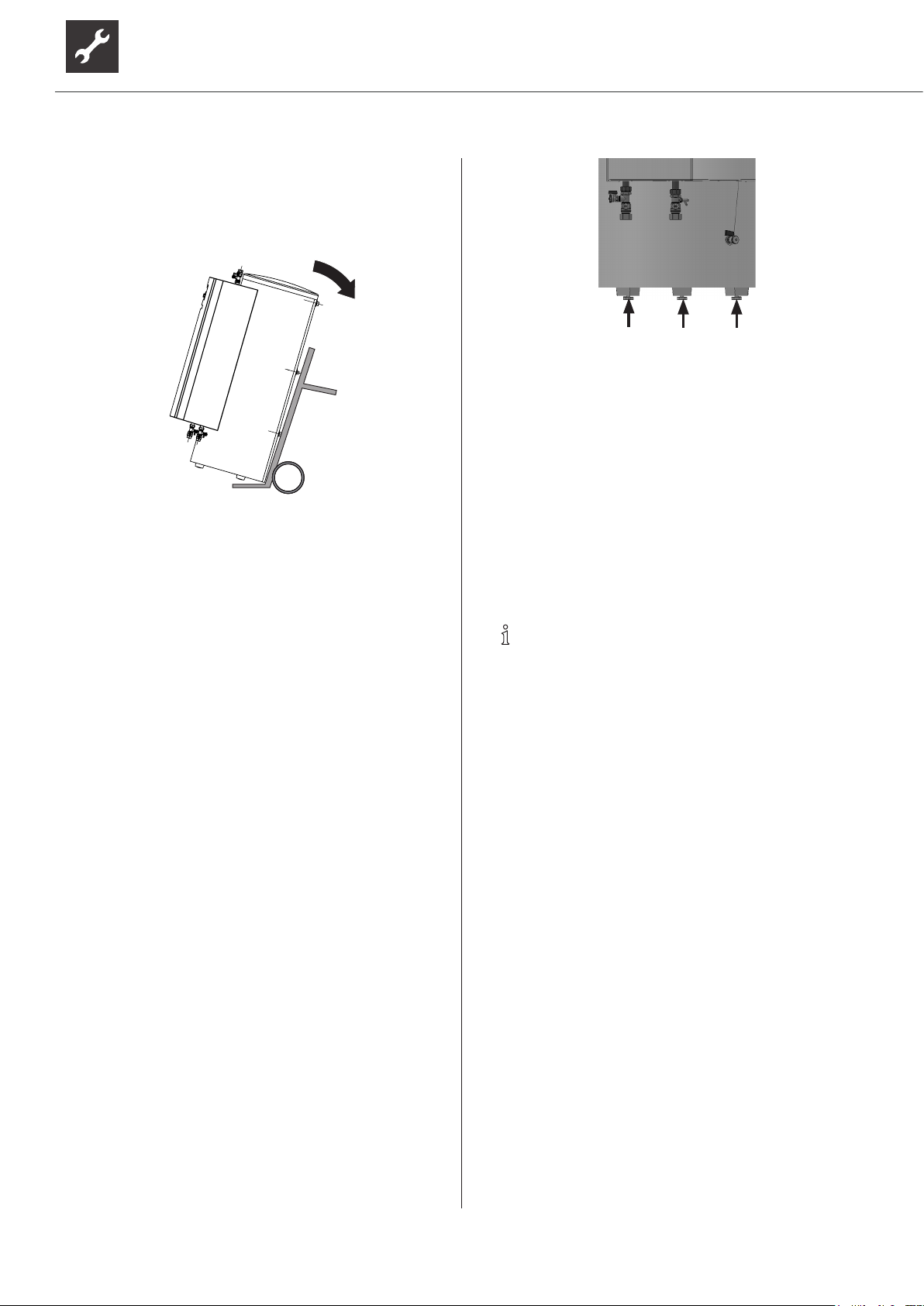

5.3 Carrying the device and transporting
with handcart ..................................................7
5.4 Installation .......................................................8
5.5 Installation / hydraulic connection to the
heating circuit and the domestic hot water.....8
5.6 Safety module.................................................9
5.7 Expansion vessel ...........................................9
5.8 Hydraulic connection for the
domestic hot water tank ................................9
6 Electrical installation .........................................9

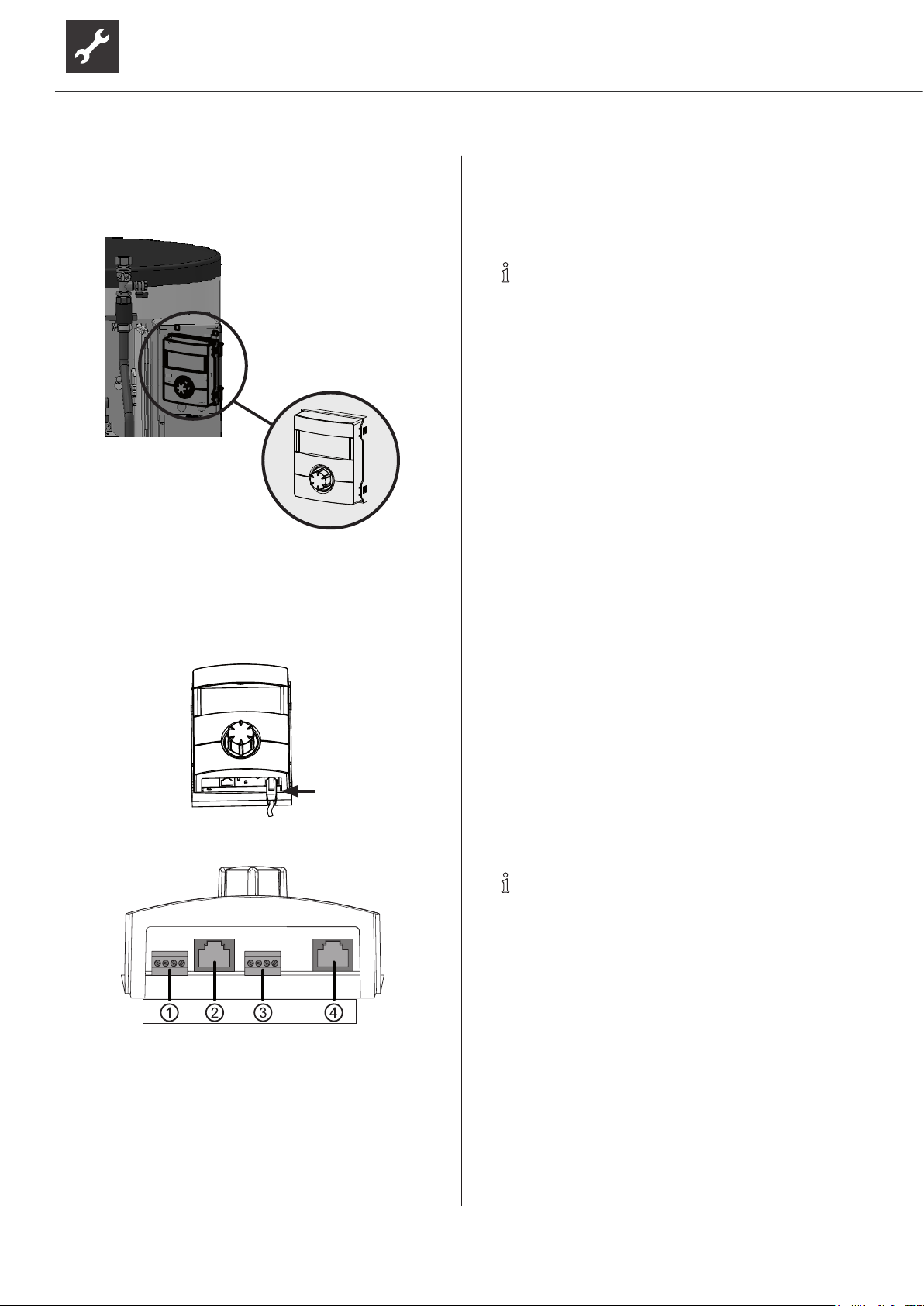

7 Installing the control device ......................... 11
 ..........................12
8.1 Heating water quality...................................12
 
domestic hot water charging circuit...........12
 
the domestic hot water tank .......................13
9 Insulate hydraulic connections ...................14
  ....................................14
11 Commissioning..................................................14
12 Faults......................................................................14
12.1 Unlock the safety temperature limiter .......14
13 Dismantling and Disposal.............................15
13.1 Dismantling ...................................................15
13.2 Disposal and Recycling...............................15
Technical data / Scope of supply..............16
HSV ......................................................................16
HSDV .......................................................................17

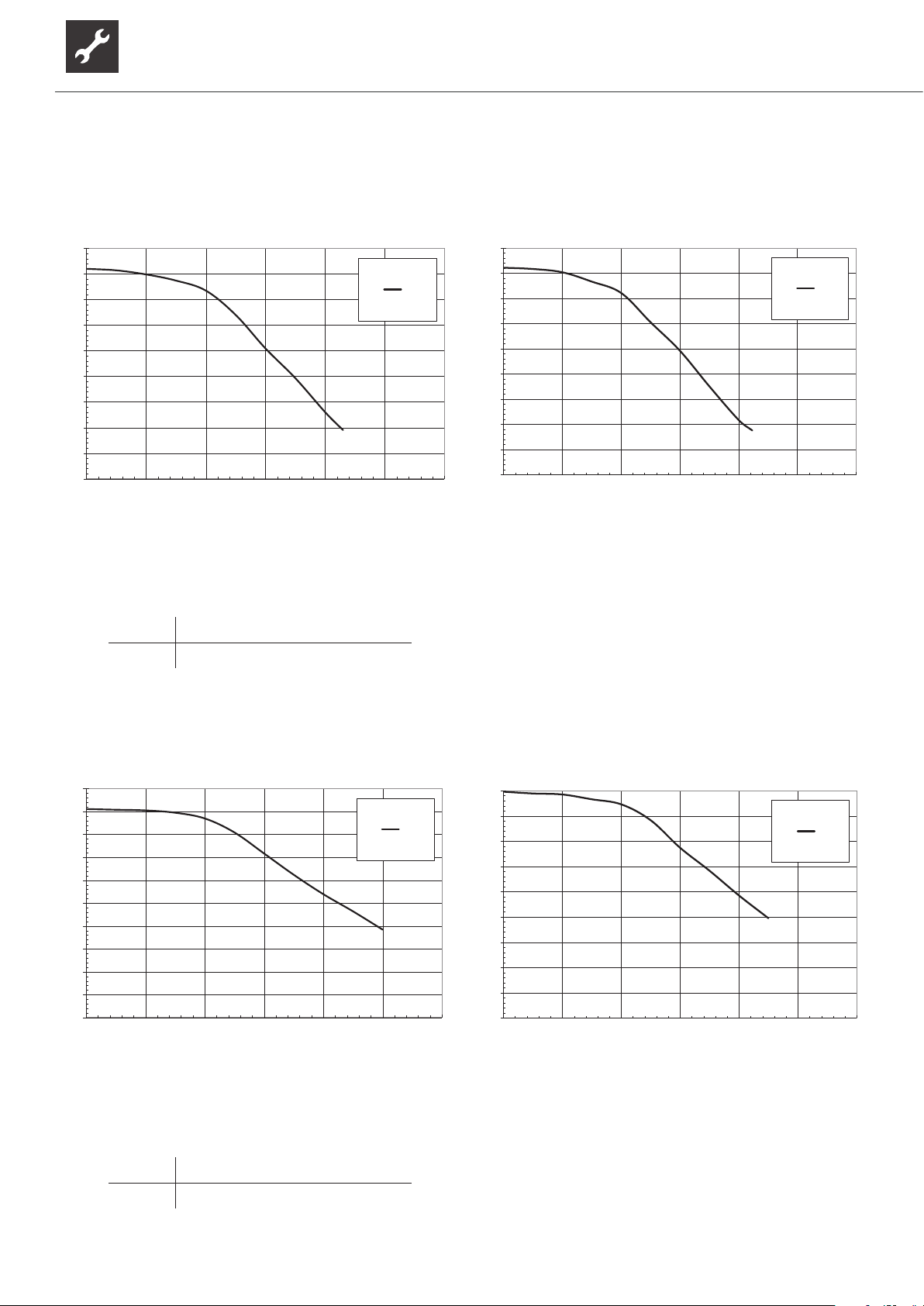

Free pressing......................................................18

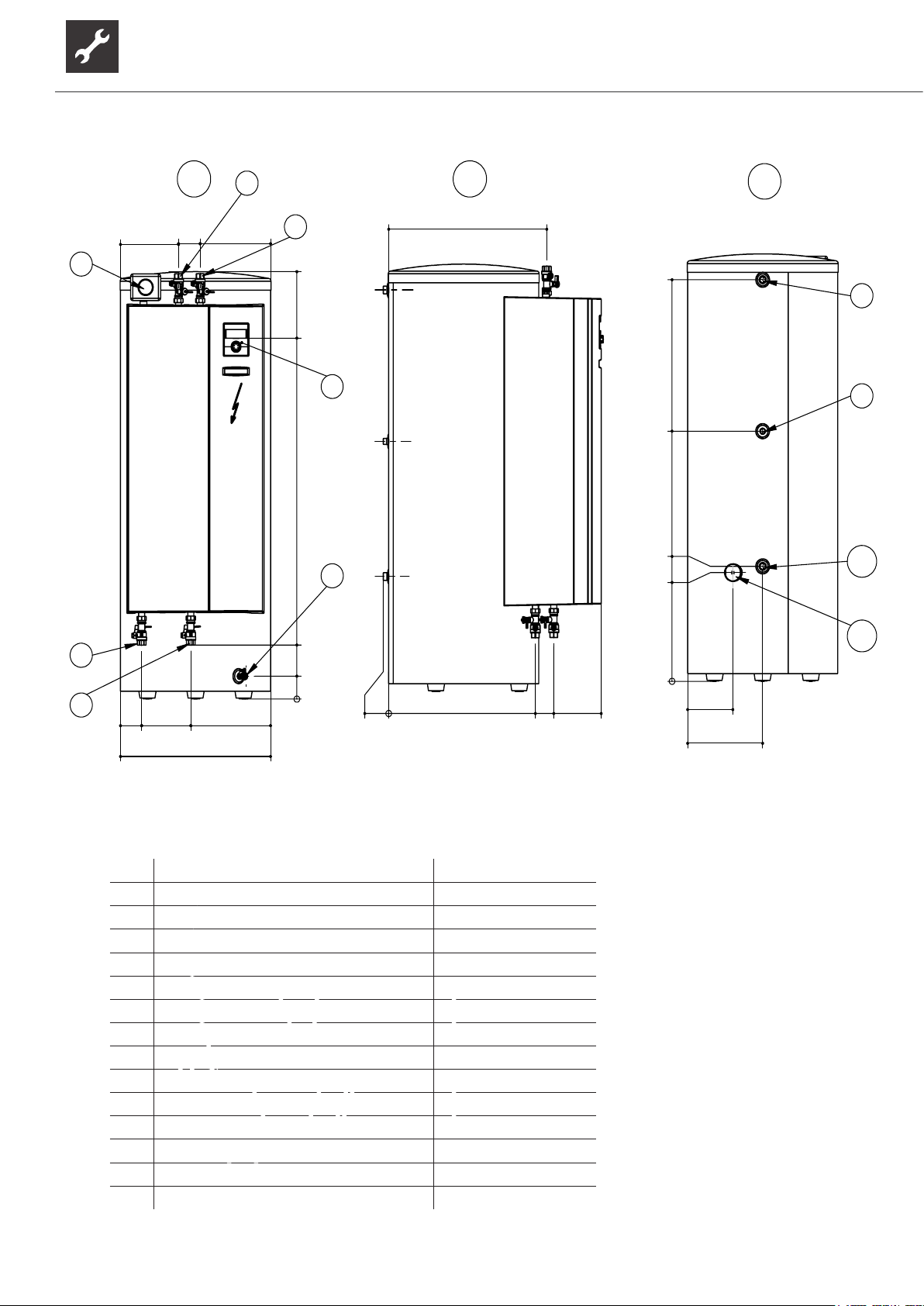

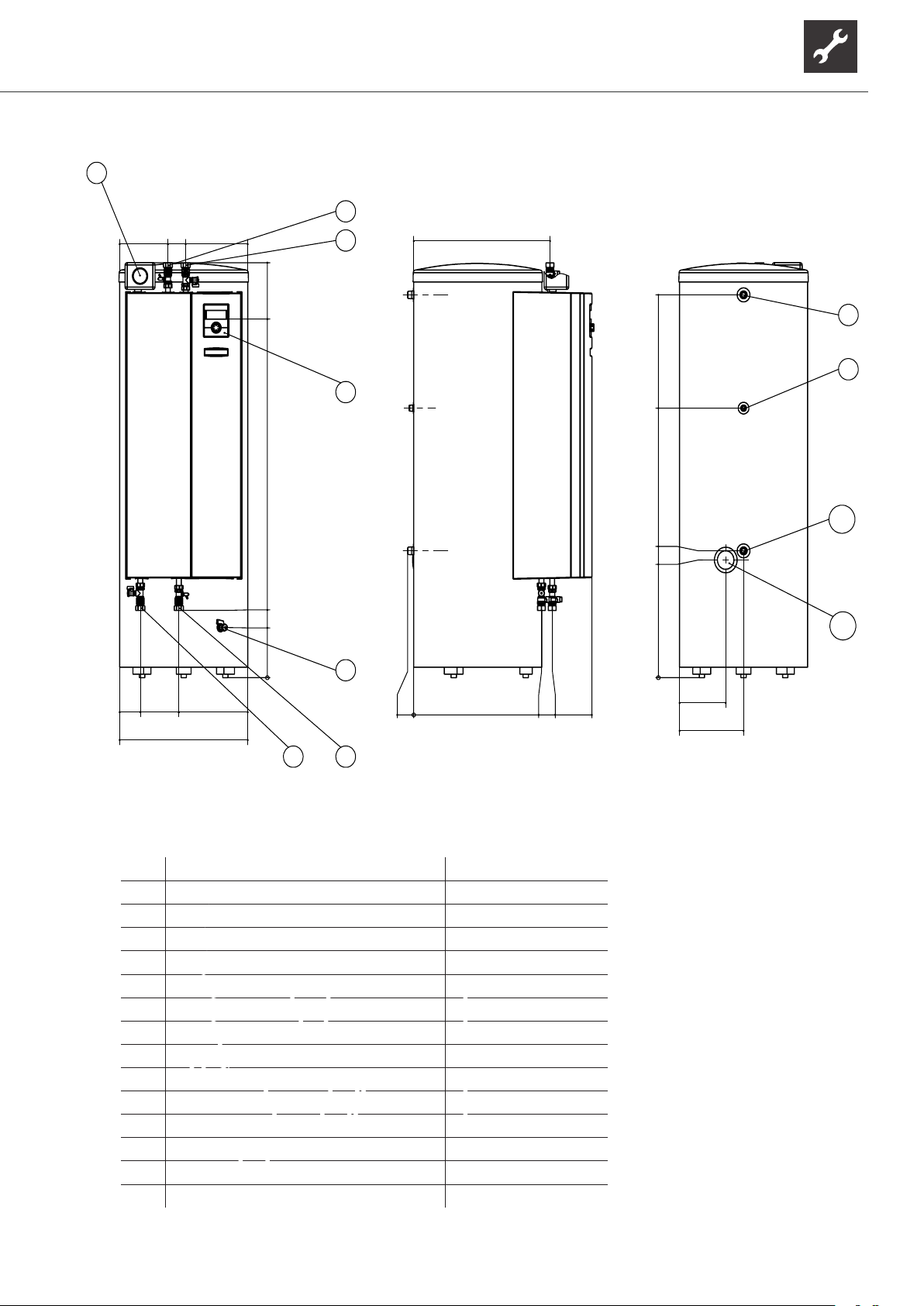

Dimensioned drawings...................................19
HS(D)V 9M1/3 .........................................................19
HS(D)V 12M3 ..........................................................20
Installation plans ...............................................21
HS(D)V 9M1/3 .........................................................21
HS(D)V 12M3 ..........................................................22
Terminal diagrams............................................23
HSV ......................................................................23
HSDV .......................................................................24
Terminal diagram, mains connection
heat pump 1~230V
+ electric heating element 3~400V ...........25
Terminal diagram, mains connection
heat pump 1~230V
+ electric heating element 1~230V............26
Terminal diagram, mains connection
heat pump 3~400V
+ electric heating element 3~400V ...........27
Circuit diagrams ................................................28
HSV ..................................................................28
HSDV ...................................................................30

3
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
1 About this operating manual
This operating manual is part of the device.
Before working on or with the device, read the op-
erating manual carefully and follow it for all activi-
ties at all times, especially the warnings and safe-
ty instructions.
Keep the operating manual to hand at the de-
vice and hand over to the new owner if the device
changes hands.
If you have any questions or anything is unclear,
ask the local partner of the manufacturer or the
factory's customer service.
Note and follow all reference documents.
1.1 Validity
This operating manual exclusively refers to the device

1.2 Reference documents
The following documents contain additional informa-
tion to this operating manual:
Planning & design manual, hydraulic integration
Operating manual of the heating and heat pump
controller
Brief description of the heat pump controller
Operating manual of the expansion board (acces-
sories)
Log book
Heat pump manual
1.3 Symbols and markings

Symbol Meaning
Safety-relevant information.
Warning of physical injuries.
DANGER Indicates imminent danger resulting
in severe injuries or death.
WARNING Indicates a potentially dangerous
situation, which can result in severe
injuries or death.
CAUTION Indicates a potentially dangerous
situation, which can result in
moderate or minor injuries.
ATTENTION Indicates a potentially dangerous
situation, which can result in
property damage.
Symbols in the document
Symbol Meaning

Information for the owner/operator
Requirement for action
Single step action prompt
1., 2., 3., …Numbered step within a multi-step
action prompt. Keep to the given
order.
Additional information, e.g. a tip on
making work easier, information on
standards
Reference to further information
elsewhere in the operating manual
or in another document
Listing

4Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
1.4 Contact
Addresses for purchasing accessories, for service
cases or for answers to questions about the device
and this operating manual can be found on the internet
and are kept up-to-date:
www.ait-deutschland.eu
2 Safety
         
condition and only use it as intended, safely and aware
of the hazards, and follow this operating manual.
2.1 Intended use
The device is solely intended for the following func-
tions:
Heating
Domestic hot water preparation
Proper use includes complying with the operating
conditions ( „Technical data / Scope of sup-
ply“, from page 16) and the operating manu-
al and noting and following the reference docu-
ments.
When using the local regulations note: laws,
standards, guidelines, directives.
All other uses of the device are not as intended.
2.2 
All instructional information in this operating manual is

        
the work on the device safety and correctly. Interfer-
-
ing injuries and damage to property.
Ensure that the personnel is familiar with the lo-
cal regulations, especially those on safe and haz-
ard-aware working.
 
only to carry out work on the electrics and elec-
tronics.
        
other work on the system, e.g.
Heating installer
Plumbing installer
Refrigeration system installer (maintenance
work)
During the warranty and guarantee period, service
work and repairs may only be carried out by personnel
authorised by the manufacturer.
2.3 Personal protective equipment
There is a risk of cutting your hands on sharp edges of
the device.
Wear cut-resistant protective gloves during trans-
port.
2.4 Residual risks
Electric shock
Components in the device are energised with
life-threatening voltage. Before opening the device
panelling:
Disconnect the device from power supply.
Protect the device against being switched back
on again.
2.5 Avoid damage to property
Improper action
Requirements for minimum scale and corrosion dam-
age in hot water heating systems:
Proper planning, design and commissioning
Closed system with regard to corrosion
Integration of an adequately dimensioned pres-
sure maintaining device
Use of deionised heating water (VE water) or
VDI 2035 water
Regular servicing and maintenance
If a system is not planned, designed, started up and
operated according to the given requirements, there is
a risk that the following damage and faults will occur:
Malfunctions and the failure of components, e.g.
pumps, valves
Internal and external leaks, e.g. from heat ex-
changers

5
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
Cross-section reduction and blockages in compo-
nents, e.g. heat exchanger, pipes, pumps
Material fatigue
Gas bubbles and gas cushion formation (cavita-
tion)
 󰀨
coatings, deposits, and associated noises, e.g.

Note and follow the information in this operating
manual for all work on and with the device.

water in the heating circuit
󰀩
heat generator and the heating components depend
decisively on the quality of the heating water.
-
ter, calcium precipitates as scale. Lime scale deposits
form on the heat transfer surfaces of the heating. The
󰀩-
es, the heat exchangers will be damaged.
Fill the system exclusively with deionised heating
water (VE water) or VDI 2035 water.
3 Operation and care
NOTE
The device is operated via the control panel
of the heating and heat pump controller
( operating manual of the heating and
heat pump controller).
3.1 Energy and environmentally
conscious operation
The generally accepted requirements for energy con-
scious and environmentally conscious operation of a
heating system also apply to use of a heat pump. The
most important measures include:
 
No unnecessarily high domestic hot water tem-
perature (note and follow local regulations)
Do not open windows with just a gap or tilt open
(continuous ventilation), but instead open wide for
a short time (shock ventilation)
Always ensure that the controller settings are cor-
rect
3.2 Maintenance
Wipe down the outside of the device only using a
damp cloth or cloth with mild cleaning product (wash-
ing up liquid, neutral cleaning product). Do not use any
harsh, abrasive, acid or chlorine-based cleaning prod-
ucts.

6Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH

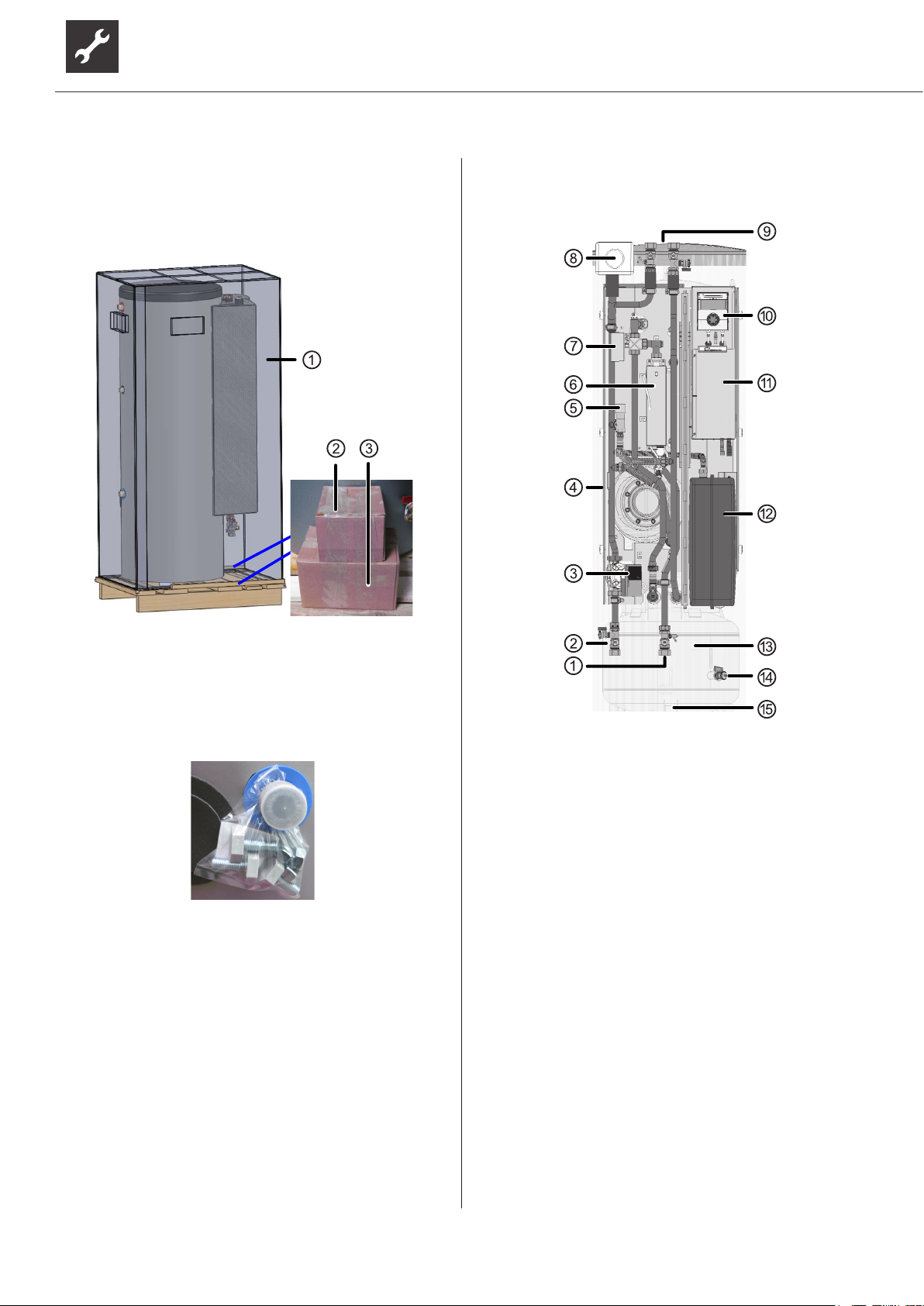

4 Scope of supply
Example of scope of supply arrangement
Example HS(D)V 9M1/3
Fertigungsanweisung Hydrauliktower HTD Verpackung:
Benennung:
Zeichnungsnummer:
Fertigungsanweisung Hydrauliktower
HTD Verpackung
802446
Blatt 7/8
Datum
Name
Erstellt
12.06.2012
Aepfelbach
Gepr.
Zust.
Änderungstext
Datum
Von
Norm.
600603
Schaumzuschnitte 20x10
aufkleben
607854
Karton
901x656x1792
600603
2x Schaumzuschnitte 20x10
übereinander
aufkleben
Holzleisten
aus Speicherverpackung
von SBT
Fertigungsanweisung Hydrauliktower HTD Verpackung:
Benennung:
Zeichnungsnummer:
Fertigungsanweisung Hydrauliktower
HTD Verpackung
802446
Blatt 6/8
Datum
Name
Erstellt
12.06.2012
Aepfelbach
Gepr.
Zust.
Änderungstext
Datum
Von
Norm.
AIT: 15071341, 15071441
83053800aDE Betriebsanleitung Hydrauliktower Dual
60663601 KB WP-Regelung II
60684801 BA Luxtronik II Endkunde
60684901 BA Luxtronik II Fachhandwerker
Zusätzlich beilegen nur bei
83052500aDE BA ComfortplatineII
Ergänzungs BA nur 15071441 HTD/S 230V
83063800aDE Ergänzungs-BA
Anleitungen im Minigrip 604248
Nov: 150713K0341 Compact Station
Nov 83053803aDE Betriebsanleitung Compact Station
60663601 KB WP-Regelung II
60729801 BA WPR Net Endkunde
60729901 BA WPR Net Fachhandwerker
83052500aDE BA ComfortplatineII
Brett auf Palette
befestigen
1 Compact device (domestic hot water tank and
󰀨
2 Control panel for the heating and heat pump
controller, outdoor temperature sensor
3 Safety module, pump ball valves
Adjustable feet included (on the rear side):
1. Inspect the delivery for outwardly visible signs of
damage.
2. Inspect the scope of supply for completeness.
Any defects or incorrect deliveries must be report-
ed immediately.
4.1 Accessories
The following accessories are available for the device
through the manufacturer's local partner:
Expansion circuit printed board with various addi-
tional functions
Room control panel for controlling the main func-
tions from the living room
Electrical connection kit
4.2 Components of the device
Example HS(D)V 9M1/3
 󰀨

HS(D)V 12M3)
 󰀨
3 Heating circuit recirculating pump (HUP)
4 Domestic hot water tank
 
6 Electric heating element behind shielding
panel
7 Switchover valve domestic hot water
8 Heating circuit safety module (insulated)
9 Protection anode
10 Controller
11 Switch box
12 Expansion tank
󰀨
󰀨󰀨
15 Feet for adjusting screws

7
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
5 Transport, installation and
assembly
5.1 Unpacking and transport
Notes on safe transport
The device is heavy ( „Technical data / Scope of
supply“, from page 16). There is a risk of injuries or
damage to property if the device falls or overturns.
There is a risk of cutting your hands on sharp edges of
the device.
Wear cut resistant protective gloves.
The hydraulic connections are not designed for me-
chanical loads.
Do not lift or transport the device by the hydraulic
connections.
Transport the device preferably with a pallet truck, al-
ternatively with a handcart or by carrying.
Transport with a pallet truck
Transport the device to the place of installation
packaged and secured on a wooden pallet.
Unpacking
1. -
age the device.
2. Dispose of the transport and packaging material
in an environmentally friendly way and in accord-
ance with local regulations.
3.         
front panel at the place of installation.
If the device is to be carried, then it is recommended
that the wooden pallet is not removed yet.
5.2 Making transport easier
In order to make the transport simpler and easier, the
whole hydraulic system(including the controller with
switch box) can be unscrewed beforehand.
The hydraulic system is fastened to the tank with 3
hexagonal bolts.

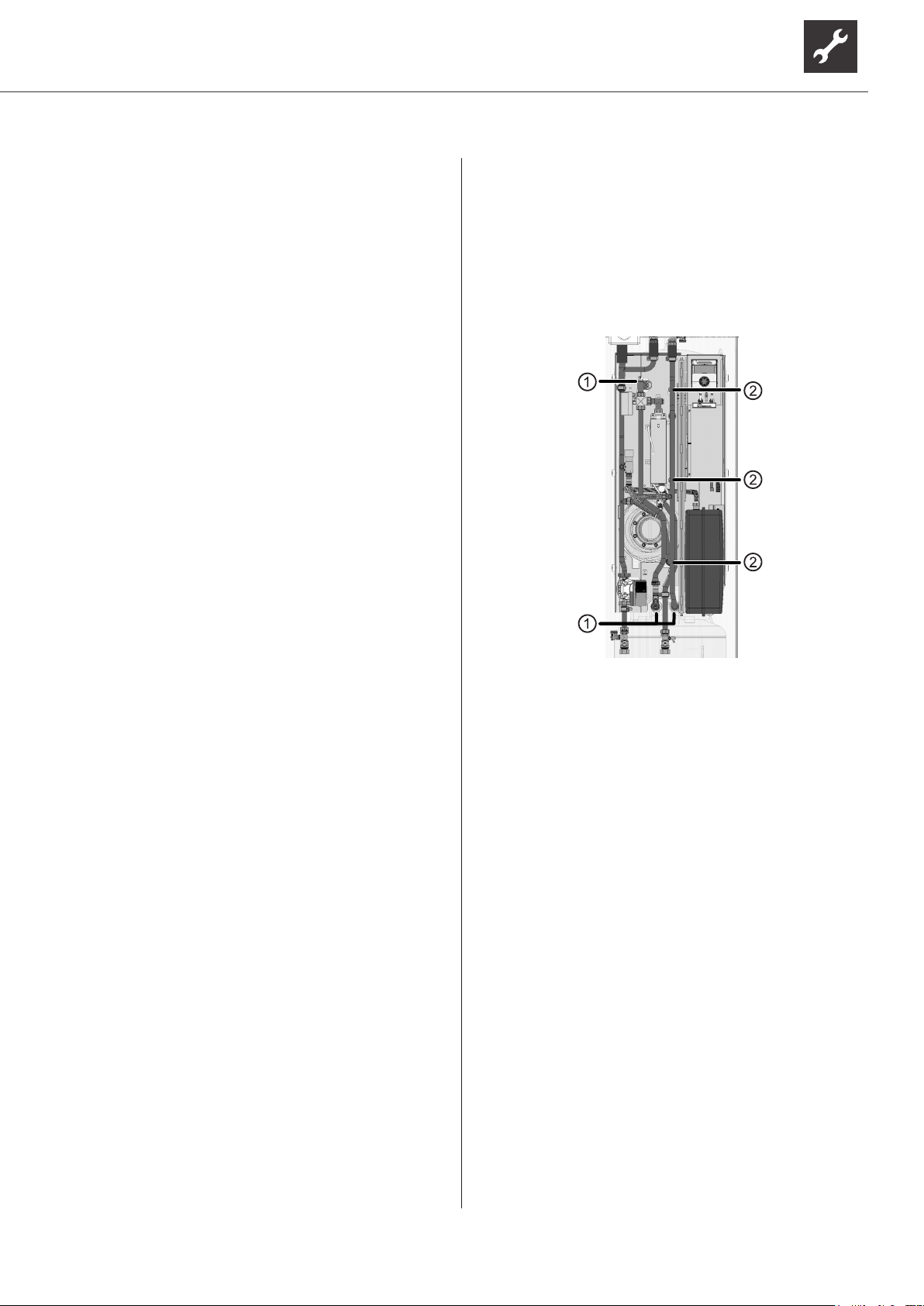

Beispiel HS(D)V 9M1/3
1 Union nuts, which must be loosened when
unscrewing
2 3 hexagonal bolts
First loosen the union nuts (1) on the pipework to the
tank, then the 3 hexagonal bolts (2) and then remove
the whole hydraulic system from the tank.
5.3 Carrying the device and
transporting with handcart
Carrying the hydraulic station
In order to make it easier to carry, a T-piece with two

outlet. It is recommended that the wooden pallet is on-
ly removed after carrying is complete.
Carry the hydraulic station to the installation site
with 3 – 4 people.

8Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
Transporting the hydraulic station with a
handcart
1. Load the hydraulic station with the underside of
the device on the handcart.
2. Secure the hydraulic station to the handcart with
lashing straps.
3. Transport the hydraulic station to the installation
site.
5.4 Installation
Installation site
ATTENTION
Only ever install the device inside buildings.
The installation area must be frost-free and dry. It must

„Installation plans“, from page 21 and „Dimen-
sioned drawings“, from page 19, for the respec-
tive model
1. Place the device on a stable and horizontal sur-
face, preferably decoupled from structure-borne
noise.
2. Tilt the device slowly and carefully to one side.
3. Secure the tilted device to ensure that it cannot tip
back to its initial position.
4. Fit the adjusting screws to all 3 feet.
Screw-in the adjusting feet
5. Tilt the device slowly and carefully back to its ini-
tial position.
6. Level out the three adjusting screws.
7. If the hydraulic system was dismantled for trans-
port reasons, then it must be screwed back into
place on the tank!
5.5 Installation / hydraulic connection
to the heating circuit and the
domestic hot water
NOTE
Before connection to the heating system, the

„Dimensioned drawings“, from page 19
ATTENTION
Damage to the copper pipes due to unacceptable
loading!
Secure all connections against twisting.
Cross-sections and lengths of the pipes for the
heating circuit are adequately dimensioned. In do-
ing so, ensure that the connection pipework be-
tween the heat pump and hydraulic station are also
taken into account.
Freely pressing the recirculating pump produces
at least the minimum throughput required for the
device type ( “Free pressing”, page 18).


Insert the vent at the highest point of the heating
circuit.

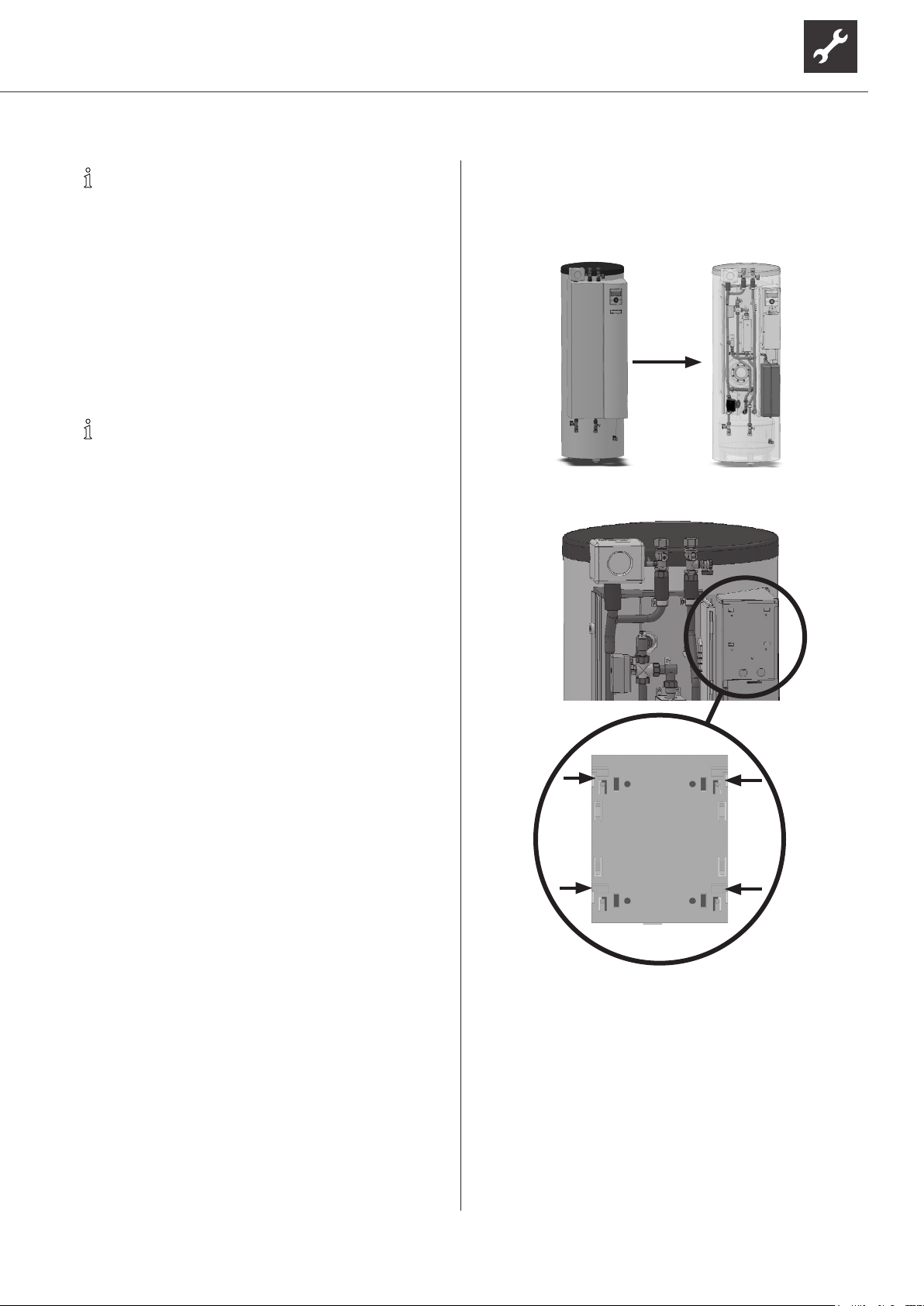

Lift up the hood at the front of the hydraulic sta-
tion.

9
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
1. There are 3 grooves located on the left and right
on the inside of the hood. There are 3 correspond-
ing studs on the tower housing to lock the hood.
2. This enables it to be dismantled and re-assem-
bled with a single manual action.
5.6 Safety module
The safety module for the heating circuit is in the ex-
tra box.
Install the safety module at the connection provided
on the top of the device.
The safety discharge of the safety valve must be dis-
charged into the drain via a funnel waste trap in accord-
ance with the respective valid standards, guidelines and
directives.
5.7 Expansion vessel
The expansion vessel for the heating circuit is integrated.
Always inspect whether the size of the expansion ves-
sel is large enough for the system. If necessary, an ad-
ditional expansion vessel must be installed on site in
accordance with the relevant valid standards.
NOTE
The admission pressure of the expansion
vessel must be adjusted to the system (ap-
-
sure) in accordance with calculation accord-
ing to the relevant standards (EN 12828).
5.8 Hydraulic connection for the
domestic hot water tank
Connect the domestic hot water tank according to DIN
1988 and DIN 4753 Part 1 (or the standards and direc-
tives applicable locally).
The working overpressure cited on the rating plate
must not be exceeded. Install a pressure reducer if re-
quired.
The sensor for the domestic hot water preparation is
already connected in the switch box.
ATTENTION
The electrical conductivity of the domestic hot wa-
ter must be > 100 µS/cm and must lie within the
drinkable water quality limits.
6 Electrical installation
6.1 Connect the electrical cables
ATTENTION
Irreparable damage to the compressor due to

 
the compressor load infeed.
Basic information on the electrical connection
       
company may apply to electrical connections
Fit the power supply for the heat pump with an
all-pole circuit breaker with at least 3 mm contact
spacing (per IEC 60947-2)
Note the level of the tripping current („Technical
data / Scope of supply“, from page 16))
Comply with the electromagnetic compatibility
regulations (EMC regulations)
Lay unshielded power supply cables and shielded
󰀩
Maximum line length: 30m
Cable extension details see heat pump manual

10 Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
5. Carry out electrical connections in accordance
with the terminal diagram.
„Terminal diagram“ for the respective model, from

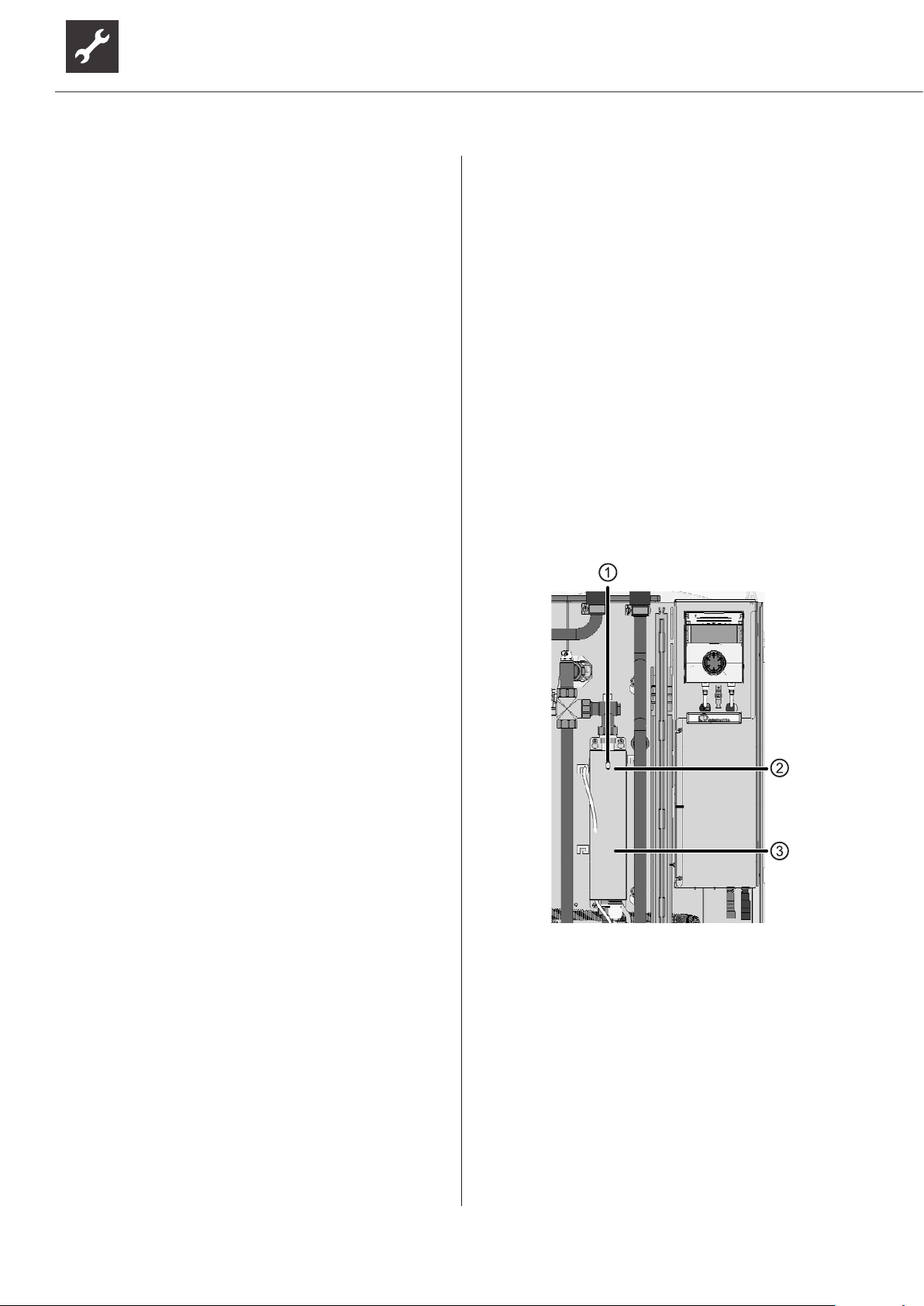

page 23

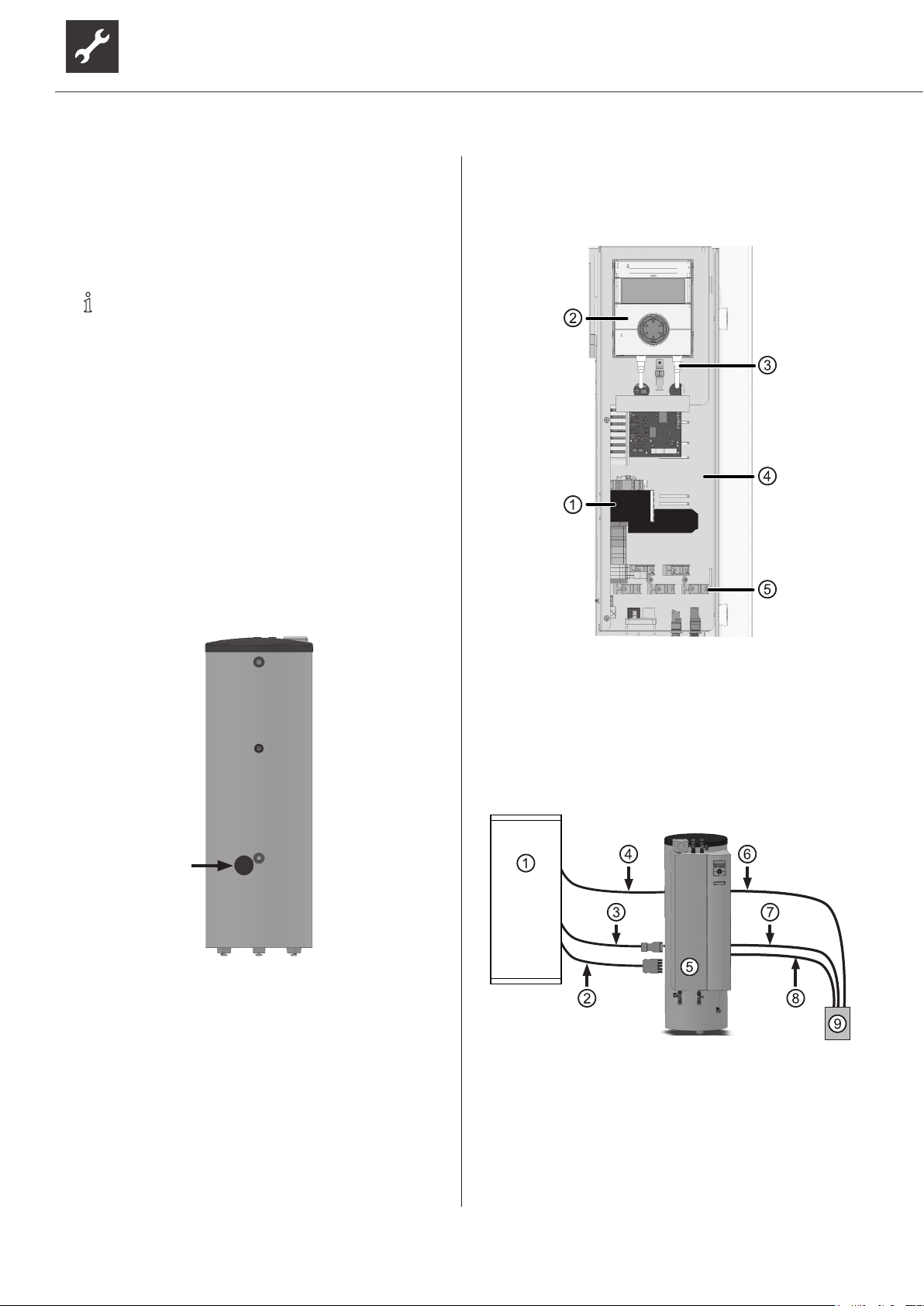

1 Contactor
2 Control panel
3 Bus cable connection
4 Electrical switch box
5 Strain relief
The hydraulic station is connected on site to the sub-
distribution according to the following scheme:
5
1 Heat pump
2 Load Compressor
3 Bus (shielded)
4 Control voltage (for dual heat pump only)
5 Hydraulic station
6 Heating element load line
7 Control voltage
8 Load Compressor
9 Sub-distribution
Establish the electrical connections between
the heat pump and the hydraulic station
1. Route the two plug-in connections of the load and
bus cables from the hydraulic station to the plug-
in points on the heat pump.
NOTE.
For dual output-controlled heat pumps, the
lines (8 m) are already connected to the heat
pump.
2. Couple the connections together.
3. Fit cover for plug-in connections.
6.2 Electrical connection
The electrical connection is established via the switch
box.
1. Strip the sheathing of all cables to the external
loads before laying in the cable gland of the con-
trol box.
2. Feed the cable on the rear of the hydraulic station
through the cable gland into the switch box.
3. Open the switch box in the device.
Only slightly undo the top two screws of the cov-
er plate. Remove the remaining screws. Unhook
cover panel.
4. Feed the control and sensor cable as well as
the cable for the EVU blocking time through the
glands on the rear of the device and into the interi-
or of the device. Lay the cables through the cable
gland to the terminals in the switch box.

11
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
NOTE
The control panel for the heating and heat
pump controller can be connected to a com-
puter or network using a suitable network ca-
ble, enabling the heating and heat pump con-
troller to be controlled remotely from there.
If such a connection is required, install a
shielded network cable (category 6, with
RJ45 connector) through the device and par-
allel to the existing control cable of the heat-
ing and heat pump controller during the elec-
trical connection work.
NOTE
In devices with integrated electric heat-
ing element, the electric heating element
is connected for 9 kW (6 kW) in the factory.
At contactor Q, it is possible to select 6 kW
(4 kW) = 2 phase operation. Disconnect
Q5/6 for this. Or 3 kW (2 kW) = 1 phase op-
eration. Disconnect Q5/6 and Q5/4 for this.
The values in brackets are for the 6 kW heat-
ing element. Disconnected cables must be
furnished with screw terminals. Only the
phases cited above may be disconnected
(safety temperature limiter).
7 Installing the control device
1. Lift up the hood at the front of the hydraulic tower.
Four cut-outs
in the switchgear compartment panel

12 Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
2. There are 4 hooks at the rear of the control panel,
which are used to hook the control panel onto the
switchgear compartment panel.
3. Press the hooked in control panel downwards un-
til it latches into position.
4. Plug the control cable into the bottom of the con-
trol panel.
1 Room control panel RBE RS 485 (accessory)
connection
2 Network cable connection
3 LIN-bus cable connection to the controller
board
4 Modbus cable to Modbus distributor
connection
8 
8.1 Heating water quality
NOTE
Detailed information is also provided in VDI
Guideline 2035 “Vermeidung von Schäden
in Warmwasserheizanlagen” (Avoiding
damage to hot water heating systems)
Required pH value: 8.2 … 10
For aluminium materials:
pH value: 8.2 … 8.5
Fill the system with deionised heating water
(VE water) or with water corresponding to VDI
2035 only (low-salt operation of the system).
Advantages of low-salt operation:
Low corrosion-promoting properties
No formation of mineral scale
Ideal for closed heating circuits
 
the system
If necessary, simple alkalisation to pH value 8.2
by adding chemicals
8.2 
domestic hot water charging
circuit
Outlet pipe of the safety valve is connected.
Ensure that the set pressure of the safety valve is
not exceeded.
NOTE
The venting programme on the controller can
-
ing process. It is possible to control individual
recirculating pumps and also the switchover
valve via the venting programme. As a result,
it is not necessary to remove the valve motor.
1. 󰀨
(1).
2. 󰀨-
ing valve (3).

13
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
9. Ensure that the U-clip has latched into position
correctly:
Valve motor sits securely on the 3-way switching
valve.
Both prongs of the U-clip sit on the lug.
The tips of the U-clip are visible by approx. 2 mm

8.3 
the domestic hot water tank
ATTENTION
       -
ter tank, the outlet pipe of the safety valve must
be connected. The set pressure of the safety valve
must not be exceeded.
1. Open the domestic cold water supply valve on the
domestic hot water tank.
2. Open the domestic hot water valves at the tapping
points.
3. Flush the domestic hot water tank until no more air
discharges from the valves at the tapping points.
4. Close the domestic hot water valves at the tap-
ping points.
3. Turn the spindle of the 3-way switching valve so
that the rounded side of the spindle points in the
direction of marking A of the connections of the
3-way switching valve.
A
B
4. Flush the domestic hot water charging circuit for
approx. 1 minute.
5. Turn the spindle so that the rounded side of the
spindle points in the direction of marking B of the
connections of the 3-way switching valve.
6. Flush heating circuit thoroughly, until no more air
is discharged.

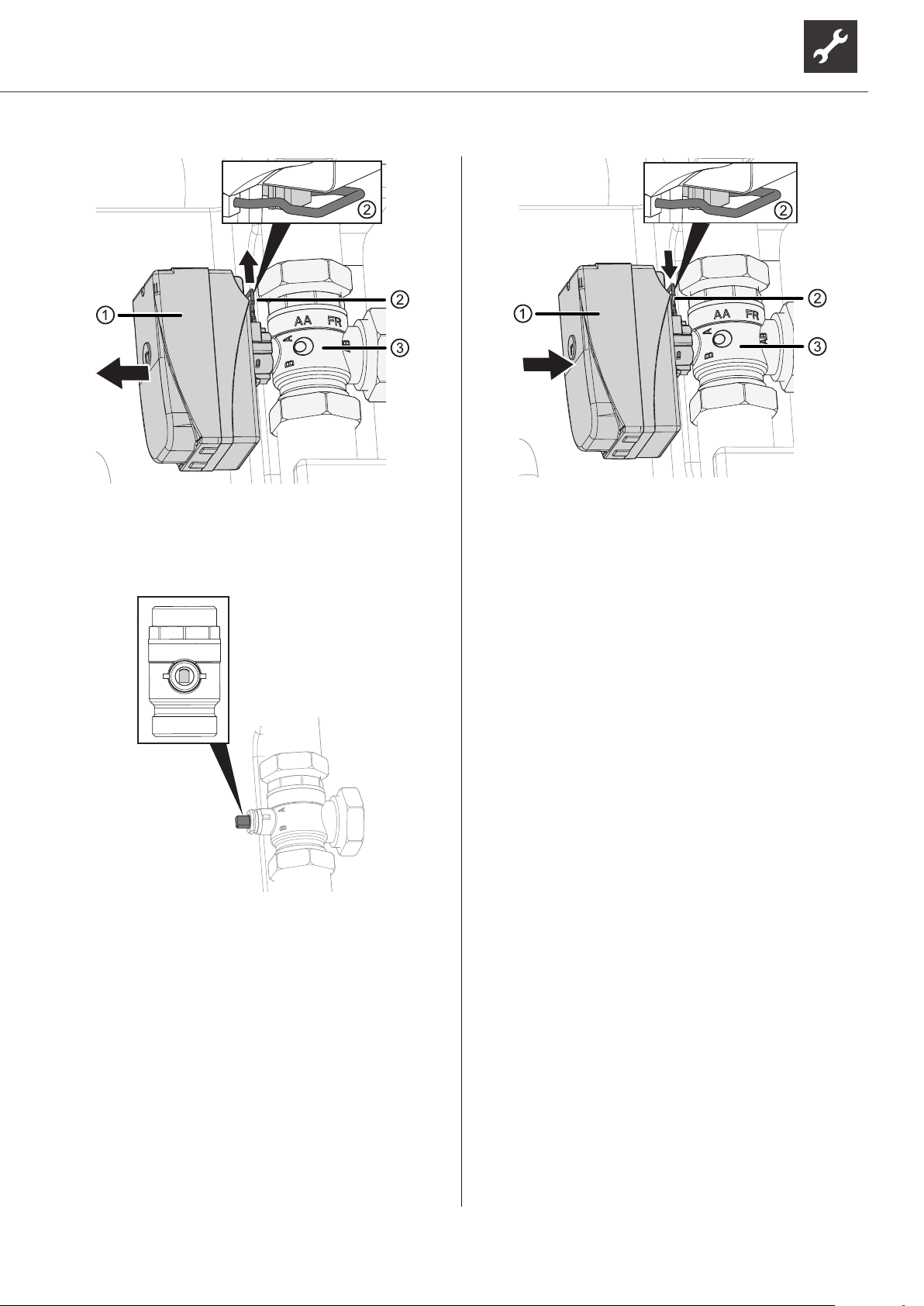

7. Position the valve motor (1) on the 3-way switch-
ing valve (3).
8. Insert the U-clip (2) into the base of the valve mo-
tor.

14 Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
9 Insulate hydraulic connections
Insulate hydraulic lines in accordance with local regu-
lations.
1. 󰀨
2. Perform a pressure test and check for leaks.
3. Insulate external piping on site.
4. 
10 
Heat pump manual
11 Commissioning
Check that
The water supply to the domestic hot water tank
is open.
 
If the heat pump is switched on whilst the tank is
empty, the control panel indicates a fault.
Operating manual of the heating and heat pump
controller
Heat pump manual
12 Faults
Read out the cause of the fault via the diagnostics
programme of the heating and heat pump control-
ler.
Contact the local partner of the manufacturer or
the factory's customer service. Have the fault
message and device number to hand.
12.1 Unlock the safety temperature
limiter
A safety temperature limiter (2) is installed in the elec-
tric heating element (3). If the heat pump fails or there
is air in the system:
Check whether the reset knob (1) in the centre of
the safety temperature limiter (2) has jumped out
(located underneath the cover).
Press the reset button back in again.
1 Reset knob
2 safety temperature limiter
3 Electric heating element
If the safety temperature limiter trips again, con-
tact the local partner of the manufacturer or the
factory's customer service.

15
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
13 Dismantling and Disposal
13.1 Dismantling
The device is safely disconnected from the power
supply and protected against being switched back
on again.
Separate components by their materials.
13.2 Disposal and Recycling
Recycle or ensure proper disposal of device com-
ponents and packaging materials in accordance
with local regulations.
󰀨

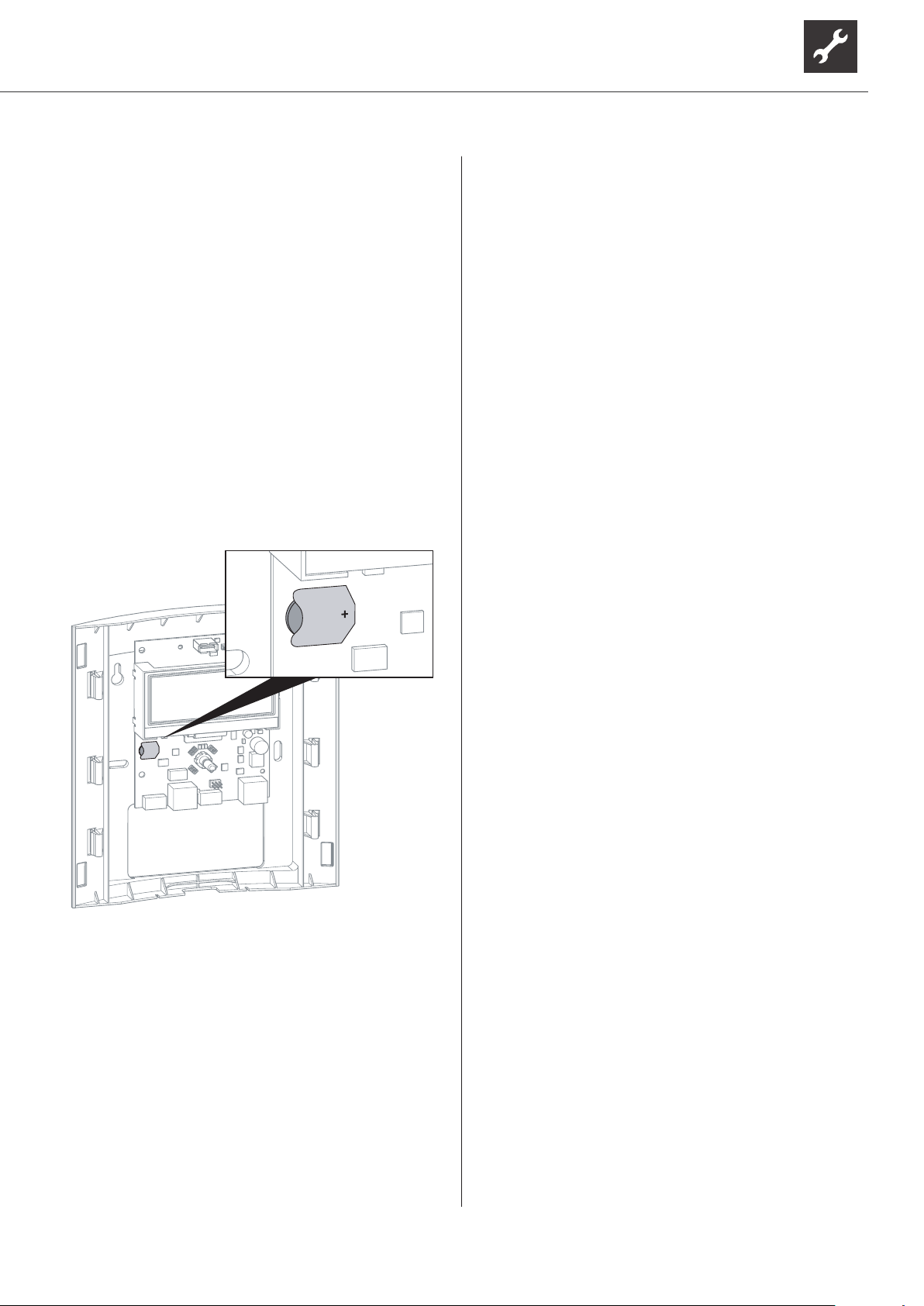

1.        󰀨 
on the processor circuit board of the control ele-
ment.
2.    󰀨    
local regulations.

16 Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
Accessories for heat pump type HSV 9M1/3 HSV 12M3
Air/water 8 kW output-controlled | Air/water 12 kW output-controlled • yes – no • | – • | •
Air/water dual output-controlled • yes – no – | – – | –
Air/water 7 kW to 8 kW output-controlled | Air/water 10 kW to 18 k
Outdoor installation • yes – no – | – – | –
Air/water 9 kW to 14 kW RX Outdoor installation • yes – no – | – – | –
Air/water dual Outdoor installation • yes – no – | – – | –
Air/water dual RX Outdoor installation • yes – no – | – – | –
Installation location
Room temperature min. | max. °C 5 | 35 5 | 35
Relative humidity %60 60
Sound
Sound pressure level at 1 m distance inside dB(A) 36 36
Sound power level inside dB(A) 44 44
Heating circuit
Flow rate: minimum | maximum (see heat pump for pipe dimensioning) l/h | l/h 600 | 1200 600 | 1900
Free pressing | Pressure loss | Flow rate bar | bar | l/h 0,63 | – | 1200 0,55 | – | 1900
Max. allowable operating pressure bar 3 3
Circulation pump control range min. | max. l/h 600 ı 1200 600 ı 1900
General unit data
Total weight kg 150 220
Weight of individual components kg | kg | kg – | – | – – | – | –
Domestic hot water tank
Net volume l180 303
Magnesium sacrificial anode Impressed current | Magnesium • yes – no – | • – | •
Domestic hot water temperature, heating pump mode | Electric heating element up to °C | up to °C 60 | 65 60 | 65
Mixed water quantity according to ErP: 2009/125/EC (at 40 °C, draw-off of 10 l/min) l230 400
Standing loss according to ErP: 2009/125/EC (at 65 °C) W55 74
Maximum pressure | Operating pressure bar | bar 6 | 10 | 13 6 | 10 | 13
Electrics
Voltage code | all-pole fuse protection for heat pump *)**) 1 phase … | A 1~N/PE/230V/50Hz | B16 1~N/PE/230V/50Hz | B16
Voltage code | all-pole fuse protection for heat pump *)**) 3 phases … | A – | – 3~N/PE/400V/50Hz | B16
Voltage code | Control voltage fuse protection **) … | A 1~N/PE/230V/50Hz | B10 1~N/PE/230V/50Hz | B10
Voltage code | Electric heating element fuse protection **) 1 phase … | A 1~N/PE/230V/50Hz | B32 – | –
Voltage code | Electric heating element fuse protection **) 3 phases … | A 3~N/PE/400V/50Hz | B10 3~N/PE/400V/50Hz | B16
Degree of protection IP 20 20
Residual current circuit breaker if required type B B
Electric heating element output 3 | 2 | 1 phase kW | kW | kW 6 | 4 | 2 9 | 6 | 3
Circulation pump power consumption, heating circuit min. | max. W4 | 75 4 | 75
Other unit information
Safety valve Heating circuit | Response pressure included in scope of supply: • yes – no | bar • | 3 • | 3
Buffer tank | Volume included in scope of supply: • yes – no | l • | 62 • | 82
Diaphragm expansion vessel Heating circuit | Volume | Prepressure incl. in scope of supply: • yes – no | l | bar • | 12 | 1,5 • | 18 | 1,5
Overflow valve | Changeover valve, heating -Domestic hot water integrated: • yes – no • | • • | •
Vibration decoupling, Heating circuit | Heat source included in scope of supply or integrated: • yes – no – –
Controller | Heat quantity recording | Extension board included in scope of supply or integrated: • yes – no • | • | – • | • | –
813320a 813321a
*) compressor only, **) note local regulations
HSVTechnical data / Scope of supply

17
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
Accessories for heat pump type HSDV 9M1/3 HSVD 12M3
Air/water 8 kW output-controlled | Air/water 12 kW output-controlled • yes – no – | – – | –
Air/water dual output-controlled • yes – no • •
Air/water 7 kW to 8 kW output-controlled | Air/water 10 kW to 18 k
Outdoor installation • yes – no – | – – | –
Air/water 9 kW to 14 kW RX Outdoor installation • yes – no – –
Air/water dual Outdoor installation • yes – no – –
Air/water dual RX Outdoor installation • yes – no – –
Installation location
Room temperature min. | max. °C 5 | 35 5 | 35
Relative humidity %60 60
Sound
Sound pressure level at 1 m distance inside dB(A) 33 33
Sound power level inside dB(A) 46 46
Heating circuit
Flow rate: minimum | maximum (see heat pump for pipe dimensioning) l/h | l/h 700 | 1600 700 | 1600
Free pressing | Pressure loss | Flow rate bar | bar | l/h 0,65 | – | 1150 0,81 | – | 1150
Max. allowable operating pressure bar 3 3
Circulation pump control range min. | max. l/h 600 ı 1200 600 ı 1900
General unit data
Total weight kg 150 220
Weight of individual components kg | kg | kg – | – | – – | – | –
Domestic hot water tank
Net volume l180 303
Magnesium sacrificial anode Impressed current | Magnesium • yes – no – | • – | •
Domestic hot water temperature, heating pump mode | Electric heating element up to °C | up to °C 60 | 65 60 | 65
Mixed water quantity according to ErP: 2009/125/EC (at 40 °C, draw-off of 10 l/min) l230 400
Standing loss according to ErP: 2009/125/EC (at 65 °C) W55 74
Maximum pressure | Operating pressure bar | bar 6 | 10 | 13 6 | 10 | 13
Electrics
Voltage code | all-pole fuse protection for heat pump *)**) 1 phase … | A 1~N/PE/230V/50Hz | B16 1~N/PE/230V/50Hz | B16
Voltage code | all-pole fuse protection for heat pump *)**) 3 phases … | A – | – – | –
Voltage code | Control voltage fuse protection **) … | A 1~N/PE/230V/50Hz | B16 1~N/PE/230V/50Hz | B16
Voltage code | Electric heating element fuse protection **) 1 phase … | A 1~N/PE/230V/50Hz | B25 – | –
Voltage code | Electric heating element fuse protection **) 3 phases … | A 3~N/PE/400V/50Hz | B10 3~N/PE/400V/50Hz | B16
Degree of protection IP 20 20
Residual current circuit breaker if required type B B
Electric heating element output 3 | 2 | 1 phase kW | kW | kW 6 | 4 | 2 9 | 6 | 3
Circulation pump power consumption, heating circuit min. | max. W4 | 75 4 | 75
Other unit information
Safety valve Heating circuit | Response pressure included in scope of supply: • yes – no | bar • | 3 • | 3
Buffer tank | Volume included in scope of supply: • yes – no | l • | 62 • | 82
Diaphragm expansion vessel Heating circuit | Volume | Prepressure incl. in scope of supply: • yes – no | l | bar • | 12 | 1,5 • | 18 | 1,5
Overflow valve | Changeover valve, heating -Domestic hot water integrated: • yes – no • | • • | •
Vibration decoupling, Heating circuit | Heat source included in scope of supply or integrated: • yes – no – –
Controller | Heat quantity recording | Extension board included in scope of supply or integrated: • yes – no • | • | – • | • | –
813324a 813325a
*) compressor only, **) note local regulations
HSDVTechnical data / Scope of supply

18 Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
Bezeichnung:
Datei: 823284 Freie Pressung HSV 9M1_3
Seite: 1/1
Zeichnungsnummer:
Legende:
“”
Volumenstrom Heizwasser in m3/h
∆pmax
maximale freie Pressung
Freie Pressung HV 9-1/3
823284
Änd./ÄM/Ersteller/Datum
- /PEP 015-2016 / Döring / 17.07.2017
823284
0,0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
0,0 0,5 1,0 1,5 2,0 2,5
3,0
Δ
pmax [bar]
Δpmax
Δp
“ ” [m3/h]
Bezeichnung:
Datei: 823288 Freie Pressung HSDV 9M-1_3
Seite: 1/1
Zeichnungsnummer:
Legende:
“”
Volumenstrom Heizwasser in m3/h
∆pmax
maximale freie Pressung
Freie Pressung HSDV 9M1/3
823288
Änd./ÄM/Ersteller/Datum
-/PEP015-2016/Bornmann/10.04.2018
823288
0,0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
0,0 0,5 1,0 1,5 2,0 2,5 3,0
Δpmax [bar]
Δpmax
Δp
“ ” [m3/h]
Bezeichnung:
Datei: 823285 Freie Pressung HSV 12M3
Änd./ÄM/Ersteller/Datum
- /PEP 016-2016 / Döring / 17.07.2017
823285
Seite: 1/1
Zeichnungsnummer:
Legende:
“”
Volumenstrom Heizwasser in m3/h
∆pmax
maximale freie Pressung
Freie Pressung HSV 12M3
823285
0,0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1,0
0,0 0,5 1,0 1,5 2,0 2,5 3,0
Δpmax [bar]
Δ
pmax
Δp
“ ” [m3/h]
Bezeichnung:
Datei: 823289 Freie Pressung HSDV 12M-3
Änd./ÄM/Ersteller/Datum
-/PEP016-2016/Bornmann/10.04.2018
823289
Seite: 1/1
Zeichnungsnummer:
Legende:
“”
Volumenstrom Heizwasser in m3/h
∆pmax
maximale freie Pressung
Freie Pressung HSDV 12M3
823289
0,0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
0,0 0,5 1,0 1,5 2,0 2,5 3,0
Δpmax [bar]
Δpmax
Δp
“ ” [m3/h]
HSDV 9M1/3HSV 9M1/3
HSDV 12M3HSV 12M3
Free pressing
Keys: UK823284 / UK823288
“” Volumetric ow of hot water
∆pmax Maximum free pressing
Keys: UK823285 / UK823289
“” Volumetric ow of hot water
∆pmax Maximum free pressing

19
Subject to change without notice | 83059300eUK – Translation of the original operating manual | ait-deutschland GmbH
97 180 323
291
83 226
600
0
217
290
1547
<1800
2
3
1
5
67
4
639
0
649 599 834
30
300
0
547
1163
1651
508
216
11
8
9
10
A E B
Technische Änderungen vorbehalten.
8 7 6 5
4 3 2 1
www.ait-deutschland.eu
D - 95359 Kasendorf
Industriestraße 3
ait-deutschland GmbH
1
1
Ers. d.
Ers. f.
A
B
C
D
E
F
F
E
D
C
B
A
4 3 2 1
Benennung
a
Zust. Änderungstext
PEP 015/2016
Datum
21.8.2017
Von
RA
Blatt
von
Werkstoff
Gewicht
Maßstab
1:20
Det. Maßstab
Datum Name
Erstellt
Gepr.
Norm.
21.8.2017
Aepfelbach
toleranz
Allgemein-
Oberflächen
ArtikelNr.
Schutzvermerk ISO 16016 beachten
DIN ISO 2768 -c
Aepfelbach
21.8.2017
Aepfelbach
31.5.2012
RA
RA
21.8.2017
25.9.2012
PEP 015/2016
PEP 015/2011
-
a
819417
152063, 152067 , 150713, 150714
Maßbild Hydraulikstation HS(D)V 9M1/3, HTD
HS(D)V 9M1/3Dimensioned drawings
Keys: UK819417a
All dimensions in mm.
Pos. Name Dim.
A Front view
B Side view from left
E Rear view
1Safety module
2Heating water inlet (return) 
3 
4Control panel
5󰀨 
6 Hot water inlet (from heat pump) 
7Hot water outlet (to heat pump) 
8Domestic hot water 
9Circulation pump 
10 Cold water 
11 Penetrations for electric/sensor cables
