Alphamount APLT1 User manual

V1.0
TV Wall Mount Instruction Manual
Model: APLT1
Thank you for choosing this alphamount product! At alphamount we strive to
provide you with the best quality products and services in the industry. Should
you have any issues, please don't hesitate to contact at
[email protected] (US/CA/DE/UK/FR/IT/ES/AU)

1
IMPORTANT SAFETY INFORMATION
Check the VESA Pattern of TV before the Installation
MAX: 600mm/23.6 in.
MAX: 400mm/16 in.
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
300 mm ≈ 11 3/4 in.
400 mm ≈ 15 3/4 in.
600 mm ≈ 23 5/8 in.
Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
contact our customer service at [email protected].
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete
block and brick walls. - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
Weight Restrictions
DO NOT exceed the maximum weight indicated.
This mounting system is intended for use only
within the maximum weights indicated. Use with
products heavier than the maximum weights
indicated may result in failure of the mount and
its accessories, causing damage and or injury.
If your TV weighs more, this
mount is NOT compatible.
132lbs/
60kg
WARNING
Minimum VESA pattern: 100mm/4 in.(W)x100mm/4 in.(H)
If your TV VESA is greater than 600x400 mm/23.6x16in. or less than
VESA 100x100mm/4x4 in., this mount is NOT compatible.
If this mount is NOT compatible, please contact customer service at
[email protected] to find a compatible mount.

2

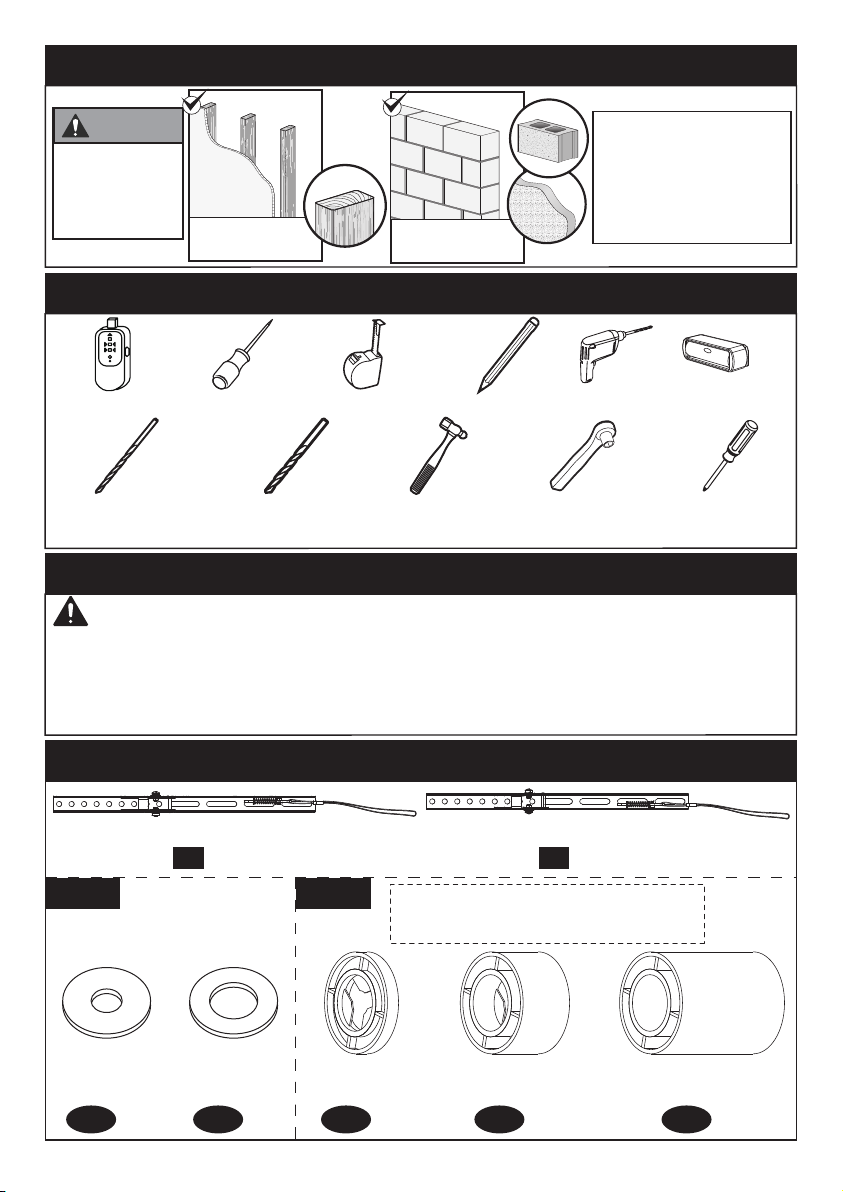

Tools Needed (Not lncluded)
Supplied Parts and Hardware
5/32 in. (4mm)
Wood Drill
3/8 in. (10mm)
Concrete Drill
3/8 in. (10mm)
Socket Wrench
Phillips
Screwdriver
Hammer
B C
Supplied Parts and Hardware for Step 1
Right TV Bracket Left TV Bracket
x1 03 x1 04
Spacer
L2.5mm
Spacer
L22mm
x4
C3
x8
C1
Spacer
L10mm
x4
C2
Washer
M4/M5
Washer
M6/M8
x4
B1
x4
B2
Note: The spacers are shown in
accordance with the actual size
Stud Finder Tape Measure Pencil DrillAwl Level
Verify Your Wall Construction
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall)
If you are not sure the
wall construction, please
contact our customer
service at
[email protected] .
Warning: This product contains small items that could be a choking hazard if
swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not use
damaged or defective parts. lf you require replacement parts, please contact our
customer service at [email protected].
• Please note: Not all hardware included in this package will be used.

A
E
3
Supplied Parts and Hardware for Step 2 and 3
Lag Screw
ST6.3x60mm
x4
Wall Plate
x1
01
Wall Plate Extension
x1
02
Note: The lag screw is shown in accordance with the actual size
A1
x4 Washer
φ6.5Xφ18X1.8
A2
D
M8
M6M4
TV Bolts (Only one bolt size fits your TV)
Note: The bolts are shown in accordance with the actual size
x4
D1
M4x30mm
x4
D2
M6x15mm
x4
D3
M6x35mm
x4
D4
M8x20mm
x2
E1
Carriage Bolt
M6x12mm
x2
E2
Nut
M6
x4
D5
M8x35mm
x4
D6
M8x50mm

4
Only one bolt size fits your TV.
Step 1 Secure the TV Brackets to TV
Select TV Bolts
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Note: If necessary, the spacers can be used in multi-layer. If the installation
fails after trying various methods, please contact customer service at
[email protected].
Too Long
Correct Correct
Too Short
M4 M6 M8
CAUTION: Ensure the TV
brackets [03] and [04] are
EQUALLY CENTERED on your TV
and securely fastened in place.
03 04
x4
Wall
Anchor
φ10X50mm
This anchor is for con-
crete or brick walls ONLY.
DO NOT use them in drywall
or wood studs.
CAUTION!
A3

5
B1/B2
D1/D3/D5/D6
C1/C2/C3
Option B (For Round Back TV)
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
D1/D3/D5/D6
C1/C2/C3
B1/B2
Alternate
Spacer
Setups
Alternate
Spacer
Setups
D1/D2/D4
C1/C2
(If
needed)
B1/B2
Alternate
Spacer
Setups
Option A (For Flat Back TV)
B1/B2
D1/D2/D4
C1/C2
(If needed)
Alternate
Spacer
Setups

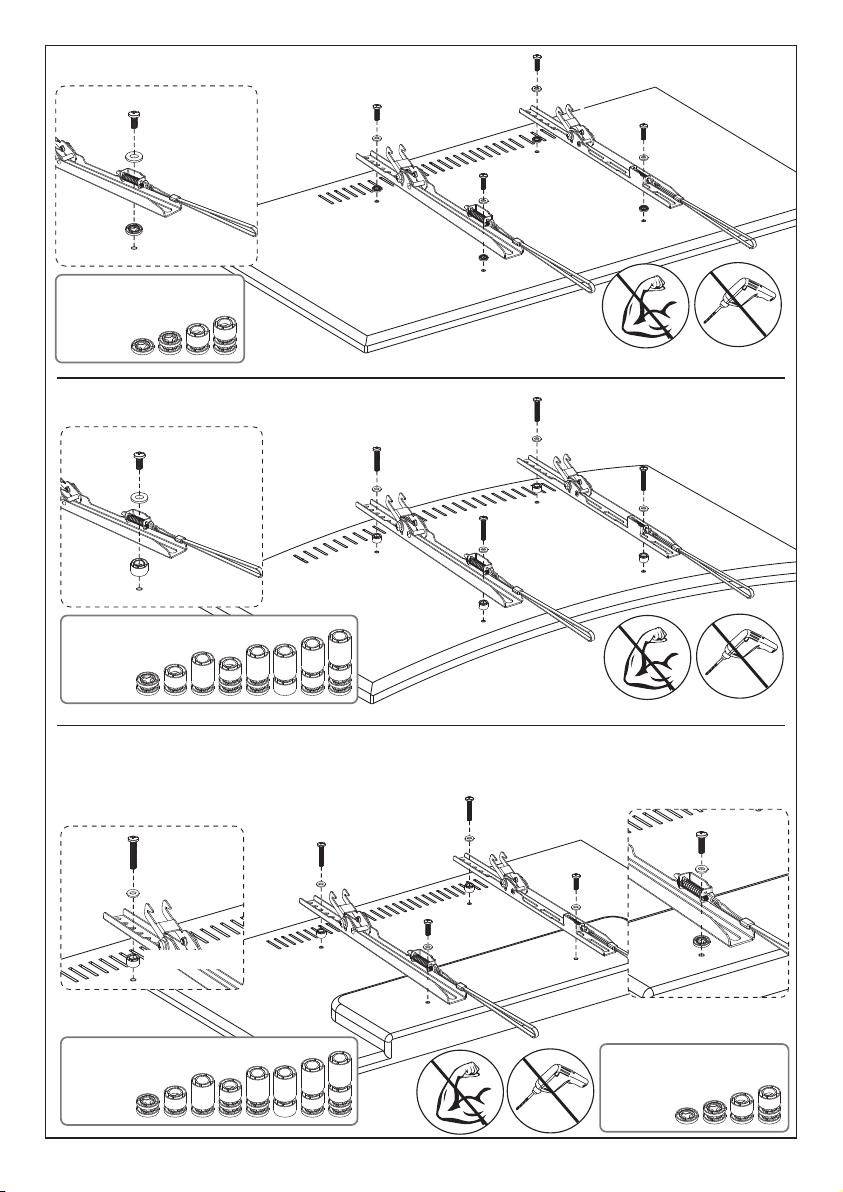

6
Option D
For cable interference or inset holes, use spacers [C1], [C2] and [C3] to create extra
space between the TV and TV brackets
03
B1/B2
C1/C2/C3
D1/D3/D5/D6
03
Alternate
Spacer
Setups

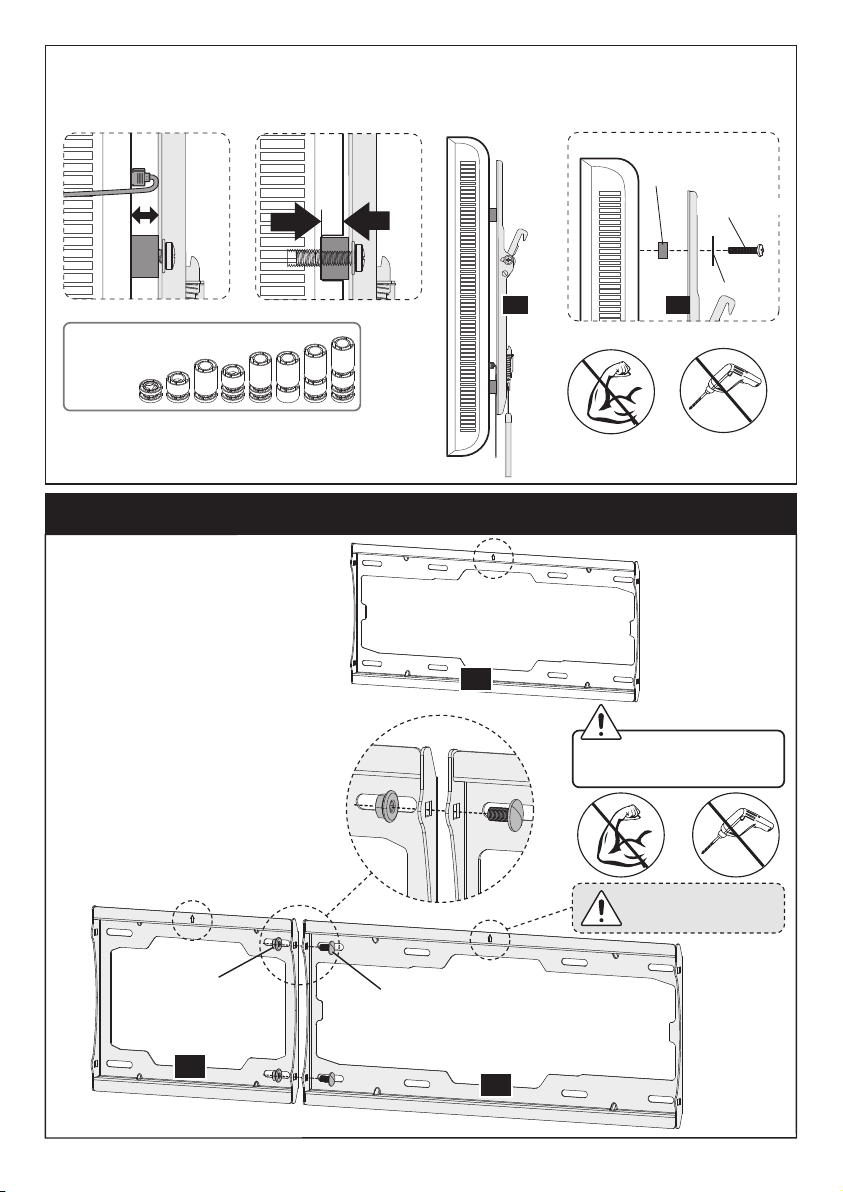

Step 2 Assemble the Wall Plate
16 in. (406mm) stud spacing
and
VESA Pattern of TV:
100x100-400x400mm
18-24 in. (457mm-610mm)
stud spacing
or
VESA Pattern of TV:
200x200-600x400mm
Option A:
Option B:
01
01
02
E2 E1
Warning: Keep
the arrow up
DO NOT overtighten.
Tighten only until snug.

7
Step 3 Attach the Wall Plate to Wall
For wood stud installation, follow STEP 3A
For concrete installation, follow STEP 3B
3A-1
Use a stud finder (not included)
to locate wood studs or use an
awl (not included) to verify the
edges. Mark the edge and
center locations.
16in. (406mm)
24in. (610mm)
awl
(Not lncluded)
Wall
Anchor
X
A3
Step 3A Wood Stud Option
WARNING:
Ensure the wall plate is securely fastened to the wall before
continuing to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm)
minimum 1.5 x 3.5 in. (38 x 89 mm)
● Stud center must be verified
Avoid potential personal injury or property damage! DO NOT over-tighten
the lag screws [A1]. Tighten the lag screws [A1] only until the washers
[A2] are pulled firmly against the wall plate [01] or [01 and 02].
DO NOT USE ANCHOR [A3] FOR THIS STEP

8
3A-2
3A-3
3A-4
Position the wall plate [01]
or [01 and 02] at your
desired height and line up
the holes with your stud
center line. Level the wall
plate and mark the holes.
Drill 4 pilot holes using a
5/32 in. (4mm) diameter
drill bit. Make sure the depth
is not less than 2 23/64 in.
(60mm).
Install the wall plate [01] or
[01 and 02] using lag screws
[A1] and washer [A2]. Tighten
the lag screws [A1] only until
the washers [A2] are pulled
firmly against the wall plate
[01] or [01 and 02].
3/8 in. (10mm)
Socket Wrench
（Not Included）
ø5/32 in. (4mm)
2 23/64 in. (60mm)
01
02
01
02
A1
A2

9
Step 3B Solid Concrete or Concrete Block Option
3B-1
3B-2
WARNING:
Ensure the wall plate is securely fastened to the wall before
continuing to the next step.
● Mount the wall plate directly onto the concrete surface
● Anything covering the wall must not exceed 5/8 in. (16 mm)
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Never drill into the mortar between blocks
Avoid potential personal injury or property damage! DO NOT over-tighten the
lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are
pulled firmly against the wall plate [01] or [01 and 02].
Position the wall plate [01] or [01
and 02] at your desired height,
level the wall plate and mark the
pilot hole locations.
Drill 4 pilot holes using a 3/8 in.
(10mm) diameter drill bit. Make
sure the depth is not less than 2
9/16 in.(65mm). Never drill into the
mortar between blocks.
Wall
Anchor
A3
ø3/8 in. (10mm)
2 9/16 in. (65mm)
01
02

10
3B-3
3/8 in. (10mm)
Socket Wrench
Install wall plate using lag
screws [A1] and washers [A2].
Tighten the lag screws [A1]
only until the washers [A2] are
pulled firmly against the wall
plate. DO NOT over-tighten
the lag screws [A1].
Use the hammer to knock
anchors [A3] into the wall.
Be sure the anchors [A3]
are seated flush with the
concrete surface.
Step 4 Fix Tilting Angle
Tighten
Loosen
Loosen the 4 pcs tilt preassembled bolts [T] in both brackets [03] and [04].
Adjust the hooks [H] to your desired angle. Then tighten the 4 pcs tilt preas-
sembled bolts [T] with a phillips screwdriver (not included) to fix the tilting angle.
Note: Do not over-tighten the bolts.
H
T
03
04
A3
01
02
A1
A2

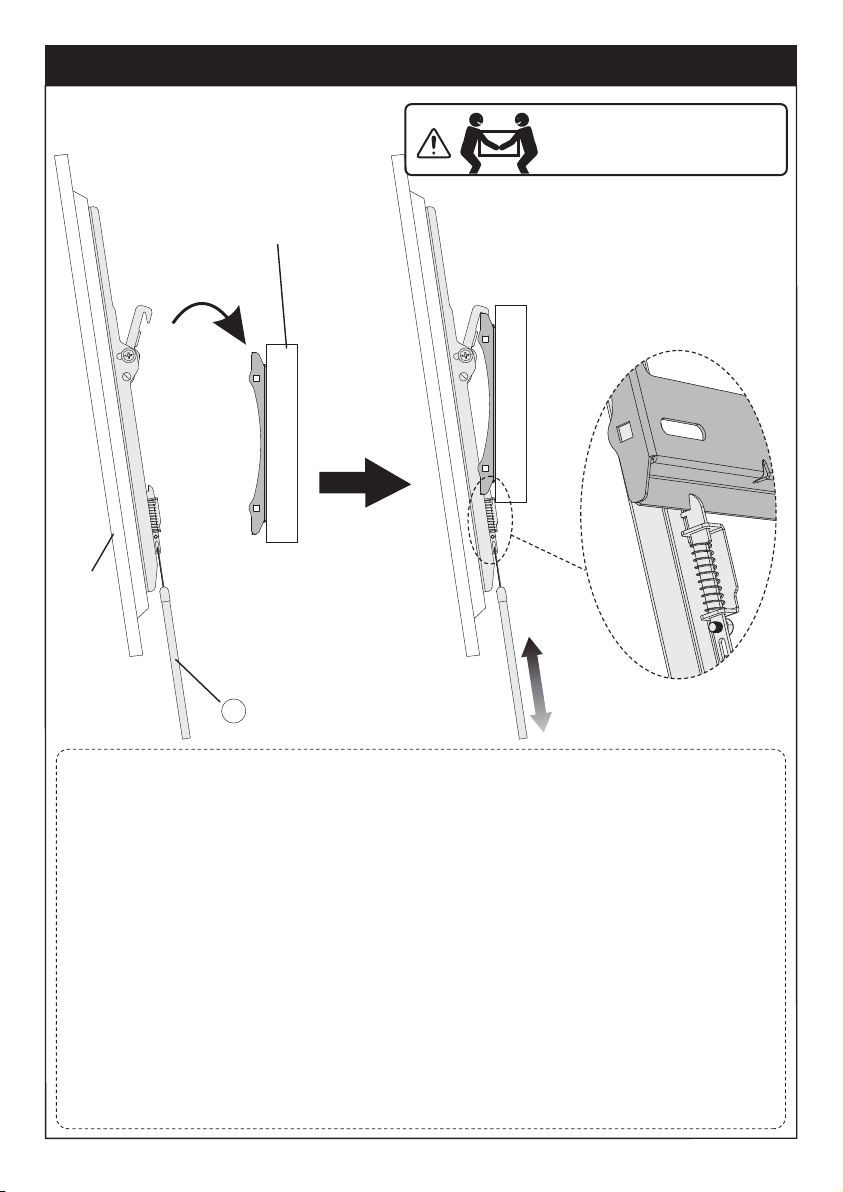

Step 5 Secure the TV onto the Wall Plate
11
HEAVY! You may need
assistance with this step.
Locking
To Hang TV onto Wall Plate
1. Hang the TV with brackets [03] and [04] onto the wall plate [01] or [01
and 02].
2. While pulling and hold both ropes [R] , press the bottom of the TV into
the wall plate [01] or [01 and 02] until the latches lock the TV brackets
[03]and [04], then release the ropes.
To Remove TV from Wall Plate
1. Disconnect all cables, pull down and hold both ropes [R] while gently
pulling the bottom of the TV away from the wall.
CAUTION: Avoid potential personal injury or property damage! To prevent
breaking the locking latch: always pull and hold the ropes [R] down while
pulling the TV away from the wall.
2. Then lift the TV up and remove from the wall plate [01] or [01 and 02].
R
TV
Wall
