Alphamount APMTK1 User manual

V1.0
Tilt Wall Mount Instruction Manual
Model: APMTK1
Thank you for choosing this alphamount product! At alphamount we strive to
provide you with the best quality products and services in the industry. Should
you have any issues, please don't hesitate to contact at
[email protected] (US/CA/DE/UK/FR/IT/ES/AU)
1
IMPORTANT SAFETY INFORMATION
Check the VESA Pattern of TV before the Installation
Verify Your Wall Construction
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall)
Minimum VESA pattern: 100mm/4 in.(W)x100mm/4 in.(H)
If your TV VESA is greater than 400x400 mm/16x16in. or less than
VESA 100x100mm/4x4 in., this mount is NOT compatible.
If this mount is NOT compatible, please contact customer service at
[email protected] to find a compatible mount.
MAX: 400mm/16 in.
MAX: 400mm/16 in.
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
300 mm ≈ 11 3/4 in.
400 mm ≈ 15 3/4 in.
Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
contact our customer service at [email protected].
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete
block and brick walls. - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
If you are not sure the
wall construction, please
contact our customer
service at
[email protected]
.
2

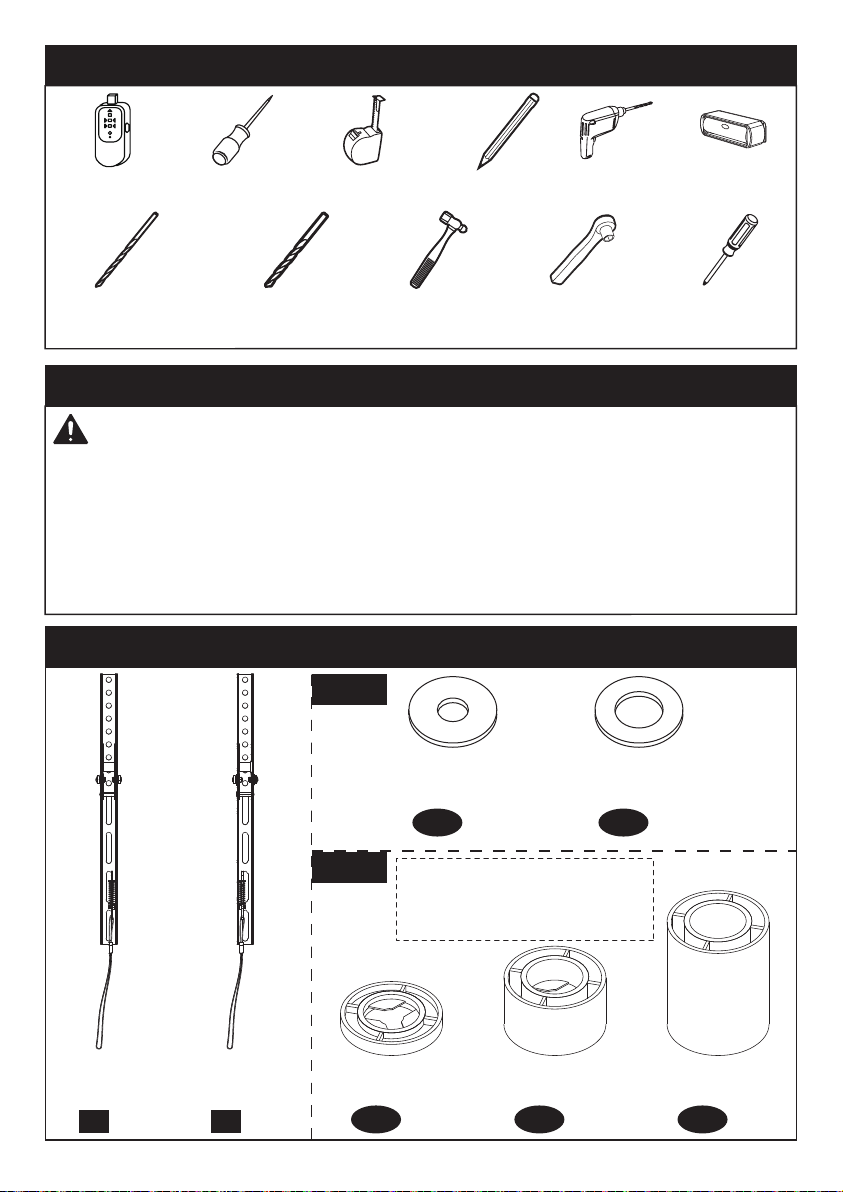

Tools Needed (Not lncluded)
Supplied Parts and Hardware
5/32 in. (4mm)
Wood Drill
3/8 in. (10mm)
Concrete Drill
3/8 in. (10mm)
Socket Wrench
Phillips
Screwdriver
Hammer
B
C
Supplied Parts and Hardware for Step 1
Right
TV Bracket
Left
TV Bracket
x1
02
x1
03
Spacer
L2.5mm
Spacer
L22mm
x4
C3
x8
C1
Spacer
L10mm
x4
C2
Washer
M4/M5
Washer
M6/M8
x4
B1
x4
B2
Note: The spacers are
shown in accordance with
the actual size
Stud Finder Tape Measure Pencil DrillAwl Level
Warning: This product contains small items that could be a choking
hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, please
contact our customer service at [email protected].
• Please note: Not all hardware included in this package will be used.
A
3

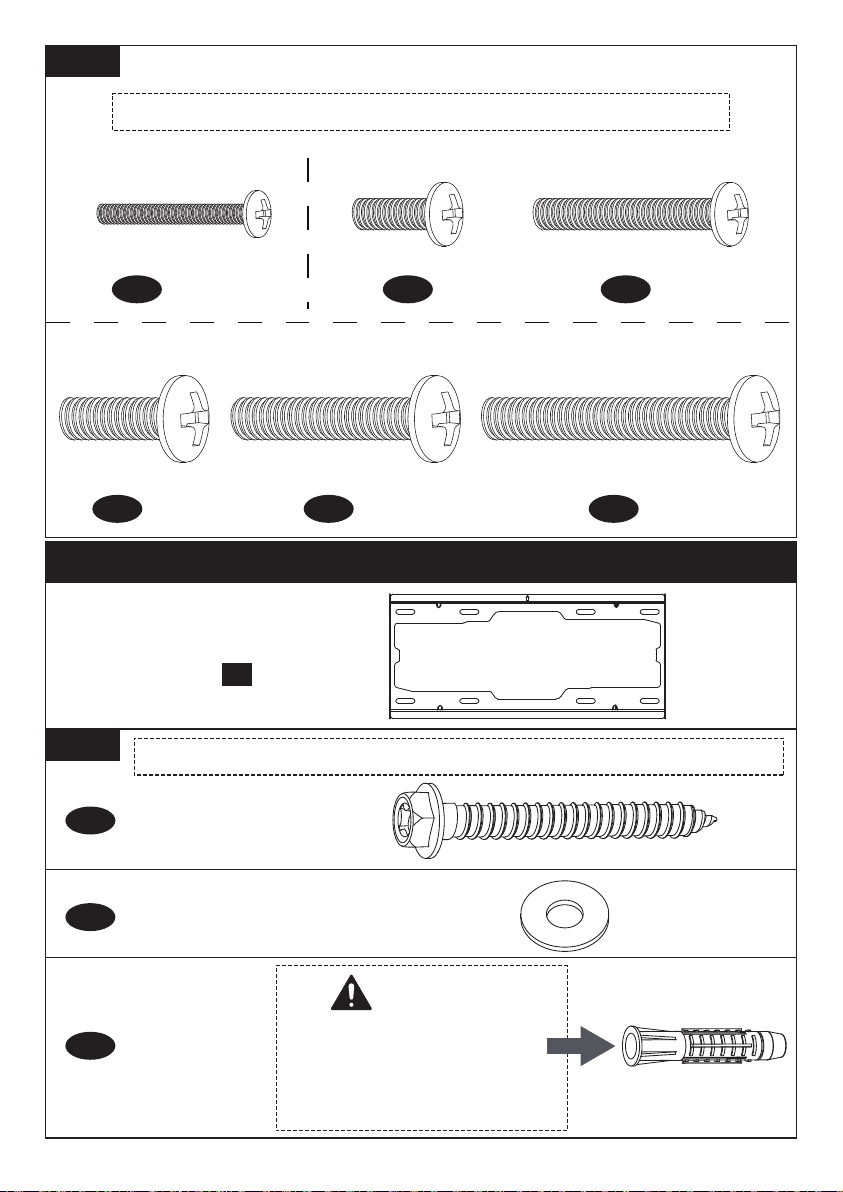

Supplied Parts and Hardware for Step 2
Lag Screw
ST6.3x60mm
x4
Wall Plate
x1
01
Note: The lag screw is shown in accordance with the actual size
A1
x4 Washer
M6
A2
x4
Wall
Anchor
φ10X50mm
This anchor is for con-
crete or brick walls
ONLY. DO NOT use them in
drywall or wood studs.
CAUTION!
A3
D
M8
M6M4
TV Bolts (Only one bolt size fits your TV)
Note: The bolts are shown in accordance with the actual size
x4
D1
M4x30mm
x4
D2
M6x15mm
x4
D3
M6x35mm
x4
D4
M8x20mm
x4
D5
M8x35mm
x4
D6
M8x50mm
4
Only one bolt size fits your TV.
Step 1 Secure the TV Brackets to TV
Select TV Bolts
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Note: If necessary, the spacers can be used in multi-layer. If the installation
fails after trying various methods, please contact customer service at
[email protected].
Too Long
Correct Correct
Too Short
M4 M6 M8
CAUTION: Ensure the TV brackets
[02] and [03] are EQUALLY CENTERED
on your TV AND securely fastened in
place.
Option A (For Flat Back TV)
02 03
B1/B2
D1/D2/D4
C1/C2
(If needed)
Alternate
Spacer
Setups
5
B1/B2
D1/D3/D5/D6
C1/C2/C3
Option D
Option B (For Round Back TV)
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
For cable interference or inset holes, use spacers [C1], [C2] and [C3] to create extra
space between the TV and TV brackets
02
B1/B2
C1/C2/C3
D1/D3/D5/D6
02
D1/D3/D5/D6
C1/C2/C3
B1/B2
Alternate
Spacer
Setups
Alternate
Spacer
Setups
Alternate
Spacer
Setups
D1/D2/D4
C1/C2
(If
needed)
B1/B2
Alternate
Spacer
Setups
6
Step 2 Attach the Wall Plate [01] to Wall
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B
2A-1
Use a stud finder (not included)
to locate wood studs or use an
awl (not included) to verify the
edges. Mark the edge and
center locations.
16in. (406mm)
awl
(Not lncluded)
Wall
Anchor
X
A3
Step 2A Wood Stud Option
WARNING:
Ensure the wall plate is securely fastened to the wall before
continuing to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm)
minimum 1.5 x 3.5 in. (38 x 89 mm)
● Stud center must be verified
Avoid potential personal injury or property damage! DO NOT over-tighten
the lag screws [A1]. Tighten the lag screws [A1] only until the washers
[A2] are pulled firmly against the wall plate [01].
DO NOT USE ANCHOR [A3] FOR THIS STEP
7

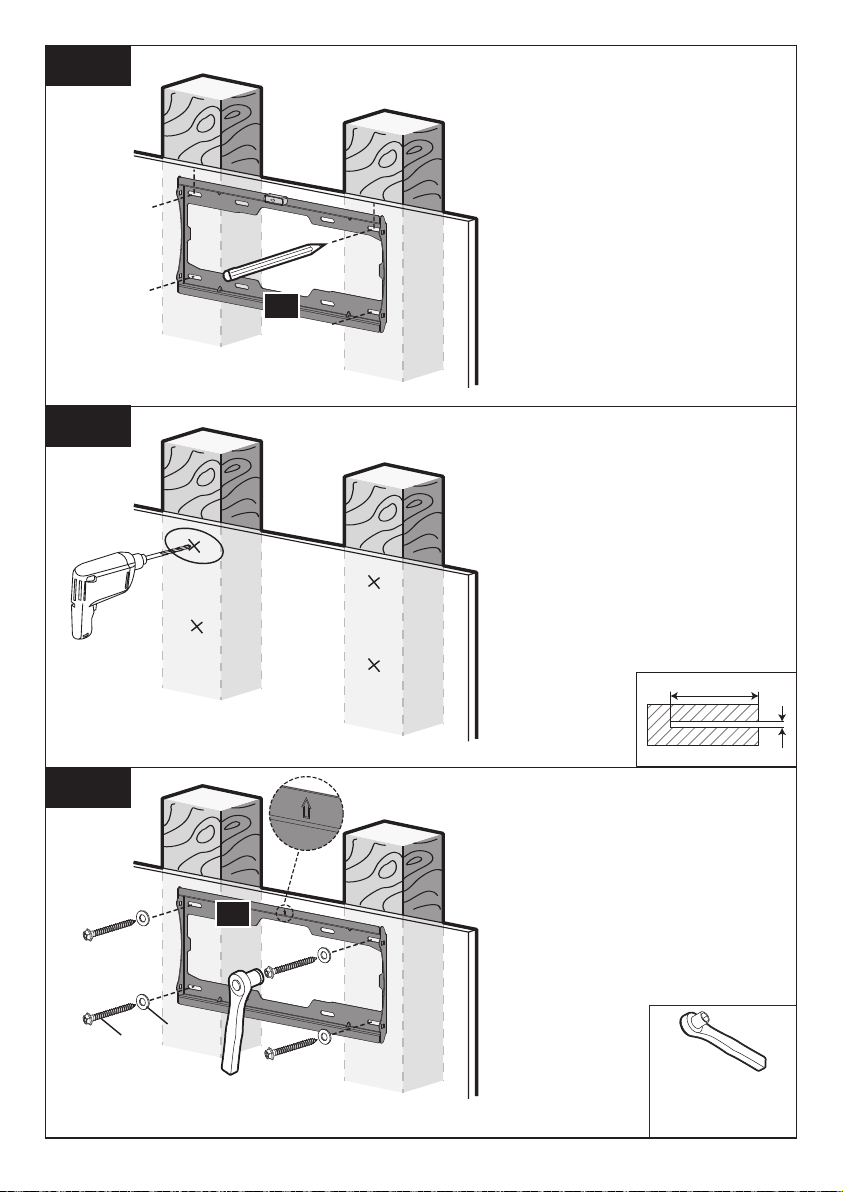

2A-2
2A-3
2A-4
Position the wall plate at your
desired height and line up the
holes with your stud center
line. Level the wall plate and
mark the holes.
Drill 4 pilot holes using a
5/32 in. (4mm) diameter drill
bit. Make sure the depth is
not less than 2 23/64
in.(60mm).
Install the wall plate [01]
using lag screws [A1] and
washer [A2]. Tighten the lag
screws [A1] only until the
washers [A2] are pulled firmly
against the wall plate [01] .
3/8 in. (10mm)
Socket Wrench
(Not Included)
ø5/32 in. (4mm)
2 23/64 in. (60mm)
01
01
A1 A2
01
8

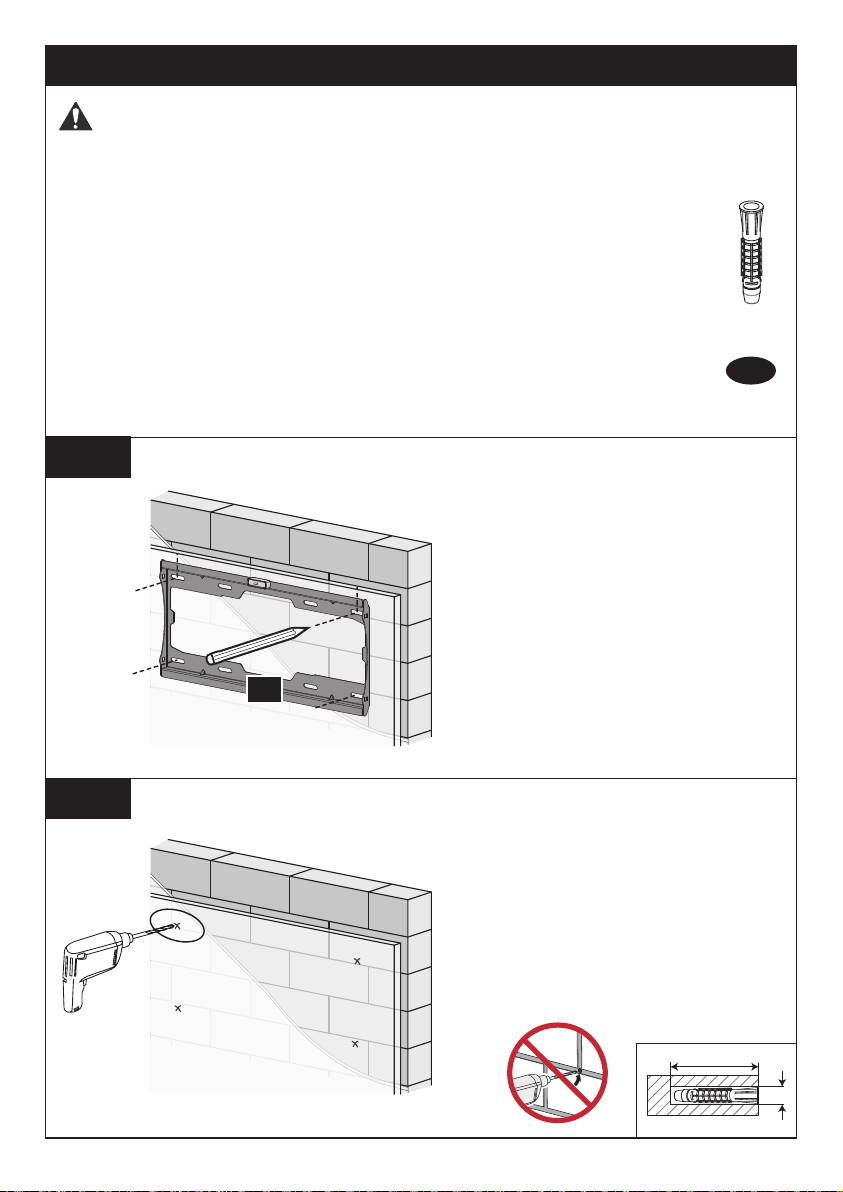

Step 2B Solid Concrete or Concrete Block Option
2B-1
2B-2
WARNING:
Ensure the wall plate is securely fastened to the wall before
continuing to the next step.
● Mount the wall plate [01] directly onto the concrete surface
● Anything covering the wall must not exceed 5/8 in. (16 mm)
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Never drill into the mortar between blocks
Avoid potential personal injury or property damage! DO NOT over-tighten the
lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are
pulled firmly against the wall plate [01].
Position the wall plate at your
desired height, level the wall plate
and mark the pilot hole locations.
Drill 4 pilot holes using a 3/8 in.
(10mm) diameter drill bit. Make
sure the depth is not less than 2
9/16 in.(65mm). Never drill into the
mortar between blocks.
Wall
Anchor
A3
ø3/8 in. (10mm)
2 9/16 in. (65mm)
01
9

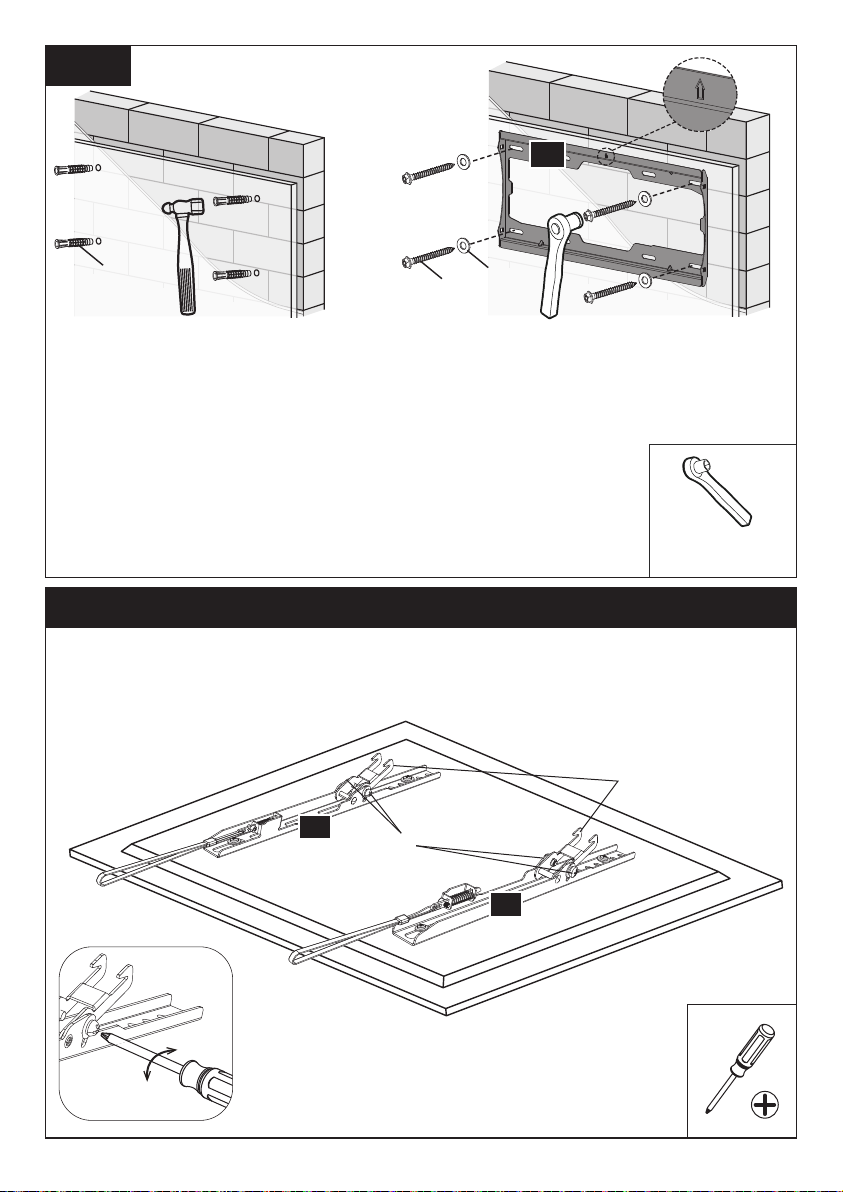

2B-3
3/8 in. (10mm)
Socket Wrench
Install wall plate using lag
screws [A1] and washers [A2].
Tighten the lag screws [A1]
only until the washers [A2] are
pulled firmly against the wall
plate. DO NOT over-tighten
the lag screws [A1].
Use the hammer to knock
anchors [A3] into the wall.
Be sure the anchors [A3]
are seated flush with the
concrete surface.
Step 3 Fix Tilting Angle
Tighten
Loosen
Loosen the 4 pcs tilt preassembled bolts [T] in both brackets [02] and [03].
Adjust the hooks [H] to your desired angle. Then tighten the 4 pcs tilt preas-
sembled bolts [T] with a screwdriver (not included) to fix the tilting angle.
Note: Do not over-tighten the bolts.
A3
01
A1 A2
01
A1 A2
H
T
02
03
10
HEAVY! You may need
assistance with this step.
Step 4 Secure the TV onto the Wall Plate
Locking
To Hang TV onto Wall Plate
1. Hang the TV with brackets [02] and [03] onto the wall plate [01].
2. While pulling and hold the ropes, press the bottom of the TV into the
wall plate [01] until the latches lock the TV brackets [02]and [03], then
release the ropes.
1. Pull and hold ropes down to release the latches.
2. Lift your TV up and off of the wall plate.
To Remove TV from Wall Plate
02
01
All of us at Alphamount do appreciate your product purchase. We hope that you
are as happy with your product as we are designing and manufacturing it for
you. We strive to provide you with the best quality products and services in the
industry. Should you have any issues, please don't hesitate to contact us at
[email protected] (US/CA/DE/UK/FR/IT/ES/AU)
Thank you again for choosing
this Alphamount product!

Other Alphamount TV Mount manuals

Alphamount APXTK2 User manual

Alphamount

Alphamount APXTK2 User manual

Alphamount APLT1 User manual

Alphamount

Alphamount APLT1 User manual

Alphamount APPSTVS12 User manual

Alphamount

Alphamount APPSTVS12 User manual

Alphamount APPSLTK1 User manual

Alphamount

Alphamount APPSLTK1 User manual

Alphamount APPSLTK2 User manual

Alphamount

Alphamount APPSLTK2 User manual

Alphamount APTVS06 User manual

Alphamount

Alphamount APTVS06 User manual

Alphamount APMFK2 User manual

Alphamount

Alphamount APMFK2 User manual

Popular TV Mount manuals by other brands

Steren STV-034 instruction manual

Steren

Steren STV-034 instruction manual

Striplox Mini 120 installation guide

Striplox

Striplox Mini 120 installation guide

Amazon B07QH7KYJ9 manual

Amazon

Amazon B07QH7KYJ9 manual

Perlesmith PSCLF1 instruction manual

Perlesmith

Perlesmith PSCLF1 instruction manual

Echogear EGMF1 instruction manual

Echogear

Echogear EGMF1 instruction manual

Sandstrom SFMS14 quick start guide

Sandstrom

Sandstrom SFMS14 quick start guide

FITUEYES F02M1441J user manual

FITUEYES

FITUEYES F02M1441J user manual

Siemens SIMATIC SBS1-50 Hardware installation instructions

Siemens

Siemens SIMATIC SBS1-50 Hardware installation instructions

Vivo MOUNT-POLE01W instruction manual

Vivo

Vivo MOUNT-POLE01W instruction manual

USX-MOUNT XAS403-1 instruction manual

USX-MOUNT

USX-MOUNT XAS403-1 instruction manual

Goobay TV EasyMount XL user manual

Goobay

Goobay TV EasyMount XL user manual

DPM 1M10 manual

DPM

DPM 1M10 manual

Samsung Mid462-Ut2 installation guide

Samsung

Samsung Mid462-Ut2 installation guide

urmet domus 1092/147 user manual

urmet domus

urmet domus 1092/147 user manual

Sanus Systems Sanus Foundations FS46 instruction manual

Sanus Systems

Sanus Systems Sanus Foundations FS46 instruction manual

Viz-Art Automation CP-LIFT Series installation manual

Viz-Art Automation

Viz-Art Automation CP-LIFT Series installation manual

Comelit 5724C Technical sheet

Comelit

Comelit 5724C Technical sheet

Gianni Industries Z-GL600 Bracket Specification sheet

Gianni Industries

Gianni Industries Z-GL600 Bracket Specification sheet

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
