Altana BYK t200 User manual

BYK t200
IR Thermometer
Measure what you see.
Manual

BYK-Gardner GmbH
Lausitzer Str. 8
D-82538 Geretsried
Germany
Tel. 0-800-gardner
(0-800-4273637)
[phone]
Fax [phone]
BYK - Gardner USA
9104 Guilford Road
Columbia, MD 21046
USA
Phone [phone]
301-483-6500
Fax [phone]
301-483-6555
www.byk-instruments.com
BYK t200 Manual
IR Thermometer November 2019

4
Tabe of Contents
1 Safety Information .............................................................................05
2 Preparations ........................................................................................06
3 System Description .............................................................................07
4 Operation ............................................................................................08
5 Technical Data .....................................................................................09

5
1 Safety Information
CAUTION!
Read Instruction Manual before using this instrument.
WARNING!
This manual cannot address all of the safety considerations
associated with its use. It is the responsibility of the user to
consult this manual and establish appropriate safety practices
for use with this equipment and the individual material being
tested.
WARNING!
The BYK t200 IR Thermometer is designed and intended for
the use described in this manual. Using the IR Thermometer
for other purposes for which it was not designed may reduce
or eliminate the protection offered by the features of the
instrument. Serious injury may result.
WARNING!
Ultimate disposal of this product should be handled according
to all national laws and regulations.

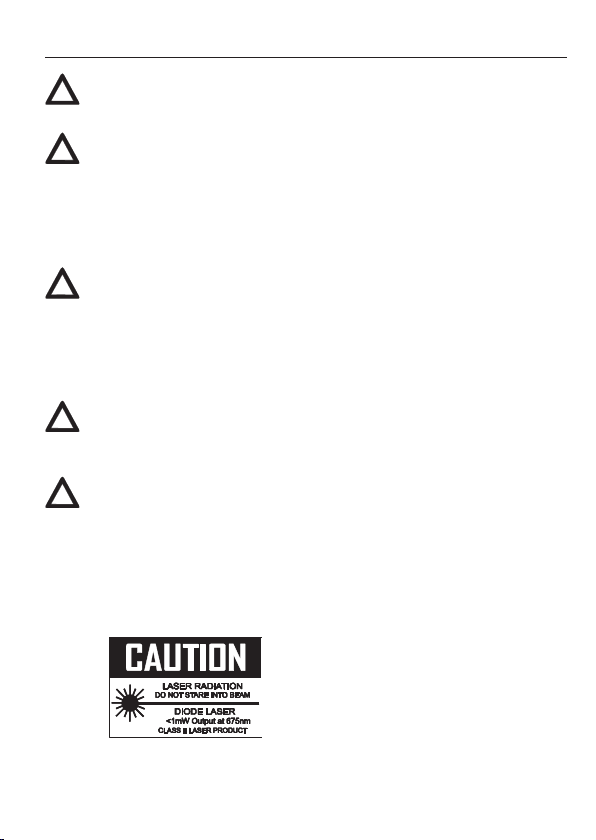

SAFETY!
• Use extreme caution when the laser beam is on.
• Do not let the beam enter your eye,
another person’s eye or the eye of an animal.
• Be careful not to let the beam on a reflective surface
strike your eye.
• Do not aim the laser light beam at or
through any gas that can explode.
Please note the following points:
• Familiarize yourself with the layout and operation of the controls.
!
!
!
!
!

6
2 Preparations
The BYK t200 IR Thermometer is capable of non-contact, infrared
temperature measurement. By depressing the trigger button, a
dual-beam laser pointer illuminates the target area and measures
the surface temperature. The non-contact Infrared Thermometer
measures surfaces that are difficult to reach or not possible to
measure by contact measurement devices.
FEATURES
• Rapid detection function
• Precise measurements
• Dual laser targeting
• Ergonomic housing design
• Automatic data hold
• Illuminated display screen
• MAX/MIN function
DISTANCE & SPOT SIZE
As the distance (D) from the object increases, the spot size (S) of the
area measured by the unit becomes larger. The relationship between
distance and spot size is shown below. The focal point for the unit is
914 mm (36”). The spot sizes shown indicate 90% encircled energy.
FIELD OF VIEW
Make sure that the target is larger than the unit’s spot size. The
smaller the target, the closer you should be to it. When accuracy is
critical, make sure the target is at least twice as large as the spot size.

7
3 System Description

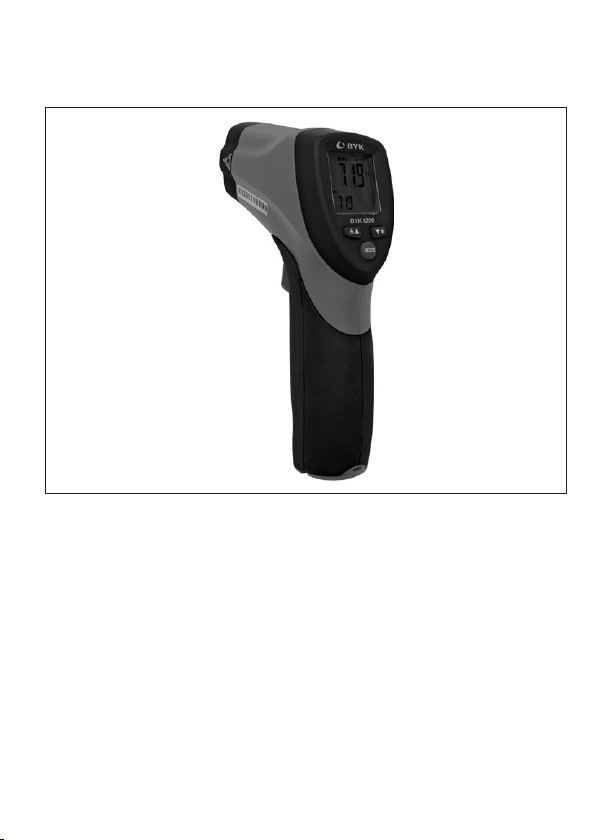

OVERVIEW
Display screen
°C/°F and buzzer on/off button
Laser on/off button
Trigger power
and
measurement on
button
Laser
Infrared Sensor
Laser
Max/Min button
LCD INTERFACE INSTRUCTIONS
°C/°F
symbol
Scan
symbol
Measure
data
Temp. value
for Max/Min
Data hold Laser on Buzzer on
Low
power

8
4 Operation
MEASUREMENT OPERATIONS
1. Hold the meter by its Handle Grip and point it toward the surface
to be measured.
2. Pull and hold the Trigger to turn the meter on and begin testing.
The display will light if the battery is good. Replace the battery if
the display does not light.
3. Release the Trigger and the HOLD display icon will appear on the
LCD indicating that the reading is being held. In HOLD status, press
the laser button to turn on or off the laser. Press the buzzer button
to turn on or off the buzzer. Press the MIN/MAX button to display
the minimum and maximum temperatures.
4 The meter will automatically power down about 10 seconds after
the trigger is released.
Switching °C/°F
Press the °C/°F button two seconds until the °C/°F symbol changes.
Switching Max/Min
Press the Max/Min button.
Switch on/off laser
Press the laser button
Switch on/off buzzer
Short press the °C/°F button
Find Max/Min
If the buzzer is turned on, when BYK t200 finds the Max/Min value,
the buzzer will beep.
BATTERY REPLACEMENT
If battery power is not sufficient,
the low power symbol will be displayed.
Replace with one new 9V alkaline battery.
Open the battery cover by squeezing the
rubber grip below the display and
pull forward.

9
5 Technical Data
SPECIFICATIONS
Temperature range -50 to 380°C (-58 to 716°F)
Temperature accuracy -50 to 20°C (-58 to 68°F) ±2.5°C (4.5°F)
20 to 380°C (68 to 716°F) ±1.0% +1°C (1.8°F)
Temperature repeatability ±1°C (1.8°F)
Response time 150 ms
D:S Ratio 12:1
Spectral response 8-14 microns
Over range indications Display will show “----“
Diode Laser
630-670 nm Wavelength
<1 mW output
Class 2 laser
Operating temperature 0 to 50°C (32 to 122°F)
Operating humidity range 10% to 90% RH
Storage temperature -10 to 60°C (14 to 140°F)
Power supply 9V alkaline battery
Display resolution 0.1°C (0.1°F)
Emissivity Fixed at 0.95
All technical data is subject to change.

10
EC – Declaration of Conformity
We BYK-Gardner USA
9104 Guilford Road
Columbia, MD 21046 USA
herewith declare the product:
Type: BYK t200 IR Thermometer
comply with the requirements of the following EC directives:
Electromagnetic Compatibility 2014/30/EU
The following harmonized standards were applied:
EN 61326-1:2013
EN 61326-2-1:2013
Columbia, MD, August 30, 2019
Technical documentation is available
Mr. Michael J. Gogoel
V.P. General Manager
