The Alto-Shaam ASF-75G open gas fryer cabinet is constructed of stainless steel and includes heavy duty leveling
casters mounted on both front and rear. The fryer is provided with a burner and heat exchanger system powered by a
fan-assisted combustion system with built-in controls for ignition and flame rectification. The 16 gauge stainless steel
fry tank holds 73 pounds (33 kg) of frying compound. Also included are two fry baskets and a cleaning brush set.
Fryer has a temperature range of 200°F to 375°F (93°C to 191°C).
■■ASF-75G Open Gas Fryer with Basic Control
• Heat exchanger system provides a 71-percent level of
efficiency as rated by the Food Service Technology Center of PG&E.
• Reduced connected gas demand and quick oil temperature recovery
• Lower exhaust flue temperatures
• Stainless steel construction of both front and sides
• Dual, solid-state controls with countdown timers.
• One-touch cooking operation to help address labor issues
• Longer oil life with less oil absorption for healthier frying
• Fat melt cycle for solid or liquid shortening
• 7-year limited fry tank warranty
sho wn w ith
optio nal
autom atic
bask et lifts
FACTORY INSTALLED OPTIONS
■■Automatic Basket Lifts
■■ Oil Filtration System
➥Furnished with a mobile oil trolley with filter assembly and a package
of 7 paper filters
➥Powered by a 1/
2hp gear pump featuring front access reset and
a 3/
4"(19mm) full-port, ball-type drain valve
■■Deluxe Control
➥Programmable memory and manual operation
➥Programs seven (7) synchronized or twelve (12) individual menu items
➥Six (6) product menu keys per lift

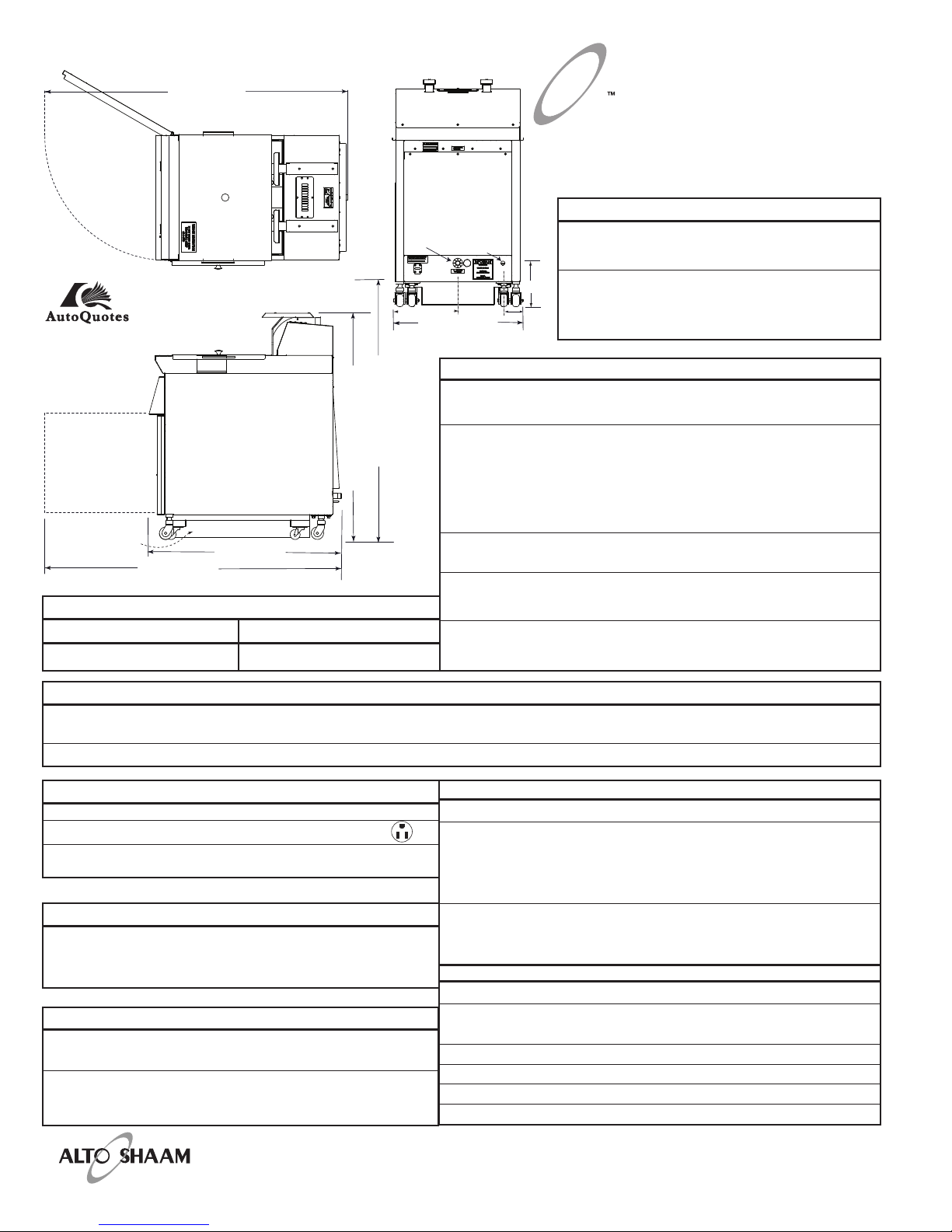

ASF-75G
G A S O P EN F RY E R
ITEM NO. _______________________

60-1/16" (1525mm)
Electrical
Gas
Connection
1/2" NPT
24-13/16" (630mm)
9" (229mm)
Dooropens120°
51-5/16" (1302mm) LIFT UP
45-5/16" (1150mm) LIFT DOWN
37-7/8" (961mm)
60-1/16" (1525mm)
OIL
TROLLEY
12-7/16" (315mm) 3-1/2"
(89mm)
DUE TO ONGOING PRODUCT IMPROVEMENT, S P E C I F I C AT I O N S A R E S U B E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A.
DIMENSIONS EXTERIOR H x W x D:
44-5/16" x 24-13/16" x 38-1/4"
(1126mm x 630mm x 972mm)
BASKET DI ENSIONS (HXWXD)
11-1/2" x 12-3/4" x 21-3/4"
(292mm x 324mm x 552mm)
CAPACITY
PRODUCT: 18 lb (8,2 kg)
SHORTENING/OIL: 73 lb (33 kg) MAXIMUM
OIL FILTER PAN CAPACITY: 73 lb (33 kg) MAXIMUM
CLEARANCE REQUIREMENTS
BACK: 6" (152mm) FRONT: 25" (635mm)
PLUS:18" (457mm) minimum between the fryer flue and the lower edge of the exhaust hood and filter media.
6" (152mm) INI U CLEARANCE IS REQUIRED AT BOTH SIDES AND THE REAR WHEN ADJACENT TO CO BUSTIBLE SURFACES.
INSTALLATION REQUIREMENTS
GAS CONNECTION: 3/4" NPT
HOOD INSTALLATION IS REQUIRED
CHECK PLU BING CODES FOR PROPER SUPPLY LINE SIZING
TO ATTAIN INI U BURNER ANIFOLD PRESSURE SHOWN:
NATURAL GAS:5.0" W.C. PROPANE GAS:10.0" W.C.
(1.2 kPa) (2.5 kPa)
AXI U INLET PRESSURE: 14" W.C. (3.5 kPa)
NOTE: If a flexible gas line is used, it must be AGA
approved, commercial type and at least 1/2" I.D.
GAS VALVE MAY REQUIRE FIELD AD USTMENT AT ELEVATIONS
ABOVE 3,250' (991m) — NOT FACTORY ADJUSTED
ANUAL GAS SHUT-OFF VALVE UST BE PROVIDED PER CODE REQUIRE ENTS.
INSTALL CONNECTOR AND QUICK DISCONNECT DEVICE PER CODE REQUIRE ENTS.
N OT FA C T ORY SU PPL IE D
WEIGHT EST.
NET WEIGHT:360 lb (163 kg)
SHIP WEIGHT:520 lb (236 kg)
CARTON DI ENSIONS: H x W x D
57" x 34" x 47"
(1448mm x 864mm x 1194mm)
GAS SPECIFICATIONS
■■NATURAL GAS ■■PROPANE GAS
120,000 BTU/hr. INPUT 120,000 BTU/hr. INPUT
ELECTRICAL
VOLTAGE PHASE CYCLE/HZ A PS
120 1 60 7.2
230 1 50/60 4.3 .99 KW
#361 - 06/07
ASF-75G
GAS OPEN FRYER
W164 N9221 Water Street • P.O. Box 450 • enomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE: [phone].558.8744 U.S.A./ CANADA FAX: [phone].329.8744 U.S.A. ONLY
WEBSITE: www.alto-shaam.com
®
NO CORD &PLUG
STANDARD ACCESSORIES
■■Basket, Half-Size (2 INCLUDED AS STANDARD)BS-27140
Brush Set (ONE 3-BRUSH SET INCLUDED AS STANDARD)
■■ STRAIGHT BRUSH BH-27121
■■ ANGLE BRUSH BH-27382
■■ SCRUB BRUSH CE-27122
Filter, Paper (7 PAPER FILTERS INCLUDED AS STANDARD)
■■7 COUNT REFILL PACKAGE FI-27791
■■100 COUNT REFILL PACKAGE FI-27794
O P T I O N S
■■ Basket, Full-Size (48 CHICKEN PIECE CAPACITY) BS-26998
FILTERS ■■ Charcoal/Carbon (30 COUNT PKG.) FI-27648
■■ Reusable Mesh (SINGLE FILTER) FI-27014
■■Fry Pot Cover 5005136
■■Mobile Oil Trolley Cover 5006073
■■Strainer/Skimmer CE-27400
