Alto-Shaam 1200-TH/III Installation and operating instructions

MN-28679 • 04/08
PRINTED IN U.S.A.
C k i n g & H l d i n g O v e n
E l e c t r n i c C n t r l
M del:
500-TH/III
750-TH/III
1000-TH/III
1200-TH/III
• INSTALLATION
• OPERATION
• MAINTENANCE
1000-TH/III
1200-TH/III
750-TH/III
500-TH/III
W164 N9221 Wa er S ree • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: [phone] • 800.558.8744 USA/CANADA FAX: [phone] • 800.329.8744 U.S.A.ONLY
www.alto-s aam.com
®

TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 1
D E L I V E R Y
This Alto-Shaa appliance has been
thoroughly tested and inspected to insure only the
highest quality unit is provided. Upon receipt,
check for any possible shipping da age and report
it at once to the delivering carrier. See
Transportation Damage and Claims section
located in this manual.
This appliance, co plete with unattached
ite s and accessories, ay have been delivered in
one or ore packages. Check to ensure that all
standard ite s and options have been received
with each odel as ordered.
Save all the infor ation and instructions
packed with the appliance. Co plete and return
the warranty card to the factory as soon as
possible to assure pro pt service in the event of a
warranty parts and labor clai .
This anual ust be read and understood by
all people using or installing the equip ent
odel. Contact the Alto-Shaa service
depart ent if you have any questions concerning
installation, operation, or aintenance.
NOTE: All clai s for warranty ust include the
full odel nu ber and serial nu ber of
the unit.
UNPACKING
1. Carefully re ove the
appliance fro the
carton or crate.
NOTE: Do not discard the
carton and other
packaging aterial
until you have
inspected the unit
for hidden da age
and tested it for
proper operation.
2. Read all instructions in this anual carefully
before initiating the installation of this appliance.
DO NOT DISCARD THIS MANUAL.
This anual is considered to be part of the
appliance and is to be provided to the owner or
anager of the business or to the person
responsible for training operators. Additional
manuals are available from the Alto-Shaam
service department.
3. Re ove all protective plastic fil , packaging
aterials, and accessories fro the appliance
before connecting electrical power. Store any
accessories in a convenient place for future use.
®
®
®

PG. 2 TH/III IN TALLATION/OPERATION/ERVICE MANUAL
1. This appliance is intended to cook, hold or
process foods for the purpose of human
consumption. No other use for this appliance is
authorized or recommended.
2. This appliance is intended for use in commercial
establishments where all operators are familiar
with the purpose, limitations, and associated
hazards of this appliance. Operating
instructions and warnings must be read and
understood by all operators and users.
3. Any troubleshooting guides, component views,
and parts lists included in this manual are for
general reference only and are intended for use
by ualified technical personnel.
4. This manual should be considered a permanent
part of this appliance. This manual and all
supplied instructions, diagrams, schematics,
parts lists, notices, and labels must remain with
the appliance if the item is sold or moved to
another location.
N O T E : Used to notify personnel of
installation, operation, or
maintenance information that is
important but not hazard related.
C A U T I O N
Used to indicate the presence of a hazard that can
or will cause minor personal injur , propert
damage, or a potential unsafe practice if the
warning included with this s mbol is ignored.
C A U T I O N
Used to indicate the presence of a
hazard that can or will cause minor or
moderate personal injur or propert
damage if the warning included with
this s mbol is ignored.
D A N G E R
Used to indicate the presence of a
hazard that WILL cause severe
personal injur , death, or substantial
propert damage if the warning
included with this s mbol is ignored.
W A R N I N G
Used to indicate the presence of a
hazard that CAN cause personal injur ,
possible death, or major propert
damage if the warning included with
this s mbol is ignored.
SAFETY PROCEDURES
AND PRECAUTIONS
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
e uipment. In accordance with generally accepted
product safety labeling guidelines for potential
hazards, the following signal words and symbols
may be used throughout this manual.
N O T E
For equipment de ivered for use
in any ocation regu ated by the
fo owing directive:
DO NOT DISPOSE OF ELECTIRCAL
OR ELECTRONIC EQUIPMENT WITH
OTHER MUNICIPAL WASTE.

S I T E I N S T A L L A T I O N
The Alto-Shaam cook
and hold oven must be
installed in a location
that will permit the
oven to function for its
intended purpose and
to allow adequate
clearance for
ventilation, proper
cleaning, and
maintenance access.
1. The oven must be installed on a stable and
level surface.
2. DO OT install this appliance in any area
where it may be affected by any adverse
conditions such as steam, grease, dripping
water, high temperatures, or any other severely
adverse conditions.
3. DO OT store or use any flammable liquids or
allow flammable vapors in the vicinity of this
oven or any other appliance.
4. This appliance must be kept free and clear of
any combustible materials.
5. This appliance must be kept free and clear of
any obstructions blocking access for
maintenance or service.
®
INSTALLATION
Emissions testing conducted by Underwriters
Laboratories, Inc.®was found to be in
compliance with the applicable requirements of
NFPA96: 2004 Edition, Par. 4.1.1.2. U.L
emissions sampling of grease laden vapor
resulted in a total of 0.55 milligrams per cubic
meter with no visible smoke and is considered
representative of all oven models in the line.
Based on these results, hood installation and/or
outside venting should not be a requirement in
most areas. Verify local codes for locations
where more restrictive codes are applicable.
MINIMUM CLEARANCE REQUIREMENTS
18" (457mm) minimum clearance at the back from heat
producing equipment. To protect the electronic
control, maintain sufficient side clearance to prevent
the control area from reaching any temperature at or
above 140°F (60°C).
TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 3
D A N G E R
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
CAUTION
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
C A U T I O N
METAL PARTS OF THIS EQUIPMENT
BECOME EXTREMELY HOT WHEN IN
OPERATION. TO AVOID BURNS,
ALWAYS USE HAND PROTECTION
WHEN OPERATING THIS APPLIANCE.
D A N G E R
DO NOT store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
N O T E
If the appliance has been unplugged for an
extended period of time, the Real Time
Clock ma require recharging. Plug the unit
into the proper receptacle for a minimum of
24 hours.

PG. 4 TH/III IN TALLATION/OPERATION/ERVICE MANUAL
SITE INSTALLATION
I N S T A L L A T I O N
18-1/16" (458mm) 25-7/16" (646mm)
25-1/8" (638mm)
30-3/8" (772mm)
21" (532mm)
with optional bumper
43-9/16" (1106mm)
40-5/16" (1023mm)
*32-1/16" (814mm) - with optional2-1/2" casters
*34-5/16" (874mm) - with optional5" casters
*34-11/16" (880mm) - with optional 6" legs
33-1/16" (839mm)
with 3-1/2" Casters*
27-13/16" (705mm)
29-1/4" (743mm)
with optional bumper
8-15/16"
(227mm)
Electrical
Connection
Electrical Connection
PRODUCT\PA CAPACITY
40 lb (18 kg) MAXIMUM
VOLUME MAXIMUM:30QUARTS (38 LITERS)
WEIGHT
ET:150 lb (68 kg) EST.
SHIP:165 lb (75 kg) EST.
500-TH/III

TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 5
S I T E I N S T A L L A T I O N
INSTALLATION
28-1/4" (716mm)
with optional bumper
33-3/16" (843mm)
with 3-1/2" casters*
25-3/4"
(653mm)
33-7/8" (860mm)
with optional bumper
30-15/16"
(785mm)
25-1/8" (638mm)
30-7/16" (772mm)
53-9/16" (1360mm)
55-1/2" (1408mm) with optional bumper
77-1/2" (1967mm) - Pass-Through Option
33-5/8" (856mm)
Electrical
Connection
Pass-Through
Option
*32-3/16" (817mm) - with optional 2-1/2" casters
*34-5/8" (878mm) - with optional 5" casters
*34-13/16" (884mm) - with optional 6" legs
26-5/8"
(675mm)
27-7/8"
(708mm)
12-7/8"
(326mm)
Electrical
Connection
33-7/8" (860mm)
with optional bumper
Electrical Connection
PRODUCT\PA CAPACITY
100 lb (45 kg) MAXIMUM
VOLUME MAXIMUM:75QUARTS (95 LITERS)
WEIGHT
ET:192 lb (87 kg) EST.
SHIP:212 lb (96 kg) EST.

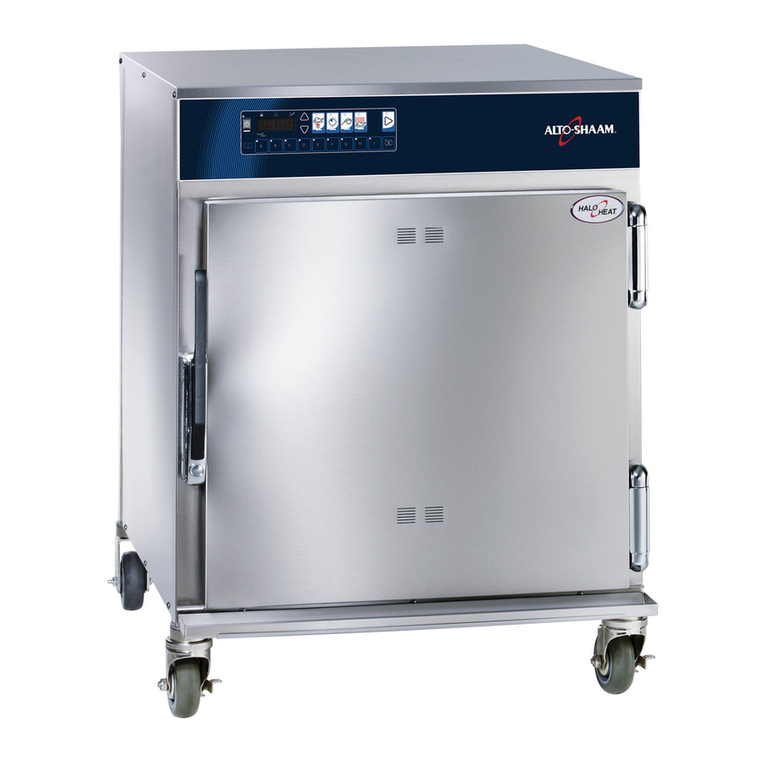

750-TH/III

S I T E I N S T A L L A T I O N
I N S T A L L A T I O N
22-5/8" (573mm)
39-7/8" (1012mm)
with Standard 3-1/2" Casters*
31-15/16" (811mm)
37-1/4" (945mm)
30-3/4" (780mm)
25-1/16" (636mm)
with optional bumper
33-7/8" (860mm)
with optional bumper
*38-7/8" (987mm) -with optional 2-1/2" casters
*41-1/4" (1047mm) - with optional 5" casters
*41-1/2" (1053mm) - with optional 6" legs
34-5/8" (878mm)
72-3/8" (1838mm) Pass-Through Option
53-1/8" (1349mm) with optional bumper
50-1/16" (1272mm)
11-1/4"
(284mm)
33-11/16" (856mm)
33-7/8" (860mm)
with optional bumper
Electrical
Connection
Pass-Through
Option
Electrical
Connection
1000-TH/III
WEIGHT
ET:225 lb (102 kg) EST.
SHIP:233 lb (106 kg) EST.
PRODUCT\PA CAPACITY
120 lb (54 kg) MAXIMUM
VOLUME MAXIMUM:60QUARTS (76 LITERS)
PG. 6 TH/III IN TALLATION/OPERATION/ERVICE MANUAL

S I T E I N S T A L L A T I O N
INSTALLATION
1200-TH/III
75-9/16" (1918mm) with 5" (127mm) Casters*
25-1/16" (636mm)
22-9/16" (573mm) 31-3/16" (791mm)
33-7/8" (860mm)
66-1/8" (1679mm)
72-15/16" (1852mm)
72-1/16" (1830mm)
33-3/8" (848mm)
33-7/8" (860mm)
Reach-In
Electrical
Conn.
50-5/8" (1285mm)
53-1/8" (1349mm)
10-1/16"
(255mm)
Electrical
Connection
Reach-In
Electrical
Connection
Pass-Through
Option
*74-3/16" (1883mm) - with optional 3-1/2" (89mm) casters
*
WEIGHT
ET:420 lb (191 kg) EST.
SHIP:475 lb (215 kg) EST.
PRODUCT\PA CAPACITY (P E R C O M P A R T M E N T )
120 lb (54 kg) MAXIMUM
VOLUME MAXIMUM:60QUARTS (76 LITERS)
TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 7

OPTIONS AND ACCESSORIES 500-TH/III 750-TH/III 1000-TH/III 1200-TH/III
Bumper, Full Perimeter 5006782 5004861 5005103 5005103
Carving older,
PRIME RIB
STEAMS IP (CAFETERIA)ROUND
L-2635
4459
L-2635
4459
L-2635
4459
L-2635
4459
Casters - 2 RIGID, 2 SWIVEL W/BRAKE
5" (127mm)
3-1/2" (89mm)
2-1/2" (64mm)
5004862
STANDARD
5008022
5004862
STANDARD
5008022
5004862
STANDARD
5008022
STANDARD
5008017
––
Door with Window
RIG T-AND
LEFT-AND
15855R
15857R
15433R
15732R
15879R
15881R
15879R
15881R
Door Lock with Key LK-22567 LK-22567 LK-22567 LK-22567
Drip Pan
STANDARD WIT DRAIN, 1-7/16" (37mm)
STANDARD WIT DRAIN, 1-11/16" (43mm)
STANDARD WIT DRAIN, 1-7/8" (48mm)
EXTRA DEEP, 2-7/16" (62mm)
14813
––
––
––
––
14831
––
1115
––
––
14824
1115
––
––
14824
1115
Legs, 6" (152mm), Flanged (SET OF FOUR) 5004863 5004863 5004863 5004863
Pan Grid, Wire - 18" X26" PAN INSERT –– PN-2115 PN-2115 PN-2115
Pan Slides (230V ONLY) 5008251 5008240 –– ––
Shelf, Stainless Steel
FLAT WIRE,REAC -IN
FLAT WIRE,PASS-T ROUG
RIB RACK
S -2326
––
––
S -2324
S -2327
S -2743
S -2325
S -2346
S -2773
S -2325
S -2346
S -2773
Stacking ardware 5004864 5004864 5004864 ––
ACCP Network Options
➥ACCP Documentation
➥ACCP with Kitchen Management
*REFER TO HACCP SPECIFICATIO #9015 FOR APPLICABLE PART UMBERS.
I N S T A L L A T I O N
PG. 8 TH/III IN TALLATION/OPERATION/ERVICE MANUAL

S I T E I N S T A L L A T I O N
INSTALLATION
CASTER SET SCREW
TOP
MOUNTING
SCREWS
STACKING
POSTS
TOP
MOUNTING
SCREWS
STACKING INSTRUCTIONS
1) If the two a liances were shi ed together from the factory, the to unit will have the
casters already removed. A stacking kit will be included with the shi ment.
If casters need to be removed: lay the unit on its back, and remove the set screw on each caster. Pull the
casters out of the unit.
2) While a liance is laid on its back, insert one stacking ost in each of the four corners of
the u er unit. Secure the stacking osts using one screw and two flat washers that come
with the stacking kit.
Note: The flange on the stacking posts must face the outside of the unit.
3) Remove the four to mounting screws from the lower unit. Place the u er a liance,
which has the stacking osts installed, on to of the bottom unit. Center the to unit from
front to back. Re-install the four screws through the flange of the four stacking osts.
Stacking Configurations
1000-TH/III with 1000-TH/III or 1000-
750-TH/III with 750-TH/III, 750- , or 767- K/III
500-TH/III with 500-TH/III or 500-
TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 9

S I T E I N S T A L L A T I O N
I N S T A L L A T I O N
A number of adjustments are associated with
initial installation and start-up. It is important
that these adjustments be conducted by a qualified
service technician. Installation and start-up
adjustments are the responsibility of the dealer or
user. These adjustments include but are not
limited to thermostat calibration, door adjustment,
leveling, electrical hook-up and installation of
optional casters or legs.
LEVELING
Level the oven
from side-to-side and front-to-
back with the use of a spirit level. For ovens
installed with casters, it is important that the
installation surface be level due to the probability
of frequent oven repositioning.
We recommend checking the level of the oven
periodically to make certain the floor has not
shifted nor the oven moved.
NOTE: Failure to properly level this oven can
cause improper function and will result in
the uneven baking with products
consisting of semi-liquid batter.
RESTRAINT REQUIREMENTS
—MOBILE EQUIPMENT
Any appliance that is not furnished with a power
supply cord but that includes a set of casters must
be installed with a tether. Adequate means must
be provided to limit the movement of this
appliance without depending on or transmitting
stress to the electrical conduit. The following
requirements apply:
1. Maximum height of casters is 6" (152mm).
2. Two of the casters must of be the locking type.
3. Such mobile appliances or appliances on mobile
stands must be installed with the use of a flexible
connector secured to the building structure.
A mounting connector for a restraining device is
located on the lower back flange of the appliance
chassis or on an oven stand, approximately 18"
(457mm) from the floor. A flexible connector is not
supplied by nor is it available from the factory.
PG. 10 TH/III IN TALLATION/OPERATION/ERVICE MANUAL
W A R N I N G
RISK OF ELECTRIC SHOCK.
Appliance must be secured
to building structure.

HA G DRIP TRAY O SCREWS
STA DARD DRIP PA *
[BOTTOM OF OVE I TERIOR • BELOW
SIDE-RACKS]
DRIP
TRAY*
DRIP TRAY INSTALLATION INSTRUCTIONS
DRIP TRAY INSTALLATION INSTRUCTIONS
S I T E I N S T A L L A T I O N
INSTALLATION
*SEE ALTO-SHAAM PARTS LIST FOR ALTO-SHAAM PART UMBERS.
TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 11
W A R N I N G
FAILURE TO PROPERLY INSTALL THE
DRIP TRAY CAN OR WILL CAUSE
MAJOR EQUIPMENT DAMAGE AND
WILL RESULT IN A LEAKAGE
HAZARD THAT CAN CAUSE
PERSONAL INJURY.

ELECTRICAL CONNECTION
I N S T A L L A T I O N
PG. 12 TH/III IN TALLATION/OPERATION/ERVICE MANUAL
E L E C T R I C A L - 5 0 0 - T H / I I I
VOLTAGE PHASE CYCLE / HZ AMPS kW CORD & PLUG
120 1 60 16.0 1.92 NEMA 5-20 P
20A-125 VPLUG
208-240 (UL)1 60 11.2 2.70 NO CORD
at 208 1 60 10.6 2.20
& PLUG
at 240 1 60 12.2 2.93
230 1 50 12.0 2.75 CEE 7/7
220-230V PLUG
E L E C T R I C A L - 7 5 0 - T H / I I I
VOLTAGE PHASE CYCLE / HZ AMPS kW CORD & PLUG
208-240 (UL)1 60 15.8 3.80 NO CORD
at 208 1 60 14.6 3.04
& PLUG
at 240 1 60 16.9 4.05
230 1 50 15 3.0 CEE 7/7
220-230V PLUG
E L E C T R I C A L - 1 0 0 0 - T H / I I I
VOLTAGE PHASE CYCLE/HZ AMPS kW CORD &PLUG
208-240 (UL)1 60 15.8 3.8 NO CORD
at 208 1 60 14.4 3.0 &PLUG
at 240 1 60 16.7 4.0
230 1 50 13.5 2.7 CEE 7/7
220-230V PLUG
E L E C T R I C A L - 1 2 0 0 - T H / I I I
VOLTAGE PHASE CYCLE/HZ AMPS kW CORD &PLUG
208-240 (UL)1 60 30 7.2 NO CORD
at 208 1 60 28.9 6.0 &PLUG
at 240 1 60 33.3 8.0
230 1 50 28.7 6.6 NO CORD &PLUG
The appliance must be installed by a qualified
service technician. The oven must be properly
grounded in accordance with the National
Electrical Code and applicable local codes.
Plug the unit into a properly grounded receptacle
ONLY, positioning the unit so that the plug is
easily accessible in case of an emergency. Arcing
will occur when connecting or disconnecting the
unit unless all controls are in the “OFF” position.
Proper receptacle or outlet configuration or
permanent wiring for this unit must be installed
by a licensed electrician in accordance with
applicable local electrical codes.
230V:
To prevent an electrical shock hazard between
the appliance and other appliances or metal
parts in close vicinity, an equalization-bonding
stud is provided. An equalization bonding lead
must be connected to this stud and the other
appliances / metal parts to provide sufficient
protection against potential difference.
The terminal is marked with the following
symbol.
NOTE: The appliance must be connected to an
electrical circuit that is protected by an
external GFCI outlet.
D A N G E R
ENSURE POWER SOURCE
MATCHES VOLTAGE STAMPED
ON APPLIANCE NAMEPLATE.
D A N G E R
To avoid electrical shock, this
applia ce MUST be adequately
grou ded i accorda ce with local
electrical codes or, i the abse ce of
local codes, with the curre t editio
of the Natio al Electrical Code
ANSI/NFPA No. 70. I Ca ada, all
electrical co ectio s are to be
made i accordi g with CSA C22.1,
Ca adia Electrical Code Part 1 or
local codes.
D A N G E R
ELECTRICAL CONNECTIONS MUST
BE MADE BY A QUALIFIED SERVICE
TECHNICIAN IN ACCORDANCE WITH
APPLICABLE ELECTRICAL CODES.

OPERATING INSTRUCTIONS
USER SAFETY INFORMATION
The Alto-Shaam cook and hold oven is intended
for use in commercial establishments by qualified
operating personnel where all operators are
familiar with the purpose, limitations, and
associated hazards of this appliance. Operating
instructions and warnings must be read and
understood by all operators and users.
S T A R T- U P O P E R A T I O N
BEFORE INITIAL USE:
Interior oven surfaces must be heated to remove
surface oils and the accompanying odor produced
during the first use of the oven.
1. Wipe all wire shelves, side racks and the full
oven interior with a clean, damp cloth. Install
the oven side racks, oven shelves, and external
drip tray. Shelves are installed with the
curved edge toward the back of the oven.
Insert the drip pan on the interior bottom
surface of the oven.
2. • Close the oven doors.
• Press and release control ON/OFF key.
• Press the COOK key.
• Press the up and down arrows to set the
cooking temperature to 300°F (149°C).
3. • Press the TIME key.
• Press the up and down arrows to set the
cooking time to approximately 2 hours.
• Allow the oven to cycle for approximately
2 hours or until no odor is detected.
TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 13
CAUTION
METAL PARTS OF THIS EQUIPMENT
BECOME EXTREMELY HOT WHEN IN
OPERATION. TO AVOID BURNS,
ALWAYS USE HAND PROTECTION
WHEN OPERATING THIS APPLIANCE.
D A N G E R
AT NO TIME SHOULD THE INTERIOR
OR EXTERIOR BE STEAM CLEANED,
HOSED DOWN, OR FLOODED WITH
WATER OR LIQUID SOLUTION OF
ANY KIND. DO NOT USE WATER JET
TO CLEAN.
SEVERE DAMAGE OR
ELECTRICAL HAZARD
COULD RESULT.
WARRANTY BECOMES VOID IF
APPLIANCE IS FLOODED
D A N G E R
DISCONNECT UNIT FROM
POWER SOURCE BEFORE
CLEANING OR SERVICING.

OPERATING INSTRUCTIONS
햲
햳햴햵햶
햷햸햹햺햻햽
헀
헂
헁
햾
햿
Power ON
Indica or
1. O / OFFKey
The ON/OFF control system key operates the
functions of the control panel. If there is any
power loss during operation, the ON/OFF indicator
light will flash. To clear, push key and release.
2. COOK Key — Temperature range 200° to 325°F
(93° to 162°C)
Used to select cooking mode and to review the cook
temperature setting.
3. TIME Key — Maximum time 24 hours
Used to select cook time and to review set time.
4. PROBE Key — Temperature range 50° to 195°F
(10° to 91°C)
Used to select internal product probe temperature
mode and to review probe temperature setting.
5. HOLD Key — Temperature range 60° to 205°F
(15° to 96°C)
Used to select food holding mode and to review set
holding temperature.
6. Lock Indicator
When illuminated, this symbol indicates settings
used in the cooking sequence are locked and
cannot be changed.
7. Halo Heat Indicator
When the oven is preheating, the alo eat
indicator will illuminate during preheating and
remain steady until the oven reaches the set
cooking temperature. When the temperature has
stabilized, the indicator will illuminate periodically
as the oven calls for heat.
8. Oven Preheat Light
Illuminates until the oven is preheated.
9. LED Display
Indicates interior oven air temperature, internal
product probe temperature, time, or when used in
conjunction with other keys, will review
original cooking, holding and probe temperature
settings. The display will also indicate various
programming and diagnostic information.
10. Ready Indicator Light
Illuminates when the oven has finished preheating.
11. UPand DOW ARROWS
Used to increase or decrease set time, including
cooking, holding and probe temperature settings.
12. START Key
Used to initiate a selected mode sequence when
p re sse d a nd re le a se d . You may stop any mode of
operation by p re ssing a nd h o ld ing the START Key
until you hear a beep.
13. Green Indicator Lights
Located within each function key, the green light
functions as an operator prompt indicating
additional operator action is required and also
identifies current mode of operation.
14. Amber Indicator Lights
Located below the COOK, TIME, PROBE and OLD
Keys, these indicators will illuminate to identify
the current mode of operation and allows the
operator to identify the information currently
shown in the LED display.
15. PRESET Program Keys
Provides memory storage and operation of up to
eight operator set cooking programs for specific
products (A thru ). I enables locking abilities.
16. CA CEL Key
Used to erase a program from memory storage.
CONTROL FEATURES
Do not use the oven if the controls are not properly functioning. Refer to the Trouble Shooting Guide located in
this manual or call an authorized service technician.
IMPORTA T
PG. 14 TH/III IN TALLATION/OPERATION/ERVICE MANUAL

OVE BEEPI G is used to indicate a YES or NOresponse to operator input.
Beeps also indicate mode C ANGES and ERROR conditions.
One brief beep indicates a YES (enabled) response to the information entered into the control.
Two brief beeps indicate a NO(disabled) response to the information entered into the control.
A beep that lasts for one second indicates an oven mode TRANSITION. Example: Preheat to Ready-Start.
Three brief beeps indicate the oven is in the READY mode for product loading and START-UP.
Four brief beeps indicate an existing FAULT condition. Refer to the Trouble Shooting section of this manual.
Beeper volume can be changed. With the control in the OFF mode, press and hold the DOWN ARROW Key until the display
exhibits one of the 4 volume levels (0 being OFF or the lowest, and 3 being the highest). After each change, the button must be
released and the display must clear before the procedure can be repeated to select a different volume level.
A U D I B L E S I G N A L S
Turn the Oven Control Panel Off:
Press and hold the ON/OFF Key until the oven beeps. The ON/OFF
indicator light will go out.
Stop an Operation:
Press and hold the START Key for several seconds until the control
beeps, indicating the operation has been cancelled. The oven will
remain in a power-on state.
Arrow Keys:
Cook, Hold and Probe Temperature set points can be adjusted by 1°
when pressing the ARROW Keys. To change a set point more rapidly,
p re ss a nd h o ld the ARROW Key along with the key for the temperature
function, and the temperature changes in steps of 10°F or 5°C.
The Time setting is adjusted in increments of one minute by pressing
the ARROW Keys. To make adjustment in steps of ten minutes, p re ss
a nd h o ld the TIME Key and ARROW Key at the same time.
Probe Usage:
When the oven probe remains inserted in the probe bracket, the LED
temperature display will indicate the ambient air temperature inside
the oven. To use the probe for cooking remove it from the bracket
and wipe the full length of the metal probe with a disposable alcohol
pad to clean and sanitize before using.
Only the tip of the probe senses the internal product temperature;
therefore, it is important the tip be placed correctly in the product for
internal temperature accuracy. Push the probe tip halfway into the
product, positioning the tip at the center of the food mass. When
inserting the probe into solid foods such as meat roast or poultry
breasts, push the probe in from a straight downward position or in
from the side to the center position. If placing into a semi-liquid or
liquid product, the probe cable must be secured to keep the probe
positioned properly. Do not let the probe tip touch the edges, bottom
or side of a container. Tape the probe cable to the lip or edge of
the container.
Display High/ Low Probe Temperatures:
To observe the recorded maximum or minimum
probe temperature when cooking by probe, press
the following keys while the probe remains in the
product:
Highest Temperature: Press PROBE Key and UP
ARROW Key at same time.
Lowest Temperature: Press PROBE Key and DOWN
ARROW Key at same time.
Halo Heat Indicator:
When the oven is preheating the alo eat
indicator light will remain illuminated until it
reaches the set cook temperature. Once the
temperature has stabilized, this indicator will
illuminate periodically as the oven calls for heat.
Green and Amber Indicators:
Each program key includes a green light which
indicates a requirement for additional
programming by the operator or the current
operational state of the oven.
The COOK, TIME, PROBE, and
OLD keys include an amber
indicator light to identify the
information being displayed.
Power Fail Detect:
If the power were to fail for any reason while
heating, the control will retain, in memory, the
programmed operating conditions. When power
is restored, the control will resume operating
from the point where it was interrupted and the
ON/OFF indicator light will flash, indicating that
such an event did occur. The operator can turn
off the flashing light by pressing the ON/OFF key.
OTE: If su ch an e v e nt h as occu r re d , it is
strongly recommended that you ensure the food is
saf e for con su m p tion ac cor d in g to loc al h e alth
regulations.
O P E R AT I N G F E AT U R E S & F U N C T I O N S
Amber
Green
OTE: When cooking by probe, insert the probe into the raw
p r od u c t a fte r t he o v en ha s bee n pr e hea t e d.
WAIT O E FULL MI UTE to allow the probe temperature to
decrease to the internal temperature of the product. Press the
st a r t butto n to beg in t he c ooking proc ess a fter this probe
temperature adjustment period. A false probe reading of the
internal product temperature will cause the oven to default to a
holding temperature.
OPERATING INSTRUCTIONS
TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 15

Cook by Time: IS TH E MA I ELECTRICA L POWER SWITCH O ?
Press and release control O /OFF key.
•The green indicator light on the ON/OFF key will illuminate.
• The oven will beep for one second.
• The oven will begin operating in the hold mode.
• The amber hold indicator will illuminate.
• The previously set hold temperature will be displayed.
Press the HOLD Key.
➥To change the hold temperature, press the UPor DOWN ARROW Keys.
ote: If the oven is being used for hot food holding only, adjust the
set holding temperature. Do no t press the COOK, TIME, or PROBE Keys.
Press COOK Key to preheat.
• The green indicator light on the COOK Key will
illuminate.
• Last set cooking temperature will be displayed.
➥To change the cook temperature, press the UPor
DOWN ARROW Keys.
• The green indicator light on the TIME Key and on the
PROBE Key alternately flash.
Press TIME Key.
• The green indicator light on the TIME Key will illuminate.
• Last set time is displayed.
➥To change the cook time, press the UPor DOWN ARROW Keys.
• The green indicator light on the TIME Key will illuminate.
• alo eat and Pre- eat indicator will illuminate.
➥The oven is automatically programmed to preheat to the cook temperature.
• The oven will beep when preheated and the preheat indicator light will go out.
• Both the Ready and Start indicator lights will flash.
➥The set cook temperature will be maintained by the oven and appear in the display
while in the ready/start mode.
Load the food inside oven and close the oven door.
ote: The oven will beep 3 times every 25 seconds until the oven is loaded and the
START Key pressed.
Press and release START key.
COOK
• The oven will beep.
• The green indicators for power, cook, time, and start will illuminate.
• The display will alternate between showing the set cook temperature and the remaining time.
HOLD
• The oven will beep at the end of the timed cooking cycle.
• The green indicator for cook will remain illuminated.
• The display will alternate between showing the set hold temperature and the amount of
time the product has remained in the holding mode.
• The Ready indicator light will illuminate after 2 hours in the hold mode.
ote: The ready indicator does not necessarily indicate a product-ready state. For best
results, the product must remain in the oven at the set holding temperature for the
minimum number of hours indicated in the individual cooking instructions.
• The oven will remain operating in the hold mode until the control ON/OFF Key is pressed.
HELPFUL HI T
To avoid prolonged
preheat times between
loads, leave the
oven in the
hold mode.
OPERATING INSTRUCTIONS
PG. 16 TH/III IN TALLATION/OPERATION/ERVICE MANUAL
C A U T I O N
TO MAINTAIN SAFE TEMPERATURE
LEVELS, COLD FOOD FOR
RETHERMALIZATION OR REHEATING
MUST NEVER BE ADDED TO THE OVEN
WHILE HOT FOODS ARE BEING HELD.

Cook by Probe: IS THE MAI ELECTRICA L POWER SWITCH O ?
Press and release control O /OFF Key.
• The green indicator light on the ON/OFFkey will illuminate.
• The oven will beep for one second.
•The oven will begin operating in the hold mode.
• The amber hold indicator will illuminate.
• The previously set hold temperature will be displayed.
Press the HOLD Key.
➥To change the hold temperature, press the UPor DOWN ARROW Keys.
ote: If the oven is being used for hot food holding only, adjust the set holding
temperature. Do no t press the COOK, TIME, or PROBE keys.
Press COOK Key to preheat.
• The green indicator light on the COOK Key will illuminate.
• Last set cooking temperature will be displayed.
➥To change the cook temperature, press the UPor DOWN ARROW Keys.
• The green indicator light on the TIME Key and on the PROBE Key alternately flash.
Press PROBE Key.
• The green indicator light on the PROBE Key will illuminate.
• Last set internal product temperature is displayed.
➥To change the internal product temperature, press the UPor DOWN ARROW Keys.
• The green indicator light on the PROBE Key will illuminate.
• alo eat and Pre- eat indicator will illuminate.
➥The oven is automatically programmed to preheat to the cook temperature.
• The oven will beep when preheated and the preheat indicator extinguished.
• Both the Ready and Start indicator lights will flash.
➥The set cook temperature will be maintained by the oven and appear in the display
while in the ready/start mode.
Load the food inside oven. Remove probe from its bracket, wipe the probe tip with a disposable
alcohol pad and insert probe properly into the product. Close the oven door.
Note: Oven will beep 3 times every 25 seconds until oven is loaded and START Key pressed.
Press and release START key.
COOK
• The oven will beep.
• The green indicators for power, cook, probe, and start will illuminate.
• The display will alternate between showing the probe temperature and the elapsed time.
OLD
• The oven will beep when the set probe temperature has been reached.
• The green indicator for cook will remain illuminated.
• The display will alternate between showing the set hold temperature and the amount of
time the product has remained in the holding mode.
• Ready indicator light will illuminate after 2 hours in the hold mode.
ote: The ready indicator does not necessarily indicate a product-ready state. For best
results, the product must remain in the oven at the set holding temperature for the
minimum number of hours indicated in the individual cooking instructions.
• The oven will remain operating in the hold mode until the control ON/OFF Key is pressed.
OPERATING INSTRUCTIONS
TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 17
C A U T I O N
TO MAINTAIN SAFE TEMPERATURE
LEVELS, COLD FOOD FOR
RETHERMALIZATION OR REHEATING
MUST NEVER BE ADDED TO THE OVEN
WHILE HOT FOODS ARE BEING HELD.

Preset Menu Keys:
Alto-Shaam Cook and old ovens allow the operator to set up to eight cooking programs. Each cooking program
can be preset in any program mode to cook by time or internal product temperature. Cooking programs are
recalled and stored using the PRESET Keys labeled "A through ." These keys, along with the key labeled "I" share
additional functions described in the "User Options" section of this manual.
Programming a Cooking Program
Prior to this procedure, make sure the oven is “OFF”. Select the food product to be programmed.
Press and release control ON/OFFkey. The oven will beep for one second and power to the unit
will be indicated by an illuminated green indicator light located in the upper left corner of the
ON/OFF key. The oven will begin operating in the hold mode. The amber hold indicator will be
illuminated and the last set hold temperature will be displayed.
Press OLD Key. To change the hold temperature, press the UPor DOWN
ARROW Keys.
Press COOK Key. Oven preheat indicator will illuminate and the last set cooking temperature
is displayed. To change the cook temperature, press the UPor DOWN ARROW Keys.
To cook by time — press the TIME Key. Last set cooking time is displayed.
To change the set time, press the UPor DOWN ARROW Keys. The green Time
indicator will illuminate.
To cook by probe — press the PROBE Key. Last set internal product temperature is displayed.
To change the set temperature, press the UPor DOWN ARROW Keys. The green Probe indicator
will illuminate.
The oven preheat indicator will illuminate. Oven is now in the preheat mode and is
automatically programmed to preheat to the cook temperature.
Select a letter code for the product programmed by the previous steps. Press and hold the
selected PRESET key until you hear a brief, four second beep. The letter key program indicator
light will illuminate and the product programmed is now stored in memory for the specific letter
key pressed. Additional programs can be stored in the remaining PRESET Keys if not previously
programmed.
ote: The last PRESET Key used will be the oven cooking run sequence for the next product
to be programmed. Settings can be manually changed for the next product and an alternate
pre-programmed letter key selected.
Erasing a Cooking Program
To erase a program, the oven must be in either the power-up hold mode or in the preheat mode. The oven
cannot be running a Preset Menu program.
When the oven is in the power-up hold mode or in the preheat mode, press and hold both the CANCEL Key and
the appropriate letter PRESET Key to be erased. old both keys until the oven beeps and the program's indicator
light goes out to indicate the program has been erased.
—or —
PRESETS A
After programming a specific product into memory in a programmable preset key,
it is very important to make a written permanent record of the product and the program letter
assigned. Menu card (PE-23384) is provided for this purpose.
IMPORTA T
OPERATING INSTRUCTIONS
PG. 18 TH/III IN TALLATION/OPERATION/ERVICE MANUAL

Cook Using Preset Menu Keys:
Press and release control O /OFFKey.
• The green indicator light on the ON/OFF key will illuminate.
•The oven will beep for one second.
• The oven will begin operating in the hold mode.
• The amber hold indicator will illuminate.
• The previously set hold temperature will be displayed.
•P
RESET Keys with stored cooking programs will have green indicator illuminated.
Press Desired PRESET Key (A through H)
• alo eat and Pre- eat indicator will illuminate.
➥The oven is automatically programmed to preheat to the cook temperature programmed.
• The oven will beep when preheated and the preheat indicator will go out.
• Both the Ready and Start indicator lights will flash.
➥The set cook temperature will be maintained by the oven and appear in the display
while in the ready/start mode.
Load the food inside oven. If cooking by probe, remove probe from its bracket, wipe the probe tip
with a disposable alcohol pad and insert probe properly into product. Close the oven door.
ote: The oven will beep 3 times every 25 seconds until the oven is loaded and the
START key pressed.
Press and release START Key.
COOK
• The oven will beep.
• The green indicators for power, cook, probe or time, and start will illuminate.
• If programmed to cook by time, the display will alternate between showing the set cook
temperature and the time remaining.
• If programmed to cook by probe, the display will alternate between showing the set cook
temperature and the elapsed time.
HOLD
• The oven will beep when the set probe temperature has been reached or set time has elapsed.
• The green indicator for cook will remain illuminated.
• The display will alternate between showing the set hold temperature and the
amount of time the product has remained in the holding mode.
• The Ready indicator light will illuminate after 2 hours in the hold mode.
ote: The ready indicator does not necessary indicate a product-ready state. For best
results, the product must remain in the oven at the set holding temperature for the
minimum number of hours indicated in the individual cooking instructions.
• The oven will remain operating in the hold mode until the control ON/OFF Key is pressed.
PRESETS A
OPERATING INSTRUCTIONS
TH/III IN TALLATION/OPERATION/ERVICE MANUAL PG. 19
