Alto-Shaam CT EXPRESS 4 10ESi Operating manual

W164 N9221 Water Street • P.O. Box 450
Menomonee Falls, Wisconsin 53052-0450 U.S.A.
PHONE: [phone] • 800.558.8744 U.S.A. / CANADA
FAX: [phone] • 800.329.8744 U.S.A. ONLY
www.alto-shaam.com Consult instructions
for operation and use.
MN-36008 (RE V . 8) • 01/16
P R I N T E D I N U.S.A.
Combitherm®
Combination
Oven / Steamer
CT EXPRESS™
4•10ESi
4•10ESiVH
4•10CCi
CTX4-10E
CTX4-10EC
CTX4-10EVH
• TECHNICAL
Shown with ExpressTouch control
and optional hand sprayer

MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • i
How to Use this Technical Service Manual
This manual has been compiled as a complete resource for a technician working on CT Express models. It includes
necessary product information and drawings, along with helpful troubleshooting procedures.
Introduction gives a quick overview of the CT Express to aid in model identification.
Sections A through E contain information applying to all CT Express models:
– CONTROL PANEL IDENTIFICATION includes information on using the controllers and operating instructions. It is
the same material supplied to the customer.
– PREVENTIVE MAINTENANCE includes procedures for cleaning with our without the CombiClean option. This
information is also supplied to the customer.
– SERVICE MODE AND ERROR CODES explains the special programming available to you as a technician to
view status, make adjustments and test functions on models equipped with Simple and Express Touch Controllers.
Information is also included on the use of displayed error codes to resolve problems and on the functions that can be
operated under fault conditions.
– TROUBLESHOOTING TREES are provided for the most common conditions you will be required to address.
– COMBITHERM PARTS has drawings and lists of available parts that are common to all electric models.
Sections F contains Wiring Diagrams that is specific to each model.
Navigation
Starting with the Main Table of Contents on the following page, you may click on any item that has a page number and
quickly jump to the information you need. Note that you may Return to the Main Table of Contents from the bottom of
any Section Contents page.
Printing
You may print the Current Page or any range of pages. Here’s a tip: Because printers vary in their capacity to handle large
drawings, make a test print of one of the Wiring Diagrams before printing the model’s section.

TABLE OF CONTENTS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • ii
How to Use this Technical Service Manual..................................... i
Introduction ................................................................................. iii
Control Panel Identification ........................................................... A-1
Preventive Maintenance ................................................................ B-1
Service Mode and Error Codes...................................................... C-1
Troubleshooting Trees .................................................................. D-1
Combitherm Parts ........................................................................ E-1
Wire Diagrams ............................................................................. F-1

MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • iii
MODEL NUMBERS
This manual covers the following CT Express models:
4.10esi
4.10esiVH
4.10CCi
CTX4-10E
CTX4-10EC
CTX4-10EVH
FEATURES AND OPTIONS
Available on all models:
• Panel color choices
• Left-hand door
• Hand sprayer
• Single-point product temperature probe
• CombiClean® Tablet based cleaning system
• Stacking capabilities
Available only on ExpressTouch Control models:
• Smoker Mode
• Delta-T and Cook & Hold functionality
• HACCP data access
• Gold-n-Brown™ Feature
• Broiler element (not available on 1ph units)
• Catalytic Converter (CTX4-10EC only)
INTRODUCTION

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-1
ExpressTouch Control Operation
Start Up Procedures ................................................ A-2
Settings Screen .................................................... A-3
Upload/Download Screen ............................................ A-4
Cooking Mode Screen ............................................... A-5
Cooking Mode Screen Identification ..................................... A-6
Auxiliary Functions ................................................. A-7
HACCP Access.................................................... A-8
Operation........................................................ A-9
Simple Control Operation
Screen Identification ................................................ A-11
Operation........................................................ A-12
Return to Main Table of Contents ...................................... ii

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-2
MAIN MENU SCREEN Cleaning Mode (optional)
Four (4) cleaning levels are available:
rinse, light, normal, and heavy-duty cleaning.
Download/Upload Files and
HACCP Access (optional)
Download all preprogrammed recipes (factory
default and user-programmed) and HACCP data to a
USB memory stick.
Settings
Change factory default settings. See next page for
more information.
Service Mode (password protected)
This mode is only available to qualied
service technicians.
START-UP PROCEDURES
When the oven is powered on, the ExpressTouch screen
illuminates. “Loading” indicates that the software
is booting up. The screen will also indicate what level
of progress has been made as the software becomes
fully operational.

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-3
SETTINGS SCREEN
Fahrenheit or Celsius Function - Choose
temperature format.
Note: After choosing your format, return to
the Main Menu screen and then Press Oven
Power switch off.
Language Choice - English, Spanish, Mandarin,
French, German, Korean and Russian are
available.
Multi-shelf Timer Number of Shelves -
Choose the default number of items in the oven
to be used by the multi-shelf timer.
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
Default Memo - Revert time/temperature
setting to factory defaults when switching
modes or keep the last user setting.
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
Sound/Alarm Settings - Change alarm sounds
and volume.
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
Touchscreen Brightness - Adjust brightness
of display screen.
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
Lock/Unlock Recipes - Password protect
preprogrammed recipes.
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
Set/Change Date & Time - Set or change oven
time and date settings.
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
Calibrate Product Probe (optional)
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
Software update - Upload new control software
to the oven using a USB drive.
°C
°F
10
7
100%
T
123
4 5 6 7 8 9 10
S M T W T F S
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
12
6
39
Return to Previous Screen - Return to previous
screen when  nished adjusting settings.

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-4
UPLOAD/DOWNLOAD SCREEN
ADD ALL
RECIPES
Download Recipes
Copy all recipes from USB memory stick
to oven. This will replace and overwrite
existing recipes.
Upload Recipes
Copy all recipes from oven control to USB
memory stick.
Add All Recipes
Copy all recipes from USB memory stick to the
oven control. This will add the recipes to the
beginning of the existing recipe list.
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCP

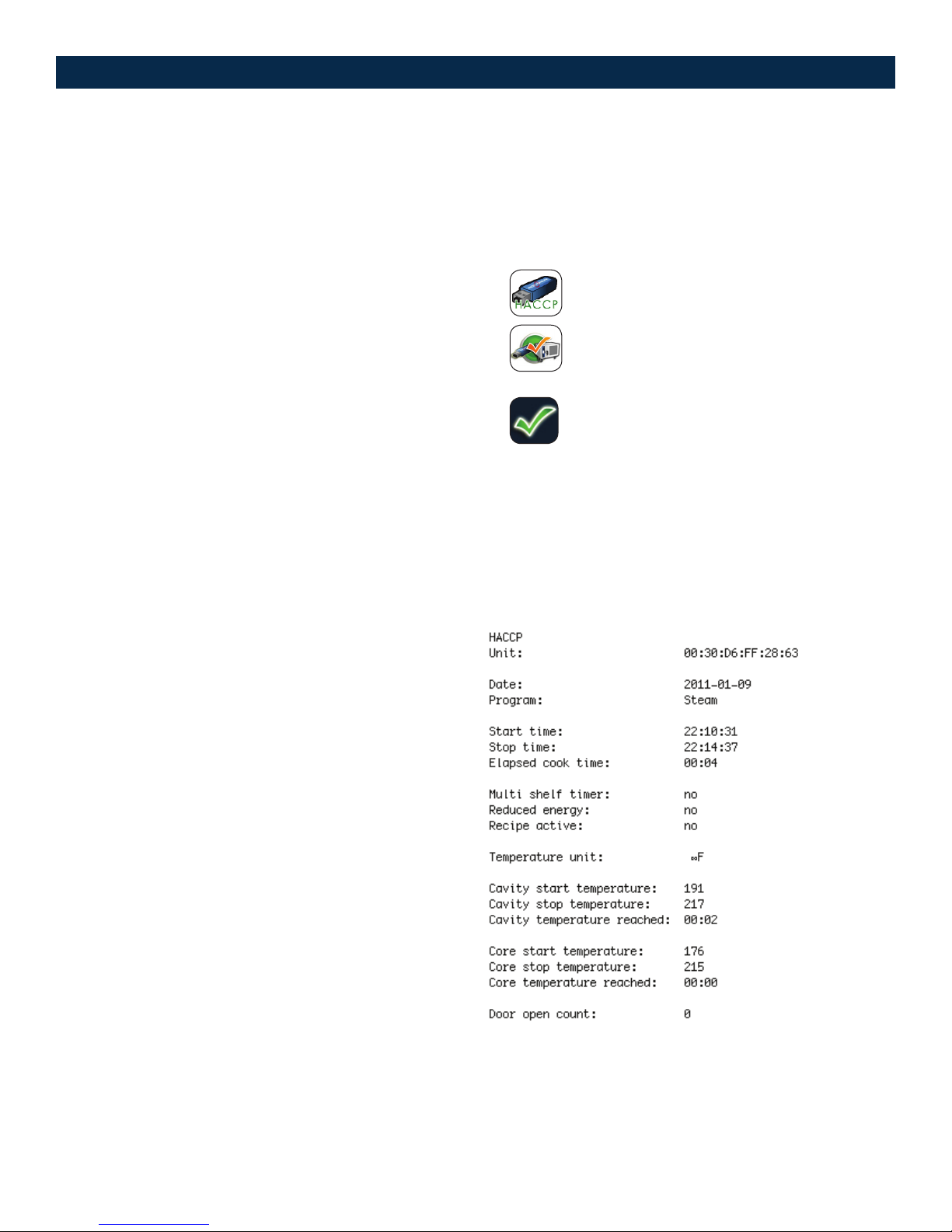

HACCP Data (optional)
Download data to a USB drive for review in a
.txt  le format.
DOWNLOAD
RECIPES
DOWNLOAD
HACCP INFO
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCPHACCP
HACCP
GO TO
PREVIOUS
SCREEN
UPLOAD
RECIPES

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-5
COOKING MODE SCREEN
6
5
4
3
2
1
345°F
225°F
1:4345
STEAM
MODE
TEMPERATURE TIME
PROBE
TEMPERATURE
REDUCED
POWER MODE
GO TO
PREVIOUS
SCREEN
FAN SPEED
MULTI-SHELF
TIMER
FIND RECIPE
ADD RECIPE
GOLD-N-BROWN
MODE
CONVECTION
MODE
RETHERM
MODE
COMBINATION
MODE
DELAYED
START TIMER
START
CLEANING
COOL
DOWN
PREHEAT
BROILER
MODE
(OPTIONAL)
SMOKER MODE
(OPTIONAL)

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-6
MAIN MENU ICONS
Power ON/OFF key
Activates/deactivates power to the oven. It automatically
 lls the steam generator equipped models with water
that will heat to a stand-by mode temperature of 188°F
(77°C). Note: Oven will not shut down during a cooking
cycle. Firmly press and hold the power key for 10 seconds
to power down the oven ONLY IF the control has locked
and is unresponsive.
6
5
4
3
2
1
345°F
225°F
1:4345
Steam Mode
The oven will operate in the steam mode at a temperature
range of 85°F to 250°F (30°C to 121°C).
• Automatic steaming at 212°F (100°C)
factory-set default.
• Quick steaming between 213°F and 250°F (101°C
and 121°C).
• Low temperature steaming between 85°F and 211°F
(29°C and 99°C).
6
5
4
3
2
1
345°F
225°F
1:4345
Combination Mode
Selection key for cooking with a combination of steam
and convection heat. Can be set between 212°F to 485°F
(100°C and 252°C).
6
5
4
3
2
1
345°F
225°F
1:4345
Convection Mode
Selection key for convection cooking without steam at a
temperature range of 85°F to 485°F (29°C to 252°C).
6
5
4
3
2
1
345°F
225°F
1:4345
Broiler Mode (optional)
Quickly and ef ciently toast or broil sandwiches, nachos,
soups, and desserts with the top shelf broiling element.
6
5
4
3
2
1
345°F
225°F
1:4345
Retherm Mode
Food rethermalization or reheating mode will operate
with automatic steam injection at a temperature range of
245°F to 320°F (120°C to 160°C).
Temperature
Used to set the required cooking temperature, to recall
the set cooking temperature, or to check the actual
oven temperature.
Time
Used to set the required cooking time or recall the set
cooking time.
Probe Temperature
Used to set the required internal product temperature,
to recall the internal product temperature set by the
operator, or to display the current internal temperature of
the product.
6
5
4
3
2
1
345°F
225°F
1:4345
Preheat Mode
Preheats the oven cavity to a temperature set by user.
6
5
4
3
2
1
345°F
225°F
1:4345
Cool Down Mode
Lowers temperature of the oven cavity at an accelerated
pace to temperature set by user.
6
5
4
3
2
1
345°F
225°F
1:4345
Delayed Start Time
Quick and simple way to begin preheating your oven
while you’re away, and ready to go when you are.
Start/Stop
Initiates all cooking mode functions and programmed
procedures stored in memory. Stops an activated cooking
mode or programmed procedure currently in progress.
COOKING MODE SCREEN IDENTIFICATION

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-7
EXPRESSTOUCH FACTORY DEFAULT SETTINGS
COOKING MODE OVEN TEMPERATURE CORE TEMPERATURE COOKING TIME
Steam 212°F
(100°C)
160°F
(70°C) 25 minutes
Combination Steam 350°F
(175°C)
160°F
(70°C) 70 minutes
Convection 350°F
(175°C)
160°F
(70°C) 30 minutes
Broiler/Finishing (optional) ____°F N/A —— : ——
Retherm (available on
ExpressTouch only)
275°F
(135°C)
160°F
(70°C) 5 minutes
AUXILIARY FUNCTION ICONS
6
5
4
3
2
1
345°F
225°F
1:4345
Reduced Power Mode
Used to reduce kitchen power peaks and
energy consumption.
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
Gold-N-Brown Mode
This indicator will illuminate when the browning
function is set by the operator in a timed or programmed
cooking cycle in any mode. Level 1 provides least amount
of browning, level 6 the most.
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
Fan Speed
This indicator will illuminate whenever the operator sets
a reduced fan speed to protect products affected by high-
velocity air movement.
6
5
4
3
2
1
345°F
225°F
1:4345
Return to Previous Menu
6
5
4
3
2
1
345°F
225°F
1:4345
Add Recipe
Used to create, change, duplicate, and delete
programmed menus.
6
5
4
3
2
1
345°F
225°F
1:4345
Find Recipe
Access a menu list of all stored cooking programs.
6
5
4
3
2
1
345°F
225°F
1:4345
Multi-shelf Timer
Use separate timers for one or more shelves in the oven
compartment (only visible in time mode).
6
5
4
3
2
1
345°F
225°F
1:4345
Steam Injection (not shown on illustration)
Press to add moisture in any cooking mode. Steam will
inject into the cavity as long as the icon is touched.
6
5
4
3
2
1
345°F
225°F
1:4345
Delta-T Core Temperature (optional) - only visible
in certain modes Cook by probe. Mode automatically
adjusts cooking temperature in proportion to the internal
temperature of the product.
6
5
4
3
2
1
345°F
225°F
1:4345
Smoking Mode (optional) - only visible in
convection mode or combination mode. This indicator
will illuminate when the smoking function is set by the
operator in a timer, probe or programmed cooking cycle.

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-8
HACCP ACCESS
The ExpressTouch Combitherm meets the requirements
of established HACCP criteria by providing automated
sampling, record keeping, set-point validation, recipe
used, dates and time. Data is captured when Core
Temperature Probe cooking method is chosen. This
information can be downloaded to a USB drive and then
copied to your computer. The le format is text (.txt).
NOTICE: You can access this information from the
Upload/Download Screen. See illustrations on
page A-4 for navigation.
CAUTION: The CombiOven USB port is not
recommended for use with personal
hand held devices.
1. To download the data collected, remove the cap of a
USB port located on the side of the oven and insert the
USB ash drive. If the ash drive is not recognized
by the Combitherm, a question mark will appear on
screen. Try again with another ash drive device or
call Alto-Shaam Service.
2. PRESS TO DOWNLOAD INFORMATION.
3. WAIT FOR THE ICON TO CHANGE FROM
LOADING TO COMPLETE.
4. PRESS TO CONFIRM TRANSFER.
5. Remove the USB ash drive and replace the cap on the
USB port.
The download process will automatically create a folder
on the USB ash drive titled “haccp”. Each text le
contains cooking program specics. See illustration below.

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-9
Turn on and preheat the oven
Alto-Shaam recommends preheating the Combitherm®before cooking.
• Press the Power ON key. or
• Choose a Mode.
• Choose Preheat.
• Type temperature on keypad and press Enter.
• Oven beeps when it is preheated.
6
5
4
3
2
1
345°F
225°F
1:4345
Oven
Temperature
area
Probe
Temperature
6
5
4
3
2
1
345°F
225°F
1:4345
Start key
Steam
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
Convection
6
5
4
3
2
1
345°F
225°F
1:4345
Combi
6
5
4
3
2
1
345°F
225°F
1:4345
Retherm
Green light will
appear while oven
is booting up.
To cook manually by probe
• Choose a Mode.
• Press the Oven Temperature area to the right of
the thermometer icon, set oven temperature on the
keypad, and press Enter.
• Press the Probe Temperature area to the right of
the probe icon, set probe temperature on the
keypad, and press Enter.
• Load food into oven and insert probe into food.
• Press the Start key.
Steam
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
Convection
6
5
4
3
2
1
345°F
225°F
1:4345
Combi
6
5
4
3
2
1
345°F
225°F
1:4345
Retherm
NOTICE: TO SHUT THE OVEN OFF, PRESS AND
HOLD FOR FIVE SECONDS. THE RED
LIGHT WILL APPEAR INDICATING THAT
THE OVEN WILL BEGIN THE SHUT DOWN
PROCESS.
TO FORCE SHUT DOWN IN THE RARE
EVENT THE CONTROL LOCKS UP, PRESS
AND HOLD FOR TEN SECONDS.
HOLD FOR FIVE SECONDS. THE RED
AND HOLD FOR TEN SECONDS.
Steam
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
Convection
6
5
4
3
2
1
345°F
225°F
1:4345
Combi
6
5
4
3
2
1
345°F
225°F
1:4345
Retherm
To cook manually by time
• Choose a Mode.
• Press the Oven Temperature area to the right of the
thermometer icon, set oven temperature on keypad,
and press Enter.
• Press the Cook Time area to the right of the timer, set
cook time on keypad, and press Enter.
• Load food into oven.
• Press the Start key.
To cook with
preprogrammed recipes
• Load food into oven.
• Press the Recipes key.
• Locate food item program by scrolling
through pages using arrow keys.
• Press preprogrammed food item icon.
• Oven begins operating automatically.
6
5
4
3
2
1
345°F
225°F
1:4345

EXPRESSTOUCH OPERATING INSTRUCTIONS
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • A-10
NOTICE: TO SHUT THE OVEN OFF, PRESS AND
HOLD FOR FIVE SECONDS. THE RED
LIGHT WILL APPEAR INDICATING THAT
THE OVEN WILL BEGIN THE SHUT DOWN
PROCESS.
TO FORCE SHUT DOWN IN THE RARE
EVENT THE CONTROL LOCKS UP, PRESS
AND HOLD FOR TEN SECONDS.
HOLD FOR FIVE SECONDS. THE RED
AND HOLD FOR TEN SECONDS.

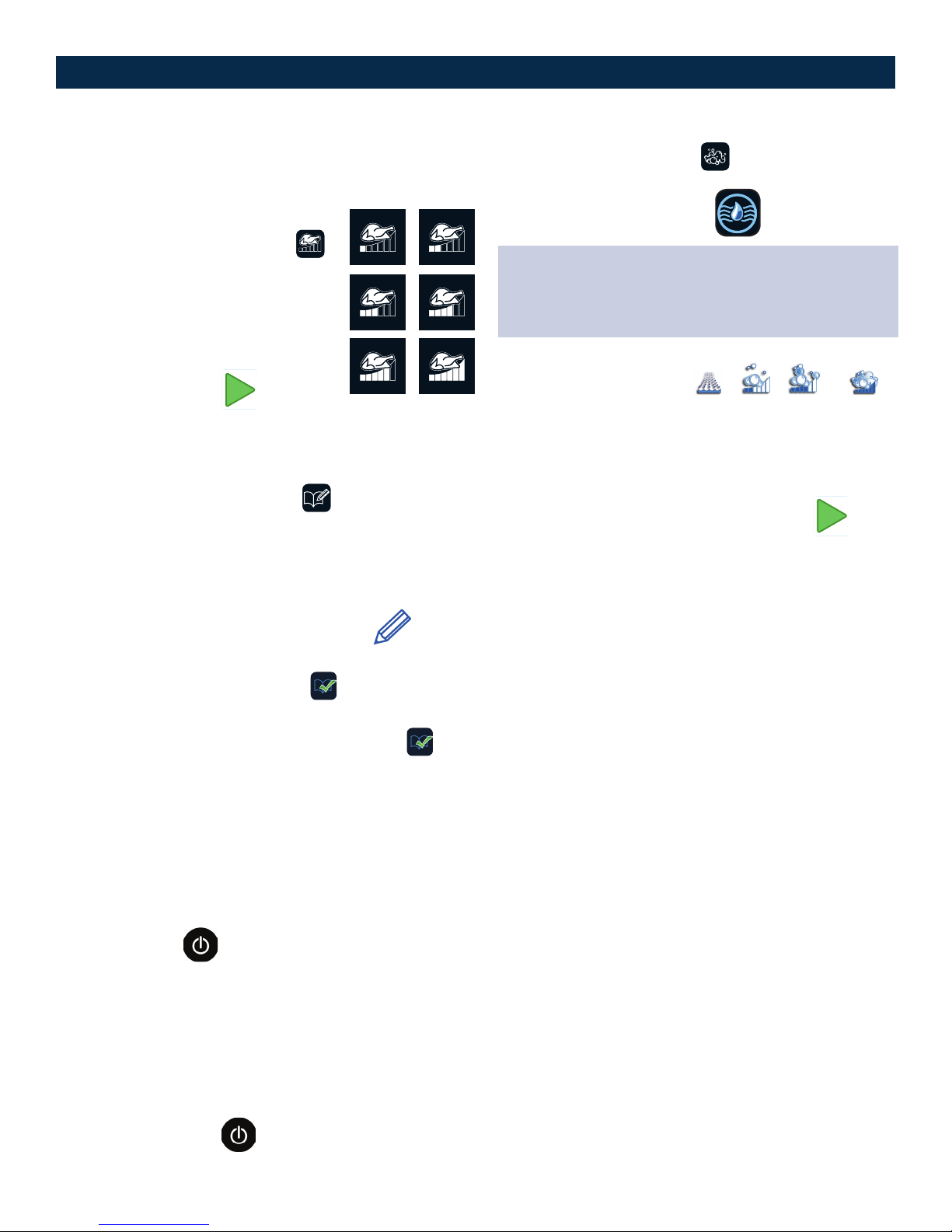

To use Gold-n-Brown™
• Follow the first three steps of “To cook manually by
probe” or “To cook manually by time” from the
front of this sheet.
• Press the Gold-n-Brown key.
• Select the desired Gold-n-Brown level
and press the corresponding key.
• Press the Start key.
To program a recipe
• Press the Add a Recipe key.
• Follow the first three steps of “To cook manually by
probe” or “To cook manually by time” from the
front of this sheet for each cooking step.
• If there is more than one cooking step,
press the Write key between each step.
• After the last cooking step, press
the Confirm Changes key.
• A keypad will appear. Input the name of the
recipe and press the Confirm Changes key.
6
5
4
3
2
1
345°F
225°F
1:4345
65
4
3
21
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345

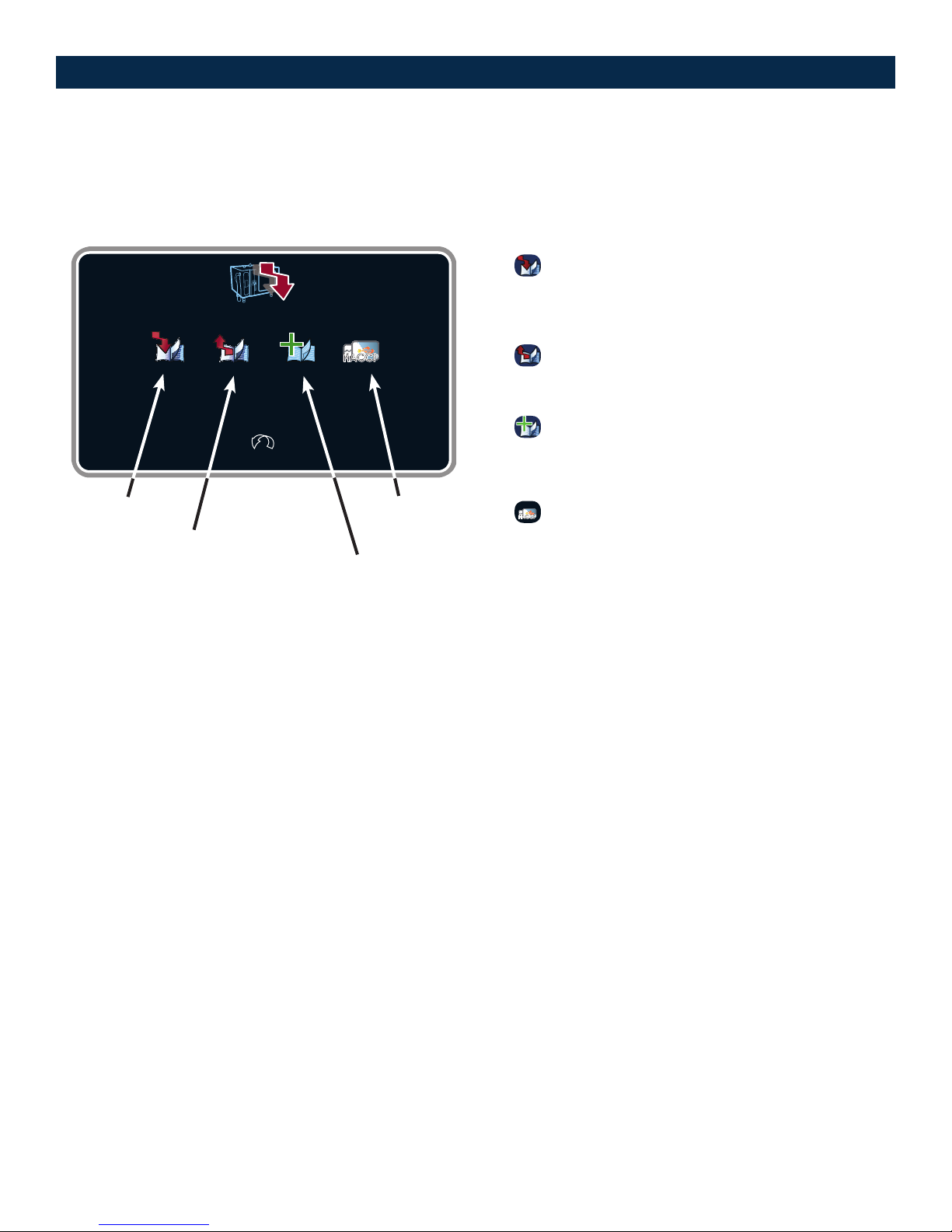

To clean the oven
• Press the Cleaning key.
• Press the Water On key.
• If oven is too hot to proceed, the Oven Too Hot
warning screen will appear. Open the oven door to
allow the oven to cool. When the oven is finished
cooling, begin the cleaning procedure again.
• Select Rinse, Light,
Normal, or Heavy
Duty cleaning.
• For Light, Normal, or Heavy Duty, insert
appropriate number of CombiClean® tabs as
directed by the touchscreen, or spray CombiClean
liquid cleaner inside the oven. Close the
oven door and press the Start key.
• Oven beeps when it is done cleaning. Leave door
slightly ajar when cleaning is finished.
6
5
4
3
2
1
345°F
225°F
1:4345
6
5
4
3
2
1
345°F
225°F
1:4345
Rinse Heavy Duty Normal
Light

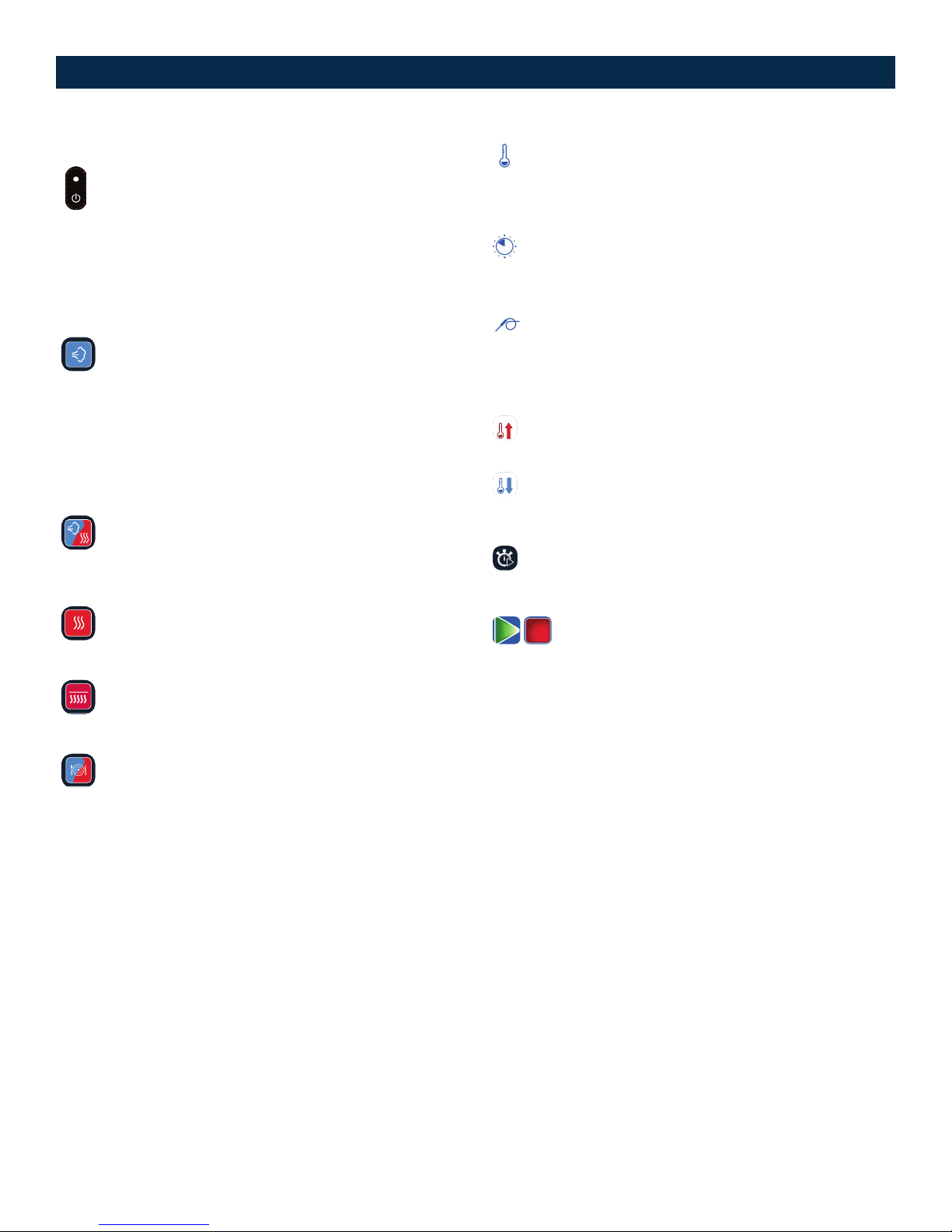

SIMPLE CONTROL OPERATING INSTRUCTIONS
MN-36008 (Rev. 7) 09/15 • COMBITHERM CT EXPRESS • A-11
Cook Time
display area
Oven Temperature
display area
Cleaning Key START/STOP
CONTROL PANEL IDENTIFICATION
Set Cook
Time
Set Oven
Temperature
Convection Key
Combination Key
Steam Key
DOWN/DECREASE
UP/INCREASE
OVEN COOL DOWN
Cook by Probe
setting
The Steam mode provides the operator with the ability
to steam, poach, or blanch. This mode will automatically
steam at the boiling point of water; quick-steam above the
boiling point for faster cooking results; or low temperature
steam, below the boiling point, for more delicate products
such as pâté, mousse, seafood, or custard.
The Combination mode will prove to be the most
versatile and widely used mode the Combitherm oven
has to offer. It will produce the best possible results on
the widest variety of products — all within the shortest
period of time. The unique control function of this mode
enables the operator to roast or bake with a combination
of steam and convection heat. In addition to shorter
cooking times, this combination of steam and heat offers
less product shrinkage and more moisture retention than
obtained in a standard convection oven.
The Convection mode operates with hot circulated air
within a temperature range of 85° to 485°F (29 to 252°C).
For many applications, better results may be
achieved with the Combination mode; therefore, the
operator may want to consider using the Convection
mode on a more limited basis.
Oven Cool Down Process:
• Cooking process must be inactive
• Press "Cool Down" button until LED lights (LED
remains ON while in Cool Down mode)
• Press "Decrease Value" or "Increase Value" to adjust
cool down temperature
• Cook temperature display area is used to display
cool down temperature
• Display will show last valid cool down temperature
• Cool down temperature range is 85° - 575°F
(30° - 300°C)
• Press "Start/Stop" until LED lights to accept cool
down temperature and initiate cool down process
• Door must be open to start cool down process;
Cook time display area will display "door" if door
is not open
• Cook temperature display area will display set cool
down temperature
• Cook time display area will display current cool
down temperature
Fahrenheit or Celsius Function -
choose temperature format:
• Unit is not in a cooking or cleaning process
• Press "Set Cooking Temperature", "Decrease Value"
and "Increase Value" buttons simultaneously for
1 second
• Cooking temperature display area will display last
value "C" or "F"; Display will alternate between "C"
and "F" every 2 seconds
• Press "Start/Stop" key when the display is showing
the desired value ("C" or "F")

SIMPLE CONTROL OPERATING INSTRUCTIONS
MN-36008 (Rev. 7) 09/15 • COMBITHERM CT EXPRESS • A-12
Steam ConvectionCombi
To cook manually by probe
• Choose a Mode.
• Press the Oven Temperature key;
adjust temperature with arrow keys.
• Press the Probe Temperature key;
adjust temperature using the arrow keys.
• Load food into oven and insert probe into food.
• Press the Start/Stop key.
To cook manually by time
• Choose a Mode.
• Press the Oven Temperature key;
adjust temperature with arrow keys.
• Press the Cook Time key; adjust
time using the arrow keys.
• Load food into oven.
• Press the Start/Stop key.
Steam ConvectionCombi
Turn on and preheat the oven
Alto-Shaam recommends preheating the Combitherm®before cooking.
• Press the Power key. or
• Choose a Mode.
• Press Oven Temperature key.
• Adjust temperature with arrow keys.
• Press Cook Time key.
• Adjust time with arrow keys.
• Press the Start/Stop key.
• Preheat oven before loading food.
Steam ConvectionCombi
Green light will
appear while oven
is booting up.
NOTICE: TO SHUT THE OVEN OFF, PRESS AND
HOLD FOR FIVE SECONDS. THE RED
LIGHT WILL APPEAR INDICATING THAT
THE OVEN WILL BEGIN THE SHUT DOWN
PROCESS.
TO FORCE SHUT DOWN IN THE RARE
EVENT THE CONTROL LOCKS UP, PRESS
AND HOLD FOR TEN SECONDS.
HOLD FOR FIVE SECONDS. THE RED
AND HOLD FOR TEN SECONDS.

PREVENTATIVE MAINTENANCE
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • B-1
Cleaning Agents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Preventative Maintnance ............................................. B-3
Protecting Stainless Steel ............................................. B-4
Cleaning Schedule.................................................. B-5
Ventless Hood Filters................................................ B-6
Express Touch with CombiClean ....................................... B-7
Simple Control with CombiClean ....................................... B-8
Cleaning without CombiClean Program .................................. B-9
Preventative Maintenance Checklist ..................................... B-10
Return to Main Table of Contents ...................................... ii

PREVENTATIVE MAINTENANCE
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • B-2
CombiClean CLEANING AGENTS
NOTICE: Use authorized Combitherm cleaner only.
Unauthorized cleaning agents may discolor or harm
interior surfaces of the oven. Read and understand
label and material safety data sheet before using the
oven cleaner.
CAUTION: Causes eye, skin, and respiratory tract
irritation. keep out of reach of children.
PRECAUTIONS:
- Do not take internally.
- Avoid contact with eyes and skin.
- Use rubber gloves when using this product.
- Wash hands thoroughly after handling.
- Avoid mixing with strong, concentrated acids.
FIRST AID:
Skin: Flush with water. Remove contaminated clothing
and do not re-wear until washed. If irritation persists see
a physician.
Eyes: Flush with water for 15 minutes. See a
physician immediately.
Inhalation: If difculty in breathing occurs, leave area
immediately and do not return until dust is settled. If
irritation persists, see a physician.
Ingestion: Drink large quantities of milk or water. DO
NOT INDUCE VOMITING. See a physician immediately.
PROTECTIVE PACKAGING OF TABLETS WILL
BEGIN TO DISSOLVE ONTO SKIN IF HANDLED
WITH DAMP OR WET HANDS.
CombiClean tablets are to be used only with the factory installed automatic cleaning option.
DANGER
ALWAYS wear rubber gloves when using
CombiClean tablets or spray oven cleaner.
DANGER
ALWAYS wear protective eye wear
when using spray oven cleaner.

PREVENTATIVE MAINTENANCE
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • B-3
PREVENTATIVE MAINTENANCE
In addition to the routine cleaning and maintenance
procedures, there are several additional steps to be
taken for both sanitation and to keep the oven running
efficiently. Refer to the following inspection checklists for
acomprehensive approach to longevity and equipment
efficiency. These additional safeguards will help prevent
down time and costly repairs.
DO NOT DISPOSE OF GREASE, FAT, WOOD
CHIPS OR SOLID WASTE DOWN THE OVEN
DRAIN.
Fats and solids will eventually coagulate in the drain system,
causing blockage. Consequently, water will back-up into the
condenser and interior oven compartment, resulting in an
oven that is inoperable.
MAKE CERTAIN THE DRAIN SCREEN IS
ALWAYS IN PLACE. REMOVE ANY SOLID WASTE
MATERIAL FROM THE OVEN BOTTOM AND
DRAIN SCREEN BEFORE IT ENTERS THE DRAIN
SYSTEM.
The routine removal of solids from the drain screen will help
prevent blockage.
USE THE AUTHORIZED COMBITHERM OVEN
CLEANER ONLY.
The use of unauthorized cleaning agents may discolor or
harm the interior surfaces of the oven.
TO PROLONG THE LIFE OF THE DOOR GASKET,
CLEAN THIS ITEM DAILY.
The acids and related compounds found in fat, particularly
chicken fat, will weaken the composition of the gasket unless
cleaned on a daily basis. Wipe with a hot, soapy cloth.
TO ADDITIONALLY PROTECT GASKET LIFE,
ALLOW OVEN DOOR TO REMAIN SLIGHTLY
OPEN AT THE END OF THE PRODUCTION DAY.
An open door will relieve the pressure on the door gasket.
ROUTINELY CLEAN DOOR HINGES.
Open oven door to relieve tension. Clean all parts of
the hinge.

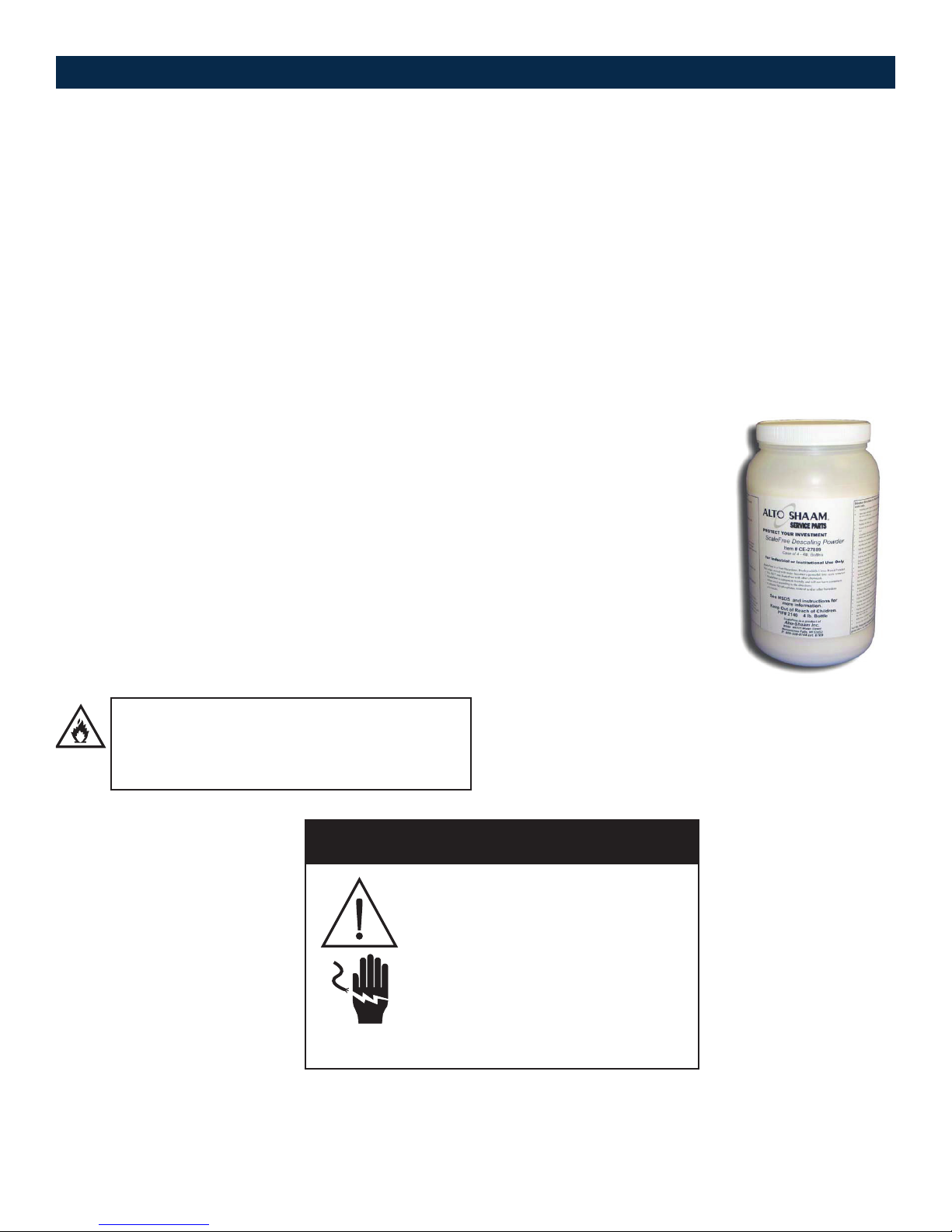

ON A MONTHLY BASIS,
DECALCIFY OR DESCALE
THE OVEN.
Using the Scale Free cleaner,
CE-27889, place 7 ounces of the
product in the drain. Run a Heavy-
Duty cleaning cycle. After the
cleaning cycle has been completed,
use the hand shower to spray down
the oven interior. Swing open the
interior fan guard and spray down
the area behind the panel. Direct a
stream of water down the interior
drain cover to thoroughly rinse
the cleaner out of the oven. After the oven interior has been
sprayed down, run a RINSE cleaning cycle.
WARNING
When smoking is completed, remove smoker box
from oven. Dispose of wood chips in a fire proof
waste receptacle to prevent the risk of fire.
DANGER
To prevent SERIOUS PERSONAL
INJURY, DEATH, or PROPERTY
DAMAGE:
DO NOT steam clean, hose down
or flood the interior or exterior
with water or liquid solution of
any kind. DO NOT use water jet
to clean.
Failure to observe this precaution
will void the warranty.

PREVENTATIVE MAINTENANCE
MN-36008 (Rev. 8) 01/16 • COMBITHERM CT EXPRESS • B-4
PROTECTING STAINLESS STEEL SURFACES
It is important to guard against corrosion
in the care of stainless steel
surfaces. Harsh, corrosive,
or inappropriate chemicals
can completely destroy the
protective surface layer
of stainless steel. Abrasive
pads, steel wool, or metal implements will abrade
surfaces causing damage to this protective coating
and will eventually result in areas of corrosion.
Even water, particularly hard water that contains
high to moderate concentrations of chloride, will
cause oxidation and pitting that result in rust
and corrosion. In addition, many acidic foods
spilled and left to remain on metal surfaces are
contributing factors that will corrode surfaces.
Proper cleaning agents, materials, and
methods are vital to maintaining the appearance
and life of this appliance. Spilled foods should be
removed and the area wiped as soon as possible
but at the very least, a minimum of once per day.
Always thoroughly rinse surfaces after using a
cleaning agent and wipe standing water as quickly
as possible after rinsing.
CLEANING AGENTS
Use non-abrasive cleaning products designed for
use on stainless steel surfaces. Cleaning agents
must be chloride-free compounds and must not
contain quaternary salts. Never use hydrochloric
acid (muriatic acid) on stainless steel surfaces.
Failure to observe this precaution will void the
warranty. Always use the proper cleaning agent at
the manufacturer's recommended strength.
Contact your local cleaning supplier for
product recommendations.
CLEANING MATERIALS
Cleaning can usually be accomplished with the
proper cleaning agent and a soft, clean cloth.
When more aggressive methods are needed, use a
non-abrasive scouring pad on difficult areas and
make certain to scrub with the visible grain of
surface metal to avoid surface scratches. Never
use wire brushes, metal scouring pads, or scrapers
to remove food residue. Failure to observe this
precaution will void the warranty.
CLEANING AND PREVENTATIVE MAINTENANCE
CAUTION
To protect stainless steel surfaces,
completely avoid the use of
abrasive cleaning compounds,
chloride based cleaners, or
cleaners containing quaternary
salts. NEVER use hydrochloric acid
(muriatic acid) on stainless steel.
NEVER use wire brushes, metal
scouring pads or scrapers.
N
O
W
I
R
E
B
R
U
S
H
E
S
N
O
S
T
E
E
L
P
A
D
S
N
O
S
C
R
A
P
E
R
S
WARNING
To prevent SERIOUS INJURY,
DEATH, or PROPERTY DAMAGE:
The appliance must be cleaned
thoroughly to avoid deposits of
grease and or food residues inside
the appliance that may catch fi re. If
fat deposits and/or food waste inside
the appliance ignite, shut down the
appliance immediately and keep the
appliance door closed to extinguish
the fi re. If further extinguishing is
required, disconnect the appliance
from the main power and use a fi re
extinguisher (do not use water to
extinguish a grease fi re!). Failure
to clean the appliance properly
invalidates the warranty and relieves
Alto-Shaam of all liability.
