Alto-Shaam PLATINUM ASC-2E Owner's manual

MN-28665 (Rev 5) • 03/17
W164 N9221 Water Street • P.O. Box 450
Menomonee Falls, Wisconsin 53052-0450 U.S.A.
PHONE: [phone] • 800.558.8744 U.S.A. / CANADA
FAX: [phone] • 800.329.8744 U.S.A. ONLY
www.alto-shaam.com Consult instructions
for operation and use.
ASC-2E
ASC-4E
Electronic
Control
Convection Oven
Electric
• Installation
• Operation
• Maintenance
Printed in u.s.a.
ASC-2E
with
Mobile Stand Option 5004687
ASC-4E
with
Stand Option 5003489

2 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Table of Contents
Delivery ...............................................................................................3
Transportation Damage and Claims...............................................4
Unpacking...........................................................................................5
Safety Procedures...............................................................................6
Installation...........................................................................................8
Dimensions .......................................................................................10
Accessories........................................................................................11
Electrical Connection.......................................................................12
Stacking and Venting ......................................................................13
Operation...........................................................................................16
Cleaning and Preventative Maintenance .....................................23
Troubleshooting ...............................................................................25
Service................................................................................................26
Limited Warranty ............................................................ Back cover

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 3
Delivery
This Alto-Shaam appliance has been thoroughly
tested and inspected to ensure only the highest quality
appliance is provided. Upon receipt, check for any
possible shipping damage and report it at once to the
delivering carrier. See Transportation Damage and
Claims section located in this manual.
This appliance, including unattached items and
accessories, may be delivered in one or more packages.
Ensure all standard items and options have been
received with each appliance as ordered. Save all the
information packed with the appliance. Register the
appliance online at www.alto-shaam.com/en/support/
warranty-registration to ensure prompt service in the
event of a warranty parts and labor claim.
This manual must be read and understood by all
peopleusing or installing the appliance. Contact the
Alto-Shaam Tech Team Service Department if you
haveany questions concerning installation, operation,
or maintenance.
1-800-558-8744; [email protected]
CAUTION
Appliance and accessories may be
heavy. To prevent serious injury, always
use a sufficient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.
Environmental Conditions
Operational Environmental Conditions
• Before use, appliance must acclimate to room
temperature in the environment it is placed — 24 hours
isrecommended.
• Ambient temperature range of 60°F to 110°F (16°C to 43°C).
• Relative humidity of less than 95% non-condensation.
• Atmospheric pressure range of 50kPa to 106kPa.
The serial number is required for all inquiries.
Always include both model and serial number(s) in any
correspondence regarding the appliance.
Model: ______________________________________________
Serial number: ______________________________________________
Purchased from: ______________________________________________
Date installed: ____________________ Voltage: _____________

4 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Transportation Damage and Claims
All Alto-Shaam equipment
is sold Free on Board
(F.O.B.) shipping point,
and when accepted by the
carrier, such shipments
become the property of the
consignee.
Should damage occur in shipment, do not put the
appliance into service until the damage has been
inspected by an authorized Alto-Shaam service provider.
Shipping damages are a matter between the carrier and
the consignee. In such cases, the carrier is assumed to
be responsible for the safe delivery of the merchandise,
unless negligence can be established on the part of
theshipper.
1. Make an immediate inspection while the appliance is
still in the truck or immediately aer it is moved to the
receiving area. Do not wait until aer the appliance is
moved to a storage area.
2. Do not sign a delivery receipt or a freight bill until
a proper count has been made and inspection of all
appliances are received.
3. Note all damage to packages directly on the carrier’s
delivery receipt.
4. Make certain the driver signs the delivery receipt. If the
driver refuses to sign, make a notation of this refusal
on the receipt.
5. If the driver refuses to allow inspection, write the
following on the delivery receipt: Driver refuses to
allow inspection of containers for visible damage.
6. Contact the carrier’s ofce immediately upon nding
damage, and request an inspection. Mail a written
conrmation to the carrier’s ofce with the time, date,
and the personcalled.
7. Save any packages and packing material for further
inspection by the carrier.
8. Promptly le a written claim with the carrier and
attach copies of all supporting paperwork.
Alto-Shaam will continue our policy of assisting our
customers in collecting claims which have been properly
led and actively pursued. Alto-Shaam cannot, however,
le any damage claims, assume the responsibility of any
claims, or accept deductions in payment for such claims.
Record the model and serial number of the appliance for easy
reference. Always refer to both model and serial number in
any contact with Alto-Shaam regarding this appliance.
Model:
______________________________________________
Serial Number: ______________________________________________
Date Installed: ______________________________________________
Voltage: ______________________________________________
Purchased From: ______________________________________________
______________________________________________
______________________________________________
Alto-Shaam has established a twenty-four
hour emergency service call center to offer immediate
customer access to a local authorized service agency
outside of standard business hours. The emergency
service access is provided exclusively for Alto-Shaam
equipment and is available throughout the United
States through the use of Alto-Shaam’s toll-free
number. Emergency service access is available seven
days a week including holidays.

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 5
Unpacking
• Carefully remove the appliance from the carton or crate.
NOTE: Do not discard the carton and other packaging material until you
have inspected the appliance for hidden damage and tested it for
proper operation.
Do not discard this manual. This manual is considered to be part
of the appliance and is to be provided to the owner or manager of
the business or to the person responsible for training operators.
Additional manuals are available from the manufacturer.
• Read all instructions in this manual carefully before installing this
appliance, using the appliance or performing routine maintenance.
Following procedures other than those indicated in this guide to use and
clean the appliance is considered inappropriate and may cause damage,
injury or fatal accidents, in addition to voiding the warranty and relieving
Alto-Shaam of all liability.
• Remove all protective plastic lm, packaging materials, and accessories
from the appliance before connecting electrical power. Store any
accessories in a convenient place for future use.

6 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Safety Procedures
DANGER
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
• The appliance is intended to cook, hold or process foods
for the purpose of human consumption. No other use for
this appliance is authorized and is therefore considered
dangerous. The appliance must not be used to cook
food containing ammable materials (such as food with
alcohol). Substances with a low ash point can ignite
spontaneously and cause a re.
• The appliance is intended for use in commercial
establishments where all operators are familiar with
the purpose, limitations, and associated hazards of this
appliance. Operating instructions and warnings must
be read and understood by all operators and users.
Alto-Shaam recommends regular staff training to avoid
the risk of accident or damage to the appliance. Operators
must also receive regular safety instructions.
• Any troubleshooting guides, component views, and
partslists included in this manual are for general
reference only and are intended for use by qualied and
trained technicians.
• This manual should be considered a permanent part of
this appliance. This manual and all supplied instructions,
diagrams, schematics, parts lists, notices, and labels must
remain with the appliance if the item is sold or moved to
another location.
NOTICE: Indicates information considered important,
but not hazard-related (e.g., messages relating
to property damage).
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
equipment. The following signal words and symbols
may be used throughout this manual.
Indicates that referral to operating
instructions is a mandatory action. If
not followed the operator could suffer
personalinjury.
Indicates that referral to operating
instructions is recommended to understand
operation of equipment.
NOTICE: For equipment delivered for use in any
location regulated by the following
directive: 2012/95/EC WEEE
Do not dispose of electrical or electronic
equipment with other municipal waste.
WARNING
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation that, if not avoided, could
result in minor or moderate injury.

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 7
Safety Procedures
• To prevent serious injury, death or property damage,
the appliance should be inspected and serviced at
least every twelve (12) months by an authorized
service partner or trained technician.
• Only allow an authorized service partner or trained
technician to service or to repair the appliance.
Installation or repairs that are not performed by an
authorized service partner or trained technician, or
the use of non-factory authorized parts will void the
warranty and relieve Alto-Shaam of all liability.
• When working on this appliance, observe precautions
in the literature, on tags, on labels attached to
or shipped with the appliance and other safety
precautions that may apply.
• If the appliance is installed on casters, freedom of
movement of the appliance must be restricted so
that utility connections (including gas, water, and
electricity) cannot be damaged when the appliance
is moved. If the appliance is moved, ensure that all
utility connections are properly disconnected. If the
appliance is returned to its original position, ensure
that retention devices and utility connections are
properly connected.
• Only use the appliance when it is stationary. Mobile
appliance racks, mobile plate racks, transport trolleys,
andappliances on casters can tip over when being
moved over an uneven oor or threshold and cause
serious injury.
• Always apply caster brakes on mobile appliances or
accessories when these are not being moved. These
items could move or roll on uneven oors and cause
property damage or serious injury.
• Be extremely careful when moving appliances
because the food trays may contain hot uids that may
spill, causing serious injury.
• Always open the appliance door very slowly. Escaping
hot vapors or steam can cause serious injury or death.
• If the gas appliance is installed under an exhaust
hood, the hood must be switched On when the
appliance is in use to avoid the build up of combustion
gases. Failure to do so may result in serious injury,
death or property damage.
• Accumulations on the main burners of gas appliances
can result in ring out of normal sequence. This
delayed ignition creates an alarmingly loud sound.
If your appliance makes an especially loud noise
when starting up, shut down the appliance and call a
qualied and trained service technician.
• Never place objects near the appliance exhaust vents.
Thisarea is hot and could be a potential ignition
source for a re.
• Do not allow objects to block or obstruct the area
below the appliance base. This may result in re,
damage to the equipment or serious injury.
• Do not use the attached hand-held hose to
sprayanything other than the interior of the
appliancecompartment.
• Do not use the attached hand-held hose on the
surface of a hot cooking compartment. The sudden
temperature change can damage the appliance
interior. Allow the appliance to cool to a minimum of
150°F(66°C). Failure to observe this precaution can
void the warranty.
WARNING
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision concerning use
of the appliance by person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.

8 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven

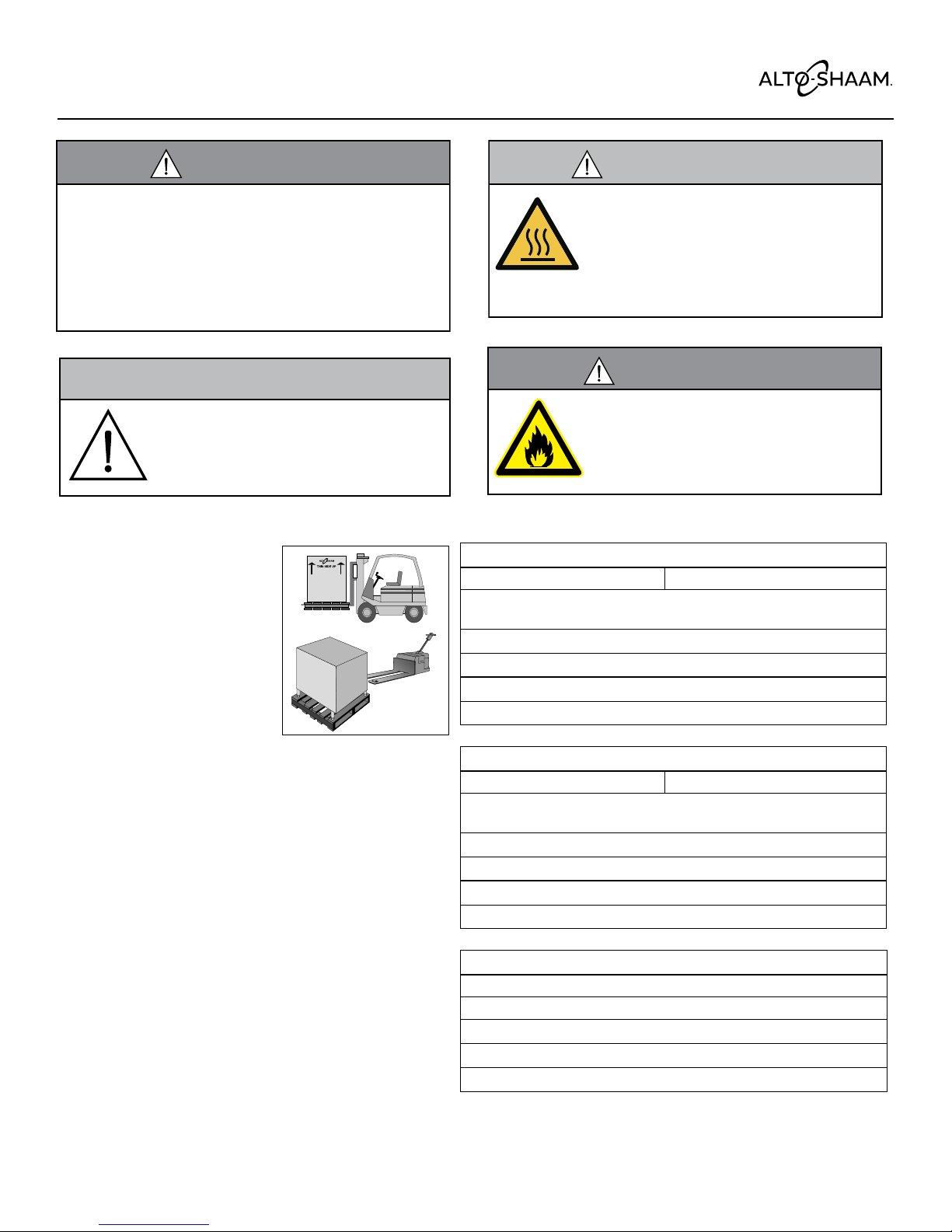

Installation
The Alto-Shaam convection
oven must be installed in
a location that will permit
the oven to function for its
intended purpose and to
allow adequate clearance for
ventilation, proper cleaning,
and maintenance.
1. Hood installation is recommended (check local
codes).
2. The oven must be installed on a stable and
level surface.
3. Do not install this oven in any area where it may be
affected by any adverse conditions such as steam,
grease, dripping water, high temperatures, etc.
4. Do not store or use any ammable liquids or allow
ammable vapors in the vicinity of this oven or any
other appliance.
5. This appliance must be kept free and clear of any
combustible materials.
6. This appliance must be kept free and clear of
any obstructions blocking access for maintenance
or service.
®ASC-2E • Weight
Net:203 lb (92 kg) Ship:278 lb (126 kg)
Crate dimensions: L x W x H
35" X35" X41"
(889mm x 889mm x 1041mm)
Minimum entry clearance: 31-1/2" (800mm) uncrated
ASC-2E • Dimensions: H x W x D
Exterior:32-1/8" x 30" x 30-1/8" (815mm x 762mm x 765mm)
Interior: 20" x 15" x 21" (508mm x 381mm x 533mm)
ASC-4E • Weight
Net:490 lb (222 kg) Ship:535 lb (243 kg)
Crate dimensions: L x W x H
53" X45" X49"
(1346mm x 1143mm x 1245mm)
Minimum entry clearance: 31-1/2" (800mm) uncrated
ASC-4E • Dimensions: H x W x D
Exterior: 57-1/2" x 38" x 44-1/2" (1461mm x 965mm x 1130mm)
Interior: 24" x 29-1/8" x 25" (610mm x 740mm x 635mm)
Minimum clearance requirements
Back: 0" (0mm)
Le side: 2" (51mm)
Right side: 2" (51mm)
From grease producing equipment: 6" (152mm)
Recommended service access:20" (508mm) right side
WARNING
Improper installation, alteration, adjustment, service,
cleaning, or maintenance could result in property
damage, severe injury, or death.
Read and understand the installation, operating and
maintenance instructions thoroughly before installing,
servicing, or operating this equipment.
CAUTION
Do not lift or move the oven
by using the doors or the
door handles.
CAUTION
To prevent personal injury or
propertydamage:
Always use hand protection when
operating this appliance to avoid burns.
Metal parts of this equipment become
extremely hot when in operation.
W017
Warning; Hot surface
WARNING
To prevent personal injury, death or
property damage:
Do not store or use gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 9
Installation
The oven must be mounted on the factory equipped oven
legs or on an optional oven stand. Installation on a solid
or concrete base that in any way restricts air ow may
void the warranty.
All clearances for a proper ventilation air supply must be
maintained to minimize re hazard. Do not locate the
oven immediately adjacent to any other heat-generating
appliance.
A number of adjustments are associated with initial
installation and start-up. Adjustments must be conducted
by a qualied service technician. Installation and start-
up adjustments are the responsibility of the dealer or
user. These adjustments include but are not limited to
thermostat calibration, door adjustment, and leveling.
The Platinum series oven burners are factory-adjusted
with xed air openings and require no eld adjustment.
Leveling
The oven should be leveled
before the gas supply is connected.
Level the oven from side-to-side and front-to-back with
the use of a spirit level. For ovens installed on a mobile
stand, it is important that the oor surface be level due to
the probability of frequent oven repositioning.
We recommend checking the level of the oven
periodically to make certain the oor has not
shied nor the oven moved.
WARNING
Improper installation, alteration, adjustment, service,
cleaning, or maintenance could result in property
damage, severe injury, or death.
Read and understand the installation, operating and
maintenance instructions thoroughly before installing,
servicing, or operating this equipment.
CAUTION
Appliance and accessories may be
heavy. To prevent serious injury, always
use a sufficient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.
Restraint Requirements
—Mobile Equipment
Any appliance that is not furnished with a power supply
cord but includes a set of casters must be provided with
a tether. Adequate means must be provided to limit
the movement of this appliance without depending on
or transmitting stress to the electrical conduit. The
following requirements apply:
1. Casters must be a maximum height of 6" (152mm).
2. Two of the casters must of be the locking type.
3. Such mobile appliances or appliances on mobile
stands must be installed with the use of a exible
connector secured to the building structure.
A mounting connector for a restraining device
is located on the lower back ange of the appliance
chassis or on an oven stand, approximately
18" (457mm) from the oor. A exible connector
is not supplied or available from the factory.
WARNING
RISK OF ELECTRIC SHOCK.
Appliance must be secured to building
structure. Failure to observe this precaution
may result in damage to the equipment and
severe personal injury.
Where automatically operated appliances are vented through a ventilating hood or exhaust
system equipped with a damper or with a power means of exhaust, provisions shall be made
to allow the equipment to operate only when the damper is open to a position to properly
vent the appliance and when the power means of exhaust is in operation. Accordance with
NFPA 54 commonwealth of massachusetts only.

10 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Dimensions
30-5/8" (778mm)
8" (203mm)
CAVITY VENT
ELECTRICAL
INLET
3-5/32"
(80,1mm)
9-15/16" (252mm)
ELECTRICAL ENTRANCE
123°
129°
29" (737mm)
CAVITY WIDTH
38" (965mm)
31-1/16" (789mm)
4" (102mm)
ELECTRICAL INLET
54-5/8" (1387mm)
44-1/2" (1130mm)
26-1/2" (673mm)
57-1/2" (1461mm)
30" (762mm)
28-3/16" (715mm)
3-15/16" (100mm)
32-1/8" (815mm)
3-3/8" (86mm)
23-1/4" (590mm)
4-11/16"
(119mm)
1"
(25mm)
21-1/8 (536mm)
3-1/4"
(83mm)
25-7/16 (646mm)
30-1/8" (765mm)
Exhaust Electrical
2" (51mm)
from bottom
ASC-2E ASC-4E
Product/Pan Capacity
27 lb (12 kg) maximum — 17 qts (15 liters)
Nine (9): 18" x 13" x 1" half-size sheet pans
5 chrome plated wire shelves with
2 removable side racks and 9 shelf positions
spaced at 1-5/8" (41mm)
Product/Pan Capacity
72 lb (33 kg) maximum • 45 qts (43 liters)
Twelve (12): 18" x 26" x 1" full-size sheet pans
6 chrome plated wire shelves with 2 removable side racks
and 12 shelf positions spaced at 1-3/4" (43mm)

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 11
Accessories
Accessories  ASC4E
Caster Kit, 6" (152mm)
For mobile stack applications
5003790
Cooling Rack (for oven stand) 5003791
Leg Kit (4)
6" (152mm) with Bullet Feet 5003794
6" (6152mm) with Seismic Feet 5003795
25" (635mm) with Seismic Feet 5003785
Panel For Back, Stainless Steel 5005876
Shelf, Oven Rack
Interchangeable with cooling rack SH26795
Stacking Hardware
See individual stacking combination specication sheets
Security Device (for correctional facility use)
Includes security back panel, door locking has (padlock not
included), security screw package, security control cover
5020688
Stand, Stainless Steel
Mobile, with Cooling Racks & Casters, 38" H (965mm) 5003786
Stationary, with Cooling Racks & Bullet Feet 5003489
Stationary, with Cooling Racks & Seismic Feet 5003787
Min: 34-1/4" (870mm) • Max: 35-1/2" (902mm) • H (feet are adjustable)
Accessories - ASC-2E
Caster Kit, 6" (152mm) 5013871
Leg Kit, 4" (102mm)
Seismic feet 5004688
Leg Kit
with Bullet feet, 19-1/2" (495mm) height 5005169
with Seismic feet, 19-1/2" (495mm) height 5005168
with Casters, 23" (584mm) height 5005181
Shelf, Oven Rack SH-26894
Stacking Hardware
See individual stacking combination specication sheets
Security Device (for correctional facility use)
Includes door lock (padlock not included), security
screw package, sealed rivet, security control cover
5020698
Stand, Single Oven
with Bullet feet, 26-1/2" (673mm) height 5004672
with Seismic feet, 26-1/2" (673mm) height 5005172
with Casters, 30" (762mm) height 5004687

12 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Electrical Connection
The oven must be installed by a qualied electrician. This
appliance must be branch circuit protected with proper
ampacities, in accordance with the wiring diagram located
in this manual or in the electrical compartment of the
oven. The oven must be properly grounded in accordance
with the National Electrical Code and applicable local
codes. Plug the unit into a properly grounded receptacle
ONLY, positioning the unit so that the plug is easily
accessible in case of an emergency. Arcing will occur
when connecting or disconnecting the unit unless all
controls are in the OFF position.
Proper receptacle or outlet conguration or permanent
wiring for this unit must be installed by
a licensed electrician in accordance with applicable local
electrical codes.
Wire size for the main incoming power to the unit must
match the minimum size listed in the specications
applicable to the specic oven model. For supply
connections, locate the wire size posted on the label
located near the electric terminal block behind the
service panel or elsewhere listed in this manual.
Before attempting the electrical connection, the rating
plate should be checked to ensure that the electrical
characteristics of the appliance and the electrical supply
characteristics agree.
Installation of the wiring must be made in accordance
with U.L. 197 Commercial Electric Cooking Appliance
Standards, Local and/or National Electrical Code, ANSI /
NFPA 70-1990.
Service line entry is made through the rear of the oven
for connection to the terminal block. Remove the service
panel on the right side of the oven for access to the
terminal block.
The oven is wired at the factory for either single phase or
three phase service as indicated on the original purchase
order. Input voltage and phase must match the voltage
and phase of the oven. Visually check all electrical
connections.
WARNING
To prevent serious injury, death, or
property damage:
All electrical connections must be
made by a qualified and trained service
technician in accordance with applicable
electrical codes.
This appliance must be adequately
grounded in accordance with local
electrical codes or, in the absence of local
codes, with the current edition of the
National Electrical Code ANSI/NFPA No.
70. In Canada, all electrical connections
are to be made in accordance with CSA
C22.1, Canadian Electrical Code Part 1 or
local codes.
CE-approved appliances include an
equipotential-bonding terminal marked
with the symbol shown on the le.
Provisions for earthing are to be made in
accordance with IEC:2010 60335-1 section
27 or local codes.
WARNING
To prevent SERIOUS INJURY, DEATH or
PROPERTY DAMAGE:
All electrical connections must bemade
bya qualified and trained service
technician in accordance with applicable
electrical codes.
CAUTION
Power source must match voltage identified
on appliance rating tag. The rating tag
provides essential technical information
required for any appliance installation,
maintenance or repairs. Do not remove,
damage or modify the rating tag.
Wire diagrams are located in the inside access panel of the unit
Electrical - ASC-2E
Voltage Phase Cycle/Hz Awg Amps Kw
208 1 60 10 24.0 5.0
240 1 60 10 20.8 5.0
208 3 60 12 13.8 5.0
240 3 60 12 12.0 5.0
No cord or plug
Electrical - ASC-4E
Voltage Phase Cycle/Hz Awg Amps Kw
208 1 60 6 50.0 10.4
240 1 60 6 43.3 10.4
208 3 60 8 28.8 10.4
240 3 60 8 25.0 10.4
440-480 3 60 12 13.6 10.4
220 1 50 6 40.0 8.7
No cord or plug

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 13

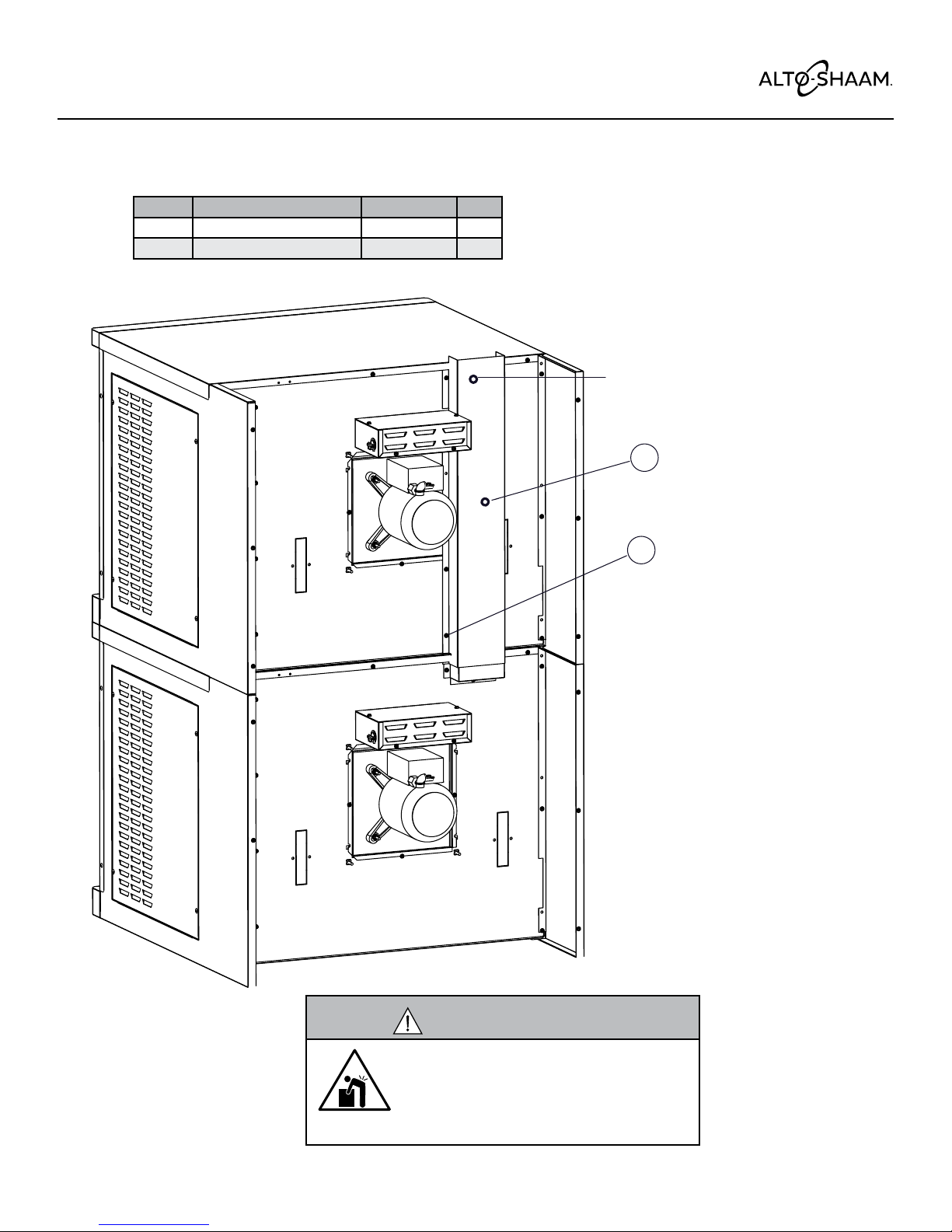

Stacking and Venting
Stacking & Venting Assembly
(2-ASC-2E/STK Shown)
CAUTION
Appliance and accessories may be
heavy. To prevent serious injury, always
use a sufficient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.
Notice: Actual unit may be
dierent than shown.
Part numbers and drawings are subject to change without notice.

14 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Stacking and Venting
Stacking and Venting Assembly (2-ASC4E/STK 208/240V Shown)
Aer legs or casters have been installed
on the bottom oven, place the upper oven
on top of lower unit. Align.
Item Description Part No. Qty
1Riser, ue electric 1004984 1
2Screw, #10 SMS .5LG SC-26520 5
NOTE: Actual unit may be
different than shown.
1
2
Remove top elbow vent
prior to installing riser.
Assemble venting
components 1 and 2
as shown
CAUTION
Appliance and accessories may be
heavy. To prevent serious injury, always
use a sufficient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.
Part numbers and drawings are subject to change without notice.

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 15
Stacking and Venting
8
1
1
7
3
4
29
1
2
34-5/16" (876mm)
5
6
2
38" (956mm)
Oven Stand Assembly
Item Description Part No. Qty
1Leg Support Assembly 5003488 2
2Channel, Support 1004459 2
3 Leg LG22185 4
*Casters, Rigid CS25674 2
*Casters, Swivel W/Brake CS25675 2
4Bracket, Stand 1004461 1
5Bracket, Attachment 1004369 2
6Channel, Back 1004460 1
7Shelf, Stand 1004466 1
8Rack, Oven Support SR26551 2
9Oven Rack SH26795 6
10* Screws, 1/4-20 X 1/2 Hex Head SC22729 27
11* Nut, 1/4-20 Nylon Insert, 18-8 S/S NU23984 27
128 Lock Washer, 1/4" Stainless Steel WS2294 27
*Not shown
Oven stand 5003489 shown
Part numbers and drawings are subject to change without notice.

16 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Operation
CAUTION
To prevent personal injury or
propertydamage:
Always use hand protection when
operating this appliance to avoid burns.
Metal parts of this equipment become
extremely hot when in operation.
W017
Warning; Hot surface
This appliance is intended for use in commercial
establishments by qualified operating personnel
where all operators are familiar with the purpose,
limitations, and associated hazards of this
appliance. Operating instructions and warnings
must be read and understood by all operators and
users.
Before initial use:
Interior oven surfaces must be heated to remove
surface oils and the accompanying odor produced
during the first use of the oven.
1. Wipe all wire shelves, side racks and the
full oven interior with a clean, damp cloth.
2. Close the oven doors, press the power switch
to the
ON
position, and set the thermostat to
300°F (149°C).
3. Allow the oven to cycle for approximately
2 hours or until no odor is detected.
Preheating:
Always preheat a cold oven for a minimum of
20 minutes before cooking product. Follow
the operating instructions indicated on the next
few pages of this manual.
Start-Up Operation
In the event of a power failure:
• Turn all switches off.
• Wait until power is restored before attempting
to operate the oven.
NOTICE:
If such an event has occurred, it is strongly
recommended that you ensure the food in the
oven is safe for consumption according to local
health regulations.

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 17
Operation
Pan/Shelf Positions For ASC-4E:
The oven includes 6 chrome plated wire shelves with two
removable side racks and 12 shelf positions spaced at
1-3/4" (43mm).
1. The best arrangement for broiling, baking
cookies and for other baked goods under
2-1/2" (65mm) in height. This arrangement
can also be used as the maximum capacity for
reconstituting frozen entrées.
2. General baking with the use of sheet pans
for products under 3-1/2" (89mm) in height.
Products include cakes, pies, mufns, or
extended dishes in 20" x 12" x 2-1/2" deep
pans (530mm x 325mm x 65mm GN 1/1).
3. Ideal positions for baking bread, meringue,
or extended dishes and roasts in pans not to
exceed 5-1/2" (140mm) in height.
4. Arrangement necessary for roasting whole
turkey or roasts up to 7" (178mm) in height.
POSITION
2
4
6
8
12
POSITION
1
4
7
10
POSITION
1
5
9
POSITION
1
6
1. The best arrangement for broiling, baking
cookies and for other baked goods under
2-1/2" (65mm) in height. This arrangement
can also be used as the maximum capacity for
reconstituting frozen entrées.
2. General baking with the use of sheet pans
for products under 3-1/2" (89mm) in height.
Products include cakes, pies, muffins, or
extended dishes in 20" x 12" x 2-1/2" deep pans
(530mm x 325mm x 65mm GN 1/1).
3. Ideal positions for baking bread, meringue,
or extended dishes and roasts in pans not to
exceed 5-1/2" (140mm) in height.
4. Arrangement necessary for roasting whole
turkey or roasts up to 7" (178mm) in height.
Pan/Shelf Positions For AAS-2E:
The oven includes 5 chrome plated wire shelves
with two removable side racks and 9 shelf positions
spaced at 1-5/8" (41mm).
POSITION
2
4
6
8
POSITION
1
4
7
POSITION
1
5
POSITION
1
6
CAUTION
To prevent personal injury or
propertydamage:
Always use hand protection when
operating this appliance to avoid burns.
Metal parts of this equipment become
extremely hot when in operation.
W017
Warning; Hot surface

18 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Operation
1 Preheat Indicator
2 Led Display
3 Up/Down Arrows
4 Cook Indicator
5 Temperature Indicator
6 Probe Indicator
7 Preset Lock Indicator
8 Cook Key
9 Probe Key
10 Time Key
11 Preset Lock Key
12 Start/Stop Key
13 Preset Keys 1-7
14 Cancel Key
15 Fan Speed Key
16 Cool Down Key
17 Main Power Switch
Control
Identication
1
2
4
5
8
12
9
16
3
6
7
15
10
1
7
13
1
1
14

MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven 19
Operation
A. Push the Main Power (17) ON.
• The Display (2) will alternate between last cook set
temperature and actual cavity temperature.
• The oven will preheat to previous cook
temperature, and the Preheat (1) indicator will
illuminate.
To terminate procedure,
push Start/Stop (12) button twice.
B. If the previous cook cycle is acceptable, proceed to
step C.
•To cook by time:
• Push Cook (8).
• Push Time (11).
• Conrm fan speed.
• Adjust the cooking temperature with the
Up/Down (4) arrows. The Time (11) indicator
will remain lit.
• To cook by probe (optional):
• Push Cook (8).
• Push Probe (11).
• Conrm fan speed.
• Adjust the cooking temperature with the
Up/Down (4) arrows. The Probe (11) indicator
will remain lit.
Note: If more than 5 seconds elapse before a decision is
made, the mode button must be pushed again to
continue.
C. When the cook preheat temperature has been
reached:
• The Start/Stop (12) and Ready Indicator(1) will
ash.
• The control will produce an audible beep every 30
seconds.
• Load product in a timely manner.
• To cook by time:
• When cooking by Time (4), the Display (2)
will alternate between cook temperature and
remaining time.
• To cook by probe (optional):
• If cooking by probe, remove probe from its
bracket, wipe the probe tip with a disposable
alcohol pad and properly insert probe into
product.
• When cooking by Probe(11) , the Display (2)
will alternate between cook temperature, probe
temperature, and elapsed time.
2. Close the oven door -- push Start/Stop (12).
3. Aer cook cycle is complete and product is ready:
• The Display (2) will indicate “DONE”.
• The Start/Stop (12) button an Ready
Indicator(1) will ash.
• The control will produce an audible beep every
30 seconds.
4. Remove product promptly to avoid overcooking.
To terminate procedure,
push Start/Stop (12) button twice.
D. Cooling the oven:
• Open door.
• Push the Cool Down (16) button.
• Cool continuously
• Fan will run continuously.
• Shut off POWER to terminate.
• Set cool down temperature
• Set desired cool down temperature with
Up/Down (4) arrows. The cool down
temperature ranges from 80° to 450°F.
• Fan will run continuously.
• When the desired cool down temperature
is reached, Display (2) will indicate "COOL/
STOP".
• The control will produce an audible beep
every 30 seconds.
Note: If more than 5 seconds elapse before a decision is
made, the mode button must be pushed again to
continue.
Start/Stop (12) will stop fan and terminate the Cool Down
(16) feature.
E. At the end of the day, shut off oven power before
leaving the premises.

20 MN-28665 • Rev 5 • 03/17 • ASC Series Convection Oven
Operation
1
2
4
5
8
12
9
16
3
6
7
15
10
1
7
13
1
1
14
Programming
This Alto-Shaam electronic convection oven allows the operator to
program up to seven cooking procedures. Each cooking program
entered can be preset in any program function to cook by time (or
probe, if a probe is included on the oven). Cooking programs are stored
and recalled with the Presets (13) buttons labeled 1 through 7.
Push the Main Power (17) ON.
• The Display (2) will alternate between last cook set temperature
and actual cavity temperature. The oven will begin preheating and
the Preheat Indicator (1) will illuminate. The fan will operate at
high speed “FnHi”.
Follow instructions listed on the
previous pages of this manual.
Push and hold selected Preset (13) (1 through 7) for 4 seconds.
• A beep sounds.
• The numbered button indicator light will illuminate.
The programmed procedure is now stored in memory for the specific
number button selected. To lock a Preset (13) (1 through 7), push
Preset Lock (11) simultaneously with the up arrow. To unlock, push the
Preset Lock (11) simultaneously with the downarrow.
At this point, push Start/Stop (12) twice. This will protect the Preset
(13) in case of a power outage.
Important
Aer programming a specic product into the memory of a preset, it is
very important to make a written permanent record of the product and
the program letter assigned.
Erasing A Program
To erase a program, the oven must be in the preheat mode. The oven
cannot be running a preset menu program.
• When the oven is in the preheat mode, push and hold both the
CANCEL (14) and the appropriate number Preset(13) to be erased.
Hold both keys until the oven double beeps, and the program's
indicator light goes out. This indicates the program has been
erased.
Cook — Using Preset Menu Keys
• Push desired Preset (13) (1 through 7). Preheat will begin.
• The oven will beep when the preheat temperature has been
reached.
• Load food inside the oven. If cooking by probe, remove probe from
its bracket, wipe the tip with a disposable alcohol pad and insert
probe properly into product.
• Close the oven door.
• Push Start/Stop (12).
Menu Presets
