Alton DW18903PR-6H User manual

INSTRUCTION MANUAL
OPERATION INSTRUCTION, SERVICE CENTERS AND
GUARANTEE POLICY.
WARNING: READ THIS INSTRUCTION BEFORE
USING THE PRODUCT.
DW18903PR-6H
6GALLON (23 L) PORTABLE WET/DRY VACUUM
If you have questions or comments, contact us.
1-888-899-0146

ENGLISH
English (original instructions) 3
WARNING:
Gauge A.W.G.
14
12
Extension Cord Length
0 - 50 ft.
50 - 100 ft.
Use only extension cords that are rated for outdoor use. Extension cords in poor condition or
that are too small in wire size can pose fire and shock hazards. To reduce the risk of these
hazards when using an extension cord, be sure it is in good condition and that the connection
does not come into contact with liquid. To keep power loss to a minimum, use the following
table to choose the minimum wire size extension cord.

1

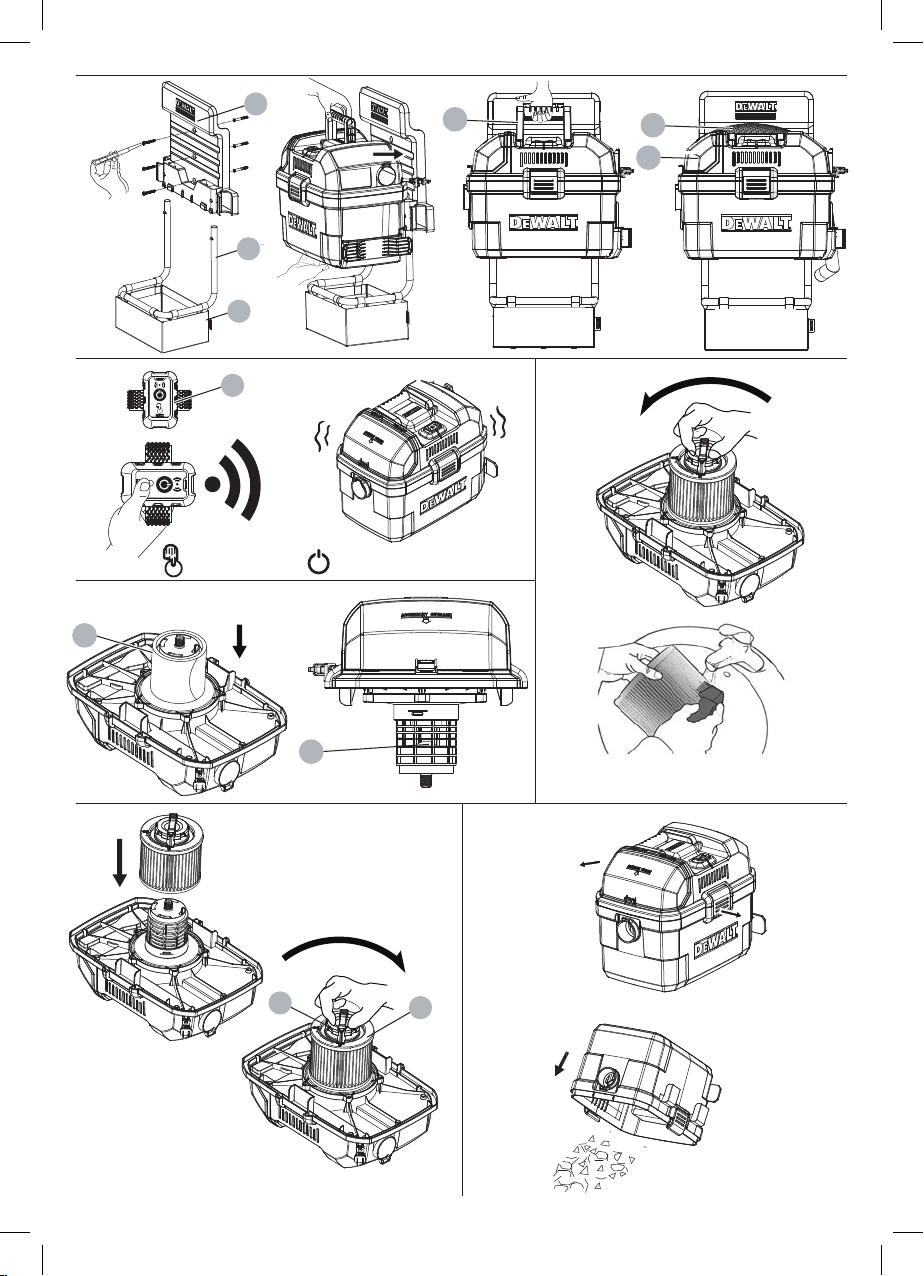

Fig. A
Fig. B Fig. C
Fig. D Fig. E
12
13
9
3
4
10
12
1
2
3
5
6
8
11 4
10
7
O= OFF I= ON = Remote Control

Fig. F
Fig. G
Fig. H
Fig. J Fig. K
Fig. I
16
15
17
14
Unlock
lock
18
19
1
20
21
7
=Paring button On/off switch=
17
2

English
3
English
PRODUCT SPECIFICATIONS
DEFINITIONS: SAFETY GUIDELINES
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
The denitions below describe the level of severity for
each signal word. Please read the manual and pay
attention to these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in death
or serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate injury.
NOTICE: Indicates a practice not related to personal
injury which, if not avoided, may result in property
damage.
WARNING: When using electric appliances, always
follow basic safety precautions to reduce the risk of
re, electric shock and personal injury, including the
following:
WARNING: To reduce the risk of electric shock.
Do not expose to rain. Store indoors.
CAUTION: This appliance is not intended for use
by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
This device complies with Part 15 of the FCC. Operation
is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device
must accept any interference received, including
interference that may cause undesired operation.
• Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
• Do not use to vacuum combustible explosive materials,
such as coal, grain, or other nely divided combustible
material.
• Do not use to vacuum hazardous, toxic or carcinogenic
materials, such as asbestos or pesticide.
• Never pick up explosive liquids (e.g. gasoline, diesel
fuel, heating oil, paint thinner, etc.), acids or solvents.
• Do not use vacuum without lters in place, except
• Do not allow the appliance to be used as a toy. Pay
close attention when the appliance is used by or near
children.
• Use this appliance ONLY as described in the manual.
Use only ALTON recommended attachments.
• Do not use this appliance with a damaged cord or
plug. If the appliance is not working correctly, or if it
has been dropped, damaged, left outdoors, or
dropped in water, return it to a service centre.
• Do not pull or carry this appliance by the cord, use
the cord as a handle, close a door on the cord, or
pull the cord around sharp edges or corners. Do not
run the appliance over the cord. Keep cord away
from heated surfaces.
• Do not unplug this appliance by pulling on the cord.
To unplug, grasp the plug, not the cord.
• Do not handle the plug or appliance with wet hands.
• Do not put any objects into the openings of the
appliance. Do not use the appliance with any
opening blocked; keep free of dust, lint, hair and
anything else that may reduce air ow.
• Keep hair, loose clothing, ngers, and all body parts
away from the openings and moving parts.
• Turn off all controls before unplugging appliance.
• Use extra care when cleaning on stairs.
• Do not use the appliance to pick up ammable or
combustible liquids, such as gasoline, or use in areas
where ammable or combustible liquids are present.
• Static shocks are possible in dry areas or when the
relative humidity of the air is low. This is only
temporary and does not affect the use of the vacuum.
To reduce the frequency of static shocks, add
moisture to the air with a console, installed humidier
or use anti-static hose (standard on some models).
• To avoid spontaneous combustion, empty canister
after each use.
• Do not leave the appliance when it is connected to a
power source. Unplug it from outlet when not in use
and before servicing.
BEFORE USING THIS APPLIANCE, READ AND
FOLLOW ALL INSTRUCTIONS.
ADDITIONAL SAFETY RULES
Package Contents
The package contains:
1 1-7/8'' x 5' to 20' Flexible Hose
2 Extension Wand
1 Crevice Nozzle
1 Floor Nozzle
1 Claw Nozzle
1 Mufer
1 Utility Nozzle
1 Round Brush
1 Disposable Dust Bag
1 Clean Connect Filter
1 Accessory Bag
1 Foam Filter
1 Instruction Manual
1 Wall Bracket
1 Accessory Bag Bracket
1 Remote Control
• Check for damage to the tool, parts or accessories
which may have occurred during transport.
• Take the time to thoroughly read and understand this
manual prior to operation.
Tank Capacity
Power
Peak
6 Gallon
Flexible 1-7/8'' x 5' to 20'
5 HP
120 V / 60 Hz / 9 A
Hose
SJTW18AWG / 10 ft. LengthPower cord
Model
Voltage FVYK01
DC3V
Model
Remote control
DW18903PR-6H
TM

English
WARNING: Always wear proper personal hearing
protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration of
use, noise from this product may contribute to
hearing loss.
WARNING: ALWAYS use safety goggles. Everyday
eyeglasses are NOT safety goggles. Also use face or
dust mask if area operation is dusty.
ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
WARNING : This product can expose the to
chemicals including lead, which is known to the
State of California to cause cancer, birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
MATERIALS. DO NOT USE AROUND EXPLOSIVE DUST,
LIQUIDS OR VAPORS. ELECTRICAL DEVICES PRODUCE
ARCS OR SPARKS WHICH CAN CAUSE FIRE OR
EXPLOSION. DO NOT USE AT FILLING STATIONS OR
ANYWHERE GASOLINE IS STORED OR DISPENSED. DO
NOT VACUUM TOXIC OR CARCINOGENIC MATERIALS OR
OTHER HEALTH ENDANGERING MATERIAL SUCH AS
ASBESTOS OR PESTICIDES. ALWAYS USE PROPER EYE
AND RESPIRATORY PROTECTION. TO REDUCE THE
RISK OF ELECTRICAL SHOCK, DO NOT EXPOSE TO RAIN.
STORE INDOORS. WHEN SERVICING, USE ONLY
IDENTICAL REPLACEMENT PARTS. NOT TO BE USED AS
A STEP STOOL.
WARNING:
• TO REDUCE THE RISK OF INJURY, USER MUST READ
INSTRUCTION MANUAL. DO NOT RUN UNATTENDED. DO
NOT PICK UP FLAMMABLE, COMBUSTIBLE OR HOT
ON MOTOR HOUSING :
as described under Wet Pickup Applications.
• Some wood contains preservatives which can be
toxic. Take extra care to prevent inhalation and skin
contact when working with these materials. Request
and follow any safety information available from the
material supplier.
• Do not use vacuum as a step ladder.
• Do not place heavy objects on vacuum.
• An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The
smaller the gauge number of the wire, the greater
the capacity of the cable, that is 16 gauge has
more capacity than 18 gauge. An undersized cord
will cause a drop in line voltage resulting in loss of
power and overheating. When using more than
one extension to make up the total length, be sure
each individual extension contains at least the
minimum wire size. The following table shows the
correct size to use. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier
the cord.
• If an extension cord is to be used outdoors it must
be marked with the sufx W-A or W following the
cord type designation. For example – SJTW-A to
indicate it is acceptable for outdoor use.
To reduce your exposure to these chemicals, wear
approved safety equipment such as dust masks that
are specically designed to lter out microscopic
particles. For your convenience and safety, the
following warning labels are on your vacuum.
OPERATING INSTRUCTIONS
UNPACKING & SET-UP SUMMARY
1.Pull lid latches in an outward motion, remove power
head and some accessories that may have been
shipped in the tank.
2.Attach heavy-duty rubberised casters following the
instructions in this manual.
3.Before replacing power head, refer to this manual to
ensure you have the proper lters installed for your
cleaning operation.
4.Replace power head, and apply pressure with thumb
to each latch until it snaps tightly in place. Make sure
all lid latches are clamped securely.
5.Insert the air hose end into inlet of tank.
6.Attach the extension wands to the accessory end of
WARNING:
To reduce the risk of re or explosion, do not operate
this vac in areas with ammable gases, vapors or
explosive dust in the air. Flammable gases or vapors
include but are not limited to: lighter uid, solvent-type
cleaners, oil-based paints, gasoline, alcohol or aerosol
sprays. Explosive dusts include but are not limited to:
coal, magnesium, aluminum, and grain or gun powder.
Do not vacuum explosive dust, ammable or
combustible liquids or hot ashes. Do not use this vac
as a sprayer for any ammable or combustible liquid.
To reduce the risk of health hazards from vapors or
dusts, do not vacuum toxic materials.
IMPORTANT SAFEGUARDS
The symbol on the product or packaging indicates that
the product must not be treated as domestic refuse.
Instead, it should be handed in to a collection point for
the recycling of electrical and electronic components.
By ensuring the product is treated in the correct manner,
you will help prevent any negative impact on your health
and the environment that might arise were the product
to be discarded as ordinary refuse. For further information
about recycling, you should contact your local authorities,
refuse collection service or the sales outlet where you
bought the goods.
the hose. Apply slight pressure until tting is tight.
7.Attach one of the cleaning accessories (depending
on your cleaning requirements) on the extension
wands. Twist slightly to tighten the connection.
8.Plug the cord into the wall outlet. Your cleaner is
ready for use.
4
Minimum Gauge for Cord Sets
Ampere Rating
Volts Total Length of Cord in Feet (meters)
120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
More
Than
Not More
Than AWG
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended

5
1Handle
2Power cord
3
3
Power switch
4
4
Vacuum head
5
4
5
5
Lid latches
6Dust tank
7
9
7
7 13
5 4
6
Hose
8Accessory box / Cord wrap
9Clean connect lter
10
10
10
10
12
12
12
22
Vacuum port
11 Blower port
12
14
14
9
12
Disposable dust bag
English
Description (Fig. A)
Assembly and Adjustments (Fig. A–C)
OPERATION
Instructions for Use (Fig. A, D, E)
WARNING: Always observe the safety instructions
and applicable regulations.
WARNING: To reduce the risk of injury,
turn appliance off and disconnect
appliance from power source before
installing and removing accessories,
before adjusting or changing set-ups or
when making repairs. An accidental start-up can
cause injury.
1. Plug the power cord into an appropriate outlet.
2. Turn the power switch to the ON position “ I ”.
For remote control use, set the power switch to remote
control position “ II ” and turn the vacuum on by pressing
the “ ” ON button on the remote control.
3. Your ALTON construction dust extractor is tted
with the ALTON connection system. The allows for
To Convert Back to Dry Vacuum
Operation (Fig. A)
1. Empty canister, refer to empty canister instructions.
WARNING : Never modify the power appliance or
any part of it. Damage or personal injury could result.
a fast, secure connection between the suction hose
and power tool. The connector connects
directly to ALTON compatible tools or through the
use of an adapter (available from your local ALTON
upplier). Refer to the Accessories section for detail
on available adapters.
NOTE: If using an adapter ensure it is rmly attached
to the tool outlet before following the steps below.
OPERATING INSTRUCTIONS
Remove / Change Used Dust Collection
Bag (Fig. A)
WARNING: Appropriate personal protective
equipment like dust mask and gloves should be used
while handling used dust bags.
1. Turn off vacuum and unplug cord from outlet.
2. Unlatch lid latches and remove vacuum head .
3. Pull the disposable dust bag carefully from vacuum
port .
4. Seal the disposable dust bag opening tightly when
removing it from the machine.
5. Dispose of disposable dust bag in appropriate
container according to statutory provisions.
Wet Pick Up Applications (Fig. A, H)
The vacuum requires only a minimum of conversion when
going from dry to wet pick up. A clean cartridge lter may
used for vacuuming small amounts of liquids. For best
results when vacuuming large quantities of liquid, it is
recommended using the foam lter and install the
foam leter over lter cage
WARNING: If foam or liquid escapes from the
machine,switch off immediately.
WARNING: Do not use the machine with this set
up for dust class L.
The ball oat will block air to the motor when the
canister is full and the sound of the motor will change
at once.
When the motor has a high pitched sound and air/
water ow stops, empty the canister.
1. Turn off vacuum and unplug cord from outlet.
2. Unlatch lid latches and remove vacuumhead .
3. Empty contents of dust tank into a suitable
container or drain.
CAUTION: Clean the water level limiting device
regularly and examine it for signs of damage.
NOTICE: DO NOT remove ball oat , doing so
will cause damage to the vacuum. The ball oat keeps
water from entering the motor.
Before using the vacuum for wet pick up:
• Ensure the canister is empty and free of excessive dust.
• Remove the lter .
WARNING: To reduce the risk of injury, turn
appliance off and disconnect appliance from
power source before installing and removing
accessories, before adjusting or changing
set-ups or when making repairs. An accidental
start-up can cause injury.
WARNING: The lters must always be in
place while vacuuming, except as described
under Wet Pick Up Applications under Operation.
When vacuuming ne dust, you may also use an
additional paper bag or eece bag to make
emptying the canister easier.
1. If optional paper or disposable dust bag is to
be used, install .
NOTE: Be careful not to tear the bag. Place bag
securely onto vacuum port to provide a tight
seal for maximum dust collection performance.
2. Place the vacuum head onto the canister and
secure it by closing the canister latches .
3. Insert end of hose into threaded vacuum port
and tighten the end of hose on to the tank.
4
5
2. Place canister upside down position until dry. DO
NOT use wet canister for dry pick up.
3. Place vacuum head on a level surface until dry.
4. Reinstall lters when vacuum head is dry. See Filters
under Maintenance.
5. When canister is dry place the vacuum head
onto the canister and secure it by closing the
lid latches .
TM

Assembly (Fig. F)
6
3
4
2
8
English
Shut Down/Transportation (Fig. A)
1. Turn on/off control switch to the OFF position.
2. Unplug the unit.
3. Store the power cord wrapping it around the
bottom accessory box/cord wrap .
4. When transporting in vehicles, secure the machine.
MAINTENANCE
Your ALTON appliance has been designed to operate
overa long period of time with a minimum of
maintenance.Continuous satisfactory operation
depends upon proper appliance care and regular
cleaning.
WARNING: To reduce the risk of injury,
turn appliance off and disconnect
appliance from power source before
installing and removing accessories,before
adjusting or changing set-ups or when
making repairs. An accidental start-up can cause
injury.
WARNING: For user servicing, the machine must
be dismantled, cleaned and serviced, as far as is
reasonably practicable, without causing risk to the
maintenance staff and others. Suitable precautions
include, decontamination before dismantling, provision
for local ltered exhaust ventilation where the machine
is dismantled, cleaning of the maintenance area and
suitable personal protection.
• The manufacturer, or an instructed person, shall
perform a technical inspection at least annually,
consisting of, for example, inspection of the lter for
damage, air tightness of the machine and proper
function of the control mechanism.
• When carrying out service or repair operations, all
contaminated items which cannot be satisfactorily
cleaned, are to be disposed of; such items shall be
disposed of in impervious bags in accordance with
any current regulation for the disposal of such waste.
• For dust extractors it is necessary to provide for an
adequate air change rate L in the room if the exhaust
air is returned to the room.
(NOTE: Reference to National Regulations is
necessary.)
the plastic end cover as shown, and carefully remove
from head, ensuring debris does not fall into mounting
hole.
NOTE: Use care to not damage lter material.
4. If the bottom side of the vacuum head needs to
be cleaned, use a cloth dampened with water and
mild soap and allow it to dry. Dispose of cloth in an
appropriate container.
5. Inspect lters for wear, tears or other damage.
NOTE: If there is any doubt on the condition of the
lters they MUST be replaced. DO NOT continue use
if lters are damaged.
WARNING: Never use compressed air or a brush
to clean lters, otherwise damage to the lter membrane
will occur which will allow dust to pass through the lter.
If needed, gently tap against a hard surface or rinse with
room temperature water and let air dry. Cleaning of the
lters is typically unnecessary, even if the lter is covered
with dust. The automatic lter cleaning system will
maintain maximum performance and continue to function.
If visual damage to the lter membrane exists, replace
lters. Filters typically last between six and twelve months
depending on use and care.
3
5
4
9
To Remove Filters
1. Turn tool control power switch to the OFF
position ( O ) and unplug cord from outlet.
2. Release lid latches and remove vacuum
head . from canister. Place vacuum head on a
level surface upside down.
3. Turn each lter counterclockwise by gripping it on
Wall Bracket Installation :
1.Mark the wall according to the location of the wall
mount screws.
2.Punch holes in marked positions.
3.Tape the plastic expansion screws into the holes.
4.Align the wall mount with the holes and tighten the screws.
WARNING: Inadequate mounting could allow the
unit to fall, causing injury and/or damage to the unit.
Installation of Accessory Bag Bracket :
Press and hold the shrapnel of accessory bag bracket ,
align the wall bracket hole position, push the accessory
bag bracket upward, until hearing the “click” sound,
and the installation is completed.
Attach Vac:
1. Grasp top handle with one hand and place other
hand under front of tank.
2. Align tab on back of vacuum (located near top of tank)
to engage with slot in center of wall bracket as vacuum
is lowered into bracket.
3. Push downward making sure slots on vacuum
(located near the bottom of the tank) attach to the tabs
located at bottom of bracket.
To Install Filters
1. Ensure lter seal is in place and is secure.
2. Line up lter threads to vacuum head threads and
using moderate force, turn lter clockwise until tight.
NOTE: Use care to not damage lter material.
3. Place the vacuum head onto the container and
secure it by closing the lid latches .
Filter (Fig. A, I, J)
Filter care
The lters included with this vacuum are long life lters.
To be effective in minimizing dust recirculation, the lters
MUST be installed correctly and in good condition.
WARNING: Appropriate personal protective
equipment like dust mask and gloves should be used
while handling the lters.
15
16
4
5
17
18
18
1
18

English
Storage (Fig. A / F)
Store the power cord wrapping it around the
bottom accessory box/cord wrap . The hose
may be wrapped around the wall bracket and the
accessories stored in the tool box so they can be
readily available. Never allow liquids to sit in the tank
for any extended period of time. The vacuum should
be stored indoors.
Blowing Feature (Fig. C)
Your vac contains a blowing feature. It has the
capability to blow sawdust and other debris. It can
be used to blow dust and debris out of garages or off
patios and driveways. Follow the steps below to use
your vac as a blower.
1. Locate blowing port on your vac.
2. Insert one end of the 1-7/8'' x 5' to 20' exible hose
into the blowing port.
3. Turn vacuum “ON”.
Optional Accessories
WARNING: Since accessories, other than those
offered by ALTON, have not been tested with this
product, use of such accessories with this appliance
could be hazardous.
TROUBLESHOOTING
WARNING:
TO REDUCE THE RISK OF INJURY FROM
MOVING PARTS AND/OR ELECTRICAL SHOCK,
TURN POWER SWITCH OFF AND DISCONNECT
GROUNDED PLUG FROM ELECTRICAL OUTLET
BEFORE PERFORMING TROUBLESHOOTING
CHECKS.
Minor problems often can be xed without calling
customer service.
To reduce the risk of injury, only ALTON recommended
accessories should be used with this product.
CLEANING
To keep your wet/dry vac looking its best, clean the
outside with a cloth dampened with warm water and
mild soap.
To clean the tank:
1. Dump out debris.
2. Wash tank thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.
WARNING: If the power cord is damaged, it must
be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
PROBLEM SOLUTION
Motor does not run
Check power cord, plugs and outlet.
Ensure the on/off switch is in the
ON position ( I )
Remove blockages in the suction
nozzle, suction tube, suction hose
or lters.
Replace the paper or eece bag.
Clean or replace the lters.
Empty canister, refer to Empty
the tank under Operating.
instructions
Check for proper installation of the
lters.
Suction capacity
decreases
Vacuum stops
running
Thermal overload has been tripped:
1. Turn the vacuum off and
disconnect vacuum cleaner from
power source.
2. Empty the canister, if needed.
3. Allow the unit to cool.
4. Plug the power cord into an
appropriate outlet and turn on/off
switch to the ON position ( I ) to
test.
Ensure lters are not damaged;
replace if necessary.
Ensure lter seals are in place and
are secure.
Check for proper installation of the
lters.
Dust comes out
while vacuuming
7
4. Lower top handle on vacuum to lay at on top
of housing. This will secure unit in bracket.
Detach Vac:
1. Push release lever on bracket with thumb, while
moving top handle on vacuum to the up position.
2. Grasp top handle with one hand and place other
hand under front of tank.
3. Pull upward until vacuum detaches from bracket.
Resetting the Remote Control (Fig. G)
1.Set the power switch on the vacuum to the remote
control option”II”.
2.Make sure the distance between the remote control
and the vacuum cleaner for less than 0.5m, press and
hold the paring button of the remote control for more
than 3 seconds and the LED will ash , the inside motor
makes a sound to indicate a successful pairing.
To Unpair with the Remote Control (Fig. G)
Make sure the distance between the remote control
and the vacuum cleaner for less than 0.5m, press and
hold the paring button of the remote control for more
than 3 seconds and the LED will ash , the inside motor
makes a sound to indicate the pairing is invalid.
5
8
21
20
20
1
Empty the Tank (Fig. K)
WARNING: To reduce the risk of injury from
accidental starting, unplug power cord before emptying
the dust tank.
1. Remove the power head assembly of the wet/dry
vac bypulling outward on the lid clips located on each
side of the vac. Lift off the power head assembly.
2. Dump the tank contents into the proper waste
disposal container.
Blowing Operation
WARNING: To avoid injury to bystanders, keep
them clear of blowing debris.
CAUTION: Wear a dust mask if blowing creates
dust which might be inhaled.
CAUTION: To reduce the risk of hearing loss, wear
ear protectors when using the vac/blower for extended
hours or when using it in a noisy area.

Changes or modications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment
and receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV
technician for help.
Caution: This device complies with Part 15 of the
FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference.
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
English

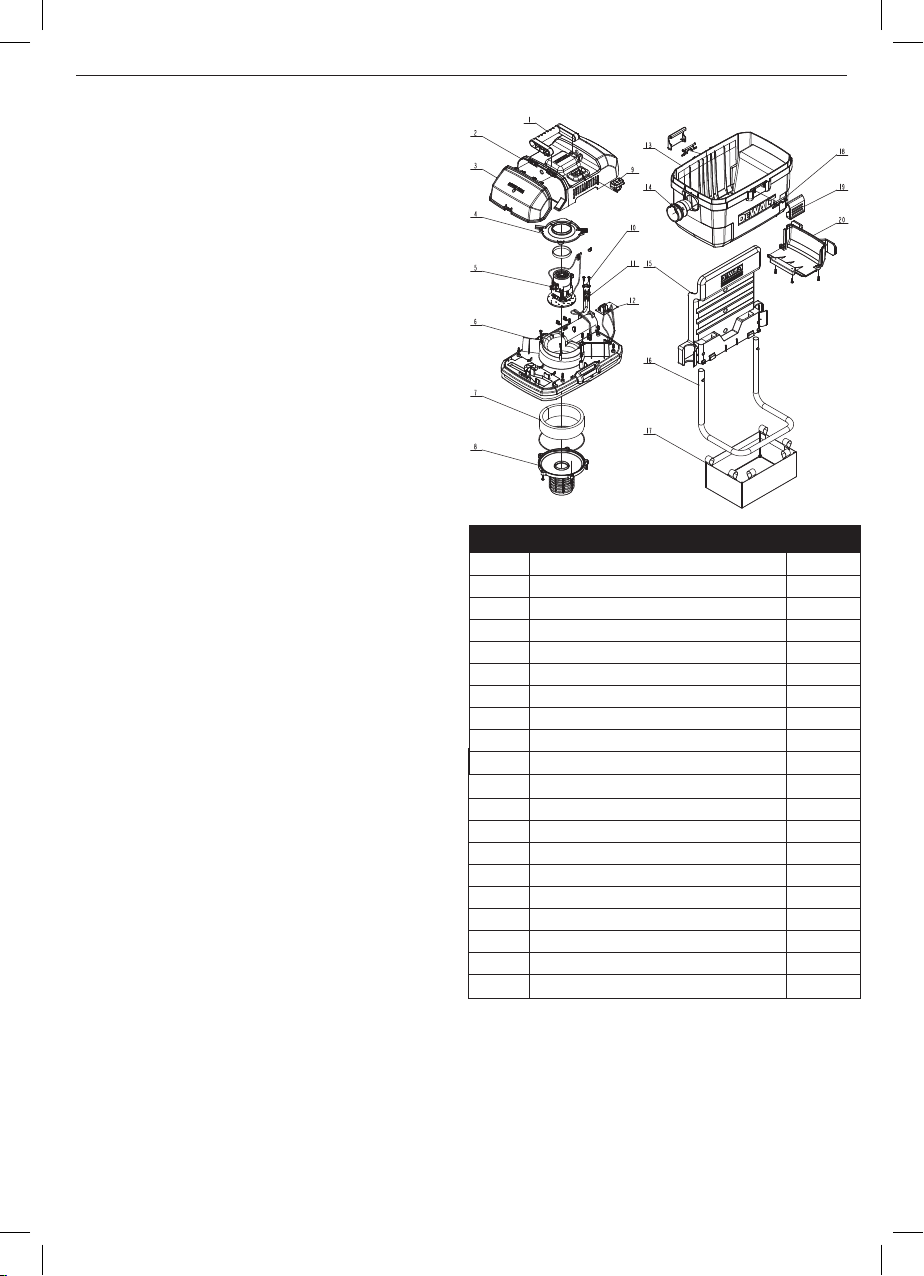

EXPLODED VIEW / PARTS LIST
8
1 1
1
1
1
1
1
1
1
Handle
3Accessories Cover
2 Top Cover
4 Thermal Baffle
5 Motor
6Lid
7Sponge
8Filter Cage
9On/off Switch
10 Crimping Board
11
PART DESCRIPTION QTY
1
1
1
12 Printed Circuit Board Assembly
13 Dust Tank
14 Vacuum Port
15 Wall Bracket
16 Accessory Bag Bracket
Accessory Bag
Power Cord
18
17
Link
19 Lid Latch
20 Winding Wire Bar
1
1
1
1
1
2
1
2
1

Warranty
Alton Industry Ltd. Group
3year Limited Warranty
This warranty covers any defects in materials or workmanship of the enclosed
product. Alton Industry Ltd. Group will repair or replace any defective materials due to
craftsmanship of the product. This warranty does not cover any problem caused by
misuse, abuse, accidents or acts of God, such as floods or hurricanes. Consequential
and incidental damages are not covered under this warranty. Coverage terminates if
you sell or otherwise transfer the ownership. If you feel you have a defective product,
please submit a copy of your receipt to the address below and call 1-888-899-0146
for instructions prior returning this item to the store or sending back to:
Alton Industry Ltd. Group
1031North Raddant Rd
Batavia, Illinois 60510
We will inspect the product and contact you within 72 hours to give you the results of
our inspection. We reserve the right to repair or replace the product at our discretion.
However, we may replace the product with one of similar but not exact features.
Parts and Service Information available callAlton Industry at 1-888-899-0146.
This warranty gives you specific legal rights. You may have other rights
which vary from state to state.
9
