Alu Rehab Netti 4U comfort CE PLUS User manual

Netti 4U Comfort CE/CES PLUS
USER MANUAL
This product conforms to 93/42/EEC for medical products.

2
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
CONTENTS
1. INTRODUCTION 4
1.1 Areas of use/indications for Netti 4U comfort|CE/CES PLUS 5
1.2 Contraindications 5
1.3 Quality and durability 5
1.4 Environment and waste disposal 5
1.5 Information for re-use 6
1.6 About this manual 6
1.7 Vital measures 7
2. QUICK REFERENCE 8
3. DESCRIPTION 9
4. FEATURES OF NETTI 4U COMFORT|CE/CES PLUS 10
5. ACCESSORIES 11
5.1 Assembly of Hip-Belt 13
5.2 Mounting of H-belt bar 13
6. ASSEMBLY AND ADJUSTMENT 14
6.1 Unpacking 14
6.2 Main wheel 14
6.3 Front castors 14

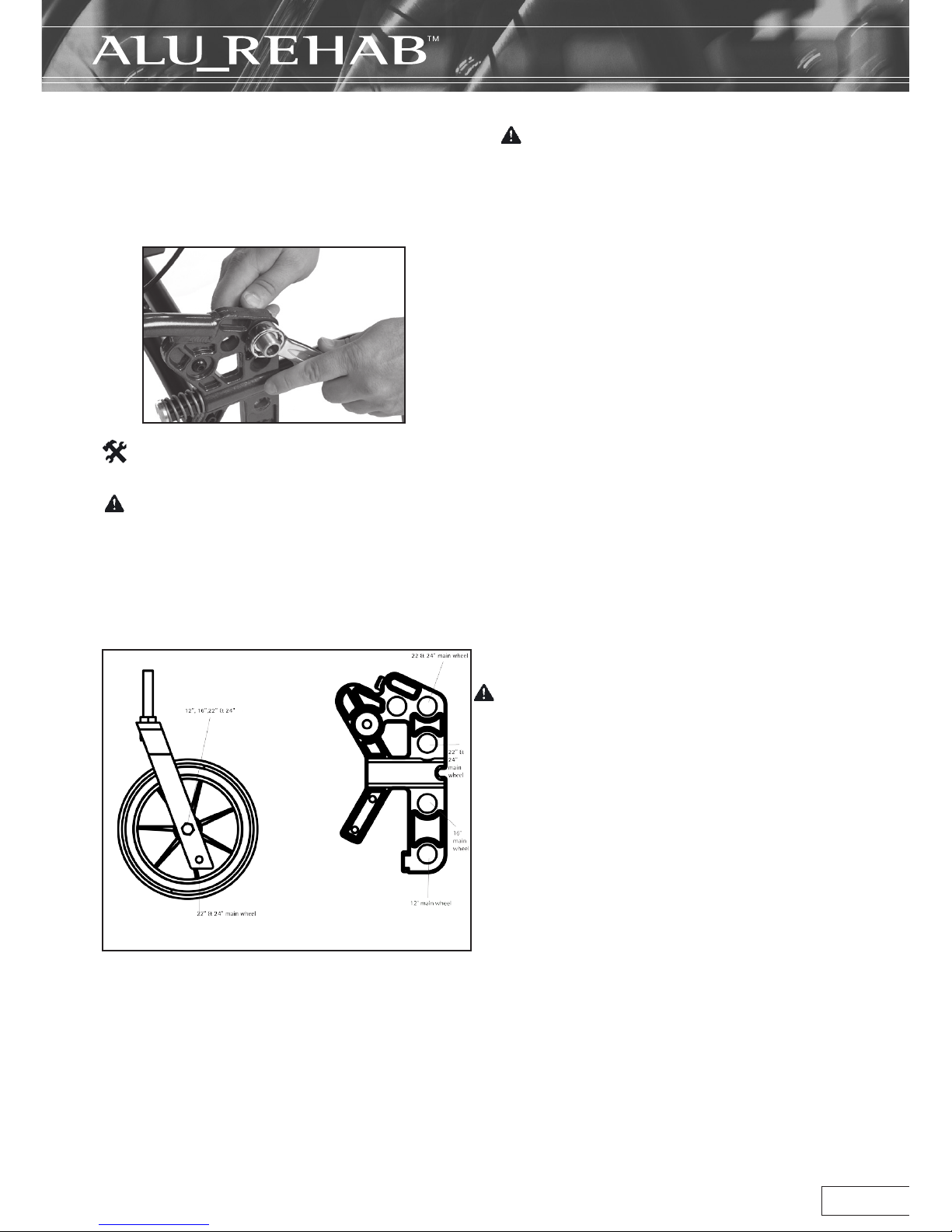

6.4 Seat height adjustment 14
6.5 Back rest 16
6.6 Backrest cushions 17
6.7 Seat depth adjustment 17
6.8 Anti tip 17
6.9 Seat cushion 18
6.10 Foot support 18
6.11 Head support 21
6.12 Arm support 22
6.13 Adjusting the brakes 23
6.14 Seat angle/tilt 25
6.15 Back rest angle 25

3
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
7. MANOEUVRING THE WHEELCHAIR 26
7.1 General about driving and parking 26
7.2 Driving techniques - Step up 26
7.3 Driving techniques - Step down 26
7.4 Driving techniques - Slope 27
7.5 Driving techniques - Up stairs 27
7.6 Driving techniques - Down stairs 28
7.7 Transfer 28
7.8 Lifting the wheelchair 29
7.9 Push rim 29
8. TRANSPORT 30
8.1 Folding for transport 30
8.2 Transporting in car 30
8.3 Travelling on public transport 30
9. MAINTENANCE 31
9.1 Maintenance instructions 31
9.2 Cleaning and washing instructions 31
10. TABLE OF VITAL MEASURES 33
11. TROUBLESHOOTING 34
12.TESTS & WARRANTY 35
12.1 Tests 35
12.2 Guarantee 35
12.3 Claim 35
12.4 Spare part guarantee 36
12.5 Special adjustment/adaptation 36
12.6 Combination with other products 36
12.7 Service and repair 36
13.MEASURES & WEIGHT 37

4
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
1. INTRODUCTION
Netti 4U comfort|CE/CES PLUS is a comfort
wheelchair meant for both indoor and out-
door use. It is tested to DIN EN 12183:2009.
The tests were carried out by TÜV SÜD Product
Service GmbH in German
In Alu Rehab we believe that wheelchairs
should be chosen based on a thorough
assessment focusing on the needs of the
user and demands from the environment.
Therefore it is important to know about
the possibilities and restrictions of the
wheelchair. Netti 4U comfort|CE/CES PLUS is a
wheelchair designed for users with the
need for comfort and relief. The combi-
nation between the seating system and the
ergonomical solutions in the frame construction,
oers many possibilities for adaptation and
adjustments.
The wheelchair is constructed for indoor and
outdoor use, and offers the possibility to
vary the sitting position from activity to
rest using tilt and recline functions.
Max user weight: 135 kg.
When mounting accessories such as
power kit etc, the weight of the
accessories must be subtracted from the
max user weight.
Specifications varies between
countries.

5
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
1.1 Areas of use/indications
Netti 4U comfort|CE/CES
PLUS
Netti 4U comfort|CE/CES PLUS is a multi-
function wheelchair for partially or fully
immobile persons with physical and/or mental
disabilities. These disabilities may have multiple
causes. Netti 4U comfort|CE/CES PLUS has an
adjustable seat and back angle, thus facilitating
for the user change of position, mobilisation or
posture correction (stabilisation), wherever the
following functional impediments with their
multiple possible causes are present:
• limited or lacking mobility
• limited or lacking muscle power
• limited movement range
• lacking or limited trunk and body stability
• hemiplegia
• rheumatic-type disorders
• craniocerebral injuries
• amputations
• other neurological or geriatric disorders.
1.2 Contraindications
Netti 4U comfort|CE/CES PLUS is not suited
for persons with a strongly enhanced muscular
spasticity. In this case we recommend the
Netti III, which offers a version with reinforced
frame and leg rests for this particular need.
Ignoring this advice could in unfavourable
circumstances lead to the deformation or
fracture of metal parts in the area of the back
tube, the leg rests or the arm rests
1.3 Quality and durability
The Netti 4U comfort|CE/CES PLUS
wheelchair is tested at TÜV SÜD Product
Service GmbH in Germany, following the
European Standard DIN EN 12183:2009.
As manufacturer, Alu Rehab A.S evaluates
the test to be equal to 5-6 years of
normal use of the chair. The disability
of the user as well as the level of
maintenance done foremost decides the
durability of the wheelchair. Thus, the
durability will vary depending on these
two factors.
This product conforms to SFS 1993:584
Lagen om medicintekniska produkter
This product conforms to LVFS 2003:11
Läkemedelsverkets föreskrifter om
medicintekniska produkter, klass I
1.4 The environment
and waste
disposal
Alu Rehab and its suppliers
wish to protect the environment.
This means:
• That we avoid using
environmentally harmful
substances and processes to the
greatest extent possible.
• That Alu Rehab’s products are
ensured a long service life and a high
degree of flexibility - to benefit the
environment and economy.
• That all packaging can be recycled.
• That the wheelchair was designed to
be separated into its component
materials - to make recycling easier.
Contact your local recycling agent
to get correct information how to
handle in you area.

6
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
1.5 Information for re-use
All products from Alu Rehab are designed
to give years of maintenance-free service.
All products can be adapted for re-use
by an authorised dealer. In order to
guarantee performance and safety, Alu
Rehab recommends the following tests
prior to any re-use.
Please examine the following components
for function, integrity etc. and replace
parts as necessary:
• Wheels (tyre tread)
• Wheelchair frame
• Cushions
• Hubs
• Brake function
• Headset bearings: test for wear
lubrication
• Directional stability of wheels
• Bearings
Please also note the content of chapter
9.2 Cleaning and washing
Anti-tip
Correctly fitted, the anti-tip will secure
the chair from tipping backwards. We
strongly recommend use of the anti-tips.
1.6 About this manual
In order to avoid damages while using the
Netti 4U comfort|CE/CES PLUS wheelchair,
please read this manual carefully before
starting to use the chair.
Symbol of forbidden actions.
No warranty can be claimed when-
ever these actions are implemented.
Symbol of warning.
Whenever this symbol is used,
caution has to be taken.
Symbol for
important
information.
Symbol for useful
tips.
Symbol for tools.

7
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013

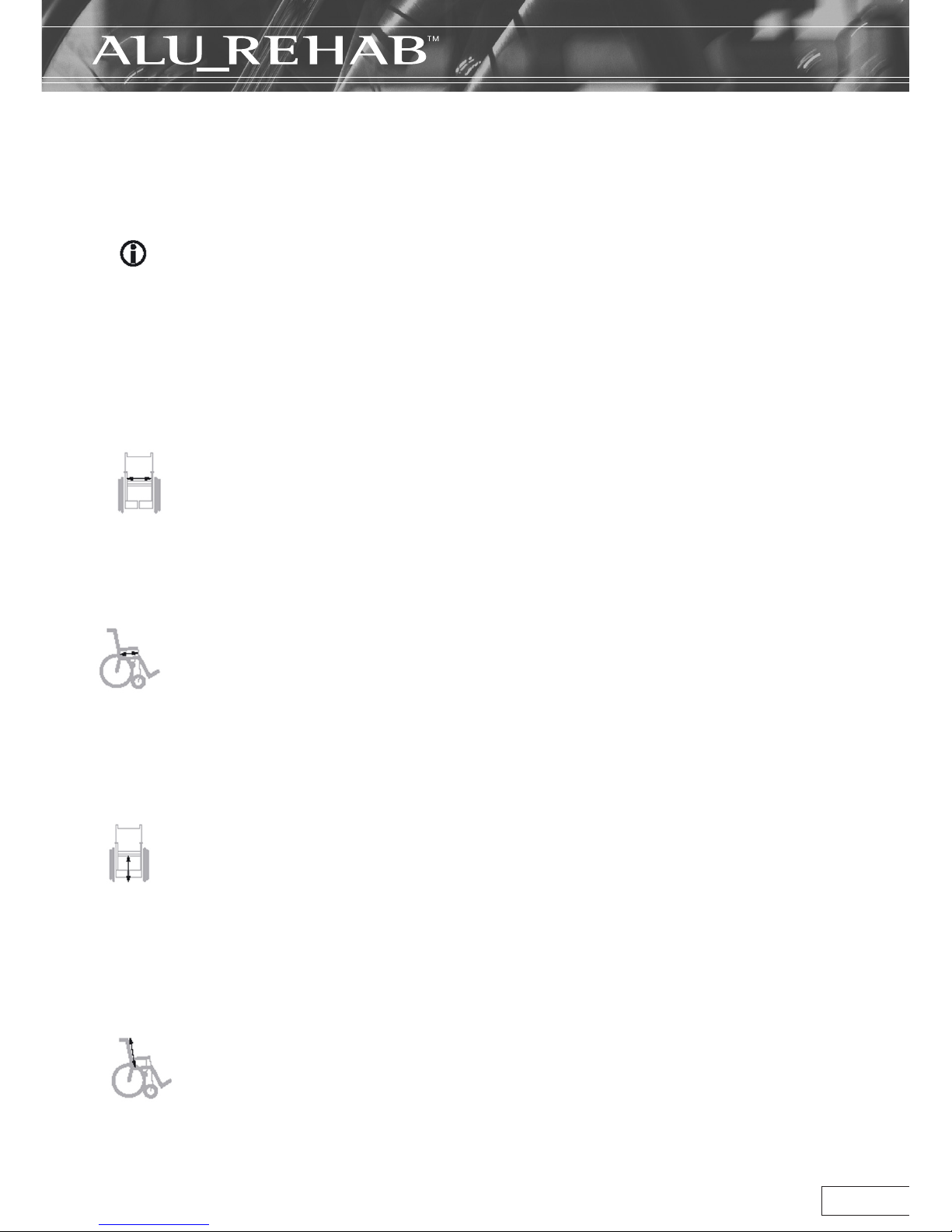

1.7 Vital measures
Netti 4U comfort|CE/CES PLUS is a comfort
wheelchair designed for both outdoor and
indoor use.
Specifications varies between
countries.
Total weight: 28,5 Kg
(450 mm width chair)
Seat width:
350, 400, 450, 500 mm
Seat depth:
(From back rest cushion to front of seat
plate)
425, 450, 475 and 500mm
375, 420, 425 and 450mm
Seat height:
(From floor to top seat plate using 24” main
wheels in upper hole position).
465 mm*
*By changing position of main wheels, it is
possible to achieve seat height of 500 mm.
Backrest height:
500 mm*
*Using back rest extender
gives 600 mm

8
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
2. QUICK REFERENCE
The content of this page is a summary
of the whole manual. It gives a brief
introduction to the use and care of the
Netti 4U comfort|CE/CES PLUS wheelchair.
The quick reference is not a replacement
for the manual, only a reminder/check
list.
• Unpack the wheelchair (Chapter 6.1)
• Mount the main wheels (Chapter 6.2)
• Mount the front castors (Chapter 6.3)
• Put the back rest back, and mount the
recline gas strut to the back rest using the
locking bolt. (Chapter 6.5)
• Mount the seat cushion (Chapter 6.9)
• Mount the foot supports (Chapter 6.10)
• Mount the head support (Chapter 6.11)
• Set anti-tip in active position (Chapter 6.7)
• Mount accessory. (See chapter 5 for more
information. Mounting descriptions will
accompany the accessory.)
For troubleshooting, see chapter 10.
For mounting and adjustments see
chapter 6.
Drive carefully!
Be aware that friction against push
rims can create a warm surface.
Salt water can increase risk of
corrosion. Further precautions related
to environmental conditions not
needed.
When the chair is tilted rearwards,
the anti tips and brakes should
always be in use.
Be sure to lock all handles properly.
The anti-tips should always be used
for the safety of the user.
Surface temperature of metal parts in
frame structure might increase when
exposed to direct sunlight.
Never stand on the foot supports due
to risk of tipping forwards.
Never lift the wheelchair by the foot
supports or arm supports.
Product configuration may vary
between dierent countries.
For visually impaired people, manuals
and catalogues can be downloaded
at www.alurehab.com
If in doubt - contact your dealer!

9
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013

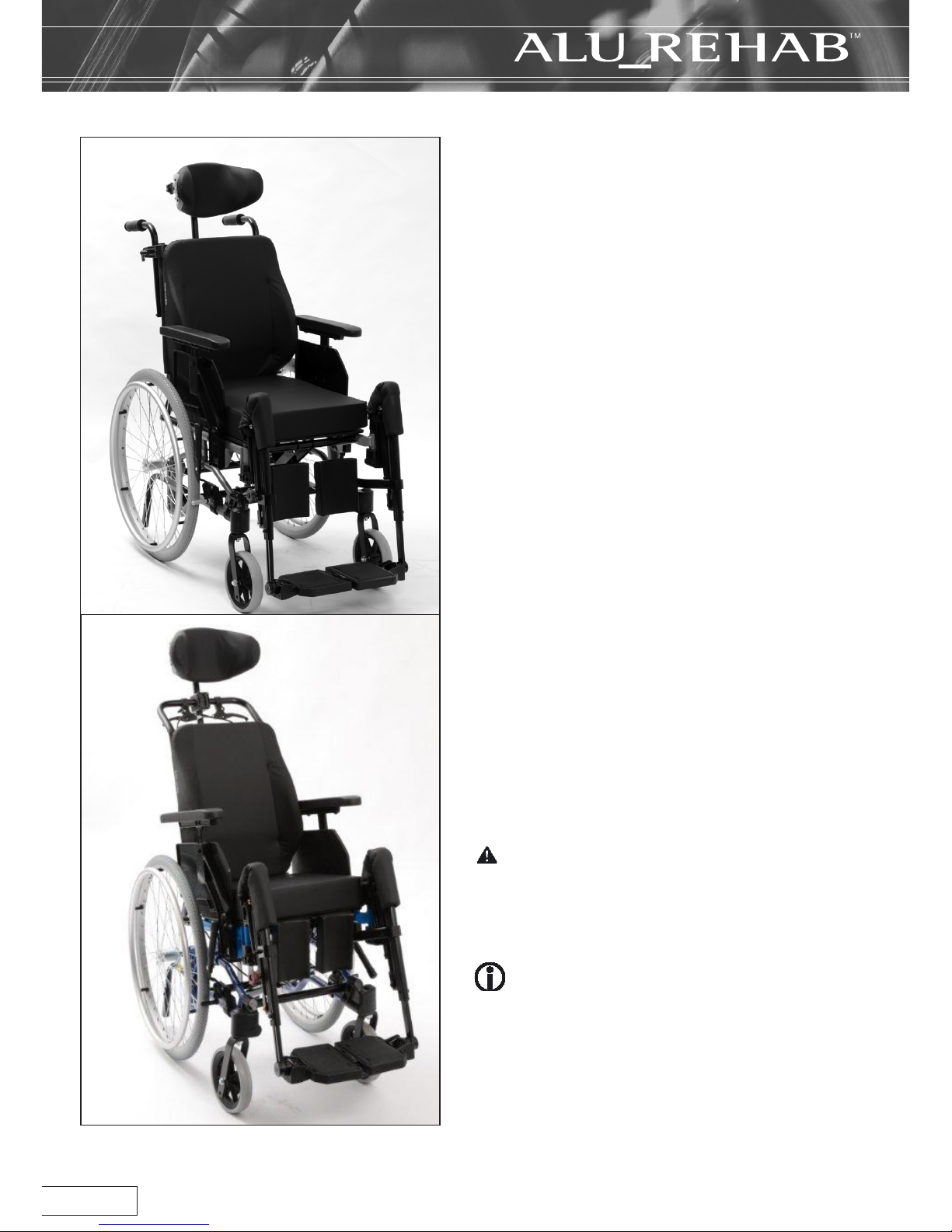

3. DESCRIPTION
Standard version*
1. Head support
2. Angle and depth adjustment
for head support
3. Head support bracket
4. Push bow
5. Release handle
6. Main wheel
7. Anti tip
8. Brakes
9. Front castors
10. Front fork
11. Foot plate
12. Calf support
13. Calf support bracket
14. Angle adjustable foot support
15. Seat cushion
16. Arm support with pad
17. Back cushion
18. Push bow shaped tube
19. Release handle Tilt
20. Release handle Back
If any of these parts are
missing, please contact your
dealer.
* Product configuration may vary
between dierent countries.

10
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
Standard
SEAT
• Pressure distributive cushion
• Tilt -5° to +20°
• Adjustable depth of 7.5 cm
WHEELS
• 24 x 1 3/8” puncture proof main wheels
with quick release axle
• Push rim: Aluminium
• 7” Puncture proof front castors with
quick release axle
* Standard main wheels may vary
between countries.
BACKREST
• Angle: 90° to 135°
• Height: 50 cm
• Netti|Uno Back
• Push handles or
• Push bow
FOOT SUPPORT
• Universal or Angle adjustable
foot support
• Height- and angle adjustable foot
plates
• Removable
ARM SUPPORT
• Height adjustable
• Removable
HEAD SUPPORT
• Height, depth and angle adjustable
• Removable

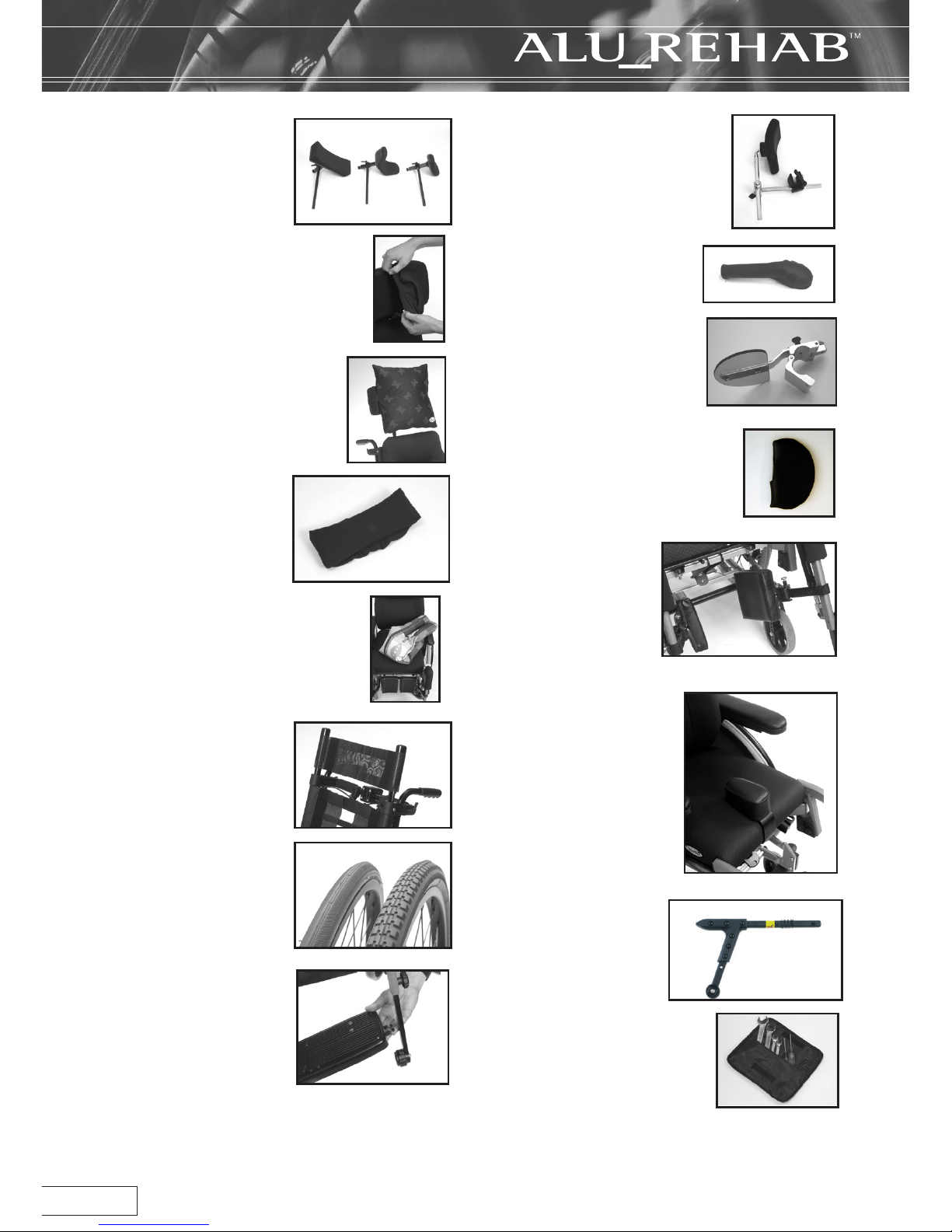

Accessories
SEAT
• Pressure distributive cushions
WHEELS
• Puncture proof PU wheels 12”, 16” and 24x1”
with drumbrake (See chapter 5)
• Puncture proof PU 22 x 1” & 24 x 1”
• 6” & 7” puncture proof front castors with
quick release axle
• Pneumatic wheels
BACKREST
• Back rest extender (See chapter 5)
• Lumbar support and wedge (See chapter 5)
• Dierent backrest cushions
FOOT SUPPORT
•Amputation support
•Upholstery for foot supports
ARM SUPPORT
• Hemi cushions (See chapter 5)
HEAD SUPPORT
• Dierent head support models
(See chapter 5)
4. FEATURES OF NETTI 4U comfort|CE/CES PLUS

11
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
5. Accessories
Belts
Several variants:
Hip belts with or
without uphols-
tery and with
plastic lock or
car lock. (See chapter 5.1 for mounting)
Trays
2 models:
Swing-able and
lockable
Upholstery for tray
Offers a soft base for
the arm resting on the
tray.
Wedge
Increases side support.
Lumbar support
Increases lumbar
curvature.
Vital Base Integral
Pelvic stabilizer.
Seat Cushions
Many to choose from.
Please contact your
dealer.
Arm support height
adjustment by star
wheel
Backrest Cushions
Many to choose from.
Please contact your
dealer.
Spoke protectors
For 20”, 22” and 24”.
Black or transparent is
optional.
Foot box
Upholstered
Foot supports:
Angle adjustable
Universal
Adjustable in fixed positions
between 33° to 105° using an
adjustment wheel.
Amputation support
Upholstery for
calf support bracket
Reduces pressure.
Arm pad depth
adjustment
by operating screw
wheels

12
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
Head support
Support C Large.
Support A Side support
Support B Small
Hygiene cover
Protects the core of the
head support.
Head cushion
40x40 cm cushion with
Kospoflex filling and rubber
band.
Head cushion Comfort
Cushion with Kospoflex
filling to pull onto
head rest.
Hemi cushion
An accommodating
support for hemiplegic
users.
Backrest extender
12 cm extender.
To be used together with
60 cm back rest cushion.
Main wheels
12”, 16” and
24” with drumbrake
Foot board with lock
The foot support can
be swung to the side
like standard foot
supports.
Side support Correction
Meant for correction of
bad postures in the
upper trunk.
Pad for side support
Correction
Side support Stable
Meant for users with de-
creased stability of the
upper trunk. For otimal
function use together
with Stable cushion.
Pad for side support Stable
Calf pad hinged
The user doesn’t
have to lift the leg
when mounting or
dismounting the
foot supports.
Abduction block
The block reduces
abduction.
Small: 80 mm
width
Medium: 120 mm
width
Large: 140 mm
width
Anti tip
Anti tip with
tramp pedal
Tool set

13
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
5.1 Assembling of hip belt
Illustration 5.1.1
• Pull the belt through the hole in the hip
belt bracket.
Ill. 5.1.1
Illustration 5.1.2
• Thread the belt back through the belt
clamp.
Ill. 5.1.2
Illustration 5.1.3
• Fix the hip belt bracket to the back rest
hinge in the rearmost hole, using the
enclosed screws and nuts.
Ill. 5.1.3
2pcs 13 mm open-end spanner.
5.2 Mounting of H-Belt bar
Picture 1.
• Remove the push handles, and pull the
H-belt attachment bar onto the push
handles from the lower end.
Picture1.
• Fix the push handles in correct position
and lock firmly. Then fix the bar at the
right position/height. The height should
be level with the shoulders of the user.
Picture 2.
Picture 3.
• Thread the belt through the rolls and lock
the belt by pulling the belt through the
belt clamp. Adjust to the requested
length of belt.
Picture 3.

14
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
6. ASSEMBLY AND
ADJUSTMENT
6.1 Unpacking
1. Unpack all the parts, and check that
everything is there according to the
packing list.
2. Mount the main wheels (Chapter 6.2)
3. Mount the front castors (Chapter 6.3)
4. Check and adjust the seat dept (Chap. 6.7)
5. Mount the back rest (Chapter 6.5)
6. Mount the seat cushion (Chapter 6.9)
7. Mount the foot supports (Chapter 6.10)
8. Mount the head support (Chapter 6.11)
9. Mount any accessories (Chapter 5).
Weight of components (45 cm width chair):
Main wheels: 1,9 kg each
Anti tip: 0,1 kg each
Front castors: 0,8 kg each
Foot support angle adj.: 2 kg each
Seat cushion: App. 1 kg
Head support A: 1 kg
Head support C: 0,9 kg

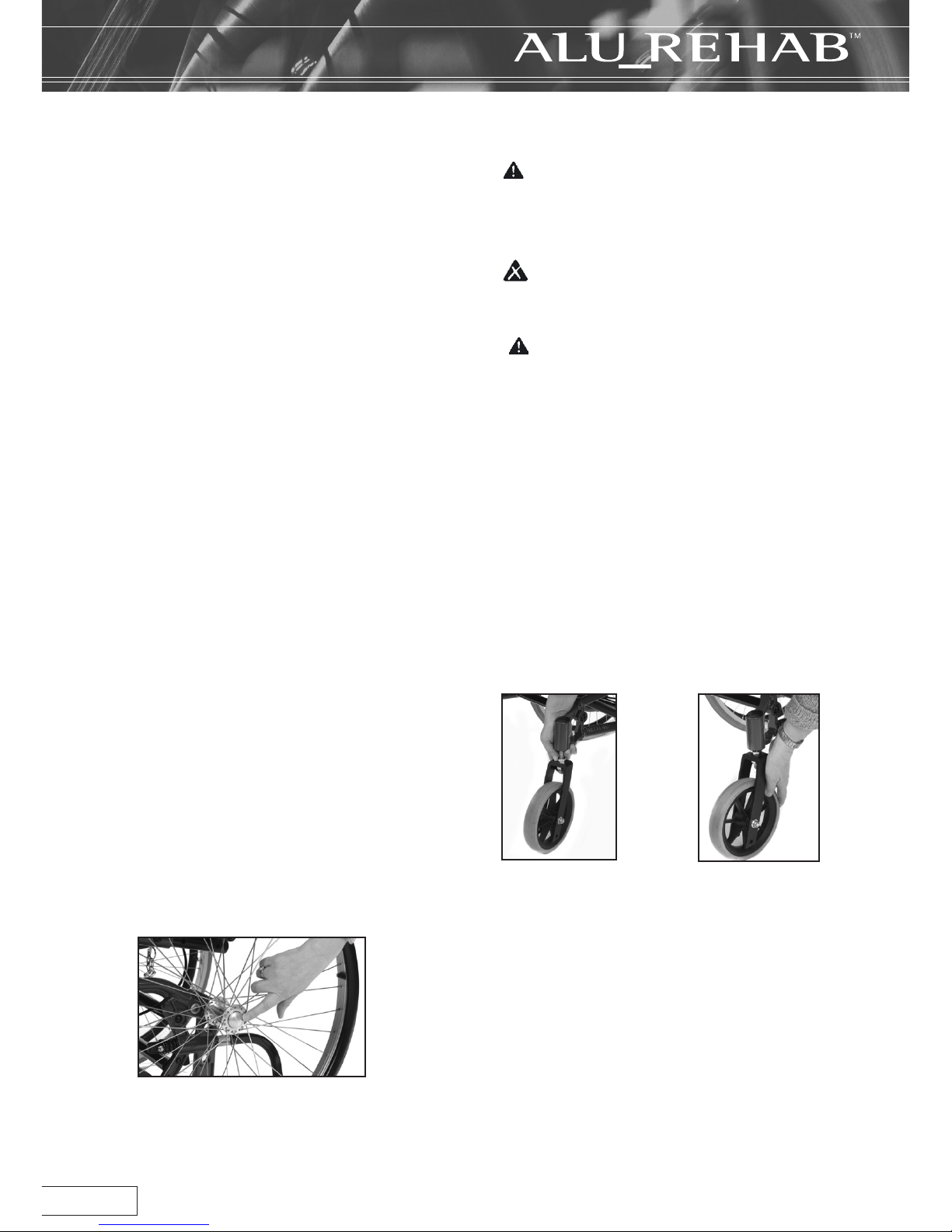

6.2 Main wheel
To mount the main wheel remove the
quick release bolt from the hub bushing,
lead it through the centre of the main wheel
and into the hub bushing while pressing the
knob in center.
To check that the main wheel is
properly attached to the hub, remove
the finger from the central knob and
pull at the main wheel.
If the main wheel doesn’t lock, don’t
use the wheelchair but contact
your dealer.
Sand and sea water (salt used for
gritting in the winter) can damage
the bearings of the main wheels and
front castors. Clean the wheelchair
thoroughly after exposure
6.3 Front castors
To take o
• Press the release button under the front
fork.
To mount
• Lead the quick release axle into the
bearing house. Pull the fork slightly to
ensure that the fork is fully locked.
6.4. Seat height adjustment
The seat height at the rear depends on:
• Size of main wheel.
• Position of main wheel.
• Using 24” main wheels in the upper hole,
the seat height is 46.5 cm from the floor
to the seating plate. Using 24” main
wheels in the next upper position, the
height will measure 50 cm to the seating
plate.

15
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
If it is required to change position of the main
wheels or to change to a different size of main
wheels, unfix the hub bushing including washer
and nut. Remove the hub bushing and mount
it in the required position.
2 pcs 24 mm open-end spanners
Make sure that the nut on inside of
frame totally wreathes the wheel
bushing.
Main wheels and front castors should be
mounted according to the description below.
When the seat height is changed ensure
that the front castors are placed so
that the lower frame tube is parallel
with the ground.
Check the position of the anti tip
and readjust the brakes after moun-
ting the main wheels or changing the
main wheel position.

16
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
6.5 Backrest
• To mount the gas spring, lift the push
bow with one hand, and lead the gas
spring locking head into the plastic
bracket with the other (Ill. 6.5.1).
• Check that the hole in the locking head is
parallel with the open holes in the plastic
bracket.
Ill. 6.5.1
• Lock the backrest by pushing the locking
bolt through the plastic bracket and
gas spring locking head (Ill. 6.5.2.)
Ill.
6.5.2
To check that the back rest is
locked, grip the push bow and
press the back rest forward.
If the back rest falls forward -
repeat the locking procedure
or contact your local dealer.
• The wheelchair is set to a standard seat
depth, and the plastic bracket has 4 holes
of which three are temporarily blocked
with plastic plugs (Ill. 6.5.3)
Ill. 6.5.3.
• The back rest hinge has 4 holes (Ill. 6.5.4)
The hole positions are in accordance with
the holes in the plastic bracket. If the
locking head of the gas spring is
mounted in the inner hole of the plastic
bracket, the back rest hinge should also
be mounted in the inner hole etc.
Ill. 6.5.4

17
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
6.7 Seat depth adjustment
• If the seat depth should be adjusted at
the rear, loosen the locking bolt in the
plastic bracket (Ill. 6.5.2.).
• Find the required position for the locking
head in the plastic bracket, and remove
the plastic plug from this hole.
• Lock the back rest by pushing the locking
bolt through the plastic bracket and
the gas spring locking head.
• After changing the hole position in the
plastic bracket, the hole position in the
back rest hinge must be changed into the
parallel position.
Check that the hole in the back rest
hinge and the plastic bracket are
mounted into the same hole position.
6 mm Allen-key
6.8 Anti tip
The anti tips should be mounted according to
the mounting description which is enclosed
with the chair upon arrival.
Use of the anti tip
• Pull the anti tip out
• Turn it up or down 180°.
• Lock it in position
6.6 Backrest cushions
Backrest cushions are fixed and adjusted
onto the wheelchair using the velcro.
The backrest comes with a one piece velcro
back as standard.
Backrest cushions are attached with a
velcro system.
It is imperative to correctly set-up the
cushion in order to ensure good
seating comfort
The cushion covers are washable and
thereby reuseable. Follow the
instruction on the back of the
cushion for correct maintenance and
washing of the cushion.

18
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013

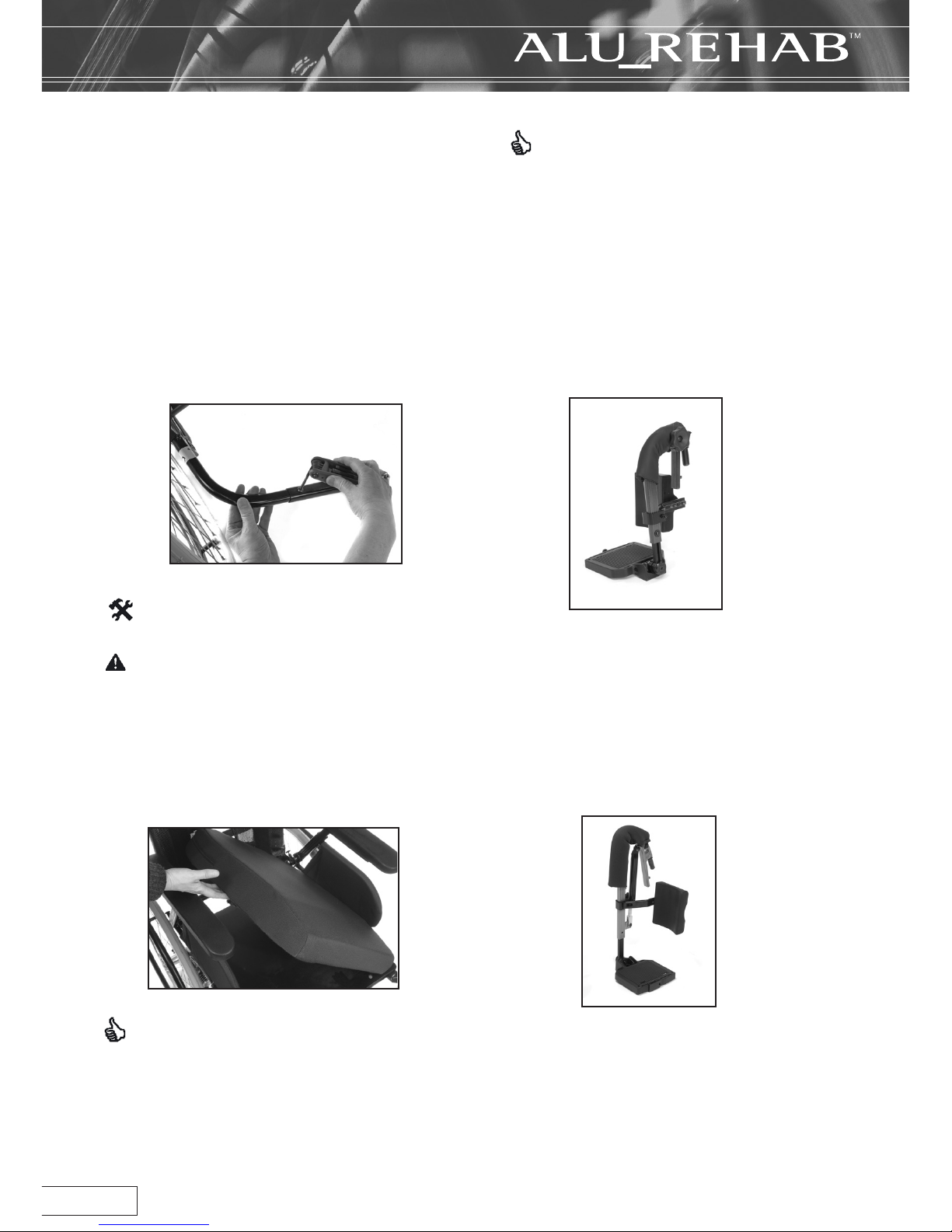

Adjusting the height of the anti tip
The anti tip can be adjusted in to fixed
positions. The short position is for 12” & 16”
main wheels and 24” in upper position. The
long position is for 24” main wheels in lower
position.
• Unfix the screw in the adjustable extension
piece as shown in picture below.
• This extension piece has two holes. Place
it in the required position and tighten the
screw.
5 mm Allen key
The anti tip should always be used for
the safety of the user.
6.9 Seat cushion
The seat cushion is fixed on the wheelchair
with velcro.
It is very important to place the cushion
in the wheelchair before use.
The cushion cover is washable and
reusable. Follow the instruction
on the back of the cushion for
correct maintance and washing of
the cushion.
6.10 Foot supports
Netti 4U comfort |CE Plus can be delivered
with either Universal or Angle Adjustable
foot support.
Universal foot support
The Universal foot support is fixed with
the possibility of angle adjustment. It is
swingable and removable. The foot plates
are foldable and can be angled in fixed
positions. Delivered with height and depth
adjustable calf support.
Angle adjustable foot support
The angle adjustable foot support is freely
adjustable in angle. It is swingable and
removeable. The foot plates are foldable

19
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
and can be angles in fixed positions.
Delivered with height and depth adjustable
calf support.
Mounting of foot support
• Mount the foot support by holding onto
the blue bar bending down towards the
footplate. Hold it in an angle of app. 20°
to the side frame. Put it into the black
plastic lock attached to the extractable
adjustment bar. Swing it in and push
down (Ill. 6.9.1.)
Ill. 6.9.1
Adjusting the angle - Universal foot
support
• The angle of the foot support can be
adjusted using the star wheel in center
of the hinge point (Ill. 6.9.2).
• Loosening this star wheel enables you to
adjust the foot support to the required
angle.
• Fix the angle by tightening the star
screw.
Ill. 6.9.2
Adjusting the angle - Angle adjustable
foot support
• The angle of the foot support can be
adjusted using the star wheel in Ill. 6.9.3.
• Loosening this star wheel enables you to
adjust the foot support to the required
angle.
• Fix the angle by tightening the star
wheel.
Ill. 6.9.3
Squeeze hazard. When adjusting foot
supports in angle, do not put the
fingers in the adjusting mechanism
between the moving parts.
Ill. 6.9.4
Adjusting the length of the foot support
• Untighten the screw (A ill. next page)
to make the adjustment tube move
• Adjust the foot support in required
position and fix the screw properly.

20
Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013Language: English Model: Netti 4U comfort|CE/CES PLUS Version: December 2013
Ill.6.9.5
Adjusting the angle of the footplate
• The foot plates can be adjusted in angle.
• Untighten the screw (B) and adjust the
foot plate to the required angle. Fix the
screw properly.
5 mm Allen key
Ill. 6.9.6
Locking and releasing the foot plates
• The foot plates come with a locking bolt
which makes the plates stronger
• To lock the foot plates pull the plastic
lock on the right foot plate and place the
lock over the bolt on the left foot plate.
• To release the foot plate pull the plastic
lock and lift the right foot plate up.
For outdoor use, there should be a
clearance of 4-5 cm between the
foot plate and the ground.
Ill. 6.9.7
While making the adjustment there
must be no load on the foot plates.
Removing the foot support:
• Pull the plastic lock on the foot plate
rearwards, so that the pin is released,
and the foot plate can be folded up.
• Raise the foot support a few degrees.
• Release the foot support by pulling it
slightly straight up.
• Swing the foot support outwards.
• Lift and remove the foot support. (ill.
6.9.8.).
Ill. 6.9.8
