1. INTRODUCTION
Netti Mini is a comfort wheelchair for
children meant for both indoor and
outdoor use. It is tested to DIN EN
12183:2014. The tests were carried out
by TÜV SÜD Product Service GmbH in
Germany. Netti Mini is crash tested and
approved for being used as a seat in a
vehicle according to ISO 7176-19:2008 by
Millbrook Proving Ground, Bedford UK.
In Alu Rehab we believe that wheelchairs
should be chosen based on a thorough
assessment focusing on the needs of the
user and demands from environment.
Children grow quickly and for that
reason we have created Netti Mini with
many adjustment and adaptation. It is
a wheelchair that is easy to adjust over
time as the child grows, providing an
ergonomic sitting environment for the
child.
Max user weight: 90 kg.
Max user weight when used as
seat in a vehicle: 75 kg
When mounting accessories such as
power kit etc, the weight of the
accessories must be subtracted from
the max user weight.
Specifications varies between
countries

5
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
1.1 AREAS OF USE/INDICATIONS
FOR NETTI MINI
Netti Mini is a multi-function wheelchair
for partially or fully immobile persons with
physical and/or mental disabilities. These
disabilities may have multiple causes. Netti
Mini has an adjustable seat and back angle,
thus facilitating for the user change of
position, mobilisation or posture correction
(stabilisation), wherever the following
functional impediments with their multiple
possible causes are present:
• limited or lacking mobility
• limited or lacking muscle power
• limited movement range
• lacking or limited trunk and body
stability
• craniocerebral injuries
• other neurological disorders.
If our standard solutions does not cover
you needs, please contact our customer
service for Netti customized solutions.
1.2 CONTRA INDICATIONS
With strongly muscular spasticity we
recommend the Netti Dynamic S which
oers a frame construction that follows the
movement pattern of the user.
Ignoring this advice could in unfavourable
circumstances lead to the deformation or
fracture of metal parts in the area of the
back tube, the leg rests or the arm rests.
1.3 QUALITY AND DURABILITY
The Netti Mini wheelchair is tested at TÜV
SÜD Product Service GmbH in Germany,
following the European Standard DIN EN
12183:2014. As manufacturer, Alu Rehab A.S
evaluates the test to be equal to 5-6 years of
normal use of the chair. The disability of the
usage as well as the level of maintenance
done foremost decides the durability of the
wheelchair. Thus, the durability will vary
depending on these two factors.
1.4 THE ENVIRONMENT AND
WASTE DISPOSAL
Alu Rehab and its suppliers wish to
protect the environment.
This means:
• That we avoid using environmentally
harmful substances and processes
to the greatest extent possible.
• That Alu Rehab’s products are
ensured a long service life and a high
degree of flexibility - to benefit the
environment and economy.
• That all packaging can be recycled.
• That the wheelchair was designed
to be separated into its component
materials - to make recycling easier.
Contact your local recycling agent to
get correct information how to handle in
your area.
TEMPERATURE RANGE
Netti Mini wheelchair is designed for
temperature range of -10°C to +40°C

6My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
1.6 ABOUT THIS MANUAL
In order to avoid damages while using
the Netti Mini wheelchair, please read this
manual carefully before starting to use the
chair.
Symbol of forbidden actions.
No warranty can be claimed
whenever these actions are
implemented.
Symbol of warning.
Whenever this symbol is used,
caution has to be taken.
Symbol for
important
information.
Symbol for
useful tips.
Symbol for tools.
7
°Symbol for:
Max safe slope for hand brake.
Max.
135 kg
Symbol for: Max user weight.
Please note that this manual is updated
according to the year and date stated on
each page.
User Manual on web
For enhanced readability ( advantageous
for users with visibility challenges) please
find our user manual om our web page:
www.My-Netti.com - manuals - user
manual Netti Mini.
Latest user manual updates, product
safety notes, addresses and other product
information like recalls etc. will be
published on our web page.
1.5 INFORMATION FOR RE-USE
All products from Alu Rehab are designed
to give years of maintenance-free service.
All products can be adapted for re-use by
an authorised dealer. In order to guarantee
performance and safety, Alu Rehab
recommends the following tests prior to
any re-use.
Please examine the following components
for function, integrity etc. and replace
parts if necessary:
• Wheels (tyre tread)
• Wheelchair frame
• Front castors and quick release
• Hubs
• Brake function
• Directional stability of wheels
• Bearings: test for wear and
lubrication.
• Cushions
• Leg supports
• Arm supports
• Recline/tilt function
• Push bar / handles
• Anti tip
For hygienic reasons: please replace the
head support for a new user.
Please also note the contents of Section
10.2 Cleaning and care
ANTI-TIP
Correctly fitted, the anti-tip will secure the
chair from tipping backwards.
We strongly recommend the use of the
anti-tips.
90 kg

7
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
1.7 VITAL MEASURES
Netti Mini is a comfort wheelchair
designed for both outdoor and indoor
use.
Min. dimensions in table refer to seat
width 250 mm. Max dim refers to seat
width 350 mm.
Total weight:
26,5 - 27,2 - 27,9 Kg
dependent on seat widths.
Seat width:
measured between outside of frame tubes:
250, 300 & 350 mm
Seat depth:
From front of seat plate to chair back
hinge 315 - 375 mm
Seat height:
From oor to top seat plate using 22”
main wheels in upper hole position:
415 mm*
*By changing position of main wheels
and / or changing wheel dimensions, it is
possible to achieve seat height
340 mm to 470 mm.
Backrest height:
(Measured from seat plate to top back
cushion
400 mm
* Using back rest extender gives 100 mm
plus.
*** Least stable and most stable refers
to the positioning of the anti-tippers.
Always use anti-tippers driving uphill.
Tilt range 35°
Recline range 35°
Min stable / max stable refers to position
of anti-tippers.
* test was stopped by 15°
Specification min. max.
Overall length with leg
support and push bow 786 mm 798 mm
Overall width 506 mm 605 mm
Height without head rest 870 mm 870 mm
Folded length 730 mm 730 mm
Folded width 399 mm 499 mm
Folded height 513 mm 513 mm
Total mass ex all supports 24,4 kg 25,2 kg
Mass heaviest part -frame 17,2 kg 17,8 kg
Mass heaviest
component, leg support
2,3 kg 2,4 kg
Static stability uphill 0° 15°*
Static stability downhill 9° 15°*
Static stability sideways 0°* 15°*
Seat plane angle -7° 23°
Eective seat depth 315 mm 375 mm
Eective seat width 250 mm 350 mm
Seat surface height at
front
415 mm 445 mm
Backrest angle 87° 120°
Backrest height 400 mm 500 mm
Foot plate to seat
distance
240 mm 350 mm
Leg to seat surface angle 62° 158°
Arm support to seat
distance
200 mm 260 mm
Front location of arm
support structure 280 mm 325 mm
Push rim diameter - 22”
wheel
480 mm
Horizontal axle location -60 mm 60 mm
Parking brake - safe slope - 8°
Minimum turning radius 570 mm 580 mm
Measured without cushions
Specifications varies between
countries.

8My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
Drive carefully!
Be aware that friction against push-
rims can create a warm surface.
Salt water can increase risk of
corrosion. Further precautions related
to environmental conditions not
needed.
When the chair is tilted rearwards,
the anti tips and brakes must
always be in use.
Be sure to lock all handles properly.
The anti-tips should always be used
for the safety of the user.
Watch out for pinching danger when
folding and unfolding, tilting,
reclining and all other adjustment
movements.
Surface temperature of metal parts in
frame structure might increase when
exposed to direct sunlight.
Never stand on the foot plates due
to risk of tipping forwards.
Never lift the wheelchair by the leg
supports, arm supports or head support.
Product configuration may vary
between different countries.
For visually impaired people, manuals
and catalogues can be downloaded at
www.My-Netti.com
If in doubt - contact your dealer!
2. QUICK
REFERENCE
The content of this page is a summary
of the whole manual. It gives you a brief
introduction to the use and care of the
Netti III wheelchair.
The quick reference is not a
replacement for the manual, only a
reminder/check list.
• Unpack the wheelchair (Chapter 6.1)
• Mount the main wheels (Chapter 6.2)
• Mount the front castors (Chapter 6.4)
• Push the back rest back, and mount the
recline gas strut to the back rest using
the locking bolt. (Chapter 6.7)
• Mount the arm supports (Chapter 6.11)
• Mount the cushions (Chapter 6.12)
• Mount the leg supports (Chapter 6.14)
• Adjust the push handles (Chapter 6.16)
• Mount the head support (Chapter 6.15)
• Mount and adjust accessory, belts and
harnesses. (See chapter 5. for more
information. Mounting descriptions will
follow the accessory.)
Adjust the wheelchair to the user:
Adjust seat depth and eventually the
wheelchair balance, leg support height,
armrest height, head support height and
depth, chair back cushion height.
For troubleshooting, see chapter 10
For adjustments see chapters 6.
Announcements to product safety and
eventually product recalls will be published
on our home page
www.My-Netti.com

9
1
2 3
4
5 6
7 7
8
9
17
10
18
11
21
12 19
13 20
15
14 16
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11

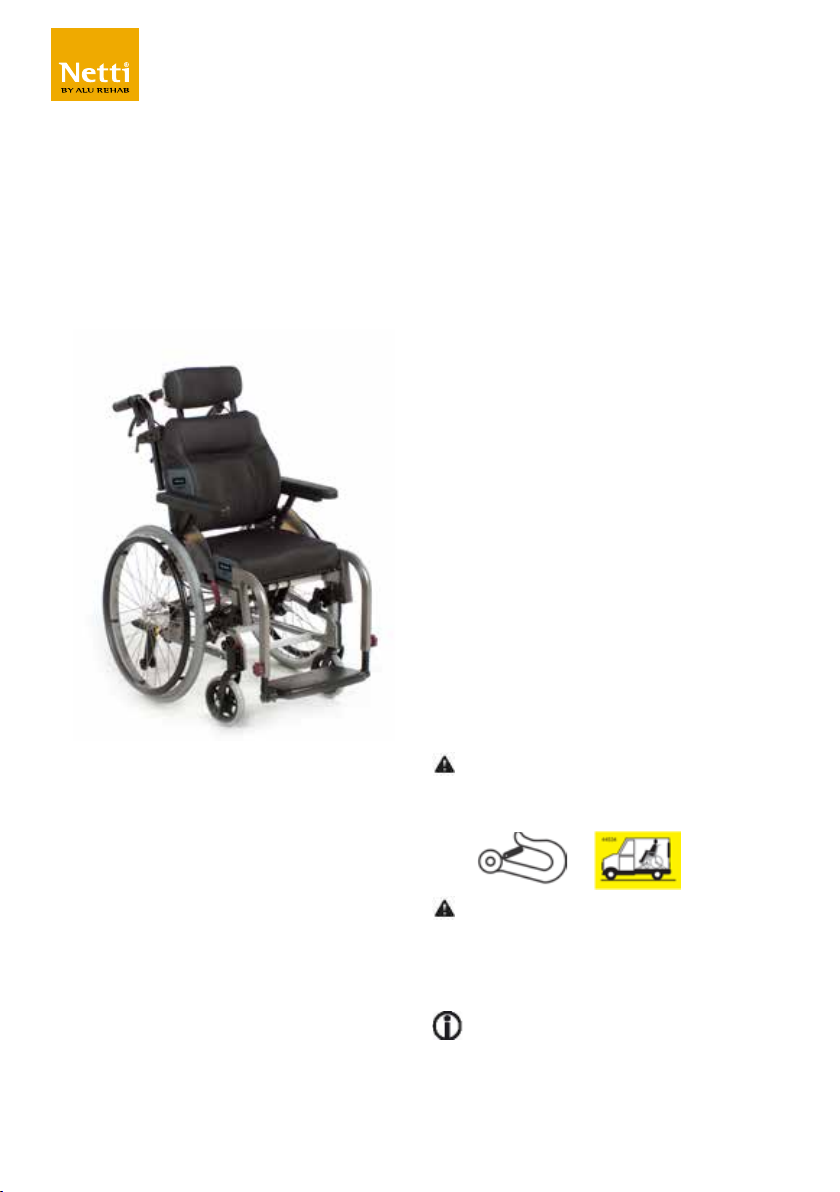

3. DESCRIPTION
1. Head support
2. Push handle
3. Handel for head support height
adjustment.
4. Head support bracket
5. Release handle for back angle
6. Back cushion
7 Arm support with upholstery
8. Cloth protector
9. Main wheel
10. Quick release axle
11. Push ring
12. Anti tip
13. Front castor bearing house
14. Front fork
15. Quick release for front castor
16. Front castor
17. Seat cushion
18. Leg support
19. Leg support height
adjustment knob
20. Foot board
21. Brake
* Be aware that specifications may vary between countries.
If any of these parts are missing, please contact your dealer.
For complete information, please contact your dealer.

10
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
STANDARD
SEAT-
• Cushion with good pressure distributing
properties
• Tilt -7° to +23°
• Adjustable height 395 mm to 470 mm by
change of wheel size and position
• Adjustable depth of 100 mm
WHEELS*
• 22” x 1” Puncture proof main wheels with
quick release axle
• Push rim: Aluminium
• 6” Puncture proof front castors with
quick release axle
Standard main wheels may vary between
countries.
PUSH HANDLES
• height adjustable, swingable, removable.
BRAKES - Netti Mini - User brakes
ANTI-TIP
• Height and length adjustable - swingable
BACK REST
• Angle: 87° - 120°
• Height: 380 mm
• Back rest cushion with integrated lumbar
support and side support, height adjustable
LEG SUPPORT
• Angle adjustable with height adjustable
foot board
ARM SUPPORT
• Height adjustable and removable
• Depth adjustable pads
HEAD SUPPORT A-MINI
• Height, depth and angle adjustable
• Removable
OPTIONS /ACCESSORIES
• Trays & reading stand for trays
(See chapter 5)
• Hip belts and H belts (See chapter 5)
WHEELS
• Puncture proof wheels (See chapter 5)
• Wheels with drum brake (See chapter 5)
• Wheels with one hand drive (See chapter 5)
• Camber angle: 2° or 4°
• Pneumatic front castors (See chapter 5)
• Spoke protectors (See chapter 5)
• Push rims (See chapter 5)
BRAKES - Drum brakes
BACK REST
• Back rest extender (See chapter 5)
• Lumbar support and Wedge (See chapter 5)
• Back rest cushions - different models
LEG SUPPORT
• Angle adjustable leg support with calf
supports and foot plates
• Amputation support
• Knee and thigh support (See chapter 5)
ARM SUPPORT
• Different pads (See chapter 5)
HEAD SUPPORT
• Different models (See chapter 5)
4. FEATURES OF NETTI MINI

11
inf[email protected]m
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
Vital Base Integral
Pelvic stabilizer.
Seat Cushions
Many to choose from.
Please contact your
dealer.
Back rest Cushions
Many to choose from.
Please contact your
dealer.
Spoke protectors
For 20”, 22” and 24”.
Black or transparent is
optional.
Foot box
Upholstered
Leg supports:
Angle adjustable HD
Universal
Adjustable in xed positions
between 33° to 105° using an
adjustment wheel.
Amputation support
5. ACCESSORIES
The anytime updated complete accessory
program is found on our web page
www.My-Netti.com- order forms.

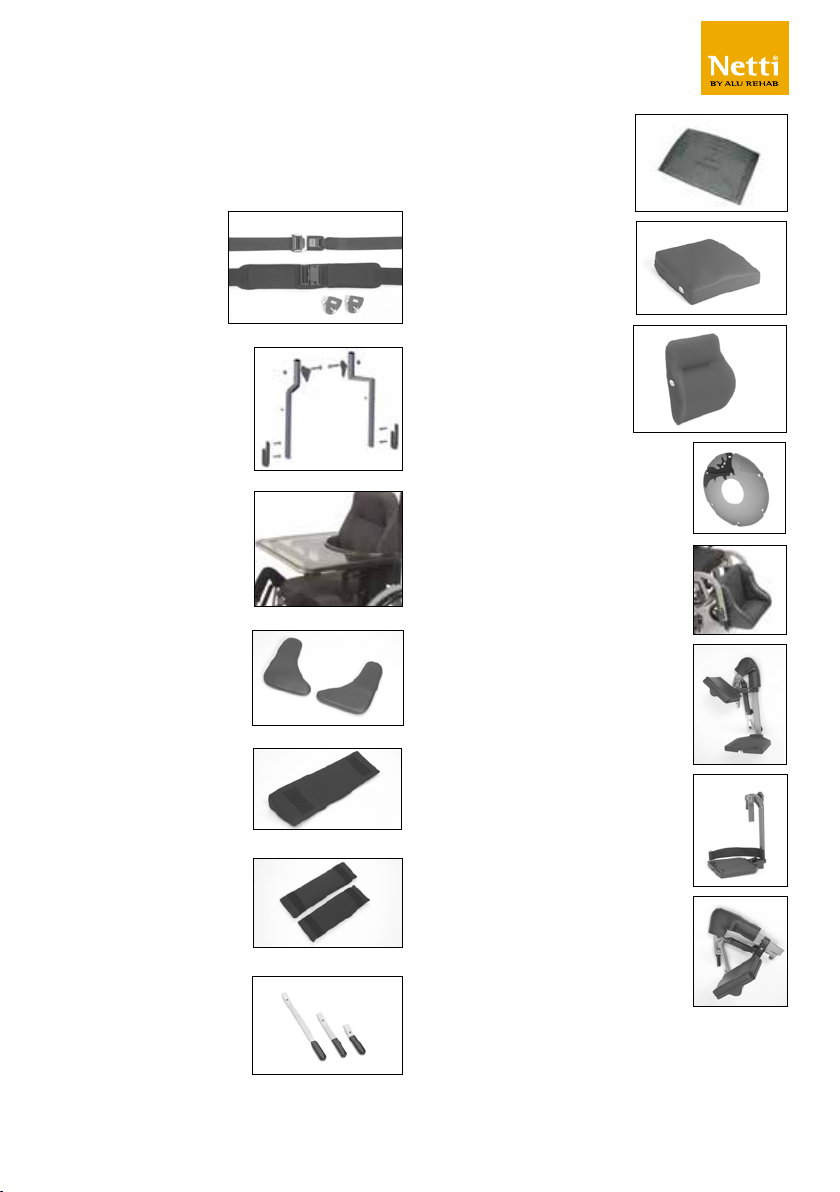

Belts
Several models:
H-belt and hip belts
with or without up-
holstery and with
plastic lock or car
lock. (See chapter 5.1 for mounting.)
H-Belt attachment
bar
To be mounted onto
separate bars or to the
push handles.
Comes in two sizes
with telescopic bar.
(See chapter 5.2)
Trays
3 models:
Swingable, lockable and
standard “push on”
model.
Upholstery for tray
Offers a soft base for
the arm resting on the
tray.
Wedge
Increases side support.
Lumbar support
Increases lumbar
curvature.
Brake extenders
90 mm
120 mm
250 mm

12 My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
Knee / Thigh support
The support reduces
adduction.
Abduction block
The block reduces
abduction.
Mini: 60 mm width
Small: 80 mm width
Medium 110 mm width
Large: 140 mm width

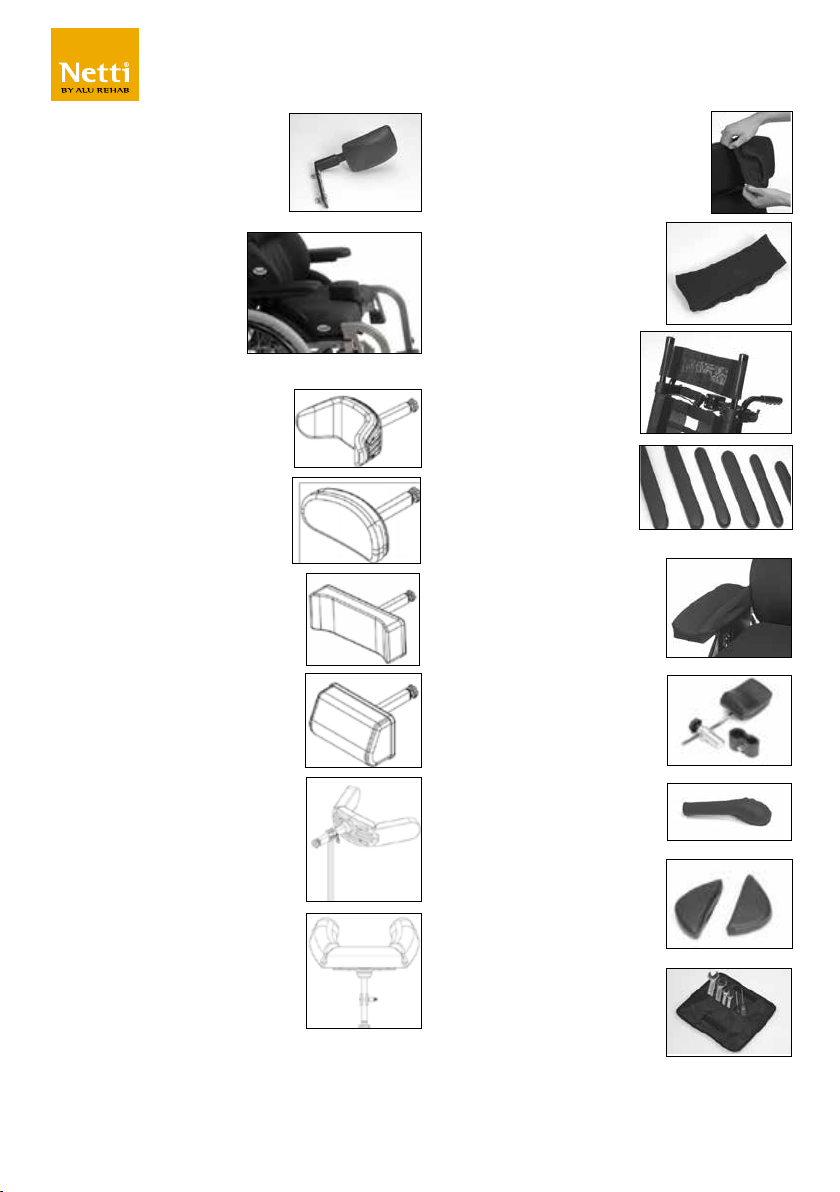

Head supports
Support A Side support
also available with
forhead strap
Support B Small
Support C Large
Support D comfort pressure
distributive
Support E adjustable
side supports
Support F with cheek/chin
support band
Hygiene cover
Protects the core of the
head support.
Head cushion
Comfort
Cushion with Kospoex
filling to pull onto
head rest.
Back rest extender
120 mm extender.
To be used together
with 400 mm back rest
cushion.
Arm support
pads
Wide: 415x80 mm
Long: 445x70 mm
Long/Wide:
525x80 mm
Short: 333x58 mm
Standard: 385x58 mm
Arm support pad bended
Hemi arm support
Offers extra support for
the affected arm. Can
be set in xed positions.
Side support
Correction
Meant for correction
of bad postures in the
upper trunk.
Upholstery for side
support
Comfortpads
for cloth protectors.
Width 25 mm
Tool set

13
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11

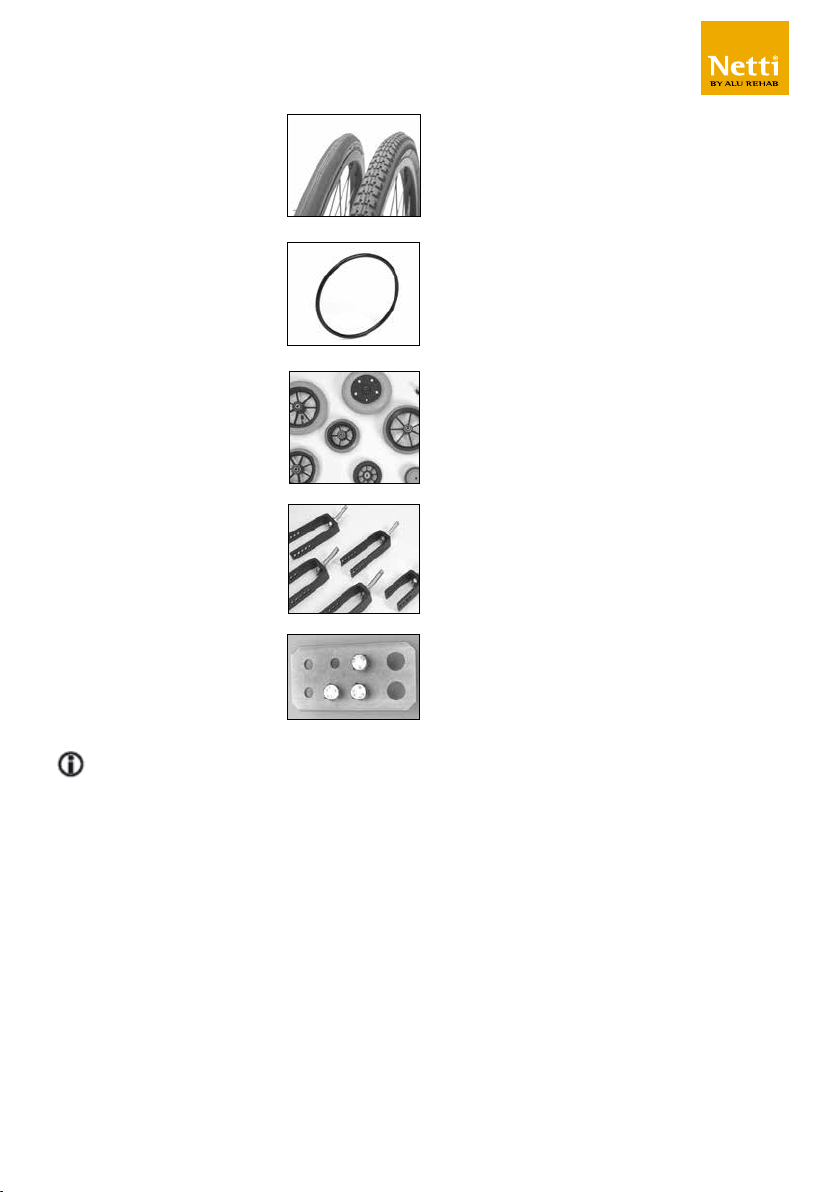

Main wheels
available in sizes: 12”, 16”,
20”, 22”, 24”. Puncture
proof Flexel or PU or
pneumatic. Inflation
pressure is clearly marked
on pneumatic tyres.
Push rims
Aluminium:
20”, 22”, 24”
Front castors
Sizes available: 3”, 4”, 5”,
6”, 7”.
Castor available in PU
puncture proof qualities or
pneumatic.
Front forks
Standard w/ axle
Long w/ axle
Short w/ axle
Wide w/ axle
Long/Wide w/ axle
Frame extender
Increases distance
between main wheels
and front castors.
Reduces tipping risk.
The anytime updated
complete accessory
program is found on our
web page
www.My-Netti.com- order
forms.
Please see www.My-Netti.com for
continuously updated overview of
belts and harnesses and installation
instructions.

14
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
6. ASSEMBLING
AND ADJUSTING
6.1 UNPACKING
1. Unpack all the parts, and check that
everything is there according to the
packing list.
2. Mount main wheels and front castors.
3. Mount back rest, arm supports,
cushions and leg supports.
4. Mount accessories.
Weight of components (300 mm chair
width):
Main wheels: 2,1 kg each
Front castors: 0,6 kg each
Leg support angle adj.: 2,1 kg incl foot
board
Mini Back Cushion: 0,5 kg
Mini seat cushion: 0,6 kg
Head support Mini: o,7 kg
Arm support: 0,9 kg
Necessary tools are described under each
chapter. Accessories described in chapter
5 is a presentation of options, and will be
delivered with separate mounting
descriptions.
When seating and wheel adjustments
are done in the possible positions by
standard equipment, the adjustments will
not exceed safe limits.
6.2 MAIN WHEELS
To mount the main wheel remove the
quick release bolt from the hub bushing,
lead it through the centre of the main
wheel and into the hub bushing while
pressing the knob in centre.
To check that the main wheel is
properly attached to the hub,
remove the finger from the central
knob and pull the main wheel.
If the main wheel does not lock, do
not use the wheelchair but contact
your dealer.
Sand and sea water (salt used for
gritting in the winter) can damage
the bearings of the main wheels.
Clean the wheelchair thoroughly
after exposure.
6.3 FRONT FORK
Front forks come as standard
with quick release axles. The
front fork is easily removed
by pressing the knob in
centre above the wheel.
Check angle of castor
bearing house. (See
chapter 6.5).

15
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11

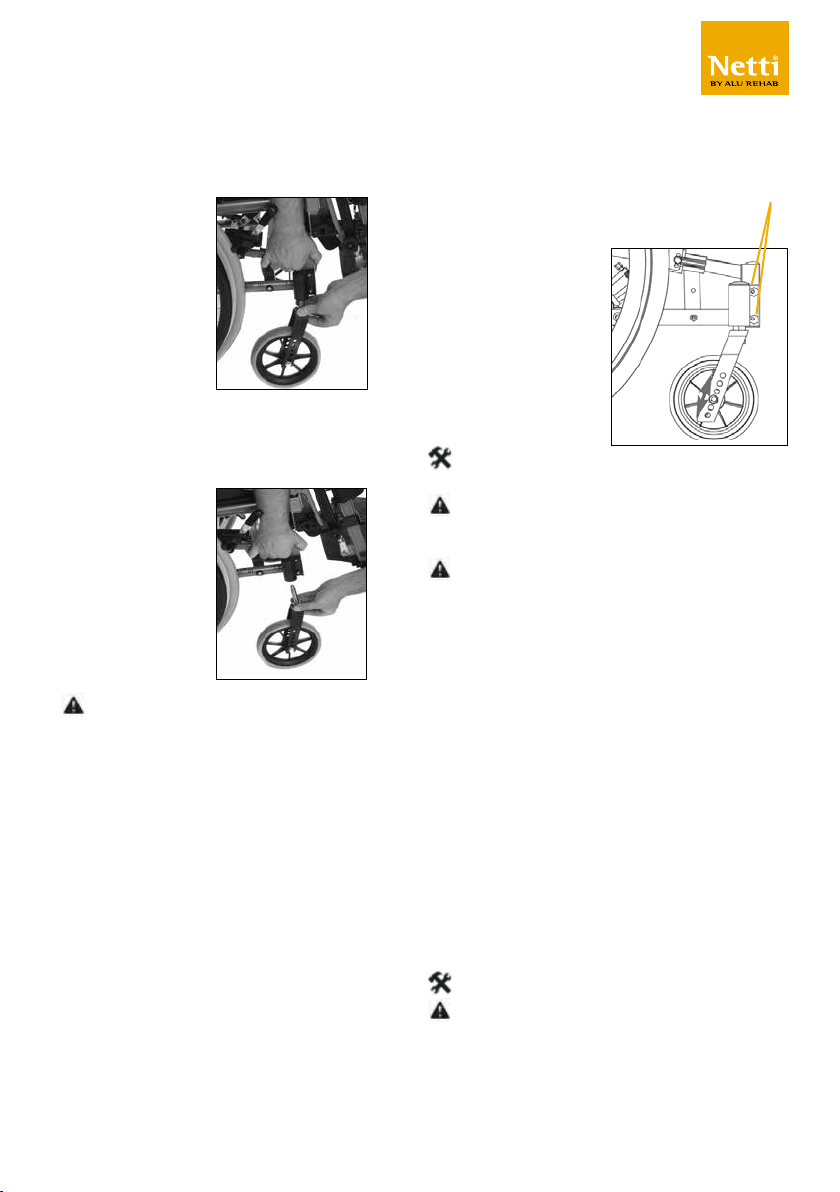

6.4 FRONT CASTORS
To take of
• Press the release button under the front
fork.
To mount
• Lead the quick release axle into the
bearing house. Pull the fork slightly to
ensure that the fork is fully locked.
Sand and sea water (salt used for
gritting in the winter) can damage the
bearings of the front castors. Clean
the wheelchair thoroughly after
exposure.
6.5 SEAT HEIGHT AT THE FRONT
The seat height depends on:
• Size of front castors.
• Size of front fork.
• Check the angle of the castor bearing
house.
In chapter 5 the overview shows that you
can choose between several models of
both front castors and front forks. To
change the height of the front castors
- unx the wheel and replace it in the
required position in the front fork.
Angle of bearing house
Correctly adjusted angle of the front fork is
important to achieve proper manoeuvring
qualities of the wheelchair. Unx the two
screws on the inside of the frame enough to
adjust the eccentric nuts. Angle the bearing
house, so that it is 90° relative to the
ground.
Tighten the screws
with 16 Nm
1 pc 5 mm Allen key
The bearing house can not be adjusted
in height.
Check and adjust the position of the
anti tip if necessary.
6.6 SEAT HEIGHT AT THE REAR
The seat height at the rear depends on:
• Size of main wheel.
• Position of main wheel.
Main wheel
If it is necessary to change the main wheel or
its position, unx the hub bushing, including
washer and nut, and mount it in required
position in the main wheel bracket.
If the new main wheel position comes in
conflict with the horizontal frame profile,
move this profile to a free hole in the wheel
bracket.
2 pc 24 mm open-end spanner
Make sure that the nut on inside of
frame totally wreathes the wheel
bushing.

16 My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11

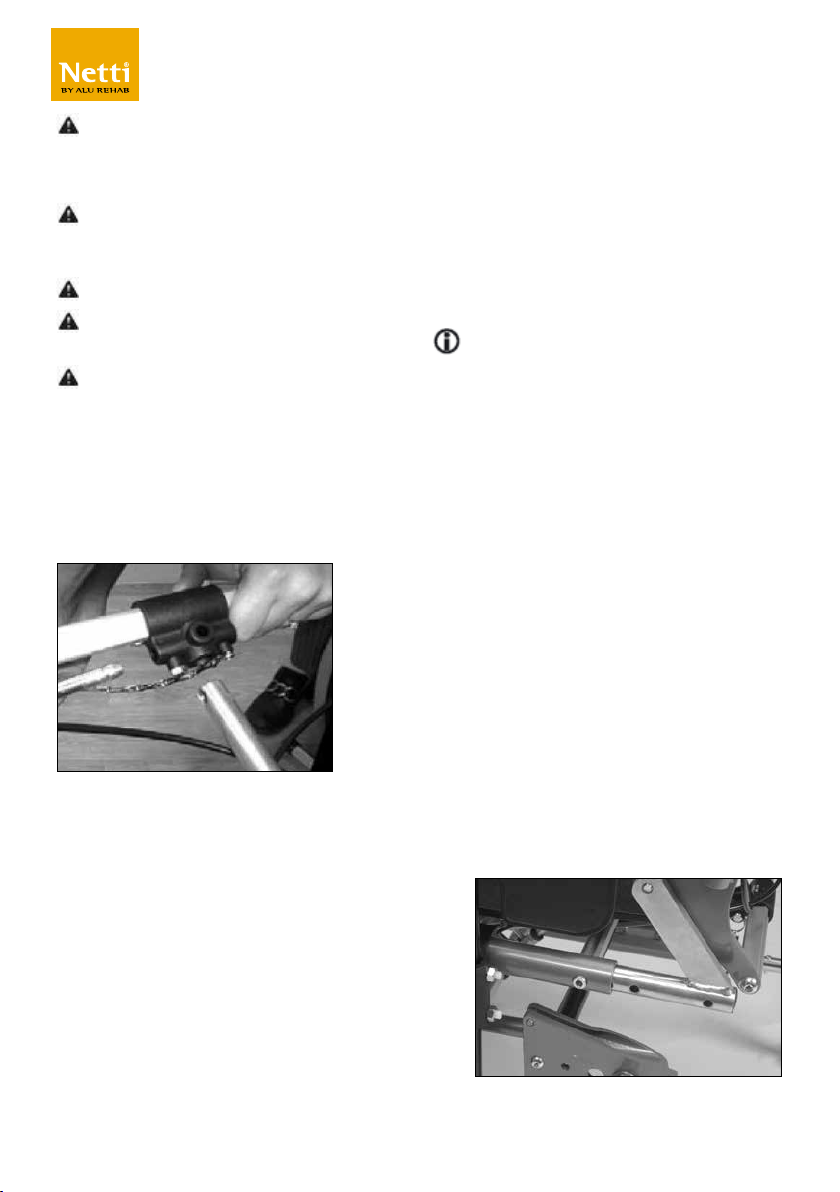

Adjusting the seat depth:
• Remove leg and head support
• Adjust the seat plate to horizontal position
• Open the back angle a few degrees for
more easy access.
• Have the user sit back as far as possible.
• Adjust the height of the back cushion until
the lumbar support fits the user.
• Lift the back angle to a comfortable
position.
If the seat depth is correct adjusted
the distance between the seat cushion and
the calf shall be ca 30 - 60 mm. If the user
shall walk the wheelchair, the distance must
be at least 60 mm.
6.9 ADJUSTING SEAT DEPTH AT
THE REAR
• The seat depth can be adjusted in 3 steps
(325- 350- 375 mm) without change of
parts.
• Fine adjustments are done by adjusting
the Velcro in the chair back. ( see chapter
6.14)
Adjusting the seat depth at the rear:
• Unlock the tilt cylinder by rst tilting the
seating unit as far forward as possible.
• Pull out the locking bolt for the back and
lay the chair back forward on the seat.
• Remove the screw at the back hinge and
push the back forward or backwards to
desired position. Pay attention that it is
the same hole used on both sides.
• Fix the back hinge screws rmly again.
When the seat height is changed make
sure that the bearing house of the
front castors are adjusted vertical to
the ground.
The risk for tipping increases when the
main wheel is moved forward in the
main wheel bracket.
Check the position of anti tip.
Readjust the brakes. (See chapter
6.17).
Readjust the angle of the bearing
house. (See chapter 6.5)
6.7 BACK REST
• Unfold and lift the back rest up and t the
gas strut into the bracket.
• Secure the back rest by pushing the
locking bolt in from the side, through the
bracket and gas strut head.
6.8 ADJUSTING THE SEAT
DEPTH
The seat depth can be adjusted both
in the back and in the front of the seat.
Adjustments are done to give the user a
comfortable seating position with proper
lumbar support while the knee joint is
aligned with the leg support knee joint.
By adjusting the seat depth the chair
balance and the driving characteristics may
change. A well balanced chair is easy to
drive without easily tipping backwards.
Always start with adjusting the seat depth
backwards, then adjust the leg support
xing bracket to make the leg support
knee joint align with the user knee joint. If
necessary, the driving wheel position also
needs to be change.

17
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11

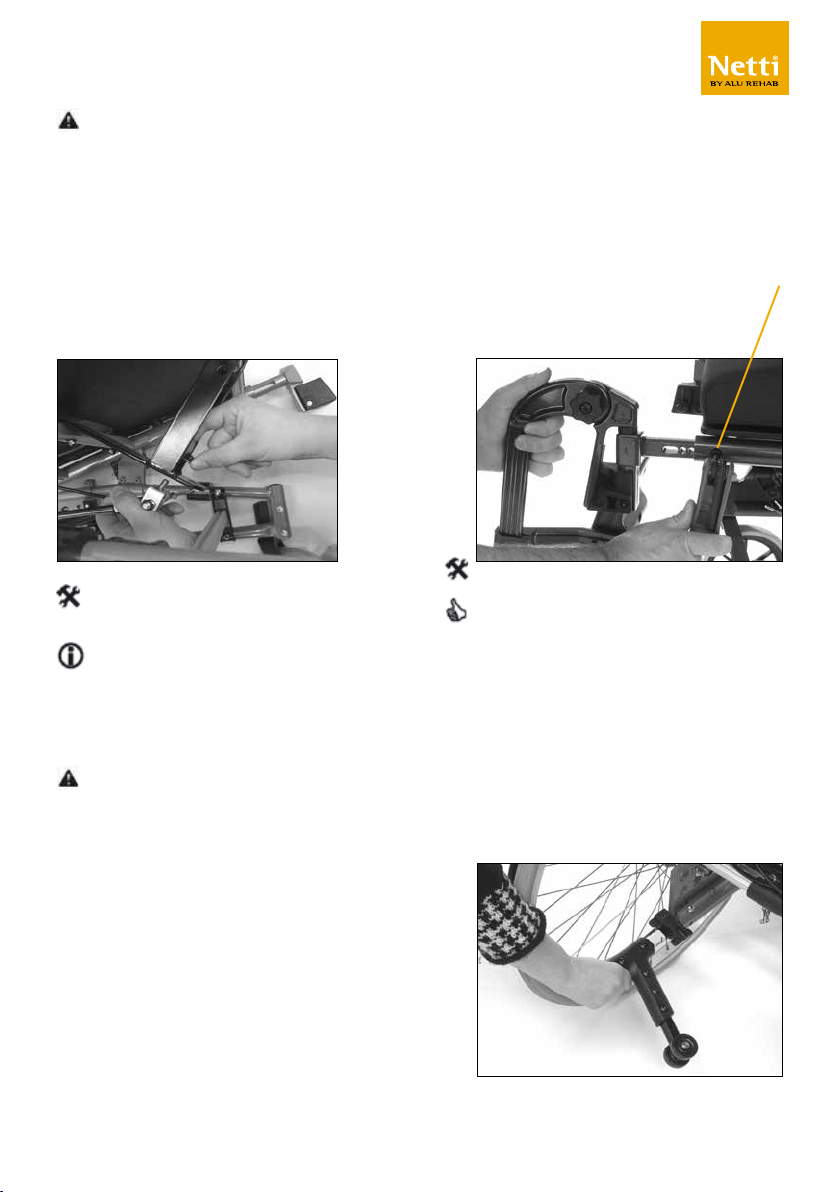

When adjusting the seat depth at the
rear, the screw in the backrest hinge
must be tightened with 14 Nm
• When changing the position of the back
rest hinge, also remember to change the
position of the gas strut under the chair.
When the back rest hinge is set in the
shortest position, the gas spring is placed
in the front hole. Check that the chair back
angle is ca 90° when the back cylinder is in
its end position
6 mm Allen key
13 mm open-end spanner
If the user requires another back rest
angle than what is standard, it is
possible to change the position of the
gas strut in three positions under the
chair in front.
When changing seat depth, you also
change the tipping point of the chair.
This can be prevented by changing
the position of the main wheel in the
main wheel bracket.
(See chapter 6.6).
Adjust anti-tippers accordingly -
chapter 6.10
6.10 ADJUSTING SEAT DEPTH
AT THE FRONT
It is possible to adjust the seat depth up
to 100 mm at the front. By restless users
the extension piece should not be pulled
out more than 50 mm. Do the following:
• Unx the screw holding the
extension piece for the leg support.
• Set the extension piece to the required
position.
• Fix the screws, tighten them with 25 Nm
6mm Allen key
By setting the extension pieces
to different positions, it is possible to
compensate for a rotated pelvis or
different length of thighs.
6.11 ANTI-TIP
• Adjust the anti-tip so that it does not
stick outside the radius of the wheel.
• Pull the anti-tip out / rearwards from
chassis.
• Turn it down 180°.
• Lock it in position by moving forwards
with the spring tension.

18 My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11

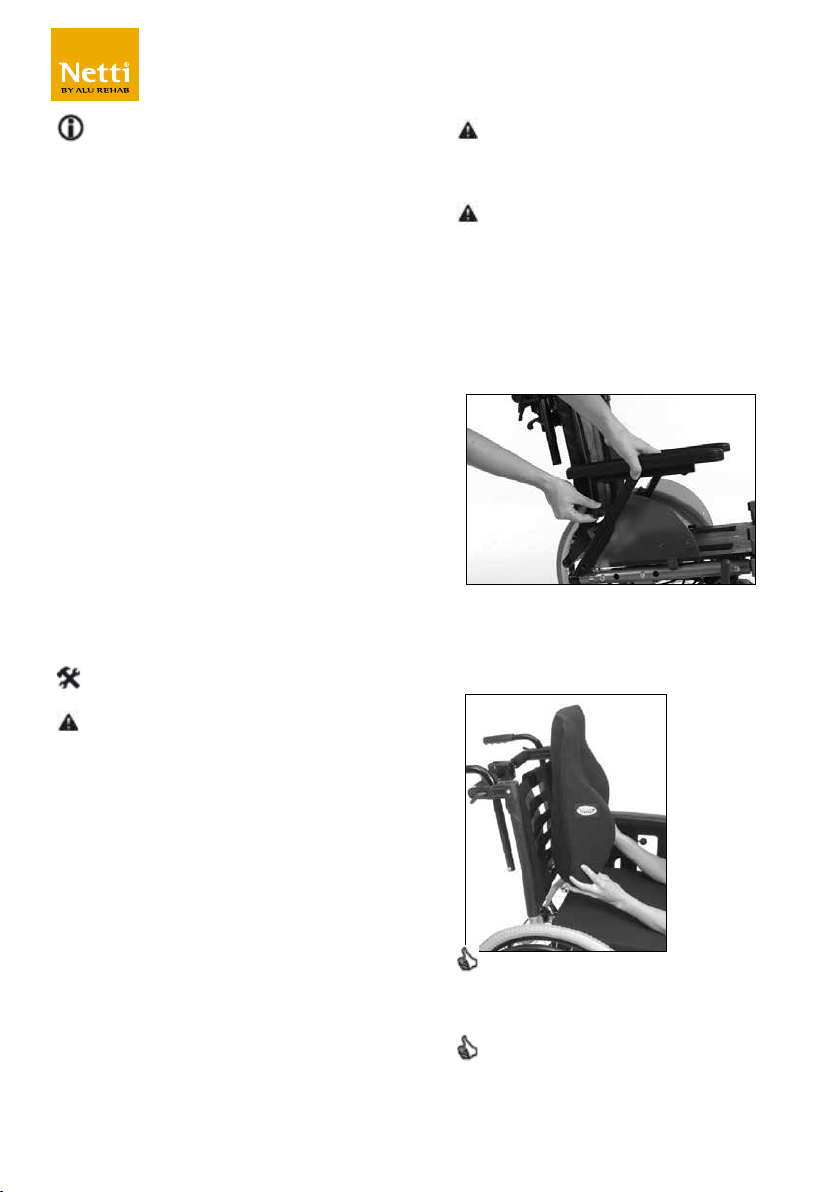

If the anti-tip is positioned on the
outside of the main wheel radius, it
will interfere with curbs and stairs.
The anti-tip should always be used
for the safety of the user.
6.12 ADJUSTING ARM SUPPORTS
• The arm support height is adjusted by
unscrewing the bolt with star wheel under
the armrest pad. Pull or push the arm
support to desired height and fix the bolt
again.
6.13 CUSHIONS
Cushions are xed and adjusted
on the wheelchair using the Velcro.
It is imperative to correctly set-up
the cushion in order to ensure good
seating comfort
The cushion covers are washable and
thereby reusable. Follow the instruction
on the back of the cushion for correct
maintenance and washing of the cushion.
The anti-tips are delivered adjusted
according to ordered main wheel size
in standard position. If other
adjustments are carried out, anti-tips
have to be adjusted accordingly.
By major changes the type of anti-tips
may have to be completely changed.
Adjusting anti-tip
The anti-tips must be adjusted whenever
the position or dimension of the main
wheels are changed.
Correctly adjusted anti-tips should be
positioned just on the inside of the radius
of the main wheel. Anti-tips are adjusted
as follows:
• Unx the locking clamp on the anti-tip
bar using an Allen key.
• Pull or push the bar to required position.
• Fix the locking clamp.
• Repeat the procedure on the opposite
side.
Check: ca 200 -220 mm from centre main
wheel to centre anti-tip wheel.
6 mm Allen key
Check that both anti-tips have the
same length. The gap between the
anti tip wheels and the floor must be
20 - 30 mm.
The height of the anti-tip wheels is
adjusted by unscrewing all the screws on
the anti-tip vertical leg. Pull or push to
desired distance from floor - ca 20-30 mm
and rex the screws.

19
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11
6.14 ADJUSTING THE VELCRO
BACK
• Loosen the straps, and place the back
rest cushion so that user gets room for the
bottom and the integrated lumbar support
in correct position.
• Tighten the straps so that they follow the
curvature of the spine and gives a little
extra support at the top of the sacrum
6.15 LEG SUPPORTS
Angle adjustable leg supports with foot
plates and calf supports are standard
for netti Mini. Many prefere Universal
leg supports with foot board. Both are
described in this chapter.
Other alternatives:
• Amputation leg support (see chapter 5)
• Foot box (see chapter 5)
ANGLE ADJUSTABLE LEG SUPPORTS
The angle adjustable leg supports are
swingable, height adjustable and removable.
They come with height- and depth
adjustable calf supports. The foot plates are
hinged, and can be angled in xed positions.
MOUNTING OF ANGLE ADJUSTABLE
LEG SUPPORT STANDARD:
Leg support mounting instruction:
• Fold the foot plates up.
• Hold the leg support on the top joint,
and place it in the pull-out-piece in an
outward turned angle as shown in the
picture below.
• Swing the leg support inwards and push
slightly down-
wards until it
goes into
locked position.
Angle adjustment
Loosen the star wheel on the outside of
the leg support. Lift the lower part of the
leg support to required angle.
Tighten the star wheel.,
When adjusting leg support
angle, be aware of squeeze
hazard between moving parts.
The foot plates
come with a lock
connecting the 2
plates which makes
the plates stronger. If
locking is not wanted,
the bolt can be
removed by using an
Allen key with no loss
of functionality.

20
My-Netti.com
Model: Netti Mini
Language:English Version: 2017-11

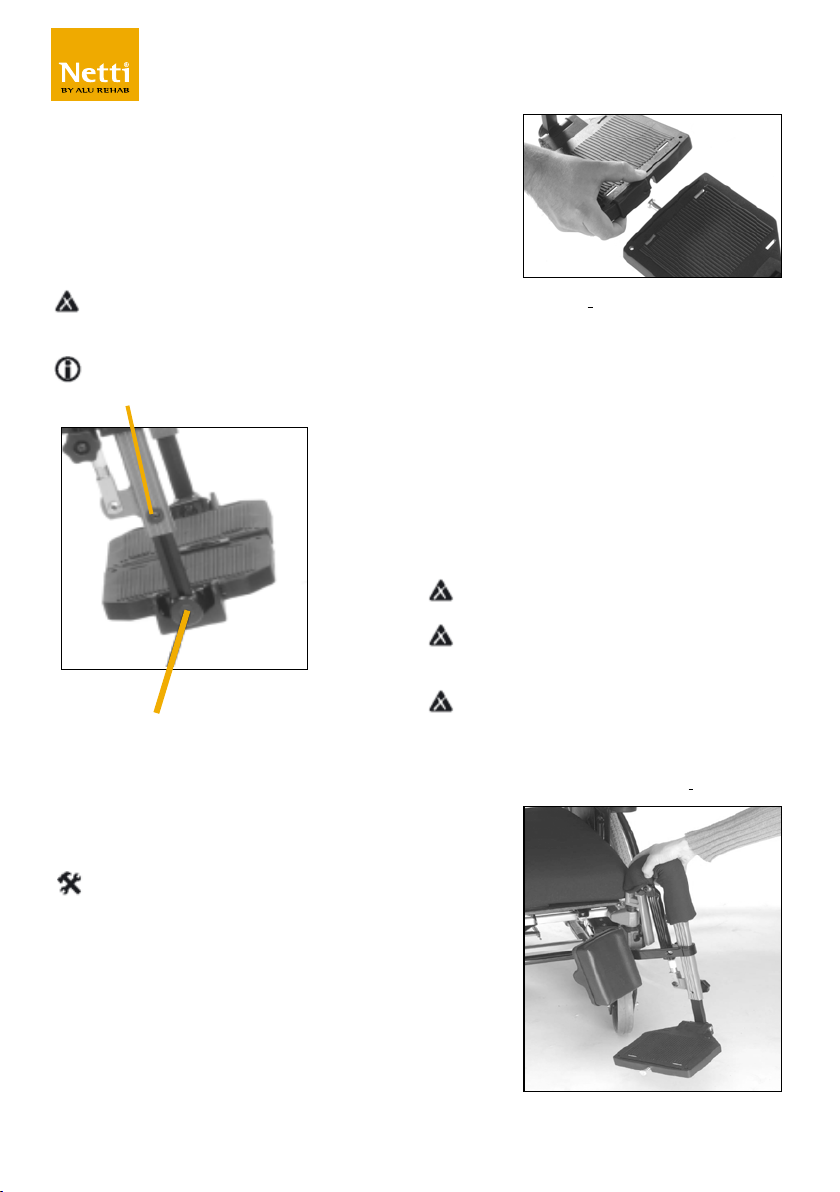

FOOT PLATE LOCK LOCKING AND
RELEASING THE FOOT PLATES FOR
SEAT WIDTHS 350 MM
• The foot plates for leg supports for seat
width 350 mm can be deliverd with a lock
connecting the 2 footplates which makes
the plates stronger.
• To lock the foot plates, let the right foot
plate fall over the bolt standing out
from the left one, it clicks into lock.
• To release the foot plate pull the plastic
lock between the foot plates and lift
the right foot plate up.
While making the adjustment, there
must be no load on the foot plates.
For outdoor use, there should be a
clearance of 40-50 mm between the
foot plate and the ground.
Never stand on the foot plates due
to the risk of tipping forward.
REMOVING THE LEG SUPPORTS:
FOOT PLATE HEIGHT ADJUSTMENT:
The foot plates are step less height
adjustable.
• Unx the adjustment screw so that the
adjustment bar moves freely.
• Slide the foot plate to required height,
tighten the screw. Se bilde nedenfor.
Indoor the foot plates should have
a floor clearance of 20-30 mm.
As an accessory a star knob can
replace the screw.
FOOT PLATE ANGLE
ADJUSTMENT:
• Loosen the screw on the outside of
the foot plate with an Allen key - see
picture above -.
• Tilt the foot plate to required angle
and tighten the screw.
5 mm unbrakonøkkel
