1. INTRODUCTION
Netti 4U comfort|FA is a comfort
wheelchair meant for both indoor and out-
door use. It is tested to DIN EN 12183:2009.
The tests were carried out by TÜV SÜD
Product Service GmbH in Germany.
In Alu Rehab we believe that wheelchairs
should be chosen based on a thorough
assessment focusing on the needs of the
user and demands from the environment.
Therefore it is important to know about
the possibilities and restrictions of the
wheelchair. Netti 4U comfort|FA is a
wheelchair designed for users with the
need for comfort and relief. The combi-
nation between the seating system and the
ergonomical solutions in the frame construction,
offers many possibilities for adaptation and
adjustments.
The wheelchair is constructed for indoor and
outdoor use, and offers the possibility to
vary the sitting position from activity to
rest using tilt and recline functions.
Max user weight: 140 kg.
When mounting accessories such as
power kit etc, the weight of the
accessories must be subtracted from the
max user weight.
Specifications varies between
countries.

5
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
1.1 Areas of use/indications
for Netti 4U comfort | FA
Netti 4U comfort|FA is a multi-function
wheelchair for partially or fully immobile
persons with physical and/or mental
disabilities. These disabilities may have multiple
causes. Netti 4U comfort|FA has an adjustable
seat and back angle, thus facilitating for
the user change of position, mobilisation or
posture correction (stabilisation), wherever the
following functional impediments with their
multiple possible causes are present:
• limited or lacking mobility
• limited or lacking muscle power
• limited movement range
• lacking or limited trunk and body stability
• hemiplegia
• rheumatic-type disorders
• craniocerebral injuries
• amputations
• other neurological or geriatric disorders
1.2 Contraindications
Netti 4U comfort|FA is not suited for persons
with a strongly enhanced muscular spasticity.
In this case we recommend the Netti III, which
offers a version with reinforced frame and leg
rests for this particular need.
Ignoring this advice could in unfavourable
circumstances lead to the deformation or
fracture of metal parts in the area of the back
tube, the leg rests or the arm rests.
1.3 Quality and durability
The Netti 4U comfort|FA wheelchair is
tested at TÜV SÜD Product Service GmbH
in Germany, following the European
Standard DIN EN 12183:2009. As
manufacturer, Alu Rehab A.S evaluates
the test to be equal to 5-6 years of
normal use of the chair. The disability
of the user as well as the level of
maintenance done foremost decides the
durability of the wheelchair. Thus, the
durability will vary depending on these
two factors.
1.4 The environment and
waste disposal
Alu Rehab and its suppliers wish to
protect the environment.
This means:
• That we avoid using
environmentally harmful
substances and processes
to the greatest extent possible.
• That Alu Rehab’s products are
ensured a long service life and a high
degree of flexibility - to benefit the
environment and economy.
• That all packaging can be recycled.
• That the wheelchair was designed to
be separated into its component
materials - to make recycling easier.
Contact your local recycling agent
to get correct information how to
handle in you area.

6Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
1.5 Information for re-use
All products from Alu Rehab are designed
to give years of maintenance-free service.
All products can be adapted for re-use by
an authorised dealer. In order to guarantee
performance and safety, Alu Rehab
recommends the following tests prior to any
re-use.
Please examine the following components
for function, integrity etc. and replace parts
as necessary:
• Wheels (tyre tread)
• Wheelchair frame
• Cushions
• Hubs
• Brake function
• Headset bearings: test for wear lubrication
• Directional stability of wheels
• Bearings
Please also note the content of chapter 10.2
Cleaning and washing
Anti-tip
Correctly fitted, the anti-tip will secure the
chair from tipping backwards. We strongly
recommend use of the anti-tips.
1.6 About this manual
In order to avoid damages while using the
Netti 4U comfort | FA wheelchair, please
read this manual carefully before starting
to use the chair.
Symbol of forbidden actions.
No warranty can be claimed
whenever these actions are
implemented.
Symbol of warning.
Whenever this symbol is used,
caution has to be taken.
Symbol for
important
information.
Symbol for
useful tips.
Symbol for tools.

7
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Model Weight
35 - 44 cm 33,5kg
44 - 53 cm 34,5kg
1.7 Vital measures
Netti 4U comfort|FA is a comfort wheelchair
designed for both outdoor and indoor use.
Specifications varies between countries.
Total weight: 34,5 Kg
(440 mm width chair)
Seat width:
350 - 440 & 440-530 mm
Seat depth:
(From back rest cushion to front of seat plate)
390, 415, 440, 465, 490, 515 mm
Seat height:
(From floor to top seat plate using 24” main
wheels in upper hole position).
497 mm*
*By changing position of main wheels, it is
possible to achieve seat height of 500 mm.
whewheel
Backrest height:
520 mm
Specification min. max.
Overall length with foot
support
1130 mm -
Overall width 700 mm -
Folded length 660 mm -
Folded width 630 mm -
Folded height 600 mm -
Total mass 34,5 kg -
Mass heaviest part 2,5 kg -
Static stability uphill 0º 28º
Seat plane angle -5º 20º
Effective seat depth 425 mm 550 mm
Effective seat width 390 mm 540 mm
Seat surface height at front 465 mm 500 mm
Backrest angle 92º 137º
Backrest height 480 mm -
Foot support to seat
distance
280 mm 770 mm
Leg to seat surface angle 105º 182º
Arm support to seat
distance
260 mm 355 mm
Front location of arm
support structure
290 mm 410 mm
Push rim diameter 535 mm -
Horizontal axle location -50 mm 25 mm
Model width: 50 cm.
Measured without cushions.

8Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
2. QUICK REFERENCE
The content of this page is a summary
of the whole manual. It gives a brief
introduction to the use and care of the
Netti 4U comfort|FA wheelchair.
The quick reference is not a replacement
for the manual, only a reminder/check
list.
• Unpack the wheelchair (Chapter 6.1)
• Adaptation & adjustment (Chapter 7)
• Mount the main wheels (Chapter 6.2)
• Mount the front castors (Chapter 6.3)
• Put the back rest back, and mount the
recline gas strut to the back rest using the
locking bolt. (Chapter 6.5)
• Mount the foot supports (Chapter 6.10)
• Mount the head support (Chapter 6.11)
• Mount the arm support (Chapter 6.12)
• Mount accessory. (See chapter 5 for more
information. Mounting descriptions will
accompany the accessory.)
For troubleshooting, see chapter 11.
For mounting and adjustments see
chapter 6 and 7.
Drive carefully!
Be aware that friction against push
rims can create a warm surface.
Salt water can increase risk of
corrosion. Further precautions related
to environmental conditions not
needed.
When the chair is tilted rearwards,
the anti tips and brakes should
always be in use.
Be sure to lock all handles properly.
The anti-tips should always be used
for the safety of the user.
Surface temperature of metal parts in
frame structure might increase when
exposed to direct sunlight.
Never stand on the foot supports due
to risk of tipping forwards.
Never lift the wheelchair by the foot
supports or arm supports.
Product configuration may vary
between different countries.
For visually impaired people, manuals
and catalogues can be downloaded at
www.alurehab.com
If in doubt - contact your dealer!

9
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010

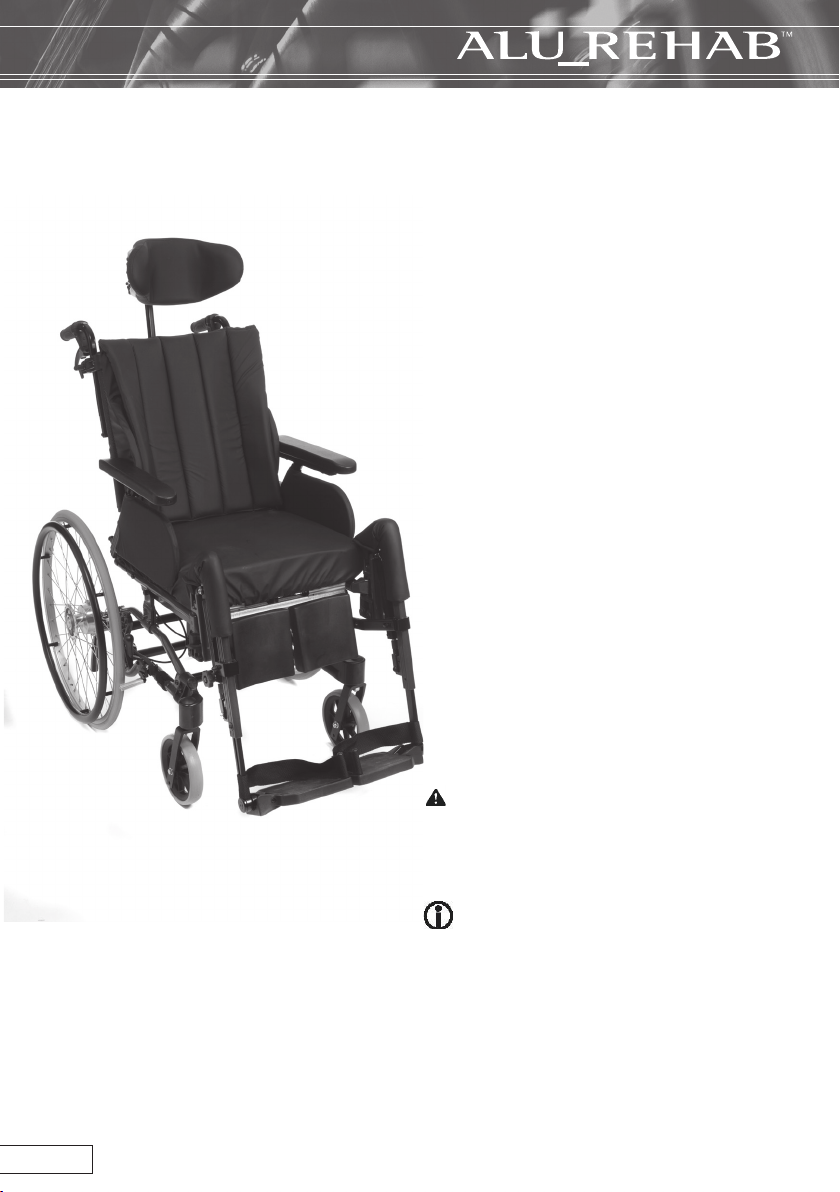

3. DESCRIPTION
Standard version*
1. Push handles
2. Back cushion
3. Locking lever for push
handles
4. Head support
5. Comfort pads for arm support
6. Release handle arm support
7. Arm support with pad
8. Seat cushion
9. Main wheel
10. Push ring
11. Front castors
12. Front fork
13. Foot support
14. Calf support
15. Calf support bracket
16. Heel strap
17. Foot plate
18. Brakes
19. Anti tip
20. Knee upholstery
If any of these parts are
missing, please contact
your dealer.
* Product configuration may
vary between different
countries.
3
2
1
3 1 Back cushion 44-53cm cmpl. 41350 -
2 1 Seat cushion Sense 44-53cm 26495 312148
1 1
Netti 4U FA 44-53cm 41295 114178
Pos. Qty. Name Item no. Drawing Material
Chair width Colour Item no.
35-44cm Blue KJ543-83970-TS 41300
44-53cm Blue KJ543-83970-TS 41301
Chair width Item no. Dwg no.
35-44cm 41349
44-53cm 41350 312218
Chair width Item no. Dwg no.
35-44cm 26572
44-53cm 26495 312148 Chair width
Item no. Dwg no.
35-44cm 41294
44-53cm 41295 114178
41301 114181
This drawing is Alu Rehab A.S property and should not be copied or delivered to other rms or agents without our permission.
DO NOT SCALE DRAWING
APPROVALS
TITLE
REPLACED FOR
SIZE
DATE
DRAWN
FINISH
TREATMENT
SCALE
MATERIAL
PROJECTION
Bedriftsveien 23, N-4353 Klepp Stasjon
Tel.: [phone] Fax.: [phone]
DWG NO.
REPLACED BY
ITEM NO.
Tolerance for
non-tolerance
ISO 2768-m
1:4
Nett 4U FA cmpl.
g
A1
WEIGHT
CREATED DATE
28.11.2007
st
CHECKED
4
1
1
19
2 3
7
7
6
5
8 10
5
20
9
14
14
15
19
13 18
16 12
11
17

10 Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Standard
SEAT
• Width adjustable seat and cushion
• Tilt -5° to +20°
WHEELS
• 24” x 1” Puncture proof main wheels
• Push rim: Aluminium
• 7” Puncture proof front castors with
quick release axle
* Standard main wheels may vary
between countries.
BACK REST
• Recline angle: 88° to 128°
• Width adjustable back rest cushion
FOOT SUPPORT
• Angle adjustable foot support
• Height- and angle adjustable foot
plates
• Removable
ARM SUPPORT
• Height and depth adjustable
• Removable
HEAD SUPPORT
• Height, depth and angle adjustable
• Removable
ANTI TIP
• Height adjustable
• Removeable
Accessories
SEAT
• Trays & reading stand for trays (See chapter 5)
• Hip belts (See chapter 5)
WHEELS
• Puncture proof main wheels 12” and 16” with
drumbrake
• 24” x 1” puncture proof main wheels with
drum brake
• 6” puncture-proof front castors
BACK REST
FOOT SUPPORT
• Universal foot support
• Amputation support
ARM SUPPORT
HEAD SUPPORT
• Different head support models
(See chapter 5)
ANTI TIP WITH PEDAL
• Height adjustable
• Removeable
4. FEATURES OF NETTI 4U COMFORT | FA

11
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010

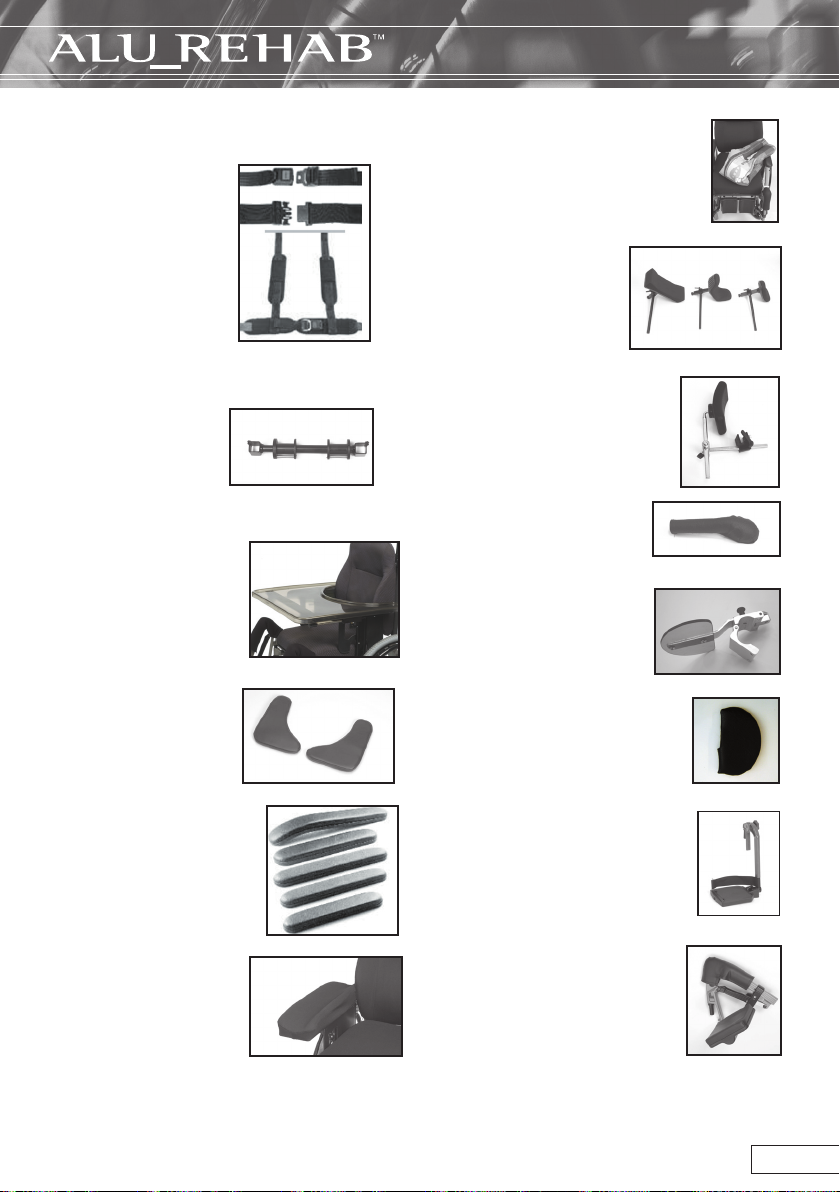

5. Accessories
Belts
Several variants:
Hip belt and H-Belts
with or without
uphoplstery and with
plastic lock or car lock
(See chapter 5.1 for
mounting)
H-Belt attachment bar
Telescopic bar for
optimum positio-
ning of the H-Belt.
Two sizes:
25-38 cm & 40-60 cm
Trays
3 models:
Swing-able, lockable
and standard “push on”
model.
Upholstery for tray
Offers a soft base for
the arm resting on the
tray.
Armrest pads
Sizes:
Wide: 415x80 mm
Long/Wide: 525x80 mm
Long: 445x70 mm
Standard: 385x58 mm
Small: 333x58 mm
Hemi arm support
Offers extra support for
the affected arm. Can
be set in fixed positions.
Hemi cushion
An accommodating
support for hemiplegic
users.
Head support
Support C Large.
Support A Side support
Support B Small
Side support Correction
Meant for correction of
bad postures in the
upper trunk.
Pad for side support
Correction
Side support Stable
Meant for users with de-
creased stability of the
upper trunk. For otimal
function use together
with Stable cushion.
Pad for side support Stable
Universal
Adjustable in fixed positions
between 33° to 105° using an
adjustment wheel.
Amputation support

12 Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
5.1 Assembling of hip belt
Illustration 5.1.1
• Pull the belt through the hole in the hip
belt bracket.
Ill. 5.1.1
Illustration 5.1.2
• Thread the belt back through the belt
clamp.
Ill. 5.1.2
Illustration 5.1.3
• Fix the hip belt bracket to the back rest
hinge in the rearmost hole, using the
enclosed screws and nuts.
Ill. 5.1.3
2 pcs13 mm open-end spanner
5.2 Assembling
Illustration 5.2.1
• Remove the push handles, and pull the
H-belt attachment bar onto the push
handles from the lower end.
lIl. 5.2.1
Illustration 5.2.2.
• Fix the push handles in correct position
and lock firmly. Then fix the bar at the
right position/height. The height should
be level with the shoulders of the user.
Ill. 5.2.2
Illustration 5.2.3
• Thread the belt through the rolls and
lock the belt by pulling the belt through
the belt clamp. Adjust to the requested
length of belt.
Ill. 5.2.3

13
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
6. ASSEMBLING AND
ADJUSTMENT
Netti 4U comfort |FA has various
adjustment and positioning possibilties.
See chapter 7 for individual adjustment.
Main wheels, front castors and arm
supports are pre-mounted from the
factory.
6.1 Unpacking
1. Unpack all the parts, and check that
everything is there according to the
packing list.
2. Mount the main wheels (Chapter 6.2)
3. Mount the front castors (Chapter 6.3)
4. Check and adjust the seat depth (Chap. 6.6)
5. Mount the back rest (Chapter 6.5)
6. Place cushions (72 & 7.3)
7. Mount the foot supports (Chapter 6.10)
8. Mount the head support (Chapter 6.11)
9. Mount any accessories (Chapter 5).
Weight of components (44 cm width chair):
Main wheels: 1,9 kg each
Anti tip: 0,1 kg each
Front castors: 0,8 kg each
Foot support angle adj.: 2 kg each
Cushions: app.1 kg
Head support A: 1 kg
Head support C: 0,9 kg

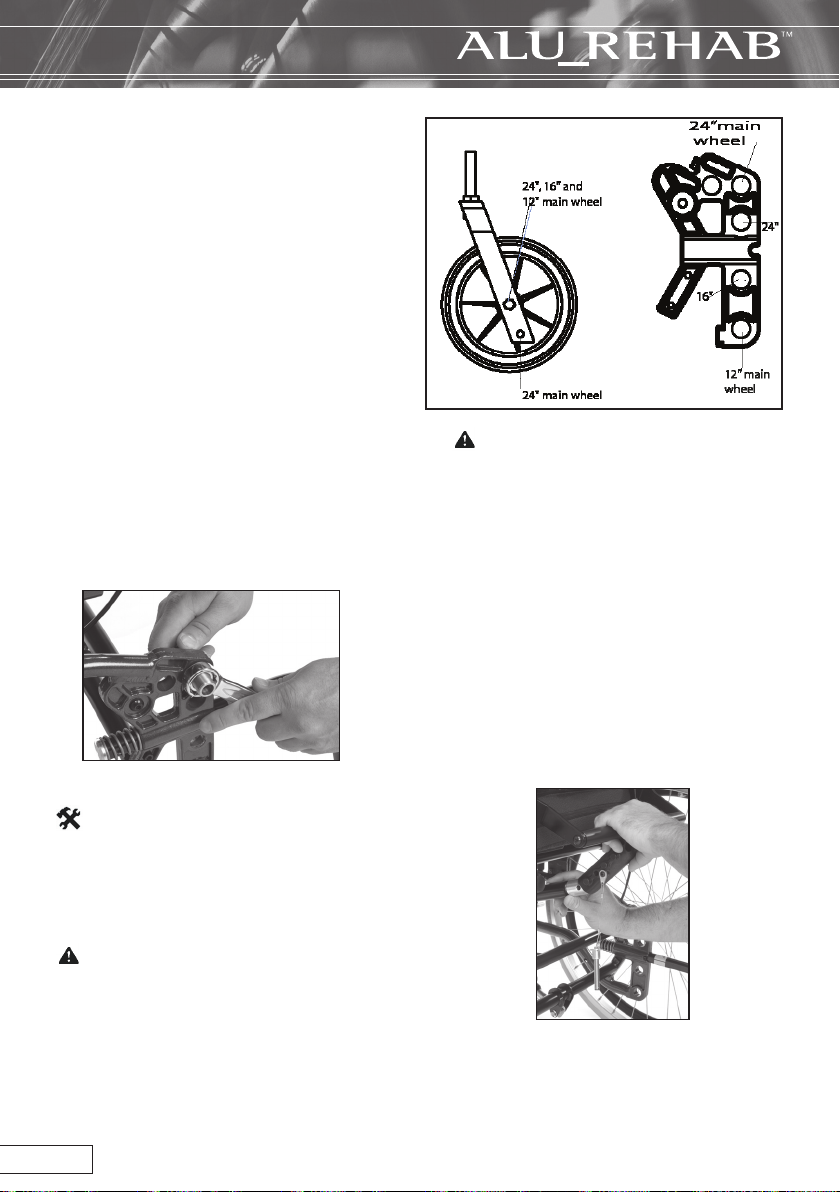

6.2 Main wheel
To mount the main wheel remove the
quick release bolt from the hub bushing,
lead it through the centre of the main wheel
and into the hub bushing while pressing the
knob in center.
To check that the main wheel is
properly attached to the hub, remove
the finger from the central knob and
pull at the main wheel.
If the main wheel doesn’t lock, don’t
use the wheelchair but contact
your dealer.
Sand and sea water (salt used for
gritting in the winter) can damage
the bearings of the main wheels and
front castors. Clean the wheelchair
thoroughly after exposure
6.3 Front castors
To take off
• Press the release button under the front
fork.
To mount
• Lead the quick release axle into the
bearing house. Pull the fork slightly to
ensure that the fork is fully locked.

14 Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
6.4. Seat height adjustment
The seat height at the rear depends on:
• Size of main wheel.
• Position of main wheel.
• Using 24” main wheels in the upper hole,
the seat height is 49.7 cm from the floor
to the seating plate.
• Using 24” main wheels in the next upper
position, the height will measure 53,4 cm
to the seating plate.
• Using 12” and 16” main wheels the seat
height is 47.9 cm from the floor to the
seating plate.
If it is required to change position of the main
wheels or to change to a different size of main
wheels, unfix the hub bushing including washer
and nut. Remove the hub bushing and mount it
in the required position.
2 pcs. 24 mm open-end spanner.
Main wheels and front castors should be
mounted according to the description -
next column.
When the seat height is changed ensure
that the front castors are placed so
that the lower frame tube is parallel
with the ground.
Check the position of the anti tip
and readjust the brakes after moun-
ting the main wheels or changing the
main wheel position.
6.5 Backrest
• To mount the gas spring, lift the push
bow with one hand, and lead the gas
spring locking head into the plastic
bracket (Ill. 6.5.1).
• Check that the hole in the locking head is
parallel with the open holes in the plastic
bracket.
Ill. 6.5.1

15
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
• Lock the back rest by pushing the locking
bolt through the plastic bracket and
gas spring locking head (Ill. 6.5.2.)
Ill. 6.5.2.
To check that the back rest is locked,
grip the push bow and press the back
rest forward. If the back rest falls
forward - repeat the locking prosedure
or contact your dealer.

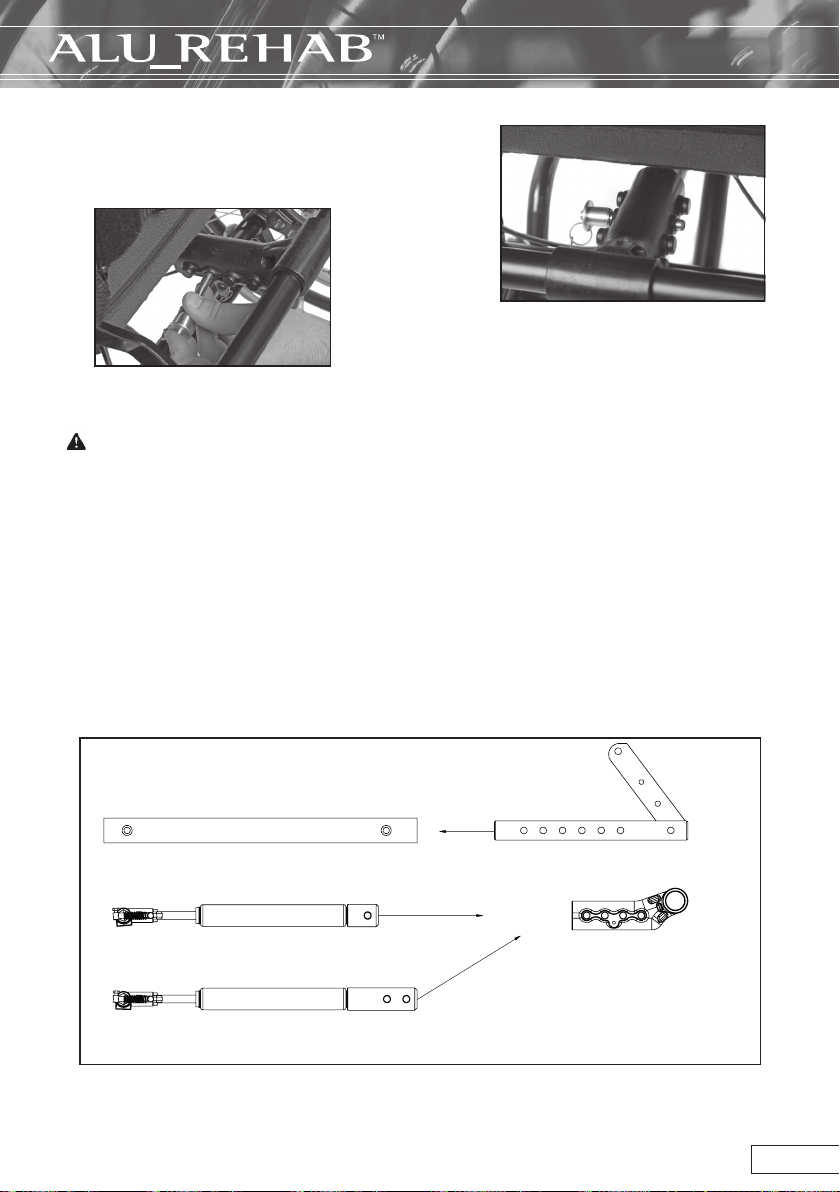

6.6 Seat depth general
• The wheelchair is set to a standard seat
depth and the plastic bracket has 4 holes of
which three are temporaly blocked with
plastic plugs (Ill. 6.5.3).
Ill. 6.5.4
1 2 3 4 5 6
7 8 9 10
A
B
C D
Seat depth table Netti 4U FA
Seat depth Hole position
390mm A6-B10
415mm A5-B9
440mm A4-B8
465mm A3-B7
490mm A2-C7
515mm A1-D7
Ill. 6.5.3
• Netti 4U comfort | FA is delivered with two
locking head. An extra locking head is
placed under the seat frame between the
two silver coloured cross bars. This locking
head shall be used when the seat depth
have to be changed to 49 or 51.5 cm.
When this shall be used - remove the l
locking head that is mounted and replace
it with this.
• The short locking head shall be used on the
seat depth 39, 41.5, 44 and 46,5 cm.
• The long locking head shall be used on the
seat depth 49 and 51.5 cm
Look at the table on next page about what
locking head that shall be mounted in
what hole.

16 Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
• The back rest hinge has 6 holes (Ill. 6.5.4)
and the chairs are delivered with two
locking heads. What hole that should be
used together with what locking head
are descipted in the following table in
accordance with ill. 6.5.4
Seat depth Hole position
39.0 cm A6 - B10
41,5 cm A5 - B9
44,0 cm A4 - B8
46,5 cm A3 - B7
49,0 cm A2 - C7
51.5 cm A1 - D7
6.7 Seat depth adjustment
at the rear.
• If the seat depth should be adjusted at
the rear, release the locking bolt from
the plastic bracket (Ill. 6.5.2.).
• Find the required position for the locking
head in the plastic bracket, and remove
the plastic plug from this hole.
• Lock the back rest by pushing the
locking bolt through the plastic bracket
and the gas spring locking head.
• After changing the hole position in the
plastic bracket, the hole position in the
back rest hinge must be changed into
the parallel position.
Check that the hole in the back rest
hinge and the plastic bracket are
mounted in parallel position.
6 mm Allen-key
6.8 Seat depth adjustment
in front
It is possible to adjust the seat depth with
up to 10 cm in front. Do the following
• Screw out the screws in the adjustment
piece.
• Place the adjustment piece in the wanted
position
• Replace and tighten the screws
6 mm Allen-key
If the user has spastic tendencies the
adjustment piece should not be pulled
out more than 5 cm
6.9 Anti tip
The anti tips should be mounted according
to the mounting description which is
enclosed with the chair upon arrival.
Use of the anti tip
• Pull the anti tip out
• Turn it up or down 180°.
• Lock it in position

17
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010

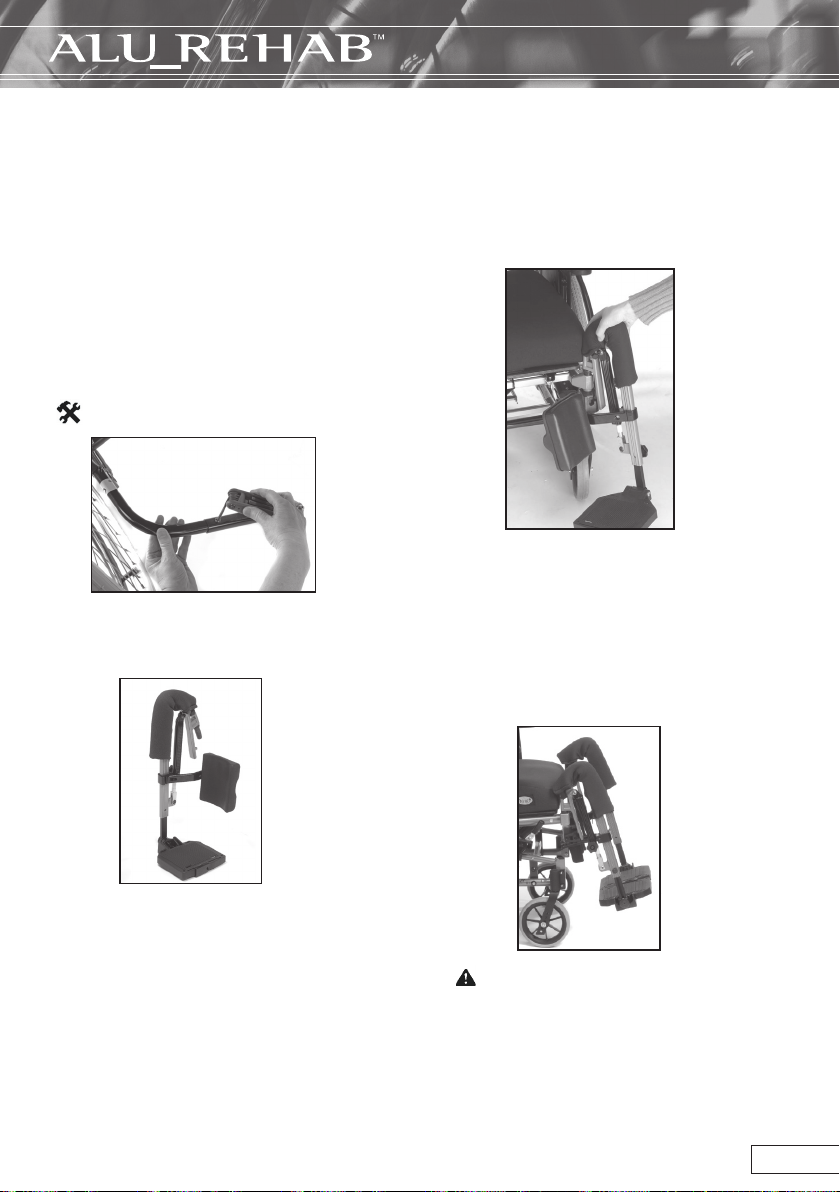

Mounting of foot support
• Grip the foot support in the hinge point.
Hold it in an angle of app. 20° to the side
frame. Put it into the plastic lock
attached to the extractable adjustment
bar. Swing it in and push down.
Adjusting the angle
• The angle of the foot support can be
adjusted using the star wheel.
• Loosening this star wheel enables you to
adjust the foot support to the required
angle.
• Fix the angle by tightening the star screw.
Squeeze hazard. When adjusting foot
supports in angle, do not put the
fingers in the adjusting mechanism
between the moving parts.
Adjusting the height of the anti tip
The anti tip can be adjusted in two fixed
positions. The short position is for 12” & 16”
main wheels and 24” in upper position. The
long position is for 24” main wheels in lower
position.
• Unfix the screw in the adjustable
extension piece as shown in picture page 16
• This extension piece has two holes. Place
it in the required position and tighten the
screw.
5 mm Allen key
6.10 Foot support
Angle adjustable foot support
The Angle adjustable foot support is freely
adjustable in angle. It is also swingable and
removeable. The foot plates are foldable and
can be angled in fixed positions. Delivered
with height and depth adjustable calf support

18 Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010

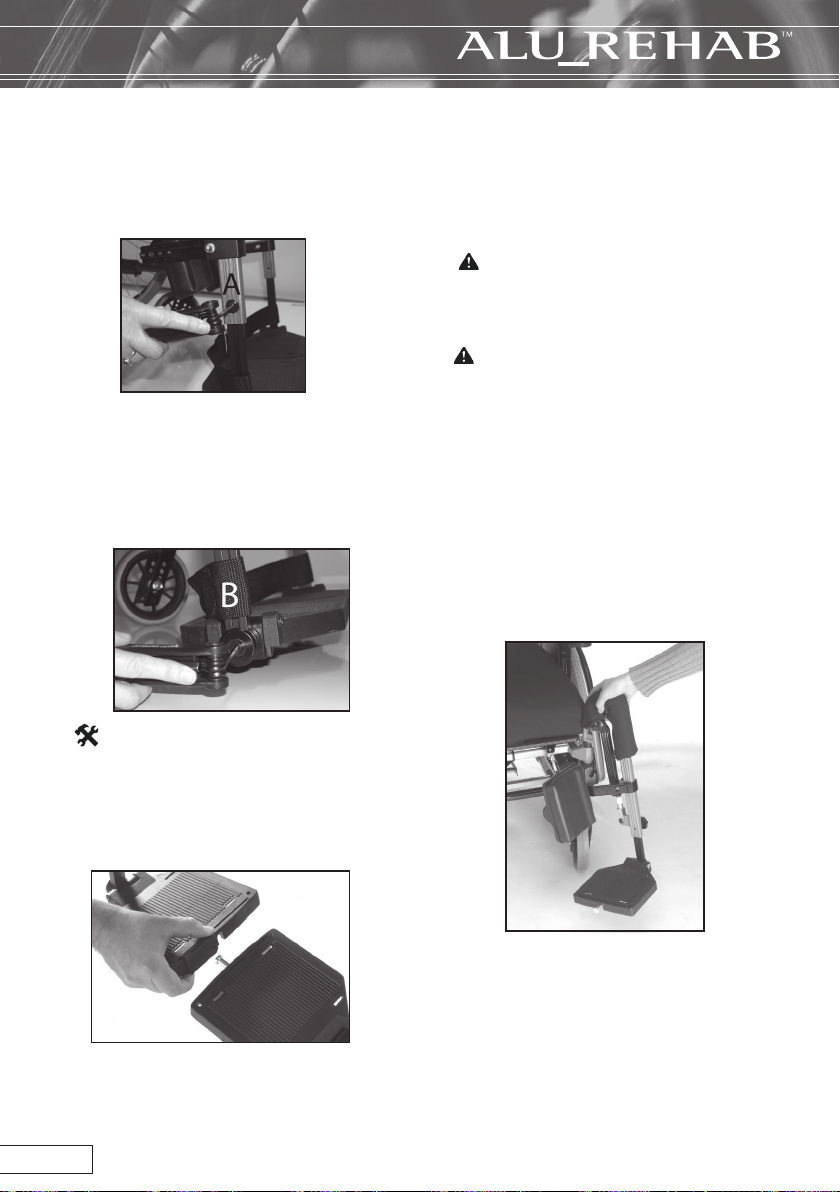

Adjusting the length of the foot support
• Untighten the screw (A) to make the
adjustment tube move
• Adjust the foot support in required
position and fix the screw properly.
Adjusting the angle of the footplate
• The foot plates can be adjusted in
angle.
• Untighten the screw (B) and adjust the
foot plate to the required angle. Fix the
screw properly
5 mm Allen key.
Locking and releasing the foot plates
• The foot plates come with a locking bolt
which makes the plates stronger
• To lock the foot plates pull the plastic
lock on the right foot plate and place the
lock over the bolt on the left foot plate.
• To release the foot plate pull the plastic
lock and lift the right foot plate up.
For outdoor use, there should be a
clearance of 4-5 cm between the
foot plate and the ground.
While making the adjustment there
must be no load on the foot plates
Removing the foot support:
• Pull the plastic lock on the foot plate
rearwards, so that the pin is released,
and the foot plate can be folded up.
• Raise the foot support a few degrees.
• Release the foot support by pulling it
slightly straight up.
• Swing the foot support outwards.
• Lift and remove the foot support.
Adjusting the calf support
The calf support is height and depth
adjustable. To adjust height unfix the nut
on the outside of the calf support bracket,
find the required height and fix the nut
again (Ill. A - next page)

19
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010

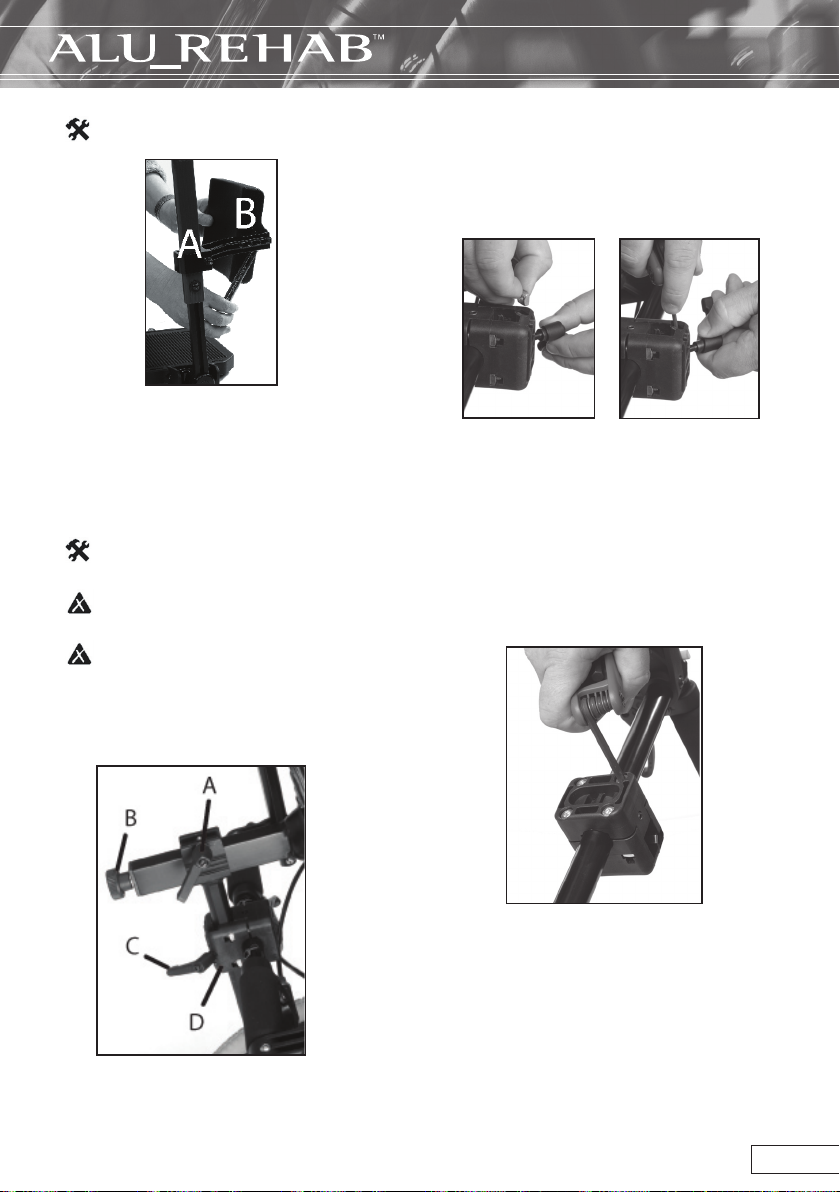

10 mm open-end spanner
To adjust in depth, the calf pad is
removed from the bracket by using an
open-end spanner between the pad and
the bracket. Find the required position
and refix it (Ill.B )
13 mm open-end spanner
Never stand on the foot supports!
Never lift the wheelchair by the
foot supports
6.11 Head support
A - Lever for depth adjustment
B - Wheel for angle adjustment
C - Lever for height adjustment
D - Head support bracket
• Place the squared nut in the trace of
the head support bracket as shown
above.
• Place the head support in the head
support bracket.
• The height and the depth of the head
support is set to the required positions
and tightened.
• The head support bracket is fixed by
tightening the four screws two by two
diagonally so the bracket is fixed with
the same strength divided on the four
screws.

20 Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Language: English Model: Netti 4U comfort|FA Version: November 2010Language: English Model: Netti 4U comfort|FA Version: November 2010
Adjusting the head support in depth:
• Release the locking lever on top of the
vertical bar (A).
• Adjust the head support and fix it in
required position.
Adjusting the head support in height:
• Release the locking lever on the head
support adapter (C).
• Adjust the head support and fix it in
required position.
Adjusting the head support in angle:
• Release the adjustment wheel at the
rear of the horizontal bar (B).
• Adjust the head support and fix it in
required position.
Adjusting the head support sideways:
• The head support adapter can be
moved both to the right and left,
giving the possibility to accomodate
special needs for head support.
• Untighten the four screws holding the
adapter together.
• Move the adapter to the required
position and fix the adapter by
tightening the screws diagonally.
Remember to release the levers
when adjusting the head support.
If the head support stand does
not fit the bracket perfectly the
bracket is probably fixed too tight
or unevenly.
After fitting the head support fix it
properly by tightening the little set
screw in the centre on top of the
head support bracket using an
Allen key.
If the head support seems to short
in height, it can be turned 180° by
releasing the adjustment wheel at
the rear of the horizibtal bar (B)
6.12 Arm support
• The arm supports are removable,
height- and depth adjustable.
Please be aware while mounting
that there is a left-side and a right-
side arm support.
