OPERATION MANUAL
COMMUNICATION SOFTWARE FOR MM-122A
MA-716A

MA-716A
1
Thank you for purchasing the Amada Miyachi Communication Software for MM-122A
MA-716A.
This operation manual describes its method of operation and precautions for use.
Read this operation manual carefully prior to use. Store appropriately for ready reference.
Contents
1. Features ··············································1-1
2. System Requirements ·······················2-1
3. Connection ·········································3-1 to 6
4. Reading the Measured Value ············4-1 to 4
5. Changing the Setting ·························5-1 to 6
Microsoft, Windows and Visual Basic are registered trademarks of Microsoft
Corporation, USA, in the USA and other countries.
Microsoft Excel is a product of Microsoft Corporation.
TM and ® mark are not indicated in this manual.

MA-716A
1. Features
1-1
1. Features
The MA-716A is the communication software used for connecting PC with the Amada
Miyachi’s Weld Checker MM-122A.
The MA-716A has following features.
●Easy connection
The MM-122A can be connected easily to PC using the MA-716A. (The connecting
cable is optional.)
●Reading the measured data
The value measured on MM-122A can be read in PC.
●Changing the setting
Each setting such as the upper/lower limit judgment of MM-122A can be changed
using PC.
●Using Microsoft Excel
Owing to VBA (Visual Basic for Application) of Excel, the read data can be
processed as they are.

MA-716A
2. System Requirements
2-1
2. System Requirements
●CPU and Memory
Environment that Microsoft Windows and Microsoft Excel you use can be operated.
When the welding interval is short, however, a high-performance PC is required.
(1GHz or higher CPU and 1GB or larger memory are recommended.)
●Hard Disk
10MB or larger space
●Serial Port
At least one communication port for RS-232C and RS-485
●Microsoft Excel
Microsoft Excel 2003 (Japanese or English edition)
(It is necessary to apply the Service Pack 3.)
●Operation System
Windows XP Home/Professional 32-bit edition (Japanese or English edition)
(It is necessary to apply the Service Pack 3.)

MA-716A
3. Connection
3-1
3. Connection
(1) Setup of Software
When using Windows XP, log on with administrator (administrator of PC) or a
name of user who belongs to the administrator group. Also, do not use
Japanese for user’s name.
1) Double click [My Computer] on the screen.
When [My Computer] is not displayed on screen, open [My Computer].
For how to open [My Computer], see the operation manual for the operation
system you use.
2) When [My Computer] is opened, double click the drive into which Setup
CD-ROM is inserted.
3) When CD-ROM is opened, double click [setup] folder.
4) When [setup] folder is opened, double click [setup.exe].
5) When [MM-122A-Test Setup] is started, click OK .
6) When the setting screen for folder to be setup is opened, click the button that
a computer is illustrated on.

MA-716A
3. Connection
3-2

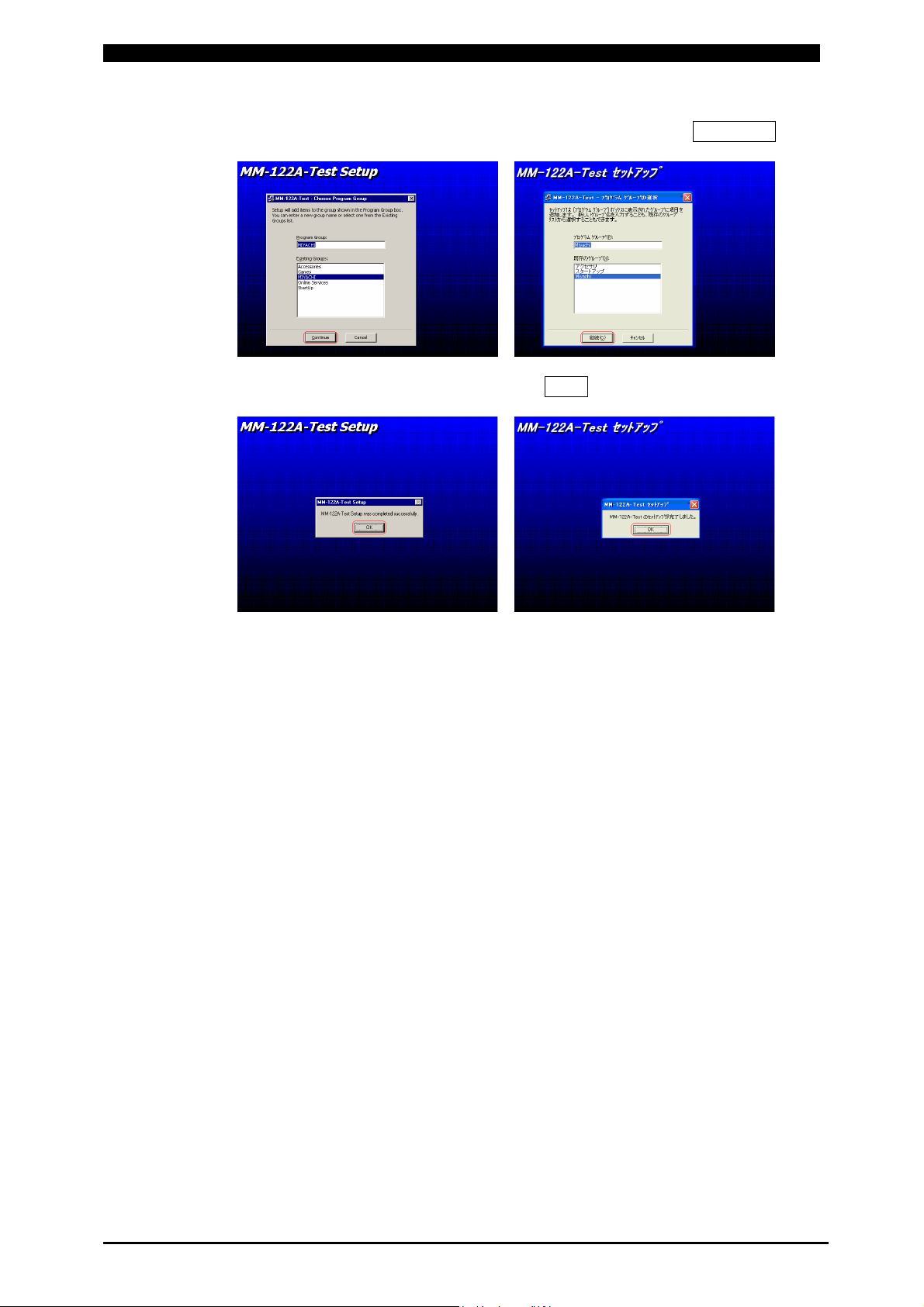

7) When the setting screen for program group is opened, click Continue .
8) When the end screen is displayed, click OK to end the setup.

MA-716A
3. Connection
3-3
(2) Connecting the Communication Cable
Connect the communication cable to the communication connector on the rear
of the MM-122A.
For details, see the operation manual for the MM-122A.
①RS-232C
One MM-122A is connected even when the communication method of the
MM-122A is set to “232Sy” for the setting change or “232Fr” for the
measured-value reading.
②RS-485
Up to thirty-one MM-122As can be connected when the communication
method of the MM-122A is set to “485Sy” for the setting change. When
“485Fr” is set for the measured-value reading, only one MM-122A is
connected.
Host computerMM-122A
RS-232C
１
ＲＸＤ ２
ＴＸＤ ３
４
５
６
７
８
９
１ＣＤ
２ ＲＸＤ
３ ＴＸＤ
４ ＤＴＲ
５ ＧＮＤ
６ ＤＳＲ
７ ＲＴＳ
８ ＣＴＳ
９
MM-122A side
Pin No.
Host computer
side Pin No.
D-Sub 9-pin
Male
D-Sub 9-pin
Female
MM-122A
ID No.1
Host computer
RS-232C/RS-485
conversion adapter
・・・・・・
31 devices max.
MM-122A
ID No.2
MM-122A
ID No.31

MA-716A
3. Connection
3-4
(3) Checking Connection
Use the communication-checking software to check connection.
(The communication-checking software is for checking receiving, the
communication port and the transmission rate. The bidirectional communication
can not be checked.)
①Setting of the MM-122A
Set the communication method of the MM-122A.
When connecting with RS-232C, set to [232Fr].
When connecting with RS-485, set to [485Fr].
Set the transmission rate to [9600bps].
For details, see the operation manual for the MM-122A.

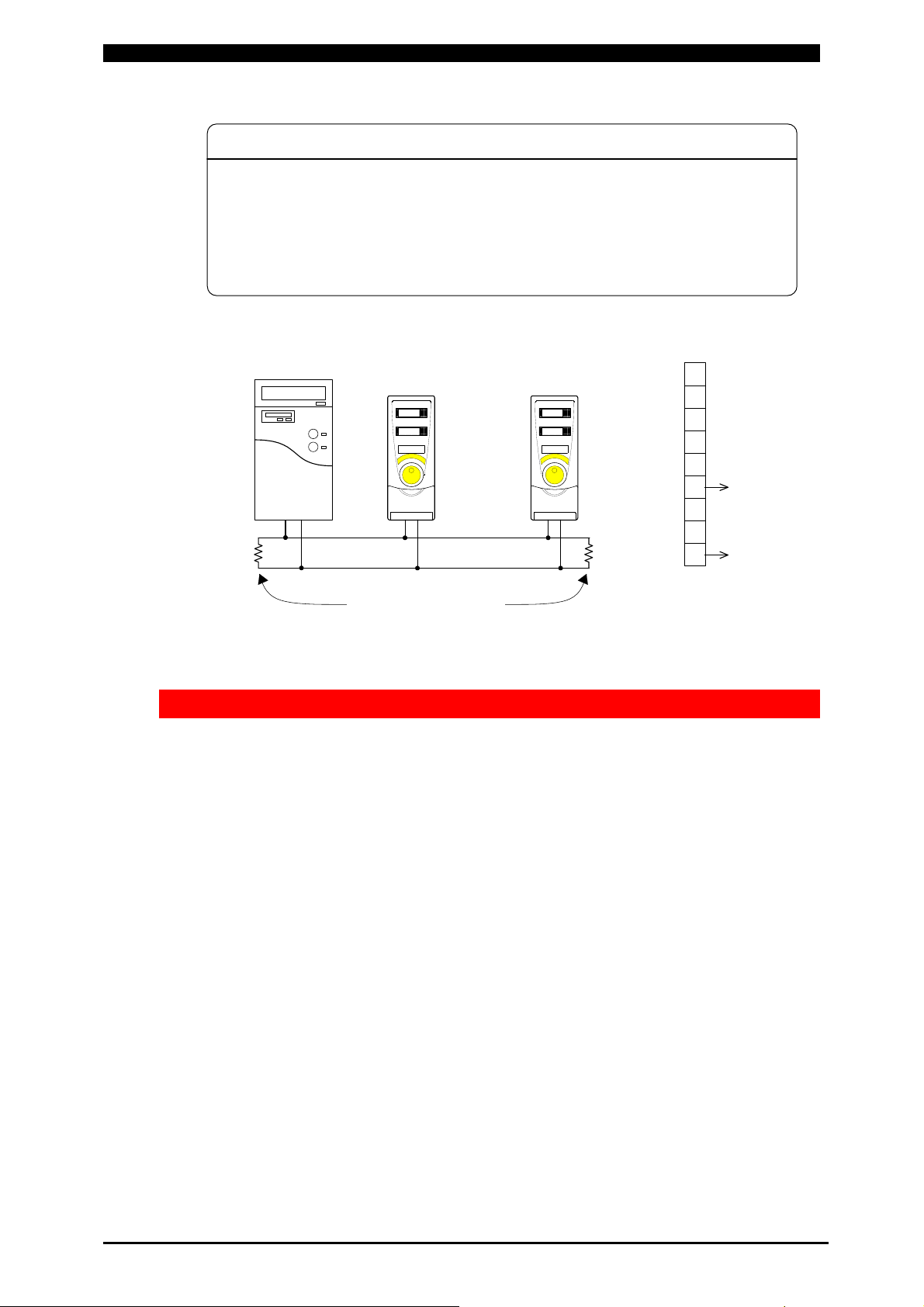

ATTENTION
・Do not assign one number to more than one device.
If one number is assigned to more than one device, data collision and
inappropriate system operations may result.
・RS-232C/RS-485 conversion adopter is user provided.
・Install a 100Ωterminating resistor at each end of RS-485 cable.
・・・・・・・
MM-122A
ID No.1
MM-122A
ID No.31
ＲＳ＋
ＲＳ－
Terminating resistor
100Ω
Host computer
RS-232C/RS-485
conversion adapter １
２
３
４
５
ＲＳ＋ ６ ＲＳ＋
７
８
ＲＳ－ ９ ＲＳ－
D-Sub 9-pin
Male
MM-122A side
Pin No.

MA-716A
3. Connection
3-5
②Starting the Checking Software
Click the Start button at the lower left portion of the screen and select
[Program] →[MIYACHI] →[MM-122A-Test]. The communication- checking
software starts.
(Remarks)
(a) Communication port No.
(b) Transmission rate
(c) Communication (Displays the state of communication)
(d) Data (Displays the received data)
(e) End (Ends the checking software)
(f) Clear (Clears display)
③Setting the Checking Software
Set the communication port No. and the transmission rate.
•Set the communication port No. connected with the communication cable
for [Communication port No.].
If [!!ERROR!!] is displayed for [Communication] when setting,
・ the communication port is used by other software or the like, or
・ the communication port is set to be unusable.
End the software and check the settings of PC *1.
•Set the transmission rate set to the MM-122A in ②(9600bps) for
[Transmission rate].
*1: See the operation manual for PC you use.
(a)
(b)
(c)
(d)
(f)
(e)

MA-716A
3. Connection
3-6
④Checking Communication
Measure the welding current several times on the MM-122A.
•When the communication data is received normally
[!!OK!!] is displayed for [Communication] and the received data is
displayed for each item of [Data].
•When communication is not made normally
Nothing or [!!ERROR!!] is displayed for [Communication].
Check the communication cable, connection, communication port No. and
transmission rate.
When setting the transmission rate to 19200bps, change the settings for the
MM-122A and for the checking software, then check again.

MA-716A
4. Reading the Measured Value
4-1
4. Reading the Measured Value
(1) Setting of the MM-122A
Set the communication method of the MM-122A.
When connecting with RS-232C, set to [232Fr].
One MM-122A is connected per host computer.
When connecting with RS-485, set to [485Fr].
One MM-122A is connected per host computer.
Set the transmission rate to [9600bps] or [19200bps].
For details, see the operation manual for the MM-122A.
(2) Copying the Measured-Value-Reading Software
Copy the measured-value-reading software to [My Documents] on the hard disk
using Explorer.
The file to be copied depends on the current setting, Transmission Rate and
Communication Port No. to be measured. Copy a proper file.
・Communication Port No. is the setting checked in Chapter 3 (3).
・Transmission Rate and current setting to be measured are the same
settings as the MM-122A.
Example)
Current setting to be measured: AC
Transmission Rate: 9600bps
Communication Port No.: COM2
When the settings are as above,
copy “
╲ excel_receive ╲ ac mode ╲ mon_ac_96_com2.xls”.
①AC Mode
When the current setting to be measured on the MM-122A is set to [AC],
[AC---] or [dccyc], copy one of the following files.
・When Transmission Rate is 9600bps
Communication Port 1:
╲ excel_receive ╲ ac mode ╲ mon_ac_96_com1.xls
Communication Port 2:
╲ excel_receive ╲ ac mode ╲ mon_ac_96_com2.xls
Communication Port 3:
╲ excel_receive ╲ ac mode ╲ mon_ac_96_com3.xls
Communication Port 4:
╲ excel_receive ╲ ac mode ╲ mon_ac_96_com4.xls
・When Transmission Rate is 19200bps
Communication Port 1:
╲ excel_receive ╲ ac mode ╲ mon_ac_192_com1.xls
Communication Port 2:
╲ excel_receive ╲ ac mode ╲ mon_ac_192_com2.xls
Communication Port 3:
╲ excel_receive ╲ ac mode ╲ mon_ac_192_com3.xls
Communication Port 4:
╲ excel_receive ╲ ac mode ╲ mon_ac_192_com4.xls

MA-716A
4. Reading the Measured Value
4-2
②DC Mode
When the current setting to be measured on the MM-122A is set to [ACSEC]
or [dcSEC], copy one of the following files.
・When Transmission Rate is 9600bps
Communication Port 1:
╲ excel_receive ╲ dc mode ╲ mon_dc_96_com1.xls
Communication Port 2:
╲ excel_receive ╲ dc mode ╲ mon_dc_96_com2.xls
Communication Port 3:
╲ excel_receive ╲ dc mode ╲ mon_dc_96_com3.xls
Communication Port 4:
╲ excel_receive ╲ dc mode ╲ mon_dc_96_com4.xls
・When Transmission Rate is 19200bps
Communication Port 1:
╲ excel_receive ╲ dc mode ╲ mon_dc_192_com1.xls
Communication Port 2:
╲ excel_receive ╲ dc mode ╲ mon_dc_192_com2.xls
Communication Port 3:
╲ excel_receive ╲ dc mode ╲ mon_dc_192_com3.xls
Communication Port 4:
╲ excel_receive ╲ dc mode ╲ mon_dc_192_com4.xls
③Transistor Mode
When the current setting to be measured on the MM-122A is set to [dcSSc],
copy one of the following files.
・When Transmission Rate is 9600bps
Communication Port 1: ╲ excel_receive ╲ transister mode ╲ mon_tr_96_com1.xls
Communication Port 2:
╲ excel_receive ╲ transister mode ╲ mon_tr_96_com2.xls
Communication Port 3:
╲ excel_receive ╲ transister mode ╲ mon_tr_96_com3.xls
Communication Port 4:
╲ excel_receive ╲ transister mode ╲ mon_tr_96_com4.xls
・When Transmission Rate is 19200bps
Communication Port 1: ╲ excel_receive ╲ transister mode ╲ mon_tr_192_com1.xls
Communication Port 2:
╲ excel_receive ╲ transister mode ╲ mon_tr_192_com2.xls
Communication Port 3:
╲ excel_receive ╲ transister mode ╲ mon_tr_192_com3.xls
Communication Port 4:
╲ excel_receive ╲ transister mode ╲ mon_tr_192_com4.xls
④Capacitor Mode
When the current setting to be measured on the MM-122A is set to [CAP-S]
or [CAP-L], copy one of the following files.
・When Transmission Rate is 9600bps
Communication Port 1: ╲ excel_receive ╲ capacitor mode ╲ mon_cp_96_com1.xls
Communication Port 2:
╲ excel_receive ╲ capacitor mode ╲ mon_cp_96_com2.xls
Communication Port 3:
╲ excel_receive ╲ capacitor mode ╲ mon_cp_96_com3.xls
Communication Port 4:
╲ excel_receive ╲ capacitor mode ╲ mon_cp_96_com4.xls
・When Transmission Rate is 19200bps
Communication Port 1: ╲ excel_receive ╲ capacitor mode ╲ mon_cp_192_com1.xls
Communication Port 2:
╲ excel_receive ╲ capacitor mode ╲ mon_cp_192_com2.xls
Communication Port 3:
╲ excel_receive ╲ capacitor mode ╲ mon_cp_192_com3.xls
Communication Port 4:
╲ excel_receive ╲ capacitor mode ╲ mon_cp_192_com4.xls

MA-716A
4. Reading the Measured Value
4-3
(3) Reading the Measured Value
①Security Setting of Microsoft Excel
Since the MA-716A uses the macro function of Microsoft Excel, the
security*1 setting of Microsoft Excel 2003 is required.
Select Tool →Macro →Security from the menu bar. Set the security level to
Middle *2 or Low *3.
*1 When the security level is set to Middle or Low, defense against a virus
using the macro function weakens. Use software for virus so that it does
not cause any trouble if a virus invades macro.
*2 When the security level is set to Middle, a warning message for macro
appears when you open a file.
*3 When the security level is set to Low, a warning message does not appear.
If a file which is not using macro is infected by a virus, a warning
message is not displayed.
②Opening a File
Open the file copied in Chapter 4 (2) on Microsoft Excel. *4
When the security level is set to Middle, a warning message for macro
appears when you open a file. Select Validate Macro.
(Remarks)
(a) Start (Starts reading the measured value)
(b) Stop (Stops reading the measured value)
(c) End (Ends the measured-value-reading software)
(d) Restart (Restarts the measured-value-reading software)
*4 For how to open files, see the operation manual for Microsoft Excel.
(d)
(a)
(b)
(c)

MA-716A
4. Reading the Measured Value
4-4
③Starting reading the measured value
Pressing Start button starts reading the measured value.
・Schedule No.
・Step No.
・Count
・PEAK current judgment *5
・PEAK current
・RMS current judgment *5
・RMS current
・Weld time judgment *5
・Weld time
・Conduction angle
・TP time judgment *5
・TP time
・TH time judgment *5
・TH time
・Preset count up *6
・Step end *6
・No-current error *6
・Pulsation error *6
*5 The result of judgment is [NOMAL:N], [LOW:L], [HIGH:H] or [No
Judgment:SP (space)].
*6 [NG] is displayed when a trouble occurs.
④Stopping reading the measured value
Pressing Stop button stops reading the measured value.
When reading the measured value again, press Start button.
⑤Exiting from the measured-value-reading software
Press End button to exit.
Operation such as saving a file should be done after ending the software.
When using this software again, change the worksheet to [Communication]
and press Restart button.

MA-716A
5. Changing the Setting
5-1
5. Changing the Setting
(1) Setting of the MM-122A
Set the communication method of the MM-122A.
When connecting with RS-232C, set to [232Fr].
One MM-122A is connected per host computer.
When connecting with RS-485, set to [485Fr].
Up to thirty-one MM-122As can be connected per host computer.
Set the transmission rate to [9600bps] or [19200bps].
For details, see the operation manual for the MM-122A.
(2) Copying the Setting-Changing Software
Copy the setting-changing software to [My Documents] on the hard disk using
Explorer.
The file to be copied depends on the Transmission Rate and Communication
Port No. to be measured. Copy a proper file.
・Communication Port No. is the setting checked in Chapter 3 (3).
・Transmission Rate and current setting to be measured are the same
settings as the MM-122A.
Example)
Transmission Rate: 9600bps
Communication Port No.: COM1
When the settings are as above,
copy “
╲ excel_schchange ╲ schchg_96_com1.xls”.
①When Transmission Rate is 9600bps
Communication Port 1:
╲ excel_schchange ╲ schchg_96_com1.xls
Communication Port 2:
╲ excel_schchange ╲ schchg_96_com2.xls
Communication Port 3:
╲ excel_schchange ╲ schchg_96_com3.xls
Communication Port 4:
╲ excel_schchange ╲ schchg_96_com4.xls
②When Transmission Rate is 19200bps
Communication Port 1:
╲ excel_schchange ╲ schchg_192_com1.xls
Communication Port 2:
╲ excel_schchange ╲ schchg_192_com2.xls
Communication Port 3:
╲ excel_schchange ╲ schchg_192_com3.xls
Communication Port 4:
╲ excel_schchange ╲ schchg_192_com4.xls
(3) Changing the Setting
①Security Setting of Microsoft Excel
Since the MA-716A uses the macro function of Microsoft Excel, the
security*1 setting of Microsoft Excel 2003 is required.

MA-716A
5. Changing the Setting
5-2
Select Tool →Macro →Security from the menu bar. Set the security level to
Middle *2 or Low *3.
*1 When the security level is set to Middle or Low, defense against a virus
using the macro function weakens. Use software for virus so that it does
not cause any trouble if a virus invades macro.
*2 When the security level is set to Middle, a warning message for macro
appears when you open a file.
*3 When the security level is set to Low, a warning message does not appear.
If a file not using macro is infected by a virus, a warning message is not
displayed.

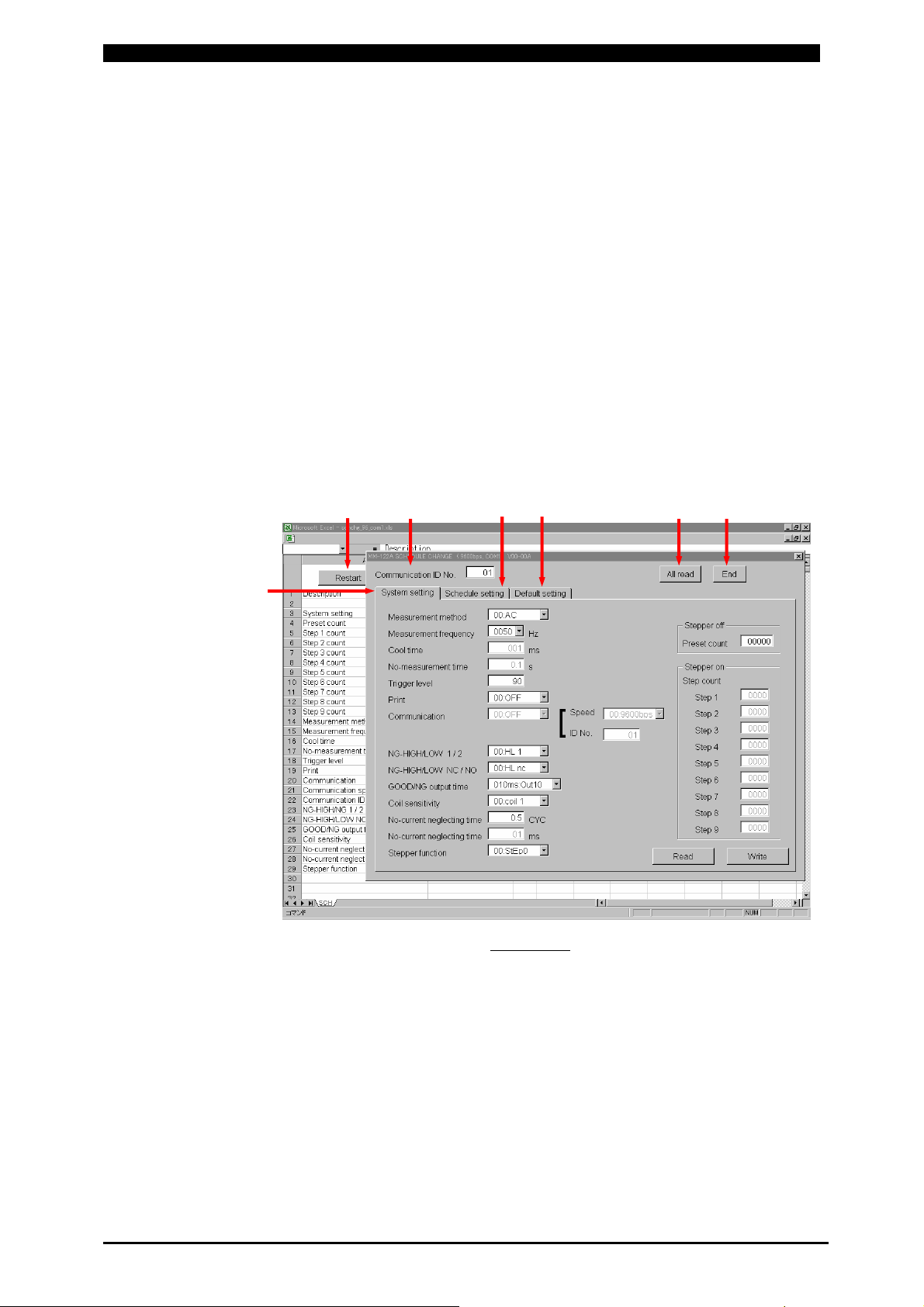

②Opening a File
Open the file copied in Chapter 5 (2) on Microsoft Excel. *4
When the security level is set to Middle, a warning message for macro
appears when opening a file. Select Validate Macro.
(Remarks)
(a) Communication ID No.
(b) System setting
(c) Schedule setting
(d) Default setting
(e) All read (Reads all settings)
(f) End (Ends the setting-changing software)
(g) Restart (Restarts the setting-changing software)
*4 For how to open files, see the operation manual for Microsoft Excel.
(g)
(b)
(a) (d) (e) (f) (c)

MA-716A
5. Changing the Setting
5-3
③Setting the Communication ID
Set the communication ID [Communication ID No.] at the upper left portion
of the window to the same setting as the MM-122A.
④Reading from the MM-122A
To read settings from the MM-122A, use All read or Read button.
When changing the settings and schedules, be sure to change the Schedule
after reading the system setting from the MM-122A.
If the system setting is not read, the setting on PC side and that of the
MM-122A side become inconsistent, and a trouble occurs when writing in
the MM-122A.
・All read button reads all settings from the MM-122A.
・Read buttons are on both the system setting screen and the schedule
setting screen.
Read button on the system setting screen reads the system settings
from the MM-122A.
Read button on the schedule setting screen reads the schedule
specified as system setting from the MM-122A.
⑤Writing to the MM-122A
To write settings to the MM-122A, use Write button.
・Write buttons are on the system setting screen and the schedule setting
screen.
Write button on the system setting screen writes the system settings
from the MM-122A.
Write button on the schedule setting screen writes the schedule
specified as system setting from the MM-122A.
⑥Exiting from the Setting-Changing Software
Press End button to exit.
The setting data before exiting is on the worksheet *5. The settings can be
saved by saving this file.
When saving the settings, read the settings and schedules with All read
button.
When using this software again, change the worksheet to [SCH] and press
Restart button.
*5 Do not change the data on worksheet.

MA-716A
5. Changing the Setting
5-4

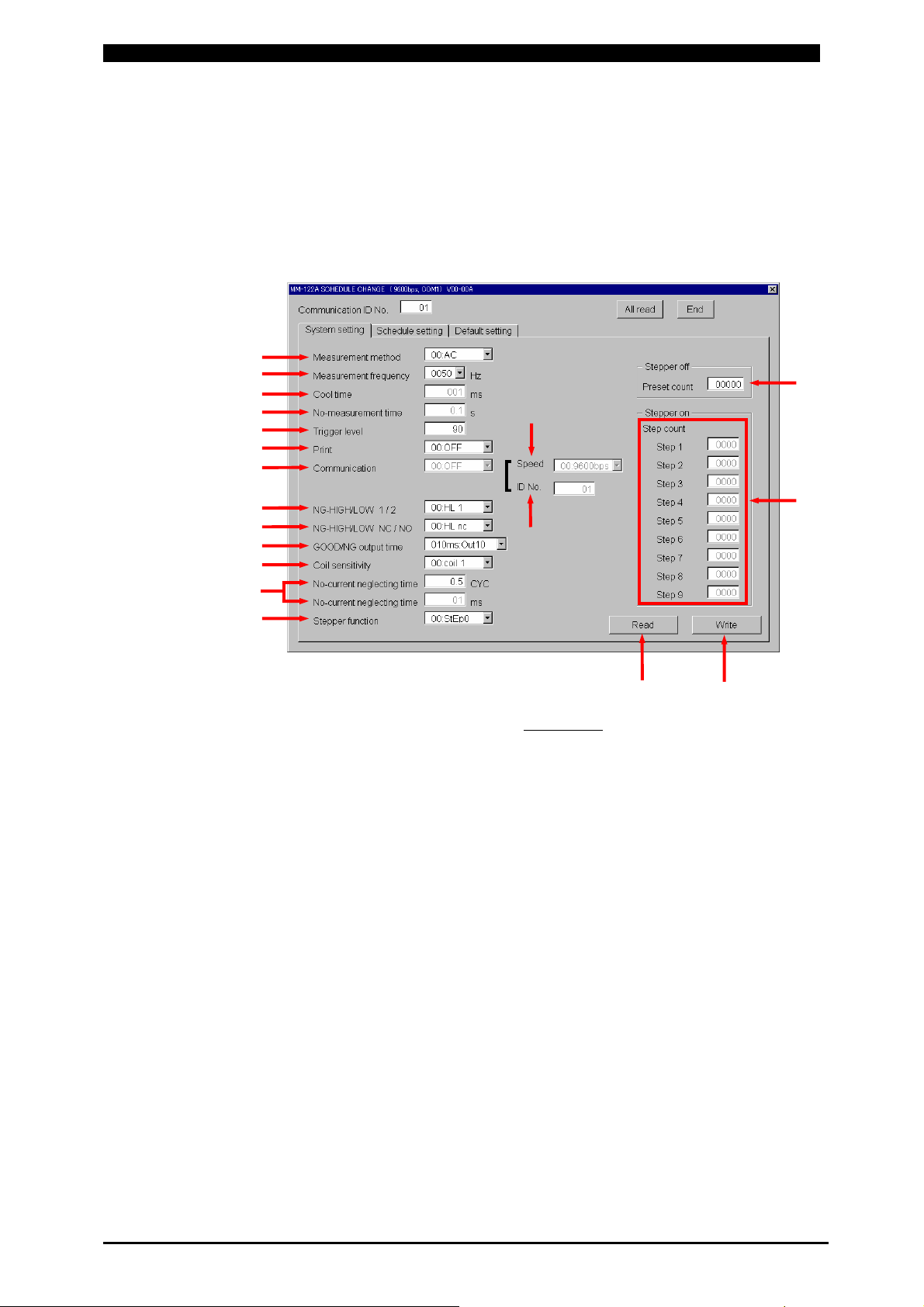

⑦System Setting Method
When changing the settings, read the system setting from the MM-122A.
If the system setting is not read, the setting on PC side and that of the
MM-122A side become inconsistent and a trouble occurs when writing in the
MM-122A.
Select [System setting] tab to display the system setting screen.
(Remarks)
(a) Measurement method
(b) Measurement frequency
(c) Cool time
(d) No-measurement time
(e) Trigger level
(f) Print
(g) Communication (Not changeable)
(h) Communication Speed (Not changeable)
(i) Communication ID No. (Not changeable)
(j) NG-HIGH/LOW 1/2
(k) NG-HIGH/LOW NC/NO
(l) GOOD/NG output time
(m)Coil sensitivity
(n) No-current neglecting time
(o) Stepper function
(p) Preset count
(q) Step count (Counts for Step1 to 9)
(r) Read
(s) Write
For details, see the operation manual for the MM-122A.
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(j)
(k)
(l)
(m)
(n)
(o)
(r)
(i)
(q)
(p)
(h)
(s)

MA-716A
5. Changing the Setting
5-5

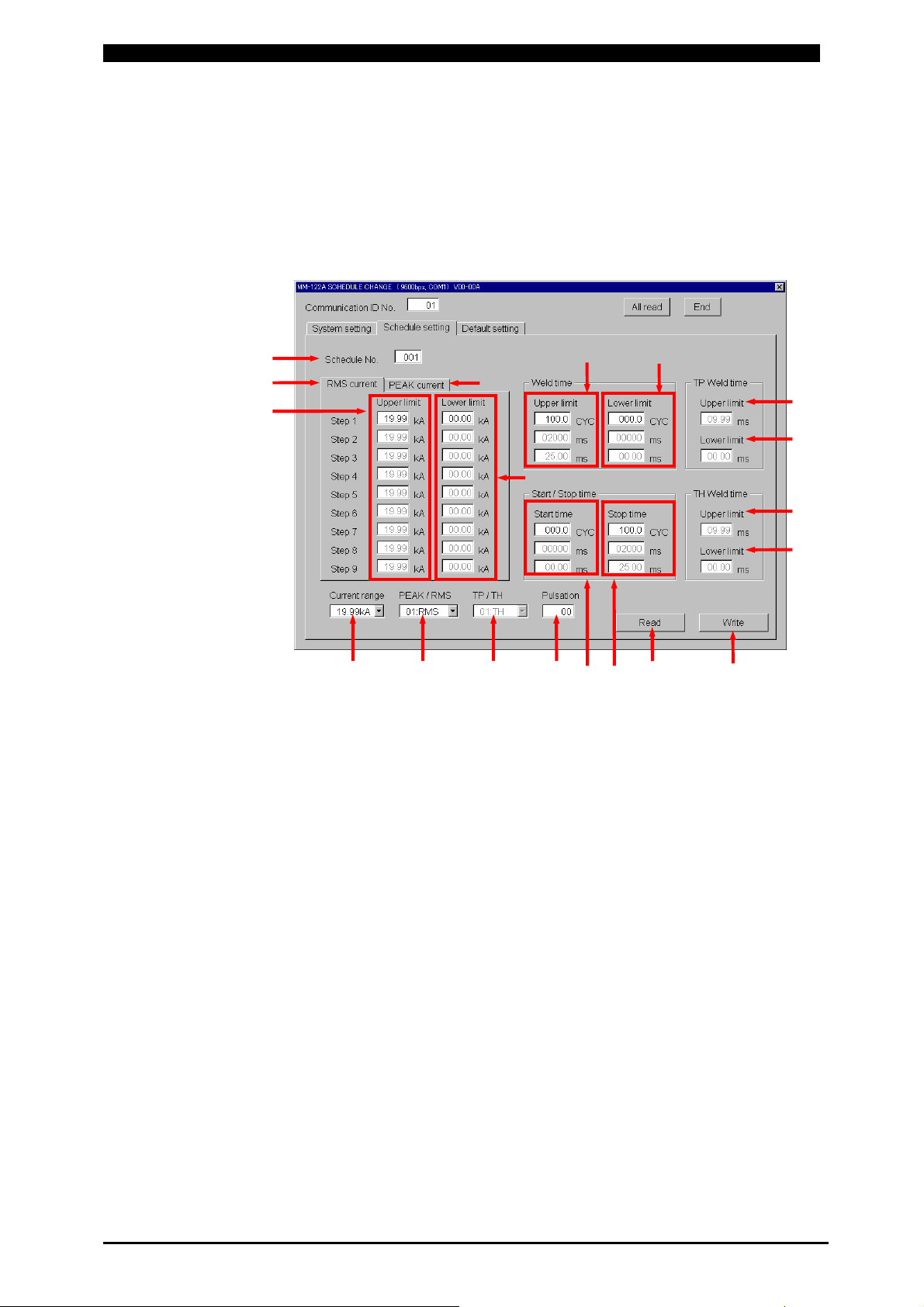

⑧Schedule Setting Method
When changing the schedules, read the system setting from the MM-122A.
If the system setting is not read, the setting on PC side and that of the
MM-122A side become inconsistent and a trouble occurs when writing in the
MM-122A.
Select [Schedule setting] tab to display the schedule setting screen.
(a) Schedule No.
(b) RMS current
(c) PEAK current
(d) Current Upper limit
(e) Current Lower limit
(f) Current range
(g) PEAK/RMS
(h) TP/TH
(i) Pulsation
(j) Weld time Upper limit
(k) Weld time Lower limit
(l) Start time
(m)Stop time
(n) TP Weld time Upper limit
(o) TP Weld time Lower limit
(p) TH Weld time Upper limit
(q) TH Weld time Lower limit
(r) Read
(s) Write
For details, see the operation manual for the MM-122A.
(a)
(b)
(f) (g) (h) (i) (r) (s)
(q)
(p)
(o)
(c)
(j) (k)
(n)
(m)
(l)
(d)
(e)

MA-716A
5. Changing the Setting
5-6

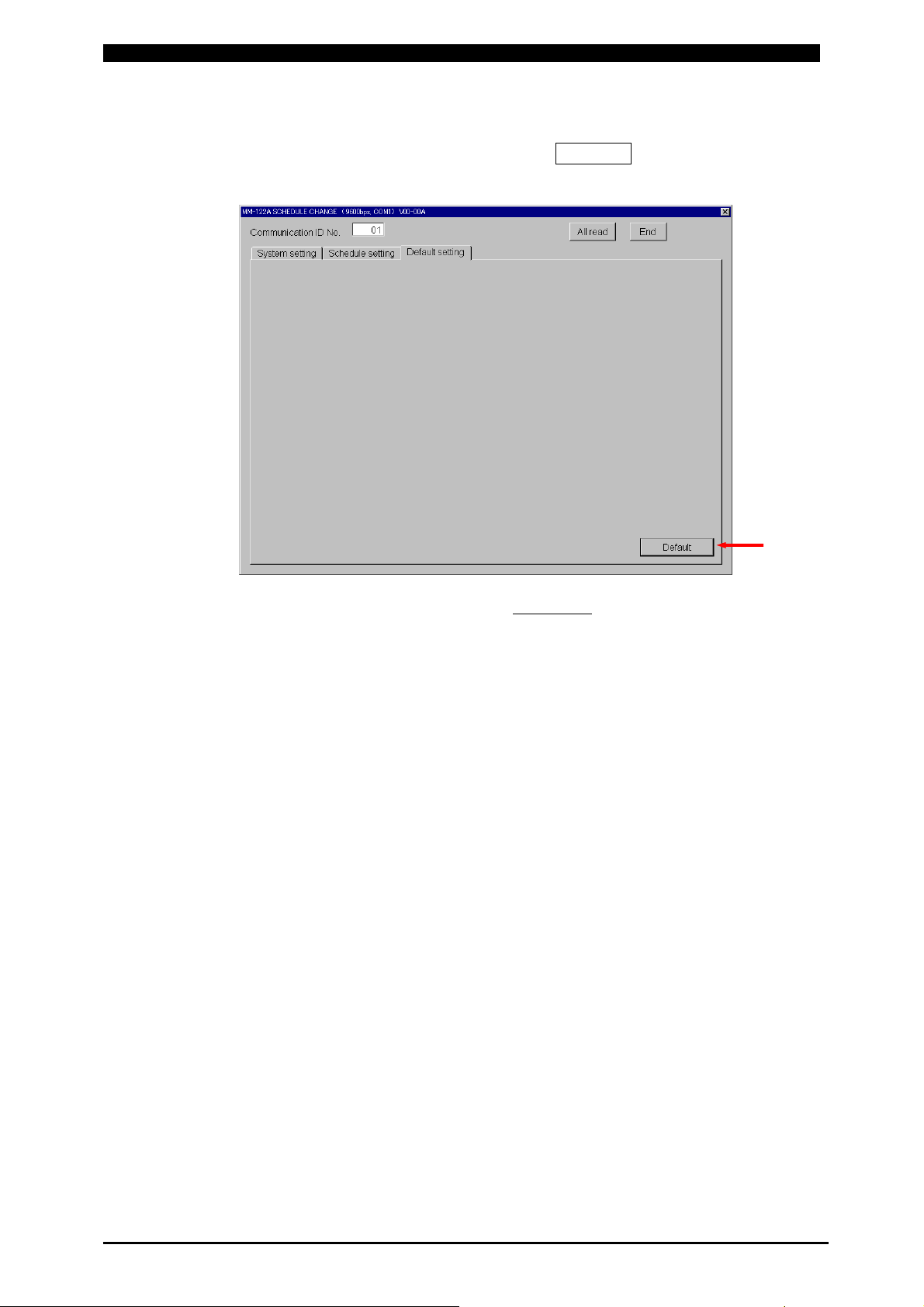

⑨Initializing Method
Select [Default setting] tab and press Default button to initialize the
settings.
(Remarks)
(a) Default (Initializes settings)
(a)
