Amate Audio Nitid S12W User manual

User’s manual
December 2022

NITID S12W Dec 2022
2 Amate Audio
Safety Instructions
1. All safety instructions must be read before using this device.
2. Keep and follow these instructions
3. Heed all warnings
4. The exclamation mark in the triangle indicates internal components which if
replaced can affect safety.
5. The lightning symbol within the triangle indicates the presence of dangerous
uninsulated voltages.
6. Only clean the device with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install the device near heat sources such as radiators, heaters or other
heat-emitting elements.
9. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus
10. The equipment must be repaired by qualified technical service personnel when:
A. The mains supply cable is damaged, or
B. Any object or liquid has damaged the device; or
C. The equipment does not function normally or correctly; or
D. The equipment has been exposed to the rain; or
E. The chassis is damaged
11. Disconnect the device in the case of electric storms or during long periods of
disuse.
12. WARNING – To reduce the risk of fire or electric shock, do not expose this
device to rain or moisture
13. The equipment shall not be exposed to dripping or splashing and no objects filled
with liquids, such as vases, shall be placed on the device.
14. For hanging and installation, use manufacturer recommended accessories only.

NITID S12W Dec 2022
3 Amate Audio
1. INTRODUCTION
1.1. General
Amate Audio would like to thank you for your confidence in our NÍTID Series. We
suggest you to carefully read the following instructions in order to obtain the best
results in performance.
1.2. Features and presentation
S12W
 Self-powered subwoofer
 XLR electronically balanced input & output
 AC PowerCon input & link
 1000 W class D amplifier
 24-bit AD/DA converters, 48 kHz sampling rate
 DSP Controls (presets, parametric EQs, delay, mute, gain, polarity and limiter)
 ECO-mode available: automatic standby mode controlled by the input signal
 Amplifier self-diagnostics: input and output level, temperature, limiter active
 1 x 12" woofer with 3” voice coil
1.3. Presets on S12W
The S12W includes several manufacturer presets for different types of applications.
1.3.1. As extension on floor for NÍTID S top models
The S12W provides an extension of the bandwidth in the low end for the Nítid S
systems, down to 38 Hz.
This extension is done at 90 Hz crossover point.
Model: S26 Model: S10
Preset: [HPF90] Preset: [HPF90]
Model: S12W Model: S12W
Preset: [S-ALIGNED] Preset: [S-ALIGNED]

NITID S12W Dec 2022
4 Amate Audio
Model: S12
Preset: [HPF90]
Model: S12W
Preset: [S-ALIGNED]
SYSTEM ALIGNMENT
The system S26 / S10 / S12 + S12W is pre-aligned from the factory. Do
not forget to add the geometric delay depending on the configuration
used.
1.3.2. General purpose (Standard) presets
These presets can be used to match the S12W with any other cabinet. These
presets are not prealigned, so a time alignment with the top model satellite is
recommended. There are three standard presets, and they are defined by the High
Pass Filter frequency, which can be selected at 80, 90 or 100 Hz:
LPF80 Standard
LPF90 Standard
LPF100 Standard
1.3.3. Cardioid presets
The S12W enables the combination of three or multiple of three subwoofer cabinets
in an array to provide exceptional directivity at low frequencies. High directivity at
low frequencies has two main effects on the sound field: firstly, the low frequency
level behind the subwoofer cabinets is greatly reduced; secondly, in closed venues
the diffuse sound field at low frequencies is reduced so the
low frequency reproduction is much more precise. The
typical operating range of a traditional subwoofer tends to
be like a monopole, i.e. tends to radiate with the same
energy in all directions. This behaviour implies that the
control of radiation at low frequencies is very difficult
because the wavelengths are very large compared to the
size of the source (8.5 m at 40 Hz).
Fig. 1. Traditional polar pattern of a subwoofer at 40 Hz

NITID S12W Dec 2022
5 Amate Audio
To increase the directivity at low frequencies we must transform the omnidirectional
performance into a cardioid performance. This can only be achieved by various
sources, arranged in a certain position, to which we apply a specific phase, filtering
and delay. That is, we need to reproduce two signals with the same frequency and
similar amplitude which will have a difference in
phase of approximately 180º at a certain point of the
sound field.
If the phases and delays are well calculated, the
result is a system, in which we cancel the energy of
the back and not the one of the front.
This can only be achieved with cabinets that
incorporate independent delay units on their DSP, as
the X218WFD.
Fig. 2. Cardioid pattern
1.3.4. Configuration with with 3 units
The S12W can generate an uncompromised cardioid behaviour, which means that
there is no need for special cabinets, enabling the use of the system’s full efficiency
with just “one finger”.
In its minimum and standard configuration a cardioid setup consists of a vertical
column of three subwoofer cabinets.
Only one subwoofer is needed to compensate for the energy of the other two
radiating to the front. Then, the cabinet facing to the back (to the stage) should be
located in the centre of the column.
Fig. 3. Cardioid configuration for S12W subwoofer (3 units)

NITID S12W Dec 2022
6 Amate Audio
The cardioid preset must only be applied to the rear facing
subwoofers (BACK STAGE). The front facing subwoofers (FRONT
AUDIENCE) must use the corresponding front-facing preset, as
shown in the table below:
S12W Preset
(BACK
STAGE)
S12W Preset
(FRONT AUDIENCE)
Box model
CARD80
STANDARD
LPF80 STANDARD Generic, HPF 80 Hz
CARD90
STANDARD
LPF90 STANDARD Generic, HPF 90 Hz
CARD100
STANDARD
LPF100 STANDARD Generic, HPF 100 Hz
CARD
S-ALIGNED
S-ALIGNED S26 / S10 / S12, HPF90 Hz
Fig. 4. Correspondence of rear and front presets for cardioid applications
IMPORTANT NOTE: Due to the internal set-up of the cardioid
presets, the threshold level (limiter) of the back facing subwoofers
must be reduced by -4 dB when using stacks of three subwoofers.
[FRONT PRESET]
[BACK PRESET]
[THRESHOLD -4dB]
[FRONT PRESET]
Fig. 5. Cardioid presets for S12W subwoofers (3 units)
When placing the subwoofers in a cardioid configuration keep a distance to walls of at
least 60 cm in order not to affect the radiation of the central reversed cabinet.

NITID S12W Dec 2022
7 Amate Audio
Fig. 6. Back energy rejection at 40 Hz / 50 Hz / 63 Hz
2. CONTROL AND CONNECTION PANEL
The S12W control panel contains the following elements:
A) TOUCHSCREEN: Displays information about the System status: current preset,
amplifier status and signal input level. Allows the user to configure the system:
Preset selection, Delay, Gain, Limiter, polarity, ECO mode on/off, Front LEDs
on/off, etc. For more information about the available functionality, read the Annex I
of this manual.

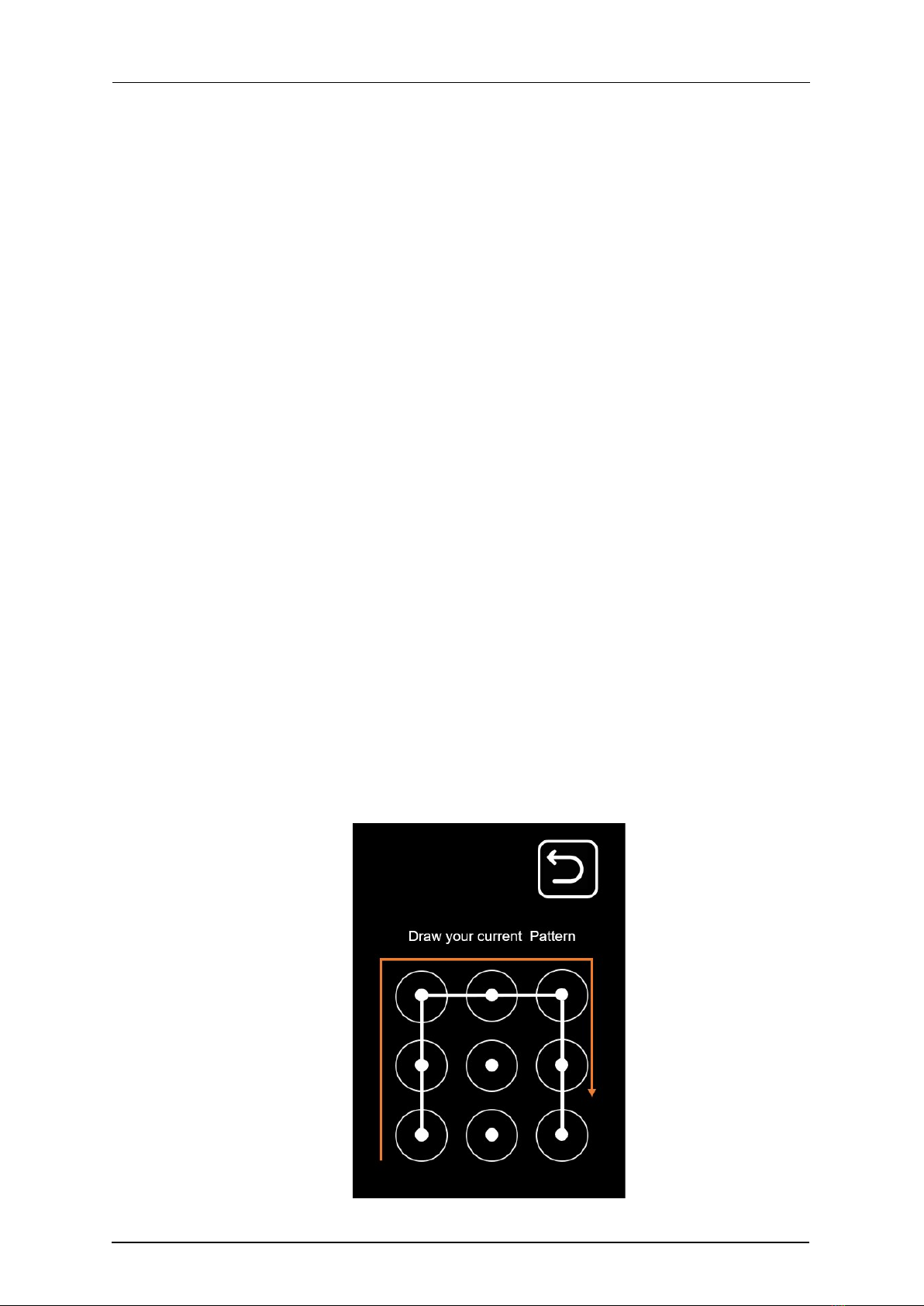

NOTE: For preventing the access to Main Menu with a PIN pattern, please refer to
Annex I.
B) MODEL DATA: The basic data of the model is found here:
- Model reference
- Amplifier program power (Watts)
- Maximum Sound Pressure Level Continuous delivered by the system (dB SPL)
C) BALANCED INPUT/LINK:
XLR-3 Female balanced signal connector for signal input.
XLR-3 Male connector for parallel connection of various cabinets with the same input
signal.
Nominal Input sensitivity: +2dBu (1 Vrms)
Maximum Input Voltage without clipping: +14dBu (4Vrms)
Maximum Input Voltage: +20dBu (8Vrms)
IMPORTANT: Please always use balanced microphone cable with the
following pin assignment: 1= Shield (Ground) 2= Live (+) 3= Return (-)
D) AC MAINS INPUT/LINK: Mains supply connection via PowerCon.
 Blue connector for AC in.
 Grey connector to feed other units in parallel. Linking up to ten units is
possible, if a quality cable of a minimum section of 3x2.5mm2 is used.
Connecting more than ten units in parallel may lead to a voltage drop in the
cable that will reduce the equipment performance.
Always use mains power cable supplied by manufacturer. Never connect
NITID cabinets to an unearthed mains supply or by using an unearthed
mains cable

NITID S12W Dec 2022
8 Amate Audio
E) AUTHENTICATION QR CODE: This QR code is a smart label that ensures that
the product is an original Amate Audio product. To verify the authenticity, please
follow the instructions in the following link:
http://www.amateaudio.com/en/product-authentication/
Fig. 7. S12W control and connection panel
A
B
C
D
E

NITID S12W Dec 2022
9 Amate Audio
3. CONFIGURATIONS
3.1. Parallel connection
Connect the signal (mixing desk output) to INPUT on the first unit. Use the LINK
output to transfer the INPUT signal to the second unit and thus sequentially for
further units. All of
the units in this
chain must be
switched on.
For the mains
connection use the
cable with the blue
PowerCon.
You can use the
mains connection in
parallel by using a
cable with grey
PowerCon at one
end and the blue
PowerCon at the
other end.
Fig. 8. Parallel connection for S12W cabinets (signal and mains)
Do not connect NITID series units using PowerCon without earth.
Do not connect more than ten units using the AC output link connector.
3.2. Parallel connection with other equipment
You can connect other NITID S full-range loudspeakers in parallel with the S12W.
Please, follow the same parameters as explained in Fig. 8.
4. MOUNTING AND PLACEMENT
For a proper installation of the acoustic cabinet systems, it is strongly recommended
to carefully read the following advices.
4.1. S12W with full-range systems
The S12W incorporates a M20 base-plate on its upper side for the attachment of a
standard 35 mm diameter bar.

NITID S12W Dec 2022
10 Amate Audio
Fig. 9. S12W socket
6. TROUBLESHOOTING
System not powering up
 If the screen does not light up:
- Check that the PowerCon cable is correctly inserted and turned until the
“click”,
- Check that the AC mains is between the rated AC (85 to 265 VAC)
- If AC is correct, the power module might need servicing. Contact support.
 If the screen lights up, but remains with the Amate Audio logo, the DSP board
might need servicing. Contact support.
No output sound
 Check in the screen that the input bar shows level being received by the system. If
not, check your cabling and sound sources.
 Check that the signal cables are in good condition and connected at both ends
 The mixer output level must not be at minimum.
 Check that the mixer channel is not muted.
 Check that the system is not in MUTE or STANDBY (click the thermometer icon
and read the “Status” value) not lit. If yes, go inside the menu using the touchscreen
and deactivate them:
- To disable the Standby go to SETUP and select PWR ON in the ECO button.
- To disable the MUTE push the icon with a loudspeaker.
 Check that the system GAIN is not set to the minimum. To do that, go to the
AUDIO setting using the touchscreen, select GAIN and move the slider to the 0 dB
position.
Distorted output signal
 The system is being saturated with a very high input signal, frequently caused by
the same mixer. Check the output level or mixer gain channels.

NITID S12W Dec 2022
11 Amate Audio
Poor bass levels
 Check the polarity on the signal connections between the mixer and cabinets. If
any of the Pins (1, 2 or 3) have been inverted at the cable ends, this will cause
significant performance and sound quality loss.
Noise and Hum
 Check that all the connections to the active units are in good condition.
 Avoid intertwining between mains supply cables or proximity to transformers or
Electromagnetic (EMI) emitting devices.
 Check there is no light intensity regulator in the same AC circuit as the unit.
ALWAYS connect the sound and light circuits in different phases.
 Check that there is a proper connection to EARTH in the electrical installation.
Forgotten pattern for Touchscreen
 Check the annex at the end of this manual to learn the default pattern.
 Should you have changed the pattern and forgotten it, follow these steps:
- Turn the system off.
- Turn the system on.
- When the display shows Amate Audio logo and the firmware version, press
anywhere on the touch screen until the screen changes to the main screen.
- The pattern will be restored to its default value.

NITID S12W Dec 2022
12 Amate Audio
7. TECHNICAL FEATURES
S12W
Analog Audio Input
Sensitivity +2dBu – 1 V
Impedance 50kbalanced
Mains Supply
Type Univ. switch mode power supply
Nominal input 85-265 VAC/45-65 Hz
Average current draw 1.8 A
AD/DA converters
24 bit / 48 kHz
DSP architecture
64 bit
Frequency response (
-
10 dB)
38 Hz – 130 Hz (LPF100)
Maximum output level
(1m/continuous)
126 dB
Amplifier (program)
1000 W
Nominal directivity (
-
6dB)
omnidirectional
Components
LF-MF 12” woofer (3” voice coil)
Cabinet
Type Band-pass
Height 384 mm
Width 520 mm
Depth 582 mm
Weight (net) 26.7 Kg
Connectors 2 x AC PowerCon (input, link)
2 x XLR (input, link)
Material Multilayer birch plywood, 1.5 mm powder coated steel
front grille with black acoustic mesh
Finish Hi-resistance black Polyurea coating and protective
rubber profiles
Note: Specifications subjected to change without prior notice.

NITID S12W Dec 2022
13 Amate Audio
ANNEX I: TOUCHSCREEN OPERATION
Amate Audio’s Nítid S series comes with integrated signal processing (Internal DSP).
The internal DSP can be tuned using the touchscreen. The main specs of the
touchscreen are:
 TFT-LCD screen
 320x240 pixels resolution
 Vision angle 180º
 16.7 Million of colours
1. Main screen
After turning on the system, a first loading screen show up the Amate Audio’s logo.
The built-in gyroscope can adapt the orientation of the screen elements to the
loudspeaker position.
When the boot process is completed, the following elements are shown:
A. Loudspeaker model
B. Mute button
It mutes the audio output without turning off the amplification stage, so when
the process is reverted the speaker delivers the audio immediately.

NITID S12W Dec 2022
14 Amate Audio
C. Preset button
Quick access to the preset selection menu. The icon gives info at a first
glance: It shows what preset is currently applying.
D. Main menu button / Unlocking
It gives access to the Main menu (Unit settings). When the unit is unlocked,
the button shows the icon of a gear.
The pattern can be customized inside Pin configuration menu:
Menu button (D) → Settings → PIN
E. Info button
Info button is dynamic, meaning that it changes according to the unit’s status.
The button shows current temperature with three colours: Blue when
temperature is below 55º, orange between 55º-75º and red above 75º. In the
case the unit enters in protect, the icon flickers.
Click on the Info button to access to detailed unit info.
Info menu has four pages. In the first page, Status summarizes the unit status
with the following options:
 Normal: Normal behaviour
 Mute: Mute is enabled
 Standby: The unit is waiting for signal
 Protect: Failure in the amplification stage

NITID S12W Dec 2022
15 Amate Audio
The tilt indication is not available in the presence of signal at the input. The
vibration caused by the sound waves jeopardize the measurement.
F. Input level meter
It shows the relative to full-scale level in the XLR inputs of the unit. The
reference is the sensibility of the loudspeaker, available in the specs, plus 6
dB of headroom. In the case the signal reaches saturation, a red clipping
indicator show-up.
G. Limiter check. Gain reduction level meter.
The limiter check box (LIM box) turns on when the integrated signal limiter is
working. Below the limiter check box is located the Gain reduction level meter
that shows the level of limiter applied to the input signal.
2. Main menu
With the unit unlocked, push on the Gear icon to access Main menu.
- Audio
Audio signal settings.
- Settings
Non-audio settings.
- Advanced
Advanced configuration parameters enabled for qualified users.

NITID S12W Dec 2022
16 Amate Audio
2.1. Audio menu
o Preset
Factory preset selection
When loading a preset with a set of audio parameters (EQ, delay,…)
customised by the user, a pop-up will show up asking for confirmation
to hold the user audio parameters. Accepting to hold the user
parameters makes them overload the chosen preset. Cancelling to
hold the user parameters delete all the user parameters only applying
the preset.
o Gain
Input gain control. The fader select the gain reduction applied to the
input signal.
o Limiter
Built-in limiter threshold control. The level meter shows the current gain
reduction applied to the input signal. Lower the threshold to increase
the compression.
o Delay
Input signal delay control. It can be set both in milliseconds and in
meters, showing the equivalence in the other box. There is a polarity
control button.
o EQ
Input parametric multiband equalizer control. There are available five
parametric peaking filters.
Pushing on the upper-right corner gear enables the advanced eq
menu, where each parametric can be customized for frequency, gain,
bandwidth. There is an option to bypass each filter.

NITID S12W Dec 2022
17 Amate Audio
On the top right corner of the Advanced EQ menu, you can find the EQ
reset button. When pushed, all values of the five available EQ will be
set back to factory default (no EQ). The system will ask for confirmation
before performing this operation with an on-screen window. Select OK
to proceed.
o Save
Access to the internal unit memory. Each of the 24 available memories
can store a new user customized preset, saving: EQ, delay, gain and
limiter configurations.
2.2. Settings menu

NITID S12W Dec 2022
18 Amate Audio
o ECO
Amplifier stage power behaviour configuration.
PWR ON: The amplifier stage is always active at full power for a quick
amplified signal delivery.
STANDBY: The amplifier stage power is in standby mode, so no signal
output thought the unit is active.
AUTO: The amplifier stage waits in standby mode for an input audio
signal. When this happens the amplifier stage switch to PWR ON.
o Frontal LED
Frontal Nítid LED configuration. The options are:
OFF: LED always off.
ON: LED always on
LIM ON: LED remains off until internal limiter starts working that makes
LED lights on.
LIM OFF: LED remain on until internal limiter starts working that makes
LED turns off.
o Screen brightness
Backlight intensity configuration. There are three possible levels of
brightness intensity.
o Language
Language selection for the unit. The available languages are English,
Spanish and Catalan.
o PIN
Pattern PIN configuration as a drawing connecting several points
The unlocking process is performed drawing a pattern. The pattern is
configured inside Settings menu. By default, the pattern is (starting on
the bottom left dot, then clockwise):

NITID S12W Dec 2022
19 Amate Audio
Once the previous pattern is draw, the system will wait for the new
pattern. A lock icon in the upper left corner of the screen will show up.
Pushing on it locks the unit (The system confirms the operation
swapping the lock icon for a closed lock). Once the operation is
completed, the system will confirm the selection. Exit from the PIN
menu to start the locking process. The unit will lock after waiting for 1
minute or after a cycling the power.
The pattern PIN can be reset anytime. Just hold the finger on the
screen when unit boots on the Amate Audio logo. When boot finish the
pattern have been reset to default.

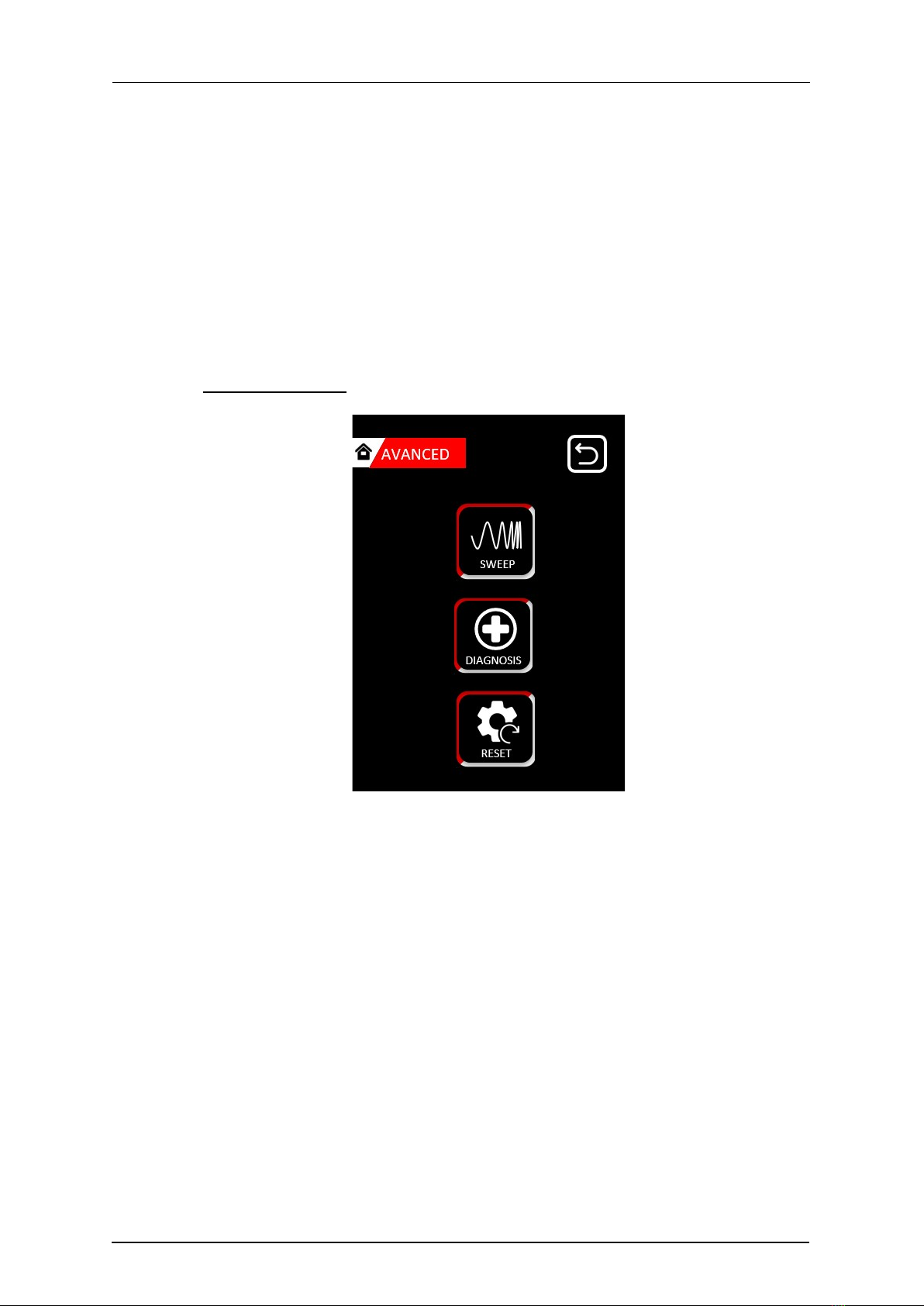

2.3. Advanced menu
o Sweep
Acoustic test. A sinusoidal soundwave is played. It sweep through the
entire audible range in two steps. First, the high frequency stage from
the cutoff frequency to 20 kHz. Then, the low frequency stage from 20
Hz to the cutoff frequency. The duration of both sweep are
approximately two seconds.
o Diagnosis
Access to the system info menu. It is equivalent to push the
thermometer icon from Main screen.
o Reset
Factory reset of all the unit’s parameters. The pattern PIN must be
entered to confirm the process.

NITID S12W Dec 2022
20 Amate Audio
DECLARATION OF CONFORMITY
In accordance with EN 45014:1998
Manufacturer’s Name: “AMATE AUDIO S.L.”
Manufacturer’s Address: C/ Perpinyà 25, Polígon Industrial Nord
08226 Terrassa, (Barcelona), SPAIN
Brand: “AMATE AUDIO”
We declare under our own responsibility that:
Product: Active speaker systems with DSP. Audio apparatus for professional use
Name: Nitid S12W
Conforms to the following product specifications:
Safety: IEC 60065-01 + A1
EMC: EN 55022:2006
EN 55103-1:2009
EN 55103-2 2009
FCC Part 15
WARNING:
In accordance to EN55022, this is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Supplementary Information
The product herewith complies with the requirements of the:
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
With regard to Directive 2005/32/EC and EC Regulation 1275/2008 of 17 December 2008, this product is designed, produced, and
classified as Professional Audio Equipment and thus is exempt from this Directive.
Date of issue: December 1rst, 2022
Signature:
Joan A. Amate Martinez
General
Conformity Marking
