Amax ASC-2500 User manual

15
INSTRUCTION BOOKLET
WARNING: Never leave product charging unattended for extended periods of
time. Always disconnect the battery from charger immediately after the battery
is fully charged. Please refer to enclosed safety instructions.
PACKAGE CONTAINS:
Colors and styles may vary slightly .
Instruction
Manual
Spare Parts Battery
ASC-2500
USB Charger2.4G Wireless
Controller
ON BOARD
HD VIDEO
ON BOARD
HD CAMERA
1920*1080 pixel
25 frames per second
Phone Holder
ASC-2500
PREMIUM HD VIDEO DRONE
WITH OPTICAL FLOW TECHNOLOGY
Requires Speed Class 10 or higher microSD or
microSDHC card(not included)
microSDHC Logo is a trademark of SD-3C, LLC.
Distributed by:
TRACTOR SUPPLY COMPANY
5401 VIRGINIA WAY
BRENTWOOD, TN 37027
For customer support,
call: 1-888-376-9601
www.TractorSupply.com
Made in China
C012-USA-V1.0
Ascend Aeronautics™ is the registered trademark of AMAX Industrial Group LTD.
AMAX Group USA Address: 12645 Memorial Dr Suite F1 #388 Houston, TX 77024
© 2021 All Rights Reserved. visit us at www.amaxbrands.com
CHOKING HAZARD - Small parts.
Not suitable for children under 3 years.
WARNING!
FCC Part 15 C Notice
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC RF exposure statements
This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body or nearby persons.
Conforms to safety requirements of FCC.

TABLE OF CONTENTS
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Remote Control Battery Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Charging The ASC-2500 Li-Poly Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installing The ASC-2500 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
How To Expand And Fold Your ASC-2500 Arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

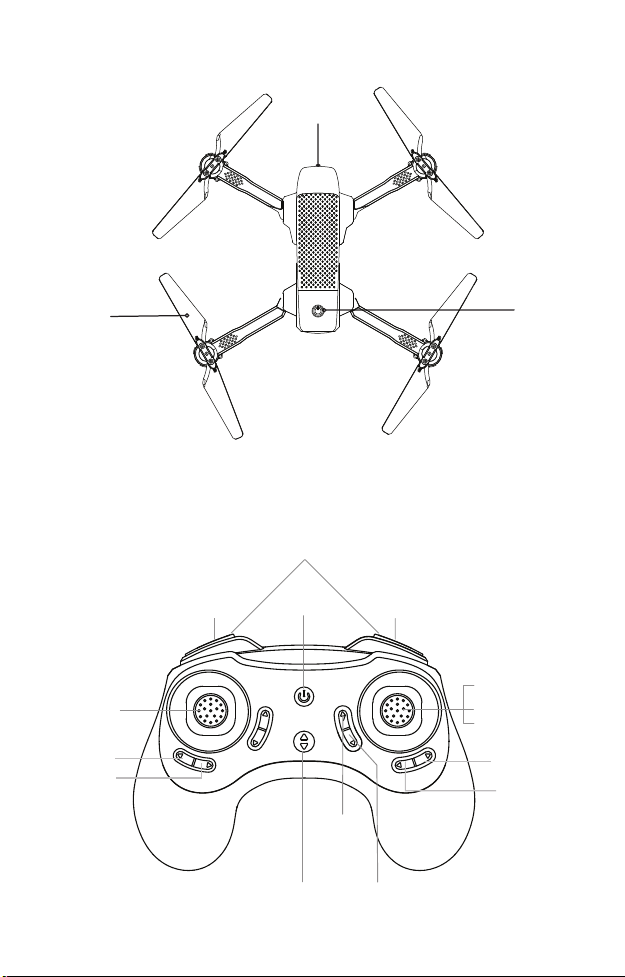

ASC-2500 Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Control Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Flight Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Syncing Your ASC-2500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Now You Are Ready To Fly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Recognizing The Front & Rear Of The ASC-2500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Starting & Stopping The Rotors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Auto Start / Auto Land . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Manual Start/Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Speed Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Optical Flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Flight Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Flight Practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting The Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Calibrating The ASC-2500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How To Perform 360º Stunt Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Recording Videos And Taking Photos With Your ASC-2500 Drone. . . . . . . . . . . . . . . 9
Installing Your Phone Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Camera Video And Photo Streaming Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting Your ASC-2500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Replacing The Propeller Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Battery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Limited 90-Day Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Thank you for purchasing the ASC-2500 Drone. Please read this instruction booklet as it contains valuable
information on how to properly fly and care your ASC-2500.
1 2
B.
A.
D
E F
FEATURES
• 1080p HD camera streams directly to your mobile phone for instant video recording
• On Board Micro SD card Slot allows for optional SD Card video recording for highest resolution
• New optical flow technology for longtitude and lattitude position holding
• Push button Auto Start, Hover, and Auto Land technology
• Built-in 6 Axis Gyro + Altitude Sensors for incredibly stable flight
• High Efficiency Li-poly battery extends drone flight time*
• "Go-Anywhere" Folding Frame design for easy transportation
REMOTE CONTROL BATTERY INSTALLATION
1. Unscrew and remove the battery cover from the back of the controller.
2. Install 4 AAA alkaline batteries into the controller as shown in diagram A.
Replace the battery cover and secure it.
3. Turn over the controller front side up and press the power button.
If you hear two beeps and the power indicator light turns on, you
have installed your batteries correctly.
INSTALLING THE ASC-2500 BATTERY
HOW TO EXPAND AND FOLD YOUR ASC-2500 ARMS
Before flying your ASC-2500, you need to expand the foldable arms out.
1. Make sure the drone power is turned off
2. Holding the folded ASC-2500 drone in the palm of your hand
(see diagram E) proceed to open the arms by starting with the
Front Arms (Upper Arms) and then Rear Arms (Lower Arms)
3. Make sure the arms are fully extended and locked into place
(see diagram F). Note you will feel some additional pressure
indicating the arm is properly locked into place.
4. When folding in the arms simply reverse steps 1-3 above.
NOTE: Never use hard force when opening and closing the ASC-2500 Arms
Carefully Push the fully charged battery into the ASC-2500 battery
compartment all the way in until it stops and is flush with back of
the drone (see diagram D).
NOTE: The battery only fits one way into the battery compartment. Never force it.
LED indicator
C.
Li-Poly Battery
CHARGING THE ASC-2500 LI-POLY BATTERY
1. Insert the USB charger into the battery charging socket (see diagram B).
2. Connect the USB end of the cable to your computers USB port or a USB wall charger (see diagram C).
3. A red LED indicator light will illuminate while charging and then turn off when charging is complete.
4. Average charging time is approximately 130-150 minutes (via 5.0V 2A USB wall charger). A fully
charged ASC-2500 can fly for 15-18 minutes depending on environment and user input.
IMPORTANT: ALWAYS REMEMBER TO UNPLUG YOUR CHARGING CORD WHEN NOT IN USE!
4×1.5 volt “AAA” Alkaline Batteries
(not included)

TABLE OF CONTENTS
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Remote Control Battery Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Charging The ASC-2500 Li-Poly Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installing The ASC-2500 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
How To Expand And Fold Your ASC-2500 Arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
ASC-2500 Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Control Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Flight Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Syncing Your ASC-2500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Now You Are Ready To Fly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Recognizing The Front & Rear Of The ASC-2500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Starting & Stopping The Rotors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Auto Start / Auto Land . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Manual Start/Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Speed Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Optical Flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Flight Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Flight Practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting The Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Calibrating The ASC-2500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How To Perform 360º Stunt Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Recording Videos And Taking Photos With Your ASC-2500 Drone. . . . . . . . . . . . . . . 9
Installing Your Phone Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Camera Video And Photo Streaming Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting Your ASC-2500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Replacing The Propeller Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Battery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Limited 90-Day Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Thank you for purchasing the ASC-2500 Drone. Please read this instruction booklet as it contains valuable
information on how to properly fly and care your ASC-2500.
1 2
B.
A.
D
E F
FEATURES
• 1080p HD camera streams directly to your mobile phone for instant video recording
• On Board Micro SD card Slot allows for optional SD Card video recording for highest resolution
• New optical flow technology for longtitude and lattitude position holding
• Push button Auto Start, Hover, and Auto Land technology
• Built-in 6 Axis Gyro + Altitude Sensors for incredibly stable flight
• High Efficiency Li-poly battery extends drone flight time*
• "Go-Anywhere" Folding Frame design for easy transportation
REMOTE CONTROL BATTERY INSTALLATION
1. Unscrew and remove the battery cover from the back of the controller.
2. Install 4 AAA alkaline batteries into the controller as shown in diagram A.
Replace the battery cover and secure it.
3. Turn over the controller front side up and press the power button.
If you hear two beeps and the power indicator light turns on, you
have installed your batteries correctly.
INSTALLING THE ASC-2500 BATTERY
HOW TO EXPAND AND FOLD YOUR ASC-2500 ARMS
Before flying your ASC-2500, you need to expand the foldable arms out.
1. Make sure the drone power is turned off
2. Holding the folded ASC-2500 drone in the palm of your hand
(see diagram E) proceed to open the arms by starting with the
Front Arms (Upper Arms) and then Rear Arms (Lower Arms)
3. Make sure the arms are fully extended and locked into place
(see diagram F). Note you will feel some additional pressure
indicating the arm is properly locked into place.
4. When folding in the arms simply reverse steps 1-3 above.
NOTE: Never use hard force when opening and closing the ASC-2500 Arms
Carefully Push the fully charged battery into the ASC-2500 battery
compartment all the way in until it stops and is flush with back of
the drone (see diagram D).
NOTE: The battery only fits one way into the battery compartment. Never force it.
LED indicator
C.
Li-Poly Battery
CHARGING THE ASC-2500 LI-POLY BATTERY
1. Insert the USB charger into the battery charging socket (see diagram B).
2. Connect the USB end of the cable to your computers USB port or a USB wall charger (see diagram C).
3. A red LED indicator light will illuminate while charging and then turn off when charging is complete.
4. Average charging time is approximately 130-150 minutes (via 5.0V 2A USB wall charger). A fully
charged ASC-2500 can fly for 15-18 minutes depending on environment and user input.
IMPORTANT: ALWAYS REMEMBER TO UNPLUG YOUR CHARGING CORD WHEN NOT IN USE!
4×1.5 volt “AAA” Alkaline Batteries
(not included)

34
CONTROLLER DIAGRAM
Camera
Propeller Power Button
ASC-2500 DIAGRAM
G
DO NOT FLY YOUR ASC-2500 IN FOUL WEATHER!
WARNING
FLIGHT PREPARATION
• Verify that there are 4 “AAA” batteries inside the remote control unit and the ASC-2500 Li-poly battery
has been fully charged.
• Make sure to be in a large open space preferably a field or a park with an open radius of at least 500 feet.
• Make sure to start your drone on a clean flat level surface before take-off.
•
IMPORTANT! Until you have experience in flying your ASC-2500, it is not advised to use in any rate of
wind. Pick a day with zero wind or extremely light wind condition when learning how to fly.
SYNCING YOUR ASC-2500
Important! When syncing your ASC-2500 with the controller always make sure that the drone is on
a flat level surface and that your digital trim settings are in the center position.
1. Before starting, make sure that the power on your controller is off and the battery is removed from the
ASC-2500.
2. Insert the battery into the ASC-2500 and set it down on a flat level surface. Press down the power button
and hold for a few seconds (see diagram G). The red LED lights on the drone should begin to flash rapidly
first and then flash slow.
3. Quickly turn ON the remote and you will notice that the top red LED light on the face of the controller
is flashing.
4. Push the throttle stick all the way up until it stops and then pull it back all the way down to the bottom
(see diagram below). When pushing the stick up or pulling the stick down you should hear a
high-pitched beep both ways. If the indicator lights on the drone and controller stop flashing and stay
solid, you have successfully synced your ASC-2500 and are ready to fly. If you are not able to Sync, please
repeat steps 1-4 again.
•
TIP 1: Try not to leave too much time between turning your drone on and turning
on the controller, or your syncing window will time-out.
• TIP 2: Syncing your drone indoors or in the shade will make it easier to see the LED
light indicators.
Move the control stick all the way up
and all the way down, you should
hear two beeps.
Power Button
The flashing red LED light will
become solid when you are synced.
Speed Setting Button 360˚ Stunt Rolls Button
Emergency Stop
ON/OFF &
Power Indicator
AUTO Start/ AUTO Land
Forward
Trim
Backward
Trim
Throttle/Yaw
Direction Controls
Press to take a photo
Press down & hold to begin
video recording
Turning Right Trim
Turning Left Trim Banking Right Trim
Banking Left Trim

34
CONTROLLER DIAGRAM
Camera
Propeller Power Button
ASC-2500 DIAGRAM
G
DO NOT FLY YOUR ASC-2500 IN FOUL WEATHER!
WARNING
FLIGHT PREPARATION
• Verify that there are 4 “AAA” batteries inside the remote control unit and the ASC-2500 Li-poly battery
has been fully charged.
• Make sure to be in a large open space preferably a field or a park with an open radius of at least 500 feet.
• Make sure to start your drone on a clean flat level surface before take-off.
•
IMPORTANT! Until you have experience in flying your ASC-2500, it is not advised to use in any rate of
wind. Pick a day with zero wind or extremely light wind condition when learning how to fly.
SYNCING YOUR ASC-2500
Important! When syncing your ASC-2500 with the controller always make sure that the drone is on
a flat level surface and that your digital trim settings are in the center position.
1. Before starting, make sure that the power on your controller is off and the battery is removed from the
ASC-2500.
2. Insert the battery into the ASC-2500 and set it down on a flat level surface. Press down the power button
and hold for a few seconds (see diagram G). The red LED lights on the drone should begin to flash rapidly
first and then flash slow.
3. Quickly turn ON the remote and you will notice that the top red LED light on the face of the controller
is flashing.
4. Push the throttle stick all the way up until it stops and then pull it back all the way down to the bottom
(see diagram below). When pushing the stick up or pulling the stick down you should hear a
high-pitched beep both ways. If the indicator lights on the drone and controller stop flashing and stay
solid, you have successfully synced your ASC-2500 and are ready to fly. If you are not able to Sync, please
repeat steps 1-4 again.
•
TIP 1: Try not to leave too much time between turning your drone on and turning
on the controller,or your syncing window will time-out.
• TIP 2: Syncing your drone indoors or in the shade will make it easier to see the LED
light indicators.
Move the control stick all the way up
and all the way down, you should
hear two beeps.
Power Button
The flashing red LED light will
become solid when you are synced.
Speed Setting Button 360˚ Stunt Rolls Button
Emergency Stop
ON/OFF &
Power Indicator
AUTO Start/ AUTO Land
Forward
Trim
Backward
Trim
Throttle/Yaw
Direction Controls
Press to take a photo
Press down & hold to begin
video recording
Turning Right Trim
Turning Left Trim Banking Right Trim
Banking Left Trim

5 6
H
NOW YOU ARE READY TO FLY!
If you have successfully synced your ASC-2500 to your controller as explained on page 4 you are now ready to
fly. Before beginning to fly your drone you should familiarize yourself with how to start and stop the rotors,
how to use your auto land feature and how the controls work. Please carefully read and familiarize yourself
with the various control features explained in the instruction manual. Once again as a beginner pilot you
should learn how to control your drone in a large open field or park on a day with zero or very light wind. Do
not try to fly your ASC-2500 too high until you become a more experience pilot.
Even though the ASC-2500 has four rotors there is still a front or
"forward" facing direction and "rear" or backwards facing direction. The
front forward facing direction of the ASC-2500 is the side with a camera.
The rear and backward facing direction of the drone is the side with a red
light (see diagram H).
FRONT
REAR
RECOGNIZING THE FRONT & REAR OF THE ASC-2500
SPEED SELECT BUTTON
The ASC-2500 has 3 speed settings; 1 (SLOW), 2 (MEDIUM) and 3 (HIGH). The Default setting when you first
turn on your ASC-2500 is the 1 (SLOW) speed mode. To increase the speed simply press the speed setting
button on the top of the remote (see remote diagram on pg 3) you will hear beeping sounds letting you
know what speed setting you are on. Speed settings can be set before flight or during the flight.
Fixed-Point Landing Square Pattern Maneuver Cross Pattern Maneuver
FLIGHT PRACTICE
To master flying your ASC-2500 drone try practicing the exercises shown below, start with simple vertical
takeoffs, landings, and left/right turning and rotating. Once those are mastered move on to square and
cross maneuvers. Good luck and have fun!
STARTING/STOPPING THE ROTORS
AUTO START/AUTO LAND
The ASC-2500 has an auto start/auto land feature which allows you to start and
land automatically. Simply press the auto START/LAND button on the face of the
controller (see diagram I) and your ASC-2500 will begin taking off or land (if your
already in the air).
NOTE: You can still control the drone’s direction while auto ascending or
auto-landing if necessary to avoid obstacles.
Note: You can start and stop your ASC-2500 Manually or Automatically.
Please follow one of the steps below to operate accordingly. Make sure
you have properly synced the ASC-2500 drone which is indicated by a
solid red light on both the controller and the drone.
MANUAL START/STOP
• To Manually start the rotors simply move the two control sticks simultaneously down to the inside or outside corners
(see diagram J), hold until the rotors start spinning. Now release both sticks to the neutral position and push the
throttle up to take off.
• To manually stop the rotors you can: a) simply land on the ground and the Rotors will automatically stop in ten seconds
or less. b)You can immediately stop the rotors by moving the two control sticks simultaneously down and to the inside
or outside or outside bottom corners (see diagram J) or c) EMERGENCY STOP: you can make an emergency stop by
depressing both the SPEED button and the STUNT button simultaneously (see diagram K).
L
L1
L2
L3
FLIGHT CONTROL
Below is a list of basic flight inputs/functions that will help you learn to fly the ASC-2500. While learning
to fly your drone it’s best to start in a large space with the drone facing away from you until you get used
to the basic controls. As you master flying your ASC-2500 you can move to more advanced maneuvering
techniques. Practice makes perfect!
Move the left throttle stick up to increase the
propeller speed and the ASC-2500 will ascend.
Move the left throttle stick down to decrease the
propeller speed and the ASC-2500 will descend
(see diagram L).
While in the air, move the left throttle stick
directly left and the ASC-2500 will rotate
horizontally left (counter clockwise)
Move the left throttle stick directly right and the
ASC-2500 will rotate horizontally right
(see diagram L1).
While in the air, move the right direction control
stick forward and the ASC-2500 will move
forward.
Move the right direction control stick backwards
and the ASC-2500 will move backward
(see diagram L2).
While in the air, move the right direction control stick
to the left and the ASC-2500 will bank/sweep to the
left.
Move the right direction control stick to the right
and the ASC-2500 will bank/sweep to the right
(see diagram L3).
I
J K
OPTICAL FLOW
The ASC-2500 Optical Flow technology utilizes a separate downward facing camera which analyzes the
image of the ground below in realtime. Then using this image and its unique control system algorithms it
works to keep the drone in one stationary position regardless of wind or any other factors that might cause
the drone to drift. The Optical flow feature is only functional at altitudes below 30ft in the air.

5 6
H
NOW YOU ARE READY TO FLY!
If you have successfully synced your ASC-2500 to your controller as explained on page 4 you are now ready to
fly. Before beginning to fly your drone you should familiarize yourself with how to start and stop the rotors,
how to use your auto land feature and how the controls work. Please carefully read and familiarize yourself
with the various control features explained in the instruction manual. Once again as a beginner pilot you
should learn how to control your drone in a large open field or park on a day with zero or very light wind. Do
not try to fly your ASC-2500 too high until you become a more experience pilot.
Even though the ASC-2500 has four rotors there is still a front or
"forward" facing direction and "rear" or backwards facing direction. The
front forward facing direction of the ASC-2500 is the side with a camera.
The rear and backward facing direction of the drone is the side with a red
light (see diagram H).
FRONT
REAR
RECOGNIZING THE FRONT & REAR OF THE ASC-2500
SPEED SELECT BUTTON
The ASC-2500 has 3 speed settings; 1 (SLOW), 2 (MEDIUM) and 3 (HIGH). The Default setting when you first
turn on your ASC-2500 is the 1 (SLOW) speed mode. To increase the speed simply press the speed setting
button on the top of the remote (see remote diagram on pg 3) you will hear beeping sounds letting you
know what speed setting you are on. Speed settings can be set before flight or during the flight.
Fixed-Point Landing Square Pattern Maneuver Cross Pattern Maneuver
FLIGHT PRACTICE
To master flying your ASC-2500 drone try practicing the exercises shown below, start with simple vertical
takeoffs, landings, and left/right turning and rotating. Once those are mastered move on to square and
cross maneuvers. Good luck and have fun!
STARTING/STOPPING THE ROTORS
AUTO START/AUTO LAND
The ASC-2500 has an auto start/auto land feature which allows you to start and
land automatically. Simply press the auto START/LAND button on the face of the
controller (see diagram I) and your ASC-2500 will begin taking off or land (if your
already in the air).
NOTE: You can still control the drone’s direction while auto ascending or
auto-landing if necessary to avoid obstacles.
Note: You can start and stop your ASC-2500 Manually or Automatically.
Please follow one of the steps below to operate accordingly. Make sure
you have properly synced the ASC-2500 drone which is indicated by a
solid red light on both the controller and the drone.
MANUAL START/STOP
• To Manually start the rotors simply move the two control sticks simultaneously down to the inside or outside corners
(see diagram J), hold until the rotors start spinning. Now release both sticks to the neutral position and push the
throttle up to take off.
• To manually stop the rotors you can: a) simply land on the ground and the Rotors will automatically stop in ten seconds
or less. b)You can immediately stop the rotors by moving the two control sticks simultaneously down and to the inside
or outside or outside bottom corners (see diagram J) or c) EMERGENCY STOP: you can make an emergency stop by
depressing both the SPEED button and the STUNT button simultaneously (see diagram K).
L
L1
L2
L3
FLIGHT CONTROL
Below is a list of basic flight inputs/functions that will help you learn to fly the ASC-2500. While learning
to fly your drone it’s best to start in a large space with the drone facing away from you until you get used
to the basic controls. As you master flying your ASC-2500 you can move to more advanced maneuvering
techniques. Practice makes perfect!
Move the left throttle stick up to increase the
propeller speed and the ASC-2500 will ascend.
Move the left throttle stick down to decrease the
propeller speed and the ASC-2500 will descend
(see diagram L).
While in the air, move the left throttle stick
directly left and the ASC-2500 will rotate
horizontally left (counter clockwise)
Move the left throttle stick directly right and the
ASC-2500 will rotate horizontally right
(see diagram L1).
While in the air, move the right direction control
stick forward and the ASC-2500 will move
forward.
Move the right direction control stick backwards
and the ASC-2500 will move backward
(see diagram L2).
While in the air, move the right direction control stick
to the left and the ASC-2500 will bank/sweep to the
left.
Move the right direction control stick to the right
and the ASC-2500 will bank/sweep to the right
(see diagram L3).
I
J K
OPTICAL FLOW
The ASC-2500 Optical Flow technology utilizes a separate downward facing camera which analyzes the
image of the ground below in realtime. Then using this image and its unique control system algorithms it
works to keep the drone in one stationary position regardless of wind or any other factors that might cause
the drone to drift. The Optical flow feature is only functional at altitudes below 30ft in the air.

7 8
P
CALIBRATING THE ASC-2500
NOTE: Your ASC-2500 comes pre-calibrated out of the box so you are ready to fly.
After several crashes and shocks to your gyro sensors, you may notice that your drone is drifting and cannot
hold its center position while hovering as well as it used to.
This most likely means that you need to recalibrate your ASC-2500. Please follow the simple instructions
below.
1. Place the ASC-2500 on a very flat level surface.
2. Make sure the ASC-2500 is turned on and that the controller is synced (refer to syncing pg 4). Do not start
the blades! Instead move both the throttle and control stick down and to the right hand bottom corner
(see diagram P). If successful you will see the lights on the drone rapidly flash and stop. Once the lights
stop flashing you have completed your calibration and are ready to fly again!
TROUBLE SHOOTING: If you do not see the lights flash, remove the battery from the drone then turn off your
controller and start over. Always make sure to put your battery in before turning on your controller. Push the
left throttle stick all the way up and then down touching the top and bottom of the controller. When you
hear the beep the ASC-2500 is re-synced to the controller and you are ready to calibrate.
NOTE: To exit the stunt roll mode without flipping simply press the stunt button again and the
beeping sound will stop indicating you have exited “stunt mode”
HOW TO PERFORM 360º STUNT ROLLS
Performing 360º stunt rolls with the ASC-2500 is as easy as 1-2-3:
1. Hover the ASC-2500 in a still position making sure that you have at least 6 feet of clearance above and
below the drone. Set the speed settings to mode 2 or 3 (the ASC-2500 cannot perform the stunt roll in
speed setting 1)
2. First press the 360 stunt button on the right top side of the controller and you will enter the “stunt roll
mode” which is indicated by a rapid beeping sound (see diagram Q).
3. Next, using the right control stick, push directly to the right for a “right side roll” or directly to the left for
a “left side roll” (see diagram R). Remember to always use caution when performing stunts.
ADJUSTING THE TRIM
NOTE: The ASC-2500 is already properly trimmed and calibrated right out of the box and should not require
any trim adjustments before flying. Some more experienced pilots may want to adjust trim settings for
their style of flying. After several crashes you may need to adjust trim settings for the ASC-2500 to be
more balanced.
NOTE: When using the trim buttons you will beeping sounds. A short “beep” indicates “one trim
position movement” A long Beep indicates that you have reached the center trim position. When
there are no longer beeps, you have reached the maximum trim position for that particular
setting. If this happens and your Drone is still not stable, we suggest you re-sync your drone and
re-calibrate on very flat surface (see recalibrating your drone on next page)
EMERGENCY STOP: press the “speed setting button” and “stunt button” simultaneously to stop the
drone blade from spinning. Use this anytime you lose control of your drone.
M
N
Forward/Backward Trim
• If your ASC-2500 drifts forwards or backwards while
in the air, counter the movement by using your
forward /backward trim buttons (see diagram M).
Bank Right/Left Trim
• If your ASC-2500 drifts to the left or right while in the
air, counter the movement by using your left / right
trim buttons (see diagram N)
Spinning/Rotating Trim
• If your ASC-2500 spins either left or right while in the
air, counter the rotation by using your left and right
rotational trim buttons (see diagram O)
O
360˚Stunt Roll Button
Q
R

7 8
P
CALIBRATING THE ASC-2500
NOTE: Your ASC-2500 comes pre-calibrated out of the box so you are ready to fly.
After several crashes and shocks to your gyro sensors, you may notice that your drone is drifting and cannot
hold its center position while hovering as well as it used to.
This most likely means that you need to recalibrate your ASC-2500. Please follow the simple instructions
below.
1. Place the ASC-2500 on a very flat level surface.
2. Make sure the ASC-2500 is turned on and that the controller is synced (refer to syncing pg 4). Do not start
the blades! Instead move both the throttle and control stick down and to the right hand bottom corner
(see diagram P). If successful you will see the lights on the drone rapidly flash and stop. Once the lights
stop flashing you have completed your calibration and are ready to fly again!
TROUBLE SHOOTING: If you do not see the lights flash, remove the battery from the drone then turn off your
controller and start over. Always make sure to put your battery in before turning on your controller. Push the
left throttle stick all the way up and then down touching the top and bottom of the controller. When you
hear the beep the ASC-2500 is re-synced to the controller and you are ready to calibrate.
NOTE: To exit the stunt roll mode without flipping simply press the stunt button again and the
beeping sound will stop indicating you have exited “stunt mode”
HOW TO PERFORM 360º STUNT ROLLS
Performing 360º stunt rolls with the ASC-2500 is as easy as 1-2-3:
1. Hover the ASC-2500 in a still position making sure that you have at least 6 feet of clearance above and
below the drone. Set the speed settings to mode 2 or 3 (the ASC-2500 cannot perform the stunt roll in
speed setting 1)
2. First press the 360 stunt button on the right top side of the controller and you will enter the “stunt roll
mode” which is indicated by a rapid beeping sound (see diagram Q).
3. Next, using the right control stick, push directly to the right for a “right side roll” or directly to the left for
a “left side roll” (see diagram R). Remember to always use caution when performing stunts.
ADJUSTING THE TRIM
NOTE: The ASC-2500 is already properly trimmed and calibrated right out of the box and should not require
any trim adjustments before flying. Some more experienced pilots may want to adjust trim settings for
their style of flying. After several crashes you may need to adjust trim settings for the ASC-2500 to be
more balanced.
NOTE: When using the trim buttons you will beeping sounds. A short “beep” indicates “one trim
position movement” A long Beep indicates that you have reached the center trim position. When
there are no longer beeps, you have reached the maximum trim position for that particular
setting. If this happens and your Drone is still not stable, we suggest you re-sync your drone and
re-calibrate on very flat surface (see recalibrating your drone on next page)
EMERGENCY STOP: press the “speed setting button” and “stunt button” simultaneously to stop the
drone blade from spinning. Use this anytime you lose control of your drone.
M
N
Forward/Backward Trim
• If your ASC-2500 drifts forwards or backwards while
in the air, counter the movement by using your
forward /backward trim buttons (see diagram M).
Bank Right/Left Trim
• If your ASC-2500 drifts to the left or right while in the
air, counter the movement by using your left / right
trim buttons (see diagram N)
Spinning/Rotating Trim
• If your ASC-2500 spins either left or right while in the
air, counter the rotation by using your left and right
rotational trim buttons (see diagram O)
O
360˚Stunt Roll Button
Q
R

910
INSTALLING YOUR PHONE HOLDER
Installing your phone holder is required to use your ASC-2500 drone’s camera. To install your phone holder,
turn your controller around to the back side with the battery compartment facing you and start by clicking
in the top “two teeth” into the two holes on the top of the controller and then proceed to click in the
bottom (see diagram S).
To remove, pull from the bottom first.
S
finished
installation
a
b
RECORDING VIDEOS AND TAKING PHOTOS WITH YOUR ASC-2500 DRONE
Your ASC-2500 comes equipped with an onboard HD digital camera that takes both video and still photographs.
Your ASC-2500 has the ability to record Video and Photos in two places simultaneously! When using the
ASC-2500 App you will be able to Stream and Record both Videos and Still Photos directly to your mobile device
while at the same time recording Videos and Still Photos in even greater definition directly to a Micro-SD card
installed on the drone. Note the Micro SD card is not included and will need to be purchased separately.
WHAT YOU WILL NEED TO RECORD ON A microSD CARD (this is the highest definition)
1. One microSD card reader (included).
2. One microSD card (not included).
3.
A Computer with a USB port and Windows Media Player or other Media player that can play mp4 files.
FORMATTING YOUR microSD CARD
Before you can begin to take videos or digital photographs you must first format your microSD card. To format
your microSD card simply place the microSD card into the included USB SD card reader and plug it into your
computers USB port (see diagram U1 and U2 below). After a few moments an icon will appear on your Desktop.
Right click on the Icon and follow instructions to format your microSD card.
INSTALLING THE microSD CARD IN YOUR ASC-2500 DRONE
• Place the formatted microSD card into the ASC-2500 SD card port (see diagram U3 below). Push gently until
you hear and feel the microSD card “click” into the SD card slot.
• Turn the ASC-2500 on and make sure that it is both fully charged and properly synced to the controller (See
“HOW TO SYNC YOUR ASC-2500” on page 4 ).
TAKING DIGITAL PHOTOS
To take photographs short press the CAMERA button of the controller (refer to CONTROLLER DIAGRAM on pg. 3),
when you push the button you will hear a "beep" and the red and white led lights on the drone will flash one
time indicating that a picture has been. taken.
RECORDING VIDEOS
To begin recording a video, long press the CAMERA button for 2-3 seconds. You will hear 2 "beeps" and the red
and white LED lights on the body will flash two times and become solid indicating that you have begun
recording video. To stop recording and Exit Video mode, simply depress the Camera Button once again. You will
hear 2 beeps and the LED lights on the body should flash two times again and become solid.
REMOVING YOUR microSD CARD
To remove your microSD Card push in gently on the back of the SD card with your thumb or forefinger until you
hear and feel a “clicking sound”. The microSD card will “pop-out” slightly and is ready for removal. Simply grab
and pull gently away from the ASC-2500’s camera port to remove the card. Always store your microSD card in a
clean, safe and cool environment.
DOWNLOADING AND CLEARING SPACE ON YOUR microSD CARD
Plug your microSD card into the microSD card reader and connect to your computer. It is best to always
download all your videos and pictures on to your computer and not store this data on your microSD card. After
downloading your photos and videos , follow your computers instructions to “delete” files on your microSD card.
Diagram U2
microSD card
goes in back slot
Diagram U1
microSD card facing down
Diagram U3
IMPORTANT NOTICE: It’s recommend to test your camera functions before flying.

910
INSTALLING YOUR PHONE HOLDER
Installing your phone holder is required to use your ASC-2500 drone’s camera. To install your phone holder,
turn your controller around to the back side with the battery compartment facing you and start by clicking
in the top “two teeth” into the two holes on the top of the controller and then proceed to click in the
bottom (see diagram S).
To remove, pull from the bottom first.
S
finished
installation
a
b
RECORDING VIDEOS AND TAKING PHOTOS WITH YOUR ASC-2500 DRONE
Your ASC-2500 comes equipped with an onboard HD digital camera that takes both video and still photographs.
Your ASC-2500 has the ability to record Video and Photos in two places simultaneously! When using the
ASC-2500 App you will be able to Stream and Record both Videos and Still Photos directly to your mobile device
while at the same time recording Videos and Still Photos in even greater definition directly to a Micro-SD card
installed on the drone. Note the Micro SD card is not included and will need to be purchased separately.
WHAT YOU WILL NEED TO RECORD ON A microSD CARD (this is the highest definition)
1. One microSD card reader (included).
2. One microSD card (not included).
3.
A Computer with a USB port and Windows Media Player or other Media player that can play mp4 files.
FORMATTING YOUR microSD CARD
Before you can begin to take videos or digital photographs you must first format your microSD card. To format
your microSD card simply place the microSD card into the included USB SD card reader and plug it into your
computers USB port (see diagram U1 and U2 below). After a few moments an icon will appear on your Desktop.
Right click on the Icon and follow instructions to format your microSD card.
INSTALLING THE microSD CARD IN YOUR ASC-2500 DRONE
• Place the formatted microSD card into the ASC-2500 SD card port (see diagram U3 below). Push gently until
you hear and feel the microSD card “click” into the SD card slot.
• Turn the ASC-2500 on and make sure that it is both fully charged and properly synced to the controller (See
“HOW TO SYNC YOUR ASC-2500” on page 4 ).
TAKING DIGITAL PHOTOS
To take photographs short press the CAMERA button of the controller (refer to CONTROLLER DIAGRAM on pg. 3),
when you push the button you will hear a "beep" and the red and white led lights on the drone will flash one
time indicating that a picture has been. taken.
RECORDING VIDEOS
To begin recording a video, long press the CAMERA button for 2-3 seconds. You will hear 2 "beeps" and the red
and white LED lights on the body will flash two times and become solid indicating that you have begun
recording video. To stop recording and Exit Video mode, simply depress the Camera Button once again. You will
hear 2 beeps and the LED lights on the body should flash two times again and become solid.
REMOVING YOUR microSD CARD
To remove your microSD Card push in gently on the back of the SD card with your thumb or forefinger until you
hear and feel a “clicking sound”. The microSD card will “pop-out” slightly and is ready for removal. Simply grab
and pull gently away from the ASC-2500’s camera port to remove the card. Always store your microSD card in a
clean, safe and cool environment.
DOWNLOADING AND CLEARING SPACE ON YOUR microSD CARD
Plug your microSD card into the microSD card reader and connect to your computer. It is best to always
download all your videos and pictures on to your computer and not store this data on your microSD card. After
downloading your photos and videos , follow your computers instructions to “delete” files on your microSD card.
Diagram U2
microSD card
goes in back slot
Diagram U1
microSD card facing down
Diagram U3
IMPORTANT NOTICE: It’s recommend to test your camera functions before flying.

11 12
T
Front
Blade Front Left = A
Blade Front Right = B
Blade Back Left = B
Blade Back Right = A
REPLACING THE PROPELLER BLADES
Your ASC-2500’s propeller system is a precision instrument that may need repair or replacement from time
to time for optimal flight function. Crash landing at high-speed may cause damage to your ASC-2500
propellers.
1. The ASC-2500 has four sets blades, two sets of blades with indication letters A & B on front, and two sets
blades with indication letters B & A on the rear (see the diagram T).
2. When replacing the propeller blades, make sure to match the indication markings/letters on the blades.
3. Unscrew and take off the damaged blade.
4. Replace with new correct blade.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
1. Power switched off 1. Press the ON/OFF switch to ON
No Power 2. Polarity is reversed 2. Make sure all batteries are installed
correctly (see diagram A)
3. Batteries may be low or in need of charging 3. Replace batteries
1. Remote is switched off 1. ASC-2500 the ON/OFF switch to ON
Drone Not 2. Battery power in remote is too weak 2. Replace remote batteries
Responding 3. The remote is not properly synced 3. Re-sync the remote
4. Out of control range 4. Do not fly beyond 500 feet
Drone Won’t 1. Rotor speed too slow 1. Push throttle lever forward
lift off 2. Drone not fully charged 2. Recharge your ASC-2500
3. Obstruction of rotors
3. Check rotors for hair or other obstructions
TROUBLESHOOTING YOUR ASC-2500
A
AB
B
Drone Spins, can
not be trimmed
Rotor deformation
Motor not functioning
Replace the damaged rotor (You may
need to consult with a customer service
personnel)
Drone Tilt to one
direction Drone did not calibrate properly Restart the
drone and controller, properly
calibrate it on a flat level surface
Altitude Hold
height is not
stable, the drone
continues to move
up and down
without locking
into position
Drone vibrates too much Check the propeller deformation
If you’re still encountering difficulties downloading the ASC-2500 App, please contact our
customer service department at www.amaxbrands.com
* Apple® devices require the use of iOS 10.0 or higher.
ANDROID™devices require the use of OS 4.2.2 or higher.
CAMERA VIDEO AND PHOTO STREAMING SETUP
Your ASC-2500 comes equipped with an on-board digital camera that takes both video and still photographs and
streams them to your mobile device.
WHAT YOU WILL NEED TO GET STARTED USING YOUR CAMERA
1. One Apple or Android Smart phone* (Phone not included).
2. The ASC-2500 App successfully downloaded and installed on your mobile device.
Note instructions on using the App are in the application tutorial
3.To Download the ASC-2500 App, scan the appropriate QR code below which will link to the App on either
the Android Play Store or Apple Store. If you are not able to scan the QR code, manually enter the web
address located under the appropriate QR code for your phone.
4. After the ASC-2500 App is installed, it should create an icon on your screen (see icon below). Click the
icon to run the App and make sure that it has installed correctly on your device. If not, please delete and
repeat the process again.
5. Follow the “TUTORIAL” for instructions on connecting/pairing your ASC-2500 drone to the App and using
the App for recording film and still photos.
Apple®iOS Android OS
ICON
http://netopsun.com/asc_2000_series_apple http://netopsun.com/asc_2000_series_google
2000 Series

11 12
T
Front
Blade Front Left = A
Blade Front Right = B
Blade Back Left = B
Blade Back Right = A
REPLACING THE PROPELLER BLADES
Your ASC-2500’s propeller system is a precision instrument that may need repair or replacement from time
to time for optimal flight function. Crash landing at high-speed may cause damage to your ASC-2500
propellers.
1. The ASC-2500 has four sets blades, two sets of blades with indication letters A & B on front, and two sets
blades with indication letters B & A on the rear (see the diagram T).
2. When replacing the propeller blades, make sure to match the indication markings/letters on the blades.
3. Unscrew and take off the damaged blade.
4. Replace with new correct blade.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
1. Power switched off 1. Press the ON/OFF switch to ON
No Power 2. Polarity is reversed 2. Make sure all batteries are installed
correctly (see diagram A)
3. Batteries may be low or in need of charging 3. Replace batteries
1. Remote is switched off 1. ASC-2500 the ON/OFF switch to ON
Drone Not 2. Battery power in remote is too weak 2. Replace remote batteries
Responding 3. The remote is not properly synced 3. Re-sync the remote
4. Out of control range 4. Do not fly beyond 500 feet
Drone Won’t 1. Rotor speed too slow 1. Push throttle lever forward
lift off 2. Drone not fully charged 2. Recharge your ASC-2500
3. Obstruction of rotors
3. Check rotors for hair or other obstructions
TROUBLESHOOTING YOUR ASC-2500
A
AB
B
Drone Spins, can
not be trimmed
Rotor deformation
Motor not functioning
Replace the damaged rotor (You may
need to consult with a customer service
personnel)
Drone Tilt to one
direction Drone did not calibrate properly Restart the
drone and controller, properly
calibrate it on a flat level surface
Altitude Hold
height is not
stable, the drone
continues to move
up and down
without locking
into position
Drone vibrates too much Check the propeller deformation
If you’re still encountering difficulties downloading the ASC-2500 App, please contact our
customer service department at www.amaxbrands.com
* Apple® devices require the use of iOS 10.0 or higher.
ANDROID™devices require the use of OS 4.2.2 or higher.
CAMERA VIDEO AND PHOTO STREAMING SETUP
Your ASC-2500 comes equipped with an on-board digital camera that takes both video and still photographs and
streams them to your mobile device.
WHAT YOU WILL NEED TO GET STARTED USING YOUR CAMERA
1. One Apple or Android Smart phone* (Phone not included).
2. The ASC-2500 App successfully downloaded and installed on your mobile device.
Note instructions on using the App are in the application tutorial
3.To Download the ASC-2500 App, scan the appropriate QR code below which will link to the App on either
the Android Play Store or Apple Store. If you are not able to scan the QR code, manually enter the web
address located under the appropriate QR code for your phone.
4. After the ASC-2500 App is installed, it should create an icon on your screen (see icon below). Click the
icon to run the App and make sure that it has installed correctly on your device. If not, please delete and
repeat the process again.
5. Follow the “TUTORIAL” for instructions on connecting/pairing your ASC-2500 drone to the App and using
the App for recording film and still photos.
Apple®iOS Android OS
ICON
http://netopsun.com/asc_2000_series_apple http://netopsun.com/asc_2000_series_google
2000 Series

13 14
ASC-2500 WARNING:
The ASC-2500 is designed for OUTDOOR USE ONLY. The ASC-2500 blades revolve at high speeds and can
cause damage to the user, spectators and animals. Stand away from the ASC-2500 to reduce the risk of
getting into the flight path. Warn spectators that you will be flying your ASC-2500 so that they are aware
of its position. Before flight, inspect the rotor blades to make certain that the blades are securely fastened
to the ASC-2500.
WARNING!
• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power ASC-2500 is turned to the
ON position.
• Turn off the transmitter and ASC-2500 when not in use.
• The included charger is built specifically for the ASC-2500 Li-Poly battery. Do not use it to charge any
other battery.
• New alkaline batteries are recommended for maximum performance.
• Parental supervision recommended when flying ASC-2500 .
BATTERY WARNINGS
RECHARGEABLE BATTERY:
This ASC-2500 uses a Li-Poly rechargeable battery. If battery no longer stays charged, dispose of battery
properly according to local disposal requirements.
CONTROLLER BATTERIES:
Remote control requires 4 “AAA” batteries (not included).
Please read the important battery safety warning below.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel Metal Hydride).
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the item before being charged (if removable).
• Rechargeable batteries are only to be charged under adult supervision.
• Exhausted batteries should be removed immediately and must be recycled or disposed of properly
according to state or local government ordinances and regulations.
• The supply terminals are not to be short-circuited.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity (see inside booklet for diagram).
• Do not dispose batteries in a fire - batteries may leak or explode.
• This product is only to be connected to equipment bearing either of the following symbols: or
CARE AND MAINTENANCE
• Always remove the batteries from the wireless remote control when it is not being used for an extended
period of time.
• To clean, gently wipe the remote control and ASC-2500 with a clean damp cloth.
• Keep the product away from direct heat or sunlight.
• Do not submerge the product into water. This can damage the unit beyond repair.
• Parental guidance recommended when installing or replacing the batteries.
III
Limited 90-Day Warranty
NORTH AMERICA
AMAX Group USA warrants to the original consumer that this product is free from any
electrical or mechanical defects for a period of 90 DAYS from the date of purchase. If any such
defect is discovered within the warranty period, AMAX Group USA will repair or replace the
unit free of charge upon receipt of the unit,shipped postage prepaid and insured to our
warranty center ALONG WITH THE ORIGINAL RECEIPT evidencing that the product was
purchased from an approved AMAX retail partner and that the product is still within the 90
day warranty period.The warranty covers normal consumer use and does not cover damage
that occurs in shipment or failure that results from alterations, accident, misuse, abuse,
neglect, wear and tear, inadequate maintenance,commercial use or unreasonable use of the
unit. Removal of any parts/components voids all warranties.This warranty does not cover
cost of repairs made or attempted outside by third-party individuals or companies. Any
applicable implied warranties, including warranties of merchantability and fitness, are hereby
limited to 90 DAYS from the date of purchase. Consequential or incidental damages resulting
from a breach of any applicable express or implied warranties are hereby excluded. Some
states do not allow limitations on the duration of implied warranties and do not allow
exclusion of incidental or consequential damages, so the above limitations and exclusions in
these instances may not apply.
REPAIR/REPLACE PRODUCT
If your product begins to malfunction or stop working, immediately contact our warranty
center (contact details listed below).If it is determined that a return is necessary, our warranty
department will issue you an RMA number/form and an address to the nearest return center
for shipping the product to us.When honoring the warranty, AMAX reserves the right to
either repair, replace or refund the product.
IMPORTANT NOTICE:
We will reject and return to sender returns that are not accompanied by an AMAX issued
RMA form and RMA number so make sure to contact our warranty center before attempting
to return your product!
PREPARATION FOR SHIPPING YOUR PRODUCT:
Please repack your product in a durable box,preferably in the original carton, and send it
prepaid,and adequately insured. Include the RMA form that was issued by our warranty
department along with your daytime telephone number and email address inside the
shipping carton. If your warranty has expired and you still require service please contact our
customer care team For further information please send all inquiries to:
[e-mail]
IMPORTANT NOTICE!
DO NOT ATTEMPT TO SHIP YOUR PRODUCT BACK
WITHOUT FIRST CONTACTING OUR WARRANTY
DEPARTMENT AT:
www.amaxbrands.com
Email: [e-mail]

13 14
ASC-2500 WARNING:
The ASC-2500 is designed for OUTDOOR USE ONLY. The ASC-2500 blades revolve at high speeds and can
cause damage to the user, spectators and animals. Stand away from the ASC-2500 to reduce the risk of
getting into the flight path. Warn spectators that you will be flying your ASC-2500 so that they are aware
of its position. Before flight, inspect the rotor blades to make certain that the blades are securely fastened
to the ASC-2500.
WARNING!
• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power ASC-2500 is turned to the
ON position.
• Turn off the transmitter and ASC-2500 when not in use.
• The included charger is built specifically for the ASC-2500 Li-Poly battery. Do not use it to charge any
other battery.
• New alkaline batteries are recommended for maximum performance.
• Parental supervision recommended when flying ASC-2500 .
BATTERY WARNINGS
RECHARGEABLE BATTERY:
This ASC-2500 uses a Li-Poly rechargeable battery. If battery no longer stays charged, dispose of battery
properly according to local disposal requirements.
CONTROLLER BATTERIES:
Remote control requires 4 “AAA” batteries (not included).
Please read the important battery safety warning below.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel Metal Hydride).
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the item before being charged (if removable).
• Rechargeable batteries are only to be charged under adult supervision.
• Exhausted batteries should be removed immediately and must be recycled or disposed of properly
according to state or local government ordinances and regulations.
• The supply terminals are not to be short-circuited.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity (see inside booklet for diagram).
• Do not dispose batteries in a fire - batteries may leak or explode.
• This product is only to be connected to equipment bearing either of the following symbols: or
CARE AND MAINTENANCE
• Always remove the batteries from the wireless remote control when it is not being used for an extended
period of time.
• To clean, gently wipe the remote control and ASC-2500 with a clean damp cloth.
• Keep the product away from direct heat or sunlight.
• Do not submerge the product into water. This can damage the unit beyond repair.
• Parental guidance recommended when installing or replacing the batteries.
III
Limited 90-Day Warranty
NORTH AMERICA
AMAX Group USA warrants to the original consumer that this product is free from any
electrical or mechanical defects for a period of 90 DAYS from the date of purchase.If any such
defect is discovered within the warranty period, AMAX Group USA will repair or replace the
unit free of charge upon receipt of the unit,shipped postage prepaid and insured to our
warranty center ALONG WITH THE ORIGINAL RECEIPT evidencing that the product was
purchased from an approved AMAX retail partner and that the product is still within the 90
day warranty period.The warranty covers normal consumer use and does not cover damage
that occurs in shipment or failure that results from alterations, accident, misuse, abuse,
neglect, wear and tear, inadequate maintenance,commercial use or unreasonable use of the
unit. Removal of any parts/components voids all warranties.This warranty does not cover
cost of repairs made or attempted outside by third-party individuals or companies. Any
applicable implied warranties, including warranties of merchantability and fitness, are hereby
limited to 90 DAYS from the date of purchase. Consequential or incidental damages resulting
from a breach of any applicable express or implied warranties are hereby excluded. Some
states do not allow limitations on the duration of implied warranties and do not allow
exclusion of incidental or consequential damages, so the above limitations and exclusions in
these instances may not apply.
REPAIR/REPLACE PRODUCT
If your product begins to malfunction or stop working, immediately contact our warranty
center (contact details listed below).If it is determined that a return is necessary, our warranty
department will issue you an RMA number/form and an address to the nearest return center
for shipping the product to us.When honoring the warranty, AMAX reserves the right to
either repair, replace or refund the product.
IMPORTANT NOTICE:
We will reject and return to sender returns that are not accompanied by an AMAX issued
RMA form and RMA number so make sure to contact our warranty center before attempting
to return your product!
PREPARATION FOR SHIPPING YOUR PRODUCT:
Please repack your product in a durable box,preferably in the original carton, and send it
prepaid,and adequately insured. Include the RMA form that was issued by our warranty
department along with your daytime telephone number and email address inside the
shipping carton. If your warranty has expired and you still require service please contact our
customer care team For further information please send all inquiries to:
[email protected]
IMPORTANT NOTICE!
DO NOT ATTEMPT TO SHIP YOUR PRODUCT BACK
WITHOUT FIRST CONTACTING OUR WARRANTY
DEPARTMENT AT:
www.amaxbrands.com
Email: [e-mail]

15
INSTRUCTION BOOKLET
WARNING: Never leave product charging unattended for extended periods of
time. Always disconnect the battery from charger immediately after the battery
is fully charged. Please refer to enclosed safety instructions.
PACKAGE CONTAINS:
Colors and styles may vary slightly .
Instruction
Manual
Spare Parts Battery
ASC-2500
USB Charger2.4G Wireless
Controller
ON BOARD
HD VIDEO
ON BOARD
HD CAMERA
1920*1080 pixel
25 frames per second
Phone Holder
ASC-2500
PREMIUM HD VIDEO DRONE
WITH OPTICAL FLOW TECHNOLOGY
Requires Speed Class 10 or higher microSD or
microSDHC card(not included)
microSDHC Logo is a trademark of SD-3C, LLC.
Distributed by:
TRACTOR SUPPLY COMPANY
5401 VIRGINIA WAY
BRENTWOOD, TN 37027
For customer support,
call: 1-888-376-9601
www.TractorSupply.com
Made in China
C012-USA-V1.0
Ascend Aeronautics™ is the registered trademark of AMAX Industrial Group LTD.
AMAX Group USA Address: 12645 Memorial Dr Suite F1 #388 Houston, TX 77024
© 2021 All Rights Reserved. visit us at www.amaxbrands.com
CHOKING HAZARD - Small parts.
Not suitable for children under 3 years.
WARNING!
FCC Part 15 C Notice
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC RF exposure statements
This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body or nearby persons.
Conforms to safety requirements of FCC.
