Amax Voyage Aeronautics VA-2140 User manual

WARNING: Never leave product charging unattended for extended periods
of time. Always disconnect VA-2140 from charger immediately after the
VA-2140 is fully charged. Please refer to enclosed safety instructions.
INSTRUCTION BOOKLET
Colors and styles may vary slightly.
PACKAGE CONTAINS:
2.4G Wireless Controller Instruction BookletSpare PartsUSB Charging Cord VA-2140
CHOKING HAZARD - Small parts.
Not suitable for children under 3 years.
WARNING!
DUCTED FAN DRONE WITH NEW HAND GESTURE
CONTROL TECHNOLOGY
VA-2140
FCC Part 15 C Notice
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
ISED NOTICE: CANADA ONLY.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
CAN ICES-003(B) / NMB-003(B)
This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.
Conforms to safety requirements of FCC, RSS210.
Voyage Aeronautics™ is the registered trademark of AMAX Industrial Group LTD.
AMAX Group USA Address: 12645 Memorial Dr Suite F1 #388 Houston, TX 77024
© 2021 All Rights Reserved. Visit us at www.amaxbrands.com
Made in China
C001-CA-V1.0

Thank you for purchasing the 2.4 G Indoor /Outdoor VA-2140. Please read this instruction booklet as it
contains valuable information on how to properly fly and care for your VA-2140.
BCB1
FEATURES
• Ultra-compact design
• 3speed settings + push button 360˚stunt rolls
• NEW training mode helps beginner pilots learn how to fly
• Air pressure sensor automatically locks your altitude in place
• InvenSense™6axis gyro for smooth and stable flight
• Automatically starts and lands with the push of a button
• LED head and tail lamps for visual orientation
• New hand gesture control technology
REMOTE CONTROL BATTERY INSTALLATION
1. Unscrew and remove the battery cover from the back of the remote control.
2. Install 3“AAA”alkaline batteries into the battery compartment as shown in
the diagram A1.
3. Replace the battery cover and secure it.
CHARGING THE VA-2140
1. Before playing, you need to charge the VA-2140 battery first. Plug the VA-2140 battery into the charging base
then connect the USB charging cord to the charging base. (See diagram B)
Caution: The USB plug fits the charging base only in one way. Do not force it.
2. Connect the charging cord to your computer’s USB port (See diagram B1).
Caution: Only use this charging cord with a computer USB port! Do not attempt to use other USB charging devices.
3. The red LED on the charging base will turn off when charging is complete.
Note: If the red LED lights up that meaning the charging is in process.
4. The average charging time is approximately 35-40 minutes. The VA-2140 operates for about 6minutes per charge.
Low battery indication: the VA-2140 ‘s LED lights will begin to flash to notify you that the battery is
running low. About 45 seconds after the LED lights start flashing your VA-2140 will automatically land to
the floor.
VA-2140 BATTERY INSTALLATION
1. Slide the fully charged battery into the battery compartment as shown in illustraition C.
2. Make sure the battery is fully inserted and push the battery lock in to secure the battery. (see diagram C1)
Caution: The battery fits only one way! Do not force it.
3. Turn on the ON/OFF button of the VA-2140, the LED lights will start flashing if you install the battary
properly.
TABLE OF CONTENTS
Features............................................................................................................2
Remote Control Battery Installation ..............................................................................2
Charging the VA-2140.............................................................................................2
VA-2140 Battery Installation ......................................................................................2
VA-2140 Diagram, Remote Diagram .............................................................................3
Preparing for Flight................................................................................................4
Syncing Your VA-2140.............................................................................................4
Flying Tips ..........................................................................................................4
Now You Are Ready To Fly !........................................................................................5
Recognizing the Front and Rear of the VA-2140 .................................................................5
Automatically Take Off / Land .....................................................................................5
Understanding The Altitude Lock .................................................................................5
Speed Setting Button ............................................................................................. 5
T (Training) Mode ................................................................................................. 5
Understanding Trim Adjustments.................................................................................6
Forward / Backward Trim .........................................................................................6
Banking Left / Right Trim ........................................................................................6
Flight Control ......................................................................................................7
Calibrating the VA-2140 ...........................................................................................8
How To Do 360ºStunt Rolls ....................................................................................... 8
VA-2140 Warning: .................................................................................................9
Battery Warnings, Care and Maintenance .....................................................................9
Replacing the Propeller Blade ...................................................................................9
Limited 90-Day Warranty ........................................................................................10
FCC Part 15 C Notice ..............................................................................................11
A
The red LED on the charger
turn off when
charging is complete
Li-Poly Battery
Li-Poly Battery
C1
Battery Compartment
(3“AAA” batteries not included)
Battery Cover
AAA
AAA
AAA
1 2

VA-2140 DIAGRAM
REMOTE DIAGRAM
FLYING TIPS
• It is recommended that you operate the VA-2140 in a wide space. The ideal space should have a 61
m/200 ft radius.
• Parental guidance or adult supervision is suggested at all times.
• If you are flying the VA-2140 with others, make sure all spectators are behind you.
• For best performance, it is recommended that you operate the VA-2140 in zero wind conditions.
Wind can greatly affect the performance of the VA-2140.
Important! When syncing your VA-2140 drone with the controller always make sure that the drone
is on a flat level surface. This insures that the 6-axis gyro is properly programmed to mimic your
trim settings.
Your VA-2140
utilizes an automatic 2.4G channel selection system that allows up to 8people to fly side by
side in the same wireless range.
For One-person Play:
1. Before starting, make sure that both your controller and VA-2140 are powered off . Make sure that
there are no other 2.4G devices in the area as well.
2. Connect the battery into your VA-2140 and set it down on a flat level surface. The white and red LED
indicators of the VA-2140 should start flashing rapidly.
3. Turn ON your remote and you will hear 1 short beep, the white and red LED lights will start flashing
slower. Push the throttle all the way up then pull it all the way down. You will hear one long beep and
the LED lights will turn solid. Your VA-2140 and remote should have successfully synced. Should this
not happen, repeat all steps again.
For Multi-person Play:
4. Before starting, make sure that all VA-2140s and Controllers are powered off. Make sure that there
are no other 2.4G devices in the area as well.
5. Each person will have to sync their VA-2140 individually at a different time to avoid interference.
Follow steps 1 to 3above, making sure to keep away from other people while also making sure that
no one else is syncing at the same time.
6. After syncing one player's VA-2140, it should be left ON until all players have synced their VA-2140s .
7. Should there be a mistake/interference, all players must turn off their controllers and VA-2140s and
start the process all over again.
SYNCING YOUR VA-2140
DO NOT FLY YOUR VA-2140 IN FOUL WEATHER!
WARNING
• Verify that there are 2 “AAA”batteries inside the remote control unit and the VA-2140 has been fully charged.
• Make sure to be in a large space with an open radius of at least 50 feet.
• Make sure the empty space has no obstacles or rivers. Set your VA-2140 on a clean flat surface before take-off.
DO NOT ATTEMPT TO FLY YOUR VA-2140 IF THERE IS RAIN, SNOW, HEAVY WINDS, THUNDER OR LIGHTNING
OUTDOORS. IT COULD DAMAGE YOUR PRODUCT AND POSSIBLY EVEN CAUSE BODILY HARM.
PREPARING FOR FLIGHT
Battery compartment
Landing Gear
Safety Guard
Rotor Blade
Power Button
3 4
Flight with controller control:
Speed Setting Button 360˚ Stunt Rolls Button
AUTO Start/Land Button
Throttle/Yaw Direction Control
T (Training / Hover mode)
Power Indicator
ON/OFF Power Switch
Left Bank Trim
Right Bank Trim
Forward Trim
Backward Trim

NOTE: The use of the Trim buttons are accompanied with a beep tone. A single long beep indicates the product is
centre-trimmed. No beeping after press the trim button indicates the product is trimmed to the maximum on a particular side.

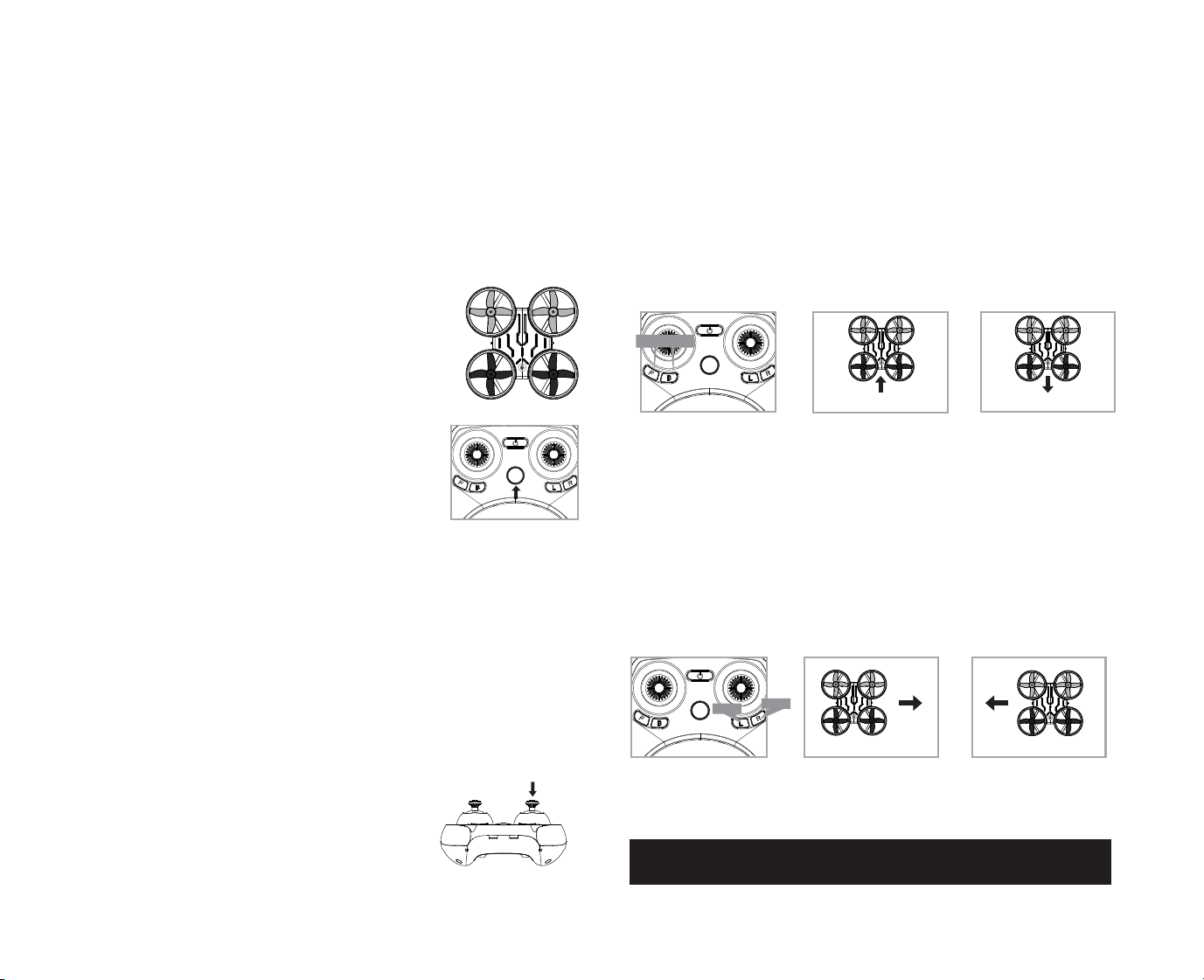

UNDERSTANDING TRIM ADJUSTMENTS
Forward/Backward Trim
• If your VA-2140 is moving forwards or backwards automatically, you may need to adjust the
FORWARD/BACKWARD TRIM buttons.
•If your VA-2140 flies forward, push and release the Backward TRIM button repeatedly until the
moving stops and proper flight is maintained.
•If your VA-2140 flies backwards, push and release the Forward TRIM button in the same manner until
the problem is resolved.
• From time to time you may have to adjust the FORWARD/BACKWARD TRIM to ensure the VA-2140
will hover in mid-air and respond accurately to your commands.
Banking Left/Right Trim
• If your VA-2140 is not steadily hovering and is banking to the left or right automatically, you may need to
adjust the BANKING TRIM buttons.
• If your VA-2140 banks to the left, push and release the R Trim button repeatedly until the banking stops
and proper flight is maintained.
• If your VA-2140 banks to the right, push and release the LTrim button in the same manner until the
problem is resolved.
• From time to time you may have to adjust the BANKING TRIM to ensure the VA-2140 will and respond
accurately to your commands.
RECOGNIZING THE FRONT AND REAR OF THE VA-2140
Even though the VA-2140 has four rotors there is still a front or forward-facing
direction and back or backwards-facing direction. The Front and forward-facing
direction of the VA-2140 is the side with two grey propellers. The rear and back
of the VA-2140 is the side with two black propellers. The VA-2140 when in flight
will also help you keep aware of the orientation with lighted LED lights in the
arms of the VA-2140.
Forward/Backward
Trim Controls
Push backward trim button Push forward trim button
If flying forward...
If flying Rightward... If flying Leftward...
If flying backward...
Left/Right Banking Controls Push the “ L ” trim button
to increase left banking
sensitivity
AUTOMATICALLY TAKE OFF / LAND
Make sure you have properly synced The VA-2140.
• simply press the Auto Start/Land button, your VA-2140 will automatically take
off.
• To stop or land the VA-2140 just Press the Auto Start/Land button again and the
VA-2140 will descend and land automatically.
Tips: You also can move the two control sticks simultaneously down inside or
outside corners, hold them till you hear a “beep” and the blades start
spinning. Release the control sticks and push the throttle stick slowly to take
off manually.
Trim
Push the “ R ” trim button
to increase Right banking
sensitivity
Forward/ Backward
Banks Trim
Banks Trim
5 6
Front
Rear
If you have successfully synced your VA-2140 to your controller as explained on page 4 you are now ready
to fly. Before beginning to fly your drone you should familiarize yourself with how to start and stop the
rotors, how to use your take off and auto land feature and how the controls work. please carefully read and
familiarize yourself with various control features explained in the next few pages. Once again as a beginner
pilot you should learn how to control your drone in a large open field or park on a day with zero or very
light wind. Do not try to fly your VA-2140 too high until you become a more experienced pilot.
NOW YOU ARE READY TO FLY!
UNDERSTANDING THE ALTITUDE LOCK
The VA-2140 has a unique Altitude Lock function. With the help of air pressure sensor you can control,
your VA-2140 more stable than ever. The sensor locks in the altitude of the drone while allowing the user
to adjust the directional control without having to hold the throttle.
After starting the drone, fly upwards to a safe height. Once at a safe height, let go of the throttle control,
your VA-2140 should lock in the altitude and allow the user to focus on getting used to the directional
controls.
NOTE: The altitude sensor does have some tolerance based on atmospheric conditions and could have a
slight variation in altitude.
SPEED SETTING BUTTON
The VA-2140 has 3speed Modes;1(SLOW),2(MEDIUM) and 3(HIGH). The Default setting when you first
turn on your VA-2140 is1(SLOW). Short press speed button you can switch among the 3speed settings.
T (Training)MODE & OBSTACLE AVOIDANCE TRAINING FEATURE
Press down the Direction Control/T (Training mode) throttle, you will hear a beep indicating you are in T
Mode now.T mode allows you to learn how to operate your VA-2140 at a very slow speed. Also there are
maximum and minim height limits set to avoid crashing to ceiling or
floor in T mode.
New obstacle avoidance training feature will cause the drone to
automatically circumvent walls and other obstructions so new pilots
can get the hang of flying. Set the VA-2140 speed in the T(Training)
speed mode the obstacle avoidance feature will start working.
Note: the obstacle avoidance feature only works for T(Training) mode.

HOW TO DO 360º STUNT ROLLS
1. In order to make your VA-2140 do 360ºrolls you must fully charge your battery.
Note: The VA-2140 will not do 360º stunt rolls in T mode and Mode 1 or under low battery indication
(The LED lights on the drone will be flashing).
2. Once you are ready to attempt a 360ºroll, simply depress and let go of the "STUNT" button on the top
right hand side of your controller (see Remote Diagram on page 3). You will hear beeping sounds, this
means you are now in “STUNT MODE."
3. Now quickly move your right control stick in any of 4 directions; up, down, left or right. Your VA-2140
drone will instantly roll in the associated direction. See diagram below.
Note:
After performed the stunt roll, the beeping sounds will stop. Repeat step 2 to 3if you wish to do it again.
If the VA-2140 becomes unstable during the course of flying,
you may need to calibrate the internal gyros. To do this place
the VA-2140 on a flat level surface.
Do not start the blades.
Instead move both the throttle and control stick down and to
the right corner .
The LEDs on the VA-2140 will flash quickly
and then remain solid, this indicates your drone has been
recalibrated (see diagram E).
Move the Direction Control left and the VA-2140
will bank to the left.
Move the Direction Control right and the VA-2140
will bank to the right.
7 8
F
360˚Stunt Roll
G
CALIBRATING THE VA-2140
E
Move the Throttle up to increase the speed of
the motors and the VA-2140 will rise up.
Move the Throttle down to decrease the speed of
the motors and the VA-2140 will descend.
Move the Throttle stick left and the VA-2140
will rotate left.
Move the Throttle stick right and the VA-2140 will
rotate right.
Move the D irection Control up and the VA-2140
will move forward.
Move the Direction Control down and the
VA-2140 will move backward.
FLIGHT CONTROL
Below is a list of basic flight functions for your long-range remote to control the VA-2140 . While learning
to fly your
VA-2140 it is best to start in a large space with the drone facing away from you until you get
used to the basic controls. As you master flying your
VA-2140 you can move to more advanced
maneuvering techniques. Practice makes perfect!

13
Limited 90-Day Warranty
NORTH AMERICA
AMAX Group USA warrants to the original consumer that this product is free from any
electrical or mechanical defects for a period of 90 DAYS from the date of purchase.If any such
defect is discovered within the warranty period, AMAX Group USA will repair or replace the
unit free of charge upon receipt of the unit,shipped postage prepaid and insured to our
warranty center ALONG WITH THE ORIGINAL RECEIPT evidencing that the product was
purchased from an approved AMAX retail partner and that the product is still within the 90
day warranty period.The warranty covers normal consumer use and does not cover damage
that occurs in shipment or failure that results from alterations, accident, misuse, abuse,
neglect, wear and tear, inadequate maintenance,commercial use or unreasonable use of the
unit. Removal of any parts/components voids all warranties.This warranty does not cover
cost of repairs made or attempted outside by third-party individuals or companies. Any
applicable implied warranties, including warranties of merchantability and fitness, are hereby
limited to 90 DAYS from the date of purchase.Consequential or incidental damages resulting
from a breach of any applicable express or implied warranties are hereby excluded. Some
states do not allow limitations on the duration of implied warranties and do not allow
exclusion of incidental or consequential damages, so the above limitations and exclusions in
these instances may not apply.
REPAIR/REPLACE PRODUCT
If your product begins to malfunction or stop working, immediately contact our warranty
center (contact details listed below).If it is determined that a return is necessary,our warranty
department will issue you an RMA number/form and an address to the nearest return center
for shipping the product to us.When honoring the warranty,AMAX reserves the right to
either repair, replace or refund the product.
IMPORTANT NOTICE:
We will reject and return to sender returns that are not accompanied by an AMAX issued
RMA form and RMA number so make sure to contact our warranty center before attempting
to return your product!
PREPARATION FOR SHIPPING YOUR PRODUCT:
Please repack your product in a durable box,preferably in the original carton, and send it
prepaid,and adequately insured.Include the RMA form that was issued by our warranty
department along with your daytime telephone number and email address inside the
shipping carton. If your warranty has expired and you still require service please contact our
customer care team For further information please send all inquiries to:
[email protected]
IMPORTANT NOTICE!
DO NOT ATTEMPT TO SHIP YOUR PRODUCT BACK
WITHOUT FIRST CONTACTING OUR WARRANTY
DEPARTMENT AT:
www.amaxbrands.com
Email: [e-mail]

LET’S GET STARTED!
Noted: you can not control the VA-2140 with the controller and hand gesture in the same time. Turn
off your remote control and follow these simple steps in the order below and you will be successfully
flying your VA-2140 in no time!
1. Make sure your VA-2140 is fully charged.
3. Then hold the VA-2140 in the mid-air and then give it
a small gentle toss upward or simply release it as if you
were dropping it from your hand. The VA-2140 will
automatically turn on and begin hovering.
TIP: Make sure to hold the VA-2140 level to ground
when starting or it may fly sideways.
7. When done playing make sure to turn the power off
by depressing the power button, All the lights will turn
off.
(see power button diagram on pg. 3)
2. Turn on the VA-2140 and put it on the table or
ground wait the LED lights becomes solid blue. (see
diagram D)
4. Hold both your hands out simultaneously on both
sides of the VA-2140 about two inches from the body so
the VA-2140 is in the center space between your two
hands. The drone will descend and land automatically.
Noted: do not touch the spinning blades,
it may hurt your fingures.
D
E
9 10

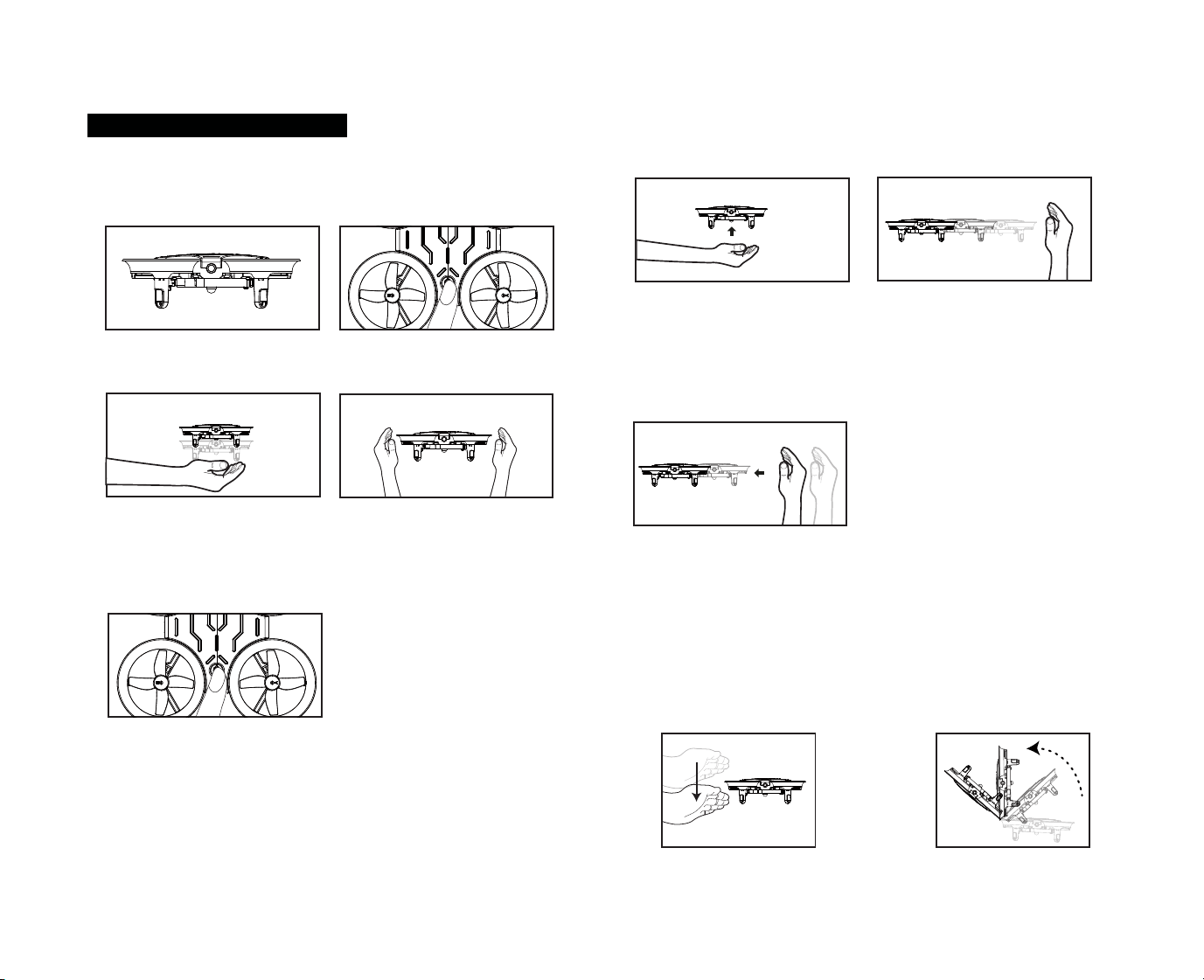

HOW TO CONTROL YOUR VA-2140
Your VA-2140 is equipped with motion sensors and air pressure sensors which read your hand
motions to determine its direction for flight.
TO MAKE YOUR VA-2140 FLY HORIZONTALLY ACROSS
THE ROOM:
Hold your hand up vertically palm side facing the
VA-2140 like your going to push it away, but don’t
actually touch it. The VA-2140 will begin to move in the
opposite direction of your hand (See Diagram G).
TO MAKE YOUR VA-2140 GO UP:
Place one hand palm side up directly underneath the bottom
of the VA-2140 and slowly move your hand straight up,
VA-2140 will rise upward (See Diagram F)
TO MAKE YOUR VA-2140 MOVE FASTER AND FURTHER.
Once you have gotten the hang of controlling the direction of your
VA-2140 simply move your hand along outside of the VA-2140 as it
begins to fly away, literally follow the VA-2140 with your hand. The
longer and faster you move your hand behind the VA-2140 the
further and faster it will fly (See diagram H) Remember to follow
behind it, not touch it.
F
G
H
HOW TO DO 360˚ STUNT FLIPS!
The VA-2140 allows you to command 360˚ stunt flips with a special hand movement! Your VA-2140
has the ability to do a 360˚ flip in all 4 directions..
• First pass your open palm face side across the side of your VA-214like doing a vertical cut in the air, you
are crossing an invisible sensor.
• The fluid combination of going across the side will activate the 360˚ Flip.
NOTE the VA-2140 will do somersaults in the direction of the side where your hand completed the
movement (SEE DIAGRAM J1, J2).
J1 J2
Flight with hand gesture control:

VA-2140 WARNING :
The VA-2140 is designed for INDOOR and OUTDOOR use. The VA-2140 blades revolve at high speeds and can cause
damage to the user, spectators and animals. Stand away from the VA-2140 to reduce the risk of getting into the flight
path. Warn spectators that you will be flying your VA-2140 so that they are aware of its position. Before flight, inspect the
rotor blades to make certain that the blades are securely fastened to the VA-2140.
WARNING!
• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power switch is turned to the ON position.
• Turn off the transmitter and VA-2140 power switches when not in use.
• The included charger is built specifically for the VA-2140 Li-Poly battery. Do not use it to charge any other battery.
• New alkaline batteries are recommended for maximum performance.
• Parental supervision recommended when flying VA-2140.
BATTERY WARNINGS
RECHARGEABLE BATTERY:
This VA-2140 uses a Li-Poly rechargeable battery. If battery no longer stays charged, dispose of battery properly according
to local disposal requirements.
CONTROLLER BATTERIES:
Remote control requires 2 “AAA”batteries (not included). Please read the important battery safety warning below.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (nickel metal hydride).
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the item before being charged (if removable).
• Rechargeable batteries are only to be charged under adult supervision.
• Exhausted batteries should be removed immediately and must be recycled or disposed of properly according to state or
local government ordinances and regulations.
• The supply terminals are not to be short-circuited.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity (see inside booklet for diagram).
• Do not dispose of batteries in a fire - batteries may leak or explode.
CARE AND MAINTENANCE
• Always remove the batteries from the wireless remote control when it is not being used for an extended period of time.
• To clean, gently wipe the remote control and VA-2140 with a clean damp cloth.
• Keep the toy away from direct heat or sunlight.
• Do not submerge the toy into water. This can damage the unit beyond repair.
• Parental guidance recommended when installing or replacing the batteries.
REPLACING THE PROPELLER BLADE
Your VA-2140 propeller system is a precision instrument that may need repair or replacement from time to
time for optimal flight function. Crash landing from high-speed aerial flights may cause damage to
your VA-2140 propellers.
1. VA-2140 has four blades, two gray propellers on the front and two black propellers on the back.
2. When taking off the damaged blade, always use the included blade wrench. Refer to the instruction
diagrams below. Always use mild force, be gentle!
3. When replacing the new blades, make sure to match the indicating letter embossed on the blades to
the diagram below.
Rear
Front
A
A
B
B
Blade Front Left = A
Blade Front Right = B
Blade Rear Left = B
Blade Rear Right = A
11
HOW TO PLAY SAFELY!
Safety is number one and should be taken seriously! Please carefully study the below DO’s and
DON’Ts so that you may always enjoy the safe operation of your VA-2140.
DO DON’T
DO DON’ T FLYOVER HEAD
DO DON’T
Hold away from body
IMPORTANT SAFETY INFORMATION: KEEP YOUR VA-2140 AWAY FROM FACE AND EYES.
12
