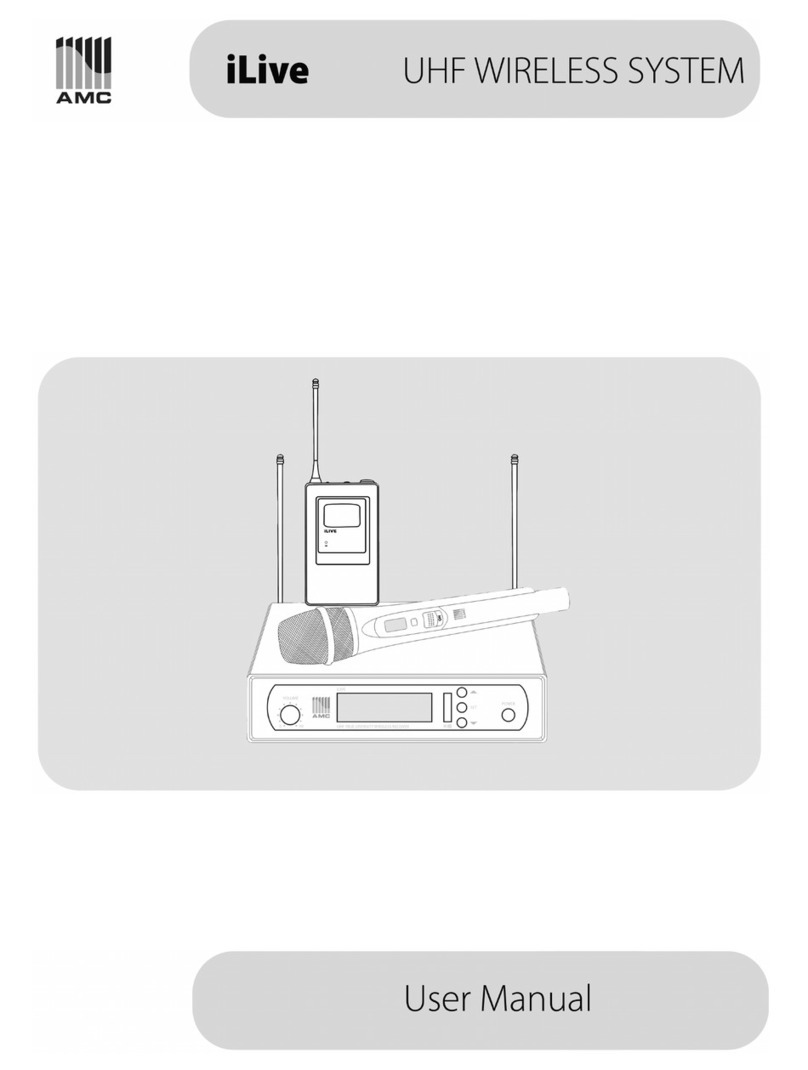

AMC iLive 2 User manual

User
Manual
iLive 2
Wireless microphone system

Safety instructions
USER MANUAL iLIVE 2 Wireless Microphone System
When using this electronic device, basic precautions
should always be taken, including the following:
1Read all instructions before using the product.
2Do not use this product near water (e.g., near a bathtub, washbowl,
kitchen sink, in a wet basement or near a swimming pool etc).
3 Use this device when you are sure that paging microphone has
a stable base and it is fixed securely.
4This product, in combination with loudspeakers and amplifier may be
capable of producing sound levels that could cause permanent hearing
loss. Do not operate for a long period of time at a high volume level or at
a level that is uncomfortable. If you experience any hearing loss or ringing
in the ears, you should consult with otorhinolaryngologists.
5The product should be located away from heat sources such as radiators,
heat vents, or other devices that produce heat.
6The product should be connected to a power supply that is described
in the operating instructions or are marked on the product.
7The power supply should be undamaged and never share an outlet
or extension cord with other devices. Never leave device plugged
into the outlet when it is not being used for a long period of time.
8Care should be taken that objects do not fall into liquids and liquids
would not be spilled on the device.
9The product should be serviced by qualified service personnel if:
– The power supply or the plug has been damaged.
– Objects have fallen into or liquid has been spilled on the product.
– The product has been exposed to rain.
– The product has been dropped or the enclosure damaged.
10 There are some areas with high voltage inside, to reduce the risk of electric
shock do not remove cover of the microphone receiver or power supply.
The cover should be removed by the qualified personnel only.
CAUTION
To reduce the risk of electric shock, do not remove screws.
No user-serviceable parts inside. Refer servicing to qualied
service personnel. To reduce the risk of re, electric shock
or product damage, do not expose this apparatus to rain,
moisture, dripping or splashing and that no objects lled
with liquids, such as vases, shall be placed on the apparatus.
RISK OF ELECTRIC SHOCK
DO NOT OPEN

x
y
y
x
25
o
Maximum Usage 65mm
Minimum Usage 18mm
Minimum Usage 18mm
y
y
25
x
x
y
Minimum Usage 18mm
Minimum Usage 18mm
Minimum Usage 18mm
Maximum Usage 65mm
Maximum Usage 65mm
25
25
o
x
x
M
M
M
Ma
Mi
M
M
M
M
M
M
y
Max
Min
y
Mi
a
a
axi
ni
n
n
n
n
x
x
xim
nim
i
i
mu
mu
m
m
m
m
m
m
mu
mum
u
u
u
u
u
u
um
um
m
m
m
m
m
m
m U
m U
m
m
m
U
U
U
U
U
U
Us
Us
Us
U
U
sa
sa
a
ag
ag
g
g
g
g
g
ge
ge
g
g
g
g
g
g
ge 6
e 1
e
e
e
65
18
1
6
6
65
18m
8
8
8
8
65
5
5m
8m
8m
5m
m
y
mm
mm
m
y
y
m
m
m
m
m
mm
m
m
m
m
m
m
m
x
Table of contents
USER MANUAL iLIVE 2 Wireless Microphone System
Before you start
Introduction......................................................................................................................................................2
Features................................................................................................................................................................2
Operation
Front panel ........................................................................................................................................................3
Rear panel...........................................................................................................................................................4
Handheld microphone............................................................................................................................5
Body pack transmitter ..............................................................................................................................5
Receiver operation......................................................................................................................................6
Handheld microphone operation..............................................................................................6-7
Body pack transmitter operation.....................................................................................................7
Synchronization ............................................................................................................................................8
Receiver’s menu.............................................................................................................................................9
Specifications
General specifications.............................................................................................................................14

USER MANUAL iLIVE 2 Wireless Microphone System
Before you start
02
Wireless microphone systems with 32 selectable channels and automatic channel targeting. iLive2
wireless microphones sets are combined with handheld or body pack transmitter with variety of
microphone selection to use with body pack.
FEATURES
• 32selectablechannels
• AutomaticchanneltargetingACTsynchronization
• HighbrightnessLCDdisplay
• RF,AFlevelmeter
• Digitalvolumeandsquelchcontrol
• Lockmenufunction
• HandheldmicrophonewithLCDdisplay
• RFpowerselectorforbatterylifesavingmodeorworkingdistance
range increase
• Excellentqualitymetalbodymicrophoneequippedwithdynamic
cardioid capsule
• BodypacktransmitterwithLCDdisplay,channel,frequencyand
low battery indications
• BalancedXLRconnectorandunbalanced6,3mmTSjackconnec-
tor outputs. Jack/Jack cable included

USER MANUAL iLIVE 2 Wireless Microphone System
Front Panel
1. IR transmitter |2. LCD display |3. SYNC button |4.SETbutton|5. Navigation buttons | 6. Power switch
Operation
03

USER MANUAL iLIVE 2 Wireless Microphone System
04
Operation
Rear Panel
1.AntennaBconnector|2.Audiooutput|3. Main power connector |4.AntennaAconnector

USER MANUAL iLIVE 2 Wireless Microphone System
Operation
Handheld microphone
1. LCD display |2. IR receiver |3. Power button |4. RF power selector |5. Battery holder |6. Battery cover
1.Antenna|2. LCD display |3. IR receiver |4. Battery cover lock |5. Battery holder |6. Battery cover |7. Power button |8. Microphone connector
Body pack
05

USER MANUAL iLIVE 2 Wireless Microphone System
Receiver operation
SYNC BUTTON
Press this button to transmit data from receiver to transmitter in order to syn-
chronize microphone or body pack transmitter and receiver.
NAVIGATION BUTTONS
These buttons are designed to navigate receivers menu and adjust settings.
SET BUTTON
Short press of this button shows number of current channel for two seconds on
LCD screen if channel frequency are displayed for default and otherwise, shows
the channel frequency if channel number are set for display default. Long press
bringsmenuonthescreen,inordertoenterthesubmenupressSETbutton
one more time. Use navigation buttons to navigate menu or adjust settings.
LCD DISPLAY
Displaysthecurrentsettings,menuandotherinformation,likeRFlevel,AFlevel,
volume,frequencyorchannel,lockstatus,mutestatusandwhichantennaAor
B is active at the moment.
IR TRANSMITER
IR transmitter allows synchronize microphone or body pack and receiver by
establishing handheld microphone or body pack radio frequency to the same
as the receiver.
POWER SWITCH
Press power switch for 3 seconds to turn on/off the power.
ANTENNA CONNECTOR
This connector designed to connect antenna to the receiver.
AUDIO OUTPUT
BalancedXLRandunbalanced6,3mmJackaudiooutput.
MAIN POWER CONNECTOR
ConnectorforDC12V–16V1.25Apowersupply.
Handheld microphone operation
LCD DISPLAY
Displays the current frequency, channel and transmitter’s battery level.
IR RECEIVER
IR receiver allows synchronizing microphone and receiver by establishing hand-
held microphone radio frequency to the same as set in receiver.
POWER BUTTON
Press power button for 3 seconds to turn on/off the power.
06
Operation

USER MANUAL iLIVE 2 Wireless Microphone System
RF POWER SELECTOR
Lo mode - reduces transmitters power, it helps to expand batteries discharging
time, but affects working distance. Low radio transmitter power gives a short
working distance.
Hi mode - ensures maximum working distance and performance, but discharge
batteries more quickly.
BATTERY HOLDER
BatteryholderfortwopiecesofAAsizesalkalinebatteries.Pay attention to
battery polarity, wrong polarity can damage transmitter!
BATTERY COVER
Remove battery cover in order to insert or replays batteries.
Body pack transmitter operation
ANTENNA
AntennasforRFsignaltransmittingtothereceiver.Coveredantennacanreduce
working distance, try to keep antenna uncovered in order to guaranty maxi-
mum working distance.
LCD DISPLAY
Displays the current frequency, channel and low battery indication.
I
R RECEIVER
IR receiver allows synchronize body pack and receiver by establishing body pack
radio frequency to the same as set in receiver.
BATTERY COVER LOCK
Push cover lock in order to remove battery cover.
BATTERY HOLDER
BatteryholderfortwopiecesofAAsizesalkalinebatteries.Pay attention to
battery polarity, wrong polarity can damage transmitter!
BATTERY COVER
Remove battery cover in order to insert or replays batteries.
POWER BUTTON
Press power button for 3 seconds to turn on/off the power.
ANTENNA CONNECTOR
This connector designed to connect antenna to the receiver.
MICROPHONE CONNECTOR
BalancedXLRandunbalanced6,3mmJackaudiooutput.
Operation
07

USER MANUAL iLIVE 2 Wireless Microphone System
Operation
Synchronization
IMPORTANT: During synchronization IR receiver and IR transmitter should be directed to each other.
Press infrared data transfer button (SYNC) to transmit data from receiver to transmitter in order to
synchronize microphone and receiver radio frequency.
The distance between the devices should be proximally 20cm.
PUSH
SYNC
08

USER MANUAL iLIVE 2 Wireless Microphone System
Operation
Receiver’s menu
LongpressofSETbuttonbringsmainmenuonthescreen,
inordertoenterthesubmenupressSETbuttononemore
time. Use navigation buttons to navigate menu and adjust
settings.
PUSH
SET
for 3 sec.
PUSH
button
PUSH
button
PUSH
button
PUSH
button
PUSH
button
09

USER MANUAL iLIVE 2 Wireless Microphone System
Operation
F-MODEMENU
ActivateF-modemenubypressingSETbuttonfor3sec.This
menuconsistsfromTUNE,CHANNLandEXITsubmenu.
PUSH
button
PUSH
SET
to select
PUSH
SET
to select
PUSH
SET
for 3 sec.
PUSH
SET
to select
PUSH
button
PUSH
SET
to select
10

USER MANUAL iLIVE 2 Wireless Microphone System
Operation
TUNEMENU
Select tune menu in order to change manually receiver’s
frequency in 50 kHz steps.
PUSH
SET
for 3 sec.
PUSH
SET
to select
PUSH
SET
to select
PUSH
SET
to select
PUSH
SET
to select
PUSH
button
CHANNELMENU
SelectCHANNLtosetoneofthe32channel’spresets.Beforetheselecting
CHANNL,thedefaultdisplayintheDISPLYmenushouldbesettoCHANNL.
PUSH
SET
to select
PUSH
SET
to select
PUSH
SET
to select
PUSH
SET
for 3 sec.
PUSH
button
PUSH
SET
to select
PUSH
button
11

USER MANUAL iLIVE 2 Wireless Microphone System
Operation
DISPLAYMENU
Display menu allows to change the default screen view from
frequencytochannelandotherwise.Select“CHANNL”todisplay
channelnumberinthescreenorselect“FREQUE”todisplaychannel
frequency in Mhz.
PUSH
SET
for 3 sec.
PUSH
SET
to select
PUSH
SET
to select
PUSH
button
X4
PUSH
button
PUSH
SET
to select
SQUELCHMENU
The squelch level is adjustable in 5dB steps from 0dB to 20dB. Selecting a
smaller value increase the squelch threshold, selecting a higher value reduce
the squelch threshold. If the squelch threshold is set too high, the microphone
working distance can be reduced.
PUSH
SET
for 3 sec.
PUSH
SET
to select
PUSH
SET
to select
PUSH
SET
to select
PUSH
button
PUSH
button
X3
12

USER MANUAL iLIVE 2 Wireless Microphone System
Operation
VOLUMEMENU
SelectVOLUMEmenutoadjustaudiooutputlevel.
PUSH
button
X4
PUSH
SET
to select
PUSH
button
PUSH
SET
for 3 sec.
LOCKMENU
Lockmenuallowslockmainpanelbuttons,exceptpowerandSETTING
buttons. Please set lock function to off, for unlock.
PUSH
SET
to select
PUSH
SET
to select
PUSH
SET
to select
PUSH
SET
for 3 sec.
PUSH
button
X2
PUSH
button
EXITMENU
Select to exit from menu.
PUSH
SET
for 3 sec.
PUSH
button
X2
PUSH
SET
to select
13

USER MANUAL iLIVE 2 Wireless Microphone System
Specifications
GENERAL
Power supply 12-15VDC,1.25A
Output BalancedXLR,unbalanced6,3mmTSJACK
Receiver way Two frequency conversion super-heterodynes
Intermediate frequency 10,7 MHz
Antenna BNC
T.H.D < 0,7 %
Sensitivity 6 dB μV
Image rejection 36 dB
Max. audio output 0 dB
Dimensions (H x W x D) 45 mm x 210 mm x 206 mm
Weight 1.3 kg
Material Steel enclosure, aluminum front panel
iLIVE 2 receiver
Carrier frequency range 606 MHz - 621 MHz
Modulation FM
Channels 32
Audiofrequencyresponse 45 Hz - 18 kHz
S/N ratio > 105 dB
Antenna Built-in spiral antenna
Transmitter’s power 3 mW
Working range 60 m (Note: actual range depends on RF sig-
nal absorption, reflection and interference)
Polar pattern Cardioid
Battery 2x1,5VAAAlkalinebattery
Dimensions 240 mm (lenght)
Weight 302 g
Material Aluminum
iLIVE 2 handheld transmitter
14

USER MANUAL iLIVE 2 Wireless Microphone System
15
Specifications
GENERAL
iLIVE 2 body pack transmitter
Carrier frequency range 606 MHz - 621 MHz
Modulation FM
Channels 32
Audiofrequencyresponse 45 Hz - 18 kHz
S/N ratio > 105 dB
Antenna 1/4 wave antenna
Input connector 4pinminiXLRconnector
Transmitter’s power 3 mW
Working range 60 m (Note: actual range depends on RF sig-
nal absorption, reflection and interference)
Polar pattern Cardioid
Battery 2x1,5VAAAlkalinebattery
Dimensions 110 mm x 64 mm x 25 mm
Weight 76 g
Material Plastic

USER MANUAL iLIVE 2 Wireless Microphone System16
The specifications are correct at the time of printing this manual.
For improvement purposes, all specifications for this unit, including
design and appearance, are subject to change without prior notice.
Specifications
GENERAL
Capsule type Condenser
Impedance 200 Ω
Sensitivity -47 dB
Frequency 45 Hz - 18 kHz
Connectors 4pinminiXLRconnector
Phantom power voltage 5V DC
Cable length 1 m
Weight 15 g
Colour Skin(RAL1014)
Accessories Windscreen
HM LM
Capsule type Condenser
Impedance 200 Ω
Sensitivity -46 dB
Frequency 50 Hz - 18 kHz
Connectors 4pinminiXLRconnector
Phantom power voltage 5 V DC
Cable length 1 m
Weight 21 g
Colour Black(RAL1017)
Accessories Windscreen
