Ameda PENGUIN User manual

Penguin®
Nutrional Warmer
Ameda Penguin
Deluxe Nutrional Warmers
Instrucons for Use 1-15
Instrucciones de uso 17-32
Mode d’emploi 33-48
EN
ES
FR

2
WELCOME TO THE AMEDA FAMILY
We are excited to help you meet your nutritional warming needs. With the Ameda Deluxe Single-
Well or Four-Well Penguin® Nutritional Warmers, you can safely warm feedings and protect vital
nutrients.
The Ameda Deluxe Nutritional Warmers work with the patented design Ameda Therma-Liner®
which isolates the feeding container from the water while providing an encompassing kangaroo-
like warming environment using water to safely transfer heat.
For any questions regarding your Ameda Deluxe Penguin Nutritional Warmer,
Call [phone] or email us at [e-mail]. Have your serial number for
warmers and lot number for Therma-Liners when calling. Please check www.ameda.com for up-
to-date hours of operation.

3

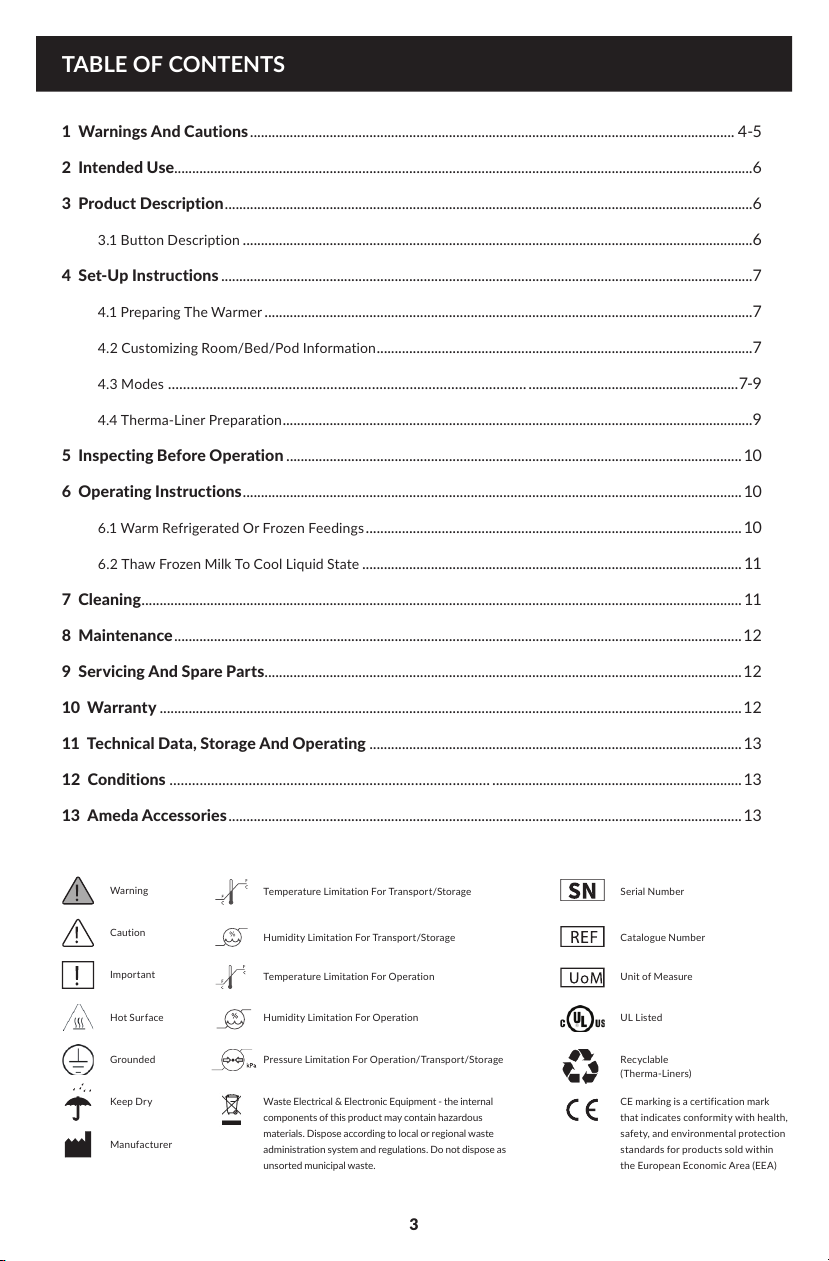

TABLE OF CONTENTS
1 Warnings And Cautions ...................................................................................................................................... 4-5
2 Intended Use................................................................................................................................................................6
3 Product Description ..................................................................................................................................................6
3.1 Button Description .............................................................................................................................................6
4 Set-Up Instructions ...................................................................................................................................................7
4.1 Preparing The Warmer .......................................................................................................................................7
4.2 Customizing Room/Bed/Pod Information ........................................................................................................7
4.3 Modes ............................................................................................... ..........................................................7-9
4.4 Therma-Liner Preparation ..................................................................................................................................9
5 Inspecting Before Operation .............................................................................................................................. 10
6 Operating Instructions .......................................................................................................................................... 10
6.1 Warm Refrigerated Or Frozen Feedings ........................................................................................................ 10
6.2 Thaw Frozen Milk To Cool Liquid State ......................................................................................................... 11
7 Cleaning ...................................................................................................................................................................... 11
8 Maintenance .............................................................................................................................................................12
9 Servicing And Spare Parts ....................................................................................................................................12
10 Warranty .................................................................................................................................................................12
11 Technical Data, Storage And Operating .......................................................................................................13
12 Conditions ..................................................................................... ..................................................................... 13
13 Ameda Accessories ..............................................................................................................................................13
Warning
Waste Electrical & Electronic Equipment - the internal
components of this product may contain hazardous
materials. Dispose according to local or regional waste
administration system and regulations. Do not dispose as
unsorted municipal waste.
Caution
Important
Hot Surface
Grounded
Keep Dry
Manufacturer
Temperature Limitation For Transport/Storage
Humidity Limitation For Transport/Storage
Temperature Limitation For Operation
Humidity Limitation For Operation
Pressure Limitation For Operation/Transport/Storage
Serial Number
Catalogue Number
Unit of Measure
UL Listed
Recyclable
(Therma-Liners)
CE marking is a certification mark
that indicates conformity with health,
safety, and environmental protection
standards for products sold within
the European Economic Area (EEA)

4
1. WARNINGS AND CAUTIONS
WARNING To avoid fire, electrocution, serious burns or injury.
The WARNING symbol identifies important safety instructions that if not followed can lead to injury or
damage to the warmer. The warning symbols when used with the following words stand for:
IMPORTANT SAFEGUARDS
When using electrical products, the following basic safety precautions should always be followed.
READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
DANGER To reduce the risk of electrocution:
• DO NOT place or store where warmer can fall or be pulled into a sink.
• DO NOT place or drop warmer into water or other liquid.
• DO NOT reach for electrical product that has fallen into water. Immediately unplug
from electrical outlet.
• ENSURE the power cord is easily accessible and removable, in the event of an emergency
requiring immediate and total power disconnection.
• DO NOT use the equipment in a manner not specified.
• DO NOT use AC power source that applies more than 240VAC (nominal) between the supply
conductors or between supply conductor and ground. A protective ground connection by way
of the grounding conductor in the power cord is required for safe operation.
• DO NOT use parts or accessories other than those that are recommended by the manufacturer.
• USE ONLY the power cord appropriate for the voltage and plug configuration in your country.
• If the equipment appears damaged or operates abnormally, protection may be impaired.
DO NOT attempt to continue operation. Have the equipment serviced.
WARNING Can lead to serious injury or death.
CAUTION Can lead to minor injury.
IMPORTANT Can lead to material damage.

5
WARNING To avoid fire, electrocution, serious burns or injury.
CAUTION Can lead to minor injury.
IMPORTANT Can lead to material damage.
• ALWAYS operate warmer on a flat, horizontal surface.
• Close supervision is necessary if product is used near children or infants.
• Use product for its intended use ONLY, as described in this manual.
• Prior to use, always inspect power cord for damage or exposed wires. If damage and/or exposed
wires are found, DO NOT use and call us at [phone].
• NEVER operate electrical warmer
• if it has a damaged cord or plug
• if it is not working properly
• if it has been dropped, damaged, or becomes wet without being properly and fully assembled
• ALWAYS keep cord away from heated surface.
• ALWAYS ensure the power cord is disconnected before cleaning or servicing.
• ALWAYS ensure the voltage of the product is compatible to the power source.
• ALWAYS ensure the power cord is inserted in a socket-outlet with a protective earth contact
for grounding. Intentional AC interruption is prohibited.
• ALWAYS ensure servicing is performed by qualified service personnel only using the
Manufacturer’s Service Manual. There are no user-serviceable parts.
• DO NOT use Therma-Liner
• for more than one shift, not to exceed 12 hours
• on more than one patient, baby, or child
• NEVER put electrical product in water or a sterilizer, as you can cause permanent damage to the
nutritional warmer.
• DO NOT use abrasive cleaners/detergents when cleaning the nutritional warming unit or
accessories. CaviWipe™ or SaniWipe™ are recommended for surface cleaning.
• DO NOT use sharp objects on the device buttons or wells.
• DO NOT use Therma-Liner for more than one shift or 12 hours.
• DO NOT overfill or under-fill Therma-Liner.
• If servicing is required, ensure servicing is performed by qualified service personnel.
SAVE THESE INSTRUCTIONS

6
2. INTENDED USE
3. PRODUCT DESCRIPTION Penguin Nutritional Warmer
The Ameda Penguin® Nutritional Warmer is intended to warm feedings to a range
that includes body temperature.
Navigation Buttons
Beak Buttons
Your Penguin Nutritional Warmer is a feeding warming device and is customized with settings and
warming profiles according to your unique facility needs. The nutritional warmer operates with gentle
vibration which helps preserve and suspend feeding nutrients and promote even warming.
3.1 BUTTON DESCRIPTION
Top
Middle
Bottom
Scroll Up
Select
Scroll Down
Scroll Up
Go Back
Scroll Down

7

1. PLACE warmer onto a stable, flat, horizontal surface.
2. PLUG the power cord into the power source.
3. CONNECT the power cord into the back of the warmer device.
1. FLIP the rear power switch into the “ON” position.
2. PRESS and HOLD the bottom navigation button.
3. FOLLOW the on-screen instructions to ENTER up to 5 spaces
for Room, up to 5 spaces for Bed and up to 5 spaces for Pod:
• +abc/123
• =return to previous entry
• -abc/123
• Enter button=advance to next entry
• On/Off button=edits complete, return to Standby mode
STANDBY MODE
The Penguin Nutritional Warmer will be in Standby mode and cycle through
the following screens whenever powered on and not warming:
4.1 PREPARING THE WARMER
4.2 CUSTOMIZING ROOM/BED/POD INFORMATION
4.3 MODES

8
WARMING MODES
Fridge to Feed
Feed Temp range of 90-100°F/32-38°C
Average Time 5-12 minutes depending on volume
Frozen to Feed
Feed Temp range of 90-100°F/32-38°C
Average Time 10-18 minutes depending on volume
Thaw
After Thaw Temp range of 38-45°F/3-7°C
Time 15-25 minutes depending on volume
READY TO FEED MODE - HOLD TIME (Fridge to Feed and Frozen to Feed only) The feeding is
ready when the screen background turns green with the following words displayed:
REMAINING HOLD TIME
Displays a countdown of the remaining hold time. The warmer emits a ready tone at the
beginning of the hold time and periodically throughout. The warmer will keep the feeding
in a safe temperature range for 30 minutes (until turned off, returned to Standby mode, or
extends to Overtime mode).

9
THAW COMPLETE MODE
OVERTIME MODE Fridge to Feed and Frozen to Feed only
When the Thaw feature is used, the feeding should be removed
immediately upon completion to prevent over-warming. The
warmer emits a ready tone. The heater immediately shuts off,
and milk must be refrigerated. The screen background will
turn green and the phrase shown will appear on the screen.
WARNING Milk must be refrigerated immediately.
After 30 minutes in Ready to Feed HOLD TIME, the warmer
will enter Overtime. Warming and vibration will turn off. The
screen background will turn red and the word “Overtime” will
appear in the middle of the screen.
The Overtime screen will remain on until the unit is turned off or is returned to Standby by
PUSHING the On/Off button or Enter button.
Note: As the manufacturer, we recommend not using the feeding after the 30 minute hold time,
but that feeding should be handled according to the hospital policy.
DISPLAYED ERRORS
If the Penguin Nutritional Warmer encounters an error, the error will be displayed on a red
screen with a warning tone. If this should occur, discontinue use of the warmer and call Ameda
CustomerCare at 1.877.99.AMEDA (26332).
1. At the beginning of a shift, take out one Therma-Liner per user.
2. Using a permanent marker, enter the following information onto the Therma-Liner:
a. Patient Information b. Date/Time c. Information
3. Open the water compartment (blue zipper) and fill to water line using room temperature water.
4. Pinch one end of the blue zipper between your thumb and forefinger and slide down the length
of the zipper to close the water compartment.
5. Repeat to ensure a proper seal. This compartment will remain sealed for the duration of the 12
hour shift.
Note: Use care when removing and re-inserting milk container
to prevent damage to interior of water compartment.


10
5. INSPECTING BEFORE OPERATION
6. OPERATING INSTRUCTIONS
Inspect the product for damage. Do not use if damaged.
Call Ameda CustomerCare at 1.877.99.AMEDA (26332).
1. Flip the rear power switch into the ‘ON’ position.
2. Press On/Off Button to begin.
3. Scroll to the warming mode of interest:
a. Room Temperature/Fridge to Feed
b. Frozen to Feed
c. Thaw
4. Advance by pressing Enter or Select (green check mark)*.
* Note that if a wrong entry was made, you may press the Go Back
selection button to go back a screen.
1. Scroll to choose the container type and size of interest.
2. Press Enter.
3. Only when ready to begin warming the feeding, place the feeding container into the inner
compartment (orange zipper) of the Therma-Liner and gently push it to the bottom. Press
firmly along the entire orange zipper to encompass the container as much as possible. Use care
when removing and re-inserting feeding containers to prevent damage to the interior water
compartment.
4. Place the prepared Therma-Liner in the well with the sealed opening at the top.
5. Press Enter*.
6. The device will begin warming, vibrating, and alternating screens between the profile selected
and elapsed time.
7. When the feeding has been warmed to a range that includes body temperature, the device will
enter Ready to Feed mode.
8. Please remove the feeding from the Therma-Liner and set the Therma-Liner aside until next
use during the shift.
9. Press On/Off to return the Penguin to Standby mode.
* Note that if a wrong entry was made, you may press the
Cancel selection button to go back a screen.
6.1 WARM REFRIGERATED OR FROZEN FEEDINGS

11
Caution: the Penguin Nutritional Warmer is not recommended for
thawing less than 15 mL of breast milk in storage bags!
1. Scroll to choose the container type and size of interest.
2. Press Enter.
3. Only when ready to begin warming the feeding, place the feeding container into the inner
compartment (orange zipper) of the Therma-Liner and gently push it to the bottom. Press
firmly along the entire orange zipper to encompass the container as much as possible. Use care
when removing and re-inserting feeding containers to prevent damage to the interior water
compartment.
4. Place the prepared Therma-Liner in the well with the sealed opening at the top.
5. Press Enter*.
6. The device will begin warming, vibrating, and alternating screens between the profile selected
and elapsed time.
7. When the feeding has been warmed to a liquid cool state, the device will enter Thaw Complete
mode.
8. Please immediately remove the feeding** from the Therma-Liner and set the Therma-Liner
aside until next use during the shift.
9. Press On/Off to return the warmer to Standby mode.
*Note that if a wrong entry was made, you may press the Cancel selection button to go back a screen.
**If there are still some frozen particles in the feeding, let it sit until the remainder thaws, or rotate
the container gently to thaw the rest of the way. It is better to have a few remaining ice crystals than
to overshoot the refrigerated range. Any portion that is meant for immediate feeding may be placed
in a bottle or syringe for further warming. Feeding for the future should be placed immediately in the
refrigerator for up to 24 hours. After 24 hours, it should be discarded.
6.2 THAW FROZEN MILK TO COOL LIQUID STATE
7. CLEANING
1. Disconnect Power Cord from the wall receptacle.
2. Prepare reagent wipes (e.g. CaviWipe™ or SaniWipe™) containing Isopropanol, Ethylene Glycol
Monobutyl Ether (2-Butoxyethanol), Diisobutylphenoxyethoxyethyldimethyl benzylammonium
chloride.
3. Using the prepared reagent wipe, clean and remove all surface debris from the device, including
the power cord.
4. Repeat as deemed necessary using a newly prepared reagent wipe each time.
5. After the last cleaning wipe is used, allow device to air dry for a minimum of 10 minutes or dry
with a soft cloth before returning the device to service.

12
8. MAINTENANCE
9. SERVICING AND SPARE PARTS
10. WARRANTY
The Penguin Nutritional Warmer requires no preventative maintenance.
All warmer service and repair can be accomplished by contacting Ameda. CustomerCare will issue
a Return Material Authorization (RMA) or provide your facility’s biomedical department with parts
needed to repair the warmer and return it to operation.
THE AMEDA WARRANTY IS NONTRANSFERABLE. THE AMEDA PENGUIN NUTRITIONAL
WARMER IS WARRANTED TO THE ORIGINAL OWNER ONLY.
From the date of the purchase of this product, Ameda, Inc. (“Ameda”) warrants the Product
against defects in material or workmanship for a period of two years. Ameda’s sole obligation
under this limited warranty shall be to repair or replace, at Ameda’s option, any Product that
is determined to be defective by Ameda and determined to be covered by this express limited
warranty. Repair or replacement under this limited warranty is the sole and exclusive remedy
of the First User. PROOF OF PURCHASE IN THE FORM OF A RECEIPTED INVOICE OR BILL
OF SALE EVIDENCING THAT THE PRODUCT IS WITHIN THE WARRANTY PERIOD MUST BE
PRESENTED TO OBTAIN WARRANTY SERVICE. This limited warranty is extended by Ameda
ONLY to the First User and is not assignable or transferable. For warranty service contact Ameda
at 1.877.99.AMEDA (26332).
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT
IS HEREBY DISCLAIMED. AMEDA SHALL NOT BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF
THE EXPRESS LIMITED WARRANTY ON THE PRODUCT OR ANY WARRANTY IMPLIED BY
OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE,
THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY THIS PRODUCT AND ANY ORAL,
WRITTEN OR OTHER REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.
The user/owner of this equipment shall have sole responsibility and liability for any injury to
person or damage to property resulting from: 1) Operation not in accordance with supplied
operating instructions, 2) Maintenance not in accordance with authorized maintenance
service instructions, 3) Service by anyone other than manufacturer authorized qualified
service personnel, 4) Modification of the equipment or accessories and 5) Use of damaged or
unauthorized components and accessories.

13
11. TECHNICAL DATA, STORAGE AND OPERATING CONDITIONS
12. AMEDA ACCESSORIES
Penguin Single Well Nutritional Warmer
Power Rating: 220-240VAC, 50/60 Hz, 1.25A
Relative Humidity: 80% up to 31°C to 50% to 40°C / 80% up to 87.8°F to 50% up to 104°F
Altitude: 2000 meters
Operating Temperature: 5 to 40°C/41 to 104°F
Storage Temperature: -29 to 70°C/-20 to 158°F
Line Fuse: 2 each, type “T” 1.25A, 250VAC
Mass: 3.96 kg
Size: 21.8 cm H X 19.4 cm W X 21.9 cm D
Pollution degree 2
Installation category H
Indoor use only
You may also order additional warmer accessories: Therma-Liner replacements or Perche
Shelf through your sales specialist.
Therma-Liner Perche Shelf

14
13. EMC INFORMATION
THIS ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to be installed and put into service according
to the EMC provided in these Instructions for use. Portable and mobile RF communications equipment can affect this ELECTRICAL
EQUIPMENT. Warning: Portable RF communications equipment (including peripherals such as antenna cables and external antennas)
should be used no closer than 30 cm (12 inches) to any part of the Penguin Nutritional Warmer, including cables specified by the
manufacturer. Otherwise, degradation of the performance of this equipment could result. Warning: Use of accessories, transducers
and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic
emissions or decreased electromagnetic immunity of this equipment and result in improper operation. Warning: Use of this
equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is
necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
Guidance and manufacturer’s declaration – electromagnetic emissions
Emissions test
Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance
Compliance Electromagnetic environment – guidance
The Ameda Penguin Warmer is intended for use in the
electromagnetic environment specified below.
The customer or the user of the Ameda Penguin Warmer should
assure that it is used in such an environment.
RF emissions CISPR 11 The Ameda Penguin Warmer uses RF energy only for its internal func-
tion. Therefore, its RF emissions are very low and are not likely to cause
any interference in nearby electronic equipment.
The Ameda Penguin Warmer is suitable for use in all establishments,
including domestic establishments and those directly connected to the
public low-voltage power supply network that supplies buildings used
for domestic purposes.
Group 1
RF emissions CISPR 11 Class B
Harmonic emissions IEC 61000-3-2 Class A
Voltage fluctuations/flicker
emissions IEC 61000-3-3
Complies
Guidance and manufacturer’s declaration – electromagnetic immunity
The Ameda Penguin Warmer is intended for use in the
electromagnetic environment specified below.
The customer or the user of the Ameda Penguin Warmer should
assure that it is used in such an environment.
Electrostatic discharge
(ESD) IEC 61000-4-2
± 8 kV contact
± 2 kV, ± 4 kV, ± 8 kV,
± 15 kV air
± 8 kV contact
± 2 kV, ± 4 kV, ± 8 kV,
± 15 kV air
Floors should be wood, concrete or ceramic tile.
If floors are covered with synthetic material, the
relative humidity should be at least 30%.
± 2 kV for AC line; 100
kHz repetition frequency
± 2 kV for AC line; 100
kHz repetition frequency
Mains power quality should be that of a typical
commercial or hospital environment.
± 0,5 kV, ± 1kV line-to-
line; ± 0,5 kV, ± 1kV,
± 2kV line-to-ground
± 0,5 kV, ± 1kV line-to-
line; ± 0,5 kV, ± 1kV,
± 2kV line-to-ground
Mains power quality should be that of a typical
commercial or hospital environment.
30 A/m
50 Hz or 60 Hz
30 A/m
50 Hz
Power frequency magnetic fields should be at
levels characteristic of a typical location in a
typical commercial or hospital environment.
• 0% UT; 0,5 cycle At 0°,
45°, 90°, 135°, 180°,
225°, 270° and 315°
• 0% UT; 1 cycle and 70%
UT; 25/30 cycles
Single phase: at 0°
• 0% UT; 250/300 cycles
• 0% UT; 0,5 cycle At 0°,
45°, 90°, 135°, 180°,
225°, 270° and 315°
• 0% UT; 1 cycle and
70% UT; 25 cycles
At 0°
• 0% UT; 250 cycles
Mains power quality should be that of a typical
commercial or hospital environment. If the user
of the Ameda Penguin Warmer requires continued
operation during power mains interruptions, it is
recommended that the Ameda Penguin Warmer
be powered from an uninterruptible power supply.
Electrical fast transient/
burst IEC 61000-4-4
Surge IEC 61000-4-5
Voltage dips, short
interruptions and voltage
variations on power
supply input lines IEC
61000-4-11
Power frequency (50/60
Hz) magnetic field IEC
61000-4-8
NOTE UT is the a.c. mains voltage prior to application of the test level.

15
Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance
Guidance and manufacturer’s declaration – electromagnetic immunity
Recommended separation distances between portable and mobile
RF communications equipment and the Ameda Penguin Warmer
The Ameda Penguin Warmer is intended for use in the
electromagnetic environment specified below.
The Ameda Penguin Warmer is intended for use in an
electromagnetic environment in which radiated RF disturbances
are controlled. The customer or the user of the Ameda Penguin
Warmer can help prevent electromagnetic interference by
maintaining a minimum
The customer or the user of the Ameda Penguin Warmer should
assure that it is used in such an environment.
distance between portable and mobile RF communications
equipment (transmitters) and the Ameda Penguin Warmer as
recommended below, according to the maximum output power
of the communications equipment.
Conducted RF IEC
61000-4-6
3 V
0,15 MHz – 80 MHz
80% AM at 1 kHz
6V in ISM and amateur
radio bands between
0,15 MHz and 80 MHz
80% AM at 1 kHz
10 V/m
80 MHz – 2,7 GHz
80% AM at 1 kHz
9 – 28 V/m
At IEC 60601-1-2: 2014
Table 9 frequencies
3 V
0,15 MHz – 80 MHz
80% AM at 1 kHz
6V in ISM and amateur
radio bands between
0,15 MHz and 80 MHz
80% AM at 1 kHz
10 V/m
80 MHz – 2,7 GHz
80% AM at 1 kHz
9 – 28 V/m
At IEC 60601-1-2: 2014
Table 9 frequencies
Portable and mobile RF communications equip-
ment should be used no closer to any part of the
Ameda Penguin Warmer,
including cables, than the recommended
separation distance calculated from the equation
applicable to the frequency of the transmitter.
Recommended separation distance
d = 1,2√P
d = 1,2√P 80 MHz to 800 MHz
d = 2,3√P 800 MHz to 2,7 GHz
Where P is the maximum output power rating
of the transmitter in watts (W) according to the
transmitter manufacturer and d is the recom-
mended separation distance in meters (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey,a
should be less than the compliance level in each
frequency range.b
Interference may occur in the vicinity of equip-
ment marked with the following symbol:
Radiated RF IEC
61000-4-3
NOTE 1 At 80 MHz and 800 MHz, the higher frequency
range applies.
NOTE 2 These guidelines may not apply in all situations. Electro-
magnetic propagation is affected by absorption and
reflection from structures, objects and people.
a Field strength from fixed transmitters, such as base stations
for radio (cellular/cordless) telephones and land mobile radios,
amateur radio, AM and FM radio broadcast and TV broadcast
cannot be predicted theoretically with accuracy. To assess the
electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured
field strength in the location in which the Ameda Penguin Warmer is
used exceeds the applicable RF compliance level above, the Ameda
Penguin Warmer should be observed to verify normal operation. If
abnormal performance is observed, additional measures may be
necessary, such as re-orienting or relocating the Ameda Penguin
Warmer.
b Over the frequency range 150 kHz to 80 MHz, field strengths
should be less than 10 V/m.
Rated maximum
output power of
transmitter (W)
Separation distance according to frequency of transmitter (m)
150 kHz to 80 MHz
d = 1,2√P
0,01
0,1
1
10
100
0,12
0,38
1,2
3,8
12
0,12
0,38
1,2
3,8
12
0,23
0,73
2,3
7,3
23
80 MHz to 800 MHz
d = 1,2√P
800 MHz to 2.7 GHz
d = 2,3√P
For transmitters rated at a maximum output power not listed
above, the recommended separation distance d in meters (m) can
be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the
higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.

16

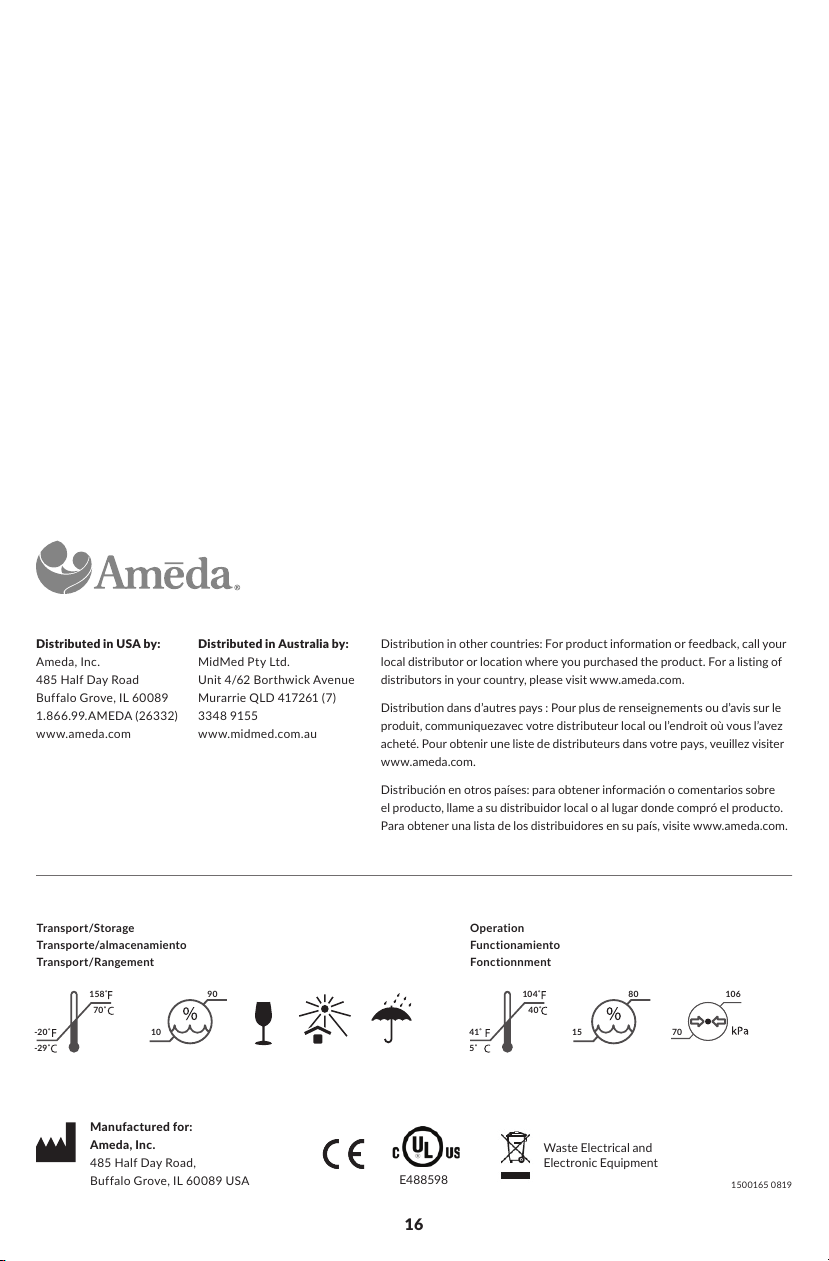

Distributed in USA by:
Ameda, Inc.
485 Half Day Road
Buffalo Grove, IL 60089
1.866.99.AMEDA (26332)
www.ameda.com
Distributed in Australia by:
MidMed Pty Ltd.
Unit 4/62 Borthwick Avenue
Murarrie QLD 417261 (7)
3348 9155
www.midmed.com.au
Manufactured for:
Ameda, Inc.
485 Half Day Road,
Buffalo Grove, IL 60089 USA
Distribution in other countries: For product information or feedback, call your
local distributor or location where you purchased the product. For a listing of
distributors in your country, please visit www.ameda.com.
Distribution dans d’autres pays : Pour plus de renseignements ou d’avis sur le
produit, communiquez avec votre distributeur local ou l’endroit où vous l’avez
acheté. Pour obtenir une liste de distributeurs dans votre pays, veuillez visiter
www.ameda.com.
Distribución en otros países: para obtener información o comentarios sobre
el producto, llame a su distribuidor local o al lugar donde compró el producto.
Para obtener una lista de los distribuidores en su país, visite www.ameda.com.
1500165 0819
E488598
Waste Electrical and
Electronic Equipment
Transpor t/Storage
Transpor te/almacenamiento
Transpor t/Rangement
 10
 90


Operation
Functionamiento
Fonctionnment
 15 70
 80 106


