Amerex 630 User guide

PN 05615 04/2020
#NOTES
1THIS COVERSHEET FOR INFORMATIONAL PURPOSES ONLY - DO NOT PRINT THIS PAGE IN MANUAL.
2DESCRIPTION: MANUAL OWNER’S SERVICE FOR MODEL 630 WHEELED EXTINGUISHER
3ACTUAL PRINTED MATERIAL TO CONSIST OF ATTACHED
4OVERALL SIZE OF PRINTED DOCUMENT PAGES 8-1/2” X 11” ON 20 LB PAPER
5PRINTED MATERIAL TO MATCH ATTACHED IN SADDLE STITCHED BOOKLET FORM
6PRINT MATERIAL IS TO BE HOLE PUNCHED 3 EACH 1/4” HOLES DOWN LEFT SIDE FOR STD 3-RING BINDER
7CURENT REVISION DATE: 4/20
PART TITLE DATE CREATED CREATED BY REV. CK’D
05615 MANUAL SERVICE OWNERS 630 2/3/98 MS G
THIS DRAWING IS THE EXCLUSIVE AND CONFIDENTIAL PROPERTY OF AMEREX
CORPORATION. IT SHALL NOT BE DUPLICATED, USED OR DISCLOSED TO OTHERS
REV DRAWING CHANGE BY ECN# DATE
EUpdate Manual in Publisher JH B000772 8-6-15
FUpdated for 2.31 GL Charge JH B000961 2-15-16
GREFRESHED LAYOUT DESIGN CT B002026 4/29/20
COVER SHEET
DO NOT PRINT THIS PAGE FOR ACTUAL MANUAL. INTERNAL USE ONLY.

PN 05615 04/2020
All fire extinguishers shall be installed, inspected, and maintained in accordance with the National Fire
Protection Association standard titled "Portable Fire Extinguishers", NFPA 10, or the National Fire Code of
Canada and the requirements of local authorities having jurisdiction.
When maintenance is indicated it shall be performed by trained persons having proper equipment. Fire
extinguishers are pressure vessels and must be treated with respect and handled with care. They are
mechanical devices and require periodic maintenance to be sure that they are ready to operate properly and
safely. Amerex strongly recommends that the maintenance of portable fire extinguishers be done by a trained
professional – your local authorized Amerex Distributor.
Amerex Corporation makes original factory parts available to insure proper maintenance – USE OF
SUBSTITUTE PARTS RELEASES AMEREX OF ITS WARRANTY OBLIGATIONS. Amerex parts have
machined surfaces and threads that are manufactured to exacting tolerances. O-rings, hoses, nozzles, and all
metal parts meet precise specifications and are subjected to multiple in-house inspections and tests for
acceptability. There are substitute parts available that may be incorrectly labeled as UL component parts,
some are advertised as Amerex type. None of these meet UL requirements, and all of them void the Amerex
extinguisher warranty and UL listing. DO NOT SUBSTITUTE.
RECHARGE FIRE EXTINGUISHERS IMMEDIATELY AFTER ANY USE
OWNER’S SERVICE MANUAL
INSTALLATION, OPERATING & SERVICING INSTRUCTIONS
MANUAL PN 05615
33 GALLON FOAM WHEELED EXTINGUISHER
MODEL 630
AMEREX CORPORATION – P.O. BOX 81 – TRUSSVILLE, ALABAMA 35173-0081
Phone: [phone] Fax: [phone]
e-mail: [e-mail] Web Page: http://www.amerex-fire.com
AMEREX CORPORATION DOES NOT SERVICE, MAINTAIN, OR RECHARGE FIRE EXTINGUISHERS.
THIS MANUAL IS PUBLISHED AS A GUIDE TO ASSIST QUALIFIED SERVICE PERSONNEL IN THE
INSPECTION, MAINTENANCE, AND RECHARGE OF AMEREX FIRE EXTINGUISHERS ONLY. NO
INSTRUCTION MANUAL CAN ANTICIPATE ALL POSSIBLE MALFUNCTIONS THAT MAY BE
ENCOUNTERED IN THE SERVICE OF FIRE EXTINGUISHERS. DUE TO THE POSSIBILITY THAT PRIOR
SERVICE PERFORMED ON THIS EQUIPMENT MAY HAVE BEEN IMPROPERLY DONE, IT IS
EXTREMELY IMPORTANT THAT ALL WARNINGS, CAUTIONS, AND NOTES IN THIS MANUAL BE
CAREFULLY OBSERVED. FAILURE TO HEED THESE INSTRUCTIONS COULD RESULT IN SERIOUS
INJURY. AMEREX ASSUMES NO LIABILITY FOR SERVICE, MAINTENANCE, OR RECHARGE OF FIRE
EXTINGUISHERS BY PUBLISHING THIS MANUAL.
REFERENCES IN THIS MAUNUAL:
NFPA 10 Portable Fire Extinguishers
JJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJ
CGA C-1 Methods for Pressure Testing Compressed Gas
Cylinders
CGA C-6 Standard for Visual Inspection of Steel
Compressed Gas Cylinders.
National Fire Code of Canada
AVAILABLE FROM:
National Fire Protection Association, 1 Batterymarch Park,
Quincy, MA 02169-7471
Compressed Gas Association, 14501 George Carter Way,
Chantilly, VA 20151-2923
Compressed Gas Association, 14501 George Carter Way,
Chantilly, VA 20151-2923
National Research Council Canada, 1200 Montreal Road,
Building M-58 Ottawa, ON K1A 0R6 Canada

PN 05615 04/2020
INTRODUCTION
Amerex Model 630 33 gal. Wheeled foam fire extinguisher provides large-volume Class-A and Class-B fire-
fighting capability. The Model 630 can be transported and operated by one person. The alcohol-resistant AR-
AFFF foam charge makes it particularly effective on fires and spills involving hydrocarbons, alcohols, esters,
ketones, and gasohols. The nitrogen cylinder-operated design features a unique stainless-steel agent storage
cylinder which requires no interior coating to prevent corrosion. The agent cylinder is connected to a high-
pressure nitrogen cylinder through quick opening "T" handle-type valve. Field recharging is possible, but to
provide optimum extinguisher reliability, recharging shall be performed by persons trained in fire extinguisher
maintenance and servicing. This manual shall be used as a guide for installing, operating, and servicing this
extinguisher.The best place to have your extinguisher serviced and recharged is your "Authorized Amerex
Distributor", who has the professional experience and equipment to do it properly.
PREPARING YOUR NEW EXTINGUISHER
WARNING: THIS FIRE EXTINGUISHER IS SHIPPED FROM THE FACTORY EMPTY. AFTER INITIAL
PREPARATIONS, CAREFULLY FOLLOW THE RECHARGING INSTRUCTIONS BEFORE
PLACING IT INTO SERVICE.
1. Remove all wrappings, straps, and pallet retaining bolts.
2. Examine the extinguisher for shipping damage. Check to make sure that you have received the Model
534, 2 gal. AFFF foam concentrate charge that is packaged with the extinguisher.
3. Fill the extinguisher by carefully following the Recharge instructions (Page 6).
4. Remove the nitrogen cylinder protective shipping cap. Save the cap as it must be installed whenever a
charged nitrogen cylinder is transported.
5. Install new tamper seal. Check the nitrogen cylinder pressure. The gauge shall read approximately 2015
psi (13.9 mPa) at 70ºF (21ºC) ambient temperature. See the "Troubleshooting Guide" for pressure-
temperature allowances. The tamper seal shall be intact.
6. Remove (and save) the Safety Vent Plug installed on all "T"-handle nitrogen valves. Connect the nitrogen
supply hose firmly to the nitrogen cylinder valve. Make sure that there are no kinks in this hose.
7. Disconnect the discharge hose assembly from the agent cylinder. Make sure that the hose and nozzle are
unobstructed and that the PN 07411 Moisture Seal is undamaged and properly seated on the agent
cylinder discharge fitting. Reconnect the discharge hose to the agent cylinder, and with the nozzle in the
closed (forward) position, place it on the storage rack. (See Page 9)
8. Record the date the unit is being placed into service on the inspection tag, and attach it to the
extinguisher.
9. Remove the caution (not charged) tag.

PN 05615 04/2020
INSTALLATION
Do not place this extinguisher close to a potential fire hazard. Amerex recommends location no less than a 50
-foot (15 meters) distance from the hazard while leaving an unobstructed access. Avoid placing it in an
extremely hot or cold place. The operational temperature range for this extinguisher is +35°F to +120°F
(+2°C to +49°C). The extinguisher shall be adequately protected if temperatures outside of this range are
anticipated. Keep the extinguisher clean and free from dirt, ice, chemicals, and any contaminants that may
interfere with its proper operation. DO NOT FUNCTIONALLY TEST THIS FIRE EXTINGUISHER. (Testing or
any use may cause the extinguisher to gradually lose extinguishing agent over a period of time and make the
extinguisher ineffective.)
WARNING: THE MODEL 630 AR-AFFF FOAM FIRE EXTINGUISHERS HAS BEEN TESTED AND
LISTED FOR CLASS-A AND-B FIRES ONLY. DO NOT USE ON CLASS-C FIRES
INVOLVING ENERGIZED ELECTRICAL EQUIPMENT, CLASS-D FIRES, OR ANY
FLAMMABLES THAT WILL REACT WITH WATER.
WARNING: THESE EXTINGUISHERS MUST BE LOCATED IN AN AREA IN WHICH THEY WILL BE
PROTECTED FROM FREEZING. THERE ARE NO KNOWN ANTI-FREEZE ADDITIVES
THAT WILL PROTECT THESE UNITS FROM FREEZING WITHOUT ADVERSELY
AFFECTING THE FOAM FIRE-FIGHTING EFFECTIVENESS. IN SOME CASES, A
PROPERLY SIZED BARREL HEATER MAY AFFORD ADEQUATE PROTECTION.
OPERATION
NOTE: Persons expected to use this extinguisher shall be trained in initiating its operation and in
the proper fire-fighting technique. Familiarize all personnel with this information before an
emergency occurs.

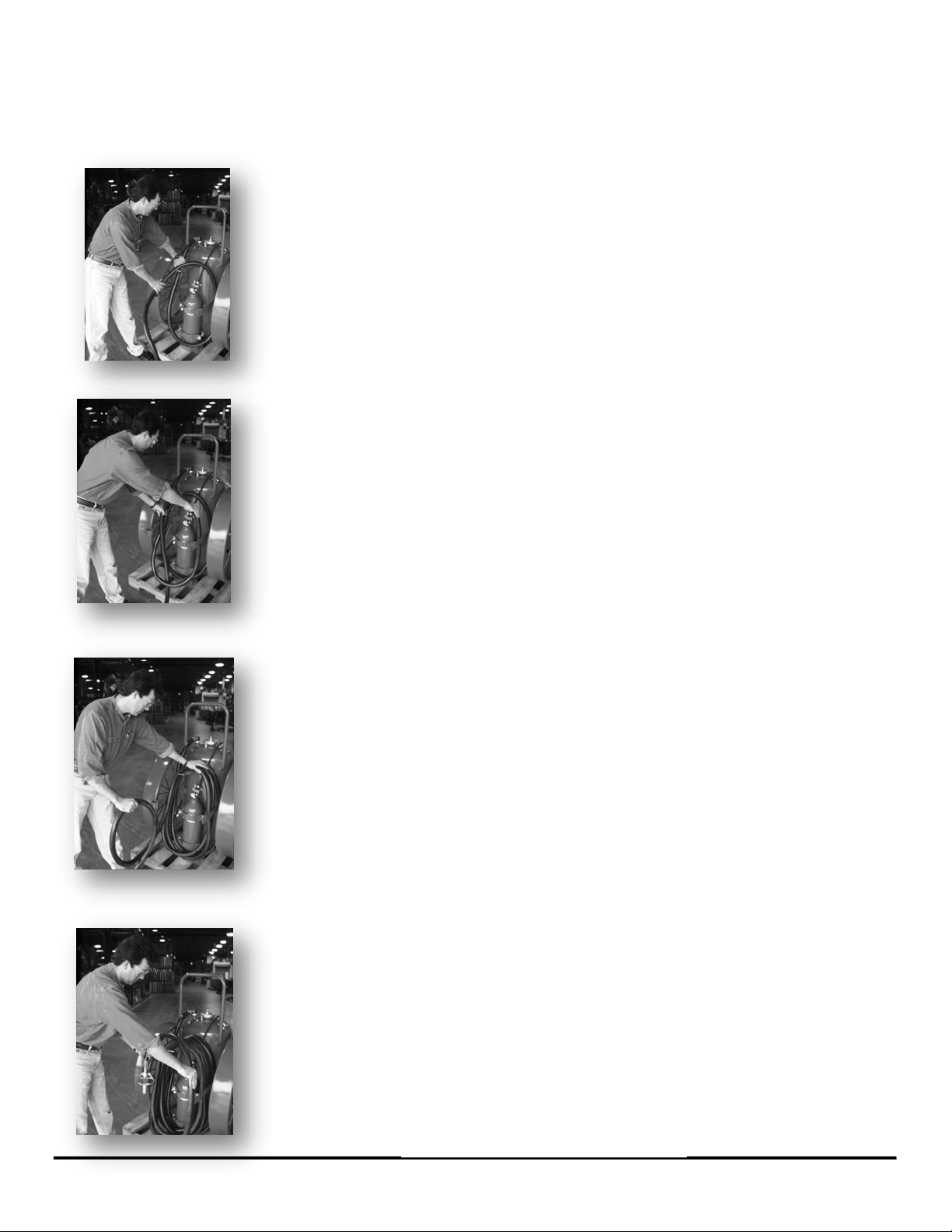

1. Move the extinguisher to within approximately 50 feet (15 meters) of the fire site and remove pull pin. Pull
"T" handle to open nitrogen valve. This will pressurize the extinguisher.
2. Remove nozzle from the mount, and with the nozzle lever in the closed position, pull hose from rack.
3. Start back 30 feet (9 meters) from the fire and aim at the base of fire nearest you.
4. Hold hose and nozzle firmly and be prepared for discharge recoil. Open nozzle by pulling the handle
toward you. Slowly sweep side to side across the base of the fire and past both edges. Progressively
follow up until the fire is extinguished. Note: Do not cover the nozzle aspirating holes when
discharging this extinguisher.
SHUTDOWN
1. After making sure that the fire has been completely extinguished, expel all remaining extinguishing agent
and pressure, then push the nozzle lever forward to the closed position. Close the nitrogen valve (PUSH
"T" HANDLE TO CLOSED POSITION).
2. When the hose is empty, push the nozzle lever to the CLOSED position.
3. Slowly open the nozzle lever again to insure that the extinguisher and hose have been completely cleared
of agent and pressure.
4. Coil the extinguisher hose onto the storage rack and position the nozzle onto the mount in preparation for
transport to the recharge location.
CAUTION: DO NOT TRANSPORT A NITROGEN CYLINDER WITH ANY REMAINING PRESSURE
WITHOUT INSTALLING THE PROTECTIVE SHIPPING CAP.
Discharge Time (approx.): 60 seconds
Effective Range of the
agent throw is:
30 – 40 feet (9-12 meters)
Hose Length: 50 feet (15.24 meters)

PN 05615 04/2020
INSPECTING THE EXTINGUISHER
This extinguisher shall be inspected at regular intervals (monthly or more often if circumstances dictate) to
insure that it is ready for use. Inspection is a "quick check" that a fire extinguisher is available and is in
operating condition. It is intended to give reasonable assurance that the fire extinguisher is fully charged. This
is done by verifying that it is in its designated place, that it has not been actuated or tampered with, and that
there is no obvious physical damage or condition to prevent its operation.
THE FOAM CHARGE IN THIS EXTINGUISHER MUST BE REPLACED EVERY THREE YEARS PER NFPA
10. USE ONLY THE AMEREX MODEL 534 CHARGE. USE OF ANY OTHER AGENTS OR SUBSTITUTES
WILL VOID THE UL LISTING AND AMEREX WARRANTY. SEE THE RECHARGE SECTION OF THIS
MANUAL FOR THE APPROPRIATE EMPTYING AND RECHARGING INSTRUCTIONS.
MAINTENANCE
At least once a year, or more frequently if circumstances require, maintenance shall be performed.
Maintenance is a "thorough check" of the extinguisher. It is intended to give maximum assurance that a fire
extinguisher will operate effectively and safely. It includes a thorough examination for physical damage or
condition to prevent its operation and any necessary repair or replacement. It will normally reveal if
hydrostatic testing or internal maintenance is required.
NOTE: The Getz Manufacturing Universal Wheeled Extinguisher Service Kit is available so that NFPA
10 required maintenance functions can be performed.
MAINTENANCE – SERVICE PROCEDURE
WARNING: BEFORE SERVICING BE SURE THE EXTINGUISHER AGENT CYLINDER IS NOT
PRESSURIZED. THIS PROCEDURE IS BEST ACCOMPLISHED WITH THE
EXTINGUISHER IN AN UPRIGHT POSITION AND ON A LEVEL SURFACE.
1. Clean extinguisher to remove dirt, grease, or foreign material. Check to make sure that the instruction
nameplate is securely fastened and legible. Inspect the cylinders for corrosion, abrasion, dents, or weld
damage. If any damage is found, hydrostatically test in accordance with instructions in CGA C-1, C-6,
and NFPA 10.
2. Inspect the extinguisher for damaged, missing, or substitute parts. A careful inspection shall be made of
the safety relief to make sure that it has not ruptured, corroded or been tampered with. Only factory-
replacement parts are approved for use on Amerex fire extinguishers.
3. Check the date of manufacture printed on the extinguisher label (nameplate) or on the agent cylinder
dome. The agent cylinder, the discharge hose assembly and nitrogen supply hose must be
hydrostatically tested every 5 years. Test pressure:
a. Agent Cylinder – 450 psi (3103 kPa)
b. Hose Assembly – 300 psi (2068 kPa)
c. Nitrogen Supply Hose – 3000 psi (20,628 kPa)
4. Check the hydrostatic test date on the crown of the nitrogen cylinder. The nitrogen cylinder must be
retested in accordance with DOT regulations.
5. Check the gauge on the nitrogen cylinder. If the pressure is below 1700 psi (11.7 mPa), repressurize the
cylinder to 2015 psi (13.9 mPa) or replace it. A low gauge pressure may indicate leakage. Check for
leaks. A low gauge reading may also result from low temperature. See the temperature/pressure
relationship chart in the Troubleshooting Guide. Check the tamper seal on the nitrogen valve, and
replace if necessary.

PN 05615 04/2020
6. Wheeled extinguishers (Model 630) – Inspect the wheels to insure they rotate freely. Lubricate as
required.
WARNING: ALWAYS OPEN THE SHUTOFF NOZZLE HANDLE SLOWLY. ANY PRESSURE IN THE
AGENT CYLINDER WILL CAUSE THE EXTINGUISHER TO DISCHARGE. BE
PREPARED FOR A POSSIBLE DISCHARGE AND NOZZLE RECOIL. ANY EVIDENCE
OF AGENT IN THE NOZZLE INDICATES THAT THE UNIT MAY HAVE BEEN USED
AND THE USE NOT REPORTED.
7. Disconnect the discharge hose from the agent cylinder. Check the couplings, hose, and hose gaskets for
damage or deterioration – replace as necessary.
8. To perform an operational integrity check on the discharge hose and nozzle combination:
a. Connect the test kit hose adapter to the female end of the discharge hose.
b. Close the discharge nozzle shutoff lever and properly secure it.
c. Connect a properly regulated and verified nitrogen pressure source, set to the extinguisher operating
pressure (235-245 psi) to the test kit hose adapter.
d. Slowly pressurize the discharge hose/nozzle assembly to the extinguisher operating pressure and
check for leaks or distortion.
e. Operate the nozzle lever to ensure proper operation and to clear the hose of any obstructions. If hose
is obstructed refer to Troubleshooting Guide. Make sure that the nozzle aspirating holes and screen
are clear and unobstructed – clean if necessary.
f. Close the nitrogen pressure source, and slowly relieve remaining pressure by fully operating the
nozzle lever.
9. Remove the agent cylinder cap, and examine it closely for any signs of damage, cracks or thread wear.
Clean the agent cylinder fill cap threads and thread vent port on the cap with a stiff bristle nylon brush.
Remove the fill cap gasket and check for wear, cracks, or tears – replace if necessary. Lightly lubricate
the gasket with V-711 and reinstall.
10. Check the condition of the chemical solution. The level of the solution shall be 9 inches (23 cm) below the
top of the fill opening. Recharge if contaminated, if the solution level is down or if the charge is over three
years old. See Recharge instructions and procedures.
11. Place the service kit Vent Spacer on top of the agent cylinder fill opening collar. Check again to see that
the fill cap thread vent is clean and that the agent fill cap gasket is in place. Install the agent fill cap
securely over the vent spacer.
12. CAUTION: The agent cylinder cap threads must be clear and the cap securely installed onto the
vent spacer and agent cylinder to allow pressure to slowly vent after performing the siphon tube
clearing and gas tube integrity checks.
To perform a siphon tube clearing and gas tube integrity check:
a. Remove the service kit Agent Hose Adapter from the discharge hose assembly and install it securely
onto the agent cylinder siphon tube outlet.
b. Using a regulated nitrogen pressure source set to the extinguisher operating pressure, slowly and
briefly pressurize the agent cylinder (the siphon tube shall be clear within a couple of seconds
and the agent cylinder pressure slowly vent from the fill cap thread vent). Pressure and/or foam
agent leaks from the gas tube inlet port (where the hose connects) will indicate a defective gas tube
and will require that the agent cylinder be emptied and the gas tube replaced.
c. Close the nitrogen pressure source and allow all pressure to slowly vent from the thread vent port on
the fill cap.
d.AFTER ALL PRESSURE HAS BEEN RELIEVED, SLOWLY OPEN THE FILL CAP AND REMOVE
THE TEST KIT VENT SPACER.

PN 05615 04/2020
e. Re-examine the foam agent to determine if any obstructions were cleared from the siphon tube and
have risen to the liquid surface.
f. Clean the fill cap and agent cylinder thread surfaces. Install the fill cap gasket, and securely install fill
cap.
13. Disconnect the high pressure hose from the nitrogen cylinder valve. Securely install the service kit
Nitrogen Cylinder Pressure Check Gauge Assembly to the nitrogen cylinder valve outlet, and verify the
indicated cylinder gauge pressure. Nitrogen pressure shall conform to the temperature correction chart
provided in the Troubleshooting section of this manual. Close the nitrogen cylinder valve, and disconnect
the Pressure Check Gauge Assembly.
WARNING: IF THE NITROGEN CYLINDER VALVE HAS A "T" HANDLE QUICK OPENING OR A
HANDWHEEL QUICK OPENING TRIP RELEASE, THE SAFETY VENT PLUG SHIPPED
WITH THE EXTINGUISHER, OR THE TEST KIT SAFETY VENT PLUG, MUST BE
INSTALLED TO PROTECT SERVICE PERSONNEL FROM A HIGH-VELOCITY
DISCHARGE IN CASE THE LEVER IS ACCIDENTALLY OPENED.
14. Install a new Amerex PN 07411 Moisture Seal per instructions in the package. Securely connect the
discharge hose to the extinguisher. When assembling the hose to the agent cylinder or nozzle to the
hose, tighten the coupling ¼ turn after contacting the hose gasket.
15. Coil the hose on to the extinguisher hose rack using the Reverse Loop Procedure (see Page 10). Install
nozzle with the lever in the Closed (forward) position into the nozzle mount.
16. Remove the safety vent plug from the nitrogen cylinder. Reconnect the high-pressure hose securely to the
nitrogen cylinder valve. Wipe the extinguisher clean. Record service data on the inspection tag according
to NFPA 10 requirements, and attach to extinguisher. Return extinguisher to its proper location.
RECHARGE
CAUTION: THE FIRE EXTINGUISHING AGENT IN THIS EXTINGUISHER MUST BE COMPLETELY
REPLACED EVERY THREE YEARS.
WARNING: BEFORE ATTEMPTING TO RECHARGE BE SURE THIS EXTINGUISHER IS COMPLETELY
DEPRESSURIZED. THERE IS A CHECK VALVE IN THE SYSTEM WHICH PREVENTS
NITROGEN PRESSURE FROM ESCAPING FROM THE AGENT CYLINDER WHEN THE
NITROGEN HOSE IS DISCONNECTED. THE AGENT CYLINDER MAY BE PRESSURIZED
EVEN THOUGH NO PRESSURE ESCAPES FROM THE CYLINDER NITROGEN
CONNECTION.
RECHARGING PROCEDURE
1.To depressurize:
a. Close the nitrogen valve.
b. Open the nozzle lever slowly to discharge all remaining agent and pressure (be prepared for nozzle
recoil).
c. Insure that all pressure has escaped before further disassembly.
2. Carefully remove the fill cap. Thoroughly rinse the complete interior of the agent cylinder with clean water.
Dump or siphon all liquid from the cylinder. Detach discharge hose from the agent cylinder and the nozzle
assembly from the hose. Remove the ruptured moisture seal from the female hose coupling, and flush the
hose and nozzle assemblies with clean water.
3. Perform Maintenance-Service Procedures 1 through 6.
4. Detach the hose from the nitrogen cylinder, install the shipping cap, unscrew the wing nuts, and remove
the nitrogen cylinder from the extinguisher.

PN 05615 04/2020
5. Fill the agent cylinder with 28 gallons of clean, fresh water (to a level just touching the bottom of the
internal nitrogen tube). Pour 2.69 gallons (10.18L) 22.45 lbs. (10.18 kg) of clean, fresh water into an
Amerex 2.31 gallon (8.74L) Model 534 AR-AFFF charge. (NOTE: Charge contains 2.31 gallons (8.74L) of
concentrate in a 5 gallon pail.) Carefully stir until you have a complete and homogeneous mixture. Slowly
pour the solution into the agent cylinder. The liquid level in the extinguisher cylinder shall now be 9 inches
(23 cm) from the top of the fill opening. Clean, lubricate, and install (or replace if necessary) the fill cap
gasket. Install the fill cap and tighten securely. Rock the extinguisher back and forth for two minutes to
accomplish a more thorough agent mix.
WARNING: DO NOT OVERFILL THE EXTINGUISHER. THIS COULD CAUSE A MALFUNCTION OR
PREMATURE RUPTURE OF THE SAFETY DISC.
6. Install an Amerex PN 03817 23 cu. Ft. nitrogen cylinder (pressurized to 2015 psi). Remove the shipping
cap, tighten the wing nuts securely, and attach the nitrogen hose.
Remove the remainder of the ruptured moisture seal from the agent cylinder fitting. Replace with a new
PN 07411 Moisture Seal Assembly. Carefully follow the installation instructions contained in the PN
07411 package including the installation of a new hose gasket in the female house coupling.
8. Reattach the hose to the extinguisher (tighten hand tight plus a ¼ turn). Properly coil the hose onto the
storage rack ring leverage loop. Reattach the shutoff nozzle firmly to the hose, and store it in the mount
with the shutoff lever in the closed (forward) position.
9. Record the service date on the inspection tag and place the extinguisher in its proper location.
FOR REPLACEMENT PARTS SEE THE AMEREX PORTABLE AND WHEELED
PARTS BOOK PN 27277 AVAILABLE AT http://www.amerex-fire.com UNDER
MANUALS OF THE RESOURCE SELECTION.

PN 05615 04/2020
TROUBLESHOOTING GUIDE
WARNING: BEFORE ATTEMPTING TO CORRECT ANY LEAKAGE PROBLEM, BE SURE THAT THE
CYLINDER AND HOSE ARE COMPLETELY EMPTY AND DEPRESSURIZED. Check to
determine the source of a leak before the extinguisher is emptied. Leakage repairs will
require depressurization and removal of the valve assembly. Use Getz HR-1 or other
"APPROVED" recharge/recovery system to depressurize extinguisher.
PROBLEM CORRECTIVE ACTION
1. Nitrogen cylinder gauge
reads low or high
Temperature may have affected the pressure reading
Temperature (F) 35º 70º 120º
Temperature (C) 2º 21º 49º
Recommended Pressure
psi 1880 2015 2200
mPa 13.0 13.9 15.2
Minimum Pressure
psi 1590 1700 1900
mPa 11.0 11.7 13.1
NO CORRECTIVE ACTION IS REQUIRED IF THE
PRESSURE IS WITHIN PARAMETERS STATED ABOVE.
2. Nitrogen pressure is too low.
Valve is closed. Tamper seal
is intact. There is pressure in
the agent and nitrogen
cylinders.
Valve seat has leaked and has pressurized the agent
cylinder. Follow Recharge Procedure for restoring the
extinguisher to service.
3. Nitrogen pressure is too low.
Valve is closed. Tamper seal
is intact. No pressure
observed in the agent
cylinder.
Leakage in the nitrogen valve at other than the valve seal.
Replace with a properly charged nitrogen cylinder.
4. Shutoff nozzle does not
move freely.
Disassemble, clean, and lubricate.
5. Unable to remove the agent
cylinder cap.
Agent cylinder may be pressurized. Make no further attempt
to remove the cap until this is checked. See the Recharge
Procedure for proper depressurization method.
6. Nitrogen hose cut, cracked
or abraded.
Replace hose assembly with PN 02234.
7. Chemical agent and
pressure leaking from the
safety disc assembly.
Inspect safety outlet for tightness or damage. Tighten if
necessary.
NOTE: Only tighten the large hex nut of the assembly.
The small round nut containing the holes is factory set
to a specific torque value. Do not attempt to adjust. If
damaged or ruptured, replace complete Amerex PN
03787/07665 safety disc assembly.

PN 05615 04/2020
Guide to Proper Installation of Hose on
Wheeled or Stationary Fire Extinguishers
1
Connect hose coupling to outlet
on the extinguisher. Lay hose
straight on ground to its full 50-
foot. length. Start first regular loop
counter-clockwise by placing
between side brackets and over
the top bracket.
2
The second loop is a REVERSE
loop. Notice that the hose passes
behind the loop on this reverse
loop. If instructions are
followed, the hose will uncoil
without kinks.
3
The next loop is a regular "hose in
front" loop. Succeeding loops are
alternated: reverse, front, reverse,
etc. for six full loops.
4
Adjust the loops so that the nozzle
fits into the nozzle mount. Loops
shall be approximately the same
size.
