Mueller Revive M2 User manual

L98107R0-G
Revive M2 Model 760R
User Manual
Quench Drive 1
Prairie Du Sac, WI 53578
[phone], [phone]
www.muellersportsmed.com

Table of Contents
1. Important Safety Information........................................................1
2. Revive M2 Specifications and Dimensions..................................3
3. Labels .............................................................................................4
4. Indications for Use ........................................................................6
5. About Revive M2............................................................................6
6. Components of the Revive M2 System ........................................7
7. How to Operate the Revive M2 System......................................10
8. Maintenance and Storage ...........................................................18
9. Troubleshooting ..........................................................................21
10. Warranty and Contact Information .............................................22
11. EMC Manufacturer Declarations.................................................23

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 1
1. Important Safety Information
Read all instructions before using the Revive M2 system for the first time.
Warning:
•This system is intended for use by people in good health. This system
is not recommended for people who have heart problems, or vascular
problems, have a condition requiring the use of any medical console, or
have any condition that may affect their normal well-being.
•If you are, or may be, pregnant, consult with your physician before use.
•Do not use this system over insensitive or numb areas, or in the
presence of poor circulation. Do not use if you have been diagnosed
with blood clots, deep vein thrombosis or phlebitis. This system should
not be used over swollen or inflamed areas or skin eruptions.
Do not use in the presence of unexplained calf pain.
•Consult your physician prior to use.
Safety Warnings and Precautions
Warning:
•Explosion Hazard: Do not use the Revive M2 system in the presence
of flammable gases, including flammable anesthetics.
•Electric Shock Hazard: Do not allow liquid to enter any part of the
Revive M2 Console. Do not immerse. To clean, follow instructions in
Chapter 8 - Maintenance and Storage.
•Electric Shock Hazard: To prevent electric shock, do not open the
console. Do not attempt to service the console yourself. All
maintenance tasks should be performed only by Mueller trained and
authorized service personnel. Service by unauthorized personnel shall
void any warranty.
•Stop using the system if there is any change in Revive M2 system
performance.
•Do not modify any part of the Revive M2 system.
•The equipment should not be used adjacent to or stacked with other
equipment. In case adjacent or stacked use is necessary, the
equipment should be observed to verify normal operation in the
configuration in which it is used.
•The Revive M2 system includes small parts that could cause choking in
children. Keep away from children and pets.
!
!

Revive M2 Model 760R Mueller Sports Medicine User Manual
2 L98107R0-G
Caution:
•Do not operate the Revive M2 system during transit.
•Do not store or transport the Revive M2 system beyond the specified
temperature, humidity, and atmospheric pressure range
(see Chapter 8 - Maintenance and Storage).
•Do not use the Revive M2 system beyond the specified temperature
range: 10 to 30°C (50 to 86°F).
•Do not use the Revive M2 system beyond the specified humidity range:
30%rH–75%rH, non-condensing.
•Use the Revive M2 system up to 3000m above mean sea level.
•To prevent any damage to the Revive M2 system, keep it away from
dust, lint, and dirt. Keep away from sources of heat or moisture.
•Do not inflate the garment without wearing it over the intended body
area. Doing so can damage the garment.
•To prevent any damage to equipment, use only accessories,
detachable parts, and materials described in this User Manual.
•While in use, place the console on horizontal firm surface only.
Do not place the console on bed, blanket, mattress, pillow, or soft
furniture. Do not cover the console.
•The equipment is to be installed and put into service according to the
EMC information provided in Chapter 0 - Distributor in the USA
Mueller Sport Medicine, inc.
One Quench Drive
Prairie du Sac, WI 53578
[phone], [phone]
www.muellersportsmed.com
•EMC Manufacturer Declarations.
•Portable and mobile RF communication equipment might affect the
equipment.

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 3
2. Revive M2 Specifications and Dimensions
Model: 760R, appliance coupler, transportable, rated: 100-240 VAC, 50-60 Hz
Type of protection against electric shock
Class II
Degree of protection against electric
shock
Type BF
Degree of protection against ingress of
water
IP21
Degree of safety of application in the
presence of a flammable anesthetic
mixture with air or with oxygen or nitrous
oxide
Equipment not suitable for use in the
presence of a flammable anesthetic mixture
with air or with oxygen or nitrous oxide
Mode of operation
Continuous
Treatment duration
15, 30, 45, 60 minutes, or continuous
Environmental Conditions
Normal: 10–30°C, 30–75% rH, 70–106 kPa
Pressure Range
20 mmHg to 100 mmHg
Size
21 cm × 20 cm × 9 cm (8.2" × 7.8" × 3.5")
Weight
1.0 kg (2.2 lbs.)

Revive M2 Model 760R Mueller Sports Medicine User Manual
4 L98107R0-G
3. Labels
The following labels and symbols appear on the console, garments and/or packaging.
Label
Description
Location
IP21
Degree of protection against ingress of water
On Console base
Read instructions before use
On console base
Read instructions before use (for China only)
On console base
Class III Equipment
(only in the EU per IEC-60335-2-32)
Equipment relying on limitation of voltage to
extra-low-voltage (ELV) values as provision for
basic protection and with no provision for fault
protection.
On console base
(only in the EU)
Read instructions before use
On garment label
Level of protection type BF applied part
On console base
Double insulation
On DC power adapter
Direct current
On console base
Manufacturer's name and address
On garment label and
on console base
Date of Manufacture
On console base
Unique Device Identification (UDI)
On console base and
package, and garment
bag and package
Separate collection for waste electrical and
electronic equipment
On console base
In accordance with Directive 2014/35/EU
electrical equipment designed for use within
certain voltage limits, and Directive 2014/30/EU
electromagnetic compatibility
On console
Serial number of the Console
On console base

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 5
Label
Description
Location
Fragile, handle with care
On package
Keep dry
On package and
console base
This side Up
On package
Keep away from sunlight
On package
Transportation & storage humidity limitation
On package
Transportation & storage atmospheric pressure
limitation
On package
Transportation & storage temperature limitation
On package
"ON" (power)
On power switch
"OFF" (power)
On power switch
Do not wash
On garment tag
Do not dry clean
On garment tag
Do not tumble dry
On garment tag
Do not bleach
On garment tag
Do not iron
On garment tag

Revive M2 Model 760R Mueller Sports Medicine User Manual
6 L98107R0-G
4. Indications for Use
Revive M2 is indicated for the temporary relief of minor muscle aches and
pains, and for temporary increase in circulation to the treated areas in people
who are in good health.
Revive M2 simulates kneading and stroking of tissues by using an inflatable
garment.
5. About Revive M2
Revive M2 is intended for use by people in good health.
Revive M2 simulates the kneading and stroking action of manual massage by use
of an inflatable garment that fills and deflates, applying a directional compress-
and-release treatment. This soothing action temporarily increases circulation in the
areas to which the garment is applied, and temporarily relieves muscle aches and
pain caused by fatigue or overexertion.
The Revive M2 Treatment Cycle
The Revive M2 Console takes air from the room environment and sends it
through hoses into individual air chambers inside the Revive M2 garment(s).
Then the console deflates the air from the garments, there is a brief pause, and
the cycle repeats.
The air chambers inside the Revive M2 garment are specially designed to
overlap each other for fluent and comfortable massage without gaps. The
Revive M2 Console can operate one or two garments simultaneously.
The treatment applied by Revive M2 starts at the base of the limb, progresses
towards the torso, and then ends (see Figure 1).
You can adjust the pressure level for your comfort.
Figure 1 - The Treatment Sequence

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 7
6. Components of the Revive M2 System
The Revive M2 Console
(See Figure 2)
The console takes air from the room environment and sends it to individual air
chambers in the garment(s).
The Revive M2 Console is powered by either a DC power adapter or by a
rechargeable battery inside the console. The battery can be charged while the
console is plugged in and operating.
Note:
•Turn On the Power Switch to enable charging the battery.
•Turn Off the Power Switch to conserve battery power when not
charging or not using the console.
The following table illustrates the battery power capacity displayed by the
battery status indicators.
Battery Status
Displayed Icon
Available Power
Constant bars
100%
Constant bars
75%
Constant bars
50%
Constant bar
25%
Blinking bar
Almost empty
No bars
Empty
Blocker Plug
(See Figure 3)
If you use only one garment, insert this plug into the unused air outlet on the
front of the Revive M2 Console, to seal it and prevent air from escaping.
DC Power Adapter
(See Figure 4)
The DC Power Adapter receives 100-240 VAC, 50-60 Hz AC power and
supplies 12 VDC 3A to the console.
Caution:
•For indoor use only.
•Use only the DC power adapter provided with the console.

Revive M2 Model 760R Mueller Sports Medicine User Manual
8 L98107R0-G
Battery Pack
(See Figure 5)
•The console can operate on battery power for up to eight (8) hours when the
battery is fully charged.
•Battery may be charged during normal operation of the console.
•Battery charging time is up to 8 hours.
•Expected service life of battery is two (2) years.
•Replacing the battery is advisable after two years.

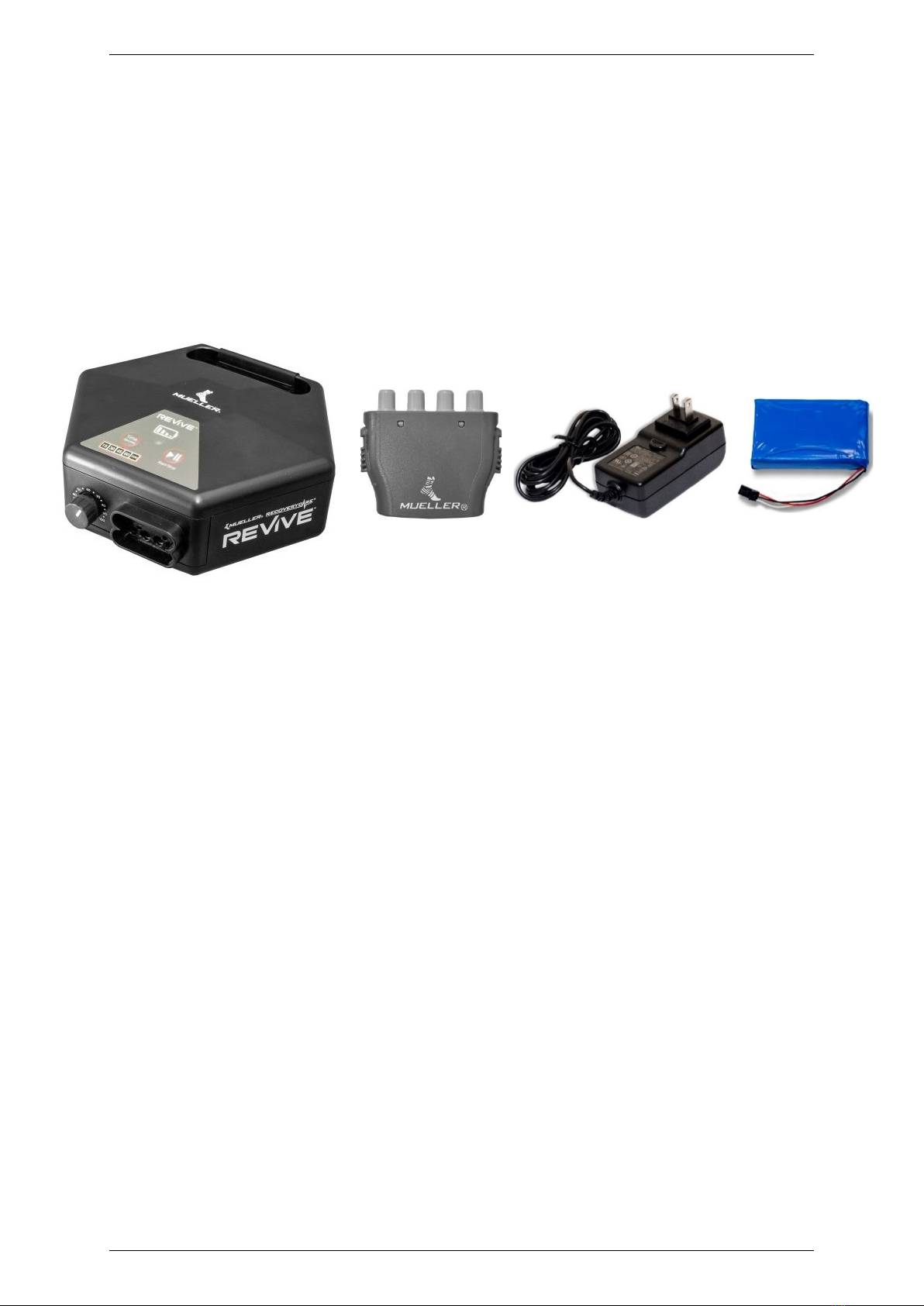

Figure 2 - Revive M2 Console
Figure 3 - Blocker
Plug
Figure 4 - DC Power Adapter
Figure 5 - Battery
Pack

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 9
Treatment Garments
(See Figure 6, Figure 7 and Figure 8)
A variety of garments are available. Leg garments are available in several sizes.
REVIVE™is adjustable.
Figure 6 –Revive Full Leg Boots
Figure 7 –Revive Arm Sleeve
Figure 8 –Revive Calf Boots

Revive M2 Model 760R Mueller Sports Medicine User Manual
10 L98107R0-G
7. How to Operate the Revive M2 System
Following is a description of the Revive M2 Console operating panel and controls
(see Figure 9). Read this section before operating the console for the first time.
Figure 9 - The Revive M2 Console Operating Panel
The console Controls
Table 1 - Console Controls
Control
Function
Time button: Used to set treatment time (15, 30, 45, 60 min, or con)
Time Indicators: Indication of set time (15, 30, 45, 60 min, or con)
Start/Stop button: Used to start or stop treatment
Battery Status Indicators: displays battery power level
Status Indicator:
•White - power is On. Treatment has not started
•Green - treatment in progress
•Orange - indicates malfunction (see Chapter 9 - Troubleshooting)
Pressure Knob: Used to set treatment pressure (20-100 mmHg)
After setting the pressure, the Pressure Knob is locked
Power Switch: Used to turn On/Off the console (located at back of console,
on the left side)
DC Adapter Socket: Used for connecting DC power adapter (located at back
of console, on the right side)
Start/Stop Button
Time Button
Time Indicators
Battery Status
Status Indicator

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 11
Step 1: Set up the Revive M2 Console
Caution:
When the system has been stored in extreme temperature conditions
of <-20°C (-4°F) or >70°C (158°F) between uses, wait for two (2) hours
before using the system.
a. Place the console on a flat stable surface from where it will not slip or fall.
Make sure the front of the console is at least six inches from the edge of the
surface.
b. Position the console so that you can easily reach the controls during treatment.
c. Select the plug suitable for your country and insert it onto the pins on the
DC power adapter backside (see figure below).
To replace the plug, press and hold the Open button under the plug while
pulling out the plug (see figures below).
d. Insert the DC power adapter cable into the DC adapter socket on the console,
and then insert the DC adapter into an appropriate 100-240 Volt wall outlet.
Note:
The console is "multi-voltage" and can be used for travel.
An appropriate socket adapter must be used in countries with
incompatible wall outlets.

Revive M2 Model 760R Mueller Sports Medicine User Manual
12 L98107R0-G
Step 2: Prepare for Treatment
•Always wear light clothing underneath the garment, for hygienic reasons, to
avoid irritation and to absorb perspiration.
•Do not wear the garment directly over bare skin.
•Make sure clothing is unrestrictive, absorbent, and free of zippers, buttons,
or other items that can rub and chafe under the treatment.
•We recommend wearing cotton clothes, such as sweatpants or leggings along
with cotton socks underneath the Revive Full Leg Boot and Revive Calf Boot,
and a long sleeve T-shirt under the Revive Arm Sleeve.
•Remove any jewelry or wristwatches, etc. that would be covered by the garment.
Step 3: Put on the Garment
Caution:
•Do not inflate the garment without wearing it over the intended body area
("on empty") or with open zippers. Doing so can damage the garment.
•Do not apply excessive force to the garment straps. Do not use the straps for
any purpose other than intended by the manufacturer.
Use of excessive force and/or misuse shall void the manufacturer's warranty.
Revive Full Leg Boot and Revive Calf Boot Garments
a. Zip the garment closed at least part of the way up before inserting your leg.
b. Insert your foot into the garment (see Figure 10). Pull the top of the garment
towards your torso, extending the garment to its maximum length.
c. Close the zipper all the way up.
d. Repeat for other leg, if desired.
Revive Full Leg Boot and Revive Calf Boot garments are designed to fit on
either the right or left leg.
Caution:
Do not stand or walk while wearing the garment!
Put on the garment while in a seated position and remove it before rising
from the treatment position.
Figure 10 - Putting on the Revive Full Leg Boot or Revive Calf Boot

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 13
Revive Arm Sleeve
a. Insert the arm into the garment.
b. Pull the garment over the shoulder to cover it.
c. Wrap the fastening strap around the body, under the untreated arm.
Fasten the strap and adjust the buckle for a comfortable fit.
The Revive Arm Sleeve is designed to fit on either the right or the left arm.
Caution:
Do not stand or walk while wearing the garment!
Put on the garment while in a seated position and remove it before rising
from the treatment position.
All Garments
Make sure the garment does not fit too tightly by inserting three fingers into
the garment when it is zipped closed before inflation.
If the garment is too tight, you need a larger size. Contact Mueller Sports
Medicine.
Make sure the garment is zipped completely closed before turning on the
Power Switch, and leave it closed for the duration of the treatment.
At the end of the treatment, the garment is deflated within a short time,
allowing it to be removed easily. You should be able to slip the garment off
and pull it on again for each use without completely unzipping the garment.
Note:
Use only REVIVE™ garments with the Revive M2 Console.

Revive M2 Model 760R Mueller Sports Medicine User Manual
14 L98107R0-G
Step 4: Connect the Garment Hose Bundle to the console
Note:
Hold the console handle with one hand while connecting or disconnecting
the hose bundle with your other hand.
a. Securely insert the garment hose bundle connectors, with the logo facing up,
into the air socket on the console (see Figure 11).
b. Make sure the air hoses are not bent, kinked, or pinched.
Figure 11 - Connecting the Garment Hose Bundle to the console
Note:
When only one Arm Sleeve, Full Leg Boot, or Calf Boot garment is used,
plug the unused outlet using the Blocker Plug (see Figure 12) to prevent
air from escaping. Otherwise, the console stops working and the alarm
beeps.
Figure 12 - Inserting the Blocker Plug to Block the Unused Air Outlet for Single Garment
Use
Insert Blocker Plug
into unused air outlet

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 15
Step 5: Set Treatment Pressure and Time
a. Press and hold the Pressure Knob while setting the pressure to the desired
pressure. Once setting the pressure, the Pressure Knob is locked.
b. Press the Time button to set treatment time.
Note:
•The minimum pressure setting is 20 mmHg.
The maximum pressure setting is 100 mmHg.
•The minimum treatment time setting is 15 minutes.
The maximum treatment time setting is 60 minutes.
•Setting the treatment time to con continues the treatment until the
Start/Stop button is pressed or the Power Switch is turned off.
Guidelines for Selecting Pressure
Changing the pressure level alters the treatment intensity by increasing the
amount of air inflating each air chamber.
Lower pressure setting applies lighter treatment, and higher-pressure setting
applies more intense treatment (see Table 2 as a guide for pressure selection).
If the treatment is too intense, decrease the pressure.
Table 2 - Pressure Selection for Arm Sleeve, Full Leg Boot and Calf Boot
Treatment
Intensity
Pressure Setting (mmHg)
Light
20–35
Medium
40–65
Intense
70–100
Step 6: Select Hold Time
At the end of each inflation cycle, the console holds the air pressure for a few
seconds before releasing the air, pausing, and then continuing to the next cycle
(the Hold Time).
You can set the duration of the Hold Time for your comfort and to alter the
treatment pace (see Table 3).
Table 3 - Setting Hold Time
Hold Time
Action
Alarm Beeps
Short
Press and hold the Time button for 3 seconds.
One beep
Medium
Release and press and hold the Time button for 3
more seconds.
Two beeps
Long
Release and press and hold the Time button for 3
more seconds.
Three beeps

Revive M2 Model 760R Mueller Sports Medicine User Manual
16 L98107R0-G
Step 7: Start the Treatment
Now you are ready to operate the console and begin your treatment.
Note:
Hold the console handle with one hand while turning On/Off the
Power Switch with your other hand.
a. Ensure that the hose is securely attached to the console.
b. Verify that the Power Switch at the back of the console is in the Off position.
c. Connect the DC power adapter cable into the DC adapter socket (located at
back of console, on the right side).
d. Insert the DC adapter into an appropriate 100-240 Volt wall outlet.
e. Get into a comfortable seated, reclining, or lying position from where you can
easily reach the console controls.
f. Put on the garment, following the directions in Step 3: Put on the Garment.
g. Turn On the Power Switch.
h. Press the Start/Stop button.
Treatment begins.
Note:
At the start of treatment, the garment may take several inflation cycles to fill
completely, as the garment must be filled from a completely empty state.
i. Wait for a few cycles to become accustomed to the treatment sensations.
Note that the first inflation cycle may take a longer time to fill, especially if
you are using two garments.
You can adjust the time, pressure, and hold time during treatment.
Using Revive M2 for a relaxing and invigorating treatment before you exercise,
increases circulation and can help to get you into the workout more quickly.
Suggested treatment time is 15 to 30 minutes before your workout.
Alternatively, use Revive M2 for a relaxing treatment at the end of the day, or
after exercise, to relax and soothe tired, aching muscles.
Generally, we recommend using Revive M2 30–45 minutes after workout or in
the evening after finishing your daily activities.
Caution:
The treatment sensation should be pleasant and comfortable.
If you experience pain or discomfort during or after the treatment or if
there is onset of bruising or irritation during or after the treatment,
discontinue use and consult your physician.

Revive M2 Model 760R Mueller Sports Medicine User Manual
L98107R0-G 17
Step 8: End, Stop, Restart, Pause, or Resume the
Treatment
When the treatment time is complete, the treatment stops.
•To stop the treatment at any time, press the Start/Stop button.
•To pause the treatment without resetting the time, press and hold the
Start/Stop button for 3 seconds.
•To restart treatment, press the Start/Stop button again (see Table 4).
Table 4 - Stop, Restart, Pause, or Resume the Treatment
Treatment Operation
Action
Stop
Press the Start/Stop button.
Restart from the beginning of the selected time
Press the Start/Stop button again.
Pause
Press the Start/Stop button for 3 seconds.
Resume without resetting the time
Press the Start/Stop button again.
a. At the end of the treatment, turn Off the Power Switch.
b. Wait up to 30 seconds to allow the garment to deflate before you remove it.
Note:
When immediate garment deflation is necessary, disconnect the garment
hose bundle from the console to immediately deflate the air pressure in
the garment.

Revive M2 Model 760R Mueller Sports Medicine User Manual
18 L98107R0-G
8. Maintenance and Storage
Cleaning the console
Caution:
Disconnect the console from electrical outlet before cleaning.
Let it dry completely before reconnecting it to the electrical outlet.
•Wipe clean using a slightly damp cloth.
•Do not allow any moisture or liquids to enter the console!
Cleaning the Garments
a. Never submerge the garments in liquid. They are cleanable by surface wiping only.
b. Gently wipe the external and internal surfaces of the garment using a soft cloth,
warm water not exceeding 100°F (40°C), and mild detergent.
Do not submerge in liquid!
Do not allow liquid to enter the air inlets of the garment!
c. To remove any detergent residue, wipe with clear water, again taking care
that water does not enter the air inlets of the garment.
d. Wipe dry using a soft towel only.
e. When dry, the external and internal surfaces of the garment may be wiped
with 70% alcohol or with appropriate alcohol-based fabric-safe disinfectant
according to the manufacturer's recommendations.
When using alcohol-based cleaners, work in a well-ventilated area.
f. Allow the garment to air dry completely before use.
Wear gloves when cleaning garments and wash hands after cleaning.
As with any fabric garment, some fading of the printing and fabric may occur
over time. This does not affect garment performance. Store away from direct
sunlight to prevent fading, avoid scrubbing the printed areas, and do not spill
excessive amounts of alcohol directly on the garment.
Contact your local distributor if you have questions about cleaning the console
or the garments.
Caution:
•Do not hand or machine wash. Surface wipe only!
•Do not allow liquid to get into the air inlets.
•Do not use bleach.
•Do not dry clean.
•Do not wring, iron, tumble, or force heat dry.
