Model Numbers
AD1314 . . . . . . . . . . . . . . . . . . . . . .Environmental Camera Housing
AD1314-HB24* . . . . . . . . . . . . . . .Environmental Camera Housing 24 VAC
heater and blower installed
RTHOUTDR* . . . . . . . . . . . . . . . .Environmental Camera Housing with wall
mount and 24 VAC heater and blower
installed
* This housing must be powered by a Class II source. This housing is to be used with a
camera that meets Class II requirements.
Mechanical
Construction
Housing . . . . . . . . . . . . . . . . . . .Magnum®941 Polymer
Viewing Window . . . . . . . . . . .4.8 mm (0.19 in) Lexan®
Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray
Finish . . . . . . . . . . . . . . . . . . . . . . . .Epoxy
Dimensions (H x W x D) . . . . . . .141 x 158 x 449 mm
(5.56 x 6.2 x 17.68 in)
Unit Weight
Without Sunshield . . . . . . . . . .1.8 kg (4.0 lbs)
Shipping Weight . . . . . . . . . . . .2.4 kg (3.3 lbs)
With Sunshield . . . . . . . . . . . . .3.2 kg (7.0 lbs)
Shipping Weight . . . . . . . . . . . .3.8 kg (8.4 lbs)
Cable Entry . . . . . . . . . . . . . . . . . . .Via cable pass mount
Maximum Camera/
Lens Length . . . . . . . . . . . . . . . . . .304.8 mm (12 in)
Heater
Type . . . . . . . . . . . . . . . . . . . . . . .Thermostatically controlled pad heater
Supply Voltage . . . . . . . . . . . . .24 VAC
Power . . . . . . . . . . . . . . . . . . . . . .0.63 A
Weight . . . . . . . . . . . . . . . . . . . . .68 g (0.15 lbs)
Environmental
Weatherproof Standard . . . . . . . .IP4 (NEMA-3R)
Operating Temperature . . . . . . . .-23˚ to 43˚ C (-10˚ to 110˚ F) with heater
and blower 85% (non-condensing)
Accessories
AD1314-SS . . . . . . . . . . . . . . . . . . .Sunshield
AD1314-H24 . . . . . . . . . . . . . . . . .24 VAC heater
AD1314-B24 . . . . . . . . . . . . . . . . . .24 VAC blower
Recommended Housing Mounts
ADCHMTCEIL . . . . . . . . . . . . . . .Ceiling mount 9.6 kg (20 lbs) capacity
ADCHMTWALL . . . . . . . . . . . . . .Wall mount 9.6 kg (20 lbs) capacity
ADCHMTPOLE . . . . . . . . . . . . . .Pole mount 9.6 kg (20 lbs) capacity
ADCHMTCRNR . . . . . . . . . . . . . .Corner mount 9.6 kg (20 lbs) capacity
ADCHMTPED . . . . . . . . . . . . . . . .Pedestal mount 9.6 kg (20 lbs) capacity
Regulatory
Safety . . . . . . . . . . . . . . . . . . . . . . . .UL2044
AMERICAN DYNAMICS ENVIRONMENTAL CAMERA HOUSING
VS265-02 11/03 L
©2003 Sensormatic Electronics Corporation
Product specifications and availability subject to change without notice.
Certain product names mentioned herein may be trade names and/or
registered trademarks of other companies.

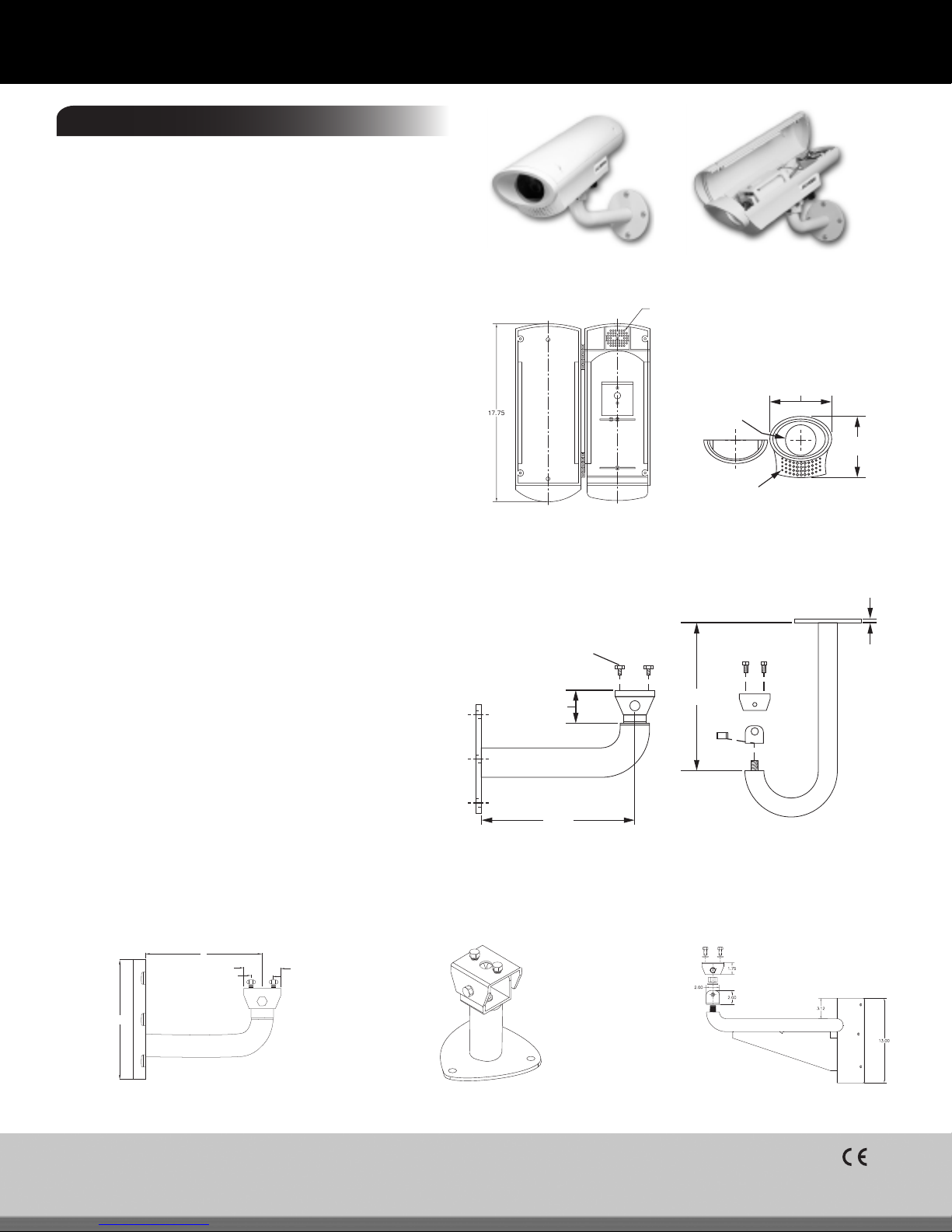

Housing with Sunshield Housing in open position
158 mm
(6 7/32 in)
76 mm (3 in)
Window
Opening
Air Exhaust
141 mm
(5 9/16 in)
1/4 in - 20 x 1/2 in
Bolts (2)
41 mm
(1 5/8 in)
203 mm
(8 in)
6.3 mm
(1/4 in)
304 mm
(12 in)
Air Intake
Housing
Mounts
Pole Mount Side View
ADCHMTPOLE
Pedestal Mount Side View
ADCHMTPED
Corner Mount Side View
ADCHMTCRNR
Wall Mount Side View
ADCHMTWALL
Ceiling Mount Side View
ADCHMTCEIL
